[en] Instructions for installation and use Extractor hood
Table of contents
[en]I n st r u ct i ons f or i ns t all at i on and useExt r ac t or hood
en
INSTRUCTION MANUAL ..........................................................3
8 Intended use ......................................................... 3
( Important safety information .............................. 4
7 Environmental protection.................................... 6
Ç Operating modes.................................................. 6
1 Operating the appliance ...................................... 7
2 Cleaning and maintenance................................ 10
INSTRUCTION MANUAL
3 Trouble shooting................................................ 12
4 Customer service ............................................... 13
INSTALLATION INSTRUCTIONS...........................................14
( Important safety information ............................ 14
K General information ........................................... 16
5 Installation .......................................................... 17
Produktinfo
Additional information on products, accessories, replacement parts and services can be found at
www.bosch-home.com and in the online shop www.bosch-eshop.com
8Intended use
I nt ended use
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their safety, or have been instructed in how to use the appliance safely and have understood the risks involved in not using it properly.
Children must not play with the appliance.Cleaning and user maintenance must not be performed by children unless they are over 15 years of age and are supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
This appliance is not intended for operation with an external clock timer or a remote control.
3
en Important safety information
(Important safety
information
Impor t ant s af et y i nf or mat i on
:Warning – Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
:Warning – Danger of death!
Risk of poisoning from flue gases that are drawn back in. Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air­dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal­operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.
Adequate incoming air must therefore
always be ensured.
An incoming/exhaust air wall box alone will
not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat­producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
:Warning – Risk of fire!
Fatty deposits in the grease filter may catch
fire. Regularly clean the grease filter. Never operate the appliance without a grease filter.
Risk of fire!
Grease deposits in the grease filter may
catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat­producing appliance for solid fuel (e.g. wood or coal) unless a closed, non­removable cover is available. There must be no flying sparks.
Risk of fire!
Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
When gas burners are in operation without
any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
Risk of fire!
Operating several gas burners at the same
time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer than 15 minutes. One large burner of more than 5 kW (wok) is equivalent to the power of two gas burners.
:Warning – Risk of burns!
The accessible parts become very hot when
in operation. Never touch hot parts. Keep children at a safe distance.
Risk of burns!
The appliance becomes hot during
operation. Allow the appliance to cool down before cleaning.
4
Important safety information en
:Warning – Risk of injury!
Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
Items placed on the appliance may fall
down. Do not place any objects on the appliance.
Risk of injury!
The light emitted by LED lights is very
dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
:Warning – Risk of electric shock!
A defective appliance may cause electric
shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
Incorrect repairs are dangerous. Repairs
may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after­sales service.
Risk of electric shock!
Do not use any high-pressure cleaners or
steam cleaners, which can result in an electric shock.
Risk of electric shock!
Penetrating moisture may result in an
electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage.
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
Risk of damage as a result of incorrect loading of design elements. Do not pull design elements.Do not place objects on the design elements or hang objects from them.
Caution!
There is a risk of surface damage if you do not peel off the protective film.Remove the protective film from all parts of the appliance before using the appliance for the first time.
5
en Environmental protection
7Environmental protection
Envi r onmental pr ot ect i on
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
Saving energy
During cooking, ensure that there is a sufficient
supply of air to enable the extractor hood to work efficiently and with a low level of operating noise.
Adjust the fan speed to the amount of steam
produced during cooking. Only use intensive mode when required. The lower the fan speed, the less energy is consumed.
If cooking produces large amounts of steam, select
a higher fan speed in good time. If the cooking steam has already spread around the kitchen, the extractor hood will need to be operated for longer.
Switch off the extractor hood if you no longer require
it.
Switch off the lighting if you no longer require it.
Clean and (if required) replace the filter at regular
intervals in order to increase the effectiveness of the ventilation system and to prevent the risk of fire.
Put the lid on to reduce cooking steam and
condensation.
ÇOperating modes
Operat i ng modes
Exhaust air mode
The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances.
Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment ­WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Note: To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.
6
Operating the appliance en
1Operating the appliance
Operat i ng t he appl i ance
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Control panel model 1
Symbol Explanation
# Fan on/off
1-3 Fan settings
C Intensive mode 1
D Intensive mode 2
y Fan run-on
# Metal grease filter/activated charcoal filter saturation
indicator
B Light on/off/dimming
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.
Fan run-on time
Switching on
Touch the y symbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself off automatically.
Switching off
Touch the y symbol.
This immediately stops fan run-on.
Setting the fan
Switching on
Touch the # symbol.
The fan starts at fan setting 2.
Selecting the fan setting
Touch symbol 1, 2 or 3 to set a different fan setting.
Switching off
Touch the # symbol.
Intensive setting
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
Switching on
Touch the C or D symbol.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset time expires, touch the symbol for the required fan setting.
Lighting
The lighting can be switched on and off independently of the fan.
Touch the B symbol.
Setting the brightness
Press and hold the B symbol until the required brightness is reached.
7
en Operating the appliance
Saturation display
If the metal grease filters or the activated charcoal filter are/is saturated, the corresponding symbols flashes after the appliance is switched off:
Metal grease filters: # and 1
Activated charcoal filter: # and 2
Metal grease filter and activated charcoal filter: #,
1 and 2
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 10
Note: The saturation indicator does not apply for non-
renewable activated charcoal filters that are inserted downstream of the metal grease filter. These activated charcoal filters must be replaced twice a year.
The saturation indicators can be reset while they are flashing. To do this, touch the # symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must be switched over accordingly:
The extractor hood must be connected and switched
off.
Touch and hold the D symbol. Touch the "2"
symbol.Take your finger off the D symbol. This will switch the electronic controller over to air recirculation mode (filters that cannot be regenerated).
Touch and hold the D symbol. Touch the "3"
symbol.Take your finger off the D symbol. This will switch the electronic controller over to air recirculation mode (filters that can be regenerated).
Repeatedly touching and holding the D symbol
and touching the "1" symbol switches the electronic controller back over to air extraction mode.
Audible signal
Switching on
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
Switching off
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
8
Control panel model 2
Operating the appliance en
Symbol Explanation
# Fan on/off
1-3 Fan settings
C Intensive mode 1
D Intensive mode 2
y Fan run-on
> Automatic mode
E Metal grease filter saturation indicator
F Activated charcoal filter saturation indicator
B Light on/off/dimming
Setting the fan
Switching on
Touch the # symbol.
The fan starts at fan setting 2.
Selecting the fan setting
Touch symbol 1, 2 or 3 to set a different fan setting.
Switching off
Touch the # symbol.
Intensive setting
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
Switching on
Touch the C or D symbol.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset time expires, touch the symbol for the required fan setting.
Switching off
Touch the y symbol.
This immediately stops fan run-on.
Automatic mode
Switching on
1. Touch the # symbol.
The fan will start at setting 2.
2. Touch the > symbol.
The optimum fan setting is set automatically using the PerfectAir sensor.
Switching off
Touch # or any fan setting to switch off automatic mode.
The fan switches itself off automatically if the PerfectAir sensor detects no further change in the air quality in the room.
Automatic mode can run for a maximum of 4 hours.
Sensor control
In automatic mode, the PerfectAir sensor in the extractor hood detects the intensity of the cooking and roasting odours. Depending on the setting of the PerfectAir sensor, the fan automatically switches itself to another fan setting.
Possible sensor settings: Default sensitivity setting: (fan setting 3) Lowest sensitivity setting: (fan setting 1) Highest sensitivity setting: (fan setting D)
If the sensor controller responds too strongly or not enough, it can be changed accordingly:
1. Touch and hold the > symbol when the fan is
switched off. The setting will be displayed.
2. The sensor controller setting can be changed by
touching symbols 1, 2, 3, C or D.
3. Take your finger off the > symbol.
Fan run-on time
Switching on
Touch the y symbol.
The fan will run at fan setting 1.
After approximately 10 minutes, the fan will switch itself off automatically.
9
en Cleaning and maintenance
Lighting
The lighting can be switched on and off independently of the fan.
Touch the B symbol.
Setting the brightness
Press and hold the B symbol until the required brightness is reached.
Saturation display
If the metal grease filters or the activated charcoal filter are/is saturated, the corresponding symbols flashes after the appliance is switched off:
Metal grease filters: E
Activated charcoal filter: F
Metal grease filters and activated charcoal filter: E
and F
If you have not yet done so, the metal grease filters should now be cleaned or the activated charcoal filter replaced. ~ "Cleaning and maintenance" on page 10
Note: The saturation indicator does not apply for non-
renewable activated charcoal filters that are inserted downstream of the metal grease filter. These activated charcoal filters must be replaced twice a year.
The saturation indicators can be reset while they are flashing. To do this, touch the appropriate symbol.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller must be switched over accordingly:
The extractor hood must be connected and switched
off.
Touch and hold the D symbol. Touch the "2"
symbol.Take your finger off the D symbol. This will switch the electronic controller over to air recirculation mode (filters that cannot be regenerated).
Touch and hold the D symbol. Touch the "3"
symbol.Take your finger off the D symbol. This will switch the electronic controller over to air recirculation mode (filters that can be regenerated).
Repeatedly touching and holding the D symbol
and touching the "1" symbol switches the electronic controller back over to air extraction mode.
2Cleaning and maintenance
Cleani ng and mai nt enance
:Warning – Risk of burns!
The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
:Warning
Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning – Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
Caution!
There is a risk of surface damage if you do not peel off the protective film.Remove the protective film from all parts of the appliance before using the appliance for the first time.
Cleaning agents
To ensure that the different surfaces are not damaged by using the wrong cleaning product, follow the instructions in the table. Do not use any of the following:
Harsh or abrasive cleaning agents, e.g. scouring
powder or liquid scouring cleaner,
Cleaning products with a high alcohol content,
Hard scouring pads or cleaning sponges,
Pressure washers or steam cleaners,
Cleaning products that dissolve limescale,
Aggressive all-purpose cleaning products,
Oven spray.
Note: Wash new sponge cloths thoroughly before use.
Note: Follow all instructions and warnings included with
the cleaning products.
Audible signal
Switching on
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
Switching off
Touch and hold the # and y symbols at the same time for approximately 3 seconds when the fan is switched off. An audible signal will sound as an acknowledgement.
10
Cleaning and maintenance en
Area Cleaning products
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a soft cloth.
Clean stainless steel surfaces in the direction of the grain only.
Special stainless steel cleaning products are available from our after-sales service or from specialist retailers.Apply a very thin layer of the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and then dry with a soft cloth.
Do not use stainless steel cleaner.
Aluminium and plastic Hot soapy water:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and then dry with a soft cloth.
Risk of electric shock caused by penetrating moisture.
Risk of damage to the electronics caused by penetrating moisture. Never clean controls with a wet cloth.
Do not use stainless steel cleaner.
--------
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
:Warning – Risk of fire!
Fatty deposits in the grease filter may catch fire. Regularly clean the grease filter. Never operate the appliance without a grease filter.
Notes
Do not use aggressive, acidic or alkaline cleaning
products.
We recommend cleaning the grease filters every 2
months.
When cleaning the metal grease filters, also clean
the metal grease filter holder in the appliance using a damp cloth.
The metal grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special degreaser to remove
stubborn dirt. This can be ordered from the online shop.
Soak the metal grease filters in hot soapy water.
Clean the filters with a brush and then rinse them
thoroughly.
Leave the metal grease filters to drain on an
absorbent material.
In the dishwasher:
Removing metal grease filter
1. Open the lock and swing down the metal grease
filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
2. Take the metal grease filter out of the holder.
Notes
– Fat may accumulate in the bottom of the metal
grease filter.
– Hold the metal grease filter level to prevent fat
from dripping out.
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This discolouration has no effect on the performance of the metal grease filters.
Use normal domestic dishwashing detergents.
Do not clean heavily soiled metal grease filters
together with cookware.
Place the metal grease filters in the dishwasher,
leaving plenty of space around them. Do not trap the metal grease filters.
Select a temperature of no more than 70 °C.
11
en Trouble shooting
Installing the metal mesh grease filter
:Warning – Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
Note: Clean all accessible parts of the housing.
1. Insert the metal grease filter and lock it in place.
When you do this, take hold of the metal grease filter from underneath with your other hand.
Note: Make sure that the metal grease filter is
positioned correctly.
2. If the metal grease filter has not been inserted
correctly, open the lock and reinsert the metal grease filter correctly.
3Trouble shooting
Troubl e shoot i ng
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Malfunction table
Problem Possible cause Solution
The appliance does not work
The lighting does not work.
The button illumi­nation does not work.
--------
The plug is not plugged in.
Power cut Check whether other kitchen
Faulty fuse Check in the fuse box to make
The LED lights are defective.
The control unit is faulty.
Connect the appliance to the electricity supply
appliances are working
sure that the fuse for the appliance is OK
Call the after-sales service.
Call the aftersales service.
LED lights
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
:Warning – Risk of injury!
The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
12
Customer service en
4Customer service
Customer servi ce
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
E no. FD no.
After-sales serviceO
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice GB 0344 892 8979
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 € per minute.
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
Accessories
(not included in the scope of delivery)
Note: These instructions apply to several appliance
models. It may be the case that an optional accessory that is listed does not apply for your appliance.
Note: Observe the installation instructions in the
accessory.
Accessory - narrow 260 mm Order number
Starter set for air recirculation mode Easy-change filter for starter set
CleanAir recirculation module Easy-change filter for CleanAir recirculation mod-
ule (cannot be regenerated)
Easy-change filter for CleanAir air recirculation module (can be regenerated)
--------
Accessory - wide 345 mm Order number
Starter set for air recirculation mode Easy-change filter for starter set
CleanAir recirculation module Easy-change filter for CleanAir recirculation mod-
ule (cannot be regenerated)
Easy-change filter for CleanAir air recirculation module (can be regenerated)
--------
DHZ5365 DHZ5326
DSZ6220 DSZ5201
DZZ0XX0P0
DHZ5385 DHZ5346
DSZ6230 DSZ5201
DZZ0XX0P0
13
en Installation instructions
INSTALLATION INSTRUCTIONS
I nst al l at i on i ns t r uct i ons
Installation instructions
HOHFWUR JD]
!
PP
!
PP
(Important safety
information
Impor t ant saf et y i nf or mati on
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
[ [
[
[
[
[[
[
[
This appliance is fitted to the kitchen ceiling or a
sturdy suspended ceiling.
Check the position of the screws using the enclosed
template.
Follow the enclosed installation instructions for
additional special accessories (e.g. for circulating-air mode).
The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
[
The surfaces of the appliance are easily damaged. Avoid damaging them during installation.

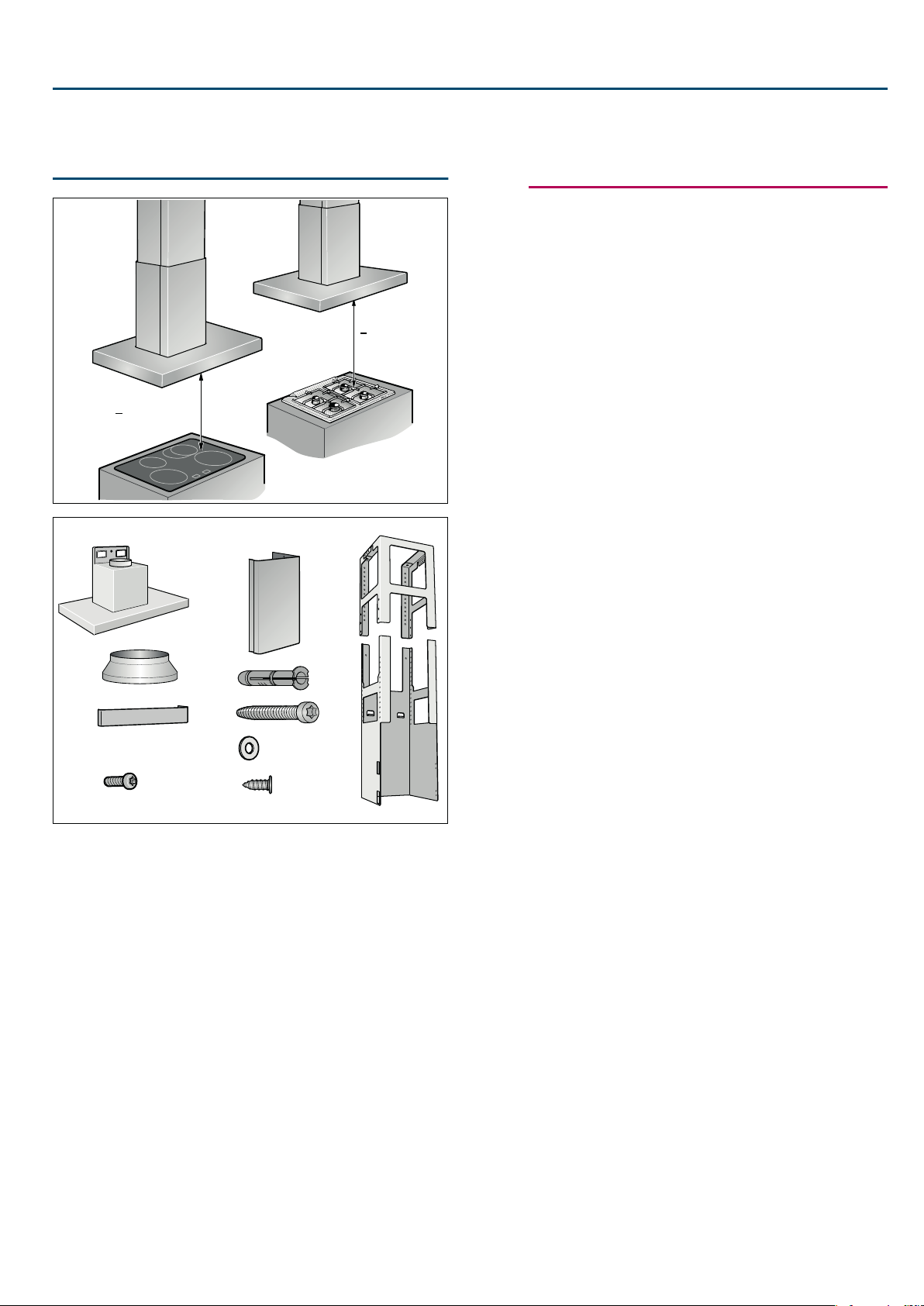

The width of the extractor hood must correspond at least with the width of the hob.
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
:Warning – Risk of fire!
Fatty deposits in the grease filter may catch
fire. The specified safety clearances must be complied with in order to prevent a build­up of heat. Refer to the information provided for your cooker. If gas and electric hobs are being operated together, the largest specified clearance applies.
Risk of fire!
Grease deposits in the grease filter may
catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat­producing appliance for solid fuel (e.g. wood or coal) unless a closed, non­removable cover is available. There must be no flying sparks.
14
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
:Warning – Risk of death!
Risk of poisoning from flue gases that are drawn back in. The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms that contain heating appliances. If the exhaust air is to be conveyed into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.
:Warning – Danger of death!
Risk of poisoning from flue gases that are drawn back in. Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air­dependent heat-producing appliance is being operated.
Important safety information en
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
:Warning – Danger of death!
Risk of poisoning from flue gases that are drawn back in. If installing a ventilation system in a room with a heat-producing appliance connected to a chimney/flue, the electricity supply to the hood must be equipped with a suitable safety switch.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal­operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.
Adequate incoming air must therefore
always be ensured.
An incoming/exhaust air wall box alone will
not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat­producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.
:Warning – Risk of injury!
Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
The appliance may fall down if it has not
been properly fastened in place. All fastening components must be fixed firmly and securely.
Risk of injury!
The appliance is heavy. To move the
appliance, 2 people are required. Use only suitable tools and equipment.
Risk of injury!
Changes to the electrical or mechanical
assembly are dangerous and may lead to malfunctions. Do not make any changes to the electrical or mechanical assembly.
15
en General information
:Warning – Risk of electric shock!
Components inside the appliance may have
sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
Risk of electric shock!
It must always be possible to disconnect
the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed. The mains plug of the mains power cable must be easily accessible after installation of the appliance. If this is not possible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the conditions of overvoltage category III and according to the installation regulations. The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.
:Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after­sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
:Warning – Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
KGeneral information
General i nf ormat i on
Exhaust air mode
:Warning – Risk of death!
Risk of poisoning from flue gases that are drawn back in. The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms that contain heating appliances. If the exhaust air is to be conveyed into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
Exhaust duct
Note: The device manufacturer does not assume any
warranty for complaints attributable to the pipe section.
The device achieves its optimum performance by
means of a short, straight exhaust air pipe and as large a pipe diameter as possible.
As a result of long rough exhaust air pipes, many
pipe bends or pipe diameters that are smaller than 150 mm, the optimum extraction performance is not achieved and fan noise is increased.
The pipes or hoses for laying the exhaust air line
must consist of non-combustible material.
Round pipes An inner diameter of 150 mm, but at least 120 mm, is recommended.
Flat ducts The inner cross-section must correspond to the diameter of the round pipes.
dia. 150 mm ca. 177 cm
dia. 120 mm ca. 113 cm
2
2
16
Flat ducts should not have any sharp deflections.
Use sealing strips for deviating pipe diameters.
Preparing the ceiling
The ceiling must be flat, horizontal and have
adequate load-bearing capacity.
The depth of the bore holes must be the same
length as the screws. The wall plugs must have a secure grip.
The enclosed screws and wall plugs are suitable for
solid brickwork. Suitable fasteners must be used for other structures (e.g. plasterboard, porous concrete, poroton bricks).
The max. weight of the extractor hood is 50 kg.
Installation en
Electrical connection
:Warning – Risk of electric shock!
Components inside the appliance may have sharp edges. These may damage the connecting cable. Do not kink or pinch the connecting cable during installation.
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference suppression regulations.
:Warning – Risk of electric shock!
It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed. The mains plug of the mains power cable must be easily accessible after installation of the appliance. If this is not possible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the conditions of overvoltage category III and according to the installation regulations. The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.
5Installation
I nst al l at i on
Fitting the upper support frame
1. Before fitting, determine the total height of the
support frame and mark the screw holes.
Note: The height of the support frame can be
adjusted in 20 mm intervals.
2. On the ceiling, mark the centre point of the
appliance.
3. Using the enclosed template, mark the positions for
the screws on the ceiling.
[
[
[
4. Drill four 8 mm diameter holes to a depth of 80 mm
for the fasteners and press in the wall plugs flush with the ceiling.
5. Fasten the upper part of the support frame to the
ceiling with 4 screws.
Note: Ensure that the support frame is in the correct
position. The middle bracket defines the preferred side and must be facing the hob control elements.
17
en Installation
Fitting the lower support frame
Fasten the upper and lower part of the support frame at the specified total height using 10 screws.
Notes
Ensure that the lower support frame is in the correct
position. The open side must be facing the hob control elements.
The support frame can be subsequently re-
positioned by loosening the securing screws.
([KDXVWDLU PP
&LUFXODWHGDLU PP
Fitting the appliance
1. Hook the appliance from below into the support
frame.
Note: Ensure that the mains cable is not trapped.
2. Fasten the appliance to the support frame using 2
securing screws.
[
[
3. Hook in the retaining clip and screw tight.
[
18
Installation en
Connecting the pipes
Note: If using an aluminium pipe, smooth the
connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe connector and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Seal both joints appropriately.
Attaching the flue duct
:Warning – Risk of injury!
Components inside the appliance may have sharp edges. Wear protective gloves.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both sides.
3. Place both parts of the upper flue on the appliance
and push together.
Note: The slots of the upper flue must point
downwards.
5. Insert both lower parts of the flue and push together.
4. Push up the upper flue part and secure with
2 screws.
19
5IBOLZPVGPSCVZJOHB #PTDI)PNF"QQMJBODF
5HJLVWHU\RXUQHZGHYLFHRQ0\%RVFKQRZDQGSURILWGLUHFWO\IURP
t&YQFSUUJQTUSJDLTGPSZPVSBQQMJBODF t8BSSBOUZFYUFOTJPOPQUJPOT t%JTDPVOUTGPSBDDFTTPSJFTTQBSFQBSUT t%JHJUBMNBOVBMBOEBMMBQQMJBODFEBUBBUIBOE t&BTZBDDFTTUP#PTDI)PNF"QQMJBODFT4FSWJDF
)UHHDQGHDV\UHJLVWUDWLRQ²DOVRRQPRELOHSKRQHV
XXXCPTDIIPNFDPNXFMDPNF
-PPLJOHGPSIFMQ :PV}MMGJOEJUIFSF
([SHUWDGYLFHIRU\RXU%RVFKKRPHDSSOLDQFHVQHHGKHOSZLWKSUREOHPV RUDUHSDLUIURP%RVFKH[SHUWV )LQGRXWHYHU\WKLQJDERXWWKHPDQ\ZD\V%RVFKFDQVXSSRUW\RX
XXXCPTDIIPNFDPNTFSWJDF $POUBDUEBUBPGBMMDPVOUSJFTBSFMJTUFEJOUIFBUUBDIFETFSWJDFEJSFDUPSZ
Valid within Great Britain:
Imported to Great Britain by
3PCFSU#PTDI)BVTHFSÉUF(NC)
&DUO:HU\6WUDH 0QFKHQ *HUPDQ\
XXXCPTDIIPNFDPN
BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom
*9001359843*
9001359843 980615
Loading...
