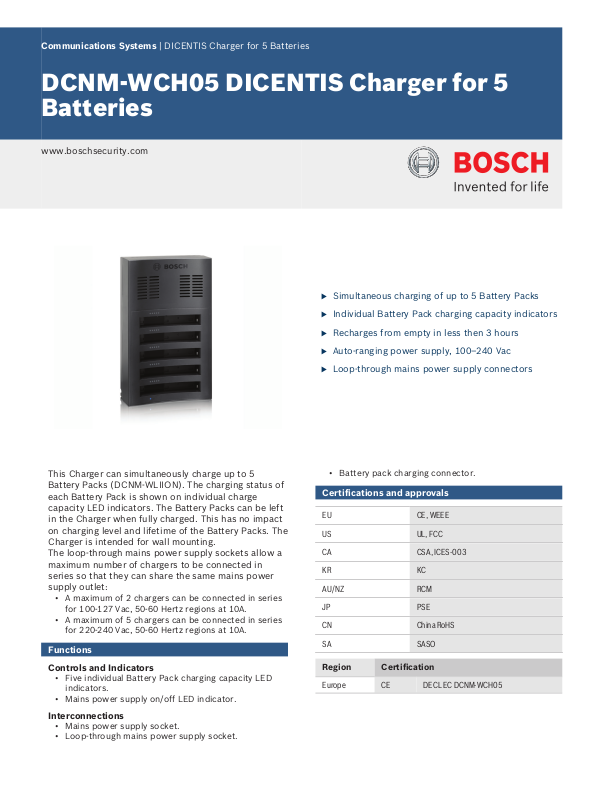

Bosch DCNM-WCH05 Specsheet

Communications Systems | DICENTIS Charger for 5 Batteries

DCNM-WCH05 DICENTIS Charger for 5
Batteries

www.boschsecurity.com

u Simultaneous charging of up to 5 Battery Packs

u Individual Battery Pack charging capacity indicators

This Charger can simultaneously charge up to 5
Battery Packs (DCNM‑WLIION). The charging status of
each Battery Pack is shown on individual charge
capacity LED indicators. The Battery Packs can be left
in the Charger when fully charged. This has no impact
on charging level and lifetime of the Battery Packs. The
Charger is intended for wall mounting.
The loop‑through mains power supply sockets allow a
maximum number of chargers to be connected in
series so that they can share the same mains power
supply outlet:

• A maximum of 2 chargers can be connected in series
for 100‑127 Vac, 50‑60 Hertz regions at 10A.

• A maximum of 5 chargers can be connected in series
for 220‑240 Vac, 50‑60 Hertz regions at 10A.

Functions

u Recharges from empty in less then 3 hours

u Auto‑ranging power supply, 100–240 Vac

u Loop‑through mains power supply connectors

• Battery pack charging connector.

Certifications and approvals

EU CE, WEEE

US UL, FCC

CA CSA, ICES‑003

KR KC

AU/NZ RCM

JP PSE

CN China RoHS

SA SASO

Controls and Indicators

• Five individual Battery Pack charging capacity LED
indicators.

• Mains power supply on/off LED indicator.

Interconnections

• Mains power supply socket.

• Loop‑through mains power supply socket.

Region Certification

Europe CE DECL EC DCNM-WCH05

2 | DICENTIS Charger for 5 Batteries

Represented by:

Europe, Middle East, Africa: Germany: North America: Asia-Pacific:

Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
[e-mail]
emea.boschsecurity.com

Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

© Bosch Security Systems 2017 | Data subject to change without notice
15207904139 | en, V6, 06. Apr 2017

Parts included

Quantity Component

1 DCNM‑WCH05 Charger for 5 Battery Packs

1 EU power cord

1 US power cord

Technical specifications

Electrical

Supply Voltage 100-240 Vac +/- 10 %

50/60 Hz

Maximum power

300 W

consumption

Mechanical

Dimensions (H x W x D) 340 x 195 x 82 mm

(13.4 x 7.6 x 3.2 in)

Weight (without batteries) 1.8 kg (3.97 lb)

Color Traffic black (RAL 9017)

Environmental

Operating temperature 5 ºC to +45 ºC

(41 ºF to +113 ºF)

Storage and transport
temperature

-20 ºC to +70 ºC
(-4 ºF to +158 ºF)

Relative humidity < 95 %, > 5 %

Ordering information

DICENTIS Charger for 5 Batteries

Charger for charging up to 5 Battery Packs
(DCNM‑WLIION). Color traffic black: RAL 9017.

Order number DCNM-WCH05
