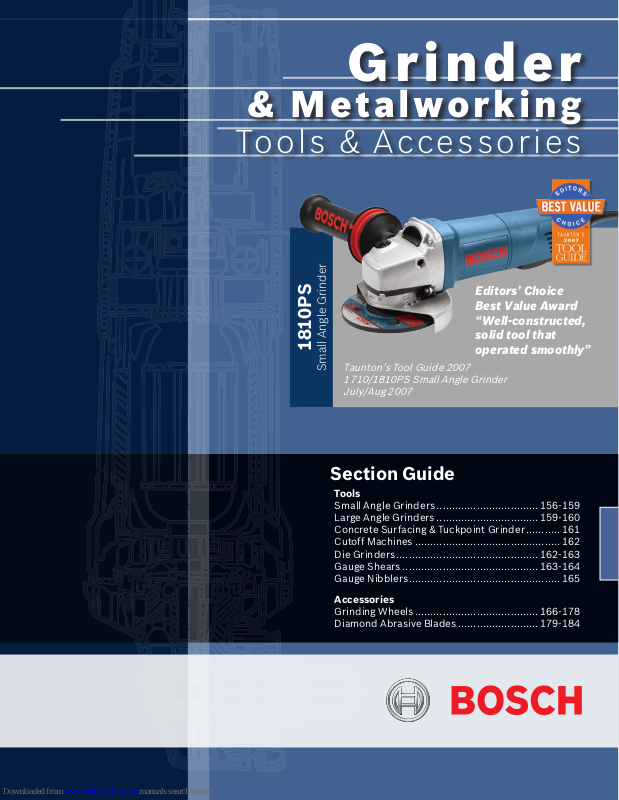

Page 1
Grinder
& Metalworking
Tools & Acc essories
Editors’ Choice
Best Value Award
“Well-constructed,
solid tool that
1810PS
Taunton’s Tool Guide 2007
Small Angle Grinder
1710/1810PS Small Angle Grinder
July/Aug 2007
operated smoothly”
Section Guide
Tools
Small Angle Grinders .................................156-159
Large Angle Grinders .................................159-160
Concrete Surfacing & Tuckpoint Grinder ........... 161

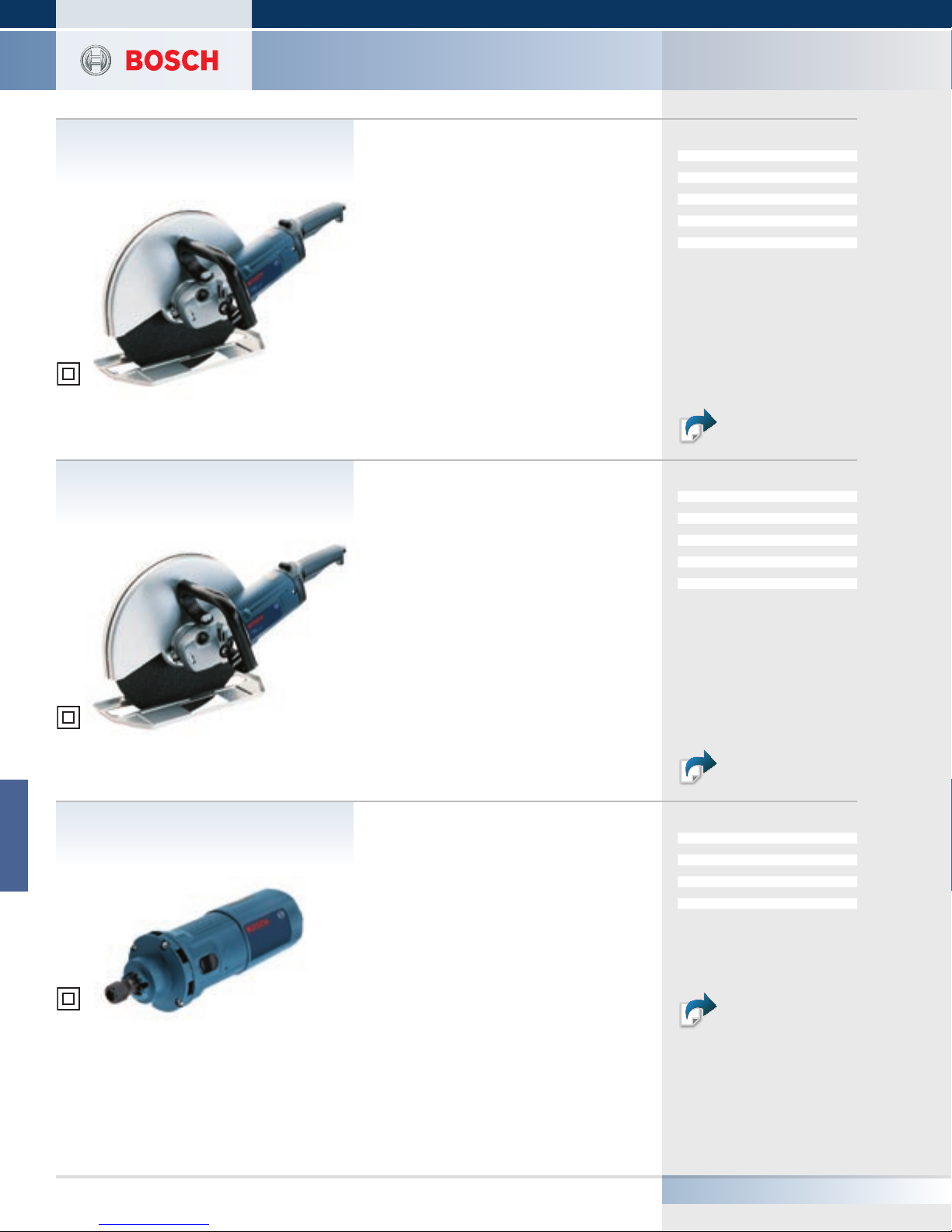

Cutoff Machines ............................................... 162
Die Grinders ..............................................162-163
Gauge Shears ............................................163-164

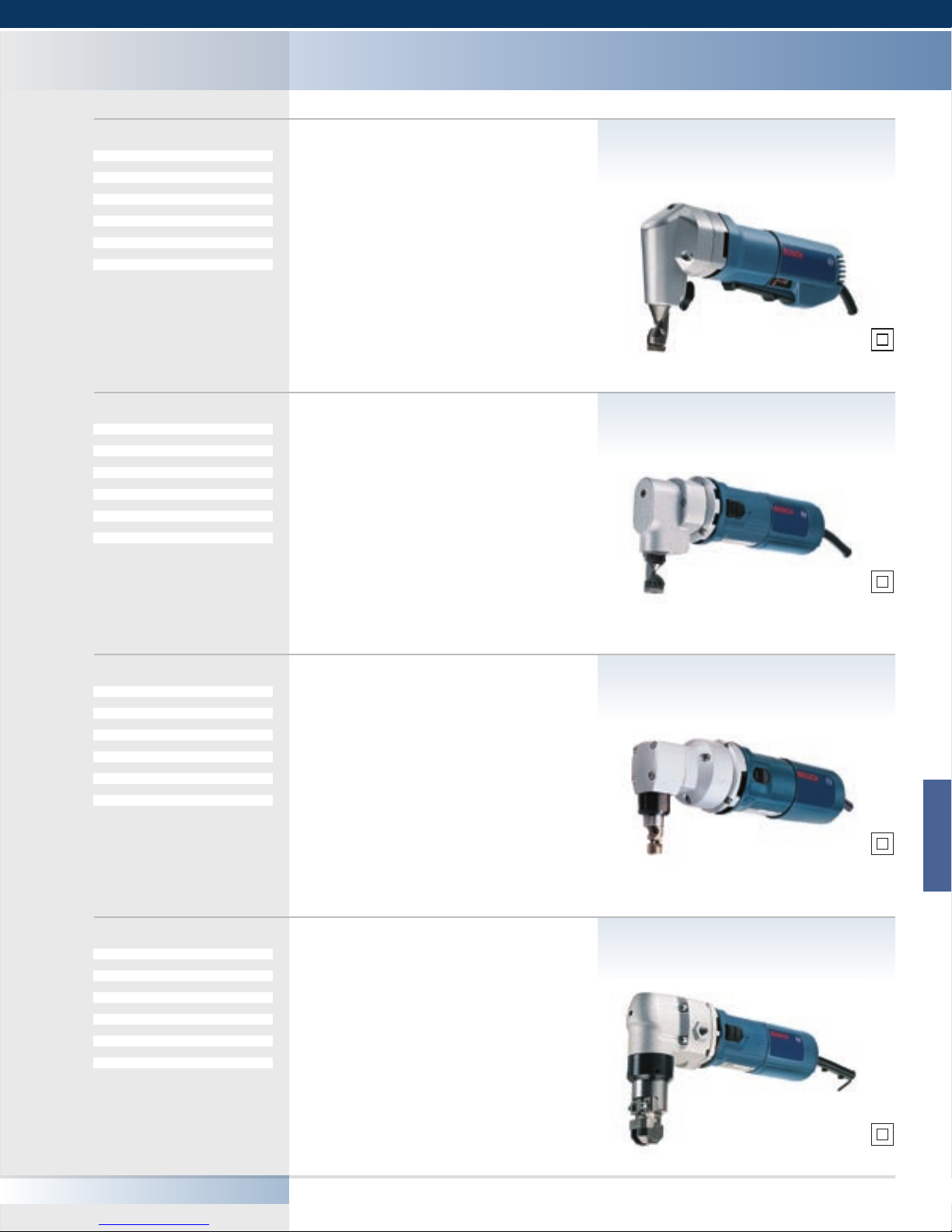

Gauge Nibblers .................................................165
Accessories

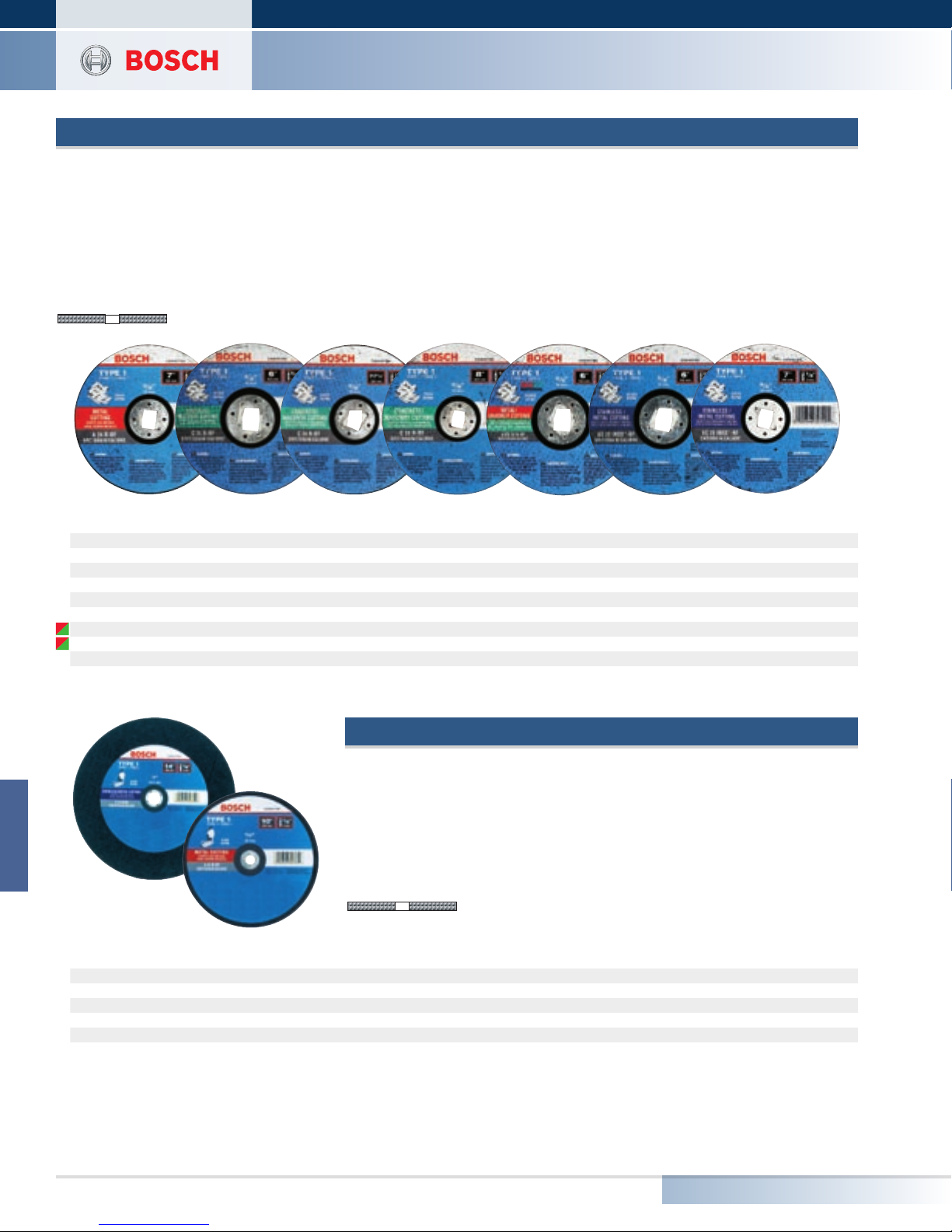

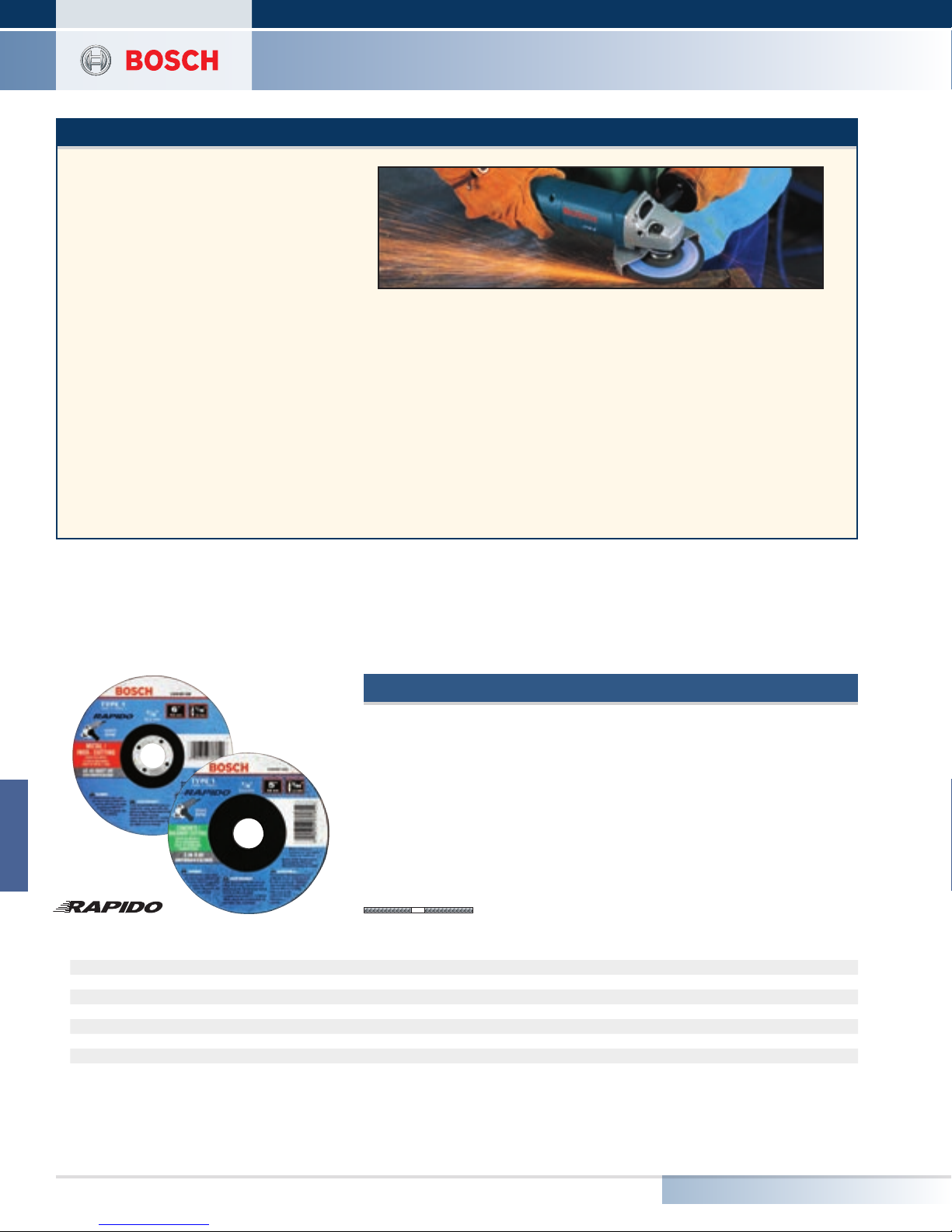

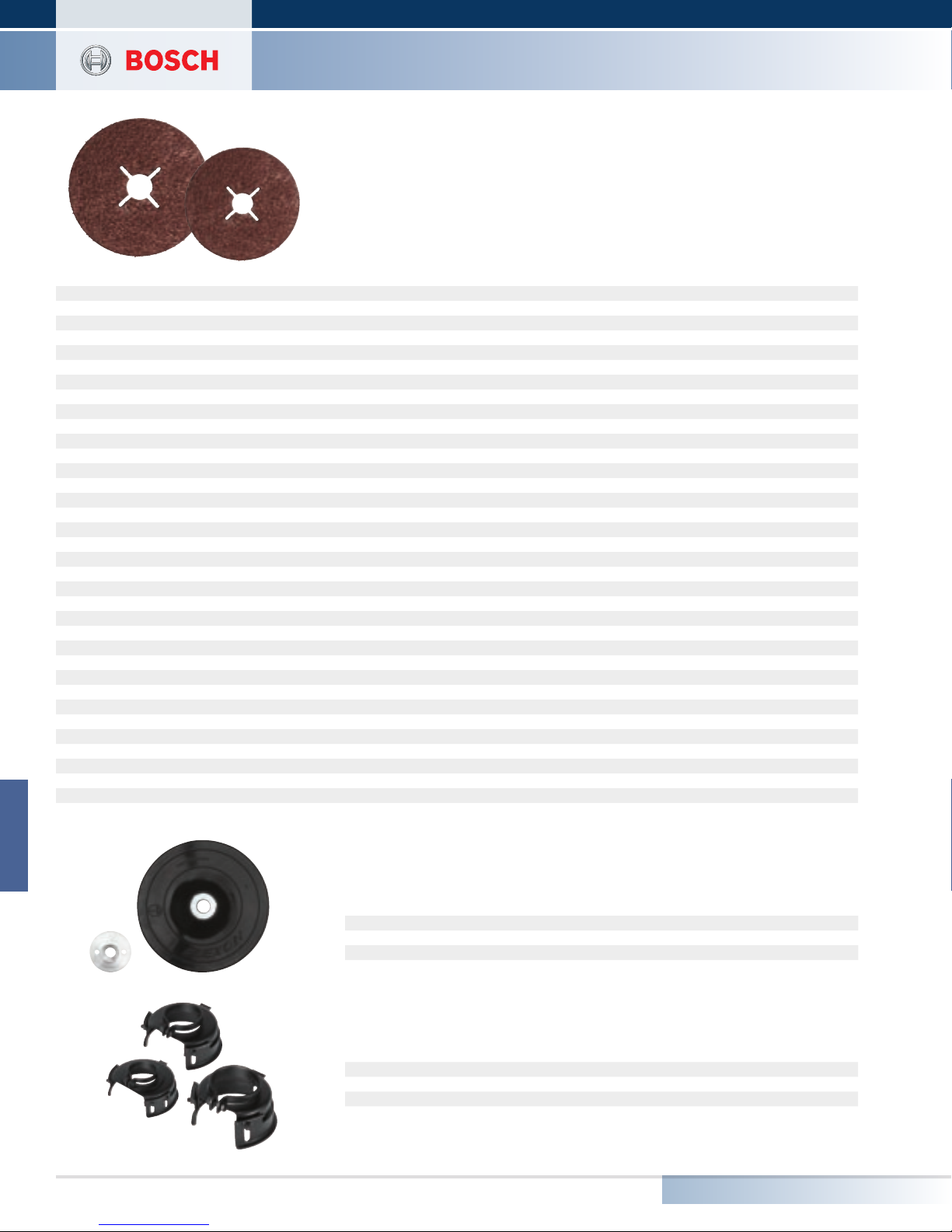

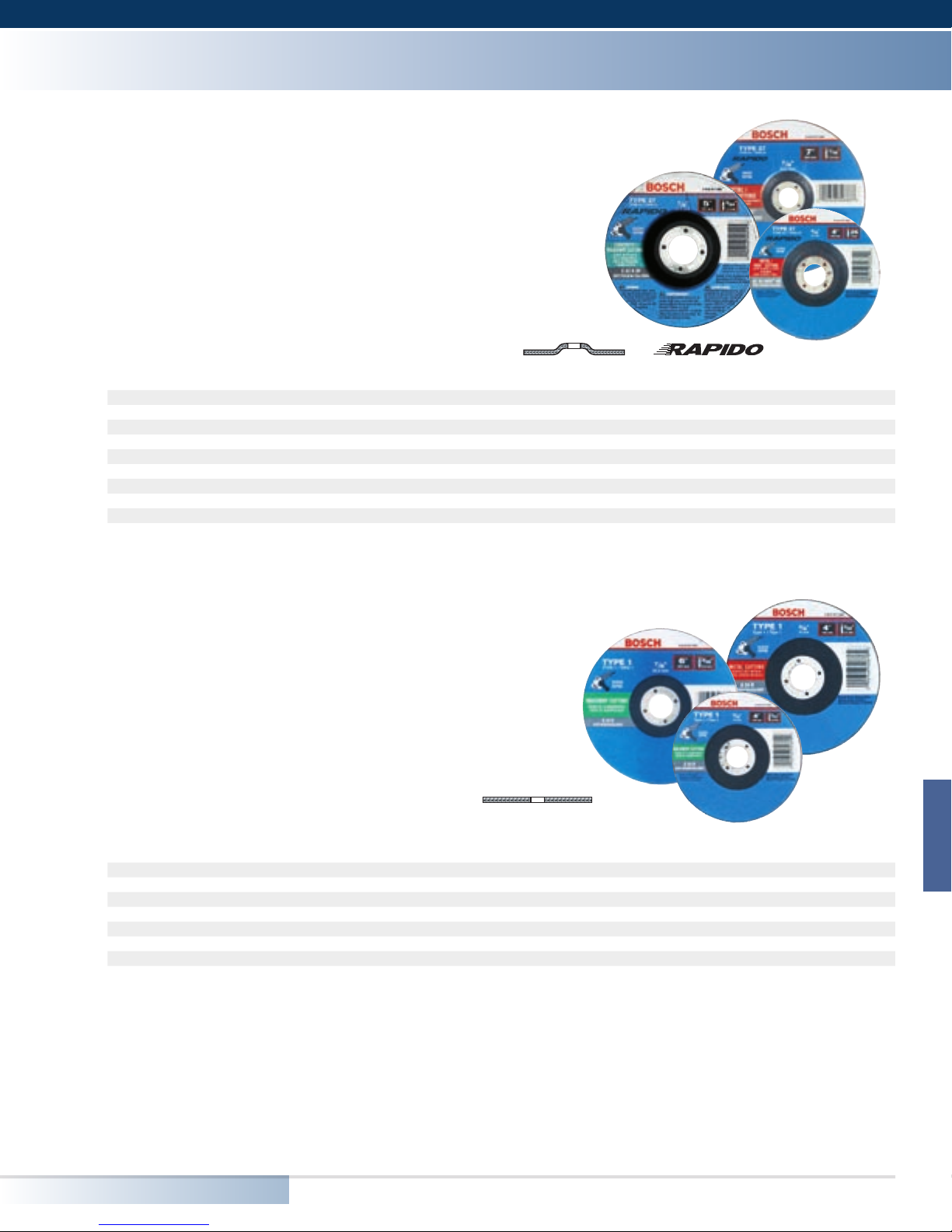

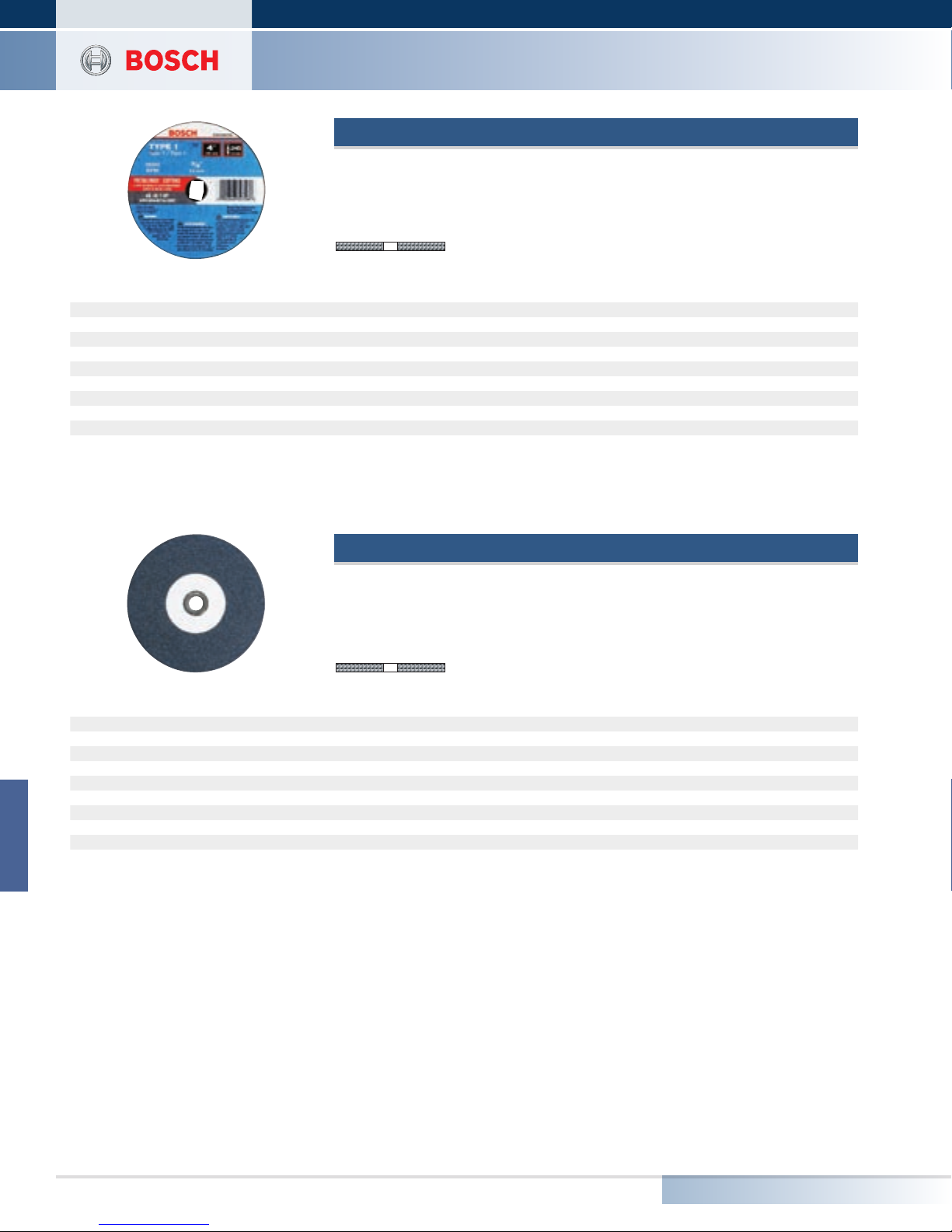

Grinding Wheels ........................................166-178

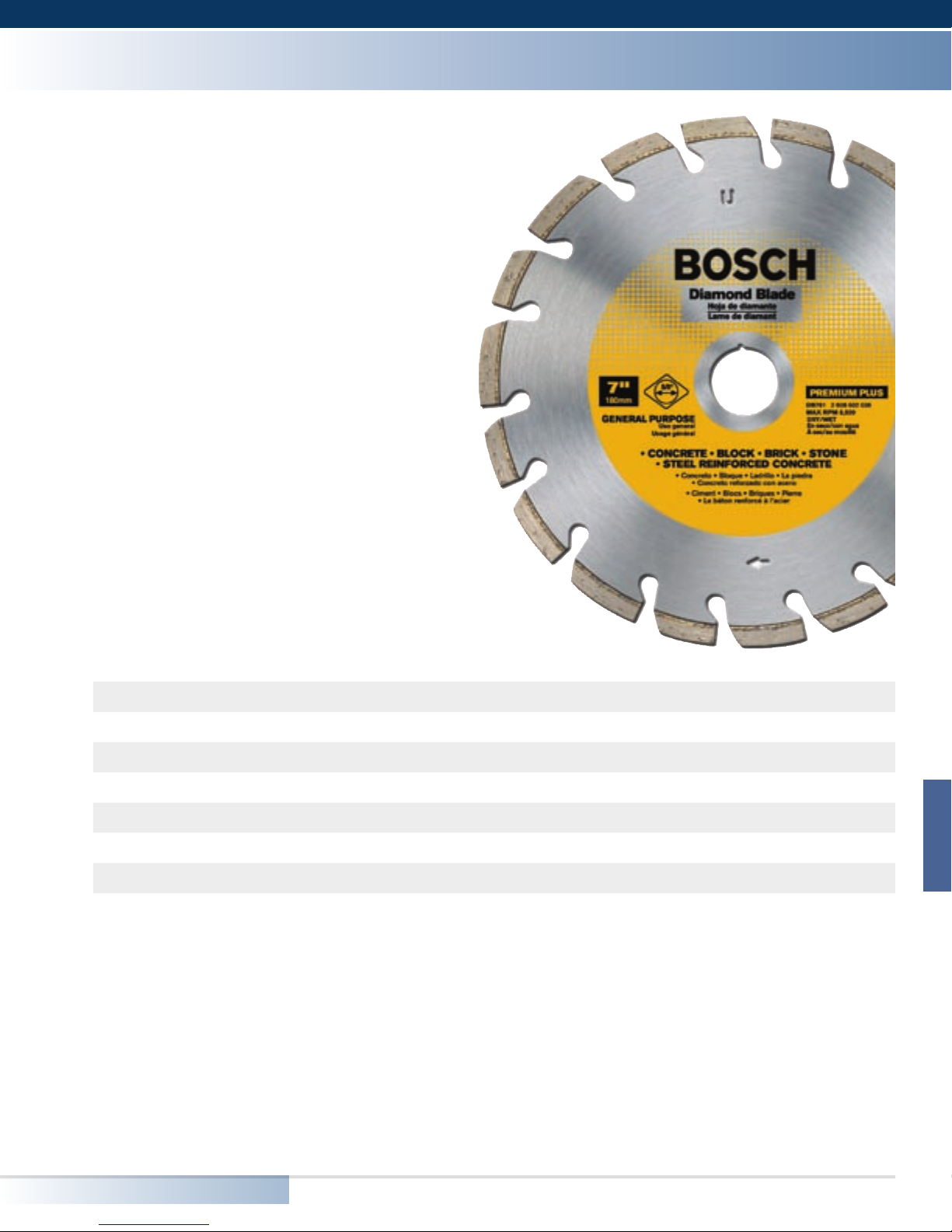

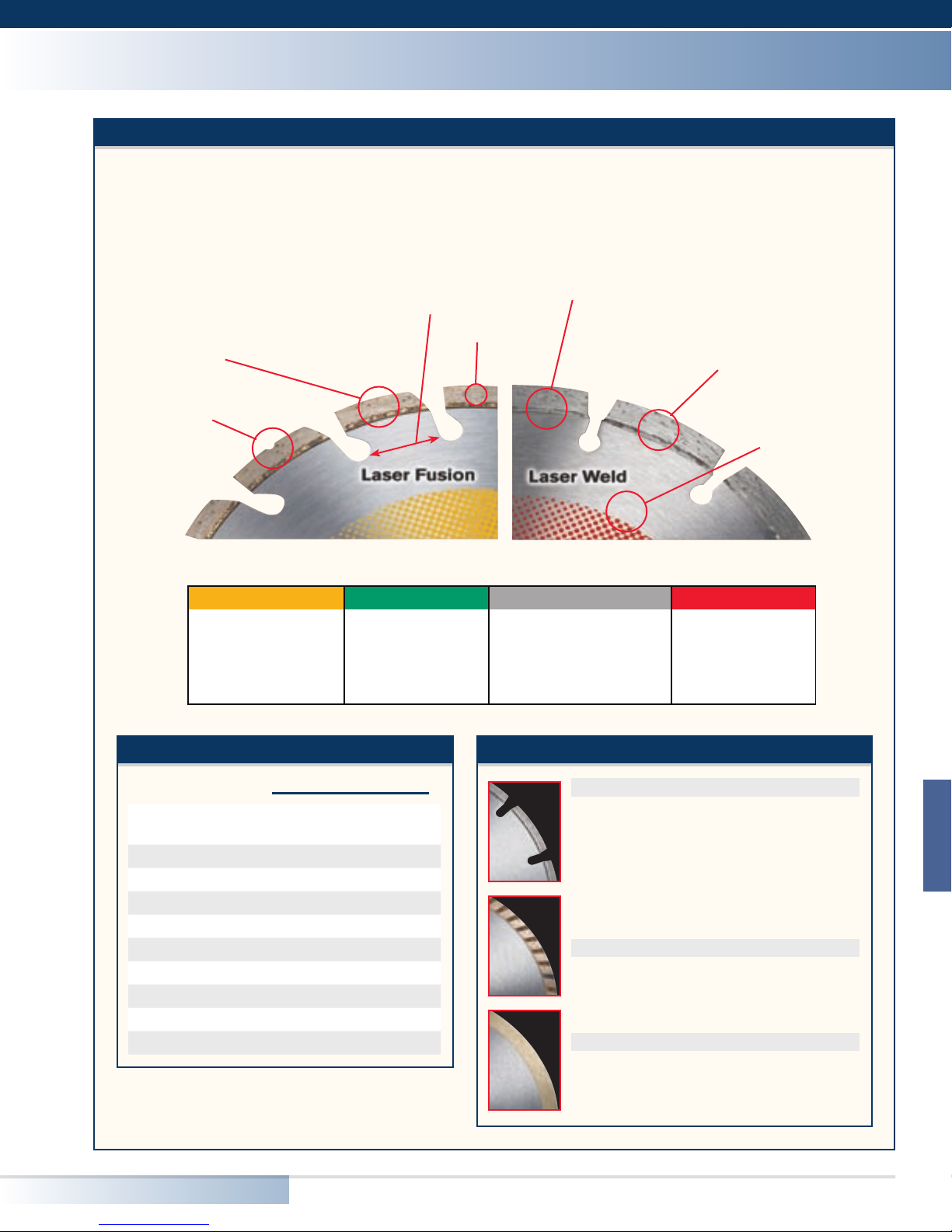

Diamond Abrasive Blades .......................... 179-184
Page 2
Grinders Quick Reference Guide
Small Angle, Tuckpointing, Concrete Surfacing
Item #
Classification
Switch Type Lock-on Lock-on Lock-on
Amperage 6 6 7.5 8
No Load RPMs 11,000 11,000 11,000 11,000
Wheel Size 4-1/2" 4-1/2" 4-1/2" 4-1/2"
Spindle Thread 5/8"-11 5/8"-11 5/8"-11 5/8"-11
Epoxy Coated
Field Windings
Sealed Switch Yes No Yes Yes
Length 10-1/2" 9-3/4" 11-1/4" 11-1/4"
Weight 3.75 lbs. 4.6 lbs. 4.3 lbs. 4.3 lbs.
Vibration Control™ — — Yes Yes
Item #
Classification
Switch Type Lock-on
Amperage 9.5 9 9 12
No Load RPMs 11,000 11,000 2,800-11,000 9,300
Wheel Size 5" 5" 5" 6"
Spindle Thread 5/8"-11 5/8"-11 5/8"-11 5/8"-11
Epoxy Coated
Field Windings
Sealed Switch Yes Yes Yes Yes
Length 11-3/4" 11-3/4" 11-3/4" 11-3/4"
Weight 4.8 lbs. 4.8 lbs. 4.5 lbs. 5 lbs.
Vibration Control™ Yes Yes Yes Yes
Kickback Stop™ — — Yes Yes
Restart Protection — — Yes Yes
Guard Tool Free Tool Free Tool Free Tool Free
1375A 1347A 1800 1810PS/1810PSD
Small Angle Grinder Small Angle Grinder Small Angle Grinder Small Angle Grinder
(1801PSD - No lock-on switch)
Yes No Yes Yes
1801 1811PS/1811PSD 1803EVS 1806E
Small Angle Grinder Small Angle Grinder Small Angle Grinder Small Angle Grinder
(1811PSD - No lock-on switch)
Paddle
Yes Yes Yes Yes
Lock-on Lock-on
Paddle
152
Boschtools.com
Toll Free: 877-BOSCH-99
Page 3
153
Toll Free: 877-BOSCH-99
Boschtools.com
Grinders Quick Reference Guide
Medium Angle, Tuckpointing, Concrete Surfacing
NEW NEW
Item #
Classification
Switch Type
Amperage 9.5 12 8.5 10
No Load RPMs 11,000 9,300 11,000 11,100
Wheel Size 5" 5" 5" 5"
Spindle Thread 5/8"-11 5/8"-11 5/8"-11 5/8"-11
Epoxy Coated
Field Windings
Sealed Switch Yes Yes Yes Yes
Length 14-3/4" 14-3/4" 11-3/4" 13-3/4"
Weight 5.1 lbs. 5.3 lbs. 6.4 lbs. 5.95 lbs.
Vibration Control™ Yes Yes — —
Kickback Stop™ — Yes — —
Restart Protection — Yes — —
Guard Tool Free Tool Free Tool Free Tool Free
1821/1821D 1824E/1824ED 1775E 1773AK
Medium Angle Grinder Medium Angle Grinder Tuckpoint Grinder Concrete Surfacing
(1821D - No lock-on switch)
Paddle
Yes Yes Yes Yes
(1824ED - No lock-on switch)
Paddle
Lock-on Lock-on
Large Angle
Item #
Classification
Switch Type Lock-on Lock-on Lock-on
Amperage 15 15 15 15 15 15
No Load RPMs 5,000 6,000 6,000 8,500 6,000 6,000
Wheel Size 7" or 9" 7" or 9" 7" 7" 9" 9"
Spindle Thread 5/8"-11 5/8"-11 5/8"-11 5/8"-11 5/8"-11 5/8"-11
Epoxy Coated
Field Windings
Reinforced
Armature Windings
Length 17-1/2" 17-1/2" 17-1/2" 17-1/2" 17-1/2" 19"
Weight 10.5 lbs. 10.5 lbs. 11.5 lbs. 11.5 lbs. 11.9 lbs. 13.3 lbs.
Vibration Control™ Yes – Side/Main Yes – Side/Main Yes – Side/Main Yes – Side/Main Yes – Side/Main Yes – Side/Main
Guard Tool Free Tool Free Tool Free Tool Free Tool Free Tool Free
1853-5 1853-6 1873-6 1873-8/1873-8D 1893-6/1893-6D 1894-6/1894-6D
Large Angle Grinder Large Angle Grinder Large Angle Grinder Large Angle Grinder Large Angle Grinder Large Angle Grinder
Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes
Lock-on (1873-8D -
No lock-on switch)
Lock-on (1893-6D -
No lock-on switch)
Lock-on (1894-6D -
No lock-on switch)
Page 4
Abrasive Cutoff
Grinders Quick Reference Guide
Item #
Classification
Switch Type N/A N/A N/A
Amperage 15 15 15
No Load RPMs 5,000 4,300 3,900
Wheel Size 12" 14" 14"
Spindle Thread 5/8"-11 5/8"-11 5/8"-11
Epoxy Coated Field Windings Yes Yes N/A
Reinforced Armature Windings Yes Yes No
Length 24-1/2" 24-1/2" 11-1/4"
Weight 24.5 lbs. 27 lbs. 42 lbs.
Abrasive Cutoff Grinder Abrasive Cutoff Grinder Abrasive Cutoff Grinder
1364 1365 3814
154
Boschtools.com
Toll Free: 877-BOSCH-99
Page 5
155
Toll Free: 877-BOSCH-99
Boschtools.com
Bosch Grinders:
Best in Class Safety, Comfort, and Lifetime.
Comfort
Anti-Vibration Side
and Main* Handles
reduce vibration
by up to 70%
-Best in Industry
Slim housing design
provides optimal
gripping diameter**
Precision Spiral
Bevel Gears
provide smooth
operation
With
Without
Bosch Grinders
Safety
Mechanical
Systems
NEW Tool Free
Impact Resistance
Guard System
No Lock-on Switch
offerings for both
small and large
angle grinders
Electronic
Systems
Lifetime
Improved DIRECTED
AIRFLOW system directs air
to most critical components
to reduce heat buildup
Sealed Switch
Keeps out dust and debris
Epoxy Coated Field Winding
Keeps out dust and debris
Service Minder Brushes
Shut tool off if maintenance is required
Industry First
Electronic KickBack
STOP shuts tool off if
the wheel should bind
Restart Protection
disables tool if power
is disrupted
Constant Response™
Circuitry maintains
constant speed
under load
* 7 - 9" Grinders only
** 4-1/2"- 6" Grinders only
Page 6
BOSCH
BOSCH
BOSCH
Angle Grinders
1375A
4-1/2" Small Angle Grinder
1347A
4-1/2" Small Angle Grinder
Features
• 6 Amps, 11,000 RPM
• Lock-on/off switch - For extended use applications
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy coated field windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" -11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle lock - For quick wheel changes
• 2-Position auxiliary handle - Specifically designed
and angled to a “natural” position for maximum
comfort and control
Features
• 6 Amps, 11,000 RPM
• Lock-on/off switch - For extended use applications
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Precision spiral bevel gears - Quality engineering
and construction for smooth power transmission
• 5/8" -11 Spindle - For quick wheel changes
• Spindle lock - Wide flexibility for mounting most
popular accessories
• 2-Position auxiliary handle - Specifically designed
and angled to a “natural” position for maximum
comfort and control
Specifications
Rating 120V AC
Amperage 6.0
Max. Motor HP 1.0
No Load RPM 11,000
Wheel Diameter 4-1/2"
Wire Cup Brush 3"
Spindle Thread 5/8"-11
Wire Wheel 4"
Length (in.) 10-1/2"
Weight (lbs.) 3.75
Includes
Guard ...................................... 2 610 906 260
Auxiliary Handle ..................... 1 602 025 027
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ......................2 608 600 506
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Specifications
Rating 120V AC
Amperage 6.0
Max. Motor HP 1
No Load RPM 11,000
Wheel Diameter 4-1/2"
Wire Cup Brush 3"
Spindle Thread 5/8"-11
Wire Wheel 4"
Length (in.) 9-3/4"
Weight (lbs.) 4.6
Includes
Guard ...................................... 2 610 906 260
Auxiliary Handle ..................... 1 602 025 027
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 034
Abrasive Wheel ......................2 608 600 506
1800
4-1/2" Angle Grinder
Features
• Lock-on/off switch - For extended use applications
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" -11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle Lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
• Directed Air Flow - Unique design diverts dust away
from switch and vital components
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Specifications
Rating 120V AC/DC
Amperage 7.5
Max. Motor HP 1.1
No Load RPM 11,000
Wheel Diameter 4-1/2"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 11-1/4"
Weight (lbs.) 4.3
Includes
Guard ...................................... 1 605 510 377
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner & outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ....................2 6010 917 844
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
156
Boschtools.com
Toll Free: 877-BOSCH-99
Page 7
157
Toll Free: 877-BOSCH-99
Boschtools.com
Paddle Switch & Angle Grinders
BOSCH
BOSCH
BOSCH
Specifications
Rating 120V AC/DC 120V AC
Amperage 8.0 8.0
Max. Motor HP 1.1 1.1
No Load RPM 11,000 11,000
Wheel Diameter 4 1/2" 4 1/2"
Wire Cup Brush 3" —
Spindle Thread 5/8"-11" 5/8"-11"
Wire Wheel 4" —
Length (in.) 11-1/4" 11-1/4"
Weight (lbs.) 4.3 4.3
1810PS 1810PSD
Includes
Guard ...................................... 1 605 510 377
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
1810PS
Abrasive Wheel ......................2 610 917 844
1810PSD
Abrasive Wheel ......................2 608 600 506
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Specifications
Rating 120V AC/DC 120V AC/DC
Amperage 9.0 9.0
Max. Motor HP 1.8 1.8
No Load RPM 11,000 11,000
Wheel Diameter 5" 5"
Wire Cup Brush 3" 3"
Spindle Thread 5/8"-11" 5/8"-11"
Wire Wheel 4" 4"
Length (in.) 11-3/4" 11-3/4"
Weight (lbs.) 4.8 4.8
1811PS 1811PSD
Includes
Guard ...................................... 1 605 510 378
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ......................2 610 917 845
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" -11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
• Directed Air Flow - Unique design diverts dust
away from switch and vital components
1810PSD also features
• No lock-on switch to conform with OSHA regulations
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• AC/DC Capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• Directed Air Flow - Unique design diverts dust
away from switch and vital components
• 5/8" -11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle Lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
1811PSD also features
• No lock-on switch to conform with OSHA regulations
1810PS 4-1/2" Paddle Switch Grinder
1810PSD 4-1/2" Paddle Switch Grinder (not shown)
1811PS 5" Paddle Switch Grinder
1811PSD 5" Paddle Switch Grinder (not shown)
Specifications
Rating 120V AC/DC
Amperage 9.5
Max. Motor HP 1.8
No Load RPM 11,000
Wheel Diameter 5"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 11-3/4"
Weight (lbs.) 4.8
Includes
Guard ...................................... 1 605 510 378
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ......................2 610 917 845
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" -11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle Lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
• Directed Air Flow - Unique design diverts dust away
from switch and vital components
5" Angle Grinder
1801
Page 8
Rat Tail & Angle Grinders
BOSCH
BOSCH
1803EVS
5" Angle Grinder (variable speed)
1821 5" Rat Tail Grinder
1821D 5" Rat Tail Grinder (not shown)
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Variable speed dial - Provides the ability to adjust
speed for specialty applications
• Constant-Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" - 11 spindle - Wide flexibility for mounting
most popular accessories
• Spindle Lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
• Kickback Stop™ - Shuts the tool down should the
wheel get into a bind situation
• Directed Air Flow - Unique design diverts dust away
from switch and vital components
• Restart Protection - Shuts the tool down should the
power supply be interrupted
Features
• Powerful & Durable - For the most demanding
jobs / compact and light weight for all day use
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Comfort Grip Rear Handle Trigger
• Epoxy Coated Field Windings - Provides the
ultimate protection against abrasive dust and
metal debris
• Sealed Switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Tool-Free Adjustable Guard - Quick guard
installation and adjustments
• AC/DC Capability – Extends the versatility of the
tool by working from DC outlets such as welders
and generators
Specifications
Rating 120V AC/DC
Amperage 9.0
Max. Motor HP 1.8
No Load RPM 2,800-11,000
Wheel Diameter 5"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 11-1/4"
Weight (lbs.) 4.5
Includes
Guard ...................................... 1 605 510 378
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ......................2 610 917 845
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Specifications
Rating 120V AC/DC
Amperage 9.5
Max. Motor HP 1.8
No Load RPM 11,000
Wheel Diameter 5"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 14-3/4"
Weight (lbs.) 5.1
Includes
Guard ...................................... 0 605 510 378
Vibration Dampening Side
Handle ................................. 1 602 025 052
5" Grinding wheel (2) ............ 2 610 917 845
Flange Kit ............................... 2 610 906 323
Spanner Wrench .................... 1 607 950 043
158
Boschtools.com
1821D also features
• No lock-on switch to conform with
OSHA regulations
Toll Free: 877-BOSCH-99
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Page 9
159
Toll Free: 877-BOSCH-99
Boschtools.com
Rat Tail & Angle Grinders
BOSCH
BOSCH
BOSCH
Specifications
Rating 120V
Amperage 12
Max. Motor HP 2.0
No Load RPM 11,000
Wheel Diameter 5"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 14-3/4"
Weight (lbs.) 5.3
Includes
Guard ...................................... 0 605 510 378
Vibration Dampening Side
Handle ................................. 1 602 025 052
5" Grinding wheel (2) ............ 2 610 917 845
Flange Kit ............................... 2 610 906 323
Spanner Wrench .................... 1 607 950 043
See pages 167–170, 173,
175–177, 179–182 for
grinder accessories.
Specifications
Rating 120V
Amperage 12.0
Max. Motor HP 2
No Load RPM 9,300
Wheel Diameter 6"
Wire Cup Brush 3"
Spindle Thread 5/8"-11"
Wire Wheel 4"
Length (in.) 11-3/4"
Weight (lbs.) 5.0
Includes
Guard ...................................... 1 605 510 379
Vibration Dampening Side
Handle ................................. 1 602 025 052
Flange Kit (inner and outer wheel flanges)
.............................................. 2 610 906 323
Spanner Wrench .................... 1 607 950 043
Abrasive Wheel ......................2 610 917 846
Large Backing Flange ............ 1 605 703 127
See pages 167–171, 173,
175–177, 179–182 for
grinder accessories.
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• Powerful & Durable - For the most demanding
jobs / compact and light weight for all day use
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Kickback Stop™ - Shuts tool off should the wheel
get into a bind situation
• Comfort Grip Rear Handle Trigger
• Epoxy Coated Field Windings - Provides the ultimate
protection against abrasive dust and metal debris
• Restart Protection - Shuts the tool off should the
power supply be interrupted
• Constant Response™ Circuitry - Provides soft-start,
constant speed under load and overload protection
• Sealed Switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Tool-Free Adjustable Guard - Quick guard
installation and adjustments
1824ED also features
• No lock-on switch to conform with
OSHA regulations
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 2-Position Vibration Control™ Handle - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Constant Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy Coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8" - 11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle Lock - For quick wheel changes
• Tool-free adjustable guard - Quick guard
installation and adjustments
• Kickback Stop™ - Shuts the tool down should the
wheel get into a bind situation
• Restart Protection - Shuts the tool down should
the power supply be interrupted
• Directed Air Flow - Unique design diverts dust
away from switch and vital components
1824E 5" Mid Size Rat Tail Grinder
1824ED 5" Mid Size Rat Tail Grinder (not shown)
1806E
6" Angle Grinder
Specifications
Rating 120V AC/DC 120V AC/DC
Amperage 15 15
Max. Motor HP 3 3
No Load RPM 5,000 6,000
Wheel Diameter 7" or 9" 7" or 9"
Spindle Thread 5/8"-11 5/8"-11
Wire Wheel up to 6" up to 5"
Flared Cup
Wheels
Length (in.) 17.5" 17.5"
Weight (lbs.) 10.5 10.5
1853-5 1853-6
up to 6" up to 5"
Includes
Vibration Control™ Auxiliary
Handle ................................. 1 602 025 030
See pages 167–171,
173–177, 179–182 for
grinder accessories.
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• 15 Amps, 5,000 RPM
• Vibration Control™ Side and Main Handles
- Reduces vibration up to 60%, providing
uncompromising user comfort for extended
periods of work
• Metal Gear Cover - Maximum durability
• AC/DC Capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Epoxy-coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• Precision spiral bevel gears - Quality engineering
and construction for smooth power transmission
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
1853-5 7"/9" Large Angle Sander
1853-6 7"/9" Large Angle Sander (not shown)
Page 10
Angle Grinders
BOSCH
BOSCH
BOSCH
1873-8 7" Large Angle Grinder with
Rat Tail Handle
1873-8D 7" Large Angle Grinder with
Rat Tail Handle (not shown)
1873-8D also features
• No lock-on switch to conform with OSHA regulations
1873-6 7" Large Angle Grinder with
Rat Tail Handle
1893-6D 9" Large Angle Grinder with
Rat Tail Handle (not shown)
1893-6D also features
• No lock-on switch to conform with OSHA regulations
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• Vibration Control™ Side and Main Handles - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• AC/DC capability - Extends tool versatility by working
from DC outlets such as welders and generators
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• 5/8" - 11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle lock - For quick wheel changes
• 3-Position auxiliary handle - Specifically designed
for multiple hand positions, provides maximum
versatility and control
• Reinforced armature windings - Protects the motor
against abrasive dust and metal debris
• Ergonomic design - Slim handle for a comfortable
fit, with on-handle switch for easy operation
• Epoxy-coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• Precision spiral bevel gears - Quality engineering
and construction for smooth power transmission
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• Vibration Control™ Side and Main Handles - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• AC/DC capability - Extends tool versatility by working
from DC outlets such as welders and generators
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• 5/8" - 11 Spindle - Wide flexibility for mounting
most popular accessories
• Spindle lock - For quick wheel changes
• 3-Position auxiliary handle - Specifically designed
for multiple hand positions, provides maximum
versatility and control
• Reinforced armature windings - Protects the motor
against abrasive dust and metal debris
• Ergonomic design - Slim handle for a comfortable
fit, with on-handle switch for easy operation
• Epoxy-coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• Precision spiral bevel gears - Quality engineering
and construction for smooth power transmission
Specifications
Rating 120V AC/DC
Amperage 15
Max. Motor HP 3
No Load RPM 8,500
Wheel Diameter 7"
Spindle Thread 5/8"-11
Wire Wheel up to 5"
Flared Cup Wheels up to 5"
Length (in.) 17.5"
Weight (lbs.) 11.5
Includes
Vibration Control™ Auxiliary
Handle ................................. 1 602 025 030
Wheel Guard .......................... 1 605 510 353
See pages 167–171,
173–177, 179–182 for
grinder accessories.
Specifications
Rating 120V AC/DC 120V AC/DC
Amperage 15 15
Max. Motor HP 3 3
No Load RPM 6,000 6,000
Wheel Diameter 7" 9"
Spindle Thread 5/8"-11 5/8"-11
Wire Wheel up to 5" up to 5"
Flared Cup
Wheels
Length (in.) 17.5" 17.5"
Weight (lbs.) 11.5 11.9
1873-6 1893-6
up to 5" up to 5"
Includes
Vibration Control™ Auxiliary
Handle ................................. 1 602 025 030
7" Wheel Guard ......................1 605 510 353
9" Wheel Guard ......................1 605 510 354
(1893-6 Only)
Backing Flange and
Lock Nut Kit ........................ 2 610 906 326
Hex Key Wrench ..................... 1 607 950 038
See pages 167–171,
173–177, 179–182 for
grinder accessories.
1894-6 9" Large Angle Grinder with
D-Handle
1894-6D 9" Large Angle Grinder with
D-Handle (not shown)
1894-6D also features
• No lock-on switch to conform with OSHA regulations
160
Boschtools.com
Features
• Lock-off Switch - Avoids accidental start up
• Lock-on Switch - For extended use applications
• Vibration Control™ Side and Main Handles - Reduces
vibration up to 60%, providing uncompromising
user comfort for extended periods of work
• Rear handle rotates to optimize user comfort
in all applications
• Tool-free Adjustment Guard - Quick guard
installation and adjustments
• Metal Gear Cover - Maximum durability
• AC/DC capability - Extends tool versatility by working
from DC outlets such as welders and generators
• Service Minder™ Brushes - Eliminates guesswork,
stops tool when preventive maintenance is required
• Epoxy-coated Field Windings - Provides ultimate
protection against abrasive dust and metal debris
• Precision spiral bevel gears - Quality engineering
and construction for smooth power transmission
Toll Free: 877-BOSCH-99
Specifications
Rating 120V AC/DC
Amperage 15
Max. Motor HP 4.5
No Load RPM 6,000
Wheel Diameter 9"
Spindle Thread 5/8"-11
Wire Wheel up to 5"
Flared Cup Wheels up to 5"
Length (in.) 19"
Weight (lbs.) 13.3
Includes
Vibration Control™ Auxiliary
Handle ................................. 1 602 025 030
Wheel Guard .......................... 1 605 510 354
See pages 167–171,
173–177, 179–182 for
grinder accessories.
Page 11
161
Toll Free: 877-BOSCH-99
Boschtools.com
Surfacing & Tuckpoint Grinders
BOSCH
BOSCH
Specifications
Rating 120V AC
Amperage 10
No Load RPM 11,000
Wheel Diameter 5"
Spindle Thread 5/8" - 11
Length (in.) 13.75"
Weight (lbs.) 5.95
Includes
Auxiliary Handle ..................... 3 601 303 017
Flange Kit ................................3 600 210 125
Spanner Wrench .................... 1 607 950 043
5" Diamond Cup Wheel ..................... DC510
Vacuum Adapter ............................... VAC002
3 Extra Brush Rings............... 2 600 290 026
Carrying Case ........................ 3 605 438 057
See page 183 for
grinder accessories.
Features
• 10 Amps; 11,000 RPM
• Lock-on/off switch - For extended use applications
• Double sealed ball bearings and two “lip-sealing”
protective rings - Added protection against dust
contamination
• Constant-Response™ Circuitry - Provides
soft-start, maintains constant speed under
load, provides overload protection
• Automatic restart protection - Protects against
automatic restart after a power failure. Ensures that
tool is intentionally powered on each time.
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
• Service Minder™ Brushes - Eliminates guesswork, stops
the tool when preventative maintenance is required
• Epoxy coated field windings - Provides ultimate
protection against abrasive dust and debris
• 5/8" - 11 spindle - Wide flexibility for mounting most
popular accessories
• Spindle lock - For quick wheel changes
• Wrap around auxiliary handle - For easy handling
Exclusive Dust Protection System
This new concrete grinder comes equipped with the Bosch exclusive dust-proof system for a longer
operational life than ever before. Epoxy coated field windings ensure motor endurance. Perfectly suited
to the building trades, especially for refurbishing and de-burring exposed concrete, the concrete
surfacing grinder is also ideal for removing irregularities, formwork seams, and protrusions. When
smoothing floor pavement, removing graffiti and weather worn paint, and cleaning concrete
surfaces before protective paint finishes are applied, this grinder will get the job done right.
Two “Lip Sealing”
Protective Rings
1773AK
5" Concrete Surfacing Grinder
Carrying Bag
Included
Double Sealed
Ball Bearings
Grease
Filling
Specifications
Rating 120V AC
Amperage 8.5
Depth of Cut - 4' Wheel 0 to .75"
Depth of Cut - 5' Wheel 0 to 1.25"
RPM (loaded) 11,000
Wheel Diameter 4" or 5"
Spindle Thread 5/8" - 11
Length (in.) 11.25"
Wheel Type - Diamond Tuckpointing Wheel
Weight (lbs.) 6.4
Includes
Tuckpointing Guard ............................TG500
Inner Flange ........................... 2 610 992 248
Outer Flange .......................... 2 610 910 341
Auxiliary Handle ..................... 1 602 025 027
Spanner Wrench .................... 1 607 950 052
Hex Key Wrench ..................... 1 907 950 006
5" Tuckpointing Wheel .......................DD500
Vacuum Adapter ............................... VAC002
See page 181 for
grinder accessories.
Features
• Powerful 8.5 Amp 11,000 RPM motor
• Specially designed guard system - For tuckpointing
applications with dust extraction. Meets and
exceeds UL®, OSHA and NIOSH standards.
• Dust extraction port - Results in cleaner job when
used with provided vacuum adapter VAC002.
• Large viewing window - Provides the ability to view
working area for better control and accuracy.
• Variable depth adjustment - Allows spring loaded
guard to be adjusted to desired depth while springing
back over tuckpointing wheel for added protection.
• Tool-free blade access - Allows quick access for
wheel changes
• Lock-on/off switch - For extended use applications
• Constant Response™ Circuitry - Provides soft-start,
maintains constant speed under load, provides
overload protection
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life.
• Service Minder™ Brushes - Eliminates guesswork, stops
the tools when preventative maintenance is required
• Epoxy coated field windings - Provides ultimate
protection against abrasive dust and metal debris
• 5/8"-11 Spindle - Wide flexibility for mounting most
popular accessories
• Spindle lock - For quick wheel changes
1775E
5" Tuckpoint Grinder
Page 12
Cutoff Machine & Utility Die Grinder
BOSCH
BOSCH
BOSCH
1364
12" Abrasive Cutoff Machine
1365
14" Abrasive Cutoff Machine
Features
• 15.0 Amps, 5,000 RPM
• Natural debris removal - Wheel rotation carries
sparks, dust and debris away from the operator
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Reinforced armature windings - Protects motor
against abrasive dust and metal debris
• Service Minder™ Brushes - Eliminate guesswork,
stops the tool when preventative maintenance
is required
• Reversible handle - Wraparound side handle
mounts left or right for added convenience
and versatility
• Large footplate - Improves stability and allows
greater depth of cut, smooth on both sides
for guiding
• Reversible fire position - Tool comes set up in fire
forward position, but is easily changed to fire
reverse position without additional accessories
Features
• 15 Amps, 4,300 RPM
• Natural debris removal - Wheel rotation carries
sparks, dust and debris away from the operator
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Reinforced armature windings - Protects motor
against abrasive dust and metal debris
• Service Minder™ Brushes - Eliminate guesswork,
stops the tool when preventative maintenance
is required
• Reversible handle - Wrap around side handle
mounts left or right for added convenience
and versatility
• Large footplate - Improves stability and allows
greater depth of cut, smooth on both sides
for guiding
• Reversible fire position - Tool comes set up in fire
forward position, but is easily changed to fire
reverse position without additional accessories
Specifications
Rating 120V AC/DC
Amperage 15.0
Max. Motor HP 4.7
No Load RPM 5,000
Wheel Diameter 12"
Depth of Cut 3-7/8"
Spindle Thread 5/8"-11
Length (in.) 24-1/2"
Weight (lbs.) 24-1/2
Includes
Wrap Around Side Handle ... 1 607 000 247
Wheel Guard .......................... 2 605 510 133
Adjustable Footplate ............ 2 608 190 025
Inside Flange .......................... 1 605 703 067
7/8" Arbor Locking Nut ......... 2 610 917 054
1" Arbor Locking Nut .............1 603 340 011
3/8" Allen Wrench .................. 1 607 950 038
Outside Flange ...................... 1 605 703 068
Replacement Equipment
6mm Allen Wrench ................1 907 950 007
See page 171 for
grinder accessories.
Specifications
Rating 120 V AC/DC
Amperage 15.0
Max. Motor HP 4.7
No Load RPM 4300
Wheel Diameter 14"
Depth of Cut 4-7/8"
Spindle Thread 5/8"-11
Length (in.) 24-1/2"
Weight (lbs.) 27
Includes
Auxiliary Handle ..................... 1 607 000 247
Wheel Guard .......................... 2 605 510 132
Adjustable Footplate ............ 2 608 190 025
Inside Flange .......................... 1 605 703 078
7/8" Arbor Locking Nut ......... 2 610 917 054
1" Arbor Locking Nut .............1 603 340 011
3/8" Allen Wrench .................. 1 607 950 038
Outside Flange ...................... 1 605 703 077
Replacement Equipment
6mm Allen Wrench ................1 907 950 007
See page 171 for
grinder accessories.
1210
Utility Die Grinder
162
Boschtools.com
Features
• 4.6 Amps, 27,000 RPM
• Lock-on/off switch - For extended use applications
• 43 mm f lange diameter
Toll Free: 877-BOSCH-99
Specifications
Rating 120V AC
Amperage 4.6
No Load RPM 27,000
Collet Capacity 1/8"-1/4"
Mounted Point Up to 1" Dia.
Polishing Wheel Up to 2" Dia.
Length (in.) 9.4"
Weight (lbs.) 3.25
Includes
1/4" Collect ............................ 2 608 570 048
Wrench .................................... 1 607 950 525
Shaft Lock Pin ........................2 603 101 035
See page 175 for
grinder accessories.
Page 13
163
Toll Free: 877-BOSCH-99
Boschtools.com

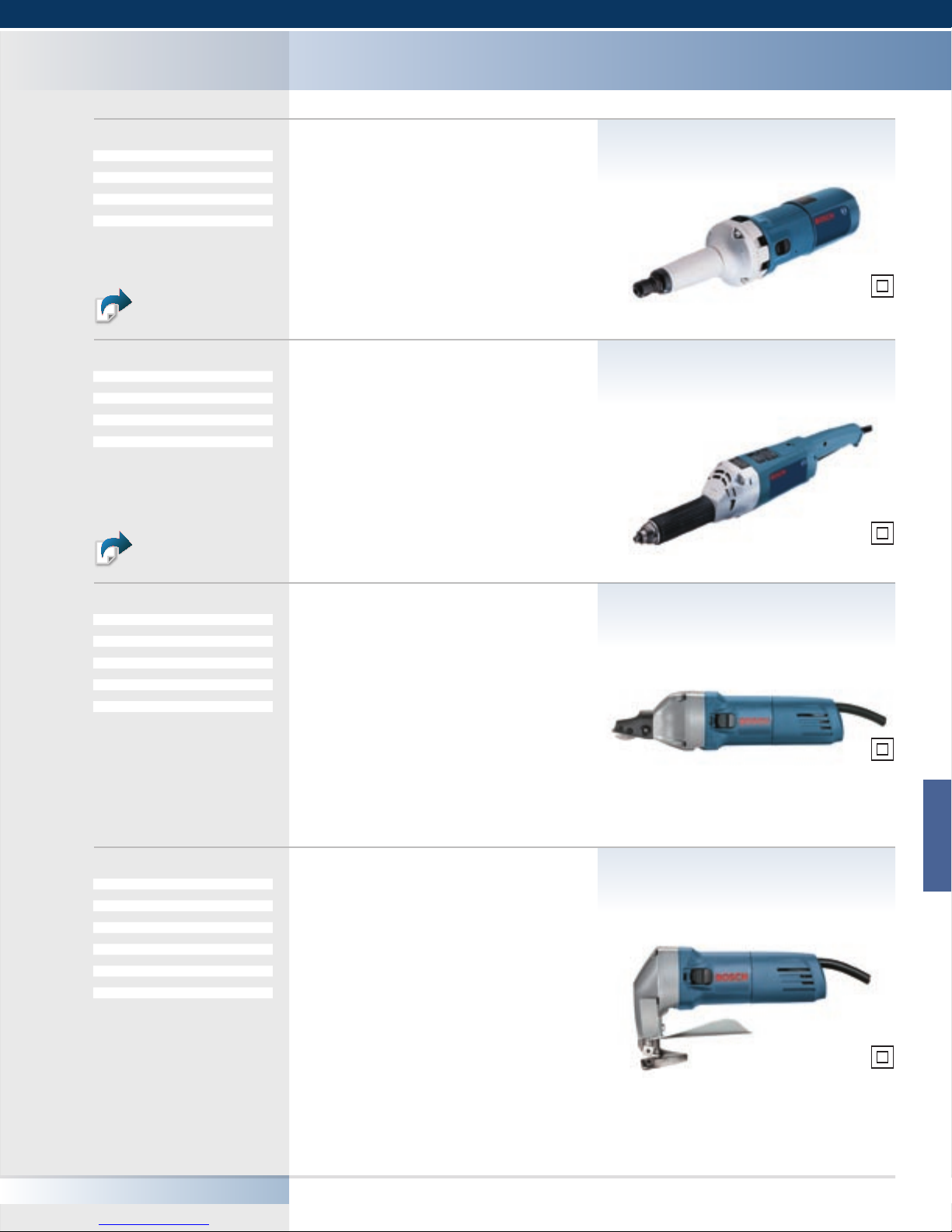

Die Grinders & Gauge Shears
BOSCH
BOSCH
Specifications
Rating 120V AC
Amperage 4.6
No Load RPM 27,000
Collet Capacity 1/8"-1/4"
Mounted Point Up to 1" Dia.
Polishing Wheel Up to 2" Dia
Length (in.) 13"
Weight (lbs.) 3.2
Includes
1/4" Collet............................... 2 608 570 085
See page 175 for
grinder accessories.
Specifications
Rating 120V AC/DC
Amperage 8.4
No Load RPM 16,000
Collet Capacity 1/4"
Mounted Point Up to 2" Dia.
Polishing Wheel Up to 2" Dia.
Length (in.) 21"
Weight (lbs.) 6.6
Includes
1/4" Collect ............................ 2 608 570 014
22mm Wrench........................ 1 607 950 505
14mm Wrench........................ 1 607 950 511
See page 175 for
grinder accessories.
Features
• 4.6 Amps, 27,000 RPM
• Lock-on/off switch - For extended use applications
• Compact design - Slim tool housing comfortably
fits in the hand
• Metal gear housing - Withstands job-site abuse
• 4" spindle length - Designed for interior die grinding
• 35 mm f lange diameter
Features
• 8.4 Amps, 16,000 RPM
• Metal gear housing - Withstands job-site abuse
• AC/DC capability - Extends the versatility of the
tool by working from DC outlets such as welders
and generators
• Trigger bar with lock off switch - More control plus
ease of use during demanding jobs
1215
Die Grinder
1209
Die Grinder
Specifications
Rating 120V AC
Amperage 4.2
Cutting Capacity
Aluminum 14 Gauge
Mild Steel 16 Gauge
Stainless Steel 20 Gauge
Curve Cutting-Minimum Radius 1-1/4"
No Load SPM 5,000
Length (in.) 11-3/4"
Weight (lbs.) 4.2
Includes
Cutting Blade 16 Gauge ....... 2 608 635 243
Allen Wrench 2.5mm ............. 1 907 950 003
Stationary Blade Set ............. 2 608 635 410
Specifications
Rating 120V AC
Amperage 4.2
Max. Motor HP 0
Cutting Capacity
Aluminum 14 Gauge (.075")
Mild Steel 16 Gauge (.060")
Stainless Steel 20 Gauge (.036")
Curve Cutting-Minimum Radius 7/8"
No Load SPM 5,000
Length (in.) 7-1/2"
Weight (lbs.) 4.6
Includes
Blade Set ................................ 2 608 635 243
Feeler Gauge .......................... 2 607 970 009
Allen Wrench 3mm ................1 907 950 004
Steel Deflector ....................... 3 609 202 083
Features
• 4.2 Amps, 5,000 SPM
• Lock-on/off switch - For extended use applications
• Compact design - Slim tool housing comfortably
fits in the hand
• Reversible side blades - For extended blade life
• Cutting blade changes quickly and without tool
- for convenience
• Fast cutting mechanism cuts at 28 feet/minute
• Epoxy coated field windings - Provides ultimate
protection against metal debris
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
Features
• 4.2 Amps, 5,000 SPM
• Lock-on/off switch - For extended use applications
• Steel deflector - For hand protection
• Compact design - Slim tool housing comfortably
fits in the hand
• Low vibration - For operator comfort
• Visible blade allows precise pattern cutting extends blade life
• Easy blade adjustment when switching
material thickness
• Epoxy coated field windings - Provides ultimate
protection against metal debris
• Sealed switch - Keeps debris out of the switch
mechanism and extends switch life
1521
16 Gauge Shear
1500C
16 Gauge Shear
Unishear®
Page 14
Gauge Shears

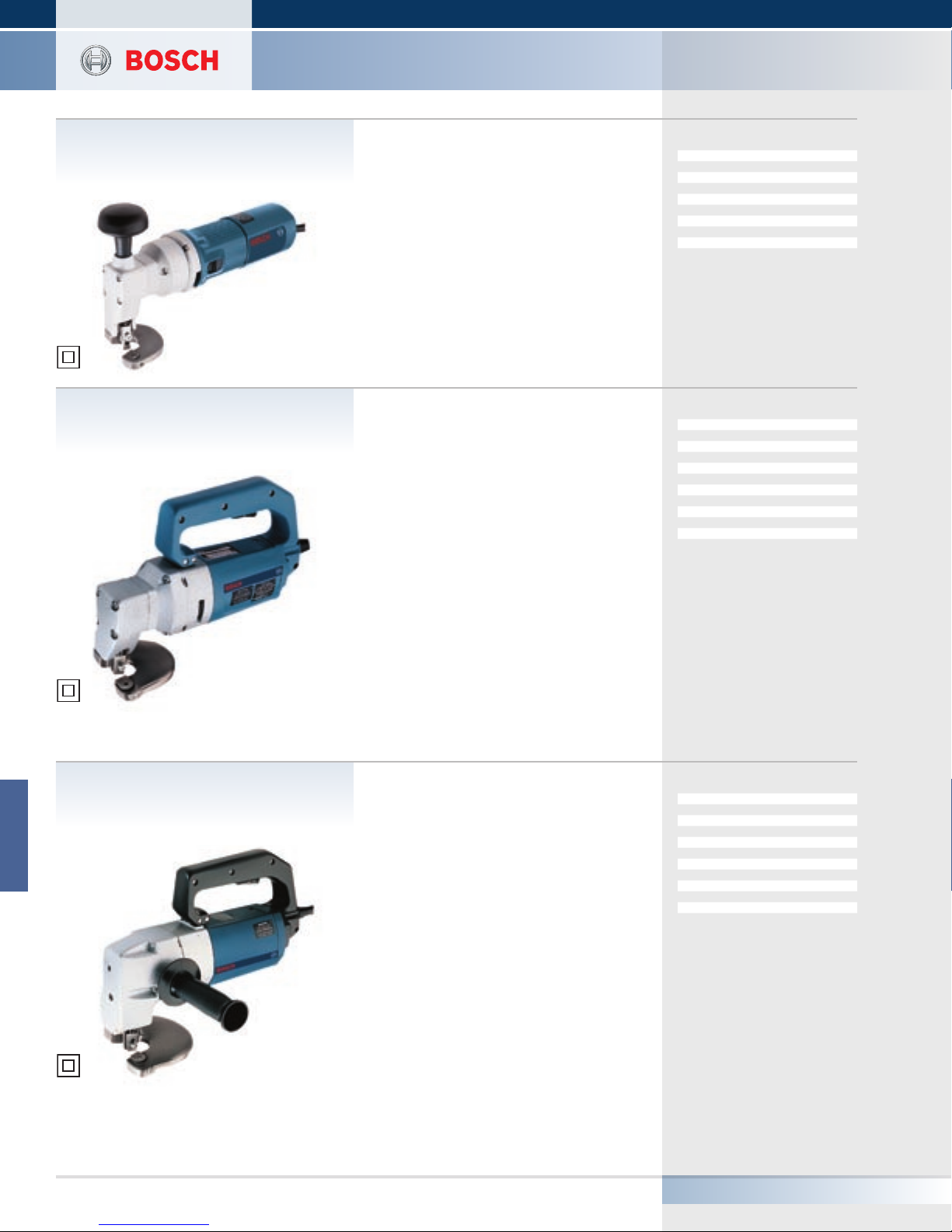

1506
14 Gauge Shear
1507
10 Gauge Shear
Unishear®
Unishear
Features
• 4.6 Amps, 2,400 SPM
• Planetary gear drive - More power per pound
• Upper blade is double-edged - When first edge is
worn, simply reverse blade
• Mushroom top handle - For extra control under
heavy cutting loads easily removed for cutting in
confined areas
• Lightweight and well balanced - For
excellent control
• Low vibration - For operator comfort
• Visible blade - Allows precise pattern cutting
• Easy blade adjustment when switching
material thickness
Features
• 8.6 Amps, 1,770 SPM
®
• Two-handed control - For heavy cutting jobs
• Top handle with large rocker switch
• Low vibration - For operator comfort
• Visible blade - Allows precise cutting
Specifications
Rating 120V AC
Amperage 4.6
Cutting Capacity
Aluminum .150"
Mild Steel 14 (.075")
Stainless Steel 16 (.060")
Curve Cutting-Minimum Radius 3/4"
No Load SPM 2,400
Length (in.) 10-1/4"
Weight (lbs.) 6
Includes
Upper/Lower Blade Set ........2 607 010 025
5mm Allen Wrench ................1 907 950 006
Specifications
Rating 120V AC
Amperage 8.6
Max. Motor HP 0
Cutting Capacity
Aluminum .157"
Mild Steel 10G (.135")
Stainless Steel 12G (.105")
Curve Cutting-Minimum Radius 1"
No Load SPM 1,770
Length (in.) 10"
Weight (lbs.) 10
Includes
Angled Gauge ......................... 1 607 970 016
Feeler Gauge .......................... 1 607 970 015
Turning Pin ............................. 1 607 990 001
5mm Allen Wrench ................1 907 950 006
Upper Blade ........................... 3 608 635 000
Lower Blade ........................... 3 608 635 002
3mm Allen Wrench ................1 907 950 004
10mm Open End Wrench ..... 1 907 950 504
Replacement Equipment
Replacement Upper Blade ... 3 608 635 000
Replacement Lower Blade ... 3 608 635 002
1508
8 Gauge Shear
Unishear®
164
Boschtools.com
Features
• 9.2 Amps, 1,250 SPM
• Excellent for high alloy steel cutting
• Top handle with large rocker switch
• Low vibration - For operator comfort
• Visible blade - Allows precise cutting
• Auxiliary handle mounts on either side -
For right-or left-handers
Toll Free: 877-BOSCH-99
Specifications
Rating 120V AC
Amperage 9.2
Max. Motor HP 0
Cutting Capacity
Aluminum .196"
Mild Steel 8G (.165")
Stainless Steel 10G (.135")
Curve Cutting-Minimum Radius 2"
No Load SPM 1,250
Length (in.) 13.5"
Weight (lbs.) 15
Includes
Angle Gauge ........................... 1 607 970 016
Feeler Gauge .......................... 1 607 970 015
Turning Pin ............................. 1 607 990 001
5mm Allen Wrench ................1 907 950 006
Lower Blade ........................... 3 608 635 002
3mm Allen Wrench ................1 970 950 004
10mm Open End Wrench ..... 1 970 950 504
Upper Blade ........................... 3 608 635 000
Replacement Equipment
Auxiliary Handle ..................... 2 602 025 075
Replacement Upper Blade ... 3 608 635 000
Replacement Lower Blade ... 3 608 635 002
Page 15
165
Toll Free: 877-BOSCH-99
Boschtools.com
Gauge Nibblers
Specifications
Rating 120V AC
Amperage 3.2
Cutting Capacity
Mild Steel 18 ga. (.048")
Most Aluminum .080"
Stainless Steel 20 ga. (.036")
Cutting Radius 1-9/16"
No Load SPM 2,500
Cutting Width .200" (5mm)
Length (in.) 11-1/4"
Weight (lbs.) 3.9
Includes
Die............................................ 2 608 639 028
Punch ...................................... 2 608 639 027
26 Gauge Die .......................... 3 608 639 035
Specifications
Rating 120V AC
Amperage 5
Cutting Capacity
Mild Steel 16 ga. (.060")
Most Aluminum .100"
Stainless Steel 18 ga. (.048")
Cutting Radius 2"
No Load SPM 1,700
Cutting Width .200" (5mm)
Length (in.) 10-1/2"
Weight (lbs.) 4.6
Includes
Die............................................ 2 608 639 904
Punch ...................................... 2 608 639 013
Features
• 3.2 Amps, 2,500 SPM
• Unique cutting head design - For multiple types
of corrugated steel
• Ejects chips downward away from operator and
workpiece - For operator safety
• Paddle switch w/lock-on - For better operator
comfort and control
• Compact design - Slim tool housing comfortably
fits in the hand
• 3-Position head cuts forward, lef t and right
• Easy replacement of cutting die and punch
• Flat stock, corrugated, trapezoidal or full square
stock - All cut efficiently
• Small gear head - Allows cutting in confined areas
• No adjustment required when switching
material thickness
Features
• 5 Amps, 1,700 SPM
• Punch is resharpenable - For extended life
• Ejects chips downward - Away from workpiece
and operator
• Lightweight and por table
• 3-Position head cuts forward, lef t and right
• Flat stock, corrugated, trapezoidal or full square
stock - all cut efficiently
• No adjustment required when switching
material thickness
• Small gear head - Allows cutting in confined areas
1529B
18 Gauge Nibbler
1534
16 Gauge Nibbler
Specifications
Rating 120V AC
Amperage 4.6
Cutting Capacity
Mild Steel 14 ga. (.075")
Most Aluminum .100"
Stainless Steel 16 ga. (.066")
Cutting Radius 1-3/16"
No Load SPM 2,400
Cutting Width 15/64" (6mm)
Length (in.) 10-1/4"
Weight (lbs.) 4.6
Includes
Die............................................ 2 608 639 023
Punch ...................................... 2 608 639 024
Specifications
Rating 120V AC
Amperage 5
Cutting Capacity
Mild Steel 10 ga. (.135")
Most Aluminum .165"
Stainless Steel 12 ga. (.105")
Cutting Radius 2-1/2"
No Load SPM 1,000
Cutting Width 1/4"
Length (in.) 11-1/2"
Weight (lbs.) 8.1
Includes
Die............................................ 2 608 639 026
Punch ...................................... 2 608 639 025
Side Handle ............................2 602 025 075
4mm Hex Key .......................... 1 907 950 005
Features
• 4.6 Amps, 2400 SPM
• Burr-free edges - No finishing
• Full swivel die available - For cutting in
all directions
• Corrugated, trapezoidal or full square stock - All
cut efficiently with a simple cutter change
• Small gear head - Allows cutting in confined areas
• No adjustment required when switching material
thickness
• Worn cutters are changed in minutes with
adjustable wrench
Features
• 5 Amps, 1000 SPM
• Punch can be resharpened for extended life
• Adjustable punch guide - Accommodates different
gauge sheets for vibration-free cutting
• Ejects chips downward away from operator
and workpiece
• Reversible side hand with extension - For selection
of secure and comfortable holding positions
• Flat stock and corrugated stock are cut efficiently
with standard punch and die
• Small gear head - Allows cutting in confined areas
1530
14 Gauge Nibbler
1533A
10 Gauge Nibbler
Page 16

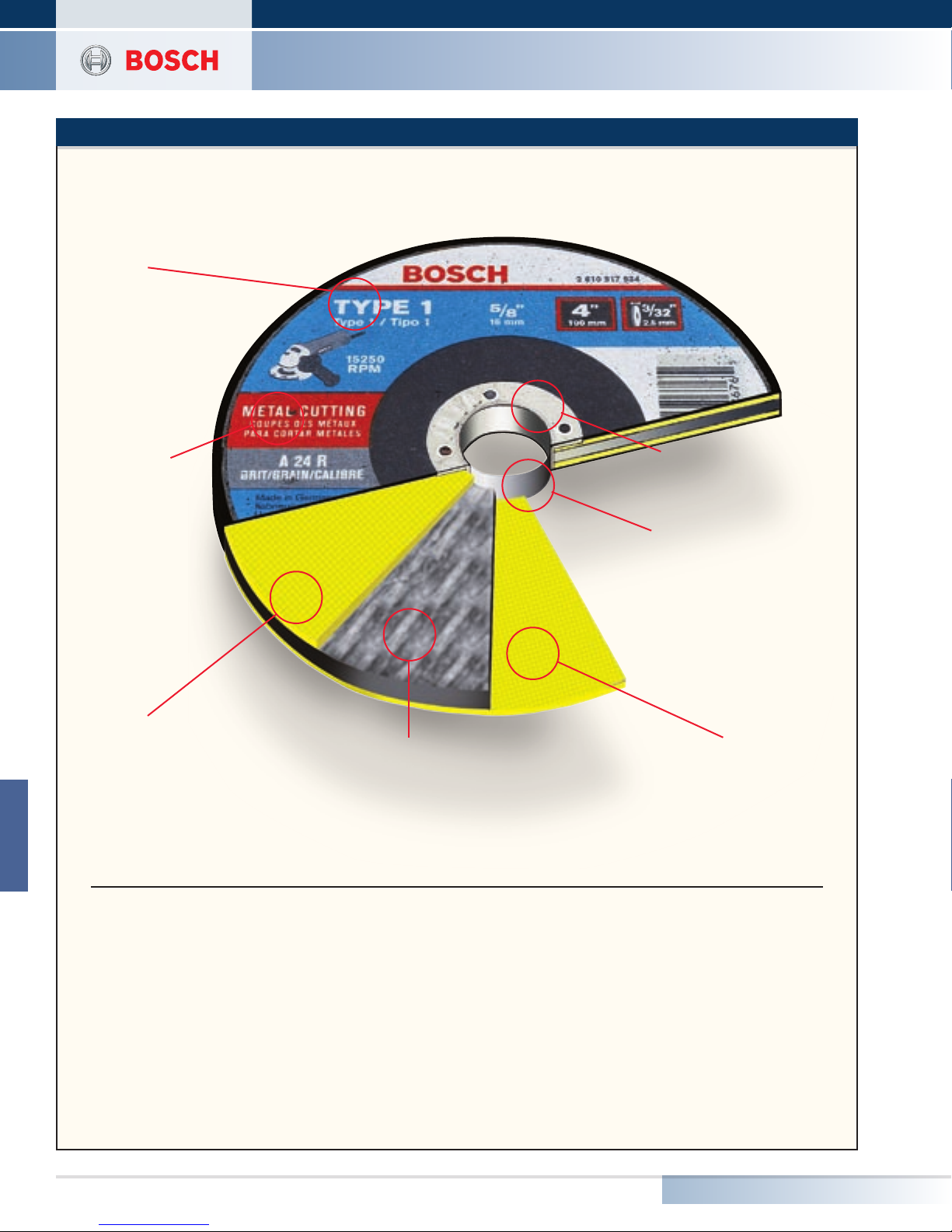

Grinding Wheels
Raw Materials and Compounds of a
Grinding / Cutting Wheel
Label
Information burned in
during manufacturing
process and remains
on wheel for life
of wheel.
Industry
color-coded
system
Fiberglass reinforcement
Provides extra strength to use wheel
at maximum RPM and withstands
lateral pressure.
Abrasive
grains (mass)
Abrasive grains are particles
of man-made abrasive
compounds. Bosch uses
only high-quality grains.
Expiration date
Wheel ring
Determines how wheel
is attached to tool.
Additional fiberglass
reinforcement
Some grinding wheels may
have up to four fiberglass
reinforcement layers.
Typical Construction of Wheels
Portable tool
cutting wheels
– Fiberglass reinforcement,
laminated with paper.
– Abrasive grain (mass).
– Fiberglass reinforcement.
– Label.
– Ring.
166
Boschtools.com
Stationary cutting
wheels
– Small fiberglass reinforcement,
laminated with paper.
– Abrasive grain (mass).
– Large fiberglass reinforcement.
– Abrasive grain (mass).
– Small fiberglass reinforcement.
– Label.
– Ring.
Toll Free: 877-BOSCH-99
Grinding wheels
(up to a thickness of 8 mm)
– Fiberglass reinforcement,
laminated with paper.
– Abrasive grain (mass).
– Fiberglass reinforcement.
– Abrasive grain (mass).
– Fiberglass reinforcement.
– Label.
– Ring.
Page 17
167
Toll Free: 877-BOSCH-99
Boschtools.com

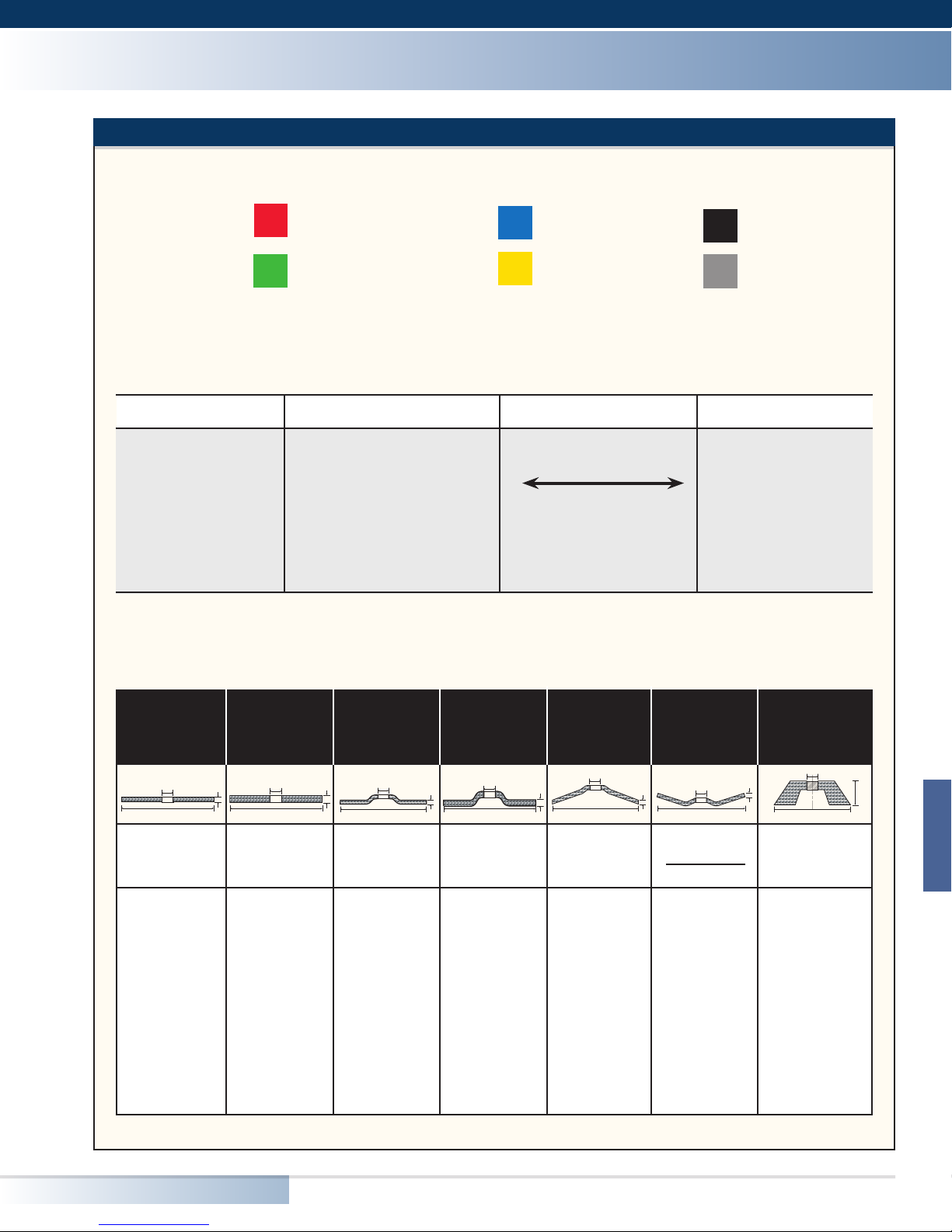

Industry Color-Coded System
C
B
A
C
B
A
A
B
C
B
A
C
C
B
A
A
C
B
A
C
B
Grinding Wheels
Metal /
General Purpose
Concrete /
Masonry
Stainless
Pipeline
Asphalt
Aluminum
ANSI Standard Marking System
The following chart is an example of the ANSI standard marking system for identifying Bosch grinding wheels and other bonded abrasives:
Sample of typical marking: A 30 T-BF
A
Primary Grain Used
to Make the Wheel
A = Aluminum oxide
AS = Aluminum oxide
special
C = Silicon carbide
CS = Silicon carbide
special
Z = Aluminum zirconium
Size of the Abrasive Grain
Very coarse 8-12
Coarse 14-24
Medium 30-60
Fine 70-180
Dust fine 200-800
30 T
Hardness of Bond
Soft Medium Hard
N P R S T
BF
Type of Bond Used
B ____ Resinoid
BF __ Resinoid Reinforced
Wheel Configurations and Uses
Bonded abrasive wheels have different configurations depending upon the tool on which the wheel is used and the
desired end results. Below are the configurations that a wheel can have.
Type 1A
(ISO 41)
CUTTING
Straight
Wheel
Type 1A
(ISO 41)
Used at a 90°
angle for
cutting only.
No grinding.
A = Wheel diameter B = Wheel width or thickness C = Wheel bore
Type 1
GRINDING
Straight
Wheel
Bench or
Type 1
Used for edge
grinding at a
50°- 90° angle.
Not for cutting
applications.
Type 27A
CUTTING
Depressed
Center
Wheel
Type 27A
To be used at
a 90° angle
for light
cut-off work.
Type 27
BLENDING
GRINDING
Depressed
Center
Wheel
Type 27
For use on flat
surfaces for
weld prep,
usually on bar
stock or angle
iron. Tool best
used at a
30° angle. No
cutting.
Type 28
GRINDING
Saucer-
shaped
Wheel
Type 28
To be used
for weld
preparation
and de-burring
surfaces. Tool
usually used at
a 15° angle, to
cover greater
surface area
and allow
better visibility.
Type 29
BLENDING
GRINDING
Flexible
Wheel
Flap Disc
Type 29
For blending and
stock removal on
uneven surfaces,
best used at a
10° angle. This
allows user to
use one wheel
for grinding
and finishing.
Type 11
GRINDING
Flared Cup
Wheel
Type 11 Steel-
Concrete
Used for removing
excess material
and build-up on
large flat surfaces,
allowing for
maximum surface
area coverage
– tool used
perpendicular
to work.
Page 18
Grinding Wheels
Selection Guide Grinding Wheel Materials and Compounds
1. Abrasive Grains
Abrasive grains are particles of man-made abrasive
compounds. While some manufacturers use recycled
grains, Bosch abrasives use only high quality, virgin
grains that are made to our specifications. The
chemical structure of the grains determines the
physical propert ies o f the grai ns (i.e ., sh ape,
sharpness, hardness, friability). Common grain
types used in making bonded abrasives include:
A - Aluminum Oxide - A tough, blocky
shaped grain used for cutting metals
and other high tensile strength materials
without excessive fracturing.
C - Silicon Carbide - A very hard and very
sharp abrasive suited for non-metallic
materials such as concrete.
Z - Aluminum Zirconium - A very fine,
dense crystalline grain which can be
used for rugged stock removal.
SG - Seeded Gel - A very fine, dense
crystalline grain which can be used
for rugged stock removal.
2. Bonding Agent
The bonding agent that holds the grains together determines the resistance of the
wheel. Bosch abrasives use a resinoid bond that is formulated to meet the unique
specifications of each product.
3. Reinforcement
The reinforcement material provides extra strength to use the wheel at maximum
RPMs and withstand lateral pressure that is applied during use. Bosch uses multiple
layers of long, stranded fiberglass that are woven to form an exceptionally strong
reinforcement layer specific to the application.
Combining the 3 Components
During the manufacturing process, these three components are combined to form a
grinding wheel. The grains and bonding agents are measured, combined and pressed
in an automated hydraulic press. Bosch abrasives labels are also incorporated into the
manufacturing process and therefore remain intact throughout the life of the wheel.
Bosch premium grade wheels are constructed of high quality abrasive grains, bonding coats and backings for metal, concrete,
masonry, pipeline, asphalt and stainless steel cutting. Easy–to–read labels are incorporated into the manufacturing process and
therefore remain intact throughout the life of the wheel. While some manufacturers use recycled grains, Bosch uses only superior
virgin grains made to exact specifications. Carefully formulated resinoid bonds are applied to meet the unique specifications of
each wheel. Multiple layers of long, stranded fiberglass are woven to form an exceptionally strong reinforcement layer specific to
the application.
Grinding Wheels: Angle Grinders
Thin Cutting / Rapido Type 1A (ISO 41) Grinding Wheels
Rapido thin cutting wheels provide up to 50% less cutting time and require less force.
Excellent for vibration free cutting and no burring to avoid rework.
AS60INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel,
60 grit grain size. Resin bond and fiberglass reinforcing.
AS46INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel,
46 grit grain size. Resin bond and fiberglass reinforcing.
C60R-BF – Silicon carbide grain, 60 grit grain size, in the medium range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
TCW1S400
g
TCW1S450
g
TCW1S500
g
TCW1S6XT
g
TCW1S600
g
TCW 1C400
g
TCW 1C450
g
TCW 1C50 0
4" x .040" 5/8" 15,250 AS60INOX-BF Metal / stainless steel cutting
4-1/2" x .040" 7/8" 13,280 AS60INOX-BF Metal / stainless steel cutting
5" x .040" 7/8" 12,200 AS60INOX-BF Metal / stainless steel cutting
6" x .040" 7/8" 10,200 AS60INOX-BF Metal / stainless steel cutting
6" x 1/16" 7/8" 10,200 AS46INOX-BF Metal / stainless steel cutting
4" x .045" 5/8" 15,250 C60R-BF Concrete / masonry cutting
4-1/2" x .045" 7/8" 13,280 C60R-BF Concrete / masonry cutting
5" x .045" 7/8" 12,200 C60R-BF Concrete / masonry cutting
168
Boschtools.com
Toll Free: 877-BOSCH-99
Page 19
169
Toll Free: 877-BOSCH-99
Boschtools.com
Grinding Wheels
Thin Cutting / Rapido Type 27A Grinding Wheels
Rapido thin cutting wheels provide up to 50% less cutting time and require less force.
Excellent for vibration free cutting and no burring to avoid rework.
AS60INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel,
60 grit grain size. Resin bond and fiberglass reinforcing.
AS46INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel,
46 grit grain size. Resin bond and fiberglass reinforcing.
C60R-BF – Silicon carbide grain, 60 grit grain size, in the medium range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
TCW27S400
g
TCW27S450
g
TCW27S500
g
TCW27S600
g
TCW27S70 0
g
TCW27S9 00
g
TCW27C4 00
g
TCW27C4 50
g
TCW27C5 00
4" x .040" 5/8" 15,250 AS60INOX-BF Metal / stainless steel cutting
4-1/2" x .040" 7/8" 13,280 AS60INOX-BF Metal / stainless steel cutting
5" x .040" 7/8" 12,200 AS60INOX-BF Metal / stainless steel cutting
6" x 1/16" 7/8" 10,200 AS46INOX-BF Metal / stainless steel cutting
7" x 1/16" 7/8" 8,600 AS46INOX-BF Metal / stainless steel cutting
9" x 5/64" 7/8" 6,600 AS46INOX-BF Metal / stainless steel cutting
4" x .045" 5/8" 15,250 C60R-BF Concrete / masonry cutting
4-1/2" x .045" 7/8" 13,280 C60R-BF Concrete / masonry cutting
5" x .045" 7/8" 12,200 C60R-BF Concrete / masonry cutting
Type 1A (ISO 41) Grinding Wheels
A24R-BF – Aluminum oxide grain, 24 grit grain size, in the middle range on the
bond hardness scale. Resin bond and fiberglass reinforcing.
C24R-BF – Silicon carbide grain, 24 grit grain size, in the medium range on the
bond hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CW1M400
g
CW1M450
g
CW1M500
g
CW1M600
g
CW1C 40 0
g
CW1C 45 0
g
CW1C 50 0
g
CW1C 60 0
4" x 3/32" 5/8" 15,250 A24R-BF Metal cutting
4-1/2" x 3/32" 7/8" 13,280 A24R-BF Metal cutting
5" x 3/32" 7/8" 12,200 A24R-BF Metal cutting
6" x 3/32" 7/8" 10,200 A24R-BF Metal cutting
4" x 3/32" 5/8" 15,250 C24R-BF Masonry cutting
4-1/2" x 3/32" 7/8" 13,280 C24R-BF Masonry cutting
5" x 3/32" 7/8" 12,200 C24R-BF Masonry cutting
6" x 3/32" 7/8" 10,200 C24R-BF Masonry cutting
Page 20

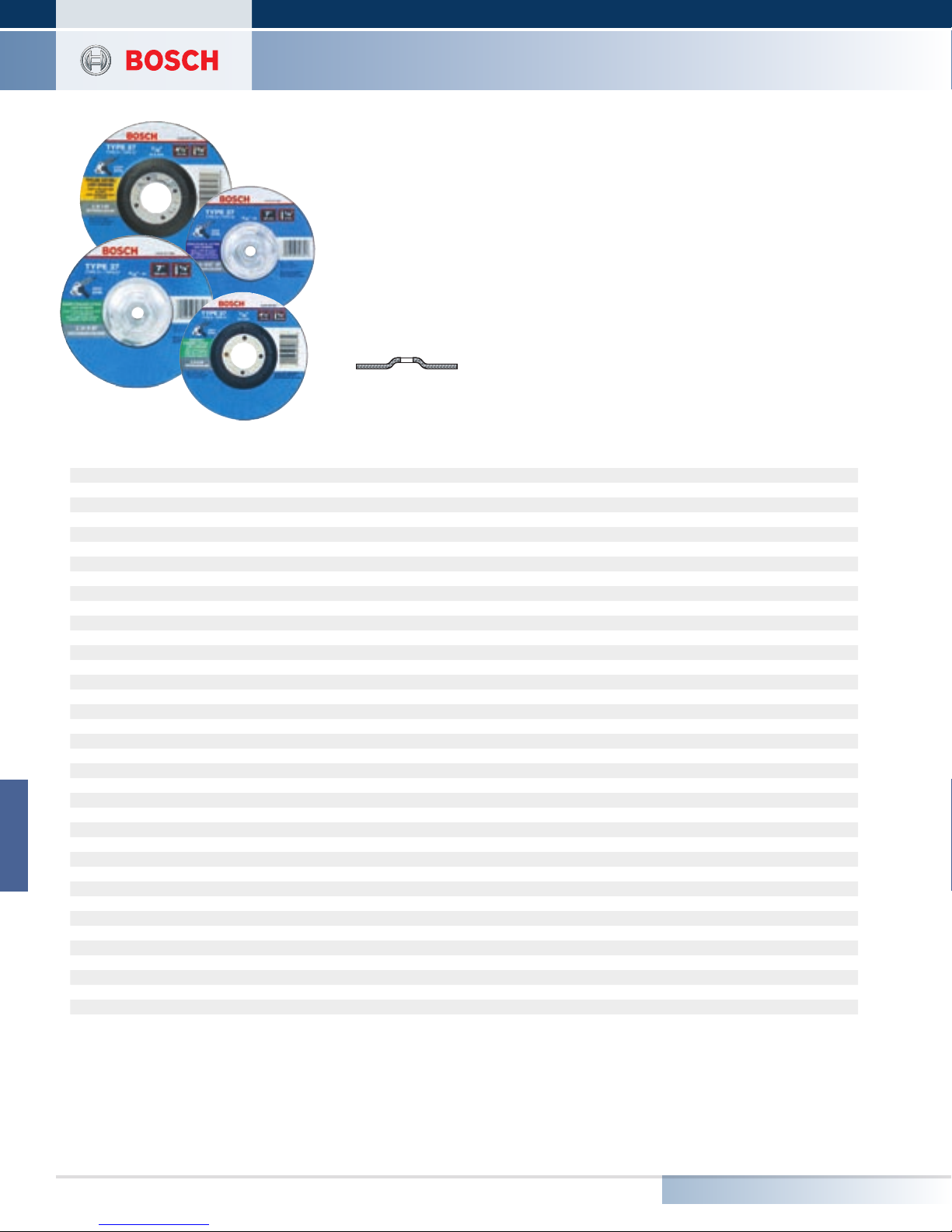

Grinding Wheels
Type 27A Grinding Wheels
A24R-BF – Aluminum oxide grain, 24 grit grain size, in the middle range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
AZ30S-BF – Aluminum zirconium grain, 30 grit grain size, in the medium to hard range
on the bond hardness scale. Resin bond and fiberglass reinforcing.
AS30INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel,
30 grit grain size. Resin bond and fiberglass reinforcing.
A30T-BF – Aluminum oxide grain, 30 grit grain size, toward the hard range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
C24R-BF– Silicon carbide grain, 24 grit grain size, in the medium range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CG27M400
g
CG27M450
g
CG27M451
g
CG27M50 0
g
CG27M600
g
CG27M700
g
CG27M701
g
CG27M900
g
CG27M9 01
g
CG27LM450
g
CG27LM500
g
CG27LM600
g
CG27LM601
g
CG27LM700
g
CG27LM701
g
CG27LM900
g
CG27C 450
g
CG27C 451
g
CG27C 500
g
CG27C 501
g
CG27C 600
g
CG27C700
g
CG27C701
g
CG27C 900
g
CG27S450
g
CG27S50 0
g
CG27S600
g
CG27S601
g
CG27S700
g
CG27S701
g
CG27P4 50
g
CG27P500
g
CG27P501
g
CG27P600
g
CG27P700
g
CG27P701
g
CG27P900
4" x 3/32" 5/8" 15,250 A24R-BF Metal cutting / light grinding
4-1/2" x 3/32" 7/8" 13,280 A24R-BF Metal cutting / light grinding
4-1/2" x 3/32" 5/8"-11 13,280 A24R-BF Metal cutting / light grinding
5" x 3/32" 7/8" 12,200 A24R-BF Metal cutting / light grinding
6" x 3/32" 7/8" 10,200 A24R-BF Metal cutting / light grinding
7" x 1/8" 7/8" 8,600 A24R-BF Metal cutting / light grinding
7" x 1/8" 5/8"-11 8,600 A24R-BF Metal cutting / light grinding
9" x 1/8" 7/8" 6,600 A24R-BF Metal cutting / light grinding
9" x 1/8" 5/8"-11 6,600 A24R-BF Metal cutting / light grinding
4-1/2" x 1/8" 7/8" 13,280 AZ30S-BF Long life metal cutting / light grinding
5" x 1/8" 7/8" 12,200 AZ30S-BF Long life metal cutting / light grinding
6" x 1/8" 7/8" 10,200 AZ30S-BF Long life metal cutting / light grinding
6" x 1/8" 5/8"-11 10,200 AZ30S-BF Long life metal cutting / light grinding
7" x 1/8" 7/8" 8,600 AZ30S-BF Long life metal cutting / light grinding
7" x 1/8" 5/8"-11 8,600 AZ30S-BF Long life metal cutting / light grinding
9" x 1/8" 7/8" 6,600 AZ30S-BF Long life metal cutting / light grinding
4-1/2" x 3/32" 7/8" 13,280 C24R-BF Concrete / masonry cutting / light grinding
4-1/2" x 3/32" 5/8"-11 13,280 C24R-BF Concrete / masonry cutting / light grinding
5" x 3/32" 7/8" 12,200 C24R-BF Concrete / masonry cutting / light grinding
5" x 3/32" 5/8"-11 12,200 C24R-BF Concrete / masonry cutting / light grinding
6" x 3/32" 7/8" 10,200 C24R-BF Concrete / masonry cutting / light grinding
7" x 1/8" 7/8" 8,600 C24R-BF Concrete / masonry cutting / light grinding
7" x 1/8" 5/8"-11 8,600 C24R-BF Concrete / masonry cutting / light grinding
9" x 1/8" 7/8" 6,600 C24R-BF Concrete / masonry cutting / light grinding
4-1/2" x 3/32" 7/8" 13,280 AS30INOX-BF Stainless / metal cutting / light grinding
5" x 3/32" 7/8" 12,200 AS30INOX-BF Stainless / metal cutting / light grinding
6" x 3/32" 7/8" 10,200 AS30INOX-BF Stainless / metal cutting / light grinding
6" x 3/32" 5/8"-11 10,200 AS30INOX-BF Stainless / metal cutting / light grinding
7" x 1/8" 7/8" 8,600 AS30INOX-BF Stainless / metal cutting / light grinding
7" x 1/8" 5/8"-11 8,600 AS30INOX-BF Stainless / metal cutting / light grinding
4-1/2" x 5/32" 7/8" 13,280 A30T-BF Pipeline cutting / light grinding
5" x 5/32" 7/8" 12,200 A30T-BF Pipeline cutting / light grinding
5" x 5/32" 5/8"-11 12,200 A30T-BF Pipeline cutting / light grinding
6" x 5/32" 7/8" 10,200 A30T-BF Pipeline cutting / light grinding
7" x 5/32" 7/8" 8,600 A30T-BF Pipeline cutting / light grinding
7" x 5/32" 5/8"-11 8,600 A30T-BF Pipeline cutting / light grinding
9" x 5/32" 7/8" 6,600 A30T-BF Pipeline cutting / light grinding
170
Boschtools.com
Toll Free: 877-BOSCH-99
Page 21
171
Toll Free: 877-BOSCH-99
Boschtools.com

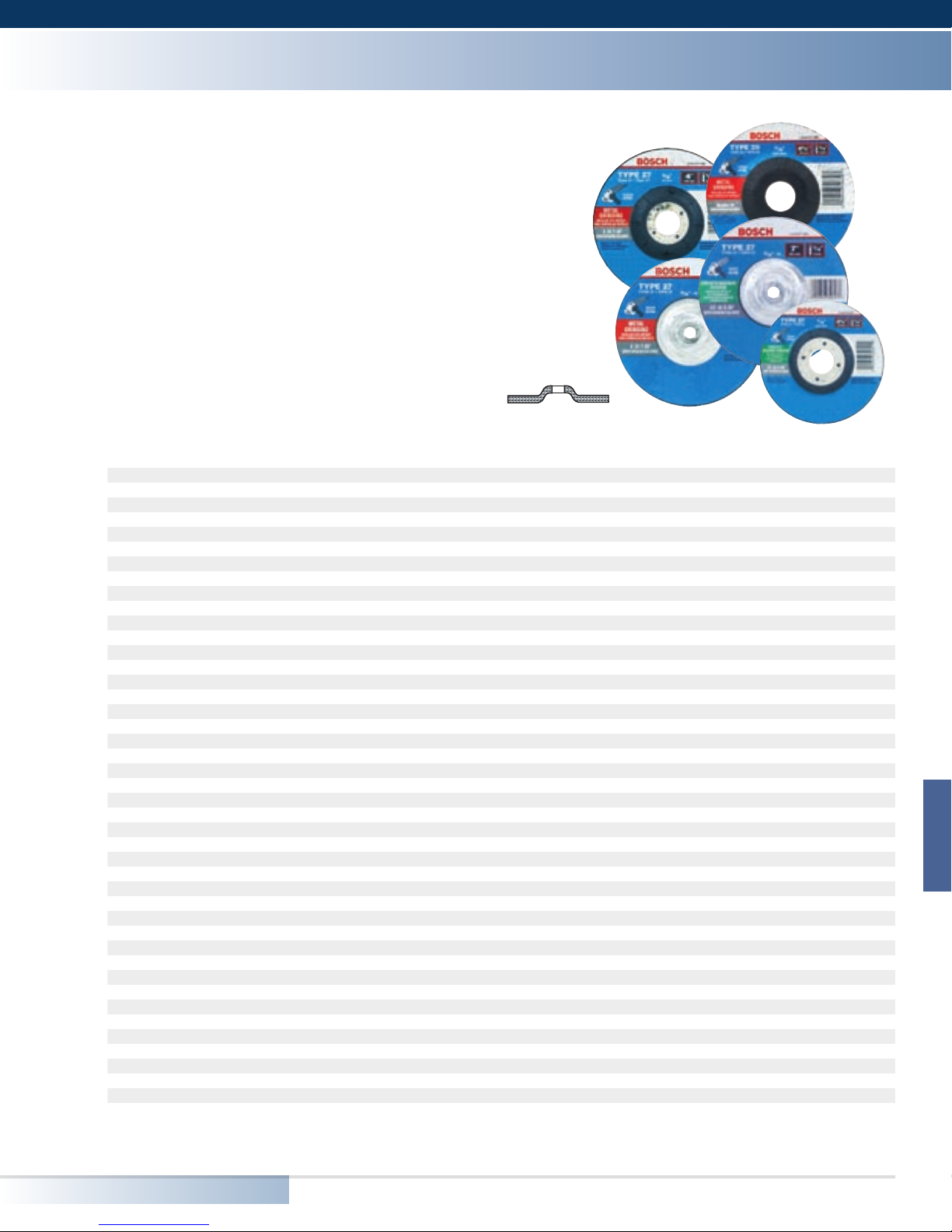

Grinding Wheels
Type 27 Grinding Wheels
A30T-BF – Aluminum oxide grain, 30 grit grain size, toward the hard range on the
bond hardness scale. Resin bond and fiberglass reinforcing.
AZ30S-BF – Aluminum zirconium grain, 30 grit grain size, in the medium to hard
range on the bond hardness scale. Resin bond and fiberglass reinforcing.
AS30INOX-BF – Aluminum oxide grain specially formulated for use with stainless
steel, 30 grit grain size. Resin bond and fiberglass reinforcing.
AS46ALU-BF – Aluminum oxide grain specially formulated for use with aluminum,
46 grit grain size. Resin bond and fiberglass reinforcing.
CS30S-BF – Silicon carbide special grain, 30 grit grain size, in the medium to hard
range on the bond hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
GW27M40 0
g
GW27M450
g
GW27M451
g
GW27M500
g
GW27M501
g
GW27M600
g
GW27M601
g
GW27M700
g
GW27M701
g
GW27M900
g
GW27M9 01
g
GW27LM450
g
GW27LM451
g
GW27LM500
g
GW27LM600
g
GW27LM700
g
GW27LM701
g
GW27LM900
g
GW27C 450
g
GW27C 451
g
GW27C 500
g
GW27C 501
g
GW27C 600
g
GW27C700
g
GW27C701
g
GW27C 900
g
GW27C 901
g
GW27S450
g
GW27S 451
g
GW27S500
g
GW27S501
g
GW27S60 0
g
GW27S700
g
GW27S701
g
GW27S900
g
GW 27A L4 50
g
GW 27A L4 51
g
GW 27A L5 00
g
GW 27A L5 01
g
GW 27A L6 00
g
GW 27A L70 0
g
GW 27A L70 1
g
GW 27A L9 00
4" x 1/4" 5/8" 15,250 A30T-BF Metal grinding
4-1/2" x 1/4" 7/8" 13,280 A30T-BF Metal grinding
4-1/2" x 1/4" 5/8"-11 13,280 A30T-BF Metal grinding
5" x 1/4" 7/8" 12,200 A30T-BF Metal grinding
5" x 1/4" 5/8"-11 12,200 A30T-BF Metal grinding
6" x 1/4" 7/8" 10,200 A30T-BF Metal grinding
6" x 1/4" 5/8"-11 10,200 A30T-BF Metal grinding
7" x 1/4" 7/8" 8,600 A30T-BF Metal grinding
7" x 1/4" 5/8"-11 8,600 A30T-BF Metal grinding
9" x 1/4" 7/8" 6,600 A30T-BF Metal grinding
9" x 1/4" 5/8"-11 6,600 A30T-BF Metal grinding
4-1/2" x 1/4" 7/8" 13,280 AZ30S-BF Long life metal grinding
4-1/2" x 1/4" 5/8"-11 13,280 AZ30S-BF Long life metal grinding
5" x 1/4" 7/8" 12,200 AZ30S-BF Long life metal grinding
6" x 1/4" 7/8" 10,200 AZ30S-BF Long life metal grinding
7" x 1/4" 7/8" 8,600 AZ30S-BF Long life metal grinding
7" x 1/4" 5/8"-11 8,600 AZ30S-BF Long life metal grinding
9" x 1/4" 7/8" 6,600 AZ30S-BF Long life metal grinding
4-1/2" x 1/4" 7/8" 13,280 CS30S-BF Concrete / masonry grinding
4-1/2" x 1/4" 5/8"-11 13,280 CS30S-BF Concrete / masonry grinding
5" x 1/4" 7/8" 12,200 CS30S-BF Concrete / masonry grinding
5" x 1/4" 5/8"-11 12,200 CS30S-BF Concrete / masonry grinding
6" x 1/4" 7/8" 10,200 CS30S-BF Concrete / masonry grinding
7" x 1/4" 7/8" 8,600 CS30S-BF Concrete / masonry grinding
7" x 1/4" 5/8"-11 8,600 CS30S-BF Concrete / masonry grinding
9" x 1/4" 7/8" 6,600 CS30S-BF Concrete / masonry grinding
9" x 1/4" 5/8"-11 6,600 CS30S-BF Concrete / masonry grinding
4-1/2" x 1/4" 7/8" 13,280 AS30INOX-BF Stainless / metal grinding
4-1/2" x 1/4" 5/8"-11 13,280 AS30INOX-BF Stainless / metal grinding
5" x 1/4" 7/8" 12,200 AS30INOX-BF Stainless / metal grinding
5" x 1/4" 5/8"-11 12,200 AS30INOX-BF Stainless / metal grinding
6" x 1/4" 7/8" 10,200 AS30INOX-BF Stainless / metal grinding
7" x 1/4" 7/8" 8,600 AS30INOX-BF Stainless / metal grinding
7" x 1/4" 5/8"-11 8,600 AS30INOX-BF Stainless / metal grinding
9" x 1/4" 7/8" 6,600 AS30INOX-BF Stainless / metal grinding
4-1/2" x 1/4" 7/8" 13,280 AS46ALU-BF Aluminum grinding
4-1/2" x 1/4" 5/8"-11 13,280 AS46ALU-BF Aluminum grinding
5" x 1/4" 7/8" 12,200 AS46ALU-BF Aluminum grinding
5" x 1/4" 5/8"-11 12,200 AS46ALU-BF Aluminum grinding
6" x 1/4" 7/8" 10,200 AS46ALU-BF Aluminum grinding
7" x 1/4" 7/8" 8,600 AS46ALU-BF Aluminum grinding
7" x 1/4" 5/8"-11 8,600 AS46ALU-BF Aluminum grinding
9" x 1/4" 7/8" 6,600 AS46ALU-BF Aluminum grinding
Page 22
Grinding Wheels
Abrasive Wheels for Circular Saws
A24R-BF – Aluminum oxide grain, 24 grit grain size, in the middle range on the bond hardness scale. Resin bond and
fiberglass reinforcing.
C24R-BF – Silicon carbide grain, 24 grit grain size, in the medium range on the bond hardness scale. Resin bond and
fiberglass reinforcing.
A/CS30R-BF – Aluminum oxide and silicon carbide blended grain, 30 grit grain size, in the middle range on the bond hardness scale. Resin
bond and fiberglass reinforcing.
AS30INOX-BF – Aluminum oxide grain specially formulated for use with stainless steel, 30 grit grain size. Resin bond and
fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CC1M600
g
CC1M700
g
CC1M8 00
g
CC1C650
g
CC1C700
g
CC1C 80 0
CC1MC600
CC1MC700
g
CC1S600
g
CC1S700
6" x 3/32" 5/8" ◊ 10,200 A24R-BF Metal cutting
7" x 1/8" 5/8" ◊ 8,600 A24R-BF Metal cutting
8" x 1/8" 5/8" ◊ 7,600 A24R-BF Metal cutting
6" x 3/32" 5/8" ◊ 10,200 C24R-BF Concrete / masonry cutting
7" x 1/8" 5/8" ◊ 8,600 C24R-BF Concrete / masonry cutting
8" x 1/8" 5/8" ◊ 7,600 C24R-BF Concrete / masonry cutting
6" x 3/32" 5/8" ◊ 10,200 A/CS30R-BF Multi-material cutting
7" x 1/8" 5/8" ◊ 8,600 A/CS30R-BF Multi-material cutting
6" x 3/32" 5/8" ◊ 10,200 AS30INOX-BF Stainless / metal cutting
7" x 1/8" 5/8" ◊ 8,600 AS30INOX-BF Stainless / metal cutting
Abrasive Wheels for Cutoff Machines
A24N-BF - Aluminum oxide grain, 24 grit grain size, in the soft range on the bond hardness scale. Resin
bond and fiberglass reinforcing.
AS36T-BF - Aluminum oxide grain specially formulated for use with stainless steel,
36 grit grain size, in the hard range on the bond hardness scale. Resin bond and
fiberglass reinforcing.
AS36TX-BF - Aluminum oxide grain specially formulated for cutting studs, 36 grit grain size, in the hard
range on the bond hardness scale. Resin bond and fiberglass reinforcing.
Item # Wheel Diameter Arbor Size Max. RPM Grit Application
g
CWCS1M1000
g
CWCS1M1200
g
CWCS1M14SC
g
CWCS1M140 0
g
CWCS1S120 0
g
CWCS1S140 0
10" x 1/8" 5/8" 6,100 A24N-BF Metal cutting
12" x 7/64" 1" 5,100 A24N-BF Metal cutting
14" x 3/32" 1" 4,400 AS36TX-BF Stud cutting, stainless steel
14" x 1/8" 1" 4,400 A24N-BF Metal cutting
12" x 7/64" 1" 6,400 AS36T-BF Stainless steel, ferrous metals
14" x 1/8" 1" 4,400 AS36T-BF Stainless steel, ferrous metals
172
Boschtools.com
Toll Free: 877-BOSCH-99
Page 23
173
Toll Free: 877-BOSCH-99
Boschtools.com

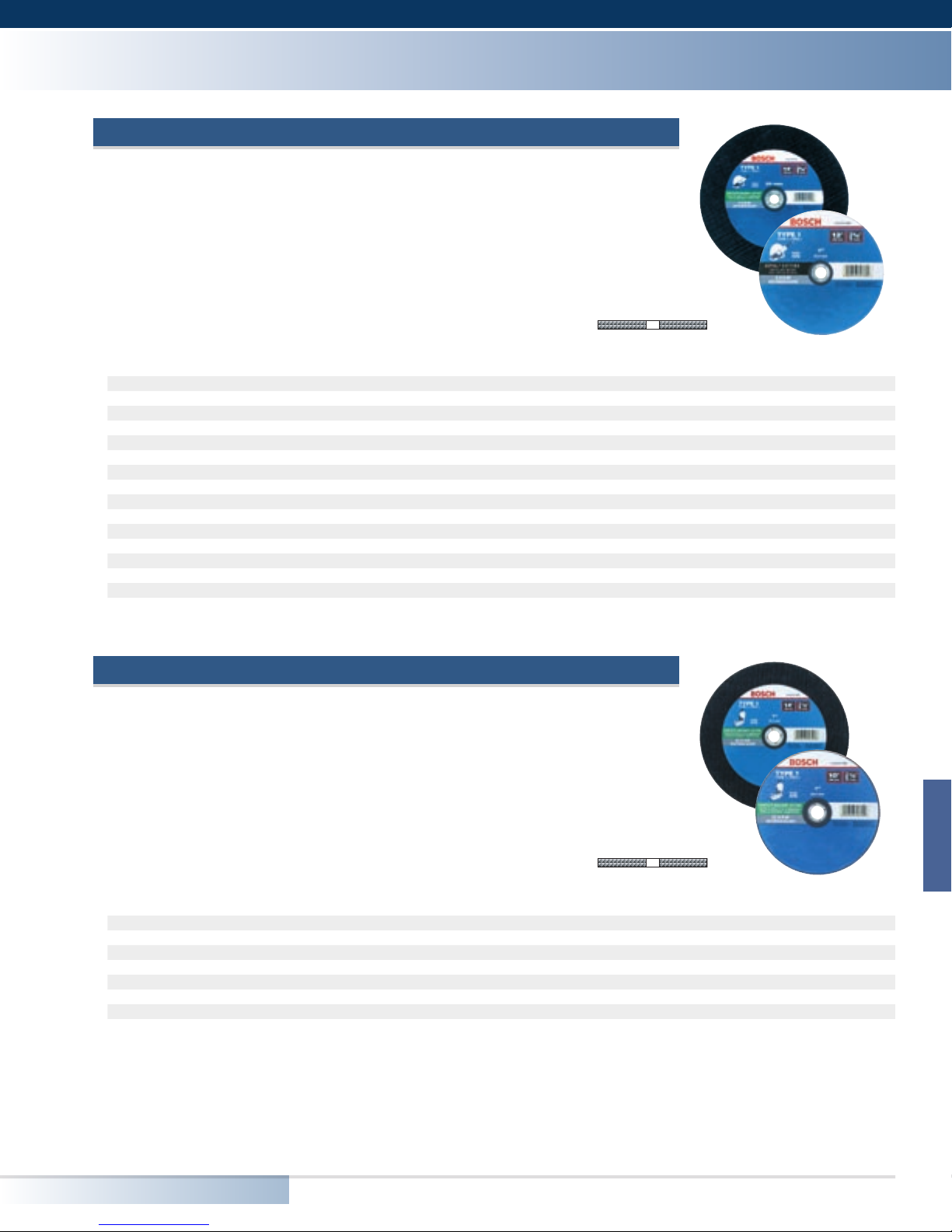

Grinding Wheels
Portable / High Speed Wheels
A24R-BF – Aluminum oxide grain, 24 grit grain size, in the middle range on the bond hardness scale.
Resin bond and fiberglass reinforcing.
AC24R-BF – Aluminum oxide / silicon carbide blended grain specially formulated for ductile cutting,
24 grit grain size, in the medium range on the bond hardness scale. Resin bond and fiberglass reinforcing.
C24R-BF – Silicon carbide grain, 24 grit grain size, in the medium range on the bond hardness scale. Resin
bond and fiberglass reinforcing.
CS30Asphalt-BF – Silicon carbide grain specially formulated for use with asphalt. 30 grit grain size,
resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CWPS1M1200
g
CWPS1M1220
g
CWPS1M140 0
g
CWPS1M1420
g
CWPS1C1200
g
CWPS1C1220
g
CW PS1C14 00
g
CWPS1C1420
g
CWPS1A1200
g
CWPS1A1220
g
CWPS1A140 0
g
CWPS1A1420
g
CWPS1D1200
g
CWPS1D1220
g
CWPS1D14 00
g
CWPS1D1420
12" x 5/32" 1" 6,400 A24R-BF Metal cutting
12" x 5/32" 20 mm for Stihl 6,400 A24R-BF Metal cutting
14" x 5/32" 1" 5,500 A24R-BF Metal cutting
14" x 5/32" 20 mm for Stihl 5,500 A24R-BF Metal cutting
12" x 5/32" 1" 6,400 C24R-BF Concrete / masonry cutting
12" x 5/32" 20 mm for Stihl 6,400 C24R-BF Concrete / masonry cutting
14" x 5/32" 1" 5,500 C24R-BF Concrete / masonry cutting
14" x 5/32" 20 mm for Stihl 5,500 C24R-BF Concrete / masonry cutting
12" x 5/32" 1" 6,400 CS30Asphalt-BF Asphalt / green concrete cutting
12" x 5/32" 20 mm for Stihl 6,400 CS30Asphalt-BF Asphalt / green concrete cutting
14" x 5/32" 1" 5,500 CS30Asphalt-BF Asphalt / green concrete cutting
14" x 5/32" 20 mm for Stihl 5,500 CS30Asphalt-BF Asphalt / green concrete cutting
12" x 5/32" 1" 6,400 AC24R-BF Ductile cutting
12" x 5/32" 20 mm for Stihl 6,400 AC24R-BF Ductile cutting
14" x 5/32" 1" 5,500 AC24R-BF Ductile cutting
14" x 5/32" 20 mm for Stihl 5,500 AC24R-BF Ductile cutting
Stationary Wheels
A30N-BF – Aluminum oxide grain, 30 grit grain size, in the soft to medium range on the bond hardness
scale. Resin bond and fiberglass reinforcing.
CS24R-BF – Silicon carbide special grain, 24 grit grain size, in the medium range on the bond hardness
scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CSS1M1000
g
CSS1M120 0
g
CSS1M140 0
g
CSS1M160 0
g
CSS1C1000
g
CS S1C12 00
g
CS S1C14 00
10" x 1/8" 1" 6,100 A30N-BF Metal cutting
12" x 1/8" 1" 6,400 A30N-BF Metal cutting
14" x 1/8" 1" 5,500 A30N-BF Metal cutting
16" x 5/32" 1" 4,800 A30N-BF Metal cutting
10" x 1/8" 1" 6,100 CS24R-BF Concrete / masonry cutting
12" x 1/8" 1" 6,400 CS24R-BF Concrete / masonry cutting
14" x 1/8" 1" 5,500 CS24R-BF Concrete / masonry cutting
Page 24
Grinding Wheels

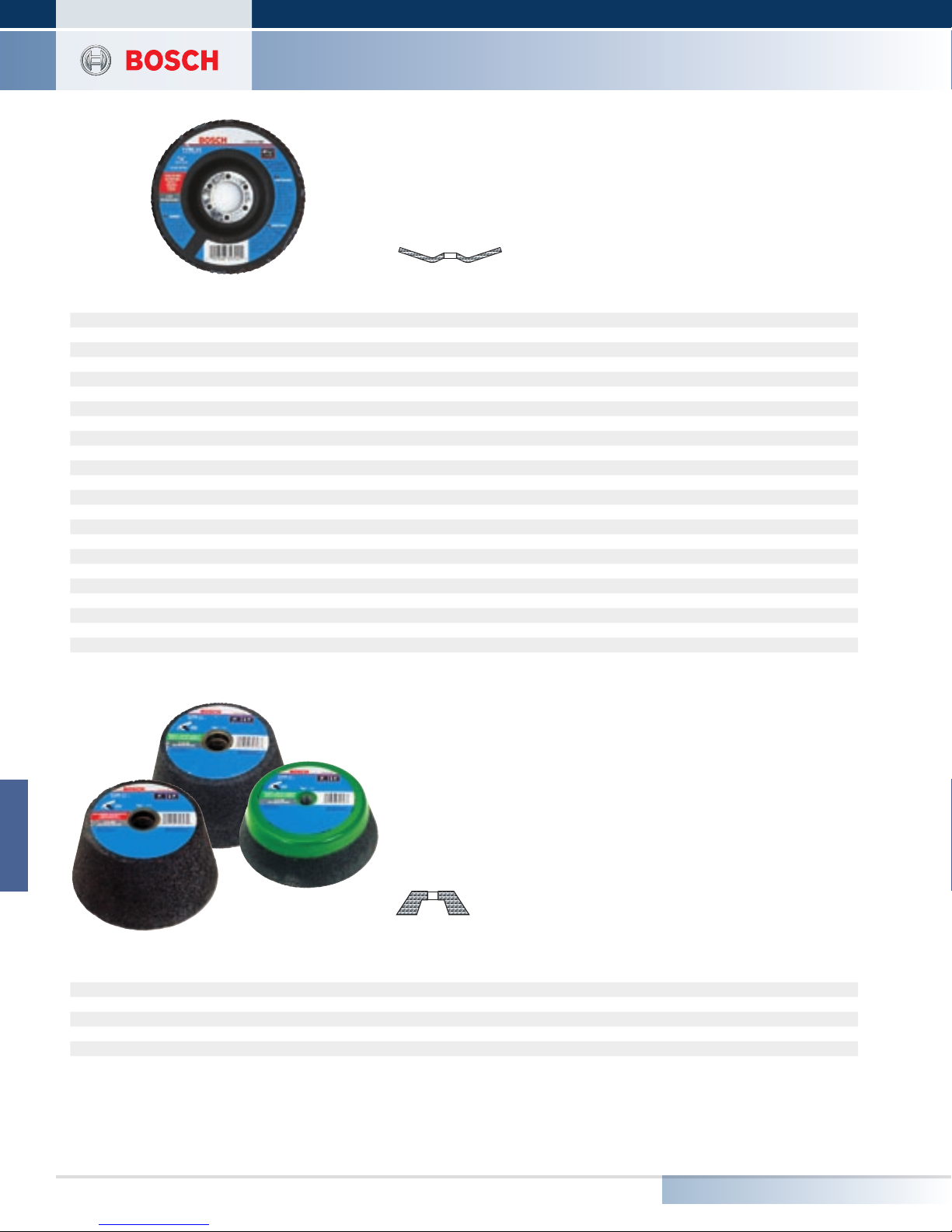

Type 29 Flap Discs
Flap discs combine aggressive sanding properties with soft, low-vibration
running. The advantages are a high material removal rate, high surface quality
and smooth polish with less noise when compared to fiber sanding discs.
Item # Diameter Arbor Max. RPM Grit Application
g
FD2940040
g
FD2940060
g
FD2940080
g
FD2945040
g
FD2945060
g
FD2945080
g
FD29450120
g
FD29 45160
g
FD2950040
g
FD2950060
g
FD2950080
g
FD29500120
g
FD29 50160
g
FD2960040
g
FD2960060
g
FD2960080
g
FD29600120
g
FD2960160
g
FD2970040
g
FD2970060
g
FD2970080
g
FD29700120
g
FD2970160
4" 5/8" 15,250 Z 40 grit Metal blending and grinding
4" 5/8" 15,250 Z 60 grit Metal blending and grinding
4" 5/8" 15,250 Z 80 grit Metal blending and grinding
4-1/2" 7/8" 13,280 Z 40 grit Metal blending and grinding
4-1/2" 7/8" 13,280 Z 60 grit Metal blending and grinding
4-1/2" 7/8" 13,280 Z 80 grit Metal blending and grinding
4-1/2" 7/8" 13,280 Z 120 grit Metal blending and grinding
4-1/2" 5/8"-11 13,280 Z 60 grit Metal blending and grinding
5" 7/8" 12,200 Z 40 grit Metal blending and grinding
5" 7/8" 12,200 Z 60 grit Metal blending and grinding
5" 7/8" 12,200 Z 80 grit Metal blending and grinding
5" 7/8" 12,200 Z 120 grit Metal blending and grinding
5" 5/8"-11 12,200 Z 60 grit Metal blending and grinding
6" 7/8" 10,200 Z 40 grit Metal blending and grinding
6" 7/8" 10,200 Z 60 grit Metal blending and grinding
6" 7/8" 10,200 Z 80 grit Metal blending and grinding
6" 7/8" 10,200 Z 120 grit Metal blending and grinding
6" 5/8"-11 10,200 Z 60 grit Metal blending and grinding
7" 7/8" 8,600 Z 40 grit Metal blending and grinding
7" 7/8" 8,600 Z 60 grit Metal blending and grinding
7" 7/8" 8,600 Z 80 grit Metal blending and grinding
7" 7/8" 8,600 Z 120 grit Metal blending and grinding
7" 5/8"-11 8,600 Z 60 grit Metal blending and grinding
Type 11 for Large Angle Grinders Only
Type 11 flared wheel cups are excellent for cleaning castings, mold marks and
removing flashing.
A16PB – Aluminum oxide grain, 16 grit grain size, in the soft to medium range
on the bond hardness scale. Resin bond.
C16PB – Silicon carbide grain, 16 grit grain size, in the soft to medium range
on the bond hardness scale. Resin bond.
Item # Diameter Arbor Max. RPM Grit Application
g
FCW11M401
g
FCW11M501
g
FCW11M601
g
FCW 11C4 01
g
FCW 11C50 1
g
FCW 11C60 1
4" x 2" 5/8"-11 9,000 A16PB Metal grinding / HD stock removal
5" x 2" 5/8"-11 7,200 A16PB Metal grinding / HD stock removal
6" x 2" 5/8"-11 6,000 A16PB Metal grinding / HD stock removal
4" x 2" 5/8"-11 9,000 C16PB Concrete / masonry grinding
5" x 2" 5/8"-11 7,200 C16PB Concrete / masonry grinding
6" x 2" 5/8"-11 6,000 C16PB Concrete / masonry grinding
174
Boschtools.com
Toll Free: 877-BOSCH-99
Page 25
175
Toll Free: 877-BOSCH-99
Boschtools.com
Grinding Wheels

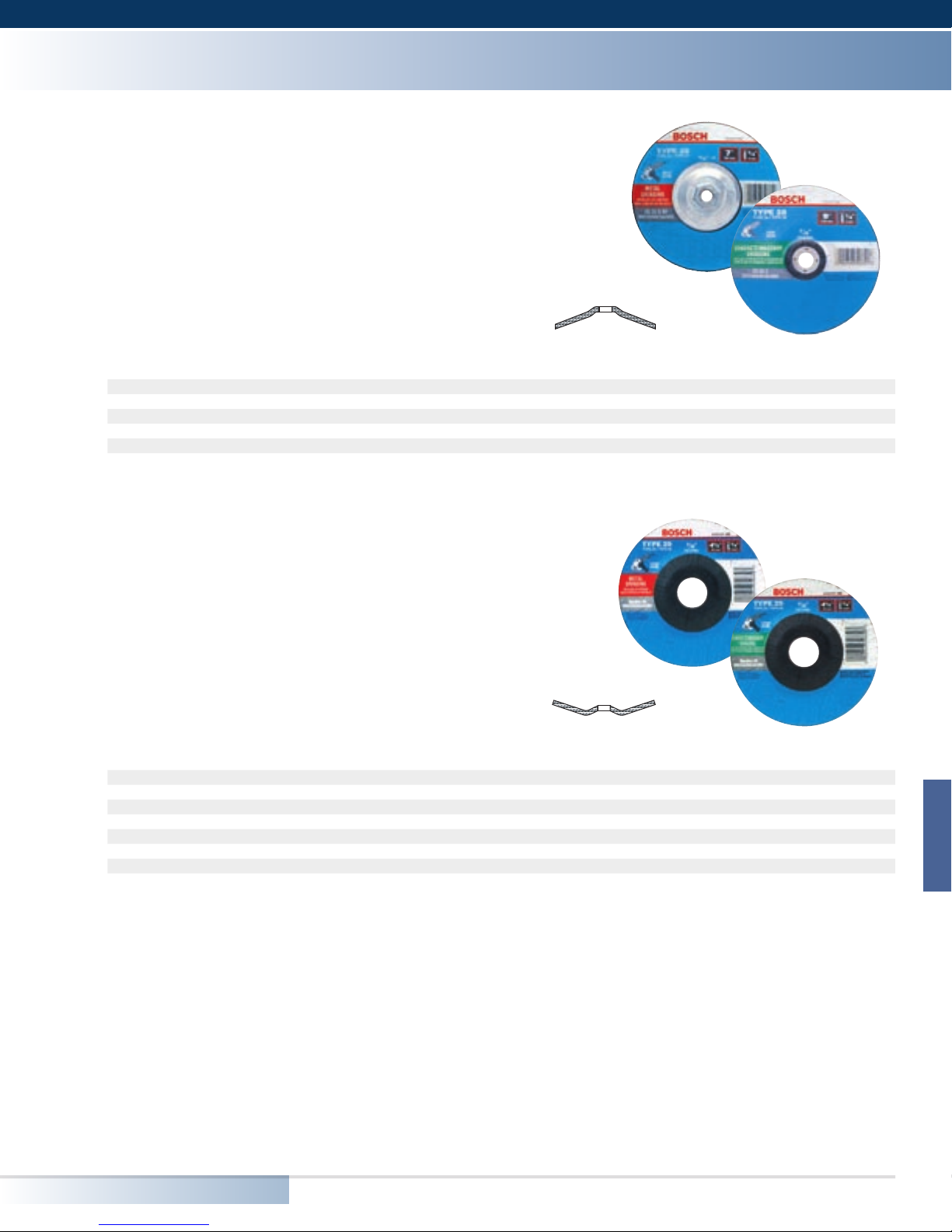

Type 28 Grinding Wheels
AS30S-BF – Aluminum oxide special grain, 30 grit grain size, in the medium to hard
range on the bond hardness scale. Resin bond and fiberglass reinforcing.
CS30S-BF – Silicon carbide special grain, 30 grit grain size, in the medium to hard range
on the bond hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
GW28M70 0
g
GW28M701
g
GW28M900
g
GW28C700
g
GW28C900
7" x 1/4" 7/8" 8,600 AS30S-BF Metal grinding
7" x 1/4" 5/8"-11 8,600 AS30S-BF Metal grinding
9" x 1/4" 7/8" 6,600 AS30S-BF Metal grinding
7" x 1/4" 7/8" 8,600 CS30S-BF Concrete / masonry grinding
9" x 1/4" 7/8" 6,600 CS30S-BF Concrete / masonry grinding
Type 29 Flexible Wheels
Flexible grinding wheels are ideal for contour and edge work when performing medium
to light grinding and stock removal.
Item # Diameter Arbor Max. RPM Grit Application
g
GW29M45024
g
GW29M45036
g
GW29M50024
g
GW29M50036
g
GW29C45024
g
GW29C45036
g
GW29C50024
g
GW29C50036
4-1/2" x 1/8" 7/8" 13,280 Rondex A24 grit Metal blending and grinding
4-1/2" x 1/8" 7/8" 13,280 Rondex A36 grit Metal blending and grinding
5" x 1/8" 7/8" 12,200 Rondex A24 grit Metal blending and grinding
5" x 1/8" 7/8" 12,200 Rondex A36 grit Metal blending and grinding
4-1/2" x 1/8" 7/8" 13,280 Rondex C24 grit Masonry grinding
4-1/2" x 1/8" 7/8" 13,280 Rondex C36 grit Masonry grinding
5" x 1/8" 7/8" 12,200 Rondex C24 grit Masonry grinding
5" x 1/8" 7/8" 12,200 Rondex C36 grit Masonry grinding
Page 26
Grinding Wheels
Die Grinder / Straight Grinder Wheels
AS46T-BF – Aluminum oxide special grain, 46 grit grain size, in the hard range on the bond
hardness scale. Resin bond and fiberglass reinforcing.
Item # Diameter Arbor Max. RPM Grit Application
g
CWDG1M203
g
CWDG1M252
g
CWDG1M253
g
CWDG1M311
g
CWDG1M313
g
CWDG1M303
g
CWDG1M411
g
CWDG1M413
g
CWDG1M403
g
CWDG1M415
NOTE: Diameters greater than 2" require guards and must be used on straight grinders.
2" x 1/16" 3/8" 30,500 AS46T-BF Metal / stainless steel cutting
2-1/2" x .045" 1/4" 30,500 AS46T-BF Metal / stainless steel cutting
2-1/2" x .045" 3/8" 30,500 AS46T-BF Metal / stainless steel cutting
3" x .045" 1/4" 24,400 AS46T-BF Metal / stainless steel cutting
3" x .045" 3/8" 24,400 AS46T-BF Metal / stainless steel cutting
3" x 1/16" 3/8" 24,400 AS46T-BF Metal / stainless steel cutting
4" x .045" 1/4" 19,000 AS46T-BF Metal / stainless steel cutting
4" x .045" 3/8" 19,000 AS46T-BF Metal / stainless steel cutting
4" x 1/16" 3/8" 19,000 AS46T-BF Metal / stainless steel cutting
4" x .045" 5/8" 19,000 AS46T-BF Metal / stainless steel cutting
Bench Grinder Wheels
Bosch premium grade bench grinding wheels are constructed of high quality abrasive grains,
bonding coats and backings for superior metal grinding.
• Constructed of aluminum oxide with vitrified bond for long life. Excellent for sharpening
tools and for light stock removal
Item # Diameter Arbor Max. RPM Grit Application
BGW155036
BGW155060
BGW157560
BGW1575100
BGW16753 6
BGW167560
BGW1675100
BGW16 0136
BGW16 0160
BGW16 01100
5" x 1/2" 1/2" 4,900 36 Sharpening tools and light stock removal
5" x 1/2" 1/2" 4,900 60 Sharpening tools and light stock removal
5" x 3/4" 1/2" 4,900 60 Sharpening tools and light stock removal
5" x 3/4" 1/2" 4,900 100 Sharpening tools and light stock removal
6" x 3/4" 1/2" 4,100 36 Sharpening tools and light stock removal
6" x 3/4" 1/2" 4,100 60 Sharpening tools and light stock removal
6" x 3/4" 1/2" 4,100 100 Sharpening tools and light stock removal
6" x 1" 1/2" 4,100 36 Sharpening tools and light stock removal
6" x 1" 1/2" 4,100 60 Sharpening tools and light stock removal
6" x 1" 1/2" 4,100 100 Sharpening tools and light stock removal
176
Boschtools.com
Toll Free: 877-BOSCH-99
Page 27
177
Toll Free: 877-BOSCH-99
Boschtools.com
Grinding Wheels

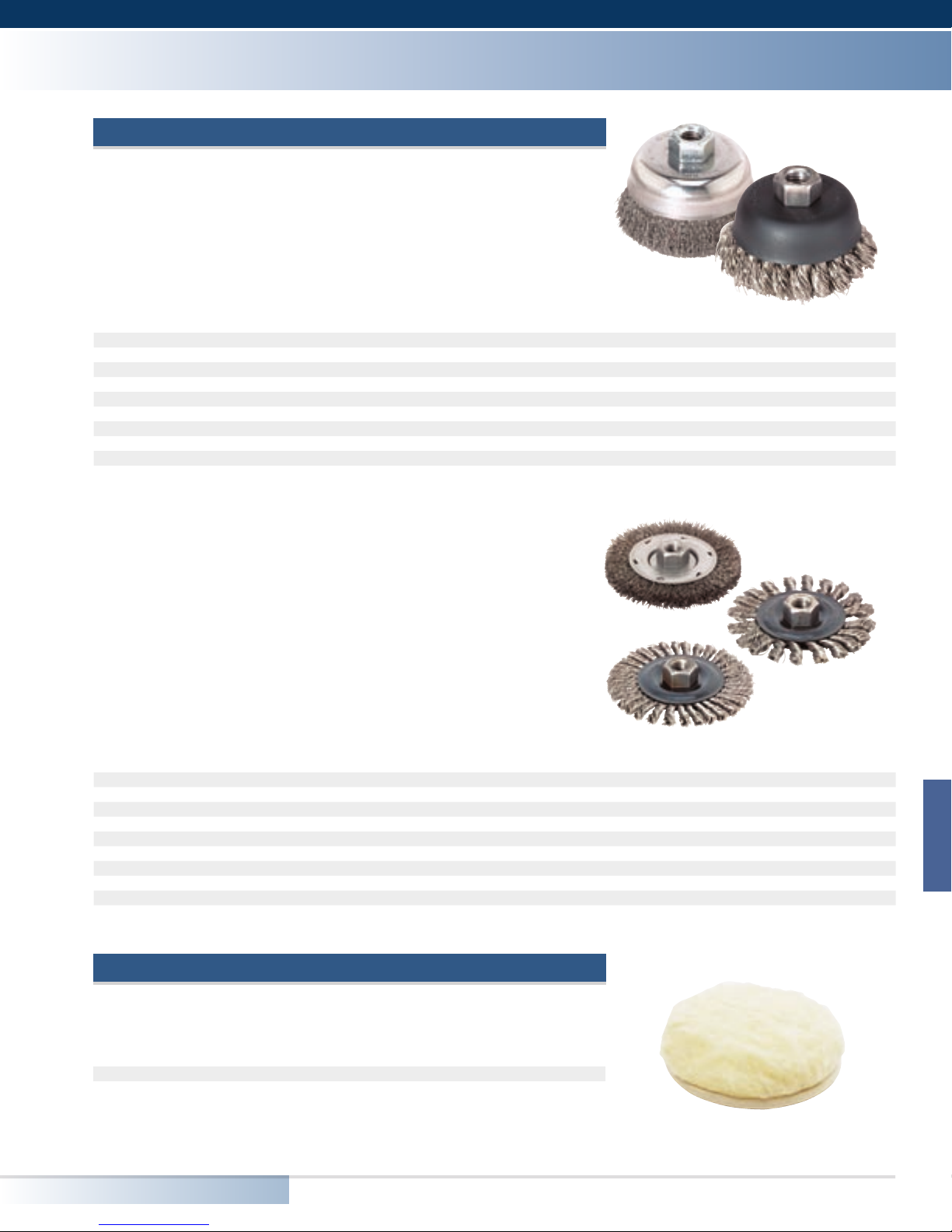

Brushes & Wire Wheels
Cup Brushes
Bosch offers a full selection of crimped and knotted wire cup brushes.
• WB503, WB504 and WB508-511 are knotted wire cup brushes designed specifically
for portable tools. Useful for removing weld scale, burrs and corrosion or preparing
surfaces for painting
• WB523-526 are crimped wire cup brushes with carbon steel bristles that provide
softer brushing action than knotted wire cup brushes
Item # Diameter Arbor Max. RPM Material Wire Gauge Description
WB503
WB504
WB508
WB509
WB510
WB511
WB523
WB524
WB525
WB526
Wire Wheels
Bosch offers a full selection of wire wheels.
• WB568 and WB569 are crimped wire wheels made from the highest quality crimped
tempered steel with maximum wire density to ensure longer life. Use for de-burring
gears, removing oxides and scale, flash removal and edge blending
• WB553, WB554, WB558 and WB559 are stiff stringer bead knotted wire wheels with
extremely narrow tufted faces that provide aggressive action. A maximum number of
knots ensures longer life. Ideal for bead weld preparation and excellent for confined
areas such as cross country pipe lines and pipe fabrication. Also useful for brushing
expansion joints and narrow grooves
• WB538, WB539, WB543 and WB544 are full cable knotted wire wheels with narrow
faces for more difficult brushing applications that excel in tight places for jobs like
cleaning welds on angles or corners. Rugged construction and precision balancing
permits high RPM usage
3" 1/2"-13 12,500 Stainless steel 0.020 Knotted single row cup brush
3" 5/8"-11 12,500 Stainless steel 0.020 Knotted single row cup brush
3" 1/2"-13 12,500 Carbon steel 0.020 Knotted single row cup brush
3" 5/8"-11 12,500 Carbon steel 0.020 Knotted single row cup brush
4" 5/8"-11 8,500 Carbon steel 0.020 Knotted wire cup brush
6" 5/8"-11 6,600 Carbon steel 0.020 Knotted wire cup brush
3" 1/2"-13 12,500 Carbon steel 0.012 Crimped wire cup brush
3" 5/8"-11 12,500 Carbon steel 0.012 Crimped wire cup brush
4" 5/8"-11 8,500 Carbon steel 0.014 Crimped wire cup brush
6" 5/8"-11 6,600 Carbon steel 0.014 Crimped wire cup brush
Item # Diameter Arbor Max. RPM Material Wire Gauge Description
WB538
WB539
WB543
WB544
WB553
WB554
WB558
WB559
WB568
WB569
4" 1/2"-13 20,000 Stainless steel 0.020 Full cable knotted wire wheel
4" 5/8"-11 20,000 Stainless steel 0.020 Full cable knotted wire wheel
4" 1/2"-13 20,000 Carbon steel 0.020 Full cable knotted wire wheel
4" 5/8"-11 20,000 Carbon steel 0.020 Full cable knotted wire wheel
4" 1/2"-13 20,000 Stainless steel 0.020 Stringer bead knotted wire wheel
4" 5/8"-11 20,000 Stainless steel 0.020 Stringer bead knotted wire wheel
4" 1/2"-13 20,000 Carbon steel 0.020 Stringer bead knotted wire wheel
4" 5/8"-11 20,000 Carbon steel 0.020 Stringer bead knotted wire wheel
4" 1/2"-13 12,500 Tempered steel 0.014 Crimped wire wheel
4" 5/8"-11 12,500 Tempered steel 0.014 Crimped wire wheel
Angle Grinder Accessories
Wool Bonnet
The wool bonnet is suitable for dry polishing and resists tearing and humidity.
Item # Description Diameter Max. RPM
1 608 610 000
Wool bonnet 7" 2,000
Page 28
Grinding Wheels
Abrasive Sanding Discs
Bosch abrasive sanding discs are made from aluminum oxide for aggressive cutting.
The .030" premium fiber withstands heavy-duty use and the arbor hole slots let the disc
lie flatter.
Item # Diameter Grit Max. RPM Quantity
GS424
GS436
GS450
GS480
GS490
GS524
GS536
GS550
GS580
GS590
GS724
GS736
GS750
GS780
GS790
T42 20
T42 23
T42 24
T42 25
T42 26
T42 27
T42 28
T42 30
T42 33
T42 34
T42 35
T42 36
T42 37
T42 38
T42 40
T42 43
T42 44
T42 45
T42 46
T42 47
T42 48
4-1/2" 24 12,500 5
4-1/2" 36 12,500 5
4-1/2" 50 12,500 5
4-1/2" 80 12,500 5
4-1/2" 120 12,500 5
5" 24 11,500 5
5" 36 11,500 5
5" 50 11,500 5
5" 80 11,500 5
5" 120 11,500 5
7" 24 8,500 5
7" 36 8,500 5
7" 50 8,500 5
7" 80 8,500 5
7" 120 8,500 5
4-1/2" 24 12,500 25
4-1/2" 50 12,500 25
4-1/2" 60 12,500 25
4-1/2" 80 12,500 25
4-1/2" 100 12,500 25
4-1/2" 120 12,500 25
4-1/2" 36 12,500 25
5" 24 11,500 25
5" 50 11,500 25
5" 60 11,500 25
5" 80 11,500 25
5" 100 11,500 25
5" 120 11,500 25
5" 36 11,500 25
7" 24 8,500 25
7" 50 8,500 25
7" 60 8,500 25
7" 80 8,500 25
7" 100 8,500 25
7" 120 8,500 25
7" 36 8,500 25
178
Boschtools.com
Backing Pads
Bosch backing pads fit most major brands of angle grinders. Use the appropriate backing
pad and nut (if applicable).
Item # Description
MG0450
MG0500
BP700
BP900
Backing pad with nut 4-1/2" 5/8"-11 12,500
Backing pad with nut 5" 5/8"-11 11,500
Sanding backing pad assembly 7" 5/8"-11 8,500
Sanding backing pad assembly 9" 5/8"-11 6,500
Overall
Diameter
Arbor Max. RPM
Cup Wheel Guards
Cup wheel guards are for use with large grinders only when using Type 11 flared cup wheels.
Item # For Use With
T3004
T3005
T3006
Toll Free: 877-BOSCH-99
Type 11 4" flared cup wheel
Type 11 5" flared cup wheel
Type 11 6" flared cup wheel
Page 29
179
Toll Free: 877-BOSCH-99
Boschtools.com
Diamond Abrasive Blades
General Purpose Tile Hard Material Special
Concrete
Block
Brick
Stone
Pavers
Fire brick
Steel reinforced concrete
Ceramic tile
Porcelain
Slate
Marble
Grade 5 tile
Exterior tile
Granite
Aged concrete
Brick paver
Steel reinforced concrete
Stone flooring
5000 PSI concrete
Asphalt
Sandstone
Green concrete
Iron / rebar
Marble
Tu ck-point mortar
All BOSCH Diamond Blades are conveniently color coded by application
Diamond Blades
The pro’s clear cut choice
From the highest quality diamonds to superior Swiss manufacturing, each BOSCH diamond blade combines legendary
engineering and extensive real-world testing to give you the highest level of performance for every application.
Exclusive Laser
Fusion technology
• Superior diamond retention
• Uniform diamond distribution
• 30% faster cutting
• Longer blade life
Exclusive
performance
guarantee
If dissatisfied with
performance,
return blade
before notch is
worn away for
money back
NOTE: A diamond blade is a Type 1 abrasive cutting wheel.
Exclusive progressive
segment spacing
• Cleaner, cooler cuts
• Reduces noise
and vibration
Top-grade
diamonds
Bosch laser weld technology
• Exceptional bonding
• Longer blade life
• Strict quality control
• 20% faster cutting than
standard blades
Bosch laser
weld advantage
• Stronger single step weld
• Less heat stress on blade
during manufacturing
Color-coded
application
• Easy to understand
• Quick reference
A Diamond Blade For Every Job
Diamond Blade Maximum Speeds
Blade
Diameter (in.)
4 105 14,500 80
4-1⁄ 2" 115 13,200 80
5 125 12,200 80
6 150 10,100 80
7 180 8,500 80
9 230 6,600 80
12 300 6,300 100
14 350 5,400 100
16 400 4,700 100
Blade
Diameter (mm)
Maximum
RPM
Maximum
Perispherical
Speed (m/s)
Segmented
• 8 progressive segment
blades feature exclusive
Laser Fusion.
• Segmented gullets clear
the cutting path to provide
faster, cleaner, cooler cuts.
• Superior cutting speed
through rough materials.
• Blade design reduces noise
and vibration.
Turbo
• Constant contact with
material produces smoother
cuts than segmented blades.
• Sintered continuous rim with
a serrated cutting edge.
Continuous Rim
• Chip-free ultra
smooth cutting.
• Wet or dr y use.
Ideal for cutting:
• Asphalt
• Pavers
• Green concrete
• Concrete
• Block
Ideal for cutting:
• Concrete
• Bricks
• Pavers
• Sandstone
Ideal for cutting:
• Ceramic tile
• Granite
• Slate
• Porcelain
Page 30
Diamond Abrasive Blades

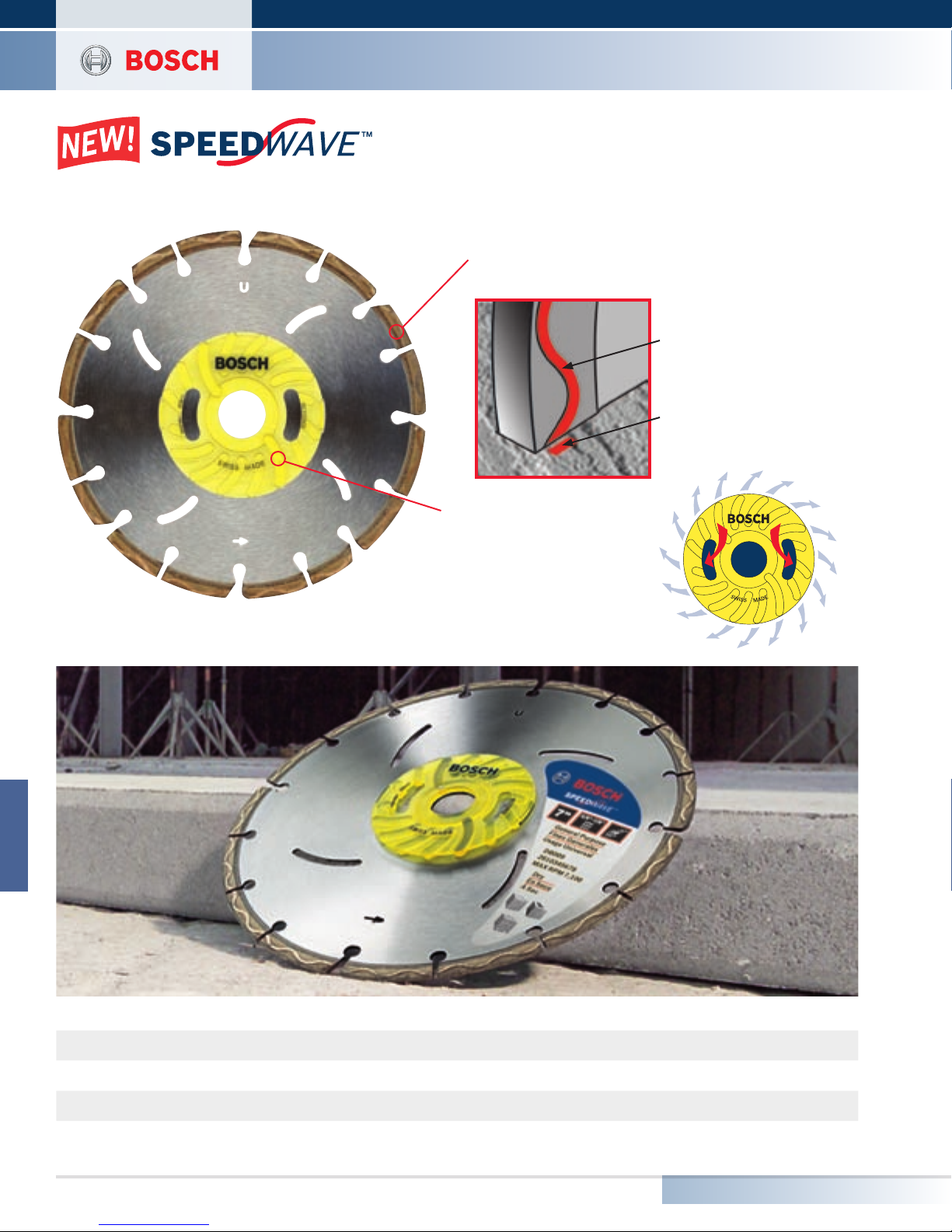

NEW Segmented Blades
Now Bosch extends its long tradition of continuous innovation with the introduction of the new
SPEEDWAVE™ line of segmented blades.
The name SPEEDWAVE™ refers to the unique wave-shaped
segments. They reduce surface friction and provide
outstanding cutting speed
Wave pattern
Reduced surface contact
area moves as blade turns
One-of-a-kind cooling disc
ventilates the blade to
reduce vibration, improve
cutting speed and extend
blade life
Item # Description Application Tool Type Diameter Arbor
DBSW4561
DBSW561
DBSW 761
DBSW961
180
Segmented Diamond Blade
Segmented Diamond Blade
Segmented Diamond Blade
Segmented Diamond Blade
Boschtools.com
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Toll Free: 877-BOSCH-99
Small angle 4-1/2" 5/8" + 7/8"
Small angle 5" 5/8" + 7/8"
Large angle 7" 5/8" + 7/8"
Large angle 9" 5/8" + 7/8"
Page 31
181
Toll Free: 877-BOSCH-99
Boschtools.com
Diamond Abrasive Blades
General Purpose Diamond Abrasive Blades
Bosch high-performance diamond blades are designed to cut faster and last longer. From
the highest quality diamonds to the easy-to-understand color coding system,
each blade combines legendary engineering and extensive real-world testing to
provide the highest level of performance for every application. Patented Laser
Fusion blades set the Bosch line apart from the competition. The exclusive
process uses a precision laser application to fuse a proprietary mix of
diamonds and metal bonding material directly to the steel blade core.
This unsurpassed bonding delivers superior diamond retention
and distribution along with greatly increased cutting speeds up to
30% faster than standard blades in the same price range. Cuts are
consistently cleaner and blade life is ultimately maximized.
• Laser Fusion blades are backed by an unprecedented exclusive
performance guarantee. If dissatisfied with performance,
simply return the blade before the notch is worn away for a
full refund
• Laser weld technology creates exceptional bonding and
deep diamond distribution resulting in longer blade life and
20% faster cutting. The advantage of the single step laser
weld is less heat stress during manufacturing which forges a
stronger blade
• Specially segmented gullets in the blade clear the cutting path
to provide faster, cleaner, cooler cuts allowing for superior
cutting speed through rough materials. On Laser Fusion blades
with exclusive progressive segment spacing, every fifth segment
is raised for more aggressive cutting
• Turbo rims on blades designed for cutting pavers, marble, slate,
and fire brick are sintered with a serrated cutting edge and stay in
constant contact with material to produce smoother cuts
• General purpose diamond blades appropriate for cutting materials
such as concrete, block, brick, stone, steel reinforced concrete, pavers,
marble, slate and fire brick are conveniently color coded in yellow
Item # Description Application Tool Type Diameter Arbor
DB4 61
DB4561
DB561
DB661
DB761
DB961
DB1261
DB1461
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Laser Fusion
Progressive Segmented
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Small angle grinders 4" 7/8" + 20 mm + 5/8"
Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Small angle grinders 5" 7/8" + 5/8"
Small angle grinders 6" 7/8" + 5/8"
Circular saws /
large angle grinders
Large angle grinders 9" 7/8" & 5/8"
Cut-off machines 12" 1" & 20 mm
Cut-off machines 14" 1" & 20 mm
7" 5/8" ◊
Page 32

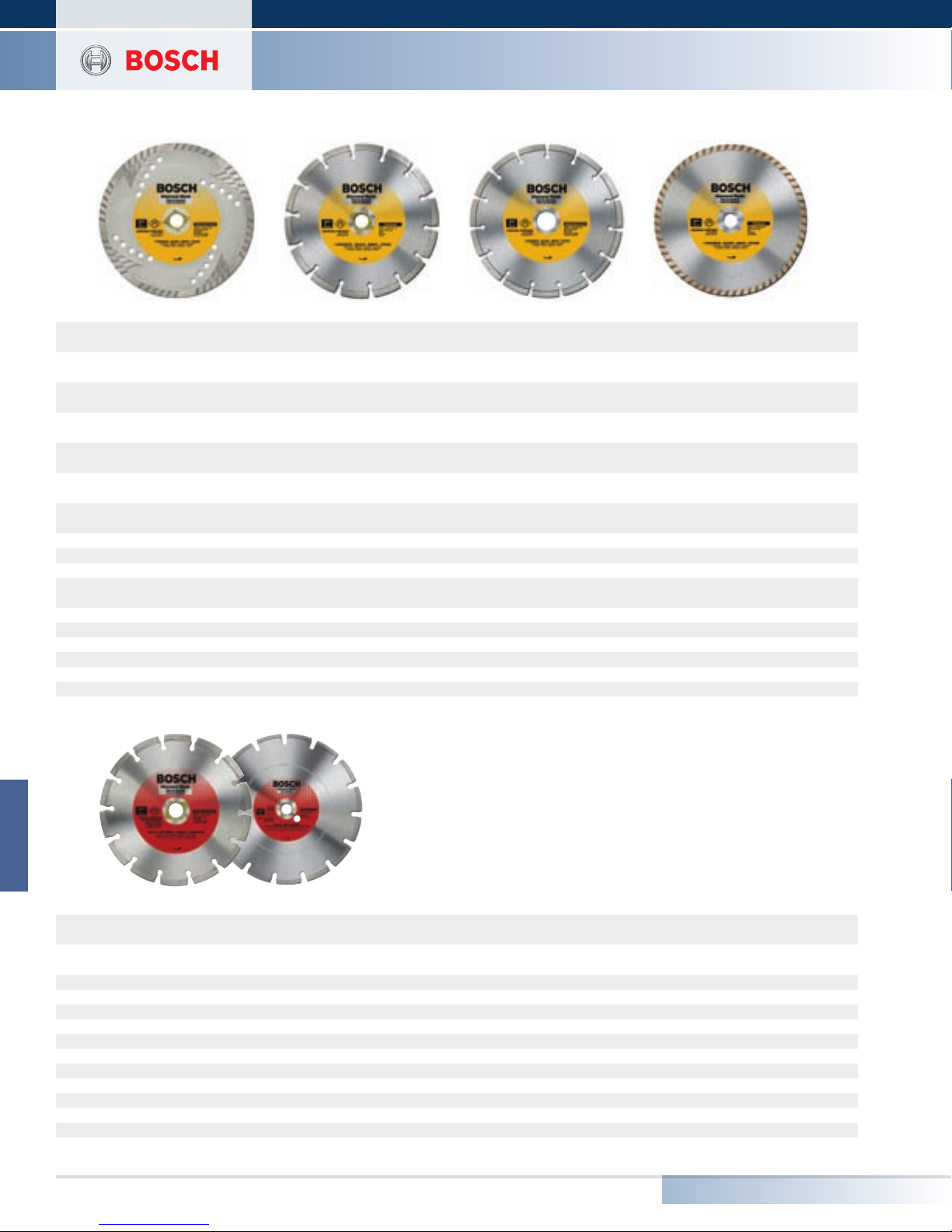

Diamond Abrasive Blades
General Purpose Diamond Abrasive Blades Cont’d.
Item # Description Application Tool Type Diameter Arbor
DB4 41
DW400
DB4541
DB541
DB741
DB1241
DB1441
DB463
DB4563
DB563
DB763
DB963
DB1263
DB1463
DB442
DB4542
DB542
DB 742
Premium Segmented
Premium Segmented
Premium Segmented
Premium Segmented
Premium Segmented
Premium Segmented
Premium Segmented
Premium Plus Turbo Pavers, marble, slate, fire brick Small angle grinders 4" 7/8" + 20 mm + 5/8"
Premium Plus Turbo Pavers, marble, slate, fire brick Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Plus Turbo Pavers, marble, slate, fire brick Small angle grinders 5" 7/8" + 5/8"
Premium Plus Turbo Pavers, marble, slate, fire brick
Premium Plus Turbo Pavers, marble, slate, fire brick Large angle grinders 9" 7/8" & 5/8"
Premium Plus Turbo Pavers, marble, slate, fire brick Cut-off machines 12" 1" & 20 mm
Premium Plus Turbo Pavers, marble, slate, fire brick Cut-off machines 14" 1" & 20 mm
Premium Turbo Pavers, marble, slate, fire brick Small angle grinders 4" 7/8" + 20 mm + 5/8"
Premium Turbo Pavers, marble, slate, fire brick Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Turbo Pavers, marble, slate, fire brick Small angle grinders 5" 7/8" + 5/8"
Premium Turbo Pavers, marble, slate, fire brick Circular saws 7" 5/8" ◊
Concrete, block, brick, stone,
steel reinforced concrete
Cutting brick, tile, stone,
masonry and many other materials
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Concrete, block, brick, stone,
steel reinforced concrete
Small angle grinders 4" 7/8" + 20 mm + 5/8"
Small angle grinders 4-1/8"
Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Small angle grinders 5" 7/8" + 5/8"
Circular saws /
large angle grinders
Cut-off machines 12" 1" & 20 mm
Cut-off machines 14" 1" & 20 mm
Circular saws /
large angle grinders
7" 5/8" ◊
7" 5/8" ◊
20 mm with
7/8" knockout
Diamond Abrasive Blades for Special Applications
• Continuous rims on blades designed for cutting marble deliver
chip-free ultra smooth cutting in wet or dry applications
• Diamond blades appropriate for cutting special materials such
as soft abrasive, soft brick, asphalt, green concrete, duct tile,
iron / rebar, marble and tuck-point mortar are conveniently color
coded in red
Item # Description Application Tool Type Diameter Arbor
DB4565
DB765
DB1265
DB1465
DB1267
DB1467
DB468
DB4568
DB568
DB768
DB968
DD400
DD500
*Warning: Use only with machines designed for wet sawing and on a GFCI protected circuit (if the machine is electrical).
182
Premium Plus Segmented
Premium Plus Segmented
Premium Plus Segmented Asphalt, green concrete Walk behinds 12" 1" & 20 mm
Premium Plus Segmented Asphalt, green concrete Walk behinds 14" 1" & 20 mm
Premium Plus Segmented Duct tile, iron / rebar Cut-off machines 12" 1" & 20 mm
Premium Plus Segmented Duct tile, iron / rebar Cut-off machines 14" 1" & 20 mm
Premium Plus Continuous Marble Small angle grinders 4" 7/8" + 20 mm + 5/8"
Premium Plus Continuous Marble Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Plus Continuous Marble Wet saws / small angle grinders* 5" 7/8" + 5/8"
Premium Plus Continuous Marble Circular saws / large angle grinders* 7" 5/8" ◊
Premium Plus Continuous Marble Wet saws / large angle grinders* 9" 7/8" & 5/8"
Premium Segmented Tuck-point mortar Small angle grinders 4" 7/8" & 5/8"
Premium Segmented Tuck-point mortar Small angle grinders 5" 7/8" & 5/8"
Boschtools.com
Soft abrasive,
soft brick, asphalt
Soft abrasive,
soft brick, asphalt
Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
large angle grinders
Toll Free: 877-BOSCH-99
Circular saws /
7" 5/8" ◊
Page 33
183
Toll Free: 877-BOSCH-99
Boschtools.com
Diamond Abrasive Blades

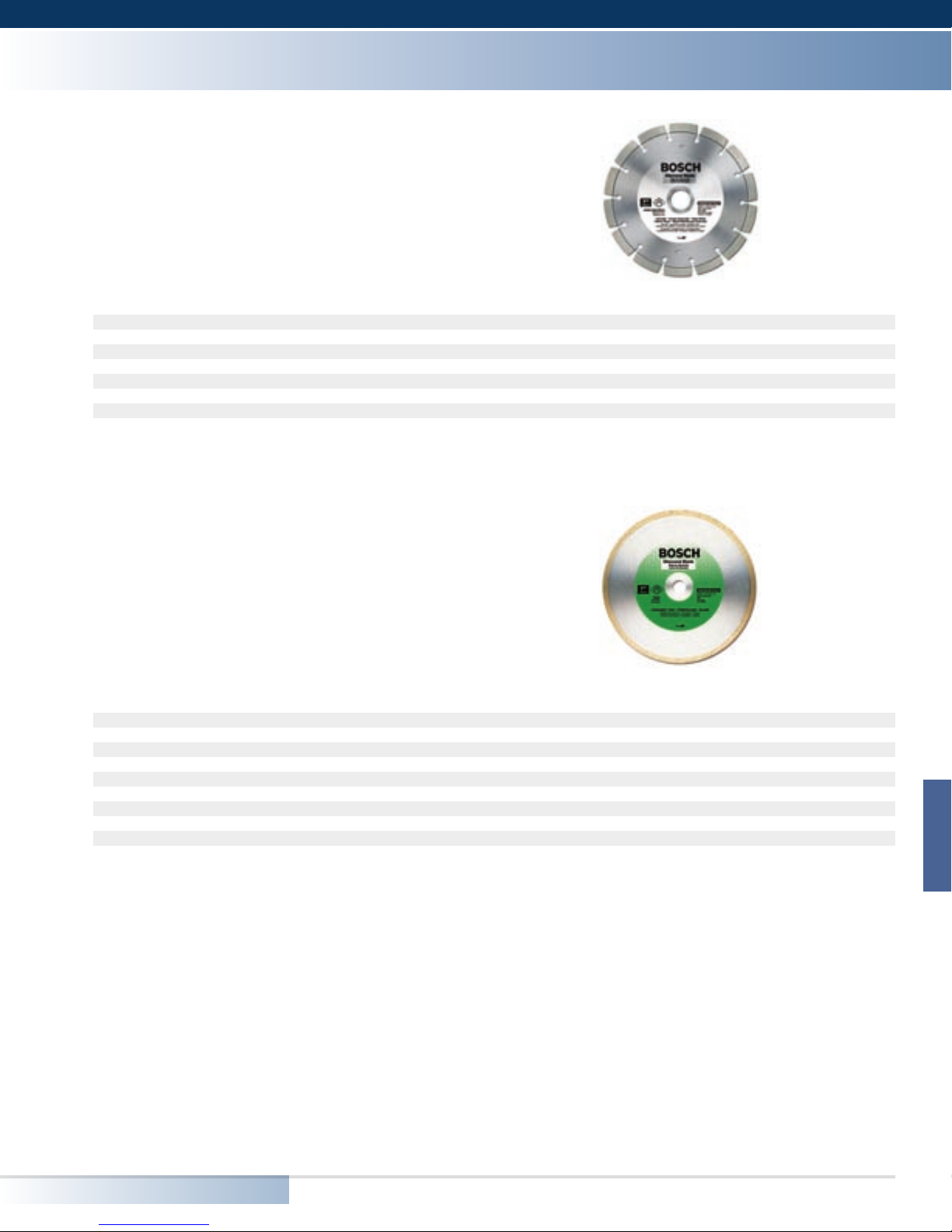

Diamond Abrasive Blades for Hard Material
Diamond blades appropriate for cutting hard materials such
as granite, aged concrete, brick paver, steel reinforced concrete,
stone flooring and 5000 PSI concrete are conveniently color
coded in silver.
Item # Description Application Tool Type Diameter Arbor
DB4564
DB564
DB664
DB764
DB964
DB1264
DB1464
Premium Plus Segmented Hard material Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Plus Segmented Hard material Small angle grinders 5" 7/8" + 5/8"
Premium Plus Segmented Hard material Small angle grinders 6" 7/8" + 5/8"
Premium Plus Segmented Hard material Circular saws / large angle grinders 7" 5/8" ◊
Premium Plus Segmented Hard material Large angle grinders 9" 7/8" & 5/8"
Premium Plus Segmented Hard material Cut-off machines 12" 1" & 20 mm
Premium Plus Segmented Hard material Cut-off machines 14" 1" & 20 mm
Diamond Abrasive Blades for Tile
Diamond blades appropriate for cutting tile-type materials such as
ceramic tile, porcelain, slate, marble, grade 5 tile and exterior tile
are conveniently color coded in green.
Item # Description Application Tool Type Diameter Arbor
DB466
DB4566
DB666
DB766
DB866
DB10 66
DB443
DB4543
DB 743
*Warning: Use only with machines designed for wet sawing and on a GFCI protected circuit (if the machine is electrical).
Premium Plus Continuous Tile Small angle grinders 4" 7/8" + 20 mm + 5/8"
Premium Plus Continuous Tile Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Plus Continuous Tile Small angle grinders 6" 7/8" + 5/8"
Premium Plus Continuous Tile Large angle grinders* 7" 5/8"
Premium Plus Continuous Tile Wet saws* 8" 5/8"
Premium Plus Continuous Tile Wet saws* 10" 5/8"
Premium Continuous Tile Small angle grinders 4" 7/8" + 20 mm + 5/8"
Premium Continuous Tile Small angle grinders 4-1/2" 7/8" + 20 mm + 5/8"
Premium Continuous Tile Wet saws / large angle grinders* 7" 5/8"
Page 34
Diamond Abrasive Blades

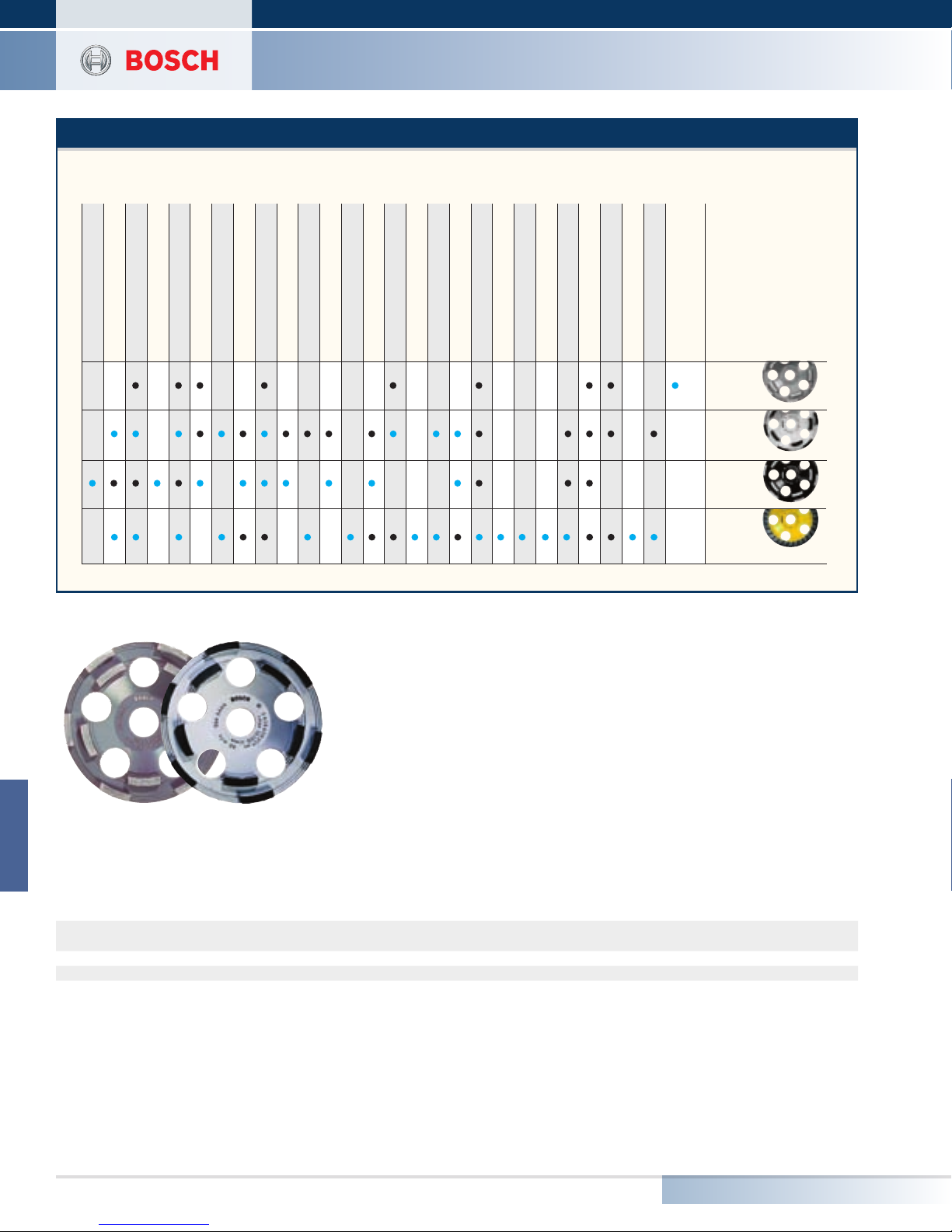

Diamond Cup Wheel Quick Selection Chart
Asphalt
Basalt
Concrete, old
Concrete, fresh (abrasive)
Concrete pipes, stone
Pumice stone
Concrete pipes, stone
Screed concrete
Aerated concrete
Plaster, plaster board
Gneis, granite
Cast asphalt
Hard casting forms
Limestone, soft
Limestone, hard
Clinker stone, soft
Bricks
Mortar, plaster
Natural limestone
Natural slate
Poroton
Porphyry
Quartzite
Sandstone
Slag stone
Travertine
Cement fiber boards
Thermo-plastic
Material
protective paint finishes
Item #
DC500
Item #
DC510
Item #
DC520
Item #
DC530
Optimal Choice
•
Possible
•
Diamond Cup Wheels
Bosch offers a solution for grinding on every surface.
• DC500 is ideal for sanding thin layers of thermo-plastic protective paint finishes on concrete
and fiberglass. The medium-hard metal bonding and wide segment spacing have been
designed for low working temperatures to prevent protective paint finish from smearing
during grinding
• DC510 is ideal for quick grinding down of thick concrete layers. The optimized cobalt bonding
has been equipped with tungsten carbide and thus allows even the toughest use so roughing
concrete is no longer a problem
• DC520 is ideal for large-area material removal of lime plaster, hard finish plaster, sandstone
and abrasive concrete. The hard metal bonding even resists loads caused by strongly
• DC530 is ideal for creating fine surfaces on granite building materials, artificial stone and concrete. The surrounding turbo grinding ring enables fine
grinding results for finishing work. Also works great on edges and corners without breakage
• DW400 is ideal for cutting brick, tile, stone, masonry and other materials. Employs the highest quality diamonds and specially segmented gullets
which clear the cutting path to provide faster, cleaner, cooler cuts allowing for superior cutting speed through rough materials
Item # Description Application Diameter Arbor Max. RPM
DC500
DC510
DC520
DC530
10 Segment
11 Segment Quick grinding of thick concrete layers 5" 7/8" 12,200
11 Segment Large-area material removal 5" 7/8" 12,200
Turbo Creating fine surfaces on granite 5" 7/8" 12,200
abrasive materials
Sanding thin layers of
thermo-plastic protective paint
5" 7/8" 12,200
184
Boschtools.com
Toll Free: 877-BOSCH-99
Loading...
