Introduction

About this chapter This introduction serves as a high-level overview of the different test approaches

and tools, including Java Explorer, Java Framework, .NET Explorer, and .NET Framework that are offered by SilkPerformer SOA (Service Oriented Architecture) Edition.

This chapter contains the following sections:

Section Page

How to Use this Guide 1

SilkPerformer SOA Edition Overview 1

Tools Provided by SilkPerformer SOA Edition 3

Sample Applications for SilkPerformer SOA Edition 6

Sample Test Projects 9

How to Use this Guide

For users who require an introduction to the tools and techniques that are offered by SilkPerformer SOA Edition, it is recommended that you read this Introduction and Chapter 1.

Users who are ready to get started with testing immediately may advance to Chapter 2.

SilkPerformer SOA Edition Overview

SOA Edition licensing Each SilkPerformer installation offers the functionality required to test .NET

and Java components. Access to Java and .NET component testing functionality is however only enabled through SilkPerformer licensing options. A

SilkPerformer Java Explorer User Guide 1

Page 6

NTRODUCTION

SilkPerformer SOA Edition Overview

SilkPerformer SOA Edition license is required to enable access to component testing functionality. Users may or may not additionally have a full SilkPerformer license. Please see the SilkPerformer Components information

site for more details.

What can be tested With SilkPerformer SOA Edition you can thoroughly test various remote

component models, including:

• Web Services

• .NET Remoting Objects

• Enterprise JavaBeans (EJB)

• Java RMI Objects

• General GUI-less Java and .NET components

Unlike standard unit testing tools, which can only evaluate the functionality of a remote component when a single user accesses it, SilkPerformer SOA Edition can test components under concurrent access by up to five virtual users— thereby emulating realistic server conditions (with a full SilkPerformer license, the number of virtual users can be scaled even higher). In addition to testing the functionality of remote components, SilkPerformer SOA Edition also verifies the performance and interoperability of components.

SilkPerformer SOA Edition assists you in automating your remote components by:

• Facilitating the development of test drivers for your remote components

• Supporting the automated execution of test drivers under various conditions, including functional test scenarios and concurrency test scenarios

• Delivering quality and performance measures for tested components

SilkPerformer offers the following approaches to creating test clients for remote components:

• Visually, without programming (via Java Explorer and .NET Explorer)

• Using an IDE (Microsoft Visual Studio .NET)

• Writing Java code

• Recording an existing client

• Importing JUnit or NUnit testing frameworks

• Importing Java classes

• Importing .NET classes

2 SilkPerformer Java Explorer User Guide

Page 7

Tools Provided by SilkPerformer SOA Edition

SilkPerformer .NET Explorer

SilkPerformer .NET Explorer, which was developed using .NET, allows you to test Web Services, .NET Remoting objects, and other GUI-less .NET objects. .NET Explorer allows you to define and execute complete test scenarios with different test cases without requiring manual programming—everything is done visually via point and click operations. Test scripts are visual and easy to understand—even for staff members who aren't familiar with .NET programming languages.

Test scenarios created with SilkPerformer .NET Explorer can be exported to SilkPerformer Workbench for immediate reuse in concurrency and load testing; and to Microsoft Visual Studio .NET for further customization.

To launch SilkPerformer .NET Explorer: If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/ SilkPerformer SOA Edition 2006 R2/SilkPerformer .NET Explorer. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/Borland/SilkPerformer 2006 R2/Development Tools/SilkPerformer .NET Explorer.

NTRODUCTION

Alternately you can launch SilkPerformer Workbench: If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/ SilkPerformer SOA Edition 2006 R2/SilkPerformer SOA Workbench. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/Borland/ SilkPerformer 2006 R2/SilkPerformer Workbench. Create a new project with the application type .NET/.NET Explorer or Web Services/.NET Explorer.

SilkPerformer Add-In for Microsoft Visual Studio .NET

The SilkPerformer Add-In for Microsoft Visual Studio .NET allows you to implement test drivers in Visual Studio .NET that are compatible with SilkPerformer Workbench. Such test drivers can be augmented with SilkPerformer features that facilitate test organization, verification, performance measurement, test data generation, and reporting.

Tests created with the Add-In can either be run within Visual Studio (with full access to SilkPerformer's functionality) or within SilkPerformer Workbench (for concurrency and load testing scenarios).

To launch SilkPerformer Add-In for Microsoft Visual Studio .NET, go to: Start/ Programs/Visual Studio .NET/Visual Studio .NET and create a new SilkPerformer Visual Studio project.

SilkPerformer Java Explorer User Guide 3

Page 8

NTRODUCTION

Tools Provided by SilkPerformer SOA Edition

Note The Add-In requires an installed version of either Visual Studio .NET or Visual Studio .NET 2003/2005.

.NET Resources Visit the following links for information about .NET:

http://msdn.microsoft.com/net

http://www.gotdotnet.com

SilkPerformer Java Explorer

SilkPerformer Java Explorer, which was developed using Java, allows you to test Web Services, Enterprise JavaBeans (EJB), RMI objects, and other GUIless Java objects. Java Explorer allows you to define and execute complete test scenarios with multiple test cases without requiring manual programming— everything can be done visually via point and click operations. Test scripts are visual and easy to understand—even for personnel who are not familiar with the Java programming language.

Test scenarios created with SilkPerformer Java Explorer can be exported to SilkPerformer Workbench for immediate reuse in concurrency and load testing.

Note Java Explorer is compatible only with JDK versions 1.2 and higher (v1.4 or higher recommended).

To launch SilkPerformer Java Explorer: If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/ SilkPerformer SOA Edition 2006 R2/SilkPerformer Java Explorer. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/Borland/SilkPerformer 2006 R2/Development Tools/SilkPerformer Java Explorer.

Java resources Visit the following links for information about Java:

http://java.sun.com

http://www.javaworld.com

4 SilkPerformer Java Explorer User Guide

Page 9

NTRODUCTION

Tools Provided by SilkPerformer SOA Edition

http://www-106.ibm.com/developerworks/java/

SilkPerformer Workbench

Remote component tests that are developed and executed using SilkPerformer Java Explorer or SilkPerformer .NET Explorer can be executed within SilkPerformer Workbench. SilkPerformer Workbench is an integrated test environment that serves as a central console for creating, executing, controlling and analyzing complex testing scenarios. Java/.NET Explorer visual test scripts can be exported to SilkPerformer Workbench by creating SilkPerformer Java/ .NET Framework projects. While Java Explorer and .NET Explorer serve as test-beds for functional test scenarios, SilkPerformer Workbench can be used to run the same test scripts in more complex scenarios for concurrency and load testing.

In the same way that SilkPerformer Workbench is integrated with Java/.NET Explorer, SilkPerformer Workbench is also integrated with SilkPerformer's Add-In for Visual Studio .NET. Test clients created in Microsoft Visual Studio .NET using SilkPerformer's Add-In functionality can easily be exported to SilkPerformer Workbench for concurrency and load testing.

Note Because there is such a variety of Java development tools available, a Java tool plug-in is not feasible, Instead, SilkPerformer offers features that assist Java developers (syntax highlighting for Java, ability to run the Java complier from Workbench, etc).

In addition to the integration of SilkPerformer Workbench with .NET Explorer, Java Explorer, and Visual Studio .NET, you can use SilkPerformer Workbench to write custom Java and .NET based test clients using SilkPerformer's powerful Java and .NET Framework integration.

The tight integration of Java and .NET as scripting environments for SilkPerformer test clients allows you to reuse existing unit tests developed with JUnit and NUnit by embedding them into SilkPerformer's framework architecture.

To launch SilkPerformer Workbench to create a Java or .NET Framework based project: If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/ SilkPerformer SOA Edition 2006 R2/SilkPerformer SOA Workbench. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/Borland/ SilkPerformer 2006 R2/SilkPerformer Workbench. Create a new project with the application type Java/Java Framework or .NET/.NET Framework using Visual Studio .Net Add-On.

In addition to creating test clients visually and manually, SilkPerformer SOA Edition also allows you to create test clients by recording the interactions of

SilkPerformer Java Explorer User Guide 5

Page 10

NTRODUCTION

Sample Applications for SilkPerformer SOA Edition

existing clients, or by importing JUnit test frameworks or existing Java/.NET classes. A recorded test client precisely mimics the interactions of a real client.

Note The recording of test clients is only supported for Web Services clients.

To launch SilkPerformer Workbench to create a Web Service test client based on the recording of an existing Web Service client: If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/ SilkPerformer SOA Edition 2006 R2/SilkPerformer SOA Workbench. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/Borland/ SilkPerformer 2006 R2/SilkPerformer Workbench. Create a new project with the application type Web Services/XML/SOAP.

Sample Applications for SilkPerformer SOA Edition

The sample applications provided with SilkPerformer enable you to experiment with SilkPerformer SOA (Service Oriented Architecture) Edition component testing functionality. Sample applications for the following component models are provided:

•

Web Services

• .NET Remoting

• Java RMI

Public Web Services

Several Web Services are hosted on publicly accessible demonstration servers:

http://demo.borland.com/BorlandSampleService/BorlandSampleService.asmx

http://demo.borland.com/OrderWebServiceEx/OrderService.asmx

http://demo.borland.com/OrderWebService/OrderService.asmx

http://demo.borland.com/AspNetDataTypes/DataTypes.asmx

* OrderWebService provides the same functionality as OrderWebServiceEx, however it makes use of SOAP headers in transporting session information, which is not recommended as a starting point for Java Explorer.

.NET Message Sample

The .NET Message Sample provides a .NET sample application that utilizes various .NET technologies:

6 SilkPerformer Java Explorer User Guide

Page 11

NTRODUCTION

Sample Applications for SilkPerformer SOA Edition

• Web Services

• ASP.NET applications communicating with Web Services

• WinForms applications communicating with Web Services and directly with .NET Remoting objects.

To access the .NET Message Sample and related documentation:

If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/

SilkPerformer SOA Edition 2006 R2/Sample Applications/.NET Framework Samples/. If you have SilkPerformer Enterprise Edition, go to: Start/Programs/ Borland/SilkPerformer 2006 R2/Sample Applications/.NET Framework Samples/.

The Message Sample Documentation document explains how to install the .NET Message Sample Application.

It further describes the various components of the .NET Message Sample Application and their Web Service and .NET Remoting interfaces. Finally the document explains how to use SilkPerformer to test the different components of the .NET Message Sample Application using various test approaches.

This paper is recommended as a user guide for working with and testing the .NET Message Sample Application.

Two tutorials are offered for the .NET Message Sample. The Working with the Message Sample tutorial explains handling of the .NET Message Sample while the Testing the Message Sample with SilkPerformer tutorial explains how to test the .NET Message Sample application using SilkPerformer.

.NET Explorer Remoting Sample

A simple .NET Remoting sample application that can be used in SilkPerformer .NET Explorer for the testing of .NET Remoting is included.

The .NET Explorer Remoting Sample can be accessed from:

•Menu Start/Programs/Borland/SilkPerformer 2006 R2/Sample

Applications/.NET Explorer Samples/.NET Explorer Remoting Sample or Start/Programs/Borland/SilkPerformer SOA Edition 2006 R2/Sample Applications/.NET Explorer Samples/.NET Explorer Remoting

• SilkPerformer .NET Explorer: Help/Start Remoting Sample

• DLL reference for .NET Explorer: Folder <SilkPerformer

installpath>\DotNET Explorer\SampleApps\RemotingSamples\ RemotingLib\bin\debug\ RemotingLib.dll

SilkPerformer Java Explorer User Guide 7

Page 12

NTRODUCTION

Sample Applications for SilkPerformer SOA Edition

Java RMI Samples

Four Java RMI sample applications are included:

• A simple RMI sample application that is used in conjunction with the sample Java Framework project Samples/Java Framework/RMI (see the following section, Sample Test Projects). To start the "ServiceHello" RMI Server, go to: Start/Programs/Borland/SilkPerformer 2006 R2/

Sample Applications/Java Samples/RMI Sample - SayHello or Start/ Programs/Borland/SilkPerformer SOA Edition 2006 R2/Sample Applications/Java Samples/RMI Sample - SayHello.

• Two simple RMI sample applications can be found at

<SilkPerformer installpath>\Java Explorer\SampleApps\

• A more complex RMI sample that uses RMI over IIOP is also available. For details on setting up this sample, go to: Start/Programs/Borland/

SilkPerformer 2006 R2/Sample Applications/Java Samples/Product Manager or Start/Programs/Borland/SilkPerformer SOA Edition 2006 R2/Sample Applications/Java Samples/Product Manager. This sample can be used with the sample test project that is available at Samples/Java Framework/RMI/IIOP (see the following section, Sample Test Projects).

Testing RMI Java RMI can be done using two different protocols, both of which are

supported by Java Explorer:

• Java Remote Method Protocol (JRMP)

• RMI over IIOP

RMI Testing with JRMP

A simple example server can be found at:

<SilkPerformer installpath>\Java Explorer\SampleApps

Launch the batch file called LaunchRemoteServer.cmd to start the sample server. Then use Java Explorer’s Start Here Wizard to begin testing RMI objects. Select RMI and click Next.

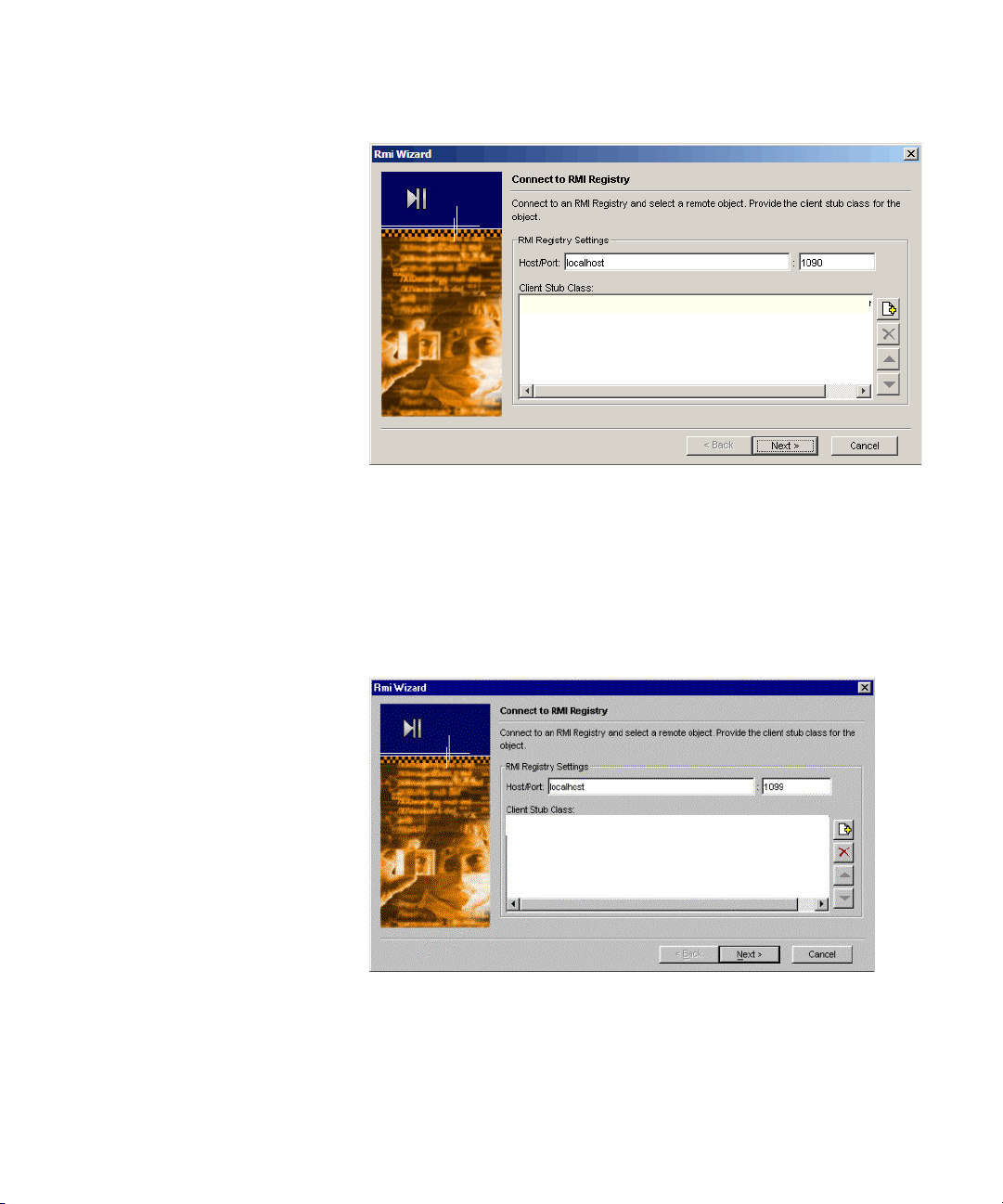

The next dialog asks for the RMI registry settings and a classpath where the RMI interfaces for the client can be found. Here are the settings to be used for this example:

Host: localhost

Port: 1099

Client Stub Class: <SilkPerformer installpath>\Java Explorer\SampleApps\lib\sampleRmi.jar

8 SilkPerformer Java Explorer User Guide

Page 13

NTRODUCTION

Sample Test Projects

RMI Testing with RMI over IIOP

A simple example server can be found at:

<SilkPerformer installpath>\Java Explorer\SampleApps

Launch the batch file called LaunchRemoteServerRmiOverIiop.cmd to start the sample server.

Use Java Explorer’s Start Here Wizard to begin testing RMI objects. Select Enterprise JavaBeans / RMI over IIOP and click Next.

The next step asks for the JNDI settings and a classpath where the RMI interfaces for the client can be found. Here are the settings to be provided for this example:

Server: Sun J2EE Server

Factory: com.sun.jndi.cosnaming.CNCtxFactory

Provider URL: iiop://localhost:1050

Stub Class: Click the Browse button and add the following jar file: <SilkPerformer installpath>\Java Explorer\SampleApps\lib\sampleRmiOverIiop.jar

Sample Test Projects

The following sample projects are included with SilkPerformer. To open a sample test project, open SilkPerformer Workbench and create a new project. The Outline Project workflow dialog appears. The Samples application type tree-list entry includes the sample test projects.

.NET Sample Projects

.NET Remoting

This sample project implements a simple .NET Remoting client using the SilkPerformer .NET Framework. The .NET Remoting test client, written in C#, comes with a complete sample .NET Remoting server.

Web Services

This sample shows you how to test SOAP Web Services with the SilkPerformer .NET Framework. The sample project implements a simple Web Services client. The Web Services test client, written in C#, accesses the publicly available demo Web Service at:

http://demo.borland.com/BorlandSampleService/BorlandSampleService.asmx.

SilkPerformer Java Explorer User Guide 9

Page 14

NTRODUCTION

Sample Test Projects

Java Sample Projects

JDBC This sample project implements a simple JDBC client using the SilkPerformer

Java Framework. The JDBC test client connects to the Oracle demo user "scott" using Oracle's "thin" JDBC driver. You must configure connection settings in the databaseUser.bdf BDL script to run the script in your environment. The sample accesses the EMP Oracle demo table.

RMI/IIOP This sample project implements a Java RMI client using the SilkPerformer Java

Framework. The test client uses IIOP as the transport protocol and connects to a RMI server provided as a sample application. For detailed instructions on setting up this sample project, see <SilkPerformer

installpath>\SampleApps\RMILdap\Readme.html.

The Java RMI server can be found at: <SilkPerformer installpath>\SampleApps\RMILdap.

RMI This sample project implements a Java RMI client using the SilkPerformer Java

Framework. The test client connects to a RMI server provided as a sample application. For detailed instructions on setting up this sample project, see

<SilkPerformer installpath>\SampleApps\RMILdap\Readme.html.

The Java RMI server is available at:

If you have SilkPerformer SOA Edition, go to: Start/Programs/Borland/

SilkPerformer SOA Edition 2006 R2/Sample Applications/Java Samples/RMI Sample - SayHello. If you have SilkPerformer Enterprise Edition, go to: Start/ Programs/Borland/SilkPerformer 2006 R2/Sample Applications/Java Samples/ RMI Sample - SayHello.

10 SilkPerformer Java Explorer User Guide

Page 15

Chapter 1 Java Framework Testing

with SilkPerformer

What you will learn This chapter contains the following sections:

Section Page

Testing Java Components 11

Testing Java Components

SilkPerformer’s Java Framework enables developers and QA personnel to coordinate their development and testing efforts while allowing them to work entirely within their specialized environments: developers work exclusively in their Java programming environments while QA staff work exclusively in SilkPerformer—there’s no need for staff to learn new tools. SilkPerformer’s Java Framework thereby encourages efficiency and tighter integration between QA and development.

Java developers typically build applications and hand them off to QA for testing. QA personnel are then tasked with testing Java applications end-to-end and component-by-component. Typically QA personnel aren’t given clients (test drivers) to test applications and they typically aren’t able to code such test clients themselves. This is where Java Explorer and the Java Framework are effective. Java Explorer offers a means of visually scripting test clients. In effect Java Explorer acts like a test client and can be used to approach the application under test.

All Java components can be tested with Java Explorer, but the focus lies on the following three Java components: Enterprise JavaBeans (EJBs), Web Services, and Remote Method Invocation (RMI).

SilkPerformer Java Explorer User Guide 11

Page 16

AVA FRAMEWORK TESTING WITH SILKPERFORMER

1 J

Testing Java Components

The Java Framework enables users to run stand-alone Java test code; to use other tools to invoke Java test code; or to execute test code from an exported standalone console.

Working with JDK versions

The Java Framework approach

SilkPerformer’s plugin for Eclipse

Because multiple Java Developer Kit (JDK) versions are available, testers need to test components against all versions. Both SilkPerformer Java Explorer and SilkPerformer Java Framework support testing components of various vendors and of different JDK versions.

The Java Framework approach to component testing is ideal for developers and advanced QA personnel who are not familiar with coding BDL (SilkPerformer’s Benchmark Description Language), but are comfortable working with a Java development tool. With this approach, Java code is used by the QA department to invoke newly created methods from SilkPerformer. The Java Framework Developer Guide discusses this approach in detail.

You can generate Java Framework BDL code using SilkPerformer’s JUnit import tool. The import tool produces BDL code that can invoke customer test code or customer JUnit testcode; Or it can directly invoke a client API. See the SilkPerformer User Guide for details regarding JUnit integration and the JUnit import tool.

SilkPerformer offers a plug-in for Eclipse developers that automatically generates all required BDL code from within the Eclipse SDK. Developers simply write their code in Eclipse and implement certain methods for integrating with the SilkPerformer Java Framework (please refer to the SilkPerformer User Guide for detailed information). The plug-in then creates all required BDL scripting that the QA department needs to invoke newly created methods from SilkPerformer. The plug-in for Eclipse enables developers and QA personnel to better coordinate their efforts, consolidating test assets and enabling both testers and developers to work within the environments with which they are most comfortable.

The Java Explorer approach

Java Explorer is a GUI-driven tool that is well suited for QA personnel who are proficient with SilkPerformer in facilitating analysis of Java components and thereby creating SilkPerformer projects, test case specifications, and scripts from which load tests can be run.

Developers who are proficient with Java may also find Java Explorer helpful for quickly generating basic test scripts that can subsequently be brought into a development tool for advanced modification.

Java Explorer emulates Java clients. When working with Web Services, Java Explorer achieves this through the use of proxies, which are conversion encoding/decoding modules between the network and client. Proxies communicate with servers by converting function calls into SOAP (XML) traffic, which is transferred via HTTP. Requests are decoded on the remote computer where the component resides. The XML request is then decoded into a real function call, and the function call is executed on the remote server. The results are encoded into XML and sent back to Java Explorer via SOAP, where

12 SilkPerformer Java Explorer User Guide

Page 17

AVA FRAMEWORK TESTING WITH SILKPERFORMER

1 J

Testing Java Components

they are decoded and presented to the user. What you see as the return result of the method call is exactly what the server has sent over the wire via XML.

The Java Explorer User Guide explains use of Java Explorer in detail.

SilkPerformer Java Explorer User Guide 13

Page 18

AVA FRAMEWORK TESTING WITH SILKPERFORMER

1 J

Testing Java Components

14 SilkPerformer Java Explorer User Guide

Page 19

Chapter 2 Setting Up Java Explorer

Projects

What you will learn This chapter contains the following sections:

Section Page

Overview 15

Creating a New Project 16

Defining a Test 18

Understanding Test Cases 23

Overview

This chapter shows you how to set up projects and define tests in Java Explorer. A sample Web Service hosted is used for demonstration purposes.See

“Enterprise JavaBeans & RMI Over IIOP” for details regarding using Java

Explorer to test Enterprise JavaBeans and RMI over IIOP.

Note Java Explorer requires that a Java Developer Kit be installed on your system (version 1.4 recommended). The JDK v1.4 can be downloaded from Sun’s Java Web site at http://java.sun.com/j2se/

index.jsp.

SilkPerformer Java Explorer User Guide 15

Page 20

ETTING UP JAVA EXPLORER PROJECTS

2 S

Creating a New Project

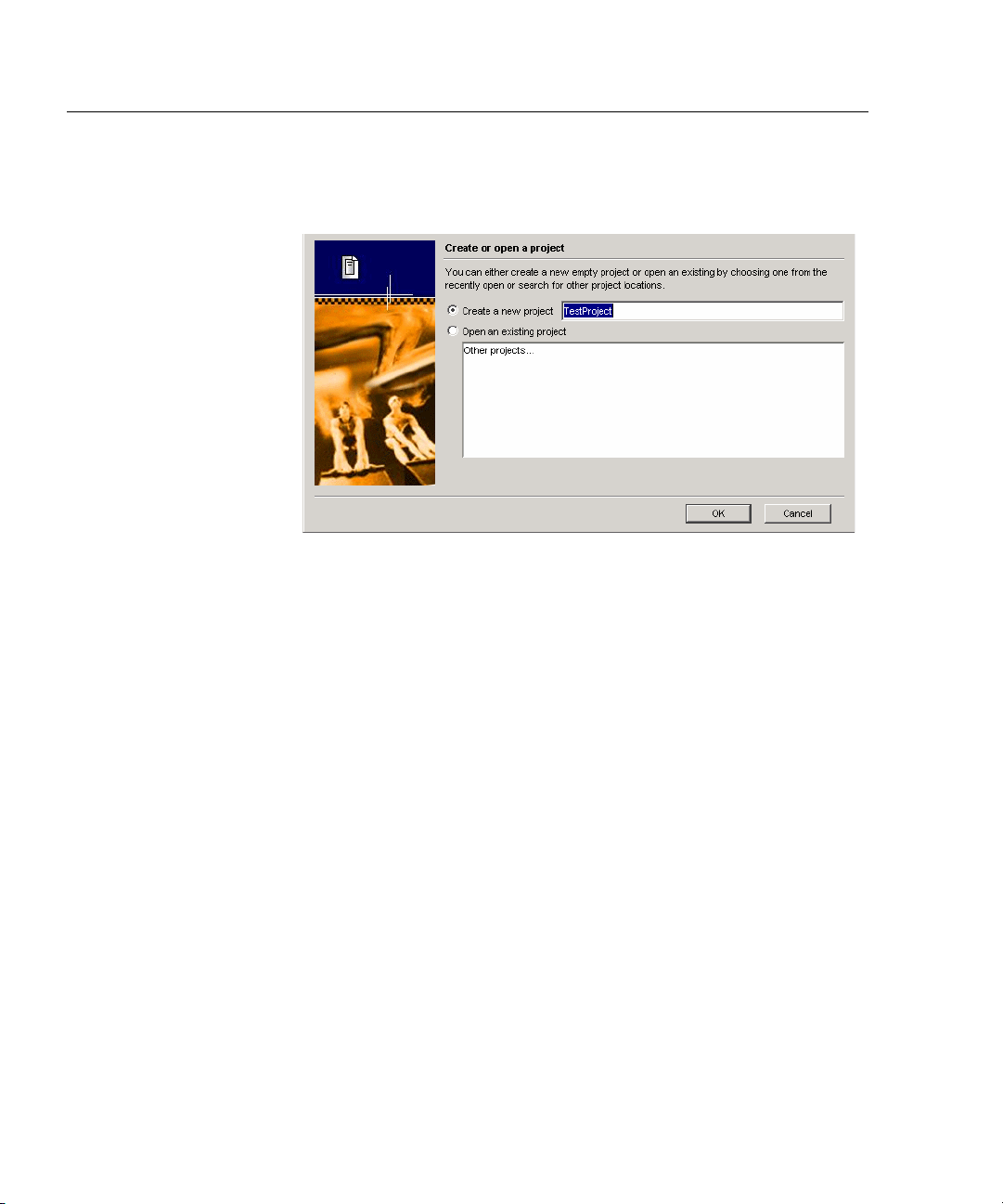

Upon opening Java Explorer you are prompted to either open an existing project or create a new project.

Procedure To create a new project:

1 Select the Create a new project radio button.

2 Enter a name for your project in the text field.

Note The project name may not be longer than 19 characters and

may not contain certain special characters (e.g., * . !).

3 Click OK. Your new project is created and the Java Explorer Web GUI

appears.

For each new project, a folder is created in the project directory (the default is <SilkPerformer installpath>\Working\Projects), which contains all the files required by the project for operation.

16 SilkPerformer Java Explorer User Guide

Page 21

ETTING UP JAVA EXPLORER PROJECTS

2 S

Creating a New Project

Overview of the interface

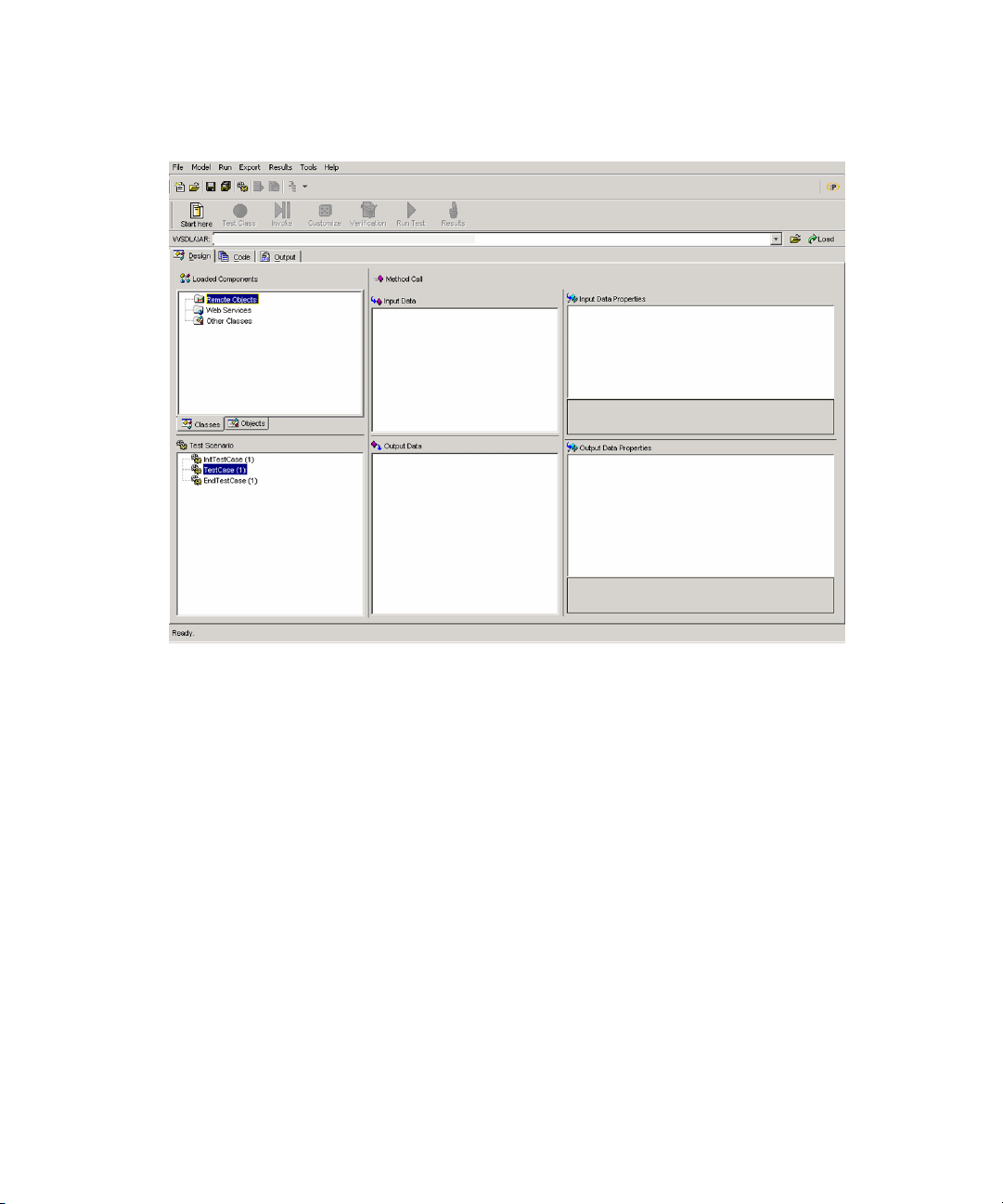

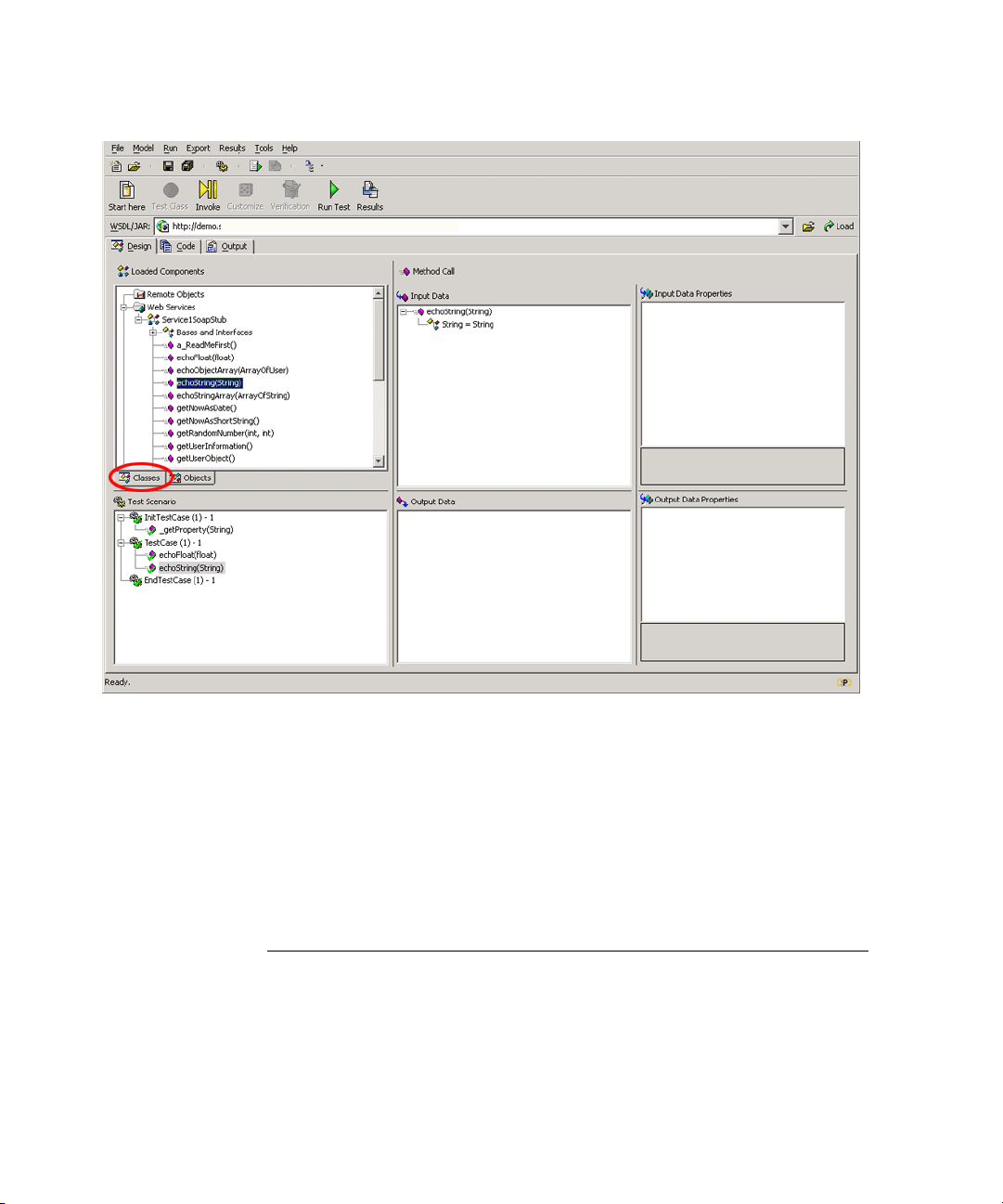

The Java Explorer interface enables you to intuitively configure tests for Web Services, Enterprise JavaBeans, RMI, and other Java classes.

The Java Explorer Start here workflow bar assists you in configuring and running your tests.

The WSDL/JAR address field allows for the loading of either WSDLs or Java classes and packages.

The Loaded Components window includes two tabs:

• Classes: A list of loaded Web Services, remotable classes/interfaces, and other Java classes. This view allows you to instantiate objects, connect to remote objects, and call static methods.

• Objects: A list of instantiated objects, global variables, and random variables. This view allows you to call methods on those objects.

The Input Data field shows input parameters for the selected method call.

The Input Data Properties field shows the properties of the input parameters (value, type, etc).

The Output Data field shows the output parameters of the last/selected method call.

SilkPerformer Java Explorer User Guide 17

Page 22

ETTING UP JAVA EXPLORER PROJECTS

2 S

Defining a Test

The Output Data Properties field shows the properties of the output parameters (value, type, etc).

The Test Scenario window lists the current test cases along with all added method calls.

See “Setting Up Tests” for more details regarding the Java Explorer GUI.

Defining a Test

Two approaches are available for defining tests with Java Explorer:

•Use the Load File Wizard by clicking Start here on the workflow bar to

• Enter the location of the Web Services’ WSDL file directly into Java

define where the information for an object you wish to test is located. The wizard displays the available classes, automatically instantiates available objects, and calls methods on those objects. This approach is more involved, but it offers more control. See the following section for a demonstration of this approach.

Explorer’s WSDL/JAR field and click Load. Information about the methods and objects is then displayed—however objects are not instantiated and methods are not called. This approach offers a quick, simple approach to analyzing remote service functionality.

For demonstration purposes, this chapter uses the Load File Wizard to instantiate the objects available on a sample Web Service, which is available at

http://demo.borland.com/BorlandSampleService/BorlandSampleService.asmx?WSDL.

Using the Load File Wizard

Procedure To set up a test using the Load File Wizard:

Note JDK version 1.3 or higher is required for testing Web services

and EJB’s.

1 Click the Start here button on the workflow bar. The Load File Wizard

dialog appears.

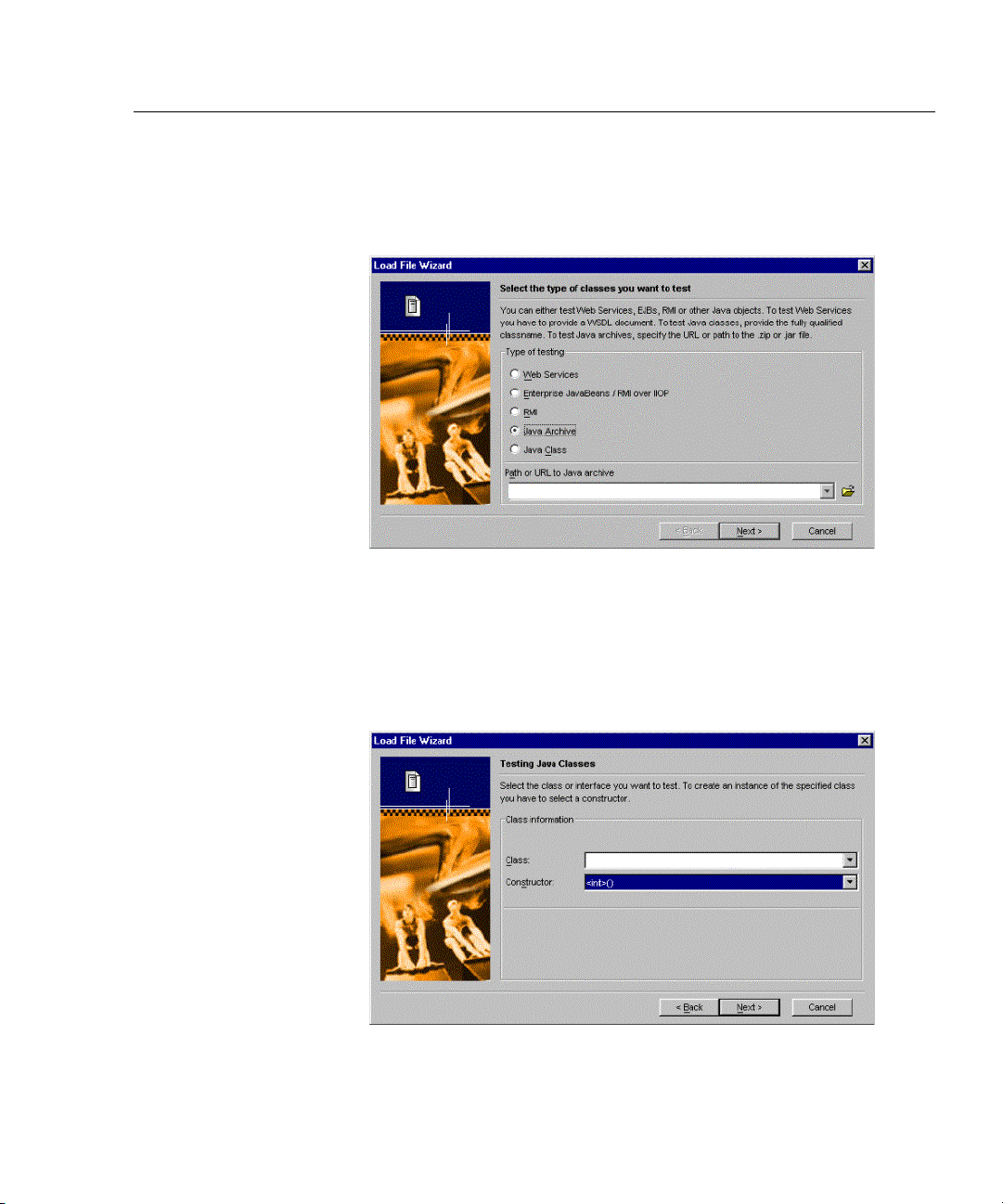

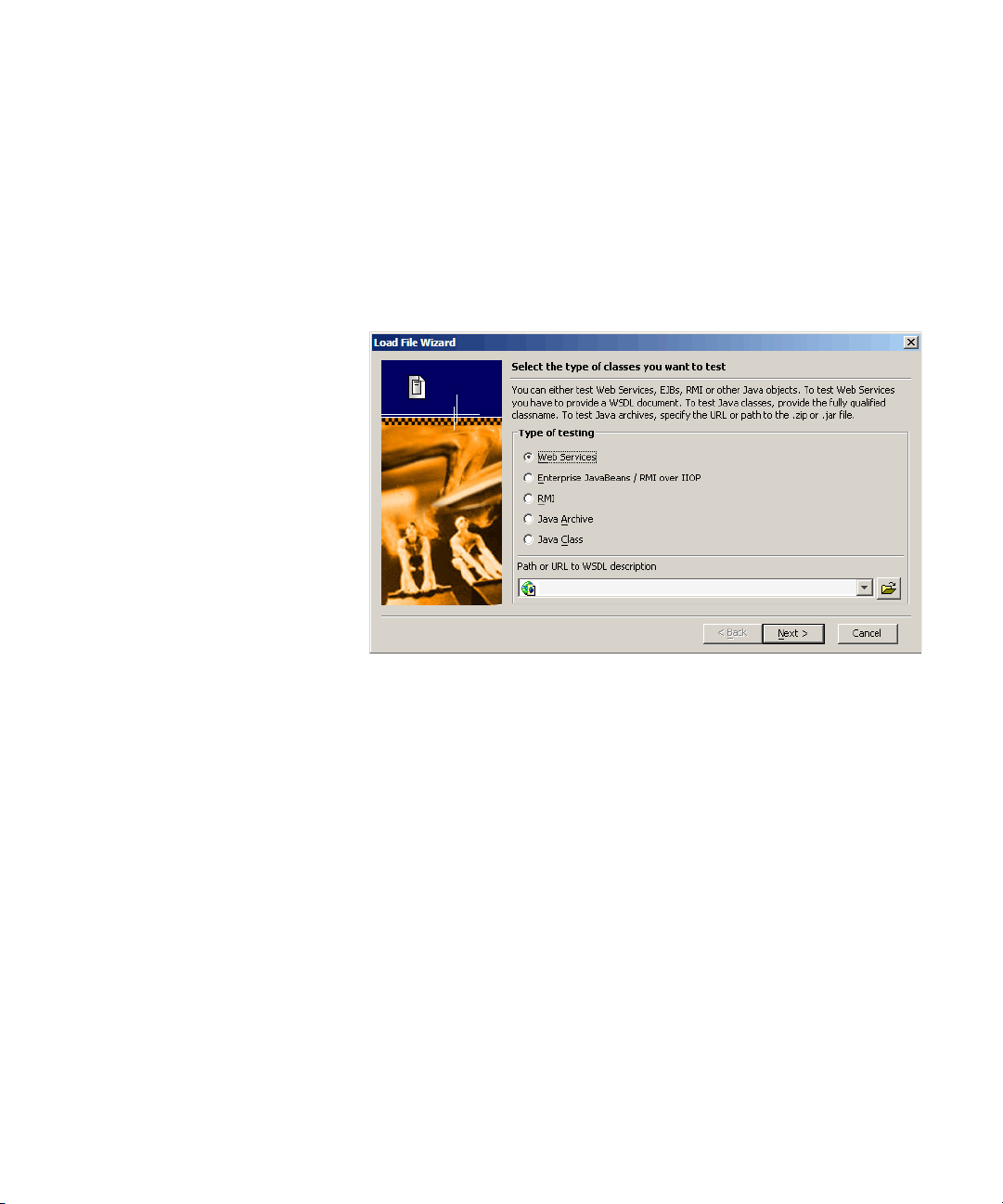

2 Select the radio button of the class type you wish to test:

- Web Services

- Enterprise JavaBeans

-RMI

- Java Archive

- Java Class

3 When testing Web Services you must define a URL or path to the WSDL

file that describes the Web Service.

18 SilkPerformer Java Explorer User Guide

Page 23

ETTING UP JAVA EXPLORER PROJECTS

2 S

Defining a Test

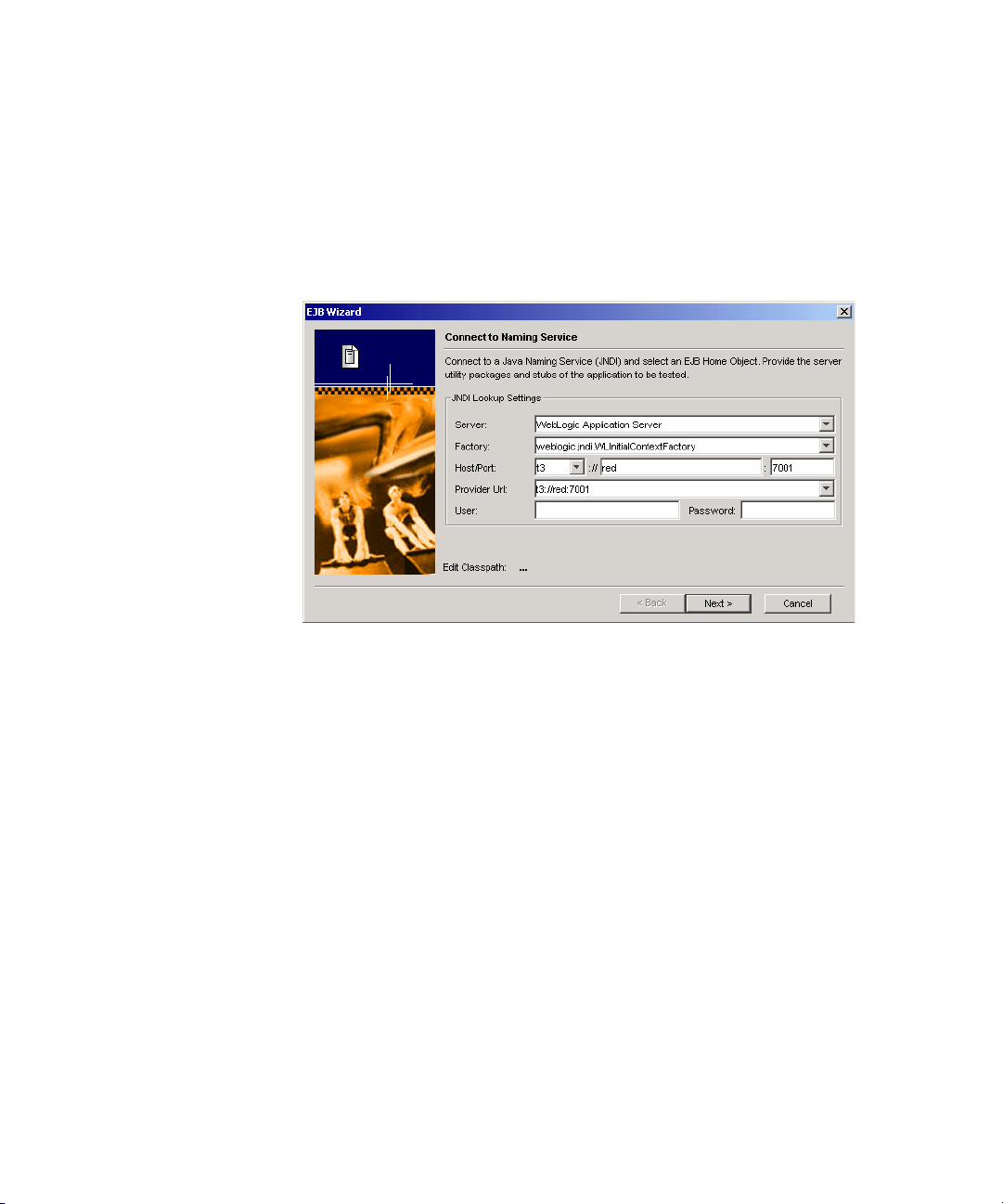

Note When testing EJBs a dialog prompts you for EJB-specific connection settings. For other Java classes you must define a path to a Java archive or class file.

4 Click Next. The WSDL file, which is an XML description of the

functionality that is offered by the Web Service, is loaded. Java Explorer can now determine what is available on the Web Service.

Note The sample Web Service offers a minimum of functionality— it simply echoes back values.

5 Select the Web Service class you wish to test from the Class drop-down

list. Normally there will be only one class, but it’s possible that the loaded WSDL will define multiple Web Services.

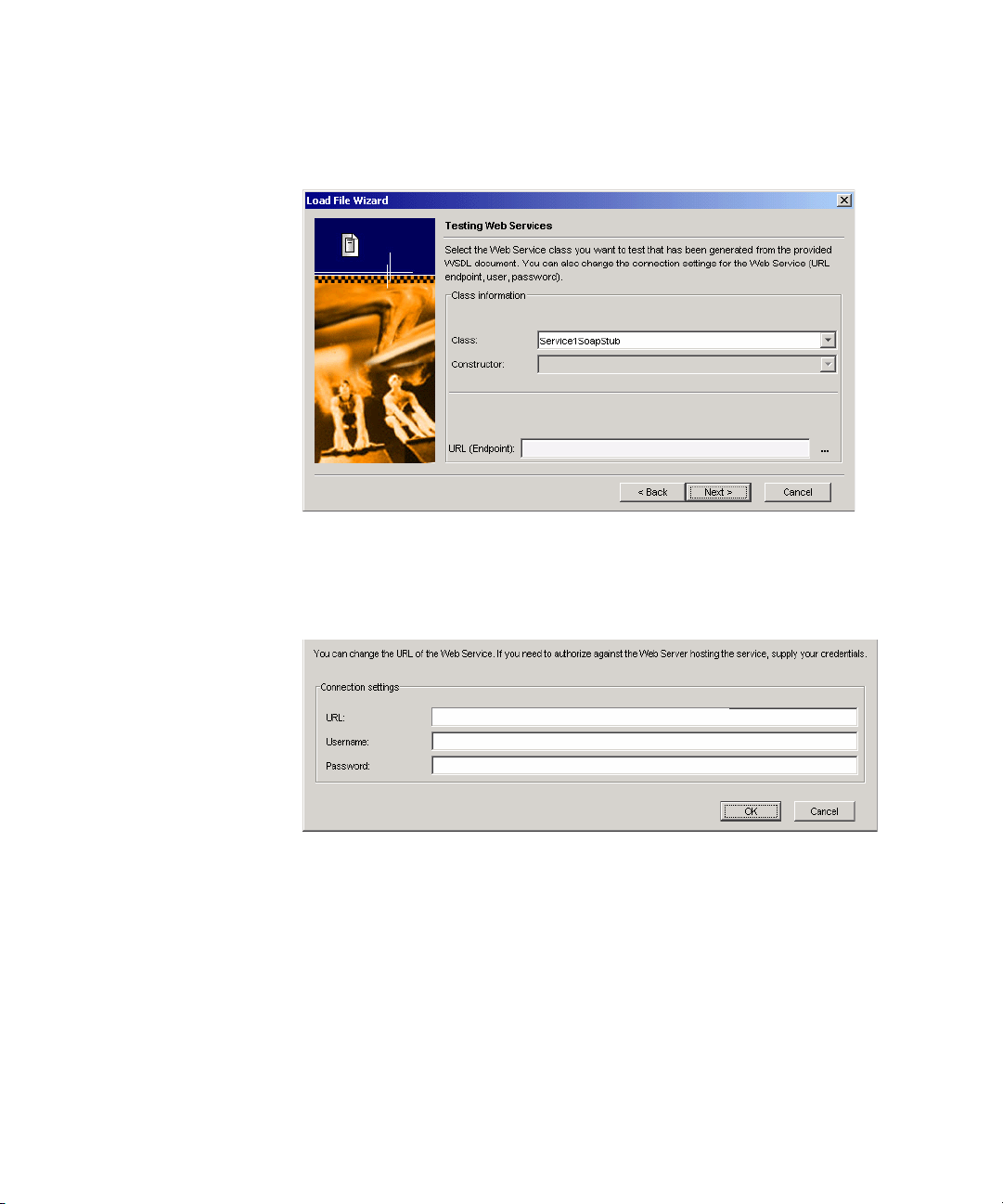

6 Using the URL (Endpoint) field, you can change the endpoint of the

service. The default endpoint is the one defined in the WSDL document.

SilkPerformer Java Explorer User Guide 19

Page 24

ETTING UP JAVA EXPLORER PROJECTS

2 S

Defining a Test

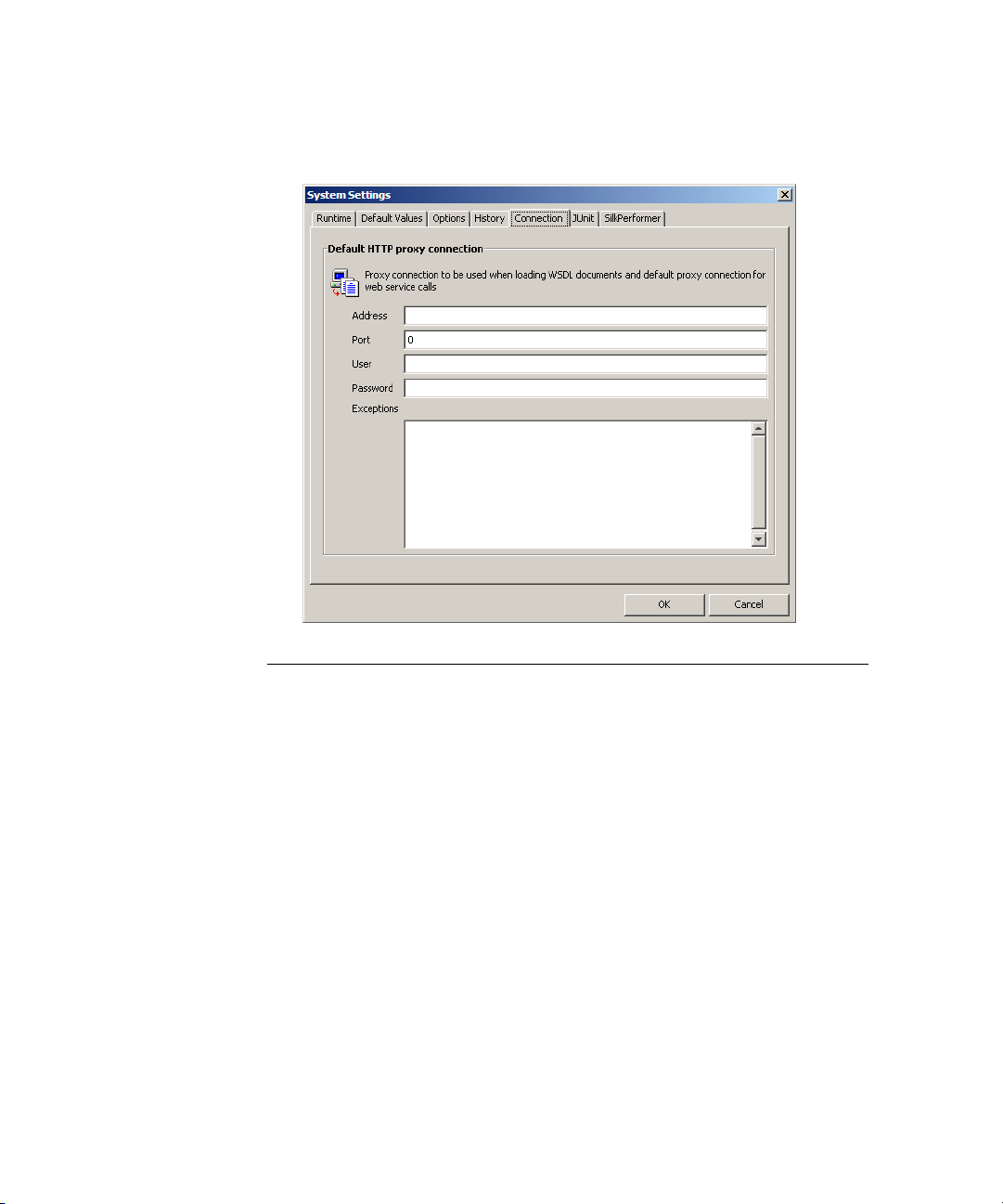

7 If required, you can change Web Service proxy and authentication

settings for the Web server by selecting the Open (...) button and entering information on the Connection Settings dialog.

a If required, enter the endpoint of the Web Service in the URL field. If

user credentials are required for authentication, enter the information in the upper set of Username and Password fields.

b Click OK to accept the settings.

8 Click Next.

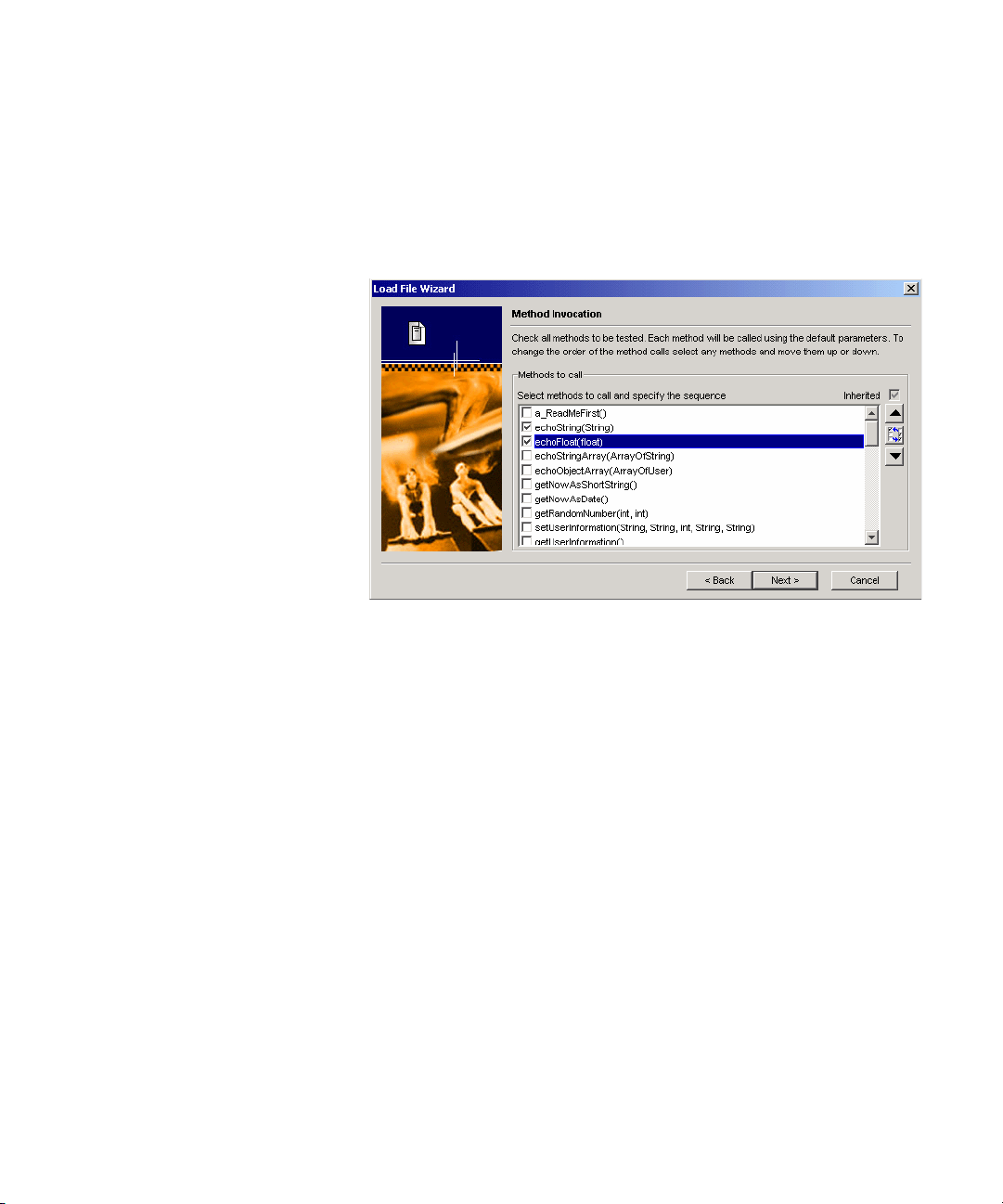

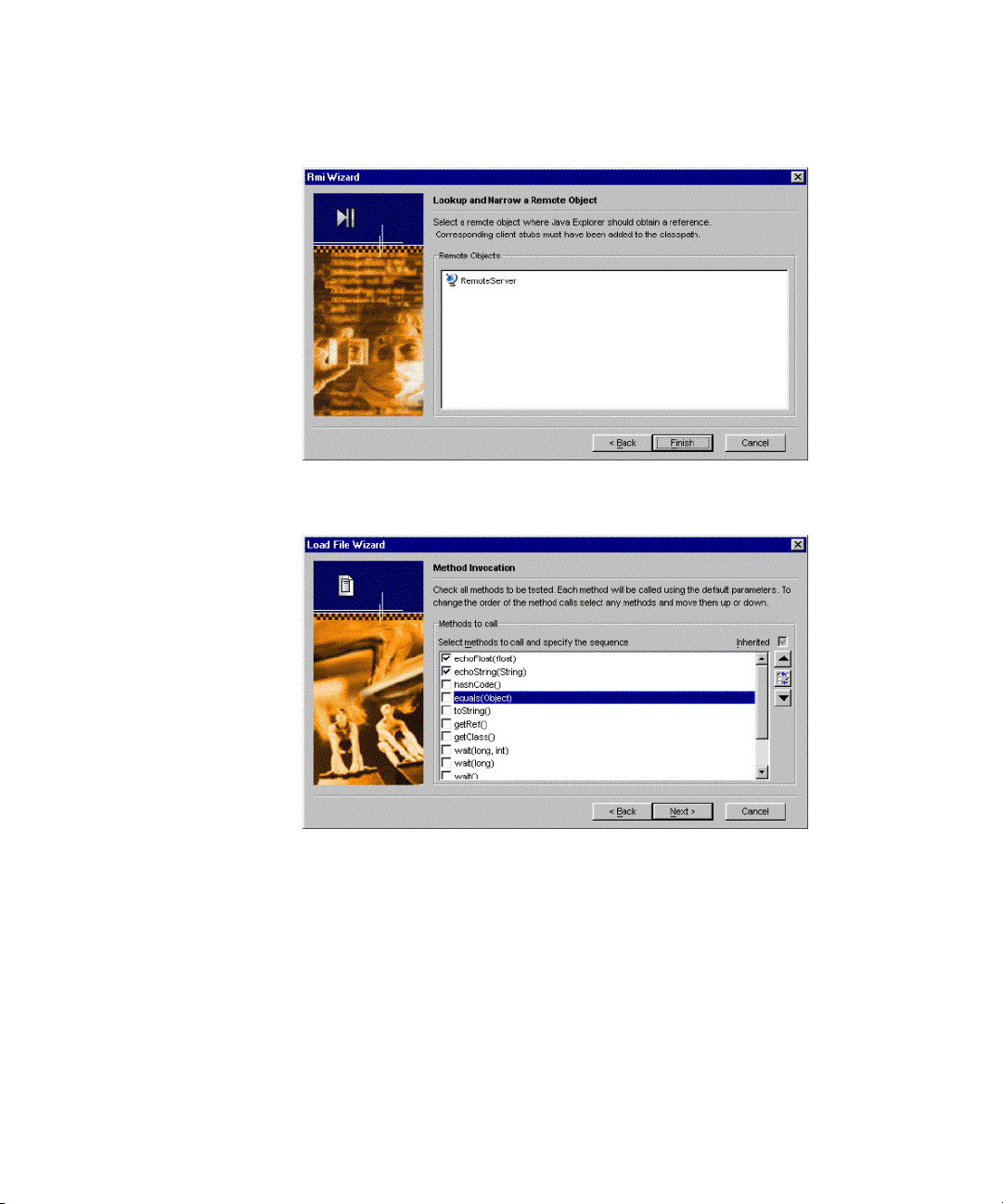

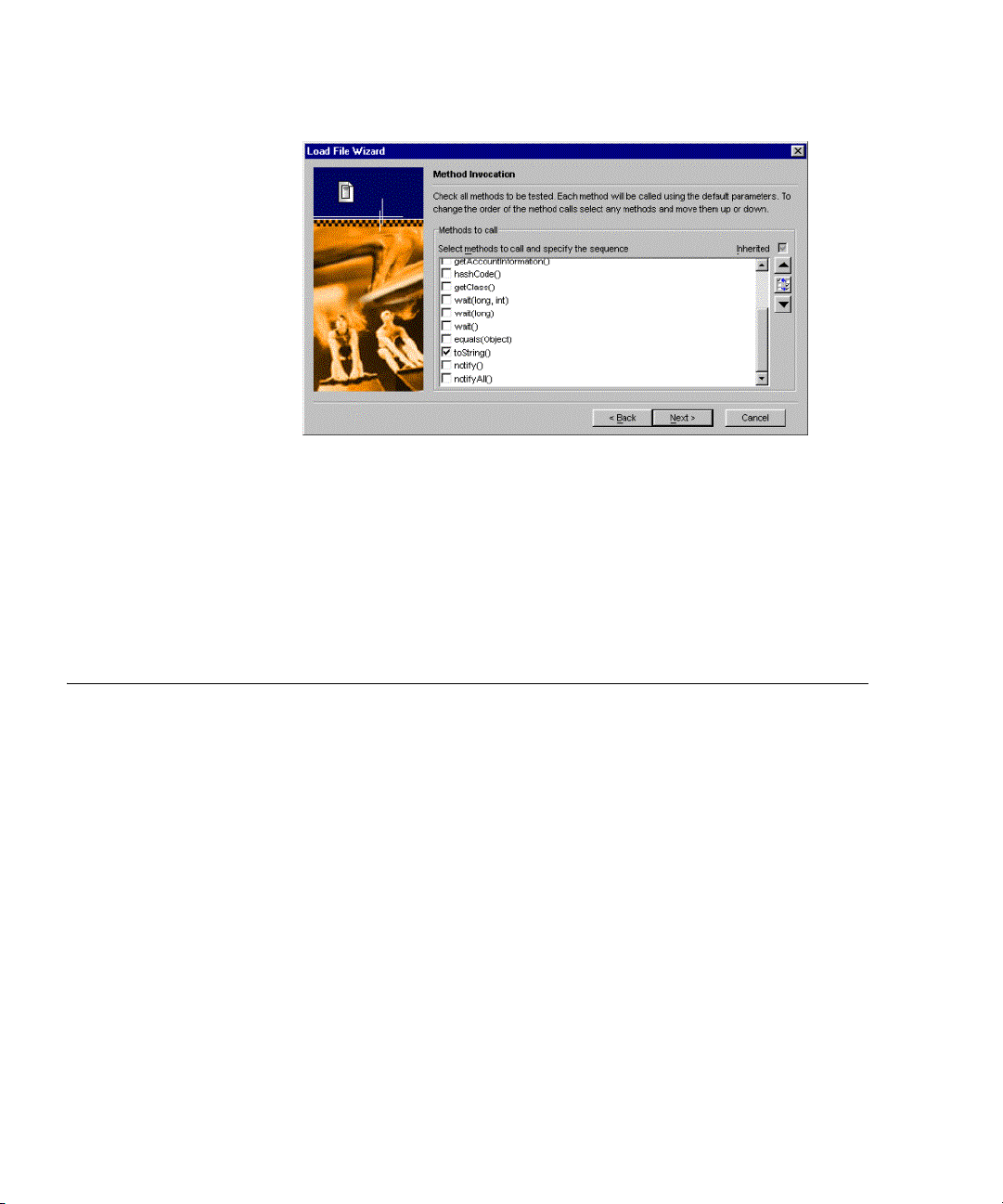

9 The Method Invocation dialog appears. Check the methods that you wish

to have tested (echoFloat and echoString are selected in this example). Methods are called using the default parameters.

Note The selected Inherited checkbox indicates that the member functions of the base classes are visible. The state of the checkbox can’t be altered manually.

10 If necessary, adjust the sequence in which the methods are called using

the Up and Down arrow buttons. In this way you can move methods up and down the invocation list.

20 SilkPerformer Java Explorer User Guide

Page 25

ETTING UP JAVA EXPLORER PROJECTS

2 S

Defining a Test

Note Login and logout methods must be in first and last positions respectively.

11 The button between the Up and Down arrow buttons enables you to

invert the selection of methods (i.e., all unmarked methods become marked, and vice-versa).

12 Click Next.

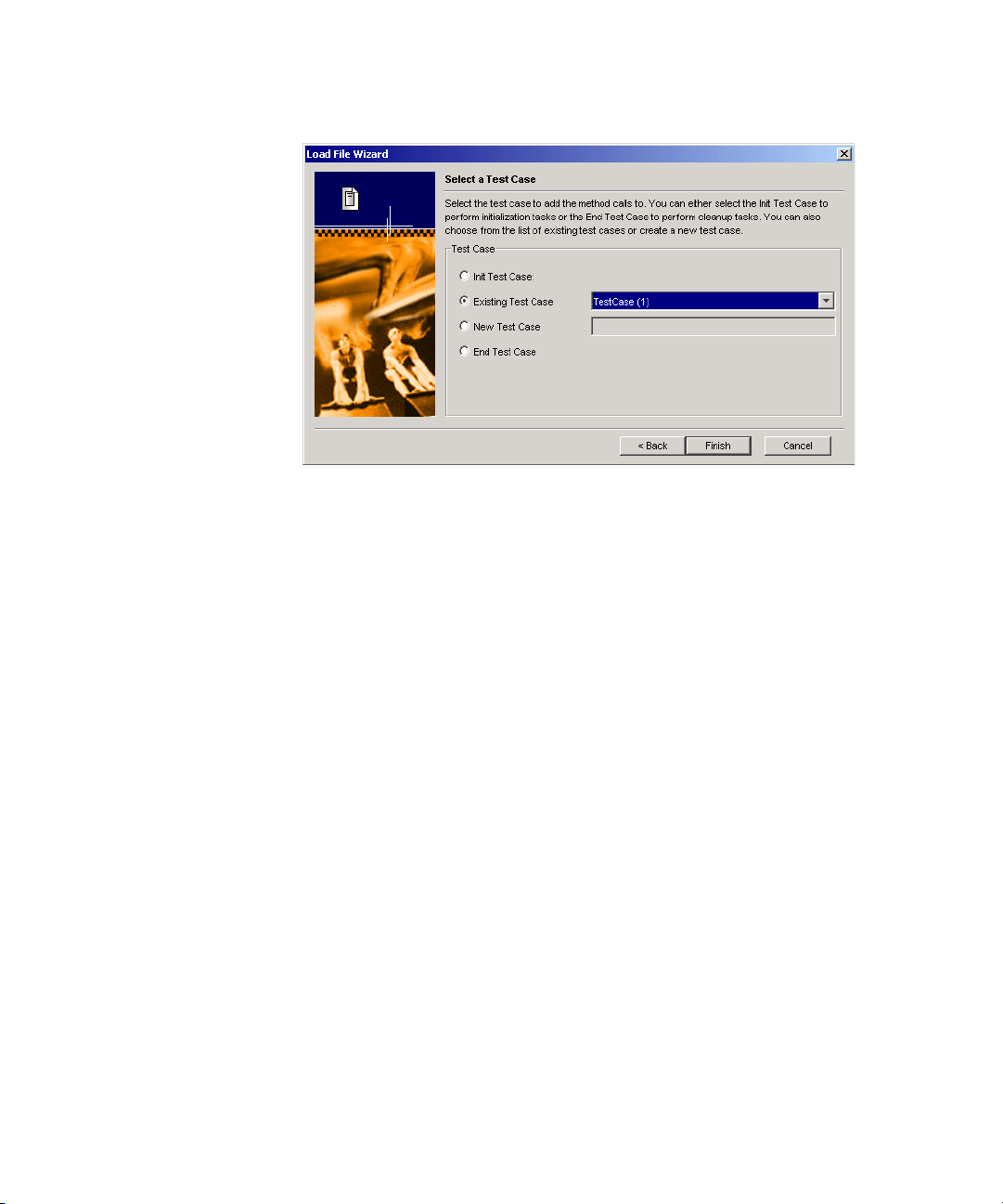

13 The final step is to select the test case in which the testing methods

should be added. You can select from the following:

• Init Test Case - This is the first test case that is called in test runs. Select this test case if your method calls are related to initialization, logging in, or start-up.

• Existing Test Case - You can add to an existing test case. Choose the test case from the drop-down list to the right of this selection.

• New Test Case - A new test case can be created and the methods added to the new test case. Using the text field to the right of this selection, give the new test case a unique name.

• End Test Case - This is the last test case that is called in test runs. Select this test case if your method calls are related to clean-up, for example log out.

SilkPerformer Java Explorer User Guide 21

Page 26

ETTING UP JAVA EXPLORER PROJECTS

2 S

Defining a Test

14 Click Next.

Note If you’ve selected a method that takes parameters, a dialog

informs you that default parameters will be used for the method, which may result in an exception being thrown. If you don’t wish to proceed, click No. Then go back, deselect the method in question, and manually add it later with a more meaningful parameter value.

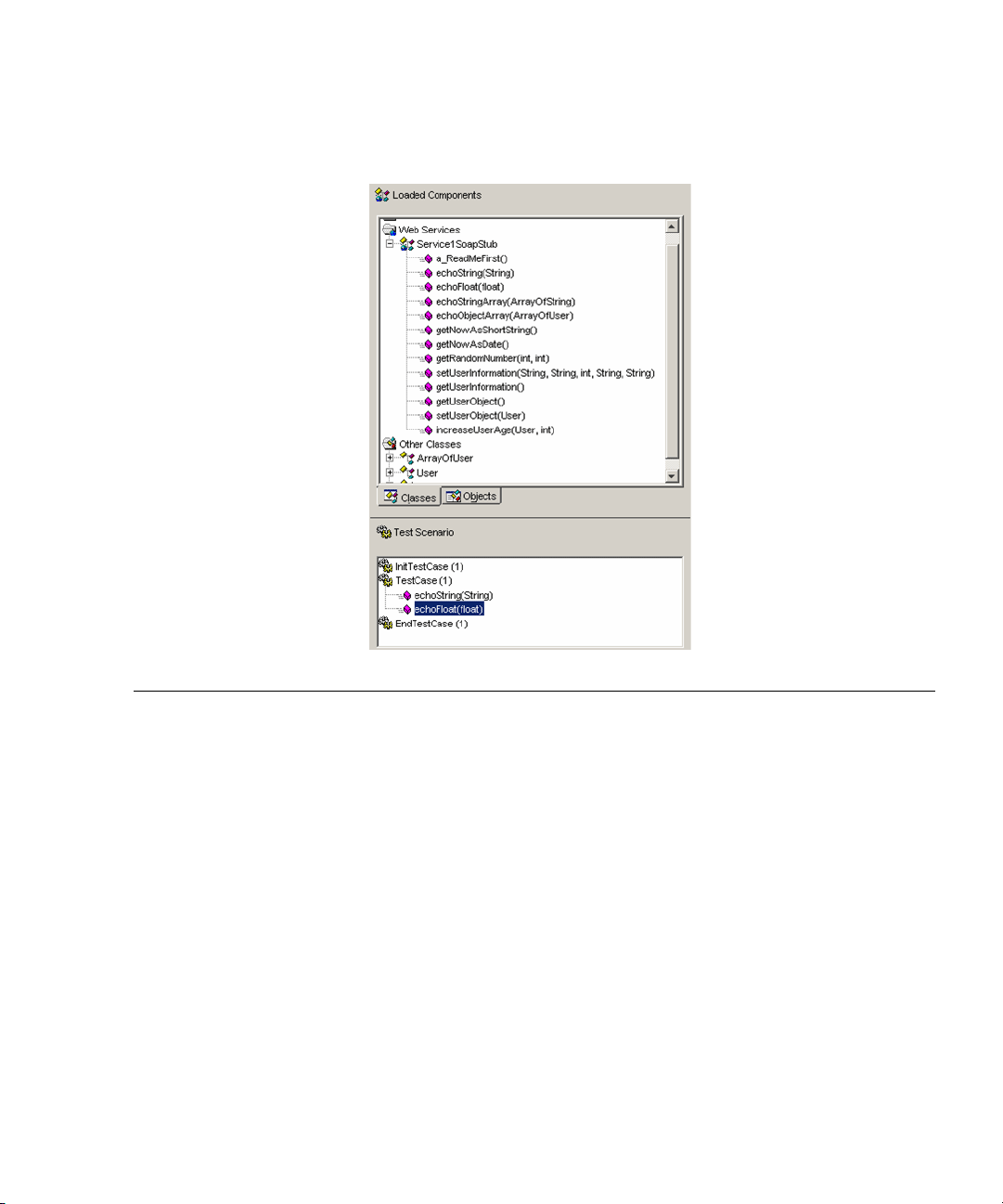

Now review what the wizard has created in the Loaded Components pane—the Web Service has been loaded in the class tree. The selected methods have been called and added to the selected test case (Test Scenario pane). Follow the procedure outlined in “Specifying Web Service Connection Settings” to configure connection settings such as endpoint and user credentials.

All methods that are exposed by the Web Service (e.g., echoString, echoFloat) are displayed under the Service1SoapStub class node. Select a method to specify its parameters and invoke it.

The Test Scenario pane includes several test cases. Init is the first test case that is called in the test scenario. End is the last test case that is called.

22 SilkPerformer Java Explorer User Guide

Page 27

ETTING UP JAVA EXPLORER PROJECTS

2 S

Understanding Test Cases

The invoked method calls (service1.echoString and service2.echoFloat) have been added to the specified test case. Click a method call to view or edit its input/output parameters.

Understanding Test Cases

Following is an overview of the characteristics of test cases as they relate to Java Explorer.

Each test scenario includes an Init test case and an End test case. Multiple Main test cases can be defined. An Init test case is the first test case that is called during a test run. Init test cases often include method calls that are related to initialization, logging in, or start-up. End test cases are the last test cases that are called during test runs. End test cases often include method calls that are related to clean-up, for example logging off.

Main test cases are executed between Init and End test cases and can include any sort of method call.

A local variable is only valid within a single test case and cannot be passed to another test case. Only global variables can be used to pass values between test cases.

SilkPerformer Java Explorer User Guide 23

Page 28

ETTING UP JAVA EXPLORER PROJECTS

2 S

Understanding Test Cases

Names of test cases are restricted. As they are mapped to Java methods and SilkPerformer transactions, they are subject to the restrictions of Java methods and SilkPerformer transaction names. Code exported to SilkPerformer cannot use keywords that are defined by BDL or Java.

There are also names that cannot be used because Java Explorer scripts some variables when exporting to SilkPerformer Java Framework Projects; the names of these variables are also restricted:

"by", "do", "if", "in", "of", "or", "rc", "to", "all", "and", "bin", "chr", "dll", "end", "eos", "for", "mod", "not", "ord", "out", "ptr", "row", "set", "sql", "var", "use", "char", "drop", "else", "exit", "form", "from", "halt", "init", "into", "last", "long", "loop", "next", "proc", "rows", "then", "true", "user", "void", "wait", "array", "begin", "const", "false", "fetch", "float", "group", "inout", "order", "reset", "short", "throw", "union", "where", "while", "write", "commit", "create", "cursor", "dclsql", "delete", "double", "elseif", "insert", "number", "result", "return", "rndbin", "rndind", "rndsno", "rndstr", "select", "sizeof", "stored", "string", "unique", "update", "values", "boolean", "dclform", "dclfunc", "dclrand", "dcluser", "dstring", "handler", "lenspec", "rndexpf", "rndexpn", "rndfile", "rndpern", "rndunii", "rndunif", "rndunin", "writeln", "database", "dclevent", "dcltrans", "dclparam", "explicit", "function", "optional", "rollback", "sizespec", "unsigned", "allownull", "benchmark", "rndstream", "transaction", "transactions", "com1", "com2", "com3", "com4", "com5", "com6", "com7", "com8", "com9", "lpt1", "lpt2", "lpt3", "lpt4", "lpt5", "lpt6", "lpt7", "lpt8", "lpt9", "con", "prn", "aux", "nul", "clock$"

Test case properties

The following test case properties can be edited by selecting test cases in the

Test Scenario pane and defining field values in the Output Data Properties pane:

StopAtError - You can define the number of errors that can occur during one test

run cycle. When this number is reached, animated runs abort. If you define 0 animated runs will not abort.

CallCount - You can define the number of times that test cases are called during animated runs. This setting becomes the call count for transactions when exporting test scenarios to SilkPerformer. For example if you specify 3, a test case will be called 3 times in animated runs before the next test case is executed.

Name - You can change the names of test cases. Names must be unique among all test cases .

Creating test cases You can create a test case via the context menu in the test scenario tree. Choose

New and you will be prompted for the name of the new test case. The name of the test case must be unique among all test cases.

Removing test cases You can remove a test case via the context menu in the test scenario tree. Choose

Remove to remove a selected test case. Note that all currently applied test methods will also be removed!

The init and end test cases are special. They cannot be removed. Method calls must be removed individually.

You may not be able to delete a test case that contains a method call where a return value is stored in a global variable. The reason for this is that the variable may be in use by method calls in other test cases.

24 SilkPerformer Java Explorer User Guide

Page 29

Chapter 3 Setting Up Tests

What you will learn This chapter contains the following sections:

Section Page

Overview 26

Design View 26

Code View 30

Output View 31

Customizing Input Parameters 33

Storing Output Values in Variables 34

Manually Adding Global Variables 35

Defining Output Value Verifications 36

Adding & Updating Method Calls 40

Complex Input/Output Data 40

Random Variable Wizard 45

Enterprise JavaBeans & RMI Over IIOP 49

Testing RMI 64

Testing Java Archives 67

Testing Secure Web Services 68

Negative Testing 71

SilkPerformer Java Explorer User Guide 25

Page 30

ETTING UP TESTS

3 S

Overview

Design View

This chapter explains how to set up and customize your tests in Java Explorer. Topics include an introduction to GUI elements, customization of input parameters, definition of output value verifications, and generation of random variables. The chapter concludes with discussions about using Java Explorer to test EJBs and RMI over IIOP.

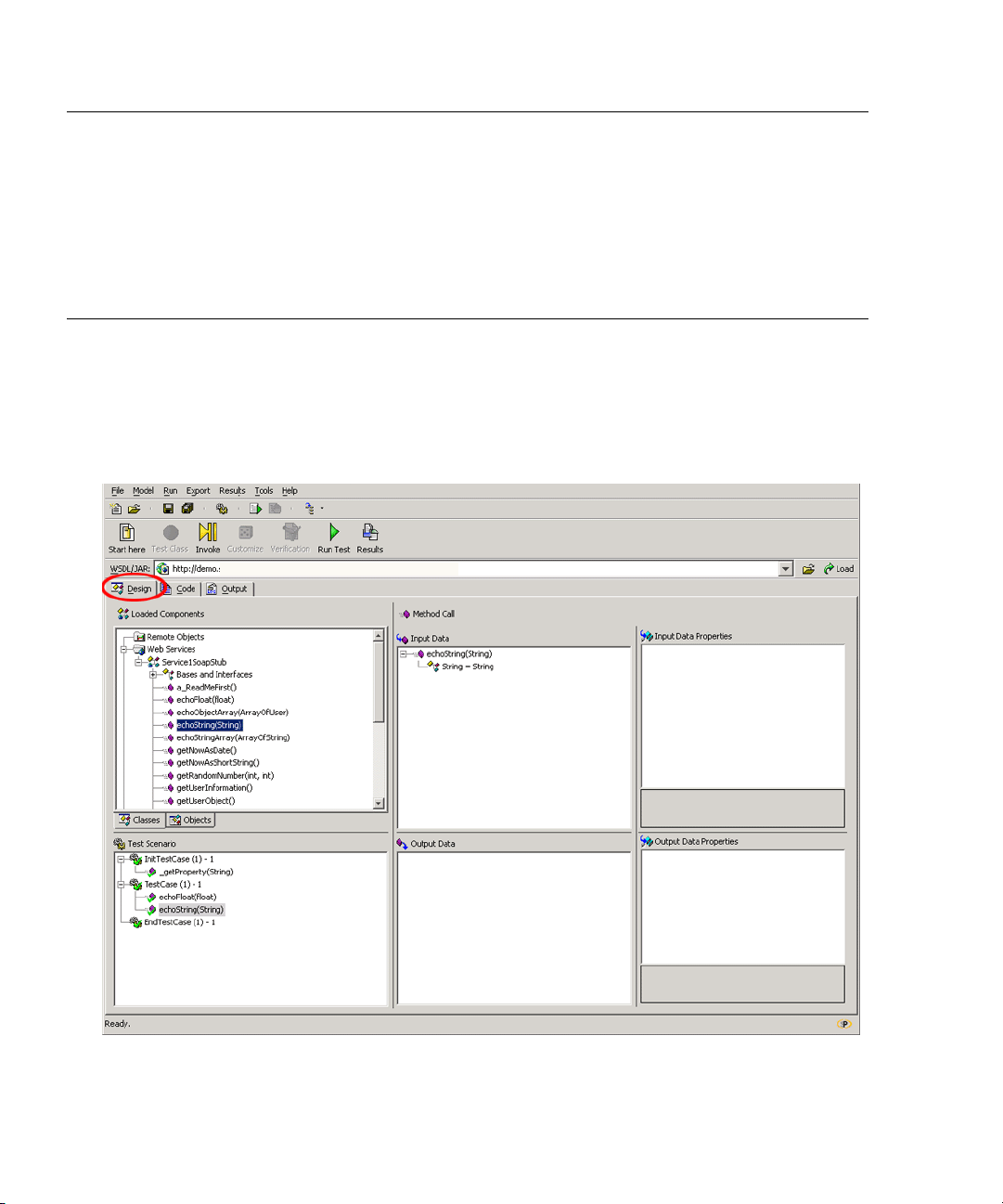

Design view (open by default) is the primary mode used to access the majority of Java Explorer’s functionality. Design view enables the display of loaded components, invocation of methods, customization of output/input data, and the design of test scenarios.

26 SilkPerformer Java Explorer User Guide

Page 31

ETTING UP TESTS

3 S

Design View

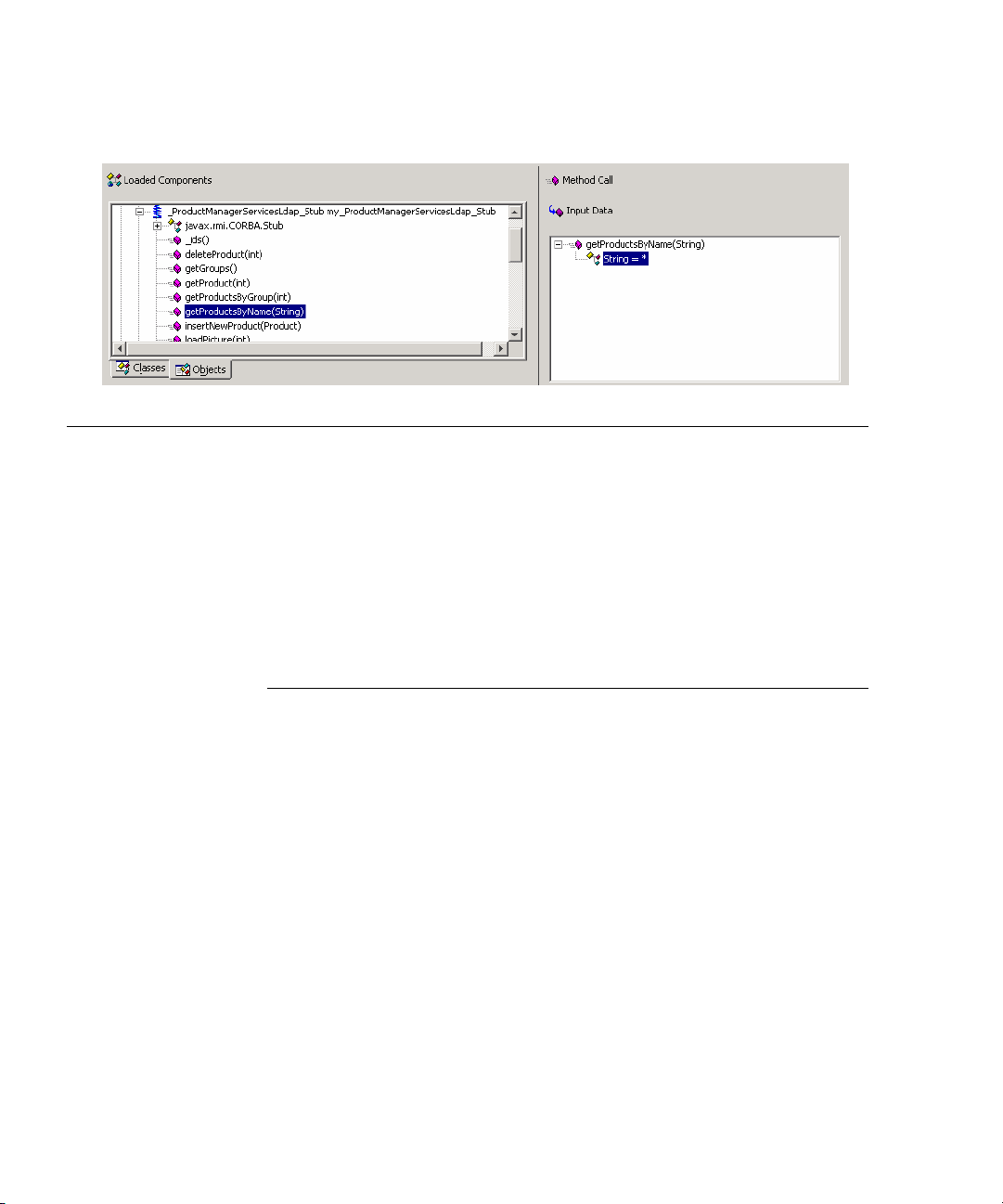

Loaded Components Window

The Loaded Components window, accessible via Design view only, distinguishes between classes and objects and displays these components on different trees.

In Classes view you see all loaded classes with their members (methods and fields) that can be accessed without the need of an object context—so normally these are static functions, constructors, and fields.

When you instantiate a class, the created object is shown in Objects view, with all instance members (methods and fields). All objects present in the runtime (see “Java Explorer Processes” for more details) are listed here and can later be used as parameters.

There are two exceptions however: Web Services and Remote Objects. As an object instance is not required for Web Services (which are essential objects that expose static methods), all methods offered by Web Services are shown in Classes view. Therefore, Remote Objects—such as EJB home objects, which are used to create an EJB object—are also listed in the Classes view, although they are in fact objects.

Classes Tab

All loaded classes and Web Services are listed in Java Explorer’s Loaded Components pane on the Classes tab (Design view only).

Only constructors, static methods, and members are displayed, as there is no object context required to call them.

SilkPerformer Java Explorer User Guide 27

Page 32

ETTING UP TESTS

3 S

Design View

Web Services are treated as if they only have static methods.

The following folders are available in Classes view:

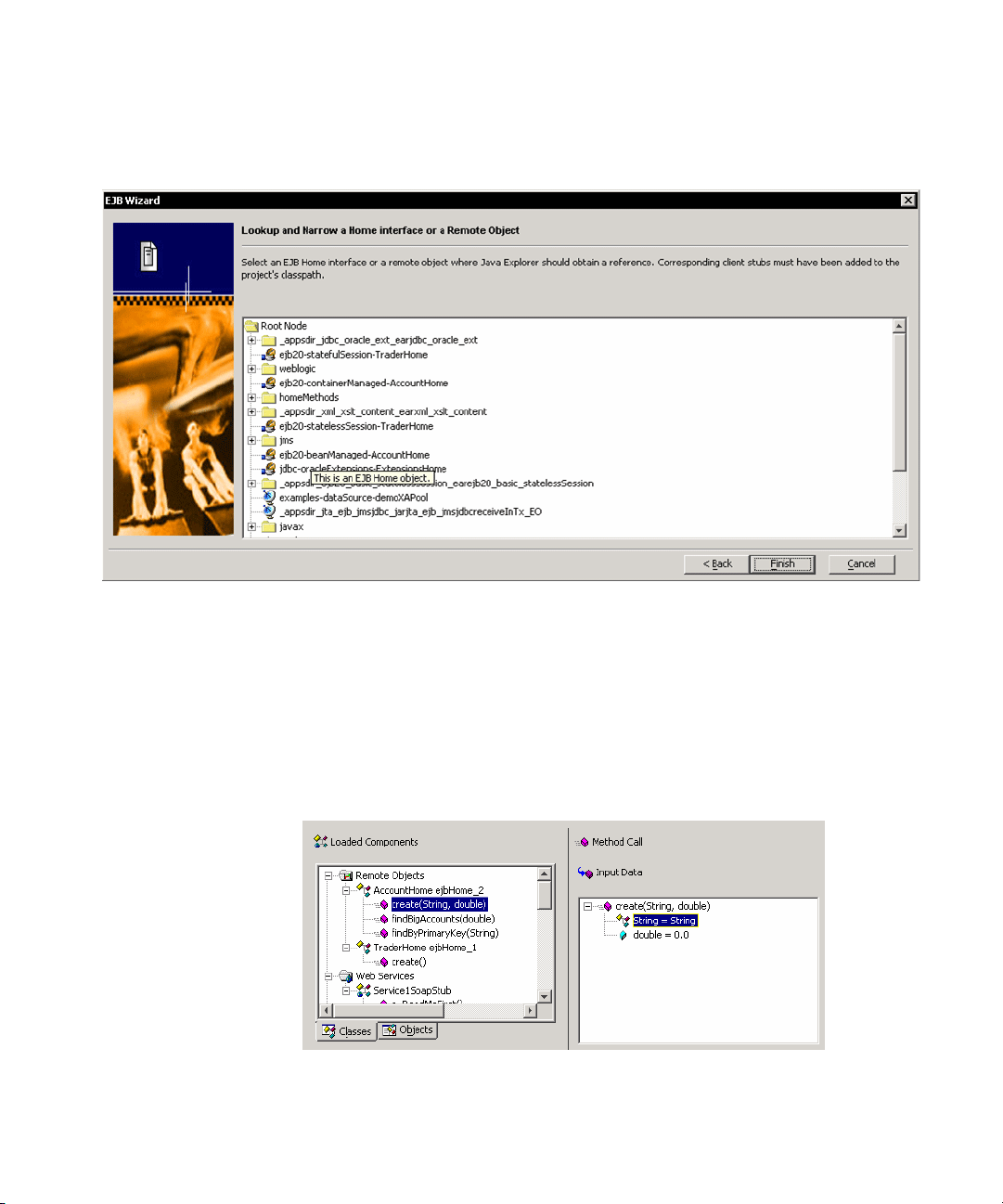

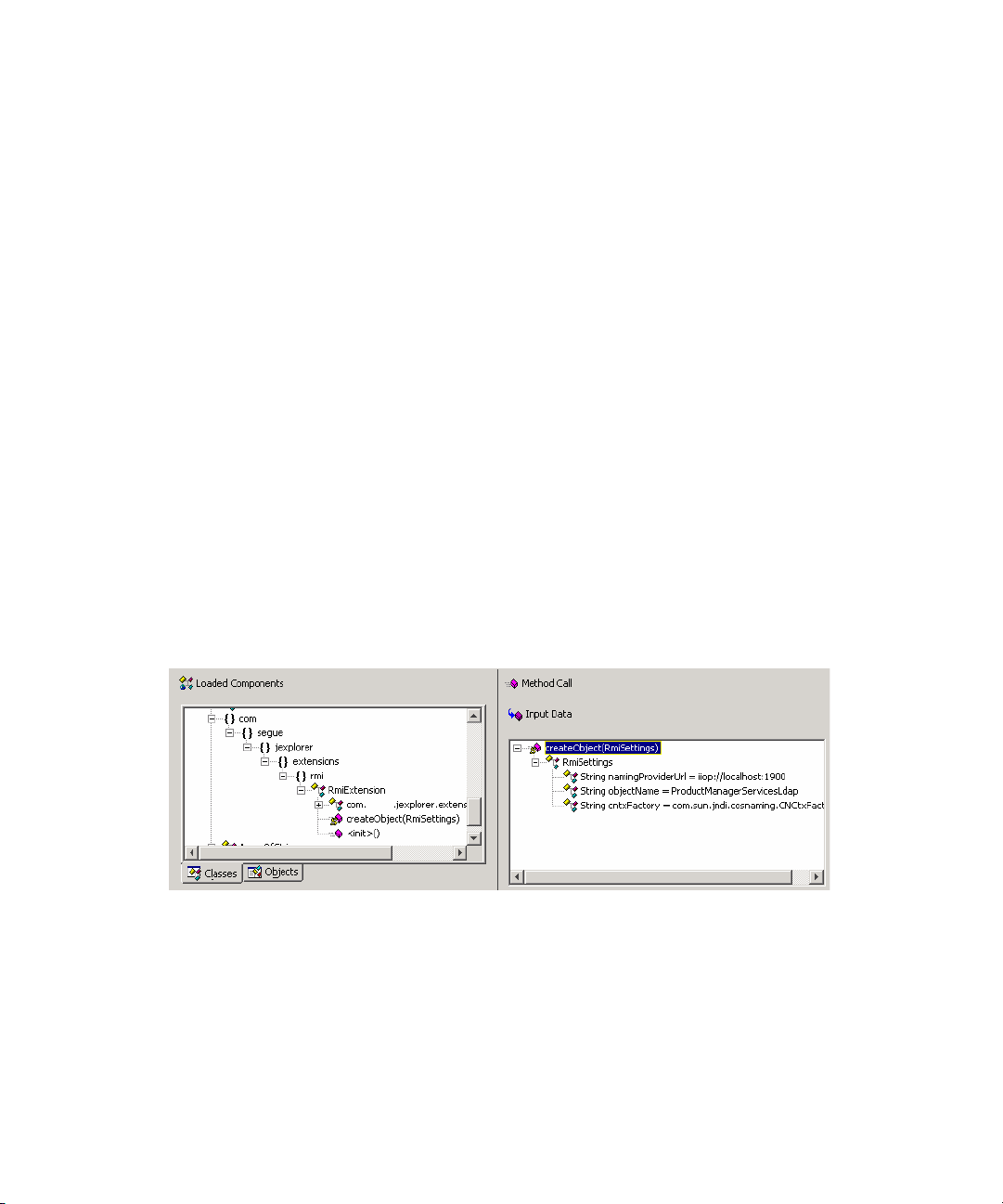

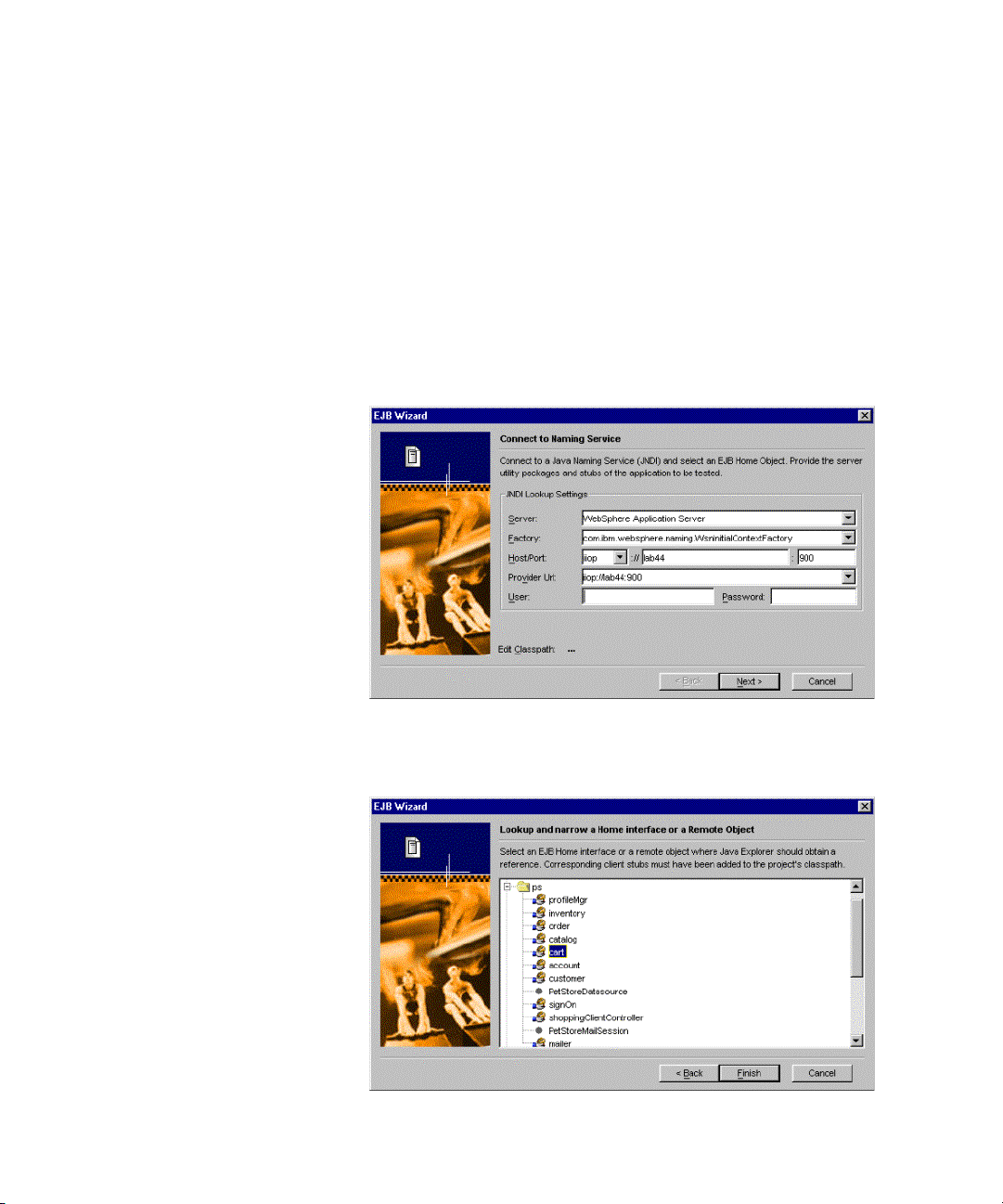

Remote Objects Home interfaces of Enterprise JavaBeans on remote servers are included in this

folder. Home interfaces are looked up on a naming service via JNDI. Invoking a create method on EJB home objects instantiates EJB objects on servers.

Web Services This folder lists stub classes, which are helper classes that encapsulate network

communication. These classes are derived from org.apache.axis.client.Stub. Asynchronous method calls are not allowed and therefore are not shown.

Other Classes Other Java classes or the application under test are included in this folder.

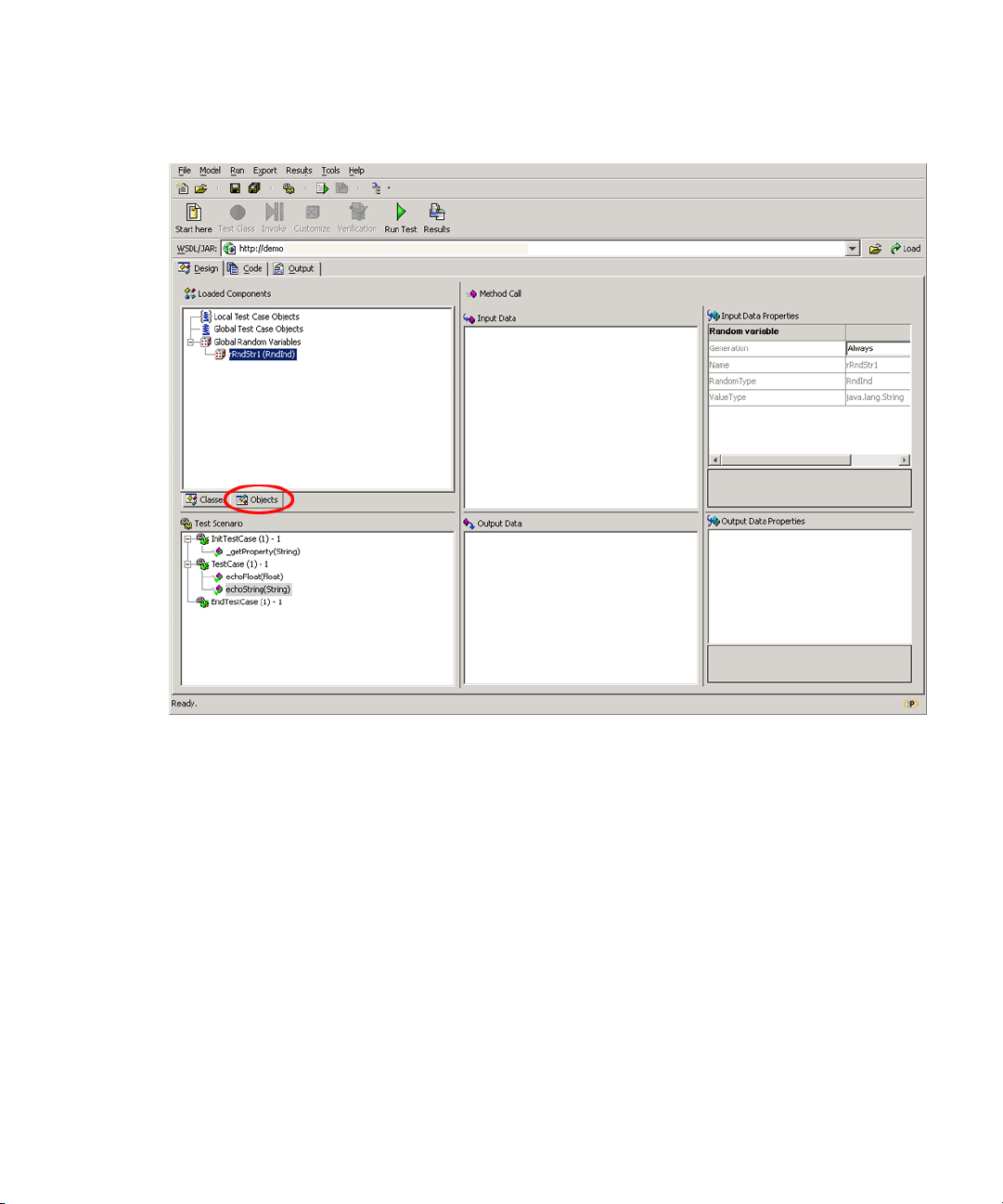

Objects Tab

When an object is instantiated through a constructor or returned by a method and stored in a variable, the object is listed in Java Explorer’s Loaded Components pane on the Objects tab (Design view only). Instance members and methods that can then be invoked by the user are displayed.

28 SilkPerformer Java Explorer User Guide

Page 33

ETTING UP TESTS

3 S

Design View

Objects view shows objects stored in variables that have global scope and those that have a local scope of the currently selected test case.

Objects Objects contain logic and data. For example an object’s data might consist of a

string. The object’s logic would then consist of functions that can be used to manipulate the string.

Note By invoking a method more than once using different input parameters you can create new objects.

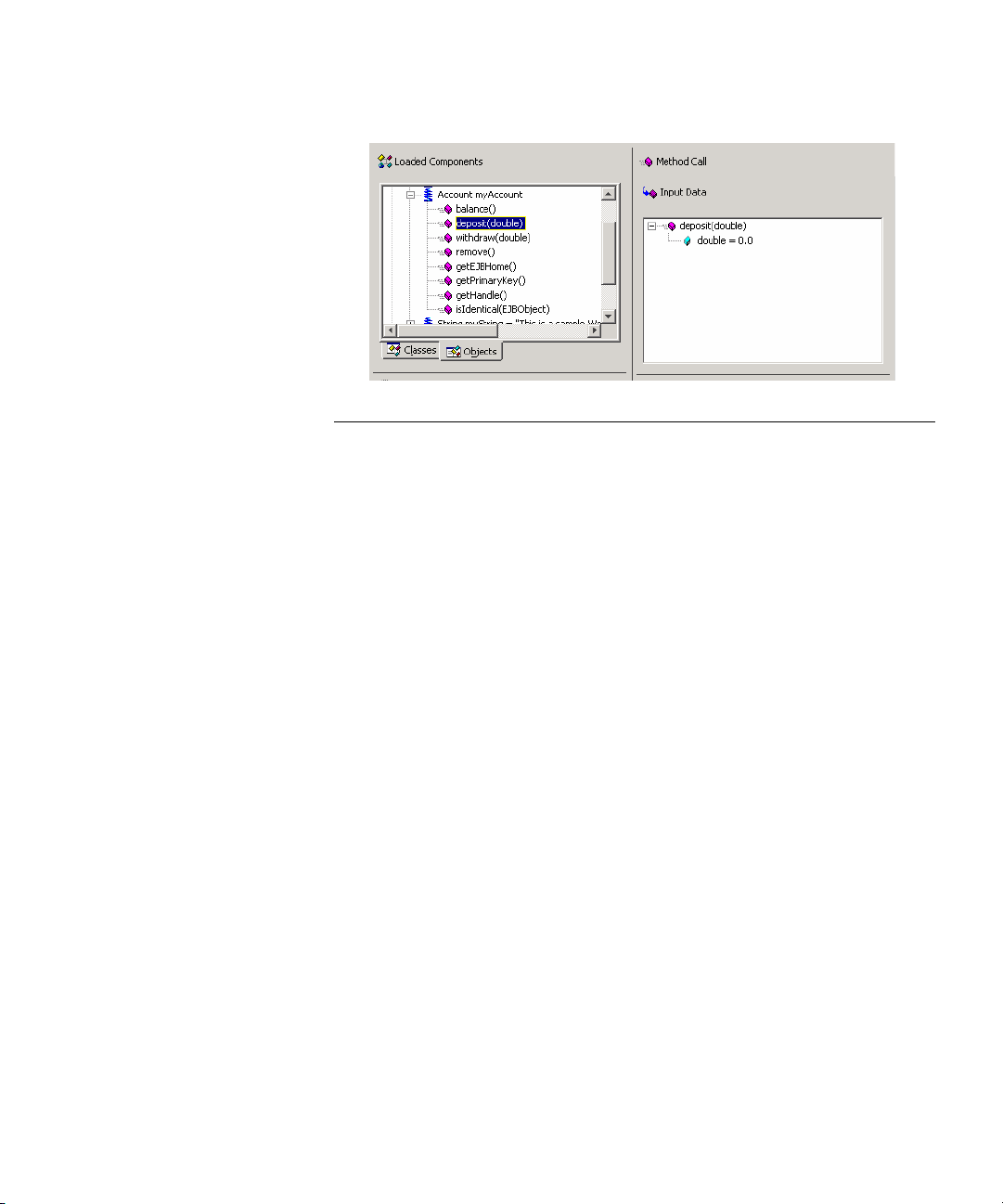

Instance methods and members are listed here to enable users to invoke them. Members have get/set accessors to enable the getting and setting of values.

Local test case objects are included in the Local Test Case Objects folder. A local object is only visible while the test case that it is associated with is selected. Global test case objects are included in the Global Test Case Objects folder. Global random variables are listed under Global Random Variables.

Note You can create a new test case by right-clicking a test case and selecting New test case from the context menu.

SilkPerformer Java Explorer User Guide 29

Page 34

ETTING UP TESTS

3 S

Code View

Variables

Code View

Test code for standalone test drivers

Test code for SilkPerformer Java Framework

Depending on variable type—either simple value type or complex object— variables are either shown as simple types (no actions allowed) or as objects for which you can invoke all methods on the variable object (e.g., methods on java.lang.String).

String values are represented as complex objects that allow you to call all methods of the java.lang.String class.

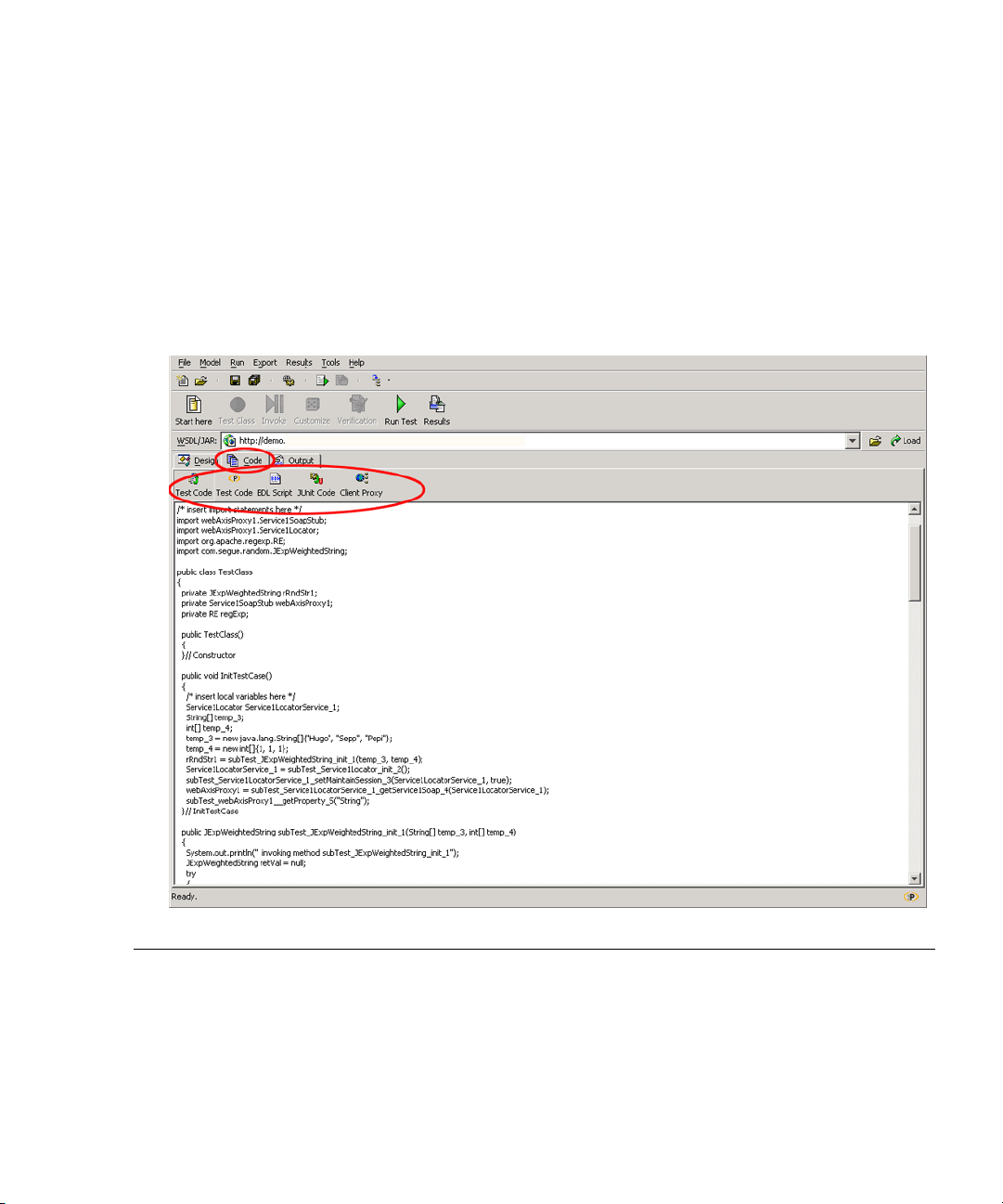

Code view displays generated code files for the current test scenario. The following code types are available:

This view displays the Java code generated for the test driver. This code can be compiled to a standalone console application. The main method for the application contains the calls to the test cases that are defined in your current test scenario. The test case methods contain all the calls that you have defined in your scenario for the respective test case.

When you export a standalone console application (via the Export menu) and then run the application, you will see output information regarding successful/ failed methods in the console window.

When exporting a SilkPerformer Java Framework project, the following files are generated:

• SilkPerformer project file (.ltp)

• SilkPerformer script file (.bdf)

• Java test script (.java)

This view displays the Java test script code for SilkPerformer’s Java Framework. Java Framework code run by SilkPerformer enables you to execute Java scripts via BDL.

For each test case in your current test scenario, Java Explorer generates a separate BDL transaction in the test script.

BDL script When exporting a SilkPerformer Java Framework project, the following files

are generated:

• SilkPerformer project file (.ltp)

• SilkPerformer script file (.bdf)

• Java test script (.java)

This view displays the BDL script code for SilkPerformer Java Framework. The generated BDL executes the Java test script with the settings stored in the SilkPerformer project file.

30 SilkPerformer Java Explorer User Guide

Page 35

ETTING UP TESTS

3 S

Output View

JUnit code view

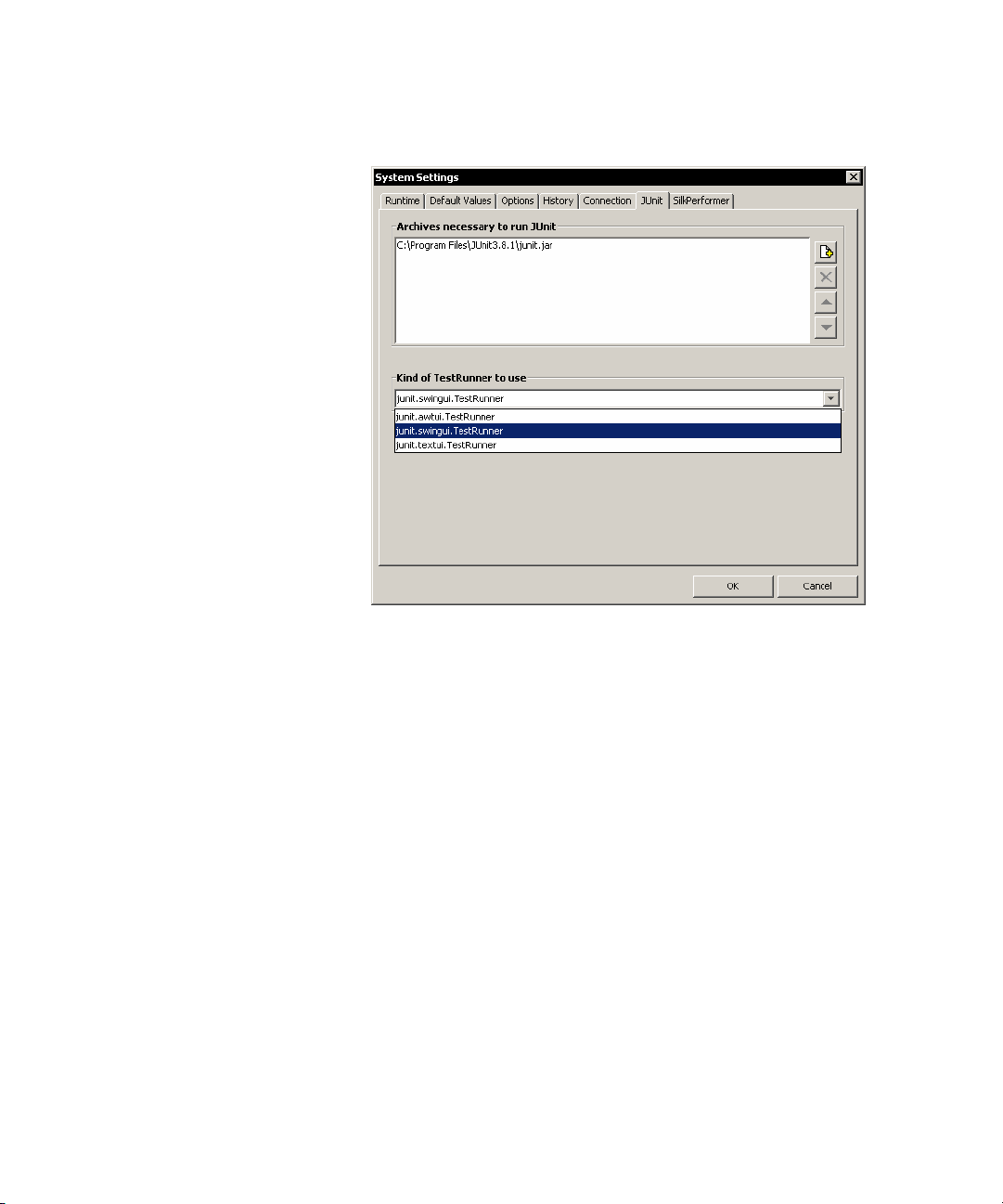

This view displays the JUnit test script code. This code can be executed with any JUnit TestRunner. For more information about JUnit testing, please consult SilkPerformer Online Help.

Client proxy code This view displays generated WebService Client proxy code. When loading a

WSDL file to access a Web Service, a Client proxy class is created. Proxy classes are created on method and type information in WSDL files. When Web Service methods return complex types, additional classes are declared. These additional classes are used to represent complex types in the method calls that take complex parameters.

Output View

Output view displays log output during test runs. This output pane shows details about each call of the most recent animated run and statistics regarding execution time and executed methods.

SilkPerformer Java Explorer User Guide 31

Page 36

ETTING UP TESTS

3 S

Output View

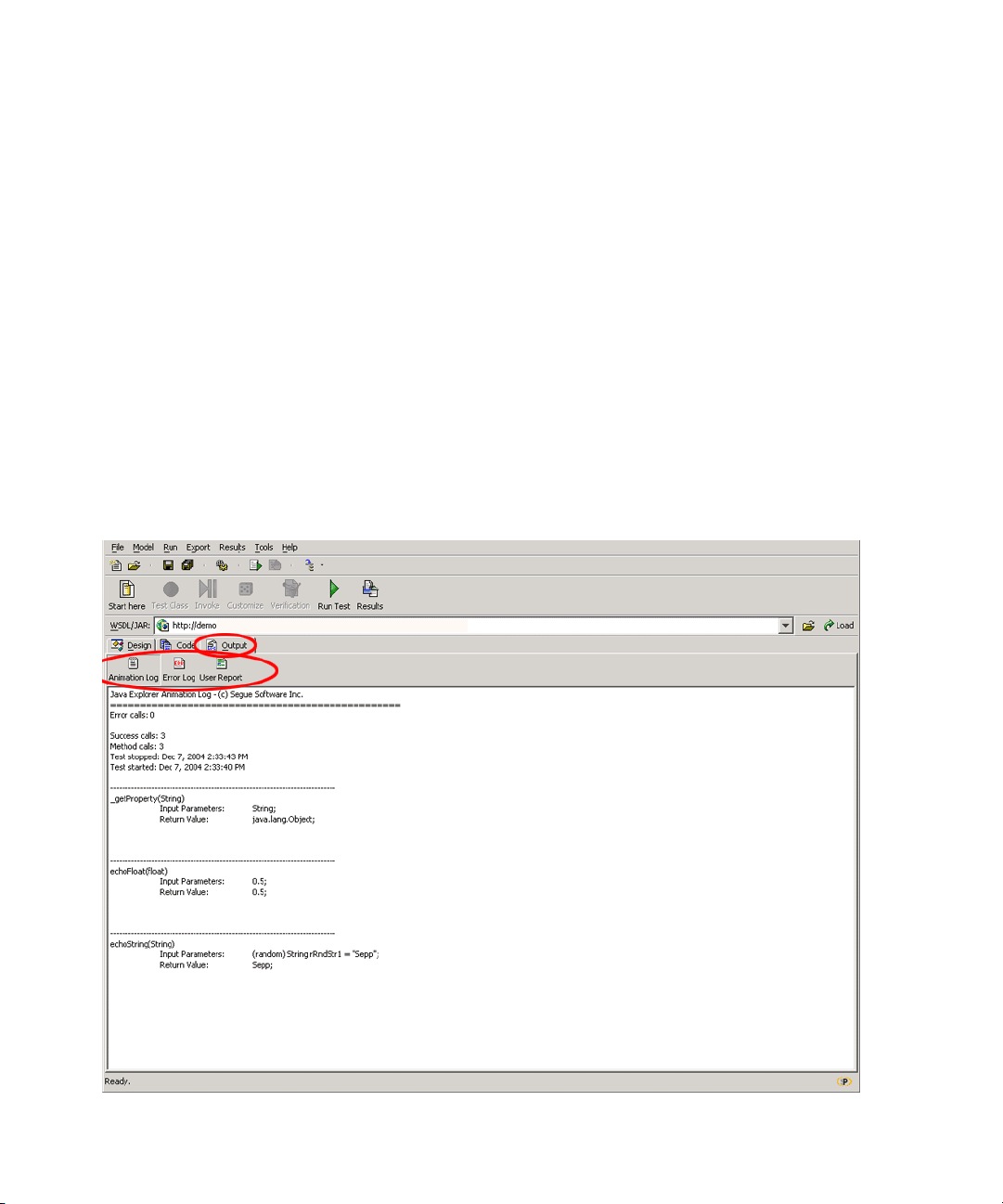

Animation Log

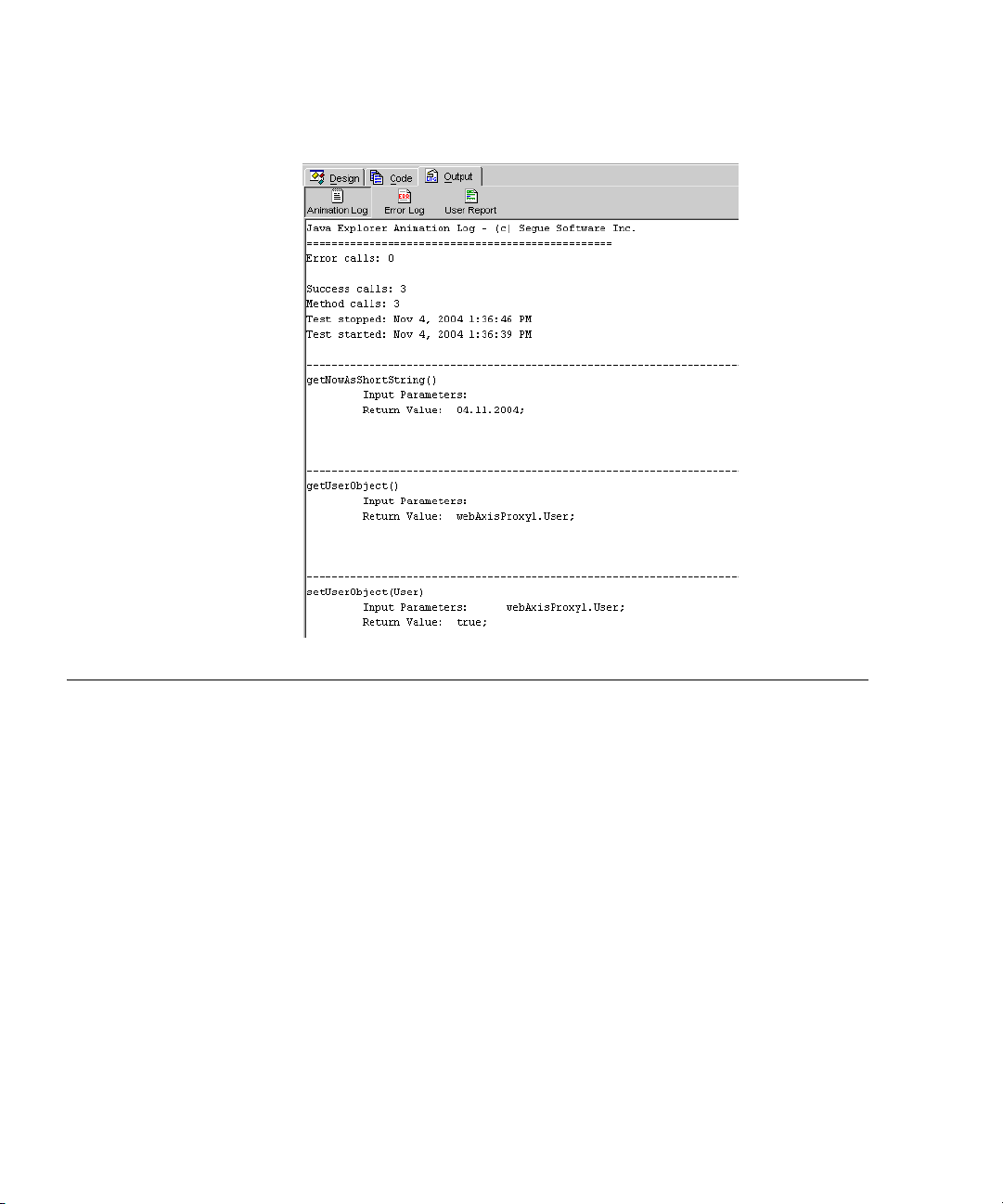

Animation Log view displays detailed information about test duration, method calls, and errors. It also lists each method, including input parameters and output values.

Java Explorer automatically saves this file to <SilkPerformer

installpath>\Working\Projects\<projectname>\RecentTestRun\<projectname>. log.

Error Log The Error Log delivers detailed information about errors that occurred during

the last test run.

Java Explorer automatically saves this file to <SilkPerformer

installpath>\Working\Projects\<projectname>\RecentTestRun\<projectname>. err.

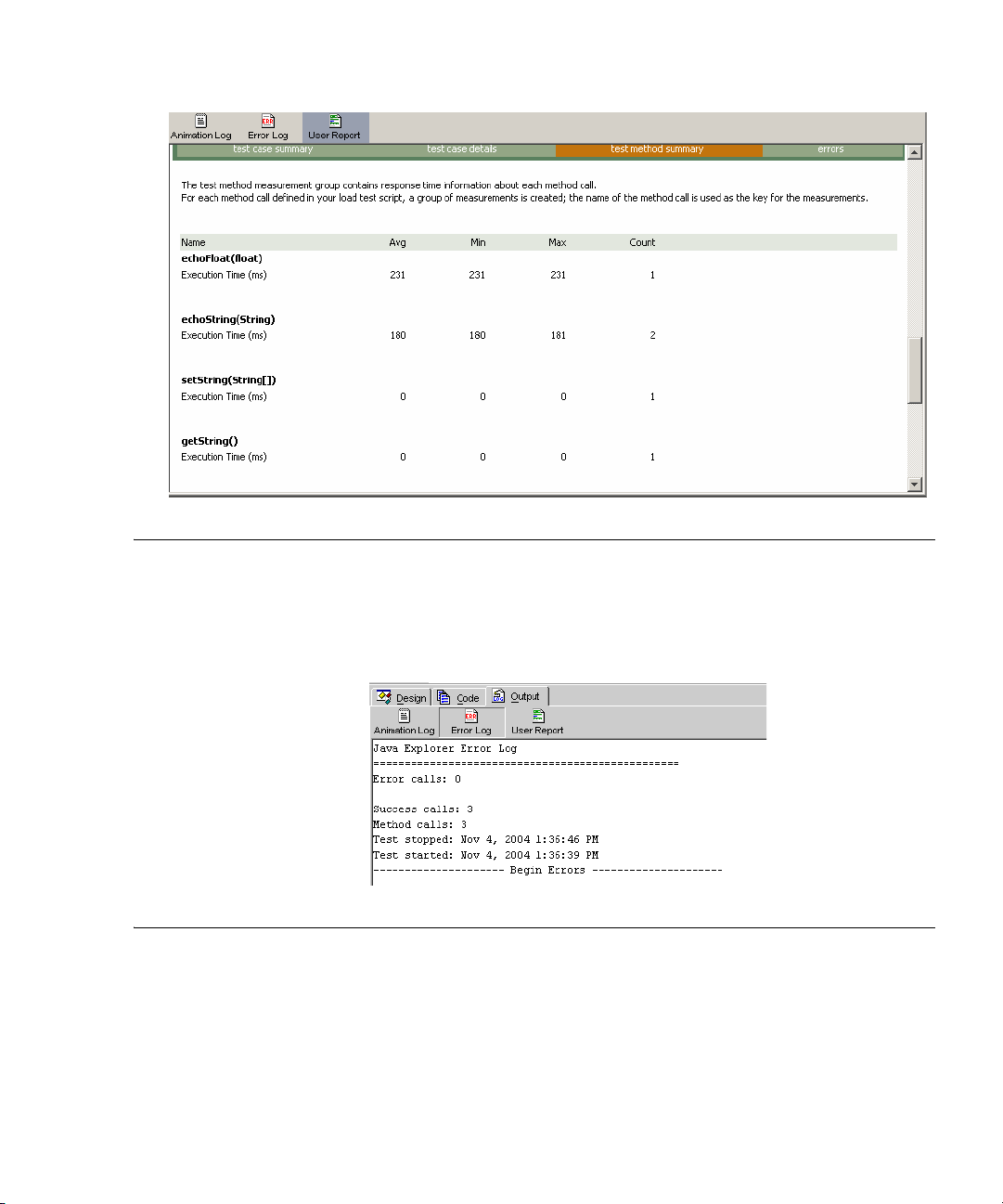

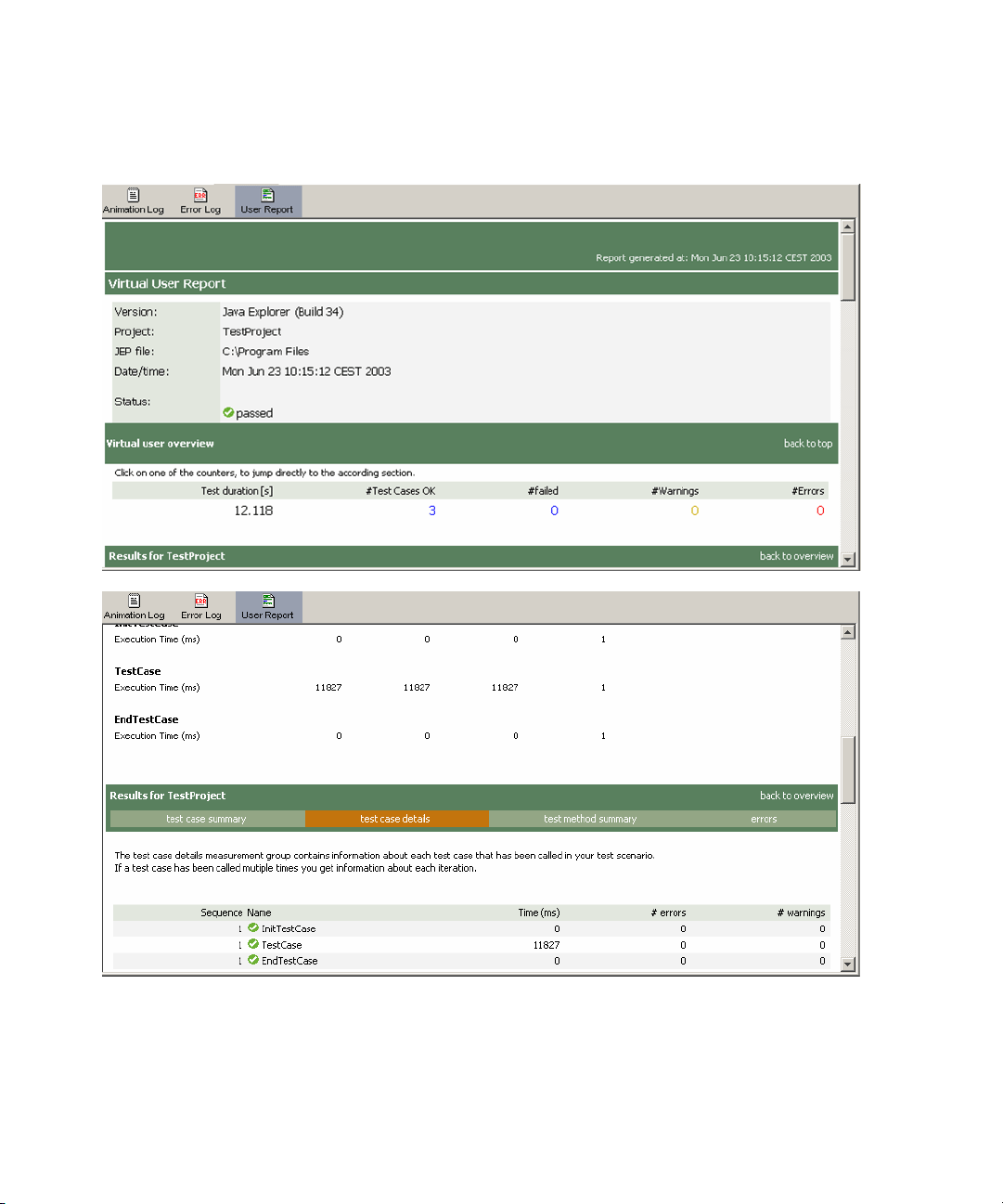

User Report The User Report is an overview report in HTML format that displays the

consolidated information from the animation log and the error log, but in a report format that can be used for distribution or printing.

Java Explorer automatically saves this file to <SilkPerformer

installpath>\Working\Projects\<projectname>\RecentTestRun\<projectname>. html.

32 SilkPerformer Java Explorer User Guide

Page 37

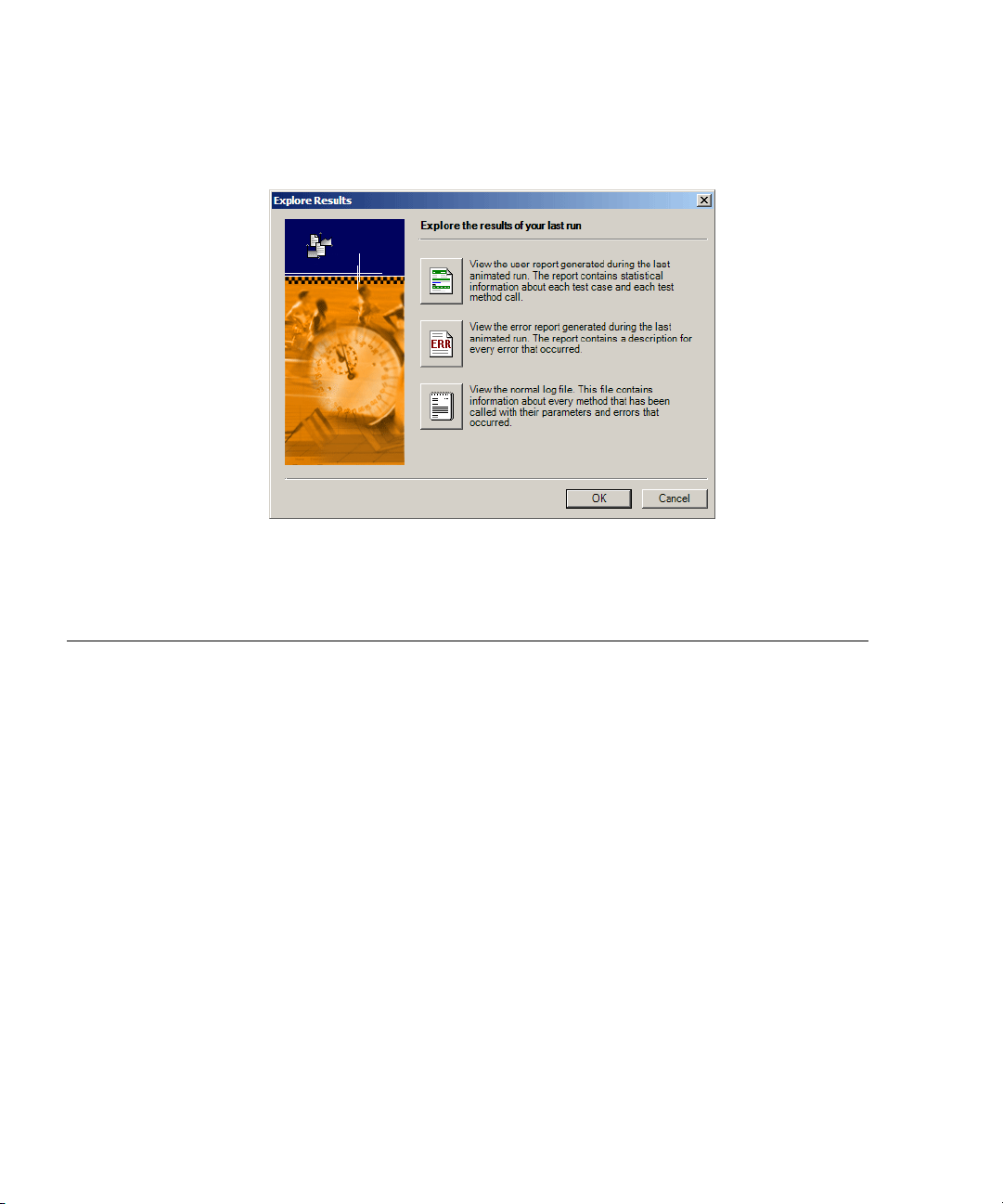

Note Output view can also be accessed via the Results button on the Workflow bar. See “Animation Log” for more information.

Customizing Input Parameters

ETTING UP TESTS

3 S

Customizing Input Parameters

When to customize input parameters

Input parameters should be customized prior to the execution of a method. If you want to customize a method call after it has been executed (e.g., if it was generated using the Load File Wizard), you need to execute an Animated Run after the customization to make the changes effective.

How to customize input parameters

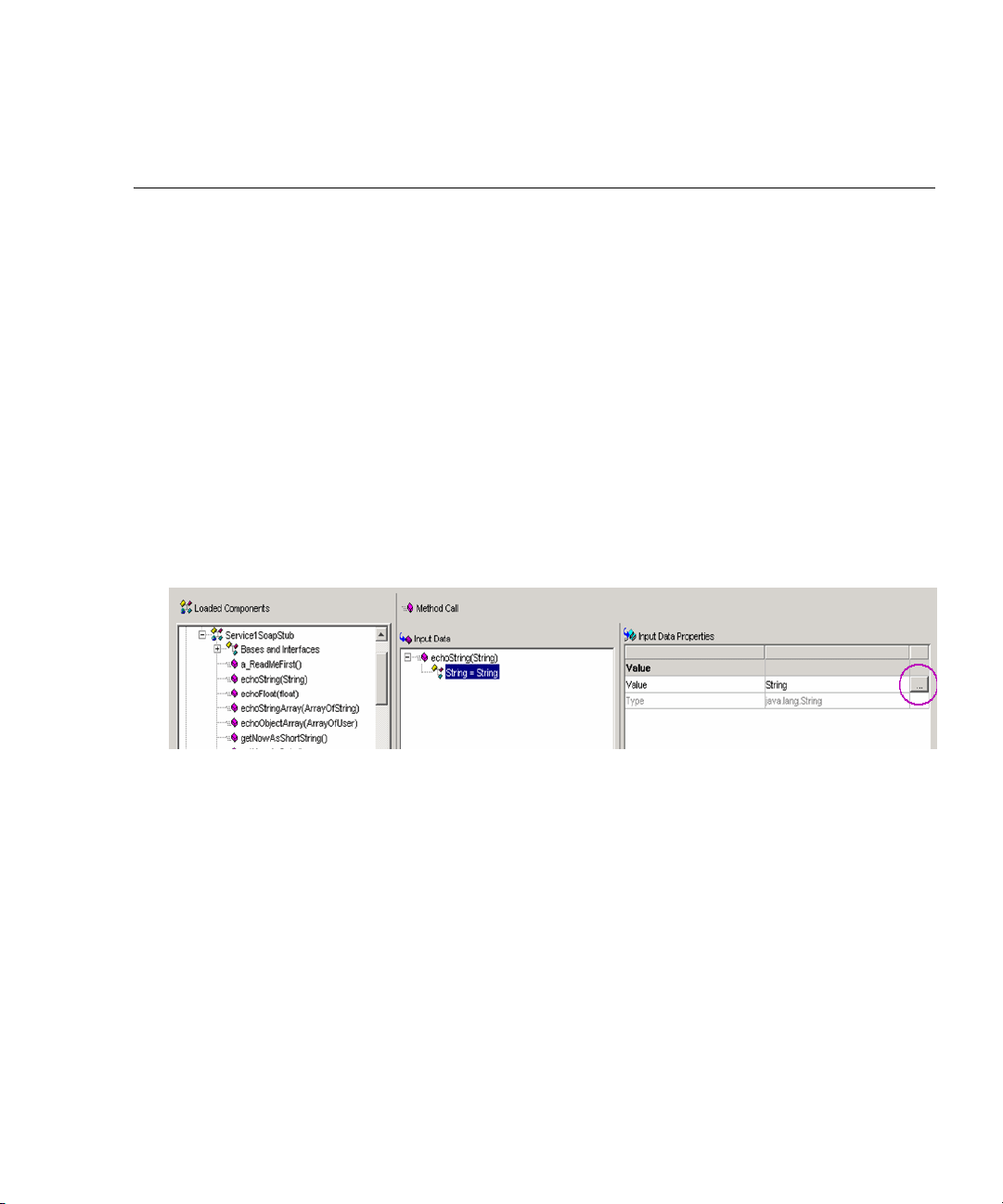

When a method has input parameters, its values are displayed in the Input Data tree with their default values. Select the method you wish to invoke in the Loaded Components pane. Parameters are displayed with their default values in the Input Data pane (default values can be configured using Java Explorer’s System Settings (Tools / System Settings / Default Values).

In the Input Data pane, select a parameter to change its value. If a parameter is a simple data type (boolean, double, int, or string) you can enter the value directly into the Input value field. If the parameter is a complex type (object or array) or you wish to use a random value or a value from a stored variable, click the Input Value Wizard (...) button.

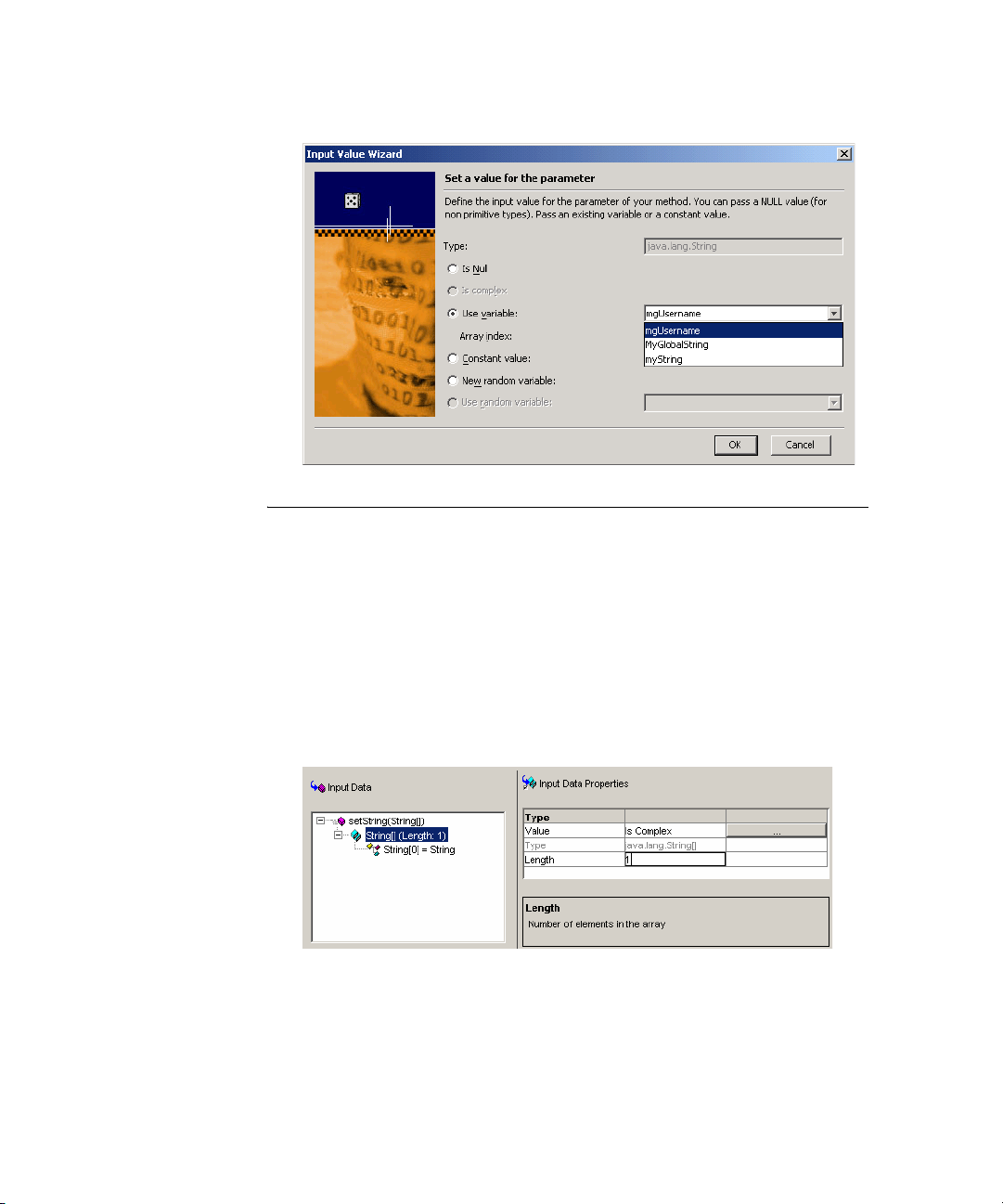

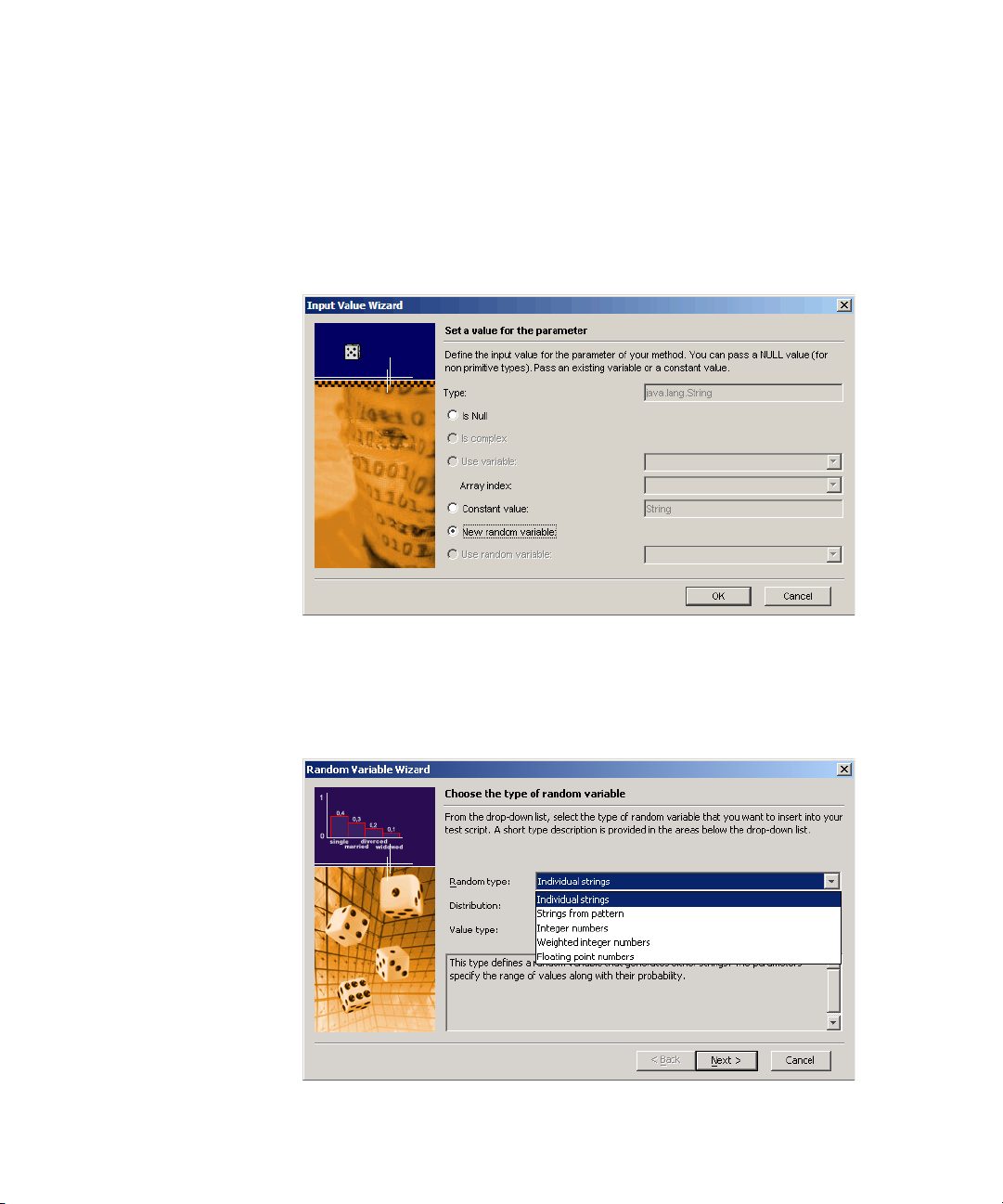

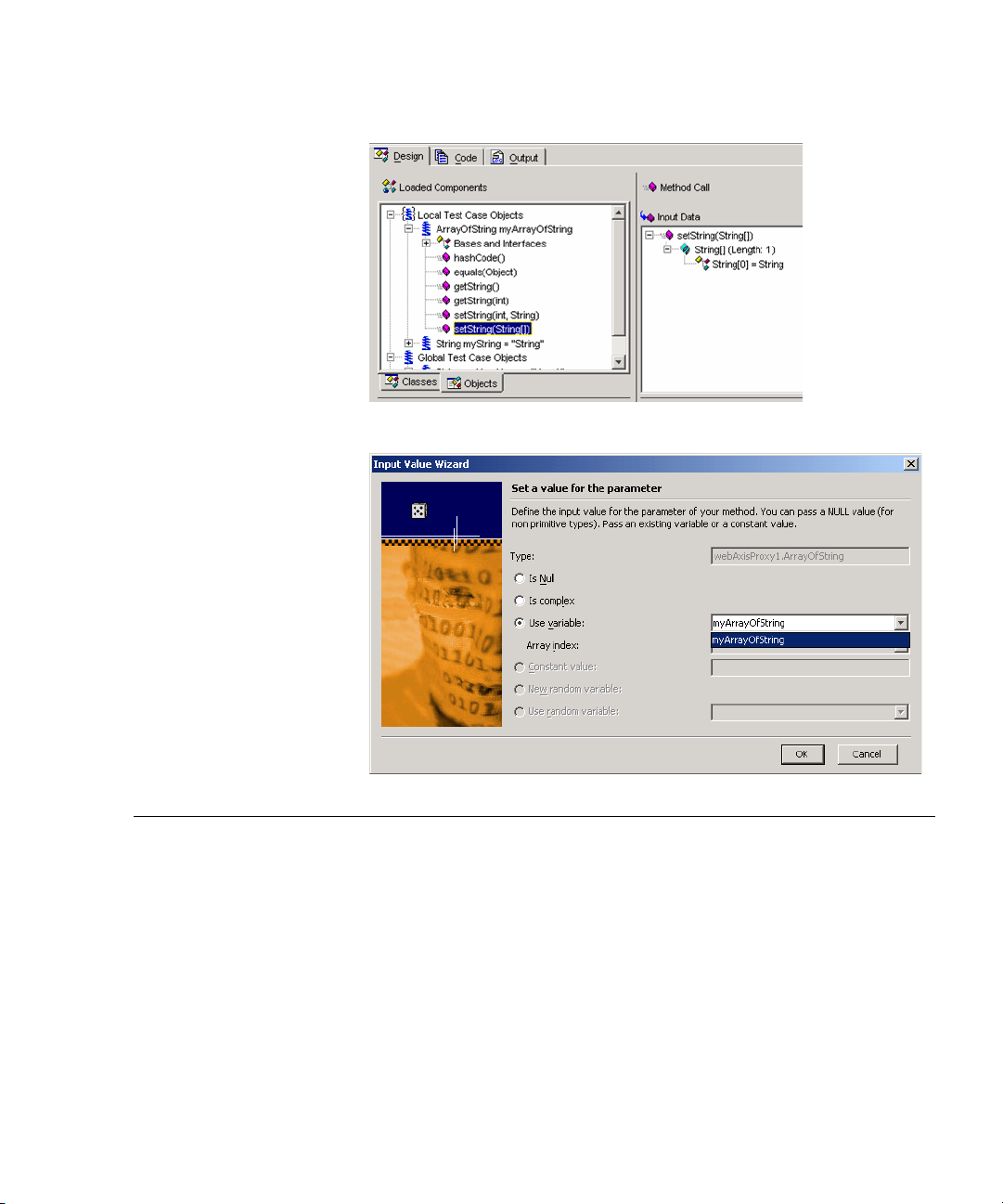

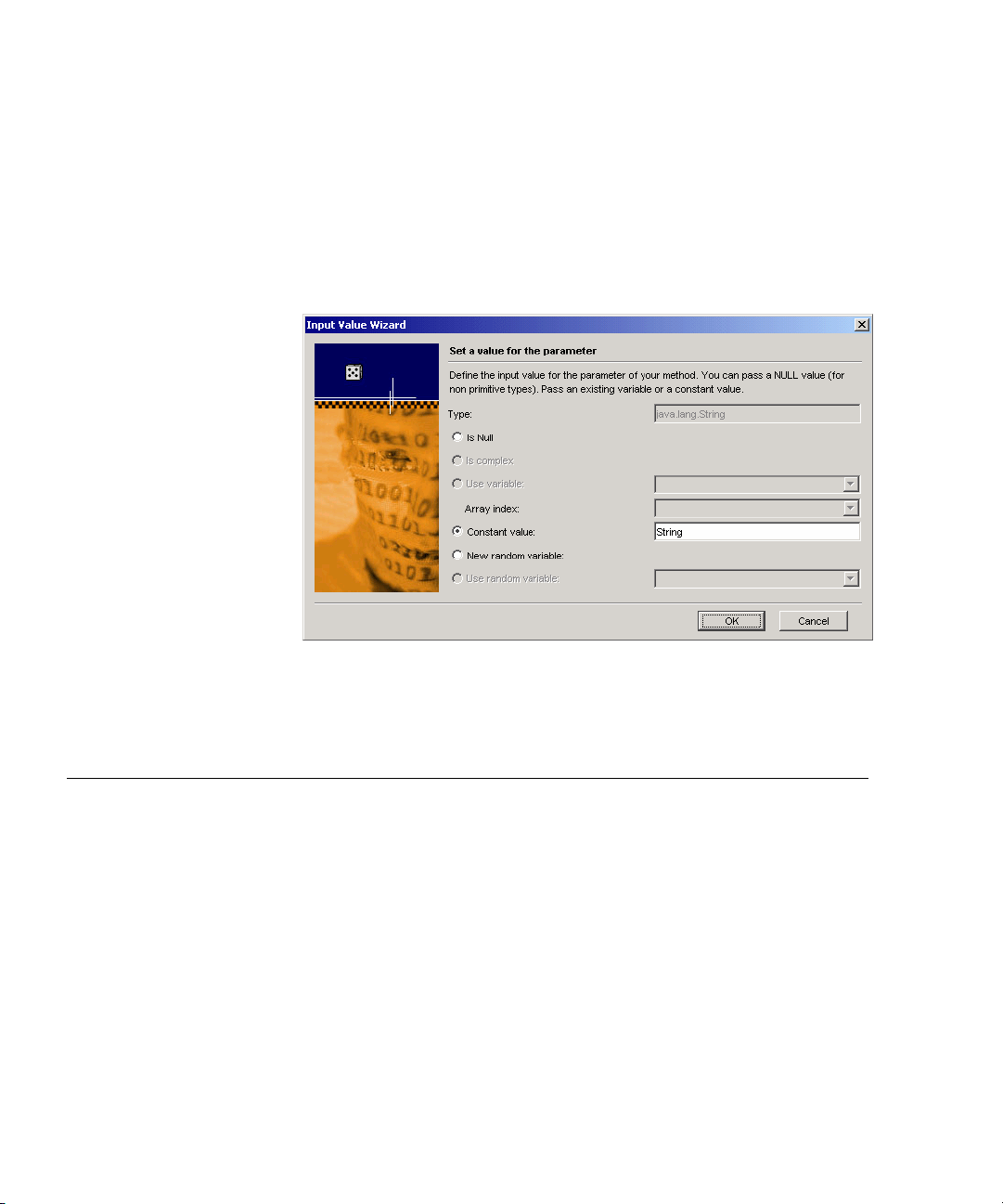

Input Value Wizard Procedure To use the Input Value Wizard:

1 Click the Input Value Wizard (...) button to open the Input Value Wizard,

with which you can define an input value for the parameter of the method. You can pass a null value, a value from a variable, or a constant value.

-Select Is Null to pass a null value. This value is only valid for strings,

objects, and arrays.

- If you have already stored a variable that holds values of the

parameter’s type, select Use Variable and select the variable from the drop-down list. See “Storing Output Values in Variables” for information on storing variables.

- If the parameter is not a complex object or array, you can specify a

constant value, such as a boolean, double, int, or string value.

SilkPerformer Java Explorer User Guide 33

Page 38

ETTING UP TESTS

3 S

Storing Output Values in Variables

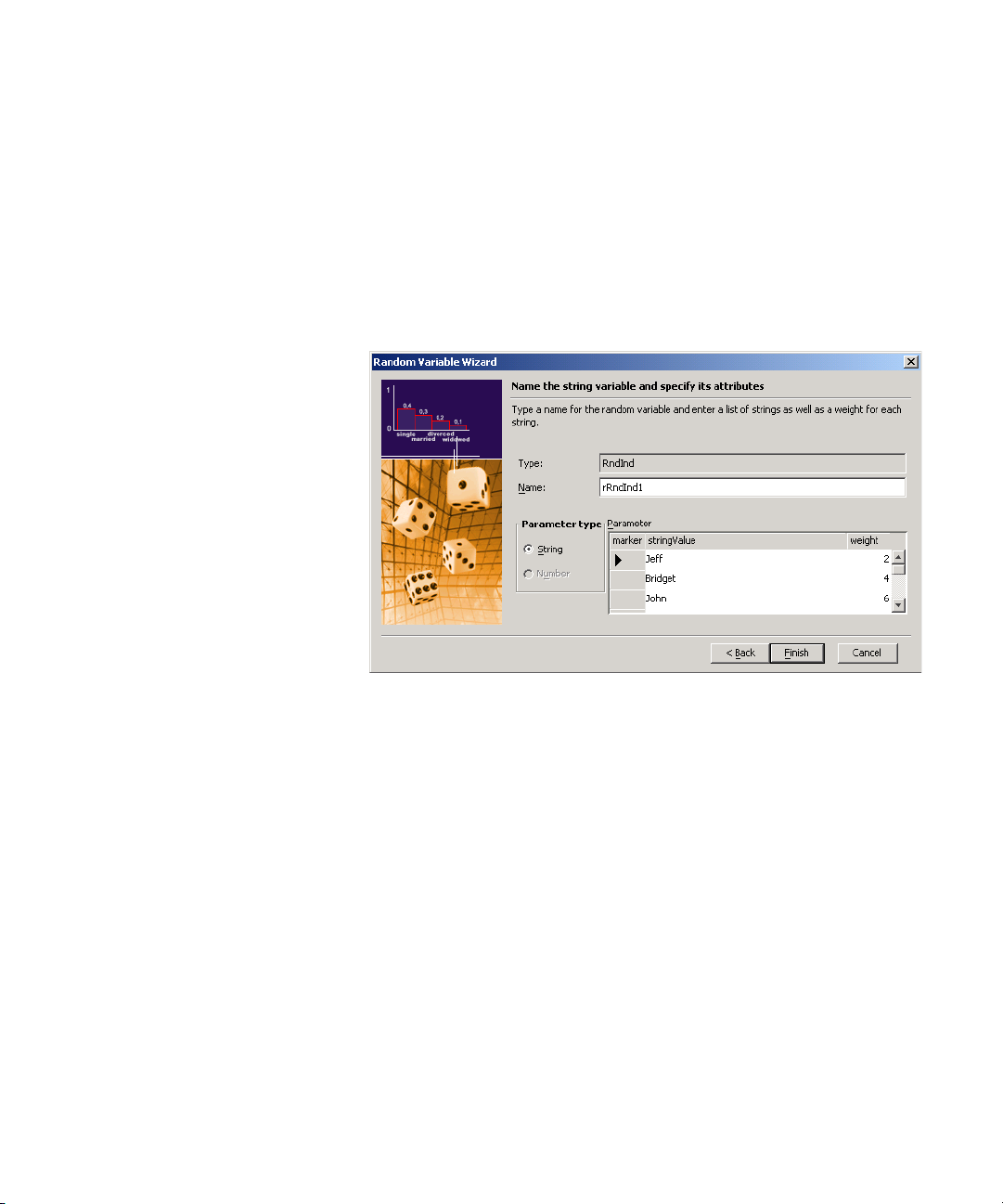

- If you don’t wish to use a constant value and would rather use a

2 Click OK.

random value for types such as boolean, double, int, or string, you can create a new random value by selecting New random variable. See “Random Variable Wizard” for information regarding the Random Value Wizard. If a random value of the parameter type has already been created, select Use random variable and select the variable from the drop-down list.

Once input parameters have been defined, you can invoke a method to have that method automatically added it to the selected test case in the Test Scenario pane. From there, corresponding output values can be stored as variables and verifications can be set up for them. See the following sections for details.

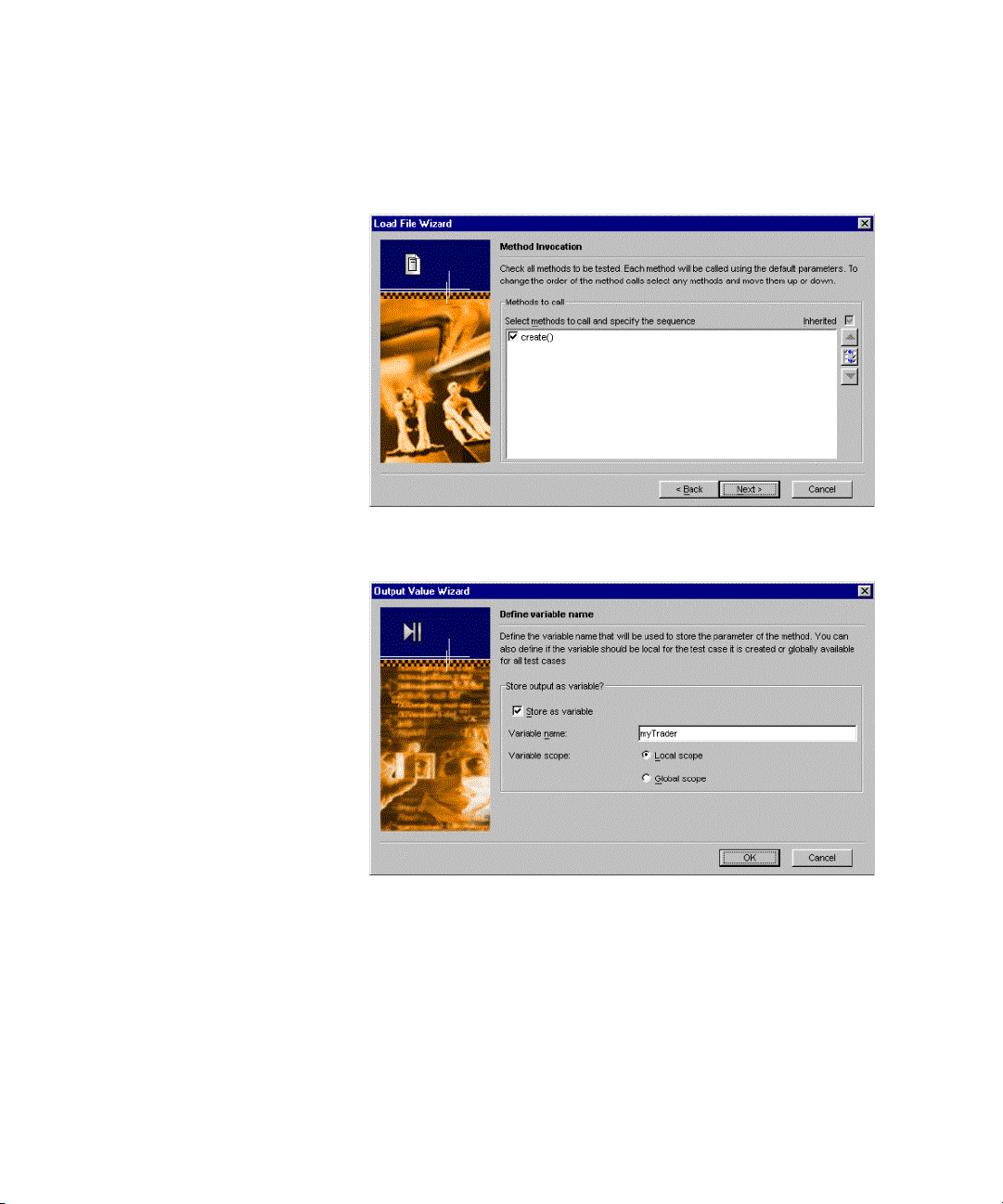

Storing Output Values in Variables

Using the Output Data and Output Data Properties panes, you can store output values as variables for later use and you can define verifications for the values.

Procedure To store an output value in a variable for later use:

1 Invoke a method (by clicking the Invoke button on the Workflow bar or

by right-clicking a method in the Input Data window and selecting Invoke/Add to Test Case from the context menu). The Output Value Wizard dialog is displayed.

34 SilkPerformer Java Explorer User Guide

Page 39

ETTING UP TESTS

3 S

Manually Adding Global Variables

Note The Output Value Wizard can also be launched by clicking the Customize button on the Workflow bar, or by right-clicking an output parameter in the Output Data pane.

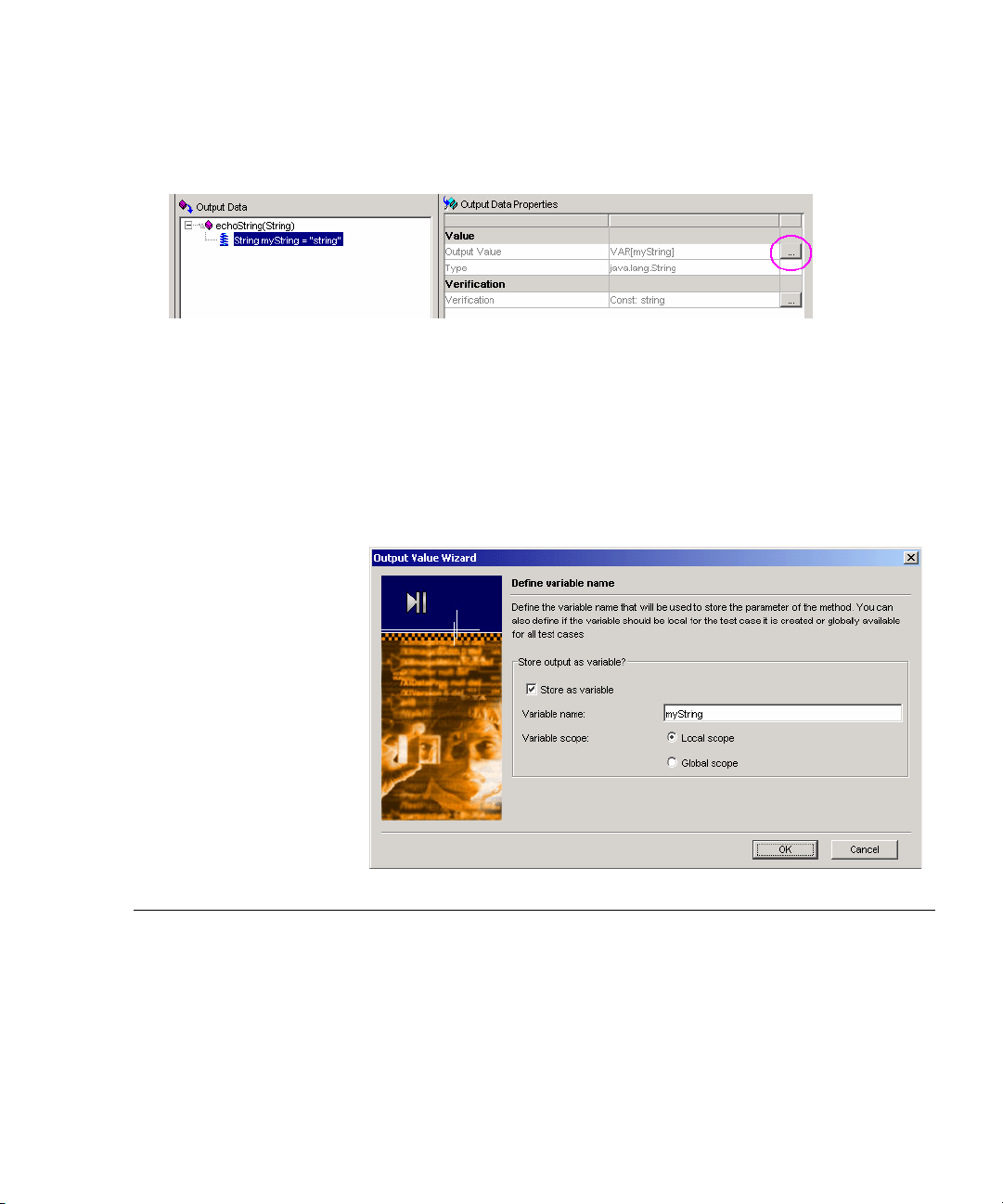

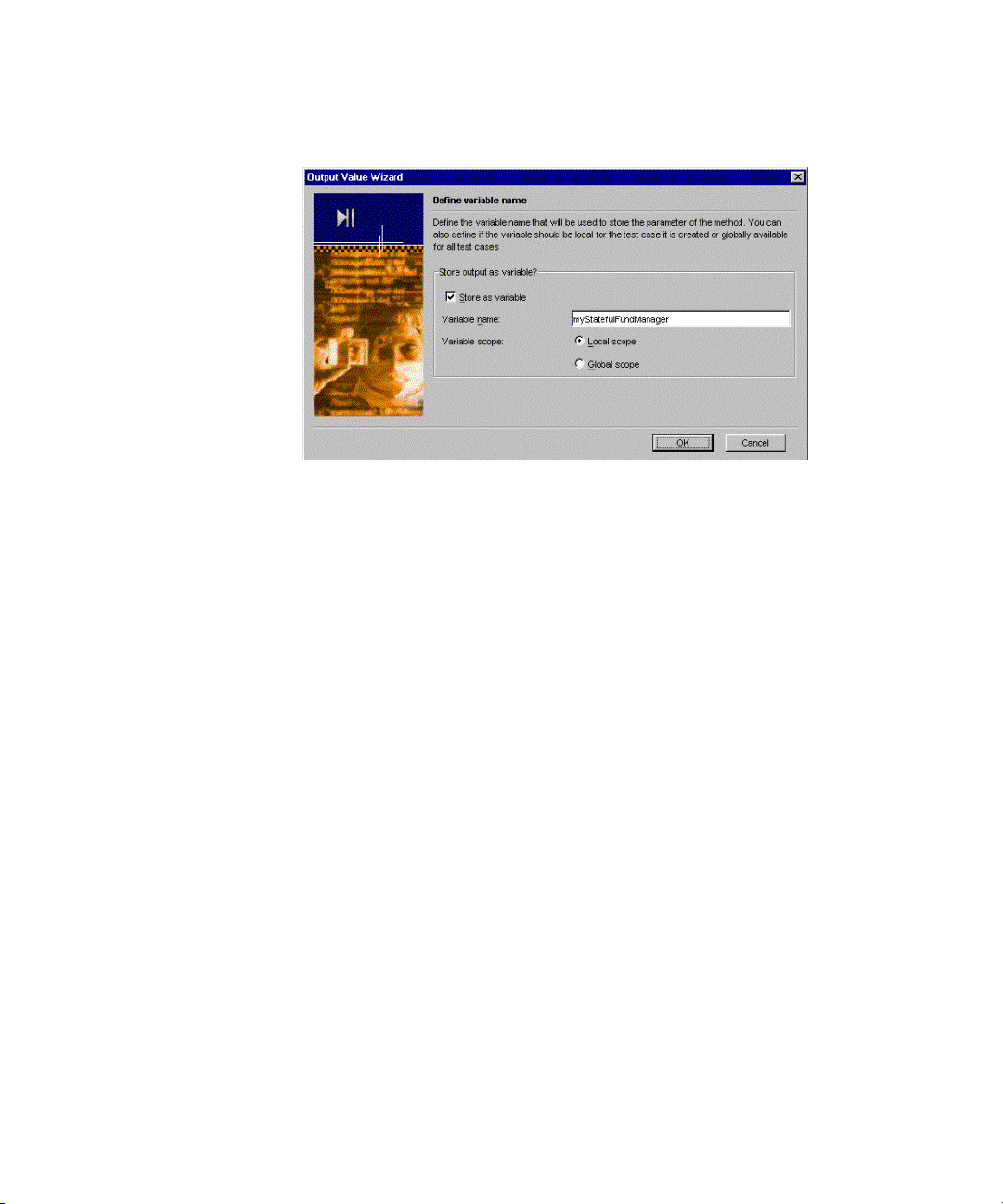

2 In the Output Value Wizard, define a name for the output value variable

in the Var ia b l e n a me field.

3 Define the scope of the variable. The default scope is Local, which

means that the variable can only be used with the test case within which it has been created. Global scope means that the variable can be used with any test case. Global scope enables you to pass information between test cases.

4 Click OK.

Manually Adding Global Variables

Global variables can be shared between test cases. This differs from local variables, which are only available to specific test cases.

Note Global variables can also be created by using the global scope setting in the Output Value Wizard (see “Storing Output Values in

Va r ia b l e s” for details).

SilkPerformer Java Explorer User Guide 35

Page 40

ETTING UP TESTS

3 S

Defining Output Value Verifications

Global variables can be used as input parameters for function calls. They are configured with an initial value, which makes them useful when you need to have the same value used for multiple function calls. Each time a test run begins, global variables are initialized with a defined initial value.

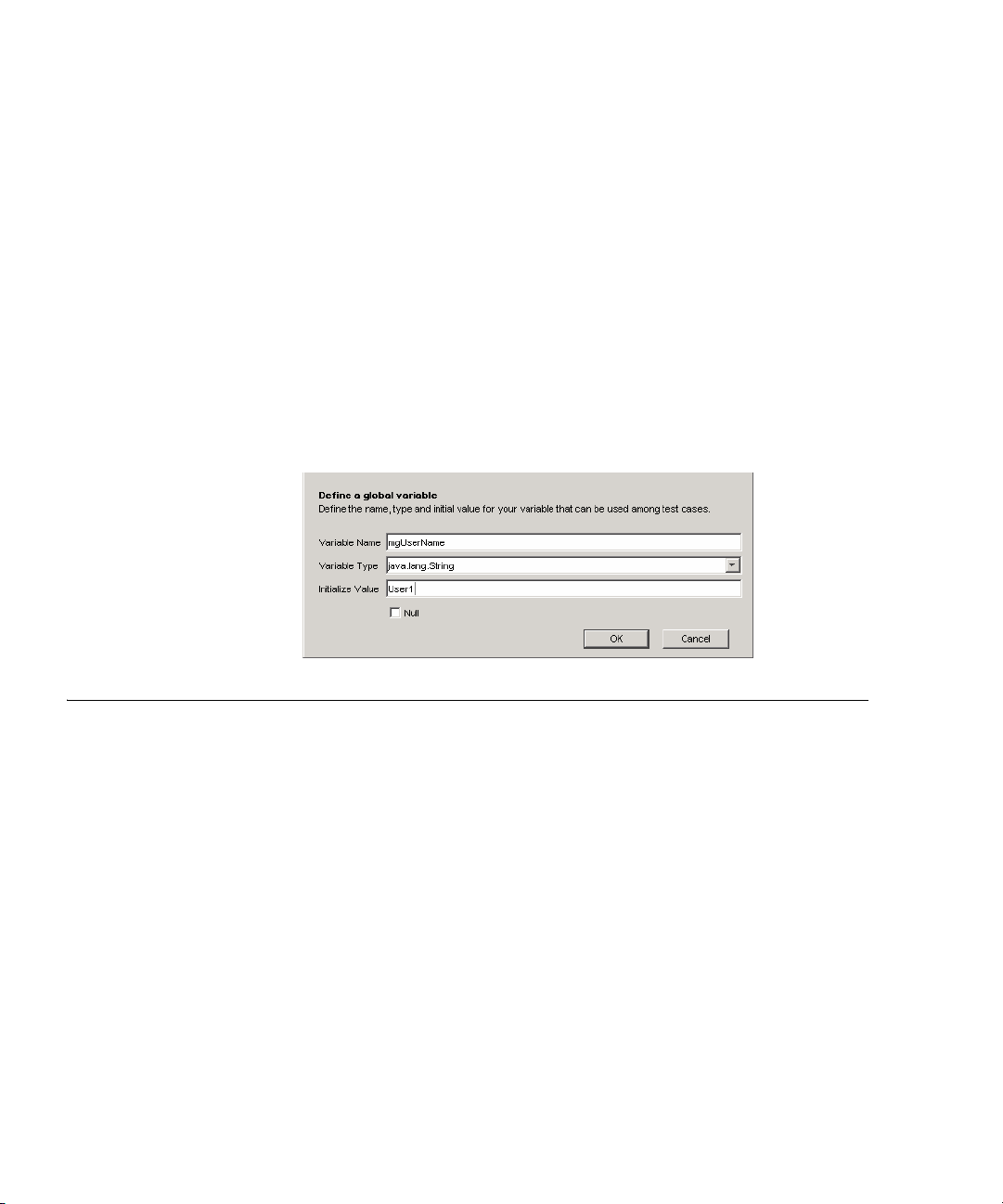

Procedure To create a global variable:

1 On the Objects tab, right-click an object in the Objects tree and select

New Global Variable from the context menu. The Define a global variable dialog appears.

2 Enter a name for the variable in the Var i ab le Na me field.

3 Select a Variable type from the drop-down list: boolean, byte, short, int,

long, char, float, double, or java.lang.String.

4 Specify an initial value for the variable in the Initialize Value field.

5 Click OK.

Defining Output Value Verifications

Procedure To define a verification for an output value:

1 Once you have stored an output parameter value in a variable you can

specify a verification rule for the variable.

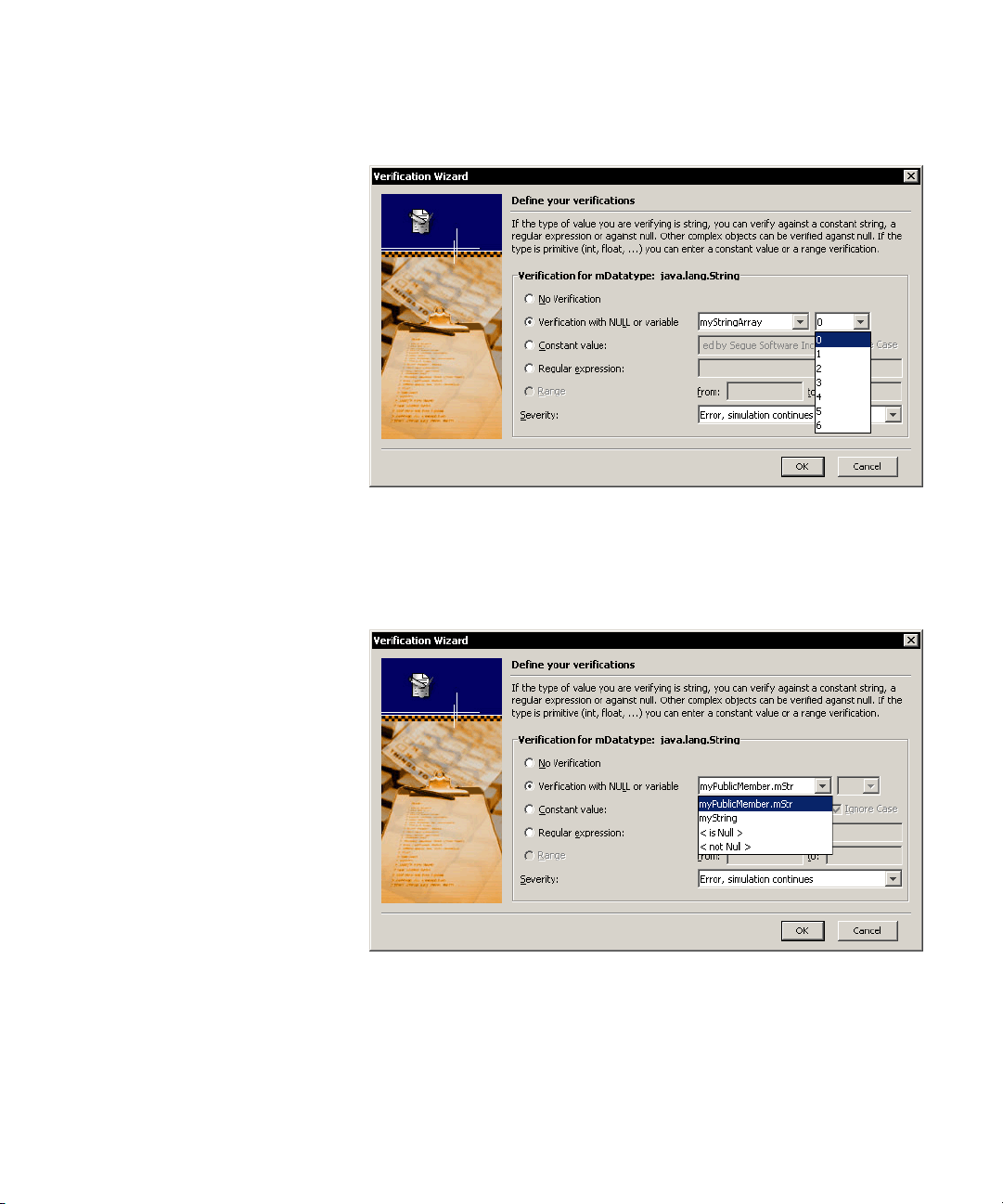

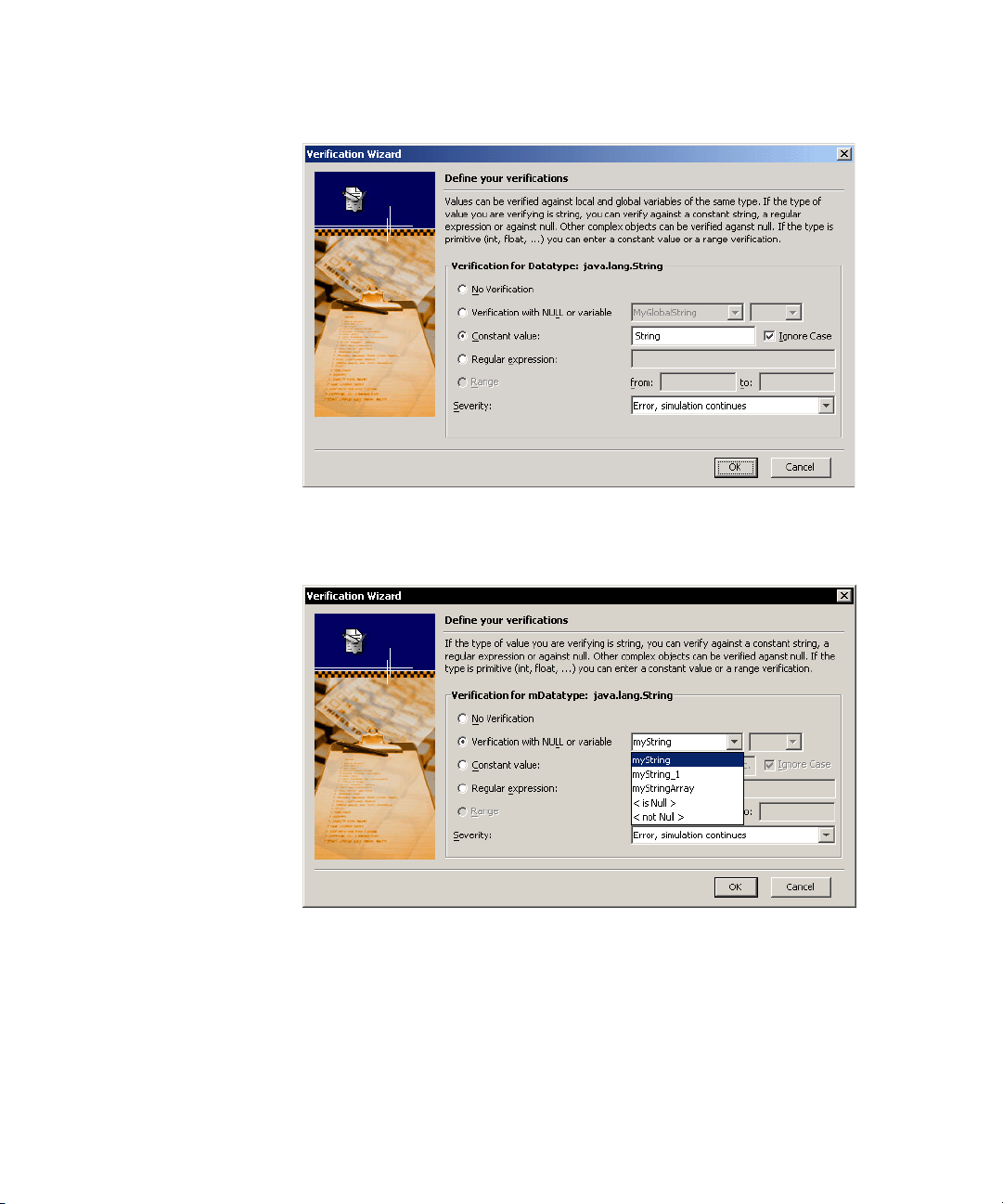

2 Click the Verification (...) button in the Output Data Properties window

to open the Verification Wizard.

- Select No Verification if you don’t want the value to be verified.

- Select Verification with NULL or variable to achieve one of the following:

o Verification that the value is NULL

o Verification that the value is not NULL

o Verification against an existing variable, a public member of a

variable, or an element of an array

36 SilkPerformer Java Explorer User Guide

Page 41

ETTING UP TESTS

3 S

Defining Output Value Verifications

Note See “Verification with NULL or variable” for details regarding this selection.

-Select Constant Value to verify that the value exactly matches a constant string.

- If you are verifying against a string value you can verify against a

Regular expression.

- If you are verifying numeric values, you can select Range to verify that the value is within a specified range (using the From and To fields).

3 In the Severity field, select the severity of error that should be thrown if

the verification fails. The following severity options are available:

- Success, no error No error is thrown

- Informational An informational message is logged

- Wa rn in g A warning is thrown

- Error, simulation continues An error is thrown, but the simulation continues

- Error, the active test case is aborted An error is thrown, the simulation continues, however the active test case is aborted (i.e., a transaction exit severity in SilkPerformer)

- Error, the simulation is aborted An error is thrown and the simulation is aborted

- Custom A section is inserted into the Java code where the developer can insert special error handling code

SilkPerformer Java Explorer User Guide 37

Page 42

ETTING UP TESTS

3 S

Defining Output Value Verifications

4 Click OK.

Verification with NULL or variable

The Verification with Null or variable selection includes a drop-down list that contains the entries <is Null> and <not Null> and a list of variables, that match the return value of the method call.

The drop-down list also contains arrays for which the element type matches the return value of the method call. In the example below, the return value is type

38 SilkPerformer Java Explorer User Guide

Page 43

ETTING UP TESTS

3 S

Defining Output Value Verifications

java.lang.String; so variables that represent a string array can be selected from the drop-down list. In such cases, an array index field is enabled.

The Verification with NULL or variable drop-down list also contains public fields of complex objects of matching type. In the example below, the test class PublicMember has a public field called mStr of type string, which can be selected. The notation for public fields is variable name and member name separated by a dot <.> character.

SilkPerformer Java Explorer User Guide 39

Page 44

ETTING UP TESTS

3 S

Adding & Updating Method Calls

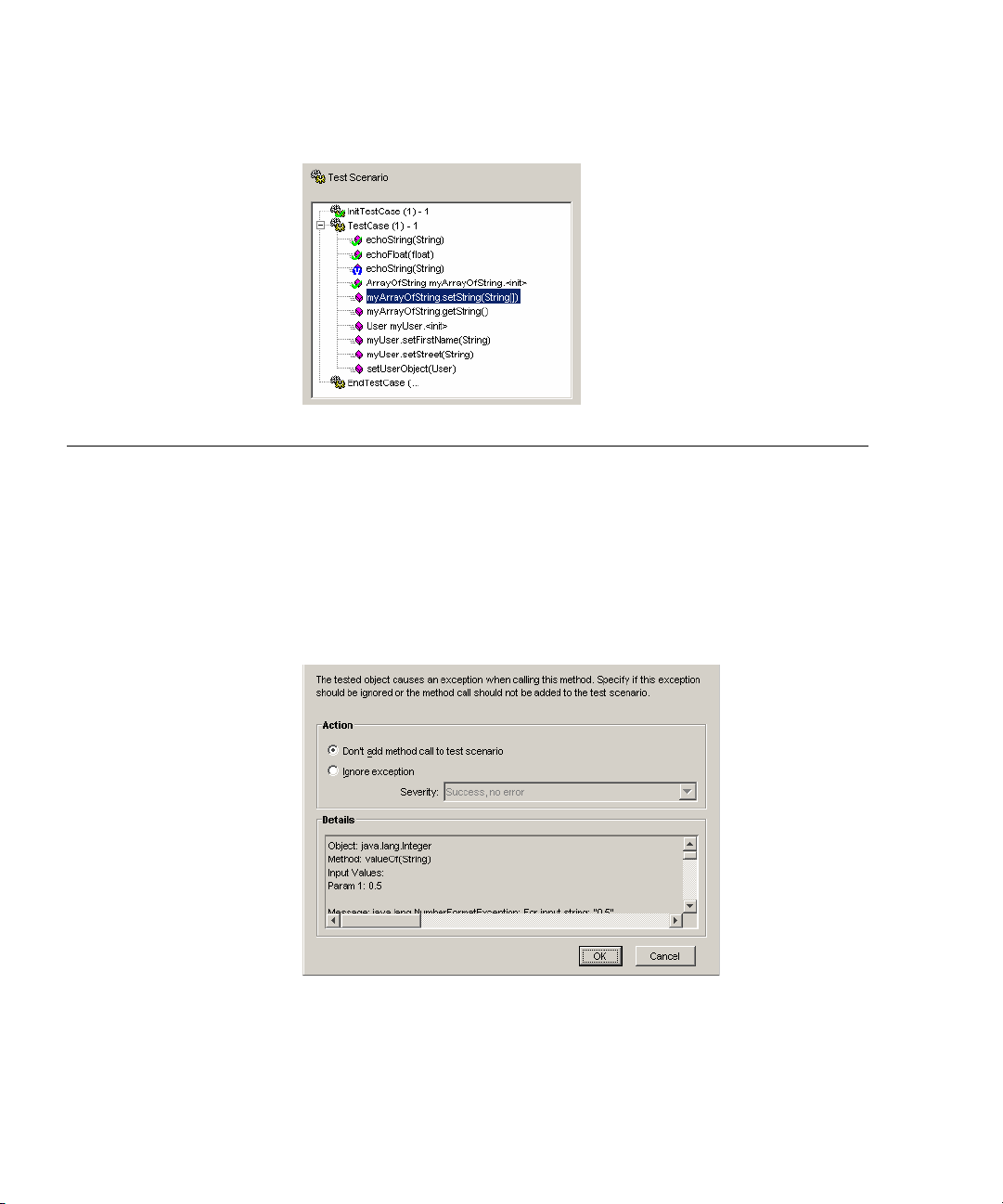

Procedure To add a method to a test case:

1 Within the Loaded Components or Method Call pane, select the method

to be added and invoke it by clicking the Invoke button. The invoked method is then automatically added to the currently selected test case. If the method call returns a value, the Output Value Wizard will open automatically, prompting you to store the value.

Procedure To update a method that is already included in a test case:

1 Make modifications to the input parameters of the method that is to be

updated. Updates are automatically accepted when you click outside the Input Data tree. You must perform an Animated Run to apply changes.

Complex Input/Output Data

Java Explorer supports complex data types such as arrays and objects as both input data and output data. The Output Value Wizard assists you in using such data as variables.

Verification of variables

Full support for the verification of complex return values is available. When the return value of a method (including array elements and public fields of complex objects) is complex, an existing variable, an array element of an existing variable, or a public field of an existing variable can be selected to verify against. Verification of variables also works for primitive data types.

Arrays & objects as output data

When a method returns an array or an object as output data, you can store the value in a variable of either local or global scope.

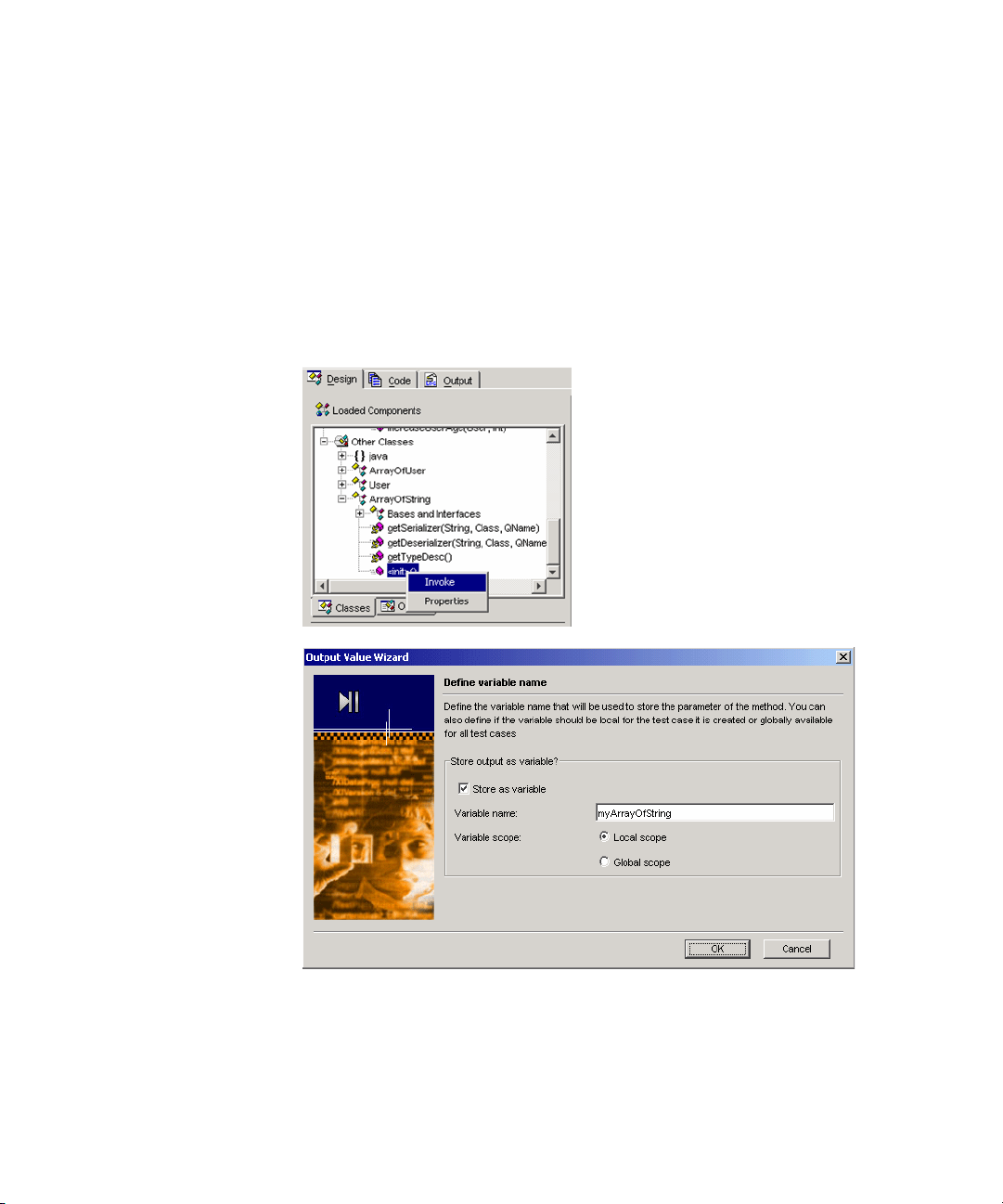

Procedure To store array- or object-output data as a variable:

1 Select a complex output parameter in the Output Data objects tree.

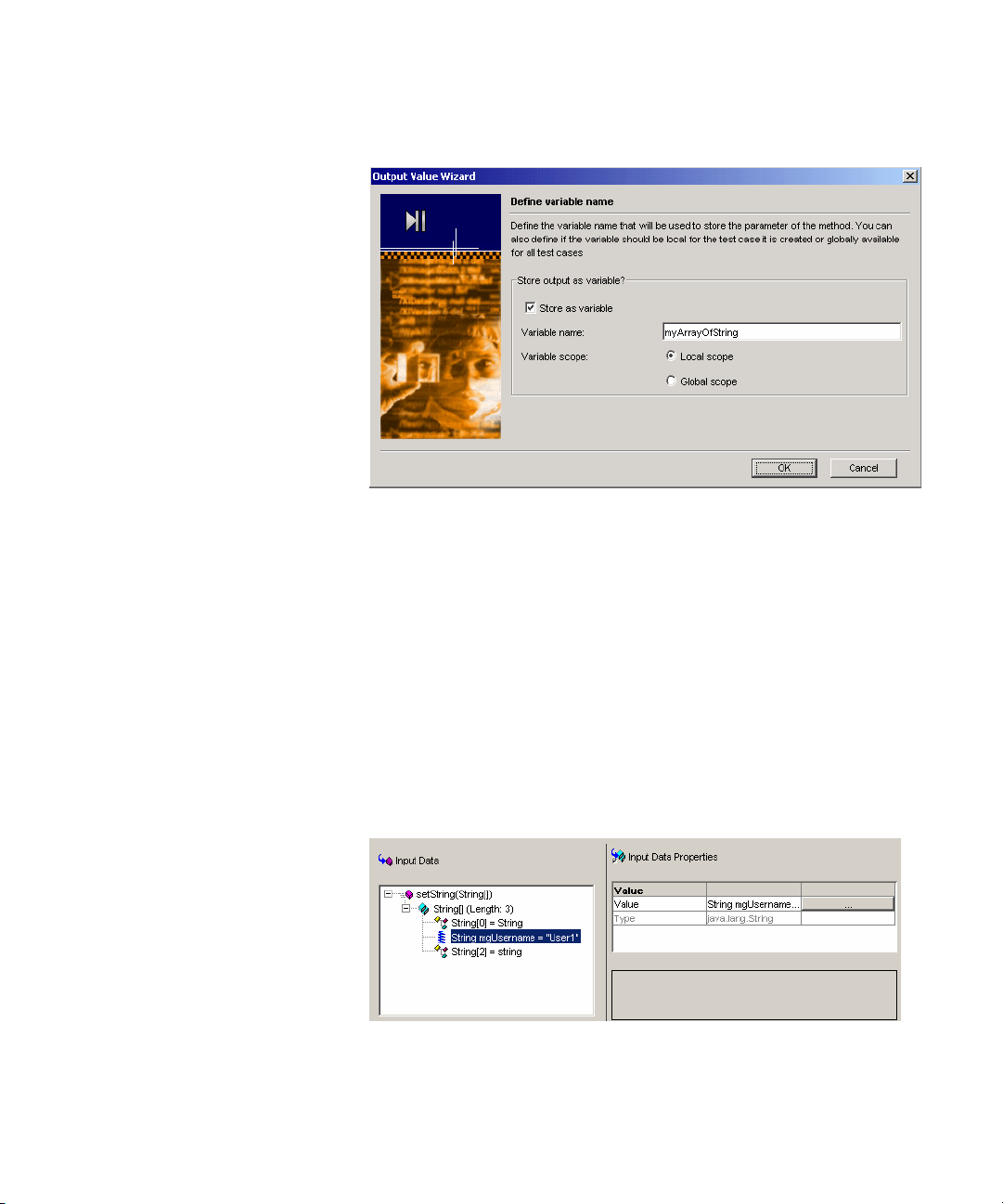

2 Click the Output Value Wizard (...) button to open the Output Value

wizard.

40 SilkPerformer Java Explorer User Guide

Page 45

ETTING UP TESTS

3 S

Complex Input/Output Data

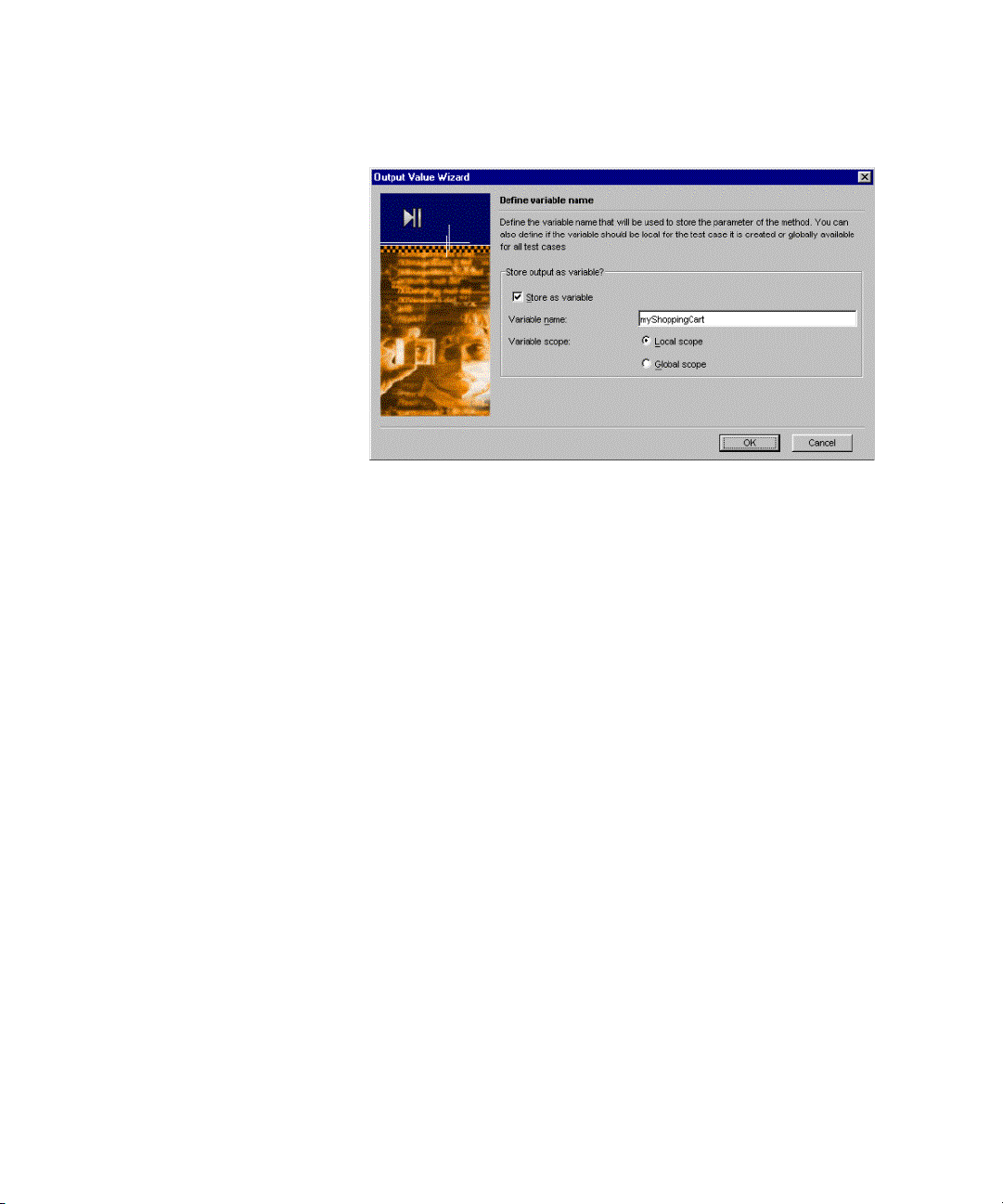

3 Specify the variable’s name and scope as described in “Storing Output

Values in Variables”.

Arrays & objects as input data

When using an array from a variable as input data, the entire array can be taken from the variable or each field can be defined manually.

1 Select the complex input parameter in the Input Data objects tree.

2 Click the Input Value Wizard (...) button to open the Input Value Wizard.

3 Define the input value as described in “Input Value Wizard”.

When using an object as input data, the entire object can be taken from a variable or each member can be defined individually.

Procedure To define each member of an array individually:

1 Select individual elements in an array in the Input Data tree.

2 Define input values in the Val u e text field as described in “Input Value

Wizard”.

SilkPerformer Java Explorer User Guide 41

Page 46

ETTING UP TESTS

3 S

Complex Input/Output Data

3 For example, you can specify that a variable be used as input.

Array Input Data

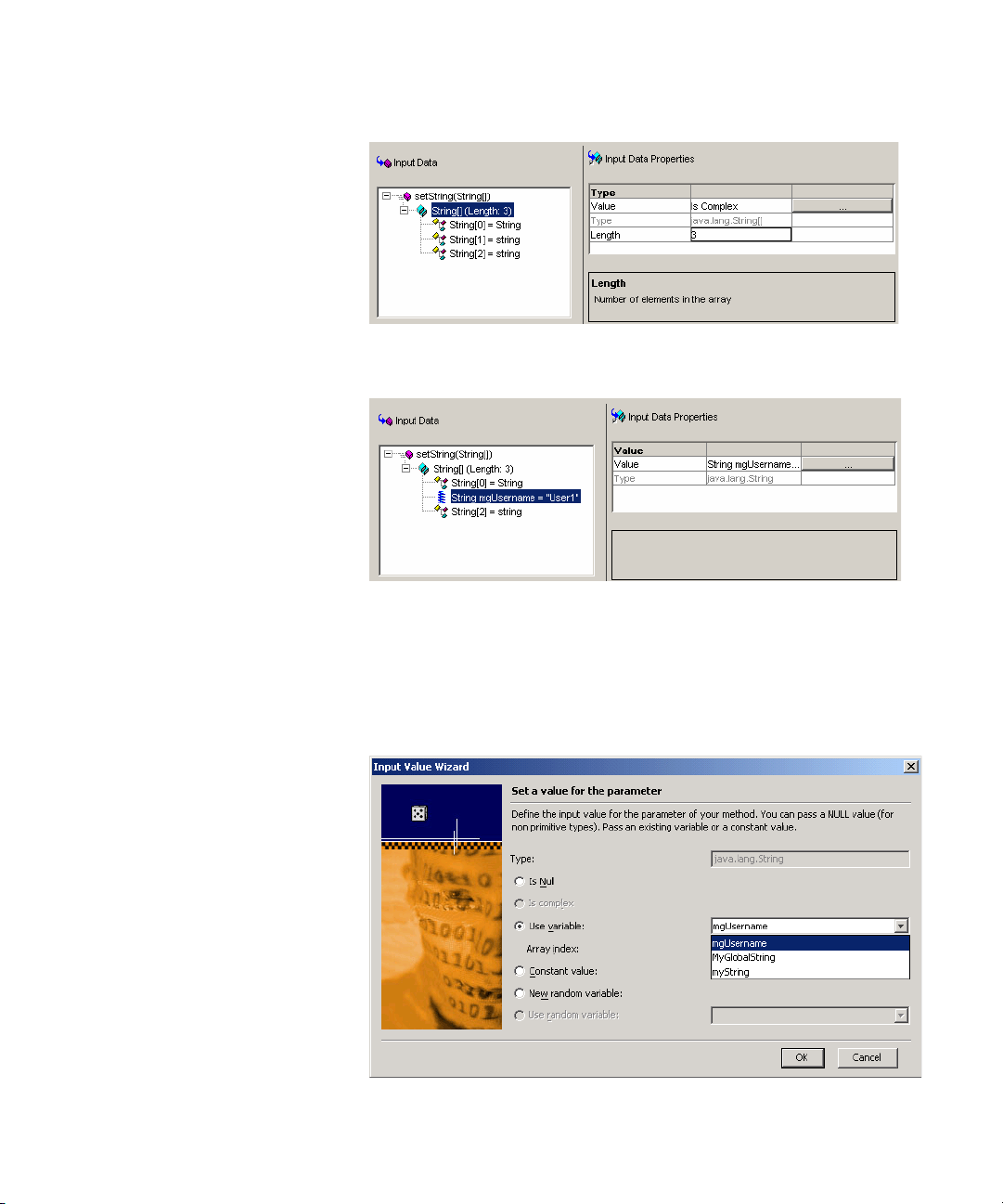

When a method requires an array as an input parameter, you can define the number of array elements and all elements in the array.

Procedure To define array elements:

1 The default length for arrays is 1. To change the number of elements in

an array, select the array node in the Input Data pane.

2 In the Length text field, enter the number of elements you want to have in

the array.

42 SilkPerformer Java Explorer User Guide

Page 47

ETTING UP TESTS

3 S

Complex Input/Output Data

Java Explorer then automatically adds or removes the required elements.

3 To specify an element’s value, select an element in the array and specify

the value in the Va lu e field.

4 Array members or an entire array can be assigned input parameters from

a variable. To specify input parameters from a variable, click the Input Value Wizard (...) button to open the Input Value Wizard.

5 Select Use variable on the Input Value Wizard dialog and select a

preconfigured variable from the drop-down list. All variables of the current parameter type are listed.

SilkPerformer Java Explorer User Guide 43

Page 48

ETTING UP TESTS

3 S

Complex Input/Output Data

6 Click OK.

Using complex input data example

Following is an example of how to use complex input data.

Procedure To use complex input data:

1 Call the method echoStringArray of the sample Web Service:

http://demo.borland.com/BorlandSampleService/BorlandSampleService.asmx?WSDL

(see “Using the Load File Wizard” for details). This service requires an object of the generated class ArrayOfString as a parameter.

2 Instantiate such an object and store it in a variable.

44 SilkPerformer Java Explorer User Guide

Page 49

ETTING UP TESTS

3 S

Random Variable Wizard

3 Define the array elements by calling the method setString on the object.

4 Pass the variable to the echoStringArray method.

Random Variable Wizard

With the Random Variable Wizard, random variables can be configured for entire input parameters or the individual members of complex input parameters. The Input Value Wizard also enables you to reuse existing random variables.

Procedure To configure a random variable:

1 Select the New random variable radio button on the Input Value Wizard.

2 Click OK to open the Random Variable Wizard.

SilkPerformer Java Explorer User Guide 45

Page 50

ETTING UP TESTS

3 S

Random Variable Wizard

Alternative Alternately, if you’ve already configured a random variable that you’d like to apply, click the Use random variable radio button. All available variables are listed in the drop-down list. Select the variable you wish to apply and click OK.

From the drop-down list, select the type of random variable you wish to have inserted into your script. A short type description and a variable declaration preview for each type is provided.

Note Random variables always have global scope, and so are available to all test cases in your project.

Click OK.

3 The Random Variable Wizard dialog appears.

46 SilkPerformer Java Explorer User Guide

Page 51

ETTING UP TESTS

3 S

Random Variable Wizard

Choose the variable type you wish to use as random variable from the

Random type droplist. For this example, use Individual strings. Click Next to continue.

Note This section only illustrates working with the Individual strings variable type. See SilkPerformer Online Help for more information regarding the use of random types.

4 In the Parameter pane, you can edit existing values, or insert new values.

Weight numbers define the frequency at which values appear (they are more flexible than using percentages to define frequency).

5 Click Finish when you’re done.

Random value types When you define a random variable for an input value you are only able to

choose among the random types that are applicable for that input value type.

Random variables return the following value types:

• String

• Number

• Float

String Random Values

The Random Variable Wizard allows you to define random variables that return strings.

Individual strings

Declares a random variable of type RndInd. With each access, such a variable contains a random value whose type is string. All possible values for the random variable, along with their probabilities, must be declared.

SilkPerformer Java Explorer User Guide 47

Page 52

ETTING UP TESTS

3 S

Random Variable Wizard

For each string value you must define a weighted number that indicates the probability that the string value will be chosen. Weighted numbers are integer numbers.

Strings from a pattern

Declares a random variable of type RndStr. With each access, such a variable contains a random string value. The characters of the string and the length of the string are generated randomly following a uniform distribution.

The pattern string defines the characters that are to be used when constructing random strings. The length of calculated strings is selected randomly with a uniform distribution based on defined minimum and maximum lengths (including boundaries).

Number Random Values

The Random Variable Wizard allows you to define random variables that return integers. Values can either be calculated based on a weighted number list or by specifying a number range.

Integer numbers

Declares a random variable of type RndUniN. With each access, such a variable contains a value that is generated following a uniform distribution. The parameters of the RndUniN function specify the minimum value and the maximum value of uniform distributions. Within these boundaries all integer values have the same probability (including the boundaries).

Weighted integer numbers

Declares a random variable of type RndInd. With each access, such a variable contains a random value whose type is either string or integer, depending on the syntax of the declaration. All possible values for the random variable, along with their probabilities, must be declared. You cannot mix integer and string values.

For each integer value you must define a weighted number that indicates the probability that the integer value will be selected. Weighted numbers are integer numbers.

Float Random Values

The Random Variable Wizard allows you to define a random variable that returns a float. Currently there is only one possible definition for generating float values.

Floating point numbers

Declares a random variable of type RndUniF. With each access, such a variable contains a value that is generated following a uniform distribution. The parameters of the RndUniF function specify the minimum value and the maximum value of the uniform distribution.

48 SilkPerformer Java Explorer User Guide

Page 53

Enterprise JavaBeans & RMI Over IIOP

When testing components such as EJBs or other remote components, you can’t use HTTP traffic when the application expects RMI or RMI over IIOP traffic. To communicate with the application SilkPerformer must invoke a Java client that generates the appropriate protocols that can be used to approach the application’s interface.

Working with EJBs

Developed by Sun Microsystems, Enterprise JavaBeans is a specification for developing scalable, server-side, multi-user enterprise applications.

Testing an EJB with Java Explorer involves three main steps:

• Connecting to the Java Naming Service (JNDI)

• Selecting an EJB Home object that is registered at the Naming Service and can be used as a factory object

• Creating the EJB on the application server

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Procedure To test an EJB:

1 Click the Start here button on the Workflow bar to open the Load File

Wizard.

Alternative You can also right-click Remote Objects in the Classes pane and select New EJB from the pop-up menu to start the EJB Wizard directly. Proceed with step 3.

2 Select the Enterprise JavaBeans / RMI over IIOP radio button and click

Next.

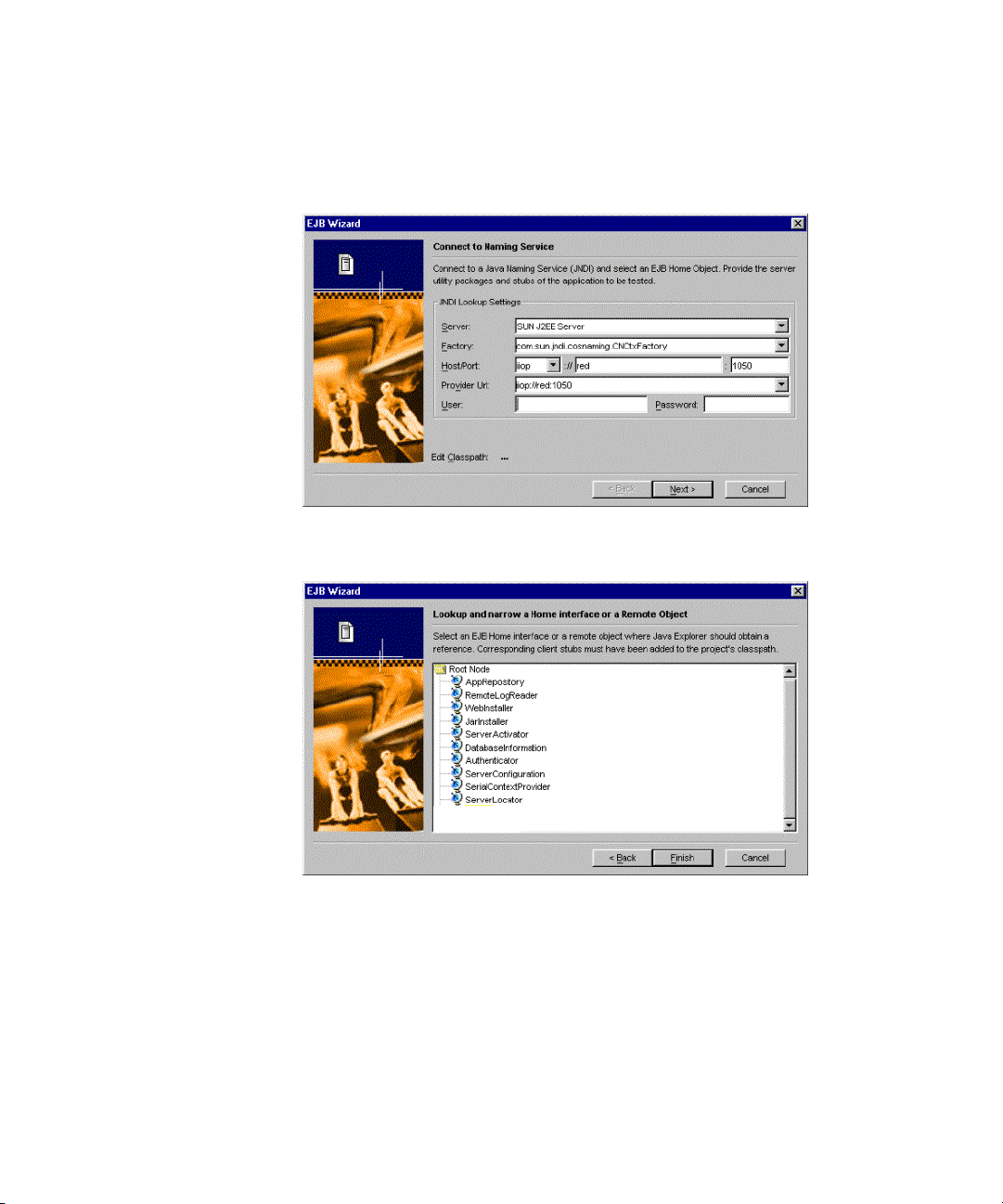

3 On the Connect to Naming Service dialog, select the application server

vendor (if available) from the drop-down Server list.

Note The entries in the list work as a template that pre-configures other settings (initial context factory, protocol, and port) with default values. See “Vendor-specific JNDI Settings” for details regarding configuration of specific application server types.

4 In the Factory field, specify the context factory of the naming service.

5 Using the Host fields, designate the URL where the naming service

provider is to be hosted.

SilkPerformer Java Explorer User Guide 49

Page 54

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Note Protocol, host, and port comprise the naming service provider URL. You may also directly enter the complete provider URL in the Provider Url field.

6 If required by the provider, specify credentials in the User and Password

fields.

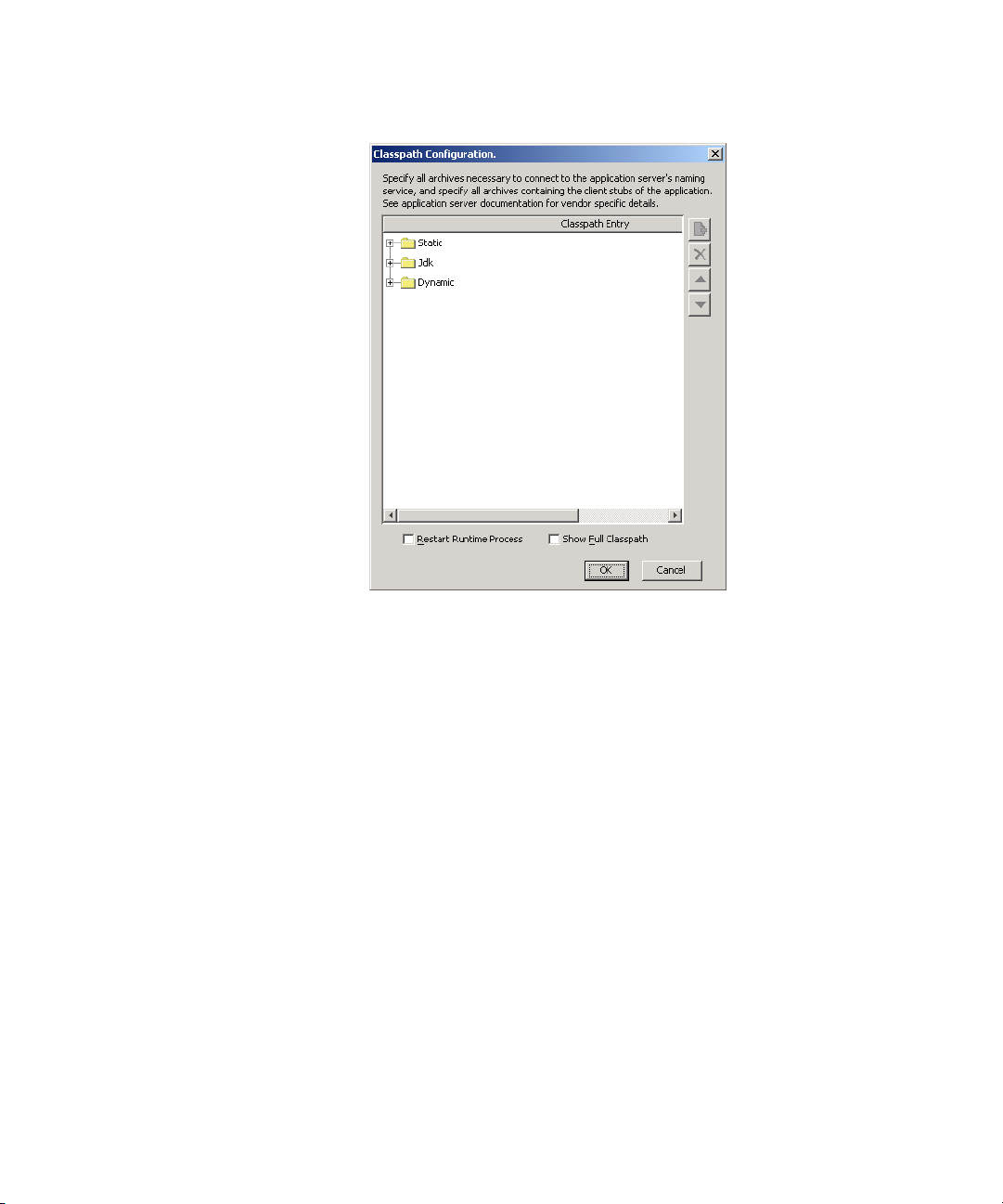

7 Click the Edit Classpath (...) button to open the Classpath Configuration

dialog.

8 On the Classpath Configuration dialog, specify archives containing

client stubs of the application under test and the provider’s context factory.

In the static portion of the dialog, specify all archives necessary to connect to the application server’s naming service.

In the dynamic portion of the dialog, specify all archives that contain the client stubs of the application. See application server documentation for vendor-specific details.

Also see “Classpath Settings” for more information about classpaths.

50 SilkPerformer Java Explorer User Guide

Page 55

9 Click OK.

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

10 Back on the EJB Wizard, click Next to connect to the naming service and

open the Look up and narrow a Home Interface or Remote Object dialog.

11 Browse through naming service sub-folders and select an EJB Home

interface (represented by a “hand holding a coffee bean” icon) or a remote object (represented by a satellite dish icon) for which Java Explorer should obtain a reference. Corresponding client stubs must have been added to the project’s classpath.

SilkPerformer Java Explorer User Guide 51

Page 56

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

12 Click Finish to browse for the methods of the remote object using the

Load File Wizard and to specify which test case the methods are to be

called from.

Note EJB’s which implement the EJBLocalObject interface instead of the EJBHome interface aren't displayed correctly in the JNDI tree.

Alternative If you invoked the EJB Wizard directly by right- clicking Remote Objects (See alternative in step 1), the following two steps must be done manually:

a Select the create() method of the EJB Home object to instantiate an

EJB object. Store the EJB object to a variable.

52 SilkPerformer Java Explorer User Guide

Page 57

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

b Invoke one or more methods on the EJB object.

Vendor-specific JNDI Settings

Following are the application server vendor-specific default values for the settings on the Connect to Naming Service dialog (initial context factory, protocol, and port). Note that these values are inserted automatically when you select the appropriate Server name from the drop-down list.

Note Protocol, host, and port comprise the naming service provider URL.

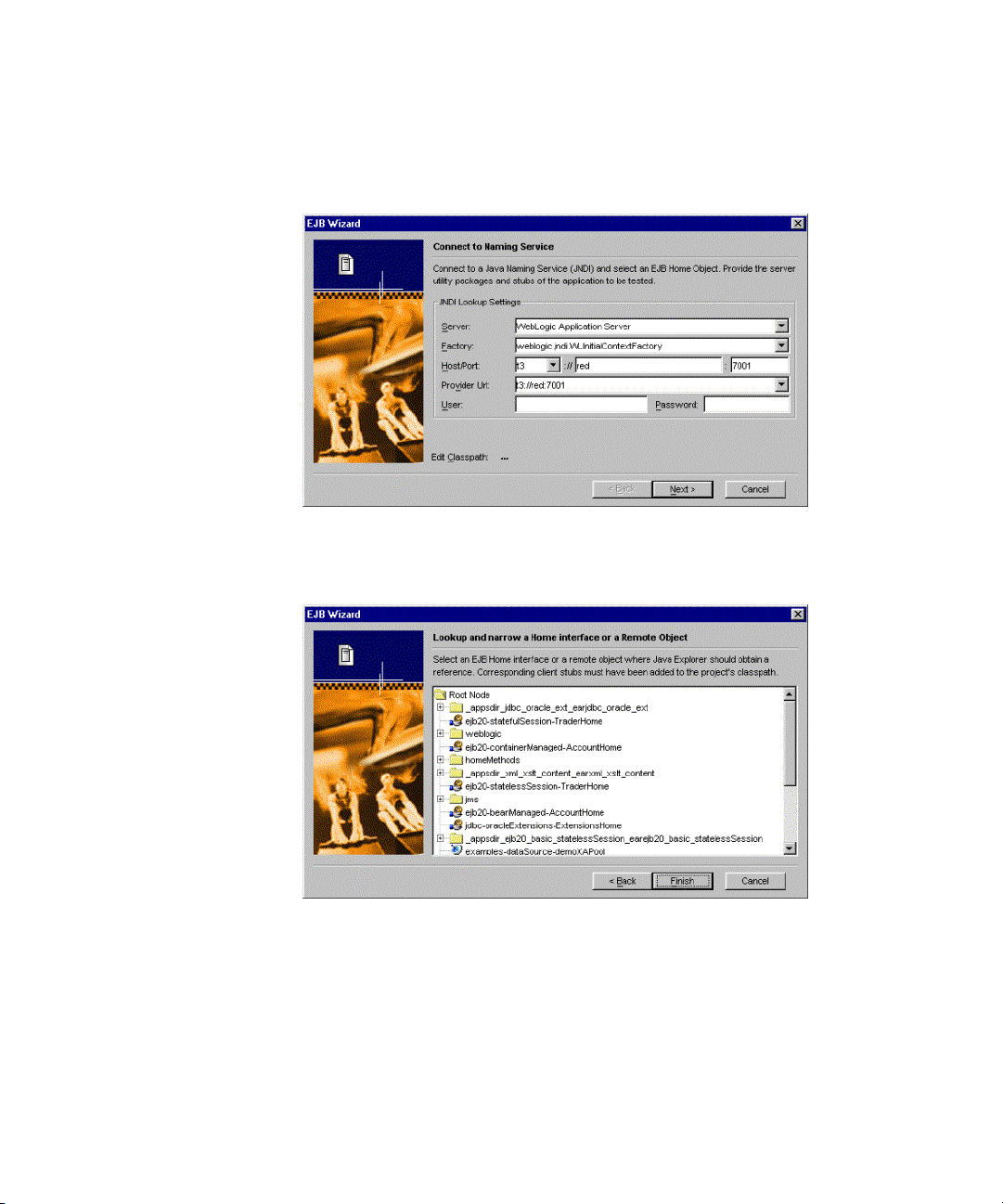

BEA WebLogic Context factory:

weblogic.jndi.WLInitialContextFactory

Provider URL:

t3://:7001 (port may vary based on server configuration)

Classpath Settings:

Click the Browse button and specify server and client classpaths

Server Classpath: Enter the path to weblogic.jar. This file is provided by BEA and contains the WebLogic J2EE implementation and the implementation used for connecting to Bea WebLogic’s naming mechanism. Normally this file (about 40 Mb) can be found in Bea WebLogic’s home directory in a lib subdirectory.

SilkPerformer Java Explorer User Guide 53

Page 58

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Client Classpath: Enter all jar files and classpaths that are required for connecting to the EJB. This is where you usually put the client side stubs and additional classpath entries. Stubs are automatically generated by WebLogic servers when EJB’s are deployed.

Verify your settings and click Next. The names of all registered EJB’s and RMI objects hooked into your WebLogic server will then be browsed.

Select the home interface that allows for the creation of instances of EJB’s. It is typical for EJB’s to have home interfaces that are used to create EJB instances. In this example you’ll use TraderHome (full JNDI name: ejb20-statelessSession-Traderhome)

54 SilkPerformer Java Explorer User Guide

Page 59

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

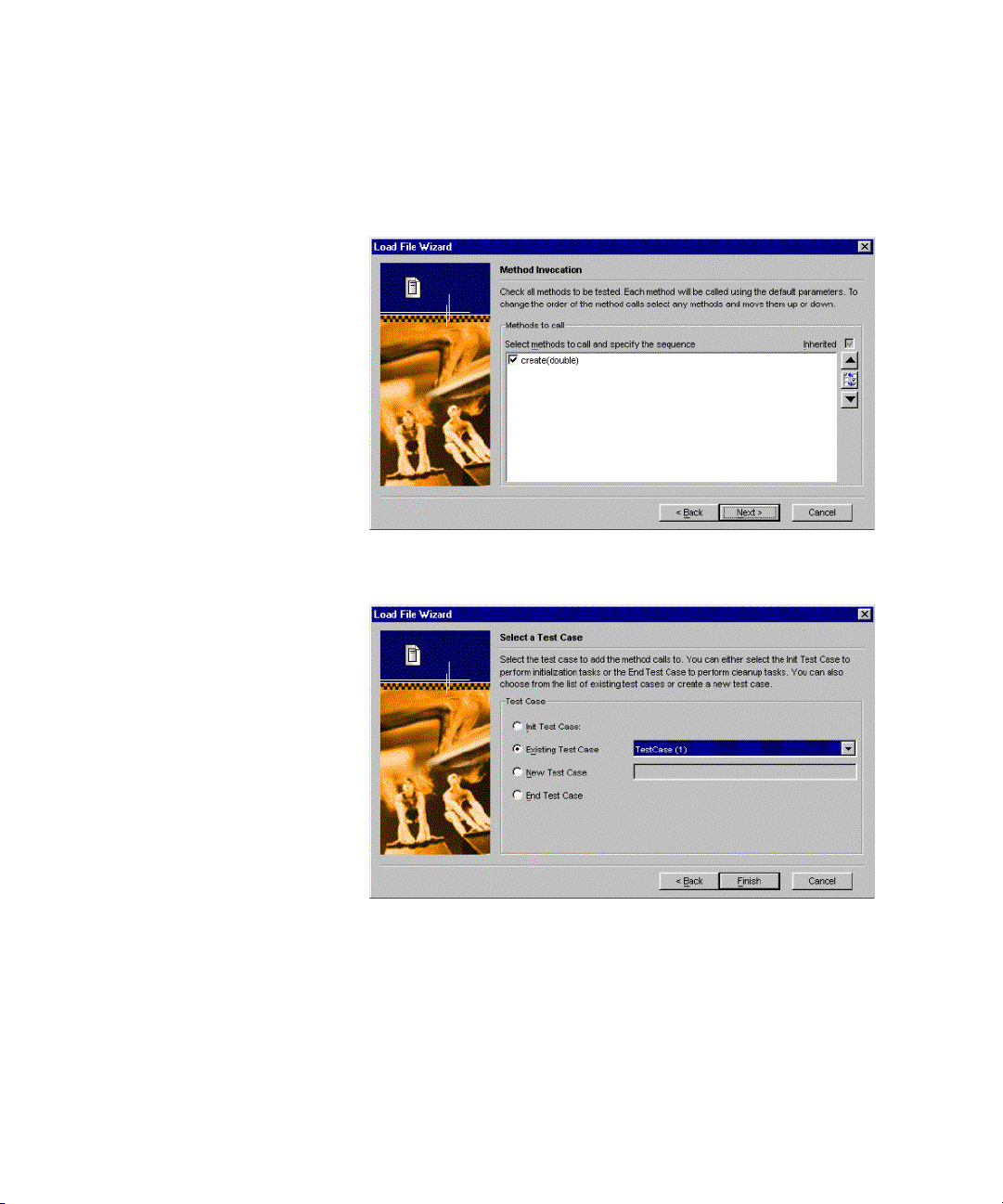

Select the home interface and click Finish. Confirm the next step by clicking Next. The selected home interface will then be browsed for its published methods. A method named create is likely to be among these. This method must be called to get a valid reference to an EJB object.

Click Next and select the test case where Java Explorer should write code for the steps performed by the wizard.

For example, those steps referred to as bootstrapping can be put into the init test case or an existing test case.

Click Finish and give a variable name to the EJB reference obtained by the Java Explorer Wizard.

Click OK. You can now call any of the EJB’s business methods. To do this go to Java Explorer’s Object panel and find the EJB that was placed there by the wizard.

SilkPerformer Java Explorer User Guide 55

Page 60

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Information on how to call methods, define test cases and run animated tests can be found at Method Invocation , Test Cases and Animated Run .

IBM WebSphere Context factory:

com.ibm.websphere.naming.WsnInitialContextFactory

Provider URL:

iiop:// (no default port)

Classpath Settings:

Server Classpath: Add IBM’s implementation of J2EE plus additionally required packages that can be found listed in those jar files. The following files are shipped with each WebSphere installation and are normally found in the lib directory of WebSphere installations.

For WebSphere 4.x:

- csicpi.jar

- ejbcontainer.jar

- iwsorb.jar

- j2ee.jar

- jts.jar

- ns.jar

- ras.jar

- ujc.jar

- utils.jar

- websphere.jar

For WebSphere 5:

- ffdc.jar

- idl.jar

- iwsorb.jar

- j2ee.jar

- naming.jar

- namingclient.jar

- ras.jar

- wsexception.jar

- ecutils.jar

56 SilkPerformer Java Explorer User Guide

Page 61

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

- tx.jar

- utils.jar

- ejbportable.jar

- The Properties directory (usually located within the WebSphere

home directory).

Client Classpath: Enter all jar files and classpaths that are required for connecting to the EJB. This is where you usually put client side stubs and additional classpath entries. Stubs are automatically generated by WebSphere servers when EJB’s are deployed. These automatically generated stubs are normally found within the installedApps directory, which is located within the WebSphere home directory.

Verify your settings and click Next. The names of all registered EJB’s and RMI objects hooked into your WebSphere application server will then be browsed.

SilkPerformer Java Explorer User Guide 57

Page 62

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Select the home interface that allows for the creation of instances of EJB’s. It is typical for EJB’s to have home interfaces that are used to create EJB instances. In this example you’ll use CartHome (full JNDI name: ps/cart taken from the petstore sample)

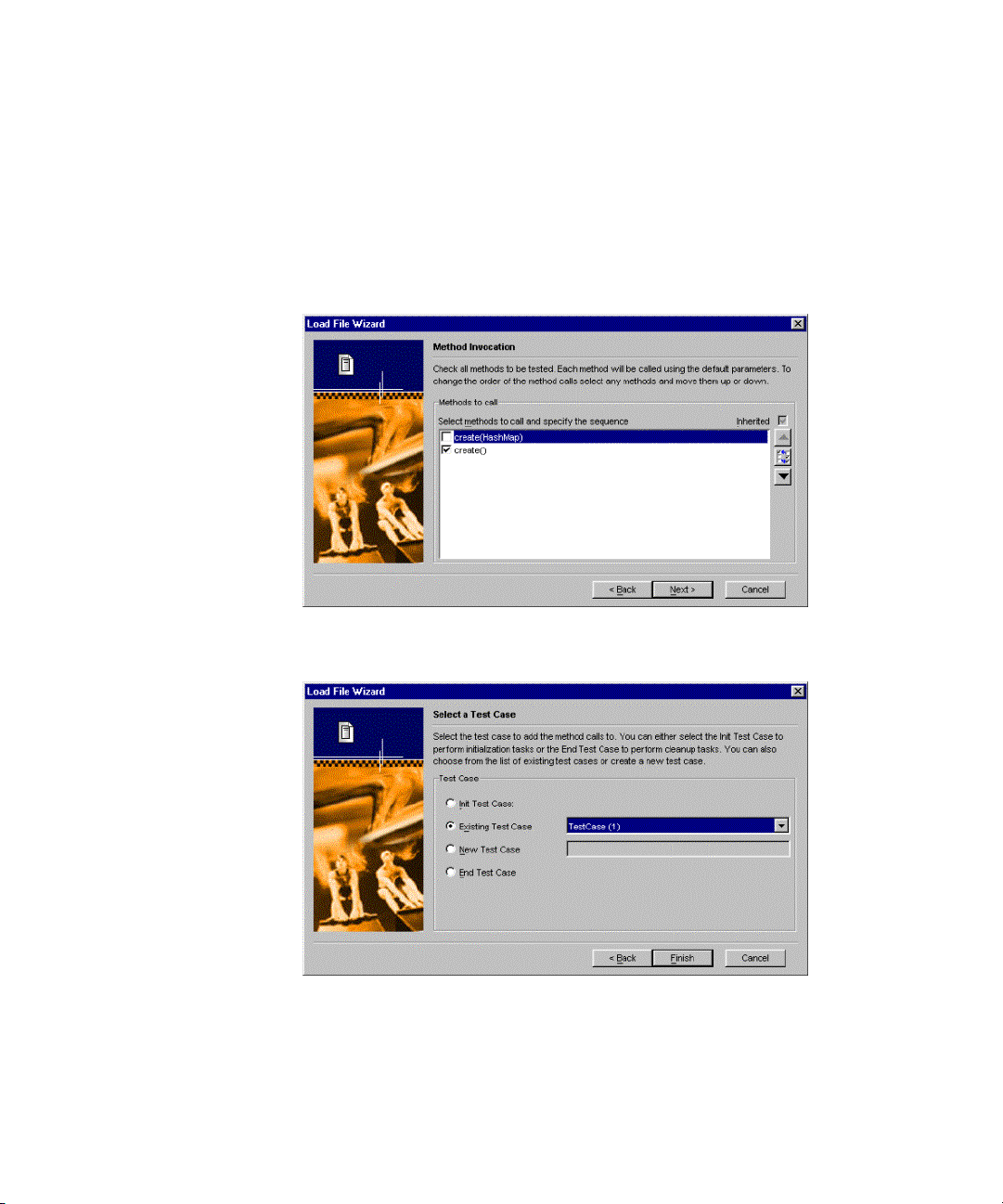

Select the home interface and click Finish. Confirm the next step by clicking Next. The selected home interface will then be browsed for its published methods. A method called create is likely to be among these. This method must be called to get a valid reference to an EJB object.

Click Next and select the test case where Java Explorer should write code for the steps performed by the wizard.

For example, those steps referred to as bootstrapping can be put into the init test case or an existing test case.

58 SilkPerformer Java Explorer User Guide

Page 63

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Click Finish and give a variable name to the EJB reference that was obtained by the Java Explorer Wizard.

Click OK. You can now call any business methods of the EJB. Go to Java Explorer’s Object panel and find the EJB that was placed there by the wizard.

Sun For the testing of Sun EJBs with Sun’s J2EE Implementation, the

following settings must be specified:

Context factory:

com.sun.jndi.cosnaming.CNCtxFactory

Provider URL:

iiop://:1050 (port may vary based on server configuration)

Classpath Settings:

Classpath: Click the Browse button to search for the server and client

classpaths.

Server Classpath: Enter the path to j2ee.jar. This file is provided by Sun and contains the J2EE implementation and the implementation used to connect to Sun’s naming mechanism. Normally this file can be found in the J2EE home directory within a lib subdirectory.

SilkPerformer Java Explorer User Guide 59

Page 64

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Client Classpath: Enter all jar files and classpathes that are required to connect to the EJB. This is where you usually put client side stubs and additional classpath entries. Stubs are automatically generated by Sun’s J2EE server on deployment.

Verify your settings and click Next. The names of all registered EJB’s and RMI objects hooked into your J2EE server will then be browsed.

Select the home interface that allows for the creation of instances of EJB’s. It is typical of EJB’s to have home interfaces that are used to create EJB instances.

60 SilkPerformer Java Explorer User Guide

Page 65

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Select the home interface and click Finish. Confirm the next step by clicking the Next button. The select home interface will then be browsed for its published methods. A method named create is likely to be among these. This method must be called to get a valid reference to an EJB object.

Click Next and select the test case where Java Explorer should write code for the steps performed by the wizard.

For example, those steps referred to as bootstrapping can be placed in the init test case or an existing test case.

SilkPerformer Java Explorer User Guide 61

Page 66

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Click Finish and provide a good variable name for the EJB reference obtained by the Java Explorer Wizard.

Click OK. You can now call any business methods of the EJB. Go to Java Explorer’s Object panel and find the EJB that was placed there by the wizard.

JBoss Context factory:

org.jnp.interfaces.NamingContextFactory

Provider URL:

jnp://:1099 (port may vary based on server configuration)

See the white paper SilkPerformer JavaExplorer: JBoss support, JNDI classpath troubleshooting for full details regarding the testing of JBoss application servers.

Working with RMI Over IIOP

Developed jointly by Sun Microsystems and IBM, Java Remote Method Invocation (Java RMI) technology run over Internet Inter-Orb Protocol (RMIIIOP) delivers CORBA-distributed computing functionality to the Java 2 platform.

Sample RMI and RMI/IIOP projects are available. See “Java RMI Samples”.

Procedure To test RMI o v e r II O P :

1 Follow the instructions outlined in the previous section for testing an

EJB.

62 SilkPerformer Java Explorer User Guide

Page 67

ETTING UP TESTS

3 S

Enterprise JavaBeans & RMI Over IIOP

Procedure To test SilkPerformer’s RMI sample:

1 Launch the Product Manager RMI sample (see “Java RMI Samples”).

2 Browse to the \SampleApps\RMILdap directory.

3 Invoke the four batch files (step1 through step4).

4 Launch the EJB Wizard as described in the previous section. The RMI

objects are registered at a JNDI naming service. Use the EJB Wizard to browse for available Remote Objects.

5 Use the following field values to connect to the naming service:

- Provider Url: iiop://localhost:1900

- Factory: com.sun.jndi.cosnaming.CNCtxFactory

- Classpath: \SampleApps\RMILdap\ProductManager-

server\ProductManager-server.jar

6 On the Look up and narrow a Home Interface or Remote Object dialog

select the ProductManagerServicesLdap remote object. The RmiExtension helper class performs all necessary bootstrapping.

You can then work with the remote object as illustrated by the following two screengrabs.

The RmiExtension helper class has been added to the loaded components in the Classes tab. Its static method createObject includes a class to provide the parameters for the RMI connection settings.

The result of the createObject method is viewable in the Objects tab. The result is a stub class instance, which is used to communicate with the remote object on the server.

SilkPerformer Java Explorer User Guide 63

Page 68

ETTING UP TESTS

3 S

Testing RMI

Testing RM I

The getProductsByName method requires a string as parameter. ’*’ is used as a wildcard to get all products.

Java RMI can be achieved using two different protocols, both of which are supported by Java Explorer:

• RMI over IIOP (see “Enterprise JavaBeans & RMI Over IIOP”)

• Java Remote Method Protocol (JRMP) (see the following section)

Note Sample RMI and RMI/IIOP projects are available. See “Java

RMI Samples”.

RMI Testing with JRMP

The main difference between testing RMI with JRMP and testing RMI over IIOP is that with JRMP you need to connect to an RMI registry.

Procedure To test RMI with JRMP:

1 Click the Start Here button to launch Java Explorer’s Load File Wizard.

Alternative You can also right-click Remote Objects in the Classes

pane and select New RMI from the context menu to start the RMI Wizard directly. Proceed with step 3.

2 Select the RMI radio button and click Next.

3 The RMI Wizard dialog appears. Enter RMI registry settings and a

classpath where the RMI interfaces for the client can be found.

64 SilkPerformer Java Explorer User Guide

Page 69

ETTING UP TESTS

3 S

Testing RMI

4 Click Next.

5 The next dialog asks for the RMI registry settings and a classpath where

the RMI interfaces for the client can be found. Here are the settings to be used for the sample:

- Host: localhost

- Port: 1099

- Client Stub Class: <SilkPerformer Home Directory>\Java

Explorer\SampleApps\lib\sampleRmi.jar

SilkPerformer Java Explorer User Guide 65

Page 70

ETTING UP TESTS

3 S

Testing RMI

Click Next to see a tree of all registered remote objects in the RMI registry.

Select RemoteServer and click Next. The methods of the remote object will then be browsed.

Select the first two methods:

- echoFloat(float)

- echoString(String)

These are the two methods that are implemented by the sample RMI server. The other methods are inherited from base classes and don’t need to be tested.

Click Next and select the test case from which these methods should be called.

66 SilkPerformer Java Explorer User Guide

Page 71

Testing Java Archives

Java archives normally contain many classes that must be tested. Use the Start Here Wizard to begin testing Java archives. Select Java Archive and browse for

the .jar file that contains the classes to be tested.

To see how this works, load the sample archive (sampleBasic.jar) that ships with Java Explorer (this archive is selected by default).

ETTING UP TESTS

3 S

Testing Java Archives

Click Next.

This brings up the next dialog in the wizard, where the class to be tested must be selected. A class may have multiple constructors, which are used to create instances or objects of a class.

SilkPerformer Java Explorer User Guide 67

Page 72

ETTING UP TESTS

3 S

Testing Secure Web Services

Click Next to create the instance and browse the created object for its methods.

Select the object toString method. Click Next and select a test case where Java Explorer should add the created scenario. The method toString returns a string. Therefore, Java Explorer will ask you whether it should store the returned value or discard it.

Test Class Wizard The Test Class Wizard allows you to create a test case for a class or an

instantiated object. Select a class in the Classes tree or an object in the Object tree and call the wizard, either via the context menu or the workflow bar.

The wizard allows you to select methods that are to be called.

Testing Secure Web Services

This section assists you in configuring SilkPerformer Java Explorer for the testing of secure Web Services. The following steps are required to test secure Web s e rvic es :

- Create a truststore for your JDK.

- Load a secure WSDL into Java Explorer.

- Invoke Web service calls over a secure connection.

Creating a truststore for your JDK

68 SilkPerformer Java Explorer User Guide

When working with secure Web services, Web service clients must trust the Web applications they interact with to be secure. Though typically a Web browser, the Web service client in this case is SilkPerformer Java Explorer. To enable testing of a Web application, SilkPerformer Java Explorer must accept the application’s server certificate or trust the certifying authority who issues the server certificate.

Your JDK installation includes a commandline tool called keytool. This tool allows you to manage server certificates and cerfifying authorities. The easiest

Page 73

ETTING UP TESTS

3 S

Testing Secure Web Services

way of downloading server certificates is to export them from your Web browser.

Procedure To create a truststore for your JDK:

1 Export a certificate (.cer file) from your Web browser and export it to

your local system (see your browser’s help system for instructions).

2 To add the saved certificate to your truststore (mykeystore), enter the

following into your system’s commandline tool:

keytool -import -alias <alias name> -file c:\<pathname>\<certificate file name> -keystore mykeystore

The commandline tool will create a file called mykeystore in your current working directory.

Configuring Java Explorer to use a truststore

Loading a secure WSDL

A Java process can be configured to use a truststore by setting the system property -Djavax.net.ssl.trustStore=trustedcerts. When working with Java Explorer, system properties are specified in property files that reside at <Java Explorer Home>/Startup directory.

Procedure To configure Java Explorer to use a truststore:

1 Open ./Startup/gui.properties in a text editor and add the following line:

system.property.javax.net.ssl.trustStore=C:\\Tem p\\mykeystore

2 Open ./Startup/runtime.properties in a text editor and add the following

line:

system.property.javax.net.ssl.trustStore=C:\\Tem p\\mykeystore

3 Restart Java Explorer.

Procedure To load a secure WSDL document into Java Explorer:

1 Copy the URL of the WSDL file into Java Explorer’s address bar.

2 Hit the Enter key on your keyboard.

Note Ensure that you have configured Java Explorer to use a

truststore that accepts the URL’s server certificate, as explained in

“Configuring Java Explorer to use a truststore”.

Note If the loading of the WSDL document fails for any reason, try to open the WSDL document in a Web browser. Save the WSDL document to your local machine. Then open the document with Java Explorer as explained in “Using the Load File Wizard”.

SilkPerformer Java Explorer User Guide 69

Page 74

ETTING UP TESTS

3 S

Testing Secure Web Services

Working with Secure Web Service Calls

Using Apache Axis

1.2.1

Using basic authentication

You must use Apache Axis 1.2.1 (or higher) to test secure Web services.

Procedure To configure Java Explorer to use Apache Axis 1.2.1:

1 Select the menu Tools/Project Settings.

2 Select the Web Service Plugin tab.

3 Select Axis 1.2.1 from the Assigned Web Service Plugin list box. The

selected Axis version is stored persistently in Java Explorer’s project file.

Note The read-only Classpath panel shows the classpath configuration that belongs to the selected Axis version.

4 Click OK on the Project Settings dialog.

5 Click Ye s on the subsequent dialog, confirming that you want to change

the Web service library settings.

To execute Web service calls over a secure connection, ensure, that you have created a truststore for your Java Development Kit and that you have configured the Java Explorer Runtime process to use a truststore. See “Creating a truststore

for your JDK” and “Configuring Java Explorer to use a truststore” for details.

Java Explorer supports authentication of Web services. Use the Connection Settings dialog to specify your credentials (see “Specifying Web Service

Connection Settings”).

Specifying Web Service Connection Settings

Procedure To specify Web service connection settings:

1 In the Loaded Components pane, select the Classes tab.

2 Select the loaded Web Service class node to display Input Data Properties

fields.

3 In the Input Data Properties pane, click the elipse (...) button on the right-

hand side of the Connection information.

4 On the following dialog, you can configure the Web service endpoint and

your user credentials.

5 Click OK to save your connection settings.

70 SilkPerformer Java Explorer User Guide

Page 75

ETTING UP TESTS

3 S

Negative Testing

Web Service Emitter Timeout

When generating Web service stub code for large WSDL files, the process of generating the Java source code may take longer then the default timeout specified by the Axis library. The following exception will be generated:

com.segue.jexplorer.datatyp.exception.JExpWsdlException: Failed to generate Web Service proxy library(webAxisProxy1.jar).: Failed to create java source from WSDL.: java.io.IOException:WSDL2Java emitter timed out (this often means the WSDL at the specified URL is inaccessible)! at com.segue.jexplorer.runtime.plugin.impl.webservice.axis.JExpAxisProxyGen .generateProxyLibrary(JExpAxisProxyGen.java:272) at com.segue.jexplorer.runtime.plugin.impl.webservice.axis.JExpAxisProxyGen .generateProxy(JExpAxisProxyGen.java:138) at com.segue.jexplorer.runtime.communication.JExpRuntimeOperation.generateW ebServiceProxy(JExpRuntimeOperation.java:772)

Specifying a timeout Java Explorer allows you to specify a WSDL2Java emitter timeout in a

configuration file called webservice.properties. The property in the file must be called emitter.timeout. The value must be specified in milliseconds.

<install dir>\Java Explorer\Startup\webservice.properties:

# for generating Web Service stub code with axis libraries # a timeout in milliseconds maybe specified for the emitter to # generate the source files emitter.timeout=5000

Negative Testing

Although extended support for negative testing is not available, expected exceptions can be ignored. See “Ignoring Expected Exceptions” for details.

SilkPerformer Java Explorer User Guide 71

Page 76

ETTING UP TESTS

3 S

Negative Testing

72 SilkPerformer Java Explorer User Guide

Page 77

Chapter 4 Animation Runs

What you will learn This chapter contains the following sections:

Section Page

Overview 73

Animated Runs 73

Ignoring Expected Exceptions 76

Overview

Animated runs are test runs that execute all test methods assigned to your test cases with corresponding input and output data displayed in the Input Data and Output Data panes as they are submitted/received. Status symbols indicate the success/failure status of each method call after it’s run.

Animated Runs

Output of animated runs includes several logs and reports that help you to identify any problems with tested components.

Note By default, there is a 2-second (2000 ms) delay between the invocation of each method call. This is because Java Explorer is designed to test the functionality of components without overtaxing them with excessive load. Invocation delay settings can be configured using system settings.

Settings for animated runs are configured on the Java Explorer Options tab (Tools / System Settings / Options tab). The following settings are available:

• Always run Init Test Case

SilkPerformer Java Explorer User Guide 73

Page 78

NIMATION RUNS

4 A

Animated Runs

• Always run End Test Case

• Run all Test Cases during Animated Run

• Invoke Delay (time delay between method calls, in ms).

Procedure To execute an animated run:

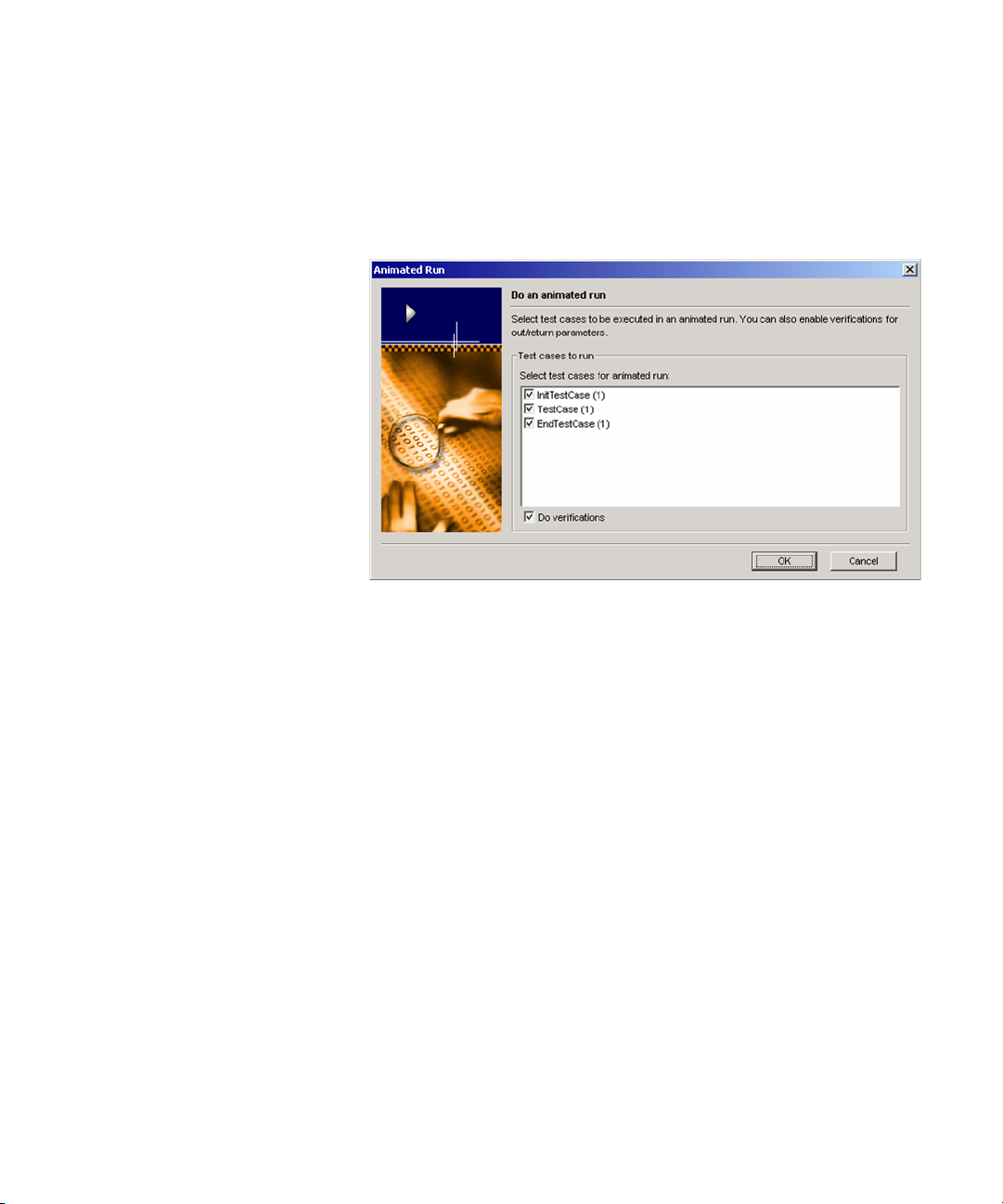

1 Click Run Test on the Workflow bar. The Animated Run dialog appears.

Note Alternately, you can select Animated Run from the Run menu.

2 Select the test cases that should be executed during the test run

(InitTestCase, TestCase, or EndTestCase). The default selections vary based on your option settings.

Note When test cases depend on each other for accessing global objects, ensure that you do not exclude test cases that define objects that are used by other test cases.

3 Specify whether verifications that have been defined for output

parameters should be performed by selecting the Do verifications checkbox.

4 Click OK to begin the animated run. All global variables will be

initialized to their initial values. All random variables will be reset.

If you have specified a different calling count for your test cases than the

74 SilkPerformer Java Explorer User Guide

Page 79

NIMATION RUNS

4 A

Animated Runs

default (1), test cases will be executed the number of times defined in this property.

If the number of method calls reporting an error exceeds the number of allowed errors defined in the test case properties, the test case will be aborted.

Viewing status of animated runs

Animated runs can be aborted manually by either clicking Ctrl+C on your keyboard or by selecting Stop Run from the Run menu. Animated runs are aborted automatically when a verification with severity “Error, the simulation is aborted” fails.

Depending on the number of times a test case is called (CallCount property) you can see which iteration is currently executing in the Test Scenario pane. Each test case and test method has a status icon [OK (green checkmark), Verified (blue “v” icon), Warning [yellow exclamation mark], or Error (red “x”)].

Methods that fail due to thrown exceptions or failed verifications display Failed or Warning method call icons next to them. If a method call fails you can view a

SilkPerformer Java Explorer User Guide 75

Page 80

NIMATION RUNS

4 A

Ignoring Expected Exceptions

description of the failure in a ToolTip by moving your mouse over the failed method call.

Ignoring Expected Exceptions

Expected exceptions can be ignored during animated runs. A dialog is displayed whenever a method throws an exception. The dialog enables you to specify what you would like to have done with the method. You can either add the method call to the test case, or ignore the exception.

Once a method is added to the test case, if the method later throws the expected exception during an animated run, the exception will be ignored.

76 SilkPerformer Java Explorer User Guide

Page 81

Chapter 5 Analyzing Tests

What you will learn This chapter contains the following sections:

Section Page

Overview 77

User Report 78

Error Report 81

Animation Log 81

Exploring Object Properties 82

Exploring Method Properties 83

Overview

Once you have completed a test run, you can view three result files to assist you in analyzing the executed test.

The following result files are available:

• User Report

• Error Report

• Animation Log

Procedure To view a result file:

1 Execute a test, as explained in “Animation Runs”.

2 Click the Results button on the Workflow bar to display the Explore

Results dialog.

SilkPerformer Java Explorer User Guide 77

Page 82

NALYZING TESTS

5 A

User Report

3 Select the button that corresponds to the result file type you wish to

generate. See explanations of each report type in the following sections of this chapter.

Alternative Alternately, result files can be selected from Java Explorer’s Results menu, or by selecting the Output tab above the Loaded Components pane.

User Report

The User Report is based on SilkPerformer’s Virtual User Report. This report offers information regarding elapsed time for each test case and test method call. See SilkPerformer documentation for complete details regarding Virtual User Reports.

User reports are comprised of four sections:

• Test Case Summary

• Test Case Details

• Test Method Summary

• Errors

The Test Case Summary section offers information about the number of executed test cases and the number of errors that occur during the test run.

The Test Case Details table gives you information about each test case:

• Number of executions per test case

• Execution time of each test case

78 SilkPerformer Java Explorer User Guide

Page 83

NALYZING TESTS

5 A

User Report

The Test Method Summary table offers information about each test method that has been called. You receive information about execution times and number of errors that occur.

SilkPerformer Java Explorer User Guide 79

Page 84

NALYZING TESTS

5 A

User Report

The Errors table gives you information about each error that occurs during the test run. You receive information about when each error occurred, which test methods caused the errors, and short descriptions of the errors.

80 SilkPerformer Java Explorer User Guide

Page 85

Error Report

NALYZING TESTS

5 A

Animation Log

The Error Report delivers an overview of all errors that occur during test runs. You receive information about error time, the test case and test method with which each error occurred, severity types, and error messages.

The Animation Log (Output view) displays information about the methods that are called during test runs. Additional information about passed parameters is

SilkPerformer Java Explorer User Guide 81

Page 86

NALYZING TESTS

5 A

Exploring Object Properties

also included. When exceptions are encountered, the Animation Log offers detailed stack traces for the exceptions.

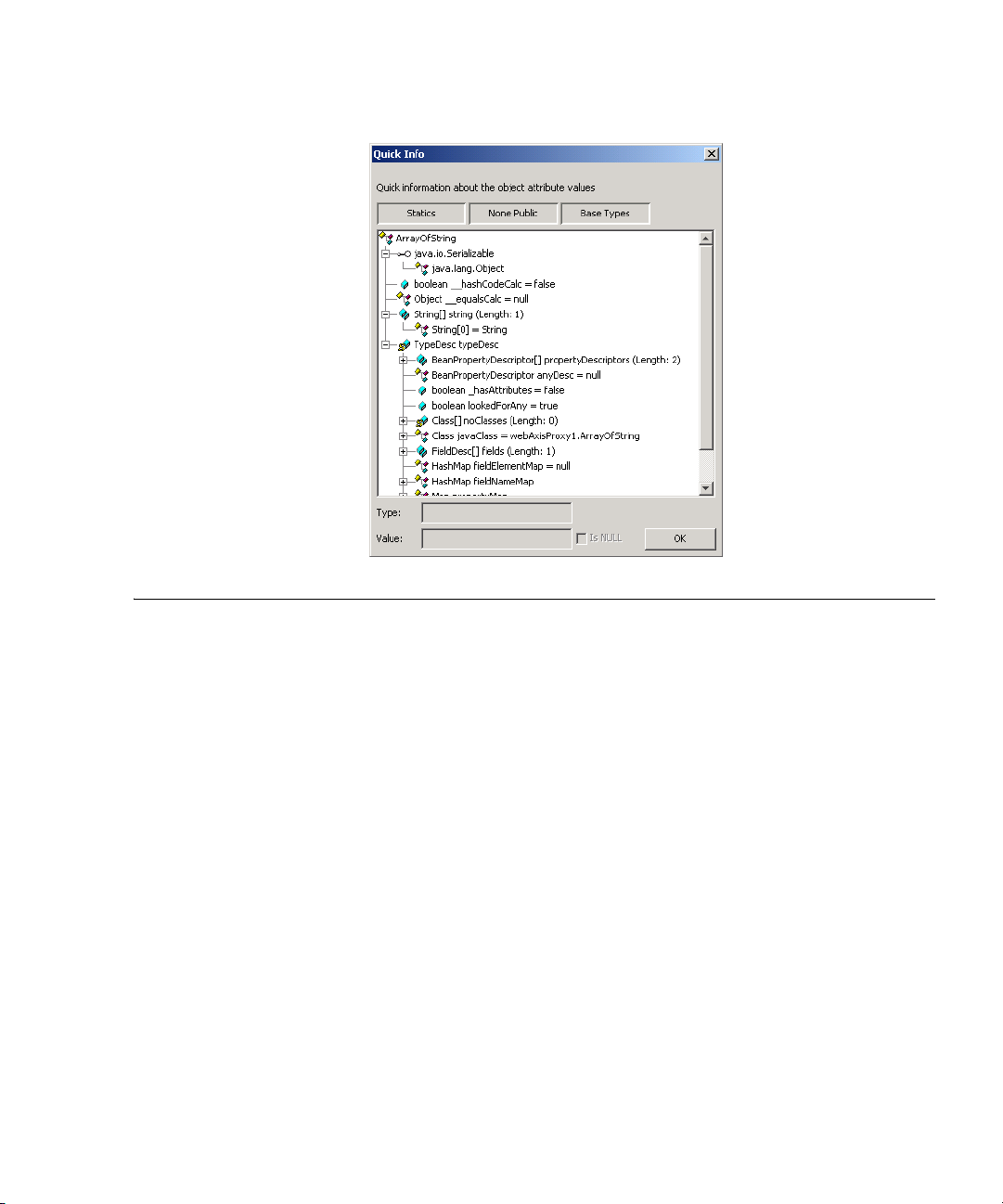

Exploring Object Properties

Java Explorer enables developers and testers to explore the properties of objects. This is done by right-clicking an object in the Loaded Components pane (the Objects tab must be selected) and selecting Quick Info from the context menu. The Quick Info dialog displays the internal state of the selected object.

Additionally, you can view the following properties of an object:

• Click the Statics button to display static fields of the object.

• Click the None Public button to display private, package, and protected fields of the object.

82 SilkPerformer Java Explorer User Guide

Page 87

NALYZING TESTS

5 A

Exploring Method Properties

• Click the Base Types button to display the parent classes of the object.

Exploring Method Properties

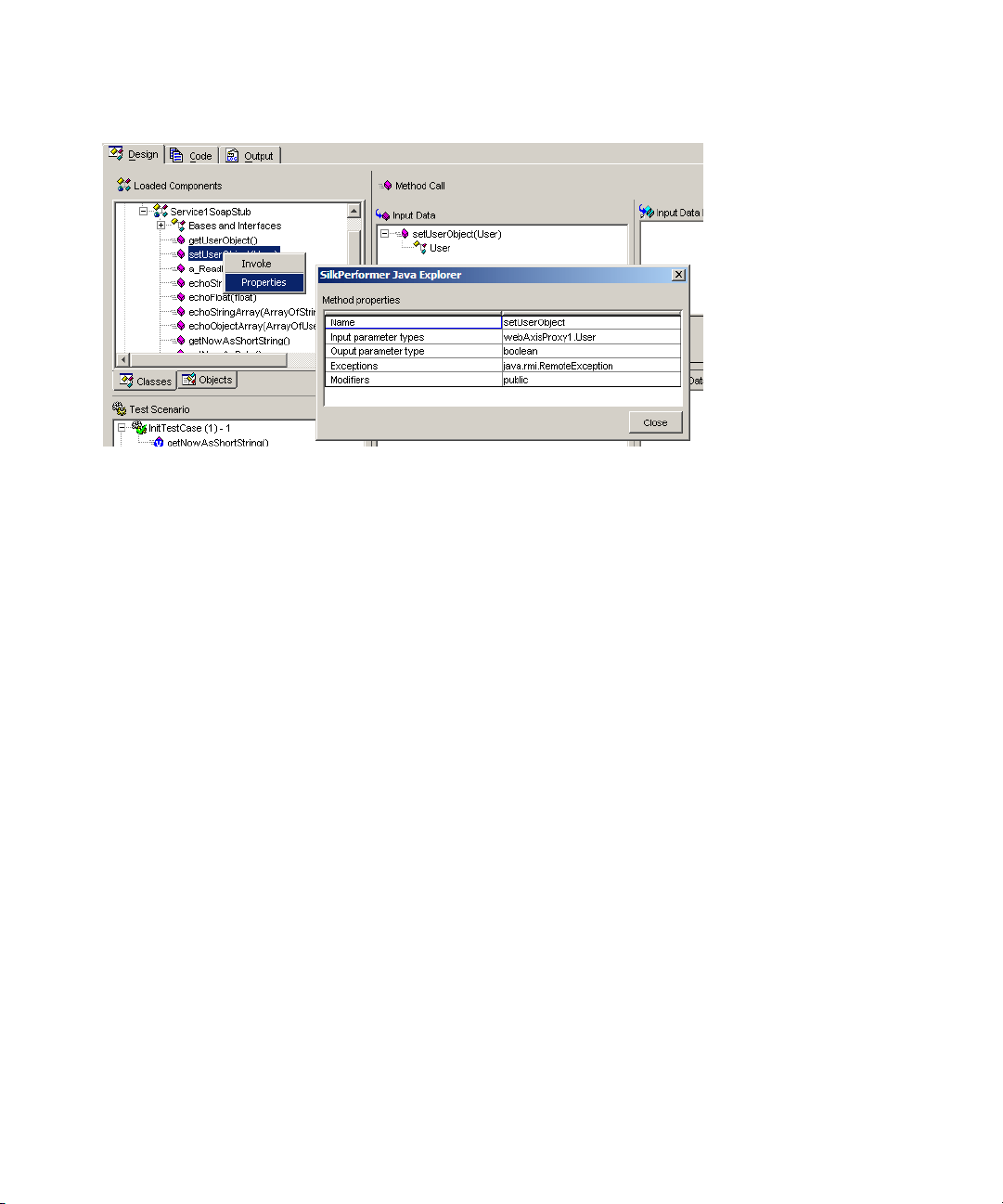

Java Explorer enables developers and testers to explore the properties of methods. This is done by right-clicking a method in the Loaded Components pane and selecting Properties from the context menu.

The Method Properties dialog displays the following properties of selected methods:

•Name

• Input parameter types

• Output parameter type

• Exceptions

SilkPerformer Java Explorer User Guide 83

Page 88

NALYZING TESTS

5 A

Exploring Method Properties

• Modifiers

84 SilkPerformer Java Explorer User Guide

Page 89

Chapter 6 System & Project Settings

What you will learn This chapter contains the following sections:

Section Page

Overview 85

Java Explorer Processes 86

System Settings 86

Project Settings 94

Overview

Java Explorer offers a number of system and project setting options. For details regarding available project settings (runtime and classpath definitions) see

“Project Settings”.

Procedure To access Java Explorer system settings:

1 Go to Java Explorer’s Too ls menu and select System Settings to display

the System Settings dialog.

2 Select the tab that corresponds to the options you wish to configure

(Runtime, Default Values, Options [verifications, code generation, and animated runs], History, Connection, JUnit, or SilkPerformer).

3 Configure option settings as outlined in the sections below.

Note System settings are saved in the JExplorer.conf file, which is

located in <SilkPerformer installpath>\Java Explorer.

SilkPerformer Java Explorer User Guide 85

Page 90

YSTEM & PROJECT SETTINGS

6 S

Java Explorer Processes

When Java Explorer is launched, at least two processes are run. The first process runs under SDK 1.4 and is responsible for displaying the Java Explorer GUI.

The second process is the runtime process, which is responsible for instantiating and managing all Java objects that belong to the currently open project. The runtime process can run under any JDK, which is configurable via System Settings / Project Settings / Too ls menu.

Note Only JDKs by Sun and IBM with version 1.2 or higher are supported.

The runtime process is started with the JDK that is configured in Project Settings and is initialized with the static classpath entries. After initialization of the runtime process, UrlClassLoader is initialized with the dynamic classpath entries.

System Settings

Configuring Sun’s JDK

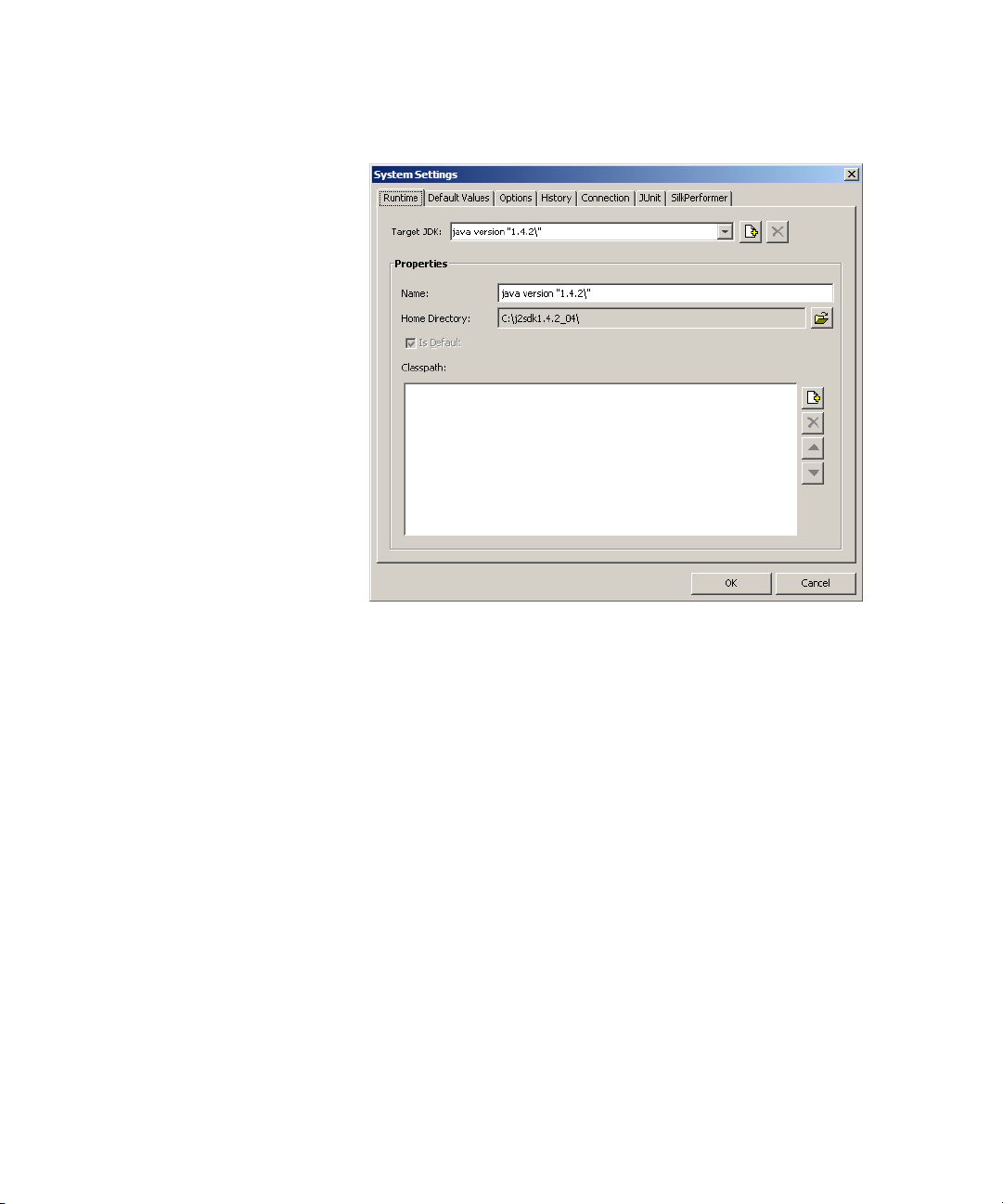

Runtime Settings

In Java Explorer, open the Tools menu and click the System Settings entry. This opens the Runtime dialog in which you can specify a new JDK.

Press the Add button next to the Targe t JDK drop-down list and select a Java Home Directory. For example Sun’s JDK version may be installed under

86 SilkPerformer Java Explorer User Guide

Page 91

YSTEM & PROJECT SETTINGS

6 S

System Settings

C:\j2sdk1.4.2_04. Click OK. This special JDK version can now be selected from any project.

Configuring IBM JDK (for WebSphere)

Note To enable a specific JDK version for a project go to the To ol s menu, and select the Project Settings entry. This opens a dialog that allows you to assign the JDK version used for the current project. See “Project Settings” for details.

Open the Tools menu and click the System Settings entry. This opens the Runtime settings dialog where you can specify a new JDK (see the figure above).

Press the Add button next to the Targ et J DK drop-down list and select a Java home directory. For example, IBM’s JDK version can be installed at C:\WebSphere\AppServer\java. Click OK. This special JDK version can now be selected from any project.

Note To enable a specific JDK version for a project go to the Tools menu, and select the Project Settings entry. This opens a dialog that allows you to assign the JDK version used for the current project. See “Project Settings” for details.

SilkPerformer Java Explorer User Guide 87

Page 92

YSTEM & PROJECT SETTINGS

6 S

System Settings

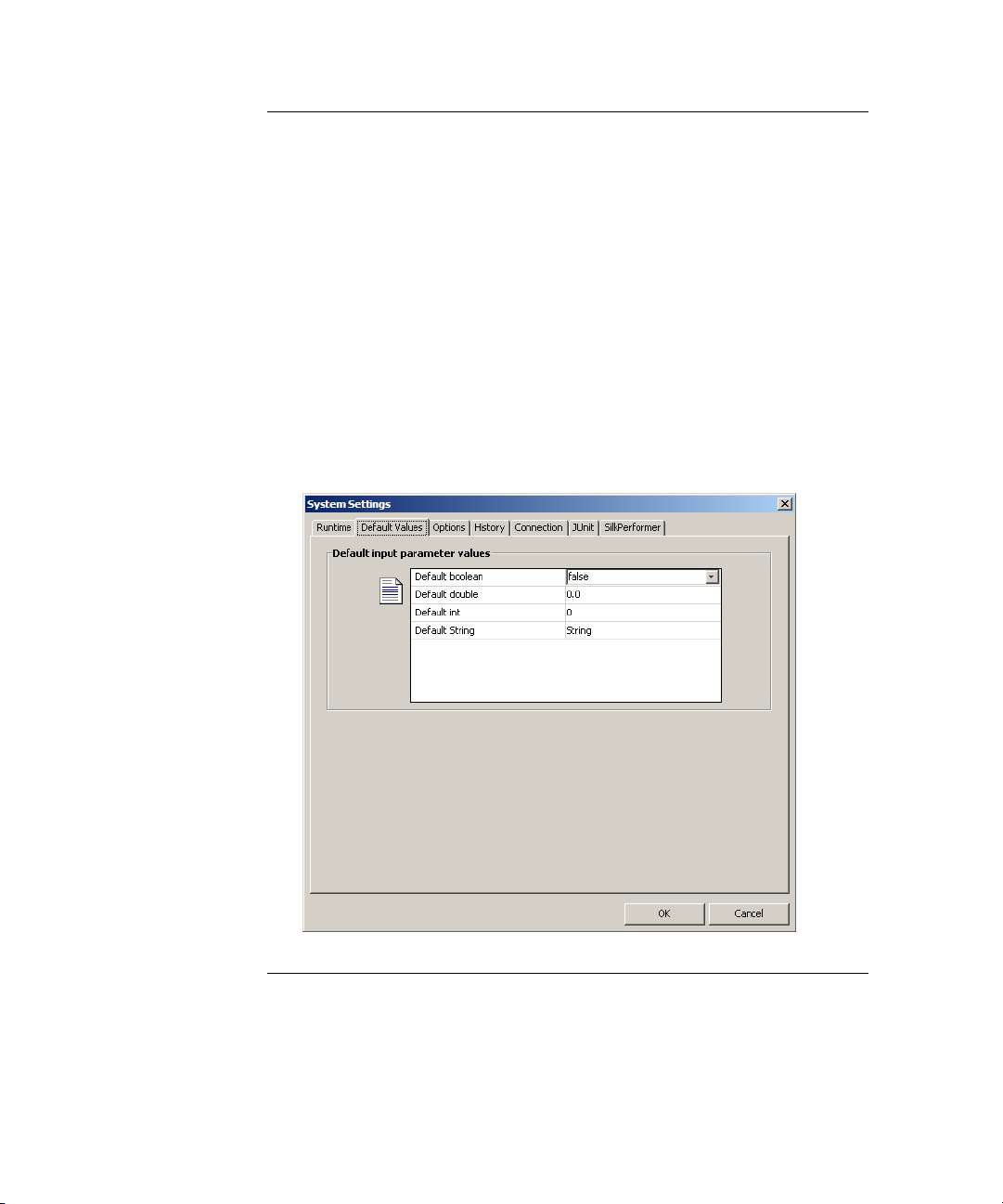

Default Value Settings

The Default Values options tab enables you to change the default input parameter values for method calls. You can set default values for the following types:

•boolean

• double

•int

•string

Boolean can either be True or False, double stands for all floating point numbers, int for all integer numbers.

To define default input parameter values, simply edit the value in the right column of the parameter type you wish to change. Click OK to confirm your changes.

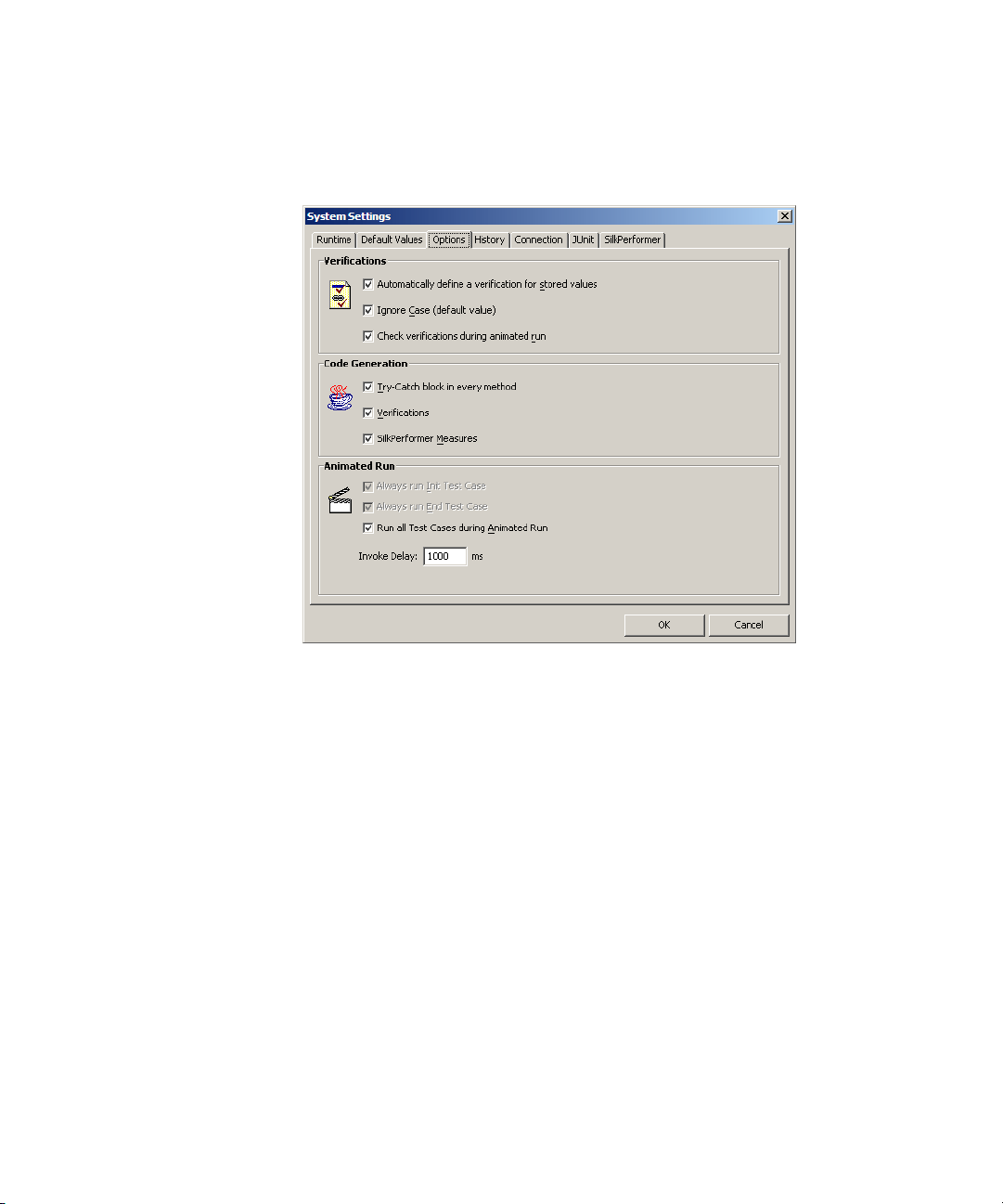

Verification, Code, and Animated Run Settings

Setting options for verifications and animated runs are available on the System Settings dialog Options tab.

88 SilkPerformer Java Explorer User Guide

Page 93

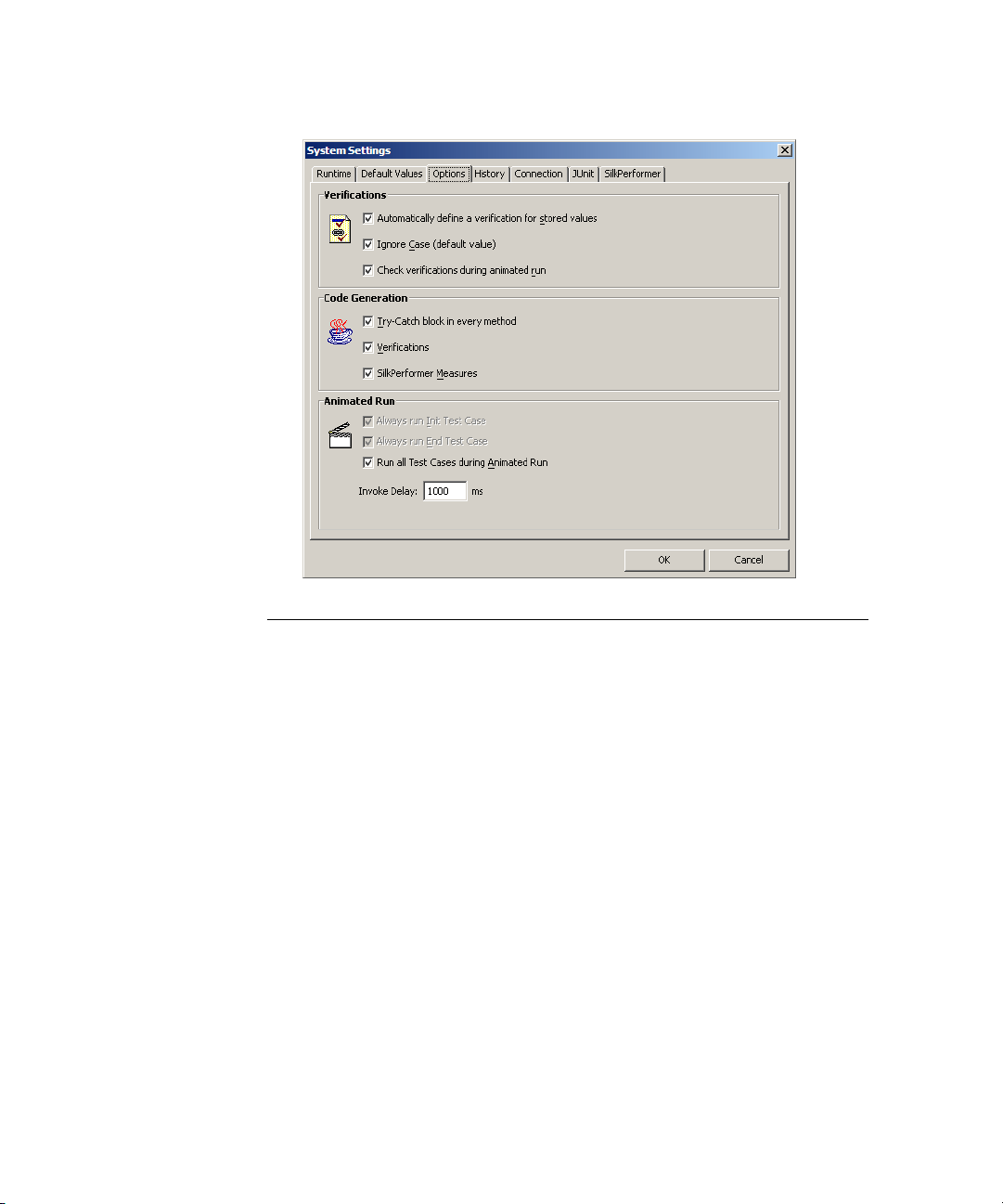

Verification Settings

These options define the behavior of verifications:

YSTEM & PROJECT SETTINGS

6 S

System Settings

Automatically define a verification for stored values

Ignore Case (Default value)

Check verifications during animated runs

When selected, default verifications are defined whenever you store an output value in a variable.

This is the default value of the Ignore Case check box when verifying a string value in the Verification Wizard.

This is the default value for the Do Verifications check box on the Animated Run dialog.

Code Generation Settings

These options define how code is generated when exporting to a standalone application, JUnit, or SilkPerformer Java Framework project.

Try-Catch block in every method

Verifications Adds verifications to generated code (see “Defining Output Value

Scripts a try-catch block around each crucial method call.

Verifications”).

SilkPerformer Measures

Add SilkPerformer MeasureStart and MeasureStop functions to generated SilkPerformer Java Framework code. For more information about Measures, consult SilkPerformer Online Help.

Animated Run Settings

These options define the behavior of animated runs:

Always run init test case

Always run end test case

Run all test cases during animated run

When selected, the init test case is checked by default on the Animated Run dialog.

When selected, the end test case is checked by default on the Animated Run dialog.

When selected, all test cases are checked by default on the Animated Run dialog.

SilkPerformer Java Explorer User Guide 89

Page 94

YSTEM & PROJECT SETTINGS

6 S

System Settings

Invoke delay

Defines the delay between the invocation of method calls in animated runs.

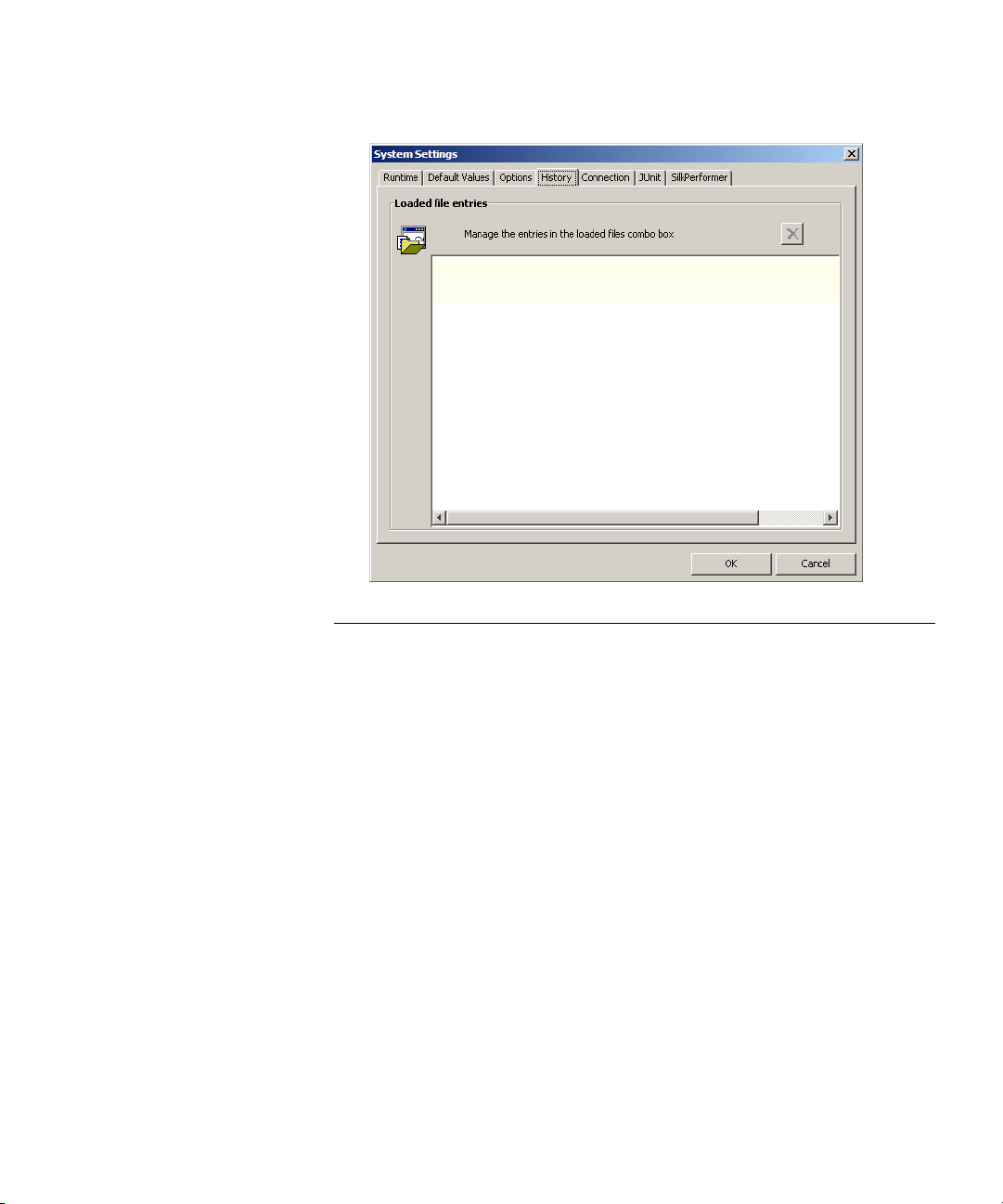

History

Loaded file entries Java Explorer tracks all classes, archives and WSDL URLs that have been

loaded. So instead of typing the complete name of a test class, you can select an entry from the history list if the class has been loaded before.

You can manage the entries in the loaded-file entries list.

Procedure To manage loaded-file entries:

1 Select the System Settings dialog’s History tab.

2 Select a file that you wish to delete from the combo box.

3 Click the Delete (X) button.

90 SilkPerformer Java Explorer User Guide

Page 95

YSTEM & PROJECT SETTINGS

6 S

System Settings

4 Click Ye s on the confirmation dialog to delete the file entry.

Connection Settings

Connection options allow you to define the default proxy connection that should be used when communicating with a Web Service. The specified connection is also used when loading a WSDL from the Internet.

SilkPerformer Java Explorer User Guide 91

Page 96

YSTEM & PROJECT SETTINGS

6 S

System Settings

When a WSDL file is loaded, the Web Service class inherits the settings of the connection options. If these options are changed after the Web Service has been loaded, the changes won’t be reflected in the Web Service class.

JUnit Settings

JUnit settings enable you to select the TestRunner that is to be used when running JUnit tests. Just select the appropriate TestRunner from the drop-down

92 SilkPerformer Java Explorer User Guide

Page 97

YSTEM & PROJECT SETTINGS

6 S

System Settings

combo box. The classpath panel enables you to specify the classpath information that is required to run the selected TestRunner.

SilkPerformer Java Explorer User Guide 93

Page 98

YSTEM & PROJECT SETTINGS

6 S

Project Settings

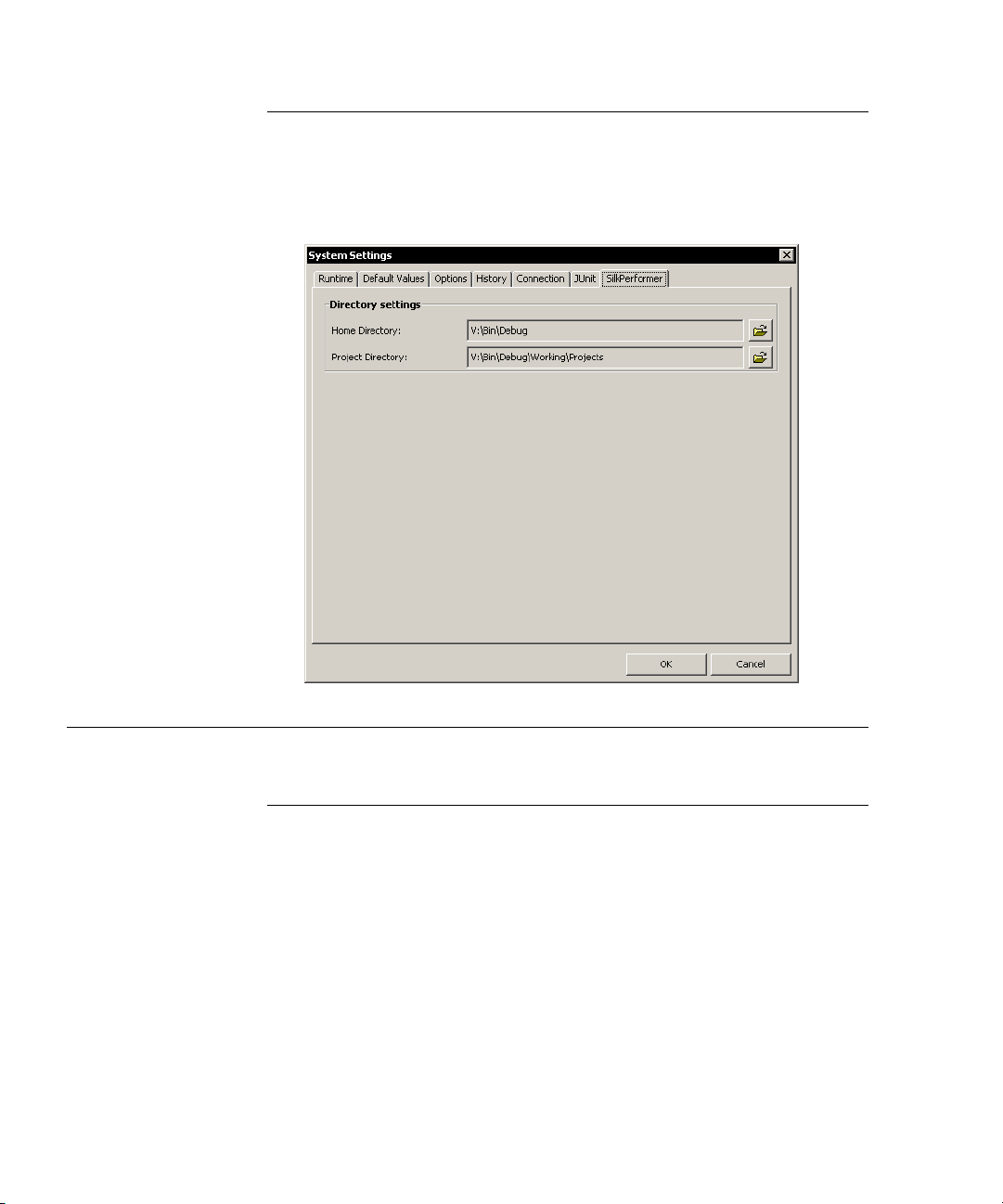

SilkPerformer Settings

The SilkPerformer Home Directory and SilkPerformer Project Directory can be configured via the system settings’ SilkPerformer tab. Initial settings are detected by Java Explorer setup.

Project Settings

Runtime Settings

To enable a specific JDK version for a project go to the Tools menu, and select the Project Settings entry. This opens the Runtime dialog that allows you to assign the JDK version used for the current project.

Select a JDK from the drop-down list and click OK. The Java Runtime is now assigned to the current project.

Note When the active JDK is changed, the runtime process is restarted. Perform an Animated Run to update the objects in the runtime.

94 SilkPerformer Java Explorer User Guide

Page 99

YSTEM & PROJECT SETTINGS

6 S

Project Settings

Web Service Plug-In Settings

Java Explorer supports Axis versions 1.1, 1.2.1, and 1.3 out of the box.

To select a specific Axis library version for a project go to the Tools menu, and select the Project Settings entry. This opens the Runtime dialog that allows you to assign the Axis version used for the current project.

In the Web Service Plugin tab, select an Axis library version from the drop-down list and click OK. Changing the selected Axis version requires a restart of the Java Explorer runtime process. Java Explorer will prompt you to confirm the restart.

The Properties list displays the classpath configuration that belongs to the selected Axis version.

Classpath Settings

Static classpath Entries that are defined as static or system classpath are set when the runtime is

created (see “Java Explorer Processes”). Changing a static or system classpath requires that the runtime be restarted.

JDK classpath JDK classpath entries reflect the classpaths for the currently configured JDK.

Dynamic classpath Dynamic classpath entries are dynamically added to the UrlClassLoader in the

runtime process. Adding or changing dynamic classpath entries doesn’t require restart of the runtime process, although you may explicitly restart the process.

Forcing runtime restart

Show full classpath Selecting the Show Full Classpath checkbox displays all internally used

To restart the runtime process explicitly, check the Restart Runtime Process checkbox before clicking the OK button.

classpath entries. This setting is helpful when classpath conflicts occur.

Note The classpath tree is ordered by priority. Archives at the top of the tree have priority over archives at the end. Classpath entries may be moved up and down within a group or even between neighboring groups (unless those groups are read-only).

Note Checkboxes indicate whether a classpath is static or dynamic (i.e., whether or not a change to a classpath group requires restart of the runtime process).

Runtime specific classpath entries can also be edited via the Project Settings dialog, although the Runtime classpath belongs to System Settings and changes affect all projects.

SilkPerformer Java Explorer User Guide 95

Page 100

YSTEM & PROJECT SETTINGS

6 S

Project Settings

Note The Runtime classpath is stored in both JExlorer.conf and the project file (.jep). Upon loading a project, if the classpath entries in the project file do not match the classpath settings in the system settings (JExplorer.conf), the system settings will override the stored project settings.

The Restart Runtime Process checkbox fulfills two purposes. First, it signals, if recent classpath changes made by the user require the restart of the runtime. Secondly, it allows the user to explicitly force a restart of the runtime process.

By default, only the three classpath groups (Static, JDK, and Dynamic) that can be customized by the user are visible. With the Show Full Classpath checkbox enabled, all internally used classpath entries (Java Explorer archives, Web Service plug-ins, etc) are also visible. This is helpful for expert users and certain internal purposes (e.g., to see if an archive of a customer’s test environment conflicts with a Web Service plug-in.

Scripting Settings

The Scripting tab defines the file names, which are used when exporting the Java Explorer project (see “Exporting Projects” for more information about exporting projects).

TestClass for SilkPerformer

TestClass for JUnit Defines the file name of the exported JUnit test class. This test class extends

Defines the file name of the exported Java test class for SilkPerformer Java Framework.

junit.framework.TestCase.

TestClass for Standalone

Defines the file name of the exported standalone test class, which can be executed from the command line, or which can be integrated into other test frameworks.

TestScript for SilkPerformer

Defines the name of the BDL script file which will be generated for SilkPerformer Java Framework.

96 SilkPerformer Java Explorer User Guide
