BORK WD900L23-5S Exploded view

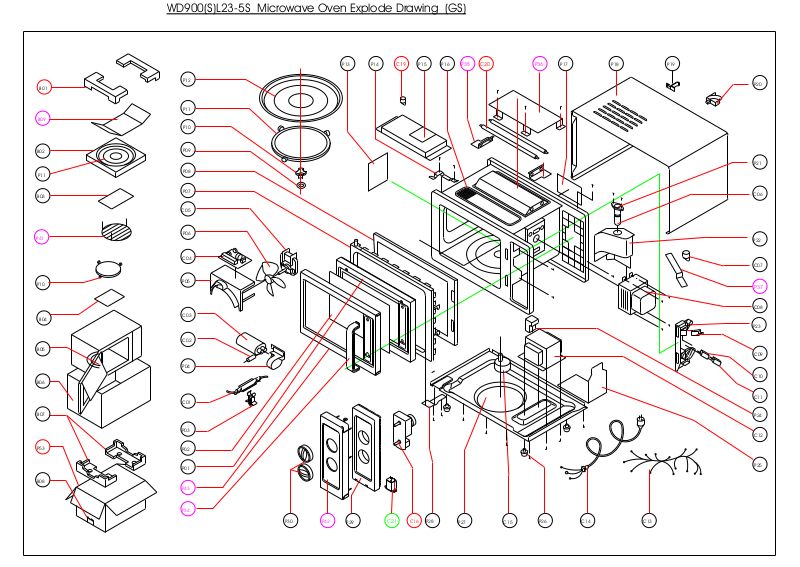

WD900(S)L23-5S Microwave Oven Explode Drawing (GS)

P41

B09

B02

B03

P10

B05

B06

B07

P53

B08

P11

B01

B04

P12

P11

P10

P09

P08

P07

C05

P06

C04

P05

C03

C02

P04

C01

P03

P02

P01

P43

P13

P14

C19

P15 P16

P35 C20

P36

P17

P18

P19

P20

P21

C06

P22

C07

P37

C08

P23

C09

C10

C11

P24

C12

P25

P34

P30

P42

P29

C21

C16

P28

P27

C15

P26

C14

C13

Art. Name Count Art. Name Count Art. Name Count

P01 door (with inlaids)

1

C01 h.v. fuse

1

B01 upper foam cushion

1

P02 door window

1

C02 h.v. diode

1

B02 turntable cushion

1

P03 fuse socket

1

C03

h.v. capacitor

1

B03 plastic bag

1

P04 capacitor holder

1

C04 wave filter

1

B04 manual

1

P05 fan shroud

1

C05 fan motor

1

B05 protection film

1

P06 fan blade

1

C06 lamp

1

B06 plastic bag

1

P07 door frame

1

C07 thermostat

1

B07 lower cushion

1

P08 choke cover

1

C08 magnetron

1

B08 carton

1

P09 washer

1

C09 microswitch

1 B0 9

cardboard

1

P10 shaft

1

C10 microswitch

1

P11 roller ring

1

C11 microswitch

1

P12 glass tray

1

C12 transformer

1

P13 splash shield

1

C13 wiring harness

1

P14 upper hinge

1

C14 power cord

1

P15

air guide

1

C15 turntable motor

1

P16 cavity

1

C16 timer

1

P17 label

1

C19 thermostat

1

P18 outer enclosure

1

C20 quartz tube

2

P19 heater holder

1

P20 power cord holder

1

P21 lamp socket

1

P22 air duct

1

P23 microswitch mounting

1

P24 shockproof rubber

1

P25 transformer bracket

1

P26 foot

4

P27 base plate

1

WD900SL23-5S Parts/Components List
