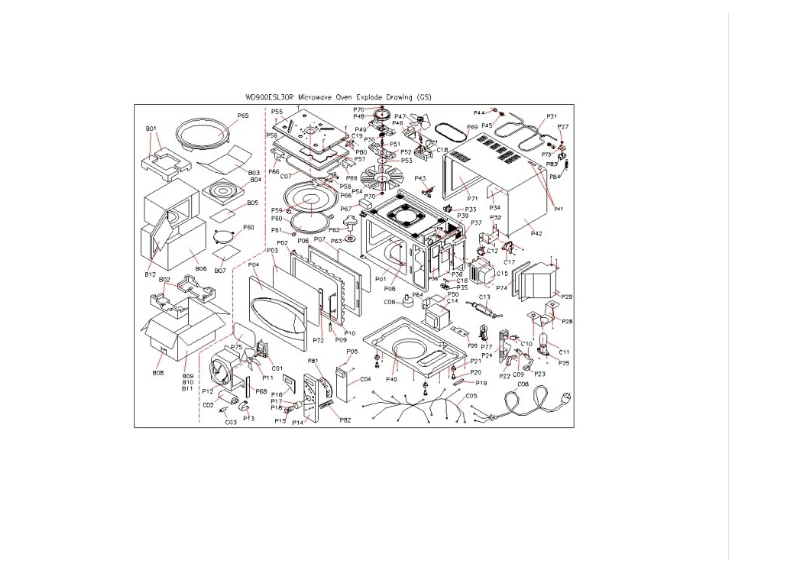

BORK WD900ESL30R Exploded view

No. Name No. Name No. Name Model

P01 Oven cavity P47 Driving fan blade C01 Fan motor SP-6309-230

P02 Door P48 Driving wheel C02 H.V.capacitor

CH85 21108 1.08

¦Ì

F 2100V

P03 Door window P49 Rotational axis C03 H.V.diode CL04-12 or HVM12(450mA)

P04 Door frame bracket (upper) C04 PC board GAL0048

P05 Control panel P50 label C05 Heater 230V 1350W

P06 Choke cover P51 Rotational axis C06 Turntable motor SS-5-240-TD etc.

P07 Heat resistant glass P52 Rotational axis C07 Thermostat KSD160

P08 Mica sheet bracket (lower) C08 Convection motor SP-6313-230

P09 Latch spring P53 Washer C09 Microswitch VP531B-OFB etc.

P10 Door latch P54 Convectional fan blade C10 Microswitch VP533B-OFB etc.

P11 Fan blade P55 Outer heat insulated C11 Oven lamp MTR 230V 20W etc.

P12 Fan shroud plate assembly C12 Thermostat KSD180

P13 Capacitor holder P56 Inner heat insulated C13 H.V.fuse T.H.V.-060T(5KV 0.75A)

P14 Outer handle plate assembly C14 Transformer GAL-900E-1

P15 Inner handle P57 Convectional fan C15 Magnetron 2M210-M1

P16 Panel window blade fibre glass C16 Reactor WXEI41-320

P17 Inlaid bar P58 Key pad

P18 Inlaid bar P59 Glass tray

P19 Sponge P60 Roller ring

P20 Foot pin P61 Ring wheel

P21 Foot P62 Shaft

P22 Inner rotary arm P63 Washer

P23 Outer rotary arm P64 Shock proof rubber

P24 Interlock support P65 Baking plate

P25 Lamp socket P66 Heater bracket

P26 Arm spring P67 Key pad

P27 Base plate P68 Sponge

P28 Lamp bracket P69 Driving belt

P29 Air duct P70 M4 skidproof nut

P30 Bearing P71 Left fiberglass

P31 Air duct baffle P72 Heat insulated

SPARE PARTS LIST FOR WD900ESL30R
