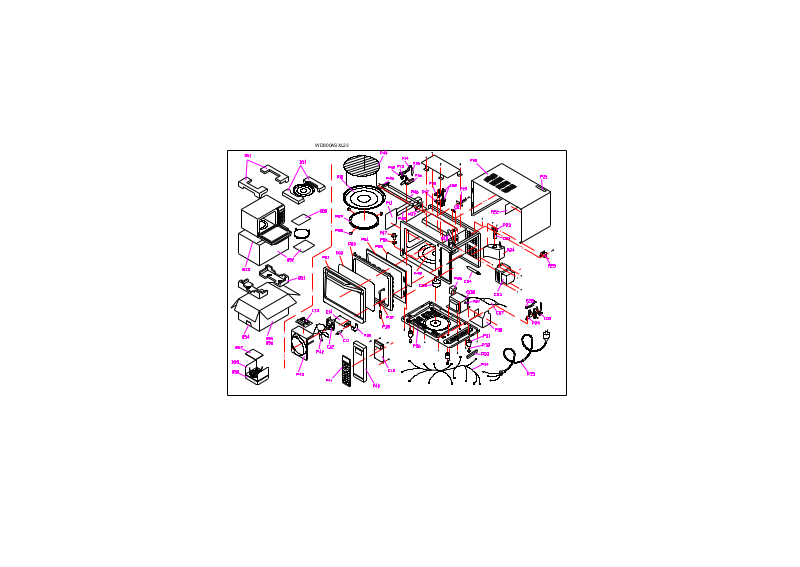

BORK WD900ASXL23 Exploded view

WD900ASXL23

No. Name No. Name No. Name

P01 door P31 foot P31 foot

P02 door window P32 foot pin P32 foot pin

P03 door frame P33 sponge P33 sponge

P04 choke cover P34 wire harness P34 wire harness

P05 inner viewing barrier P35 power cord P35 power cord

P06 washer P36 base plate P36 base plate

P07 shaft P37 door latch P37 door latch

P08 ring wheel P38 latch spring P38 latch spring

P09 roller ring P39 capacitor holder P39 capacitor holder

P10 glass tray P40 control board P40 control board

P11 mica sheet P41 touch key panel P41 touch key panel

P12 tack rivet P42 fan blade P42 fan blade

P13 bearing P43 fan shroud P43 fan shroud

P14 clasp P44 metal rack P44 metal rack

P15 spring P45 heater holder P45 heater holder

P16 upper hinge P46 heater P46 heater

P17 spring P47 heater holder P47 heater holder

P18 switch mounting P48 themostat holder P48 themostat holder

P19 catch P49 cavity case P49 cavity case

P20 outer enclosure B50 user's manual B50 user's manual

P21 nameplate B51 foam cushion B51 foam cushion

P22 insulating film B52 plastic bag B52 plastic bag

P23 lamp socket B53 plastic bag B53 plastic bag

P24 air duct B54 packing belt B54 packing belt

P25 power cord holder B55 carton B55 carton

P26 shock proof rubber B56 carton B56 carton

P27 rubber B57 sale warrant B57 sale warrant

P28 clasp B58 rack packing B58 rack packing

P29 lower hinge B59 cushion B59 cushion

P30 transformer bracket
