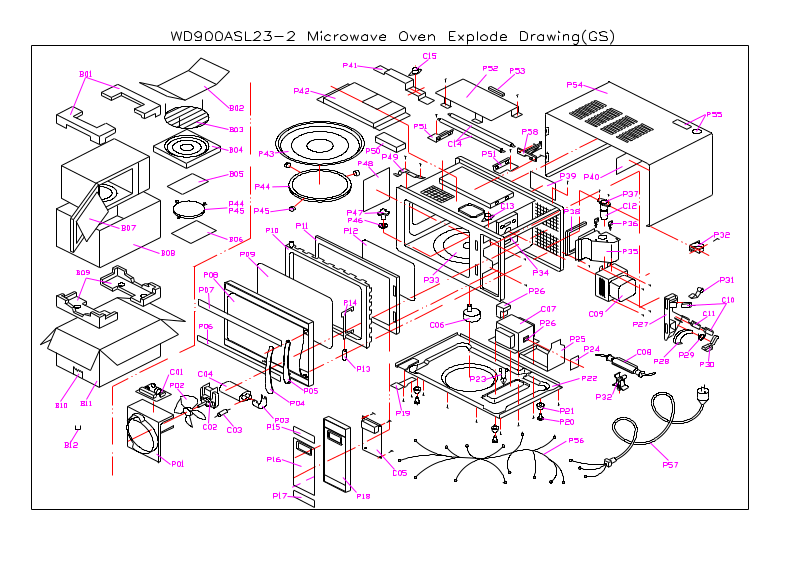

BORK WD900ASL23-2 Exploded view

Component No. Name Model Quantity

C01 Wave filter DNV0818A-0501 1

C02 Fan Motor SP-6309-230 or 2Z-9DU 1

C03 H.V.Diode HVM12(450mA) or CL04-12 1

C04 H.V.Capacitor

CH85 1.08

¦Ì

F 2100V

1

C05 PC board GAL9604N-03 or GAL9801N-02 1

C06 Turntable motor SS-5-240-TD or TYJ50-8A7 1

C07 Transformer GAL-900E-1 1

C08 H.V.Fuse T.H.V.-060T(5KV 0.75A) 1

C09 Magnetron 2M210-M1G 1

C10 Microswitch V-5230Q or VP533B-OFB 2

C11 Microswitch V-5210Q or VP531B-OFB 1

C12 Oven lamp KEI 230V 20W or MTR 230V 20W 1

C13 Thermostat KSD140 1

C14 Heater 110V 450W 2 C15 Thermostat KSD105 1

PART NO. NAME QUANTITY PART NO. NAME QUANTITY

P01 Fan shroud

1

P36 Wire fastener

2

P02

Fan blade

1

P37 Lamp socket

1

P03 Capacitor holder

1

P38 Sponge

1

P04 Outer handler

1

P39 Nameplate

1

P05 Inner handle

1

P40 Insulating film

1

P06 Inlaid bar

1

P41 Thermostat holder

1

P07 Inlaid bar

1

P42 Exhaust guide

1

P08 Door frame

1

P43 Glass tray

1

P09 Door window

1

P44 Roller ring

1

P10 Door

1

P45 Ring wheel 3

P11 Choke cover

1

P46 Washer

1

P12 Splash proof film

1

P47 Shaft

1

P13 Latch spring

1

P48 Mica sheet

1

P14 Door latch

1

P49 Upper hinge

1

P15 Inlaid bar

1

P50 Sponge

1

P16 Touch key board

1

P51 Heater holder

2

P17 Inlaid bar

1

P52 Heat proof plate

1

P18 Control panel

1

P53 Sponge

1

P19 Lower hinge

1

P54 Outer enclosure

1

P20 Foot pin

4

P55 Nameplate

2

P21 Foot

4

P56 Wire harness 1 set

P22 Base plate

1

P57 Power cord

1

P23 Wire fastener

1

P58 Spacer

1

P24 Label

1

B01 Foam cushion

2

P25 Transformer bracket

1

B02 Cardboard

1

P26 Shock proof rubber

2

B03 Grill rack

1

P27 Microswitch mounting

1

B04 Foam cushion

1

bracket B05 Owner's manual

1

P28 Inner rotary arm

1

B06 Plastic bag

1

P29 Arm spring

1

B07 Plastic film

1

P30 Outer rotary arm

1

B08 Plastic bag

1

P31 Upper rotary arm

1

B09 Foam cushion

2

P32 Power cord holder

1

B10 Packing belt

1

P33 Cavity

1

B11 Carton

1

P34 Stay bar

1

B12 Packing belt

1

P35 Air duct

1
