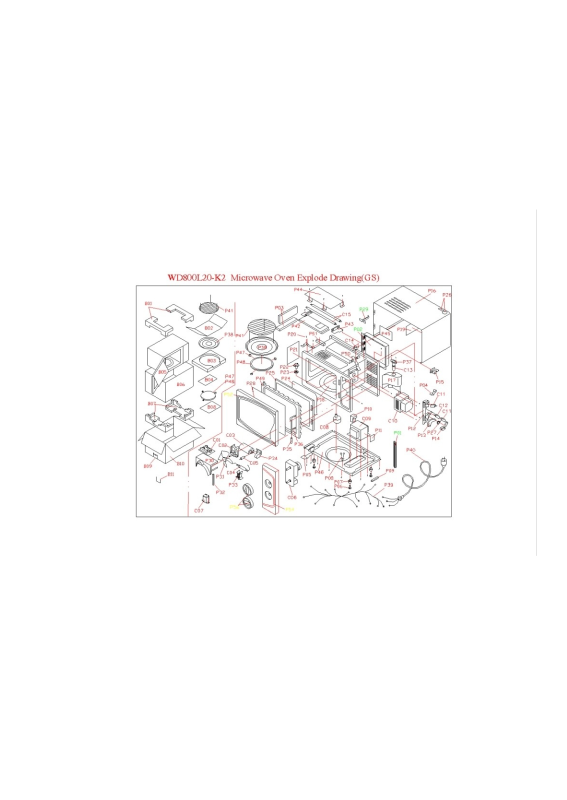

BORK WD800L20-K2 Exploded view

WD800(S)L20-K2 Microwave Oven Components List (GS)

Component No. Name Model Quantity

C01 Noise filter DNV0818A-0500,0501,0600 1

C02 H.V.Capacitor

CH85 1.0

¦Ì

F 2100V

1

C03 Fan Motor SP-6309-230 or 2Z-9DU 1

C04 H.V.Diode HVM12(450mA) or CL01-12 1

C05 PC board GAL9909N-11 1

C06 Turntable motor SS-5-240-TD 1

C07 H.V.Fuse T.H.V.-060T(5KV 0.7A) 1

C08 Transformer GAL-700E-1S 1

C09 Magnetron 2M210-M1G or OM75S(31) 1

C10 Microswitch VP533B-OFB 2

C11 Microswitch VP531B-OFB 1

C12 Thermostat KSD140 1

C13 Oven lamp KEI 230V 20W or MTR 230V 20W 1

C14 Thermostat KSD105 1
C15 Heater 110V 450W 2

WD800(S)L20-K2 Microwave Oven Parts List(GS)

PART NO. NAME QUANTITY PART NO. NAME QUANTITY

P01 Oven cavity

1

P38 Nameplate

1

P02

Outer enclosure

1

P39 Thermostat bracket

1

P03 Door window

1

P40 Heater holder

2

P04 Door frame

1

P41 Sponge

1

P05 Choke cover

1

P42 Heat proof plate

1

P06 Door

1

P43 Sponge

1

P07 Door latch

1

P44 Sponge

1

P08 Latch spring

1

P45 Sponge 1

P09 Inner viewing barrier

1

P46 Exhaust guide 1

P10 Upper hinge

1

P47 Mica sheet

1

P11 Lower hinge

1

P48 Washer

1

P12 Bottom enclosure

1

P49 Shaft

1

P13 Door window fastener

1

P50 Ring wheel

3

P14 Knob

1

P51 Roller ring

1

P15 Control panel

1

P52 Glass tray

1

P17 Capacitor holder

1

P53 Metal rack 1

P18 Fan blade

1

P54 Wire harness 1 set

P19 Sponge

1

P55 Power cord 1

P20 Fan shroud

1

P56 Inlaid bar 1

P21 Microswitch mounting

1

P57 Inlaid bar 1

bracket P58 Door release button 1

P22 Inner rotary arm

1

P59 Viewing barrier

1

P23 Outer rotary arm

1

P60 Inner handle

1

P24 Upper rotary arm

1

P61 Outer handle

1

P25 Power cord holder 2 P62 Label

1

P26 Foot 4 B01 Foam cushion

2

P27 Foot pin

4

B02 Plastic bag

2

P28 Sponge

1

B03 Owner's manual

1

P29 H.V.fuse holder

1

B04 Grill rack holder

1

P30 Arm spring

1

B05 Carton

1

P31 Label

1

B06 Plastic film

1

P32 Shock proof rubber

1

B07 Foam cushion

1

P33 Space holder

1

B08 Foam cushion

2

P34 Shock proof rubber

1

B09 Packing belt

1

P35 Air duct

1

B10 Carton

1

P36 Lamp socket

1

B11 Wrapping nail

12

P37 Insulating film

1
