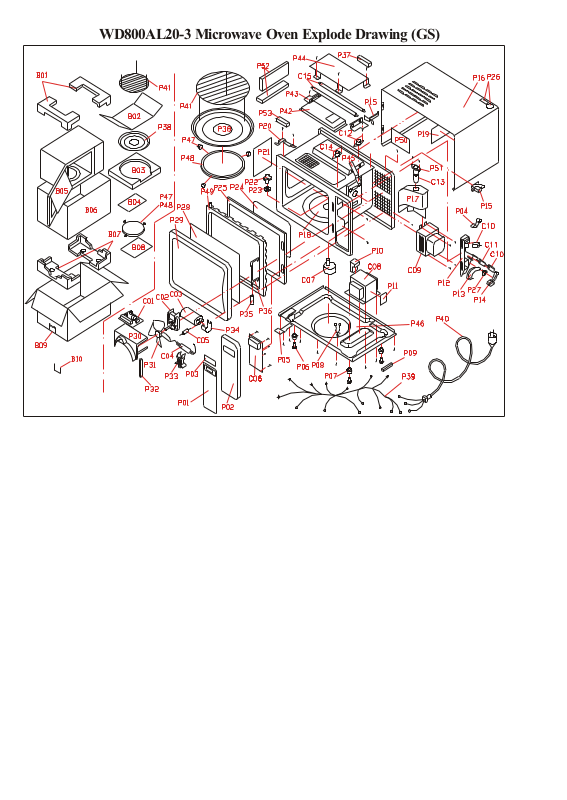

WD800AL20-3 Microwave Oven Explode Drawing (GS)
No. Name Qty No. Name Qty
P01 Touch key board 1 P32 Sponge 1
P02 Control panel 1 P33 H.V.Fuse holder 1
P03 Panel window 1 P34 Capacitor holder 1
P04 Upper rotary arm 1 P35 Latch spring 1
P05 Lower hinge 1 P36 Door latch 1
P06 Foot pin 4 P37 Sponge 1
P07 Foot 4 P38 Glass tray 1
P08 Wire fastener 1 P39 Wire harness 1 set
P09 Sponge 1 P40 Power cord 1
P10 Shock proof rubber 1 P41 Metal rack 1
P11 Label 1 P42 Exhaust guide 1
P12 Microswitch mounting 1 P43 Heater holder 2
bracket P44 Heat proof plate 1
P13 Inner rotary arm 1 P45 Thermostat holder 1
P14 Outer rotary arm 1 P46 Bottom enclosure 1
P15 Power cord holder 2 P47 Ring wheel 3
P16 Outer enclosure 1 P48 Roller ring 1
P17 Air duct 1 P49 Door 1
P18 Oven cavity 1 P50 Nameplate 1
P19 Insulating film 1 P51 Lamp socket 1
P20 Upper hinge 1 P52 Sponge 2
P21 Mica sheet 1 P53 Sponge 1
P22 Shaft 1 B01 Foam cushion 2
P23 Washer 1 B02 Foam cushion 2
P24 Inner viewing barrier 1 B03 Owner's manual 1
P25 Choke cover 1 B04 Plastic bag 1
P26 Nameplate 2 B05 Plastic film 1
P27 Arm spring 1 B06 Carton 1
P28 Door window 1 B07 Foam cushion 2
P29 Door frame 1 B08 Carton 1
P30 Fan shroud 1 B09 Packing belt 1
P31 Fan blade 1 B10 Wrapping nail 12
No. Name Model Qty
C01 Noise filter DNV0818A-0500 1
C02 Fan Motor SP-6309-230 1
C03 H.V.Capacitor CH85 1.0?F 2100V 1
C04 H.V.Fuse T.H.V.-060T(5KV 0.75A) 1
C05 H.V.Diode CL01-12 or HVM12(450mA) 1
C06 PC board GAL9604N-03 1
C07 Turntable motor SS-5-240-TD 1
C08 Transformer GAL-700E-1 1
C09 Magnetron 2M210-M1G 1
C10 Microswitch V-5230Q or VP533B-OFB 2
C11 Microswitch V-5210Q or VP531B-OFB 1
C12 Thermostat KSD140 1
C13 Oven lamp KEI 230V 20W or MTR 230V 20W 1
C14 Thermostat KSD105 1
C15 Heater 110V 450W 2
