BORK WD700L17-2, WD700SL17-2 Exploded view

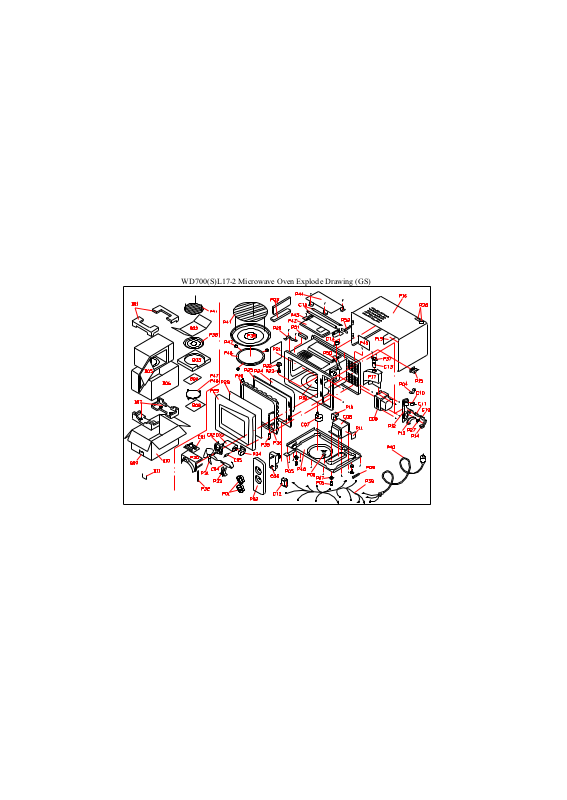

WD700(S)L17-2 Microwave Oven Explode Drawing (GS)

No. Name No. Name No. Name Model

P01 Knob P32 Sponge C01 Wave filter DNV0818A-0500
P02 Control panel P33 H.V.Fuse holder C02 Fan Motor SP-6309-230
P03 Sponge P34 Capacitor holder C03 H.V.Capacitor

CH85 1.0ì F 2100V

P04 Upper rotary arm P35 Latch spring C04 H.V.Fuse T.H.V.-060T(5KV 0.7A)
P05 Lower hinge P36 Door latch C05 H.V.Diode CL01-12 or HVM12(450mA)
P06 Foot pin P37 Lamp socket C06 Timer KNH30MCA02E
P07 Foot P38 Glass tray C07 Turntable motor SS-5-240-TD
P08 Wire fastener P39 Wire harness C08 Transformer GAL-700E-1S
P09 Sponge P40 Power cord C09 Magnetron 2M210-M1G or 2M253K-N
P10 Shock proof rubber P41 Metal rack C10 Microswitch V-5230Q or VP533B-OFB
P11 Label P42 Exhaust guide C11 Microswitch V-5210Q or VP531B-OFB
P12 Microswitch mounting P43 Heater holder C12 Relay JQX-13F

bracket P44 Heat proof plate C13 Oven lamp KEI 230V 20W or MTR 230V 20W
P13 Inner rotary arm P45 Nameplate C14 Thermostat KSD140
P14 Outer rotary arm P46 Base plate C15 Heater 110V 450W
P15 Power cord holder P47 Ring wheel
P16 Outer enclosure P48 Roller ring
P17 Air duct P49 Door
P18 Oven cavity P50 Thermostat bracket
P19 Insulating film P51 Sponge
P20 Upper hinge P52 Spacer
P21 Mica sheet B01 Foam cushion
P22 Shaft B02 Cardboard
P23 Washer B03 Foam cushion
P24 Splash proof film B04 Owner's manual
P25 Choke cover B05 Plastic film
P26 Nameplate B06 Plastic bag
P27 Arm spring B07 Foam cushion
P28 Door window B08 Plastic bag
P29 Door frame B09 Packing belt
P30 Fan shroud B10 Carton
P31 Fan blade B11 Wrapping nail

SPARE PARTS LIST WD800L20-2
