W-1223 2EW
N Name N Name
A01 GRILL CAVITY A45 MIDDLE SPONGE GASKET
A02 DOOR BODY ASSEMBLING UNIT A46 SMALL SPONGE GASKET
A03 WINDOW BOARD A47 NAMEPLATE
A04 FACE FRAME A48 SPLASH-PROOF BOARD
A05 HANDLE A49 QUAKE-PROOF BOARD
A06 DOOR'S HOOK A50 PROTECT SLEEVE
A07 DOOR'S HOOK SPRING A60 WIRE SUPPORTER
A08 PROTECTION BORAD
A09 GUARD FRAME W01 CONTROLLER
A10 SMALL FACE BOARD W02 W02
A11 TRANSPARENT LENS W03 TRANSFORMERS
A12 FUNCTION KEY-PRESS W04 MICRO-SWITCHES A
A13 BUTTERFLY KEY-PRESS W05 MICRO-SWITCHES B
A14 KEY-PRESS BOARD W06 LAMP
A15 FACE BOARD W07 LAMP HOLDER
A16 START/STOP KEY-PRESS W08 HIGH VOLTAGE CAPACITOR
A17 ENCODER SWITH W09 HIGH VOLTAGE DIODES
A18 DOWN BEARING W10 DIODES
A19 OVEN LEG W11 FAN MOTOR
A20 PIN W12 NOISE FILTER
A21 BASE BOARD COVER W13 FUSE
A22 BASE BOARD W14 MAGNETRON
A23 AIR INLET COVER W15 THERMOSTAT A
A24 SWITCH STAND W16 ELECTRIC WIRE
A25 SMALL REVOLVING ARM W17 QUARTZ TUBE
A26 MIDDLE REVOLVING ARM
A27 BIG REVOLVING ARM B2 SELF-DRILL LOCKING SCREW 3X8VBTTHZn
A28 RETURNING SPRING B4 SELF-DRILL SCREW 4X5PBHC
A29 WIND-BLOCK BOARD B5 S/S SCREW 4X6TT
A30 THERMOSTAT HOLDER B6 SELF-DRILL SCREW 4X8TCTTHC
A31 CAPACITY CLAMP B7 SELF-DRILL SCREW CONJOINED UNIT 4 X8PWCTHC
A32 FAN'S STAND B8 SELF-DRILL LOCKING SCREW 4X8PWCTTHC
A33 FAN'S VANE B9 SELF-DRILL LOCKING SCREW ASSEMBLING UNIT
A34 WIRE BUCKLE B10 LOCKING SCREW CONJOINED UNIT 5X10HW
A35 INSULATED FILM B11 FLUNGE NUT M4HW
A36 THERMAL INSULATED BOARD B12 FLUNGE NUT M5HW
A37 MANTLE B13 WASHER Ô4
A38 UP BEARING B14 SELF-DRILL SCREW 4X8PWHC
A39 QUARTZ TUBE HOLDER B15 SELF-DRILL LOCKING SCREW 4X10TWCTTHC
A40 CUSHION RING B16 S/S SCREW 4X8PWTHC
A41 CONNECTOR B17 S/S NUT M4
A42 WEEL B18 S/S SPRING WASHER M4
A43 WHEEL'S STAND B19 WASHER Ô4
A44 GASS PLATE B20 SPECIAL SCREW

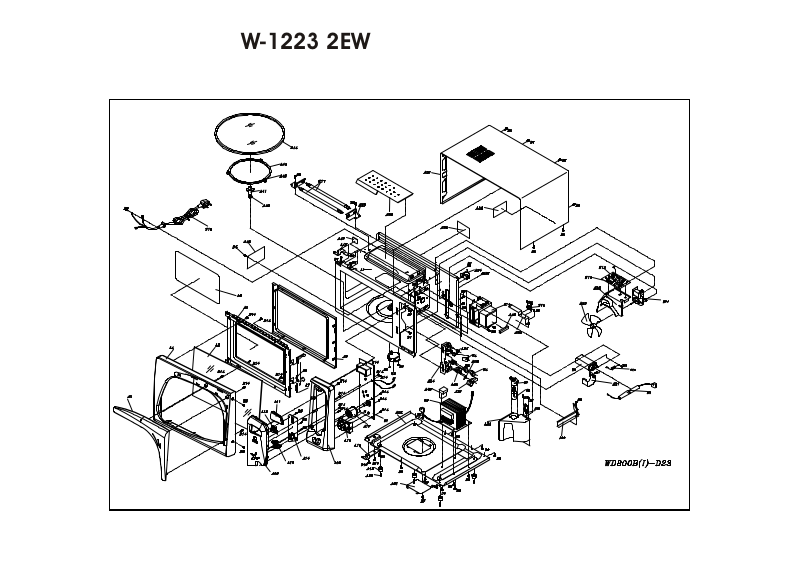

WD800BI-D23 MICROWAVE DISMOUNTING EXPLODED VIEW
SPECIFICATION
PARTS LIST
MICROWAVE OVEN
230V 50Hz
TECHNICAL DATA
Model reference W-1223 2EW
Functions Grill
Oven type WD800B-D23
Colour White
Cavity Volume 23liter
Supply voltage 230V 50Hz
Frequency 2450 MHz±50 MHz
Rated Power Consumption (after 15mins.)
Microwave 1280W±10%
Microwave output 800W
Grill 1200W+5/-10%
Current Rate (after 15mins.)
Microwave 5.60A±10%
Grill 5.20A+5/-10%
Safety devices
Thermal protector for magnetron/ cavity fire open at 120ºC
Fuse Ceramic type 8A
Primary interlock switch
Second interlock switch
Monitor interlock switch
Control Digital
Unit dimensions 510 x 382 x303
Oven cavity size 330 x 330 x 212
Net Weight 17.5Kg
Parts No
Pos.No D esc ription
A04 1 Cabinet
B03 2 Special Screw
B05 3 Screw
A31 4 Insulated Film
A32 5 Glass Tray
A33 6 Roller
A35 7 Turntable Shaft
A36 8 Special Washer
A37 9 Splash-Proof board
B11 10 Special Screw
B06 11 Screw
A38 12 Up Bearing
A43 13 Heater Support
B04 14 Screw
W0 2 15 Gear Motor
B01 16 Screw
B04 17 Screw
B07 18 Screw
A30 19 Wire Buckle
A02 20 Grill Cavity
W24 21 H eater
A44 22 Adiabatic Cover
Part No
Pos.No Description
W23 1 Noise Filter
W15 2 Fuse
W13 3 Blower Motor
A27 4 Space Partition
A28 5 Fan
W11 6 Diode Ass’y
W12 7 HV Fuse
W10 8 Capacitor
A29 9 Capacitor Band
W20 10 Power supply Cord
A26 11 Duct
B04 12 Screw
W08 13 Lamp
W09 14 Lamp Socket
W01 15 Magnetron
W18 16 Thermostat
B06 17 Screw
A24 18 Small Revolving Arm
W04 19 Primary Interlock Switch
W05 20 Door Sensing Switch
W04 21 Interlock Monitor Switch
A22 22 Big Revolving Arm
A25 23 Returning Spring
A23 24 Middle Revolving Arm
A21 25 Switch Holder
B02 26 Screw
A41 27 Small Sponge Gasket
A42 28 Thermostat Support
Part No
Pos.No Description
A20 1 Quake-Proof Cushion
W03 2 Transformer
A19 3 Base Board
B02 4 Special Screw
A19 5 Gear Motor Cover
B07 6 Special Screw
B04 7 Special Screw
A18 8 Pin
A17 9 Oven leg
A16 10 Bottom Hinge
B09 11 Nut
B02 12 Screw
Part No
Pos.No Description
A10 1 Choke Dielectric
A09 2 Protection Film
B04 3 Screw
A03 4 Door Assembly Complete
A07 5 Door Latch
A08 6 Spring
A06 7 Window Board
A05 8 Door Cove
B06 9 Screw
A50 10
Small Handle Board
Part No
Pos.No Description
W07 1 CPU Board
A11 2 Face Board
A52 3
Small Face Board
A57 4 Combination Button
A56 5 Stop button
A53 6 Lens
A58 7 Button Board
A55 8 Button
A54 9 Encoder Switch
B14 10 Screw
