Page 1

Bedienungsanleitung

Geschirrspüler

Seite 2

instruction book

dishwasher

page 23

BVW 95

Page 2

Safety instructions 24 Disposal 24 Economical and ecological dishwashing 24 Installation instructions 25

Building-in 25 Levelling 25 Fixing to adjacent units 25 Water supply connections 25 Water inlet hose with safety valve 25 Water outlet hose connection 26 Electrical connection 26

Description of the appliance 27 The control panel 28

Audible signals 29 Prior to using for the first time 30

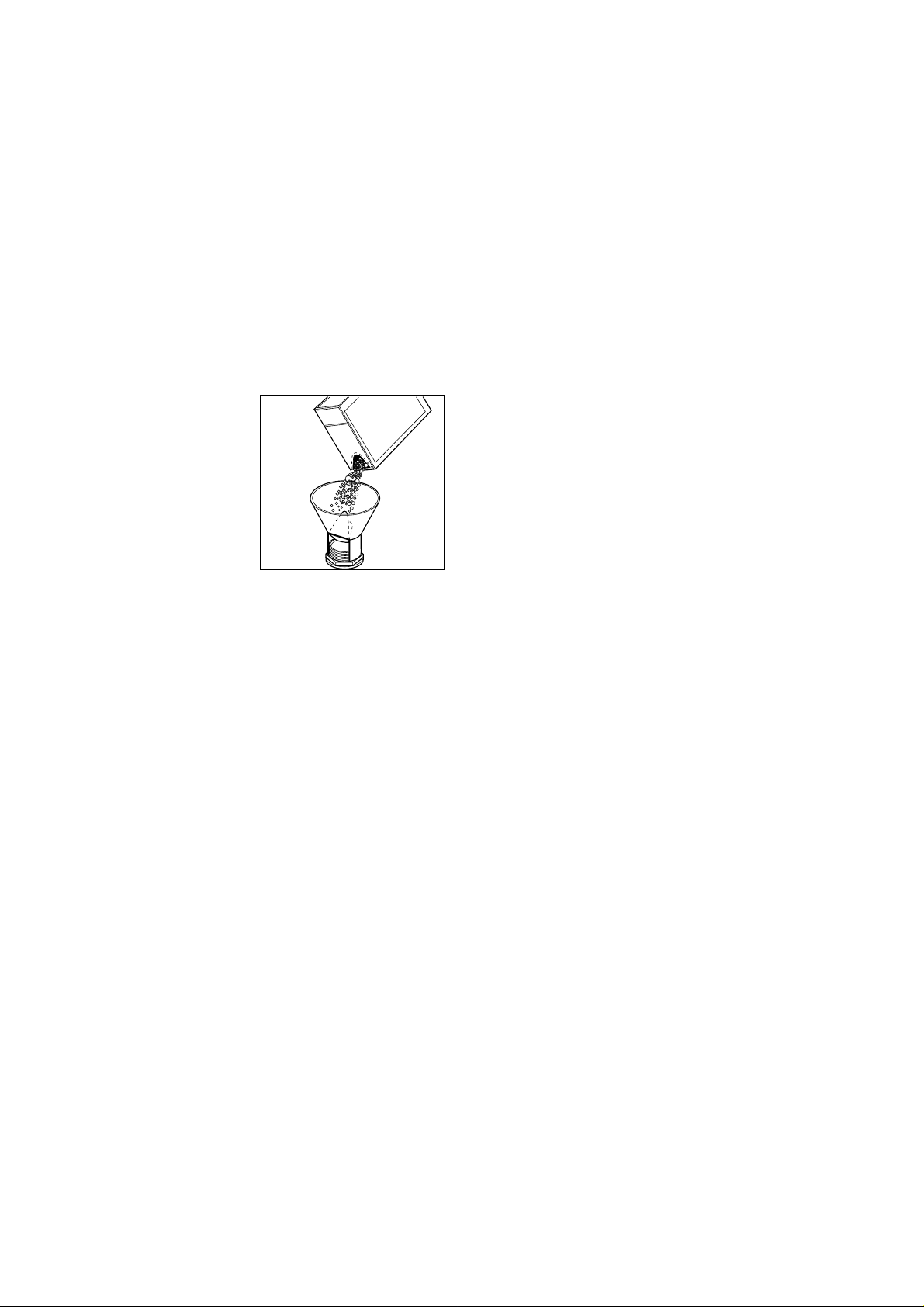

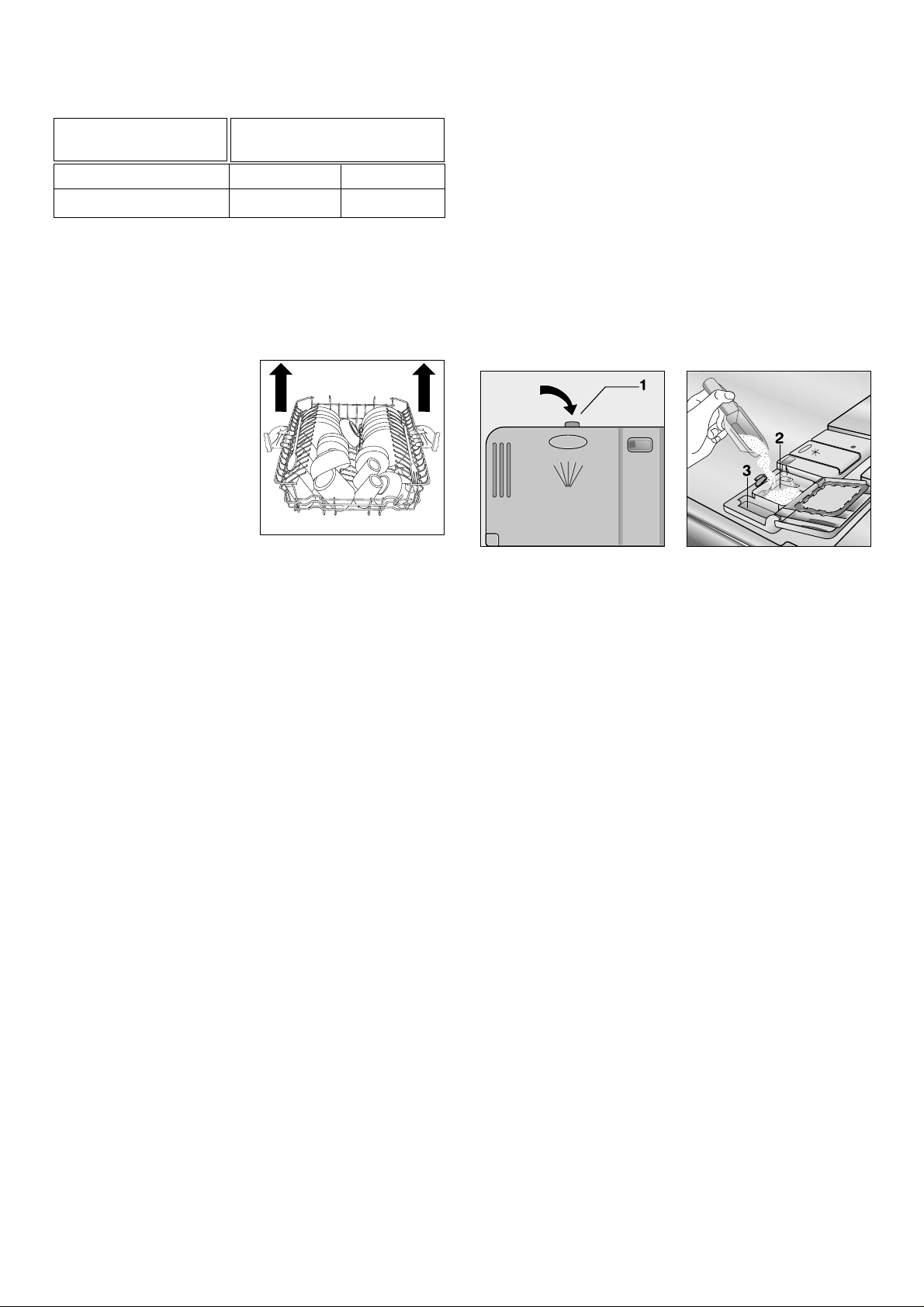

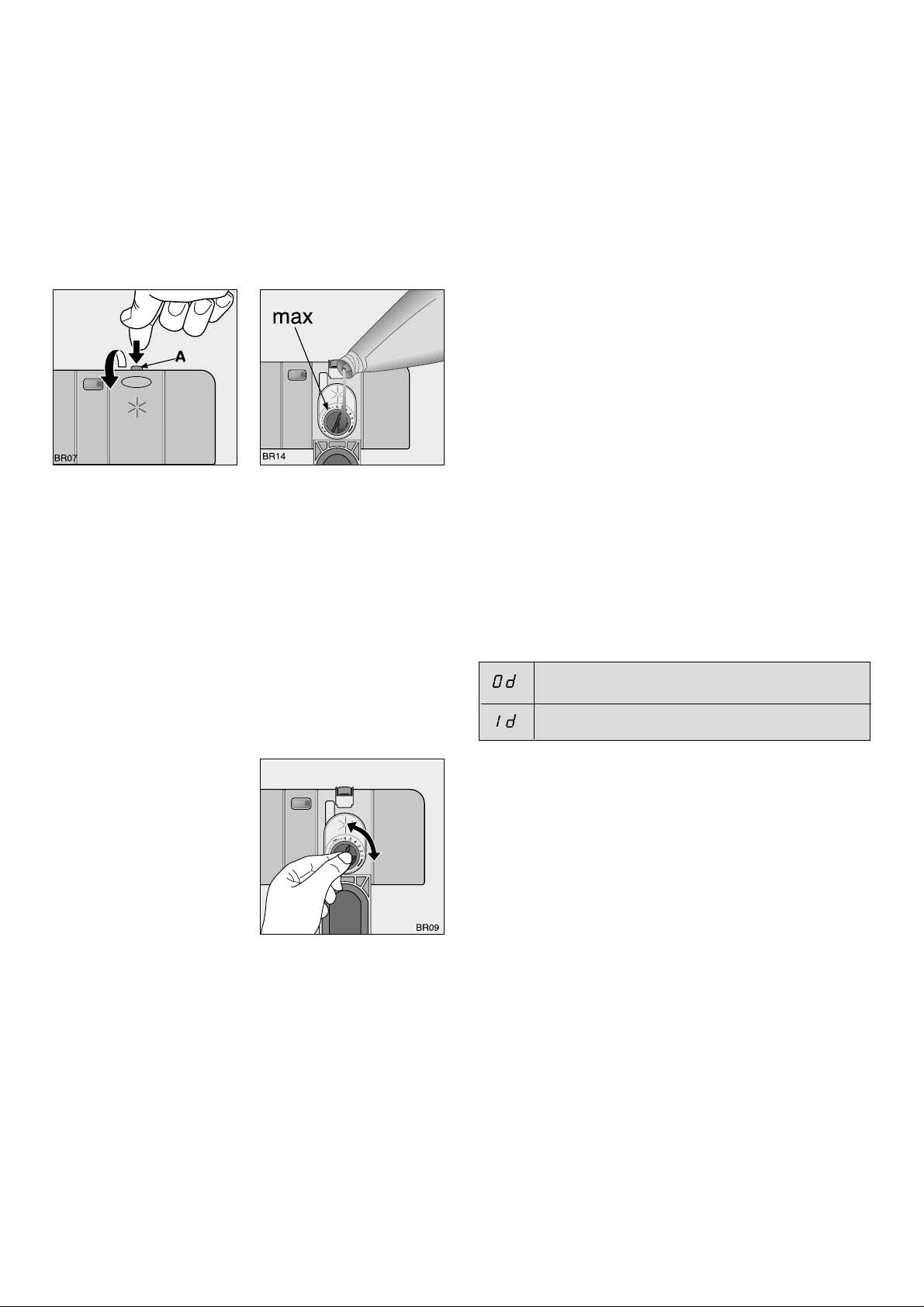

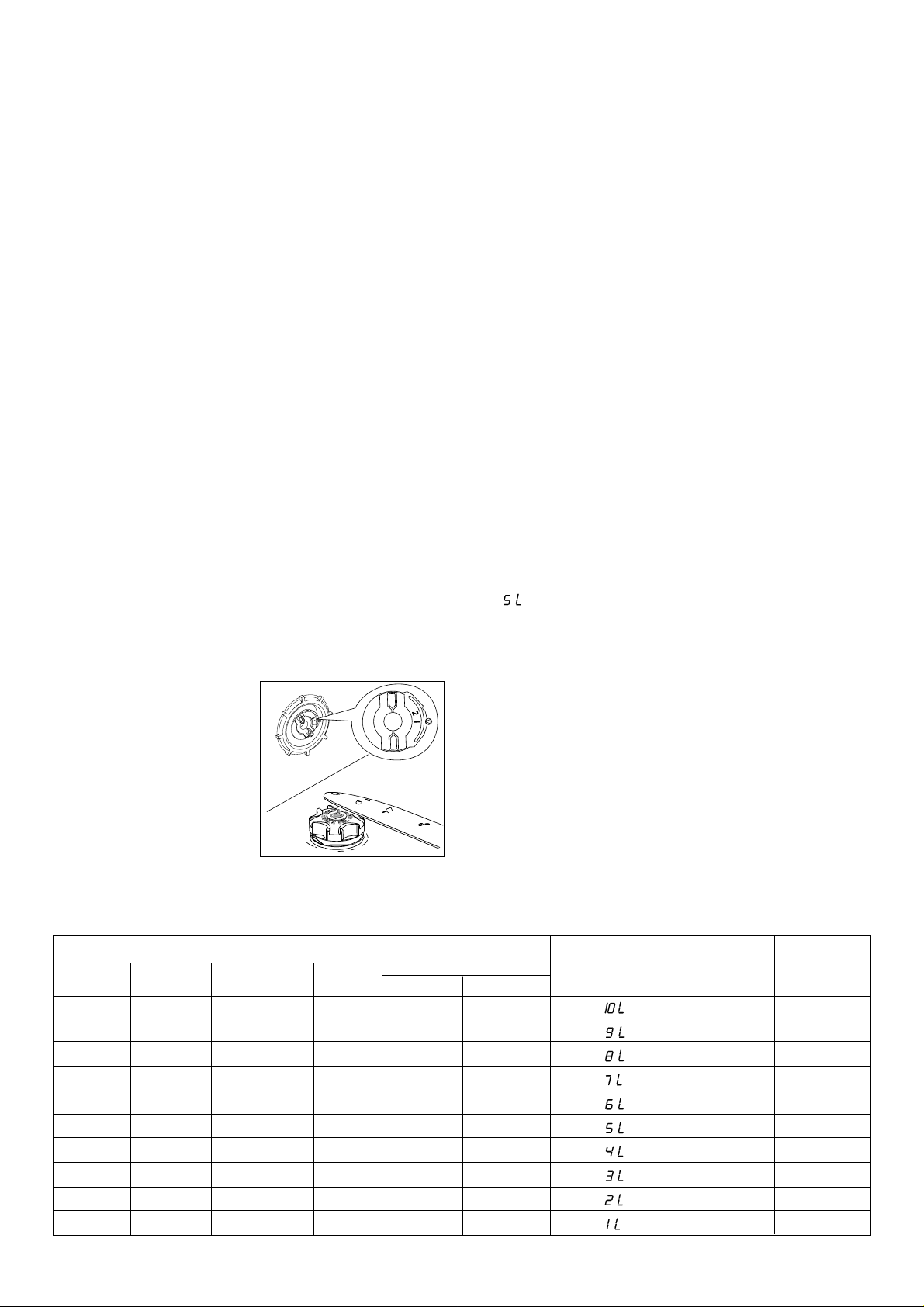

Setting the water softener 30 Filling with dishwasher salt 31 Rinse aid 32

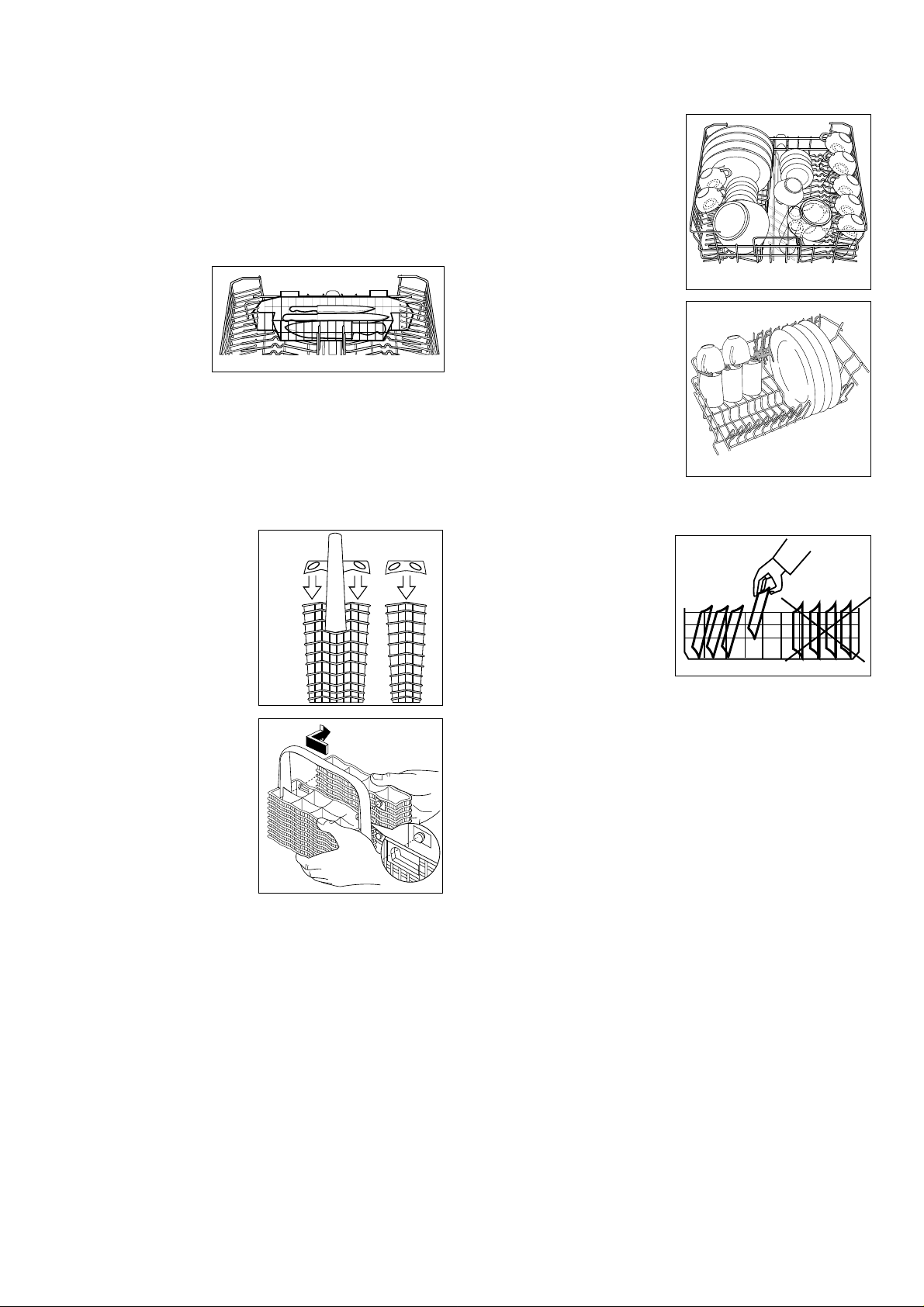

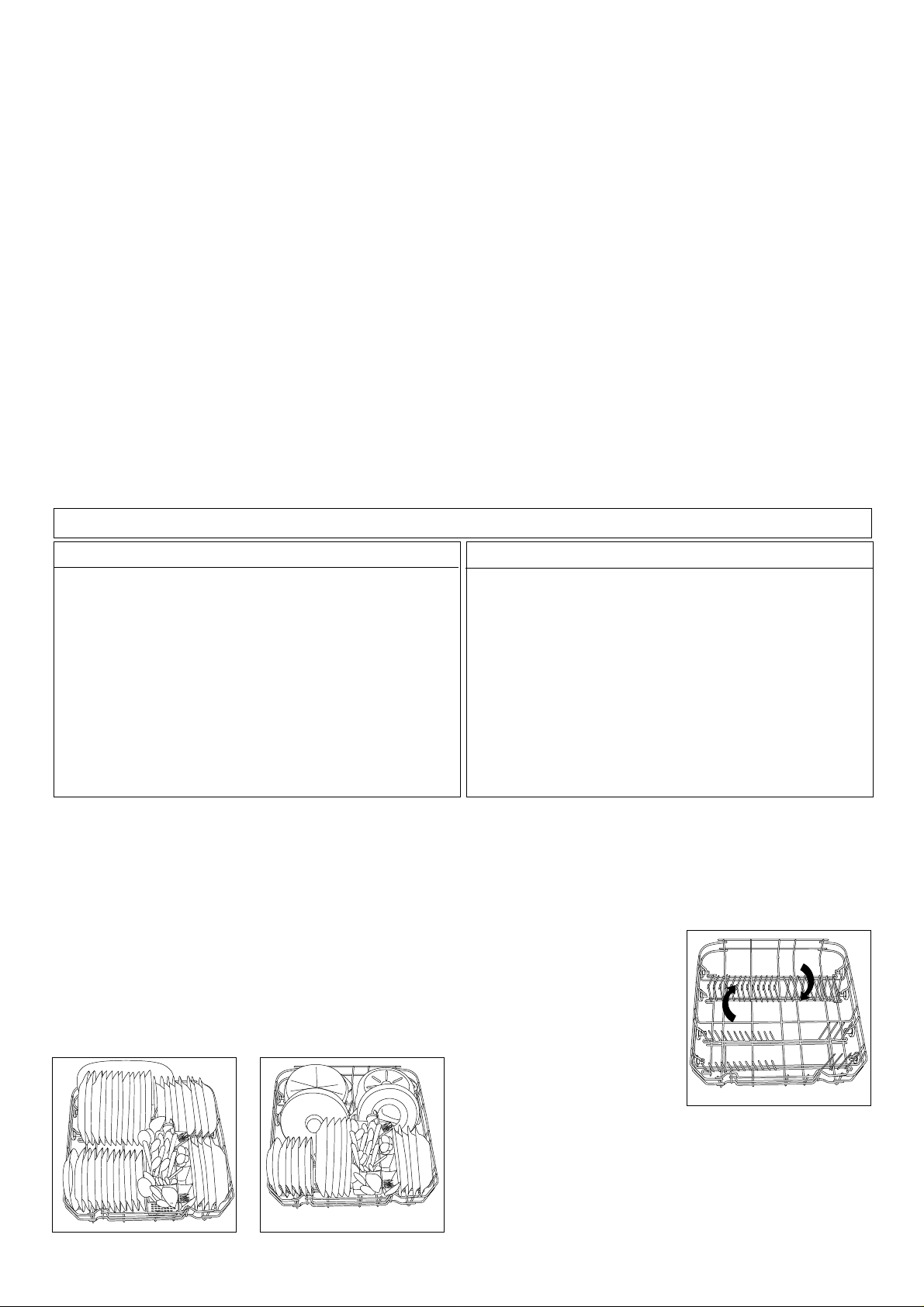

In daily use 33 Loading cutlery and dishes 33 The lower basket 33 The cutlery basket 34 Removable knife basket 34 The upper basket 34 Adjusting the height of the upper basket 35 Use of detergent 35

Different kinds of detergent 36 Washing programmes 37 Starting a washing programme 38

Maintenance and cleaning 40

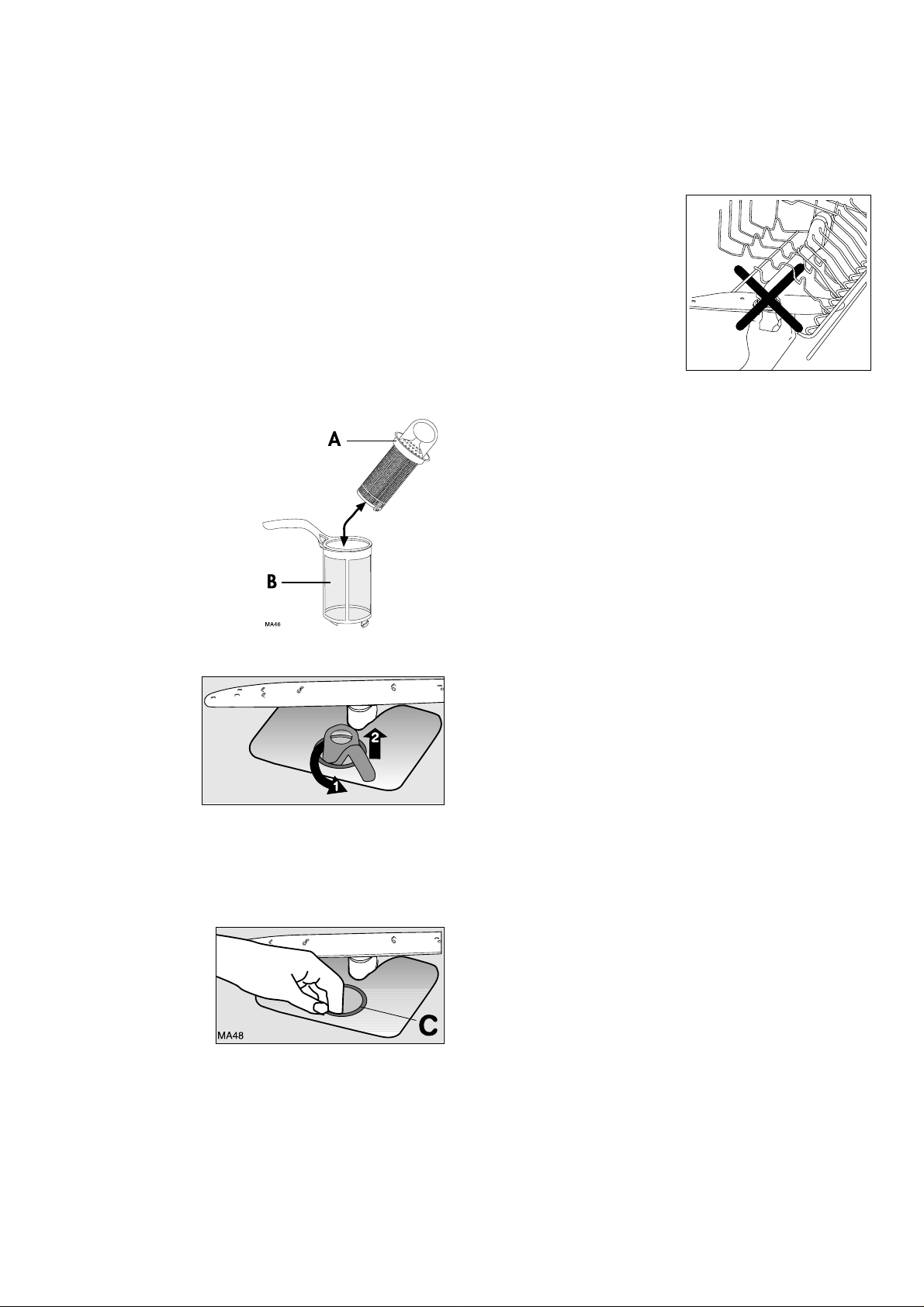

Cleaning the filters 40 Prolonged periods of non-operation 40 Frost precautions 40 Moving the machine 40

What to do, when... 41 Service and spare parts 42

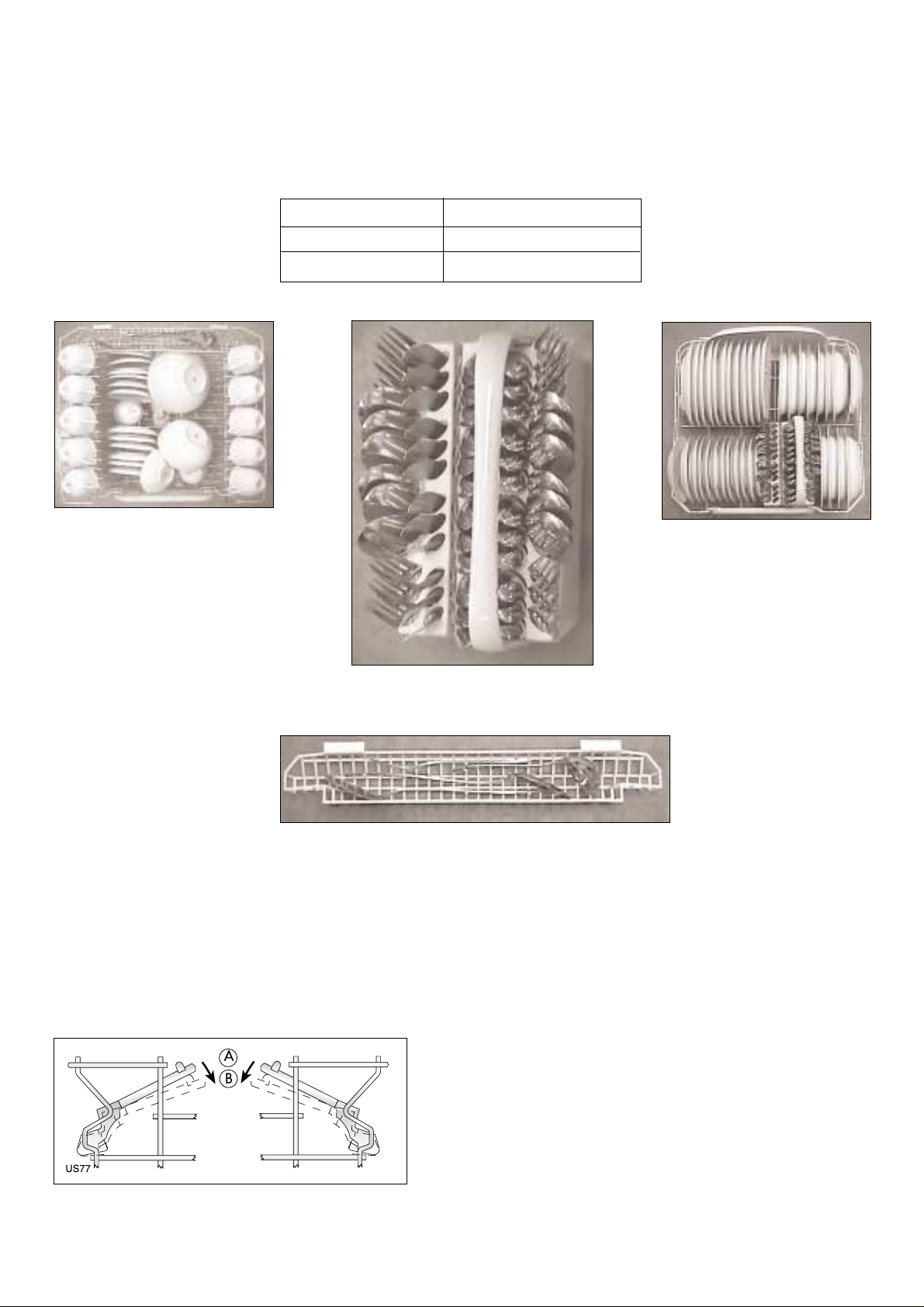

Hints for test centres 43

Contents

Dimensions Width 59.6 cm

Height 86.8 - 92.8 cm Max depth 55.5 cm Max depth with open door 119 cm

Electrical connection: Information on the electrical connection is given on the rating plate on the Voltage inner edge of the dishwasher’s door. Overall power Fuse

Water supply pressure Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

Capacity 12 place settings

Technical specifications

This appliance complies with the following E.E.C. Directives:

- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Page 3

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

Installation

● Check your dishwasher for any transport damage. Never

connect a damaged machine. If your dishwasher is damaged, you should contact your supplier.

● For safety reasons it is dangerous to alter the specifications

or attempt to modify this product in any way.

● Any electrical and plumbing work required to install this

appliance should be carried out by a qualified and competent person.

● Care must be taken to ensure that the appliance does not

stand on the electrical supply cable.

● The sides of the dishwasher must never be drilled to

prevent damage to hydraulic components.

Child safety

● This appliance is designed to be operated by adults.

● Children should not be allowed to tamper with the controls

or play with the product.

● Packaging parts may be dangerous for children, who could

even be suffocated! You should therefore keep all packaging well away from children.

● The water in your dishwasher is not for drinking. Detergent

residues may still be present in your machine. Keep children well away from your dishwasher when the door is open.

● Keep all detergents in a safe place out of children's reach.

Your dishwasher in day-to-day use

● Items that are contaminated by petrol, paint, steel or iron

debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

● Under no circumstances should you open the door whilst

the appliance is in operation, especially during the washing phase, hot water may escape. However, if the door is opened, a safety device ensures that the machine stops.

● Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

● Long bladed knives stored in an upright position are a

potential hazard.

● Long and/or sharp items of cutlery such as carving knives

must be positioned horizontally in the upper basket.

● Ensure that the door of the dishwasher is always closed

when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

● When finishing loading or unloading close the door, as an

open door can be a hazard.

● Do not sit or stand on the open door.

● Isolate the appliance from the power supply and turn off the

water supply after use.

● This product should be serviced by an authorised service

engineer, and only genuine spare parts should be used.

● Under no circumstances should you attempt to repair the

machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Disposal

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material. >PS< for polystyrene, e.g. padding material (always CFC-

free).

>POM< for polyoxymethylene, e.g. plastic clips. Cardboard packaging is manufactured from recycled paper

and should be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of.

Warning! Children at play could lock themselves in your dishwasher or otherwise endanger their lives. Therefore cut off the power supply cable and make the door closing device unusable to prevent children from being trapped inside.

For the disposing of the appliance please take it to a recycling centre or to your dealer who may, for a small contribution to the costs, dispose it for you.

Economical and ecological dishwashing

● Ensure that the water softener is correctly adjusted.

● Do not pre-wash under running water.

● Select the wash programme to suit the nature and degree of

the soiling on the dishes.

● Do not use more detergent, dishwasher salt and rinse aid

than is recommended in these operating instructions and by the manufacturer of the respective product.

Safety instructions

Page 4

Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person.

Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a

drain.

Building-in

This dishwasher is designed to be fitted under a kitchen counter or worksurface.

Attention!

Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.

No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.

The dishwasher incorporates adjustable feet to allow the adjustment of the height.

During all operations that involve accessibility to internal components the dishwasher has to be unplugged.

When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed.

Levelling

Good levelling is essential for correct closure and sealing of the door.

When the appliance is correctly levelled, the door will not catch on either side of the cabinet.

If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Fixing to the adjacent units

The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall).

Water supply connections

This dishwasher may be fed with either hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply. A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes a lot.

For making the connection itself, the coupling nut fitted to the machine’s supply hose is designed to screw onto either a 3/4" inch gas thread spout or to a purpose made quick-coupling tap such as the Press-block.

The water pressure must be within the limits given in the "Technical specifications". Your local Water Authority will advise you on the average mains pressure in your area.

The water inlet hose must not be kinked, crushed, or entangled when it is being connected up.

The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut. The locknut must be correctly fitted

to avoid water leaks. (Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut. In this case, this kind of facility is not possible).

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose.

Do not use, for connection, old hoses which have been used in another appliance.

The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations.

Water inlet hose with safety valve

After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water.

Please take care when installing the water inlet hose:

- The electrical cable for the safety valve is in the doublewalled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.

- If water inlet hose or the safety valve is damaged, remove the mains plug immediately.

- Awater inlet hose with safety valve must only be replaced by a specialist or by the Service Force Centre.

- Place the water inlet hose in such a way that it is never higher than the bottom edge of the safety valve.

Installation instructions

Page 5

Water outlet hose connection

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it to the underside of the work surface. This will prevent waste water from the sink running into the machine.

2. Hooked over the edge of the sink using the special curved plastic guide (if provided with the machine).

3. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.

The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine.

If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

Attention!

Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We advise you therefore to remove it.

Electrical connection

Information concerning the electrical connection is given on the rating plate on the edge of the dishwasher’s door.

Before plugging the appliance into the wall socket, make sure that:

1. The mains voltage and current rating at the site of installation match the nominal voltage and current rating given on the rating plate.

2. The meter, fuses, mains power supply and wall socket can all take the maximum load required. Make sure that the socket and plug are compatible without having to use any type of adaptor. If necessary, have the domestic wiring system socket replaced.

To isolate the dishwasher from mains, remove the mains plug.

Important! The plug must still be accessible after the appliance has been installed.

In case that the electrical cable has to be replaced, please contact your local Service Force Centre.

The appliance should not be connected to the electrical supply by means of an extension cable.

Safety standards require the appliance to be earthed. The manufacture accepts no liability for failure to observe the above safety precautions.

CS18

Page 6

Description of the appliance

1. Upper basket stop

2. Water hardness dial

3. Salt container

4. Detergent dispenser

5. Control panel

6. Rating plate

7. Rinse aid dispenser

8. Filters

9. Lower spray arm

10. Upper spray arm

11. Upper basket

IN153

Page 7

Function buttons: in addition to the selection of the

washing programme and the "half load", the following functions can also be set with the help of these buttons:

- water softener setting,

- deactivation/activation of the rinse aid dispenser,

- deactivation/activation of the audible signals.

"Programme selection" buttons: allow the selection

of the desired washing programme (see "Washing programmes" chart).

The digital display indicates:

- the level of hardness to which the water softener is set

- if the audible signals are activated/deactivated,

- if the rinse aid dispenser is activated/deactivated,

- The number corresponding to the selected washing programme,

- the delay start,

- the approximative remaining time of the running programme,

- fault codes concerning malfunction of the dishwasher.

"Delay start" button: this option allows the start of the

programme to be delayed from 1 to 19 hours.

"Half load" button: this option is useful and economical

when only a few dishes need washing. Remember to load both baskets. With only some programmes this option is available (See

"Washing programmes" chart).

"3 in 1" button: This appliance is equipped with the option

3 in 1, that allows the use of the "3 in 1" combi detergent tablets.

This function can be selected with all washing programmes. With the selection of this function the inflow of rinse aid and

salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated.

With the use of this function together with programme 9 (Plate Warmer), the drying results may not be optimum.

Once selected this option (button indicator light illuminated ) it will remain active also for the following washing programmes, to deactivate the function, press the button (button indicator light off).

"Cancel" button: it allows to cancel:

- a washing programme in progress with eventual options set,

- a delay start in progress.

Indicator lights: have the following meanings:

The control panel

3 in 1 button

Function buttons

Indicator lights

Digital display

On/Off button

Programme selection buttons

Half load button

Delay start button

Cancel button

"Half load" option - button activated available - indicator light on

"Half load" option - button deactivated not available - indicator light off

Salt refilling indicator light, illuminates when the salt

has run out. Rinse aid refilling indicator light, illuminates when

rinse aid has run out. End of programme: illuminates when the washing

programme has ended.

Page 8

Audible signals

Audible signals have been introduced to help indicate which operations the dishwasher is performing:

"Setting of the water softener" "End of programme" "Something not working with the machine"

Deactivation/activation of the audible signals

(The dishwasher must be switched off)

Factory setting: audible signals activated

1. Press the On/Off button. The indicator lights of the

programme selection buttons will illuminate and in the digital display are visible 2 horizontal lines (--) (setting mode).

If other button indicator lights are on and in the digital display is visible the number of a programme (1 - 2 - 3 etc..), this means that a washing programme has been set. The programme must be cancelled: press the button Cancel for about 3 seconds. The indicator lights of the programme selection buttons will illuminate and in the digital display will appear 2 horizontal lines, this means that the set washing programme has been cancelled and the machine is now in setting mode.

2. Press simultaneously function buttons 2 and 3, the indicator

lights of the function buttons 1, 2 and 3 start flashing.

3. Press the function button 3, the indicator lights of function

buttons 1 and 2 turn off while the indicator light of the button 3 goes on flashing, the digital display indicates the current setting.

4. To change the current setting, press again the function

button 3, the digital display will indicate the new setting.

5. To memorise the operation, switch off the dishwasher by

pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Audible signals deactivated

Audible signals activated (factory set)

Page 9

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply

with the installation instructions.

2. Remove all packaging from inside the appliance.

3. Set the water softener.

4. Pour 1 litre of water inside the salt container and then fill

with dishwasher salt.

5. Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

Water hardness is measured in equivalent scales, German degrees (°dH), French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water). The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The water softener must be set in both ways: manually, using the water hardness dial and electronically, using the function push buttons on the control panel.

a) Setting manually

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position 1 or 2 (see table).

4. Replace the lower basket.

The dishwasher is factory set at position 2.

b)Setting electronically

(The dishwasher must be switched off)

The dishwasher is factory set at level 5.

1. Press the On/Off button. The indicator lights of the programme selection buttons will illuminate and in the digital display are visible 2 horizontal lines (--) (setting mode).

2. Press simultaneously function buttons 2 and 3, until the indicator lights of the function buttons 1, 2 and 3 start flashing.

3. Press the function button 1, the indicator lights of function buttons 2 and 3 turn off while the indicator light of the button 1 goes on flashing, the digital display indicates the current level and a sequence of intermittent audible signals are heard. The current level is indicated by the number visible in the display and the number of intermittent audible signals heard.

Example:

displayed + 5 audible signals = level 5.

4. To change the level, press button 1. Each time the button is pressed the level changes. (For the selection of the new level see the chart).

Examples:

if the current level is 5, by pressing button 1 once, level 6 is selected. if the current level is 10, by pressing button 1 once, level 1 is selected.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Prior to using for the first time

°dH

°TH

mmol/l

Range

manually

electronically

51 - 70 43 - 50 37 - 42 29 - 36 23 - 28 19 - 22 15 - 18 11 - 14

4 - 10

< 4

9,0 - 12,5

7,6 - 8,9 6,5 - 7,5 5,1 - 6,4 4,0 - 5,0 3,3 - 3,9 2,6 - 3,2 1,9 - 2,5 0,7 - 1,8

< 0,7

IV IV IV IV IV III III

I/II

91 - 125

76 - 90 65 - 75 51 - 64 40 - 50 33 - 39 26 - 32 19 - 25

7 - 18

< 7

2 2 2 2 2 2 1 1 1 1

level 10

level 9 level 8 level 7 level 6 level 5 level 4 level 3 level 2 level 1

yes yes yes yes yes yes yes yes yes

9 8 7 6 5 4 3 2 1

Water hardness

Adjusting the water

hardness setting

Level indicated

in the

digital display

Use

of salt

Number of

audible signals

AA07

Page 10

Filling with dishwasher salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. Open the door, remove the lower basket and unscrew the

cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).

3. Using the funnel provided,

pour in the salt until the container is full.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Replace on the cap tightly turning it clockwise until it stops with a click.

The salt container will require topping up periodically. You are reminded of this by the salt indicator light on the control panel which comes on when the salt has finished.

The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.

Do not worry if water over flows from the unit when filling with salt, this is quite normal.

SR14

SALE

ZOUT

SALT

SALZ

SEL

Page 11

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with rinse aid

1. Open the container by pressing the release button (A).

2. Add the rinse aid until the container is completely full. The

maximum level for filling is indicated by "max".

Ensure that the lid is closed after every refill. Clean up any rinse aid spilt during filling with an

absorbent cloth to avoid excess foaming during the next wash.

Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).

The dose is factory set in position 4.

Increase the dose if there are drops of water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

Top up the rinse aid when the indicator light on the control panel illuminates.

● If you are using dishwasher detergent that already contains

rinse aid, the detergent including the rinse aid must be placed in the detergent compartment. In this case the rinse aid dispenser must be deactivated, in order to avoid a double dosage.

Deactivation/activation of the rinse aid dispenser

(The dishwasher must be switched off)

Factory setting: rinse aid dispenser activated When the rinse aid dispenser has been deactivated, also

the rinse aid indicator light on the control panel is automatically deactivated.

1. Press the On/Off button. The indicator lights of the

programme selection buttons will illuminate and in the digital display are visible 2 horizontal lines (--) (setting mode).

2. Press simultaneously function buttons 2 and 3, the indicator lights of the function buttons 1, 2 and 3 start flashing.

3. Press the function button 2, the indicator lights of function buttons 1 and 3 turn off while the indicator light of the button 2 goes on flashing, the digital display indicates the current setting.

4. To change the setting, press again the function button 2, the digital display indicates the new setting.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Rinse aid dispenser deactivated

Rinse aid dispenser activated (factory setting)

Page 12

● Check if it’s necessary to refill with dishwasher salt or rinse

aid

● Load cutlery and dishes into the dishwasher.

● Fill with dishwasher detergent .

● Select a wash programme suitable for the cutlery and

dishes.

● Start the wash programme.

Loading cutlery and dishes

Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.

● Before loading the dishes, you should:

- Remove large left-overs.

- Soften remnants of burnt food in pans

● When loading the dishes and cutlery, please note:

- Dishes and cutlery must not impede the rotation of the

spray arms .

- Load hollow items such as cups, glasses, pans, etc. with

the opening downwards so that water cannot collect in the container or a deep base.

- Dishes and items of cutlery must not lie inside one

another, or cover each other.

- To avoid damage to glasses, they must not touch.

- Lay small objects in the cutlery basket.

● Plastic items and pans with teflon have a tendency to

retain water drops; these items will not dry as well as porcelain and steel items.

Open the door and slide out the baskets to load the dishes.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely.

The two rows of prongs on the lower basket can be easily lowered to allow you to load pots, pans and bowls.

In daily use

For washing in the dishwasher the following cutlery/dishes

are of limited suitability:

- Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the manufacturer.

- Glazed patterns may fade if machine washed frequently

- Silver and aluminium parts have a tendency to discolour during washing. Residues, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

- Some types of glass can become dull after a large number of washes

are not suitable:

- Cutlery with wooden, horn, china or mother-of-pearl handles

- Plastic items that are not heat resistant

- Older cutlery with glued parts that is not temperature resistant

- Bonded cutlery items or dishes

- Pewter or copper items

- Lead crystal glass

- Steel items subject to rusting

- Wooden platters

- Items made from synthetic fibres

UI94

UI87

UI95

Page 13

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives.

Removable knife basket

Long and/or sharp items of cutlery such as carving knives must be placed horizontally in the removable knife basket, which is positioned at the rear of the upper basket.

Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards. If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

For best results we recommend you to use the cutlery grids provided (if the size and dimensions of the cutlery allow it).

The cutlery basket is in two parts which can be separated to give greater loading flexibility. To separate the two parts, slide them horizontally in opposite directions and pull them apart. To reassemble, reverse the procedure.

The upper basket

The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 26 cm in diameter), salad bowls, cups and glasses.

Arrange items on and underneath the cup racks so that water can reach all surfaces.

Glasses with long stems can be placed upside down in the cup racks.

For taller items, the cup racks can be folded upwards.

Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so they do not move.

In case that plates are loaded in the upper basket:

load them starting from the rear positions of the basket; tilting them slightly forwards and avoiding the front positions near the door.

Before closing the door, ensure that the spray arms can rotate freely.

UI53

UI63

US47

US73

US71

UI62

Page 14

Adjusting the height of the upper basket

If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position.

To move to the higher position proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the mechanism is

engaged and the basket is stable.

Attention!

Never lift or lower the basket on one side only

When the basket is in the higher position you will not be able to use the cup rack(s).

To lower the basket to the original position proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then allow the

mechanism to drop back down slowly, keeping hold of it.

After loading your machine always close the door, as an open door can be a hazard.

Use of detergent

Only use detergents specifically designed for use in dishwashers.

Using no more then the correct amount of detergent contributes to reducing pollution.

Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging.

Fill with detergent

1. If the lid is closed: press release button (1). The lid springs

open.

2. Fill the detergent dispenser (2) with detergent. The marking indicates the dosing levels: 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent

3. All programmes with prewash need an additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (3). This detergent will take effect during the prewash phase.

4. Close the lid and press until it locks in place.

With upper basket raised 22 cm 33 cm With upper basket lowered 26 cm 29 cm

Maximum height of the dishes in

upper basket lower basket

RC08

DE19

DE22

Page 15

Detergent tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Do not place the tablets in the tub or in the cutlery basket as this will result in poorer wash results. The tablets should be placed in the detergent dispenser.

Concentrated detergent

Based on their chemical composition, dishwasher detergents can be split into two basic types:

- conventional, alkaline detergents with caustic components.

- low alkaline concentrated detergents with natural enzymes. The use of 50°C washing programmes in conjunction with

concentrated detergents reduces pollution and is good for your dishes; these wash programmes are specially matched to the dirt-dissolving properties of the enzymes in the concentrated detergent. For this reason 50°C wash programmes in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using 65°C programmes.

Combi detergents

If you are using dishwasher detergent that includes the rinse aid function, this must be placed in the detergent compartment.

In this case it is necessary to deactivate the rinse aid dispenser, in order to avoid a double dosage.

Use of "3 in 1" combi detergents

General advice

These products are detergents with integrated and combined detergent/rinse-aid and salt functions.

1. Before using these products you should first check that the water hardness in your supply is compatible with the use of these products as per the detergent manufacturers (on the product packaging).

2. These products should be strictly used according to the

detergent manufacturers instructions.

3. If you encounter problems when using 3 in 1 products for the first time then please contact the detergent manufacturers care line (the telephone number is given on the product packaging).

Special advice

When using combination 3 in 1 products select the "3 in 1" function.

If you decide to turn back to the use of the standard detergent system we advise that you:

● Refill both the salt container and rinse aid dispenser.

● Switch the water hardness setting to the highest possible

position and run from 1 to 3 normal washing programmes without a load.

● Readjust the water hardness setting again according to the

hardness of the water in your area.

Different kinds of detergent

Page 16

(1) Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil).

This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

(2) "Auto" washing programme

During the "Auto" washing programme the amount of soil on the dishes is determined by how cloudy the water is. If the appliance is partially loaded and the dishes lightly soiled, the "prewash", "main wash", and "rinse" phases of the programme are shorter

and the water consumption level is lower. If the appliance is fully loaded and the dishes heavily soiled, the "prewash", "main wash", and "rinse" phases of the programme are longer and

the water consumption level is higher. During the "Auto" programme the temperature of the main wash water is also automatically adjusted between 50°C and 65°C depending on the

amount of soil on the dishes.

(3) Testing programme for EN 50242 (see "Hints for Test Centres"). This programme, developed for the use of detergents with enzymes, allows you

to achieve, with reduced consumption of energy the same cleaning results that would otherwise be obtained only with the 65°C programmes and conventional detergents. To compensate the lower temperature, the duration of washing and drying have been extended.

(4) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by the variations of

the power supply. The programme duration is visible in the display when the setting of the programme occurs.With the set of the options, the duration of the washing programme may change. In this case, in the digital display, the indication of the running time of the programme is automatically updated.

With the set of the half load option, programmes 1 (Intensive 70°C), 3 (Normal 65°C with prewash) and 6 (Normal 50°C with prewash) the prewash phase is automatically excluded. (In this case the detergent dose for the prewash phase is no longer

necessary).

With programme 5 (Bio 50°C with prewash) the duration of the washing phase will be reduced. When using this option we recommend to reduce the dose of detergent that is normally used for a complete load.

Washing programmes

Programme Degree of soil

and

type of load

Options

available with

the programme

Heavy soil. Crockery, cutlery, pots and pans

Any. Partial load (to be completed later in the day).

Normal soil. Crockery and cutlery

Fresh soil. Crockery and cutlery

Normal soil. Crockery and cutlery

Cycle

description

(4) Consumption values

1 cold rinse (to avoid food scraps from sticking together)

Hot prewash Main wash up to 70°C 2 warm rinses 1 hot rinse Drying

Intensive 70°C

(1) Quick wash

65°C 30

Delicate 45°C

no prewash

Rinse and Hold

Normal soil. Delicate china, delicate crockery and glassware

Energy

consumption

(in kWh)

Water

consumption

(in litres)

0,1

This is a programme both designed to heat plates before serving or remove dust from dishes which have not been used for a long time

Plate Warmer

0,7

1,0 - 1,1

14 - 16

0,8 - 0,9

14 - 16

1,7 - 1,9 23 - 25

0,8

half load

Normal soil. Crockery, cutlery, pots and pans

Cold prewash Main wash up to 65°C 2 warm rinses 1 hot rinse Drying

Cold prewash Main wash up to 50°C 1 cold rinse 1 hot rinse Drying

1 hot rinse

Main wash up to 45°C 1 warm rinse 1 hot rinse Drying

Main wash up to 65°C 1 hot rinse

Normal 65°C

with prewash

1,5 - 1,7 23 - 25

(3) Bio 50°C

with prewash

Normal 50°C

with prewash

0,95- 1,05

13 - 15

Normal soil. Crockery and cutlery

Cold prewash Main wash up to 65°C or 50°C 1 or 2 cold rinses 1 hot rinse Drying

(2) Auto

65°C - 50°C

1,1- 1,5

12 - 25

Page 17

In this fully integrated appliance the controls are located on the top of the door. When selecting a programme, the door needs to be open.

1. Check that the baskets have been loaded correctly and that the spray arms can rotate freely

2. Turn on the water tap

3. Press the On/Off button

The indicator lights of the programme selection buttons illuminate and in the digital display are visible 2 horizontal lines (--).

4. Setting and starting a programme

a) To select a programme, press indifferently one of the

two programme selection buttons, the indicator lights of the programme selection buttons start to flash and in the digital display will appear the number corresponding to the last performed washing programme. Using these two buttons you have a growing (+) or a decreasing (-) order in the selection of the programme (see "Washing programmes" chart for the number of the programme).

Example:

button (growing order): 1→2→3 etc... button (decreasing order): 1→7→6 etc...

If desired, select the options available with the washing programme (see "Washing programmes" chart for the options available).

b) To select the delay start of the programme, press

the delay start button, the corresponding indicator light will illuminate and in the digital display appears a number followed by an h (example: 1h). Press the delay start button until in the digital display will appear the number of hours desired (from 1 hour up to 19 hours).

The start of the programme or the countdown of the delay start will occur only after the closure of the door, until this moment you can modify the selection made.

Close the dishwasher door. a) If delay start has not been set, the programme will

start automatically.

b) If delay start has been set, the countdown starts

automatically and will decrease with steps of 1 hour. The opening of the door will not modify or interrupt the

countdown. Once the delay start has elapsed the programme will start automatically.

Once the washing programme has started, a point-shaped optical signal appears on the floor beneath the dishwasher’s door. This optical signal will remain illuminated for all the duration of the washing programme. If the appliance has been installed higher up with a furniture door mounted flush, the optical signal will be no longer visible.

5. To interrupt or cancel a washing programme in progress

Interrupt or cancel a washing programme in progress ONLY if it’s absolutely necessary

Attention! Hot steam may escape when the door is opened. Open the door carefully.

Interrupt a washing programme in progress

Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point at which it was interrupted.

Cancel a washing programme in progress

Open the dishwasher door. Press for about 3 seconds the Cancel button, the indicator

lights of the programme selection buttons will illuminate with a fixed light and in the digital display will appear 2 horizontal lines (--) indicating that the running programme has been cancelled and that the machine has returned to setting mode.

(If a new washing programme will be selected, check that there is detergent in the detergent dispenser).

6. To cancel a delay start in progress

Open the dishwasher door. Press for about 3 seconds the Cancel button, the indicator

lights of the programme selection buttons will illuminate with a fixed light and in the digital display will appear 2 horizontal lines (--) indicating that the delay start has been cancelled and that the machine has returned to setting mode. Cancelling a delay start involves also the cancelling of the set washing programme (and options). In this case you have to set the washing programme again.

7. End of the washing programme

The dishwasher will automatically stop and an audible signal informs you of the end of the washing programme.

When the washing programme has ended, the optical signal on the floor beneath the dishwasher’s door will turn off. Open the dishwasher door only when this optical signal turns off.

The end of programme indicator light is illuminated. Switch off the dishwasher by pressing the On/Off button.

8. Unloading the dishwasher

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance.

Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

Water may appear on the sides and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

Starting a washing programme

Page 18

"3 in 1" function

This function can be selected together with all programmes. Place the 3 in 1 combi detergent tablet in the detergent

dispenser. Press the "On/Off" button. Press the 3 in 1 function button, the correspondent indicator

light illuminates. Remember that if this function is selected, it will remain active also for the following programmes, until it will be deactivated by pressing the 3 in 1 function button (indicator light off).

Select the required washing programme. With the use of 3 in 1 combi detergent tablets, the duration of

the washing programme may change. In this case, in the digital display, the indication of the running time of the programme is automatically updated.

Close the door, the programme will start automatically. Once the programme is running, the 3 in 1 function can NO

longer be changed. If you want to exclude the 3 in 1 function you have to cancel the programme setting (see "To cancel a washing programme in progress") and then deactivate the 3 in 1 function by pressing the 3 in 1 button. In this case you have to set a washing programme again.

Page 19

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or

solvent (acetone, trichloroethylene etc....).

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend every 3 months to run a 65°C wash programme without dishes using detergent.

Cleaning the filters

The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result.

1. Open the door, remove the lower basket.

2. The dishwasher filter system comprises a coarse filter (A),

a microfilter (B) and a flat filter (C). Unlock the filter system using the handle on the microfilter, and remove.

3. Turn the handle about

/4a turn anticlockwise and remove.

4. Take hold of the coarse filter (A) by the handle with the hole and remove from the microfilter (B).

5. Clean all filters thoroughly under running water.

6. Remove the flat filter (C) from the base of the washing

compartment and clean both faces thoroughly.

7. Put the flat filter (C) back in the base of the washing compartment.

8. Place the coarse filter (A) in the microfilter (B) and press together.

9. Put the filter combination in place and lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

Attention!

Under no circumstances may the dishwasher be used without filters. Incorrect repositioning and fitting of the filters will produce poor washing results.

NEVER try to remove the upper spray arm.

If residues of soil have clogged the holes in the upper spray arm, remove them with a toothpick.

Prolonged periods of non-operation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.

2. Leave the door ajar to prevent the formation of any

unpleasant smells.

3. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving house etc....):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge hoses.

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transportation.

Maintenance and cleaning

MA40

MA36

Page 20

Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions given here, without calling out an engineer.

What to do, when...

...a flashing fault code appears

The dishwasher will not start or stops during operation. The intervention of an alarm is indicated by a sequence of intermittent audible signals. The point-shaped optical signal on the floor beneath the dishwasher’s door is flashing (not visible if the appliance has been installed

higher up with a furniture door mounted flush). Open the dishwasher door, the indicator lights of the programme selection buttons are flashing and in the digital display is visible a

fault code (see following chart). Carry out the following suggested corrective actions.

Once the checks have been carried out, to continue press one of the programme selection buttons and close the door. The programme will continue from the point at which it was interrupted. If the fault code reappears contact your local Service Force Centre.

For other combinations of fault codes not described in the above chart will appear, please contact your local Service Force Centre.

in the digital display appears

The machine does not fill with water.

- in the digital display appears

The dishwasher will not drain.

- in the digital display appears

Fault code / malfunction Possible cause Solutions

The water tap is blocked or furred with limescale.

The water tap is turned off. The filter (where present) in the threaded hose

fitting at the water inlet valve is blocked. The water inlet hose has not been correctly laid

or it is bent or squashed.

Clean the water tap.

Turn the water tap on. Clean the filter in the threaded hose

fitting. Check the water inlet hose connection.

The sink spigot is blocked. Clean out the sink spigot. The water drain hose has not been correctly laid

or it is bent or squashed.

Check the water drain hose connection.

Anti-flood device has activated.

Close the water tap and contact your local Service Force Centre.

...there are problems when operating the dishwasher

The programme does not start

There is a whistling noise during washing

Fault Possible cause Solutions

The dishwasher door has not been properly closed.

The main plug is not plugged in. The fuse has blown in the household fuse box.

Close the door.

Insert the mains plug. Replace the fuse.

For dishwasher models with delay start option:

Delay start has been selected.

If dishes are o be washed immediately, cancel the delay start.

Use a different brand of detergent.

The whistling is not a cause for concern.

Page 21

...the wash results are not satisfactory

The dishes are not clean

● The wrong washing programme has been selected.

● The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.

● The spray arms do not rotate freely due to wrong arrangement of the load.

● The filters in the base of the washing compartment are dirty or incorrectly positioned.

● Too little or no detergent has been used.

● Where there are limescale deposits on the dishes; the salt container is empty or the wrong level of the water softener has been

selected.

● The drain hose connection is not correct.

● The salt container cap is not properly closed.

The dishes are wet and dull

● Rinse aid was not used.

● The rinse aid dispenser is empty.

There are streaks, milky spots or a bluish coating on glasses and dishes

● Decrease rinse aid dosing.

Water drops have dried onto glasses and dishes

● Increase rinse aid dosing.

● The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.

If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door (see picture).

So that you always have these numbers at hand, we recommend you to make a note of them here:

Mod. : . . . . . . . . . . . . . . . . . .

PNC : . . . . . . . . . . . . . . . . . .

S.N. : . . . . . . . . . . . . . . . . . .

Service and spare parts

This product should be serviced by an authorised service engineer, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

RA08

Page 22

Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart).

Test in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes" chart).

Hints for test centres

Load: 12 standard place settings Rinse aid setting: position 4 (Type III) Detergent dosage : 5 g + 25 g (Type B)

Arrangement upper basket

Arrangement knife basket

Arrangement lower basket

Arrangement cutlery basket

Cup racks: position A

Page 23

Änderungen vorbehalten

Subject to change without notice

152960 83/1

01/05

Boretti B.V.

De Dollard 17 - 1454 AT - Watergang. www.boretti.nl <http://www.boretti.nl>

Belangrijke telefoonnummers: Storingen 0900-2352673 Onderdelen 0900-7727372 Overige vragen 020-4363439
