Boretti BVW88 User Manual

Bedienungsanleitung
Geschirrspüler
Seite 2
instruction book
dishwasher
page 21
BVW 88
Building-in 23 Levelling 23 Fixing to the adjacent units 23 Water supply connections 23 Water inlet hose with safety valve 23 Water outlet hose connection 24 Electrical connection 24
Audible signals 27 Prior to using for the first time 28

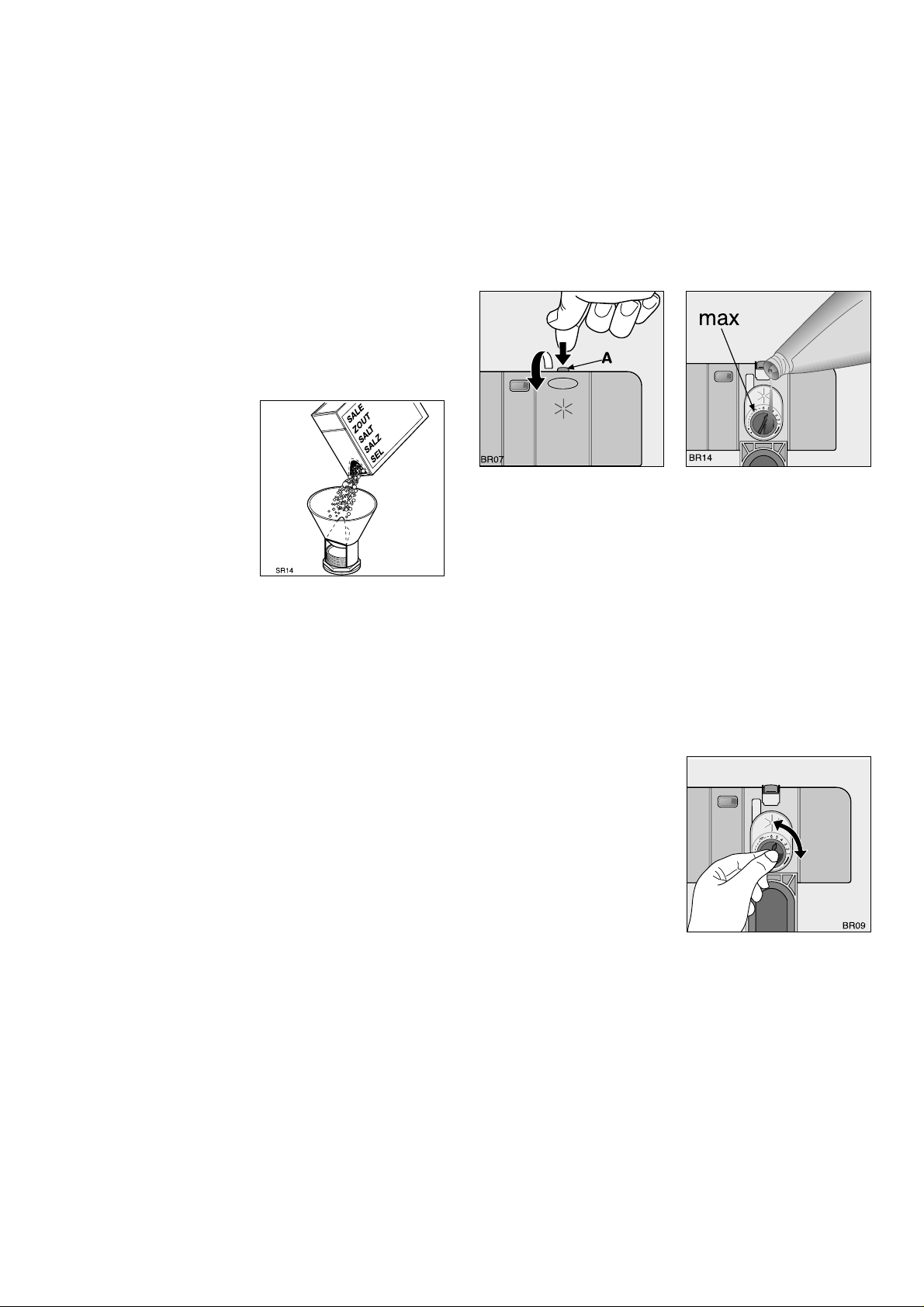

The water softener 28 Filling with dishwasher salt 29 Rinse aid 29

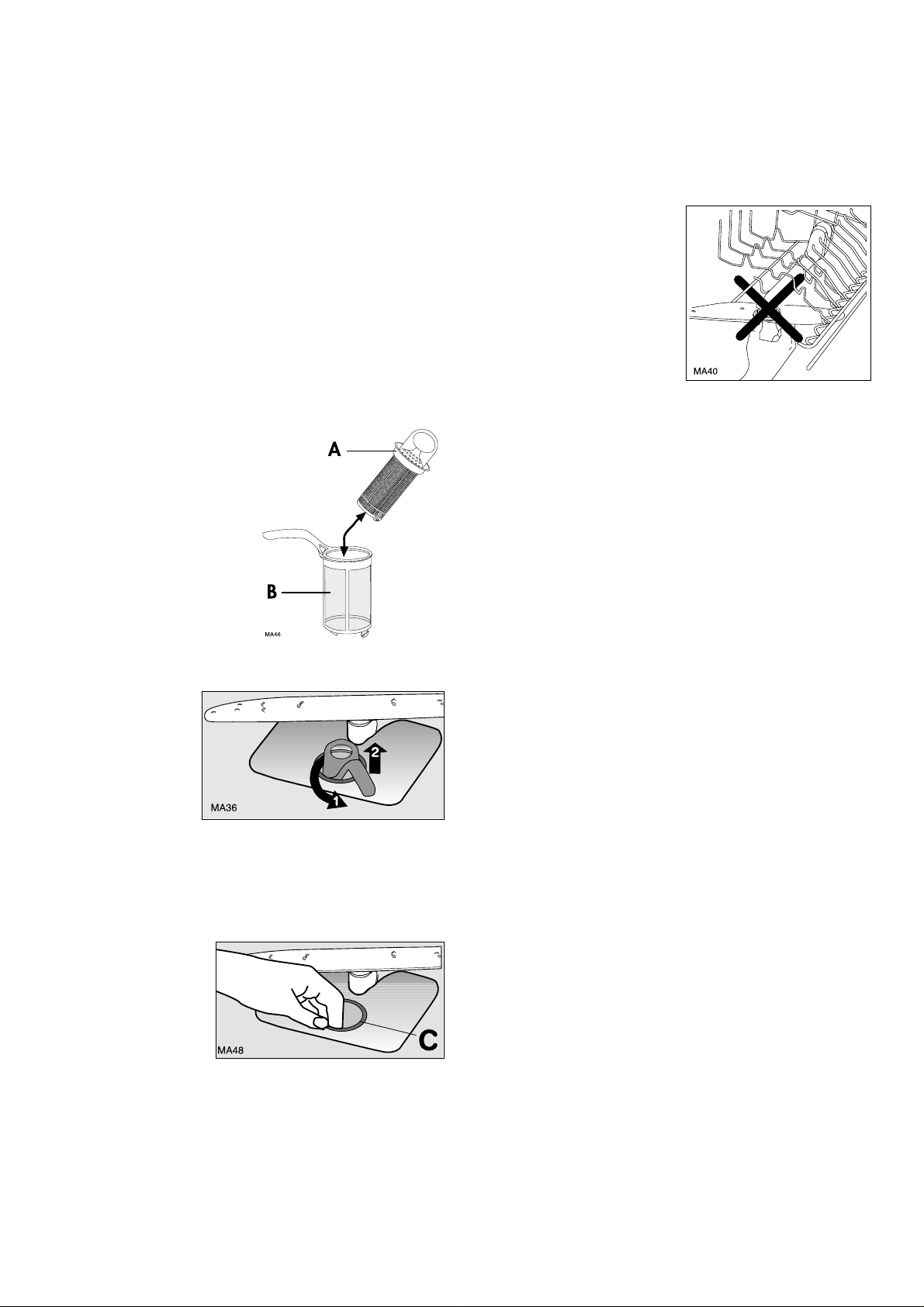

Cleaning the filters 36 Prolonged periods of non-operation 36 Frost precautions 36 Moving the machine 36
Contents
21
Dimensions Width 59.6 cm
Height 81.8 - 87.8 cm Max depth 55.5 cm Max depth with open door 114 cm
Electrical connection: Information on the electrical connection is given on the rating plate on the Voltage inner edge of the dishwasher’s door. Overall power Fuse
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications
This appliance complies with the following E.E.C. Directives:
- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.
Installation
● Check your dishwasher for any transport damage. Never
connect a damaged machine. If your dishwasher is damaged, you should contact your supplier.
● For safety reasons it is dangerous to alter the specifications
or attempt to modify this product in any way.
● Any electrical and plumbing work required to install this
appliance should be carried out by a qualified and competent person.
● Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
● The sides of the dishwasher must never be drilled to
prevent damage to hydraulic components.
Child safety
● This appliance is designed to be operated by adults.
● Children should not be allowed to tamper with the controls
or play with the product.
● Packaging parts may be dangerous for children, who could
even be suffocated! You should therefore keep all packaging well away from children.
● The water in your dishwasher is not for drinking. Detergent
residues may still be present in your machine. Keep children well away from your dishwasher when the door is open.
● Keep all detergents in a safe place out of children's reach.
Your dishwasher in day-to-day use
● Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.
● Under no circumstances should you open the door whilst
the appliance is in operation, especially during the washing phase, hot water may escape. However, if the door is opened, a safety device ensures that the machine stops.
● Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
● Long bladed knives stored in an upright position are a
potential hazard.
● Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
● Ensure that the door of the dishwasher is always closed
when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
● When finishing loading or unloading close the door, as an
open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and turn off the
water supply after use.
● This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.
Disposal
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled.
Plastic parts are marked with standard international abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material. >PS< for polystyrene, e.g. padding material (always CFC-
free).
>POM< for polyoxymethylene, e.g. plastic clips. Cardboard packaging is manufactured from recycled paper
and should be deposited in the waste paper collection for recycling.
As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your dishwasher or otherwise endanger their lives. Therefore cut off the power supply cable and make the door closing device unusable to prevent children from being trapped inside.
For the disposing of the appliance please take it to a recycling centre or to your dealer who may, for a small contribution to the costs, dispose it for you.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Economical and ecological dishwashing
● Ensure that the water softener is correctly adjusted.
● Do not pre-wash under running water.
● Select the wash programme to suit the nature and degree of
the soiling on the dishes.
● Do not use more detergent, dishwasher salt and rinse aid
than is recommended in these operating instructions and by the manufacturer of the respective product.
Safety instructions
22
Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person.
Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a
drain.
Building-in
This dishwasher is designed to be fitted under a kitchen counter or worksurface.
Attention!
Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.
No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.
The dishwasher incorporates adjustable feet to allow the adjustment of the height.
During all operations that involve accessibility to internal components the dishwasher has to be unplugged.
When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed.
Levelling
Good levelling is essential for correct closure and sealing of the door.
When the appliance is correctly levelled, the door will not catch on either side of the cabinet.
If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.
Fixing to the adjacent units
The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall).
Water supply connections
This dishwasher may be fed with either hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply. A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes a lot.
For making the connection itself, the coupling nut fitted to the machine’s supply hose is designed to screw onto a 3/4" inch gas thread spout or to a purpose made quick-coupling tap such as the Press-block.
The water pressure must be within the limits given in the "Technical specifications". Your local Water Authority will advise you on the average mains pressure in your area.
The water inlet hose must not be kinked, crushed, or entangled when it is being connected.
The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut. The locknut must be correctly fitted
to avoid water leaks. (Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut. In this case, this kind of facility is not possible).
If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose.
Do not use, for connection, old hoses which have been used with another appliance.
The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations.
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water.
Please take care when installing the water inlet hose:
- The electrical cable for the safety valve is in the double­walled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.
- If water inlet hose or the safety valve is damaged, remove the mains plug immediately.
- Awater inlet hose with safety valve must only be replaced by a specialist or by the Service Force Centre.
- Place the water inlet hose in such a way that it is never higher than the bottom edge of the safety valve.
Installation instructions
23
Water outlet hose connection
The end of the drain hose can be connected in the following ways:
1. To the sink outlet spigot, securing it to the underside of the work surface. This will prevent waste water from the sink running into the machine.
2. Hooked over the edge of the sink using the special curved plastic guide (if provided with the machine).
3. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.
The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.
The drain hose can face either to the right or left of the dishwasher
Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.
The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine.
If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.
Attention!
Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We advise you therefore to remove it.
Electrical connection
Information concerning the electrical connection is given on the rating plate on the edge of the dishwasher’s door.
Before plugging the appliance into the wall socket, make sure that:
1. The mains voltage and current rating at the site of installation match the nominal voltage and current rating given on the rating plate.
2. The meter, fuses, mains power supply and wall socket can all take the maximum load required. Make sure that the socket and plug are compatible without having to use any type of adaptor. If necessary, have the domestic wiring system socket replaced.
To isolate the dishwasher from mains, remove the mains plug.
Important! The plug must still be accessible after the appliance has been installed.
In case that the electrical cable has to be replaced, please contact your local Service Force Centre.
The appliance should not be connected to the electrical supply by means of an extension cable.
Safety standards require the appliance to be earthed. The manufacture accepts no liability for failure to observe the above safety precautions.
24
Description of the appliance
25
1. Upper basket stop
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Control panel

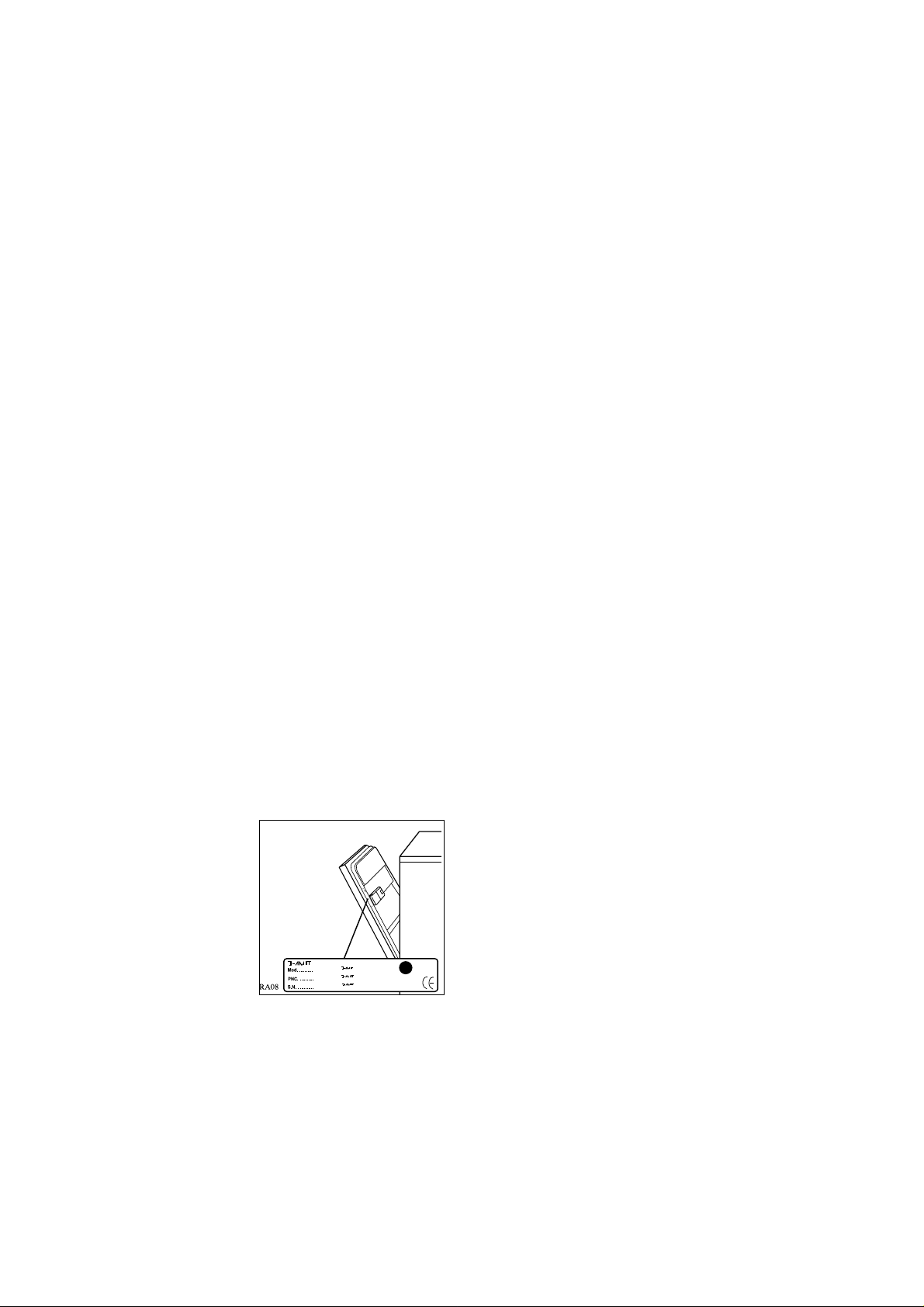

6. Rating plate
7. Rinse aid dispenser
8. Filters
9. Lower spray arm
10. Upper spray arm
11. Upper basket
Function buttons: in addition to the selection of the
washing programme and half load option, the following functions can also be set with the help of these buttons:
- the setting of the water softener,
- activation/deactivation of the rinse aid dispenser,
- deactivation/activation of the audible signals.
Programme selection buttons: the selection of a
washing programme occurs by pressing one of these buttons (see "Washing programmes" chart).
«Delay start» button: this option allows the start of the
programme to be delayed from 1 to 19 hours.
The digital display indicates:
- the level of hardness to which the water softener is set,
- if the rinse aid dispenser is activated/deactivated,
- if the audible signals are activated/deactivated,
- the number corresponding to the selected washing programme,
- the approximative remaining time of the running programme,
- the countdown of the delay start,
- fault codes concerning malfunction of the dishwasher.
"Half load" button: this option is useful and economical
when only a few dishes need washing reducing the consumption of water and energy. This option must be linked to the selection of a washing programme.
Remember to load both baskets. With only some programmes this option is available (See
"Washing programmes" chart).
Cancel button: it allows to cancel:
- a washing programme in progress with eventual options set,
- a delay start in progress.
Indicator lights: have the following meanings:
3 in 1 button: This appliance is equipped with the 3 in 1
function, that allows the use of the "3 in 1" combi detergent
tablets. This function can be selected with all washing programmes. With the selection of this function the inflow of rinse aid and
salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated.
Select the 3 in 1 function before the set of a washing programme.
Once selected this function (button indicator light illuminated) it will remain active also for the following washing programmes, to deactivate the function, press the button (button indicator light off).
With the use of the 3 in 1 function, the cycle durations may change. In this case, in the digital display, the indication of the running time of the programme is automatically updated.
NOTE: Once the programme is running, the 3 in 1 function
can NO longer be changed. If you want to exclude the 3 in 1 function you have to cancel the programme setting (see
chapter "Starting a washing programme" - "Cancel a washing programme in progress") and then deactivate the 3 in 1 function. In this case you have to set a washing programme (and eventual options) again.
NOTE: With the use of this function together with programme
Plate Warmer, the drying results may not be optimum.
The control panel
26
3 in 1 button
Function buttons
Indicator lights
Digital display
Programme selection buttons
On/Off button
Half load button
Delay start button
Cancel button
Half load available - button activated
- indicator light on
Half load not available - button deactivated
- indicator light off
Salt refilling indicator light, illuminates when the salt has run out.
Rinse aid refilling indicator light, illuminates when rinse aid has run out.
End of programme: illuminates when the washing programme has ended.
