RZR 1000 Control Box Installation
Before you begin, please read all the instructions below and check kit contents.
Kit Contents:
Quality check by:
___1 Control Box ___1 Posi-Tap connector
___1 battery connector
___5 8” Zip Ties ___1 Boost Solenoid
___5 4” Zip Ties ___36” 3/16 hose
___1 5/32 Push to connect fitting (Installed on intercooler with Turbo Kit)
___1 Temp Sensor (Installed on intercooler with Turbo Kit)
Make sure wires are routed and zip tied away from moving parts and heat sources.
Connector Index
Page 1 of 6
03/26/14 www.boondockers.com
RZR 1000 Control Box Installation
Control box Routing
After removing side panel route wires through the hole underneath the dash behind the steering wheel.
Route the harness alongside of the frame and turn A good ground location is underneath the
in toward the clutch and follow the stock wire harness Driver’s seat. Grind the paint off at this location
over the clutch cover to the back of the machine. and install the ground.
Page 2 of 6
03/26/14 www.boondockers.com
RZR 1000 Control Box Installation
.
EFI System

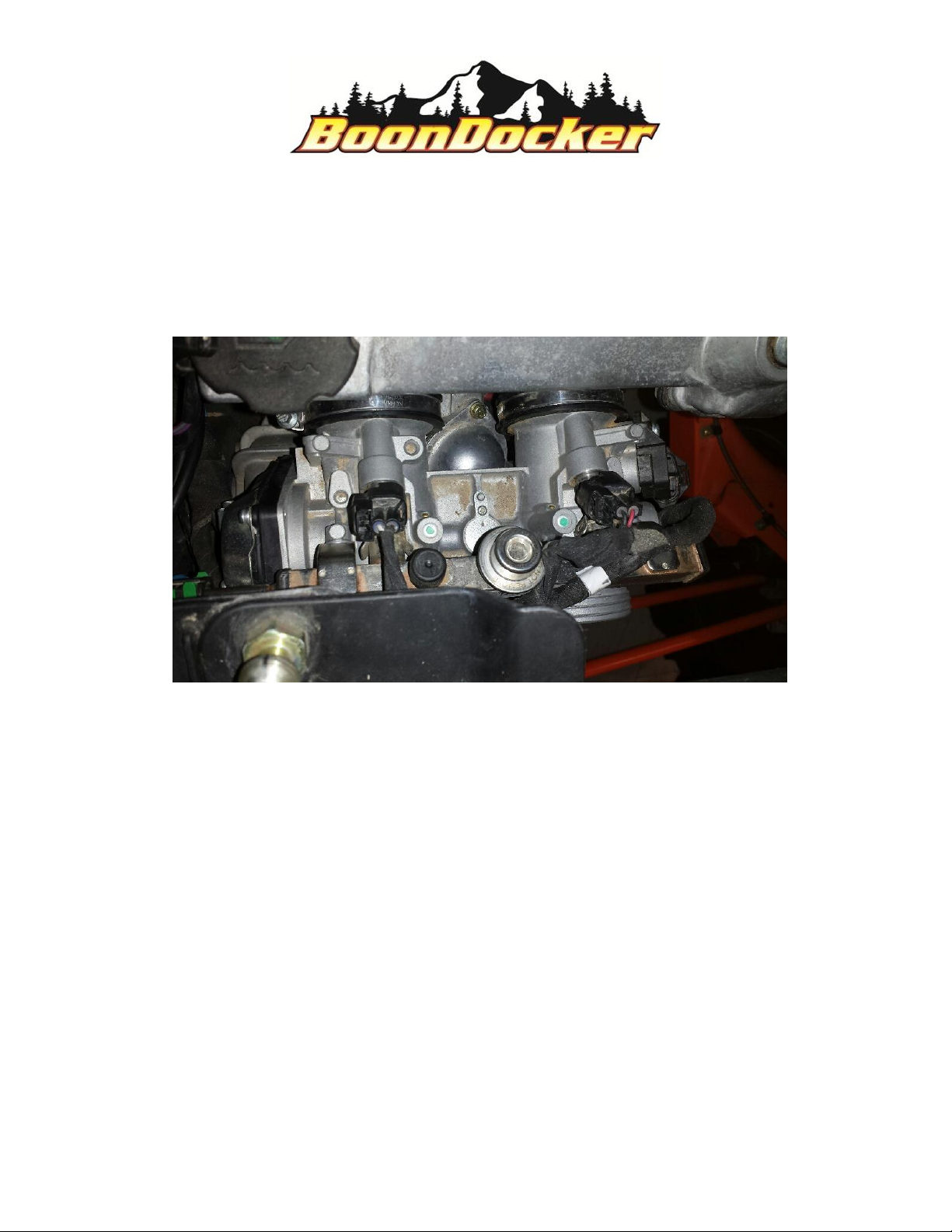

Install Boondocker box in-between factory harness and injectors. The MAG injector (on right)
corresponds with the Yellow and Tan wire on the Boondocker harness. The PTO injector (on left)
corresponds with the Green and Brown wire on the Boondocker harness.
Page 3 of 6
03/26/14 www.boondockers.com
Run 05S 00A 0.0
2100 tps34 79F°
RZR 1000 Control Box Installation
TPS installation

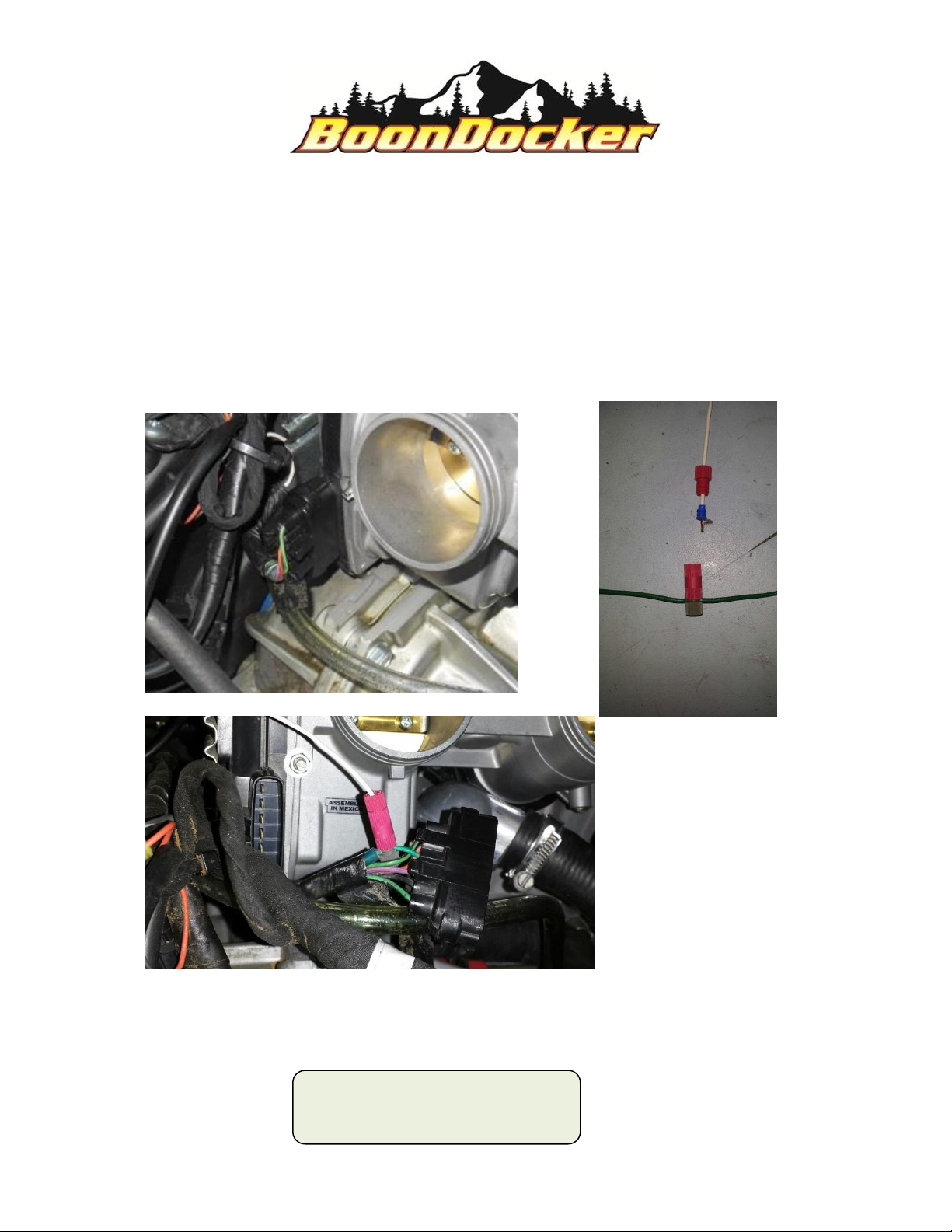

1. Locate the Throttle Position Sensor Connector.
2. It is a 6 position connector located on the Clutch side of the Throttle Body.
3. The Posi-Tap connector will come pre-installed with a seal on the white wire.
4. Before tapping into the wire twist Posi-Tap connector 5 times clockwise. This will make the wire
end up straight when finished.
5. Tap the White wire to the Green Wire in position 3 on the TPS connector.
To make sure this is installed properly, when able to start the engine, go to the Stats screen and
view the TPS in the lower center of the screen. You should notice a change when the pedal is pressed.
03/26/14 www.boondockers.com
Page 4 of 6
RZR 1000 Control Box Installation
Auxiliary Injectors Temp Sensor
Attach Aux Inj 1 (Violet wire) to MAG injector
Attach Aux Inj 2 (Grey wire) to PTO injector
Boost Reference
Page 5 of 6
03/26/14 www.boondockers.com
RZR 1000 Control Box Installation
Boost Solenoid Installation

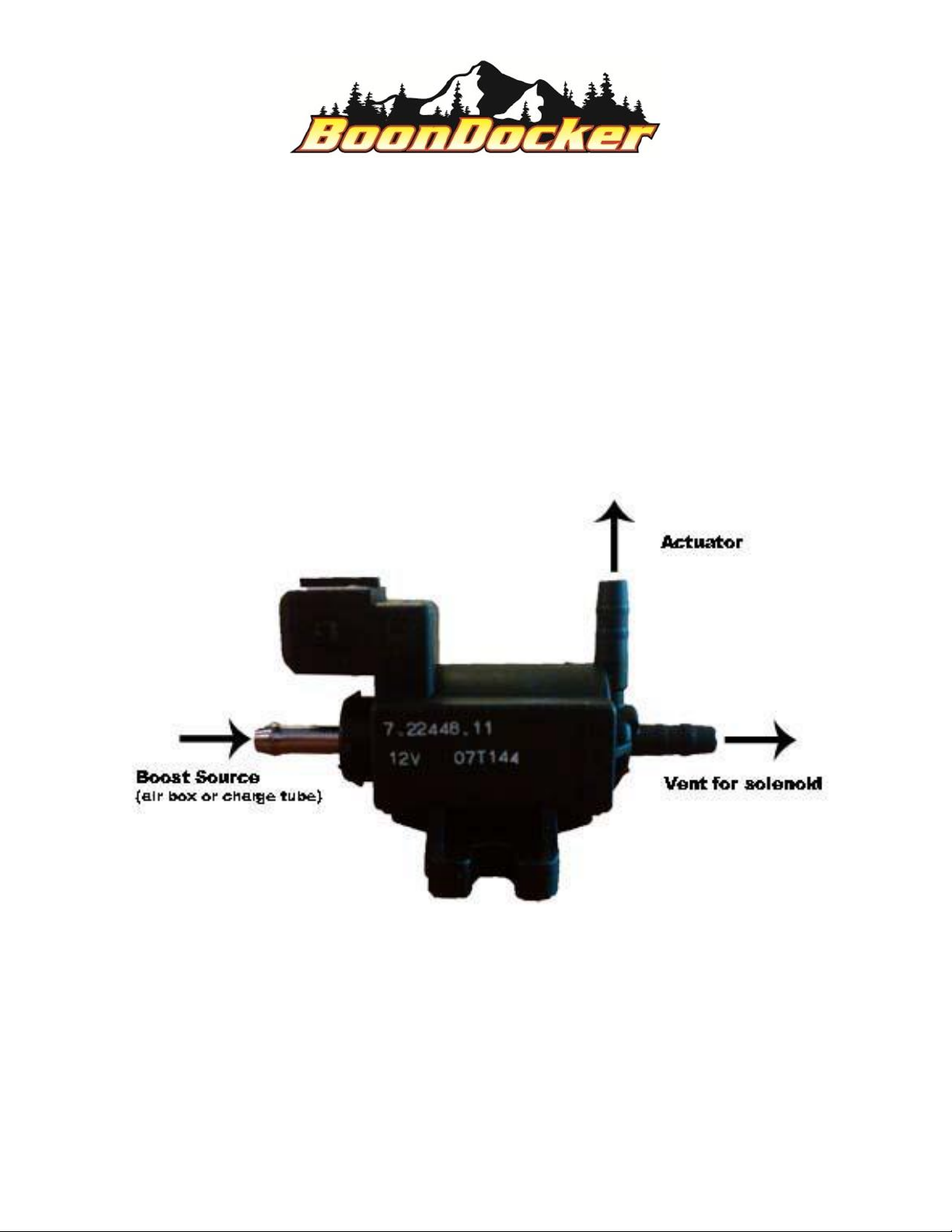

Install the boost solenoid in a pressure line between the air box (or charge tube) and wastegate
actuator. Attach the metal port of the solenoid with a 3/16” hose to the air box (or charge tube) fitting
(see the figure below). Connect the right-angle port of the solenoid with a 3/16” hose to the wastegate
actuator. Attach a short length of hose to the third port and point it downward so that it won’t get
water in it. This is the actuator vent hose. Attach the solenoid so that it is supported. Use small zip ties
to secure the hoses to the ports.
Page 6 of 6
03/26/14 www.boondockers.com
