800 LB.
1500 LB.

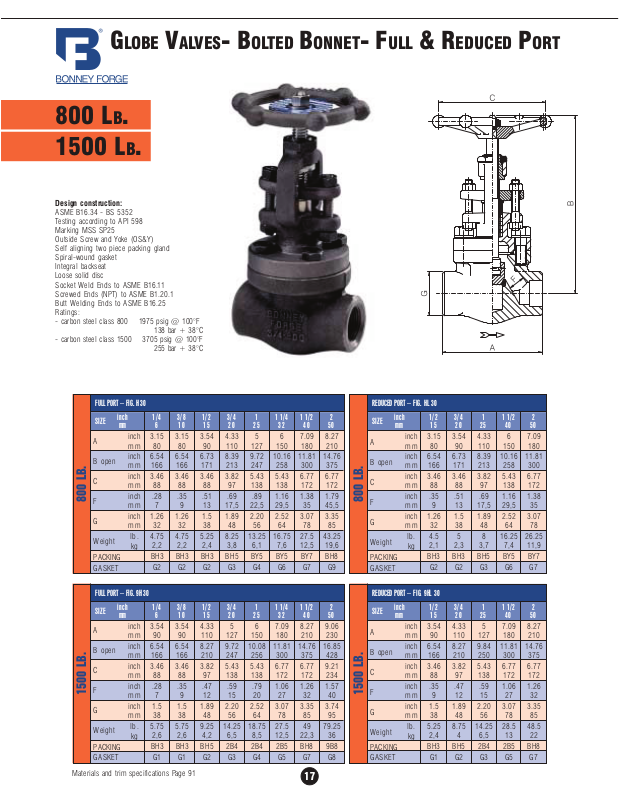

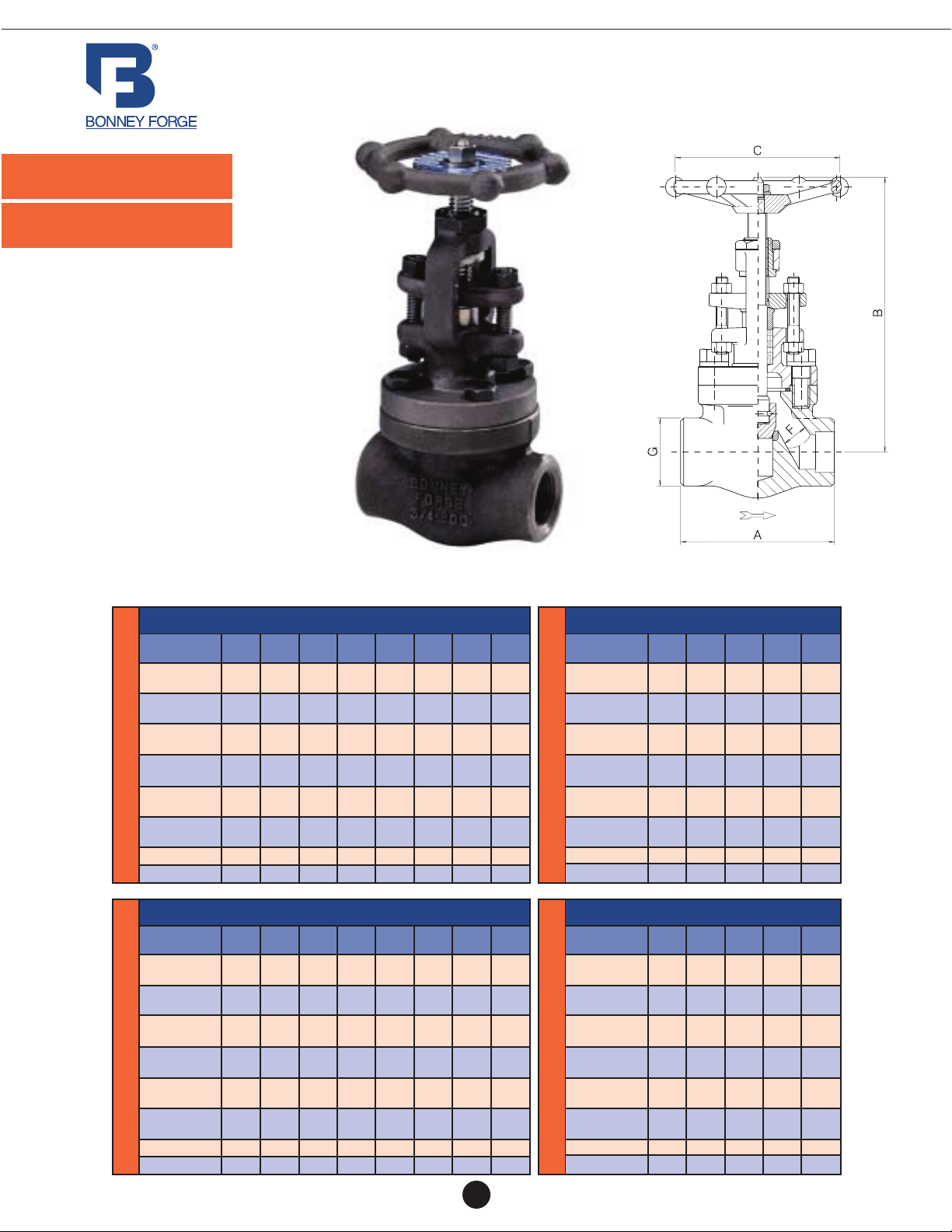

GLOBE VALVES- BOLTED BONNET- FULL & REDUCED PORT
Materials and trim specifications Page 91
Design construction:
ASME B16.34 - BS 5352
Testing according to API 598
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wound gasket
Integral backseat
Loose solid disc
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Ratings:
- carbon steel class 800 1975 psig @ 100°F
138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F
255 bar + 38°C
1500 LB.
SIZE
inc h 1/ 4 3/ 8 1/ 2 3/ 4 1 1 1/4 1 1/2 2
mm 6 10 1 5 20 2 5 32 40 5 0
A
inch 3.54 3.54 4.33 5 6 7.09 8.27 9.06
mm 90 90 110 127 150 180 210 230
B open
inch 6.54 6.54 8.27 9.72 10.08 11.81 14.76 16.85
mm 166 166 210 247 256 300 375 428
C
inch 3.46 3.46 3.82 5.43 5.43 6.77 6.77 9.21
mm 88 88 97 138 138 172 172 234
F
inch .28 .35 .47 .59 .79 1.06 1.26 1.57
mm 7 9 12 15 20 27 32 40
G
inch 1.5 1.5 1.89 2.20 2.52 3.07 3.35 3.74
mm 38 38 48 56 64 78 85 95
Weight
lb. 5.75 5.75 9.25 14.25 18.75 27.5 49 79.25
kg
2,6 2,6 4,2 6,5 8,5 12,5 22,3 36
PACKING
BH3 BH3 BH5 2B4 2B4 2B5 BH8 9B8
GASKET
G1 G1 G2 G3 G4 G5 G7 G8
FULL PORT – FIG. 9H 30
1500 LB.
SIZE
inc h 1/ 2 3/ 4 1 1 1/2 2
mm 15 2 0 25 4 0 5 0
A
inch 3.54 4.33 5 7.09 8.27
mm 90 110 127 180 210
B open
inch 6.54 8.27 9.84 11.81 14.76
mm 166 210 250 300 375
C
inch 3.46 3.82 5.43 6.77 6.77
mm 88 97 138 172 172
F
inch .35 .47 .59 1.06 1.26
mm 9 12 15 27 32
G
inch 1.5 1.89 2.20 3.07 3.35
mm 38 48 56 78 85
Weight
lb. 5.25 8.75 14.25 28.5 48.5
kg
2,4 4 6,5 13 22
PACKING
BH3 BH5 2B4 2B5 BH8
GASKET
G1 G2 G3 G5 G7
REDUCED PORT – FIG. 9HL 30
800 LB.
SIZE
inc h 1/ 4 3/ 8 1/ 2 3/ 4 1 1 1/4 1 1/2 2
mm 6 10 1 5 20 2 5 3 2 4 0 5 0
A
inch 3.15 3.15 3.54 4.33 5 6 7.09 8.27
mm 80 80 90 110 127 150 180 210
B open
inch 6.54 6.54 6.73 8.39 9.72 10.16 11.81 14.76
mm 166 166 171 213 247 258 300 375
C
inch 3.46 3.46 3.46 3.82 5.43 5.43 6.77 6.77
mm 88 88 88 97 138 138 172 172
F
inch .28 .35 .51 .69 .89 1.16 1.38 1.79
mm 7 9 13 17,5 22,5 29,5 35 45,5
G
inch 1.26 1.26 1.5 1.89 2.20 2.52 3.07 3.35
mm 32 32 38 48 56 64 78 85
Weight
lb. 4.75 4.75 5.25 8.25 13.25 16.75 27.5 43.25
kg
2,2 2,2 2,4 3,8 6,1 7,6 12,5 19,6
PACKING
BH3 BH3 BH3 BH5 BY5 BY5 BY7 BH8
GASKET
G2 G2 G2 G3 G4 G6 G7 G9
FULL PORT – FIG. H 30
800 LB.
SIZE
inc h 1/ 2 3/ 4 1 1 1/2 2
mm 15 2 0 25 4 0 5 0
A
inch 3.15 3.54 4.33 6 7.09
mm 80 90 110 150 180
B open
inch 6.54 6.73 8.39 10.16 11.81
mm 166 171 213 258 300
C
inch 3.46 3.46 3.82 5.43 6.77
mm 88 88 97 138 172
F
inch .35 .51 .69 1.16 1.38
mm 9 13 17,5 29,5 35
G
inch 1.26 1.5 1.89 2.52 3.07
mm 32 38 48 64 78
Weight
lb. 4.5 5 8 16.25 26.25
kg
2,1 2,3 3,7 7,4 11,9
PACKING
BH3 BH3 BH5 BY5 BY7
GASKET
G2 G2 G3 G6 G7
REDUCED PORT – FIG. HL 30
