43
150 LB.
300 LB.
Design construction:
API 602 - ASME BI6.34 - BS 5352
Testing according to API 598
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wound gasket
Integral backseat
Integral body flanges
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Ratings:
-carbon steel class 150 285 psig@ 100°F
20 bar + 38°C
-carbon steel class 300 740 psig@ 100°F
51 bar + 38°C

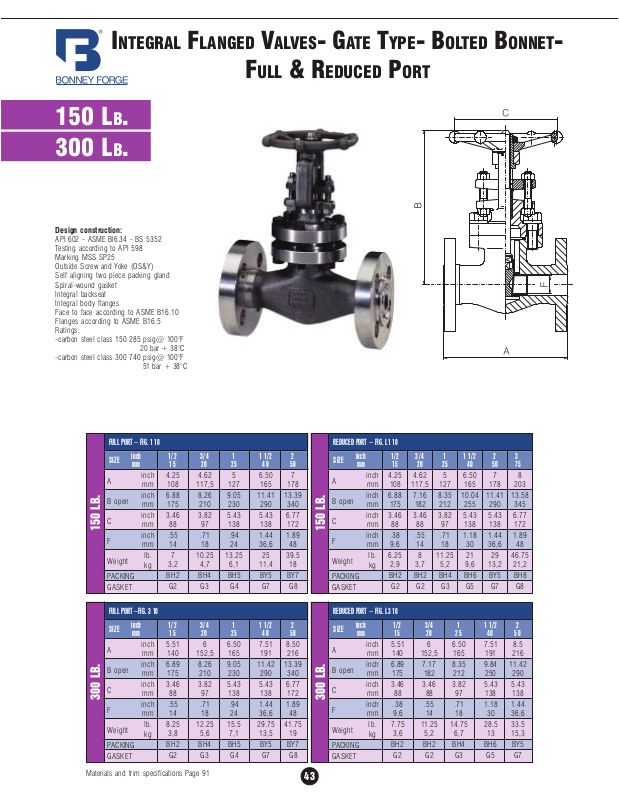

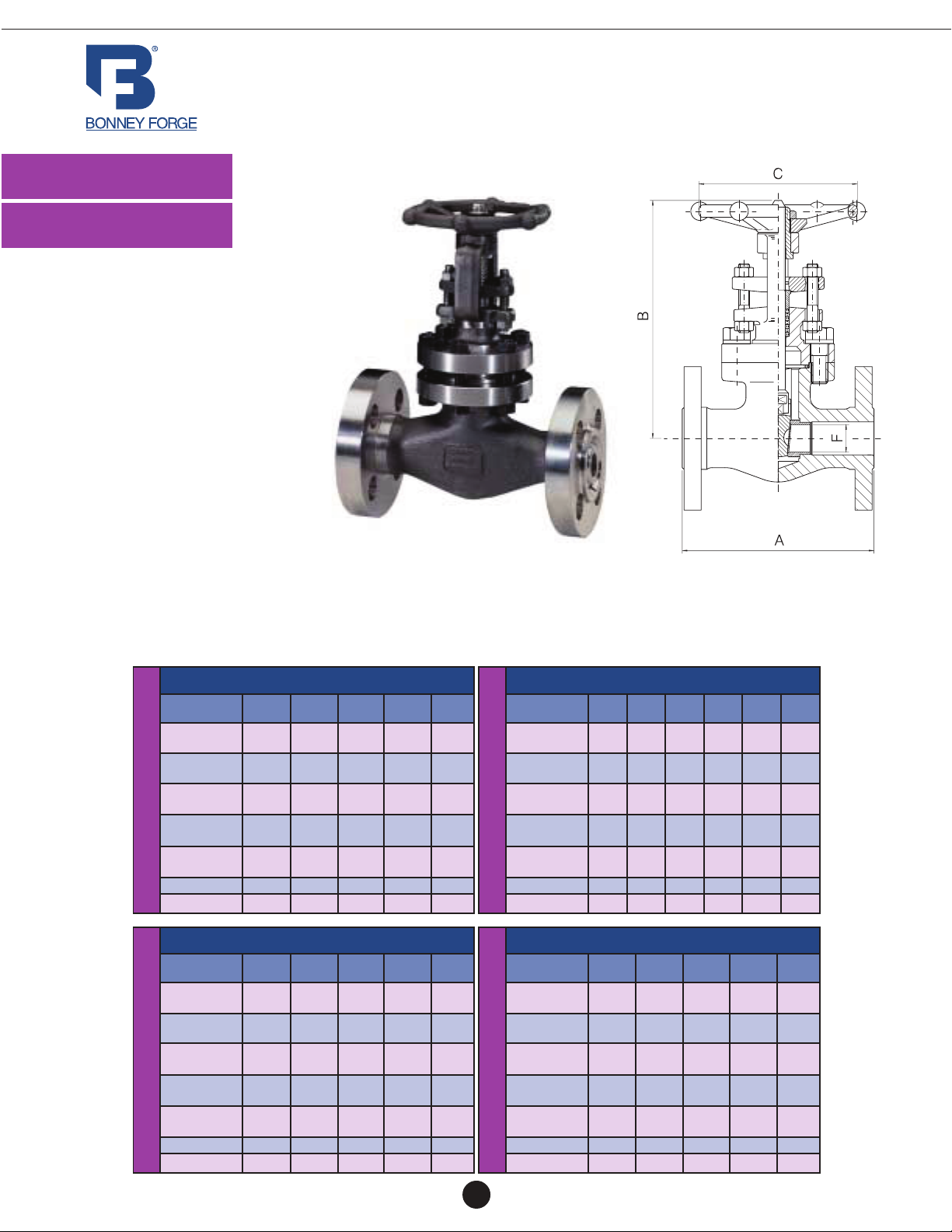

INTEGRAL FLANGED VALVES- GATE TYPE- BOLTED BONNET-
FULL & REDUCED PORT
Materials and trim specifications Page 91
150 LB.
SIZE
inc h 1/ 2 3/ 4 1 1 1/2 2 3
mm 15 2 0 25 4 0 50 7 5
A
inch 4.25 4.62 5 6.50 7 8
mm 108 117,5 127 165 178 203
B open
inch 6.88 7.16 8.35 10.04 11.41 13.58
mm 175 182 212 255 290 345
C
inch 3.46 3.46 3.82 5.43 5.43 6.77
mm 88 88 97 138 138 172
F
inch .38 .55 .71 1.18 1.44 1.89
mm 9,6 14 18 30 36,6 48
Weight
lb. 6.25 8 11.25 21 29 46.75
kg
2,9 3,7 5,2 9,6 13,2 21,2
PACKING
BH2 BH2 BH4 BH6 BY5 BH8
GASKET
G2 G2 G3 G5 G7 G8
REDUCED PORT – FIG. L1 10
150 LB.
SIZE
inc h 1/2 3/4 1 1 1/2 2
mm 15 20 25 40 5 0
A
inch 4.25 4.62 5 6.50 7
mm 108 117,5 127 165 178
B open
inch 6.88 8.26 9.05 11.41 13.39
mm 175 210 230 290 340
C
inch 3.46 3.82 5.43 5.43 6.77
mm 88 97 138 138 172
F
inch .55 .71 .94 1.44 1.89
mm 14 18 24 36,6 48
Weight
lb. 7 10.25 13.25 25 39.5
kg
3,2 4,7 6,1 11,4 18
PACKING
BH2 BH4 BH5 BY5 BY7
GASKET
G2 G3 G4 G7 G8
FULL PORT – FIG. 1 10
300 LB.
SIZE
inc h 1 /2 3/ 4 1 1 1/2 2
mm 15 20 25 40 5 0
A
inch 5.51 6 6.50 7.51 8.50
mm 140 152,5 165 191 216
B open
inch 6.89 8.26 9.05 11.42 13.39
mm 175 210 230 290 340
C
inch 3.46 3.82 5.43 5.43 6.77
mm 88 97 138 138 172
F
inch .55 .71 .94 1.44 1.89
mm 14 18 24 36,6 48
Weight
lb. 8.25 12.25 15.5 29.75 41.75
kg
3,8 5,6 7,1 13,5 19
PACKING
BH2 BH4 BH5 BY5 BY7
GASKET
G2 G3 G4 G7 G8
FULL PORT –FIG. 3 10
300 LB.
SIZE
inc h 1 /2 3/ 4 1 1 1/2 2
mm 15 20 25 40 5 0
A
inch 5.51 6 6.50 7.51 8.5
mm 140 152,5 165 191 216
B open
inch 6.89 7.17 8.35 9.84 11.42
mm 175 182 212 250 290
C
inch 3.46 3.46 3.82 5.43 5.43
mm 88 88 97 138 138
F
inch .38 .55 .71 1.18 1.44
mm 9,6 14 18 30 36,6
Weight
lb. 7.75 11.25 14.75 28.5 33.5
kg
3,6 5,2 6,7 13 15,3
PACKING
BH2 BH2 BH4 BH6 BY5
GASKET
G2 G2 G3 G5 G7
REDUCED PORT – FIG. L3 10
