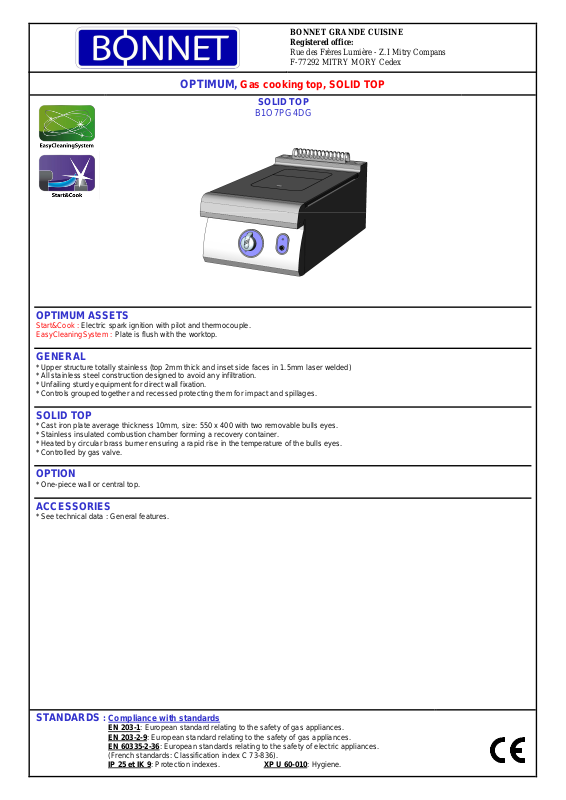

Bonnet B1O7PG4DG User Manual

BONNET GRANDE CUISINE Registered office:
Rue des Frères Lumière - Z.I Mitry Compans
OPTIMUM,
SOLID TOP
F-77292 MITRY MORY Cedex
B1O7PG4DG
OPTIMUM ASSETS
Start&Cook : Electric spark ignition with pilot and thermocouple. EasyCleaningSystem : Plate is flush with the worktop.
GENERAL
* Upper structure totally stainless (top 2mm thick and inset side faces in 1.5mm laser welded) * All stainless steel construction designed to avoid any infiltration. * Unfailing sturdy equipment for direct wall fixation. * Controls grouped together and recessed protecting them for impact and spillages.
SOLID TOP
* Cast iron plate average thickness 10mm, size: 550 x 400 with two removable bulls eyes. * Stainless insulated combustion chamber forming a recovery container. * Heated by circular brass burner ensuring a rapid rise in the temperature of the bulls eyes. * Controlled by gas valve.
OPTION
* One-piece wall or central top.
ACCESSORIES
* See technical data : General features.
STANDARDS
EN 203-1: European standard relating to the safety of gas appliances. EN 203-2-9: European standard relating to the safety of gas appliances. EN 60335-2-36: European standards relating to the safety of electric appliances.
(French standards: Classification index C 73-836).
IP 25 et IK 9: Protection indexes. XP U 60-010: Hygiene.
: Compliance with standards
B1O7PG4DG
GAS connection
Gas inlet at 590mm from the floor As standard, the appliances are supplied for G 20/20 mbar (and G 25/25 mbar) or another gas on request
ELECTRICAL connection
Electric inlet at 615mm from the floor (Flexable cable 1.5 m in length)
BONNET GRANDE CUISINE Registered office:
Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex
DIMENSIONS (mm)
Width 400 Depth x Height 730 x 340 Solid plate 400 x 550
PACKAGING (mm)
Width 540 Depth x Height 1060 x 700
WEIGHT (KG) COMPOSITION OF TOP
50
Solid plate 6.5 kW 1
GAS Connection Thread 15/21 mm (1/2") Power (kW) 6.5
G31 Propane 37 G30 Butane 50 G20 Natural gas 20 G25 Natural gas 20
Power (kW) 5.1
G31 Propane 28
± 4
/50±5 mbar (kg/h)
± 3
mbar (kg/h)
± 2
mbar (m3/h)
± 2
±3
/25
mbar (m3/h)
± 3
/30±3 mbar (kg/h)
0.51
0.51
0.69
0.78
0.40
ELECTRICITY (Single-phase 230V)
Voltage 230Va.c. Power (kW) 0.1
Non contractual Document 01/2012 edition – 3BE B1O7PG4DG
