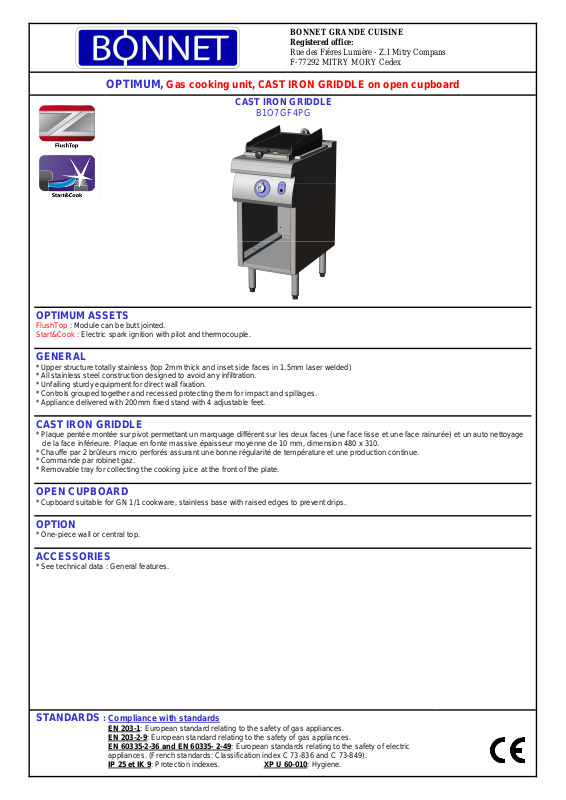

Page 1
BONNET GRANDE CUISINE
Registered office:
Rue des Frères Lumière - Z.I Mitry Compans
OPTIMUM,
Gas cooking unit, CAST IRON GRIDDLE on open cupboard
CAST IRON GRIDDLE
F-77292 MITRY MORY Cedex
B1O7GF4PG
OPTIMUM ASSETS
FlushTop : Module can be butt jointed.
Start&Cook : Electric spark ignition with pilot and thermocouple.
GENERAL
* Upper structure totally stainless (top 2mm thick and inset side faces in 1.5mm laser welded)
* All stainless steel construction designed to avoid any infiltration.
* Unfailing sturdy equipment for direct wall fixation.
* Controls grouped together and recessed protecting them for impact and spillages.
* Appliance delivered with 200mm fixed stand with 4 adjustable feet.
CAST IRON GRIDDLE
* Plaque pentée montée sur pivot permettant un marquage différent sur les deux faces (une face lisse et une face rainurée) et un auto nettoyage
de la face inférieure. Plaque en fonte massive épaisseur moyenne de 10 mm, dimension 480 x 310.
* Chauffe par 2 brûleurs micro perforés assurant une bonne régularité de température et une production continue.
* Commande par robinet gaz.
* Removable tray for collecting the cooking juice at the front of the plate.
OPEN CUPBOARD
* Cupboard suitable for GN 1/1 cookware, stainless base with raised edges to prevent drips.
OPTION
* One-piece wall or central top.
ACCESSORIES
* See technical data : General features.
STANDARDS
EN 203-1: European standard relating to the safety of gas appliances.
EN 203-2-9: European standard relating to the safety of gas appliances.
EN 60335-2-36 and EN 60335- 2-49: European standards relating to the safety of electric
appliances. (French standards: Classification index C 73-836 and C 73-849).
IP 25 et IK 9: Protection indexes. XP U 60-010: Hygiene.
: Compliance with standards
Page 2
B1O7GF4PG
GAS connection
Gas inlet at 180mm from the floor
As standard, the appliances are supplied
for G 20/20 mbar (and G 25/25 mbar) or
another gas on request
ELECTRICAL connection
Electric inlet at 615mm from the floor
(Flexable cable 1.5 m in length)
BONNET GRANDE CUISINE
Registered office:
Rue des Frères Lumière - Z.I Mitry Compans
F-77292 MITRY MORY Cedex
DIMENSIONS (mm)
Width 400
Depth x Height 759 x 1036
Cast iron plate 470 x 282
Useful surface (dm2) 13
PACKAGING (mm)
Width 540
Depth x Height 1060 x 1150
WEIGHT (KG)
COMPOSITION OF TOP
65
Cast iron griddle 1
COMPOSITION OF THE BOTTOM PART
Width of open cupboard 400
GAS
Connection Thread 15/21 mm (1/2")
Power (kW) 5.8
G31 Propane 37
G30 Butane 28
G20 Natural gas 20
G25 Natural gas 20
G25 Natural gas 25
± 4
/50±5 mbar (kg/h)
± 3
± 5
/50
mbar (kg/h)
± 2
mbar (m3/h)
± 2
mbar (m3/h)
± 3
mbar (m3/h)
0.45
0.46
0.61
0.70
0.70
ELECTRICITY (kW) (Single-phase 230V)
Power 230V a.c. 0.1
Accessory cupboard heating kit 1
Non contractual Document 01/2012 edition – 3BE B1O7GF4PG
