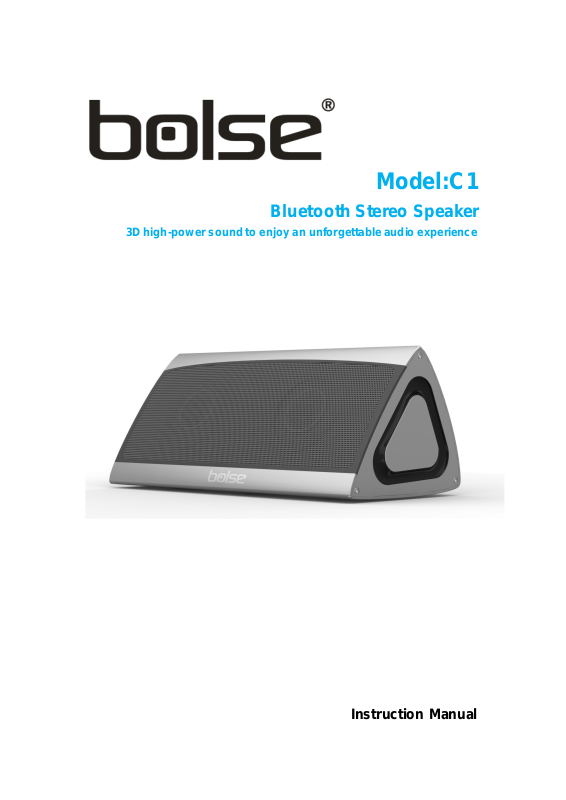

Bolse C1 User Manual [it]

Model:C1

Bluetooth Stereo Speaker

3D high-power sound to enjoy an unforgettable audio experience

Instruction Manual

Table of Contents

Precautions …………………………………………………………………..……. 1

Tips …………………………………………………………………………………..1

Packing materials …………………………………………………………………. 1

Buttons and Interface …………………………………………………………….. 2

Settings …………………………………………………………………………….. 2

Communication ……………………………………………………………………. 3

Audio Input ……………………………………………………………….………… 3

Charging ……………………………………………………………………………. 3

Fast Charging ……………………………………………………..……………….. 3

Technical Specifications ………………………………….……………………….. 3

Warranty ………………………………………………………………….………… 4

Inhaltsverzeichnis .......................................................5-8

Sommario ………………………………….………….....9-12

1

Dear Sir/Madam,

Thank you for purchasing the BOLSE C1 Bluetooth sound box. For the best
performance of the C1, please read this manual carefully and completely
before using the product. The C1 features a fashionable design, small size,
multiple functions, and high acoustic quality. In addition, it adopts the latest
electro-acoustic technology, and it is compatible with many Bluetooth devices,
such as tablet computers, cell phones, and music players, which allows you to
enjoy excellent sound effects both indoors and outdoors.

Precautions

 Please use or keep this device in places with normal temperature.
 Please protect this device from rainwater or humid environments; do not

drop or throw this device, which might cause damage to it; do not
disassemble, repair, or refit it on your own.

 This device has a lithium battery built in; please do not throw the battery in

the garbage or in fire. This is dangerous!

Tips

1. When listening to music, please adjust the volume properly to avoid high­ pitched sound impairing your hearing and to maintain the service life of the
C1.

2. In the case of any malfunctions, please immediately turn off the C1 and pull
out the USB cable to avoid any damage to the speaker and other
components.

3. Please charge this device before it has low battery, which might impair
Bluetooth connection.

Packing materials

2

Buttons and Interface

1) 3.5 audio input interface

2) USB charge jack

3) Volume increase, MoveNext

4) Volume reduction, MovePrevious

5) Phone, Play, Pause

6) Microphone

7) On-off key, Bluetooth pairing key

8) Status light

Settings

1. When turning on the C1 for the first time, you will hear a beeping sound
while a blue light is blinking quickly. Search for Bolse C1 with your tablet
computer, cell phone, or music player and enter PIN number “0000” for
Bluetooth connection. Once connected, a blue light will blink slowly.

2. You may play music via Bluetooth and press to pause.

3. Press for a few seconds to decrease the volume, until silence; press
for a few seconds to increase the volume. You will hear a beep ing sound

when the volume reaches maximum.

4. Press to play the previous track; press to play the next track.

When playing the music, press to pause.

5. When the battery is running low, a blue light and a green light will flash

alternatively. The red light will be on while charging and off when fully charged
(in 4 or 5 hours).

3

Communication

Input voltage

DC5V/1000mA

Battery type

Lithium battery

Frequency range

60Hz-18kHz

Battery capacity

7.4V 2200mAh

Snr

80dB

Input sensitivity

800mV

Outout power

RMS 5W * 2

Audio Interface

A. Bluetooth wireless transmission B. Line in

Impedance

4 ohms

Bluetooth band

2.402GHz-2.480GHz

Bluetooth version

CSR 4.0

Bluetooth protocol

A2DP, AVRCP

Once the C1 is connected with your cell phone via Bluetooth, you will hear a
beeping sound when there is an incoming call. Press to answer the call or
hold to reject the call. Press twice quickly to recall the last phone
number you have dialed.

Audio Input

Play music via AUX: when playing music via AUX, you may use your tablet
computer, cell phone, or music player to play/pause/play next track/play
previous track/volume up/volume down.
Note: In this state, all keys on the C1 are unresponsive, and you have to use
your Bluetooth device to play or pause music.

Charging

1. When the C1 is being charged, the red light turns on. Once it is fully charged,

the red light turns off.

2. With low battery, the green light will blink slowly; please charge the C1

immediately.

Fast Charging

Please charge the C1 in standby or off status. Connect the C1 to a computer or
charger via the USB cable to start charging. Once the C1 is fully charged, the
red light will turn off.

Technical Specifications
