BTS-12 Portable Rechargeable NFC
Bluetooth Stereo Speaker

INSTRUCTION MANUAL

TABLE OF CONTENTS

PRODUCT MAIN FEATURES………………………………………………………...1
SPEAKER OVERVIEW………………………………………………………………...1

CHARGING YOUR SPEAKER………………………………………………………..2
PAIRING YOUR DEVICE……………………………………….……………………..3
NFC FUNCTION………………………………………………………………………...4
CONTROLLING YOUR MUSIC……………………………………………………….4
ANSWERING CALLS………………………………………………………………….5
USING SIRI……………………………………………………………………………...5
USING THE LINE-IN AUDIO JACK………………………………………………….6
MUSIC SHARING………………………………………………………………………6
BATTERY STATUS ON IPONE AND IPAD………………………………………...6
SPECIFICATIONS……………………………………………………………………...7
SAFETY INFORMATION………………………………………………………………7
WARRANTY…………………………………………………………………………….9

INHALTSVERZEICHNIS………………………………….10-19
SOMMARIO………………………………………………..20-29

TABLE DES MATIÈRES…………………………………….30-37

1

INTRODUCTION

Thank you for purchasing our Bluetooth wireless speaker BTS12. Before using
the product, please read this manual.

PRODUCT MAIN FEATURES

1. High-end stereo Bluetooth speaker

2. Design reflects the beauty of simplicity, and touch buttons make it stylish

3. Two pieces of 40MM 6W drivers deliver massive and rich sound

4. Large speaker cavity inside for excellent sound effects

5. LF diaphragm inside delivers outstanding and deep bass

6. Built-in rechargeable battery supports up to 6 hours playback time

7. Built-in microphone for hands-free phone calls

8. Six touch buttons for controlling tracks on phone wirelessly

9. SIRI function can be activated by pressing a button on the speaker

10. Tap-to-pair with NFC technology for easy and instant connection

11. Battery status can be displayed on iPhone

12. Easy connection to phones or other Bluetooth devices

13. Can be used as a wired speaker

14. Buddy-jack function (audio output) to connect a row of speakers

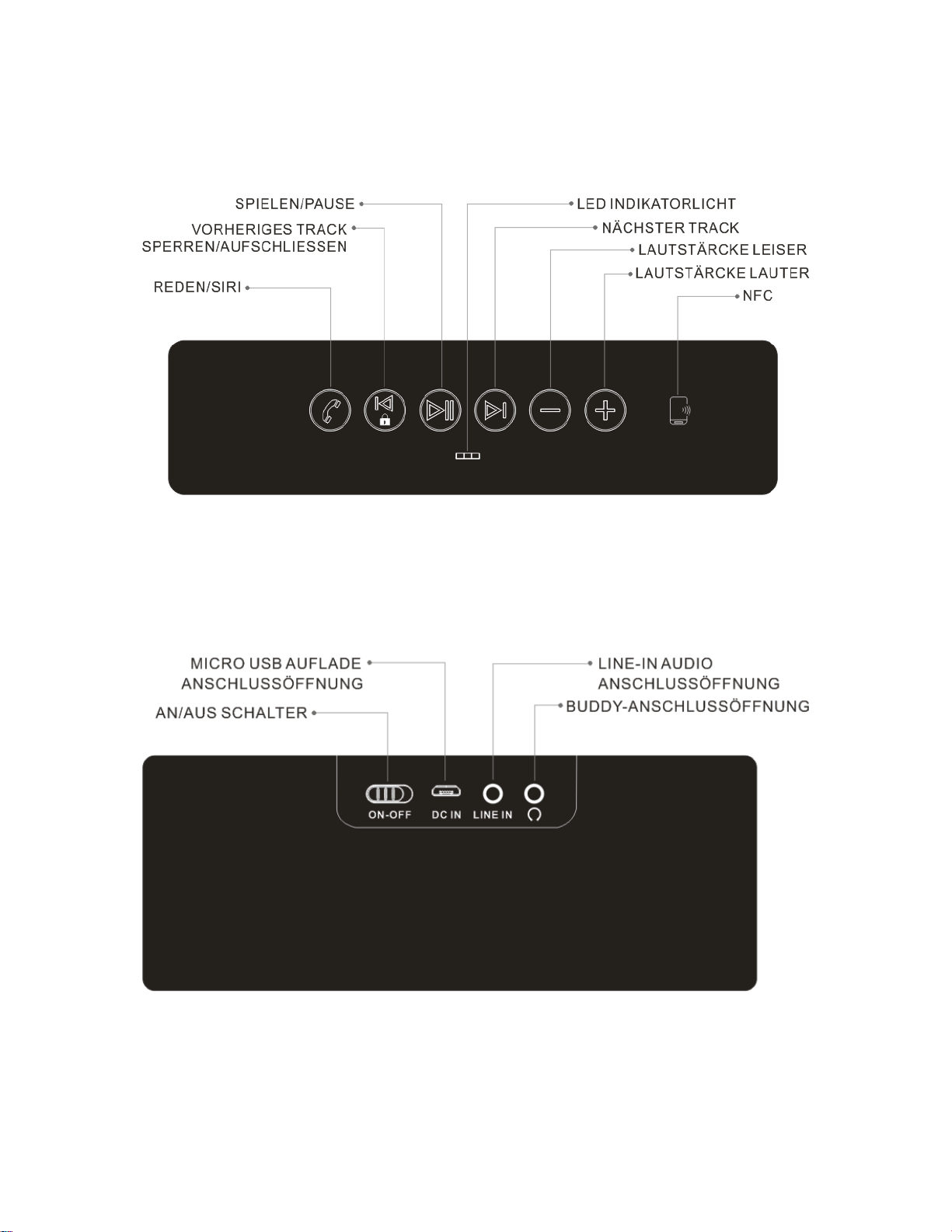

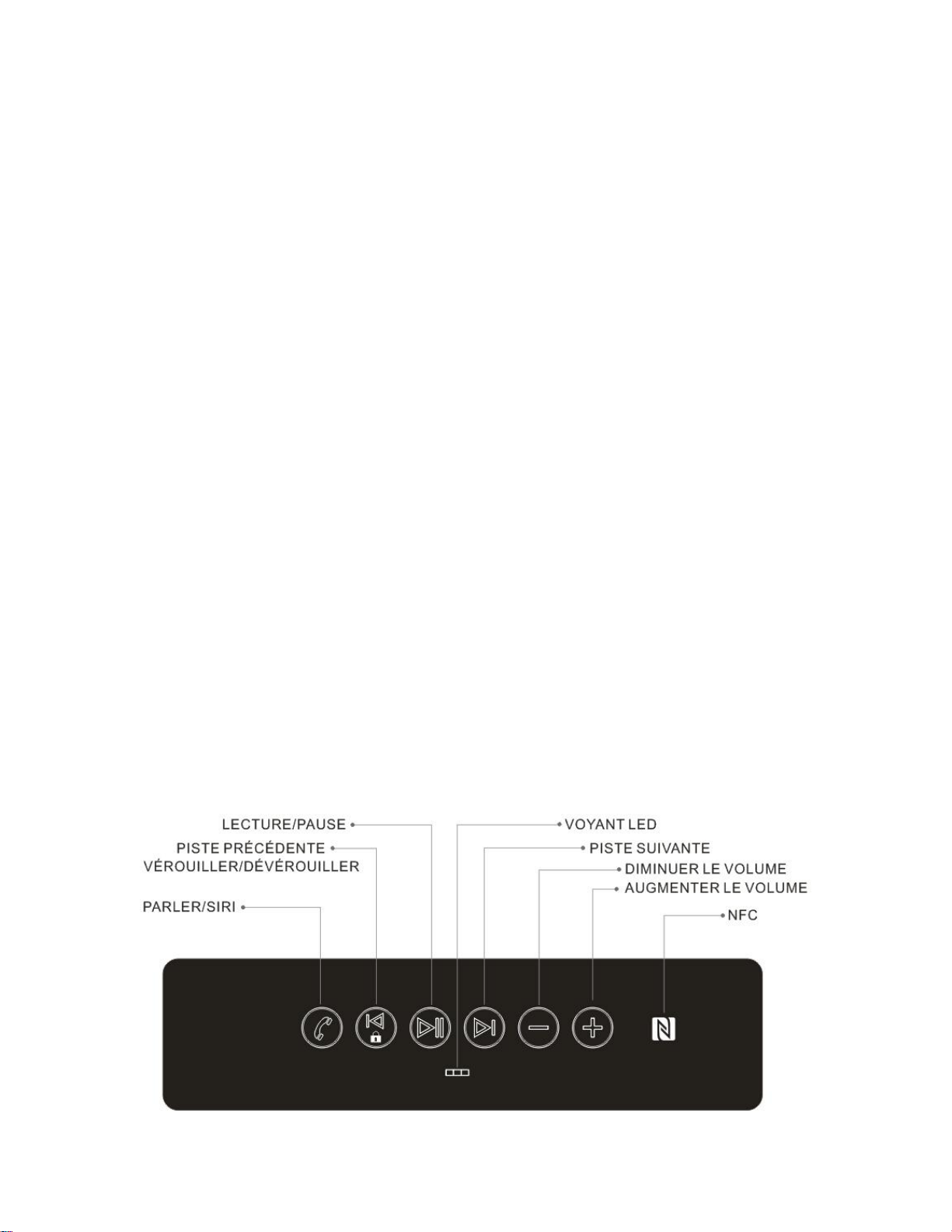

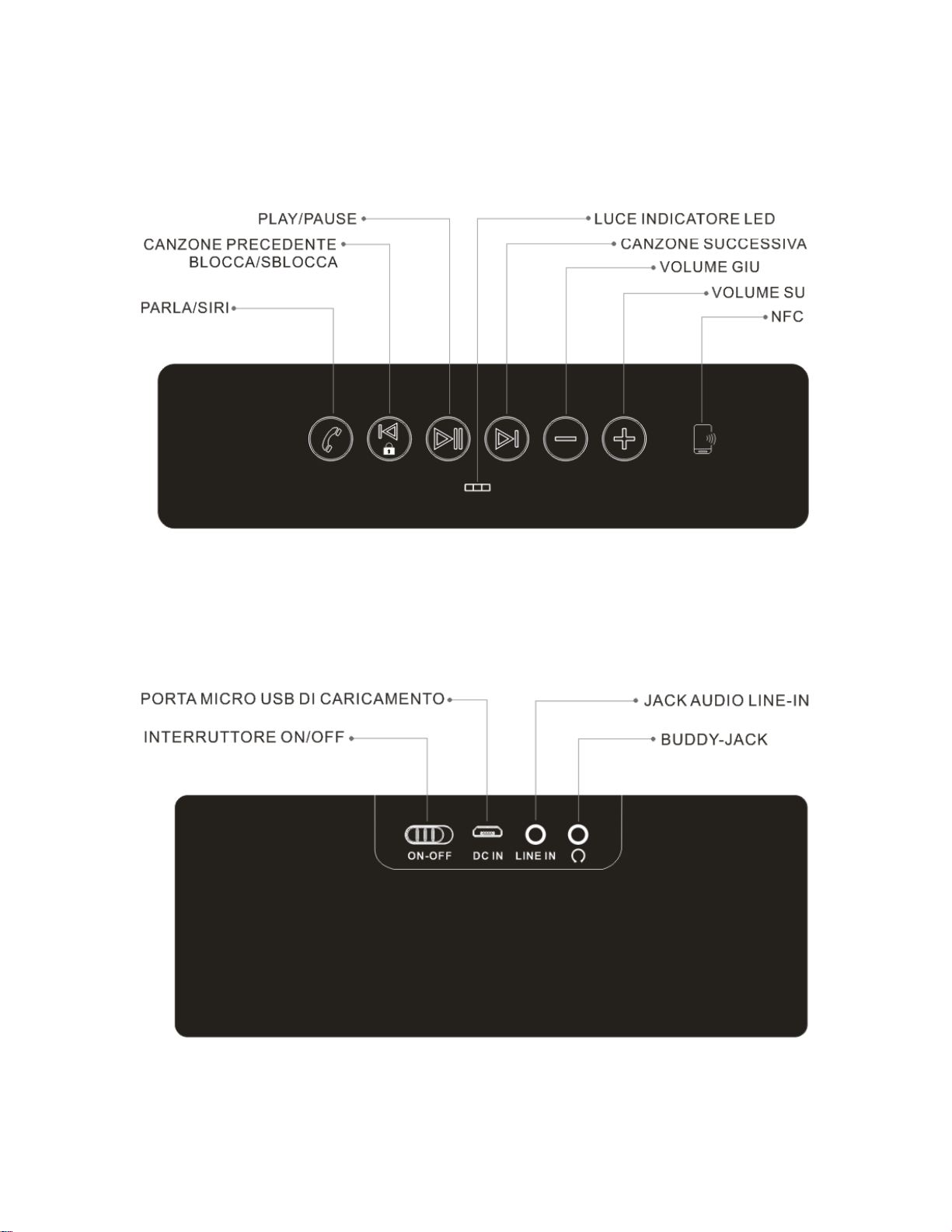

SPEAKER OVERVIEW: TOP

2

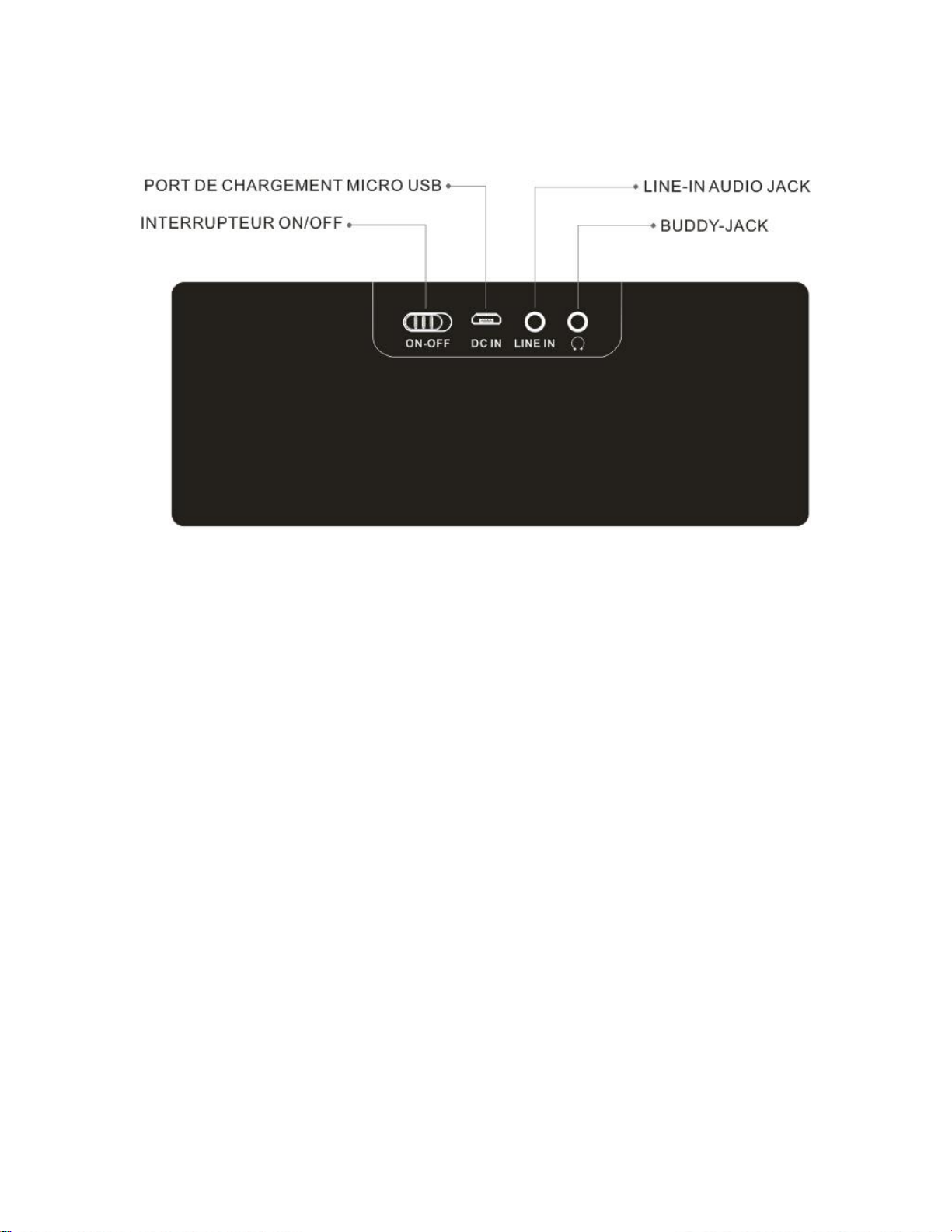

SPEAKER OVERVIEW: BACK

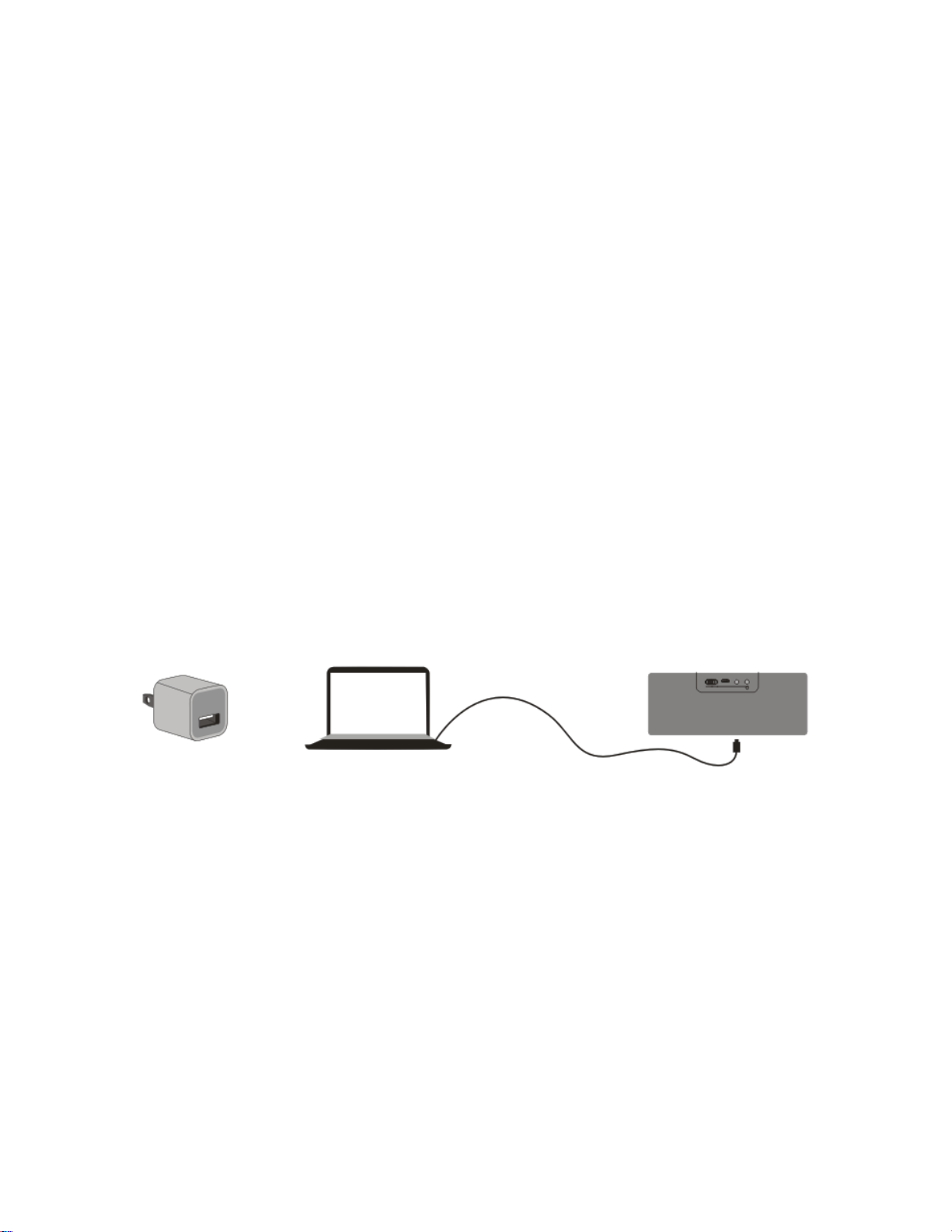

CHARGING YOUR SPEAKER

 Before your first use, or when the battery runs out, please charge the speaker

with the Micro USB charging cable included in the package.

 Plug the small Micro USB pin into the charging port on the back of the

speaker, and insert the other end of the cable (the standard USB 2.0 plug)
into the USB port of a computer or a USB main charger purchased from the
store (note: the charger must be designed and tested compatible with this
speaker if you purchased one). In this case, please plug the USB charger into
an wall outlet.
Using a third-party charger could result in electric shock and could also
damage the speaker.

 The LED indicator light will turn red when it is being charged. When it is fully

charged, the LED indicator light will go off. A full charge takes about 5-6 hours.

 The speaker can be charged while working. The speaker will be powered by

the DC input directly and the battery will be in sleep mode after it is fully
charged.

3

 When the battery status is low, the shinning LED light will turn from its original

blue to red. When the battery is running out, there will be a warning tone
prompting you to charge the speaker, and the bluetooth will automatically
disconnect.

PAIRING YOUR DEVICE

1) Make sure the BTS12 is fully charged.

2) Enable Bluetooth on your Bluetooth device (iPhone, iPad, Tablet). Bluetooth
controls are typically found in the tools or settings menu. Turn on Bluetooth
connectivity and make sure your device is "visible" or "discoverable."

3) Turn on your new BTS12 by switching the button on the back of the speaker to
"On"; there will be a warning tone indicating that the speaker is powered on

4) After turning on the BTS12, the LED lights should alternate between red and
blue. These signals indicate that the speaker is in "pairing mode."

5) Choose "add new Bluetooth device" or "setup Bluetooth device" on your
device. It will search for the Bolse BTS12.

6) As your Bluetooth device discovers possible items to connect to, it will list their
names. Select the device named Bolse BTS12. This will connect your speaker
to your Bluetooth device. There will be a notification tone indicating that the
Bluetooth is connected successfully.

7) If the pairing attempt fails or times out (roughly 3 minutes), restart both devices
and start the pairing process again (Steps 2–6).

8) Once paired successfully, the LED indicator lights will turn blue and blink once
every 4 seconds.

9) If you need to pair with another Bluetooth device, press the Play/Pause button
for 2 seconds; the speaker will be disconnected from the previous Bluetooth
device automatically, there will be a warning tone, and then you can repeat the
pairing process again (Steps 2–6)

10) Enjoy your music wirelessly anywhere you go!

4

NFC FUNCTION

If your Bluetooth audio device has an NFC function (mostly only a few brands of
mobile phones, like Samsung, BlackBerry, LG, and Huawei have this function ),
then you can skip the processes of Bluetooth pairing—you just need two steps to
pair a Bluetooth device with the speaker.

1) Enable NFC on your Bluetooth device (Samsung, BlackBerry, LG, and
Huawei). NFC controls are typically found in the tools or settings menu. Turn on
NFC and make sure your device is "visible" or "discoverable."

2) Put your device with NFC on the right side of the speaker where the NFC chip
is. This completes the Bluetooth pairing, and there will be a notification on your
phone which shows that the Bluetooth is connected. If you need to disconnect,
put your phone on the speaker again, and the phone will notify you that the
Bluetooth is already disconnected.

CONTROLLING YOUR MUSIC

Once your speaker is connected to a Bluetooth device (mobile phone, tablet, PC,
or laptop, etc.), you are free to control your music any way you want! Every time
you press any of the buttons, there will always be a notification tone indicating
that you hit the button.

Press the Volume UP and Volume DOWN buttons to increase or decrease the
volume. There will be a reminder tone "du" when the speaker is at maximum or
minimum volume; the volume can be voiceless when at minimum status. Volume
can also be adjusted from the Bluetooth devices (sound source).

To switch to the previous or next song, simply press the Previous and Next
button on the speaker. This will switch to the previous/next song in the playlist of
the Bluetooth device.

Press the Play/Pause button on the speaker to start or pause songs.
Please note that the Previous, Next, and Play/Pause buttons can only control the
music playing from the default music playing software on the Bluetooth devices.
If the music playing software is not the default player, the music may not be able
to be controlled via these 3 buttons. And the Play button may start another song
in the playlist of the default player.

5

!

△

Note The Previous button has another function—to lock and unlock the touch

buttons. In case of touching any buttons to switch songs, adjust voice, or even
dial out a phone call, you can press the Previous button for 2 seconds, then all
the buttons will be locked. When you need to use the buttons, just double press
the Previous button, then all the buttons will be unlocked and you can control
your music again.

ANSWERING CALLS

You can use the BTS12 as a portable speakerphone for incoming calls when
connected wirelessly via Bluetooth. When there is an incoming call, the speaker
will play the ringtone of your phone itself. To answer a call, press the TALK
button and talk as you would with your device if it was on speakerphone. The
built-in microphone will pick up your voice just like a phone.

To end a call, press the TALK button again. To refuse a call, double click the
TALK button. You can re-dial the latest number called by double pressing the
TALK button.

!

△

Note If there is an incoming call while the buttons are locked, you don’t need

to unlock them first, just pick up, end, or refuse the call as mentioned above.

USING SIRI

When the speaker is connected to an iPhone/iPad via Bluetooth, press and hold
the TALK button for 3 seconds to activate the SIRI function on iPhone/iPad. Then
talk to the speaker after hearing the "SIRI " sound.

Please note that the iPhone/iPad may not be able to recognize human speech
when the speaker is being used in a noisy environment. SIRI may not work if the
iPhone/iPad is not connected to the internet.

When the SIRI conversation is finished, the speaker will continue playing audio.

6

USING THE LINE-IN AUDIO JACK

If your device is not Bluetooth-enabled, you can still enjoy your music simply by
using the Line-in Audio Jack. Connect the speaker with the included audio cable
to any device with a 3.5MM standard audio jack, then the speaker can be used
as a wired speaker.

Please note, all the buttons only work when connected wirelessly via Bluetooth.
In the case of wired connection, music can only be controlled on your device.

MUSIC SHARING

This speaker has an audio output function. No matter whether the speaker is
used in a wired way or used wirelessly, another speaker or headphone can be
connected to this speaker via a 3.5MM audio cable (AUX cable). For instance,
another pair of speakers or headphones can be plugged into the jack on the
speaker where there is the mark ( ), and then 2 or more people can enjoy the
same music at the same time.

BATTERY STATUS ON IPONE AND IPAD

When the speaker is connected to an iPhone/iPad via Bluetooth, the battery
status of the speaker can be displayed on the top of the iPhone/iPad screen,
after the Bluetooth symbol.

7

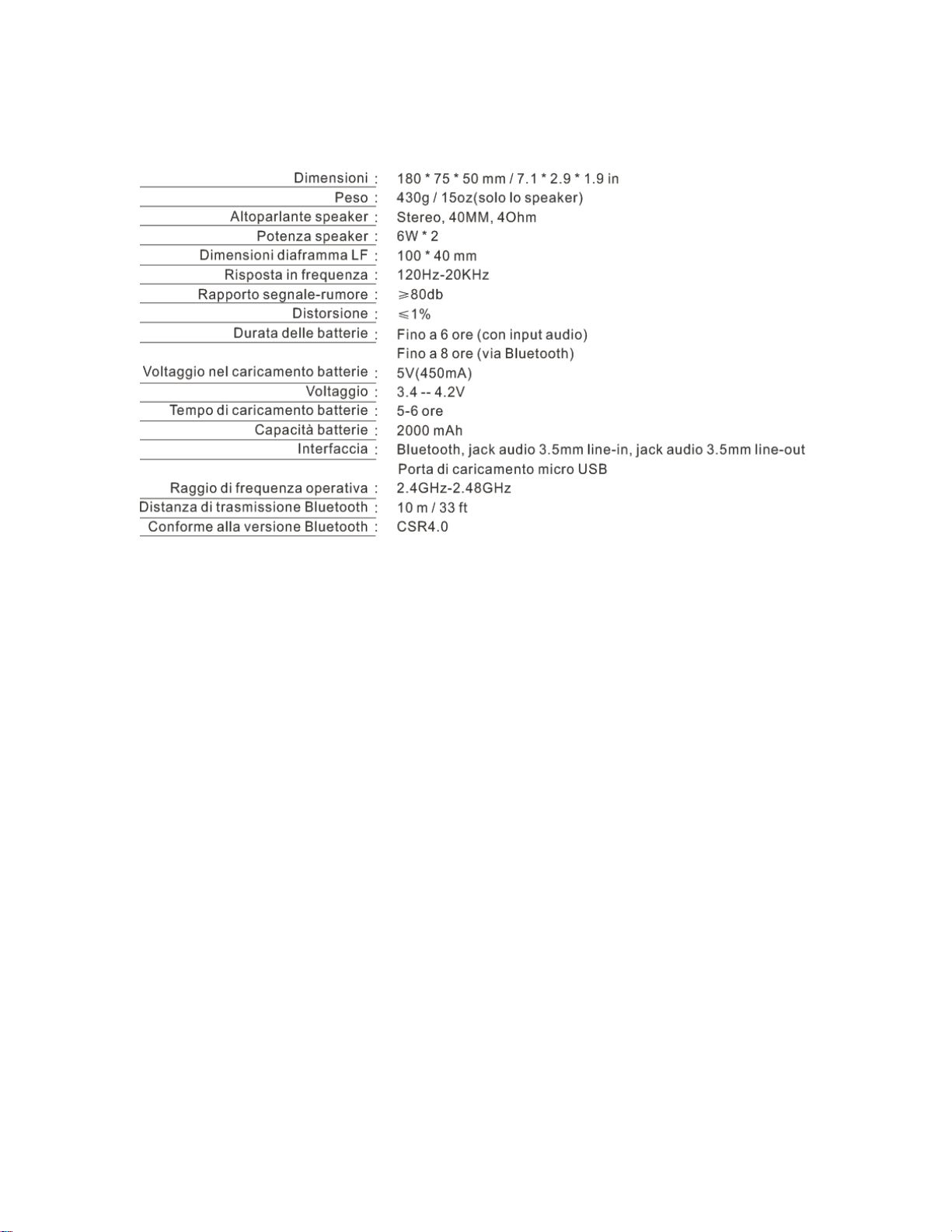

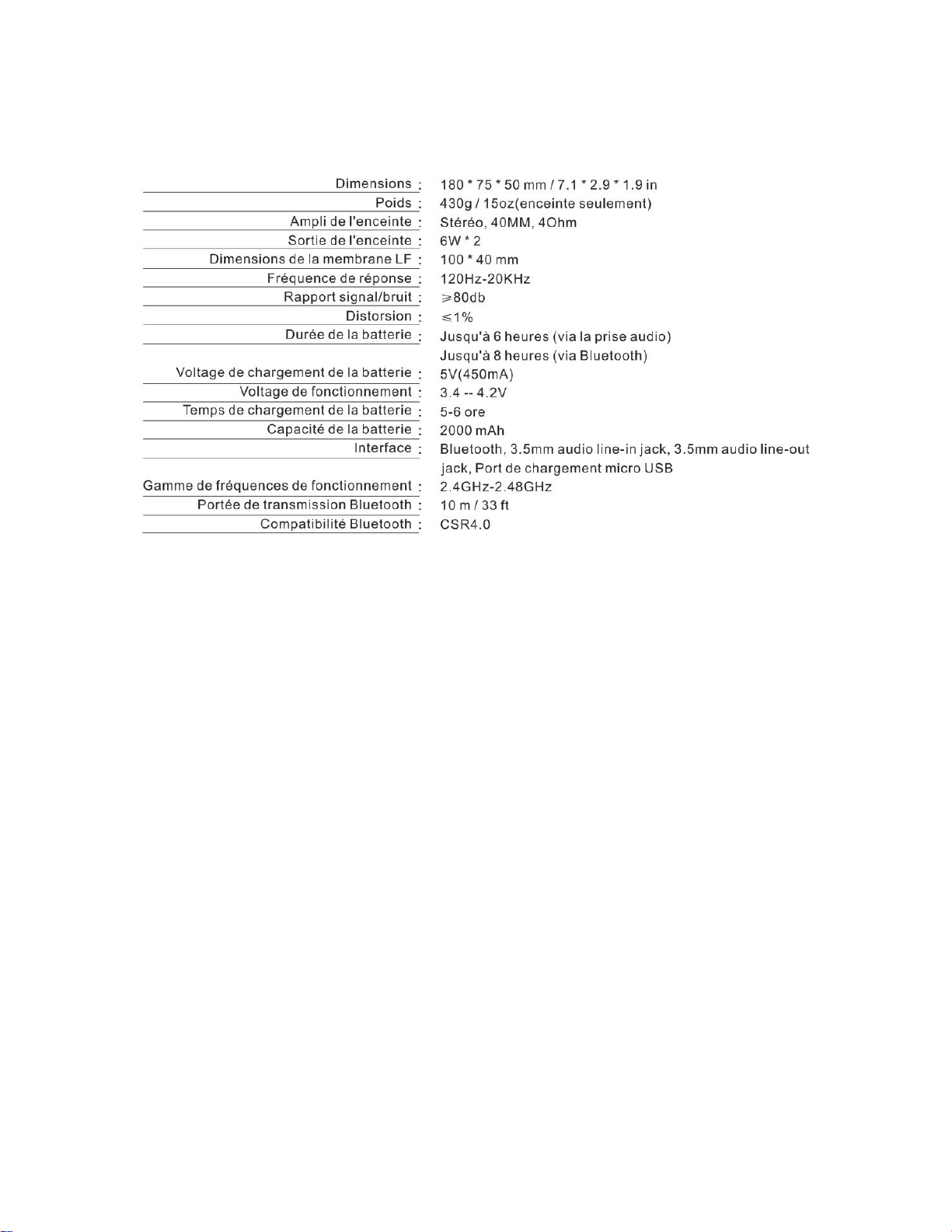

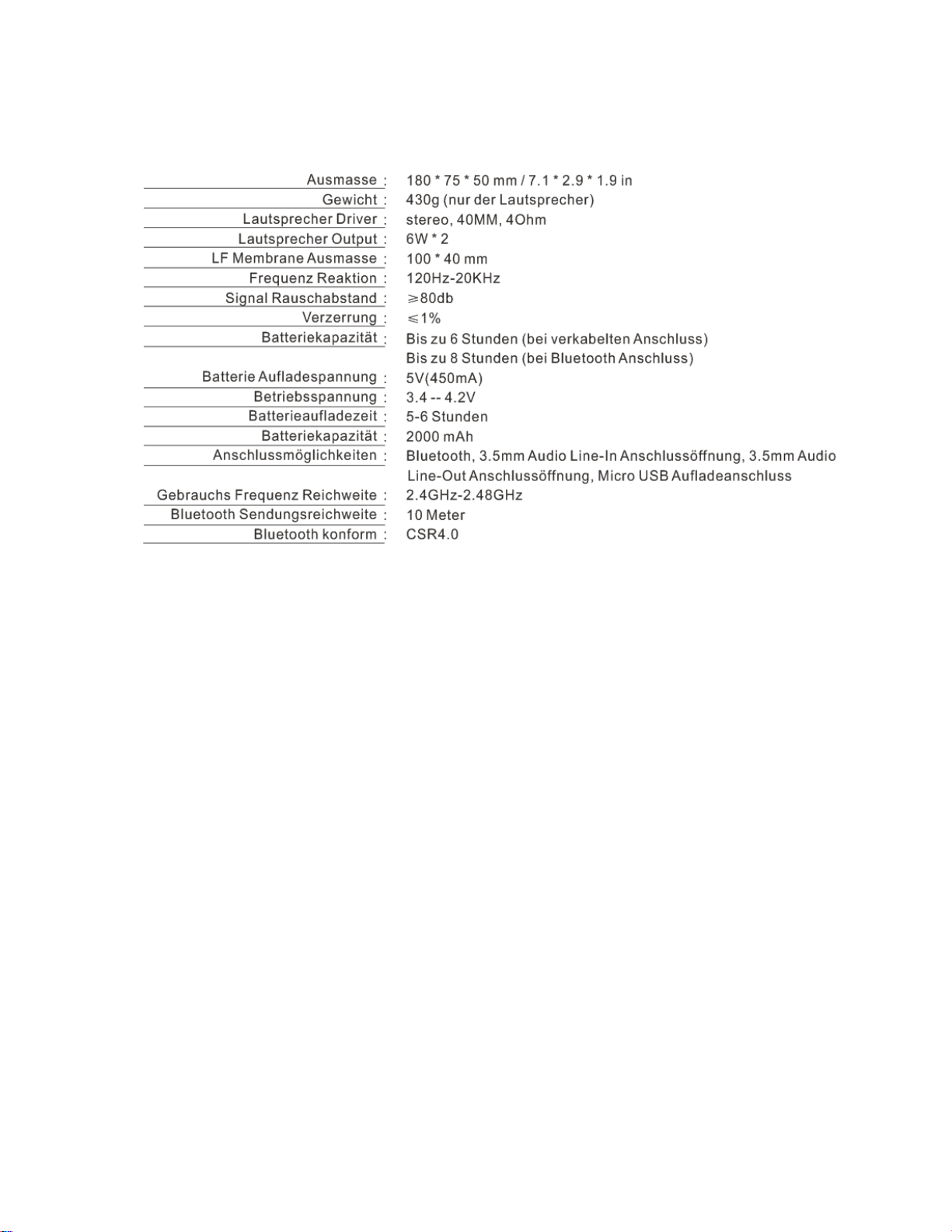

SPECIFICATIONS

SAFETY INFORMATION

!

△

WARNING

Please read these safety warnings and cautions carefully to ensure your
personal safety and prevent property damage.

Fire and Electric Shock Hazard

 Do not expose your speaker to liquid, moisture, humidity, or rain. Do not use

the speaker near a bathtub, sink, sauna, pool, or steam room. Exposure of
the speaker to moisture could result in electric shock.

 Do not drop, disassemble, open, crush, bend, deform, puncture, shred,

microwave, incinerate, paint, or insert foreign objects in to the speaker. Such
actions could result in electric shock.

 Clean the speaker only with a dry cloth.
 Do not expose your speaker to extremely high or low temperatures.
 Do not leave your speaker in direct sunlight for extended periods of time.
 Do not leave your speaker near open flames such as cooking burners,

candles, or fireplaces.

8

 Do not block ventilation openings.

Battery/Charging Hazard

 Do not dispose your speaker in a fire. The battery could explode causing

injury or death.

 Only charge the speaker in accordance with this User Manual.
 Do not charge the speaker in damp areas or in extremely high or low

temperatures because this could result in electric shock.

 Do not clean the speaker when it is being charged. Always unplug the

charger first before cleaning the speaker.

Automobile Accident Hazard

 Do not leave or store the speaker or any of its accessories near or over your

automobile’s air bag because serious injury may result when an air bag
deploys.

Fall Hazard

 Do not place the speaker on high surfaces such as shelves. During music

playback the speaker may move which could cause the speaker to shift and
fall off the edge.

!

△

CAUTION

 Do not use abrasive cleaners to clean your speaker because this could cause

scratches or damage.

 Do not bring your speaker in to contact with any sharp objects because this

could cause scratches and damage.

 Do not insert anything into your speaker unless otherwise specified in this

User Manual. This may damage the internal components.

 Do not attempt to repair, modify, or disassemble your speaker yourself.
 Do not attempt to replace the battery of the speaker. It is built-in, and not

changeable by users.

 Use only the USB charging cable supplied in the accessories package to

charge the speaker, from the

 USB port of computer. Or charge the speaker with a wall main charger

supplied from the same store where you purchase this speaker. Other
chargers may look similar, but using them could result in electric shock and
could damage the speaker.

9

 Observe all signs and displays that require an electrical device or RF radio

products to be switched off in designated areas.

Warranty

 12 months from date of purchase.
 Covers manufacturing defects.
 Requires original purchase receipt.
 Void if product has been misused, disassembled, or physically damaged.

For warranty service, contact Bolse: [e-mail].

10

EINLEITUNG

Wir danken Ihnen für den Kauf von unseren Bluetooth kabellosen Lautsprecher
BTS12 Vor dem Gebrauch von diesem Produkt, bitte lesen Sie diese
Gebrauchsanweisung.

PRODUKTE EIGENSCHAFTEN ÜBERSICHT

1. Stereo Bluetooth Lautsprecher der ersten Klasse

2. Der Design spiegelt die Schönheit der Einfachheit und die Touch Knöpfe
wirken stylisch

3. Der zweiteilige 40mm 6W Driver bietet einen massiven und runden Ton

4. Der grosse Lautsprecherhohlraum bietet hervorragende Sound Effekts

5. Das eingebaute LF Membran liefert einen ausgezeichneten und tiefen Bass

6. Die eingebaute wieder aufladbare Batterie bietet eine Spielzeit von 6 Stunden

7. Eingebautes Mikrofon für Freisprech Handy Anrufe

8. Sechs tasten Knöpfe um die Tracks auf dem Handy ferngesteuert zu
kontrollieren

9. Die SIRI Funktion kann von einem Knopf auf dem Lautsprecher aus aktiviert
warden

10. Durch die NFC Technologie können Geräte per tippen gepaart werden und
liefern eine einfache und sofortige Verbindung

11. Der Batteriestand kann auf dem iPhone erstellt warden

12. Einfache Verbindung zu Handys oder anderen Bluetooth Geräten

13. Kann als verkabelter Lautsprecher verwendet warden

14. Die Buddy-jack Funktion (Audio Output) ermöglicht den Anschluss an eine
Reihe von Lautsprechern
