Page 1

OWNER’S Guide

Model Series

820 thru 829 840 thru 849

TRANSMATIC

GARDEN TRACTORS

MTD

For A Growing World"

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internai combustion engine and shouid not be used on or near any unimproved forest-

covered, brush-covered or grass-covered iand uniess the engine’s exhaust system is equipped with a spark arrester meeting appiicabie iocai or state iaws (if any), if a spark arrester is used, it shouid be maintained in effective working order by the operator, in the State of Caiifornia the above is required by iaw (Section 4442 of the Caiifornia Pubiic Resources Code). Other states may have simiiar iaws. Fédérai iaws appiy on fédérai iands. A spark arrester for the muffier is avaiiabie through your nearest engine authorized service deaier or contact the service department, P.O. Box 368022 Cieveiand, Ohio 44136-9722.

MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722

’RINTED IN U.S.A.

FORM NO. 770-8552M

Page 2

IMPORTANT

SAFE OPERATION PRACTICES

THIS SYMBOL POINTS OUT IMPORTANT SAFETY I \ISTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND DTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE AHEMPTING TO OPERATE YOUR UNIT. WHEN YOU SEE THIS SYMBOL— ^ HEED ITS WARMING.

DANGER' power equipme it, carelessness or error on the part of the operator can result in injury. This lawn

Your lawn mower was bull to be operated according to the rules for safe operation in this manual. As with

GENERAL OPERATION

1. Read, understand, and follow all instructions in the manual and

2. Only allow responsible individuals familiar with the instructions

3. Do not put hands or feet under cutting deck or i ear rotating

4. Clear the area of objects such as rocks, toys, wire etc., which '

5. Be sure the area is clear of other people before trowing. Stop

6. Never carry passengers.

7. Disengage blade(s) before shifting into reverse anc backing up.

8. Be aware of the mower and attachment discharge ilirection and

9. Slow down before turning. Operate the machire smoothly.

10. Never leave a running machine unattended. Alwiys turn off

12. Stop engine and wait until blade(s) comes to a complete stop

13. Mow only in daylight or good artificial light.

14. Do not operate the machine while under the influence of alcohol

15. Watch for traffic when operating near or crossing r ladways.

16. Use extra care when loading or unloading the m; chine into a

17. Never make a cutting height adjustment while engi le is running

18. Wear sturdy, rough-soled work shoes and close- itting slacks

19. Check overhead clearance carefully before driving under power

uHinucn. ¡3 capable of amputiiting hands and feet and throwing objects. Failure to observe the following safety

instructions could result in serious injury or death._____________________________

on the machine before starting. Keep this manual ir a safe place for future and regular reference and for ordering replacement parts.

to operate the machine. Know controls and how to stop the machine quickly.

parts.

could be picked up and thrown by the blade. A sma I object may have been overlooked and could be accidentally tf rown by the mower in any direction and cause injury to you or a bystander. To help avoid a thrown objects injury, keep childrer, bystanders and helpers at least 75 feet from the mower while i is in opera tion. Always wear safety glasses or safety goggles furing oper ation or while performing an adjustment or repa r, to protect eyes from foreign objects. Stop the blade(s) wten crossing gravel drives, walks or roads.

machine if anyone enters the area.

Always look down and behind before and while bacdng.

do not point it at anyone. Do not operate the me wer without either the entire grass catcher or the chute guard ir place.

Avoid erratic operation and excessive speed.

blade(s), place transmission in neutral, set park brake, stop engine and remove key before dismounting. Turn off blade(s) when not mowing.

before (a) removing grass catcher or unclogging ;hute, or (b) making any repairs, adjusting or removing any grai s or debris.

or drugs.

trailer or truck. This unit should not be driven u) or down a

ramp onto a trailer or truck under power, because t le unit could tip over, causing serious personal injury. The init must be pushed manually on a ramp to load or unload prop jrly.

if operator must dismount to do so.

and shirts. Do not wear loose fitting clothes or jewf Iry. They can

be caught in moving parts. Never operate a unit in bare feet, sandals, or sneakers.

lines, wires, bridges or low hanging tree branches, before enter

ing or leaving buildings, or in any other situaticn where the

operator may be struck or pulled from the unit, which could

result in serious injury.

20. Disengage all attachment clutches, thoroughly depress the brake pedal, and shift into neutral before attempting to start engine.

21. Your mower is designed to cut normal residential grass of a height no more than 10". Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Debris may build up on the mower deck or contact the engine exhaust presenting a potential fire hazard.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-over acci dents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area. If the slope is greater than 15° as shown on the slope gauge, do not operate this unit on that area or serious injury could result.

DO:

Mow up and down slopes, not across. Remove obstacles such as rocks, limbs, etc. Watch for holes, ruts or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles. Use slow speed. Choose a low enough gear so that you will not have to stop or shift while on the slope. Always keep machine in gear when going down slopes to take advantage of engine braking action. Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability. Use extra care with grass catchers or other attachments. These can change the stability of the machine. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid engagement or braking could cause the front of the machine to lift and rapidly flip over backwards which could cause serious injury. Avoid starting or stopping on a slope. If tires lose traction, disen gage the blade(s) and proceed slowly straight down the slope.

DO NOT:

Do not turn on slopes unless necessary; then, turn slowly and grad

ually downhill, if possible.

Do not mow near drop-offs, ditches or embankments.The mower

could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass. Reduced traction could cause sliding. Do not try to stabilize the machine by putting your foot on the

ground.

Do not use grass catcher on steep slopes. III. CHILDREN

‘ Tragic accidents can occur if the operator is not alert to the presence

of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing area and in watchful care of an adult other than the operator.

2. Be alert and turn machine off if children enter the area.

3. Before and when backing, look behind and down for small children.

(continued on page 5)

Page 3

USE THIS SHEET AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

---------------------

-----------------------------------------A CORNER OF A BUILDING

A POWER POLE

OR A FENCE POST

..........

.............

..............................

..............

(D (D

■o

<n zr

(D (D

■O

c c (D

“t (D

o (D

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is

extremely difficult to maintain your footing and you could slip, resulting in serious injury. Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

Page 4

contents; of hardware pack

Remove this sheet from your owner's manual and lay the hardware on the illustration for identification purposes.

After assembly, keep the Slope Gauge which is on the reverse side of this sheet for future use.

(Hardware pack may cont lin extra items which are not used on your unit.

Part numiters are shown in parentheses.)

ATTACHING THE DECK LINKS

Eyebolts

(711-0817)

(Not Shown to

Scale) Quantity—3

_ Hex Nuts

1/2-13 Thread

(712-0206) Quantity— 3

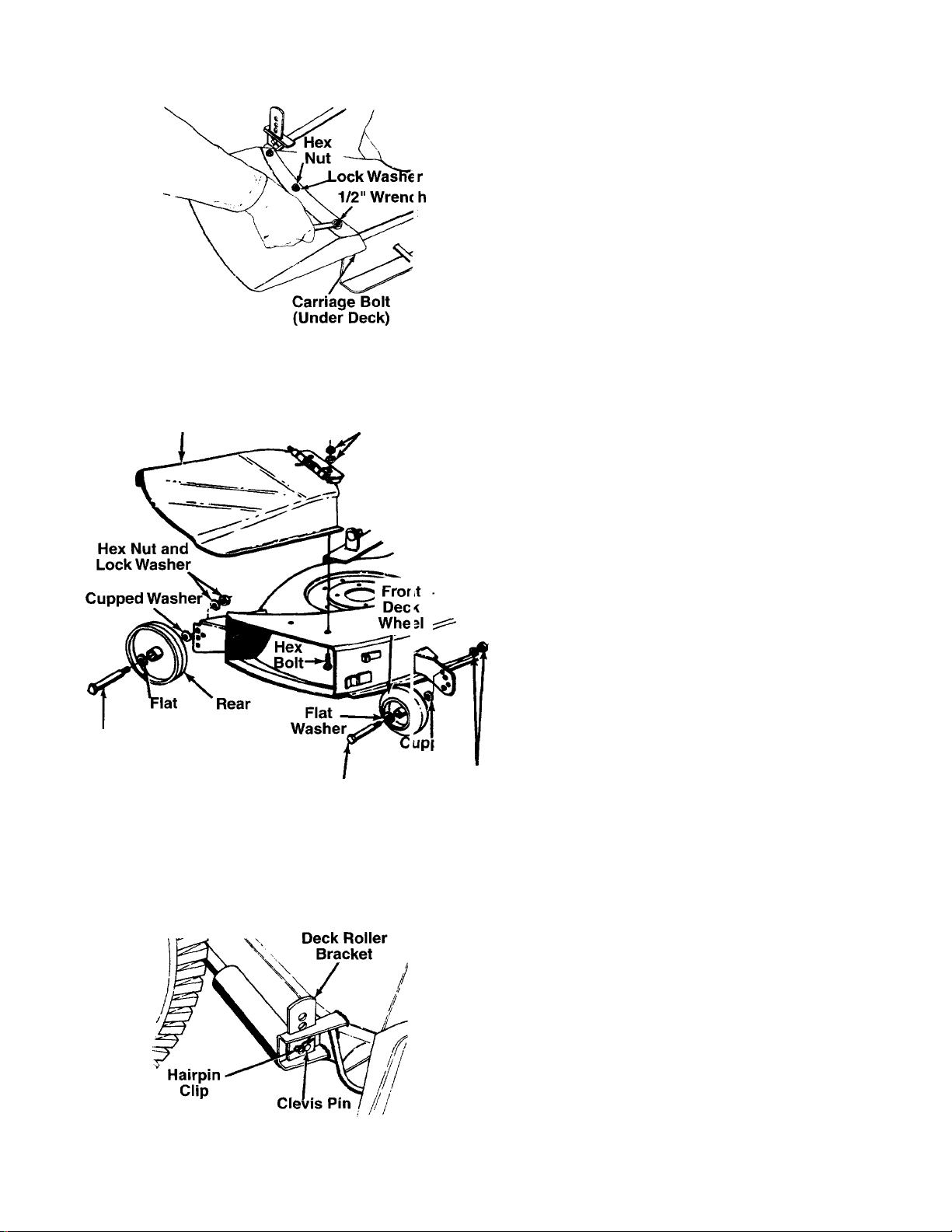

ATTACHING THE DECK WHEELS (if not already attached).

IT TUT T t

(46" Deck

Wheels are Not Shown

Axle Bolts

— Long

(738-3056)

Only)

Deck

Front

3-1/4"

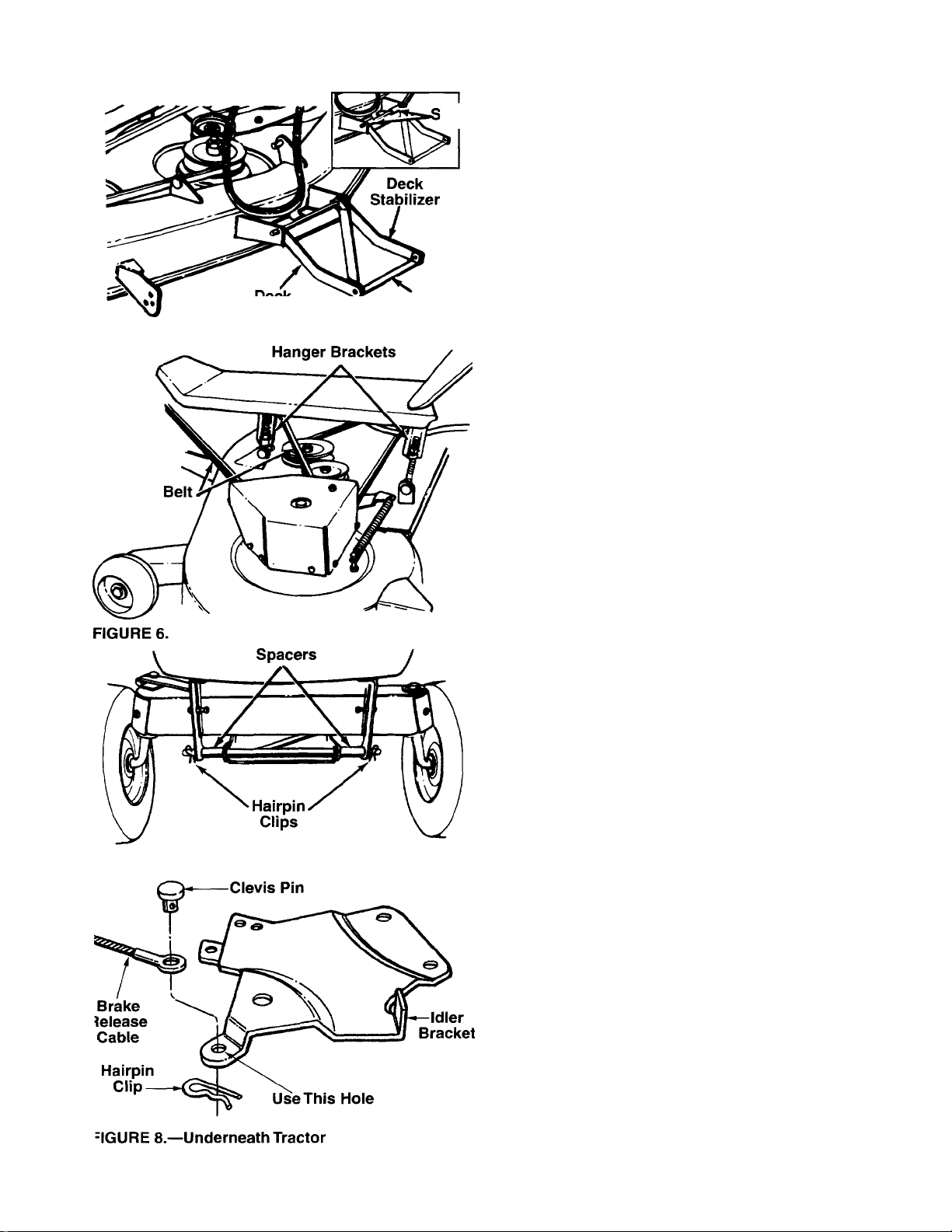

ATTACHING THE CUTTING DECK

Small —^

Clevis Pin (711-0701)

Hairpin Clips

(714-0101)

-0

Hairpin Ciip (714-0104)

Fiat

Washers

1/2" I.D.

(736-0192)

NOTE; This hardware may be assembied

to the deck.

I I I

INCHES

Flat Washe rs

1/2" I.D

(736-0192)

Cuppei I

Washer s

3/8" I.D.

(736-0105)

Lock

Rear

Axle Bolts

2-1/4" Long

(738-0533)

I I I I I I I

I I I I I I I I I

Washers

3/8" I.D.

(736-0169)

Hex Nuts

3/8-16

Thread

(712-0798)

Page 5

4. Never carry children, even with the blades off. They may fall off and be seriously injured or interfere with the safe machine oper ation.

Never allow children under 14 years old to operate the machine. Children 14 years and over should only operate machine under close parental supervision and proper instruction.

Use extra care when approaching blind corners, shrubs, trees or other objects that may obscure your vision of a child or other hazard.

Remove key when machine is unattended to prevent unauthorized operation.

IV.

SERVICE

Use extreme care in handling gasoline and other fuels. They are extremely flammable and the vapors are explosive. a. Use only an approved container. b. Never remove fuel cap or add fuel with the engine running.

Allow engine to cool at least two minutes before refueling.

c. Replace fuel cap securely and wipe off any spilled fuel before

starting the engine as it may cause a fire or explosion.

d. Extinguish all cigarettes, cigars, pipes and other sources of

ignition.

e. Never refuel the machine indoors because fuel vapors will

accumulate in the area.

f. Never store the fuel container or machine inside where there

is an open flame or spark, such as a gas hot water heater, space heater or furnace.

Never run a machine inside a closed area.

To reduce fire hazard, keep the machine free of grass, leaves or

other debris build-up. Clean up oil or fuel spillage. Allow machine to cool at least 5 minutes before storing. Before cleaning, repairing or inspecting, make certain the blade

4. and all moving parts have stopped. Disconnect the spark plug

wire, and keep the wire away from the spark plug to prevent accidental starting. Check the blade and engine mounting bolts at frequent intervals

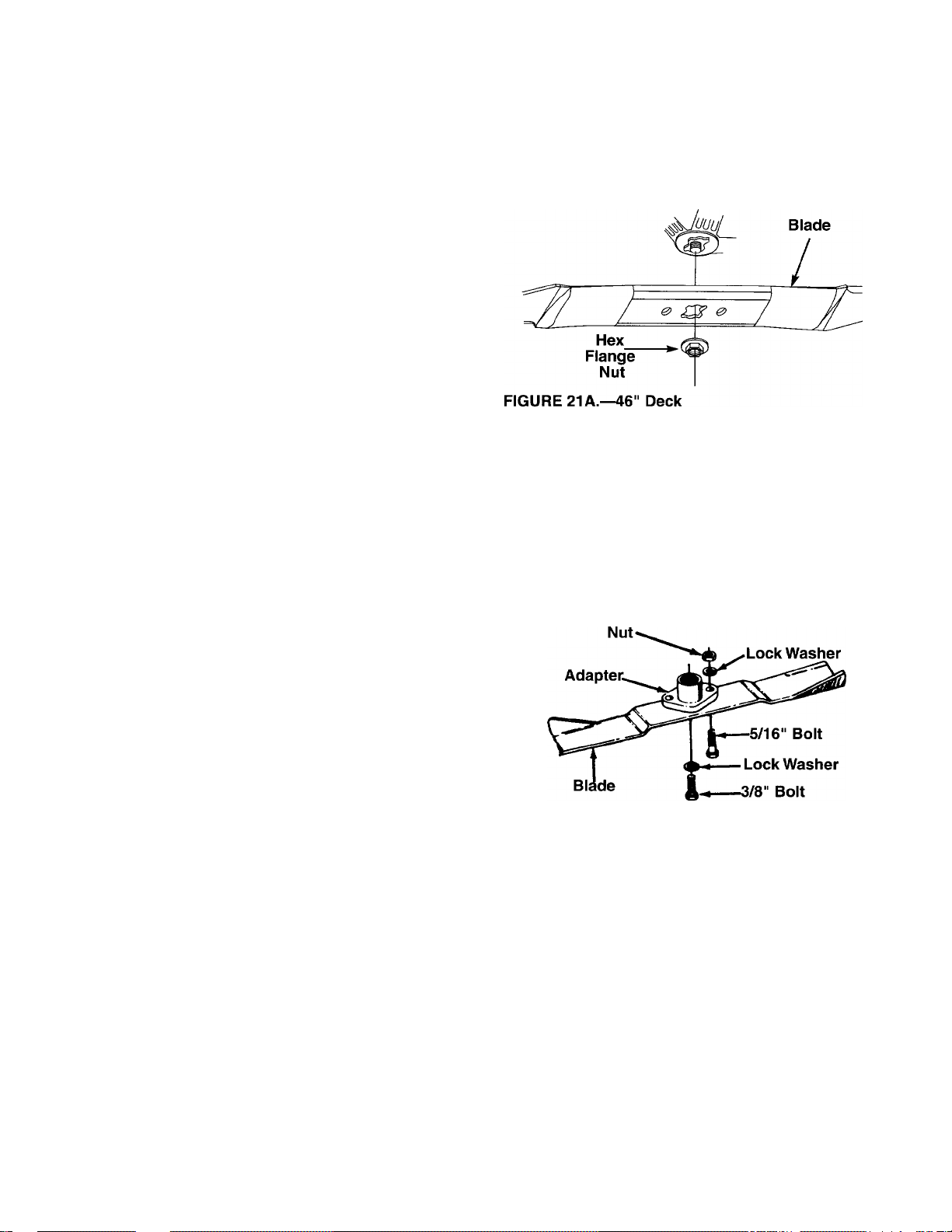

for proper tightness. Also, visually inspect blade for damage

(e.g., excessive wear, bent, cracked). Replace with blade which meets original equipment specifications.

6. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition.

7. Never tamper with safety devices. Check their proper operation regularly. Use all guards as instructed in this manual.

8. After striking a foreign object, stop the engine, remove the wire from the spark plug and thoroughly inspect the mower for any damage. Repair the damage before restarting and operating the mower.

9. Grass catcher components are subject to wear, damage and deterioration, which could expose moving parts or allow objects to be thrown. For your safety protection, frequently check com ponents and replace with manufacturer’s recommended parts when necessary.

10. Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves and use extra caution when servicing blade(s).

11. Check brake operation frequently. Adjust and service as required.

12. Muffler, engine and belt guards become hot during operation and can cause a burn. Allow to cool down before touching.

13. Do not change the engine governor settings or overspeed the engine. Excessive engine speeds are dangerous.

14. Observe proper disposal laws and regulations. Improper dis posal of fluids and materials can harm the environment and the ecology. a. Prior to disposal, determine the proper method to dispose of

waste from your local Environmental Protection Agency. Recycling centers are established to properly dispose of materials in an environmentally safe fashion.

b. Use proper containers when draining fluids. Do not use food

or beverage containers that may mislead someone into drinking from them. Properly dispose of the containers immediately following the draining of fluids.

c. DO NOT pour oil or other fluids into the ground, down a drain

or into a stream, pond, lake or other body of water. Observe Environmental Protection Agency regulations when dispos ing of oil, fuel, coolant, brake fluid, filters, batteries, tires and other harmful waste.

KEEP HANDS and FEET AWAY. DO NOT OPERATE MOWER UNLESS THIS GUARD OR ENTIRE GRASSCATCHER IS IN ITS PROPER PLACE.

ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.

TO REDUCE THE RISK OF INJURY, DO NOT OPERATE MOWER UNLESS DISCHARGE CHUTE COVER OR GRASS

CATCHER IS IN ITS PROPER PLACE.

WARNING — YOUR RESPONSIBILITY

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

A DANGER

ASSEMBLE CHUTE DEFLECTOR

TO THIS UNIT

BEFORE OPERATING MACHINE

A DANGER

SfR/OUS INJURY OR DEATH

' and FEET AWAY FROM

«pTAriNG PARTS Jf OBJECTS THAT CAN 8E THROWN BY Wi

• nn ?,^'^^^''0IRECTI0N WEAR SAFETY GLASSES

WHEN CHILDREN OR OTHERS

ci n CAUTION ON SLOPES DO NOT MOW

^CTACROSS AVOID SUDDEN TURNS.USE LOW DEAR

NEVER CARRY CHILDREN.

CRMTER THAN 15 MOW UP AND DOVJN^

MAiiim .tcD safety n»ro»TÜSSi«aB

Page 6

UNPACKING

TO REMOVE UNIT FROM CRATE

1. Remove all screws from the top of the cri te using a 1/4" hex head socket or a flat blade scr« wdriver.

2. To remove ends, grasp top board on the ^md, and pull towards you in a downward motion.

3. Set panel aside to avoid tire punctures.

4. Repeat procedure for each side of the crate.

5. Remove and discard plastic bag which covers unit.

ASSEMBLY INSTRUCTIONS

BAHERY INFORMATION

A. Battery acid must be handled with grea care as

contact with it can burn and blister the îkin. It is also advisable to wear protective clothing [goggles, rubber gloves and apron) when working with it.*

B. Should battery acid accidentally splattei into the

eyes or onto the face, rinse the affected area immediately with clean cold water. If there is any further discomfort, seek prompt medical attention.

C. If acid spills on clothing, first dilute it with clean

water, then neutralize with a solution of ammonia/ water or baking soda/water.

D. Since battery acid is corrosive, do not pour it into

any sink or drain. Before discarding empty electrolyte containers, rinse them with a neutralizing solution.

NEVER connect or disconnect charger clias to bat

tery while charger is turned on as it can cause sparks.

Keep all lighted materials (cigarettes, matches,

lighters) away from the battery as the hydiogen gas generated during charging can be combu stible.

G. As a further precaution, only charge the aattery in

a well-ventilated area.

*Always shield eyes, protect skin and clothing

when working near batteries.

6. Loose parts (may include the owner’s guide, steering wheel, battery fluid, chute deflector, etc.) are on the seat or in a box and wrapped in plastic. Carefully cut and remove the plastic wrap. Remove loose parts from the seat.

7. Remove the deck from beneath the tractor. Make certain parking brake is released and unit is in neutral. See the controls section of this manual for location of the parking brake release and the shift lever. Push unit off of the skid.

8. Remove page four from this manual and lay out the contents of the hardware pack according to the illustration for identification.

DANGER

Battery contains sulfuric acid. Refer to warning above. Antidote: EXTERNAL—Flush with water.

INTERNAL—Drink large quantities of water or milk.

Follow with milk of magnesia, beaten eggs or vege table oil. Call physician immediately. EYES: Flush with cool water for at least 15 minutes, then get prompt medical attention.

Since batteries produce explosive gases, keep all lighted materials (cigarettes, lighters, matches, etc.) away. Be sure to charge battery

only in well-ventilated areas. Make certain venting path of battery (drain tube) is always open.

KEEP BATTERIES

OUT OF THE REACH OF CHILDREN!

iMPORTANT: After assembly, service engine

with gasoiine, and check oil level as instructed

in the separate engine manual packed with

your unit.

NOTE: Reference to right or ieft hand side of the unit is observed from the driver’s seat, facing forward.

TOOLS REQUIRED FOR ASSEMBLY

(1) 1/4" socket wrench or flat blade screwdriver (1) 1/2" wrench or socket wrench* (1) 9/16" wrench or socket wrench (2) 7/16" wrenches or socket wrenches (1) Pair of pliers

* If your steering wheel cap is square, you must have a

socket wrench in order to install the steering wheel.

Page 7

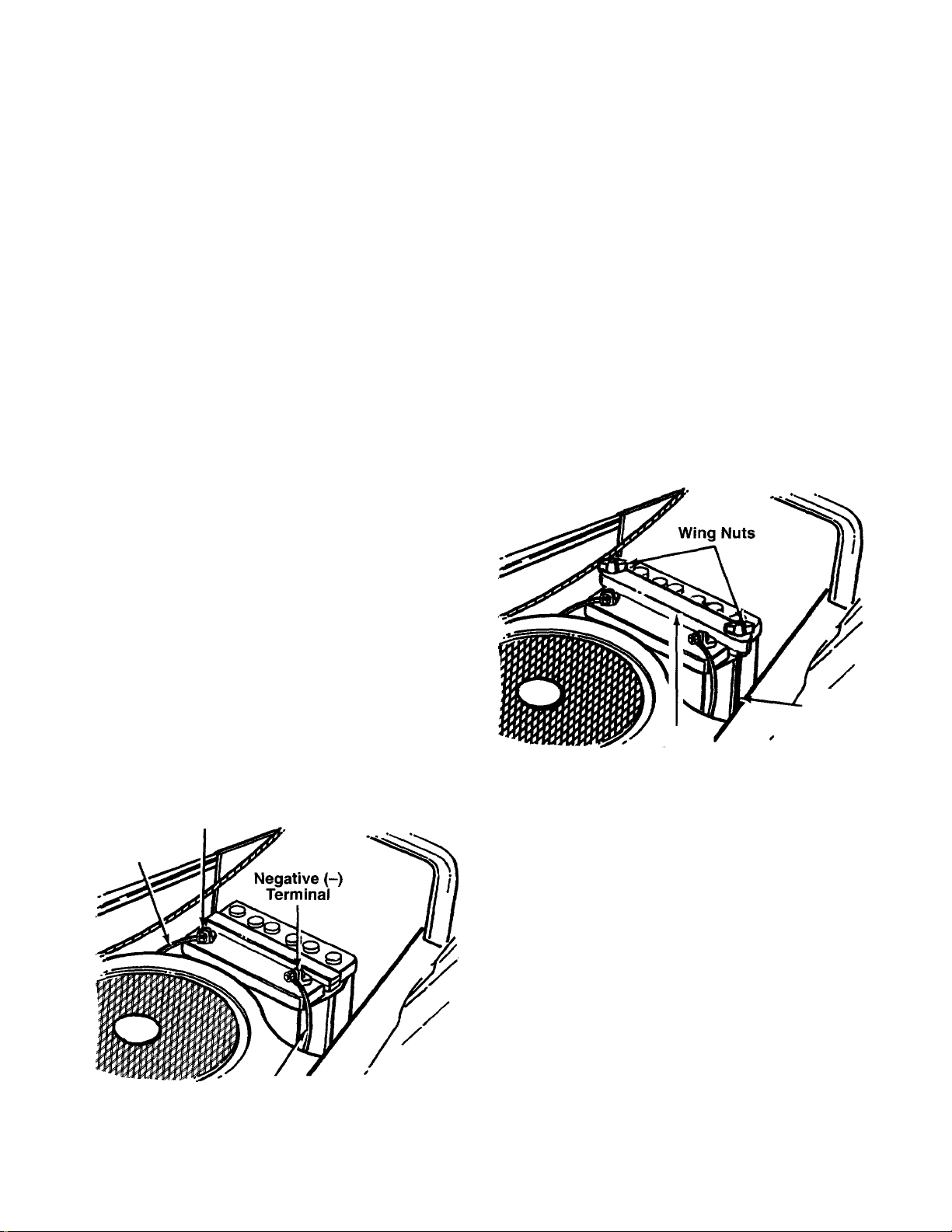

BATTERY IDENTIFICATION

Compare the battery in your tractor (located under the nood) with the illustration above. Type “A” batteries are activated and are ready to use. Type “B” batteries must ae filled with battery fluid (acid) and charged before :hey are put into service. Follow the instructions which apply to the battery in your lawn tractor.

ACTIVATING AND CHARGING THE BATTERY

TYPE “B” BATTERY ONLY)

)o not activate battery (fill with battery acid) until lattery is actually placed in service. Be certain to ead previous warnings before activating the lattery.

1. Lift the hood of the tractor. Remove the wing nuts from the hold-down rods which secure the battery

cover to the battery. Refer to figure 12 on page 11. Remove the battery cover. Disconnect the positive cable from the positive terminal. Save the hardware.

2. Remove the battery from the tractor, paying atten tion to how the battery is placed in the unit, and

how the drain tube (if equipped) is routed.

3. Activate the battery as instructed in the “Quick

Start” brochure included with the battery fluid. Read instructions carefully.

lOTE: You can continue assembling the tractor while attery is standing for 30 minutes (after filling with cid), and later while you are charging the battery.

flPORTANTiTo obtain the maximum iife from your attery, it MUST BE CHARGED prior to initial use.

CHARGE THE BATTERY after the 30 minute standing

period. Battery P/N 725-1705B—Charge at 2-3 amps for one hour. Battery P/N 725-1707B and 7250453E—Charge at 6 amps for one hour.

NOTE; If you charge the battery at a lower AMP rate,

use a hydrometer to make sure the battery is com pletely charged. The hydrometer should read 1.260 minimum at an electrolyte temperature of 60-1ICPF. DO NOT CHARGE AT MORE THAN 6 AMPS.

STEERING WHEEL INSTALLATION

1. The hardware for attaching the steering wheel has been packed inside the steering wheel. Carefully pry off the steering wheel cap and remove the hardware.

2. Remove the steering bellow from the lift lever on the right hand side of tractor. Place steering bellow over the steering shaft extending through the dash. See figure 1.

NOTE: If the openings on each end of the steering bellow are two different sizes, the smaller end goes down against the dash of the tractor.

3. With the wheels of the tractor pointing straight for ward, place the steering wheel over the steering shaft, positioning steering wheel as desired.

4. Place the washer with the cupped side down over the steering shaft. Secure with hex lock bolt. See figure 1.

NOTE: If your steering wheel cap is square, you must use a socket wrench.

5. Place the steering wheel cap over the center of the steering wheel and seat it with your hand.

Hex Lock

Bolt

Steering

Shaft

FIGURE 1.

-Steering Wheel

Cap

Cupped Washer

Steering

Bellow

Page 8

46" and 50"

Decks Shown

Setting for-

Left Rear Link

Screws

Setting for-

Front Links

SEAT ASSEMBLY

Remove the four screws from the bottom of the seat.

Place the seat in position against the seat pivot bracket, lining up the slotted holes in the pivot bracket with the holes in the seat. Select desired position for the seat, and secure with the four screws. See figure

ATTACHING THE DECK LINKS (Hardware A)

The three adjustable deck links have been shipped

unassembled. Attach as follows.

1. Start 1/2" hex nuts on eyebolts provided. Insert

the hex nuts and eyebolts into the adjustable lift

-----

links as shown in figure 3.

2. Thread eyebolts into the lift links and hex nuts. The left rear link should be adjusted so the eyebolt

is to the lower mark as shown. The two front links

should be adjusted to the higher mark.

FIGURE 4.

Hex Bolts

ATTACHING THE CUHING DECK (Hardware B)

1. Working beneath the tractor, remove the round belt guard from the idler by removing the hairpin

-----

clip. See figure 4. Remove the two hex bolts which

act as belt keepers by the engine pulley. Move the tractor lift handle all the way back to the

full raised position. Turn the tractor steering wheel all the way to the left.

Page 9

FIGURE 5.

FIGURE 7.

Deck

Stabilizer

Diagonal

Brace

pacers

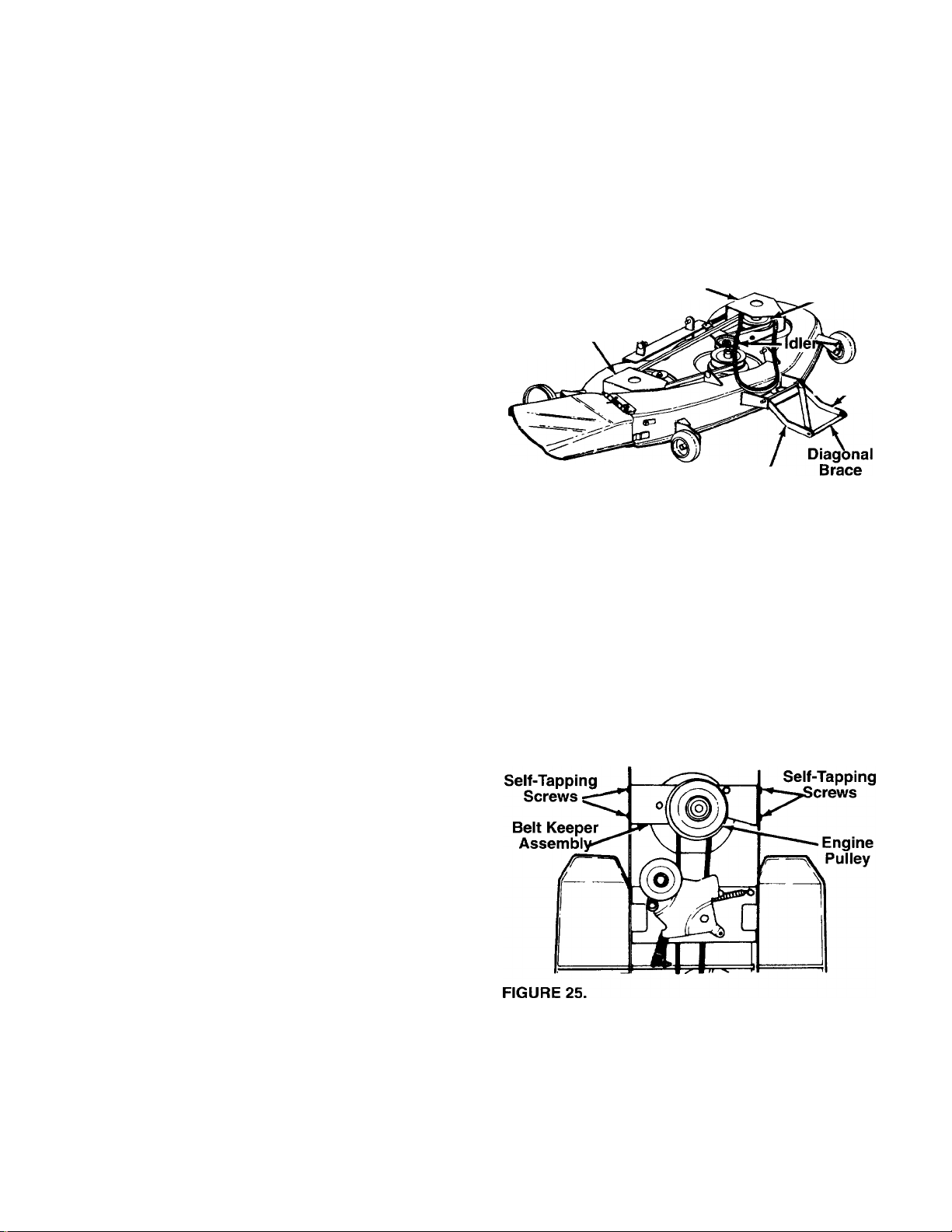

3. The two deck stabilizers and the diagonal brace which are attached to the front of the deck are folded back over the deck for shipping purposes.

-----

Unfold them at this time. See figure 5.

NOTE: If the hardware for attaching the deck is assembled to your deck, remove the hairpin clips and

flat washers from each deck bracket. Remove the spacers from the rod which is through the deck stabi lizer by removing the hairpin clips and sliding out the

rod. Repiace the rod and hairpin clips. See figure 5, inset.

Slide the deck under the tractor from the right side as you lift the stabilizers and diagonal brace over the right front wheel.

Move tractor lift handle forward to the lowest posi tion.

Attach the four tractor hanger brackets to the deck as follows. The left front tractor hanger bracket

goes through the center of the V-belt. See figure 6. Attach the rear hanger brackets first, then the front, using four flat washers and hairpin clips.

Disassemble the front cross bar from the tractor by removing two hairpin clips. Use the cross bar to attach the deck stabilizers, the diagonal brace and two spacers to the tractor frame.

Deck: Use the rear set of holes.

46'

Deck: Use the forward set of holes.

50'

Secure with the two hairpin clips just removed.

See figure 7.

Place the deck belt around the engine pulley and

idler pulley.

Replace the round belt guard by the idler pulley

(hex side down). Replace the hex bolts (belt keep

ers) by the engine pulley. Refer to figure 4.

10.

Check all belt guards for clearance. The belt

guards must be between 1/16" and 1/8" away from the belt when the PTO lever is in the engaged

position (be certain to disengage the PTO lever

after checking).

11.

Secure the brake release cable to the tractor idler

bracket with clevis pin and small hairpin clip, using the hole in the idler bracket as shown in figure 8.

Page 10

FIGURE 9A.—50" Deck

Chute Deflector

Hex Nut and

Cuppef Washer

ATTACHING THE CHUTE DEFLECTOR

WARNING; Do not operate the tractor

unless the chute deflector has been

Remove the bolts, nuts and cupped washers which are attached to the deck next to the chute opening. Place the chute deflector in position as shown in figure 9. Secure with hardware just removed.

ATTACHING THE DECK WHEELS (Hardware C)

(46" Deck Only)

If the deck wheels are not already attached, attach the wheels to the deck as follows. All wheels must be placed in the same relative position.

Front Wheels: Front axle bolts are the longer bolts. Front deck wheels have a rounded surface.

Rear Wheels: Rear axle bolts are the shorter bolts. Rear deck wheels are flatter.

Place flat washer 1/2" I.D. on axle bolt, then the deck wheel and cupped washer (crowned side of washer goes against the wheel). See figure 9. Secure to deck with lock washer and hex nut. Tighten securely. Assemble remaining wheeis in same manner.

properly installed.

Washer Deck

■Rear Wheel

Axle Bolt

(2-1/4" Long)

FIGURE 9B.—46" Deck

FIGURE 10.

Front Axle Bolt

(3-1/4" Long)

}ed

V 'asher

H;x Nut and

L( )ck Washer

ATTACHING THE DECK ROLLER

(50" Deck Only)

Remove the hairpin clips and clevis pins from each end of the deck roller. Insert the deck roller brackets up through the brackets provided on the rear of the deck. Attach with clevis pins and hairpin clips just

removed, using the same hole location on each side of the deck. See figure 10.

TIRE PRESSURE

The tires on your unit may be over-inflated for shipping

purposes. Reduce the tire pressure before operating the unit. Check the sidewall of the tires for proper infla tion pressure.

WARNING; Maximum tire pressure under

any circumstances is 30 p.s.i. Equal tire

LEVELING THE DECK

After attaching the deck to the tractor, check to be

certain it is adjusted properly.

pressure should be maintained on all tires.

Check tire pressure in all four tires. See sidewall of tire for recommended inflation pressure.

Make certain all deck wheels or both ends of the deck roller are mounted in same relative hole locations.

Page 11

3. Place the tractor on a level surface.

4. 46" Deck: Lower the deck until it reaches the ground. All four deck wheels should reach the ground at the same time.

5. Both Decks: Place the deck approximately 1" above the ground. Check to be certain the

distance from the bottom edge of the deck to the ground is the same on both sides of the deck.

If adjustment is necessary, adjust the deck links on the left side of the deck as follows.

1. Make certain the PTO is disengaged. Remove the hairpin clip and washer from the weld bolt. Thread eyebolt up or down the link as necessary, and reassemble.

2. Check to be certain the front of the deck is 1/4" to 3/8" lower than the rear of the deck. If it is not,

adjust the two front links to obtain this distance.

PINAL ASSEMBLY

1. Make certain all nuts and bolts are tightened

securely.

NSTALLING THE BATTERY (Type “A” Battery)

'ЮТЕ: If battery is put into service after date shown ЭП top of battery, charge for minimum of 1 hour at 6-10

imps.

1. Lift the hood of the tractor. Remove the wing nuts from the hold-down rods which secure the battery

cover to the battery. See figure 12. Remove the plastic cover from the negative terminal.

Remove the hex bolt and nut from the negative

(black) cable. Attach negative cable to the nega

tive terminal with this bolt and nut.

Place battery cover over battery and secure with

wing nuts removed in step 1.

ЮТЕ: it may be necessary to pull up on the hold-

lown rods in order to start the wing nuts.

Positive (+)

Red

ositive {+)

Cable

Terminal

INSTALLING THE BATTERY (Type “B” Battery)

NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg. (-).

1. Place the battery on the battery plate with the terminals toward the front of the tractor.

Attach the positive cable (heavy red wire) to the positive battery terminal (+) with hex bolt and hex nut. See figure 11. Slide the rubber boot down over the positive terminal.

Remove the hex bolt and nut from the negative cable. Attach the negative cable (heavy black wire) to the negative battery terminal (-) with the bolt and nut.

Place the battery cover in position over the hold down rods. Secure with wing nuts. See figure 12.

NOTE: It may be necessary to pull up on the hold down rods in order to start the wing nuts.

Hold-

/ Down

Battery^

Cover

FIGURE 12.

Rod

IGURE11.

Black

Negative

(-) Cable

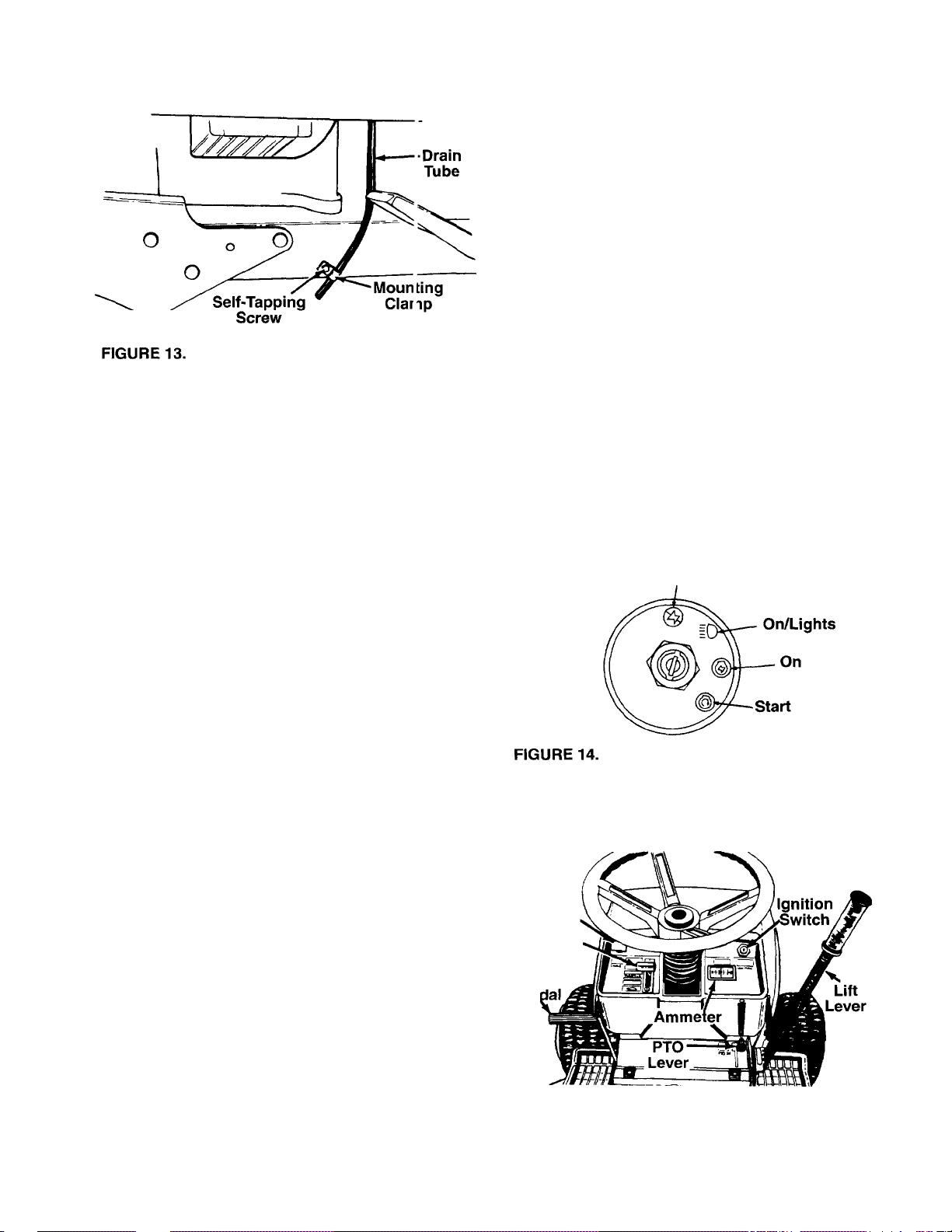

5. Route the battery drain tube over to the left side of the tractor. Loosen the self-tapping screw which

secures the mounting clamp. See figure 13. Slip the end of the drain tube into the mounting clamp. Tighten the self-tapping screw to secure the clamp. Do not overtighten which could collapse the drain tube.

NOTE: The vented battery allows any gases or liquid from the battery to be drained onto the ground.

6. Trim end of drain tube if more than 1 inch extends below the frame.

Page 12

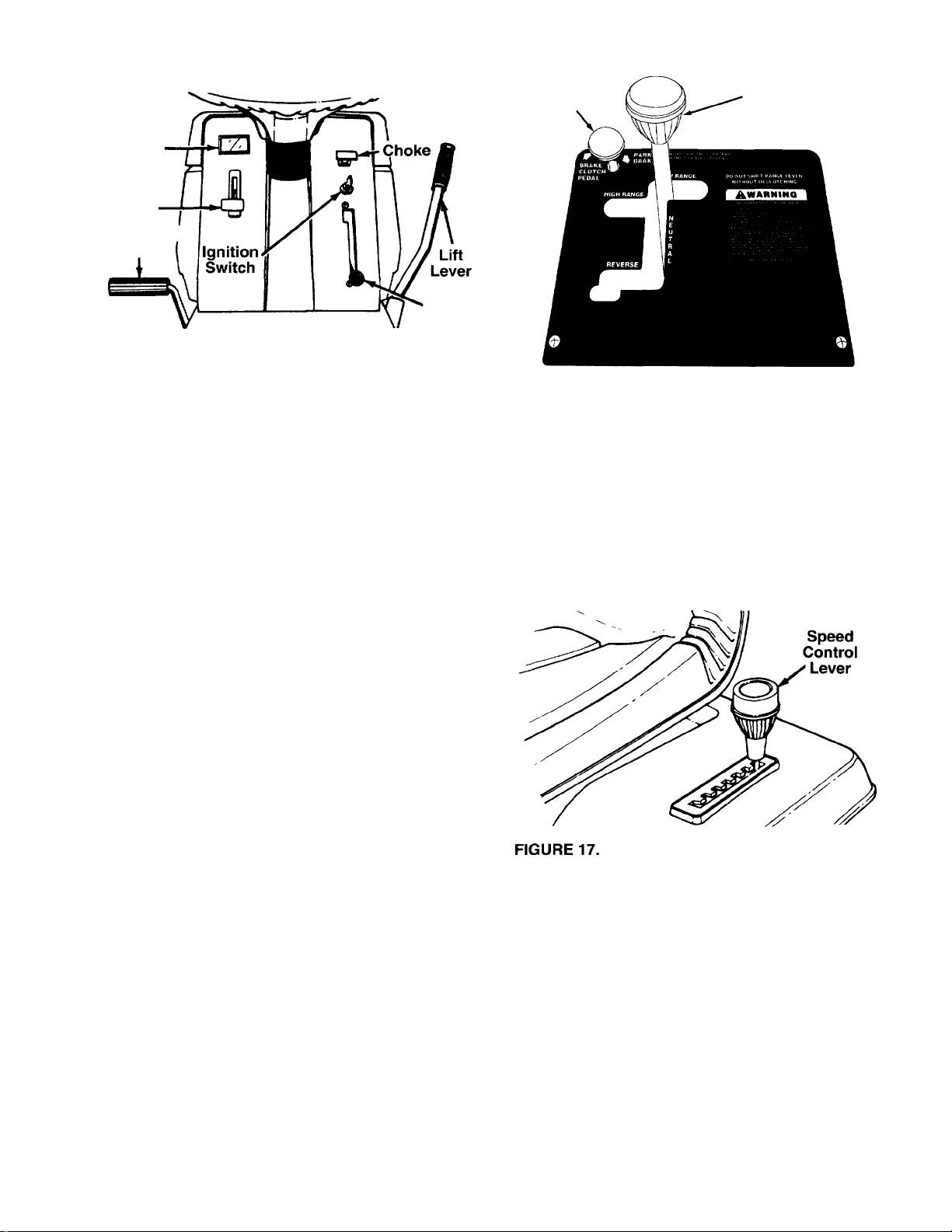

CONTROLS

IGNITION SWITCH

The ignition switch is located on the dashbc ard. The engine is started by turning the key to the ST/ RT posi tion. When the engine is running, leave the (<ey in the ON position. To stop the engine, turn the koy to the OFF position. See figures 14 and 15.

WARNING: Remove the key from the trac tor when the tractor is not in use to pre

THROTTLE CONTROL

The throttle control is located on the left side of the

dashboard and is used to regulate the engine speed. See figure 15. The engine should be operated at full

throttle (FAST) when operating any equipment that

uses the tractor engine as a source of powe such as the mowing deck, snow thrower or rotary tillei.

CHOKE CONTROL

The choke control is located on the dashboa rd and is operated manually. Details for the choke ope ation are covered in the separate engine manual packed with your unit. See figure 15.

IGNITION/LIGHT SWITCH

To prevent accidental starting and/or batery dis charge, remove the key from the ignition swtch when the tractor is not in use.

To start engine insert key into ignition switch and turn

clockwise to the START position. Release Ley to the ON position once engine has fired. The light;; are con trolled by the ignition switch. After the trad or is run ning, turn the key counterclockwise to the LIGHTS ON position. See figure 14.

vent accidentai starting.

WARNING: To prevent accidental starting and/or battery discharge, remove the key

Throttie

Clutch-

Brake Pej

FIGURE 15A.—Models 820, 825, 840 and 845

from the ignition switch when the tractor is not in use.

Off

Choke

Shown

Page 13

Ammeter

Throttle

Clutch-Brake

Pedal

FIGURE 15B.—Models 82A and 84A Shown

PTO

Lever

Parking

Brake

FIGURE 16.

Shift

Lever

AMMETER (Optional)

The ammeter registers the rate of battery charge or

discharge. The ammeter will register on the discharg ing side when starting the engine. It should register on

the opposite side (charging) when the engine is run

ning in the fast position until the battery is completely charged. With a fully charged battery or with the engine idling, the ammeter will not show a charge. See figure 15.

CLUTCH-BRAKE PEDAL

The clutch-brake pedal is located on the left side of the

tractor. See figure 15. Depressing the clutch-brake

pedal partway disengages the clutch. Pressing the pedal all the way down disengages the clutch and engages the disc brake.

NOTE: The clutch-brake pedal must be depressed to start the engine.

SHIFT LEVER

The shift lever is located in the center of the console and has four positions, HIGH, LOW, NEUTRAL and REVERSE. See figure 16. The clutch-brake pedal must be depressed and the lawn tractor must not be moving when shifting gears. Do not force the shift lever. Release the clutch-brake pedal slightly to line up the shifting collar in the transmission. Then try to shift gears.

SPEED CDNTRDL LEVER

The speed control lever is located on the left fender. It allows you to regulate the ground speed of the lawn

tractor. See figure 17. To select the ground speed,

depress clutch pedal. Push speed control lever out ward and move backward to slow lawn tractor, move forward to increase speed. When desired speed has been obtained, release lever in that position. When ever clutch is engaged, unit will automatically go to the pre-set speed.

LIFT LEVER

The five position lift lever is used to change the operat ing position of the attachments. To operate, pull the lever towards you. To release, move the lever to the

right and then forward. See figure 15.

PARKING BRAKE

To set the parking brake, depress the clutch-brake pedal and pull up the parking brake knob. It will stay in

the raised position. To release the parking brake,

depress and release the clutch-brake pedal. See figure 16.

NOTE: The parking brake must be set if the operator leaves the seat with the engine running.

PDWER TAKE-DFF (PTD) LEVER

The PTO lever is located on the right side of the dash board. The PTO lever is used to engage and disen gage the power to the attachments. To engage the PTO, lift the lever slowly and lock it into the notch. See figure 15.

NOTE: The PTO lever must be in the disengaged position (down) when starting the engine, when shift ing into reverse and if the operator leaves the seat.

Page 14

OPERATION

WARNING

GO UP AND DOWN SLOPES, NOT ACROSS. • AVOID SUDDEN TURNS, DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIP. IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AN ) BACK DOWNHILL SLOWLY. DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND. NEVER CARRY CHILDREN. LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING. KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND SWITC ^ES) IN PLACE AND WORKING. REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADI (S). KNOW LOCATION AND FUNCTION OF ALL CONTROLS. BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE f LACING HANDS OR FEET NEAR BLADE(S). BEFORE LEAVING OPERATOR’S POSITION, DISENGAGE BIADE(S), PLACE THE SHIF LEVER IN NEUTRAL, ENGAGE BRAKE LOG (, SHUT ENGINE OFF AND REMOVE KEY,

GAS AND OIL FILL-UP

Check oil level and add if necessary. Service the engine with gasoline as instructed in the S(;parate engine manual packed with your tractor Read

instructions carefully. IMPORTANT; Your tractor is shipped with oil; h wever,

you must check the oil level before operating. E e care ful not to overfill.

The gasoline tank is located under the seat. The filler

neck is behind the seat. Do not overfill.

STARTING THE ENGINE

IMPORTANT: This unit is equipped with a safety interlock system for your protection. The purpose of

the safety interlock system is to prevent the engine from cranking or starting unless the clutch-brat e pedal

is depressed and the PTO lever is in the dise ngaged

position. In addition, the PTO lever must be in the dis engaged position when the unit is put into re' erse or the engine will shut off. If the operator leaves he seat with the PTO lever engaged and/or without se ting the

parking brake, the engine will shut off.

AVOID SERIOUS INJURY OR DEATH

READ OPERATOR’S MANUAL

WARNING: Never fill fuel tank ir doors, with engine running or while eni]ine is

hot.

WARNING: Do not operate the tractor if the interlock system is malfunctioning because it is a safety device, desic ned for protection.

1. Place the PTO lever in the disengaged (down) position.

2. Depress the clutch-brake pedal and set the park ing brake.

3. Place the shift lever in the NEUTRAL position.

4. Set the throttle control in the FAST position.

5. Pull out the choke control (a warm engine may not require choking).

6. Turn the ignition key to the right to the START position. After the engine starts, release the key. It will return to the ON position.

7. Slowly push in the choke as the engine warms up.

STOPPING THE ENGINE

Turn the ignition key to the left to the OFF position.

Remove the key to prevent accidental starting. IMPORTANT; If you strike a foreign object, stop the

engine. Remove wire from spark plug, thoroughly inspect the unit for any damage, and repair the dam age before restarting and operating the mower.

NOTE: If any problems are encountered, refer to the

Trouble Shooting Guide on page 22.

SETTING THE CUTTING HEIGHT

Select the position for the tractor lift lever which gives the desired cutting height. Then move the wheels on the deck so that the wheels are 1/4 to 1/2 inch above the ground.

NOTE: To obtain the best, uniform cut, the deck is

designed to be suspended from the tractor at the

desired cutting height. The deck wheels or deck roller

should be just off the ground, to smooth out the cut

and guard against gouging.

WARNING: Keep hands and feet away

OPERATING THE TRACTOR

1. Start the engine as instructed previously.

2. Move throttle control to full throttle to prevent

3. Place the shift lever in one of the two forward posi

from the chute area on cutting deck.

strain on the engine and to operate attachments.

tions (LOW or HIGH), or in REVERSE. Place the speed control lever in desired position. Use first speed position when operating the tractor for the first time.

Page 15

WARNING: Look to the rear before back

4. Release the parking brake by depressing the

5. The tractor is brought to a stop by depressing the

6. The cutting blades (or other attachment) may be

NOTE: When operating the unit initially, there will be little difference between the highest two speeds until after the belts have seated themselves into the pulleys during the break-in period. Be certain to change oil in

the crankcase after the first 5 hours of operation.

Be sure that the lawn is clear of stones, sticks, wire, or other objects which could damage tractor or engine. For best results and to insure more even grass distri bution, do not mow when lawn is excessively wet.

When stopping the unit to empty a grass bag, etc., fol

low the instructions above. This procedure will also eliminate “browning” the grass, which is caused by hot exhaust gases from a running engine.

If unit stalls with speed control in sixth or seventh speed, or if unit will not operate with speed control

lever in first or second speed position, proceed as follows.

1. Place shift lever in NEUTRAL.

2. Restart engine.

3. Place speed control lever in highest speed posi

4. Release clutch-brake pedal fully.

5. Depress clutch-brake pedal.

6. Place speed control lever in desired position.

7. Place shift lever in one of the forward positions

ing up.

clutch-brake pedal. Release clutch-brake pedal slowly to put unit into motion.

ciutch-brake pedal.

engaged while the tractor is moving or standing stili. DO NOT engage the cutting blades abruptly as the sudden belt tension on the pulley may cause the engine to stall.

WARNING: Keep feet and hands away from the discharge opening, the blades or any part of the deck.

WARNING: Before leaving the operator’s position for any reason, disengage the biades, piace the shift iever in neutrai, engage the parking brake, shut engine off and remove the key.

tion.

(HIGH or LOW) or REVERSE, and follow normal operating procedures.

HIGH-LOW TRANSMISSION RANGES

HIGH range position is for normal load conditions,

such as mowing or transporting.

LOW range position is for situations which require more torque when the tractor is used under high load

conditions, such as tilling, snow removal or hauling

heavy loads.

GRASS COLLECTOR AVAILABLE

GRASS COLLECTOR Model 190-083 is available as optional equipment for tractors with 46" mowing decks.

WARNING: The mower should not be

operated without the entire grass catcher

NOTE: Under normal usage bag material is subject to

wear, and should be checked periodically. Be sure to use only factory authorized replacement bag.

or chute defiector in piace.

ADJUSTMENTS

WARNING: Disconnect the spark plug wire(s) and ground against the engine

SEAT ADJUSTMENT

To adjust the position of the seat, loosen the four screws on the bottom of the seat. See figure 2. Slide the seat forward or backward as desired. Retighten the four screws.

SPEED CONTROL ADJUSTMENT (See figure 18)

NOTE: When operating the unit initially or after replac ing the belts, there will be little difference between the highest two speeds until after the belts have gone through a break-in period and have seated themselves into the pulleys.

If speed control adjustment is needed, adjust the speed control links as follows. (A 3/4" shim or suitable spacer is required.)

1. Start the engine.

2. Place the shift lever in NEUTRAL position.

3. Place the speed control lever in highest speed

4. Release the clutch-brake pedal completely, then

5. Turn the engine off.

before performing any adjustments, repairs or maintenance.

position.

slowly depress the pedal all the way (to park posi tion). Hold the pedal In this position.

Page 16

Speed

Control

Lever

Variable Speed

FIGURE 18.

6. After engine stops completely, release the clutchbrake pedal.

7. Remove the transmission cover by remo' ing the parking brake knob, shift knob and twa truss machine screws.

8 Disconnect the rear speed control link fiom the

var'able speed torque bracket by removing the cotter pin and flat washer.

9. Models 820 thru 829: Place the speed control lever in the first position. Models 840 thru 849: Place the speed control lever in the second position.

10. Disconnec; the front speed control link f om the variable speed torque bracket by removing the cotter pin and flat washer.

11. Place a 3/4" shim or other suitable objec t under the point on the bracket on the clutch-bral< e pedal as shown.

12. Thread the front speed control link in or oi t of the ferrule until the hole in the link lines up with the pin on the variable speed torque bracket. Sec jre with the flat washer and cotter pin removed in step 10.

13. Push the rear speed control link backward using

light pressure, and hold it in this position as you thread it into or out of the ferrule until the hole in the link lines up with the pin on the variable speed torque bracket.

Models 820 thru 829 Only: Turn the lirk three more times (making it longer).

14. Move the speed control lever toward the rigf t so the hole in the rear speed control link fits over th 3 pin on the variable speed torque bracket. Secure with the flat washer and cotter pin removed in step 8.

Torque Bracket

Assembly

Clutch-

Brake

Pedal

Point on

Bracket

3/4" Shim

15. Remove the 3/4" shim from beneath the bracket on the clutch-brake pedal.

LEVELING THE DECK

The sides of the deck should be the same distance from the ground. The front of the deck should be 1/4" to 3/8" lower than the rear of the deck. If adjustment is

required, refer to “Leveling the Deck” in Assembly Instructions.

STEERING ADJUSTMENT

If the tractor turns tighter in one direction compared to the other, the steering drag link must be adjusted. To adjust the drag link follow these steps. Refer to figure 19.

1. Loosen hex jam nut (A) at the rear of the ball joint.

2. Loosen and remove hex nut (B).

3. Lift the threaded portion of the ball joint out of the steering arm. Please do not misplace the hard ware used to hold ball joint to steering arm. You will need it again.

4. Set the front wheels facing straight ahead.

5. Turn the steering wheel to the right or the left to match the alignment holes in the steering brace and the steering gear.

6. Once aligned, drop a nail through the steering brace and steering gear alignment holes.

7. Adjust the ball joint in or out on the drag link until the threaded portion of the ball joint slips through

the hole in the steering arm. Make sure lock

washer (C) is in position between the ball joint and

the steering arm.

Page 17

8. Tighten hex jam nut (A) against the ball joint.

9. Reattach the ball joint to the steering arm with hex nut (B). Finger tighten only at this time.

10. Turn the steering wheel fully to the left and the right to make sure that the drag link does not touch any part of the tractor frame. If the drag link does touch, start at step 1 and redo the adjustment.

11. Tighten hex nut (B).

12. Remove the nail used to align the steering gear.

Steering Place Nail Drag Link

Brace Av ^ ^^CjHex Jam Nut (A)

Ball Joint

Lock Washer (C)

Align

Holes

Steering Gear

FIGURE 19.

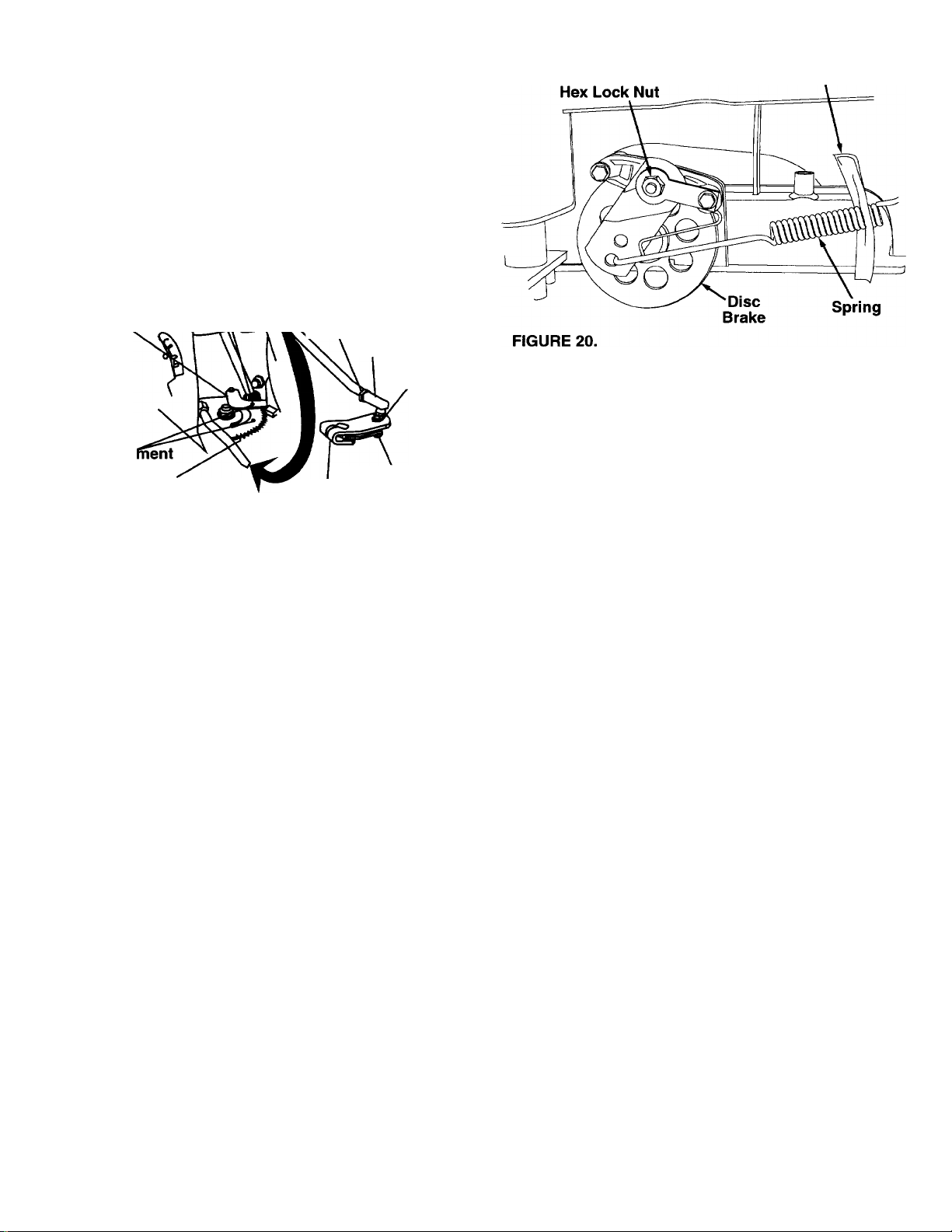

BRAKE ADJUSTMENT (See figure 20)

The brake is located on the right side of the transaxle.

During normal operation of this machine, the brake is subject to wear and will require periodic examination and adjustment. To see if brake needs adjusting pro ceed as follows.

Steering Arm

Hex Nut (B)

Paper

CARBURETOR ADJUSTMENTS

WARNING: If any adjustments are made to

the engine while the engine is running

Minor carburetor adjustments may be required to compensate for differences in fuel, temperature, altitude and load. Refer to separate engine manual

for carburetor adjustment information.

NOTE: A dirty air cleaner will cause an engine to run

rough. Be certain air cleaner Is clean and attached to the carburetor before adjusting carburetor.

(e.g. carburetor), disengage all clutches and blades. Keep clear of all moving parts. Be careful of heated surfaces and muffler.

LUBRICATION

WARNING: Do not adjust the brake while the engine is running. Be sure to block

1. Set the parking brake by depressing the clutch-

2. Working on the right side of the tractor, try insert

3. If the paper can be inserted through the coils of

4. If the paper cannot be inserted, tighten the hex

5. Release the parking brake and place the tractor in

the wheels of the tractor before making the brake adjustment.

brake pedal and pulling up the parking brake knob.

ing a piece of paper through the coils of the brake spring. See figure 20.

the brake spring, the brake is properly adjusted.

lock nut until the paper can be inserted through the coils.

neutral. Depress the clutch-brake pedal and try rolling the tractor. The tractor should not move. If the tractor moves, repeat the above steps until proper brake adjustment is achieved.

WARNING: Always stop engine and dis connect spark plug wire(s) before clean

STEERING GEARS

Lubricate teeth of steering gears with automotive multi-purpose grease after every 25 hours of operation or once a season. Refer to figure 19.

STEERING SHAFT

Lubricate steering shaft at least once a season with light oil.

TRANSAXLE

The transaxle is lubricated and sealed at the factory

and does not require checking. If disassembled for any reason, lubricate with 32 oz. of Shell Darina grease, part number 737-0148 (16 oz. tube).

LINKAGE

Once a season lubricate all the pivot points on the clutch, brake and lift linkage with SAE 30 engine oil.

ing, lubricating or doing any kind of work on lawn tractor.

Page 18

WHEELS

The front wheels may be provided with grease fittings. Lubricate at least once a season with aulDmotive multi-purpose grease.

PIVOT POINTS

Lubricate all pivot points with light oil at least once a season.

BALL JOINTS

The ball joints and drag link ends are pern anently lubricated.

BLADE SPINDLES

The blade spindles on the cutting deck are perma nently lubricated.

The blades may be removed for sharpening or replacement as follows:

46" Deck

Remove the hex flange nut that holds the blade to the blade spindle. See figure 21 A.

MAINTENANCE

WARNING: Disconnect the spark plug wire(s) and ground against the engine

TROUBLE SHOOTING

Refer to the chart on page 22 for troubie s looting information.

ENGINE

Refer to the separate engine manuai for engine maintenance instructions.

Maintain engine oii as instructed in the separate

engine manual packed with your unit. Read and fol

low instructions carefuiiy.

Service air cleaner every 25 hours under nornal con ditions. Clean every few hours under extreme y dusty condition. To service the air cleaner, refer to tf e sepa

rate engine manual packed with your unit.

The spark plugs should be cleaned and the g ip reset once a season. Spark plug replacement is recom mended at the start of each mowing seasor; check engine manual for correct plug type and gap specifica tions.

CLEANING ENGINE AND DECK

Any fuel or oil spilled on the machine should bs wiped off promptly. Grass, leaves, and other dirt must not be allowed to accumulate around the cooling fin; of the engine or on any part of the machine. Clean the underside of the deck after each mo ving.

CUniNG BLADES

before performing any adjus ments, repairs or maintenance.

WARNING: Protect hands by usinri heavy gloves or a rag to grasp the cutting blades.

50" Deck

1. Remove the 3/8" bolt and lock washer holding the blade and adapter to the blade spindle.

2. Remove the blade and adapter from the blade spindle.

3. Remove the two 5/16" bolts, lock washers and nuts holding the blade to the adapter. See figure

21B.

FIGURE 21B.—50" Deck

Both Decks

When sharpening the blades, follow the original angle of grind as a guide. It is extremely important that each cutting edge be ground equally to prevent an unbalanced blade. An unbalanced blade will cause excessive vibration when rotating at high speeds, may cause damage to the mower and could break, causing personal injury.

The blade can be tested for balance by balancing it on

a round shaft screwdriver. Remove metal from the heavy side until it balances evenly.

When replacing the blade, be sure to install the blade with the side of the blade marked “Bottom” (or with part number) facing the ground when the mower is in the operating position.

Page 19

TORQUE SPECIFICATIONS 46" Deck: Blade

Hex Flange Nut: 70 ft.-lbs., 90 ft.-lbs.

Blade Spindle Screws

If disassembled for any reason, tighten the blade spin dle screws between 200 and 275 inch pounds.

50" Deck: Blade

3/8" Dia. Bolt: 450 in. lb. min., 600 in. lb. max. 5/16" Dia. Bolt: 200 in. lb. min., 350 in. lb. max.

Blade Spindle Nuts

If disassembled for any reason, tighten the blade spin

dle nuts between 200 and 350 in. lbs. To ensure safe operation of your unit, all nuts and

bolts must be checked periodically for correct tight

ness.

WHEEL ADJUSTMENT

The caster (forward slant of the king pin) and the cam ber (tilt of the wheels out at the top) require no adjust

ment. Automotive steering principles have been used to determine the caster and camber on the tractor. The front wheels should toe-in 1/8 inch.

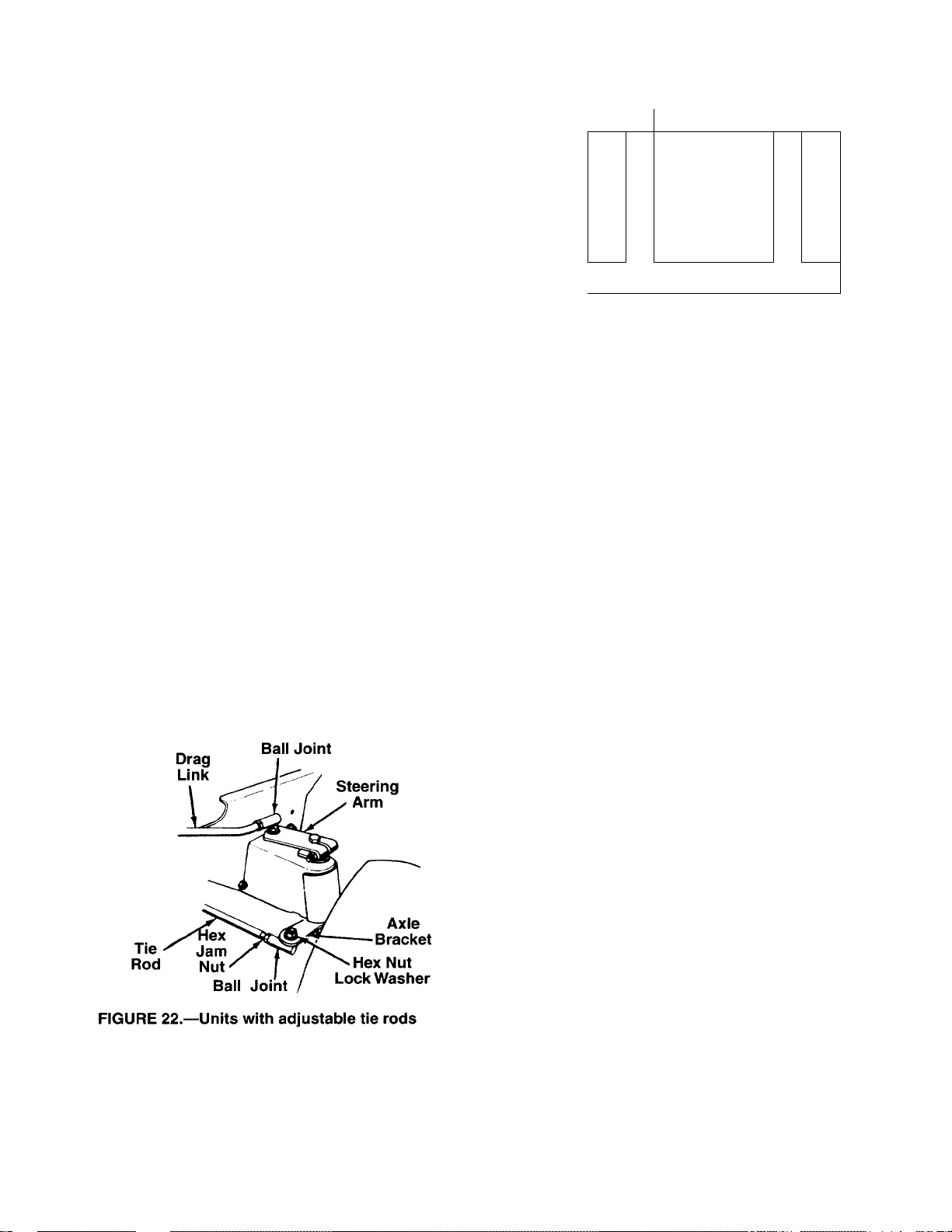

Some units have adjustable tie rods so the toe-in can

be adjusted. To adjust the toe-in on these units, follow these steps.

1. Remove the hex nut and lock washer, and drop the end of the tie rod from the axle bracket. See figure 22.

2. Loosen the hex jam nut on tie rod.

3. Adjust the tie rod assembly for correct toe-in.

—1

Front

L-

(1/8" less than A)

FIGURE 23.—Units with adjustabie tie rods

BATTERY CARE AND MAINTENANCE (TYPE “A ” BAHERY)

Type “A” batteries are sealed and are maintenance free.

BATTERY CARE AND MAINTENANCE (TYPE “B” BAHERY)

CHECK FLUID LEVEL

Check fluid level inside each cell of the battery every two weeks and before and after charging. Always keep

level just below the split rings.

Add only distilled water. Never add additional acid

or any other chemicals to the battery after initial activa tion.

NOTE: After operating the tractor for a long period of time, check the fluid level in the battery as it can over heat and lose fluid.

CHARGING THE BATTERY (All Batteries)

The engine is equipped with an alternator which charges battery when tractor is operated. Linder nor

mal conditions, the battery only needs to be charged before, during and after off-season storage. Foliow the instructions under “Off-Season Storage.”

To charge the battery: Battery P/N 725-1705B—

Charge at 2-3 amps for one hour. Battery P/N 725-1707B and 725-0453E—Charge at 8 amps for one hour.

Dimension “B” should be approximately 1/8" less than Dimension "A.” See figure 23. To increase Dimension “B,” screw tie rod into tie rod end. To decrease Dimen sion “B,” unscrew tie rod from tie rod end. Reassemble tie rod. Check dimensions. Readjust if necessary.

REMOVING / INSTALLING / JUMP STARTING

WARNING: When removing or instailing the battery, foiiow these instructions to

Removing the Battery: Disconnect negative cable

first, then positive cable.

Instailing the Battery: Connect positive cable first,

then negative cable.

prevent the screwdriver from shorting against the frame.

Page 20

Jump Starting

1. First, connect end of one jumper cable to the pos itive terminal of the good battery, then t ie other

end to the positive terminal of the dead bi ttery.

2. Connect the other jumper cable to the legative terminal of the good battery, then to the FRAME OF THE UNIT WITH THE DEAD BATTER /.

WARNING: Failure to use this prccedure could cause sparking, and the gas in

CLEAN THE BATTERY

Clean the battery by removing it from the i nit and

washing with a baking soda and water solutior. If nec

essary, scrape the battery terminals with a wit e brush

to remove deposits. Coat terminals and expo: ;ed wir

ing with grease or petroleum jelly to prevent corrosion.

BATTERY FAILURES

Some common causes for battery failure are: incorrect

initial activation, lack of water, adding chemicals other than water after initial activation, undercharging, over charging, corroded connections, freezing. The se fail

ures do not constitute warranty.

TIRES

Maximum tire pressure under any circumstances is 30 p.s.i. Equal tire pressure should be maintainei on all tires. Check tire sidewalls for proper inflation.

When installing a tire to the rim, be certain rim s clean and free of rust. Lubricate both the tire and rirr gener ously. Never inflate to over 30 p.s.i. to seat bea'is.

either battery could explode.

3. Remove the first drive belt.

4. Remove the right hand pulley cover by removing three self-tapping screws.

5. Pivot the spring-loaded idler, and lift belt off.

6. Remove the belt from around the three deck pulleys.

7. Reassemble new belts in reverse order.

Left Hand

Pulley Cover

Right Hand

Pulley Cover

Deck Stabilizer

FIGURE 24.

Front Drive Belt

1. Depress the clutch pedal and set parking brake.

2. Remove the deck from the tractor.

3. Raise and block the front wheels of the tractor so you can work under it.

4. Remove the four self-tapping screws which hold the belt keeper assembly to the frame at the engine pulley. Push the belt keeper assembly for ward, out of the way. See figure 25.

Belt Guard

Deck

Stabilizer

WARNING: Excessive pressure (over 30

p.s.i.) when seating beads may cause tire/

FUEL FILTER

Your unit is equipped with a replaceable in-lim fuel fil ter. Replace filter whenever contamination or discolor ation is noticed. Order replacement filter through your authorized engine service dealer.

BELT REPLACEMENT

Deck Belt

1. Remove the deck by following instruct ons on

2. Remove the left hand pulley cover by un looking

rim assembly to burst with force si fficient

to cause serious injury.

pages 8 and 9 in reverse order.

the spring and removing five self-tapping screws. See figure 24.

5. Remove the two pins which act as belt keepers by the variable speed pulley. See figure 26.

6. Roll the belt off the variable speed pulley, then remove from the engine pulley.

7. Reassemble the new belt, following instructions in reverse order.

Page 21

Pins

Rear Drive Beit

1. First remove the front drive belt as instructed in the previous section.

2. Disconnect the spring which secures the idler pulley to the frame.

3. Remove the transmission cover by unscrewing the two knobs, and removing two truss machine screws.

4. Roll the belt over the top of the transmission pulley.

Remove belt from the variable speed pulley.

5. Reassemble the new belt, following instructions in reverse order.

OFF-SEASON STORAGE

If the machine is to be inoperative for a period longer

than 30 days, prepare for storage as follows.

1. Clean the engine and the entire unit thoroughly.

2. Lubricate all lubrication points. Wipe the entire machine with an oiled rag to protect the surfaces.

3. Refer to the engine manual for correct engine storage instructions. The engine must be com pletely drained of fuel and a fuel stabilizer used to prevent gum deposits from forming on essential carburetor parts, fuel lines and fuel tanks.

4. Charge battery fully. The battery loses some of its charge each day when the unit is not used.

NEVER store battery without a full charge. Recharge battery before returning to service or

every two months, whichever occurs first.

5. When storing unit for extended periods, discon nect battery cables. Removing battery from unit is

recommended.

6. Store unit in a clean, dry area. Do not store next to corrosive materials, such as fertilizer.

NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be

taken to rustproof the equipment. Using a light oil or silicone, coat the equipment, especially any chains, springs, bearings and cables.

OPTIONAL EQUIPMENT

At the time of manufacture of tractor, the following optional equipment is available.

Description

40" Single Stage Snow Thrower 45" Two Stage Snow Thrower OEM-190-624 48" Dozer Blade 46" Deck Mulching Kit Grass Collector Tire Chains—23 x 9.5

100 lb. Wheel Weights

Sleeve Hitch Kit

Electric Lift Kit

Row Crop Cultivator 28" PTO Driven Rear Mounted Tiller 38" 8 HP Rear Mounted Tiller Single Disc Harrow

10" Moldboard Plow Gang Reel (Set of three) 38" Lawn Sweeper Heavy Duty Lawn Roller Heavy Duty Dump Cart Tine De-Thatcher

‘Available through your local dealer or from Agri-Fab Inc., 303 W. Raymond Street, Sullivan, Illinois 61951,

Model No.

OEM-190-832 OEM-190-840

OEM-190-118 OEM-190-083 OEM-190-964

190-784-000 OEM-190-929 OEM-190-749 OEM-190-984 OEM-190-756 OEM-190-766 OEM-190-980 OEM-190-978

45-0195* 45-0222* 45-0179* 45-0171* 45-0186*

Page 22

TROUBLE SHOOTING GUIDE

PROBLEM

Engine wiii not crank

Engine cranks but wiii not start

POSSIBLE CAUSE(S) CORRECTIVE ACTION

Safety switch button not depressed

Battery installed The battery m jst be installed with negative terminal attached to black ground wire. Negative terminal is

Battery is dead or weak Check fluid le vel in battery. If fluid is low, fill between maximum and minimum fill lines with water.

Blown fuse or circuit breaker

Throttle or choke not in starting position

No spark to spark plug

There are two switches in the starting circuit of your unit: the clutch pedal switch and the deck lift lever switch. Make ( ertain the actuator is fully depressing the buttons on each switch.

incorrectly ide itified at the post by “NEG”, “N” or The positive terminal, identified by “POS”, “P” or “+”, must be a tached to the big red wire which goes to the solenoid.

Charge with 6 amp charger until fully charged.

Replace fuse with automotive type fuse. Fuses seldom fail without a reason. The problem must be corrected, iiheck for loose connections in the fuse holder. Replace fuse holder if necessary. A dead short may be in the cranking or charging circuit where the insulation may have rubbed through and exposed the 1 are wire. Replace the wire or repair with electrician’s tape if the wire strands have not been damage J. Note: Look foi a wire pinched between body panels, burned by the exhaust pipe or muffler or rubbed against a mov ng part.

Check owner’: i guide for correct position for throttle control and choke for starting.

Spark plug le id disconnected. Connect lead. Place spark plug lead away from engine block about 1/8". Crank er gine. There should be a spark. If not, have engine repaired at authorized engine service dealer.

Faulty spark f lug. To test, remove spark plug. Attach spark plug lead to spark plug. Ground the spark plug body against the engine block. Crank the engine. The spark plug should fire at the electrode. Replace if it d les not.

No fuel to the carburetor

Air filter dirty If the air deal ler is dirty, the engine may not start. Clean or replace as recommended by the engine

Engine smokes

Excessive

vibration

Mower wiii not discharge grass or leaves uncut strips

If the above steps fail to correct the problem, take the unit to yo ir iocai authorized service deaier for repair.

Engine loses crankcase vacuum

Bent or damaged blade spindle

Bent blade Stop engine mmediateiy. Replace damaged blade. Only use original equipment blades.

Engine speed low Speed selection Blades short or dull

Gasoline tank empty. Fill.

Fuel line or in line fuel filter plugged. Remove and clean fuel line. Replace filter if necessary.

manufacturer.

Dipstick not SI lated or broken. Replace defective part. Engine breath er defective. Replace.

Stop engine mmediately. Check all pulleys, blade adapters, keys, nuts and bolts for tightness and damage. Tigh en or replace any damaged parts.

Throttle must le set at full throttle. Use lower gro jnd speed. The slower your ground speed, the better the quality of cut. Sharpen or re ilace blades (uncut strip problem only).

Page 23

Page 24

Copy

ihc

infonticniion from

your model picde here:

(Located Under The Seat)

Have your '**

model number

available when you call

Engine Oil (SAE 30) Throttle Control Wire 35" Lg. Throttle Control Wire 39" Lg. Battery (275 Cold Crank Amps) Steering Wheei (3 Spoke) Steering Wheei (4 Spoke) Steering Wheel Cap Front Wheel Cover (Optional) Rear Wheel Cover (Optional) 73- -0556 (2) Front Wheel Bearing—Plastic Front Wheel Bearing—Bali Bearing Fuse 7.5 Amp Fuse 20 Amp Head Lamp Buibs

731 0484A (2)

74--0516 (4)

74- -3032 (4)

721 -0963 (2)

For Paris, Accessories or Service Informalioii,

The only way to ensure the perforrr

use original equipment parts and and engineers quality parts to exa you substitute, you take a chance <

and performance. Use MTD origin£

on the American Landscape—Amc

Owned!

737-0208 746-0634 746-0630

725-1707B

741-1693 641-0027 741-0220

7 >5-1625

7 >5-1381

V-Belt Front V-Belt Rear 754-0446 ignition Key 46" Deck:

Upper Deck Belt 754-0350 Lower Deck Belt Outer Blades (2 Req’d.) Center Blade

50" Deck:

Upper Deck Belt Lower Deck Belt Blade (3 Req’d.) Blade Adapter 748-0300

CAIXNOW!

1(800) 800-7310

lance of your product is to

accessories. MTD designs :)ting specifications. When m quality, reliability, safety

I equipment, the best buy

rican Made and American

754-0280

725-0201

754-0349 742-0644 742-0645

754-0364

754-0291A

742-0171B

V\/A Engine Ex laust from this product contains chemicals known to the State of

VVMmNIINVl. California to ca jse cancer, birth defects or other reproductive harm.
