Bogen TMA812 User Manual

50 Spring Street, Ramsey, NJ 07446 USA
Tel. [phone] • Fax: [phone]

www.bogen.com

Specifications subject to change.

© Copyright 2008 Bogen Communications, Inc.

54-2187-01A 0810

Installation Instruction Manual

TMA812 Tilt Mount Adapter
for NEAR A8 and A12 Loudspeakers

TMA812 - Tilt Mount Adapter
Components

NYLON TIE

(4) MOUNTING CHAIN

HOOK WING NUTS

(4) MOUNTING
CHAIN HOOKS

(4) #6 POLE

ADAPTER SCREWS

(2) POLE

ADAPTERS

STATIONARY

MOUNTING BRACKET

(4) #10 AXLE/ADJUST

SCREWS

ADJUSTABLE

MOUNTING BRACKET

SPEAKER

MOUNTING

BRACKET

8 FT. SAFETY

CABLE

SAFETY TETHER LINK

ADJUSTABLE
WIRE CLAMP

(2) MOUNTING

CHAINS

A8/A12

SPEAKER

HEX

SOCKET

SAFETY

BOLT

(2) SELF ADHESIVE

RUBBER DISKS

ITEMS INCLUDED WITH

A8/A12 LOUDSPEAKER

LOCK

WASHER

(4) #6 MOUNTING

BRACKET SCREWS

STAT ION ARY

MOUNTING

BRACKET

POLE

ADAPTERS

1

B

POLE MOUNTING:

STATIONARY

MOUNTING

BRACKET

WALL

OR

FLAT

SURFACE

A) Using proper anchors* (not supplied),
attach STATIONARY MOUNTING
BRACKET to wall or flat surface.

B) Skip ahead to Section 3 to continue
with Speaker Adjustable Mounting
Attachment Installation.

TOP

BOTTOM

Attaching Pole Adapters to the
Stationary Mounting Bracket

A) Attach the 2 POLE ADAPTERS to the
STATIONARY MOUNTING BRACKET
using 4 (#6) mounting screws as shown
here to create the MOUNTING
BRACKET ASSEMBLY.

#6

MOUNTING

SCREWS

(WALL MOUNTING

ANCHORS /SCREWS

& WASHERS NOT PROVIDED)

1

A

WALL MOUNTING:

Attaching Stationary Mounting Bracket
to a Wall or other Flat Surface

*NOTE: WHEN MOUNTING TO

WALL OR FLAT SURFACE, BE

SURE THE

USER SELECTED
ATTACHMENT AREA AND THE
ANCHORS ARE TOGETHER
ABLE TO SAFELY SUPPORT
AT LEAST 300 LBS.

MOUNTING

BRACKET

ASSEMBLY

POLE

NYLON

TIE

MOUNTING

HOOKS

& WING NUTS

MOUNTING

HOOKS

& WING NUTS

POLE

NYLON

TIE

MOUNTING

HOOKS

& WING NUTS

TOP

CHAIN

BOTTOM

CHAIN

2

Attaching the Mounting Bracket
Assembly to a Pole

A) Thread NYLON TIE thru Tie Slots and around
pole to TEMPORARILY hold the Mounting
Bracket Assembly in place on pole.

B) Insert (4) MOUNTING CHAIN HOOKS
and attached WING NUTS through
the most appropriate top & bottom
Bracket Assembly slots.

C) With Hooks fully extended, attach
one end of MOUNTING CHAIN to
one of the Top Mounting Hooks.
Pull the Chain tight to Pole and then
attach shortest link to corresponding
Top Hook. (To keep chain from being
jammed by the hook, place link on
outside of the Hook.) Spin Wing Nuts
down evenly, enough to keep the
Assembly in place.

D) Repeat process for Bottom Hooks
and Chains.

E) Hand tighten all Wing Nuts evenly,
ensuring Mounting Bracket Assembly
is difficult to rotate on the Pole. Then
“tap” the chain sharply to remove any
slack and fully re-tighten all Wing Nuts

IMPORTANT: HAND TIGHTEN ONLY.
EXCESS TIGHTENING MAY CAUSE
HOOK ENDS TO SPREAD.

TIE SLOT

MOUNTING

BRACKET

ASSEMBLY

SLOTS

MOUNTING

BRACKET

ASSEMBLY

MOUNTING

HOOKS

& WING NUTS

SELF-

ADHESIVE

RUBBER DISK

SPEAKER

MOUNTING

KNOB

SPEAKER

MOUNTING

KNOB

SPEAKER

MOUNTING

BRACKET

ADJUSTABLE

MOUNTING

BRACKET

3

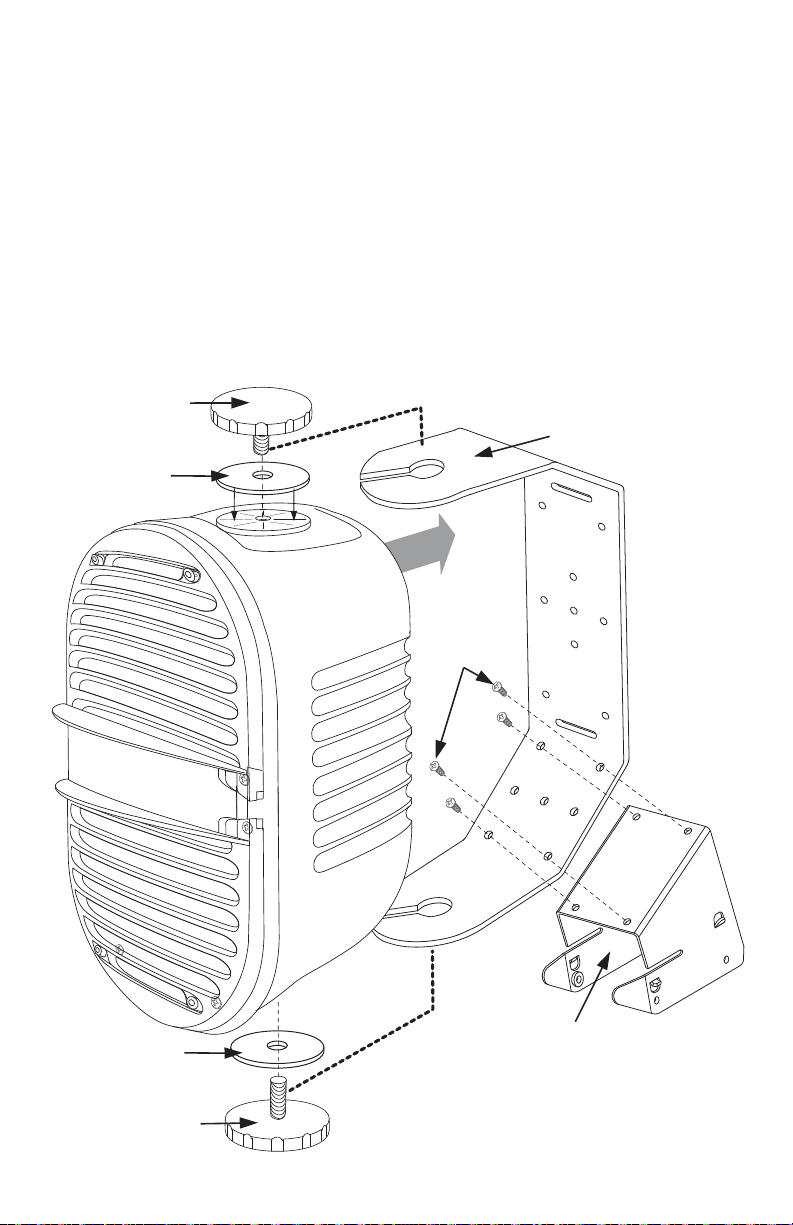

Attach A8/A12 Speaker and Speaker Mounting
Bracket to the Adjustable Mounting Bracket

A) Attach ADJUSTABLE MOUNTING BRACKET to the A-Series SPEAKER
MOUNTING BRACKET by using 4 (#6) Mounting Screws to create the
SPEAKER MOUNTING ASSEMBLY.

B) Adhere the 2 Self-Adhesive Rubber Disks to the Speaker Cabinet as shown
below. Partially screw into the speaker cabinet the 2 Speaker Mounting Knobs,
then slide the A-Series Loudspeaker in through the slots of the Speaker Mounting
Assembly and fully tighten the Mounting Knobs.

(4) #6

ADJUSTABLE

MOUNTING

BRACKET
SCREWS

A8/A12

LOUDSPEAKER

SPEAKER

MOUNTING

RUBBER DISK

4

Attach Speaker Mounting Assembly
to Stationary Mounting Bracket

STAT ION ARY

MOUNTING
ASSEMBLY

ADJUSTABLE

MOUNTING

BRACKET

A8/A12

SPEAKER

ASSEMBLY

FRONT

TAB

A) Place Speaker Mounting Assembly on the Stationary Mounting Assembly by putting
the FRONT TABS of Speaker Assembly into the two FRONT CATCH slots of the
Mounting Assembly (see INSET 1).

B) With both Front Tabs hooked securely into both Front Catch slots, gently rotate Speaker
Assembly back until both REAR TABS “snap” into both REAR CATCH slots (see INSET 2).
When properly engaged, this will provide TEMPORARY support for the Speaker Assembly.

DO NOT LEAVE SPEAKER IN THIS POSITION WITHOUT COMPLETING THE
INSTALL PROCEDURES SHOWN WITHIN SECTION 5.

IMPORTANT: BE SURE THAT ALL TABS AND CATCH SLOTS ARE PROPERLY
ENGAGED BEFORE LETTING GO OF THE SPEAKER ASSEMBLY. SERIOUS
INJURY COULD RESULT WITH IMPROPER CONNECTIONS.

FRONT
CATCH

FRONT

TAB

INSET 1

INSET 2

REAR

TAB

FRONT
CATCH

REAR

CATCH

REAR

CATCH

REAR

TAB

ENGAGED TABS
& CATCH SLOTS

#10 AXLE

SCREW

#10 ADJUST SCREW

ANGLE

ADJUSTMENT

WINGS

ADJUST ANGLE

HOLES

A8/A12

SPEAKER

ASSEMBLY

STAT ION ARY

MOUNTING
ASSEMBLY

5

Speaker Assembly Angle Adjustment
and Locking Procedure

A) Loosely Insert 2 (#10) AXLE SCREWS to both sides of Stationary Mounting
Bracket and into the Speaker Assembly Bracket. This will provide safe retention
of the Speaker Assembly.

B) Pinch inward both sides of the ANGLE ADJUSTMENT WINGS on the Mounting
Bracket to rotate the Speaker Assembly to desired angle. Front Tabs on each
side will then engage ADJUST ANGLE HOLES on the Mounting Assembly.

C) Once angle is selected, insert 2 (#10) ADJUST SCREWS into Adjustment Angle Holes
directly below the Tab/Holes selected. Finally, tighten all four Screws SECURELY.

IMPORTANT: ALL FOUR (2 AXLE & 2 ADJUST) SCREWS MUST BE IN PLACE
AND FULLY TIGHTENED FOR ASSEMBLY TO BE SAFELY SECURED.

6

Speaker Safety Cable and Tether Link
Attachment Installation

A) Find the SAFETY ATTACHMENT POINT
located on the rear of the A8/A12 Speaker.
Using the

(1/4”- 20 x 1/2”)

HEX SOCKET
SAFETY BOLT and the LOCK WASHER,
secure the SAFETY TETHER LINK into
the Safety Attachment Point, vertically,
as shown.

SAFETY

TETHER LINK

HEX SOCKET

SAFETY BOLT

(Included with Speaker)

SAFETY ATTACHMENT

POINT

B) POLE MOUNT (TOP-DOWN VIEW)

Take the 8 FT. SAFETY CABLE and loop it tightly around the Pole/Post 2-3 times. Proceed to
feed one end of the Safety Cable in through the Speaker Mounting Bracket, then into the open
hole of the Safety Tether Link. Pull the Cable taut, leaving very little slack, and secure the two
Cable ends using the ADJUSTABLE WIRE CLAMP.

SAFETY

TETHER LINK

ADJUSTABLE

WIRE CLAMP

A8/A12

LOUDSPEAKER

SPEAKER MOUNTING

BRACKET

POLE

8 FT. SAFETY CABLE

ADJUSTABLE
WIRE CLAMP

A8/A12

LOUDSPEAKER

SPEAKER

MOUNTING

BRACKET

8 FT.

SAFETY

CABLE

TIE

SLOT

WALL

C) WALL MOUNT (TOP-DOWN VIEW)

Take the 8 FT. SAFETY CABLE and feed it
through the Tie Slots (see figure A in Section 2
for Tie Slot location) of the mounted Stationary
Mounting Bracket, then into the open hole of
of the Safety Tether Link. Pull the Cable taut,
leaving very little slack, and secure the Cable
ends using the ADJUSTABLE WIRE CLAMP.

LOCK WASHER

(Included with Mount)

WHEN INSTALLATION IS FINISHED, THE
SAFETY CABLE SHOULD BE TAUT.
CABLE SLACK SHOWN IN DRAWING IS
FOR ILLUSTRATIVE PURPOSES ONLY.

WHEN INSTALLATION IS
FINISHED, THE SAFETY
CABLE SHOULD BE TAUT.
CABLE SLACK SHOWN IN
DRAWING IS FOR ILLUS­TRATIVE PURPOSES ONLY.

SAFETY

TETHER LINK
