BNC 7000 Programmer Manual

1

Programmer’s Man ual V1.1 (prelim)

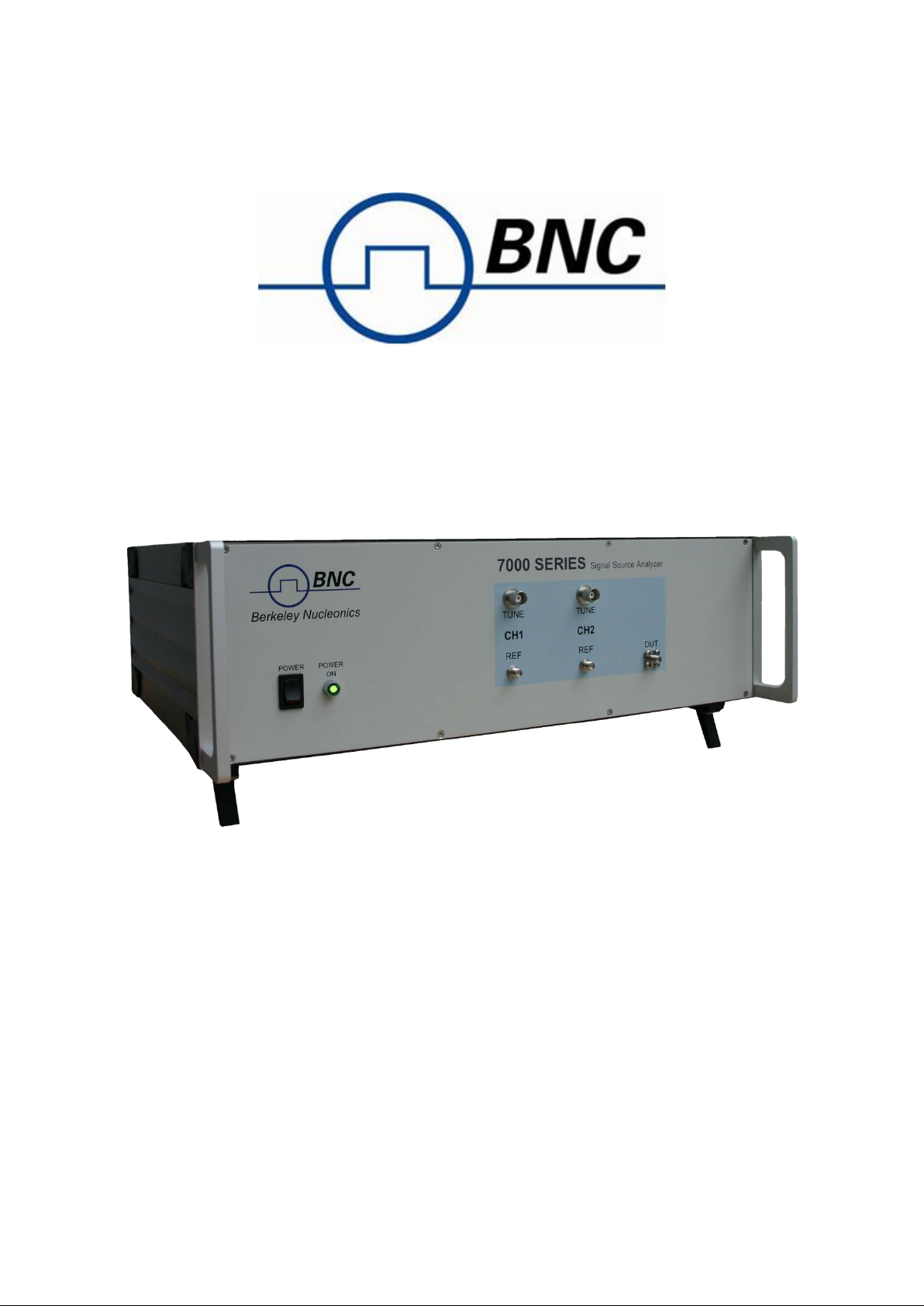

SERIES 7000 Phase Noise Measurement Systems

Models MODEL 7070, MODEL 7300

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

2

WARRANTY

Berkeley Nucleonics Corporation warrants all instruments, including component

parts, to be free from defects in material and workmanship, under normal use and

service for a period of one year. If repairs are required during the warranty period,

contact the factory for c omponent replacement or shipping instructions. Include the

serial number of the instrument. This warranty is void if the unit is repaired or altered

by others than those authorized by Berkeley Nucleonics Corporation.

IMPORTANT! PLEASE READ CAREFULLY

NOTIFICATION OF COPYRIGHT

THE FIRMWARE IN THIS DEVICE IS PROTECTE D BY COPYRIGHT LAWS AND

INTERNATIONAL TREATY. YOU MUST TREAT THE FIRMWARE LIKE ANY

OTHER COPYRIGHTED MATERIAL. COPYRIGHT LAWS PROHIBIT MAKING

ADDITIONAL COPIES OF THE FIRMWARE FOR ANY REASON OTHER THAN

SPECIFICALLY DESCRIBED IN THE LICENSE BELOW. YOU MAY NOT COPY

THE WRITTEN MATERIALS ACCOMPANYING THE PRODUCT.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

3

Table of Contents

INTRODUCTION ....................................................................................................................................... 5

1

2 PROGRAMMING THE SERIES 7000 ........................................................................................................... 6

2.1 LAN ............................................................................................................................................................ 6

2.2 ETHERNET INTERFACE CONNECTION AND SETUP .................................................................................................. 6

2.3 USING SOCKETS LAN ..................................................................................................................................... 8

2.4 USING AND CONFIGURING VXI-11 (VISA) ......................................................................................................... 8

2.5 USING TELNET LAN (PORT 18) ........................................................................................................................ 9

2.6 USB ............................................................................................................................................................ 9

2.7 USB-TMC INTERFACE CONNECTION AND SETUP USING VISA ................................................................................ 9

2.8 USB-TMC INTERFACE CONNECTION AND SETUP USING BERKELEY NUCLEONICS API ................................................ 10

2.9 GPIB INTERFACE CONNECTION AND SETUP ....................................................................................................... 10

2.9.1 General GPIB information ............................................................................................................. 10

2.10 USING SCPI FOR SERIES 7000 ................................................................................................................. 11

3 IEEE-488 INTERFACE COMMANDS ......................................................................................................... 12

3.1 IEEE MANDATED COMMANDS ....................................................................................................................... 12

3.1.1 *CLS ............................................................................................................................................... 12

3.1.2 *ESE <data> ................................................................................................................................... 12

3.1.3 *ESE? ............................................................................................................................................. 12

3.1.4 *IDN? ............................................................................................................................................. 13

3.1.5 *OPC .............................................................................................................................................. 13

3.1.6 *OPC? ............................................................................................................................................ 13

3.1.7 *OPT? ............................................................................................................................................ 13

3.1.8 *RST ............................................................................................................................................... 13

3.1.9 *SRE <data> .................................................................................................................................. 13

3.1.10 *SRE? ........................................................................................................................................ 14

3.1.11 *STB? ........................................................................................................................................ 14

3.1.12 *TRG ......................................................................................................................................... 14

3.1.13 *TST? ........................................................................................................................................ 14

3.1.14 *WAI ......................................................................................................................................... 14

4 SCPI COMMANDS .................................................................................................................................. 15

4.1

INTRODUCTION............................................................................................................................................ 15

4.2 SCPI COMMAND TYPES ................................................................................................................................ 15

4.3 SCPI COMMAND SYNTAX .............................................................................................................................. 16

4.4 HIERARCHICAL COMMAND STRUCTURE ............................................................................................................ 17

4.5 STATUS SYSTEM PROGRAMMING .................................................................................................................... 18

4.6 STATUS REGISTERS ....................................................................................................................................... 18

4.7 STATUS GROUP REPORTING ........................................................................................................................... 19

4.8 STANDARD EVENT STATUS GROUP .................................................................................................................. 20

4.9 OPERATION STATUS GROUP ........................................................................................................................... 20

4.10 QUESTIONABLE STATUS GROUP ................................................................................................................. 20

5 SCPI COMMAND DESCRIPTION .............................................................................................................. 22

5.1 :ABORT SUBSYSTEM .................................................................................................................................... 22

5.2 :CALCULATE SUBSYSTEM .................................................................................................................... 22

5.3 :INITIATE SUBSYSTEM .................................................................................................................................. 23

5.4 :SENSE SUBSYSTEM ..................................................................................................................................... 24

5.5 :STATUS SUBSYSTEM ................................................................................................................................... 27

5.6 :SYSTEM SUBSYSTEM ................................................................................................................................... 29

5.7 [:SYSTEM:COMMUNICATE] SUBSYSTEM ........................................................................................................ 29

5.8 :TRIGGER SUBSYSTEM .................................................................................................................................. 32

5.9 UNIT SUBSYSTEM........................................................................................................................................ 35

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

4

6 EXAMPLES (NEEDS REWORK) ................................................................................................................ 36

6.1 REMOTE PHASE NOISE MEASUREMENT (FW 1.0) ............................................................................................. 36

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

5

1 Introduction

This manual provides information for remote operation of the SERIES 7000 Signal Source Analyzers /
Phase Noise Measurement Systems using commands sent from an external controller via remote
control. It includes the following:

• A general description of the LAN and the bus data transfer and control functions

• A general description of how to establish connection to the SERIES 7000 via LAN or USB.

• A listing of the IEEE-488 Interface Function Messages recognized by the instrument with a

description of its response

• A complete listing and description of all the Standard Commands for Programmable
Instruments (SCPI) commands that can be used to control instrument operation with
examples of command usage

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

6

2.1

2.2

2 Programming the SERIES 7000

The SERIES 7000 can be accessed throu gh LAN or USB interface. All interfaces use standard SCPI
command set to pass commands to the device. GPIB interface is also available optionally.

LAN

The SERIES 7000 can be remotely programmed via a 10/100/1000Base-T LAN interface and LAN­connected computer using one of several LAN interface protocols. The LAN allows instruments to be
connected together and controlled by a LAN- based computer. LAN and its associated interface
operations are defined in the IEEE 802.2 standard.
The SERIES 7000 support the following LAN interface protocols:

1) Socket based LAN: the application programming interface (API) provided with the instrument
supports general programming using the LAN interface under Windows operating system.

2) VXI-11

3) Telephone Network (TELNET): TELNET is used for interactive, one command at a time
instrument control.

4) Internet protocol optionally supported

For LAN operation, the instrument must be connected to the LAN, and an IP address must be
assigned to the instrument either m anually or by using DHCP client service. Your system administrator
can tell you which method to use. (Most current LAN networks use DHCP.)

DHCP Configuration
If the DHCP server uses dynamic DNS to link the hostname with the assigned IP address, the
hostname may be used in place of the IP address. Otherwise, the hostname is not usable.
DHCP Configuration
If the DHCP server uses dynamic DNS to link the hostname with the assigned IP address, the
hostname may be used in place of the IP address. Otherwise, the hostname is not usable.

Ethernet Interface Connection and Setup

The SERIES 7000 fully supports the IEEE-802.3 standard. Most front panel functions (except power
on/off) can be remotely controlled via a network server and an Ethernet connection. The SERIES 7000
software supports the TCP/IP network protocol.
Ethernet uses a bus or star topologies where all of the interfacing devices are connected to a central
cable called the bus, or are connected to a hub. Ethernet uses the CSMA/CD access method to
handle simultaneous transmissions over the bus. CSMA/CD stands for Carrier Sense Multiple
Access/Collision Detection. This standard enables network devices to detect simultaneous data
channel usage, called a collision, and provides for a contention protocol. When a network device
detects a collision, the CSMA/CD standard dictates that the data will be retransmitted after waiting a
random amount of time. If a second collision is detected, the data is again retransmitted after waiting
twice as long. This is known as exponential back off.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

7

The TCP/IP setup requires the following:

• IP Address: Every computer/electronic device in a TCP/IP network requires an IP address. An IP

address has four numbers (each between 0 and 255) separated by periods.
For example: 192.168.1.50 is a valid IP address.

• Subnet Mask: The subnet mask distinguishes the portion of the IP address that is the network ID
from the portion that is the station ID. The subnet mask 255.255.0.0, when applied to the IP address
given above, would identif y the network ID as 192.168 and the station ID as 1.50. All stations in the
same local area network should have the same network ID, but different station IDs.

• Default Gateway: A TCP/IP network can have a gateway to communicate beyond the LAN identified
by the network ID. A gateway is a computer or electronic device that is connected to two different
networks and can move TCP/IP data from one network to the other. A single LAN that is not
connected to other LANs requires a default gateway setting of 0.0.0.0. If you have a gateway, then the
default gateway would be set to the appropria te va lue of your gatewa y.

• MAC Address: A MAC address is a unique 48-bit value that identifies a network interface card to the
rest of the network. Every network card has a unique MAC address permanently stored into its
memory.

Interface between the instrument and other devices on the network is via a category five (CAT-5)
interface cable connected to a network. This cable uses four twisted pairs of copper insulators
terminated into an RJ45 connector. CAT-5 cabling is capable of supporting frequencies up to 100 MHz
and data transfer speeds up to 1 Gbps, which accommodates 1000Base-T, 100Base-T, and 10Base-T
networks.
The instrument can be remotely programmed using the VXI-11 pr otoc o l. A VISA I/O library (like NI­VISA™) is used on the server side to facilitate the communications. A VISA installati on on the
controller is a prerequisite for remote control over VXI-11 interface. VISA is a standardized software
interface library providing input and output functions to communicate with instruments. For more
information about VISA refer to the VISA library supplier’s documentation.
The SCPI command set listed in the SERIES 7000 programmer’s manual applies to LAN programming
as well.
Only the IP address or the device name is required for link setup. The IP address/device name is part
of the "visa resource string" used by the programs for identification and control of the instrument. The
visa resource string has the form:

TCPIP::ipaddr::inst0::INSTR

ipaddr has to be replaced by the IP address or the computer name of the instrument.

For instance, if the instrument has the IP address 192.168.1.50, TCPIP::192.168.1.50::inst0::INSTR is
the valid resource name. Specification of inst0 in the resource name is optional. In this example, also

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

8

2.3

2.4

TCPIP::192.168.1.50::INSTR is therefore a valid resource name.
TCPIP designates the network protocol used and INSTR indicates that the VXI-11 protocol is used. If

several instruments are connected to the network, each instrument has its own IP address and
associated resource name. The controller identifies these instruments by means of the resource
name.

Using Sockets LAN

Sockets LAN is a method used to communicate with the instrument over the LAN interface using the
Transmission Control Protocol/Internet Protocol (TCP/IP). A socket is a fundamental technology used
for computer networking and allows applications to communicate using standard mechanisms built into
network hardware and operating systems. The method accesses a port on the instrument from which
bidirectional communication with a network computer can be established.
Sockets LAN can be described as an internet address that combines Internet Protocol (IP) with a
device port number and represents a single connection between two pieces of software. The socket
can be accessed using code libraries packaged with the computer operating system. Two common
versions of socket libraries are the Berkeley Sockets Library for UNIX systems and Winsock for
Microsoft operating systems.
Your instrument implements a socket Applications Programming Interface (API) that is compatible with
Berkeley socket for UNIX systems, and Winsock for Microsoft systems. The instrument is also
compatible with other standard sockets APIs. The instrument can be controlled using predefined SCPI
functions once the socket connection is established in your program. Socket connection is available on
port 18.

The instrument supports the LAN interface protocol described in the VXI- 11 standard. VXI- 11 is an
instrument control protocol based on Open Network Computing/Remote Procedure Call (ONC/RPC)
interfaces running over TCP/IP.
A range of standard software such as NI-VISA or Agilent IO Config is available to setup the computer-

Using and Configuring VXI-11 (VISA)

instrument interface for the VXI- 11 protocol. Please refer to the applicable software user manual and
documentation for information on running the program and configuring the VXI-11 interface. The
program is used to configure the LAN client. Once the computer is configured for a LAN client, you can
use the VXI- 11 protocol and the VISA library to send SCPI commands to the instrument over the LAN

interface. Example programs are available on request under

support@Berkeley

Nucleonics.com.

VISA is an IO library used to develop IO applications and instrument drivers that comply with industry
standards. It is recommended that the VISA library be used for programming the signal generator. The
NI-VISA and Agilent VI SA li br aries are similar implementations of VISA and have the same
commands, syntax, and functions.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

9

2.5

2.6

2.7

Using Telnet LAN (Port 18)

Telnet provides a means of communicating with the instrument over the LAN. The Telnet client, run on
a LAN connected computer, will create a login session on the signal generator. A connection,
established between computer and signal generator, generates a user interface display screen with
“>” prompts on the command line.
Using the Telnet protocol to send commands to the instrument is similar to communicating with the
instrument over LAN. You establish a connection with the instrument and then send or receive
information using predefined commands. Communication is interactive: one command at a time. The
telnet service is available on port 18.
Once a telnet session to the device is established, the echo can be enabled by typing

SYST:COMM:SOCK:ECHO ON
Following this command a prompt “>>” should become visible.

USB

There are two standard types of USB ports. The external controller (PC) must be connected via the
USB host port (type A), while the SERIES 7000 and other USB compatible devices must be connected
via the USB interface port (type B)

The SERIES 7000 support the following USB interface protocols:

1) USBTMC class device via VISA: USBTMC stands for USB Test & Measurement Class.
USBTMC is a protocol built on top of USB that allows GPIB-like communication with USB
devices. From the user's point of view, the USB device behaves just like a GPIB device.
USBTMC allows instrument manufacturers to upgrade the physical layer from GPIB to USB
while maintaining software compatibility with existing software, such as instrument drivers and
any application that uses VISA. This is also what the VXI-11 protocol provides for TCP/IP.

2) USBTMC class device with IVI host drivers the application programming interface (API)

provided with the instrument supports general programming using the USB interface under
Windows operating system.

USB-TMC Interface Connection and Setup using VISA

The USB (Universal Serial Bus) remote control system provides device control via USB, which is
equivalent to control via GPIB. Connection is made through an interface in compliance with USBTMC­USB488 and USB 2.0.

USBTMC stands for USB Test & Measurement Class. USBTMC is a protocol built on top of USB that
allows GPIB-like communication with USB devices. From the user's point of view, the USB device
behaves just like a GPIB device. For example, you can use VISA Write to send the *IDN? query and

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

10

2.8

2.9

use VISA Read to get the response. The USBTMC protocol supports service request, triggers and
other GPIB specific operations.

USBTMC upgrades the physical layer from GPIB to USB while maintaining software compatibility with
existing software, such as instrument drivers and any application that uses VISA. This is also what the
VXI-11 protocol provides for TCP/IP.

NI-VISA 3.0 or later allows you to communicate as a controller to SERIES 7000 devices. NI-VISA is
configured to detect USBTMC compliant instruments such as the SERIES 7000. To use such a
device, plug it in and Windows should detect the new hardware and launch the New Hardware Wizard.
Instruct the wizard to search for the driver, which in this case is NI-VISA. If NI-VISA is properly
installed, the device will be installed as a USB Test & Measurement Class Device. Open Measurement
& Automation Explorer (MAX). The new device will appear in MAX under Device and Interfaces » USB
Devices. You can then use this resource name as you would use any GPIB resource.

USB-TMC Interface Connection and Setup using Berkeley Nucleonics API

Berkeley Nucleonics API programming interface supports direct communication to SERIES 7000 using
Berkeley Nucleonics’s proprietary DLL driver libraries. The library allows setup a communication
channel though USB, LAN, or GPIB from any programming environment.
Please contact Berkeley Nucleonics for more detailed documentation, programming samples, and
updates on the DLL library.

GPIB Interface Connection and Setup

2.9.1 General GPIB information

GPIB (General Purpose Interface Bus) is an interface standard for connecting computers and
peripherals, which supports the following international standards: IEEE 488.1, IEC-625, IEEE 488.2,
and JIS-C1901. The GPIB interface allows you to control the SERIES 7000 from an external
computer. The computer sends commands and instructions to the SERIES 7000 and receives data
sent from the SERIES 7000 via GPIB.
You can connect up to 15 devices in a single GPIB system.
The length of cables to connect between devices must be 4 m or less. The total length of connecting
cables in a single GPIB system must be 2 m × the number of connected devices (including the
controller) or less. You cannot construct the system in which the total cable length exceeds 20 m.
The number of connectors connected to an individual device must be 4 or less. If you connect 5 or
more connectors, excessive force is applied to the connector part, which may result in failure.

You can choose the device connection topology from star, linear, and combined. Loop connection is
not allowed.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

11

2.10

Using SCPI for SERIES 7000

The Standard Commands for Programmable Instrumentation (SCPI) provides a uniform and
consistent language to control programmable test and measurement devices in instrumentation
systems. The SCPI Standard is built on the foundation of IEEE-488.2, Standard Codes and Formats. It
requires conformance to IEEE-488.2, but is pure software standard. SCPI syntax is ASCII text, and
therefore can be attached to any computer test language, such as BASIC, C, or C++. It can also be
used with Test Application Environments such as LabWindows/CVI, LabVIEW™, or Matlab®. SCPI is
hardware independent. SCPI strings can be sent over any instrument interface. It works equally well
over USB-TMC, GPIB, or LAN networks.

Please see the chapter 4 for detailed description of supported SCPI commands.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

12

3.1

3 IEEE-488 Interface Commands

IEEE Mandated Commands

The required common commands are IEEE-488.2 mandated commands that are defined in the IEEE-

488.2 standard and must be implemented by all SCPI compatible instruments. These commands are
identified by the asterisk (*) at the beginning of the command keyword. These commands are used to
control instrument status registers, status reporting, synchronization, and other common functions.

Commands declared mandatory by IEEE 488.2.

*CLS Clear Status Command
*ESE Standard Event Status Enable Com mand
*ESE? Standard Event Status Enable Query
*ESR? Standard Event Status Register Query
*IDN? Identification Query

*OPC Operation Complete Com mand
*OPC? Operation Complete Query
*RST Reset Command
*SRE Service Request Enable Command
*SRE? Service Request Enable Query
*STB? Read Status Byte Query
*TST? Self-Test Query
*WAI Wait-to-Conti nue Co m mand

3.1.1 *CLS

The Clear Status (CLS) command clears the status byte by emptying the error queue and clearing all
the event registers including the Data Questionable Event Register, the Standard Event Status
Register, the Standard Operation Status Register and any other registers that are summarized in the
status byte.

3.1.2 *ESE <data>

The Standard Event Status Enable (ESE) command sets the Standard Event Status Enable Register.
The variable <data> represents the sum of the bits that will be enabled.

Range 0–255
Remarks The setting enabled by this command is not affected by instrument preset or *RST.

However, cycling the instrument power will reset this register to zero.

3.1.3 *ESE?

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

13

The Standard Event Status Enable (ESE) query returns the value of the Standard Event Status Enable
Register.
NOTE: Reading the Standard Event Status Register clears it
Remarks The Register is not affected by instrument preset or *RST. However, cycling the instrument
power will reset this register to zero.

3.1.4 *IDN?

The Identification (IDN) query outputs an identifying string. The response will show the following
information: <company name>, <model number>, <serial number>, <firmware revision>

3.1.5 *OPC

The Operation Complete (OPC) command sets bit 0 in the Standard Event Status Register when all
pending operations have finished.
The Operation Complete command causes the device to set the operation complete bit (bit 0) in the
Standard Event Status Register when all pending operations have been finished.

3.1.6 *OPC?

The Operation Complete (OPC) query returns the ASCII character 1 in the Standard Event Status
Register when all pending operations have finished.
This query stops any new commands from being processed until the current processing is complete.
This command blocks the communication until all operations are complete (i.e. the timeout setting
should be longer than the longest sweep).

3.1.7 *OPT?

The options (OPT) query returns a comma-separated list of all of the instrument options currently
installed on the signal generator.

3.1.8 *RST The Reset (RST) command resets most instrument functions to factory- defined conditions.

Remarks Each command shows the [*RST] default value if the setting is affected.

3.1.9 *SRE <data>

The Service Request Enable (SRE) command sets the value of the Service Request Enable Register.
The variable <data> is the decimal sum of the bits that will be enabled. Bit 6 (value 64) is ignored and
cannot be set by this command.
Range 0–255
The setting enabled by this command is not affected by instrument preset or

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

14

*RST. However, cycling the instrument power will reset it to zero.

3.1.10 *SRE? The Service Request Enable (SRE) query returns the value of the Service Request Enable Register.

Range 0–63 & 128-191

3.1.11 *STB?

The Read Status Byte (STB) query returns the value of the status byte including the master summary
status (MSS) bit.

Range 0–255

3.1.12 *TRG

The Trigger (TRG) command triggers the device if LAN is the selected trigger source, otherwise, *TRG
is ignored.

3.1.13 *TST?

The Self-Test (TST) query initiates the internal self- test and returns one of the following results:
0 This shows that all tests passed.
1 This shows that one or more tests failed.

3.1.14 *WAI

The Wait- to- Continue (WAI) command causes the instrument to wait until all pending commands are
completed, before executing any other commands.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

15

4.1

4.2

4 SCPI Commands

This chapter provides an introduction to SCPI programming that includes descriptions of the command
types, hierarchical command structure, data parameters, and notational conventions. Information on
SERIES 7000 status system and trigger system programming is also provided.

Introduction

Standard Commands for Program mab le Ins trum ents (SCPI) is the new instrument command language
for controlling instruments that goes beyond IEEE 488.2 to addres s a wide var iety of instrument
functions in a standard manner. SCPI promotes consistency, from the remote programming
standpoint, between instruments of the same class and between instruments with the same functional
capability. For a given measurement function such as frequency or voltage, SCPI defines the specific
command set that is available for that function. Thus, two oscilloscopes made by different
manufacturers could be used to make frequency measurements in the same way. It is also possible
for a SCPI counter to make a frequency measurement using the same commands as an oscilloscope.
SCPI commands are easy to learn, self-explanatory and account for both novice and expert
programmer’s usage. Once familiar with the organization and structure of SCPI, considerable
efficiency gains can be achieved during control program development, independent of the control
program language selected.

A key to consistent programming is the reduction of multiple ways to control similar instrument
functions. The philosophy of SCPI is for the same instrument functions to be controlled by the same
SCPI commands. To simplify learning, SCPI uses industry-standard names and terms that are
manufacturer and customer supported.
The advantage of SCPI for the ATE system programmer is reducing the time learning how to program
new SCPI instruments after programming their first SCPI instrument.
Programmers who use programming languages such as BASIC, C, FORTRAN, etc., to send
instrument commands to instruments will benefit from SCPI. Also, programmers who implement
instrument device drivers for ATE program generators and/or software instrument front panels will
benefit by SCPI’s advantages. SCPI defines instrument commands, parameters, data, and status. It is
not an application package, programming language or software intended for instrument front panel
control.
SCPI is designed to be layered on top of the hardware-independent portion of IEEE 488 .2.

SCPI Command Types

SCPI commands, which are also referred to as SCPI instructions, are messages to the instrument to
perform specific tasks. The SERIES 7000 command set includes:

• “Common” commands (IEE488.2 mandated commands)

• SCPI required commands

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

16

4.3

• SCPI optional commands (per SCPI 1999.0)

• SCPI compliant commands that are unique to the SERIES 7000. Not all of the commands

supported by the instrument are taken from the SCPI standard; however, their syntax follows
SCPI rules.

SCPI Command Syntax

Typical SCPI commands consist of one or more keywords, parameters, and punctuation. SCPI
command keywords can be a mixture of upper and lower case characters. Except for common
commands, each keyword has a long and a short form. In this manual, the long form is presented with
the short form in upper case and the remainder in lower case. Unrecognized versions of long form or
short form commands, or improper syntax, will generate an error.

Structure of a Command Line
A command line may consist of one or several commands. It is terminated by an EOI together with the
last data byte.
Several commands in a command line must be separated by a semicolon ";". If the next command
belongs to a different command system, the semicolon is followed by a colon. A colon ":" at the
beginning of a command marks the root node of the command tree.
If the successive commands belong to the same system, having one or several levels in common, the
command line can be abbreviated. To this end, the second command after the semicolon starts with
the level that lies below the common levels. The colon following the semicolon must be omitted in this
case.

Responses to Queries
A query is defined for each setting command unless explicitly specified otherwise. It is formed by
adding a question mark to the associated setting command. According to SCPI, the responses to
queries are partly subject to stricter rules than in standard IEEE 488.2.

Parameters
Most commands require a parameter to be specified. The parameters must be separated from the
header by a "white space". Permissible parameters are numerical values, Boolean parameters, text,
character strings and block data. The type of parameter required for the respective command and the
permissible range of values are specified in the command description.

Numerical values Numerical values can be entered in any form, i.e. with sign, decimal point and
exponent. Values exceeding the resolution of the instrument are rounded up or down. The mantissa
may comprise up to 255 characters, the values must be in the value range –9.9E37 to 9.9E37. The
exponent is introduced by an "E" or "e". Entry of the exponent alone is not allowed.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

17

4.4

Units In the case of physical quantities, the unit can be entered. Permissible unit prefixes are G (giga),
MA (mega), MHZ are also permissible), K (kilo), M (milli), U (micro) and N (nano). If the unit is missing,
the basic unit is used.

Boolean Parameters Boolean parameters represent two states. The ON state (logically true) is
represented by ON or a numerical value unequal to 0. The OFF state (logically false) is represented by
OFF or the numerical value 0. ON or OFF is returned by a query.

Hierarchical Command Structure

All SCPI commands, except the common commands, are organized in a hierarchical structure similar
to the inverted tree file structure used in most computers. The SCPI standard refers to this structure as
“the Command Tree.” The command keywords that correspond to the major instrument control
functions are located at the top of the command tree. The command keywords for the SERIES 7000
SCPI command set are shown below.

:ABORt

:CALCulate

The purpose of the CALCulate block is to convert or derive sensed data into a form more useful to the
application. Typical calculations include converting units, and postprocessing calculations (for
example, calculation of jitter of a phase noise trace). The CALCulate commands are described in the
CALCulate subsystem.

:DIAGnostic

:INPut

The purpose of the INPut block is to condition the incoming signal before it is converted intodata by
the SENSe block. INPut block functions include filtering, biasing, frequency conversion (such as a
mixer or prescaler function), and attenuation. The INPut block appears in the SCPI tree under the
INPut subsystem. The implementation of this subsystem is optional for those instruments that have no
INPut block characteristics.

:INITiate

:SENSe

The purpose of the SENSe block is to convert signal(s) into internal data that can be
manipulated by normal computer techniques. The commands associated with the SENSe
block control the various characteristics of the conversion process. Examples are range,
resolution, gate time, normal mode rejection, etc. This block does not include any
mathematical manipulation of the data after it has been converted

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

18

4.5

4.6

:STATus
:SYSTem
:TRIGger

The purpose of the TRIGger block is to provide an instrument with synchronization capability
with external events. The TRIGger block is appears in the SCPI tree as TRIGger, ARM,
INITiate, and ABORt subsystems.

:UNIT

All SERIES 7000 SCPI commands, except the :ABORt command, have one or more subcommands
(keywords) associated with them to further define the instrument function to be controlled. The
subcommand keywords may also have one or more associated subcommands (keywords). Each
subcommand level adds another layer to the command tree. The command keyword and its
associated subcommand keywords form a portion of the command tree called a command subsystem.

Status System Programming

The SERIES 7000 implements the status byte register, the Service Request Enable Register, the
Standard Event Status Register, and the Standard Event Status Enable Register.

The SERIES 7000 status system consists of the following SCPI-defined status reporting structures:

• The Instrument Summary Status Byte

• The Standard Event Status Group

• The Operation Status Group

• The Questionable Status Group

The following paragraphs describe the registers that make up a status group and explain the status
information that each status group provides.

Status Registers

In general, a status group consists of a condition register, a transition filter, an event register, and an
enable register. Each component is briefly described in the following paragraphs.
Condition Register
The condition register is continuously updated to reflect the current status of the SERIES 7000. There
is no latching or buffering for this register, it is updated in real time. Reading the contents of a
condition register does not change its contents.
Transition Filter

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

19

4.7

The transition filter is a special register that specifies which types of bit state changes in the condition
register will set corresponding bits in the event register. Negative transition filters (NTR) are used to
detect condition changes from True (1) to False (0); positive transition filters (PTR) are used to detect
condition changes from False (0) to True (1). Setting both positive and negative filters True allows an
event to be reported anytime the condition changes. Transition filters are read-write. Transition filters
are unaffected by queries or *CLS (clear status) and *RST commands. The command
:STATus:PRESet sets all negative transition filters to all 0’s and sets all positive transition filters to all
1’s.
Event Register
The event register latches transition events from the condition register as specified by the transition
filter. Bits in the event register are latched, and once set they remain set until cleared by a query or a
*CLS command Event registers are read only.
Enable Register
The enable register specifies the bits in the event register that can produce a summary bit. The
SERIES 7000 logically ANDs corr espondi ng bits in the event and enable registers, and ORs all the
resulting bits to obtain a summary bit. Summary bits are recorded in the Summary Status Byte. Enable
registers are read-write. Querying an enable register does not affect it. The command
:STATus:PRESet sets the Operation Status Enable register and the Questionable Status Enable
register to all 0’s.

Status Group Reporting

The state of certain SERIES 7000 hardware and operational events and conditions can be determined
by programming the status system. Three lower status groups provide status information to the
Summary Status Byte group. The Summary Status Byte group is used to determine the general nature
of an event or condition and the other status groups are used to determine the specific nature of the
event or condition.

Summary Status Byte Group
The Summary Status Byte group, consisting of the Summary Status Byte Enable register and the
Summary Status Byte, is used to determine the general nature of an SERIES 7000 event or condition.
The bits in the Summary Status Byte provide the following:

Operation Status Group
The Operation Status group, consisting of the Operation Condition register, the Operation Positive
Transition register, the Operation Negative Transition register, the Operation Event register and the
Operation Event Enable register .

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

20

4.8

4.9

4.10

Standard Event Status Group

The Standard Event Status group, consisting of the Standard Event Status register (an Event register)
and the Standard Event Status Enable register, is used to determine the specific event that set bit 5 of
the Summary Status Byte.

The bits in the Stand ard Ev ent Stat us regist er provide the following:
Bit Description

0 Set to indicate that all pending SERIES 7000 operations were completed following execution

of the “*OPC” command.

1 Request control
2 Set to indicate that a query error has occurred. Query errors have SCPI error codes from –499

to –400.

3 Set to indicate that a device-dependent error has occurred. Device-dependent errors have

SCPI error codes from –399 to –300 and 1 to 32767.

4 Set to indicate that an execution error has occurred. Execution errors have SCPI error codes

from –299 to –200.

5 Set to indicate that a command error has occurred. Command errors have SCPI error codes

from –199 to –100.
6 User request
7 Power on

Standard Event Status Enable register (ESE commands)

Operation Status Group

The Operation Status group, consisting of the Operation Condition register, the Operation Positive
Transition register, the Operation Negative Transition register, the Operation Event register, and the
Operation Event Enable register, is used to determine the specific condition that set bit 7 in the
Summary Status Byte. The bits in the Operation Event register provide the following:

Questionable Status Group

The Questionable Status group, consisting of the Questionable Condition register, the Questionable
Positive Transition register, the Questionable Negative Transition register, the Questionable Event
register, and the Questionable Event Enable register, is used to determine the specific condition that
set bit 3 in the Summary Status Byte

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

21

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

22

5.1

Command

Parameters

Unit

Remark

:ABORt

FW 1.0

5.2

Command

Parameters

Unit

Remark

:CALCulate:PN:TRACe:HOLD

{OFF|MAX|MI

OFF

:CALCulate:FREQuency?

Hz

:CALCulate:POWer?

dBm

:CALCulate:XX:SPOT?

dBc/Hz

FW 1.0

:CALCulate:PN:TRACe:FREQuency?

Hz

:CALCulate:PN:TRACe:SPECtrum?

dBc/Hz

:CALCulate:BB:TRACe:NOIse?

dBV/Hz

FW 1.0

:CALCulate:PN:TRACe:SPURious:FREQuency?

FW 1.0

:CALCulate:PN:TRACe:SPURious:POWer?

dBc

FW 1.0

:CALCulate:PN:TRACe:FUNCtion:AVARiance?

FW 1.0

:CALCulate:PN:INTegral?

FW 1.0

:CALCulate:PN:JITter?

FW 1.0

5 SCPI Com m a nd Description

:ABORt Subsystem

The :ABORt command is a single command subsystem. There are no subcommands or associated
data parameters, as shown below. The :ABORt command, along with the :TRIGger and :INITiate
commands, comprise the Trigger group of commands.

(default)

:ABORt

This command causes measurement or sweep in progress to abort. Even if INIT:CONT[:ALL] is set to
ON, the sweep will not immediatel y re-initiate.

:CALCulate Subsystem

The CALCulate subsystem performs post acquisition data processing. Functions in the SENSe
subsystem are related to data acquisition, while the CALCulate subsystem operates on the data
acquired by a SENSe function.
The subsystem works for BB (baseband noise), and PN (phase noise), respectively.

(default)

N}

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

23

:CALCulate:REQuest:DATA

:CALCulate:AVErage:CURRent?

5.3

:CALCulate:FREQuency?
This command reads out the internal frequency counter and returns the detected DUT frequency.

:CALCulate:POWer?
This command reads out the internal power meter and returns the detected DUT power.

:CALCulate:XX:SPOT?
This command returns single spot noise value, for the active trace.

:CALCulate:PN:TRACe:FREQuqncy?
This command returns the list of offset frequency points in Hz of the phase noise measurement.

:CALCulate:PN:TRACe:SPECtrum?
This command returns the list of spectrum points in dBc/Hz. The format is similar to the query
CALC:PN:FREQuency?

:CALCulate:BB:TRACe:NOIse?
This command returns the list of noise power spectrum in dBV/Hz. The format is similar to the query
CALC:PN:FREQuency?

:CALCulate:XX:TRACe:SPURious:FREQuency?

This command returns spurious data array, for the active trace.

:CALCulate:PN:TRACe:AVARiance?
This command gets Allan Variance (data trace), for the active trace of the selected channel.

:CALCulate:PN:TRACe:INTegral?

Gets trace data integral noise, for the active trace of the selected channel.

:CALCulate:PN:TRACe:JITter?

Gets trace data total RMS jitter, for the active trace of the selected channel.

:INITiate Subsystem

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

24

Command

Parameters

Unit

Remark

:INITiate[:IMMediate]

ON

:INITiate:CONTinuous

{ON|OFF|1|0}

OFF

5.4

Command

Parameters

Unit

Remark

SENSe:BB:METHod

{SINGle | C C}

CC

SENSe:MODe

{PN | TRAN | BB}

PN

SENSe:PN:INTegrate:START

<value>

Hz

SENSe:PN:INTegrate:STOP

<value>

Hz

SENSe:PN:KPHI

<value>

rad / V

SENSe: PN:KPHI:AUTO

{ON|OFF|1|0}

ON

SENSe: PN:KPHI;DETect

{ALWays | ONCe | NEVer}

ALWays

SENSe:PN:METHod

{SINGle | DUT | CC}

CC

:SENSe:PN:LOBandwidth

{0.1 ~ 10k}

Hz

:SENSe:PN:LOBandwidth:AUTO

{ON|OFF|1|0}

ON

:SENSe:PN:REFerences

{INT | EXT}

INT

:SENSe:PN:REFerences:SENS

<value>

Hz / V

:SENSe:PN:REFerences:SENS:EXECute

SENSe:FREQuency

<value>

Hz

SENSe:FREQuency:EXECute

The :INITiate subsystem controls the state of the SERIES 7000 trigger system. The subsystem
commands and parameters are described below. The :INITiate commands, along with the :ABORt and
:TRIGger commands, comprise the Trigger Group of commands.

(default)

:INITiate[:IMMediate]

Sets SERIES 7000 trigger to the armed state.

:INITiate:CONTinuous ON|OFF|1|0
Continuously rearms the SERIES 7000 trigger system after completion of a triggered
sweep.

:SENSe Subsystem

The SENSe command subsystem directly affects device- specific settings used to make
measurements. The SENSe subsystem is optional since this is the primary function of the instrument.

(default)

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

25

SENSe:FREQuency:AUTO

{ON|OFF|1|0}

ON

SENSe:FREQuency;DETect

{ALWays | ONCe | NEVer}

ALWays

SENSe:POWer

<value>

Hz

SENSe: POWer:EXECute

SENSe: POWer:AUTO

{ON|OFF|1|0}

ON

SENSe: POWer;DETect

{ALWays | ONCe | NEVer}

ALWays

SENSe :XX:AVERage

{1 ~ 99999}

1

SENSe:XX:ASET|ATTenuation

{1 ~ 30}

dB

SENSe:XX;ASET|ATTenuation:AUTO

{ON|OFF|1|0}

ON

SENSe:XX:ASET|ATTenuation:DETect

{ALWays | ONCe | NEVer}

ALWays

SENSe:XX:IFGain

<value>

rad / V

SENSe:XX:IFGain:AUTO

{ON|OFF|1|0}

ON

SENSe:XX:IFGain;DETect

{ALWays | ONCe | NEVer}

ALWays

SENSe:XX:FREQuency:STARt

{ 0.1 | 0.5 | 1 | 10 | 100 | 1k

Hz

SENSe:XX:FREQuency:STOP

{1k | 10k | 100k | 1M |10M

Hz

SENSe:XX:FREQuency:SPOT

{1 ~ 10M}

Hz

SENSe:XX:POINTs

{1 ~ 9999}

1

FW 1.0

SENSe:XX:PPD

{1 ~ 999}

1

SENSe:XX:SPURious:OMISsion

{ON|OFF|1|0}

FW 1.0

SENSe:XX:SPURious:TH

{ON|OFF|1|0}

FW 1.0

SENSe:XX:SPURious

{ON|OFF|1|0}

FW 1.0

SENSe:XX:SMOothing:APERture

{0.05 ~ 20}

%

FW 1.0

SENSe:XX:SMOothing:STATe

{ON|OFF|1|0}

FW 1.0

SENSe:RESet

FW 1.0

| 10k | 100k }

| 50M }

SENSe:MODE
Sets the active measurement mode. PN: phase noise, TRAN: transient measurement, BB: FFT
analyzer mode

SENSe:PN:METHod
Sets the active measurement configuration. This command affects PN measurement with external
references sources only.

SENSe:BB:METHod
Sets the active measurement configuration.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

26

SENSe:XX:POINTs <value>
SENSe:XX:POINTs?

Sets or gets the number of points per trace.

SENSe:XX:PPDs <value>
SENSe:XX:PPDs?

Sets or gets the number of points per decade for the trace.

SENSe:TRACe:SPURious:OMISsion

SENSe:TRACe:SMOothing:APERture

SENSe: TRACe:SMOothing:STATe

:SENSe:ASET <value>

This command sets the RF step attnuator for the selected channel.

SENSe:ASET:AUTO ON|OFF|1|0
Sets step attenuator to automatic.

SENSe:XX:AVERage:COUNt {1 ~ 9999}
SENSe:XX:AVERage:COUNt?
This command sets/gets average count.

SENSe:XX:FREQuency:STARt
SENSe:XX:FREQuency:STARt?

This command sets/gets start frequency.

SENSe:XX:FREQuency:STOP
SENSe:XX:FREQuency:STOP?

This command sets/gets stop frequency.

SENSe:PN:FREQ:SPOT
This command sets the desired offset frequency spot to be measured. Upon setting of this value, the
loop bandwidth, locking time constants, as well as fourier coefficients are calculated for highest
measurement speed.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

27

5.5

Command

Parameters

Unit

Remark

:STATus:OPERation[:EVENt]?

:STATus:OPERation:CONDition?

:STATus:OPERation:ENABle

<value>

:STATus:OPERation:PTR

<value>

:STATus:OPERation:NTR

<value>

:STATus:PREset

:STATus:QUEStionable[:EVENt]?

:SENSe:XX:AVERage:COUNt {1 ~ 999}
:SENSe:XX:AVERage:COUNt?

This command sets/gets average count.

:SENSe:PATH
This command switches the board internal path such that different measurements are possible. AM to

measure amplitude phase noise, BB to measure baseband noise, PN to measure phase noise and
MUX to measure in time domain.

:SENSe:PN:LOBandwidth {0.1 ~ 10k}
:SENSe:PN:LOBandwidth?

This command sets/gets PLL bandwidth for the selected channel.

:SENSe:PN : INIT
This command initializes the spot noise measurement. Prior to sending this command, the user must
make sure that DUT and reference are connected and all required parameters are set. The command
will determine if measurement setup is correct and if measurement is successful. This command will
return 0 if successful, otherwise a negative value.

:SENSe:PN : MEAS:SPOT?
This command returns single phase noise value at predefined offset frequency, provided that setup
has completed successfully and DUT and reference(s) are in place.

:STATus Subsystem

This subsystem controls the status-reporting structures.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

(default)

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

28

:STATus:QUEStionable:CONDition?

:STATus:QUEStionable:ENABle

<value>

:STATus:QUEStionable:PTR

<value>

:STATus:QUEStionable:NTR

<value>

:OPERation?
:STATus:OPERation[:EVENt]?
This query returns the contents of the operation status event register and clears it.

:OPERation:CONDition?
:STATus:OPERation:CONDition?
This query returns the contents of the operation status condition register.

:OPERation:ENABle
:STATus:OPERation:ENABle
This command sets the enable mask of the operation status event register.

:OPERation:PTR
:STATus:OPERation:PTR
This command sets the positive transition filter of the operation status event register.

:OPERation:NTR
:STATus:OPERation:NTR
This command sets the negative transition filter of the operation status event register.

:PRESet
:STATus:PRESet
Disables all status events, clears all negative transition filters and sets all positive transition filters.

:QUEStionable?
:STATus:QUEStionable [:EVENt]?
This query returns the contents of the questionable status event register and clears it.

:QUEStionable:CONDition?
:STATus:QUEStionable:CONDition?
This query returns the contents of the questionable status condition register.

:QUEStionable:ENABle
:STATus:QUEStionable:ENABle
This command sets the enable mask of the questionable status event register.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

29

5.6

Command

Parameters

Unit

Remark

:SYSTem:ERRor[:NEXT]?

FW 1.0

:SYSTem:PRESet

FW 1.0

:SYSTem:VERSion?

FW 1.0

5.7

Command

Parameters

Unit (default)

:SYSTem:COMMunicate:LAN:CONFig

DHCP|MANual|AUTO

DHCP

:SYSTem:COMMunicate:LAN:DEFaults

:SYSTem:COMMunicate:LAN:DHCP:TIMeout

30 sec

:SYSTem:COMMunicate:LAN:DOMain

<string>

:QUEStionable:PTR
:STATus:QUEStionable:PTR
This command sets the positive transition filter of the questionable status event register.

:QUEStionable:NTR
:STATus:QUEStionable:NTR
This command sets the negative transition filter of the questionable status event register.

:SYSTem Subsystem

(default)

:ERRor?

:SYSTem:ERRor[:NEXT]?
Return Parameters: Integer error number
Query command is a request for the next entry in the instrument’s error queue. Error messages in the
queue contain an integer in the range [–32768, 32768] denoting an error code and associated
descriptive text.

:PRESet
:SYSTem:PRESet
Resets most instrument functions to factory- defined conditions. This command is similar to the *RST
command.

:VERSion?
:SYSTem:VERSion?
Returns the SCPI version number that the instrument software complies with [1999.0]

[:SYSTem:COMMunicate] Subsystem

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

30

:SYSTem:COMMunicate:LAN:DNS:DYNamic

ON|OFF|1|0

:SYSTem:COMMunicate:LAN:DNS:OVERride

ON|OFF|1|0

:SYSTem:COMMunicate:LAN:DNS[:SERVer]

<ipstring>

:SYSTem:COMMunicate:LAN:GATeway

<ipstring>

“0.0.0.0”

:SYSTem:COMMunicate:LAN:HOSTname

<string>

:SYSTem:COMMunicate:LAN:IDENtify

ON|OFF|1|0

:SYSTem:COMMunicate:LAN:IP

<ipstring>

:SYSTem:COMMunicate:LAN:KEEP:TIMeout

<value>

:SYSTem:COMMunicate:LAN:RESTart

:SYSTem:COMMunicate:LAN:SUBNet

<ipstring>

“255.255.255.
:SYSTem:COMMunicate:SOCKet[<n>]:ECHO

ON|OFF|1|0

OFF

0”

:LAN:CONFig
:SYSTem:COMMunicate:LAN:CONFig DHCP|MANual|AUTO
:SYSTem:COMMunicate:LAN:CONFig?
This command sets the signal generator’s internet protocol (IP) address.
MANual The user assigns an IP address to the signal generator.
DHCP The network assigns an IP address to the signal generator. If DHCP fails, manual

configuration will be used.

AUTO The network assigns an IP address to the instrument with a fallback to Auto- IP if

DHCP fails. If both DHCP and Auto- IP fail, manual configuration will be used.

:LAN:DEFaults
:SYSTem:COMMunicate:LAN:DEFaults
This command restores the instrument’s LAN settings to their factory default values.

:LAN:DESCription (not implemented)
:SYSTem:COMMunicate:LAN:DESCription <string>
:SYSTem:COMMunicate:LAN:DESCription?
This command defines the instrument’s web description. The query returns the current saved setting.

:LAN:DHCP:TIMeout (not implemented)
:SYSTem:COMMunicate:LAN:DHCP:TIMeout {30}|60|90|120sec
:SYSTem:COMMunicate:LAN:DHCP:TIMeout?
This command enables the user to change the maximum length of time that the instrument will spend
trying to acquire an IP address using DHCP. If the LAN Config Type is set to Auto, then the Auto- IP
protocol will be used as a fall- back when time- out does occur. The DHCP timeout value is stored in
the same non- volatile ram as the other LAN configurations. The query returns the current setting, not
the saved setting.
Default 30 Seconds

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

31

:LAN:DOMain (not implemented)
:SYSTem:COMMunicate:LAN:DOMain <string>
:SYSTem:COMMunicate:LAN:DOMain?
This command defines the domain name of the signal generator’s DNS server. This entry defines the
DNS server for the instrument LAN connection. The query returns the current setting, not the saved
setting.

:LAN:DNS:DYNamic (not implemented)
:SYSTem:COMMunicate:LAN:DNS:DYNamic ON|OFF|1|0
:SYSTem:COMMunicate:LAN:DNS:DYNamic?
This command turns dynamic Domain Name System (DNS) on/off. The query returns the current
setting, not the saved setting.

:LAN:DNS:OVERride (not implemented )
:SYSTem:COMMunicate:LAN:DNS:OVERride ON|OFF|1|0
:SYSTem:COMMunicate:LAN:DNS:OVERride?
This command enables you to override the DNS server that is returned by the DHCP server. The LAN
configuration type must be set to Auto or DHCP to use this feature. The query returns the current
setting, not the saved setting.

:LAN:DNS[:SERVer] (not implemented)
:SYSTem:COMMunicate:LAN:DNS[:SERVer] <ipstring>
:SYSTem:COMMunicate:LAN:DNS[:SERVer]?
This command defines the IP address of the instrument DNS server. This entry defines the DNS
server for the instrument LAN connection. The query returns the current setting, not the saved setting.

:LAN:GATeway
:SYSTem:COMMunicate:LAN:GATeway <ipstring>
:SYSTem:COMMunicate:LAN:GATeway?
This command sets the gateway for local area network (LAN) access to the instrument from outside
the current sub- network. The query returns the current setting, not the saved setting.

:LAN:HOSTname
:SYSTem:COMMunicate:LAN:HOSTname <string>
:SYSTem:COMMunicate:LAN:HOSTname?
This command sets the signal generator’s local area network (LAN) connection hostname. Maximum
29 characters are allowed. The query returns the current setting, not the saved setting.

:LAN:IDENtify (not implemented)
:SYSTem:COMMunicate:LAN:IDENtify ON|OFF|1|0

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

32

5.8

This command controls the LAN identify feature. ON(1) The command enables device identification by
displaying the full- sc r een message
"Identify: <IP Address>" on the signal generator's front panel; the LAN Status indicator will also show
"IDENTIFY". For more information, refer to the Programming Guide.
OFF(0) This command disables device identification by clearing the message on the signal generator's
front panel and returning the LAN Status indicator to display the
current network state. For more information, refer to the Programming Guide.

:LAN:IP
:SYSTem:COMMunicate:LAN:IP <ipstring>
:SYSTem:COMMunicate:LAN:IP?
This command sets the signal generator’s local area network (LAN) internet protocol (IP) address for
your IP network connection.

:LAN:KEEP:TIMeout (not implemented)
:SYSTem:COMMunicate:LAN:KEEP:TIMe out <val ue >
:SYSTem:COMMunicate:LAN:KEEP:TIMeout?
This command sets the length of time for the TCP Keep Alive setting.

Range 0 sec to 3600 sec

:LAN:RESTart

:SYSTem:COMMunicate:LAN:RESTart
This command restarts the network to enable changes that have been made to the LAN setup.

:LAN:SUBNet
:SYSTem:COMMunicate:LAN:SUBNet <ipstring>
:SYSTem:COMMunicate:LAN:SUBNet?
This command sets the signal generator’s local area network (LAN) subnet mask address for your
internet protocol (IP) network connection.

:SOCKet:ECHO
:SYSTem:COMMunicate:SOCKet:ECHO
This command turns the echo from the SERIES 7000 controller on or off. Echo is typically turned on
only for a telnet session. The SERIES 7000 returns a “>>” prompt when ready.

:TRIGger Subsystem

The trigger system is responsible for tasks such as detecting the start of a measurement cycle
(triggering) and enabling/disabling measurement for each measurement.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

33

Command

Parameters

Unit

[SOURce]:TRIGger[:SEQuence]:TYPE

NORMal | GATE | POINT

[SOURce]:TRIGger[:SEQuence]:TYPE:GATE

LOW|HIGH

HIGH

[SOURce]:TRIGger[:SEQuence]:SOURce

IMMediate | EXT | BUS

IMM

[SOURce]:TRIGger[SEQuence]:SLOPe

POSitive|NEGative

POS

A trigger signal comprises both positive and negative signal transitions (states), which are also called
high and low periods. You can configure the SERIES 7000 to trigger on either state of the trigger
signal. It is common to have multiple triggers, also referred to as trigger occurrences or events, occur
when the instrument requires only a single trigger. In this situation, the SERIES 7000 recognizes the
first trigger and ignores the rest.

There are four parts to configuring the trigger:

1. Choosing the trigger type which controls the waveform’s transmission.

• NORMal : trigger edge initiates/stops sweeps

• GATE : trigger level starts/stops sweep

2. Setting the waveform’s response to triggers:

— CONTinuous : reapeatedly accepts trigger events

— SINGle : uses only one trigger event

3. Selecting the trigger source which determines how the SERIES 7000 receives its trigger signal,
internally or externally. The GATE choice requires an external trigger.

4. Setting the trigger polarity when using an external source

(default)

:TRIGger:TYPE

[SOURce]:TRI Gg er :TYPE NORMal | GATE | POIN T
[SOURce]:TRIGger:TYPE?
This command sets the trigger type

The following list describes the trigger type command choices:
NORMal Upon triggering, the waveform sequence plays according to settlings defined

by :INITiate:CONTinuous (only once or repeatedly)

GATE An external trigger signal repeatedly starts and stops the waveform’s

playback. The time duration for playback depends on the duty period of the
trigger signal and the gate polarity selection. The waveform plays during the
inactive state and stops during the active polarity selection state. The active

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

34

state can be set high or low. The gate mode works only with an external
trigger source.

POINT Upon triggering, only a single point of the sweep (list) is played.

*RST NORM

:TRIGger:TYPE:GATE

[SOURce]:TRIGger:TYPE:GATE LOW|HIGH
[SOURce]:TRIGger:TYPE:GATE?
This command selects the active state (gate polarity) of the gate while using the gating trigger mode.
The LOW and HIGH selections correspond to the low and high states of an external trigger signal. For
example, when you select HIGH, the active state occurs during the high of the trigger signal.
When the active state occurs, the SERIES 7000 starts the waveform playback at the last played
sample point, then stops the playback at the next sample point when the inactive state occurs.
LOW The waveform playback starts when the trigger signal goes low (active state) and

stops when the trigger signal goes high (inactive state).

HIGH The waveform playback starts when the trigger signal goes high (active state) and

stops when the trigger signal goes low (inactive state).

*RST HIGH

:TRIGger[SEQuence]SOURce

[SOURce]:TRIGger[SEQuence]:SOURce IM Med iat e | EXT er nal | BUS
[SOURce]:TRIGger[SEQuence]:SOURce?
This command sets the trigger source.
IMMediate No waiting for a trigger event occurrs
EXTernal This choice enables the triggering of a sweep event by an externally applied signal at

the MOD IN connector.

BUS This choice enables triggering over the LAN using the *TRG commands.

*RST IMM

:TRIGger[SEQuence]:SLOPe

[SOURce]:TRIGger[SEQuence]:SLOPe POSitive|NEGative
[SOURce]:TRIGger[SEQuence]:EXTernal:SLOPe?
This command sets the polarity for an external trigger signal while using the continuous, single
triggering mode. The POSitive and NEGative selections correspond to the high (positive) and low
(negative) states of the external trigger signal. For example, when you select POSitive, the waveform
responds (plays) during the high state of the trigger signal. When the SERIES 7000 receives multiple
trigger occurrences when only one is required, the instrument uses the first trigger and ignores the
rest.
*RST POS

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

35

5.9

Command

Parameters

Unit (default)

Remark

UNIT:POWer

W|V|DBM|DBC/HZ|UV/

DBM

UNIT:FREQuency

HZ|MHZ|GHZ

HZ

UNIT:NOISe

NVSQHZ | DBMHZ

NVSQHZ

FW 1.0

UNIT Subsystem

SQHZ

UNIT:POWer
UNIT:POWer W|V|DBM|DBC/HZ|UV/SQHZ
*RST DBC/HZ

UNIT:FREQuency
UNIT:FREQuency HZ|MHZ|GHZ
*RST HZ

UNIT: NOISe

UNIT: NOISe NVSQHZ | DBMHZ
*RST NVSQHZ

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901

36

6.1

// configuration

<

// binary format of list explained below

6 Examples (NEEDS REWORK)

Remote Phase Noise Measurement (FW 1.0)

Following the SCPI command sequence for a typical remote phase noise measurement.

> CONF:RESE ON // reconfigure device before every measurement
> CONF:MEAT:IT // number of iterations
> CONF:MEAS:PPD 150 // number of points per decade
> CONF:FREQ:STAR 100 // start offset frequency 100Hz
> CONF:FREQ:STOP 1E6 // stop offset frequency 1MHz
> CONF:PN:METH CC // cross correlation mode
> CONF:PN:LOOP:AUTO ON // choose best loop bandwidth for locking
> CONF:ATT:AUTO ON // find best attenuation setting
> CONF:MODE PN // measure phase noise
> CONF:FREQ 100E6 // DUT frequency 100MHz
> *OPC? // wait for configuration to complete
< read opc status // returns 1 once the configuration is complete

// measurement
> SENS:PN:INIT // start measurement
> *OPC? // wait for measurement to complete
< read opc status // returns 1 once the measurement is complete
> SENS:PN:INIT? // was the measurement successful?
< read init status // 0: success, <0: failed
> CALC:PN:FREQ? // get offset frequency points
< read list // binary format of list explained below
> CALC:PN:SPEC? // get measurement

read list

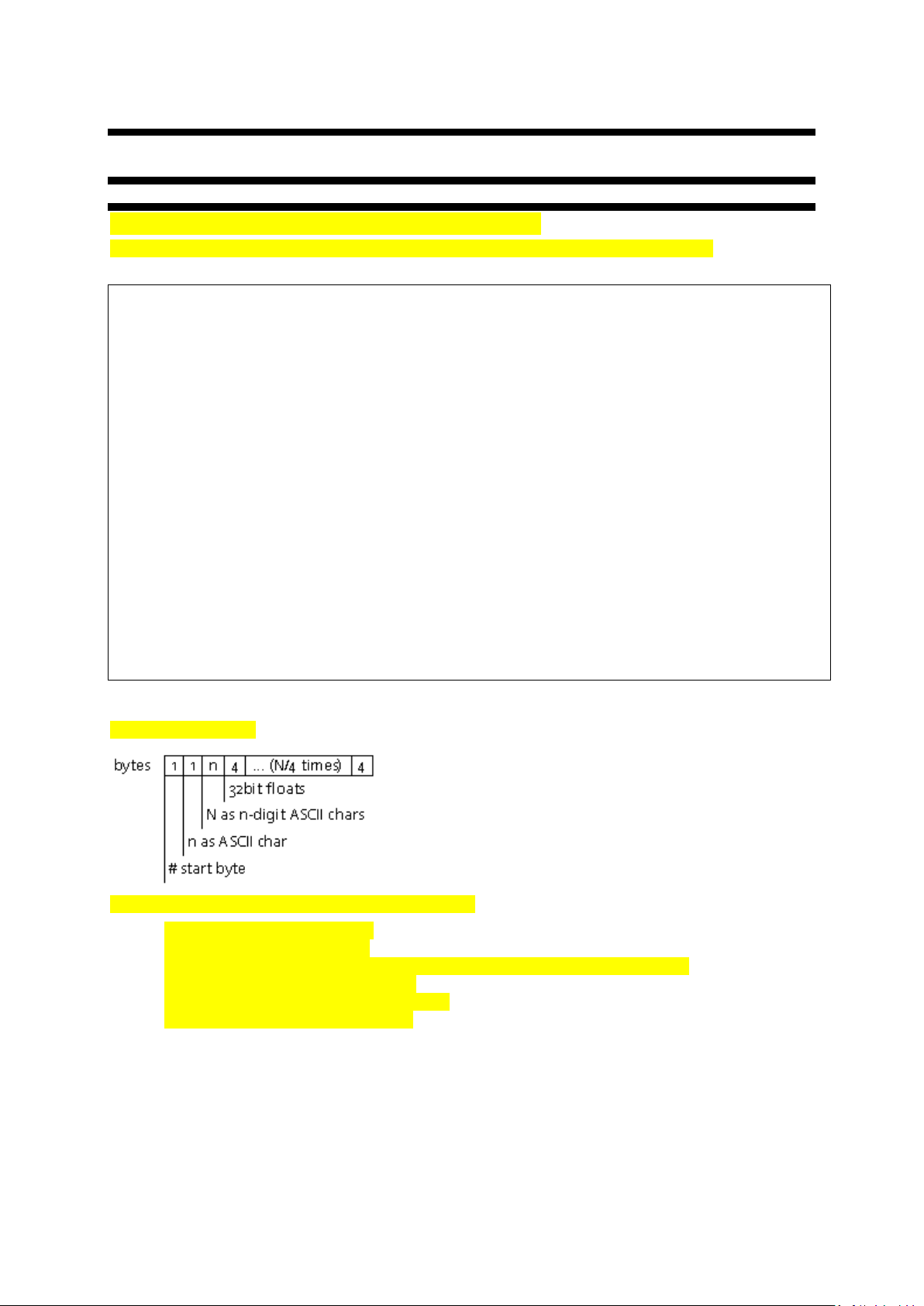

Binary format of list

Example: 0x233231320050C34779689A4800247449

0x23: ASCII code for # -> start

0x32: ASCII code for 2 -> n=2

0x3132: ASCII code for 1 (0x31) and 2 (0x32) -> N=12 (3x 32bit float values)

0x0050C347: 32bit float -> 100000.0

0x79689A48: 32bit float -> 316227.78125

0x00247449: 32bit float -> 1000000.

Phone: [phone], Fax: [phone], Email: [e-mail], Web: www.berkeleynucleoni cs. com

Berkeley Nucleonics Corporation 2955 Kerner Blvd., San Rafael, CA 94901
