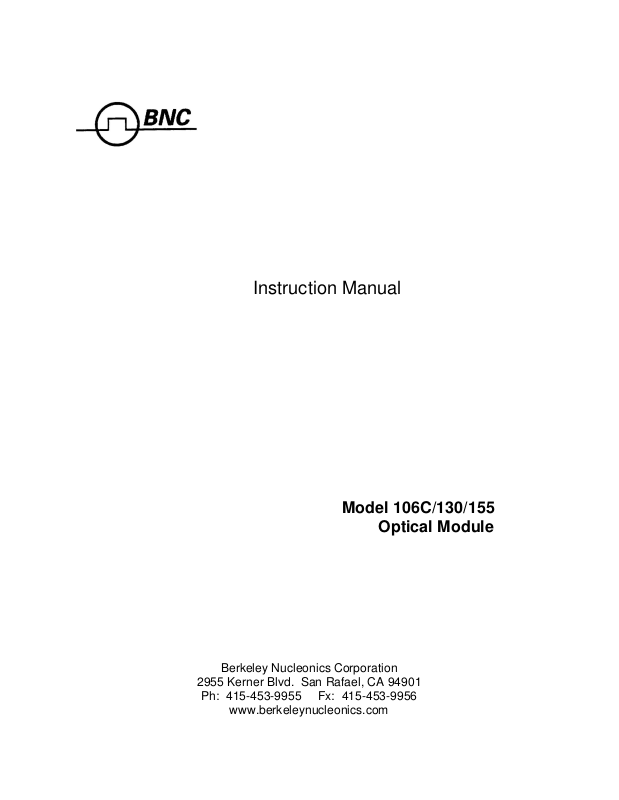

Instruction Manual
Optical Module
Berkeley Nucleonics Corporation
2955 Kerner Blvd. San Rafael, CA 94901
Ph: 415-453-9955 Fx: 415-453-9956
www.berkeleynucleonics.com
Model 106C/130/155
WARRANTY
Berkeley Nucleonics Corporation warrants all instruments, including
component parts, to be free from defects in material and workmanship,
under normal use and service for a period of one year. If repairs are
required during the warranty period, contact the factory for component
replacement or shipping instructions. Include serial number of the
instrument. This warranty is void if the unit is repaired or altered by others
than those authorized by Berkeley Nucleonics Corporation.
2
CONTENTS
Page
SECTION 1 SPECIFICATIONS 7
Model 106C, 155 and 130 Characteristics 7
Module Status Byte Summary 9
SECTION 2 OPERATING INFORMATION 10
Features 10
General 11
Power Up 11
Module Installation 11
Safety Precautions 11
Warm Up Requirements 11
Troubleshooting 11
Default Settings 12
Front Panel Description 12
LED Indicators 12
Connectors 13
Rear Panel Description 13
Mainframe Operation 13
Front Panel Programming 13
Remote Programming 16
SECTION 3 THEORY OF OPERATION 17
General 17
Module Interface 17
Laser Driver Output 17
Circuit Description 18
Module Interface Board 18
Laser Output Board 20
Inputs and Control Signals 20
Laser Module 21
CW Mode 21
External Modulation Mode 23
Pulse Mode 24
Pulse Mode (Nonzero Baseline) 24
Pulse Mode (Zero Baseline) 25
External Drive 25
Impulse Mode 25
Laser Protection 26
3
CONTENTS
SECTION 4 MAINTENANCE AND CALIBRATION 27
Maintenance 27
Light Output Connector 27
Calibration 27
General 27
Equipment Required 27
Procedure 28
Module Interface DAC Calibration 28
External Drive Discriminator 28
CW and External Modulation Calibration 29
Pulse Baseline Calibration 29
Pulse Peak Calibration 29
Pulse Dynamic Characteristics 30
SECTION 5 PARTS LISTS AND SCHEMATICS 31
Parts List 31
Laser Output Board, 155-1 31
Module Interface Board, 6040-4 35
Schematics Dwg.No.
Interconnection Diagram 155-30
Module Interface Board 6040-35A
Laser Output Board 155-31
4
CONTENTS
ILLUSTRATIONS
Figure No. Page
1-1 Trigger and Output Pulse Timing
2-1 Safety Labels
3-1 Module Interface Block Diagram
3-2 Laser Output Block Diagram
TABLES
Table No. Page
1-1 Module Status Byte Summary 9
2-1 Menu Keys for the 135/130 Module 14
3-1 Plug-In Module Memory Map 19
3-2 Control Signals 22
5
1064nm, 1560nm AND 1310nm OPTICAL MODULES
MODEL 106C, MODEL 155 AND MODEL 130
Graphic (Model 155 & 130)
The Model 106C, Model 155 and Model 130 are three in a series of plug-in modules that provide
electrical and optical output pulses when installed in the Model 6040 mainframe.
These particular modules provide optical pulses of 1064, 1560 and 1310 nm wavelengths at peak levels
to 1 mV at rates to 100 MHz.
6
SPECIFICATIONS
MODEL 106C/155/130 CHARACTERISTICS
Timing Characteristics
Rep Rate: 0 Hz-100 MHz
Width: 3 ns - 640 s (Pulse Mode); 3 ns (min.) at reduced
Input Characteristics
EXTERNAL DRIVE
Range: dc - 300 MHz (200 MHz for zero Baseline level):
Input Impedance: 50 ohms.
Minimum Signal Amplitude: 300 mV.
Maximum Signal Amplitude: ±7 V dc or 10 V ac p-p.
Minimum Width: 5 ns; 3 ns (min.) at reduced amplitude.
Threshold Range: ±2.5 V.
Threshold Resolution: 10 mV.
Insertion Delay: 5 ns, typical (between EXT DR and LIGHT OUT).
Jitter: 30 ps rms (between EXT DR and LIGHT OUT).
Connector: Threaded SMA (3 mm).
EXTERNAL MODE
Range: 100 Hz to 700 MHz (-3 dB).
Input Impedance: 50 ohms.
Sensitivity: 200 mV rms/mW, typical.
Maximum Signal Amplitude: ±2 V dc or 3 V ac p-p.
Total Harmonic Distortion: < 20 dB below fundamental (0.5 mW avg, level with
Insertion Delay: 5 ns, typical (between EXT MOD and LIGHT OUT).
Connector: Threaded SMA (3 mm).
SECTION 1
amplitude.
Impulses, fixed 400 ps fwhm (typical).
specifications apply dc - 100 MHz.
0.5 mW rms modulation).
7
Output Characteristics
LIGHT OUT
Wavelength: Model 106C: 1064nm ±30 nm
Spectral Width: 2 nm rms (from 50 uW to 1 mW).
Power Level: 1 mW max. (Peak or Baseline). 0 mW min.
Power Level Resolution: 5 µW (from 50 µW to 1 mW),
Extinction Ratio: CW Mode and External Modulation Mode, has 5 µW
Mesial Level: ∞ (zero Baseline), or 20.0 to 1.01.
Pulse Adjustment Range: 25 µW (zero Baseline), or 55 µW to 0.995 mW.
Accuracy, Absolute: ±1 dB (from 50 µW to 1 mW).
Accuracy, Relative: ±0.5 dB (±10 %) from 100 µW to 1 mW (Pulse
Temperature Coefficient: 0.05 dB/°C.
Transition Times (10 to 90%): 0.5 ns rise time, 1 ns fall time (zero Baseline),
Insertion Delay: 35 ns, typical (between mainframe TRIG OUT and
Jitter: 100 ps rms (between mainframe TRIG OUT and
Connector: ST, 8/125 um single-mode fiber, 0.12 NA (contact
SPECIFICATIONS cont’d.
Model 155:1550 nm ±30 nm.
Model 130:1310 nm ±50 nm.
Impulse is fixed at 50 µW Baseline and 0.5 mW Peak
(typical).
resolution from 0 to 1 mW
(Max. pulse size: min. pulse size.) 20 dB (non-zero
Baseline), 13 dB (zero Baseline), 20 dB (CW.
External
Modulation).
Mode).
±0.05 dB (±0.5 %) from 50 µW to 1 mW (CW.
External
Modulation).
1 ns rise time, 1 ns fall time (nonzero Baseline).
LIGHT OUT; see Figure 1-1).
LIGHTOUT).
factory for other connectors).
8
SPECIFICATIONS cont’d.
Modes
PULSE Conventional pulse generator with rate, delay, width
and single/double pulse selections controlled by
the 6040 mainframe. External Drive operation
produces pulses corresponding in rate and duty
cycle to an external pulse train.
EXTERNAL MODULATION Converts digital and analog electrical signals are into
their optical equivalent.
IMPULSE Provides a narrow pulse of fixed width and
amplitude, with rate and delay controlled by the 6040
mainframe.
Module Status Byte Summary
Table 1-1. Module Status Byte
Bit Description
7 Always zero
6 Always zero
3 Always zero
4 Always zero
3 Always zero
2 Always zero
1 Laser Active
0 Laser Guard
9
SECTION 2
OPERATING INFORMATION
FEATURES
The Model 106C, 155 and 130 plug-in modules provide 1064nm, 1550 nm and 1310 nm optical output
sources for the Model 6040 Universal Pulse Generator. Accurate and adjustable outputs are available for
all of the four modes in which the 6040 mainframe can operate.
In Pulse Mode operation, the 106C/155/130 supplies flat-topped pulses with fast rise and fall times and
independently adjustable Peak and Baseline levels. The timing for these pulses may be supplied in a
number of ways.
A delayed pulse of adjustable width may be generated by the mainframe. This delay can be specified
with respect to an internal trigger occurring at a selected repetition rate or with respect to an externally
supplied trigger signal (TRIG IN). In addition, Single Cycle operation allows the user to trigger the
instrument manually, using a pushbutton (or using remote programming). In each case a trigger out
signal (TRIG OUT) is provided by the 6040 for reference (see Figure 1-1). Double Pulse operation,
producing both an initial and delayed pulse put of the same jack may be selected for any trigger choice.
For all of these timing options, the mainframe supplies electrical output pulses (PULSE OUT) coincident
with the module's optical output (LIGHT OUT).
External Drive operation is also available in the Pulse Mode. This allows a drive signal, supplied by the
user to the module's front panel (EXT DR), to generate the optical pulses directly. The occurrence and
duration of each light pulse will correspond to that of each pulse in the external drive signal: when the
EXT DR pulse goes high, the light pulse goes to the Peak value. Peak and Baseline output levels remain
specified by the mainframe (as well as the threshold level for the external drive signal). With External
Drive, the mainframe's pulse and trigger outputs are disabled.
In External Modulation Mode, an electrical signal supplied to the module's front panel (EXT MOD) by the
user will be converted into its optical analog. The quiescent optical level, corresponding to the zero point
that the input signal modulates about, is selected by the mainframe (External Modulation Level), but no
other parameters can be altered.
In the Impulse Mode, a narrow optical pulse of fixed width and amplitude is produced at the module
output (LIGHT OUT) with a corresponding pulse (of 5 ns duration) appearing at the mainframe (PULSE
OUT). As with the Pulse Mode, the trigger source may be internal, external or from manual (or remote
programming) control. Either a single delayed impulse or a pair of impulses separated by a delay may be
obtained. In Impulse Mode, External Drive operation is disabled; and Peak and Baseline Level settings
also have no effect.
CW Mode results in a steady-state optical output. The output power level in this Mode may
be adjusted by the mainframe (CW Level).
For more detailed information on the characteristics of each Mode and hour to control the module from
the mainframe, see the Specifications section and the 6040 manual.
10
OPERATING INFORMATION
General
POWER UP
When power is applied to the 6040 mainframe with a 106C, 155 or 130 module installed, the instrument
settings from the module's memory 0 are activated. The mainframe automatically checks what type of
plug-in module is in place and loads the appropriate parameters. The LCD, after showing the
mainframe's software version number and performing a memory check, will display "106C Ver. x.x" (or
“155 Ver. X.x” or "130 Ver. x.x") where "x.x" is the version number of the module.
Module Installation
The module must be installed with mainframe power off. A module can be damaged or have its
memory corrupted if inserted or removed from the mainframe with the power on. To install the module,
simply slide it in and tighten the mount screw knob.
Safety Precautions
Laser light emitted from the end of the connected light fiber is invisible. Fibers should be terminated in a
system which will not allow human exposure to this radiation. Do not stare into the beam or into a beam
from a reflecting surface. Use of controls or adjustments or performance procedures other than those
specified herein may result in hazardous exposure. Safety labels attached to the module are shown in
Figure 2-1.
Always keep the LIGHT OUT connector covered with the dust cap when a fiber is not attached in order to
avoid hazardous exposure and to keep the connector as clean as possible.
Warm Up Requirements
No warm up period, other than that necessary for the mainframe itself, is required.
TROUBLESHOOTING
Follow the procedure in the Troubleshooting section of the 6040 manual. Make sure that the module is
seated correctly in the mainframe. If the module's memory has been corrupted, a cold boot will put the
module's default settings (given below) into effect (as described in the Cold Boot paragraph in the 6040
manual).
11
OPERATING INFORMATION cont’d
The Quick Test procedure for the mainframe may be applied to the 106C/155/130 by selecting the Pulse
Mode and following the test sequence using the module's LIGHT OUT connector and an optical detector
in place of the mainframe's PULSE OUT. After Pulse Mode operation has been verified, the Impulse
Mode can be tested. This will require a sampling oscilloscope with a 1 GHz bandwidth. The impulse
should appear as a narrow pulse (approximately 400 ps). Its amplitude is roughly equal to that of a 0.3
mW, 5 ns pulse generated in the Pulse Mode. The CW and External Modulation Modes are similar.
These should produce continuous outputs. The output under External Modulation should follow any
waveform presented to the module's EXT MOD connector.
Default Settings
The following default settings for the 106C/153/130 module go into effect whenever a cold boot is
performed.
MODE: Pulse
TRIG: Single Cycle
(with other values set as follows)
Internal Trigger Rate = 1 kHz.
External Trigger Threshold = 0.00 V
Trigger Slope +
External Drive Threshold = 0.00 V
TIMING: Delay = 1 µs
Width = 1 µs
Single Pulse
LEVEL: Peak= l.000 mW
Baseline = 0.000 mW
External Modulation
CW=0.00 mW
GPIB/RS232: GPIB Address = 6
Baud Rate = 1200
Full Duplex
Remote Enabled
Front Panel Descriptions
LED INDICATORS
The 106C/155/130 module has two LED indicators on the front panel.
LASER ACTIVE will light when the instrument is in a state that can produce a light output.
LASER GUARD will light if the laser is being protected from an unsafe power output level, whenever the
Mode is changed and when the unit is first turned on. LASER GUARD will remain on if any unsafe circuit
conditions exist (e.g., excessive current driving the laser).
12
OPERATING INFORMATION cont’d
CONNECTORS
Three connectors appear on the 106C/155/130 module front panel.
LIGHT OUT provides the optical output from the module. A single-mode 8/123 Mm fiber with an ST
connector is required (the unit can be configured for other connectors; consult the factory for details). To
keep dust out of the connector when a fiber is not attached, a dust cap is provided.
EXT DR (External Drive) is a threaded SMA (3 mm) connector for accepting drive signal inputs to the
module.
EXT MOD (External Modulation) is a threaded SMA (3 mm) connector that accepts external signals to
modulate the instantaneous light output power level.
Rear Panel Description
The rear panel of the 106C/155/130 module has a mounting screw (for installation into the mainframe),
one 40-pin edge connector, and one SMA connector.
The 40-pin connector allows the 6040 mainframe to control and communicate with the module and also
supplies the power to the module.
The SMA (snap-on type) connector receives the high speed pulse generator DRIVE signal from the
mainframe. This signal is an ECL version of the mainframe's front panel PULSE OUT.
Mainframe Operation
This section presents information on how to operate the Model 6040 Universal Pulse Generator with the
Model 106C, 155 or Model 130 optical module installed. Only the details that are specific to the module
are described. For an overall description of how to use the mainframe with plug-in modules, please refer
to the 6040 manual.
Front Panel Programming
When operating the instrument from the front panel, certain control keys have module dependent action,
as indicated in the 6040 manual. The aspects of these keys, and the menus they control, that are not
general to the mainframe will be listed here.
An overall chart of the menu keys, showing which menu selections have control in each Mode, is given in
Table 2-1. An “x” in the column for a given Mode indicates that the menu selection operates in that Mode.
13
OPERATING INFORMATION cont’d
Table 2-1. Menu Keys for the 133/130 Module.
MODE Menu
TRIG Menu
Single Cycle
Internal Trigger (and Rate)
External Trigger (and Threshold)
External Trigger Slope
External Drive (and Threshold)
TIMING Menu
Delay
Width
Single/Double Pulse
LEVEL Menu
Peak
Baseline
CW
External Modulation
Pulse Impulse CW
Modulation
X
X
X
X
X X
X
X X
X
X
X
X
External
14
OPERATING INFORMATION cont’d
{MODE} The Mode menu for the 106C/155/130 has all four selections available: Pulse,
Impulse,
CW and External Modulation.
Pulse Mode can operate over the entire timing range of the 6040, producing flattopped delayed pulses. The Delay interval, Peak level. Baseline level and pulse
Width are all adjustable.
External Drive operation is available in this Mode, allowing the module to be
digitally modulated at rates from zero to 300 MHz (for nonzero Baseline levels) or
200 MHz (for zero Baseline level).
Impulse Mode produces pulses of fixed 400 ps width with fixed 30 u¥ baseline and
1 mW peak levels (typical).
CW Mode provides continuous wave optical output.
External Modulation Mode allows a user-provided analog or digital signal to be
linearly converted to its optical equivalent. Inputs ranging from 100 Hz to 700 MHz
are converted with 200 mV rms/mW sensitivity (typical).
{TRIG} The Trigger source and parameter menu, which operates in the Pulse and Impulse
Modes, has all five menu items: Single/Double Cycle, Internal Trigger (and Rate),
External Trigger (and Threshold), External Trigger Slope, and External Drive (and
Threshold).
Internal Trigger Rate and External Trigger Threshold are adjustable over the
6040's entire range.
External Drive is valid only in Pulse Mode (and has no effect in Impulse Mode).
The External Drive Threshold for the discriminator on the EXT DR input to the
module is adjustable from -2.3 V to +2.3 V with 10 mV resolution.
{TIMING} This module places no constraints on timing settings selected with the Timing
parameter menu.
15
OPERATING INFORMATION cont’d
{LEVEL} All four Level parameter menu selections are available for this module: Peak
Level, Baseline Level, External Modulation Level and CW Level.
Peak and Baseline Levels select the high and low power levels in Pulse Mode
operation. These levels may be set to zero or they may be adjusted between 30
µW and 1 mW in 3 MW steps (levels between zero and 50 µW may be selected
but output characteristics are not guaranteed). Peak Level and Baseline Level may
be set independently, but if Peak is set below Baseline the output will be a
constant CW at the Baseline Level.
External Modulation Level sets the quiescent optical power level. This may be
selected over the entire range of zero to 1 mW in 3 MW steps.
CW Level may also be adjusted to any power level between zero and 1 mW with 5
µW resolution.
{UNITS} This key is not used with the 106C/155/130 module (and has no effect).
FUNCTION KEYS These keys are not used with the 106C/155/130 module (and have no effect).
{A}, {B}, {C}
Remote Programming
The remote programming commands that are specific to this module correspond to the module
dependent front panel commands, as described in the previous section. Consult the 6040 manual and
the above section for details on controlling the instrument with remote programming. The Module Status
command, the only command that is specific to the 155/130 module, will be described here.
PS Module Status: This command returns the Module Status byte for the 155/130.
Module Status Byte:
Bit Description
7 Always zero
6 Always zero
5 Always zero
4 Always zero
3 Always zero
2 Always zero
1 Laser Active
0 Laser Guard
Bits 2-7: These bits are always zero and are reserved for future use.
Bit 1: This bit is set if the LASER ACTIVE LED is lit.
Bit 0: This bit is set if the LASER GUARD LED is lit.
16
SECTION 3
THEORY OF OPERATION
GENERAL
Module Interface
Figure 3-1 shows a simplified block diagram of the Module Interface board. The path for communication
between mainframe and module is via PS. The eight QAD lines and five QA lines are the bus interface
lines, and a MOD DIS line is used for disabling the Output board. Power is also delivered by P8.
The address demultiplexer and select logic circuitry decodes the bus signals and selects one of the other
blocks.
The I.D. ROM contains information necessary for operation specific to the Output board. This includes
boundaries for parameters, values used to initialize the nonvolatile RAM (NVRAM), and the version
number of the I.D. ROM.
The nonvolatile RAM is used for saving and retrieving ten panel settings. It also holds the GPIB/RS232
bus settings.
The digital control circuits are used to monitor and set the operating state of the Output board. The DACs
and amplifiers allow setting of up to four analog values used for level control. All of the control, status,
and analog signals are delivered to the Output board by two 20-pin connectors, J1 and J2.
Laser Driver Output
Figure 3-2 shows a simplified block diagram of the Laser Output board. The connection to the Module
Interface board is shown in the lower left hand corner. There are three analog lines used to set the output
levels and the threshold of the External Drive discriminator. The control lines select which Mode the
Laser Output will operate in.
The selection of the digital drive source is controlled by three digital control lines, EXT DRIVE ENABLE,
IMPULSE, and EXT MOD. These determine which of the two drive sources will be controlling the state of
S1, (a high speed transistor switch). A discriminator, whose threshold is set by the analog voltage EXT
DRIVE LEVEL, is connected to the drive source from the front panel EXT DR connector. The other signal
source is the rear panel DRIVE connector which delivers the mainframe's pulse generator output.
The level control circuitry sets one or both of the current sources as determined by the analog inputs
PEAK LEVEL, and BASELINE LEVEL and the Mode control lines. During the Impulse, CY and External
Modulation Modes, it uses the PIN detector in the laser module to monitor and stabilize the laser's
output. When LASER GUARD is active, the current sources are set for zero output.
17
THEORY OF OPERATION
The two current sources are used for different Modes. The current source on the left is used during Pulse
and Impulse Modes (to supply the Peak level), and during the External Modulation Mode. This current
source can be modulated from a wideband preamp which is driven by the front panel SMA connector
EXT MOD. The current is switched to the laser by SI, as determined by the DIGITAL DRIVE SELECT
and the drive signals. The current source on the right is used during PULSE MODE when a nonzero
Baseline level is selected and in the CW Mode.
The Laser Protection circuitry monitors the laser output and circuit conditions. If the laser output exceeds
a preset level, S2 will be closed and all laser drive current will be shunted to ground. The current is then
monitored until it is reduced below another preset value before S2 is allowed to reopen. This block drives
the front panel LEDs, LASER ACTIVE and LASER GUARD, which allow the user to monitor the state of
these circuits. The DAC EN signal is used to notify the Module Interface board of a potential problem and
disable its DACs, thus setting all level control voltages to zero. The MOD DIS signal is used to disable
the module's output.
The Laser Module is a single package that contains the laser diode, a PIN monitor diode, a
thermoelectric cooler (TEC), and a temperature sensing device. An 8/123 Um single-mode fiber is
connected to the front panel (LIGHT OUT). The TEC and thermistor are used in conjunction with an op
amp and transistor to regulate the temperature of the laser diode, thus improving power and wavelength
stability.
CIRCUIT DESCRIPTION
Module Interface Board (Schematic 6040-35)
The Module Interface board contains all the necessary circuits to allow the 6040 mainframe to control the
module. Interfacing between the module and the mainframe is realized via the 40-pin edge connector,
PS, This delivers eight data bits (QADO-QAD7) and 13 address bits (QADO-QAD7, multiplexed, and
QA8-QA12, nonmultiplexed). P8 also delivers power to the Interface board and the Output board.
Z2 is an eight bit latch that demultiplexes QADO-QAD7 to produce the lower eight address bits QAOQA7. This allows up to 8K bytes to be addressed within the Interface board, though not all of this is
utilized at the present time. Table 3-1 gives the memory map for the module.
Z1 is a dual quad selector. Z1 A is used to select between one of four 2K byte segments. These four
segments are used for: 1) Z3, the I.D. ROM; 2) Z4, the nonvolatile RAM; 3) reserved for expansion; 4)
Z5, Z6 and Z7, the digital and analog control of the output board. Z1B selects which IC in the fourth
segment is accessed.
Z3 is the I.D. ROM. It is an 8K byte ROM (only the lower 2K is used) that contains the module dependent
information necessary for the 60-40 to operate correctly.
18
THEORY OF OPERATION
Table 3-1. Plug-In Module Memory Map
Memory Range
C000-C777 Z3, I.D.ROM
C800-CFFF Unused
D000-D7FF Z4, Nonvolatile RAM (NVRAM)
D800-DFFF I/O
D800-DFFF
D800-D9FF Z5, 82C55 PPI
D800 Port A
D801 Port B
D802 Port C
D803 Control
DA00-DBFF Unused
DC00-DDFF Z6, 7528; Dual DAC
DC00-DC03 PEAK LEVEL
DC04-DC07 BASELINE LEVEL
DE00-DFFF B27, 7528; Dual DAC
DEOO-DE03 SPARE
DE04-DE07 EXT DRIVE LEVEL
19
THEORY OF OPERATION
This includes the Modes that are valid, parameter boundaries, and the type of output that the module has
(optical or electrical). It also contains the values for initializing the nonvolatile RAM.
Z4 is a 2K byte nonvolatile RAM (NVRAM). It is used to save instrument settings and power-on
conditions.
Z5 is a configurable Parallel Peripheral Interface 1C set up to allow 16 bits of output and eight bits of
input. The outputs are used to select the operating state of the Output board while the inputs monitor the
board's status.
DACs Z6 and Z7. in conjunction with op amps Z8 and Z9, generate analog signals that set the value of
the Peak, Baseline, and quiescent level of the output. They are also used to set the threshold level for
the External Drive discriminator. The variable resistors, R3-R6, are used to compensate for slight
differences in the DACs.
The voltage reference for the analog signals is CR1, a 6.2 V temperature compensated zener diode. Q1
is used to disable CR1 if the signal DAC EN is allowed to go up to +12 V. The Output board asserts this
in the event of a Mode change or if any unusual condition is detected.
The MOD DISABLE line allows the Output board to be disabled via the 6040 rear panel MODULE
DISABLE connector.
The Module Interface board has two grounds, digital and analog. The analog ground is used exclusively
by the DAC and op amp circuitry (Z6, Z7, Z8, Z9, etc.), while all other circuitry is connected to digital
ground. These are separated to prevent any noise or dc offsets by power supply return currents from
affecting the analog control voltages.
The 20-pin connectors J1 and J2 deliver the digital and analog control signals to the Output board, while
the 16-pin connector J11 delivers the power supply voltages. J3 is an expansion connector to be used in
conjunction with future modules.
LASER OUTPUT BOARD (Schematic 155-31)
Inputs and Control Signals (Schematic Sheets 1 and 2)
The Laser Output board receives three types of inputs: digital control signals from the Interface board via
P1, analog control signals from the Interface board via P2, and drive and external modulation inputs via
front or rear panel coax connectors. Four of the digital control signals, IMPULSE, EXT MOD, CW, and
BIAS, are used to control analog switches, Z14 and Z11 (sheet 1). These switches are in their low
impedance (closed) state when the control input, the terminal with inversion circle, is low (near ground).
20
THEORY OF OPERATION
Table 3-2 shows how these digital control signals affect the condition of the analog switches in each
Mode. The switches are identified by their control terminals (e.g., Z14-9); "L" and "H" indicate low and
high logic/voltage levels. By turning on and off these switches, these digital signals provide proper
routing for BASELINE LEVEL and PEAK LEVEL, the analog signals that control the amplitude at the
laser output. As an example, in the Pulse Mode with a nonzero Baseline (and not using External Drive),
the only high input to Z9 is BIAS (Z9-5). Thus Z9-10 and Z9-12 are both high and Z9-6 is low. Z14-1 is
low and this connects the BASELINE LEVEL amplitude control to Z8-3 via Z13-7 and Z14-3 Other Modes
may be similarly analyzed using this table.
Three digital control signals, EXT MOD, CW (sheet 1) and EXT DRIVE EN (sheet 2). select which drive
source is presented at the output of the ECL multiplexer, Z4 In Pulse Mode either the DRIVE signal from
the mainframe or the EXT DR signal from the module front panel can be selected. This signal, after
passing through Z3 and R162, becomes PREDRIVE, which determines when the laser is switched
between Peak and Baseline levels. In External Modulation Mode, EXT MOD selects X4 (Z4-11), which is
tied high, for the multiplexer output, causing PREDRIVE to be held high. In CW Mode, X2 is selected,
causing PREDRIVE to be held low.
Laser Module
The Laser Module is shown enclosed by dashed lines within which are six components. The laser itself is
the left hand diode whose anode is grounded and connected to the case at pins 13 and 13. The case is
connected to ground via pins 1 and 2. A 170 µH choke is provided internally for applying dc bias to the
laser. This is used in all the Pulse Modes with nonzero Baseline and in the CW Mode. The diode shown
between pins 7 and 8 is a built in monitor (detector) that is used for controlling the laser's output in the
CW, External Modulation, and Impulse Modes and is also used to detect excessive optical power. An
internal 22 ohm resistor provides wideband termination for the high speed signals from 06. A
thermoelectric cooler (TEC) is incorporated in the module and is shown connected between pins 3/4 and
3/6. Its associated temperature sensor is connected between pins 11 and 12. The temperature is
maintained at approximately 20° C by means of a feedback loop consisting of Z1 and 010. This loop
supplies enough cooling current to bring the sensor voltage to 2.9 V (Z1-3). R104 limits the maximum
current during start-up to a safe level (approximately 2 A).
CW Mode (Schematic Sheets 1 and 3)
CW operation utilizes the dc current source, Q1 and Z7. The voltage from Z8-1 (labeled CW OR
BASELINE LEVEL) is applied to one arm of the resistor bridge, R36, R37, R63 and R66. This same
voltage is forced to appear across R82 and R83 A typical calibration is for R82 and R83 to be 30 ohms
so that 20 mA/V is produced by Q1. This current flows (via R81, L1, and the internal 170 µH inductor)
through the laser to ground. Since PREDRIVE is held low the path for current through Q6 will be cut off.
Once the threshold current of the laser is exceeded, the relationship between the current in the laser and
its optical output is linear.
21
THEORY OF OPERATION
The path of the CW OR BASELINE LEVEL signal may be followed on schematic sheet 1. First, we note
that the PEAK LEVEL control voltage is inverted by Z13-1 and delivered to Z16-3 via R20. Second, we
determine the status of the switches that affect the CW OR BASELINE LEVEL signal. Z11-3, for
example, is connected to three such switches. From Table 3-1 it is seen that its control signal is
IMPULSE from Z9-2, and that it is high in the CW Mode. Thus, Z9-3 is not conducting. Z14-16 is similarly
found to be low so this switch is conducting. Also, Z14-1 is high which renders this switch open. Since
Z14-9 is low, the EXT MOD OR CW FEEDBACK signal from Z16-7 is applied to Z16-2. The output from
Z13-1 is also applied to Z16-3. The output from Z13-1 is not influenced by R22 because Z14-6 is open
and no voltage is applied to R22.
Table 3-2. Control Signals
IC Mode Destination Signal Label
Pulse CW EXT MOD Impulse
Zero Bsln Nonzero BSln
Z9-1 L L L L H IMPULSE
Z9-2 H H H H L Z3 (Sheet 2) IMPULSE
Z9-11 L L H L H Z4 (Sheet 2) EXT MOD
Z9-10 H H H L H Z10-5 EM
Z9-13 L L H L L Z4 (Sheet 2) CW
Z9-12 H H L H H Z10-4 CW
Z9-5 L H L L L BIAS
Z9-6 H L H H H Z14-1 BIAS
Z10-6 L L H H L Z14-8 CW + EM
Z10-3 H H L L H Z14-9 CW + EM
22
THEORY OF OPERATION
Analog
Switches
Z14-1 H L H H H BIAS
Z14-8 L L H H L CW + EM
Z14-9 H H L L H CW + EM
Z14-16 H H L H H CW
Z11-1 H H H H L IMPULSE
Z11-8 H H H H L IMPULSE
In summary, the PEAK LEVEL control voltage is inverted about ground by Z13-1 and also undergoes a
gain reduction of six (-6 V from PEAK LEVEL becomes +1 V at Z13-1). The current from the monitor
diode is converted at Z16-7 to approximately 1 V for a 1 mW optical output and is applied to Z16-2 where
it will almost cancel the signal from Z13-1. If this does not happen, a large error signal appears at Z16-1
where it passes via Z14-4 and Z8-1 to the current generator, Z7 and Q1 (sheet 3)
External Modulation Mode (Schematic Sheets 1 and 3)
We have traced in detail, for CW Mode, the manner in which the PEAK LEVEL control voltage causes a
predictable current to be applied to the laser. Similar considerations show how the quiescent light level
for the External Modulation Mode is derived. The PEAK LEVEL control voltage is still used to set the
desired optical level (around which the modulation will occur). Feedback via Z16-7 is used as with CW.
Z1 1-1 is high (as for CW) but now Z14-16 is also high. This has the effect of routing the error signal
(Z16-1) through Z8-7 (a precision rectifier).
It is then applied (sheet 3) as the ETT MOD OR PULSE AMPLITUDE signal to Z1-5 (a x2 attenuator
followed by an adjustable x3 gain stage). Since PREDRIVE is held high, the laser's dc bias is now
provided by Q9 (via 06) R108 samples the current which is compared to the voltage from Z1-7 by a
bridge arrangement (R72, R73, R74, R95). Z2-7 generates the error signal applied to Q8 and then to Q9.
The actual modulation is applied from J801, via FET current amplifier Q11, to Q8 where it generates a
base voltage for Q9 which (via R112) generates a predictable signal current through R108 and Q6 that
finally drives the laser. Although this circuit appears to be direct coupled from J801, it acts as if it were ac
coupled due to the action of Z2, which monitors the total laser current (flowing through R108). The low
frequency cut off is approximately 100 Hz.
23
THEORY OF OPERATION
Pulse Mode
In Pulse Mode, two conditions exist: the circuitry involved when the Baseline level is set to zero is
different from the circuits used with a nonzero Baseline. In Pulse Mode with zero Baseline, there is no
optical output between pulses (during a logical "zero" there is zero light output). The upper level is set by
the PEAK LEVEL control voltage which, in turn, determines the amount of current switched into the laser.
In Pulse Mode with a nonzero Baseline, both the upper ("one") and lover ("zero") logic levels must be
adjustable according to the Peak and Baseline settings.
Pulse Mode (Nonzero Baseline)
Pulse Mode with nonzero Baseline requires 1) producing a current that determines the optical power
radiated between pulses (the Baseline), and 2) calculating the difference between the desired Peak
power and the Baseline power, and then generating a pulse of corresponding amplitude. This pulse is
added to the already present Baseline level to produce the desired Peak level. The Baseline current is
generated and applied to the laser in the same manner as for CW operation, except that optical feedback
is not used.
The path from the BASELINE LEVEL control voltage is through Z13-7, Z14-3 (conducting), past Z14-14
and Z1 1-3 (both open), to Z8-1 (unity gain) and finally to Z7 (sheet 3). As stated above, Z7 and Q1 form
a current source, and this is what supplies the Baseline current to the laser.
The path from the PEAK LEVEL control voltage is through Z13-1 (sheet 1), Z16-1, past Z14-15 (open), to
ZS-7, through CR7, Z1-7 (sheet 3), and finally to Z2-7. As stated above, Z2-7, Q8 and Q9 form a current
source which also drives the laser. Pulse Mode differs from External Modulation in that the current is
switched by Q6 and Q7 (as defined by the level of the PREDRIVE signal) and there is no optical
feedback.
The pulse current (through Q6 and Q7) is determined for PEAK LEVEL by the precision rectifier formed
by ZS and CR7 and the two resistor dividers R31/R40 and R32/R39 (sheet 1). This circuit produces a
voltage which is the difference between the voltages at Z16-1 (the scaled version of the PEAK LEVEL
control voltage) and Z8-1 (the scaled version of the BASELINE LEVEL control voltage), yet not less than
zero. The output, at the cathode of CR7, is applied to Z1-5 (sheet 3) which provides an adjustable gain of
from xO.5 to x2. At this point, a 3 V difference between the control voltages has become 500 mV at Z1-7.
Z2-7 and R108 (47 ohm) convert this to approximately 10 mA, which is the value needed for a 0.30 mW
optical power change. Thus a 3 V difference between the PEAK LEVEL and BASELINE LEVEL control
voltages is converted to a 0.30 mW optical step. Since this step is added to the Baseline level already
present (via Z7, Q1) the Peak and Baseline levels are determined by their respective control voltages,
provided that the "gains" (voltage to current conversion factors) of the two channels are set to be equal.
24
THEORY OF OPERATION
PREDRIVE, the timing signal from the multiplexer (Z4), is applied (from Z3-2) to the base of predriver
Q4. Q4 and Q3 are a switching pair whose current is controlled by Z2-1 and Q3. The predrive current
through Q4 and 03 increases with increasing optical output and, as the current increases, the main
drivers Q6 and Q7 receive larger switching voltages. This is achieved by utilizing a current source.
comprised of Z2-1 and 03, which tracks the EXT MOD OR PULSE AMPLITUDE control voltage at Z1-7.
A small offset is introduced into this current source so that at very small pulse levels there is sufficient
predrive current to switch Q6 and Q7.
Pulse Mode (Zero Baseline)
With Zero Baseline, only the switching transistors Q6 and Q7 (sheet 3) supply current to the laser. The
PEAK LEVEL control voltage is processed directly through Z13-1. Z16-1 and Z8-7. Switches Z11-8, Z141, Z14-9 and Z14-6 are open and Z14-8 is closed. Thus Z13-1 is a x6 attenuator while Z16-1 is a x1
voltage follower. Since the switch Z14-1 is open, the BASELINE LEVEL control voltage is not presented
to Z8-3, which will now be held at ground by R24. This allows Z8-7 (through CR7) to be a xl follower of
the voltage at Z16-1
This has two implications. 1) the CW OR BASELINE LEVEL current source is turned off, which prevents
any quiescent light and 2) the PEAK LEVEL control voltage adjusts the pulsed current to values that
produce a power level between zero and 1.0 mW (the same range that the CW OR BASELINE LEVEL
current source uses with a nonzero Baseline Pulse Mode, as determined by the BASELINE LEVEL
control voltage.
External Drive (Schematic Sheet 2)
External Drive is used in the Pulse Mode to shift the source of the drive signal from the mainframe to the
front panel EXT DR connector. The circuits behave the same as under ordinary Pulse Mode operation
except that the PREDRIVE signal is now obtained (via the multiplexer Z4-5) from the External Drive
circuit. Two control signals from P2, EXT DRIVE LEVEL and EXT DRIVE POL, select the trigger
threshold and polarity for the signal presented to the EXT DR jack.
Impulse Mode
Impulse Mode is used to generate a narrow, fixed width and fixed amplitude pulse. The digital timing is
obtained from PREDRIVE (sheet 2). The leading edge of the impulse signal Z3-2 is caused by DRIVE
itself. R157 and Z3-15 provide a short time delay (less than 2 ns) that produces the trailing edge. The
result is a short, positive pulse delivered to the base of Q4 (sheet 3).
The predrivers (Q4 and Q3) and the main drivers (Q6 and Q7) have both been programmed by PEAK
LEVEL for a high (120% of full scale) current that represents the amplitude of the impulse waveform. In
order to assure fast response, the laser is biased to just above its threshold current by an auxiliary
feedback loop that holds the laser at this point regardless of duty factory variations. The optical output is
monitored by internal detector diode DSI-7, and in Impulse Mode represents the average optical power.
Both the Baseline level and the average power of the impulses themselves contribute to this signal. The
latter contribution varies with rep rate (duty factor).
25
THEORY OF OPERATION
Since it is desired to stabilize the Baseline level only, a signal proportional to the duty factor is required.
This signal is obtained from Z3-2 (via R163). Both signals are sent to the auxiliary feedback loop. The
IMPULSE COMPENSATION and IMPULSE FEEDBACK signals (sheet 1) are combined in Z6 along with
a dc level from R37 and are sent back (via Z11-3 and Z8-1) to the Baseline current source (Q1, sheet 2).
R37 adjusts for the small (approximately 10 µW) amount of residual light that is emitted between
impulses. R42 adjusts the balance between the optical sample (from D51-7) and the digital sample (Z3-
2) so that there is no change with varying rep rates.
Laser Protection (Schematic Sheets 1 and 3)
The laser is protected from excessive drive currents by a group of circuits referred to as LASER GUARD.
These circuits ensure that whenever an unusual situation occurs the laser is promptly shunted by a low
impedance. This action is called "crowbar." The path around the laser is from DS1-10 through LI, Q2,
and R79 to ground. Even if both sets of driver transistors (Q6, Q9 and Q1) were to short circuit, the
resulting current would be shunted around the laser by Q2.
If there is excessive current (20 mA or more) flowing in the crowbar transistor, Q2, it is sensed by Z7.
This causes a positive voltage (via CR14) to reinforce the triggering of Z12. The circuit remains in the
crowbar state until the over current condition is removed. Although the control circuits generally turn on
"gracefully" without excessive current transients, a time constant is provided (C59, R101) that turns Q2
on when the power is initially applied.
Another input to Z12-4 is from the internal monitor diode DSI-7. This produces a voltage across R102
and R103 that is set to trigger Z12 when the optical output becomes too high.
When a change of Mode is made, the ENABLE signal (Z9-9, sheet 1) triggers the crowbar action. This is
applied to a timer circuit, Z12, that acts to turn on the crowbar transistor Q2 (via 012) It also is triggered
at initial power-on by CR-23 and R130 A CROWBAR signal is sent to Z17-2 (sheet 1). This is another
timer that acts to further hold off the control circuitry and permit a smooth return to normal operation.
While Z17 is in its timing cycle, the LASER ACTIVE LED is turned off and a positive level from Z17-3 via
Z15-1 turns on the LASER GUARD indicator. After several seconds the Z17 timer will recover (if no over
current condition is present) and allow the control circuits to recover.
26
SECTION 4
MAINTENANCE AND CALIBRATION
MAINTAINENCE
Light Output Connector
For satisfactory performance, proper care in the use of the optical components is necessary. There must
be no contamination to interfere with the passage of light through the fiber end connections and the
bulkhead connector. The following procedures should be observed.
1. Minimize the number of times connecting and disconnecting the optical cable.
2. Keep the connectors absolutely clean.
3. Keep the output bulkhead connector and the user's connector capped when not in use.
CALIBRATION
General
The calibration of the 106C/155/130 module is in two parts: the first is for setting control voltages on the
Module Interface board (PCB 6040-4); the second is for setting the Laser Output board (PCB 155-1) for
the correct power output and impulse characteristics and to verify the External Modulation bandwidth.
It is recommended that the calibration of the 155/130 module be verified every 12 months. The
instrument requires no warm up period exceeding that of the 6040, for which ten minutes is suggested.
Equipment Required
• 3-1/2 digit (or better) DVM.
• BNC 6100 Optical Power Meter (or equivalent) calibrated for the appropriate wavelength.
• 1 GHz bandwidth oscilloscope (sampling or real time). A Tektronix 7000 Series with appropriate
sampling plug-ins is satisfactory.
• 1 GHz bandwidth 1330 nm detector (InGaAsP). A Tektronix S-42 Optical Sampling Head can be
used with the 7000 Series Oscilloscope.
• 1 GHz variable sine wave generator. An HP 8657A Signal Generator with a Type N to SMA
adapter can be used.
• Threaded SMA (3 mm) terminated 30 ohm coaxial cables, 1 meter length.
27
MAINTENANCE AND CALIBRATION
• BNC terminated 30 ohm coaxial cables, 1 meter length.
• Variable dc voltage source (capable of ±3 V into 30 ohms).
• Single-mode optical fiber patch cord terminated with appropriate connectors..
PROCEDURE
Note: This calibration should be carried out in the order presented.
Before starting, verify that the power supply voltages are at their nominal levels (+12 V ±0.1 V, -12 V
±0.1 V, +5 V ±0.05 V, and -5-2 V ±0.05 V) with the Module plugged in. Operate the Module on extension
cables.
Module Interface DAC Calibration
Refer to Schematic 6040-35 (PCB 6040-4). Set the Mode to Pulse; set the Peak and Baseline levels both
to 1.000 mW; set the Trigger to External Drive with a threshold of +2.50 V.
Connect the DVM between TPG (A GND) and Z9-1. Adjust R3 for a voltage of -5-000 V ±2 mV.
Connect the DVM between TPG (A GND) and Z8-7. Adjust R4 for a voltage of -4.000 V ±2 mV.
Connect the DVM between TPG (A GND) and Z8-7, Adjust R5 for a voltage of -4.000 V ±2 mV.
External Drive Discriminator
All further measurements and adjustments refer to the Laser Output board. Schematic 155-31 (PCB 155-
1).
Set the Mode to Pulse. Set Trigger to External Drive with a threshold of +0,99 V. Connect the DVM to
Z18-1 (Schematic 155-31, sheet 2) and record the voltage. Now set the threshold for -0.99 V. Adjust
R141 so that the DVM reading exactly complements the recorded value.
Connect a +1.00 V dc supply to the module EXT DR connector. Connect the DVM to Z5-8. Scan the
TRIG External Drive threshold parameter from 0.90 V to +1.10 V and verify that Z5-8 changes from low
to high (-1.7 V to -0.8 V) when the threshold voltage is set for 1.00 V ±30mV.
28
MAINTENANCE AND CALIBRATION
CW and External Modulation Calibration
Using the patch cord, connect LIGHT OUT to the 6100 Optical Power Meter. Set the 6100 for Average
power measurement and the 0 dBm range.
Set the 6040 Mode to CW and the CW level to 1.000 mW If necessary, adjust R11 (Schematic 133-31,
sheet 1) to obtain a reading of 1.000 mW ±10 µW on the 6100. Set the CW level for 100 µW and verify
the output to be within 10 µW.
Set the 6040 Mode to External Modulation (with no input connected to EXT MOD) and set the External
Modulation level for 1.000 mW. Verify an output of 1.000 mW ±10 µW. Set the External Modulation level
for 100 µW and verify the output to be within 10 µW.
Pulse Baseline Calibration
Set the 6040 Mode to Pulse, and the Trigger to Single Cycle.
A) Set the 6040 Baseline level to 1.000 mW. Adjust R83 (Schematic 133-31. sheet 3)
to obtain a reading of 1 .000 mW ±20 µW on the 6100.
B) Set the Baseline level to 100 µW. Adjust R22 as necessary to obtain 0.100 mW
±20 µW.
Repeat steps A) and B) until both readings are within 20 µW of their stated values.
Pulse Peak Calibration
A) Set the Baseline level to 0.000 mW, Set the Trigger to External Drive with a
threshold of -50 mV. Adjust R58 (Schematic 155-31, sheet 3) for an output of
1.000 mW ±20µW.
B) Set the Baseline level to 100 µW. Adjust R19 to obtain an output of 1 .000 mW
±20 µW.
Repeat steps A) and B) until both readings are within 20 µW of their stated values.
Note: The following sections require high bandwidth paths; any improperly cabled terminated paths will
yield incorrect results.
29
MAINTENANCE AND CALIBRATION
Pulse Dynamic Characteristics
Connect the 6040 TRIG OUT to the External Trigger input of the oscilloscope (bandwidth must be at
least 1 GHz). Connect the 6040 LIGHT OUT to the detector (also 1 GHz). Connect the detector's output
to channel A of the oscilloscope.
With the 6040 still in Pulse Mode, set the Peak level to 1.000 mW and the Baseline level to 100 µW. Set
TRIG for Internal Trigger, 100 kHz. Set Timing for a Width of 40 ns. and a Delay appropriate to view the
detector output on the scope. Verify that leading and trailing edges have transition times (10-90%) ≤ 1
ns.
30
SECTION 5
PARTS LIST AND SCHEMATICS
Abbreviations
CER Ceramic PF Pico farad
COMP Composition SIP Single Inline Package
DIP Dual Inline Package TAN Tanalum
ELEC Electrolytic UH Microhenry
FAC SEL Value Set at Factory UF Microfarad
K Kilohm V Working Volts
M Megohm VAR Variable
MF Metal Film W Watts
MIC Mica WW Wire wound
MONO Monolithic Ceramic
--------------------------- NOTE -----------------------------
The number in the second column is the
BERKELEY NUCLEONICS re-order number
------------------------------------------------------------------
LASER OUTPUT BD. 155-1, MODEL 155 649-144
LASER OUTPUT BD. 155-1, MODEL 130 649-145
C1 122-002 1µF 10% 35 V TAN C23 110-033 0.1µF ±±±± 20% 50V CER MONO
C2 110-019 0.5 µF 20% 25 VCER C24 122-015 33 µF 10% 35 V TAN
C3 122-009 0.68 µF 10% 35 VTAN C25 110-033 0.1 µF ±±±± 20% 50V CER MONO
C4 110-021 0.01 µF 20% 18 V CER C26 110-033 0.1 µF ±±±± 20% 50V CER MONO
C5 122-001 047 µF 10% 35 V TAN C27 110-033 0.1 µF ±±±± 20% 50V CER MONO
C28 110-033 0.1 µF ±±±± 20% 50V CER MONO
C6 110-021 0.01 µF 20% 18 V CER
C7 NOT USED C29 110-033 0.1 µF±±±± 20% 50 V CER MONO
C8 NOT USED C30 110-033 0.1 µF±±±± 20% 50 V CER MONO
C9 NOT USED C31 110-033 0.1 µF±±±± 20% 50 V CER MONO
C10 NOT USED C32 110-033 0.1 µF±±±± 20% 50 V CER MONO
C33 110-033 0.1 µF±±±± 20% 50 V CER MONO
C11 120-015 33µF 10% 35 VTAN
C12 110-033 0.1 µF± 20% 50 V CER MONO C34 110-033 0.1 µF±±±±20% 50V CER MONO
C13 110-033 0.1 µF± 20% 50 V CER MONO C35 110-033 0.1 µF±±±±20% 50 V CER MONO
C14 110-033 0.1 µF± 20% 50 V CER MONO C36 122-015 33 µF 10% 35 V TAN
C37 110-033 0.1 µF±20% 50 V CER MONO
C15 110-033 0.1 µF± 20% 50 V CER MONO C38 110-033 0.1 µF±±±±20% 50 V CER MONO
C16 110-033 0.1 µF± 20% 50 V CER MONO
C17 110-033 0.1 µF± 20% 50 V CER MONO C39 110-033 0.1 µF±±±±20% 50 V CER MONO
C18 1100330.1 µF± 20% 50 V CER MONO C40 122-015 33µF 10% 35 VTAN
C19 110-033 0.1 µF± 20% 50 V CER MONO C41 110-033 0.1 µF±±±± 20% 50 V CERMONO
C42 110-033 0.1 µF±±±± 20% 50 V CER MONO
C20 110-033 0.1 µF± 20% 50 V CER MONO C43 110-033 0.1 µF±±±± 20% 50 V CER MONO
C21 110-033 0.1 µF± 20% 50 V CER MONO C44 110-0330.1 µF±±±± 20% 50 V CER MONO
C22 110-033 0.1 µF± 20% 50 V CER MONO C45 110-019 0.05 µF 20% 25 VCER
31
PARTS LIST AND SCHEMATICS
CR7 411-004 IN4152
C46 NOT USED CR8 NOT USED
C47 NOT USED CR9 NOT USED
C48 NOT USED C10 412-009 IN52318
C49 NOT USED C11 411-003 IN4005
C12 411-004 IN4152
C50 NOT USED
C51 NOT USED CR13 411-004 IN4152
C52 110-019 0.05 µF 20% 25 VCER CR14 411-004 IN4152
C53 110-021 0.01 µF 20% 16 VCER CR15 411-004 IN4152
C54 110-033 0.01 µF 20% 50 V CER MONO CR16 411-004 IN4152
CR17 412-009 IN52318
C55 110-033 0.01 µF 20% 50 V CER MONO
C56 110-011 0.001 µF 10% 1KV CER CR18 413-002 IN4738
C57 110-034 100PF ±10% 25 V CER CR19 411-002 IN270
C58 110-019 0.05 µF 20% 25 V CER CR20 411-004 IN4152
CR21 411-004 IN4152
C59 122-015 33 µF 10% 35 V TAN CR22 NOT USED
C60 110-034 100 PF ±10% 25 V CER
C61 110-011 0.001 µF 10% 1 KV CER CR23 411-004 IN4152
C62 110-021 0.01 µF 20% 16 V CER CR24 411-004 IN4152
C63 110-019 0.05 µF 20% 25 V CER CR25 411-004 IN4152
-----------------------------C64 110-011 0.001 µF 10% 1KV CER DSI 665-011 MODEL 106LASER(1064NM)
C65 110-034 100 PF ±10% 25 V CER DSI 665-010 MODEL 155LASER(1550NM)
C66 110-011 0.001 µF 10% 1KV CER DSI 665-009 MODEL 130LASER(1310 NM)
C67 110-019 0.05 µF 20% 25 V CER -----------------------------C68 122-013 3.3 µF 10% 15 V TAN 01 430-027 MP83848
02 430-008 2N2905
C69 NOT USED 03 430-026 MP83640
C70 NOT USED 04 430-056 MM4409
C71 NOT USED 05 430-056 MM4409
C72 110-021 0.01 µF 20% 16 V CER
C73 110-034 100 PF ± 10% 25 V CER 06 430-059 A500
07 430-059 A500
C74 110-034 100 PF ± 10% 25 V CER 08 430-056 MM4049
C75 NOT USED 09 430-059 A500
C76 NOT USED 010 430-060 2N6041
C77 NOT USED
C78 NOT USED 011 431-006 SD210
012 430-027 MPS3646
C79 NOT USED 013 430-027 MPS3646
C80 112-016 10PF 5% 500 V MICA 014 431-006 SD210
C81 112-003 47 PF 5% 500 V MICA 015 430-026 MPS3640
C82 112-021 5 PF 5% 500 V MICA ------------------------------C83 112-019 15 PF 5% 500 V MICA R1 223-010 1KX 5 SIP RES NETWORK
------------------------ R2 NOT USED
CR1 NOT USED R3 NOT USED
CR2 NOT USED R4 NOT USED
CR3 412-009 IN52318 R5 NOT USED
CR4 411-004 IN4152
CR5 412-012 IN5227 R6 222-059 29.4 K 1% 1/4 W MF
R7 222-059 29.4 K 1% 1/4 W MF
CR6 411-004 IN4152 R8 NOT USED
32
PARTS LIST AND SCHEMATICS
R9 213-301 300 OHMS 5% 1/4 W COMP R54 NOT USED
R10 213-332 33 K 5% 1/4 W COMP R55 NOT USED
R11 244-035 2 K MULTITURN R56 222-026 110 K 1/% 1/4 W MF
R12 NOT USED R57 222-026 110 K 1/% 1/4 W MF
R13 NOT USED R58 244-011 1 K MULTITURN
R14 NOT USED R59 NOT USED
R15 NOT USED R60 NOT USED
R16 NOT USED R61 NOT USED
R17 222-022 4.99 K 1% 1/4 W MF R62 NOT USED
R18 222-045 4.22 K 1% 1/4 W MF R63 NOT USED
R64 NOT USED
R19 244-035 2 K MULTITURN
R20 213-103 10 K 5% 1/4 COMP R65 222-026 110 K 1/% 1/4 W MF
R21 213-473 47 K 5% 1/4 COMP R66 222-026 110 K 1/% 1/4 W MF
R22 244-036 10 K MULTITURN R67 213-102 1 K 5% 1/4 W COMP
R23 NOT USED R68 213-102 1 K 5% 1/4 W COMP
R69 222-026 110 K 1/% 1/4 W MF
R24 213-104 100 K 5% 1/4 W COMP
R25 213-105 1 M 5% 1/4 W COMP R70 222-055 102 K 1% 1/4 W MF
R26 213-102 1 K 5% 1/4 W COMP R71 222-070 95.3 K 1% 1/4 W MF
R27 213-102 1 K 5% 1/4 W COMP R72 222-026 110 K 1/% 1/4 W MF
R28 213-104 100 K 5% 1/4 W COMP R73 222-025 110 K 1/% 1/4 W MF
R74 222-026 110 K 1/% 1/4 W MF
R29 213-274 270 K 5% 1/4 W COMP
R30 213-131 130 OHM 5% 1/4 W COMP R75 214-080 65 OHM 5% 1/8 W COMP
R31 222-071 1 M 1% 1/4 W MF R76 222-051 10K 1% 1/4 W MF
R32 222-071 1 M 1% 1/4 W MF R77 222-043 237 K 1% 1/4 W MF
R33 213-102 1 K 5% 1/4 W COMP R78 222-051 10 K 1% 1/4 W MF
R79 213-150 15 OHM 5% 1/4 W COMP
R34 213-105 1 M 5% 1/4 W COMP
R35 213-105 1 M 5% 1/4 W COMP R80 222-017 215 K 1% 1/4 W MF
R36 213-104 100 K 5% 1/4 W COMP R81 213-820 82 OHM 5% 1/4 W COMP
R37 244-036 10 K MULITURN R82 213-330 33 OHM 5% 1/4 W COMP
R38 213-820 82 OHM 5% 1/4 W COMP R83 244-032 50 OHM 20-TURN
R84 213-101 100 OHM 5% 1/4 W COMP
R39 222-071 1 M 1% 1/4 W MF
R40 222-071 1 M 1% 1/4 W MF R85 222-026 110 K 1/% 1/4 W MF
R41 213-513 51 K 5% 1/4 W COMP R86 213-102 1 K 5% 1/4 W COMP
R42 244-036 10 K MULTITURN R87 213-301 300 OHM 5% 1/4 W COMP
R43 213-512 5.1 K 5% 1/4 W COMP R88 213-102 1 K 5% 1/4 W COMP
R89 214-501 500 OHM 5% 1/8 W COMP
R44 213-201 200 OHM 5% 1/4 W COMP
R45 213-391 390 OHM 5% 1/4 W COMP R90 214-580 68 OHM 5% 1/8 W COMP
R46 213-512 501 K 5% 1/4 W COMP R91 214-510 51 OHM 5% 1/8W COMP
R47 213-102 1 K 5% 1/4 W COMP R92 214-131 130 OHM 5% 1/8 W COMP
R48 213-472 4.7 K 5% 1/4 W COMP R93 214-391 390 OHM 5% 1/8 W COMP
R94 214-510 51 OHM 5% 1/8 W COMP
R49 NOT USED
R50 222-014 499 OHM 1% 1/4 W MF R95 222-026 110 K 1/% 1/4 W MF
R51 222-014 499 OHM 1% 1/4 W MF R96 213-106 10 M 5% 1/4 W COMP
R52 213-471 470 OHM 5% 1/4 W COMP R97 213-102 1 K 5% 1/4 W COMP
R53 NOT USED R98 214-510 51 OHM 5% 1/8 W COMP
R99 213-102 1 K 5% 1/4 W COMP
R100 213-103 10 K 5% 1/4 W COMP
PARTS LIST AND SCHEMATICS
33
R101 213-102 1K 5X 1/4 W COMP R142 222-018 249K 1% 1/4 W MF
R102 213-102 1 K 5% 1/4 W COMP R143 222-018 249 K 1% 1/4 W MF
R103 244-038 5 K MULTI TURN R144 222-039 1 K 1% 1 / 4 W MF
R104 231-008 2 OHM 1% 10 WWW R145 222-091 182 K 1% 1/4 W MF
R105 222-050 8.66 K 1% 1 /4 W MF
R146 213-103 10 K 5% 1 /4 W COMP
R147 214-391 390 OHM 5% 1/8 W COMP
R106 213-103 10 K 5% 1 /4 W COMP R148 214-391 390 OHM 5% 1 /8/ W COMP
R107 214-510 51 OHM 5% 1 /8 W COMP R149 213-510 51 OHM 5% 1 /4 W COMP
R108 214-470 47 OHM 5% 1 /8 W COMP R150 213-510 51 OHM 5% 1 /4 W COMP
R109 214-470 47 OHM 5% 1/8 W COMP R151 213-101 100 OHM5% 1 /4 W COMP
R110 213-103 10 K 5% 1 /4 W COMP
R152 213-510 51 OHM 5% 1 /4 W COMP
R153 213-102 1 K 5% 1 /4 W COMP
R111 214-820 82 OHM 5% 1/8 W COMP R154 213-102 1 K 5% 1 /4 W COMP
R112 214-220 22 OHM 5% 1/8 W COMP R155 213-102 1 K 5% 1 /4 W COMP
R 113 214-100 10 OHM 5% 1/8 W COMP R158 213-102 1 K 5% 1 /4 W COMP
R114 213-105 1 M 5% 1/4 W COMP
R 115 213-103 10 K 5% 1/4 W COMP R157 213-101 100 CHM 5% 1 /4 W COMP
R158 214-131 130 OHM 5% 1/8 W COMP
R116 222-013 422 OHM 1% 1 /4 WMF R159 214-820 82 OHM 5% 1 /8 W COMP
R117 213-511 510 OHM 5% 1 /4 W COMP R160 214-820 82 OHM 15% 1 /8 W COMP
R118 213-105 1 M 5% 1 /4 W COMP R161 214-131 130 OHM 5% 1 /8 W COMP
R119 214-101 100 OHM 5% 1 /8 W COMP
R120 214-392 3.9 K 5% 1/8 W COMP R162 214-580 56 OHM 5% 1 /8 W COMP
R163 214-102 1 K 5% 1 /8 W COMP
R164 222-080 332 OHM 1% 1 /4 W MF
R121 214-390 39 OHM 5% 1 /8 W COMP R165 214-820 82 OHM 5% 1/8 W COMP
R122 213-102 1 K 5% 1 /4 W COMP R166 214-131 130 OHM 5% 1 /8 W COMP
R123 213-222 22 K 5% 1 /4 W COMP
R124 213-102 1 K 5% 1/ 4 W COMP R167 214-391 390 OHM 5% 1 /8 W COMP
R125 222-042 2 K 1% 1/ 4 W MF R168 214-391 390 OHM 5% 1/8 W COMP
----------------------------------R126 222-019 274 K 1% 1/ 4 W MF 21 440-168 LF412
R127 213-510 51 OHM 5% 1 /4 W COMP 22 440-168 LF412
R128 213-105 1 M 5% 1/ 4 W COMP 23 440-134 1OHD102
R129 213-223 22 K 5% 1 /4 W COMP 24 440-200 MC1OH 154P
R130 213-223 22 K 5% 1 /4 W COMP 25 440-148 SPO685
26 440-168 LF412
R131 213-102 1 K 5% 1 /4 W COMP 27 440-168 LF412
R131 214-510 51 OHM 5% 1 /8 W COMP 28 440-168 LF412
R133 NOT USED 29 440-161S74HCO4
R134 NOT USED 210 440-150SHC00
R135 NOT USED
211 440-170 DG201
R136 NOT USED 212 440-143 NE528
R137 NOT USED 213 440-168 LF412
R138 222-051 10 K 1% 1 /4 W MF 214 440-170 DG201
R139 222-051 10 K 1% 1 /4 W MF 215 440-168 LF412
R140 222-018 249 K 1% 1 /4 W MF
216 440-168 LF412
217 440-144 555
R141 244-034 200 OHM MULTI TURN 218 440-165 LF412
PARTS LIST AND SCHEMATICS
34
MODULE INTERACE BD 6040-4 649-143
C1 122-016 10UF±10% 15 V TAN R1 223-010 4.7 KX9 SP RES NETWORK
C2 122-016 10UF±10% 15 V TAN R2 223-016 4.7 KX9 SP RES NETWORK
C3 122-014 33UF±10% 6 V TAN R3 244-011 1 K PC MT MULTITURN
C4 122-014 33UF±10% 6 V TAN R4 244-011 1 KPC MT MULTITURN
C5 110-033 0.1UF±20% 50 V CER MGNO R5 244-011 1 KPC MT MULTITURN
C6 110-033 0.1 UF±20%50V CER MONO R6 244-011 1 KPC MT MULTITURN
C7 110-033 0.1 UF±20%50V CER MONO R7 222-018 240 K 1% 1 /4 W MF
C8 110-033 0.1 UF±20%50V CER MONO R8 222-018 249 K 1% 1 /4 W MF
C9 110-033 0.1 UF±20%50 V CER MONO R9 222-018 249 K 1% 1 /4 W MF
C10 110-033 0.1 UF±20%50V CER MONO R10 222-018 249 K 1% 1 /4 W MF
C11 110-033 0.1 UF±20%50V CER MONO
C12 110-033 0.1 UF±20%50V CER MONO R11 NOT USED
C13 110-033 0.1 UF±20%50V CER MONO R12 NOT USED
R13 NOT USED
C14 110-033 0.1 UF± 20% 50 V CER MONO R14 NOT USED
C15 110-033 0.1 UF± 20% 50 V CER MONO R15 213-431 430 OHM 5% 1 /4 W COMP
C16 122-014 33 UF ± 10% 6 V TAN R16 213-103 10 K 5% 1/4 W COMP
C17 122-014 33 UF ± 10% 6 V TAN --------------------------------------C18 110-011 0.001 UF±10% 1 KV CER 21 440-212 74HC139
22 440-175 74HC373
C19 110-011 0.001 UF± 10% 1 KV CER 23 440-210 2764
C20 110-011 0.001 UF± 10% 1 KV CER 24 440-190 MK48202-20
C21 110-011 0.1 UF± 20% 50 V CER 25 440-195 P82C55-2
--------------------------------CR1 412-001 1N821 26 440-213 AD7528
--------------------------------- 27 440-213 AD7528
Q1 430-026 MPS3540 28 440-168 LF412
--------------------------------- 29 440-168 LF412
35
Loading...
