BNC 1105 User Manual

Download

Version: 1.0

MODEL 1105

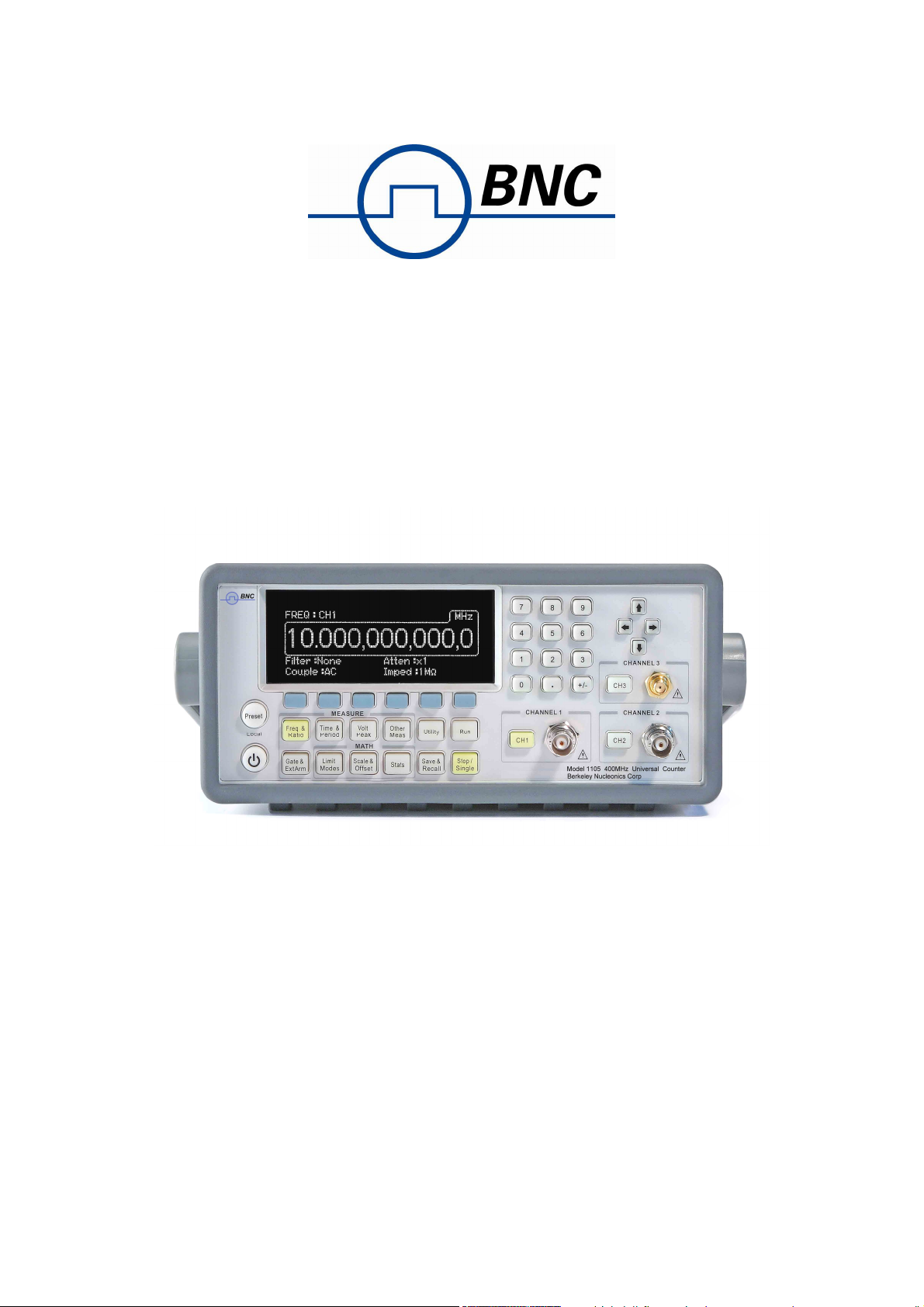

400 MHz Universal Counter

With 6GHz in CHANNEL 3

Printed date: 6/2011

User’s manual

2222

Table of Contents

1 GENERAL INFORMATION ............................................................................................... 5

1.1 F

EATURE OVERVIEW

1.2 W

ARRANTY INFORMATION

1.3 P

RECAUTION OF OPERATION

1.4 U

PKEEP OF THE

1.5 S

AFETY INFORMATION

1.6 S

YMBOLS AND TERMS

1.7 I

NSPECTION

1.8 O

PTIONS AND ACCESSORIES

2 OVERVIEW ........................................................................................................................... 12

2.1 S

ETTING UP YOUR

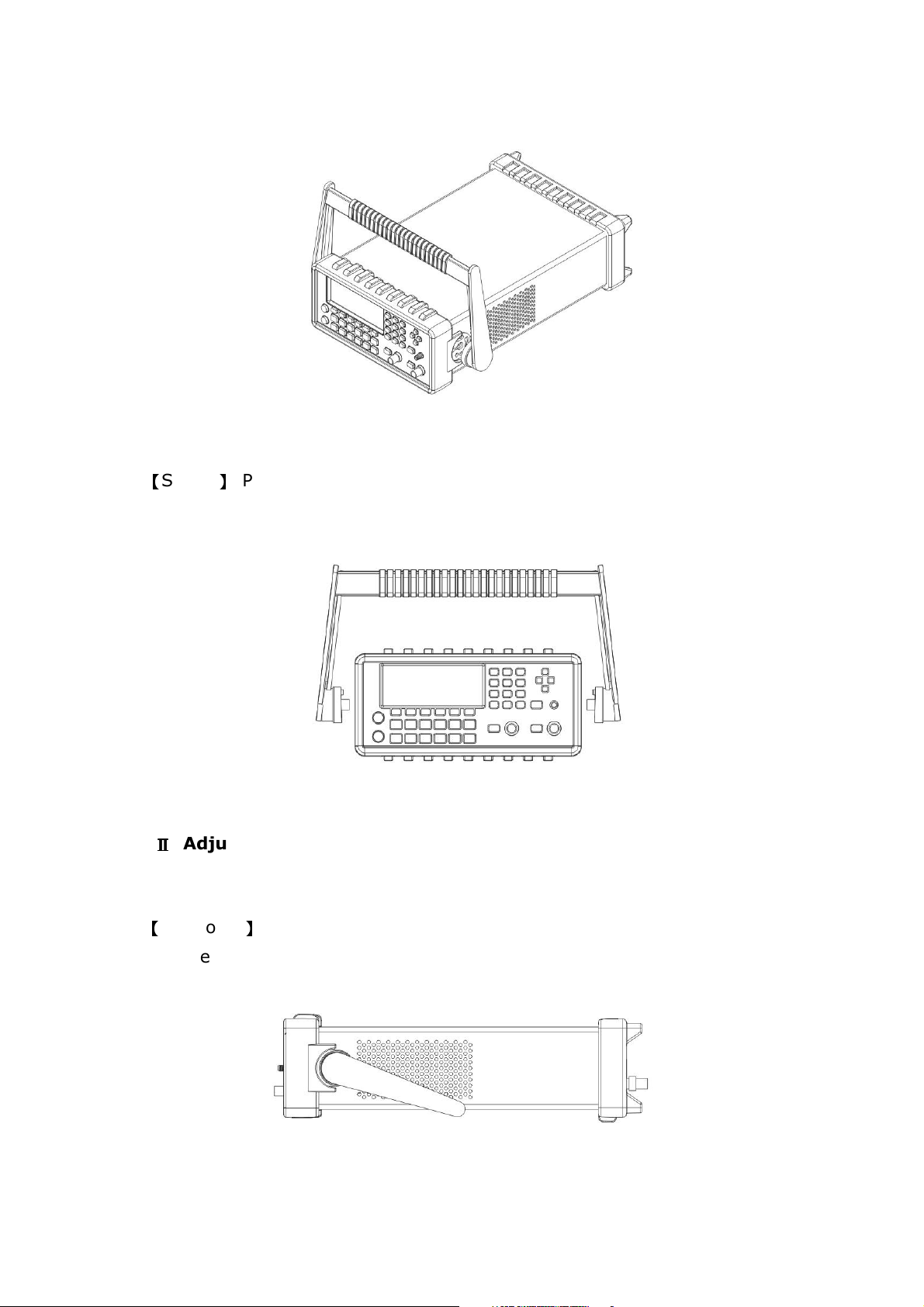

2.1.1 To adjust the handle ............................................................................... 12

2.1.2 To Replace the Fuse ................................................................................ 14

2.2 G

ETTING STARTED WITH THE

2.2.1 The Front Panel ............................................................................................... 18

2.2.2 The Rear Panel ................................................................................................ 20

.................................................................................................................. 10

....................................................................................................... 5

............................................................................................. 6

......................................................................................... 7

MODEL 1105 ..................................................................................... 8

.................................................................................................... 8

.................................................................................................... 9

....................................................................................... 11

MODEL 1105 U

NIVERSAL COUNTER

MODEL 1105 ........................................................... 18

............................................ 12

3 MAKING MEASUREMENTS ........................................................................................... 22

3.1 F

REQUENCY MEASUREMENT

3.2 F

REQUENCY RATIO MEASUREMENT

3.3 T

IME INTERVAL MEASUREMENT

3.4 P

ERIOD MEASUREMENT

3.5 R

ISE/FALL TIME MEASUREMENT

3.6 P

ULSE WIDTH MEASUREMENT

3.7 D

UTY CYCLE MEASUREMENT

3.8 T

OTALIZE MEASUREMENTS

3.9 P

HASE MEASUREMENTS

3.10 V

4 FRONT PANEL OPERATIONS ...................................................................................... 35

4.1 M

4.2 K

4.2.1 N

OLTAGE PEAK MEASUREMENT

EASUREMENT RESULT AND STATUS DISPLAY

EY FUNCTIONS

UMERIC KEYPAD AND THE ARROW KEYS

4.2.2 Measurement Control Keys (Run and Stop/Single) ...................... 37

............................................................................................................ 36

......................................................................................... 22

............................................................................. 23

................................................................................... 24

................................................................................................ 25

................................................................................. 27

..................................................................................... 28

........................................................................................ 29

.......................................................................................... 31

............................................................................................... 32

................................................................................. 33

.......................................................... 35

............................................................. 36

3333

4.3 G

ATE & EXTERNAL ARM OPERATIONS

4.4 S

ETTING SCALE AND OFFSET

4.5 L

IMITS OPERATIONS

4.6 S

TATISTICS OPERATIONS

4.7 S

ETTING CHANNEL INPUT CONDITIONS

4.8 T

RIGGER SETTING

4.9 S

AVE AND RECALL FUNCTIONS

.................................................................................................... 48

........................................................................................................ 52

......................................................................... 38

...................................................................................... 46

............................................................................................ 50

..................................................................... 51

................................................................................... 56

4.10 U

4.11 D

5 REMOTE INTERFACE OPERATIONS ............................................................................ 65

5.1 P

5.2 P

5.3 S

5.4 R

6 MANUAL CALIBRATION PROCEDURES ................................................................. 81

6.1 H

6.2 H

TILITY OPERATIONS

ISPLAY TIPS

4.11.1 View Remote Command Error ........................................................... 62

4.11.2 Get HELP on ANY KEY ........................................................................... 62

4.11.3 Power up Default State Resetting .................................................... 62

4.11.4 Synchronize Multiple Instruments ................................................... 63

4.11.5 BERKELEY NUCLEONICS CORPORATION Technical Support . 63

ASS/FAIL OUTPUT VIA

ETTING UP FOR REMOTE ACCESS

EMOTE INTERFACE COMMANDS

OW TO DO THE OFFSET CALIBRATION VIA

............................................................................................................. 61

................................................................................................ 58

USB C DB9 C

ONNECTOR

............................................................................. 66

................................................................................. 69

................................................................ 65

................................................................ 66

CH1 ..................................................... 81

CH2 ..................................................... 81

6.3 H

OW TO DO THE

6.4 H

OW TO DO THE

6.5 H

OW TO DO THE GAIN CALIBRATION VIA

6.6 H

OW TO DO THE GAIN CALIBRATION VIA

6.7 H

OW TO DO THE

6.8 H

OW TO DO THE

6.9 H

OW TO DO THE TIME DOMAIN CALIBRATION (INCLUDING EXTERNAL

6.10 H

6.12 H

7 ERROR MESSAGES ........................................................................................................... 88

7.1 C

7.2 E

7.3 D

OW TO DO THE TIME INTERVAL CALIBRATION

OW TO DO THE STANDARD TIMEBASE CALIBRATION

OMMAND ERRORS

XECUTION ERRORS

EVICE-SPECIFIC ERRORS

ATT

X 10 OFFSET CALIBRATION VIA

ATT

X 10 OFFSET CALIBRATION VIA

ATT

X 10 GAIN CALIBRATION VIA

ATT

X 10 GAIN CALIBRATION VIA

...................................................................................................... 88

..................................................................................................... 91

.......................................................................................... 92

CH1 ...................................................... 82

CH2 ...................................................... 82

CH1 ......................................................... 83

CH2 ......................................................... 83

CH1 .......................................................... 84

CH2 .......................................................... 84

ARM) ....... 85

...................................................... 86

........................................... 87

4444

7.4 Q

UERY ERRORS

7.5 C

OUNTER-SPECIFIC ERRORS

............................................................................................................ 92

....................................................................................... 93

APPENDIX ................................................................................................................................. 94

SPECIFICATION LIST

A.1 RMS Comparison........................................................................................... 99

PRESET VALUES AND SAVE/RECALL INFORMATION

GENERAL SPECIFICATIONS

REMOTE INTERFACE REFERENCE

D.1 Introduction to the SCPI Language .................................................. 102

D.2 Command Reference .............................................................................. 106

D.3 IEEE-488 Common Commands .......................................................... 158

D.4 IEEE-488 Compliance Information .................................................... 164

ABOUT APPLICATION PROGRAMS

..................................................................................................... 94

................................................. 100

........................................................................................ 101

............................................................................... 102

............................................................................... 171

5555

This section contains general information about BERKELEY NUCLEONICS CORPORATION MODEL 1105 Universal Counter. The information includes:

 Feature Overview  Warranty Information  Precaution of Operation  Upkeep of MODEL 1105  Safety Information  Symbols and Terms  Inspection  Options and Accessories

You can contact Berkeley Nucleonics Corporation. via the following telephone number for

warranty, service, or technical support information.

Telephone: 415-453-9955

Website http://www.berkeleynucleonics.com

Or contact Berkeley Nucleonics Corporation for more help by email.

Email: info@berkeleynucleonics.com

General Information

1.1 Feature Overview

MODEL 1105 offers:

 DC 1mHz ~ 400 MHz frequency range for channel 1/2.  Standard Channel 3 provides 375MHz~6GHz frequency range.  12 digits resolution with 1s gate time.  40 ps time domain function resolution.  Connection via USB, Ethernet 10M/100M, and GPIB (optional).

6666

 Multi-parameter display of results.  Optional third channel that provides measurements up to 20 GHz.  Easy-to-use shortcut keys.  Easy & free PC applications.

※

Note: Full MODEL 1105 specifications are included in Appendix A.

※

Note: Berkeley Nucleonics Corporation provides users a free software MODEL 1105 PT-LINK (Ver 1.0). This software’s GUI (Graphic User Interface) tool can get results from measurements, and transform data to Microsoft Excel or Word for analysis or reworking.

1.2 Warranty Information

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

1. Warranty: BERKELEY NUCLEONICS CORPORATION guarantees that

this product meets its published specifications at the time of shipment from the factory. Under proper installation it should work as expected.

2. Warranty Period: This equipment is warranted against defects in

material and workmanship for a period of one year from date of shipment. During the warranty period, BERKELEY NUCLEONICS CORPORATION is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair, this product must be returned to a service facility designated by BERKELEY NUCLEONICS CORPORATION. Please contact your local service representative.

3. Excluded Items: This warranty does not include consumptive parts

such as fuses, buttons and relays. Neither does this warranty cover defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, improper operation, ignorance of environmental specifications or improper software or interfacing.

4. Remarks:

 No other warranty is expressed or implied, except for the above

mentioned.

7777

 The remedies provided herein are the buyer’s sole and exclusive

remedies. BERKELEY NUCLEONICS CORPORATION shall not be liable for any direct, indirect, special, incidental or consequential damages.

Limitation of warranty

1. Our warranties do not cover any damage resulting from unauthorized

modification or misuse.

2. Unless mentioned elsewhere in this document, our warranty does not

apply to fuses, probes, and problems arising from normal wear or user’s failure to follow instructions.

3. Our warranties do not apply on any direct, incidental, special, or

consequential damages.

4. The above warranties are exclusive and no other warranty is

expressed or implied. Berkeley Nucleonics Corporation disclaims any implied warranties of MERCHANTABILITY, SATISFACTORY QUALITY, and FITNESS for any particular reasons.

1.3 Precaution of Operation

 Please carefully read the manual before operating this device.  This manual is for reference only. Please consult your local service

representative for further assistance.

 The contents of this manual may be amended by the manufacturer

without notice.

 Never dismantle the equipment by any unauthorized personnel, or

equipment may be damaged.

 The equipment has been strictly tested for quality before delivery

from our factory. However, this equipment must not be used in dangerous situations where damage may result.

 This production should be placed in a safe area in case of unpredicted

personnel use.

 The rear protective conduct terminal needs to be connected to the

actual earth ground or electrical shock may occur.

8888

 The patent and related documents for the equipment belong to

BERKELEY NUCLEONICS CORPORATION. Any part of reproduction is illegal.

1.4 Upkeep of the MODEL 1105

 Although the MODEL 1105 universal counter is very durable and

weather resistant, care should be taken not to expose it to severe impact or pressure.

 Keep the MODEL 1105 far from water and damp environment.  Calibration will be taken every year. Please contact with your local

service representative for more information.

 If the incorrect display or abnormal beeps occurred you should stop

using the equipment at once.

 Do not use the Counter around explosive gas or inflammable vapor.  Wipe the surface of the MODEL 1105 universal counter with a piece of

dry and clean cloth.

1.5 Safety Information

Caution! Please read through the following safety information

before using the product.

To avoid possible electrical shock or personal injury, please read and follow these guidelines carefully:  Follow the guidelines in this manual and DO NOT use the Counter if

the case is damaged. Check the instrument case and terminals, and make sure all the devices are in the proper positions.

 Do not apply excessive voltage to the Universal counter. Apply

voltage within the rated range only.

 Use caution when measuring voltages above 30 V RMS, 42 V peak, or

60 V DC. These voltages pose an electric shock hazard.

 If you need to open the instrument case or replace any parts, read

through this manual first. You must be the qualified personnel to perform this action.

9999

 The main power supply module contains a fuse rated 3.15A/250V.

When replacing the fuse (BUSSMANN F3.15A250V), use only the same types and same rating as specified.

 Do not try to operate the instrument if it is damaged. Disconnect the

power from the equipment and consult the local service representative. Return the product to Berkeley Nucleonics Corporation service department if it’s necessary.

1.6 Symbols and Terms

This symbol indicates hazards that may cause damages to the

instrument or even result in personal injury.

This symbol indicates high voltage may be present. Use extra

caution before taking any action.

This symbol indicates the frame or chassis terminal presented need

to be connected to the actual earth ground.

This symbol indicates “Protective Conductor Terminal”.

Underwriters Laboratories®.

This symbol indicates earth (ground) terminal.

This symbol indicates this product complies with the essential requirements or the applicable European laws or directives with respect to safety, health, environment and consumer protections.

1010

1.7 Inspection

The product package is supplied with the following items:

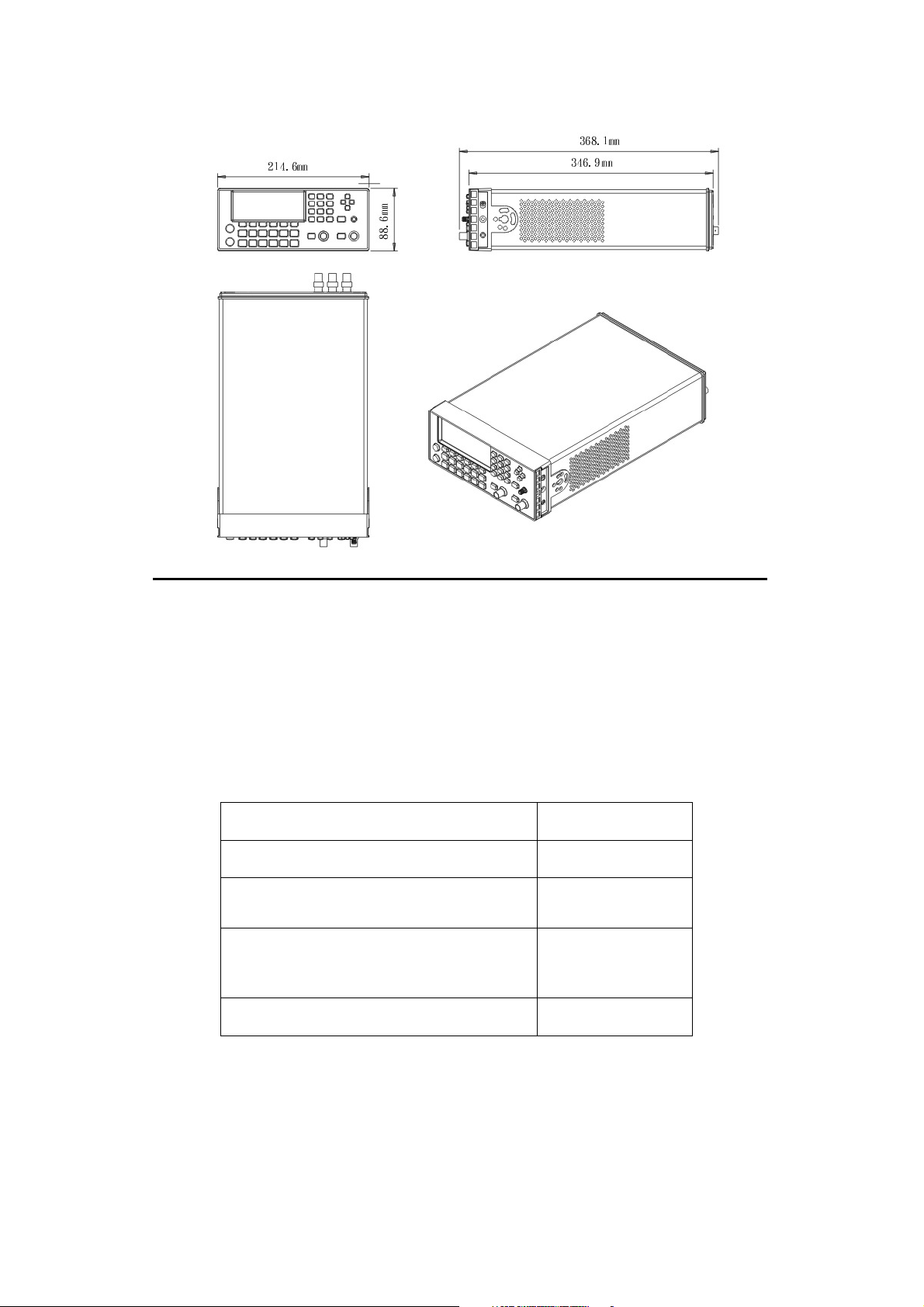

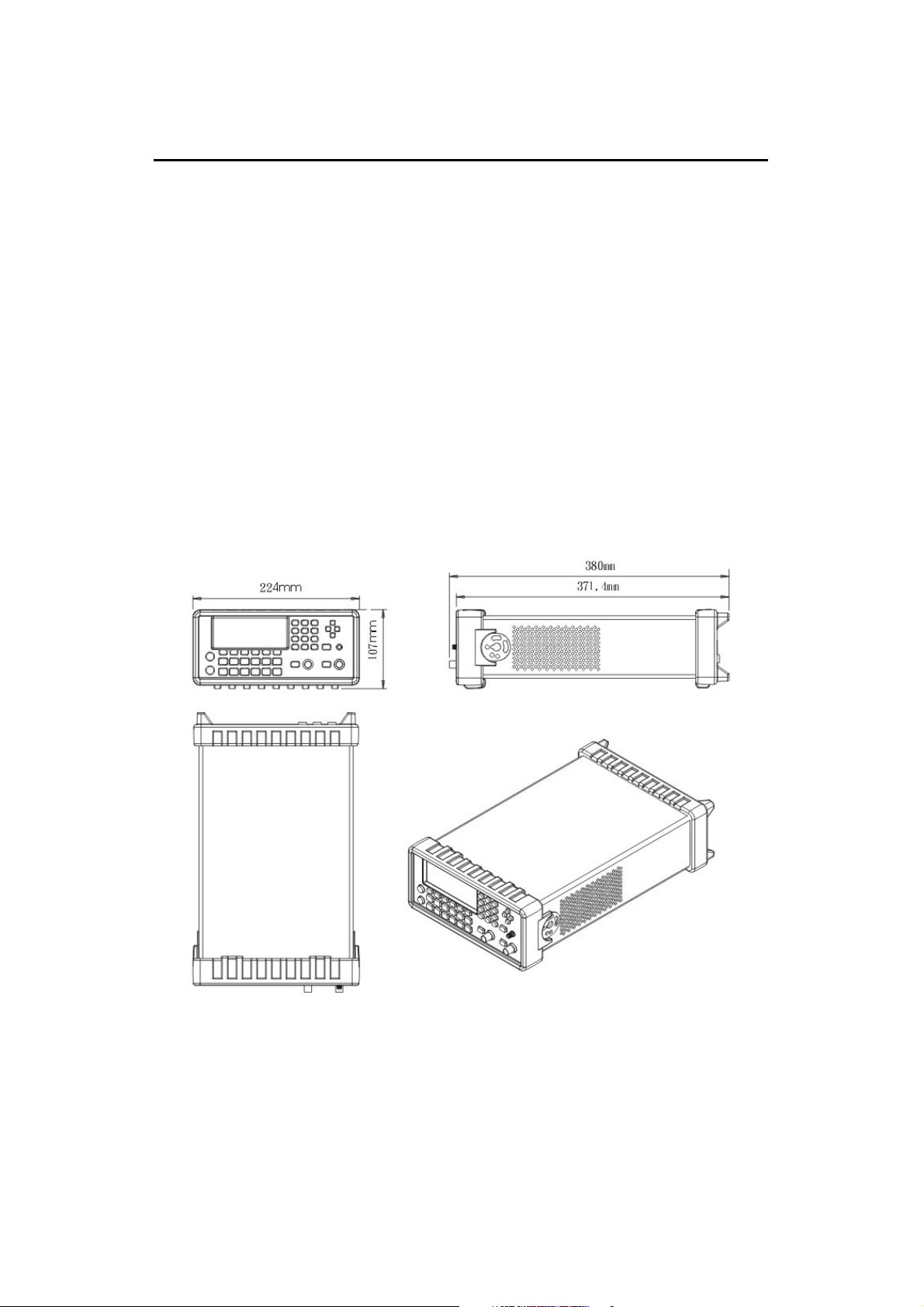

 One MODEL 1105 [224 (W) x 107 (H) x 380 (D) mm with the front

and rear bumpers, approx. 3416g]/ [214.6 (W) x 88.6(H) x 346.9 (D) mm without the front and rear bumpers, approx. 3130g]

 One power cord.  One USB cable.  One CD (including this electronic User's Manual and software

applications).

 Optional accessories as you ordered.  GPIB interface card. (Optional)

1111

1.8 Options and Accessories

The following options and accessories are available from Berkeley Nucleonics Corporation for use with the MODEL 1105 universal counter. Please refer to Table 1-1.

Table 1-1 Accessories

Part Name Part Number

High stability OCXO

250MHz-20GHz Input Channel 1105-opt02

Rear panel input module

(CH1/CH2)

GPIB Card 1201-opt04

1105-opt01

1105-opt04

1212

This chapter will give you an overview of the MODEL 1105’s basic features and guide you through the basics of the MODEL 1105 universal counter. Users will be familiar with those features after reading this chapter.

Overview

2.1 Setting up Your MODEL 1105 Universal

Counter

This section guides users to use the MODEL 1105 universal counter. Users might want to check if they have all the parts with their universal counters. All our products are handled and inspected professionally before shipping out to customers. If any damaged or missing parts are found or any questions are from using the unit, please contact your local service representative immediately and do not attempt to operate the damaged product.

2.1.1 To adjust the handle

You may adjust the carrying handle for your purpose. The following figures show you how to do it.

I. Taking off the handle from the Universal Counter

【

Step 1】(Turn up the handle) Pull slightly outward on both sides of the handle and slowly rotate it up as shown in Figure 2-1.

1313

Figure 2-1

【

Step 2】(Pull out the handle) When the handle is turned up to 90˚ with the universal counter, please pull out the handle from the universal counter as shown in Figure 2-2.

Figure 2-2

ⅡⅡⅡⅡ

. Adjusting the position for your convenience

There are some example positions to suit users’ needs.

【

Position 1】

The default position is for packing as shown in Figure 2-3.

Figure 2-3

1414

【

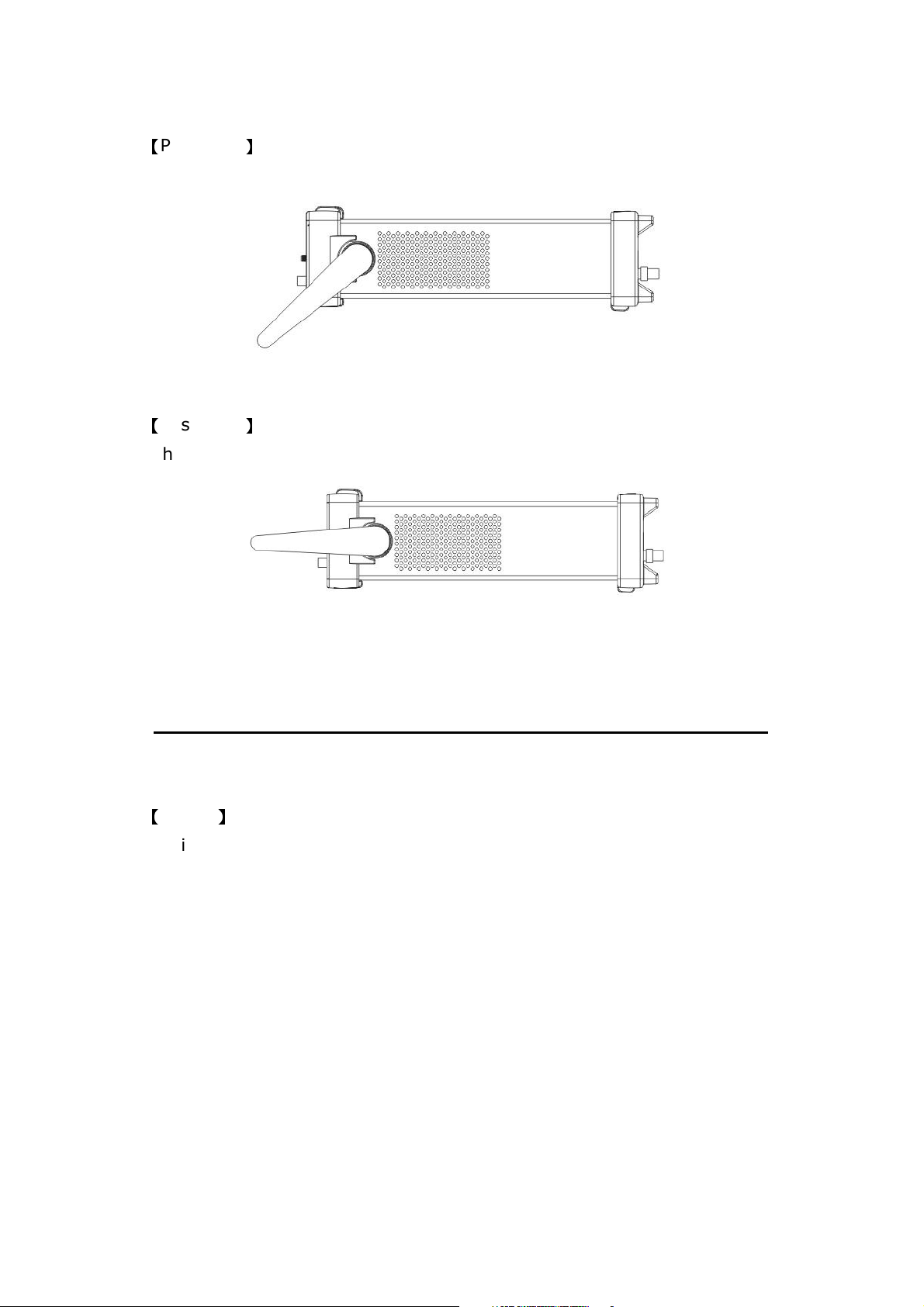

Position 2】

The adjusted position is for operation as shown in Figure 2-4.

Figure 2-4

【

Position 3】

The carrying position shows in Figure 2-5.

Figure 2-5

2.1.2 To Replace the Fuse

【

Step 1】

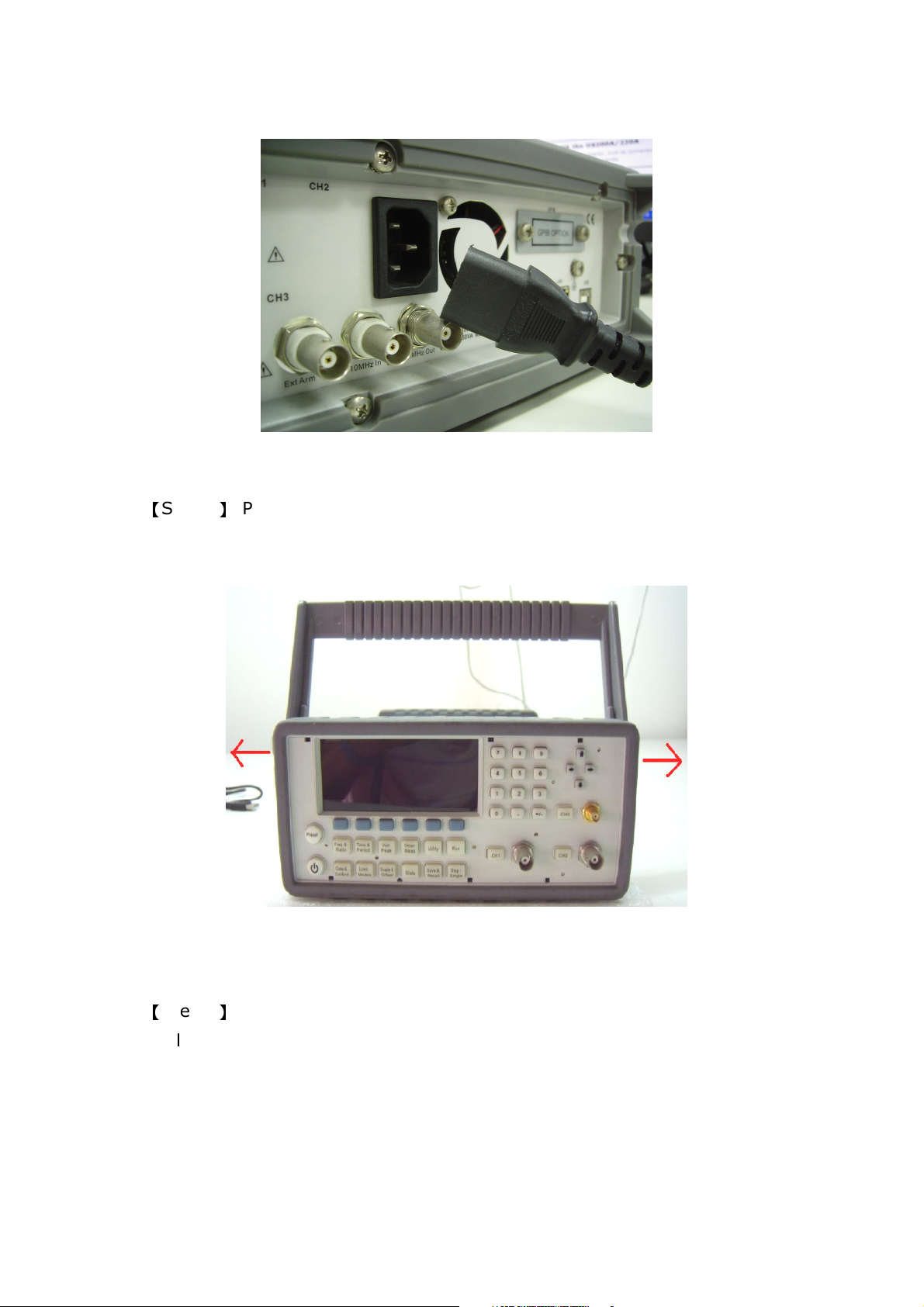

Verify that the meter is disconnected as shown in Figure 2-6.

1515

Figure 2-6

【

Step 2】(Pull out the handle)

When the handle is turned up to 90˚ with the universal counter, please pull out the handle from the universal counter as shown in Figure 2-7.

Figure 2-7

【

Step 3

】

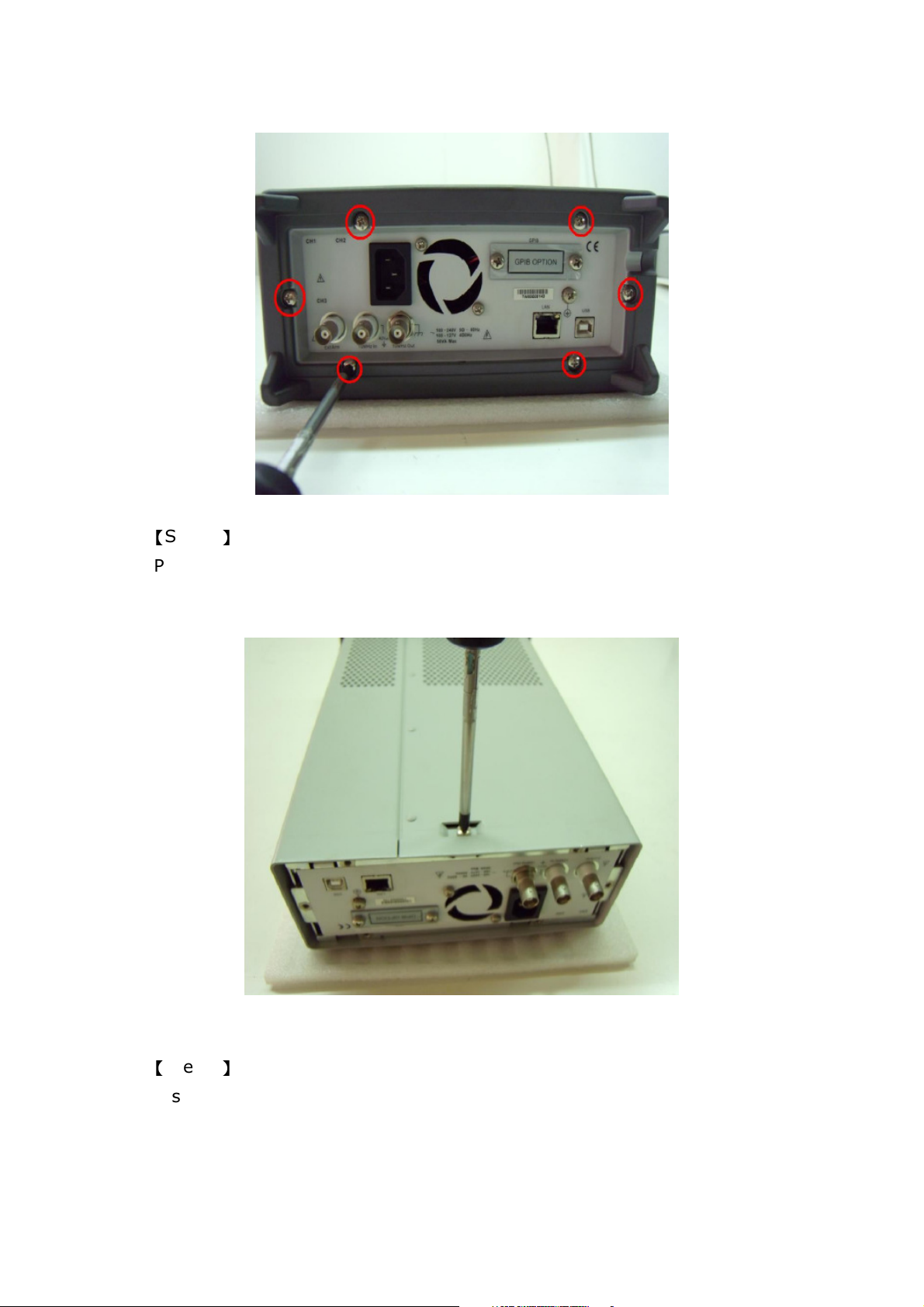

Release the six screws by a screwdriver, and disassemble the rear bumper as shown in Figure 2-8.

1616

Figure 2-8

【

Step 4

】

Put the counter upside-down on the worktable and release the srew under a warranty seal as shown in Figure 2-9.

Figure 2-9

【

Step 5

】

Disassemble the case from the counter as shown in Figure 2-10.

1717

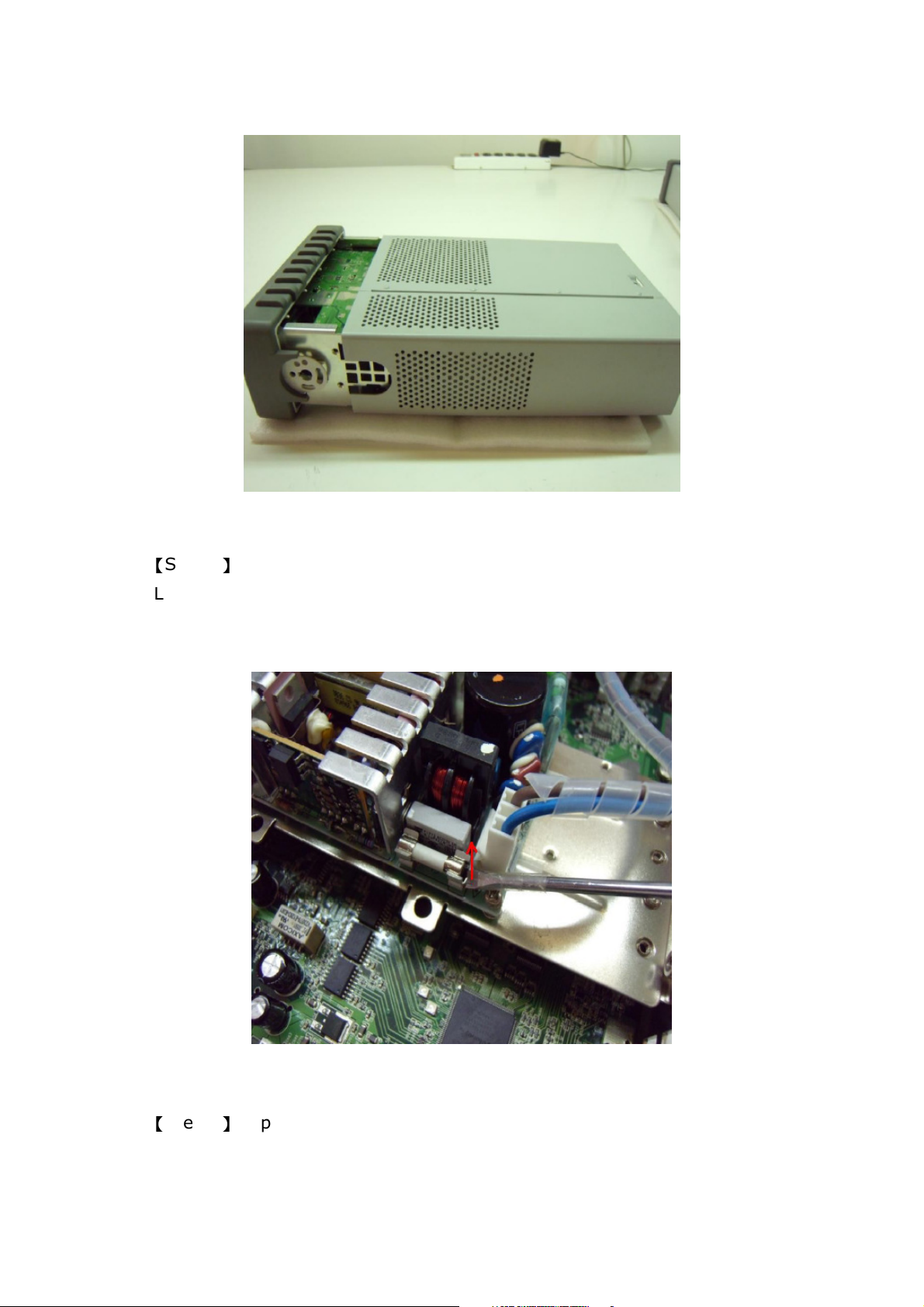

Figure 2-10

【

Step 6

】

Loose the fuse by a flat-head screwdriver as shown in Figure 2-11. Replace a new one conforming to the specification of UL/IEC127 250 Vac H3.15A. Then reassemble it according the reverse procedures.

Figure 2-11

【

Step 7】(Tip!)

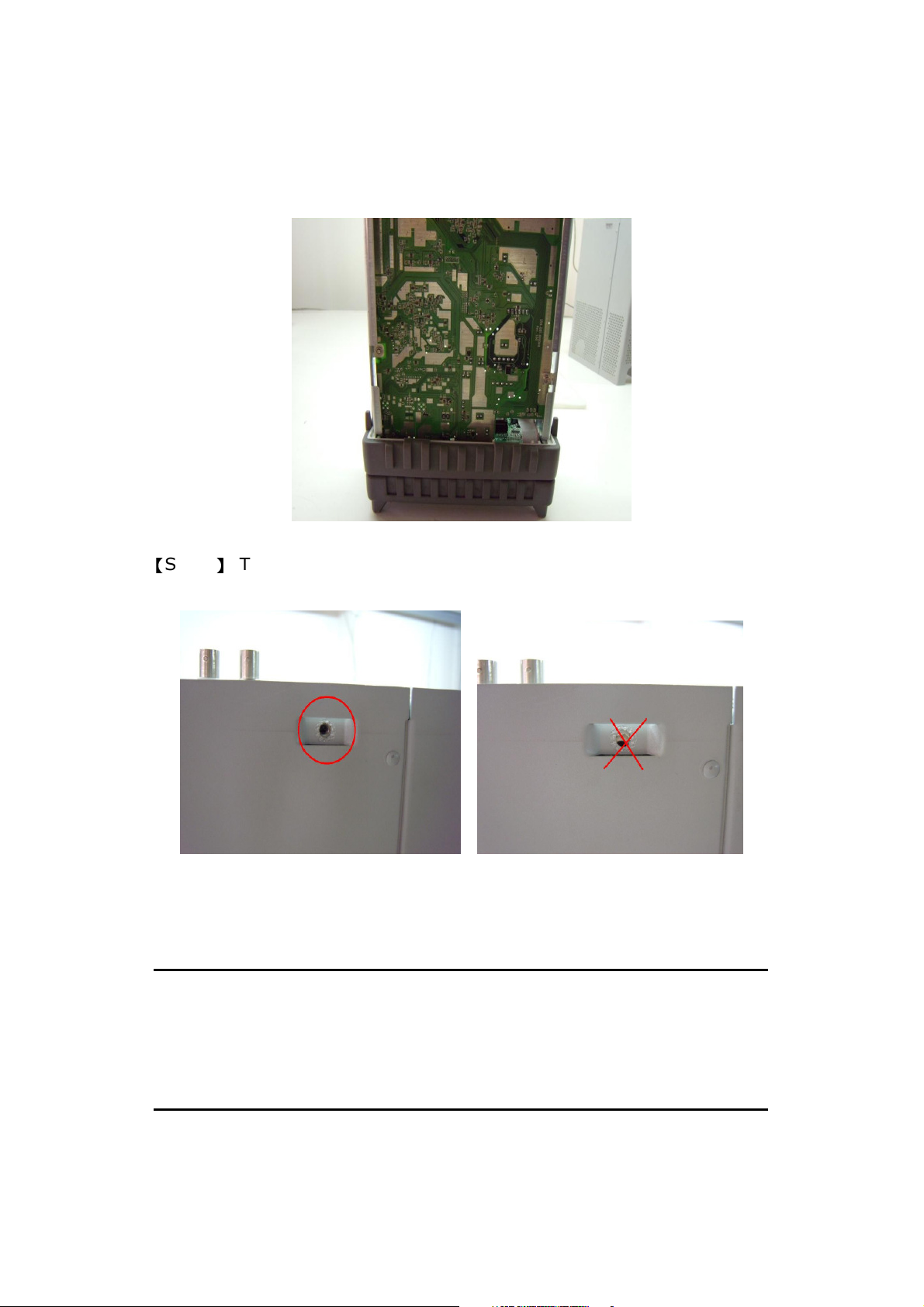

In order to prevent the front panel from scratching and ease you to

1818

assemble correctly with the case, stack up the counter, whose front panel should be towards down, on the rear bumper as shown in Figure

2-12.

Figure 2-12

【

Step8】(Tip!)

Make sure the assembly is correct as shown in Figure 2-13.

Figure 2-13

2.2 Getting Started with the MODEL 1105

The brief descriptions are mentioned in this chapter, such as connectors and buttons on the MODEL 1105’s front and rear panels.

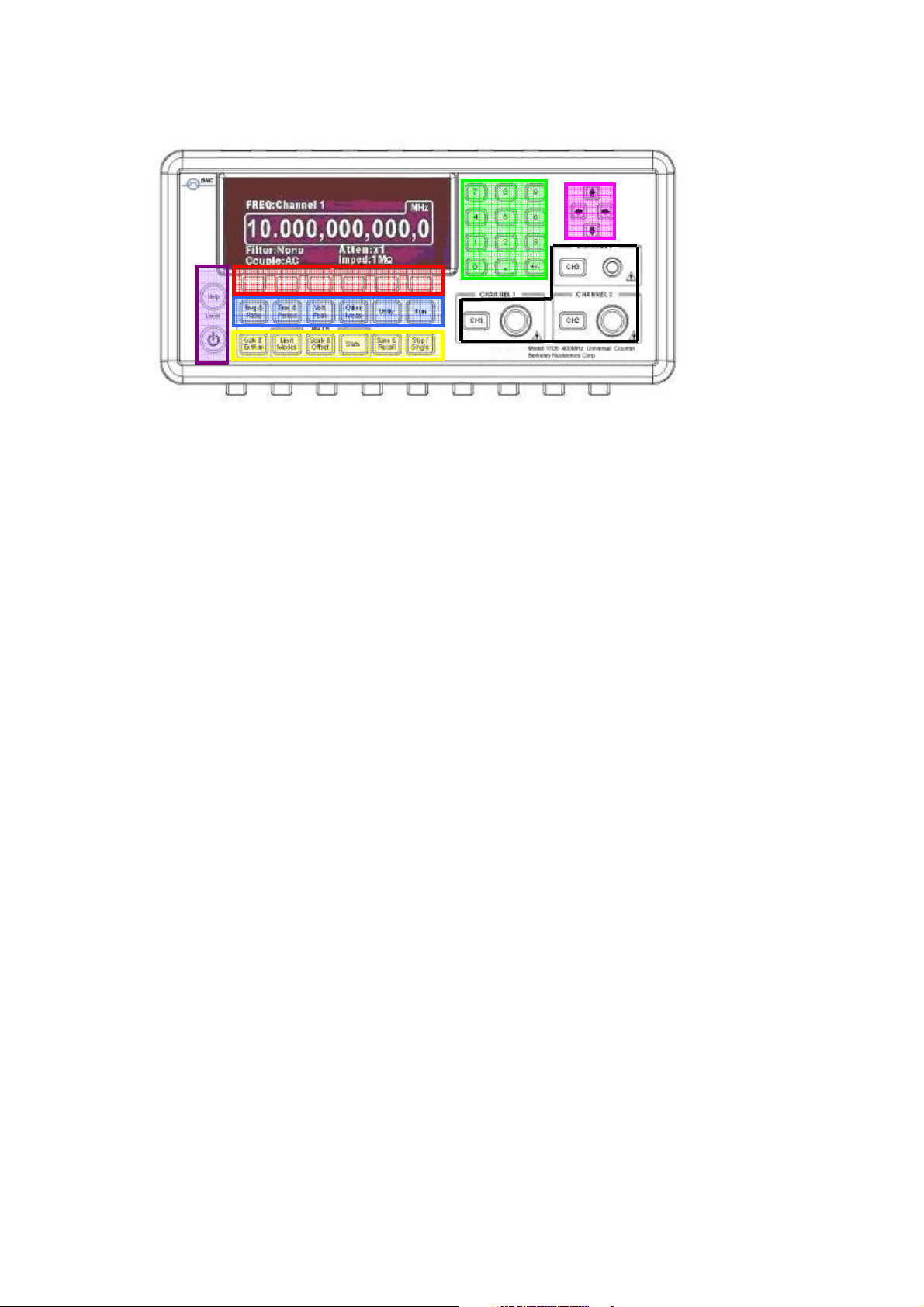

2.2.1 The Front Panel

1919

1111

3333

4444

5555

7777

2222

6666

Figure 2-6

1. Power & Display (in the purple area):

 Power: Turn on/off the MODEL 1105 universal counter.  Help: Instruction for the function you located.

2. First row softkeys: (in the red area):

They provide access to the menu shows on the 1105’s display.

3. Second row (in the blue area):

 Freq & Ratio: Frequency and frequency ratio measurement

functional menu key.

 Time & Period: Time interval and period measurement functional

menu key.

 Volt Peak: Voltage peak measurement function menu key.  Other Meas: Phase, duty cycle and totalize measurement menu key.  Utility: Utility configuration menu key.  Run: Key to start continuous measurement.

4. Third row (in the yellow area):

 Gate & ExtArm: Gate and External Arm menu key.  Limit Modes: Limit setting and testing menu key.  Scale & Offset: Scale and offset input key.  Stats: Statistics function menu key.  Save & Recall: Measurement setting save and recall menu key.  Stop/Single: Key to make single measurement or stop continuous

measurement after current measurement is finished.

2020

5. Channel condition buttons and connectors (in the black

1111

2222

3333

4444

5555

6666

7777

8888

9999

area):

 CH1: Channel 1 condition control key and connector.  CH2: Channel 2 condition control key and connector.  CH3: Channel 3 condition control key and connector.

6. Twelve numeric keys (in the green area):

Numerical value input keys.

7. Four arrow keys (in the pink area): Keys to control cursor in

order to increase or decrease numerical value and provide entry of alphabetical letters.

※

Note: Among all the buttons and keys on the front panel, those in item 3 and

4 will light up to indicate its function in effect.

2.2.2 The Rear Panel

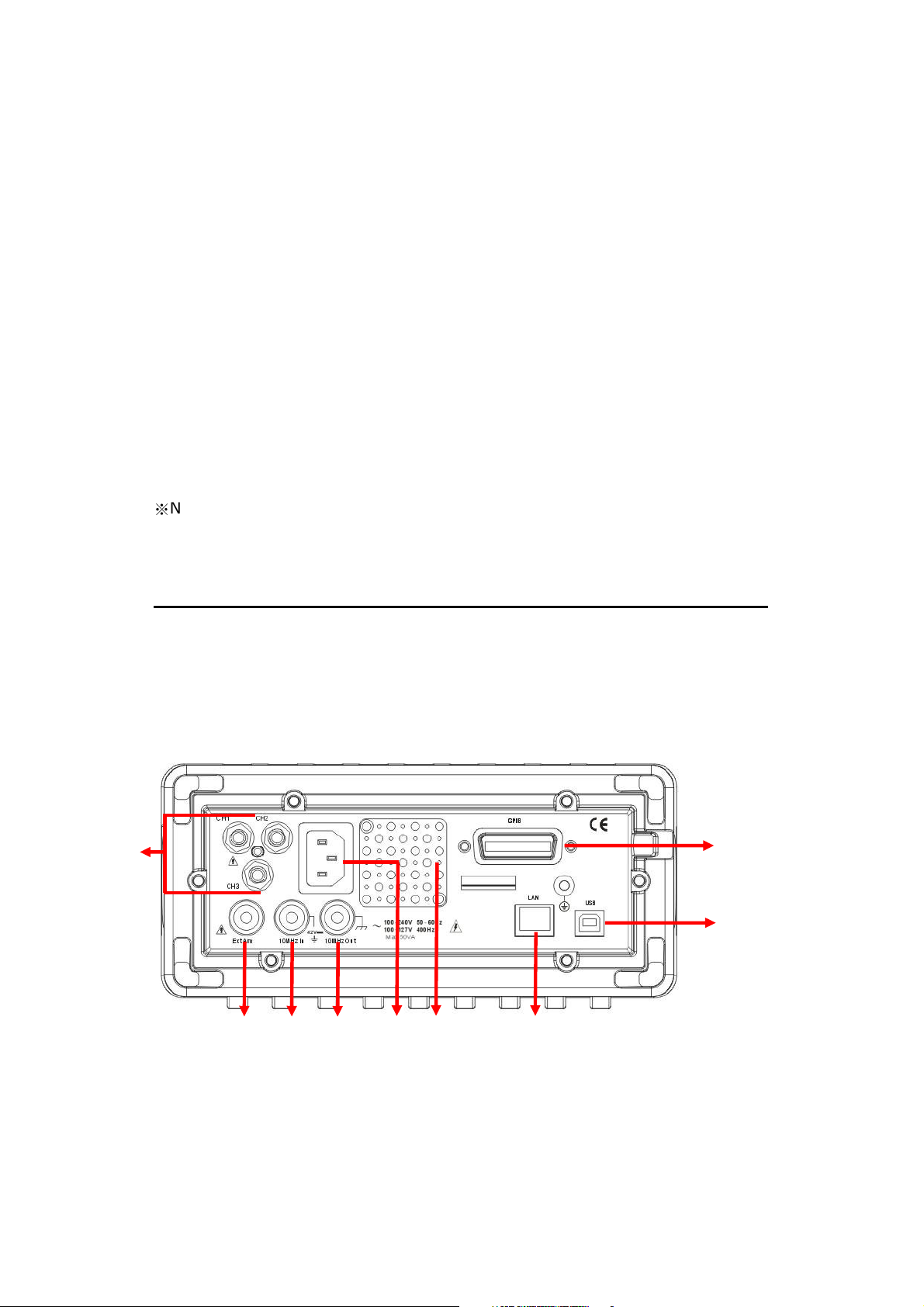

The rear panel of the MODEL 1105 universal counter is shown in Figure 2-7.

Figure 2-7

1. External Arm Input Terminal

2. External 10 MHz Input Terminal

2121

3. External 10 MHz Output Terminal

4. LAN Interface Connector

5. GPIB Interface Connector

6. USB Interface Connector

7. Power cord connector

8. Fan

9. CH1/2/3 rear input

2222

This chapter guides users how to make some basic measurement via the MODEL 1105 universal counter, and to get to know the relative default parameters.

Making Measurements

3.1 Frequency Measurement

Auto triggering is enabled by default for frequency measurement, and the trigger levels are set to the 50% points of the signal. One may manually disable the auto triggering function and change the trigger levels and slopes settings (refer to Ch.4.8).

To measure frequency

1. Connect your signal source to the input channel you wish to use.

2. Press FREQ & RATIO button.

3. Press the softkey FREQ to select frequency measurement function.

Press it again to select the desired channel.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time, resolution or arming

if needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button to set the upper and lower limits if it’s

needed (refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 to set the input conditions and the trig

Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if needed (refer to Ch.4.9).

5. Press RUN button to start continuous measurements.

2323

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements.

Remote Interface Command

Use the following commands to instruct measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]FREQuency [1|2|3]” Or :CONFigure[:SCALar][:VOLTage]:FREQuency [(@1)|(@2)|(@3)] :READ[[:SCALar][:VOLTage]:FREQuency]? Or :MEASure[:SCALar][:VOLTage]:FREQuency? [(@1)|(@2)|(@3)]

the

MODEL 1105 for making frequency

3.2 Frequency Ratio Measurement

Auto triggering is enabled by default for frequency ratio measurement, and the trigger levels are set to the 50% points of each signal. One may manually disable auto triggering and change the trigger levels and slopes settings (refer to Ch.4.8).

To measure frequency ratio

1. Connect your signal sources to the input channels you wish to use.

2. Press FREQ & RATIO button.

3. Press the softkey under RATIO to select frequency ratio

measurement function. Press it again to select the desired channels.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time, resolution or arming

if it’s needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button set the upper and lower limits if it’s needed

(refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 & CH2 to set the input conditions and

2424

the trig Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measuremets.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements.

Remote Interface Command

Use the following commands for making frequency ratio measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]FREQuency:RATio [1,2|2,1|3,1|1,3]” Or :CONFigure[:SCALar][:VOLTage]:FREQuency:RATio [(@1),(@2)|(@2),(@1)|(@1),(@3)|(@3),(@1)] :READ[[:SCALar][:VOLTage]:FREQuency:RATio]? Or :MEASure[:SCALar][:VOLTage]:FREQuency:RATio? [(@1),(@2)|(@2),(@1)|(@1),(@3)|(@3),(@1)]

3.3 Time Interval Measurement

Interval 1 to 2 measures the length of the duration between a start event on channel 1 and a stop event on channel 2. Auto triggering is enabled by default for time interval measurement, and the trigger levels are set to the 50% points of each signal. One may manually disable auto triggering and change the trigger levels and slopes settings (refer to Ch.4.8).

To measure time interval

1. Connect the signal sources to the channel 1 and 2 respectively.

2. Press TIME&PERIOD button.

3. Use the softkey under Intval 1 to 2 to select interval measurement

function.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time, resolution or arming

if it’s needed (refer to Ch.4.3).

2525

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button set the upper and lower limits if it’s needed

(refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 & CH2 to set the input conditions and

the trig Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measurements.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements. The start and the stop events may be triggered from the same source connected to one of the two channels. Refer to Ch.4.8 for detailed operations.

Remote Interface Command

Use the following commands for making time interval measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]TINTerval [1,2]” Or :CONFigure[:SCALar][:VOLTage]:TINTerval [(@1),(@2)] :READ[[:SCALar][:VOLTage]:TINTerval]? Or :MEASure[:SCALar][:VOLTage]:TINTerval? [(@1),(@2)]

3.4 Period Measurement

2626

To measure period

1. Connect your signal source to channel 1.

2. Press TIME&PERIOD button.

3. Press the softkey under Period to select period measurement

function.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time, resolution or arming

if needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

needed (refer to Ch.4.4).

c. Use Limit Modes button set the upper and lower limits if needed

(refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

needed (refer to Ch.4.6).

e. Use the selections in the CH1 to set the input conditions and the trig

Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if needed (refer to Ch.4.9).

5. Press RUN button to make continuous measuremets.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements.

Remote Interface Command

Use the following commands for making period measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]PERiod [1|2|3]” Or :CONFigure[:SCALar][:VOLTage]:PERiod [(@1)|(@2)|(@3)] :READ[[:SCALar][:VOLTage]:PERiod]? Or :MEASure[:SCALar][:VOLTage]:PERiod? [(@1)|(@2)|(@3)]

2727

3.5 Rise/Fall Time Measurement

Auto triggering is enabled by default for rise/fall time measurmenet, and it automatically identifies the 10% and 90% points of the signal and sets the trigger levels in accordance. One may manually disable the auto triggering and override the automatic settings (refer to Ch.4.8).

To measure rise or fall time

1. Connect your signal source to channel 1.

2. Press TIME&PERIOD button.

3. Press the softkey under EDGE to select edge measurement function.

Press it again to toggle between rise and fall times.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time, resolution or arming

if it’s needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button set the upper and lower limits if it’s needed

(refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 to set the input conditions and the trig

Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measuremets.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements.

Remote Interface Command

Use the following commands for making rise or fall time measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]RISE:TIME [1]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]RTIMe [1]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]FALL:TIME [1]”

2828

[:SENSe]:FUNCtion[:ON] “[:][XNONe:]FTIMe [1]” Or :CONFigure[:SCALar][:VOLTage]:RISE:TIME [(@1)] :CONFigure[:SCALar][:VOLTage]:RTIMe [(@1)] :CONFigure[:SCALar][:VOLTage]:FALL:TIME [(@1)] :CONFigure[:SCALar][:VOLTage]:FTIMe [(@1)] :READ[[:SCALar][:VOLTage]:RISE:TIME]? :READ[[:SCALar][:VOLTage]:RTIMe]? :READ[[:SCALar][:VOLTage]:FALL:TIME]? :READ[[:SCALar][:VOLTage]:FTIMe]? Or :MEASure[:SCALar][:VOLTage]:RISE:TIME? [(@1)] :MEASure[:SCALar][:VOLTage]:RTIMe? [(@1)] :MEASure[:SCALar][:VOLTage]:FALL:TIME? [(@1)] :MEASure[:SCALar][:VOLTage]:FTIMe? [(@1)]

3.6 Pulse Width Measurement

Auto triggering is enabled by default for pulse width measurement, and the trigger levels are set to the 50% points of each signal. One may manually disable the auto triggering and change the trigger levels and slopes settings (refer to Ch.4.8).

To measure pulse width

1. Connect your signal source to channel 1.

2. Press TIME&PERIOD button.

3. Press the softkey under WIDTH to select pulse width measurement

function. Press it again to select positive width or negative width.

4. Optional settings:

a. Use softkey Period CH1/CH2, and GATE&ExtArm button to set the

gate time, resolution or arming if it’s needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button to set the upper and lower limits if needed

(refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

2929

needed (refer to Ch.4.6).

e. Use the selections in the CH1 to set the input conditions and the trig

Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measurement.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurement.

Remote Interface Command

Use the following commands for making pulse width measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]PWIDth [1]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]NWIDth [1]” Or :CONFigure[:SCALar][:VOLTage]:PWIDth [(@1)] :CONFigure[:SCALar][:VOLTage]:NWIDth [(@1)] :READ[[:SCALar][:VOLTage]:PWIDth]? :READ[[:SCALar][:VOLTage]:NWIDth]? Or :MEASure[:SCALar][:VOLTage]:PWIDth? [(@1)] :MEASure[:SCALar][:VOLTage]:NWIDth? [(@1)]

3.7 Duty Cycle Measurement

The Duty cycle is defined by the following formula, and with its results from 0 to 1:

Duty Cycle = (Positive Pulse Width)/Period

The dutycycle mode is only available to apply on Channel 1. Moreover, auto triggering is enabled by default for duty cycle measurement, and the trigger levels are set to the 50% points of each signal. One may manually disable the auto triggering and change the trigger levels and

3030

slopes settings (refer to Ch.4.8).

To measure Duty Cycle

1. Connect your signal source to channel 1.

2. Press OTHER MEAS button.

3. Use the first row softkey under DUTY CYC1 to select duty cycle

measurement function.

4. Optional settings:

a. Use GATE&ExtArm button to set the auto or external gate time if it’s

needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button set the OnFail, OUT*, Upper and Lower

limits if it’s needed (refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 to set the input conditions and the trig

Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measurements.

6. Press STOP/SINGLE button to make single measurement or to stop

continuous measurements.

Remote Interface Command

Use the following commands for making duty cycle measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]DCYCle [1]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]PDUTycycle [1]” Or :CONFigure[:SCALar][:VOLTage]:DCYCle [(@1)] :CONFigure[:SCALar][:VOLTage]:PDUTycycle [(@1)] :READ[[:SCALar][:VOLTage]:DCYCle? :READ[[:SCALar][:VOLTage]:PDUTycycle]? Or :MEASure[:SCALar][:VOLTage]:DCYCle? [(@1)]

3131

:MEASure[:SCALar][:VOLTage]:PDUTycycle? [(@1)]

3.8 Totalize Measurements

Totalize measurement counts and displays the number of events triggered from the input signal. Only channel 1 is available for this measurement. Auto-triggering is automatically turned off on channel 1 as the signal may not be suitable at the beginning of the measurement. If GATE:AUTO is selected (refer to Ch.4.3), the Counter will continuously display the count of events. Otherwise, the counting stops at the time constrained by the Gating&Arming settings. Counting is reset to zero when totalize function is first invoked, when the RUN button is pressed, or when STOP/SINGLE button is pressed.

※※※※

Note: The totalize measurement function can’t be used under

Scale & Offset, Limit Modes and Stats.

To make totalize measurement

1. Connect your signal source to channel 1.

2. Press OTHER MEAS button.

3. Press the softkey under TOTAL CH 1 to select totalize measurement

function.

4. Optional settings:

a. Use GATE&ExtArm button to set the gate time or external arming if

it’s needed (refer to Ch.4.3).

b. Use the selections in the CH1 to set the input conditions and the trig

Sens.

c. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

d. Use Save&Recall button to save the changes made in step a if it’s

needed (refer to Ch.4.9).

5. Press RUN or STOP/SINGLE button to start measurement.

Remote Interface Command

Use the following commands for making Totalize measurements: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]TOTalize [1]”

3232

Or :CONFigure[:SCALar][:VOLTage]:TOTalize:CONTinuous [(@1)] :CONFigure[:SCALar][:VOLTage]:TOTalize:TIMed [(@1)] :READ[[:SCALar][:VOLTage]:TOTalize:TIMed]? Or :MEASure[:SCALar][:VOLTage]:TOTalize:CONTinuous? [(@1)] :MEASure[:SCALar][:VOLTage]:TOTalize:TIMed? [(@1)]

3.9 Phase Measurements

Phase 1 to 2 measures the phase difference between signals on channel 1 and channel 2, and the phase difference is shown in degree. Moreover, auto triggering is enabled by default for time interval measurement, and the trigger levels are set to the 50% points of each signal. One may manually disable auto triggering and change the trigger levels and slopes settings (refer to Ch.4.8).

The Channel 2 here acts as the reference. One period on Channel 2 will be defined 360˚. As the Channel 1 leads the Channel 2, the pulse result will be positive.

To make phase measurement

1. Connect your signal sources to channel 1 and channel 2 respectively.

2. Press OTHER MEAS button.

3. Press the softkey under (PHAS 1 to 2) to select phase measurement

function.

4. Optional settings:

a. Use softkey “Phase 1 to 2” and GATE&ExtArm button to set the auto

or external ARM if it’s needed (refer to Ch.4.3).

b. Use Scale&Offset button to set the scaling and offset parameters if

it’s needed (refer to Ch.4.4).

c. Use Limit Modes button to set the OnFail, OUT*, Upper and Lower

limits if it’s needed (refer to Ch.4.5).

d. Use Stats button to set up the statistics function and limit filtering if

it’s needed (refer to Ch.4.6).

e. Use the selections in the CH1 & CH2 to set the input conditions and

3333

the trig Sens.

f. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

g. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measurements.

6. Press STOP/SINGLE button to stop current measurement or to make

single measurement.

Remote Interface Command

Use the following commands for making phase measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]PHASe [1,2]” Or :CONFigure[:SCALar][:VOLTage]:PHASe [(@1),(@2)] :READ[[:SCALar][:VOLTage]:PHASe]? Or :MEASure[:SCALar][:VOLTage]:PHASe? [(@1),(@2)]

3.10 Voltage Peak Measurement

The MODEL 1105 can also measure positive or negative voltage peak of the input signal. Note that the Counter measures the input signal after the signal is conditioned by the input settings (impedance, coupling, attenuation, and filter, refer to Ch.4.7). The measurement result is corrected for X10 attenuation. Also note that Gating&Arming, Limit and Math are not available for voltage peak measurements.

To measure positive or negative voltage peak

1. Connect your signal source to channel 1 or 2.

2. Press VOLT PEAK button to select voltage peak measurement

function.

3. Press the softkey under VOLT to select input channel.

4. Optional settings:

a. Press the softkey under MODE to select the operational mode as

Fast or Slow.

b. Press the softkey under SHOW to select display of the result as

3434

Vmax (positive peak), Vmin (negative peak), Vc (average from positive and negative peak) or Vpp (peak-to-peak).

c. Use the selections in the CH1 or CH2 to set the input conditions and

the trig Sens.

d. Use Show Status button to check the conditions of Input, Volt, Stats

and Limit.

e. Use Save&Recall button to save your settings (i.e., changes made in

steps a-d) if it’s needed (refer to Ch.4.9).

5. Press RUN button to make continuous measurements.

6. Press STOP/SINGLE button to stop current measurement or to make

single measurement.

Remote Interface Command

Use the following commands for making voltage peak measurement: [:SENSe]:FUNCtion[:ON] “[:][XNONe:]VOLtage:MAXimum [1|2]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]VOLtage:MINimum [1|2]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]VOLtage: PTPeak [1|2]” [:SENSe]:FUNCtion[:ON] “[:][XNONe:]VOLtage: CENter [1|2]” Or :CONFigure[:SCALar][:VOLTage]: MAXimum [(@1)|(@2)] :CONFigure[:SCALar][:VOLTage]: MINimum [(@1)|(@2)] :CONFigure[:SCALar][:VOLTage]:PTPeak [(@1)|(@2)] :CONFigure[:SCALar][:VOLTage]: CENter [(@1)|(@2)] :READ[[:SCALar][:VOLTage]:PTPeak]? Or :MEASure[:SCALar][:VOLTage]:MAXimum? [(@1)|(@2)] :MEASure[:SCALar][:VOLTage]:MINimum? [(@1)|(@2)] :MEASure[:SCALar][:VOLTage]:PTPeak? [(@1)|(@2)] :MEASure[:SCALar][:VOLTage]:CENter? [(@1)|(@2)]

3535

This chapter will guide you through different ways of configuring measurement functions. It contains information about how to change the parameters and settings for your measurements and all the other front panel operations for system settings. Remote interface settings are described in Chapter 5.

Front Panel Operations

4.1 Measurement Result and Status Display

The MODEL 1105 universal counter provides display of measurement results along with the information on the channel of your choice. The following options are available for all the measurement functions except Voltage Peaks:

Please press Show Status softkey to check the messages located in the right bottom corner of the display as shown in Figure 4-1. Then, pressing the same softkey under the items to toggle the next information, for example, the Input item will appear as shown in Figure 4-2.

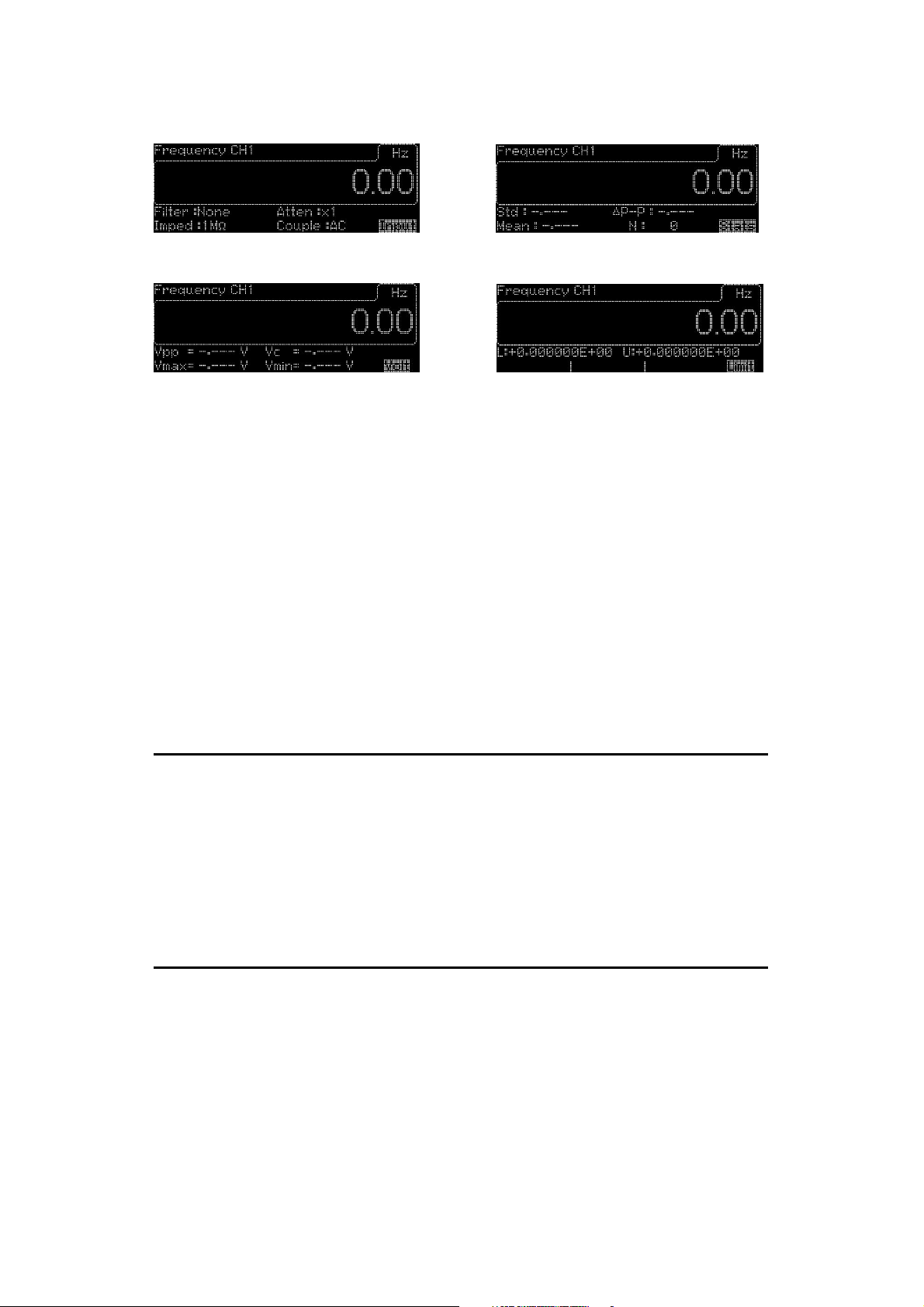

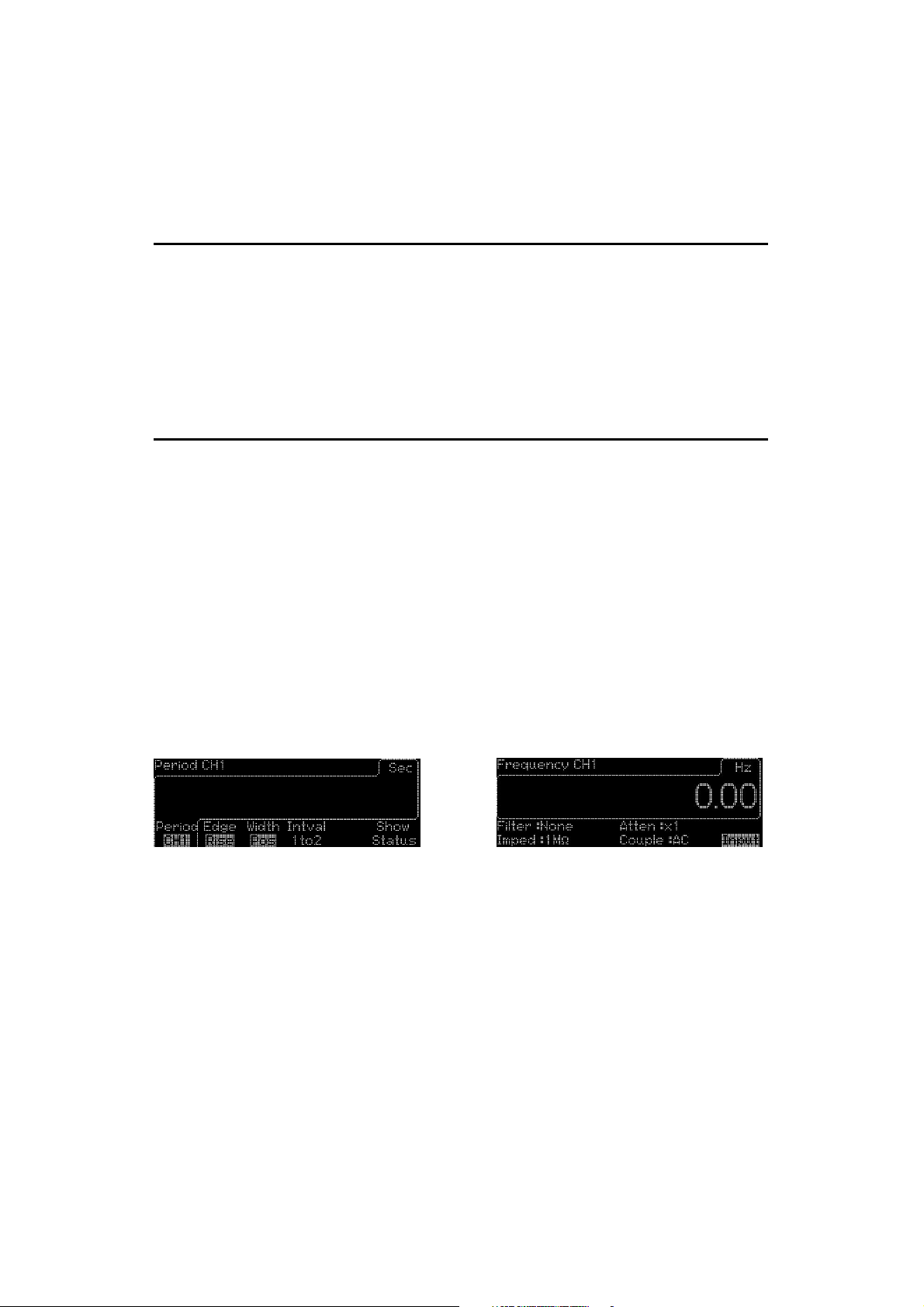

Figure 4-1 Figure 4-2  Input: display the parameters of the input channel(s) as shown in

Figure 4-3.  Stats: display statistics (mean, std, ∆P-P and N) and the number of

measurements taken in getting the statistics as shown in Figure 4-4.  Limit: display the measurement results in graph mode as shown in

Figure 4-6.  Volt: display the maximum, minimum, Vc and Vpp voltages of the

input signal as shown in Figure 4-5.

3636

Figure 4-3 Figure 4-4

Figure 4-5 Figure 4-6

For Voltage Peaks function, the available options are only Input and Volt.

Front panel operation:

1. Select your measurement function by pressing one of the

measurement keys.

2. Press the softkey under STATUS.

3. Keep pressing the softkey to toggle between the options.

4. Continue with the procedure described in Chapter 3 for the

measurement function of your choice.

4.2 Key Functions

The keys and buttons on the MODEL 1105 lead users to their application purposes. Berkeley Nucleonics Corporation provides two kinds of keys on the front panel. One is Numeric Keypad and Arrow Keys, and the other one is the measurement control keys.

4.2.1 Numeric Keypad and the Arrow Keys

There are 12 buttons on the numeric keypad plus four arrow keys, provided for numeric entry. To enter a numeric value, one may input the desired value directly on the numeric keypad or use the left/right arrow keys to move the cursor to the desired digit and the up/down arrow keys to increase or decrease the value. To finish the entry, press the softkey under Done or under the desired unit/exponent to set the value. To

3737

cancel the changes, press the softkey under CANCEL.

4.2.2 Measurement Control Keys (Run and

Stop/Single)

There are two measurement modes in the MODEL 1105: Run and Single modes. Users can press the Run key to put the Counter in the Run mode while the Stop/Single key is in the Single mode.

Run mode operations

 If the MODEL 1105 is under one of the measurement modes, press

the Run key to make the MODEL 1105 enter the Run mode and start

continuous measurements.  If the MODEL 1105 is under one of the measurement modes, press

the Run key again to make the Counter abort the on-going

measurement and (re-)enter the Run mode. This also clears any

statistics being collected.  If the MODEL 1105 is under one of the measurement modes, press

the Stop/Single key to make the Counter stop the measurement.  If the MODEL 1105 is under the Run mode, select another

measurement function to make the Counter abort the on-going

measurement.

Single mode operations

 If the MODEL 1105 is under one of the measurement modes, and

on-going measurement is actuated, press the Stop/Single key to

make the Counter enter the single mode and make single

measurement or N measurements if STATS:SINGLE:N is selected

and STATS:N CNT is set to N (refer to Ch.4.6). After the

measurement is done, the Counter automatically exits the Single

mode.  If the MODEL 1105 is under the Run mode, press the Stop/Single

key to make the MODEL 1105 enter the Single mode.  If the MODEL 1105 is under the Single mode, press the Stop/Single

key to cause the Counter to abort the current measurement.

3838

4.3 Gate & External Arm operations

The MODEL 1105 provides four arming modes: auto, time, digits and external. The descriptions are below the following table, giving the selection items under the functions, such as Freq/Period/Ratio, Phase, Totalize, Rise/Fall time and Time Interval:

Freq,Period,

Ratio

Auto Arming: Auto Arming: Auto Arming:

Gate: Auto ARM: Auto Gate: Auto Gate:

Digits Arming:

Gate:

Digits:

Digits

Phase Totalize

Rise Time,Fall Time,

+/-Width,Dutycycle

Auto Arming: Auto Arming:

Auto

Time Interval

*ARM: Delay*:

Time*: Event*:

Auto None Time

Event

<time>

Time Arming:

Gate: Time:

External Arming:

Gate: Start:

Stop:

Time:

<time>

NEG

Auto

NEG

Time

<time>

Time

Ext

POS

External

Arming: ARM: Slop:

Ext POS NEG

Time Arming:

Gate: Time:

Gate:

Start:

Stop:

Time:

<time>

External Arming:

<time>

Time

Ext POS NEG NEG POS

Time

External Arming: External Arming:

Gate:

Slop:

Ext

POS

NEG

*ARM: *Slop:

*Delay:

*Time: *Event: Stop*:

Slop*:

Delay*

Time*: Event*:

Ext POS NEG

None Time

Event

<time>

Auto

Ext POS NEG

None Time

Event

<time>

 Auto Arming

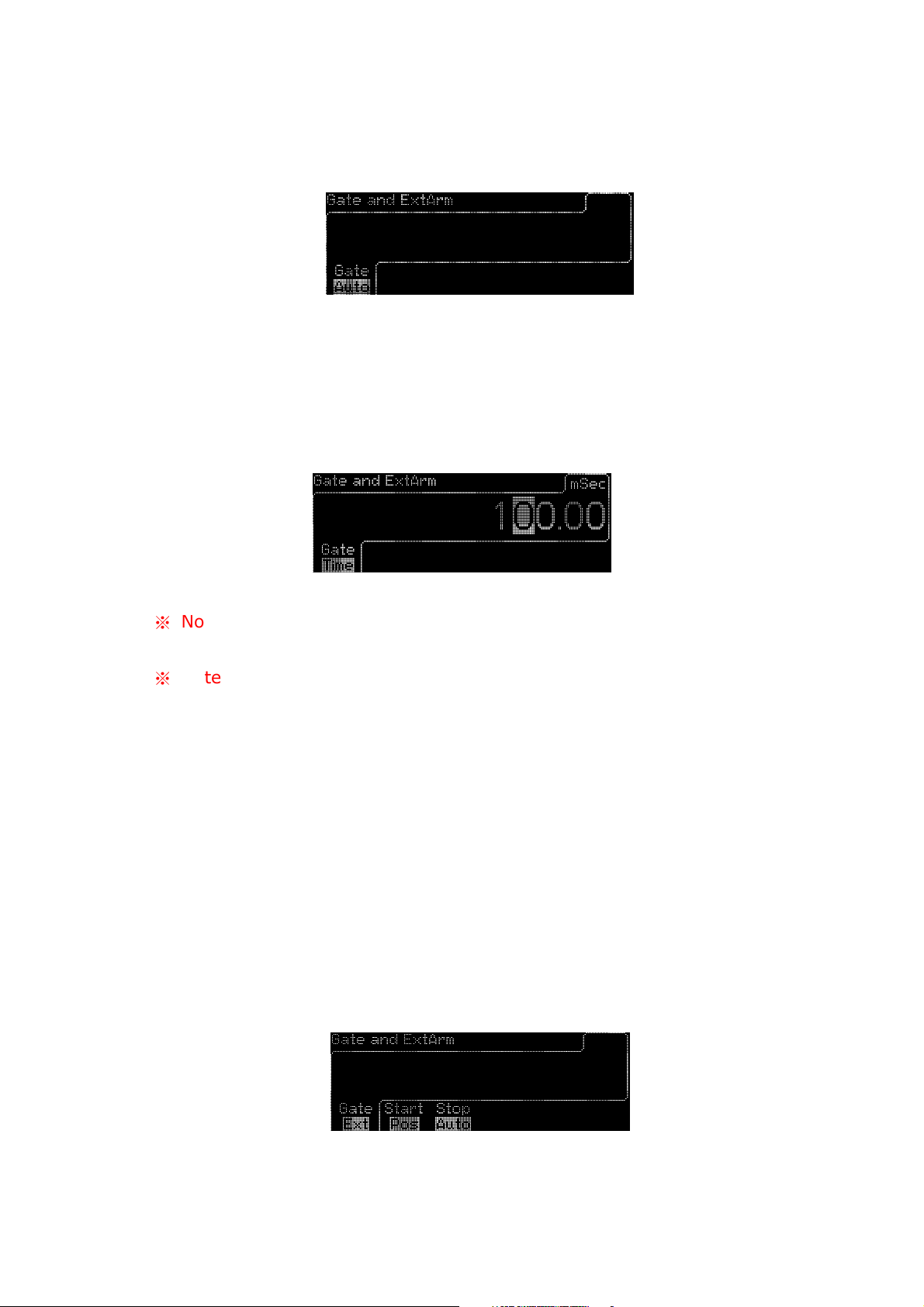

Under the Auto Arming mode as shown in the Figure 4-7 for the available measurement including frequency, period, frequency ratio, risetime, falltime, pulse width, dutycycle and phase, the counter takes measurements as fast as possible, except for totalize

3939

measurements. For totalize measurements, the counter starts to count whenever Run button or Stop/Single button is pressed.

Figure 4-7

 Time Arming

Under the time arming mode as shown in the Figure 4-8 for the available measurement including frequency, period, ratio and totalize, users can set the length of time (gate time) for which the counter takes measurement.

※

Note1: The Gate Time Range on the frequency and the period is from

Figure 4-8

1E-3 to 1000 seconds.

※

Note2: The Gate Time Range on the Ratio is from 1E-3 to 200 seconds.

 External Arming

Under the External Arming mode as shown in the Figure 4-9 for the available measurement including period, frequency ratio and totalize, a signal source must be connected to the Ext Arm connector on the rear panel. Start and end of measurement is then controlled by the external signal. When the External Arming is toggled, two more items are available to set. One is Start (Neg/Pos), and the other one is Stop (Neg/Pos/Time/Auto)

Figure 4-9

4040

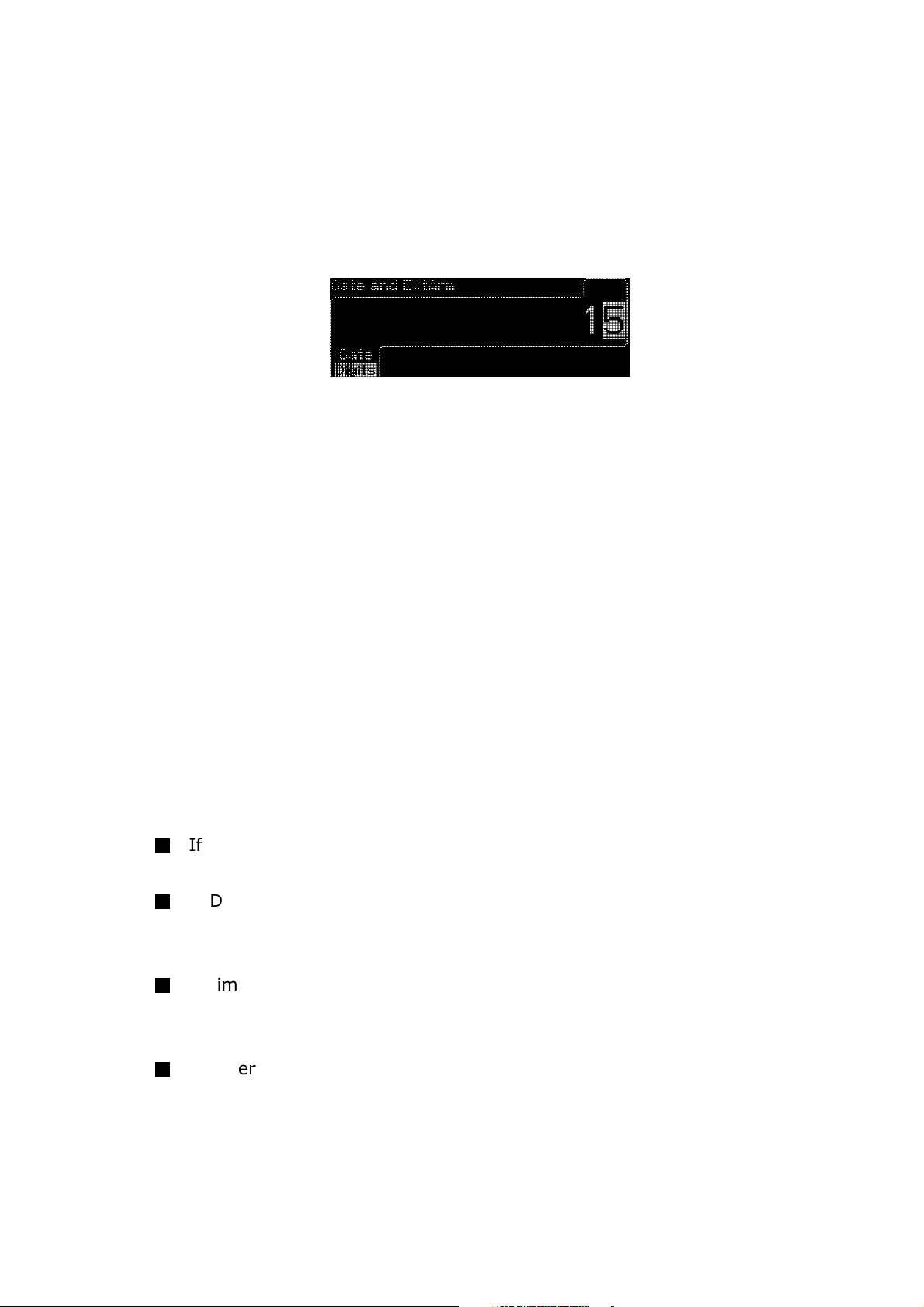

 Digits Arming

Under the Digits Arming mode with the range from 3 to 15 as shown in the Figure 4-10 for the available measurement including frequency, period, and ratio, users can set the resolution they request.

Figure 4-10

Gate and External Arm operations

1. Press Stop/Single button to stop the Counter from taking continuous measuring.

2. Select your desired measurement function by pressing one of the measurement function keys and the corresponding softkey if it’s needed (refer to Chapter 3).

3. Connect an external signal source to the Ext Arm connector on the rear panel if users want to apply the External Arming.

4. Press Gate&ExtArm button to further select from the menu.

For frequency, period and ratio measurements:

Press the softkey under GATE to toggle from auto, time, digits and external.

■

If Auto Arming is selected, the Counter will automatically start continuous measurement.

■

If Digits Arming is selected, use the numeric keypad or the arrow keys to input a desired number of digits or resolution (refer to Ch.4.2.1).

■

If Time Arming is selected, use the numeric keypad or the arrow keys to select a desired gate time (refer to Ch.4.2.1). The unit will show on the top-right corner.

■

If External Arming is selected, press the softkey under START to specify whether measurement should start at the positive or negative edge. Press the same key to toggle between positive and negative. Press the softkey under STOP to toggle between positive,

4141

negative, auto and time. This is to specify how measurement should stop. Positive and negative specifies the slope of the stop arm signal. Time is to set the duration of measurement. As time is selected, use the numeric keypad or the arrow keys to input a desired duration value (refer to Ch.4.2.1). The time unit will be shown on the top-right corner after the input is completed.

Remote Interface Commands

Auto arming:

[:SENSe]:FREQuency:ARM[:STARt]:SOURce IMMediate [:SENSe]:FREQuency:ARM:STOP:SOURce IMMediate

Digits arming:

[:SENSe]:FREQuency:ARM[:STARt]:SOURce IMMediate [:SENSe]:FREQuency:ARM:STOP:SOURce DIGits [:SENSe]:FREQuency:ARM:STOP:DIGits <numeric value>

Time arming:

[:SENSe]:FREQuency:ARM[:STARt]:SOURce IMMediate [:SENSe]:FREQuency:ARM:STOP:SOURce TIMer [:SENSe]:FREQuency:ARM:STOP:TIMer <numeric value>

External arming:

[:SENSe]:FREQuency:ARM[:STARt]:SOURce EXTernal [:SENSe]:FREQuency:ARM[:STARt]:SLOPe POSitive|NEGative [:SENSe]:FREQuency:ARM:STOP:SOURce IMMediate [:SENSe]:FREQuency:ARM:STOP:SOURce EXTernal [:SENSe]:FREQuency:ARM:STOP:SLOPe POSitive|NEGative [:SENSe]:FREQuency:ARM:STOP:SOURce TIMer [:SENSe]:FREQuency:ARM:STOP: TIMer <numeric value> [s]

For rise/fall time, duty cycle and width measurements:

Press the Time & Period and Gate & ExtArm buttons, and then toggle between auto and external under the softkey Gate.

■

If Auto Arming is selected, the Counter automatically starts continuous measurements.

■

If External Arming is selected, press the softkey under SLOPE to toggle between Positive and Negative. This is to specify the slope of the external start arm signal.

4242

Remote Interface Command

Auto arming:

[:SENSe]:TINTerval:ARM:ESTART:LAYer2:SOURce IMMediate

External arming:

[:SENSe]:TINTerval:ARM:ESTART:LAYer2:SOURce EXTernal [:SENSe]:TINTerval:ARM:ESTART:LAYer2:SLOPe Positive|NEGative

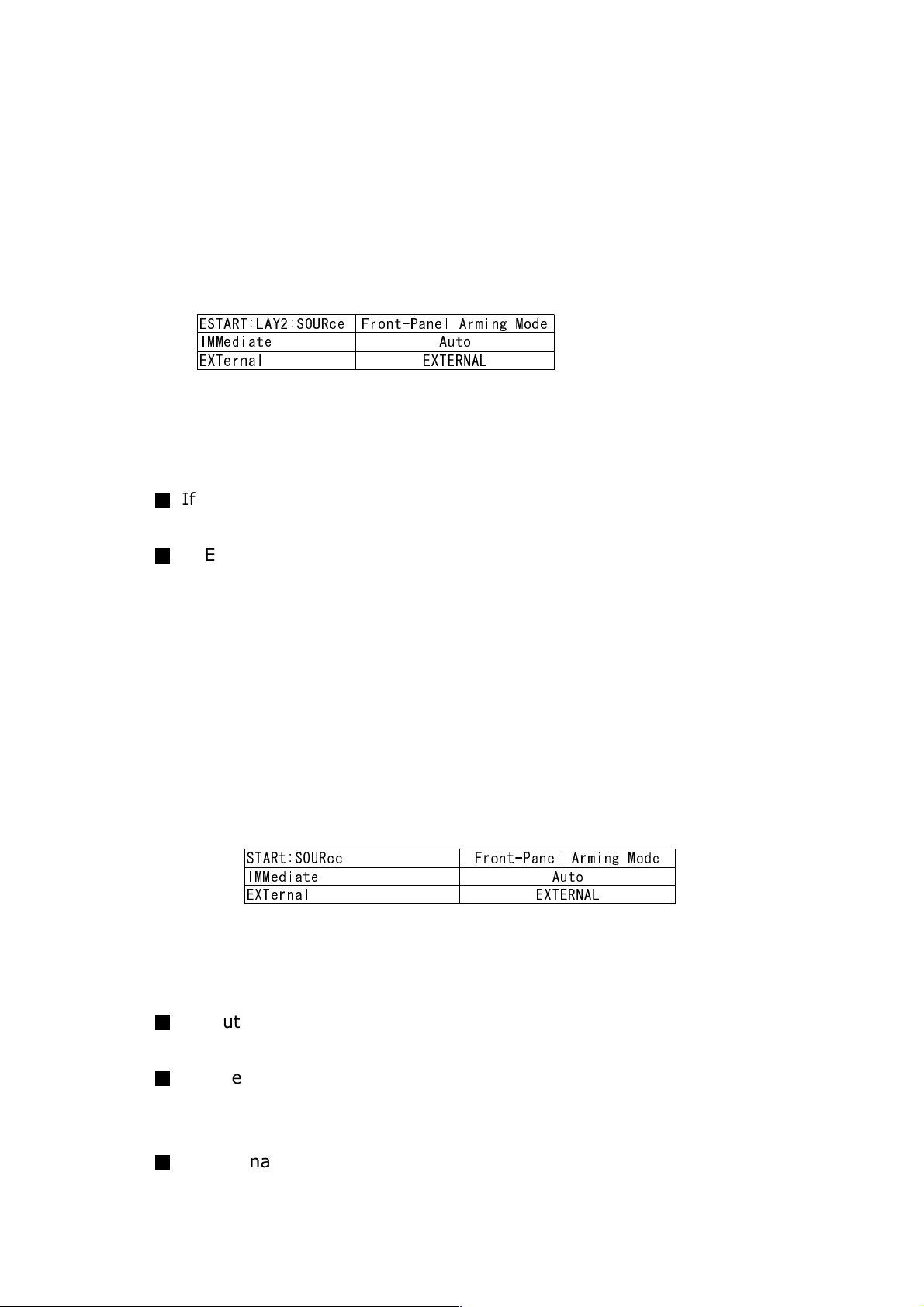

ESTART:LAY2:SOURce Front-Panel Arming Mode IMMediate Auto EXTernal EXTERNAL

For phase measurements:

Press the Other Meas and Gate & ExtArm buttons, and then toggle between auto and external under the softkey ARM.

■

If Auto Arming is selected, the Counter automatically starts continuous measurements.

■

If External Arming is selected, press the softkey under SLOPE to toggle between Positive and Negative. This is to specify the slope of the external start arm signal.

Remote Interface Command

Auto arming:

[:SENSe]:PHASe:ARM[:STARt]:SOURce IMMediate

External arming:

[:SENSe]:PHASe:ARM[:STARt]:SOURce EXTernal [:SENSe]:PHASe:ARM[:STARt]:SLOPe Positive|NEGative

STARt:SOURce Front-Panel Arming Mode IMMediate Auto EXTernal EXTERNAL

For totalize measurements:

Press the softkey under GATE to toggle from auto, time and external.

■

If Auto Arming is selected, the counter automatically starts continuous measurements.

■

If Time Arming is selected, use the numeric keypad or the arrow keys to select a desired gate time (refer to Ch.4.2.1). The time unit will be displayed on the top-right corner.

■

If External Arming is selected, press the softkey under START to

4343

toggle between positive and negative. This is to specify the slope of the start arm signal. Press the softkey under STOP to toggle between positive, negative and time. This is to specify how measurement should stop. Positive and negative specifies the slope of the stop arm signal. Time is to set the duration of measurement. As time is selected, use the numeric keypad or the arrow keys to input a desired duration value (refer to Ch.4.2.1). The time unit will be shown on the top-right corner.

Remote Interface Command

Auto arming:

[:SENSe]:TOTalize:ARM[:STARt]:SOURce IMMediate [:SENSe]:TOTalize:ARM:STOP:SOURce IMMediate

Time arming:

[:SENSe]:TOTalize:ARM[:STARt]:SOURce IMMediate [:SENSe]:TOTalize:ARM:STOP:SOURce TIMer [:SENSe]:TOTalize:ARM:STOP:TIMer <numeric value> [S]

External arming:

[:SENSe]:TOTalize:ARM[:STARt]:SOURce EXTernal [:SENSe]:TOTalize:ARM[:STARt]:SLOPe POSitive|NEGative [:SENSe]:TOTalize:ARM:STOP:SOURce EXTernal [:SENSe]:TOTalize:ARM:STOP:SLOPe POSitive|NEGative [:SENSe]:TOTalize:ARM:STOP:SOURce TIMer [:SENSe]:TOTalize:ARM:STOP:TIMer <numeric value> [S]

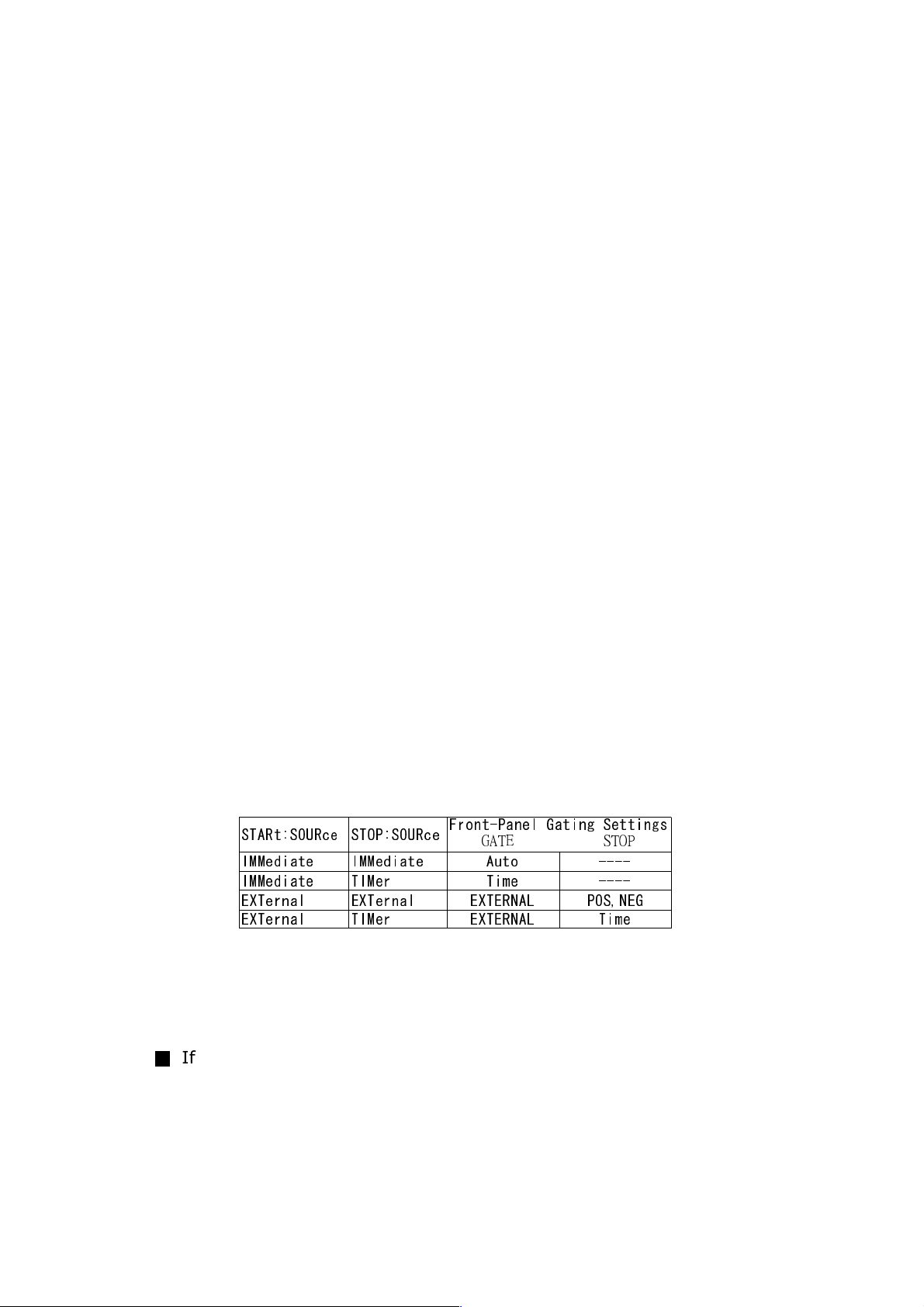

STARt:SOURce STOP:SOURce IMMediate IMMediate Auto ----

IMMediate TIMer Time ---- EXTernal EXTernal EXTERNAL POS,NEG EXTernal TIMer EXTERNAL Time

Front-Panel Gating Settings

GATE STOP

For time interval measurement:

Press the softkey under GATE to toggle between auto and external. Press the softkey under DONE to finish the selection.

■

If Auto Arming is selected, the counter automatically starts continuous measurements. Besides, users can press the softkey under Delay* to toggle between None, Time and Event. In the settings of Time and Event, users also can input parameters

4444

according to purposes.

■

If External Arming is selected, users can define the delay time and other settings by pressing the softkey under *Dely to toggle between None, Time and Event, the softkey under *Slop to toggle between Pos (Positive) and Neg (Negative), the softkey under Dely* to toggle between None, Time and Event, the softkey under Stop* to toggle between Auto and Ext. Please note that as the softkey is toggled to the Ext, the Slop* item will appear for users to toggle between Pos (Positive) and Neg (Negative). The setting information is in the following.

Start Delay TimeRange: 100 ns to 999.9999 ms Start Delay Time Resolution: 100 ns Start Delay Event Range: 1 to 99,999,999 Channel 2 events Start Delay Event Rate: 10 MHz maximum Start Delay Event Setup Time: 30 ns minimum

Stop Delay Time Range: 100 ns to 10 s Stop Delay Time Resolution: 100 ns from 100 ns to 1 s 1 ms from 1 s to 10 s Stop Delay Event Range: 1 to 99,999,999 Channel 2 events Stop Delay Event Rate: 10 MHz maximum Stop Delay Event Setup Time: 30 ns minimum

※

Note: For positive and negative of the *Slop, they specify the slope of the start arm signal. For positive and negative of the Stop*, they specify how measurement should stop. And for the Time, it’s to set the duration of measurement. As time is selected, use the numeric keypad or the arrow keys to input a desired duration value (refer to Ch.4.2.1). The time unit will be shown on the top-right corner.

Remote Interface Command

Auto arming:

[:SENSe]:TINTerval:ARM:ESTART:LAYer2:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTOP:LAYer2:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce TIMer

4545

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce INTernal2

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:TIMer <numeric_value> [S]

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:ECOunt <numeric_value>

External arming:

[:SENSe]:TINTerval:ARM:ESTART:LAYer2:SOURce EXTernal

[:SENSe]:TINTerval:ARM:ESTART:LAYer2:SLOPe POSitive | NEGative

[:SENSe]:TINTerval:ARM:ESTART[:LAYer[1]]:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTART[:LAYer[1]]:SOURce TIMer

[:SENSe]:TINTerval:ARM:ESTART[:LAYer[1]]:SOURce INTernal1

[:SENSe]:TINTerval:ARM:ESTART[:LAYer[1]]:TIMer <numeric_value> [S]

[:SENSe]:TINTerval:ARM:ESTART[:LAYer[1]]:ECOunt <numeric_value>

[:SENSe]:TINTerval:ARM:ESTOP:LAYer2:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTOP:LAYer2:SOURce EXTernal

[:SENSe]:TINTerval:ARM:ESTOP:LAYer2:SLOPe POSitive I NEGative

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce IMMediate

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce TIMer

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:SOURce INTernal2

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:TIMer <numeric_value> [S]

[:SENSe]:TINTerval:ARM:ESTOP[:LAYer[1]]:ECOunt <numeric_value>

4646

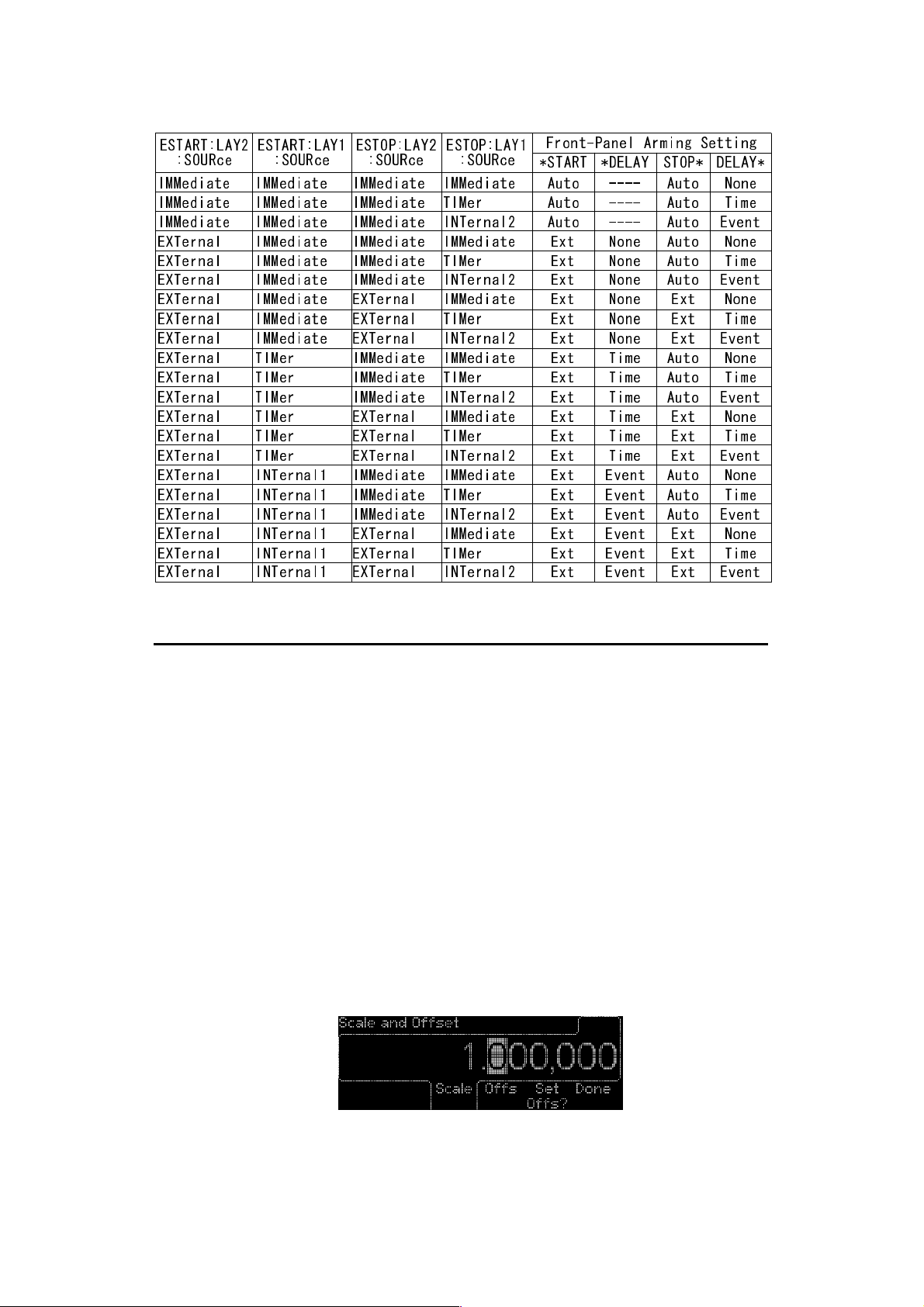

ESTART:LAY2

:SOURce

IMMediate IMMediate IMMediate IMMediate Auto ---- Auto None IMMediate IMMediate IMMediate TIMer Auto ---- Auto Time IMMediate IMMediate IMMediate INTernal2 Auto ---- Auto Event EXTernal IMMediate IMMediate IMMediate Ext None Auto None EXTernal IMMediate IMMediate TIMer Ext None Auto Time EXTernal IMMediate IMMediate INTernal2 Ext None Auto Event EXTernal IMMediate EXTernal IMMediate Ext None Ext None EXTernal IMMediate EXTernal TIMer Ext None Ext Time EXTernal IMMediate EXTernal INTernal2 Ext None Ext Event EXTernal TIMer IMMediate IMMediate Ext Time Auto None EXTernal TIMer IMMediate TIMer Ext Time Auto Time EXTernal TIMer IMMediate INTernal2 Ext Time Auto Event EXTernal TIMer EXTernal IMMediate Ext Time Ext None EXTernal TIMer EXTernal TIMer Ext Time Ext Time EXTernal TIMer EXTernal INTernal2 Ext Time Ext Event EXTernal INTernal1 IMMediate IMMediate Ext Event Auto None EXTernal INTernal1 IMMediate TIMer Ext Event Auto Time EXTernal INTernal1 IMMediate INTernal2 Ext Event Auto Event EXTernal INTernal1 EXTernal IMMediate Ext Event Ext None EXTernal INTernal1 EXTernal TIMer Ext Event Ext Time EXTernal INTernal1 EXTernal INTernal2 Ext Event Ext Event

ESTART:LAY1

:SOURce

ESTOP:LAY2

:SOURce

ESTOP:LAY1

:SOURce

Front-Panel Arming Setting

*START *DELAY STOP* DELAY*

4.4 Setting Scale and Offset

The MODEL 1105 provides the option of performing scaling and offset calculations on the measurement results before they are displayed. The mathematical formula involved is listed as follows:

(Displayed Result) = (Scale x Measurement Result) + Offset

The Scale and Offset are user-specified parameters as shown in the Figure 4-10, and provide multiplication and addition functions for user purposes to offset systematic errors or to present the percentage difference between signals. This option is disabled by default. It is automatically turned on when either Scale or Offset is specified.

Figure 4-10

4747

To Enable/Disable Math Calculation with Scale and Offset

1. Press SCALE&OFFSET button.

2. Press the softkey under Scale or Offs to do specific settings.

Remote interface command

Use this command to enable or disable the math operation: :CALCulate:MATH:STATe OFF︱ON

To Specify the value of Scale

1. Press SCALE&OFFSET button.

2. Press the softkey under Scale. The present value of Scale is then

displayed.

3. Use the numeric keypad or the arrow keys to enter a desired value

(refer to Ch.4.2.1).

SCALE Range: -9.999,999E+12 to -1.000,000E-13

0.000,000 +1.000,000E-13 to +9.999,999E+12

Value Resolution: 7 digits

4. Press the softkey under Done to finish the entry or the softkey under

Cancel to withdraw the changes.

Remote interface command

Use the following command to specify the value of Scale: :TRACe[:DATA] SCALE,<numeric value>

To Specify the value of Offset

1. Press SCALE&OFFSET button.

2. Press the softkey under Offs. The present value of Offset is then

displayed.

3. Use the numeric keypad or the arrow keys to enter a desired value

(refer to Ch.4.2.1).

Offset Range: -9.999,999,000,0E+12 to -1.000,000,000,0E-13

0.000,000,000,0 +1.000,000,000,0E-13 to +9.999,999,000,0E+12

Value Resolution: 11 digits

4. Press the softkey under Done to finish the entry of this value or the

4848

softkey under Cancel to withdraw the changes.

Remote interface command

Use the following command to specify the value of Offset: :TRACe[:DATA] OFFSET,<numeric value> [HZ|S|DEG]

To specify Set Offs?

To enable Set Offs, the value will be set in negative automatically.

1. Press Scale & Offset button.

2. Press the softkey under Set Offs?

4.5 Limits Operations

The MODEL 1105 lets you set upper and lower measurement limits, and you can instruct the Counter to stop or keep measuring when the measurement exceeds the limits. Please note that the Limit Modes are not available for the Totalize (located in Other Meas.) and the Voltage Peak measurement.

By the functions on the Limit Modes as shown in the Figure 4-11, users can stop measurement as they set (OnFail: Stop), and get measured value exceeding user-defined parameters. On the contrary, the measurement can keep going as the setting is (OnFail: Go on), although measurement exceeds user-defined parameters. And the exceeded values will be transmitted to another unit for diagnosing via USB as the (OUT* USB) is enabled.

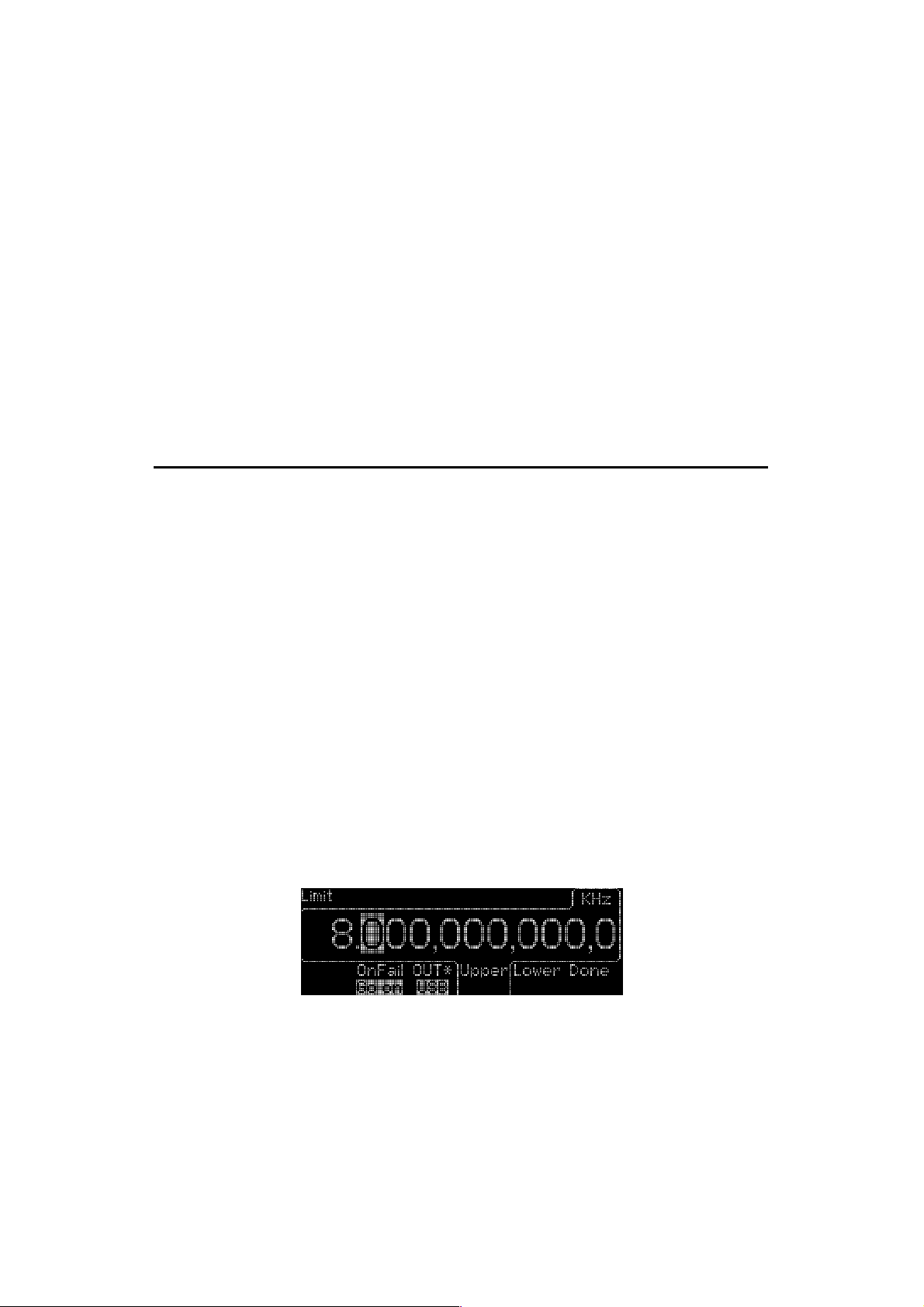

Figure 4-11

Besides, the (OnFail: Stop) won’t effect any change under single measurement mode.

4949

To set upper or lower limit

1. Press LIMIT MODES button.

2. Press the softkey under UPPR to select upper limit or under LOWR to

select lower limit. Use the numeric keypad or the arrow keys to enter a desired limit value (refer to Ch.4.2.1). Upper Range: -9.999,999,000,0E+12 to -1.000,000,000,0E-13

0.000,000,000,0

+1.000,000,000,0E-13 to +9.999,999,000,0E+12

Value Resolution: 11 digits

Lower Range: -9.999,999,000,0E+12 to -1.000,000,000,0E-13

0.000,000,000,0

+1.000,000,000,0E-13 to +9.999,999,000,0E+12

Value Resolution: 11 digits

3. Press the softkey under DONE to finish setting the limits.

Remote Interface Command

Use the following commands to set upper/lower limits:

:CALCulate2:LIMit:UPPer[:DATA] <numeric value> [HZ|S|DEG] :CALCulate2:LIMit:LOWer[:DATA] <numeric value> [HZ|S|DEG]

To use limit testing

1. Press LIMIT MODES button.

2. Press the softkey under ONFAIL to toggle between GO-ON and STOP.

Select GO-ON so that the Counter keeps making measurements when the measurement exceeds the limits, or select STOP so that the counter stops measuring when the measurement exceeds the limits.

3. Press the softkey under DONE to finish the setting.

Remote Interface Command

Use the following commands to activate the limit testing and to set ONFAIL mode:

:CALCulate2:LIMit:STATe OFF|ON :INITiate:AUTO OFF :INITiate:AUTO ON

5050

To display graph for limit testing result

The counter display Limit Testing results in a graph where a circle within two vertical bars represents a measurement within user-defined limits, and the setting information will be showed. Users Show Status > Limit. When users finish the Limit Testing settings and press the softkey under DONE, the graph display mode will be presented at the bottom of the display by pressing the softkey “Show Status”, and toggle between options until “Limit” appears.

Remote Interface Command

Use the following command to select display mode for Limit Testing result:

:CALCulate2:LIMit:DISPlay GRAPh

｜

NUMBer

To specify OUT*

Please refer to the instruction in Chapter 5.

1. Press Limit Modes button.

2. Press the softkey under OUT* to toggle between Off, USB or DB9 (1105-opt03)

Remote Interface Command

:SYSTem:COMMunicate:SERial:CONTrol:DTR OFF|LIM

:SYSTem:COMMunicate:SERial:SOURce USB｜DB9

4.6 Statistics Operations

The MODEL 1105 may be activated to collect statistics on measurements within specified limits or on other measurement except Peak Volts and Totalize. Press the STATS button to enter the menu for setting up statistics operations:



To enable/disable statistics operations: press the STATS in the MATH area on the front panel to turn on or off the statistics operation.



To select which statistic to display: press the softkey under SHOW to toggle between Stdev, Max, Min, Mean, Delta, Meas and

5151

Allan.



To display measurement: press the softkey under SHOW to toggle through the options until MEAS appears.



To set number of measurements made for each computed statistic: press the softkey under N Cnt to enter the number of counts. Use the numeric keypad and the arrow keys to set the desired value (refer to Ch.4.2.1). The number range is from 2 to 1,000,000.



To display the statistics on measurements within limits (refer to Ch. 4.5 for setting the limits): press the softkey under USE to toggle between All (taking all measurements) and InLimit (taking only measurements within limits).



To specify whether to make single or N measurements (specified by N Cnt) when the STOP/SINGLE button is pressed: press the softkey under SINGLE to toggle between Once and N. Also refer to the single mode operation in Ch.4.2.2. N means the number of limited measurement.

※

Note: Generally, measurement resolution will be improved in proportion to

√

₂

, even up to the numerical process limits of the

instrument.

Remote Interface Command

Use the following commands for statistic operations:

:CALCulate3:AVERage[:STATe] OFF|ON :CALCulate3:AVERage:COUNt <numeric value> :CALCulate3:LFILter:STATe ON|OFF :CALCulate3:AVERage:TYPE MAXimum｜MINimum｜SDEViation｜MEAN or SCALar :DISPlay[:WINDow]:TEXT:FEED “CALC3” :TRIGger:COUNt:AUTO ON︱OFF

｜

DELTa｜ALLAN

4.7 Setting Channel Input Conditions

Press CH1 or CH2 button to enter the channel conditioning menu in which you can set up the input conditions of the corresponding channel.

5252

Procedures for setting up the input conditions are identical for both channels.



To Set Input Impedance: press the softkey under IMPED to toggle between 1 MΩ and 50Ω.



To Set Input Coupling: press the softkey under COUPL to toggle between AC and DC.



To Set Attenuation of signals: press the softkey under ATTEN to toggle between Χ1 and Χ10.



To Set Filter: press the softkey under FILTER to toggle between NONE and 100k.



Input Front/Rear: Users also can do measurement from the rear terminal by pressing the softkey under Input Front, once the source connection is established in the rear. Please note that if sources are from the rear, users have to purchase the accessory 1105-opt04.

Remote Interface Command

Use the following commands for assigning your channel conditions:

4.8 Trigger Setting

All measurement functions are almost performed in auto-trigger default mode. One may manually turn off auto triggering and/or make changes on related settings if it’s needed.

When auto-triggering is off, users are allowed to specify the voltage level at which the corresponding input channel triggers an event. When auto-triggering is on, users are allowed to specify the percentage of an input signal at which the Counter triggers an event. In addition, one may specify sensitivity level to avoid incorrect events triggered due to noise.

5353

Sensitivity at a particular frequency is the lowest amplitude signal to trigger the counter for counting. The amplifier gain and the voltage difference between the trigger hysteresis levels determine the sensitivity of the counter. Sensitivity is specified by the upper and lower levels with the trigger level fixed at the middle. The input signal must cross both the upper and lower levels in order to trigger a count as shown in Figure 4-12. If the peak-to-peak amplitude of a signal does not exceed the limits, this signal will not trigger a count as shown in Figure 4-13. Moreover, the counter also won’t do a count as the trigger level which is set below the midpoint of the signal can’t cross the limit as shown in Figure 4-14.

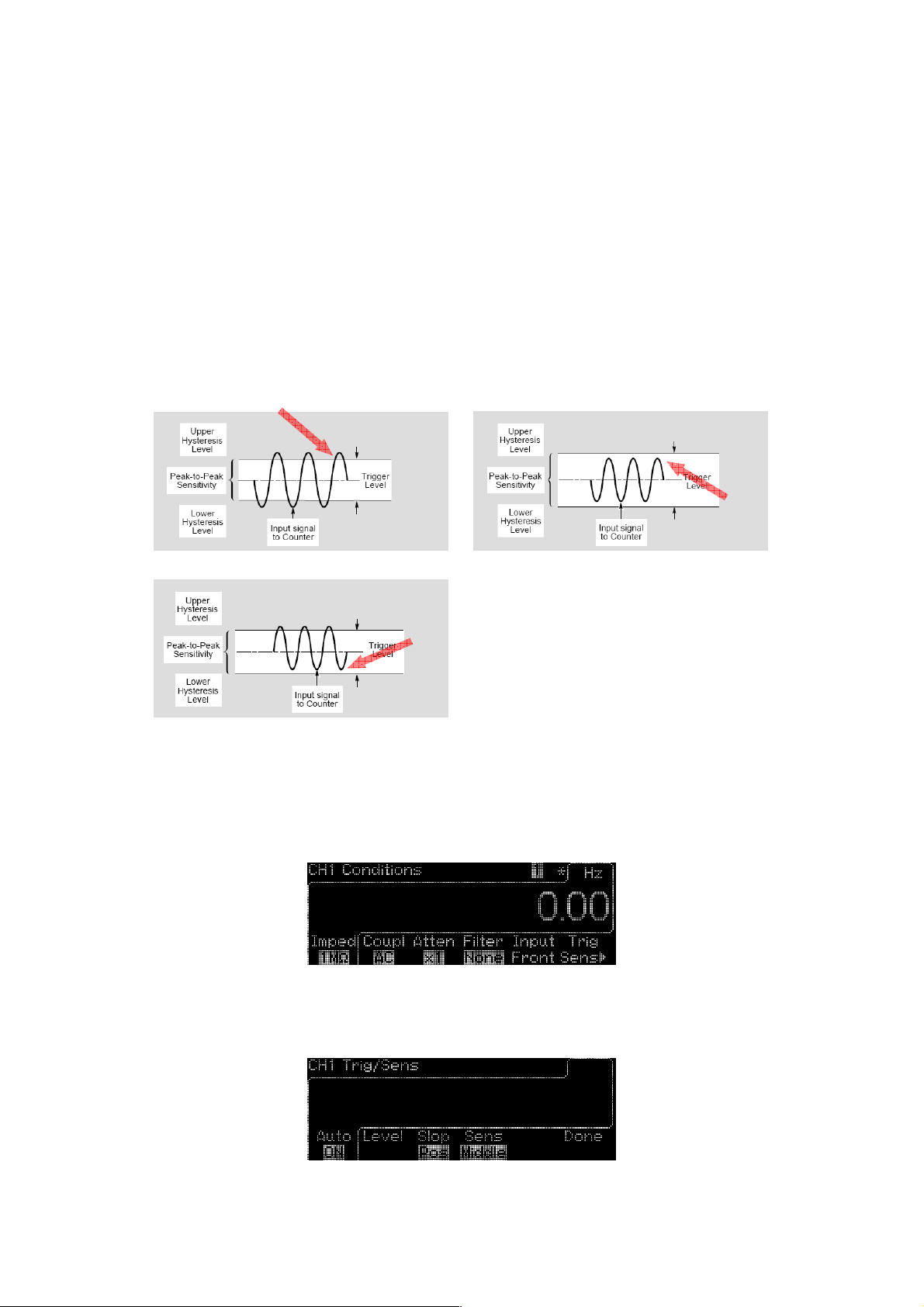

Figure 4-12 Figure 4-13

Figure 4-14

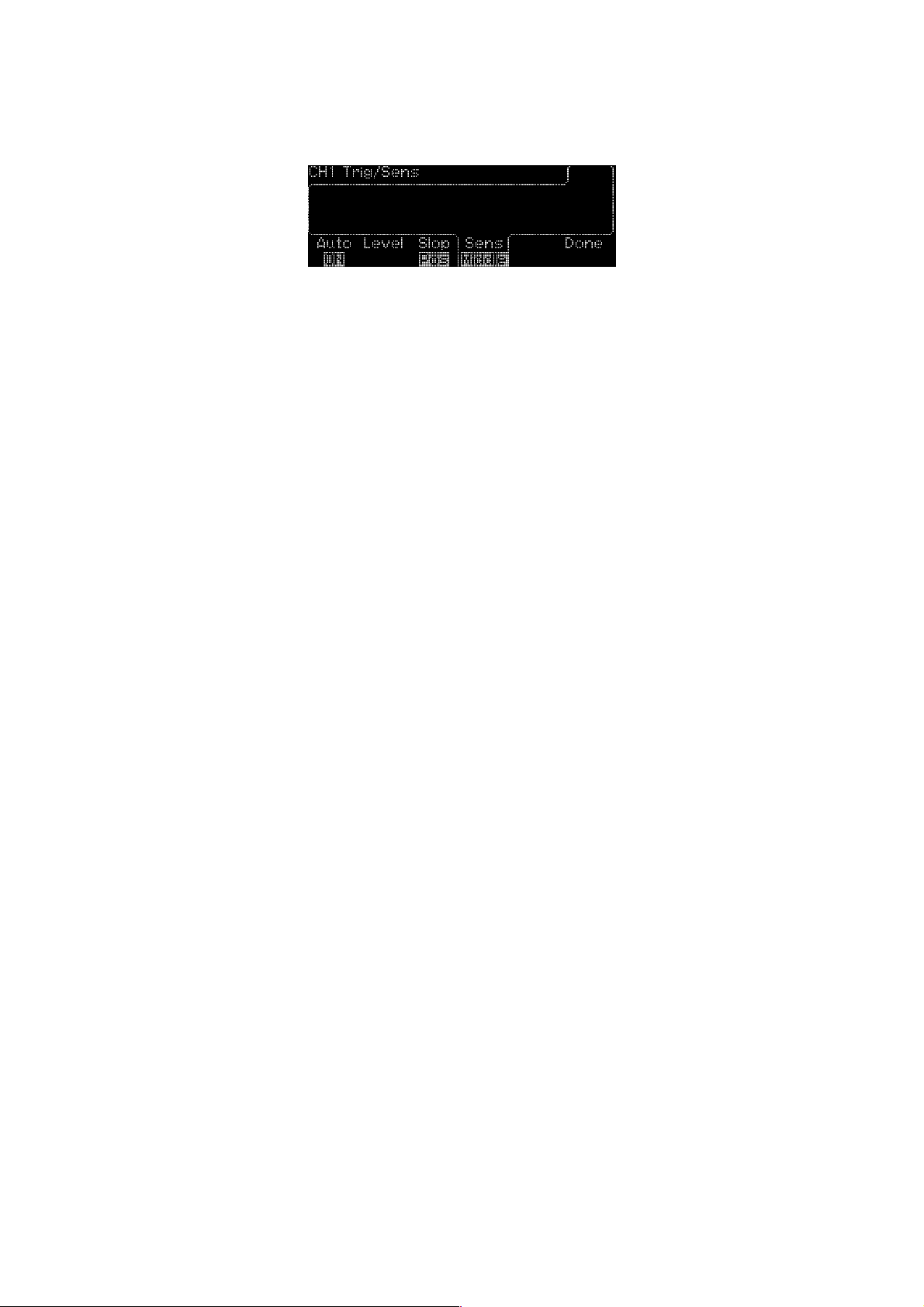

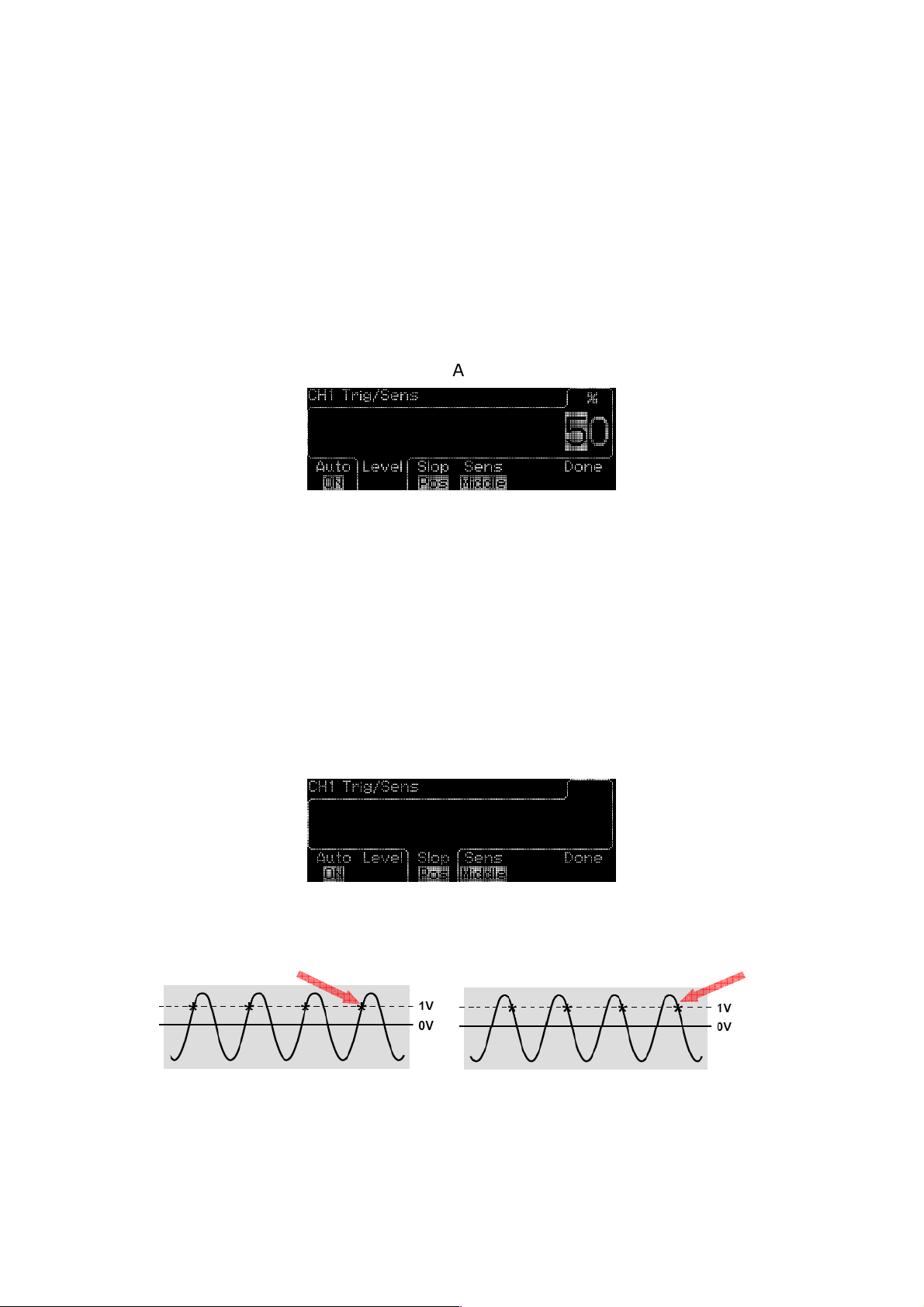

Triggering menu is associated with input channel. Press CH1 or CH2 and the softkey under TRIG SENS as shown in the Figure 4-15 to enter the menu. Then follow the instructions below for different operations:

Figure 4-15



To turn on/off auto triggering: press the softkey under AUTO to toggle between ON and OFF as shown in the Figure 4-16.

5454

Figure 4-16



To set trigger level: press the softkey under LEVEL and use the numeric keypad or arrow keys to enter a desired value as shown in the Figure 4-17 (refer to Ch.4.2.1). Trig Auto ON: 0 to 100 PCT Trig Auto OFF: ATT X1: -5.125 to +5.125V ATT X10: -51.25 to +51.25V Numeric_value Resolution: ATT X1: 0.0025V

ATT X10: 0.025V

Figure 4-17



To specify triggering slope/edge: press the softkey under SLOPE as shown in the Figure 4-18 to toggle between POS (positive) as shown in Figure 4-19 and NEG (negative) as shown in Figure 4-20. High: 0 PCT Middle: 50 PCT Low: 100 PCT

Figure 4-18

Figure 4-19 Figure 4-20



To set sensitivity: Press the softkey under SENS to toggle between

5555

LOW, MED (medium) and HIGH as shown in the Figure 4-21.

Figure 4-21

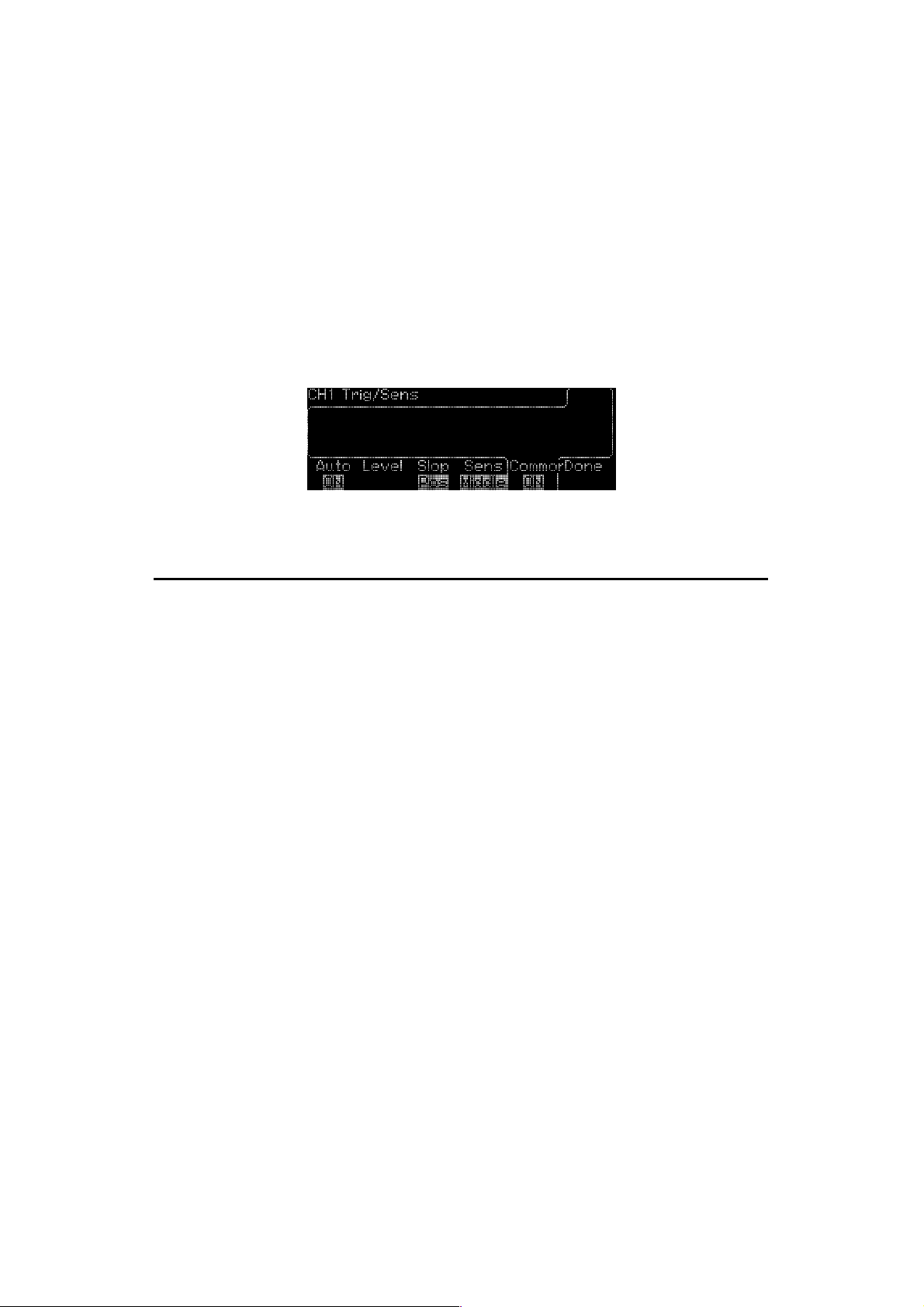

 To set Com.: The setting is enabled only by using Time Interval as

shown in the Figure 4.22. To toggle the softkey Com. OFF, sources will be inputted to the CH1 and CH2 individually as the Time Interval is working. To toggle the softkey Com. ON, sources will be supported via CH1 only as the Time Interval is working.

Remote Interface Command

To turn on/off auto triggering

[:SENSe]:EVENt[1|2]:LEVel[:ABSolute]:AUTO ON|OFF

To set trigger level

[:SENSe]:EVENt[1|2]:LEVel[:ABSolute] <numeric value> [v] [:SENSe]:EVENt[1|2]:LEVel:RELative<numeric value> [PCT]

To set sensitivity

[:SENSe]:EVENt[1|2]:HYSTeresis:RELative 100|50|0

To specify triggering slope/edge

[:SENSe]:EVENt[1|2]:SLOPe POSitive|NEGative

To set common

[:SENSe]:EVENt2:FEED “[:]INPut[1] | [:]INPut2”

Using Com. to Make Time Interval (TI) Measurement on a Single

Signal

As described in Ch.3.3, Interval 1 to 2 measures the length of the duration between a start event on channel 1 and a stop event on channel

2. And users also can do the settings on level, slope or sensitivity for application purposes. One may also follow the following instructions such that the start and the stop events are triggered from the same source connected to one of the two channels:

1. Connect a signal source to channel 1 (or 2).

5656

2. Press TIME&PERIOD button.

3. Use the softkey under (INTVL 1 to 2) to select interval

measurement

4. Press CH1 (or CH2) button to enter the channel conditioning menu.

5. Press the softkey under TRIG SENS to enter the trigger setting

menu.

6. Press the softkey under Com. to select OFF (or ON) as shown in the

Figure 4-22. This instructs the Counter to count the signal interval time from channel 1 (or 2) to channel 2 (or 1).

Figure 4-22

4.9 Save and Recall Functions

The MODEL 1105 universal counter provides functions to save and recall your measurement settings which determine how the MODEL 1105 measures, analyzes and reports answers, especially, the functions can reserve measurement settings, desired precision, specific offset/scale, limit range and statistics. The settings are stored in non-volatile memory and will not be erased after power-down. The MODEL 1105 can save up to 20 different measurement settings as shown in the Figure 4-23. Refer to Table in Appendix B for all the measurement parameters that are handled by Save and Recall function.

To save measurement setting

1. Press SAVE&RECALL button.

2. Use the softkey under SAVE to select “save” function.

3. Toggle the same softkey or use the numeric or arrow keys to enter

the memory address (1-20) to which you want to save the current settings.

4. Press the softkey under ENTER to select one of specified records.

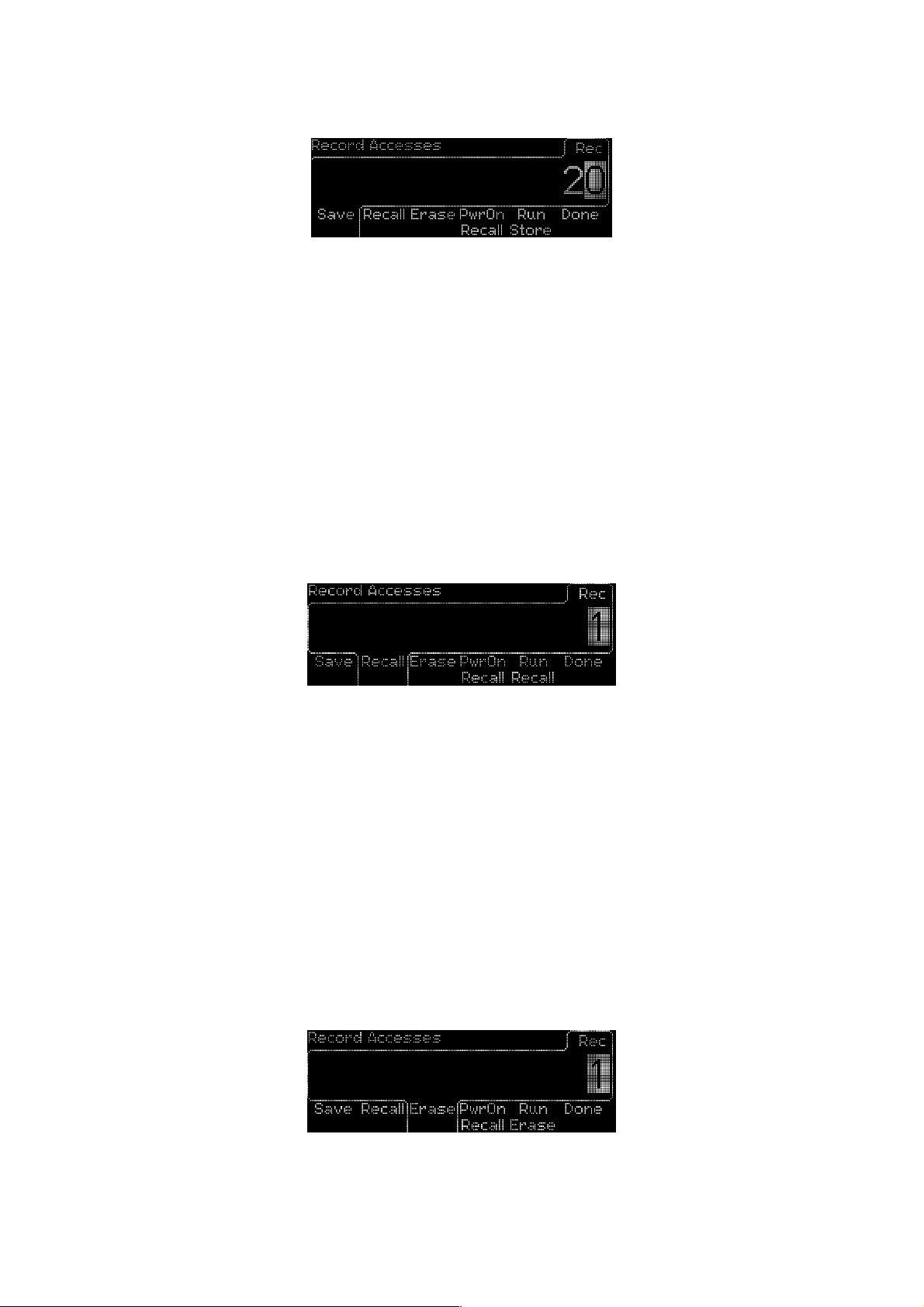

5. Press the softkey under Run Store to do the save action as shown in

Figure 4-23.

5757

Figure 4-23

Remote Interface Command

*SAV <Nrf>

To recall measurement setting

1. Press SAVE&RECALL button.

2. Use the softkey under Recall to select the “recall” function.

3. Toggle the same Recall softkey to enter the memory address from

which you want to recall the settings.

4. Press the softkey under Run Recall to do the recall action as shown

in the Figure 4-24.

Figure 4-24

Remote Interface Command

*RCL<Nrf>

To erase measurement setting

1. Press SAVE&RECALL button.

2. Use the softkey under Erase to select the “erase” function.

3. Toggle the same Erase softkey to enter the memory address in

which you want to erase the settings.

4. Press the softkey under Run Erase to do the erasion as shown in the

Figure 4-25.

Figure 4-25

5858

To Power on Recall

1. Press Save & Recall button.

2. Press the softkey under Save to select the memory number from 1

to 20 for stocking present settings. As well the arrow and numeric keys are available to be used. (It’s better that users take memo on each saved number.)

3. Press the softkey under Done to finish.

4. Press the softkey under RwrOn Recall to toggle between the saved

memory numbers shown on the display.

5. Press the softkey under Done to select the desire number as the

power-on default.

4.10 Utility Operations

The Utility operations let users execute manual calibration, configure interface, enable or disable Beep function, run self-test, and set up timebase as shown in the Figure 4-26.

Figure 4-26

I/O configuration

Refer to chapter 5 for interface configuration.

Calibration

Users need a security code. Only when a correct security code is entered, users will have access to the calibration menu.

1. Press the UTILITY button, and it works with a lighting signal.

2. Use the softkey under CAL to select the calibration operation.

3. Use the numeric keypad or the arrow keys to enter the correct

security code as shown in the Figure 4-27.

4. Press the softkey under Cal Diag to manually set calibration

conditions, such as Gain, Offs and T-F as shown in the Figure 4-28 (users can save the settings according to purposes by pressing the

5959

softkey under Save.). For more calibration information, please check

DC +5V Calibration at CH1

DC +5V Calibration at CH2

DC +9V ATT x 10 Calibration at CH1

DC +9V ATT x 10 Calibration at CH2

DC +0V Calibration at CH1

DC +0V Calibration at CH2

DC +0V ATT x 10 Calibration at CH1

DC +0V ATT x 10 Calibration at CH2

Time Domain Calibration (incl.

Time Interval Calibration

Time Interval Calibration ( incl.

10 MHz Calibration

Save the settings in the memory

the List 4-1.

5. Press the softkey under Run Cal when everything is set ready.

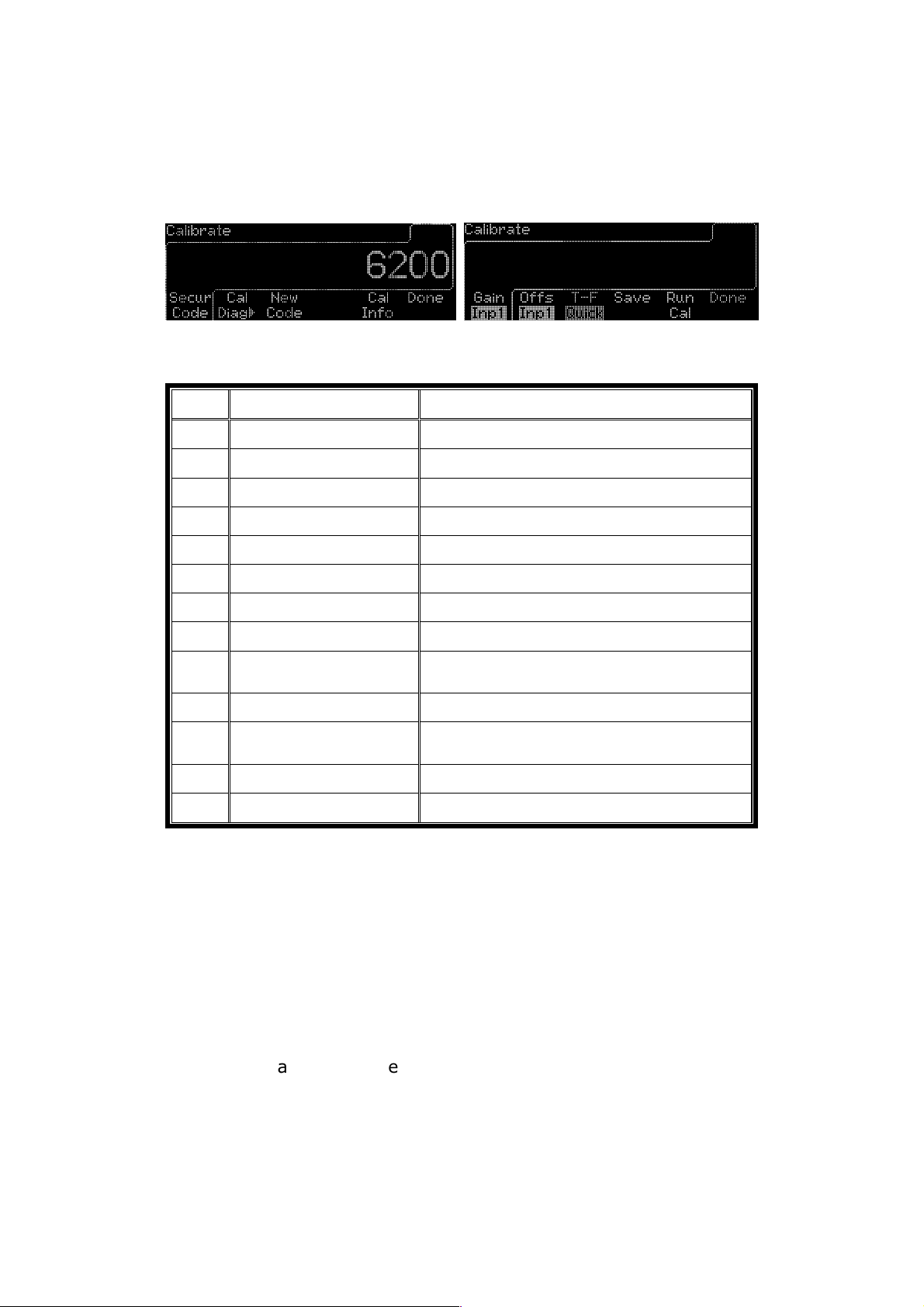

Figure 4-27 Figure 4-28

Item

10.

11.

12. T-F Freq + Run Cal

13.

Gain Inp1 + Run Cal Gain Inp2 + Run Cal Gain Att1 + Run Cal Gain Att2 + Run Cal Offs Inp1 + Run Cal Offs Inp2 + Run Cal

Offs Att1 + Run Cal Offs Att2 + Run Cal

T-F Quick + Run Cal

T-F Fine1 + Run Cal T-F Fine2 + Run Cal

Softkeys Description

Save

External Arm)

List 4-1

Remote Interface Command

Use these commands to run calibration:

:CALibration:SECurity:STATe <Boolean>,<NRf>

System Setup

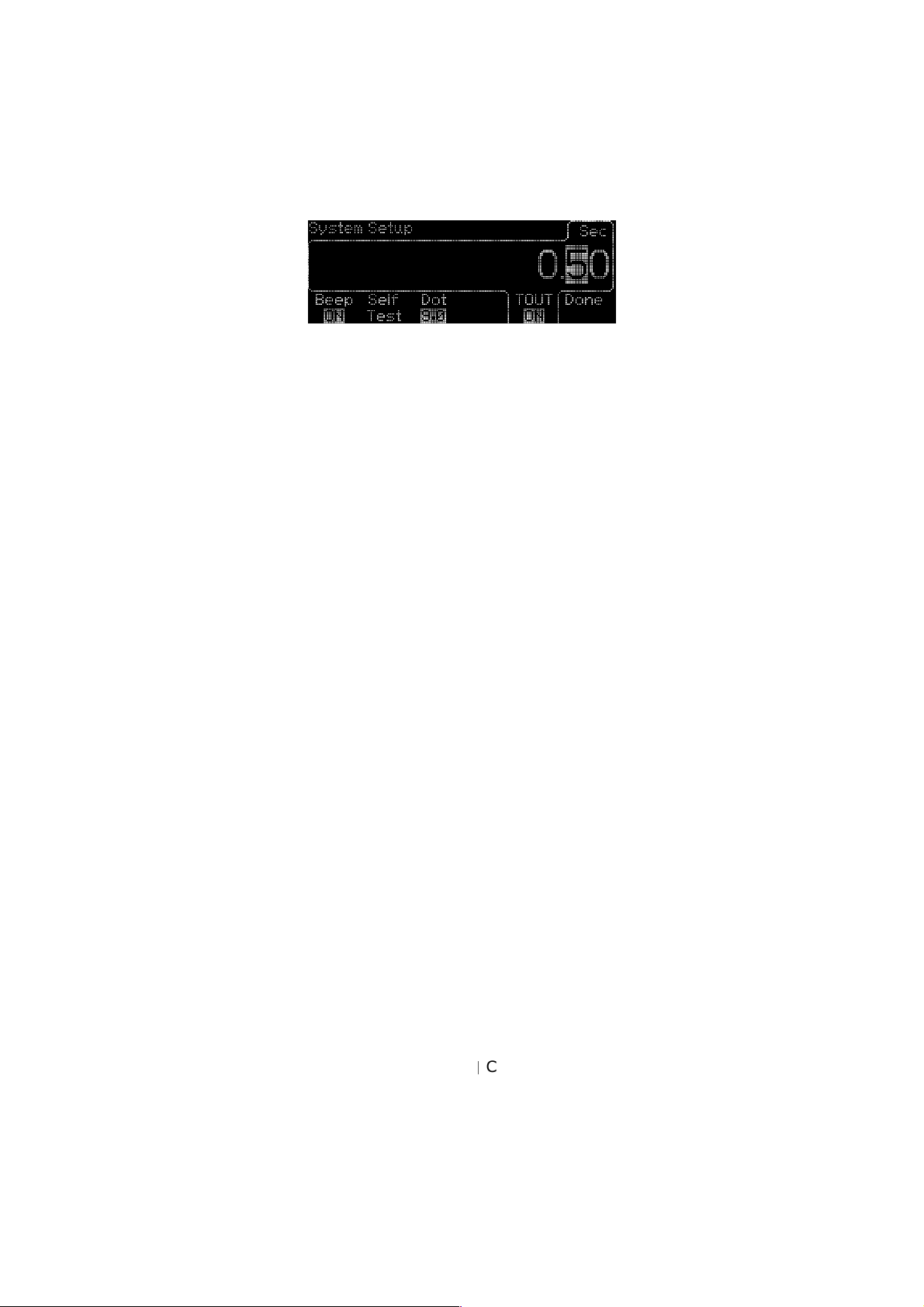

Under the System Setup menu as shown in the Figure 4-29, users can run self-test, adjust the beeper setting, choose dot convention (i.e., using comma or period to separate the integral portion and fraction portion of a number), and TOUT (i.e., If the time out “ON” is chosen, the time out mode will be enabled, and as measurement time exceeds

6060

time-out limit, the counter will send a not-a-number value to the computer. For this purpose, the counter can prevent keeping measurement. Besides, the time out “OFF” is set to disabled the function.

Figure 4-29

1. Press the UTILITY button.

2. Use the softkey under Syst to enter the system setup menu.

3. To enable/disable beeper: press the softkey under BEEP to toggle

between OFF and ON.

4. To run self-test: press the softkey under SelfTest to start the test.

(While doing self-test, all connected source leads on the Model 1105 must be released. The followings are the error codes for your reference.)

0x0002:CHANNEL 1 Front End FAIL 0x0004:CHANNEL 1 Front End FAIL 0x0008:CHANNEL 2 Front End FAIL 0x0010:CHANNEL 2 Front End FAIL 0x0020:CHANNEL 1 AD FAIL 0x0040:CHANNEL 1 AD FAIL 0x0080:CHANNEL 2 AD FAIL 0x0100:CHANNEL 2 AD FAIL 0x0400:FPGA 1 FAIL

5. To select dot convention: press the softkey under Dot 9.0 to toggle

between dot and comma conventions.

6. To enable/disable time out: press the softkey under TOUT to toggle

between OFF and ON.

Remote Interface Command

*TST? :SYSTem:BEEPer:STATe ON|OFF :DISPlay[:WINDow]:TEXT:RADix DPOint︱COMMa :SYSTem:TOUT ON|OFF : SYSTem:TOUT:TIMe <numeric_value>

6161

TimeBase Source

Follow the following instruction to select TimeBase source:

1. Press UTILITY button.

2. Use the softkey under TimeBase to select timebase source.

3. Use the softkey under TimeBase to toggle between AUTO, INT

(internal) and EXT (external) as shown in the Figure 4-30.

Figure 4-30

Remote Interface Command

[:SENSe]:ROSCillator:SOURce INT︱EXT [:SENSe]:ROSCillator:SOURce:AUTO ON|OFF

Style

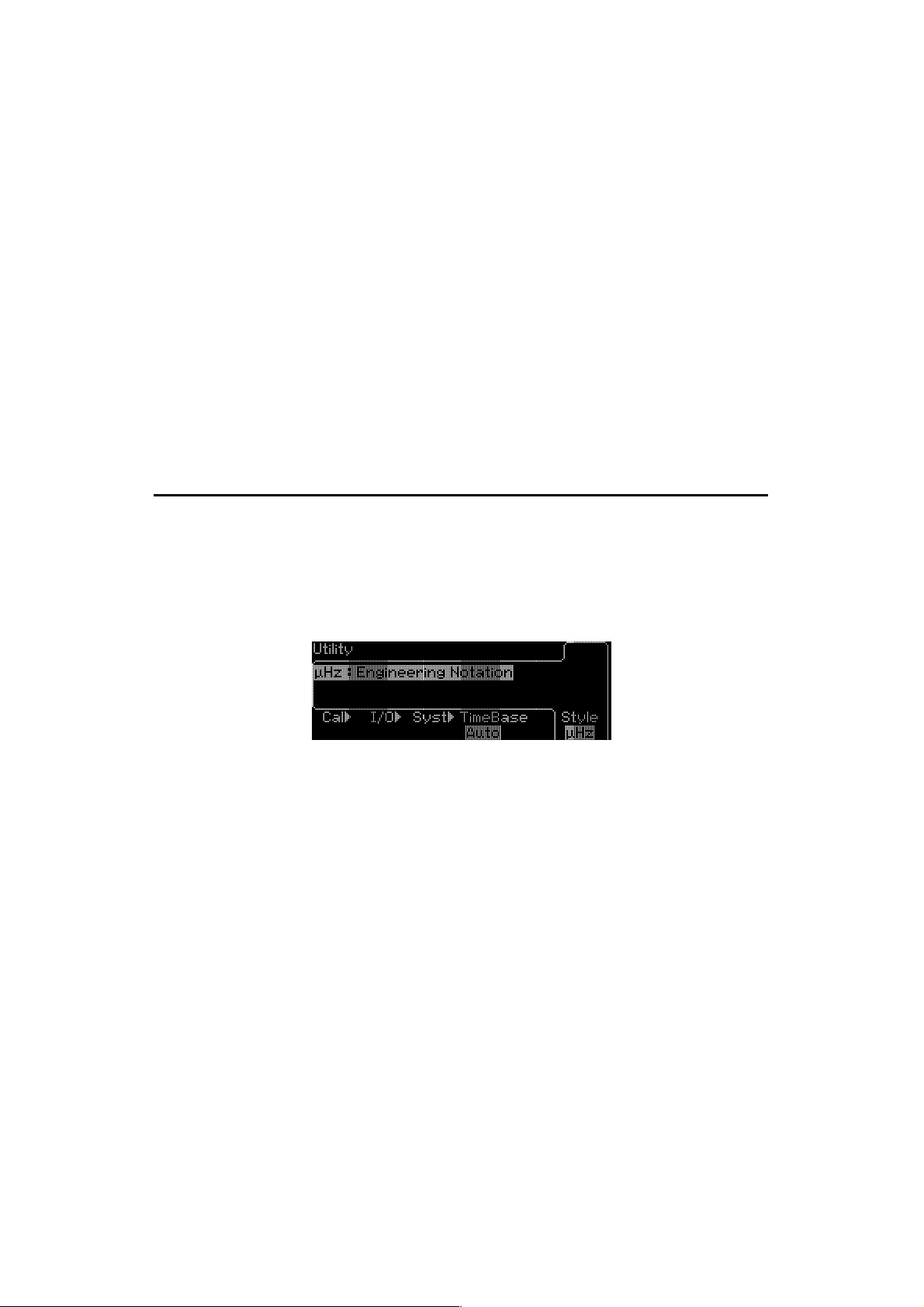

The Style function is the way to present values on the display. Users can toggle the softkey under Style between the E-6 and µHz notations. Here, µHz refers to the engineering notation and E-6 refers to the E notation.

1. Press Utility button.

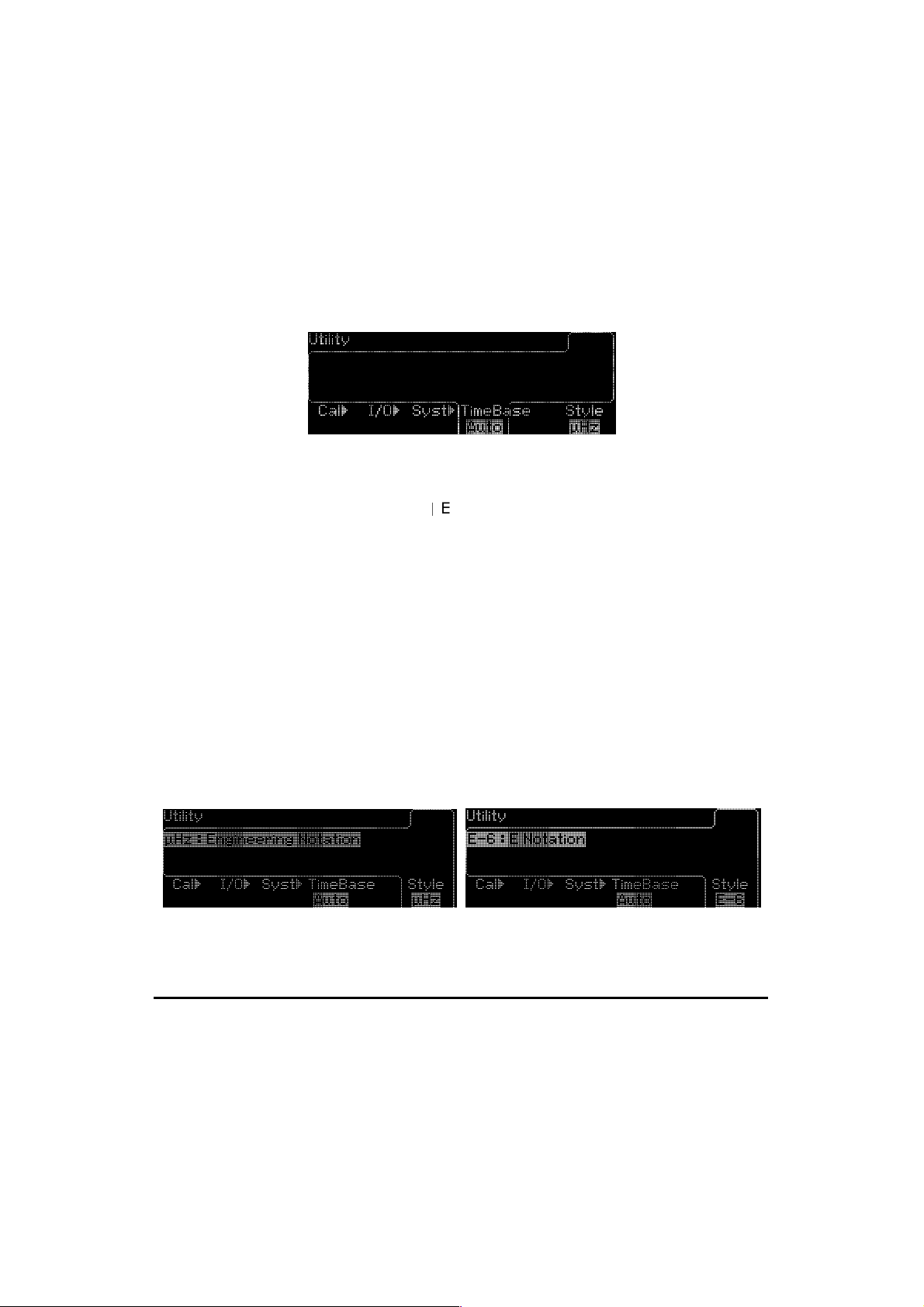

2. Use the softkey under Style to toggle between µHz and E-6 as shown

in the Figure 4-31 and Figure 4-32 respectively.

Figure 4-31 Figure 4-32

4.11 Display Tips

The display tips including 1. View remote Command error, 2. Get HELP on any key, 3. Power up Default state resetting, 4. Synchronize multiple instruments, 5. BERKELEY NUCLEONICS CORPORATION Technical Support, will be presented via the following procedures.

6262

4.11.1 View Remote Command Error

Via the display tips, users will easily view remote command error. The operation procedures are in the following.

1. Press the Help button on the front panel in 2 seconds.

2. Press the softkeys under ↓,↑ and SELECT to select item 1 “View

remote command error”. The command error information will be shown on the display.

3. Press the softkey under Done to exit from the display to the operation

mode. Error messages will be erased, and the display will show +0, “No error” as the command SYST:ERR? is executed.

4.11.2 Get HELP on ANY KEY

Users can get HELP from pressing each button including the softkey, which can provide service. The operation procedures are in the following.

1. Press the Help button on the front panel in 2 seconds.

2. Press the softkeys under ↓,↑ and SELECT to select item 2 “Get HELP

on any key”. The HELP information will be shown on the display: To

get brief help information on any front-panel key or menu soft-key, press and hold the key for few seconds.

3. Press the softkey under Done to finish the setting, and return to the

operation mode.

4.11.3 Power up Default State Resetting

Users can follow the tips to power up from a specific default state. The operation procedures are in the following.

1. Press the Help button on the front panel in 2 seconds.

2. Press the softkeys under

↓,↑

and SELECT to select item 3 “Power up

6363

Default state resetting”. Teaching instruction will be there, such as 1: Press [Save&Recall]. 2: Press “PwrOn Recall” to select default on record “0”. 3: Press “Done” to complete setting.

3. Press the softkey under Done to exit from the display to the operation mode.

4.11.4 Synchronize Multiple Instruments

Users can follow the tips to synchronize multiple instruments. The operation procedures are in the following.

1. Press the Help button on the front panel in 2 seconds.

2. Press the softkeys under ↓,↑ and SELECT to select item 4 “Synchronize multiple instruments”. Teaching instruction will be there, such as 1: Connect the [10MHz In] connector from one instrument to the other instrument. 2: Press [Utility]. 3: Press “Fref” (Freq. Reference). 4. Press “TimeBase” to select “Auto” or “Ext” as time base source. 5: Press “Done”

3. Press the softkey under Done to exit from the display to the operation mode.

4.11.5 BERKELEY NUCLEONICS CORPORATION

Technical Support

Via the tips, users can find the BERKELEY NUCLEONICS CORPORATION contact information.

1. Press the Help button on the front panel in 2 seconds.

2. Press the softkeys under ↓,↑ and SELECT to select item 5 “BERKELEY NUCLEONICS CORPORATION Technical Support”. The BERKELEY NUCLEONICS CORPORATION contact information and website will be

The operation procedures are in the following.

shown on the display: To obtain technical support, dial the

number 415-453-9955 or visit BERKELEY NUCLEONICS

CORPORATION Website

Http://www.berkeleynucleonics.com

6464

for technical support.

3. Press the softkey under Done to return to the operation mode.

6565

Contact

Typical Wiring

1 VBUS

Red

Floating

2 D-

White

Limit Test Pass

The MODEL 1105 supports three interfaces for remote access: USB, LAN and GPIB (IEEE-488). USB and LAN are built in the MODEL 1105. GPIB is available as an optional interface card. In addition to setting up the interfaces, this Chapter lists the SCPI (Standard Commands for Programmable Instrument) commands available for controlling the MODEL 1105 remotely. For the new users to apply SCPI commands, please refer to Appendix C for more information.

※

Telnet session can typically be started as follows from a host computer shell: telnet <IP_address> <port> For example:

Remote Interface Operations

Note: The 1105 uses LAN port 5024 for Telnet sessions.

telnet 192.168.0.100 5024

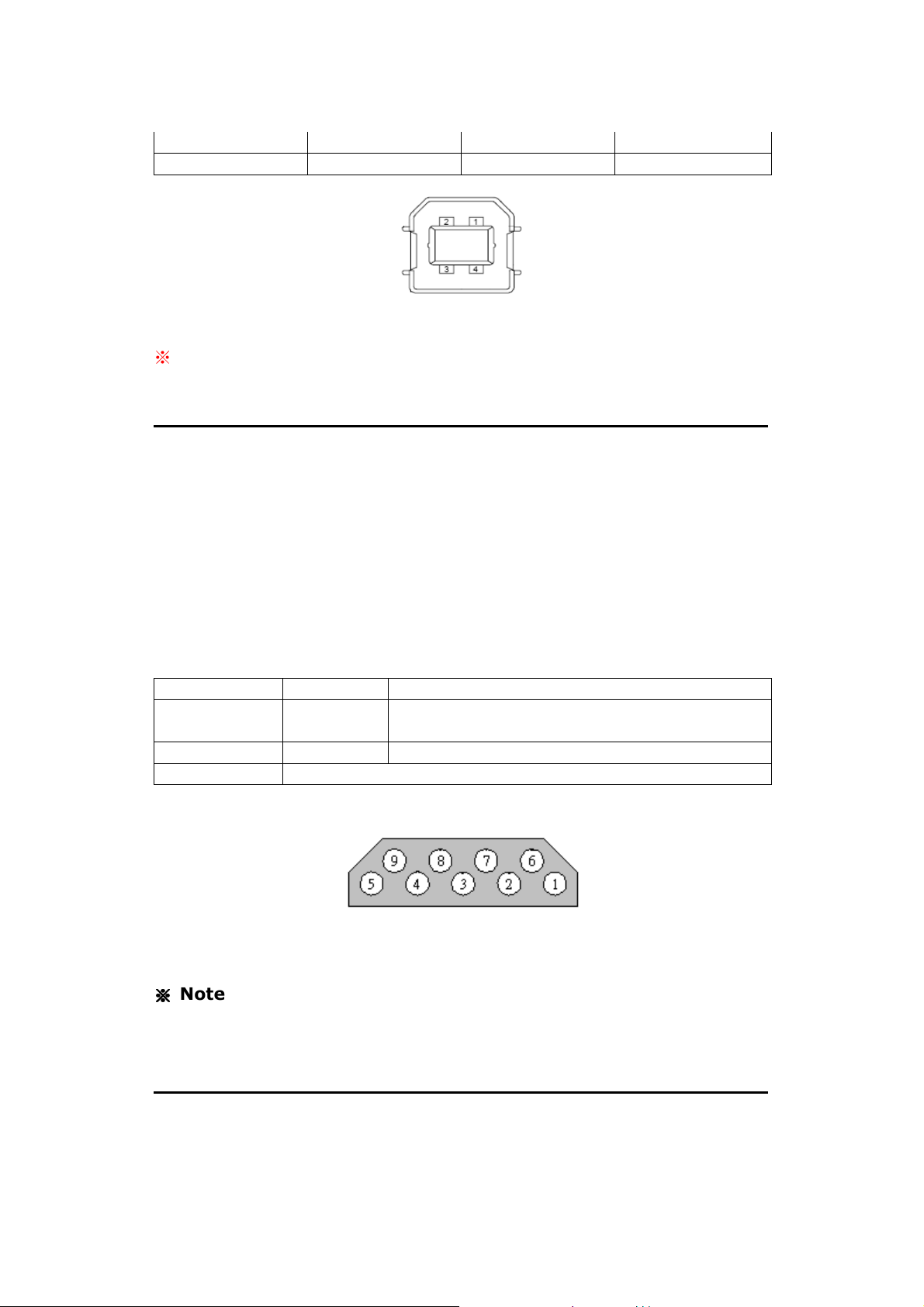

5.1 Pass/Fail Output via USB Connector

The USB connector on the rear panel of MODEL 1105 is a series “B” connector. When users press the Limit Modes button and the softkey under OUT* to toggle to USB, the internal pass and fail TTL output signals (limit testing) will be transmitted via the USB port.

The pass and fail signals are low true and indicate the Math Pass/Fail Limit Test result for the next reading to be output to the GPIB interface.

The signals are active low for approximately 2ms (±100 µsec) for each reading taken. Figure 5-1 shows the USB connector (series “B”).

Number

Signal Name

Assignment

Description

6666

3 D+ Green

Limit Test Fail

4 GND

Black

GND

Pin Number

Type

Descrip

tion

Data Terminal Ready(DTR)

5 - Signal Ground

* All other pins:no connection

Figure 5-1

※

Note: The Pass/Fail Output can’t be used on Volt Peak and Totalize.

5.2 Pass/Fail Output via DB9 Connector

The DB9 connector is an optional accessory for another kind of Pass/Fail solutions. With the connector assistance, and by the setting set to DB9 according to the similar operation procedure in the Chapter 5.1, the DB9 will output +12V via Pin4 as the limit test is passed, and the DB9 will output -12V via Pin4 as the limit test is failed. Figure 5-2 shows the DB9 connector.

4 Output

※※※※

Note: The Pass/Fail Output can’t be used on Volt Peak and

Totalize.

Measurement In-Limit Signal

Figure 5-2

5.3 Setting Up for Remote Access

Users may use the MODEL 1105 application developed by BERKELEY

6767

NUCLEONICS CORPORATION to remotely control the universal counter through USB, LAN or GBIP interface.

To set up the USB interface

The USB cord should be connected well between the MODEL 1105 and user’s PC. Install the MODEL 1105 application in the PC and execute the program. Click Tool tab for PT Assistant, then input commands.

To check USB ID

1. Press the UTILITY button and then the softkey under I/O to select

the I/O menu.

2. Press the softkey under SHOW USBID. The USB ID will then be

displayed.

To set up the GPIB interface

Insert GPIB interface card into the interface slot on the rear panel. Assign an address for the interface. Then install the MODEL 1105 application in the PC and execute the program. Click Tool tab for PT Assistant, then type in commands.

How to assign GPIB address

1. Press Utility button and then the softkey under I/O to select the I/O

menu.

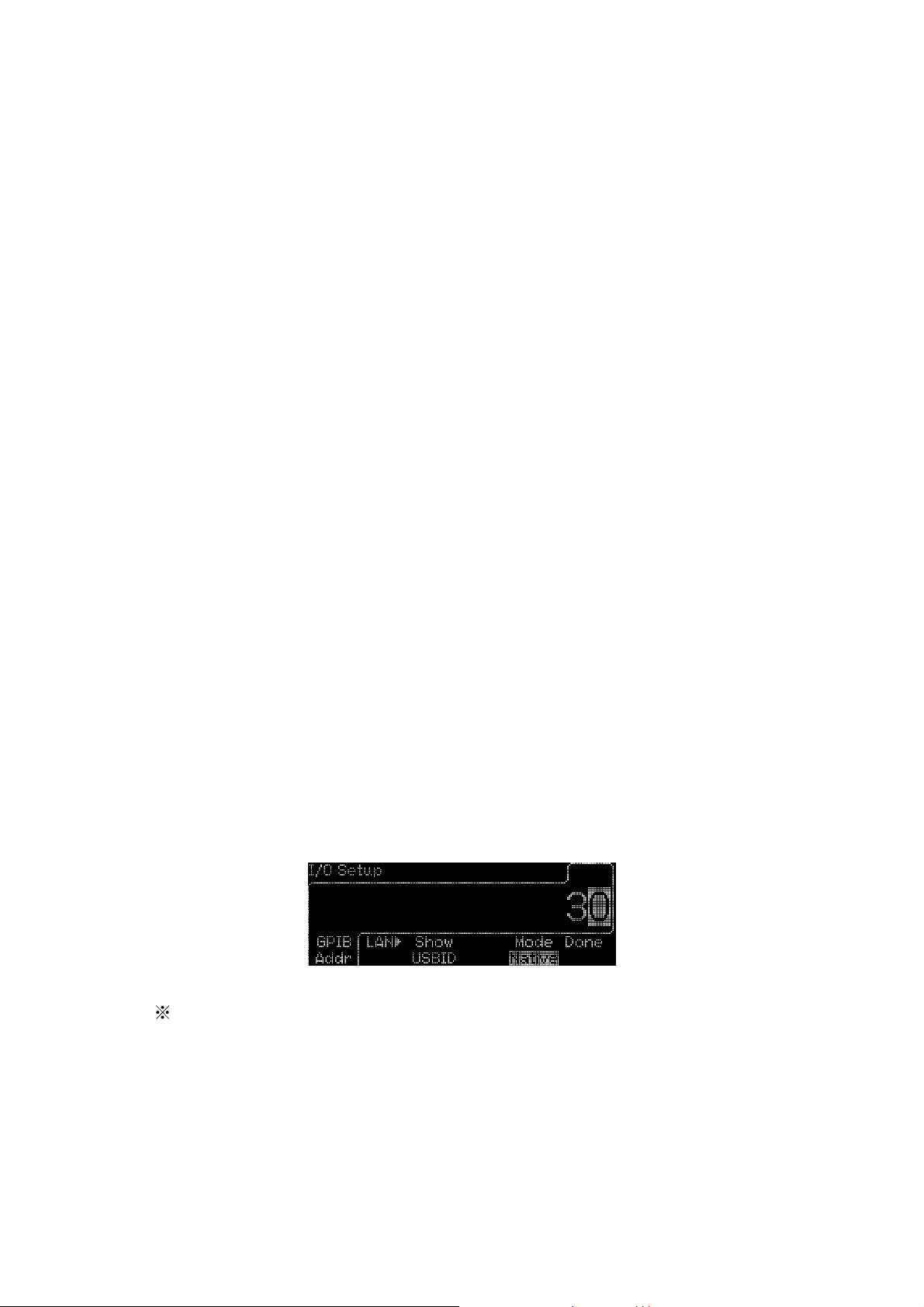

2. Press the softkey under “GPIB Addr” to specify the GPIB address as

shown in the Figure 5-3.

3. Use the numeric keypad or the arrow keys to input a desired address

(refer to Ch.4.2.1).

Figure 5-3

※

Note: The GPIB address is from 0 ~ 30.

LAN Configuration

To configure user’s local area network interface, A few parameters need to be configured. Users may need to contact network administrators for information to establish communication with the LAN interface.

6868

※

Note: The MODEL 1105’s LAN supports the environments including

Web Server and Java (TM) SE Runtime 6 (Update 1) or up.

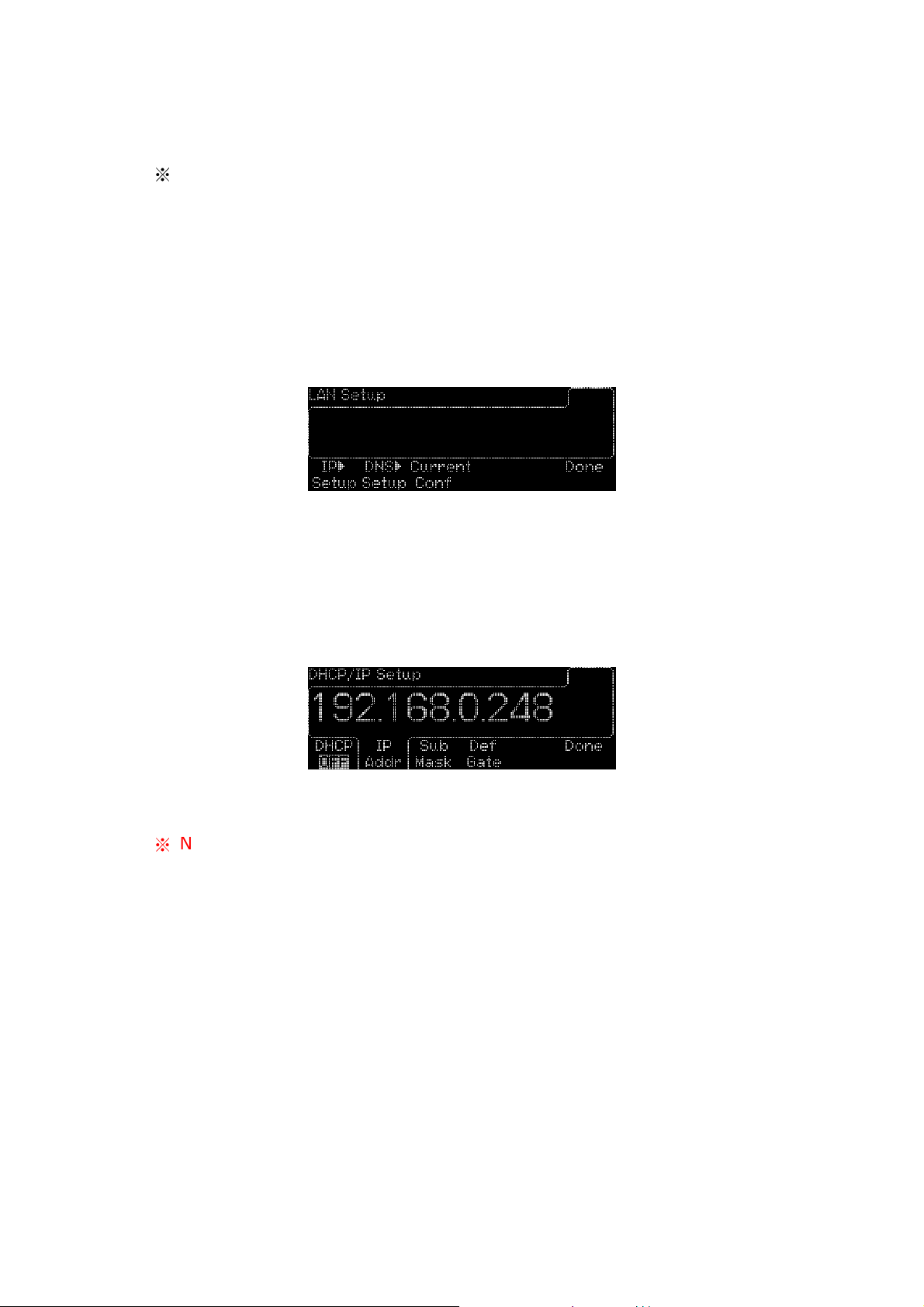

To configure LAN interface

1. Press UTILITY button and then the softkey under I/O to select the

I/O menu.

2. Press the softkey under LAN to enter the LAN menu where users can

set up IP addresses and DNS as shown in the Figure 5-4.

Figure 5-4

To set up IP addresses

1. Press the sofykey under IP SETUP to enter the IP address menu.

2. Use the softkey under DHCP to toggle between ON and OFF as

shown in the Figure 5-5.

Figure 5-5

※

Note: The address 192.168.0.248 set as a default is an example for

users’ reference.

IP address, network mask and gateway will be assigned automatically by the DHCP server at the time of connecting the MODEL 1105 to the network, if users enable DHCP. On the contrary, if users disable the DHCP function, then they need to set IP address, network mask and gateway manually. For more IP address information, users have to contact local network administrators.

The ways to set up these values are identical. The values are all in IP address format in form of “n.n.n.n” where n is an integer

between 0 and

6969

255. T

he procedure is described as follows.

To set IP address, network mask or gateway

1. Press the softkey under DHCP to turn off DHCP.

Press the softkey under IP ADDR, NET MASK or GATEWAY.

3. Use the numeric keys to enter the value.

4. Press the softkey under ENTER to set the value or the softkey under

CANCEL to withdraw the changes.

To set up DNS

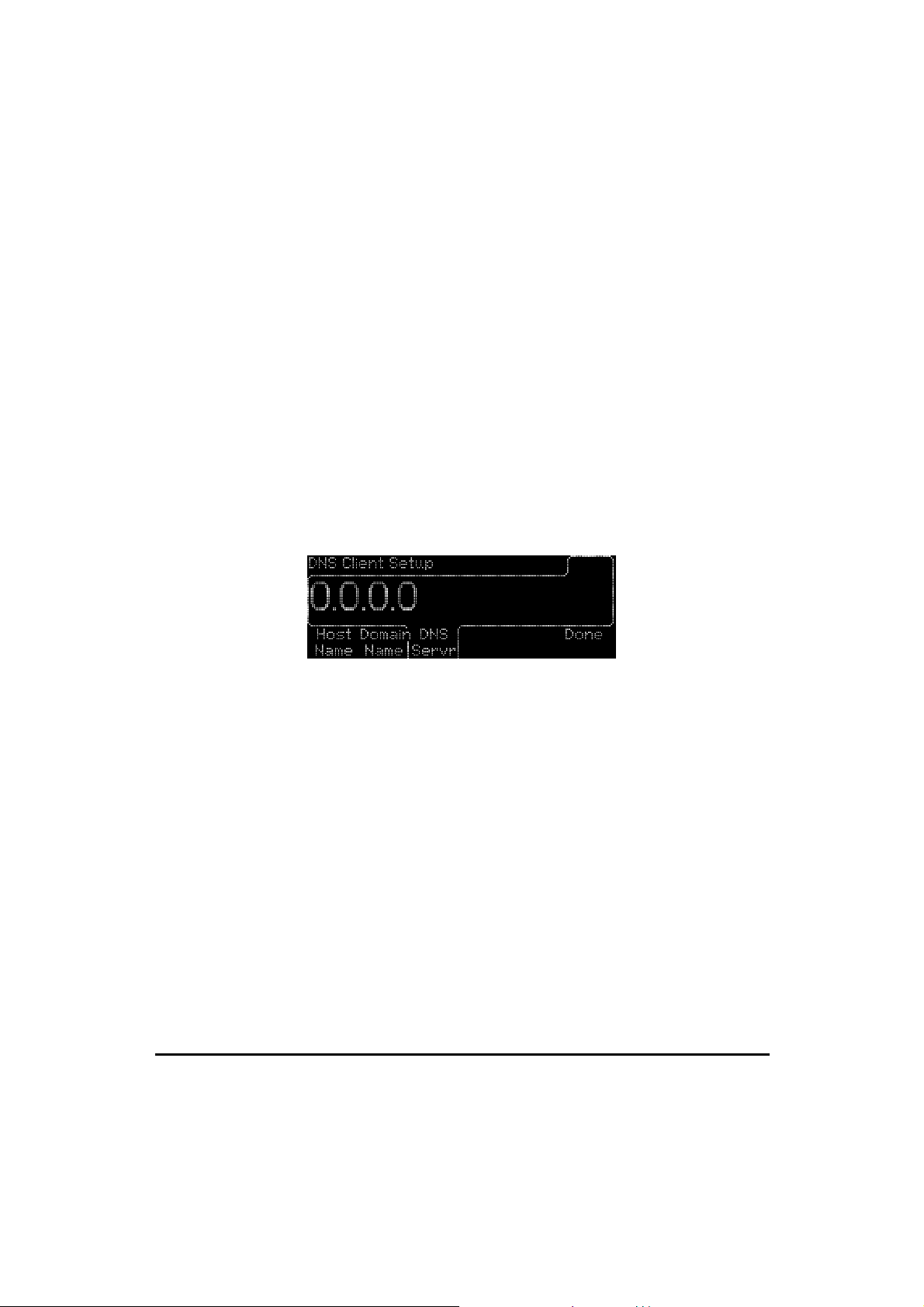

DNS (Domain Name Service) translates domain names into IP addresses. If the DNS is being used, consult local network administrators with the information about the host name, domain name and DNS server address. A DNS server address is in the form of “n.n.n.n” as shown in the Figure 5-3 where n is an integer between 0 and 255.

Figure 5-3



To set the DNS server address: In the LAN menu, press the softkey under DNS Setup and then the softkey under DNS server. Use the numeric keys or the arrow keys to enter the DNS server address (refer to Ch.4.2.1).



To set the host name: In the LAN menu, press the softkey under Host Name. Use the numeric keys or the arrow keys to enter the Host name (refer to Ch.4.2.1).



To set the domain name: In the LAN menu, press the softkey under Domain Name. Use the numeric keys or the arrow keys to enter the Domain name (refer to Ch.4.2.1).

5.4 Remote Interface Commands

One may instruct the MODEL 1105 to take measurement by using the SCPI commands on a remote PC after the Counter and the PC are

7070

connected and interface is properly configured as described in Ch.5.1. The SCPI commands available for the MODEL 1105 are listed below for quick reference. Refer to Appendix C for detailed command syntax and description. For the new users to apply SCPI commands, please refer to Appendix C.1 for the introductory material on SCPI.

※

Note: The following conventions are used in SCPI command listing. Triangle brackets (<>) indicates that users must specify a value for the enclosed parameter. The square brackets ([]) indicates that the parameter is optional and can be omitted. A vertical bar (|) separates several options for a parameter.

<function> <parameters> [,source_list]

[:VOLTage]:FREQuency [<expected_value> [,<resolution>]] [(@1)|(@2)|(@3)]

[:VOLTage]:FREQuency:RATio [<expected_value> [,<resolution>]]

[:VOLTage]:PERiod [<expected_value> [,<resolution>]] [(@1)|(@2)|(@3)]

[:VOLTage]:RISE:TIME

[:VOLTage]:RTIMe

[:VOLTage]:FALL:TIME

[:VOLTage]:FTIMe

[:VOLTage]:PWIDth [<reference>] [(@1)]

[:VOLTage]:NWIDth [<reference>] [(@1)]

[:VOLTage]:INITerval

[:VOLTage]:PTPeak

[:VOLTage]:MAXimum

[:VOLTage]:MINimum

[:VOLTage]:CENTer

[:VOLTage]:PHASe

[:VOLTage]:DCYCle

[:VOLTage]:PDUTycycle

[<lower_reference> [,upper_reference]] [(@1)]

[(@1),(@2)]

[<reference>] [(@1)]

[(@1),(@2)|(@3)]|

[(@2)|(@3),(@1)]

[:VOLTage]:TOTalize:CONTinuous

[:VOLTage]:TOTalize:TIMed [<gate_time>] [(@1)]

[(@1)]

Note: The command ※[:VOLTage]:TOTalize:CONTinuous is allowed with

CONFigure only.

7171

The MEASure? Command

Although it does not offer much flexibility, using the command :MEASure? is the simplest way to program the Counter for measurement. With the command, the Counter makes measurement according to the selected measurement function and sends the result to the output buffer.

:MEASure[:SCALar]:<function>? <parameters> [,<source_list>]

For more information about <function>, <parameters> and <source_list>, please refer to the above table.

• If users skip the parameters and the function, or use the keyword DEFault,

the default setting (parameters and function) will be used.

• Using this command automatically turns off the statistics, scale and offset

and limit testing operations.

• If the trigger level is not specified in <parameters>, then auto-triggering will

be enabled and the trigger levels will be automatically set in all functions but Voltage Peaks and Totalize on the measurement channel.

:MEASure

:MEASure[:SCALar]

[:VOLTage]:FREQuency? [<expected_value> [,<resolution>]]

[,(@1)|(@2)|(@3)] [:VOLTage]:FREQuency:RATio? [<expected_value> [,<resolution>]] [,(@1),(@2)|(@3)]|[,(@2)|(@3),(@1)] [:VOLTage]:PERiod? [<expected_value> [,<resolution>]]

[,(@1)|(@2)|(@3)] [:VOLTage]:RISE:TIME? [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:RTIMe? [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:FALL:TIME? [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:FTIMe? [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:PWIDth? [<reference>][,(@1)] [:VOLTage]:NWIDth? [<reference>][,(@1)] [:VOLTage]:INITerval? [(@1),(@2)] [:VOLTage]:PTPeak? [(@1),(@2)] [:VOLTage]:MAXimum? [(@1),(@2)] [:VOLTage]:MINimum? [(@1),(@2)] [:VOLTage]:CENTer? [(@1),(@2)]

7272

[:VOLTage]:PHASe? [(@1),(@2)] [:VOLTage]:DCYCle? [<reference>][,(@1)] [:VOLTage]:PDUTycycle? [<reference>][,(@1)]

[:VOLTage]:TOTalize:TIMed? [<gate_time>][,(@1)]

The CONFigure Command

The CONFigure command offers a little more flexibility than the command MEASure? and is usually used with the commands READ?. The universal counter sets the parameters for the requested function, but does not make measurement. Users have an option to change the configuration. To initiate the measurement, READ? Or INITiate commands can be used.

:CONFigure[:SCALar]:<function> <parameters> [,<source_list>]

For more information about <function>, <parameters> and <source_list>, please refer to the above table.

• If you skip the parameters or the function, or the source list, or use the

keyword DEFault instead, the default settings (parameters, function and source) will be used.

• Using this command automatically turns off the statistics operation, scale

and offset operation and limit testing.

• If the trigger level is not specified in <parameters>, then auto-triggering will

be enabled and the trigger levels will be automatically set in all functions but Voltage Peaks and Totalize on the measurement channel.

:CONFigure

:CONFigure[:SCALar]

[:VOLTage]:FREQuency [<expected_value> [,<resolution>]]

[,(@1)|(@2)|(@3)] [:VOLTage]:FREQuency:RATio [<expected_value> [,<resolution>]] [,(@1),(@2)|(@3)]|[,(@2)|(@3),(@1)] [:VOLTage]:PERiod [<expected_value> [,<resolution>]]

[,(@1)|(@2)|(@3)] [:VOLTage]:RISE:TIME [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:RTIMe [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:FALL:TIME [<lower_reference> [,upper_reference]][,(@1)] [:VOLTage]:FTIMe [<lower_reference> [,upper_reference]][,(@1)]

7373

[:VOLTage]:PWIDth [<reference>][,(@1)] [:VOLTage]:NWIDth [<reference>][,(@1)] [:VOLTage]:INITerval [(@1),(@2)] [:VOLTage]:PTPeak [(@1),(@2)] [:VOLTage]:MAXimum [(@1),(@2)] [:VOLTage]:MINimum [(@1),(@2)] [:VOLTage]:CENTer [(@1),(@2)] [:VOLTage]:PHASe [(@1),(@2)] [:VOLTage]:DCYCle [<reference>][,(@1)] [:VOLTage]:PDUTycycle [<reference>][,(@1)] [:VOLTage]:TOTalize:CONTinuous [(@1)]

[:VOLTage]:TOTalize:TIMed [<gate_time>][,(@1)]

The READ? Command

The command READ? is often used with the command CONFigure? to have a effect similar to the command MEASure? in which the users provide required parameters, configure the counter and make measurements. The command :CONFigure? does the configuration part of the measurement, and the command :READ? does the data acquisition and post processing (if any), and puts the result in the Output queue. Use this command combination to instruct the counter to perform something between the measurement setup and data acquisition.

:READ[[:SCALar]:<function>]?

For more information about <function>, <parameters> and <source_list>, please refer to the above table.

Using the command READ? has a same effect as using the command INITiate[:IMMediate] followed by the command :FETCh?.

:READ

:READ[:SCALar]

[:VOLTage]:FREQuency? [:VOLTage]:FREQuency:RATio? [:VOLTage]:PERiod? [:VOLTage]:RISE:TIME? [:VOLTage]:RTIMe? [:VOLTage]:FALL:TIME?

7474

[:VOLTage]:FTIMe? [:VOLTage]:PWIDth? [:VOLTage]:NWIDth? [:VOLTage]:INITerval? [:VOLTage]:PTPeak? [:VOLTage]:MAXimum? [:VOLTage]:MINimum? [:VOLTage]:CENTer? [:VOLTage]:PHASe? [:VOLTage]:DCYCle? [:VOLTage]:PDUTycycle?

[:VOLTage]:TOTalize:TIMed?

The Commands INITiate and FETCh?

These two commands provide the lowest level of control of measurement triggering and reading retrieval, but offer the most flexibility. After you have configured the universal counter, use the command INITiate to initiate the measurements. The results are sent to the internal memory and stored until you are ready to read them.

FETCh[[:SCALar]:<function>]?

For more information about <function>, please refer to the above table.

The command FETCh? sends the data in the universal counter’s internal memory to the output buffer where you can read them into your bus controller.

:INITiate

:AUTO<Boolean>

:CONTinuous<Boolean>

[:IMMediate]

:FETCh

FETCh[:SCALar]

[:VOLTage]:FREQuency? [:VOLTage]:FREQuency:RATio? [:VOLTage]:PERiod? [:VOLTage]:RISE:TIME?

7575

[:VOLTage]:RTIMe?

[:VOLTage]:FALL:TIME?

[:VOLTage]:TOTalize:TIMed?

The [:SENSe] command

The commands [:SENSe] control directly on the instrument-specific setting, but not the ones related to the signal-oriented characteristics.

[:SENSe]

:DATA? [“[:]SENSe[1]”]

[:SENSe]

[:SENSe]

:FREQuency:ARM[:STARt]:SLOPe POSitive|NEGative :FREQuency:ARM[:STARt]:SOURce IMMediate|EXTernal :FREQuency:ARM:STOP:DIGits <numeric value> :FREQuency:ARM:STOP:SLOPe POSitive|NEGative

7676

[:SENSe]

:PHASe:ARM[:STARt]:SLOPe POSitive|NEGative :PHASe:ARM[:STARt]:SOURce IMMediate|EXTernal

[:SENSe]

:TINTerval:ARM[:STARt]:SLOPe POSitive|NEGative :TINTerval:ARM[:STARt]:SOURce IMMediate|EXTernal :TINTerval:ARM:STOP:SOURce IMMediate|TIMer :TINTerval:ARM:STOP:TIMer <numeric value> [S]

[:SENSe]

[:SENSe]

:VOLTage:MODE FAST｜SLOW

The :TRACe Commands

The :TRACe commands are used to set up the scale and offset values.

:TRACe

:CATalog? [:DATA] OFFSET, <numeric value> [HZ|S|DEG] [:DATA] OFFSET, <arbitrary block> [:DATA]? OFFSET [:DATA] SCALE, <numeric value> [:DATA] SCALE, <arbitrary block> [:DATA]? SCALE

7777

The COMMANDS CALCulate

All commands :CALCulate perform mathematical operations on the measurements, but among those commands the commands :CALCulate[1] deal with the calculations related to SCALE and OFFSET operations, and commands :CALCulate2 performs operations related to limit testing, and commands :CALCulate3 do all calculations related to statistics operations.

:CALCulate[1]

:DATA? :FEED “[:]SENSe[1]” :IMMediate :IMMediate:AUTO <Boolean> :MATH[:EXPRession]:CATalog? :MATH[:EXPRession][:DEFine]? :MATH[:EXPRession]:NAME SCALE_OFFSET

:MATH[:EXPRession]:SELect SCALE_OFFSET :MATH:STATe <Boolean>

:CALCulate2

:FEED “[:]CALCulate[1]” :IMMediate :IMMediate:AUTO <Boolean> :LIMit:CLEar:AUTO <Boolean> :LIMit:CLEar[:IMMediate] :LIMit:DISPlay GRAPh :LIMit:FAIL? :LIMit:FCOunt:LOWer? :LIMit:FCOunt:UPPer? :LIMit:FCOunt[:TOTal]? :LIMit:LOWer[:DATA] <numeric_value> [HZ|S|DEG] :LIMit:UPPer[:DATA] <numeric_value> [HZ|S|DEG]

｜

NUMBer

:LIMit:PCOunt[:TOTal]? :LIMit:STATe <Boolean>

7878

:CALCulate3

:AVERage:ALL? :AVERage:CLEar :AVERage:COUNt <numeric_value> :AVERage:COUNt:CURRent? :AVERage:[:STATe] <Boolean> :AVERage:TYPE MAXimum｜MINimum｜SDEViation｜SCALar or MEAN｜

DELTa｜ALLAN

:DATA? :FEED “[:]CALCulate[1]” :LFILter:LOWer[:DATA] <numeric_value> [HZ|S|DEG] :LFILter:UPPer[:DATA] <numeric_value> [HZ|S|DEG] :LFILter:STATe <Boolean> :PATH?

Commands SYSTEM-RELATED

:ABORt

:DISPlay

:ENABle <Boolean> :MENU[:STATe] OFF [:WINDow]:TEXT:FEED “[:]CALCulate2”︱“[:]CALCulate3”

[:WINDow]:TEXT:RADix COMMa︱DPOint

:FORMat [:DATA] ASCii︱REAL

:SYSTem

COMMunicate:SERial:CONTrol:DTR OFF︱LIMit COMMunicate:SERial:SOURce USB|DB9 :COMMunicate:RLSTate REMote | LOCal | RWLock :ERRor? :KEY <Numeric value> :KEY:LOG? :VERSion? :BEEPer:STATe ON | OFF

7979

:IDNStr <QUOTED STRING>

Example: SYSTem:IDNStr “BERKELEY NUCLEONICS CORPORATION

MODEL 1105,0,0,0”

CALIBRATION COMMANDS

The MODEL 1105 universal counter has a security code to protect the counter from an accidental calibration. You have to enter a correct security code before you can calibrate the counter.

:CALibration

:SECurity:STATe <Boolean>,<NRf> :SECurity:CODE <new code> :DATA <arbitrary block>

Miscellaneous

:INPut[1|2]

:ATTenuation 1|10 :COUPling AC|DC :FILTer[:LPASs][:STATe] <Boolean> :FILTer[:LPASs]:FREQuency? :IMPedance <numeric value> [OHM]

:INPut3

:COUPling?

:IMPedance?

:TRIGger

:COUNt:AUTO <Boolean>

:MEMory

:NSTates?

IEEE-488.2 COMMON COMMANDS

*CLS *DDT <arbitrary block> *ESE <NRf> *ESE? *ESR?

8080

*IDN? *OPC *OPC? *OPT? *RCL <NRf> *RST *SAV <NRf> *SRE <NRf> *SRE? *STB? *TRG *TST?

*WAI

8181

The manual calibration is via the following procedures: UTILITY > CAL > Enter Security Code > Cal Diag > (Gain, Offs, T-F) > RunCal. After pressing the softkey under RunCal, the counter’s display will show “Calibrating…”. The finished message will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed. The Calibration can be saved by pressing the softkey under Save.

※

Manual Calibration Procedures

Note: The Offset calibration is more prior than the Gain calibration.

6.1 How to do the Offset Calibration via CH1

The Offset Calibration via CH1 is for checking DC +0V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Offs Inp1.

2. Remove all sources on the counter.

Press the softkey under RunCal to do the calibration. Then, the counter’s display will show “Calibrating…”. The finished message will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed.

6.2 How to do the Offset Calibration via CH2

The Offset Calibration via CH2 is for checking DC +0V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Offs

8282

Inp2.

2. Remove all sources on the counter.

3. Press the softkey under RunCal to do the calibration. Then, the counter’s display will show “Calibrating…”. The finished message will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed.

6.3 How to do the ATT x 10 Offset Calibration via CH1

The Offset Calibration via CH1 is for checking ATT x 10 and DC +0V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Offs Att1.

2. Remove all sources on the counter.

6.4 How to do the ATT x 10 Offset Calibration via CH2

The Offset Calibration via CH2 is for checking ATT x 10 and DC +0V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Offs Att2.

2. Remove all sources on the counter.

8383

6.5 How to do the Gain Calibration via CH1

The Offset Calibration via CH1 is for checking DC +5V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Gain Inp1.

2. Use the BNC T-connector with 2 BNC cords to link an Agilent 33220A and a DMM (multimeter) as shown in the Figure 5-1.

3. Under the Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Hi-Z.

4. Adjust the voltage on the Agilent 33220A, and let the DMM displays +5.000V ±0.001V.

5. Remove the input source, from the DMM, on the counter.

6.6 How to do the Gain Calibration via CH2

The Offset Calibration via CH2 is for checking DC +5V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Gain Inp2.

2. Use the BNC T-connector with 2 BNC cords to link an Agilent 33220A and a DMM (multimeter).

3. Under the Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Hi-Z.

4. Adjust the voltage on the Agilent 33220A, and let the DMM displays +5.000V ±0.001V.

5. Remove the input source, from the DMM, on the counter.

Press the softkey under RunCal to do the calibration. Then, the counter’s display will show “Calibrating…”. The finished message

8484

will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed.

6.7 How to do the ATT x 10 Gain Calibration via CH1

The Offset Calibration via CH1 is for checking ATT x 10 and DC +9V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Gain Att1.

2. Use the BNC T-connector with 2 BNC cords to link an Agilent 33220A and a DMM (multimeter).

3. Under the Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Hi-Z.

4. Adjust the voltage on the Agilent 33220A, and let the DMM displays +5.000V ±0.001V.

5. Remove the input source, from the DMM, on the counter.

6. Press the softkey under RunCal to do the calibration. Then, the counter’s display will show “Calibrating…”. The finished message will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed.

6.8 How to do the ATT x 10 Gain Calibration via CH2

The Offset Calibration via CH2 is for checking ATT x 10 and DC +9V. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > Gain Att2.

2. Use the BNC T-connector with 2 BNC cords to link an Agilent 33220A and a DMM (multimeter).

3. Under Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Hi-Z.

8585

4. Adjust the voltage on the Agilent 33220A, and let the DMM displays +5.000V ±0.001V.

5. Remove the input source, from the DMM, on the counter.

6.9 How to do the Time Domain Calibration (Including External ARM)

The calibration is for Time Domain excluding the Time Interval. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > T-F Quick.

2. Under the Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Load.

3. Adjust the square wave to 20MHz, and set the Ampl to 1.65Vpp, the Offs to 0.75Vdc and DutyCycle to 50% on the Agilent 33220A.

4. Connect Agilent 33220A’s Sync to the Counter’s External ARM.

5. Under the Agilent 81110A operation, the procedures should be MODE/TRG > Pulse-Period > internal PLL.

6. Under the Agilent 81110A operation, press LEVELS and then Output1 buttons to set Amplit to 1V and the Offset to 0V.

7. Under the Agilent 81110A operation, press TIMING, and set the Freq to ON, and adjust it to 1MHz. Besides, in the output1, set the Delay to 0s, DtyCyc to 50 % and LeadE to 0.8ns.

8. Connect from the OUTPUT1 of the Agilent 81110A to the Counter’s CH1.

8686

6.10 How to do the Time Interval Calibration

The calibration is for Time Interval excluding the External ARM. Please do the following procedures to finish the calibration.

Press UTILITY > CAL > Enter Security Code > Cal Diag > T-F Fine1. Under the Agilent 81110A operation, the procedures should be MODE/TRG > Pulse-Period > internal PLL. Under the Agilent 81110A operation, press LEVELS and then Output1 & Output2 buttons to set Amplit to 1V and the Offset to 0V respectively. Under the Agilent 81110A operation, press TIMING, and set the Freq1 & Freq2 to ON, and adjust them to 1MHz respectively. Under the Agilent 81110A operation, in the Output1 and Output2, set the Delay to 0s, DtyCyc to 50 % and LeadE to 0.8ns. Connect from the OUTPUT1 and OUTPUT2 of the Agilent 81110A to the Counter’s CH1 and CH2 respectively. Press the softkey under RunCal to do the calibration. Then, the counter’s display will show “Calibrating…”. The finished message will disappear from the display as calibration is done. On the contrary, the NG message will show on the display as calibration is failed.

6.11 How to do the Time Interval Calibration (Including External ARM)

The calibration is for Time Interval including the External ARM. Please do the following procedures to finish the calibration.

1. Press UTILITY > CAL > Enter Security Code > Cal Diag > T-F Fine2.

2. Under the Agilent 33220A operation, the procedures should be Utility > DC ON > Output Setup > Load.

3. Adjust the square wave to 20MHz, and set the Ampl to 1.65Vpp, the Offs to 0.75Vdc and DutyCycle to 50% on the Agilent 33220A.

4. Connect Agilent 33220A’s Sync to the Counter’s External ARM.

5. Under the Agilent 81110A operation, the procedures should be

8787

MODE/TRG > Pulse-Period > internal PLL.

6. Under the Agilent 81110A operation, press LEVELS and then Output1 and Output2 buttons to set Amplit to 1V and the Offset to 0V respectively.

7. Under the Agilent 81110A operation, press TIMING button, and set the Freq1 & Freq2 to ON, and adjust them to 1MHz respectively.

8. Under the Agilent 81110A operation, in the Output1 set the Delay to 0s, DtyCyc to 50 % and LeadE to 0.8ns. And in the Output2 set the Delay to 125ns, DtyCyc to 50% and LeadE to 0.8ns.

9. Connect from the OUTPUT1 and OUTPUT2 of the Agilent 81110A to the Counter’s CH1 and CH2 respectively.

10.

6.12 How to do the Standard Timebase Calibration

The calibration is for 10MHz. Please do the following procedures to finish the calibration.

1. After powering the counter, users have to warm it up at least 30 minutes.

2. Press UTILITY > CAL > Enter Security Code > Cal Diag > T-F Freq.

3. Input 10 MHz source to the counter’s CH1.

4. The standard specification for a 10 MHz is 10.000,000,00 MHz ±1Hz.

8888

Errors are retrieved in first-in-first-out (FIFO) order. The first error returned is the first error that was stored. Use :SYST:ERR? to read errors. When user has read all errors from the queue, the error queue becomes empty and any error query will return +0, “No error”. The MODEL 1105 beeps once each time an error occurs.

Should more than 29 errors have existed, the last error stored in the queue (the most recent error) is replaced with -350, “Queue overflow”. No additional errors are saved until you remove errors from the queue.

The error queue is cleared when power is off or after a *CLS (clear status) command is executed. The *RST (reset) command does not clear the error queue.

Error Messages

7.1 Command Errors

 +0 No error

There is no error in the error queue. (:SYSTem:ERRor? query) or the queue was cleared by power-on or *CLS.

 -100 Command error

This is the generic syntax error used when the Counter cannot detect more

specific errors.

 -101 Invalid character

A syntactic element contains a character that is invalid for that type. For

example, a header containing an ampersand, :INP:COUP& AC.

 -102 Syntax error

An unrecognized command or data type was encountered.

 -103 Invalid separator

The parser was expecting a separator but encountered an illegal character.

 -104 Data type error

The parser recognized a data element different than one with the allowed

8989

type. For example, numeric or string data was expected, but block data was received.

 -105 GET not allowed

A Group Execute Trigger was received within a program message.

 -108 Parameter not allowed

More parameters were received than expected for the header.

 -109 Missing parameter

Fewer parameters were received than required for the header.

 -112 Program mnemonic too long

The header or character data element contains more than twelve characters.

 -113 Undefined header

The header is syntactically correct, but it is undefined for the Counter. For example,

*XYZ is not defined for the Counter.

 -120 Numeric data error

This error, as well as errors -121 through -129, are generated when parsing

a data element which appears to be numeric, including the non-decimal numeric types. This particular error message is used when the Counter cannot detect a more specific error.

 -121 Invalid character in number

An invalid character for the data type being parsed was encountered. For

example, a “9” in octal data.

 -123 Exponent too large

Numeric overflow.

 -124 Too many digits

The mantissa of a decimal numeric data element contained more than 255

digits excluding leading zeros.

 -128 Numeric data not allowed

A legal numeric data element was received, but the Counter does not allow

one in this position for the header.

 -131 Invalid suffix

The suffix does not follow the syntax described in IEEE 488.2 or the suffix is

inappropriate for the Counter.

 -134 Suffix too long

The suffix contained more than 12 characters.

 -138 Suffix not allowed

A suffix was encountered after a numeric element that does not allow

suffixes.

9090

 -141 Invalid character data

An invalid character was detected in the character data element.

 -148 Character data not allowed

A legal character data element which was prohibited by the Counter was detected.

 -150 String data error

This error can be generated when parsing a string data element. This particular error

message is used if the Counter cannot detect a more specific error.

 -151 Invalid string data

A string data element was expected but was invalid for some reason. For example,

an END message was received before the terminal quote character.

 -158 String data not allowed

A string data element was encountered but was not allowed by the Counter at this

point in parsing.

 -160 Block data error

This error can be generated when parsing a block data element. This particular error

message is used if the Counter cannot detect a more specific error.

 -161 Invalid block data

A block data element was expected, but it was not allowed by the Counter at this

point in parsing.

 -168 Block data not allowed

A legal block data element was encountered but was not allowed by the Counter at

this point in parsing.

 -170 Expression errors

This error can be generated when parsing an expression data element. It is used if

the Counter cannot detect a more specific error.

 -171 Invalid expression

The expression data element was invalid (see IEEE 488.2). For example, unmatched

parentheses or an illegal character.

 -178 Expression data not allowed

Expression data was encountered but was not allowed by the Counter at this point in

parsing.

 -181 Invalid outside macro definition

Indicates that a macro parameter placeholder ($<number>) was encountered outside

of a macro definition.

9191

7.2 Execution Errors

 -200 Execution error

This is the generic syntax error if the Counter cannot detect more specific errors. This

code indicates only that an Execution Error has occurred.

 -210 Trigger error

Used when the Counter cannot detect a more specific error from the :INIT, :TRIG,

or :ABOR subsystems.

 -211 Trigger ignored

Indicates that a GET or *TRG was received and recognized by the Counter but was

ignored.

 -213 Init ignored

Indicates that a request for a measurement initiation was ignored as another

measurement was in progress.

 -220 Parameter error

Indicates that a program data element related error occurred. This error is used when

the Counter cannot detect more specific errors.

 -221 Setting conflict

Indicates that a legal program data element was parsed but could not be executed

due to the current Counter state.

 -222 Data out of range

Indicates that a legal program data element was parsed but could not be executed

because the interpreted value is outside the legal range defined by the Counter.

Typically, the value is clipped to legal limit.

 -223 Too much data

Indicates that a legal program data element of block, expression, or string type was

received that contained more data than the Counter could handle due to memory or

related Counter-specific requirements.

 -224 Illegal parameter value

Used where exact value, from a list of possible values, was expected.

 -230 Data corrupt or stale

No valid data available. New measurement started but not completed.

 -240 Hardware error

Indicates that a legal program command or query could not be executed because of

a hardware problem in the Counter.

 -241 Hardware missing

Indicates that a legal program command or query could not be executed because of

9292

missing Counter hardware. For example, the Channel 3 option was not installed.

 -272 Macro execution error

Indicates that a syntactically legal macro program data sequence could not be

executed due to some error in the macro definition.

7.3 Device-Specific Errors

 -300 Device-specific error

This is the generic device-dependent error.

 -310 System error

Indicates that a system error occurred.

 -330 Self-test failed

Indicates at least one failure occurred when *TST? was executed.

 -350 Queue overflow

There is no more room in the error queue and an error occurred.

7.4 Query Errors

 -400 Query error

This is the generic query error.

 -410 Query INTERRUPTED

Indicates that a condition causing an INTERRUPTED Query error occurred. For example,

a query followed by DAB or GET before a response was completely sent.

 -420 Query UNTERMINATED

Indicates that a condition causing an UNTERMINATED Query error occurred. For

example, the Counter was addressed to talk and an incomplete program message was

received.

 -430 Query DEADLOCKED

Indicates that a condition causing a DEADLOCKED Query error occurred. For example,

both input buffer and output buffer are full and the Counter cannot continue.

 -440 Query UNTERMINATED after indefinite response

Indicates that a query was received in the same program message after a query

requesting an indefinite response ( for example, *IDN? or *OPT?) was executed.

9393

7.5 Counter-Specific Errors



+2000 Offset calibration on channel 1 failed



+2001 Offset calibration on channel 2 failed



+2002 Gain calibration on channel 1 failed



+2003 Gain calibration on channel 2 failed



+2004 Interpolator calibration failed



+2005 Oscillation calibration failed



+2006 Time interval calibration failed



+2007 Measurement hardware calibration failed

A measurement calibration failed on the last measurement.



+2009 No valid external timebase

Users have selected external reference and there is no external reference applied to

the rear-panel Ref In connector, or the external signal is not an allowed frequency.



+2010 External timebase failed during measurement

Users have selected the auto reference mode and the Counter detected that the

external reference became invalid during the measurement. Therefore, the current

result is not valid, and the Counter switches to using the internal reference.



+2011 Recall setup failed; hardware failure

*RCL failed.



+2011 Recall setup failed; empty register

*RCL failed because the register specified for recall is empty.



+2012 Save setup failed

*SAV failed, or *RCL couldn’t save to register 0.



+2013 EEPROM failed

A request to update a setting which is stored in the EEPROM

:SYST:COMM:SER:CONT:DTR, :DISP[:WIND]:TEXT:RAD,

:CAL[:DATA] resulted in a hardware failure.

9494

Appendix

A. Specification List

This appendix contains the specifications of the MODEL 1105. It covers the AC, DC, Resistance, Temperature, and Frequency/Period characteristics under a variety of conditions. It also contains the general characteristics and accuracy calculations for your convenience. A lot of efforts are made to make sure these specifications serve your needs for production, engineering and/or research purposes. All specification applies to the MODEL 1105 unless noted otherwise.

Channel 1 & 2 Input Specifications

DC Coupled

AC Coupled

200KHz to 400 MHz (50 Ω)

30 Hz to 400 MHz (1 MΩ)

FM Tolerance

Voltage Range and Sensitivity

1mH to 225 MHz

225 MHz to 400 MHz

400 MHz to 450 MHz

20 mVrms to ±5 V ac + dc(Medium and High) 25 mVrms to ±5 V ac + dc(Low)

30 mVrms to ±5 V ac + dc

40 mVrms to ±5 V ac + dc

Channel 1 & 2 Input Characteristics1

Impedance

(ATT X 1, 1 MΩ

Capacitance)

(ATT X 10, 1 MΩ

Capacitance)

Coupling AC or DC

Low-Pass Filter

Input Sensitivity

Selectable between Low, Medium(default), or High

Medium is approximately 1.35x High Sensitivity,

low is approximately 1.7x High Sensitivity

100 KHz (or disabled)

1mHz to 400 MHz

FM Tolerance: 25%

1 MΩ or 50 Ω

24 pF

15 pF

–

20 dB at > 1 MHz

Internal Noise 200uVrms(typical)

Voltage Range and Sensitivity (Single-Shot Pulse)

1.5ns to 10ns Pulse 80 mVpp to 10 Vpp

9595

Width (150 mVpp with optional rear connectors)

00MHz

Attenuator

Specifications and Characteristics for Channels 1 and 2 are identical for both Common and Separate

Multiply all values by 10 (nominal) when using the x 10 attenuator

setting. Note that it may necessary to recalibrate the input offset in the application environment (especially at

>10 ns Pulse Width

(150 mVpp with optional rear connectors)

50 mVpp to 10 Vpp

Trigger Level(ATT x 1)

Range ±5.125 V

Accuracy ±(15 mV + 1% of trigger level)

Resolution 2.5mV

ATT x 10 Range X 10

Trigger Slope Positive or Negative

Range 0 to 100% in 1% steps

Auto Trigger Level

Frequency

Amplitude> 100 mVpp (No amplitude modulation)

Peak Voltage fast mode >10KHz

Peak Voltage slow mode > 100Hz

Damage Level

DC~400MHz 50 Ω 12 Vrms

0 to 3.5 kHz, 1 MΩ

3.5 kHz to 100KHz, 1 MΩ

100KHz to 4

1 MΩ

350 V dc + ac pk linearly derated to 12 Vrms

350 V dc + ac pk

12 Vrms

Voltage Range x10 Trigger Range x10

1. Configurations.

2. Values shown are for x 1 attenuator setting.

high temperature) to achieve maximum sensitivity.

Channel 3 Input Specifications

Frequency Range Standard 375 MHz to 6 GHz

Channel 3 Input Characteristics

Impedance 50 Ω

Coupling AC

VSWR < 2.5:1

Power Range and Sensitivity (Sinusoid)

375 MHz to 500 MHz -16 dBm to +15 dBm

500 MHz to 1 GHz -20 dBm to +15 dBm

1 GHz to 2 GHz -23 dBm to +15 dBm 2 GHz to 4 GHz -25 dBm to +15 dBm 4 GHz to 5 GHz -21dBm to +15 dBm

5 GHz to 5.5 GHz -20 dBm to +15 dBm

5.5 GHz to 6 GHz -17 dBm to +15 dBm

Damage Level

9696

+25 dBm DC ±12V

Internal vs. External Time

Frequency, Period

External Arm Input Specifications

Signal Input Range LVTTL and TTL compatible

Timing Restrictions

Pulse Width > 50 ns

Transition Time < 250 ns

Start-to-Stop Time > 50 ns

Damage Level 12 Vrms

External Arm Input Characteristics

Impedance 1 kΩ

Input Capacitance 17 pF

Start Slope Positive or Negative

Stop Slope Positive or Negative

Notes

1. External Arm is available for all measurements except Peak Volts.

2. External Arm is referred to as External Gate for some measurements.

Internal Time Base Stability

Temperature Stability

(referenced to 25°C)

Per Day

Aging Rate

Turn-on stability vs. time (30 min.)

Per Month

Per Year

Calibration Electronic Electronic

Standard

(0° to 50°C)

± 1 x 10E-6 ± 5 x 10E-9

± 0.2 x 10E-6 (Typical)

± 1 x 10E-6 (Typical)

External Time Base Input Specifications

Voltage Range 200 mVrms to 10 Vrms

Damage Level 12 Vrms

External Time Base Input Characteristics

Threshold 0 V

Impedance 1 kΩ

Input Capacitance 25 pF

Input Frequency 10 MHz

Manual Select Internal or External

Base Selection

Automatic Internal used when External not present

High Stability Oven

(1105-opt01)

± 8 x 10E-10

± 8 x 10E-8

± 2.0 x 10E-8

(refer to 24 hours)

(default)

Output Frequency 10 MHz

Impedance 50 Ω (typical), AC coupled

Time Base Output Specifications

Voltage 570 mVpp (0 dBm), typical

Measurement Specifications

1 mHz to 400 MHz (2.5 ns to 1000 s)

9797

Channel

1 and 2

Trigger Default setting is Auto Trigger at 50 %

Measurement is specified over the full signal ranges of Channels 1 and 2. The width of the

Measurement is specified over the full signal range of Channel 1. The width of the pulse

500 ps Differential

Measurement is specified over the full signal range of Channel 1. The width of the pulse

The width of the pulse

“Auto” Gate Time 0.1 sec

STD CH 3 375 MHz to 6 GHz (0.166 ns to 2.6 ns)

Frequency Ratio

Results Range 10E-10 to 10E+11

“Auto” Gate Time 0.1 sec

(Measurement is specified over the full signal range of each input.)

CH 1/ CH 2, CH 1/ CH 3, CH 2/ CH 1, CH 3/ CH1

Time Interval

Trigger Default setting is Auto Trigger at 50 %

Results Range -0.5 ns to 10E+5 s

Resolution 40 ps

RMS Resolution 120 ps

Systematic

Uncertainty

(TI × Time Base Error) ± Trigger Level Timing Error ± 500 ps Differential Channel Error

Pulse Width Time

Pulse Selection Positive or Negative

Trigger Default setting is Auto Trigger at 50%

Results Range 1.5 ns to 10E+5 s

Resolution 40 ps

RMS Resolution 120 ps

Systematic

Uncertainty

(Pulse Width Time x Time Base Error) ± Trigger Level Timing Error ±

Rise/Fall Time

Edge Selection Positive or Negative

Trigger Default setting is Auto Trigger at 10% and 90%

Results Range 2 ns to 10E+5 s

Resolution 40 ps

RMS Resolution 120 ps

Systematic

Uncertainty

Phase

Results Range -180° to +360°

Resolution 40 ps

RMS Resolution 120 ps

Systematic

Uncertainty

Duty Cycle

Pulse Selection Positive or Negative

Trigger Default setting is Auto Trigger at 50 %

Results Range 0 to 1

Resolution 40 ps

RMS Resolution 120 ps

Systematic

Uncertainty

Totalize

Pulse Selection Positive or Negative

(Edge Time x Time Base Error) ± Trigger Level Timing Error ± 500 ps Differential

Measurement is specified over the full signal range of each input.

Measurement is specified over the full signal range of Channel 1.

pulse must be greater than 1 ns, frequency range to 300 MHz.

must be greater than 1 ns frequency range to 300 MHz).

Channel Error.

must be greater than 1 ns frequency range to 300 MHz).

Channel Error

must be greater than 1 ns, frequency range to 300 MHz

± (Trigger Level Timing Error) ×Frequency

must be greater than 1 ns, frequency range to 300 MHz

± Trigger Level Timing Error ± 500 ps Differential Channel Error

must be greater than 1 ns, frequency range to 400 MHz

9898

Trigger Default setting is Trigger at 0 V

The differential channel Error terms which counted by many systematic uncertainty equations result

the TI calibration in the

Results Range 1.5 ns to 10E+15

Resolution 1 count

Systematic

Uncertainty

Peak Volts

DC Signals 15 mV + 2 % of V peak-to-peak amplitude greater than 200 mV

DC Signals (ATT x 10)

Results Range

Resolution 2.5 mV

150 mV + 2 % of V peak-to-peak amplitude greater than 1 V

100 Hz ~ 10 KHz

15 mV + 2 % of V

± 1 count

-5.1 V to + 5.1 V

1 Vp-p, 50 Ω, ATT OFF

10 KHz ~ 5 MHz

5 MHz ~ 80 MHz

80 MHz ~ 300 MHz

Rear Input Option Channel Isolation

Frequency Front Channel(dB), typical Rear Channel(dB), typical

100KHz <-85 <-85

1MHz -85 -75

10MHz -78 -55

50MHz -67 -42

100MHz -62 -37

200MHz -55 -35

300MHz -50 -36

400MHz -47 -33

500MHz -44 -28

The peak volts measurement will keep operating up to 400 MHz, although results act as references only. Tres is the resolution including effect of certain internal errors.

15 mV + 4 % of V

peak-to-peak amplitude greater than 200 mV

15 mV + 7 % of V

15 mV + 15 % of V

channel-to-channel disaccord and internal noise. These issues can be improved by well-controlled temperature environment.

9999

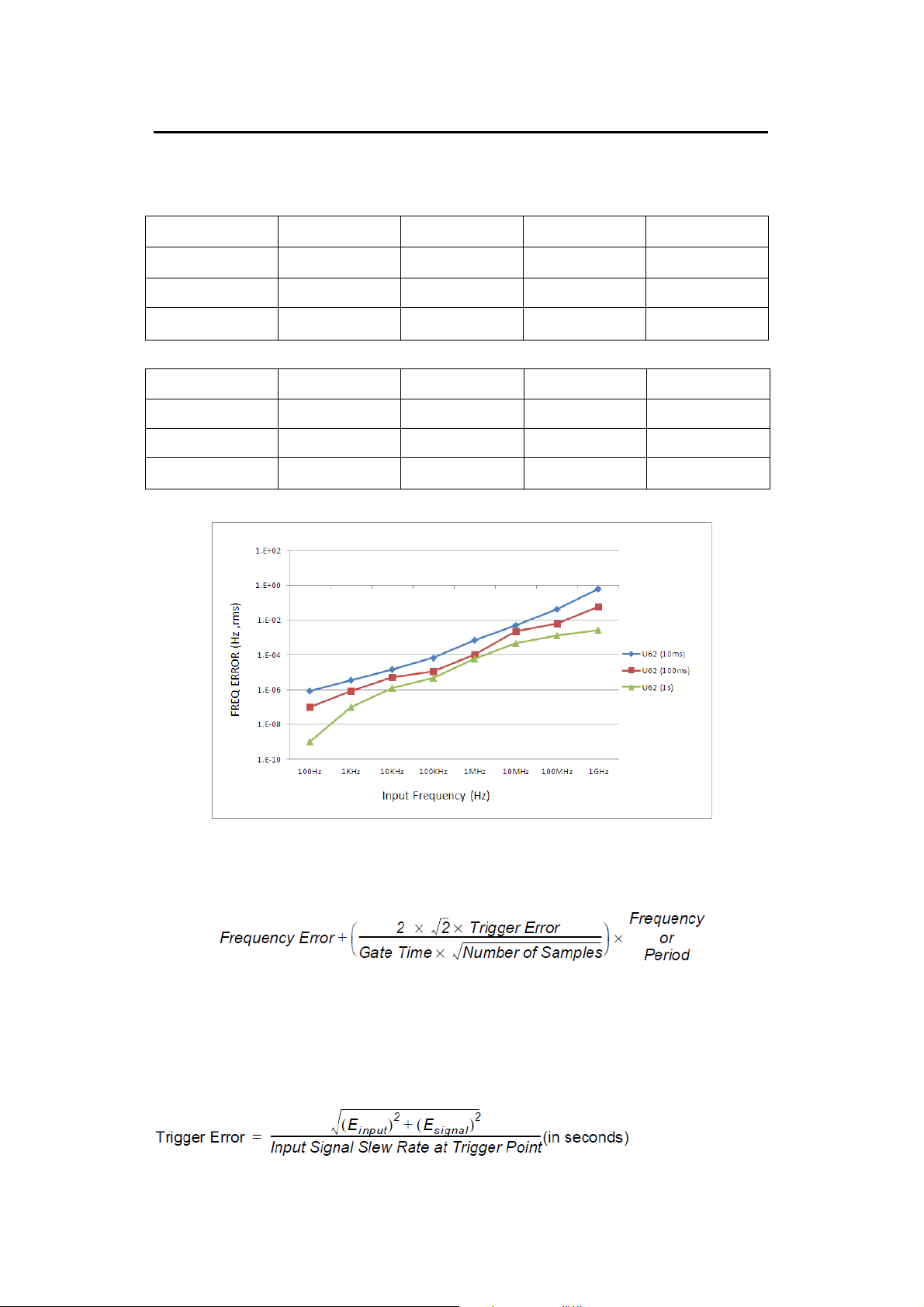

A.1 RMS Resolution

Rms (Typical) 100Hz 1KHz 10KHz 100KHz

1105 (10ms)

1105 (100ms)

1105 (1s)

Rms (Typical)

1105 (10ms)

1105 (100ms)

1105 (1s)

0.000000842 0.000003438 0.000013896 0.000067275

0.0000001 0.000000828 0.000005093 0.000011508

0.000000001 0.000000098 0.000001212 0.000004869

1MHz 10MHz 100MHz 1GHz

0.000677504 0.004830870 0.042107484 0.611551072

0.000101040 0.002272900 0.006344503 0.055991810

0.000058166 0.000469601 0.001275299 0.002602258

The graph doesn’t include the effects of trigger error. To place an upper bound on the added effect

of this error term, it’s necessary to determine the frequency error from the proper graph and add a

trigger error term as the following equation:

External source and input amplifier noise might advance or postpone the trigger points that define

the start and end of a measurement. The resulting timing uncertainty is a function of the slew rate

of the signal and the amplitude of spurious noise spikes (relative to the input hysteresis band).

The (rms) trigger error relative to a single trigger point is:

100

100100

100

B. Preset Values and Save/Recall Information

CH1

1E+6Ohms

yes

CH2

1E+6Ohms

yes

CH1

×1

yes

CH2

×1

yes

CH1 (percent)

yes

CH2 (percent)

yes

CH1 (volts)

yes

CH2 (volts)

yes

CH1

positive

yes

CH2

posit

ive yes

CH1

Medium

yes

CH2

Medium

yes

1 yes

0 yes

off yes

go on

yes

0 yes

off

yes

100

yes

all yes

auto

yes

no yes

Input

impedance

Input

Attenuation

Trigger

Level

Trigger

Slope

Sensitivity

Limits

parameters

Stats

parameters

Trigger Offset

Time Interval

Scale

Offset

Limit test on/off

On fail stop/go on

Lower limit

Upper Limit

Stats on/off

Measurement count

Display

measurement/stats

Use all/in limits

On-single

measurement

Timebase

Cal

Parameters

Trigger Gain

Cal

Parameters

Offset Cal

Parameters

Timebase cal Parameters

Value at *RST

( GPIB Reset )

measurement

Channel 1 trigger offset Inp1 cal Channel 2 trigger offset Inp2 cal

Channel 1 trigger offset Att1 cal Channel 2 trigger offset Att2 cal

Channel 1 trigger gain Inp1 cal Channel 2 trigger gain Inp2 cal Channel 1 trigger gain Att1 cal Channel 2 trigger gain Att2 cal

Fine1 Fine2 Quick

Save/Recall

yes no

non-volatile

memory

yes

BNC 1105 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
