TMR01 Timemachine Road
www.bmc-switzerland.com
timemachine road
ASSEMBLY INSTRUCTIONS
MONTAGEANLEITUNG
INSTRUCTIONS DE MONTAGE
Content
ASSEMBLY INSTRUCTIONS
Introduction
Cable routing for mechanical shifting
Di2 Cable routing
Headset & Fork installation
Seat clamp and seat post installation
Rear brake installation
Brake pad configuration
Front brake installation
Notes
4
6
7
9
10
11
15
16
19
1 / 2
Introduction
BMC timemachine TMR01 frame and components are designed as a system to provide a very high level of aerodynamics and riding
performance.
Integration being a key part of the system’s performance, it is necessary to understand that most components of the frameset have
been designed specifically for timemachine TMR01 and their function may slightly differ from your traditionnal road bike “off the
shelf“ components.
BMC timemachine TMR01 uses all the latest and most high-end technologies that can be found in bicycle manufacturing, including
sharp edged and thin-walled carbon fiber composite construction, which should be treated with delicacy from the end user to
prevent permanent and sometimes invisible damage.
For the reasons mentioned above, we ask you to carefully follow the instructions provided in this manual.
Incorrect mechanical operation on your bicycle could lead to serious damage, which could cause you to fall and lead to
injury or death.
If you do not have the appropriate tools or experience to execute the following instructions, or if you need further
information, please contact your official BMC dealer for service of your bicycle.
3 / 4
Cable routing for mechanical shifting
1. Insert the rear derailleur cable housing from the right dropout, and then run it into the frame (1).
Exit at the head tube opening on the left side (2).
2. Insert the front derailleur cable housing from the right side head tube opening (3).
Run it through the down tube and exit at the bottom bracket on the left side.
3. Install the nosed end cap on the cable housing, then reenter the frame and guide the end cap into the FD cable stopper (4).
4. Insert the rear brake cable housing from the head tube opening, run it through the down tube and exit at the opening behind the
bottom bracket (5).
Note that the rear brake cable housing should be placed on the right side of the shifting cables.
1 2
3 4
5
5 / 6
DI2 Cable routing
Note: For all matters regarding Di2 cable routing, please refer to the official Shimano instructions. This chapter only offers
guidelines in order to properly place the Shimano wires into your TMR01 frame.
1. Use a shifting cable to guide the Di2 rear derailleur wire through the chain stays.
Enter the frame at the drop out and exit at the bottom bracket.
2. Use a shifting cable to guide the Di2 main wire through the down tube. Enter at the cable guide and exit at the bottom bracket.
3. Insert the Di2 front derailleur wire from the hole located near the front derailleur and exit at the bottom bracket.
4. Mount the battery inside the seat tube, guide the wire from the battery towards the bottom bracket and exit there.
5. Connect all Di2 wires coming out of the bottom bracket to the junction, please refer to Shimano installation instructions.
6. Push the wires and the junction back into the bottom bracket and the seat tube.
7. Install the Di2 grommets.
internal battery
7 / 8
Headset and Fork Installation
1. Note that the rear brake cable housing should be installed before installing the fork.
1. Apply grease on the bearings (N°3 and 4) and on the bearing seats of the frame. Place the bearings in the frame.
2. Apply grease on the fork shaft, and then slide the fork through the bearings and the head tube.
3. Slide the compression ring (N°2) over the fork shaft.
4. Apply grease on the fork hinge top part then slide the top cap (N°1) over the fork shaft and over the fork hinge.
Description Part N°
Headset complete kit 212485
1 Top cap
2 Compression ring
3 Upper bearing
4 Lower bearing
5 Aero road fork “teamred” 212474
Aero road fork “flame” 212475
Aero road fork “white” 212476
Aero road fork “stealth” 212477
Seat clamp & seat post Installation
1. Apply grease on the seat post clamp wedges as well as on the seat post clamp outer surface.
Do not put grease on the seat post contact surface.
2. Assemble the seat post clamp (1) and insert it into the frame (2).
3. For Di2 shifting install the Di2 integrated Battery into the seat post.
4. Apply carbone friction paste on the lower part of the seat post as well as on the inside of the seat tube.
5. Insert the seat post into the seat tube.
6. Install the saddle clamping hardware (N°1).
7. Tighten the seat post clamp bolt to 5Nm max (3).
8. Install the rubber plug (N°3) to close the gap on the top tube.
Description Part N°
1 Saddle clamp kit 212482
2 Seat post clamp kit 212483
3 Rubber plug 212484
4 Seat post “team red” 212478
Seat post “flame” 212479
Seat post “shark” 212480
Seat post “white” 212481
3
2
grease
5Nm
1
2 3
9 / 10

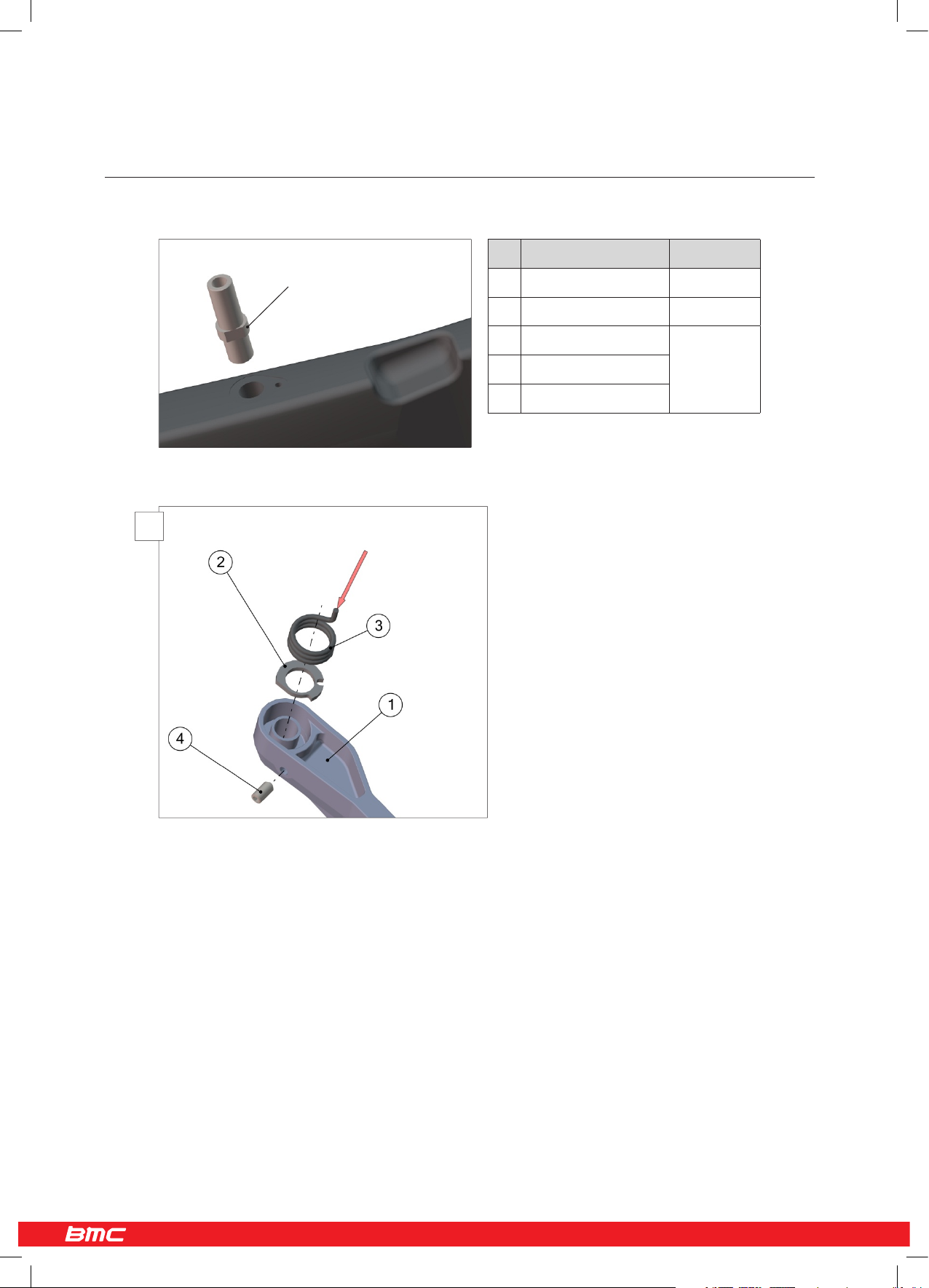

Rear brake installation
1. The rear brake cable should already be installed once you start to build the rear brake, if not, refer to the first chapter.
2. Apply Loctite to the brake pivot thread and bolt it into the frame.
3. Place the adjuster plate N°2 and screw in the M4 adjustment bolt N°4 (2).
4. Apply grease to the spring and place it in the brake arm. The silver spring goes in the right side brake arm.
The longer end of the spring faces towards the frame (2).

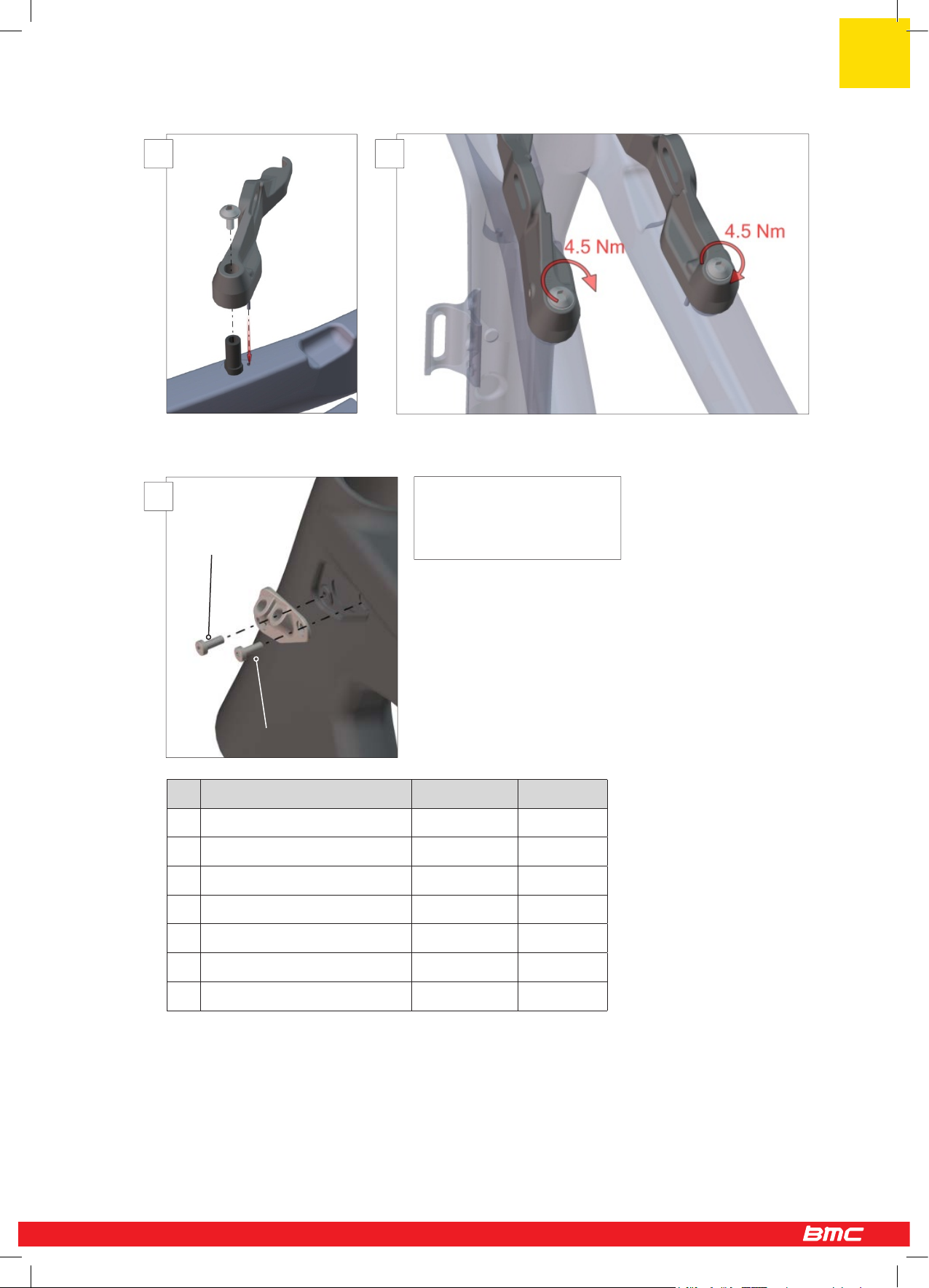

5. Install the brake arm on the frame (3). Tighten the M5 bolts to 4.5Nm (4).
6. Repeat steps 2 – 5 for the remaining brake arm. Note to use the dark spring for the left side brake arm.
Description Part N°
Rear brake set 212496
1 Brake arm
2 Adjuster plate
3 Spring 212499
4 Adjuster bolt
Loctite
The longer end of the
spring faces towards
the frame.
2
7. Run the cables through the required cable guides and grommets, and then install the cable guides on the frame to close the
openings at the head tube (5). The 4 possible combinations are listed below.
Combinations / Description Required parts Part N°
A Mechanical (USA and EU standard) 1, 2, 3, 6 212487
B Mechanical (UK standard) 1, 2, 3, 6 212487
C Di2 (USA and EU standard) 5, 6, 7 21248 8
D Di2 (UK standard) 1, 4, 7 212488
2 Shifting cable grommet (spare part) 2 212490
3 212496 3 212491
7 Di2 grommet (spare part) 7 212489
Important: Note that the shorter
screw (4.5mm) goes to the front,
the longer screw (8mm) goes to
the back.
Shorter screw
Longer screw
3 4
5
11 / 12
C C
D D
A B
C D
8. Cut the brake cable housing 100mm from the cable guide and install the cable adjusters (N°8).
Please refer to the official Shimano installation instructions.
9. Run the rear brake cable through the brake lever and the housing.
10. Slide the liner of the pipe over the brake cable (7). Then slide the pipe (N°1) over the brake cable and the liner (8).
11. Install the pipe holder (N°2) and clamp the brake cable on the left brake arm with the T25 anchor bolt (N°3). Tighten to 6 Nm.
12. Install the brake pads:
Description Part N°
Rear brake set 212496
1 Pipe
2 Pipe holder
3 Anchor bolt 212499
8 Shimano adjusters
9
7
8
8
5
13 / 14
• Depending on rim dimensions, the reach of the brake pads needs to be adjusted with spacers (7, 8, 9, 10).
You can use the table below as a guide.
• Note to only put the one washer (N°11) between brake arm and brake shoe bolt (N°12).
• Please refer to the wheel manufacturer instructions for brake pad specication.
13. Adjust the spring tension (M4 adjustment bolts) to achieve symmetrical pull of the brake arms.
Rim type Rim width Spacers per side (mm) Socket length
Zipp 303/404/808 26.5 0.5 10
23 2.5 10
22 3 10
21 3.5 12
Easton EC90 SL 20.5 3.7 12
Mavic Cosmic Carbone SL 19 4.2 12
Brake pad configuration (front and rear)
POS Description Part N°
1 Brake pad
2 Socket 10mm
3 Socket 12mm Brake
4 Brake shoe shoe set:
5 Locker bolt 212498
6 Parabolic washer
7 Spacer 0.5mm
8 Spacer 1.2mm
9 Spacer 1.5mm
10 Spacer 2.0mm
11 Washer
12 Bolt M5 x 16
1. Apply Loctite to the brake pivot thread and bolt it onto the fork.
2. Place the adjuster plate (N°2) into the brake arm (N°1) and screw in the M4 adjustment bolt (N°4).
3. Apply grease to the spring (N°3) and place it in the brake arm. The silver colored spring goes into the right arm.
The longest extension of the spring should point towards the fork.
4. Install the brake arm. Tighten the M5 bolt to 4.5Nm.
Front brake installation
Description Part N°
Front brake complete set 212495
1 Brake arm
2 Adjuster plate
3 Spring 212499
4 Adjuster bolt
Loctite
The longer end of the
spring goes into the fork
15 / 16
5. Apply Loctite to the brake pivot thread and bolt it onto the fork.
6. Repeat steps 1 – 4 for the second brake arm.
Note to use the dark spring for the left side brake arm.
7. Cut a comfortable length of Shimano brake cable housing and run it through the top cap and the fork hinge.
8. Cut the brake cable housing 30mm from the top cap and install the cable adjusters.
Please refer to the official Shimano installation instructions.
9. Run the front brake cable thru the housing.
30mm
8
10. Slide the pipe noodle over the brake cable then slide the pipe over the brake cable and the noodle.
11. Install the pipe holder and clamp the brake cable on the left brake arm with the T25 anchor bolt. Tighten to 6Nm.
12. Install the brake pads: Refer to page 14 for pad and spacer specifications.
13. Install the brake cover.
17 / 18
14. Adjust the spring tension by using the M4 adjustment bolts until the brake arms rotate symmetrical.
