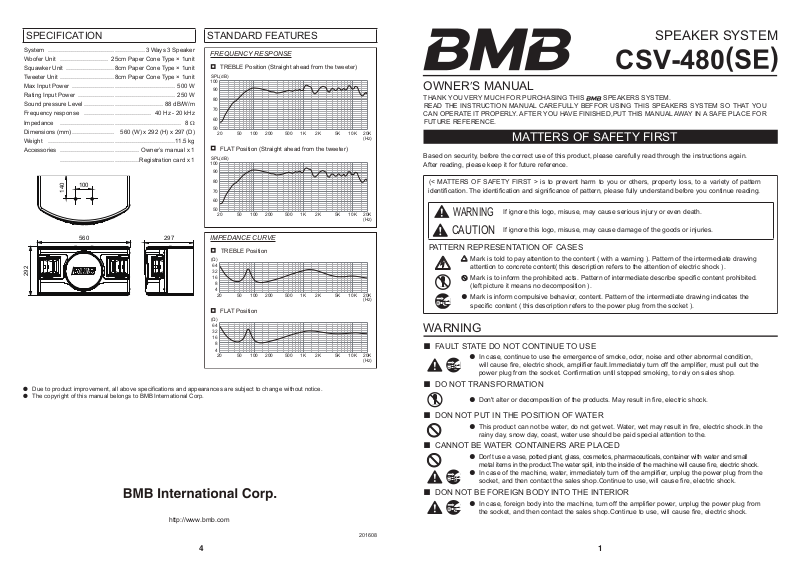

BMB CSV-480, CSV-480 SE Owner's Manual

Page 1

SPEAKER SYSTEM

CSV-480

OWNER’S MANUAL

THANK YOU VERY MUCH FOR PURCHASING THIS SPEAKERS SYSTEM. READ THE INSTRUCTION MANUAL CAREFULLY BEFFOR USING THIS SPEAKERS SYSTEM SO THAT YOU CAN OPERATE IT PROPERLY. AFTER YOU HAVE FINISHED,PUT THIS MANUAL AWAY IN A SAFE PLACE FOR FUTURE REFERENCE.

MATTERS OF SAFETY FIRST

Based on security, before the correct use of this product, please carefully read through the instructions again. After reading, please keep it for future reference.

(< MATTERS OF SAFETY FIRST > is to prevent harm to you or others, property loss, to a variety of pattern identiﬁcation. The identiﬁcation and signiﬁcance of pattern, please fully understand before you continue reading.

WARNING

CAUTION

PATTERN REPRESENTATION OF CASES

Mark is told to pay attention to the content ( with a warning ). Pattern of the intermediate drawing

attention to concrete content( this description refers to the attention of electric shock ).

Mark is to inform the prohibited acts. Pattern of intermediate describe speciﬁc content prohibited.

(left picture it means no decomposition ).

ƽ Mark is inform compulsive behavior, content. Pattern of the intermediate drawing indicates the

speciﬁc content ( this description refers to the power plug from the socket ).

If ignore this logo, misuse, may cause serious injury or even death.

If ignore this logo, misuse, may cause damage of the goods or injuries.

WARNING

Ƶ FAULT STATE DO NOT CONTINUE TO USE

ƽ In case, continue to use the emergence of smoke, odor, noise and other abnormal condition,

will cause ﬁre, electric shock, ampliﬁer fault.Immediately turn off the ampliﬁer, must pull out the power plug from the socket. Conﬁrmation until stopped smoking, to rely on sales shop.

Ƶ DO NOT TRANSFORMATION

ƽ Don't alter or decomposition of the products. May result in ﬁre, electric shock.

Ƶ DON NOT PUT IN THE POSITION OF WATER

Ƶ CANNOT BE WATER CONTAINERS ARE PLACED

Ƶ DON NOT BE FOREIGN BODY INTO THE INTERIOR

ƽ This product can not be water, do not get wet. Water, wet may result in ﬁre, electric shock.In the

rainy day, snow day, coast, water use should be paid special attention to the.

ƽ Don't use a vase, potted plant, glass, cosmetics, pharmaceuticals, container with water and small

metal items in the product.The water spill, into the inside of the machine will cause ﬁre, electric shock.

ƽ In case of the machine, water, immediately turn off the ampliﬁer, unplug the power plug from the

socket, and then contact the sales shop.Continue to use, will cause ﬁre, electric shock.

ƽ In case, foreign body into the machine, turn off the ampliﬁer power, unplug the power plug from

the socket, and then contact the sales shop.Continue to use, will cause ﬁre, electric shock.

Page 2

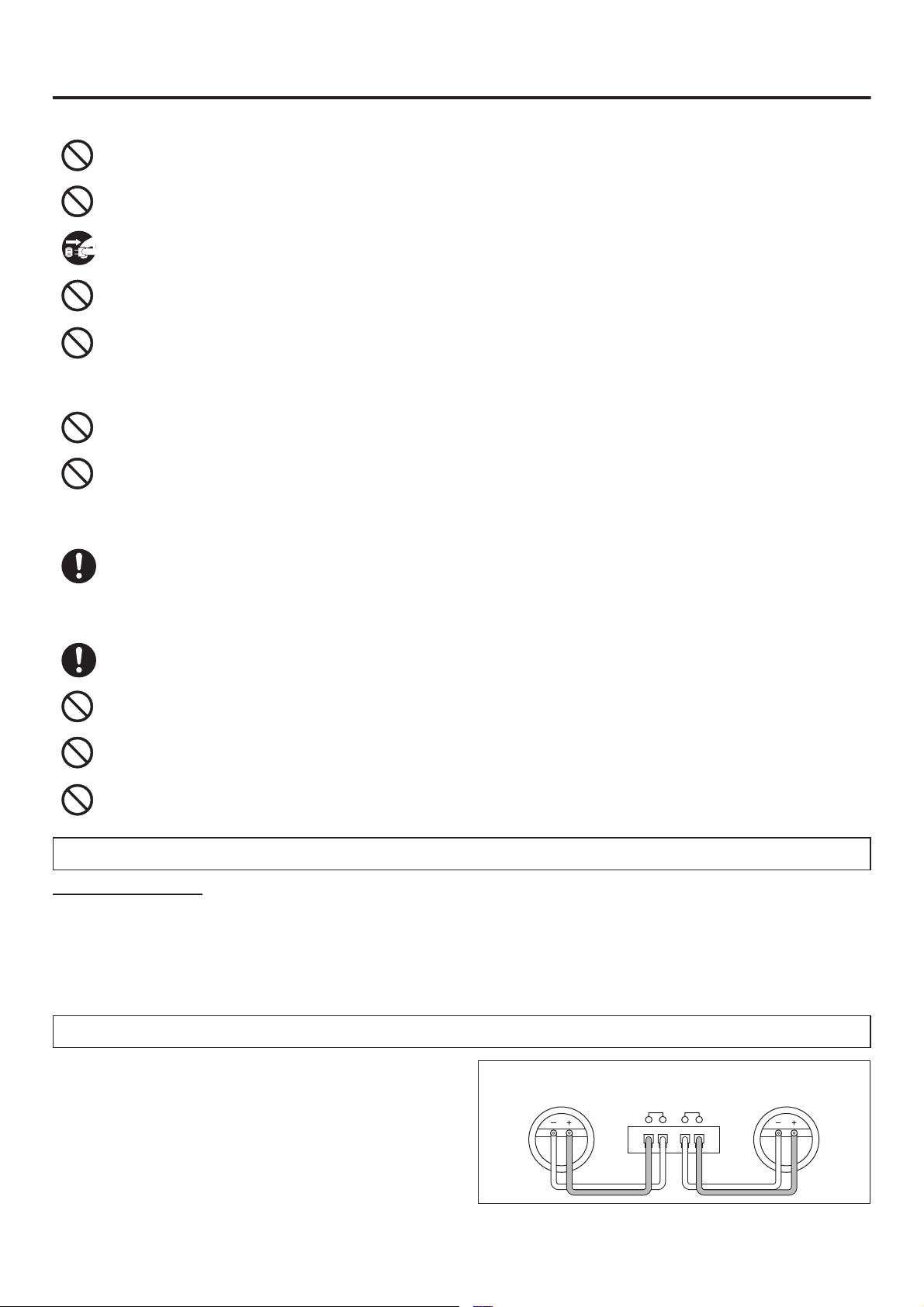

CAUTION

ƵINSTALLING

ƵCAN NOT SET IN THE FOLLOWING AREAS

ƵON CONNECTION

ƽ Can not be placed in the shaking of the table upper unstable place. Falling down, falling down

can lead to injuries.

ƽ Move the product, do not hand grasping the iron net, the speaker unit. May cause injury.

ƽ Moving the product, turn off the ampliﬁer, unplug the power plug from the socket, remove the

speaker cable and mobile.Or will lead to cable damage, cause ﬁre, electric shock.

ƽ The product is placed on TV, audio equipment, do not move the product. Articles collapse cause

injury.

ƽ This product can not be placed over 10kg weight and ratio of large size items.

The imbalance will make the goods fall, fall and hurt.

ƽ Can not be placed in the food processing machine, humidiﬁer, steam soot place. May result in

ﬁre, electric shock.

ƽ Can not be placed in damp, dusty places. May result in ﬁre, electric shock.

ƽ The machine and other audio equipment, television sets and other machine connection,

please read carefully the instructions of each machine,Switch off the power supply, follow the instructions.

ƵNOTE AT WHEN USING

ƽ Switch on the power set the volume to a minimum. All of a sudden loud noise can cause

hearing impairment.

ƽ Don't use long time voice distortion under the state. The speaker fever will cause ﬁre

ƽ Please don't sit on or suspended in the loudspeaker. Special attention should be paid to the

child. Collapse, damage can result in injury.

ƽ Cash card, disk with magnetic products do not close. The speaker magnetic will affect the

products, the use of data Disappear.

BEFORE USE

Operating Precautions

● The maximum input power of these speakers is 500 W (at peak). Higher levels of input power may cause damage to the speaker

system and so take every precaution to keep the power down to the speciﬁcation.

● Even if an ampliﬁer with a maximum output power of less than 500 W is employed, do not use the speakers with the volume turned up too high or the sound distorted. This may damage the speakers.

● Make sure that the ampliﬁer’s power switch is at the OFF position when connecting the speakers to the ampliﬁer.

●

Make sure that the ampliﬁer’s volume control is turned down to its lowest setting when the ampliﬁer’s power switch is set to the ON position.

CONNECT TO AMPLIFIER

● Make sure that you set the power switch on the ampliﬁer to the

OFF position when connecting the speakers to the ampliﬁer.

● Align the (–) and (+) polarities of the speakers with the (–) and

(+) polarities of the left (L) and right (R) channels of ampliﬁer,

and connect the speakers to the speaker terminals on the

ampliﬁer. (Please refer to the below drawing.)

* If the polarities of the left and right speakers are not aligned

properly, the quality of the reproduced sound, the ambience and the feeling of direction will all be markedly impaired.

* When making the connections, take every precaution to

prevent the speaker cords’ central cores from being shorted.

Right speaker

system

Connected amplifier (Speaker terminals)

+ – +–

Left speaker system

2 3

Page 3

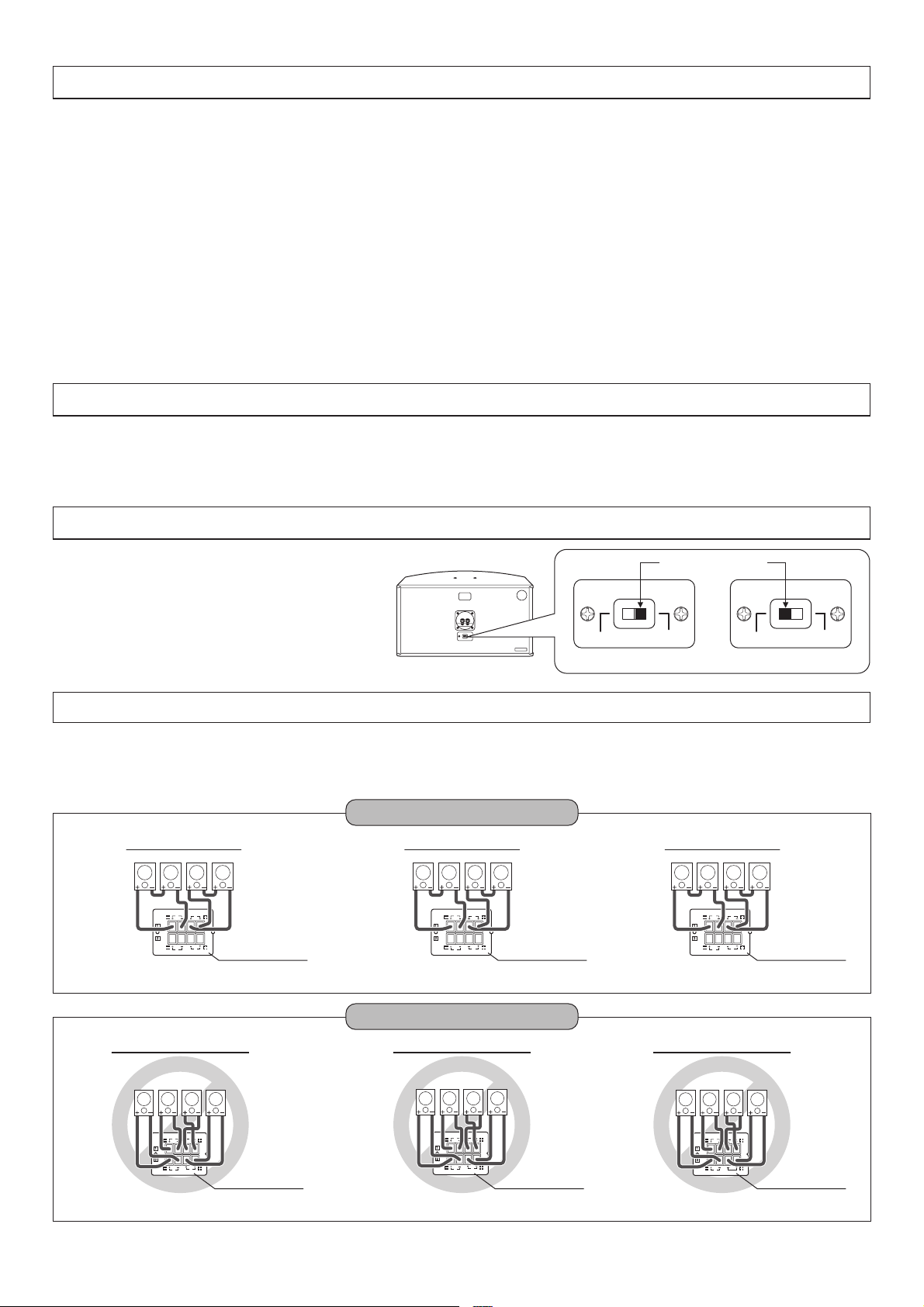

INSTALLING THE SPEAKERS

● Avoid installing the speakers in a location exposed to direct sunlight and high levels of humidity. Avoid also locations in the vicinity of stoves and other sources of heat.

● With a speaker system, the sound which is heard varies greatly according to the installation location. Bear in mind the following

points in order to derive the most enjoyment from music.

a) Install the speaker at the upper position than your ears level when you listen to the sound under normal listening conditions. b) The best distance between the speakers is approx. 2 to 5 m. c) The bass sounds fuller if the speakers are installed on a solid and stable stand of shelf, or if they are placed against a wall.

The bass sound will lose its impact if objects which do not reect the bass well enough are placed in front of the speakers.

● If you plan to hang your speakers from the ceiling, contact a professional installer.

● This speaker system is not magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is intalled extremely close to the screen of a television set. If this happens, turn off the television, then turn it on again after 15 to 30 minutes. If the problem persists, place the speaker system away from the television set.

Caution:

If you want to suspend the CSV-480 from the ceiling, use adequate mounting hardware that can bear the load. In addition, be sure to secure the mounting hardware onto a place of high-tensile strength using screws appropriate to the ceiling materials.

SPEAKER MAINTENANCE

● Wipe off dust or dirt with soft cloth.

● If the speaker is very dirty, wipe it with soft cloth dipped with neutral solvent diluted with 5~6 times of water, and then wipe it with dry cloth. Do not use diluter, gasoline, detergent or other chemical solvents on or near the speaker. Otherwise, its surface may be damaged. In addition, do not use insecticide or other spraying agent near the speaker.

TONE CONTROL

● This speaker system offers a slide switch that gives you two tone choices: TREBLE and FLAT.

Position Selection

The TREBLE position is intended for listening in a large room; the FLAT position is suitable for a small room. This switch is located on the rear face of each speaker.

FLAT

TREBLE

TREBLE position FLAT position

PROPERLY CONNECT THE SPEAKER TO YOUR POWER AMPLIFIER

(for example, 4 speakers)

FLAT

TREBLE

■ Conﬁgure and wire the speakers so that the combined impedance falls within 6 to 32 Ω.

Note:

The speciﬁcation allows the combined impedance ranging 4 to 32 Ω, however, 4 Ω conﬁguration is not recommended; avoid it whenever possible.

$OORZDEOH([DPSOHV

Allowable Example 1

6 Ω 6 Ω 6 Ω 6 Ω

R L

6SHDNHUWHUPLQDOV

OK: Combined impedance is Ω

OK: Combined impedance is 14 Ω

Allowable Example 2

8 Ω 6 Ω 6 Ω 8 Ω

R L

6SHDNHUWHUPLQDOV

Allowable Example 3

8 Ω 8 Ω 8 Ω 8 Ω

R L

6SHDNHUWHUPLQDOV

OK: Combined impedance is 16Ω

Not-allowable Example 1

6 Ω 6 Ω 6 Ω 6 Ω

R L

(Speaker terminals)

NG: Combined impedance is 3Ω

Not-allowable Examples

Not-allowable Example 2

8 Ω 6 Ω 6 Ω 8 Ω

R L

(Speaker terminals)

NG: Combined impedance is 3.4Ω

Not-allowable Example 3

8 Ω 8 Ω 8 Ω 8 Ω

R L

(Speaker terminals)

NG: Combined impedance is 4 Ω

Page 4

SPEAKER SYSTEM

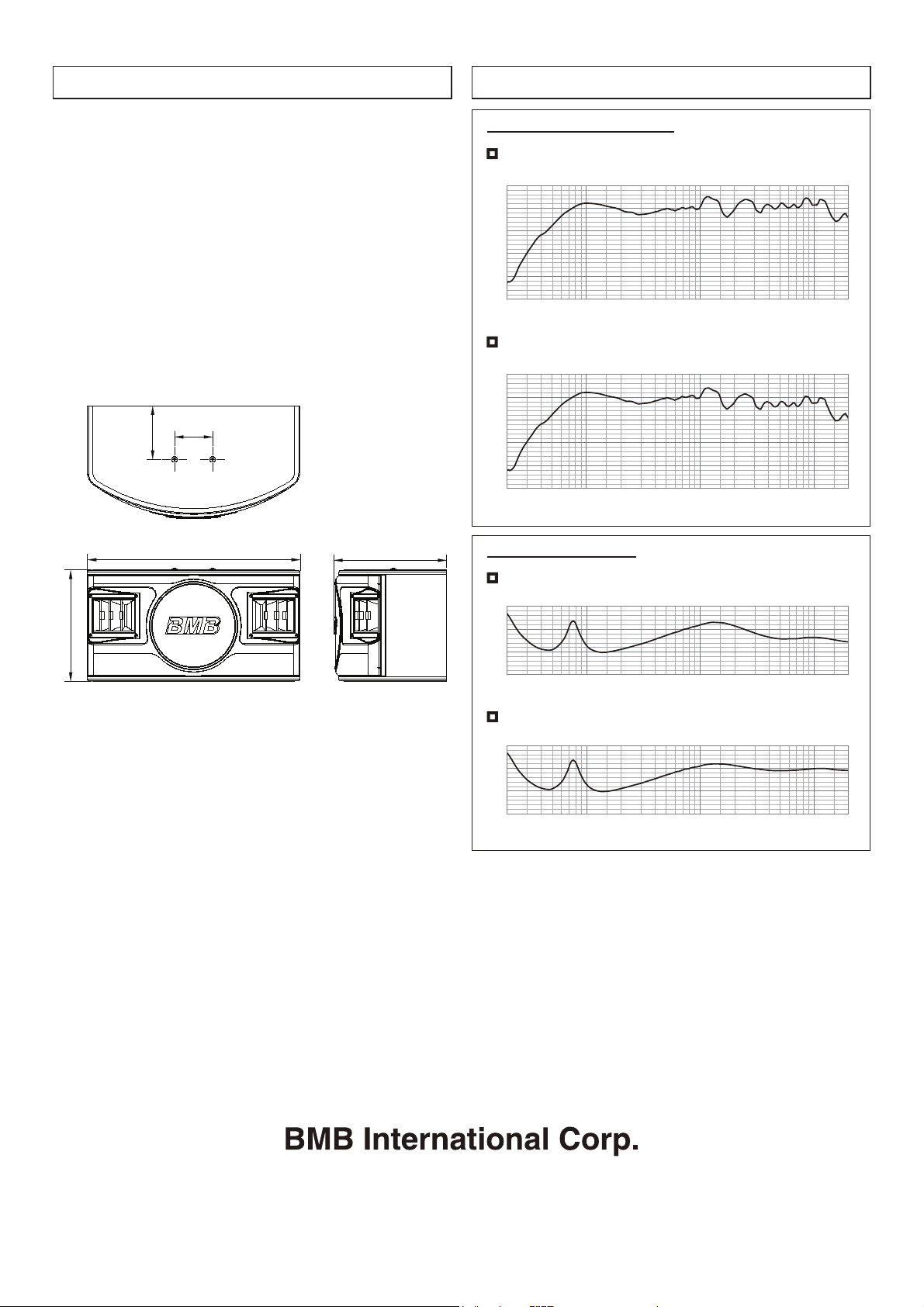

SPECIFICATION

292

STANDARD FEATURES

System �� 3 Ways 3 Speaker

Woofer Unit �� 25cm Paper Cone Type × 1unit

Squawker Unit ��8cm Paper Cone Type × 1unit

Tweeter Unit ��8cm Paper Cone Type × 1unit

Max Input Power �� 500 W

Rating Input Power �� 250 W

Sound pressure Level �� 88 dB/W/m

Frequency response �� 40 Hz - 20 kHz

Impedance �� 8 Ω

Dimensions (mm) �� 560 (W) x 292 (H) x 297 (D)

Weight ��11.5 kg

Accessories �� Owner’s manual x 1

Accessories ��Registration card x 1

100

140

560

297

FREQUENCY RESPONSE

TREBLE Position (Straight ahead from the tweeter)

SPL(dB)

100

20 50 100 200 500 1K 2K 5K 10K

FLAT Position (Straight ahead from the tweeter)

SPL(dB)

100

20 50 100 200 500 1K 2K 5K 10K

IMPEDANCE CURVE

20K (Hz)

TREBLE Position

(Ω)

64 32 16

8 4

20 50 100 200 500 1K 2K 5K 10K

FLAT Position

(Ω)

64 32 16

8 4

20 50 100 200 500 1K 2K 5K 10K

● Due to product improvement, all above speciﬁcations and appearances are subject to change without notice.

● The copyright of this manual belongs to BMB International Corp.

20K (Hz)

http://www.bmb.com

201608
