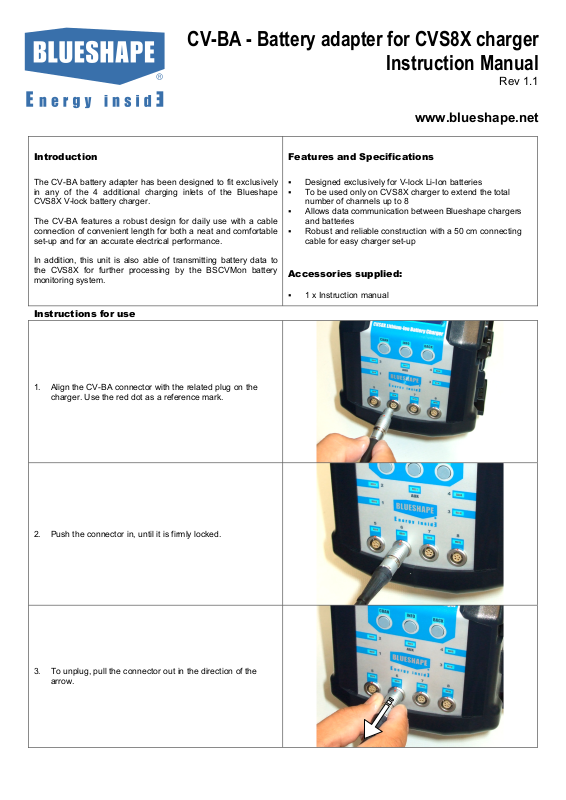

BLUESHAPE CV-BA User Manual

CV-BA - Battery adapter for CVS8X charger

Instruction Manual

Rev 1.1

www.blueshape.net

Introduction

The CV-BA battery adapter has been designed to fit exclusively
in any of the 4 additional charging inlets of the Blueshape
CVS8X V-lock battery charger.

The CV-BA features a robust design for daily use with a cable
connection of convenient length for both a neat and comfortable
set-up and for an accurate electrical performance.

In addition, this unit is also able of transmitting battery data to
the CVS8X for further processing by the BSCVMon battery
monitoring system.

Instructions for use

1. Align the CV-BA connector with the related plug on the
charger. Use the red dot as a reference mark.

Features and Specifications

 Designed exclusively for V-lock Li-Ion batteries
 To be used only on CVS8X charger to extend the total

number of channels up to 8

 Allows data communication between Blueshape chargers

and batteries

 Robust and reliable construction with a 50 cm connecting

cable for easy charger set-up

Accessories supplied:

 1 x Instruction manual

2. Push the connector in, until it is firmly locked.

3. To unplug, pull the connector out in the direction of the

arrow.
