Blue Rhino NPC2604 User Manual

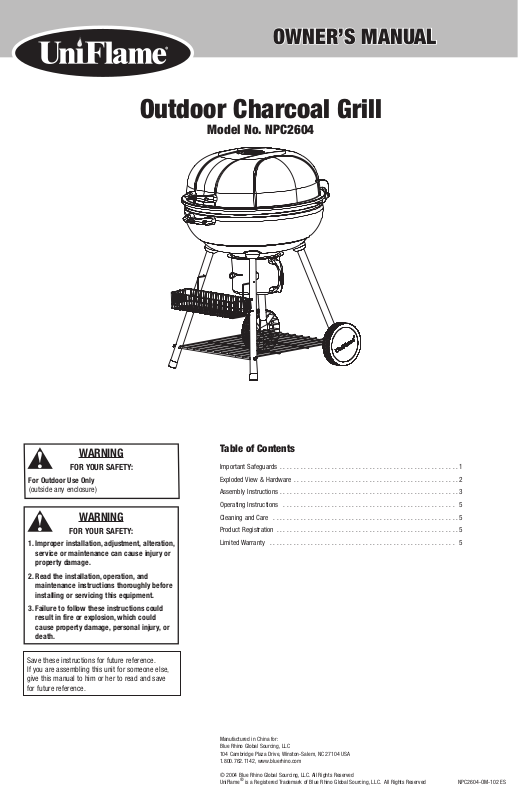

OWNER’S MANUAL
Outdoor Charcoal Grill
Model No. NPC2604
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.
Manufactured in China for: Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA
1.800.762.1142, www.bluerhino.com
© 2004 Blue Rhino Global Sourcing, LLC. All Rights Reserved UniFlame® is a Registered Trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved NPC2604-OM-102 ES
Outdoor Charcoal Grill Model No. NPC2604
WARNING
FOR YOUR SAFETY
1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.
2. This grill is NOT for commercial use.
3. Do not use grill for indoor cooking or heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.
4. Do not use gasoline, kerosene, or alcohol for lighting.
5. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
6. Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.
7. Instant light charcoal can burn at very high temperatures during initial startup. Make sure lid is open until charcoal turns to hot coals.
8. Keep all combustible items and surfaces at least 21 inches (53 cm) away from the grill at all times. DO NOT use this grill or any gas product under any overhead or near any unprotected combustible constructions.
9. Do not alter grill in any manner.
10. Do not use the grill unless it is completely assembled and all parts
are securely fastened and tightened.
11. This grill should be thoroughly cleaned and inspected on a regular
basis.
12. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts.
The use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.
17. Do not use in or on boats or recreational vehicles.
18. Position grill so wind can not carry ashes to combustible surfaces.
19. Do not use in high winds.
20. Never lean over the grill when lighting.
21. Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.
22. Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.
23. Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.
24. Always place your grill on a hard, level surface. An asphalt or blacktop surface may not be acceptable for this purpose.
25. Do not remove the ashes until all ashes are completely and fully extinguished.
26. Live hot briquettes and coals can create a fire hazard.
27. Always empty the ash catcher and grill after each use. Do not remove the ashes until all ashes are completely and fully extinguished.
28. Do not place fuel (charcoal briquets, wood or lump charcoal) directly into bottom of grill. Place fuel only on the charcoal pan/grid.
29. Check to make sure the air vents are free of debris and ash before and while you are using the grill.
30. Make sure ash catcher is securely and completely in place before using the grill.
13. Do not use this appliance without reading “Operating Instructions” in this manual.
14. Do not touch metal parts of grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
15. Never touch grates (charcoal or cooking), ashes or coals to see if they are hot.
16. Do not use on wooden decks, wooden furniture or other combustible surfaces.
31. Always wear protective gloves when adding fuel to retain desired heat level.
32. Keep all electrical cords away from a hot grill.
33. Always use a meat thermometer to ensure food is cooked to a safe temperature.
34. Deaths, serious injury or damage to property may occur if the above is not followed exactly.
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
2

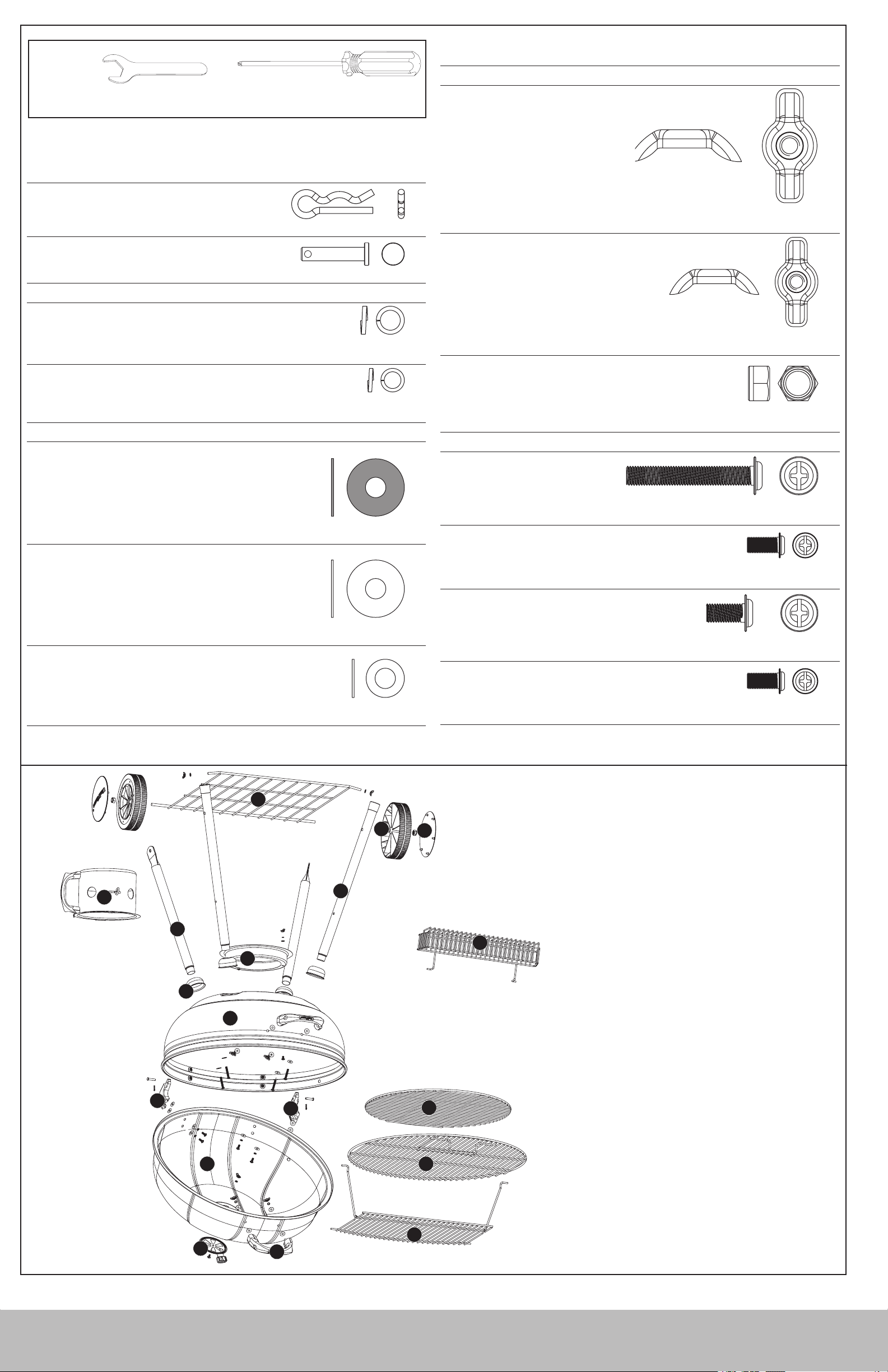

Exploded View
1. Handle (2) . . . . . . . . . . . . . . . . 55-14-922
2. Air Vent . . . . . . . . . . . . . . . . . . 55-14-923
3. Lid . . . . . . . . . . . . . . . . . . . . . 55-14-924
4. Warming Rack. . . . . . . . . . . . . 55-14-925
5. Right Hinge . . . . . . . . . . . . . . . 55-14-926
6. Left Hinge . . . . . . . . . . . . . . . . 55-14-927
7. Bowl . . . . . . . . . . . . . . . . . . . . 55-14-928
8. Cooking Grid . . . . . . . . . . . . . . 55-14-929
9. Charcoal Grid . . . . . . . . . . . . . 55-14-930
10. Leg Support Cups (4). . . . . . . . 55-14-931
11. Front Legs (2) . . . . . . . . . . . . . 55-14-932
12. Wheel Legs (2) . . . . . . . . . . . . 55-14-933
13. Slide . . . . . . . . . . . . . . . . . . . . 55-14-934
14. Ash Receiver . . . . . . . . . . . . . . 55-14-935
15. Bottom Shelf . . . . . . . . . . . . . . 55-14-936
16. Wheel (2). . . . . . . . . . . . . . . . . 55-14-937
18
1
4
8
9
6
13
2
3
5
7
10
12
17. Hub Cap (2) . . . . . . . . . . . . . . . 55-14-938
18. Front Basket . . . . . . . . . . . . . . 55-14-905
Hardware / Actual Size
A. Small Screw 1 pc
M5x10 Philips Truss Head Screw
B. Medium Screw 1 pc
M6x12 Philips Truss Head Screw
C. Large Screw 4 pcs
M6x15 Philips Truss Head Screw
11
17
16
15
H. Small Washers 3 pcs
ø6.4 Zinc Plated Washer
I. Large Washer 12 pcs
ø6.4 Zinc Plated Washer
14
D. Extra Large Screw 4 pcs
M6x40 Philips Truss Head Screw
E. Nut 2 pcs
M8 Zinc Plated Nut
F. Small Wing Nut 1 pc
M5 Zinc Plated Wing Nut
G. Large Wing Nut 7 pcs
M6 Zinc Plated Wing Nut
J. Heat Resistant Washer 8 pcs
ø6.4 Heat Resistant Washer
K. Small Lock Washer 1 pc
ø5.3 Zinc Plated Lock Washer
L. Large Lock Washer 9 pcs
ø6.4 Zinc Plated Lock Washer
M. Pins* 2 pcs
N. Cotter Pins* 2 pcs
* Not shown at actual size.
Only tools required for assembly are provided Screwdriver* 1 pc
Wrench* 1 pc
Outdoor Charcoal Grill Model No. NPC2604
J
C
L
I
J
A
L
K
I
G
F
B
H
L
G
D
I
H
G
E
J
L
I
G

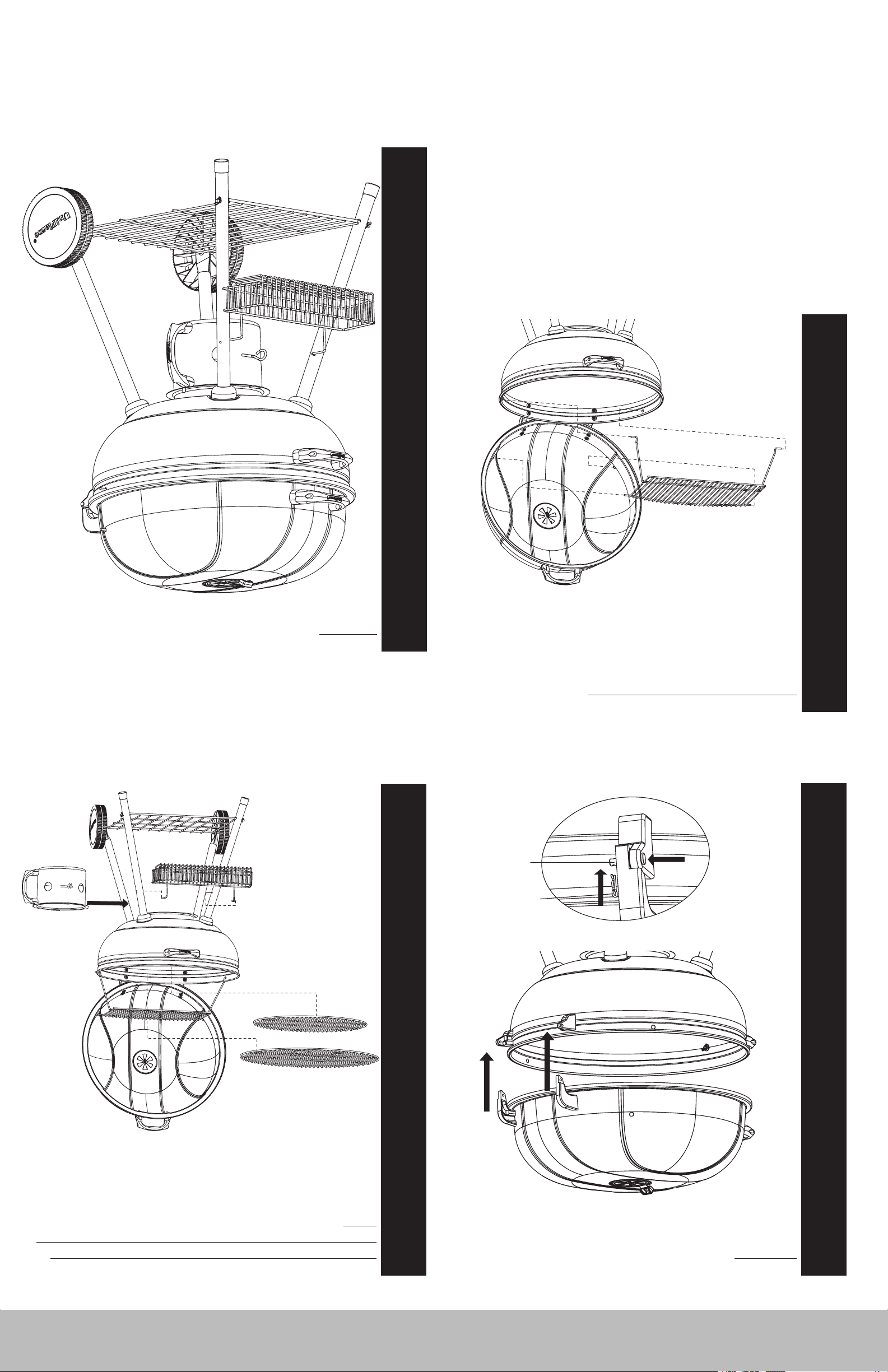

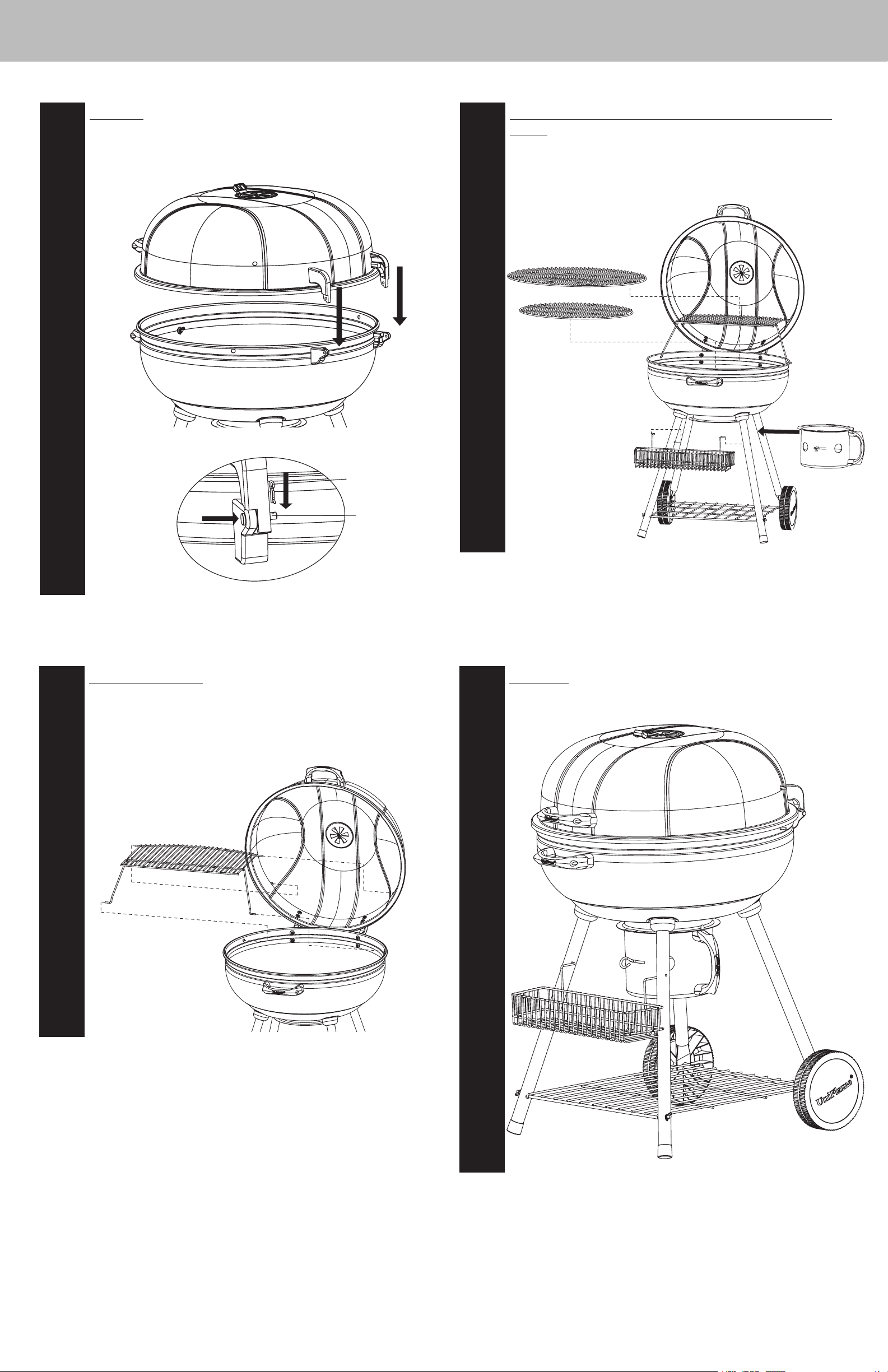

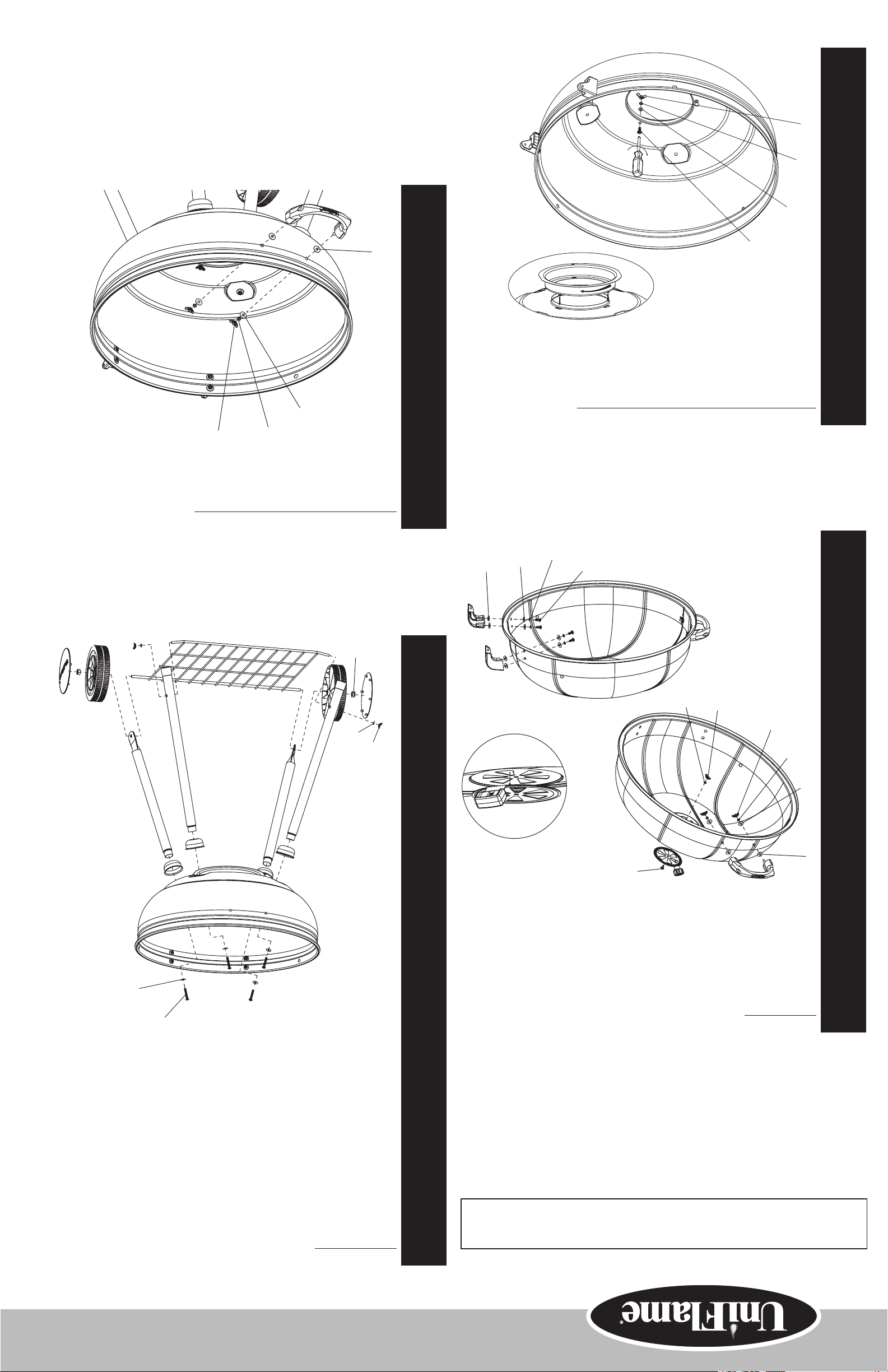

Assembly Instructions
DO NOT RETURN PRODUCT TO STORE. For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial
number available for reference.
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.
• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is completed go back fully tighten all hardware.
• Follow all steps in order to properly assemble your product.
Step
1
Assemble lid
A. Attach air vent to lid using small screw (A), small lock washer (K) and small wing
nut (F).
B. Attach handle to lid using 2 sets of heat resistant washers (J), large washers (I),
large lock washers (L) and large wing nuts (G).
C. Attach top left and right hinges to lid using 4 sets of heat resistant washers (J),
large washers (I), large lock washers (L) and large screws (C).
Step
3
Assemble frame
A. Attach front legs and wheel legs to bottom bowl using 4 sets of leg cups, extra
large screws (D), and large washers (I).
Note: Do not tighten large screws (D) until bottom shelf is attached.
B. Attach bottom shelf to front legs using 2 sets of small washers (H) and large wing
nuts (G).
Note: The angled ends of the bottom shelf are inserted into the front legs.
C. Attach wheels and bottom shelf to wheel legs using 2 nuts (E).
D. Attach hub caps.
E. Tighten 4 extra large screws (D).
Step
2
Attach bottom slide
A. Insert slide onto underside of bowl. Turn to lock into place.
B. Attach bottom slide to bottom bowl using medium screw (B), small washer (H)
large lock washer (L), and large wing nut (G).
Step
4
Attach handle to bottom bowl
Attach handle to bowl using 2 sets of large washers (I), large lock washers (L), large wing nuts (G), and heat resistant washers (J).
