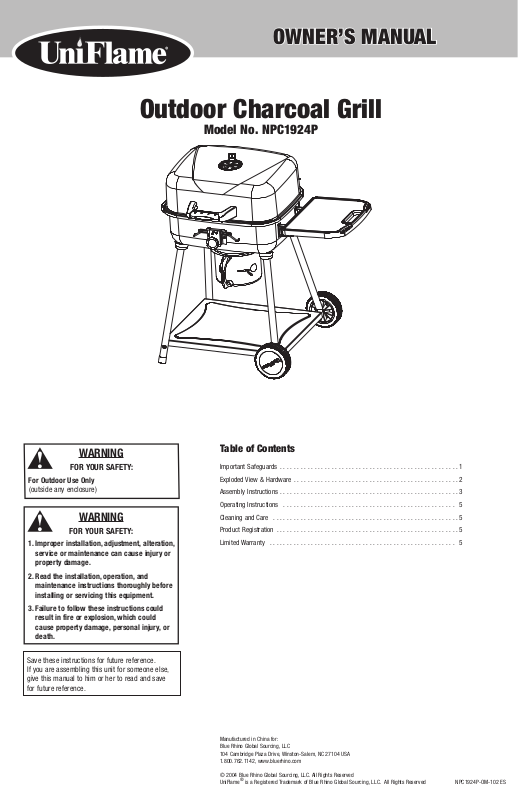

OWNER’S MANUAL
Outdoor Charcoal Grill
Model No. NPC1924P
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.
Manufactured in China for: Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA
1.800.762.1142, www.bluerhino.com
© 2004 Blue Rhino Global Sourcing, LLC. All Rights Reserved UniFlame® is a Registered Trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved NPC1924P-OM-102 ES
Outdoor Charcoal Grill Model No. NPC1924P
WARNING
FOR YOUR SAFETY
1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.
2. This grill is NOT for commercial use.
3. Do not use grill for indoor cooking or heating. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.
4. Do not use gasoline, kerosene, or alcohol for lighting.
5. Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
6. Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.
7. Instant light charcoal can burn at very high temperatures during initial startup. Make sure lid is open until charcoal turns to hot coals.
8. Keep all combustible items and surfaces at least 21 inches (53 cm) away from the grill at all times. DO NOT use this grill or any gas product under any overhead or near any unprotected combustible constructions.
9. Do not alter grill in any manner.
10. Do not use the grill unless it is completely assembled and all parts
are securely fastened and tightened.
11. This grill should be thoroughly cleaned and inspected on a regular
basis.
12. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts.
The use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.
17. Do not use in or on boats or recreational vehicles.
18. Position grill so wind can not carry ashes to combustible surfaces.
19. Do not use in high winds.
20. Never lean over the grill when lighting.
21. Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.
22. Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.
23. Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.
24. Always place your grill on a hard, level surface. An asphalt or blacktop surface may not be acceptable for this purpose.
25. Do not remove the ashes until all ashes are completely and fully extinguished.
26. Live hot briquettes and coals can create a fire hazard.
27. Always empty the ash catcher and grill after each use. Do not remove the ashes until all ashes are completely and fully extinguished.
28. Do not place fuel (charcoal briquets, wood or lump charcoal) directly into bottom of grill. Place fuel only on the charcoal pan/grid.
29. Check to make sure the air vents are free of debris and ash before and while you are using the grill.
30. Make sure ash catcher is securely and completely in place before using the grill.
13. Do not use this appliance without reading “Operating Instructions” in this manual.
14. Do not touch metal parts of grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
15. Never touch grates (charcoal or cooking), ashes or coals to see if they are hot.
16. Do not use on wooden decks, wooden furniture or other combustible surfaces.
31. Always wear protective gloves when adding fuel to retain desired heat level.
32. Keep all electrical cords away from a hot grill.
33. Always use a meat thermometer to ensure food is cooked to a safe temperature.
34. Deaths, serious injury or damage to property may occur if the above is not followed exactly.
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
2

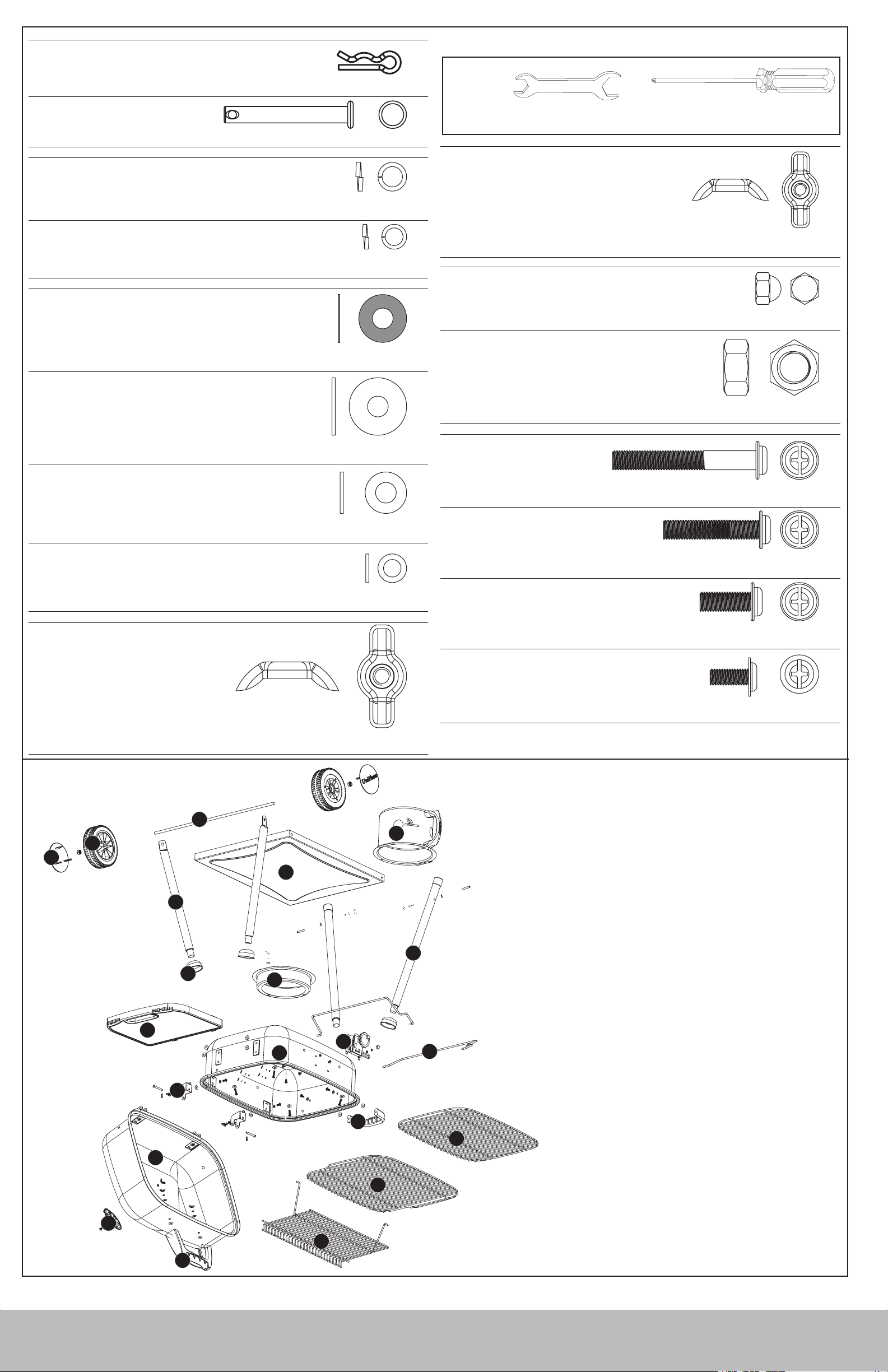

Exploded View
1. Lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-853
2. Lid Handle . . . . . . . . . . . . . . . . . . . . . . . . 55-14-854
3. Warming Rack . . . . . . . . . . . . . . . . . . . . . 55-14-855
4. Charcoal Grid. . . . . . . . . . . . . . . . . . . . . . 55-14-856
5. Air Vent . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-857
6. Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-858
7. Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-859
8. Wheel Leg (2). . . . . . . . . . . . . . . . . . . . . . 55-14-860
9. Wheel (2) . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-861
10. Hub Cap (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-862
11. Left Leg (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-863
12. Leg Support Cups (4) . . . . . . . . . . . . . . . . 55-14-864
13. Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-865
14. Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-866
2
3
5
21
1
4
18
16
20
13
19
17
14
12
11
15. Ash Receiver . . . . . . . . . . . . . . . . . . . . . . 55-14-867
16. Bottom Hinge (2) . . . . . . . . . . . . . . . . . . . 55-14-868
17. Side Table . . . . . . . . . . . . . . . . . . . . . . . . 55-14-869
18. Side Handle . . . . . . . . . . . . . . . . . . . . . . . 55-14-870
19. Adjustable Knob. . . . . . . . . . . . . . . . . . . . 55-14-871
20. Charcoal Grid Support Rod (2) . . . . . . . . . 55-14-872
21. Cooking Grid . . . . . . . . . . . . . . . . . . . . . . 55-14-873
Hardware / Actual Size
A. Small Screw 3 pcs
M5x12 Philips Truss Head Screw
B. Medium Screw 9 pcs
M6x16 Philips Truss Head Screw
6
15
7
H. Large Wing Nut* 7 pcs
M6 Zinc Plated Wing Nut
8
10
9
C. Large Screw 4 pcs
M6x30 Philips Truss Head Screw
D. Extra Large Screw 2 pcs
M6x45 Philips Truss Head Screw
E. Nut 2 pcs
M10 Zinc Plated Hex Nut
F. Cap nut 2 pcs
M5 Zinc Plated Cap Nut
G. Small Wing Nut 1 pc
M5 Zinc Plated Wing Nut
I. Small Washer 2 pcs
ø5.5 Zinc Plated Washer
J. Medium Washer 5 pcs
ø6.5 Zinc Plated Washer
K. Large Washer 16 pcs
ø6.5 Zinc Plated Washer
L. Heat Resistant Washer 12 pcs
ø6 Zinc Plated Lock Washer
M. Small Lock Washer 3 pcs
ø5.5 Zinc Plated Lock Washer
Only tools required for assembly are provided Screwdriver* 1 pc
* Not shown at actual size.
Wrench* 2 pcs
N. Large Lock Washer 7 pcs
ø6.5 Zinc Plated Lock Washer
O. Pins* 2 pcs
P. Cotter Pins* 2 pcs
Outdoor Charcoal Grill Model No. NPC1924P
A
M
G
H
N
K
L
B
H
N
J
C
E
H
N
J
K
D
K

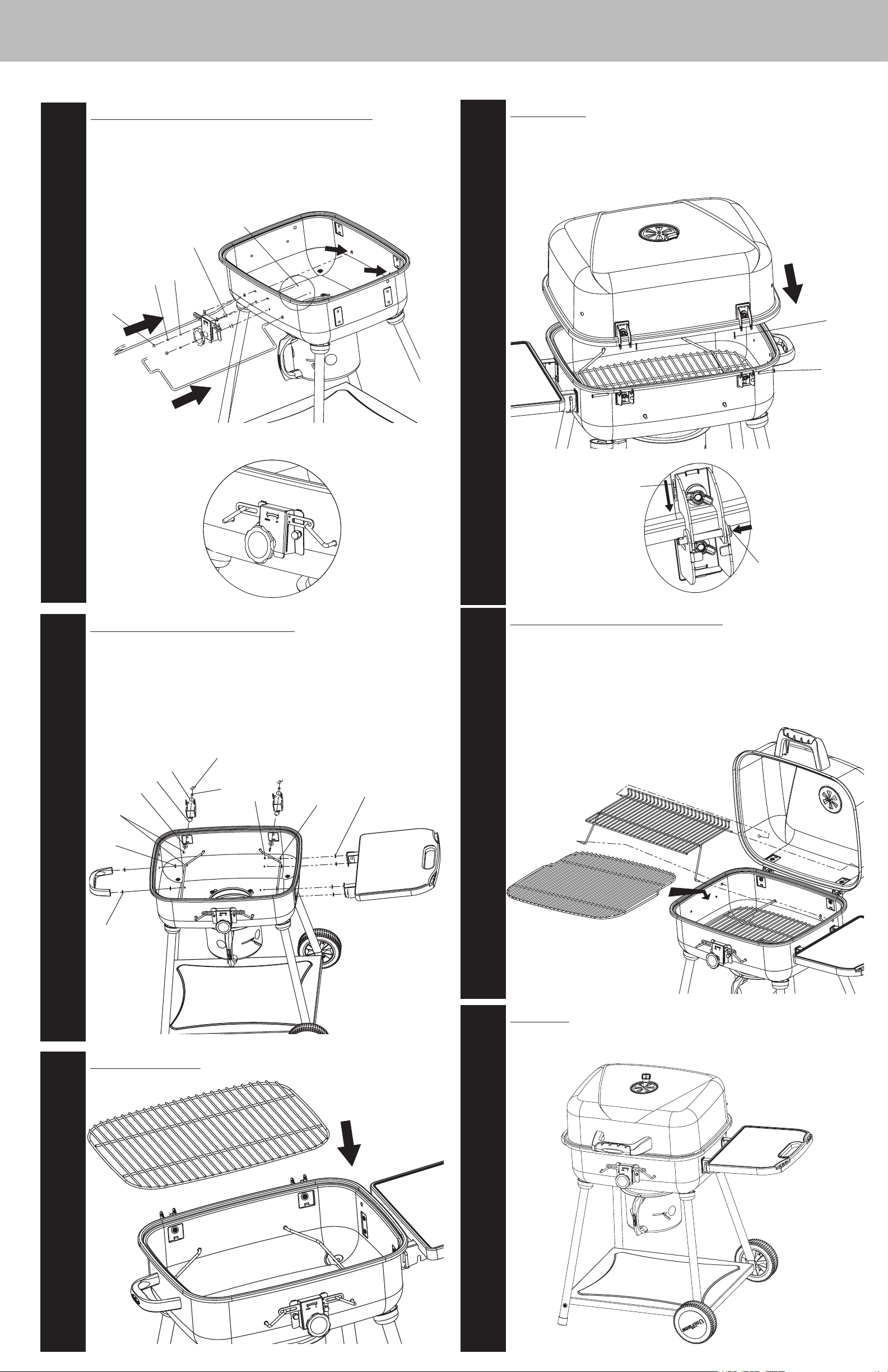

Assembly Instructions
DO NOT RETURN PRODUCT TO STORE. For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial
number available for reference.
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.
• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is completed go back fully tighten all hardware.
• Follow all steps in order to properly assemble your product.
Step
1
Attach handle and air vent
A. Attach handle to lid using 2 sets of heat resistant washers (L), large washer (K),
large lock washer (N), large wing nut (H).
B. Attach air vent to lid using small screw (A), small lock washer (M) and small wing
nut (G).
Step
3
Attach legs, bottom shelf and wheels
A. With bowl upside down, attach front legs and wheel legs to bottom bowl using 4
sets of leg cups, large washers (K), and large screws (C).
Note: Do not tighten large screws (C).
B. Attach bottom shelf to front legs using 2 sets of extra large screws (D), large
washers (K), medium washers (J), large lock washers (N) and large wing nuts (H).
C. Attach wheels and bottom shelf to wheel legs using wheel axle, and 2 nuts (E).
D. Snap hub caps onto wheels.
E. Tighten large screws (C).
Step
2
Note: Lid is shown upside down.
Attach slide
A. Insert slide onto underside of bowl. Turn to lock into place.
B. Attach slide to bottom bowl using medium screw (B), medium washer (J), large
lock washer (N), and large wing nut (H).
Step
4
Attach ash receiver
Slide ash receiver onto bottom bowl.
