OWNER’S MANUAL
Made from 70% Bagasse
(Environmentally Friendly Sugar
Cane Pulp By-product)
Outdoor LP Gas Patio Heater
Model No. 62100, 62900, 82300, 82300C, GWT501A & GWT801B
DANGER
• This appliance can produce carbon
monoxide which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed
space such as a camper, tent, car or home.
CARBON MONOXIDE HAZARD
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly before
installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
California Proposition 65: Chemicals known to the
State of California to cause cancer, birth defects,
or other reproductive harm are created by the
combustion of propane.
Wash hands after handling this product.
Save these instructions for future reference.
If you are assembling this unit for someone else,
give this manual to him or her to read and save for
future reference.
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Exploded View & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

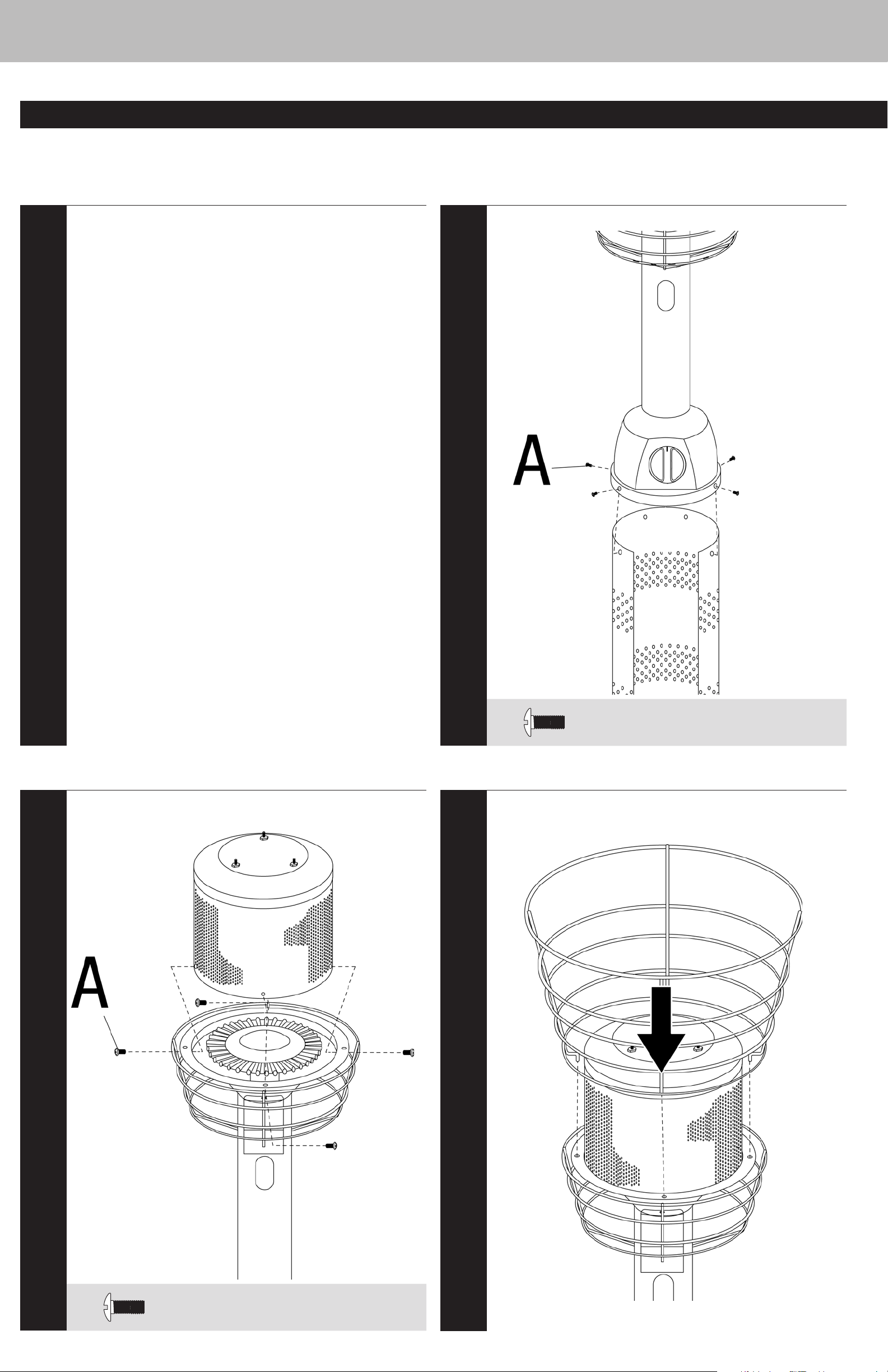

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connect 20 lb. LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disconnect 20 lb. LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Secure 20 lb. LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connect (1) 14.1 oz or (1) 16.4 oz LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disconnect (1) 14.1 oz or (1) 16.4 oz LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . 6
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checking for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before Turning LP Gas Supply “ON”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
When heater is “ON”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Re-Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning Surfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Between Uses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
During Periods of Extended Inactivity or When Transporting. . . . . . . . . . . . . . . . 9
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
The use and installation of this product must conform to local codes. In absence of
local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1,
Natural Gas and Propane Installation Code.
Manufactured in China for:
Blue Rhino Global Sourcing, Inc
Winston-Salem, NC 27105 USA
1.800.762.1142, www.bluerhino.com
© Blue Rhino Global Sourcing, Inc. All Rights Reserved
8200_s-OM-103 EF
Outdoor Patio Heater Model No. 62100, 62900, 82300, 82300C, GWT501A & GWT801B Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
DANGERS and WARNINGS: FOR YOUR SAFETY
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your gas supplier or your fire
1. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity
of this or any other appliance.
WARNING
FOR YOUR SAFETY
department.
DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion
causing damage to property.
WARNING:
This heater is for outdoor use only, and shall not be used in a building, garage, or any
other enclosed area.
Always maintain at least 36” clearance (top), and 24” clearance (side) from
combustible materials.
This heater is NOT for commercial use.
This heater is for use with liquid propane (LP) gas only. The conversion to or attempted
use of natural gas in this LP gas heater is dangerous and will void your warranty.
LP gas Characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become aware of the
characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles and pools in low
areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is added that
smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
LP gas tank needed to operate. Only tanks marked “propane” may be used.
The LP gas supply tank must be constructed and marked in accordance with the
Specifications for LP-gas Cylinders of the U.S. Department of Transportation (DOT);
or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous
Goods and Commission, CAN/CSA-B339, as applicable.
LP gas tank must be arranged for vapor withdrawal.
The LP gas tank must have a listed overfilling prevention device (OPD).
Only use 14.1-ounce, 16.4-ounce or 20-pound tank equipped with a tank connection
device compatible with the connection for outdoor heating appliances.
The 20-pound LP gas tank must be equipped with a cylinder connection device
compatible with the connection for outdoor cooking appliances.
The 20-pound LP gas tank must have a tank collar to protect the tank valve.
Never use an LP gas tank with a damaged body, valve, collar, or footing.
Dented or rusted LP gas tanks may be hazardous and should be checked by your LP
gas supplier prior to use.
The LP gas tank should not be dropped or handled roughly.
Tanks must be stored outdoors out of the reach of children and must not be stored in
a building, garage, or any other enclosed area. Your tank must never be stored where
temperatures can reach over 125°F.
Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas
pressure to increase, which may open the relief valve and allow gas to escape.
Do not store a spare LP gas tank under or near this appliance.
Never fill the tank beyond 80 percent full.
Never attempt to attach this heater to the self-contained LP gas system of a camper
trailer, motor home, or house.
If the above two items not followed exactly, a fire causing death or serious injury may
occur.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on th cylinder valve that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage of propane.
Never attempt to attach this heater to the self-contained LP gas system of a camper
trailer, motor home, or house.
The use of alcohol, or prescription or non-prescription drugs may impair the
consumer’s ability to properly assemble or safely operate the appliance.
Your heater has been checked at all factory connections for leaks. Recheck all
connections, as movement in shipping can loosen connections.
Check for leaks even if your unit was assembled for you by someone else.
Do not operate if gas leak is present. Gas leaks may cause a fire or explosion.
You must follow all leak-checking procedures before operating. To prevent fire or
explosion hazard when testing for a leak:
a. Always perform leak test before lighting the heater and each time the tank is
connected for use.
b. No smoking. Do not use or permit sources of ignition in the area while conducting a
leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do not use matches, lighters, or a flame to check for leaks.
e. Do not use heater until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call a gas appliance
serviceman or your local LP gas supplier.
Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62
m) of this appliance.
Do not use in an explosive atmosphere. Keep heater area clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
Keep all combustible items and surfaces away from the heater at all times. DO NOT
use this heater or any gas product under any overhead or near any unprotected
combustible constructions.
Combustion of propane creates carbon monoxide, which, when used in enclosed areas,
can kill you.
It is essential to keep the heater’s valve compartment, burners, and circulating air
passages clean. Inspect heater before each use.
Installation and repair should be done by a qualified service person.
Do not alter heater in any manner.
Do not use the heater unless it is COMPLETELY assembled and all parts are securely
fastened and tightened.
This heater should be thoroughly inspected before each use. Clean and inspect the
hose before each use of the appliance. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to the appliance being put into operation.
Use only the regulator and hose assembly provided. The replacement regulator and
hose assembly shall be that specified by the manufacturer.
Inspect heater before each use. If a damaged part is detected, do not operate until an
original equipment replacement part has been properly installed.
Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The use of any part
that is not factory authorized can be dangerous. This will also void your warranty.
Contact 1.800.762.1142.
Dome and burner are extremely hot to the touch during operation. Never touch
the dome or burner while the heater is operating. Wait for unit to cool down
(approximately 45 minutes) after use.
During operation, do not touch burner assembly. The surface of heater’s emitter can
reach temperatures approaching 1600ºF.
Do not install or use in or on boats or recreational vehicles.
Do not use heater in winds that exceed 10 m.p.h..
Unit will operate at reduced efficiency below 40ºF (5ºC).
Do not leave a lit heater unattended, especially keep children and pets away from
heater at all times.
Always use extreme caution when near heater. Alert both children and adults to the
hazards of high temperatures, especially to avoid burns or clothing catching fire.
Do not attempt to move heater when in use. Allow the heater to cool before moving or
storing.
Storage of heater indoors is permissible only if the tank is disconnected, removed from
the heater and properly stored outdoors.
Do not attempt to disconnect the gas regulator from the tank or any gas fitting while
the heater is in use.
Always place your heater on a hard, level surface.
Use extreme caution on wooden decks.
Move gas hoses as far away as possible from hot surfaces.
Keep all electrical cords away from a hot heater.
Do not use heater for indoor cooking or heating. TOXIC fumes can accumulate and
cause asphyxiation.
Keep sprinklers and other water sources away from burner and controls.
Do not hang clothing or other flammable materials either on or near heater.
Always allow heater to cool before attempting service.
Any guard or other protective device removed for servicing the heater must be
replaced prior to operating the heater.
Certain materials or items, when stored under heater, will be subjected to radiant heat
and could be seriously damaged.
After a period of storage and/or non-use, check for leaks, burner obstructions and
inspect for any abrasion, wear, cuts to the hose.
If at any time you are unable to light burner and smell gas, wait 5 minutes to allow gas
to dissipate before attempting to light heater.
Failure to not wait 5 minutes to allow the gas to clear if the heater does not light, may
result in an explosive flame-up.
Be careful when attempting to manually ignite this heater. Holding in the control knob
for more than 10 seconds before igniting the gas will cause a ball of flame upon
ignition.
Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the
burning of oils used in manufacturing will appear. Both smoke and odor will dissipate
after approximately 30 minutes. The heater should NOT produce thick black smoke.
If heater is not in use, the gas must be turned off at the supply tank, disconnected and
stored correctly.
Do not use this appliance without reading “Operating Instructions” in this manual.
Please use protective gloves when assembling this product.
Do not force parts together as this can result in personal injury or damage to the
product.
Deaths, serious injury or damage to property may occur if the above is not followed
exactly.
page no.
3
Parts List
1
Finial
2
Dome Cap
3
Dome
4
Top Wire Guard
5
Emitter Assembly
6
Burner
7
Bottom Wire Guard
8
Wind Cover
9
Post
10
Shroud Cover
ODS (Oxygen
11
Depletion Shutdown
Sensor)
12
Nozzle
13
Control Valve
56-01-001
56-01-002
56-01-003
56-01-004
56-01-005
56-01-049
56-01-006
56-01-039
56-01-609 (62100)
56-05-004 (GWT501A)
56-01-009 (62900)
56-01-009 (82300)
56-01-009 (82300C)
56-01-009 (GWT801B)
56-01-610 (62100)
56-01-092 (62900)
56-01-012 (82300)
56-01-012 (82300C)
56-05-005 (GWT501A)
56-05-005 (GWT801B)
56-01-007
56-01-017
56-01-018
Exploded View
1
2
3
4
5
6
7
8
9
10
11
14
15
16
17
18
19
20
21
Tilt Switch
Control Knob
Regulator
Housing
Access Panel
Plastic Ring
Base
Weight Plate
56-01-019
56-01-020
56-01-245
56-01-611 (62100)
56-01-093 (62900)
56-01-024 (82300)
56-01-024 (82300C)
56-05-003 (GWT501A)
56-05-003 (GWT801B)
56-01-612 (62100)
56-01-094 (62900)
56-01-030 (82300)
56-01-030 (82300C)
56-05-001 (GWT501A)
56-01-030 (GWT801B)
56-01-034
56-01-613 (62100)
56-01-037 (62900)
56-01-037 (82300)
56-01-037 (82300C)
56-05-002 (GWT501A)
56-05-002 (GWT801B)
56-01-041
18
15
12
13
14
16
17
19
20
21
Lock-up Bracket Kit
22
(not shown)
Hardware
A
B
Screw
Nut
56-01-044
12-24 x 3/16” Stainless Steel Phillips Truss Head
1/4-20 Stainless Steel Hex Nut
8 pcs
3 pcs
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver
Assembly Instructions
Outdoor Patio Heater Model No. 62100, 62900, 82300, 82300C, GWT501A & GWT801B Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
1
DO NOT RETURN PRODUCT TO STORE.
For assistance call 1.800.762.1142 toll free. Please have your
owner’s manual and serial number available for reference.
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble
your product on a hard level surface that does not have cracks
or openings.
• Clear an area large enough to layout all components and
hardware.
• When applicable, tighten all hardware connections by hand
first. Once the step is completed go back and fully tighten all
hardware.
• Follow all steps in order to properly assemble your product.
To complete assembly you will need:
• (1) Leak Detection Solution (Instructions on how to make
solution are included in step Operations Section)
• (1) Precision Filled LP Gas Grill Tank with Acme Type 1 external
threaded valve connection (4-5 gallon size)
Note: You must follow all steps to properly assemble heater.
Attach Engine Assembly
2
3
Typical assembly: approximately 20 minutes.
Attach Emitter Assembly
4
A
Attach Top Wire Guard
x 4
A
x 4
page no.
5
5
Attach Dome
Attach Dome Cap and Finial
6
7
B
Attach Access Panel
x 3
8
Secure Heater to Table
1. Attach the thumbscrew through the opening in the bracket in the base of the
heater.
2. Center heater over the umbrella pole opening in the center of the table, make
sure the thumbscrew is centered in the table opening.
3. Attach the bottom bracket from underneath, and secure the heater to the table.
Note: Hand tighten only. Do not use tools to tighten thumbscrew. Do not over
tighten to prevent possible damage to table surface.
Installing LP Gas Tank
X
X
X
Outdoor Patio Heater Model No. 62100, 62900, 82300, 82300C, GWT501A & GWT801B Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
To operate you will need (1) precision-filled standard grill
LP gas tank (20 lb.) with external valve threads or (1)
14.1 oz or (1) 16.4 oz LP gas tank.
Note: An empty standard grill LP gas tank weighs
approximately 18 lbs. A precision-filled standard grill LP
gas tank should weigh no more than 38 lbs.
Only LP gas tanks marked “propane” may be used.
Connect 20 lb. LP Gas Tank
Note: Before connecting, be sure that there is no debris
caught in the head of the LP gas tank, head of the
regulator valve or in the head of the burner and burner
ports.
1. Slip end of flexible gas line with brass fitting through
center hole of Base and up to threaded portion of
regulator. (Figure 2)
2. Line up threads on fitting with those on regulator and
rotate clockwise until snug. HAND TIGHTEN ONLY.
DO NOT USE ANY HAND TOOLS TO MAKE THIS
CONNECTION. Be careful not to cross threads when
screwing in FITTING.
Note: hose can be routed through opening in base and
table.
Figure 1
Figure 2
Figure 3
Connect (1) 14.1 oz or (1) 16.4 oz
LP Gas Tank
Note: Some 1-lb cylinders may form frost when near
empty.
1. Make sure the the control knob is “OFF”.
2. Line up threads on canister with those on regulator,
insert and rotate canister clockwise until they fit
snugly together. HAND TIGHTEN ONLY. Be careful not
to cross threads when screwing in canister.
Disconnect (1) 14.1 oz or (1) 16.4 oz
LP Gas Tank
1. Before disconnecting make sure the the control knob
is “OFF”.
2. Rotate LP gas tank counterclockwise until it is loose.
3. Store the LP gas tank in a proper location.
Figure 6
Figure 7
3. Set heater on base, making sure that flexible gas line
is routed through small slot in base.
4. Connect gas line to tank by turning knob clockwise
until it stops. (Figure 3)
Note: Be careful not to kink flexible gas line.
CAUTION: When using the gas extension
hose always locate the hose out of pathways
where people may trip over it or in areas
where the hose may be subject to accidental
damage.
Disconnect 20 lb. LP Gas Tank
1. Turn LP gas tank valve to “CLOSED” and control knob
is in the “OFF” position.
2. Disconnect gas line to tank by turning knob
counterclockwise until it is loose. (Figure 4)
3. Disconnect gas line from regulator by turning flexible
gas line counterclockwise until it is loose. (Figure 5)
4. Store the LP gas tank in a proper location.
Figure 4
Figure 5
Operating Instructions
Inspect the visible portion of the hose before each use of the appliance. Inspect the entire hose
assembly at least annually.
Checking for Leaks
Burner Connections
Make sure the regulator valve and hose connections are
securely fastened to the burner and the tank.
If your unit was assembled for you, visually check the
connection between the burner pipe and orifice. Make
sure the burner pipe fits over the orifice.
WARNING: Failure to inspect this
connection or follow these instructions
could cause a fire or an explosion which
can cause death, serious bodily injury, or
damage to property.
If the burner pipe does not rest flush to the orifice, please
contact 1.800.762.1142 for assistance.
Figure 8
Figure 9
Tank/Gas Line Connection
1. Make 2-3 oz. of leak solution by mixing one part liquid
dishwashing soap with three parts water.
2. Make sure control knobs are “OFF”.
3. Attach (1) 14.1 oz or (1) 16.4 oz or LP Gas LP gas
tank. Note: if using a 20 lb LP gas tank, turn control
valve to “OPEN”.
4. Spoon leak check solution at all “x” and arrow
locations. (Figures 8-10)
5. If any bubbles appear:
a. Disconnect gas tank per disconnecting
instructions.
b. Reconnect gas tank per connecting instructions.
c. Repeat “Checking for Leaks”
If you continue to see bubbles after several
attempts, disconnect gas tank per disconnecting
instructions and contact 1.800.762.1142 for
assistance.
If no bubbles appear after one minute turn tank “OFF”,
wipe away solution and proceed.
Figure 10
Loading...
