Bloomfield DW2 Installation Manual

DRAWER

WARMERS

with thermostatic controls

MODEL

DW1, DWN1
DW2, DWN2
DW3, DWN3

Installation and

Operation

Instructions

2M-Z19504 Rev. B 10/20/15

Model DW1

SAFETY SYMBOL

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and

regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not

responsible for errors or omissions in information provided or conclusions

reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it
ready when you call to ensure a faster service.

Authorized Service Agent Listing

Model No.

Serial No.

Voltage

Purchase Date

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]

Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone]

Fax: [phone]

E-mail [e-mail]

Website: www.star-mfg.com

Mailing Address: Star International Holdings Inc., Company

10 Sunnen Drive
St. Louis, MO 63143
U.S.A

2

TABLE OF CONTENTS

WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 9
MAINTENANCE INSTRUCTIONS 10
EXPLODRD VIEW & PARTS LIST 11
WIRING DIAGRAM 13
PARTS & SERVICE 17
CUSTOMER SERVICE DATA 17

SPECIFICATIONS

B

MODELS

DW1, DWN1

DW2, DWN2

DW3, DWN3

VOLTS

50/60 Hz 1ø

120 VAC 450 W 3.8 NEMA-5-15P

208/240 VAC 338/450 W 1.6/1.9 NEMA 6-15P

230

UK BS 1363A

120 VAC 900 W 7.5 NEMA-5-15P

208/240 VAC 676/900 W 3.3/3.8 NEMA 6-15P

230

UK BS 1363A

120 VAC 1350 W 11.3 NEMA-5-15P

208/240 VAC 1014/1350 W 4.9/5.6 NEMA 6-15P

230

UK BS 1363A

WATTS AMPS POWER CORD

450 W 1.9

900 W 3.9

1350 W 5.86

CEE-7/VII

CEE-7/VII

CEE-7/VII

Overall Dimensions

Model

DW1 10.875

DW3 41.125”

DWN1 10.875

DWN2 21”

DWN3 41.125”

Height “A”

w/o Legs

Width

“B”

29.25” 35.875” 21.5”DW2 21”

20.25” 35.875” 21.5”

Depth

Drawer

Open “C”

C
D

Drawer

Closed “D”

p/n 2M-Z19504 Owners Manual DW, DWN Drawer Warmer Series

4”

A

3

POWER
SUPPLY
CORD

IL2942

POWER CORD

HUMITROL

RACK

(Optional)

DRAWER

INSERT PAN

AIR VENT
CONTROL

TEMPERATURE
CONTROL

ADJUSTABLE

LEG

HEATING
INDICATOR

DRAWER

SLIDE

DRAWER
SLIDE

DRAWER

STOP

DRAWER

ROLLER

DRAWER
ROLLERS

HEATING

ELEMENT

ROLLER
CATCH

DRAWER

CATCH

DRAWER

GASKET

IL2941

FEATURES & OPERATING CONTROLS

4

p/n 2M-Z19504 Owners Manual DW, DWN Drawer Warmer Series

CAUTION

WARNING

GENERAL INFORMATION

This equipment is designed and sold for commercial use only by personnel trained and
experienced in its operation and is not sold for consumer use in and around the home nor for
use directly by the general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels associated
with the unit prior to putting it into operation. Make sure all people associated with its use
understand the units operation & safety before they use the unit.

All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition.
If equipment is received in damaged condition, either apparent or concealed, a claim must be
made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked,
a request for inspection of concealed damage must be made with carrier within 15 days. Be
certain to retain all contents plus external and internal packaging materials for inspection. The
carrier will make an inspection and will supply necessary claim forms.

Exposed surfaces can be hot to the touch and may cause burns.

All servicing requiring access to non-insulated electrical components must be
performed by a factory authorized technician. DO NOT open any access panel which
requires the use of tools. Failure to follow this warning can result in severe electrical
shock.

INSTALLATION

UNPACKING & INSPECTION

Carefully remove the appliance from the carton. Remove all protective

plastic lm, packing materials and accessories from the Appliance before

connecting electrical power or otherwise performing any installation
procedure.

Carefully read all instructions in this manual and the Installation Instruction
Sheet packed with the appliance before starting any installation.

Read and understand all labels and diagrams attached to the appliance.

Carefully account for all components and accessories before discarding
packing materials. Store all accessories in a convenient place for later use.

COMPONENTS

1 - 3 ea. DRAWERS (qty. depends on model)
1 - 3 ea. HUMITROL RACKS (if ordered with unit)

p/n 2M-Z19504 Owners Manual DW, DWN Drawer Warmer Series

5

INSTALLATION continued

IL2926

MOUNTS INTO

THREADED

HOLES IN

WARMER

FRAME

TURN BOTTOM

PORTION TO

ADJUST

GROUND

PIN

NEMA 5-15P

PLUG

NEMA 5-15R

RECEPTACLE

IL2927

IL2928

NEMA 6-15P

PLUG

GROUND

PIN

NEMA 6-15R

RECEPTACLE

Setup

Setup the appliance only on a rm, level, non-combustible

surface. Verify local codes for requirements. Concrete, tile,
terrazzo or metal surfaces are recommended. Metal over
combustible material may not meet code for non-combustible
surfaces.

Install adjustable legs or optional casters, one on each corner of
the appliance, in the holes provided.

Verify that the unit sits rmly on ALL FOUR legs. With a spirit

level, check that the appliance is level front-to-back and side­to-side. With the adjustable legs, adjust as required to level the

appliance. All four legs must be adjusted to rmly contact the
oor in order to prevent tipping.

If drawers were removed during installation, install drawer(s) in
unit:

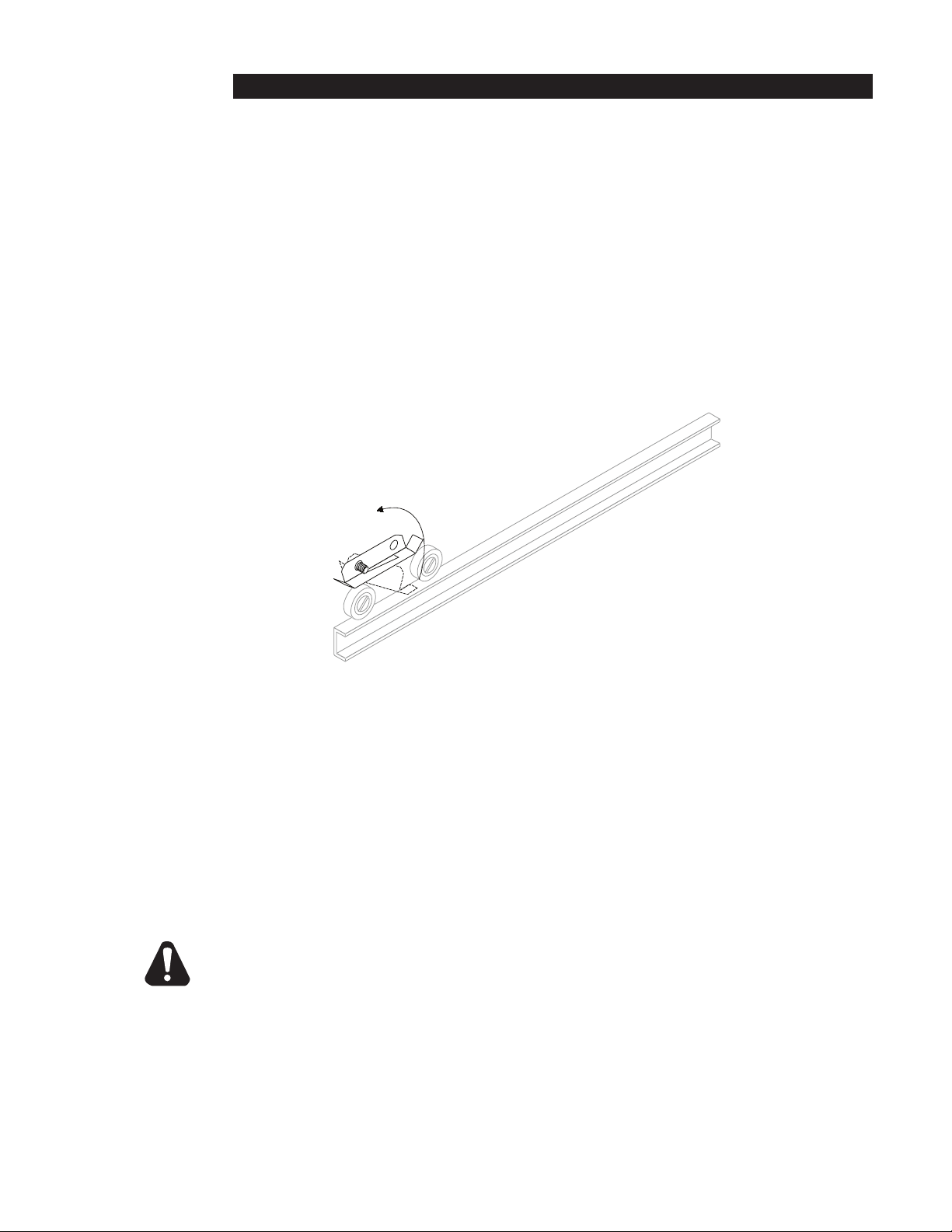

a. Check the roller catch inside the cabinet. The spring-loaded roller arm must be extended.

b. With the front of the drawer assembly tipped downward, engage the roller on the drawer with

the cabinet drawer slide.

c. Raise the drawer to the horizontal position until the drawer-mounted slide engages the dual

roller assembly on the cabinet.

d. Slide the drawer in until the catch engages. The drawer should remain tightly closed.

e. Slide the drawer out. The drawer stop should prevent the drawer from coming all of the way

out.

f. Install drawer insert pans.

WARNING

Avoid storing ammable or combustible materials in, on or near the appliance.

Electrical

Refer to electrical specications on page 3. Circuit must meet or exceed the amperage and

wattage requirements listed.

120 Volt units require a properly grounded NEMA 5-15R
receptacle:

208/240 Volt units require a properly grounded NEMA
6-15R receptacle:

The ground prong of the power cord is part of a
system designed to protect you from electric shock
in the event of internal damage. DO NOT cut off the large round ground prong, or

twist a blade to t an existing receptacle.

IMPORTANT:

Damage due to being connected to the wrong voltage or phase is NOT covered by warranty.

p/n 2M-Z19504 Owners Manual DW, DWN Drawer Warmer Series
