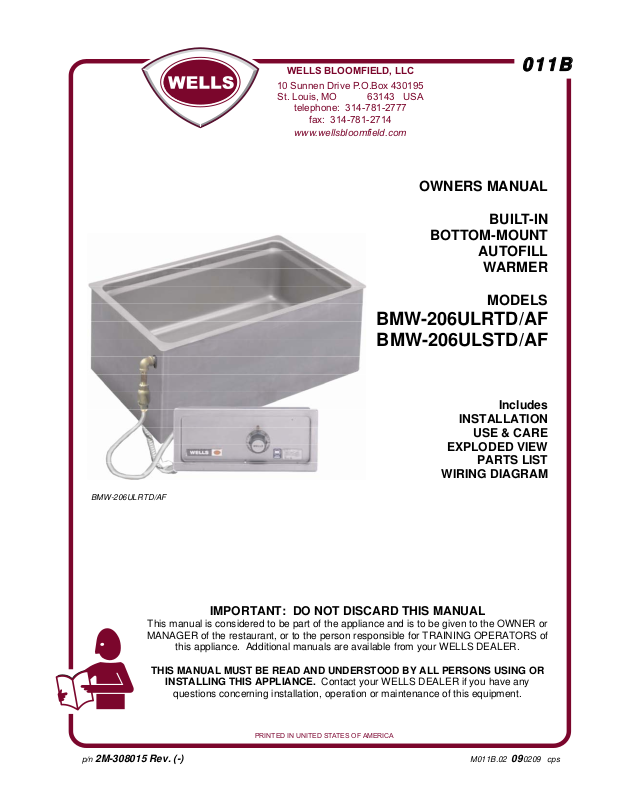

Bloomfield BMW-206ULSTD/AF Operation Manual

WELLS BLOOMFIELD, LLC

10 Sunnen Drive P.O.Box 430195

St. Louis, MO 63143 USA

telephone: [phone]

fax: [phone]

www.wellsbloomfield.com

BMW-206ULRTD/AF

BMW-206ULSTD/AF

011B

OWNERS MANUAL

BUILT-IN

BOTTOM-MOUNT

AUTOFILL

WARMER

MODELS

BMW-206ULRTD/AF

This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of

THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR

Includes

INSTALLATION

USE & CARE

EXPLODED VIEW

PARTS LIST

WIRING DIAGRAM

IMPORTANT: DO NOT DISCARD THIS MANUAL

this appliance. Additional manuals are available from your WELLS DEALER.

INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any

questions concerning installation, operation or maintenance of this equipment.

PRINTED IN UNITED STATES OF AMERICA

p/n 2M-308015 Rev. (-) M011B.02 090209 cps

LIMITED WARRANTY STATEMENT

Unless otherwise specified, all commercial cooking
equipment manufactured by WELLS BLOOMFIELD, LLC is
warranted against defects in materials and workmanship for
a period of one year from the date of original installation or
18 months from the date of shipment from our factory,
whichever comes first, and is for the benefit of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN
FACT, INCLUDING BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE, AND/OR FOR DIRECT,
INDIRECT OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH WELLS BLOOMFIELD PRODUCTS.
This warranty is void if it is determined that, upon inspection
by an authorized service agency, the equipment has been
modified, misused, misapplied, improperly installed, or
damaged in transit or by fire, flood or act of God. It also
does not apply if the serial nameplate has been removed, or
if service is performed by unauthorized personnel. The
prices charged by Wells Bloomfield for its products are

based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of
defects without charge by a Wells Bloomfield factory
authorized service agency or one of its sub-service
agencies. This service will be provided on customer’s
premises for non-portable models. Portable models (a
device with a cord and plug) must be taken or shipped to
the closest authorized service agency, transportation
charges prepaid, for service. In addition to restrictions
contained in this warranty, specific limitations are shown in
the Service Policy and Procedure Guide. Wells Bloomfield
authorized service agencies are located in principal cities.
This warranty is valid in the United States and Canada and
void elsewhere. Please consult your classified telephone
directory, your foodservice equipment dealer or contact:

10 Sunnen Dr., P.O.Box 430129 St. Louis MO 63143 USA

phone [phone] or fax [phone]

for information and other details concerning warranty.

Wells Bloomfield, LLC

SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS

1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.

2. All problems due to operation at voltages or phase
other than specified on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.

3. All problems due to electrical connections not made

in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are

not covered by this warranty.

4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.

5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.

6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and

preventative maintenance items, such as servicing and

cleaning schedules, are customer responsibility.
Thos miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.

7. Travel mileage is limited to fifty (50) miles from an
Authorized Service Agency or one of its sub-service
agencies.

8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.

9. All genuine Wells replacement parts are warranted for
ninety (90) days from date of purchase on non­warranty equipment. This parts warranty is limited only
to replacement of the defective part(s). Any use of

non-genuine Wells parts completely voids any

warranty.

10. Installation, labor, and job check-outs are not

considered warranty and are thus not covered by this
warranty.

11. Charges incurred by delays, waiting time or operating

restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.

SHIPPING DAMAGE CLAIM PROCEDURE

NOTE: For your protection, please note that equipment in

this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.

IF SHIPMENT ARRIVES DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.

2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.

3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them.
This should be done within fifteen (15) days from the
date the delivery was made to you. Be sure to retain
the container for inspection.

xi

TABLE OF CONTENTS

WARRANTY xi
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 6
MAINTENANCE INSTRUCTIONS 7
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 10

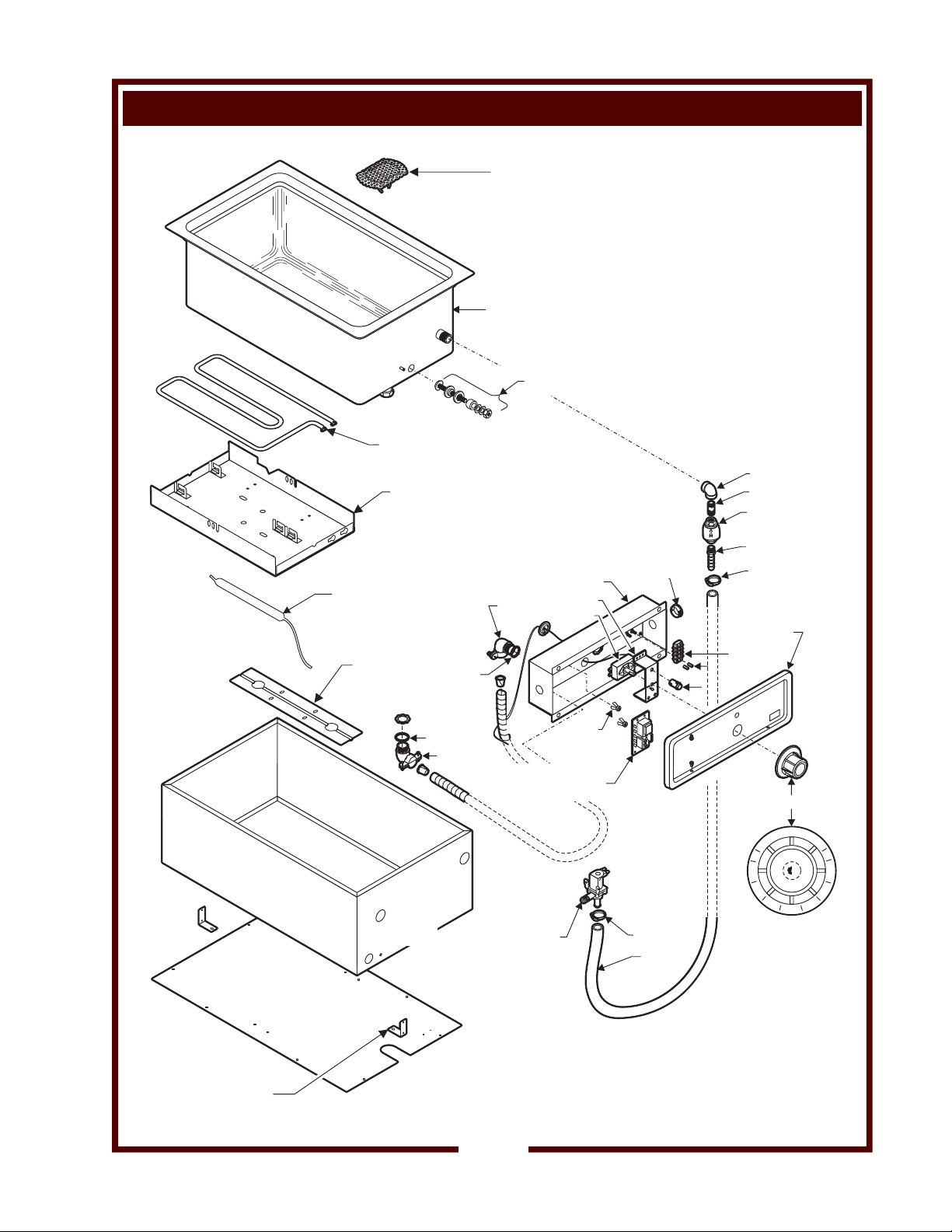

EXPLODED VIEW & PARTS LIST 11

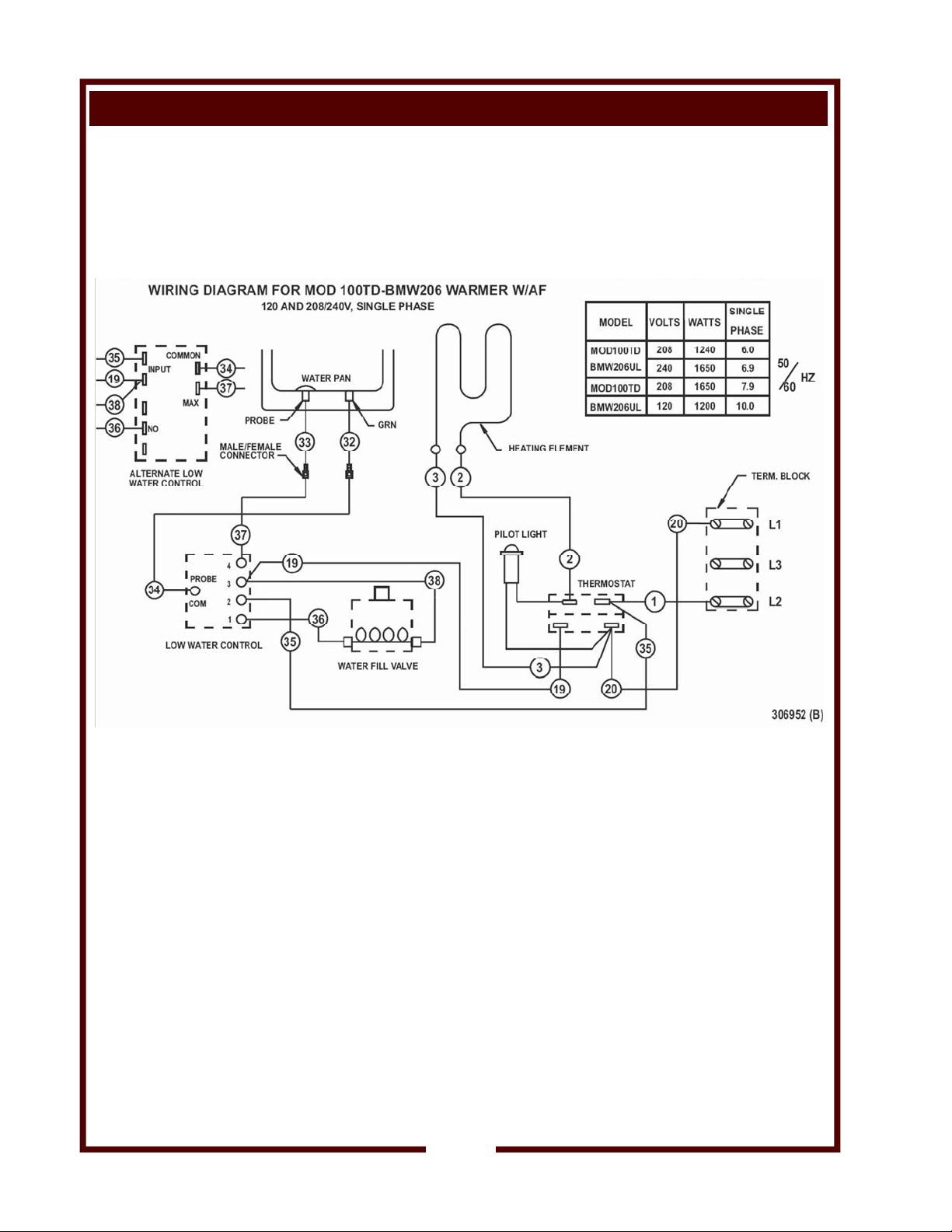

WIRING DIAGRAM 12
PARTS & SERVICE 13
CUSTOMER SERVICE DATA 13

INTRODUCTION

Thank You for purchasing this Wells Bloomfield appliance.

Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life.

This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.

SPECIFICATIONS

MODEL VOLTS AMPS WATTS POWER SUPPLY CORD

120VAC 1ø 10.0A 1200W

BMW-206ULRTD/AF
BMW-206ULSTD/AF

M011B.02 2M-308015 Owners Manual for Bottom-Mount Autofill Warmers

208 VAC 1ø 6.0A 1240W

240 VAC 1ø 6.9A 1650W

1

NOT SUPPLIED

FEATURES & OPERATING CONTROLS

A. THERMOSTAT

1. On THERMOSTATICALLY CONTROLLED warmers, power is
applied to the heating element according to the control knob
position and the actual temperature at the temperature sensing
thermobulb.

2. The desired temperature is controlled by rotating the
TEMPERATURE CONTROL KNOB. The knob has a numeric
scale, where higher numbers correspond to higher temperature.

3. On warmers equipped with an INDICATOR LIGHT, the light will
glow when the thermostat is calling for heat (i.e. the element is
energized).

4. The TEMPERATURE CONTROL KNOB will rotate
approximately 300º, and will reach a “stop” at both ends.
The OFF position is marked.

NOTE: The dial position is an indication of the temperature
setting. Actual temperature will vary depending upon the type of
product and food consistency.

B. MOUNTING

1. Bottom-mounted warmers require that the cutout be flanged to
provide a mounting means.

2. See the Installation Instructions, supplied with the particular
appliance, for details.

C. DRAINS

1. Suffix “D” units (e.g. BMW-206ULRTD/AF) have drains for each
pan, with each pan having an individual drain valve.

D. AUTOFILL

1. On AUTOFILL BMW units, water level is automatically fed into
the pan whenever the thermostat is ON .

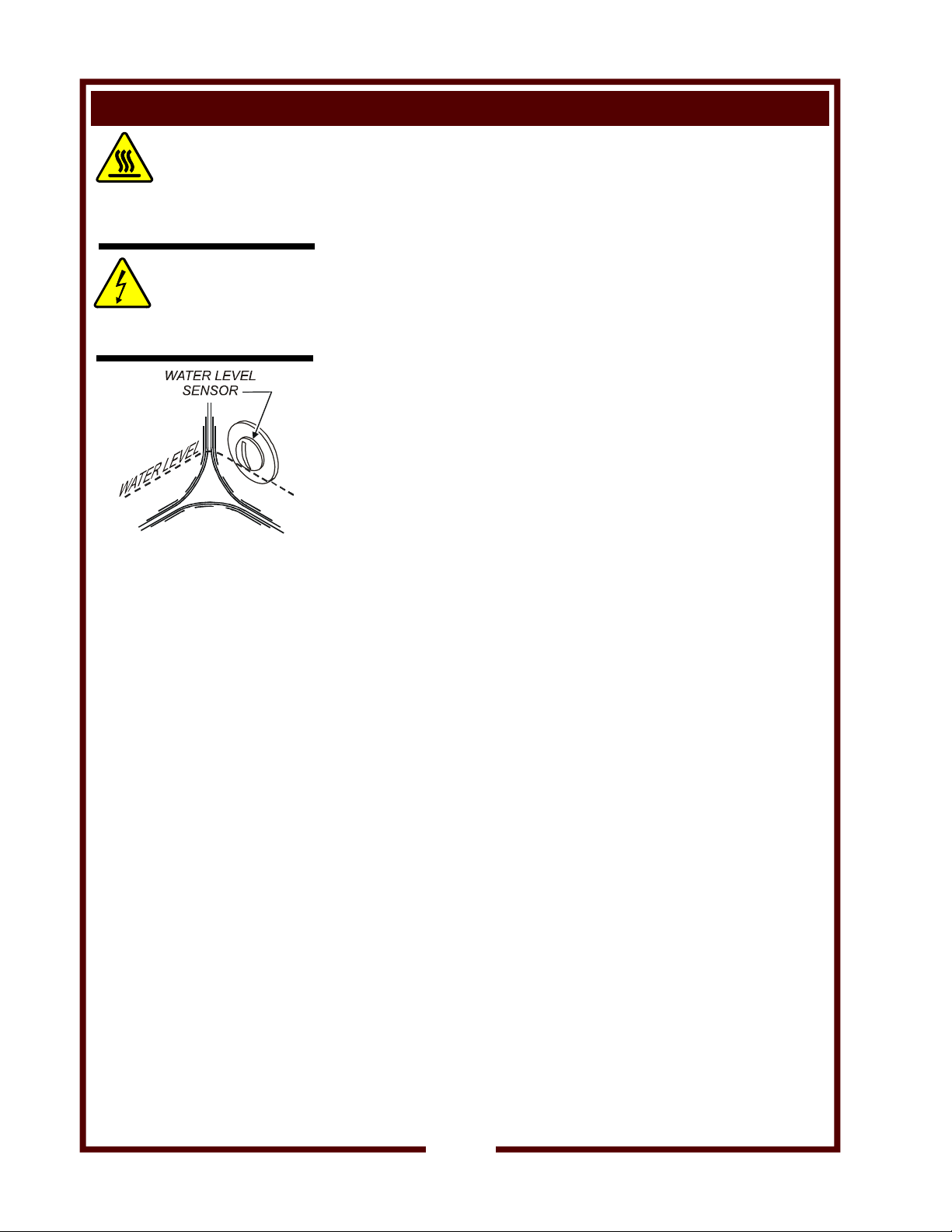

2. Water level is sensed by a WATER LEVEL PROBE in the
pan.

M011B.02 2M-308015 Owners Manual for Bottom-Mount Autofill Warmers

2

PRECAUTIONS AND GENERAL INFORMATION

This appliance is intended for use in commercial establishments
only.

This appliance is intended
consumption. No other use is
manufacturer or its agents.

Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.

Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.

Disconnect this appliance from electrical power before performing any
maintenance or servicing.

This appliance is not jet stream approved. Do not direct water jet or
steam jet at this appliance, or at any control panel or wiring. Do not
splash or pour water on, in or over any controls, control panel or
wiring.

Exposed surfaces of this appliance can be hot to the touch and may
cause burns.

Do not operate this appliance if the control panel is damaged. Call
your Authorized Wells Service Agent for service.

The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualified technical personnel.

Any procedure which requires the use of tools must be performed by a
qualified technician.

This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics, parts
breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.

This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.

to hold pre-heated food for human

recommended or authorized by the

WARNING:

SHOCK HAZARD

All servicing requiring access
to non-insulated electrical
components must be
performed by a factory
authorized technician.
DO NOT open any access
panel which requires the use
of tools. Failure to
follow this warning can
result in severe electrical
shock.

CAUTION:

RISK OF

DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance may result if
these instructions are not
followed.

DAMAGE

CAUTION:

HOT SURFACE

Exposed surfaces can be hot
to the touch and may cause
burns.

Refer to the product nameplate for the specific appliance for agency
listings. In general:

This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions.

UL Listed warmers are

M011B.02 2M-308015 Owners Manual for Bottom-Mount Autofill Warmers

U Listed under UL File E6070.

3

AGENCY LISTING INFORMATION

STD 4

E6070

UL Listed Warmers
