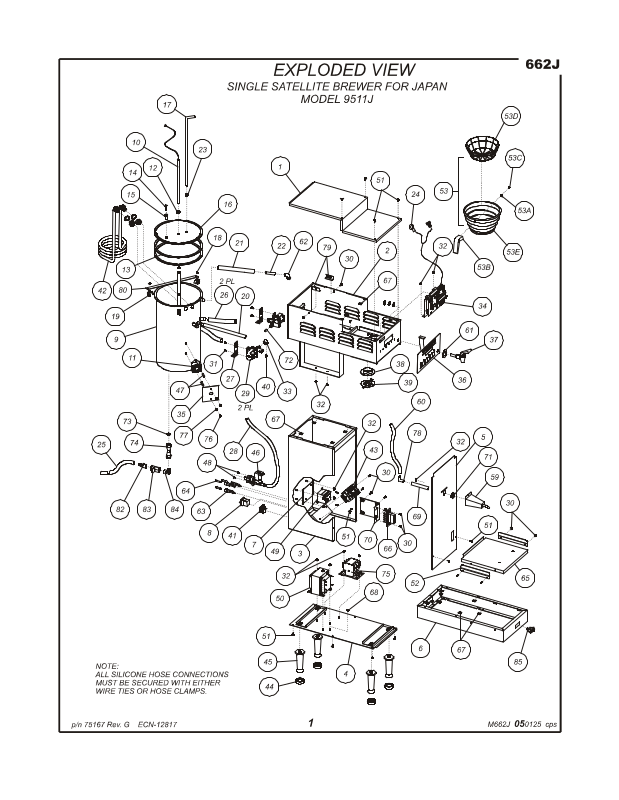

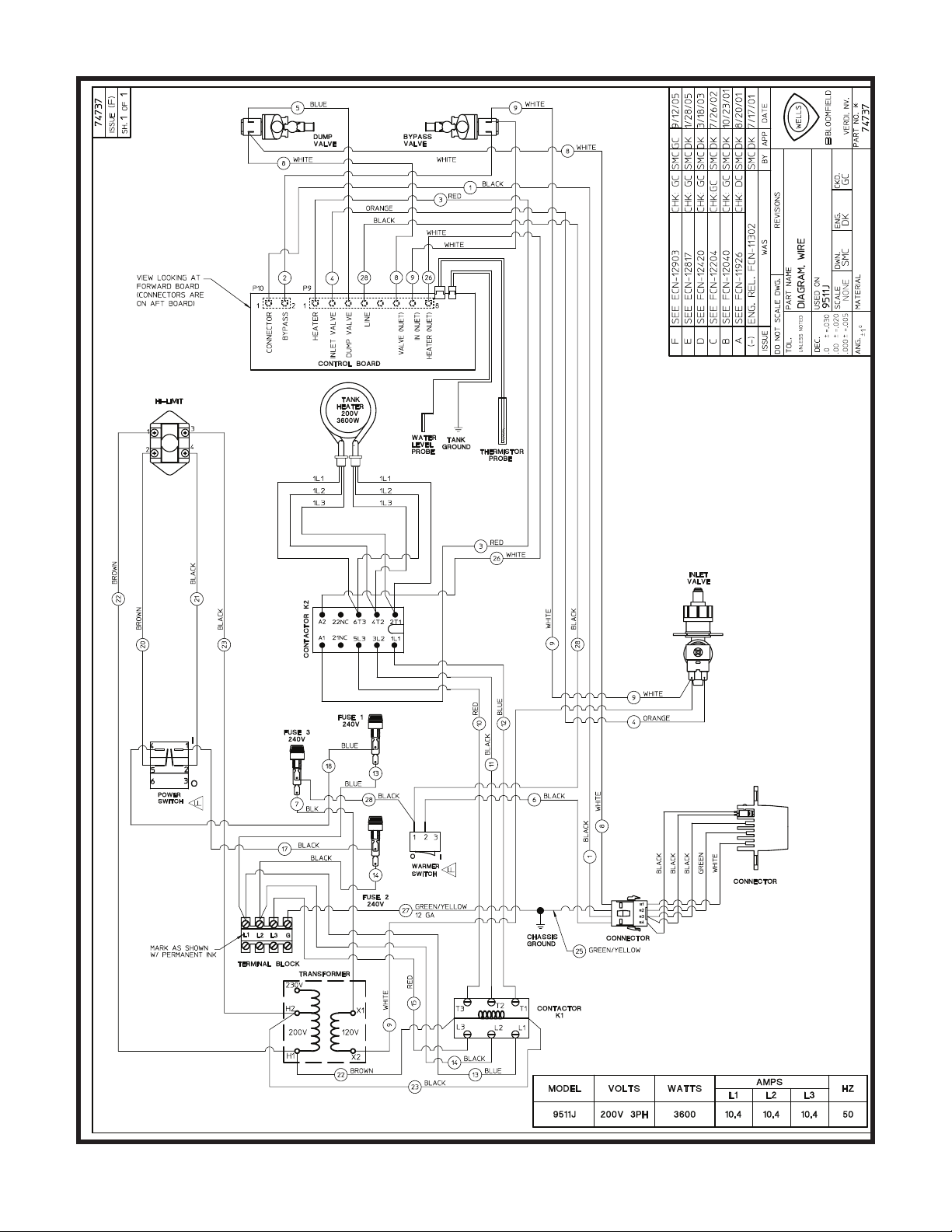

Bloomfield 9511J Parts Diagram

PARTS LIST: 9511J

SINGLE SATELLITE BREWER FOR JAPAN

Fig No. Part No Description

1 COVER
2 ASSY UPPER HOUSING
3 HOUSING LOWER
4 PLATE ASSY BOTTOM
5 PANEL FRONT
6 BASE ASSY
7 MOUNTING PLATE, CONTACTOR
8 2E-72936 SWITCH ROCKER ON-OFF 125

9 TANK ASSY 3 GAL
10 2J-73313 PROBE THERMISTOR PASSIVAT
11 DD-73312 THERMO HI-LIMIT DBL POLE
12 DD-74063 GROMMET .510 OD X .250 ID
13 2I-73499 GASKET TANK COVER
14 L2-75976 PROBE ASSY WATER LEVEL
15 2A-73532 SLEEVE WATER LEVEL PROBE
16 DD-73504 COVER ASSY TANK (PASSIVAT
17 DD-85086 TUBE FILL 90 DEG BEND L=14.15
18 SCREW PH TR HD 10-32 X 1/2
19 DD-86256 TANK CLAMP
20 DD-74715 TUBE SILICONE .312 ID X 11” NEEDED
21 A6-73537 TUBE SIL .312 ID X 9” NEEDED
22 2A-73384 TUBE SPRAY HEAD 2 3/8 LG
23 2I-72390 GROMMET .375ID TRANSLUCE
24 2E-73552 WIRE ASSY WATER LEVEL PROBE
25 DD-73553 TUBE SIL .375 ID X 72” NEEDED
26 DD-85928 TUBE SIL. .50 ID X 5” NEEDED
27 BRACKET OUTLET VALVES
28 DD-85094 TUBE SIL .312 ID X 32” NEEDED
29 2V-73388 VALVE ADJUST WATER OUTLET
30 SCREW TRS PHL SS 8-32 X 1/2
31 SCREW PAN PHL SS 10-32 X 5/16
32 NUT KEPS 8-32 SS
33 2K-73152 ELBOW SPRAYER 1/4 ID
34 2E-74711 BOARD SET CONTROL 9511J
35 D7-73414 SHIELD HI-LIMIT
36 2C-74748 KEYPAD 9511J
37 2U-74215 FAUCET HOT WATER
38 2I-72215 GASKET SPRAY HEAD 1.5 ID
39 A6-72727 SPRAY HEAD DISC EMBOSSED
40 DD-73571 INSERT SPRAY HEAD SS2
41 2K-46385 FTG CONDUIT STRAIGHT 3/4
42 2N-74712UL ELEM 3 PH 200V 3600W
43 2E-40310 TERM BLOCK 4POLE 75AMP

Fig No. Part No. Description

44 2A-73107 FEET RUBBER BLACK
45 2A-73098 LEG 4 BLK PLASTIC W/FLAN
46 2E-75987 SOLENOID SINGLE 120V 1GPM
47 2C-73415 NUT 6-32 HEX 1.00 LG ALUM
48 SCREW PAN 4mm x 6mm, SS
49 WS-85275 CONTACTOR MINI 3P 220/240V 20A
50 2E-75162 TRANSFORMER 200V JAPAN
51 2C-70092 SCREW 8BX3/8 PH PAN HD SM
52 DD-73059 GUIDE BASE SS1-ADT

53 A6-73100 BREW CHAMBER ASSY SS1 .18
53A 2C-70467 CLIP BREW BASKET
53B 2R-70112 HANDLE BLACK
53C 2C-70115 SCREW 10-32X5/16 HEX HD
53D 2K-70883 ELBOW INLET
53E 2D-73101 CHAMBER BREW .187 HOLE NO

59 D7-72738 SPOUT ASSY

60 DD-85929

61 2C-72681 WASHER FLT 15/32X1 1/8

62 2K-70103 ELBOW OUTLET

63 DD-73795 FUSE HOLDER

64 2E-73794 FUSE 5A

65 COVER BASE

66 2E-73046 CONNECTOR WIRED ASSY SDS

67 2C-70132 NUT TNR Z1 #8

68 2C-35313 NUT 10-32 HEX MS SS

69 DD-85204 TUBE SIL .312 ID X 3” NEEDED

70 BRACKET CONNECTOR

71 2K-70229 BUSHING SHORTY HEYCO

72 2I-73570 INSERT BYPASS REG SS2

73 2C-73359 WASHER FLARE TANK DRAIN

74 DD-73380 TUBE ASSY COPPER TUBE

75 2E-37780 CONTACTOR 3P 240 40A ALT3

76 SCREW #6-32 X 3/8” SS

77 WASHER, FLAT, SS #8

78 2K-70096 ELBOW POLYPROPELYNE

79 BRACKET, TANKS HOLD-DOWN

80 STRAP HOLD DOWN

81 REMOVED

82 2K-47662 FTG STR BRS 3/8NPT X 3/8IN

83 2O-46575 VALVE DRAIN 3/8NPT

84 2K-73605 EL ADAPT 3/8MFL X 3/8MNPT

85 2E-74382 SWITCH ON OFF VISIROCKER

TUBE SILICONE .312 ID X 13.5”
NEEDED

2M-75157-G-PL662J
