OWNERS MANUAL
for
BOTTLED WATER
DECANTER
COFFEE BREWERS
MODEL
681
Model 8372 Brewer
with optional
8900-Series
Glass Decanter
8372
for
3 Gallon
and
5 Gallon
Plastic Bottles
Includes:
Installation
Operation
Use & Care
Servicing Instructions
PRINTED IN UNITED STATES OF AMERICA
p/n 75612 Rev. F ECN-12597 M681 040914 cps
WARRANTY STATEMENT
All electrical equipment manufactured by BLOOMFIELD
INDUSTRIES is warranted against defects in materials and
workmanship for a period of one year from the date of original
installation or eighteen (18) months from the date of shipment
from our factory, whichever comes first, and is for the benefit
of the original purchaser, except that:
a. airpots carry a 30 day parts warranty only.
b. dispensers; i.e., tea and coffee carry a 90 days parts
warranty only, excludes decanters.
THE FOREGOING OBLIGATION IS EXPRESSLY GIVEN IN
LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, WHICH ARE HEREBY EXCLUDED.
BLOOMFIELD INDUSTRIES DIVISION / SPECIALTY
EQUIPMENT MANUFACTURING CORPORATION SHALL
NOT BE LIABLE FOR INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES FROM ANY
CAUSE WHATSOEVER.
This warranty is void if it is determined that upon inspection by
an Authorized Service Agency that the equipment has bee n
modified, misused, misapplied, improperly installed, or
damaged in transit or by fire, flood or act of God.
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS
1. Resetting of safety thermostats, circuit breakers,
overload protectors, or fuse replacements unless warranted
conditions are the cause.
2. All problems due to operation at voltages other than
specified on equipment nameplates—conversion to correct
voltage must be the customer’s responsibility.
3. All problems due to electrical connections not made in
accordance with electrical code requirements and wiring
diagrams supplied with the equipment.
4. Replacement of items subject to normal wear, to include
such items as knobs and light bulbs. Normal maintenance
functions including adjustment of thermostats, microswitches,
and replacement of fuses and indicating lights are not covered
under warranty.
5. All problems due to inadequate water supply, such as
fluctuating, or high or low water pressure.
6.
All problem s d ue t o mi n er al/ c alc i um d e po sit s , or c o nt am in ation
from chlorides/chlorines. De-liming is considered a preventative
maintenance function and is not covered by warranty.
It also does not apply if the serial nameplate has been
removed or unauthorized service personnel perfor m service.
The prices charged by Bloomfield Industries for its products
are based upon the limitations in this warranty. Seller’s
obligation under this warranty is limited to the repair of defects
without charge by a Bloomfield Industries Authorized Service
Agency or one of its sub-agencies. This service will be
provided on customer’s premises for non-portable models.
Portable models (a device with a cord and plug) must be
taken or shipped to the closest Authorized Service Agency,
transportation charges prepaid, for services.
In addition to restrictions contained in this warranty, specific
limitations are shown below (Additional W arranty Exclusions).
Bloomfield Industries Authorized Service Agencies are located
in principal cities.
This warranty is valid in the United States and void elsewhere.
Please consult your classified telephone directory or your food
service equipment dealer; or, for information and other details
concerning warranty, write to:
Phone: (775) 689-5700 Fax: (888) 492-2783
7. Full use, care and maintenance instructions are supplied
with each machine. Those miscellaneous adjustments noted
are customer responsibility. Proper attention will prolong the
life of the machine.
8. Travel mileage is limited to sixty (60) miles from an
authorized Service Agency or one of its sub-agencies.
9. All labor shall be performed during normal working hours.
Overtime premium shall be charged to the customer.
10.
All genuine Bloomfield replacement parts are warranted for
ninety (90) days from date of purchase on non-warranted equipment.
Any use of non-genuine Bloomfield parts completely
voids any warranty.
11. Installation, labor and job check-out are not considered
warranty.
12. Charges incurred by delays, waiting time or operating
restricti ons th at h in der t he ser vic e t ec hnici an s a bilit y to p erf orm
services are not covered by warranty. This includes institutional
and correctional facilities.
Service Parts Department
Bloomfield Industries
P.O. Box 280
Verdi, NV 89439
SHIPPING DAMAGE CLAIMS PROCEDURE
NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes
full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill
or express receipt, and that the note of loss or damage
is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This
must be done within fifteen (15) days from the date the
delivery was made to you. Be sure to retain the
container for inspection.
Bloomfield Industries cannot assume liability for damage or
loss incurred in transit. We will, however, at your request,
supply you with the necessary documents to support your
claim.
xi
TABLE OF CONTENTS
Thank You for purchasing this
WARRANTY STATEMENT xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY APPROVAL INFORMATION 3
INSTALLATION 4
OPERATION 5
CLEANING INSTRUCTIONS 8
TROUBLESHOOTING SUGGESTIONS 10
SERVICING INSTRUCTIONS 11
Delime Water Tank 14
EXPLODED VIEWS & PARTS LISTS 16
WIRING DIAGRAM 19
SPECIFICATIONS
MODEL STYLE VOLTS WATTS AMPS POWER SUPPLY
1ø CORD
8372 3 WARMER STEP-UP
8372OR DECANTER BREWER 120 VAC 1800 W 15 A NEMA 5-15P
8372CA
k with FAUCET 120 VAC 1500 W 12.5 A NEMA 5-15P
Bloomfield Industries appliance.
Proper installation, professional
operation and consistent
maintenance of this appliance will
ensure that it gives you the very
best performance and a long,
economical service life.
This manual contains the
information needed to properly
install this appliance, and to use,
care for and maintain or repair the
appliance in a manner which will
ensure its optimum perf ormance.
k meets Canadian standards
1
FEATURES AND OPERATING CONTROLS
Fig. 1 Features & Operating Controls
2
PRECAUTIONS AND GENERAL INFORMATION
WARNING: Electric Shock Hazard
All servicing requiring access to non-insulated components must be performed by qualified
service personnel. Do not open any access panels which require the use of tools. Failure to
heed this warning can result in electrical shock.
WARNING Electric Shock Hazard
Brewer must be plugged into a properly grounded receptacle to prevent possible shock.
Electrical shock will cause death or serious Injury.
WARNING: Burn Hazard
This appliance dispenses very hot liquid. Serious bodily injury from scalding can occur from
contact with dispensed liquids.
This appliance is intended for commercial use only.
This appliance is intended for use to brew beverage products for
human consumption. No other use is recommended or
authorized by the manufacturer or its agents.
This appliance is intended for use in commercial establishments,
where all operators are familiar with the appliance use,
limitations and associated hazards. Operating instructions and
warnings must be read and unde r s to od by all operators and
users.
Except as noted, this piece of equipment is made in the USA
and has American sizes on hardware. All metric conversions
are approximate and can vary in size.
The following trouble shooting, component views and parts lists
are included for general reference, and are intended for use by
qualified service personnel.
This manual should be considered a permanent part of this
appliance. The manual must remain with the appliance if it is
sold or moved to another location.
AGENC Y APPROVAL INF O RMATIO N
This brewer is and
This brewer meets
listed under UL file E9253.
Standard 4 only when installed,
operated and maintained in accordance with the enclosed
CAUTION: Equipment
Electrical Damage
DO NOT plug in or energize this
appliance until all Installation
Instructions are read and followed.
Damage to the Brewer will occur if
these instructions are not follo wed.
CAUTION:
Burn Hazard
Exposed surfaces of the
appliance, brew chamber and
decanter may be HOT to the
touch, and can cause serious
burns.
E9253
E9253
instructions.
STD 4
3
INSTALLATION INSTRUCTIONS
READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION
IMPORTANT:
To enable the installer to make
a quality installation and to
minimize installation time, the
following suggestions and tests
should be done before the
actual unit installation is started:
CAUTION: Equipment
Electrical Damage
DO NOT plug in or energize this
appliance until all Installation
Instructions are read and
followed. Damage to the
Brewer will occur if these
instructions are not followed.
CAUTION: Unstable
Equipment Hazard
It is very important for safety
and for proper operation that the
brewer is level and stable when
standing in its final operating
position. Provided adjustable,
non-skid legs must be installed
at each corner of the unit.
Failure to do so will result in
movement of the brewer which
can cause personal Injury and/
or damage to brewer.
WARNING ELECTRIC
SHOCK HAZARD:
Brewer must be plugged into a
properly grounded electrical
receptacle to prevent possible
shock hazard. DO NOT
assume a plumbing line will
provide such a ground.
Electrical shock will cause death
or serious injury.
Unpack the unit. Inspect all components for completeness and
condition. Ensure that all packing materials have been removed
from the unit.

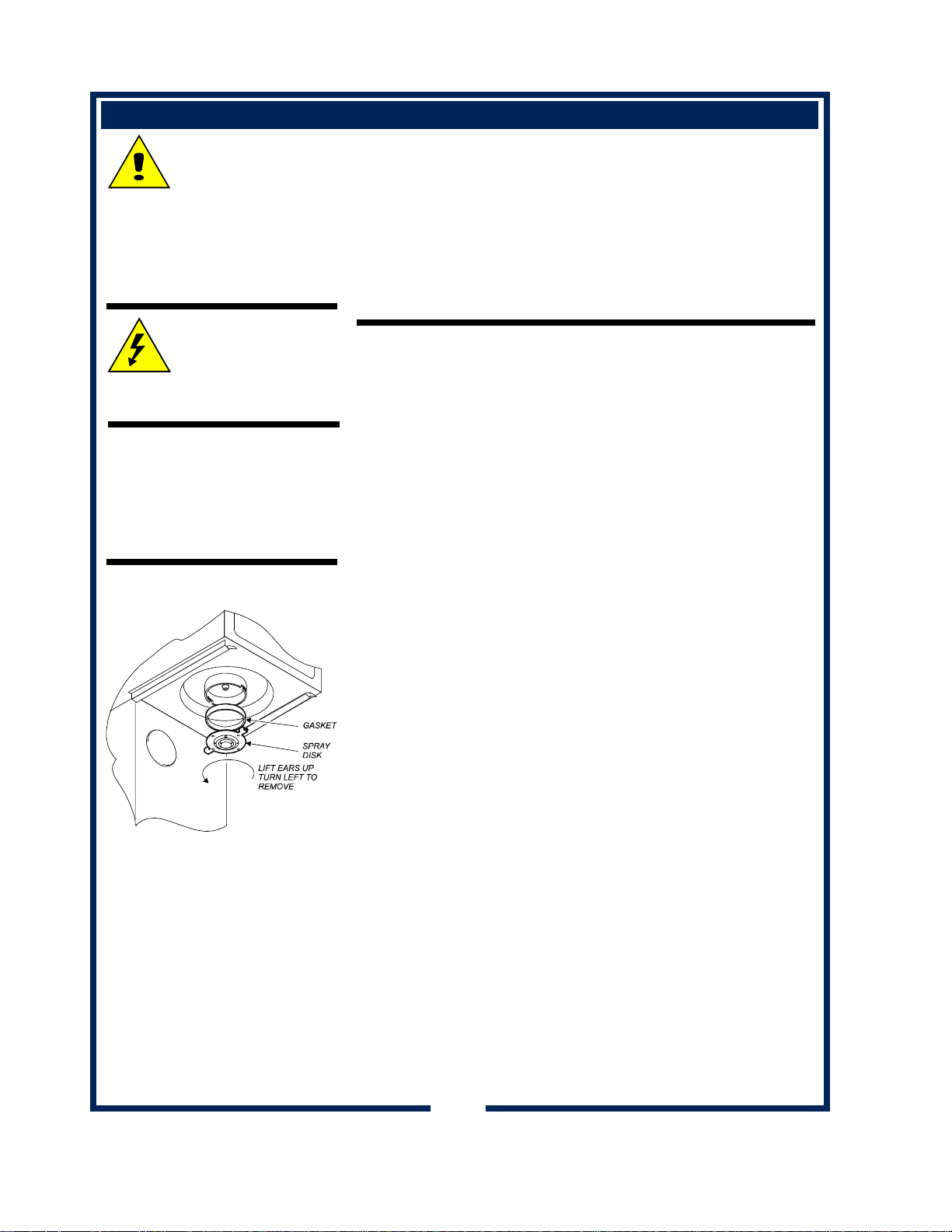

Verify that the Spray Head Gasket (#33) and Spray Disk (#34)
are properly installed.
LEVELING THE UNIT
Verify that an adjustable leg is installed at each corner of the
brewer.
Set Brewer in its operating location. Level the Brewer. A spirit
level should be placed on the top of the unit, at the edge, as a
guide when making level adjustments.
Level the unit from left to right and front to back by turning the
adjustable feet. Be sure all four feet touch the counter to prevent
tipping.
FILL WATER TANK
Check the bottle ring for lint or packing materials. Wipe the
interior of the bottle ring with a cloth dampened with clean water.
Brewer is designed to use a 3 gallon or 5 gallon plastic water
bottle. Carefully insert a fresh water bottle into the bottle ring.
Wait 30 seconds, or until all bubbling in the bottle stops, then
drain water from the hot water faucet until all ai r is purged from
the tank.
ELECTRICIAN’S INSTALLATION INSTRUCTIONS
REFER TO ELECTRICAL SPECIFICATIONS - Page 1
Check the nameplate to determine correct electrical service
required for the Brewer to be installed.
IMPORTANT: Before connecting to electricity, make sure a
bottle of water is installed on the bottle ring, and all air has been
bled from the water tank
Model 8372 is equipped with a cord and plug. It requires a 115 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground, with NEMA
5-15R or 5-20R Receptacle).
IMPORTANT:
Supply power must match nameplate for voltage and phas e.
Connecting to the wrong voltage will damage the brewer or result
in decreased performance. Such damage is not covered by
warranty.
IMPORTANT: The ground prong of the plug is part of a system
designed to protect you from electrical shock in the event of
internal damage. Never cut off the ground prong nor twist a
blade to fit an existing receptacle. Contact a licensed electrician
to install the proper circuit and receptacle.
4
OPERATION
START-UP
For initial start-up, or if the brewer has not been used for an
extended period of time:
♦ Be sure spray disk and brew gasket are properly installed
in the brew head.
♦ Install a fresh bottle of water in the bottle ring.
♦ Allow basin and tank to fill.
♦ Plug unit into a properly grounded electrical receptacle.
♦ Draw water from the hot water faucet until all air is purged
from the tank.
NOTE: This brewer will not function as a “pour-over” brewer. A
water bottle with an adequate amount of water must be installed
for the brewer to operate.
Once plugged into electrical power, the heating elements will
begin heating the water in the tank. When the water has reached
the proper temperature, the “READY TO BREW” light will glow.
CAUTION:
Personal Injury
5 Gallon water bottle can weigh
up to 50 pounds. Install bottle
carefully. Injury can result from
improper lifting technique or
from attempting to lift a full bottle
without adequate physical
ability.
CAUTION: Equipment
Electrical Damage
DO NOT manually fill brewer
through bottle ring.
IMPORTANT: Use only 3 gallon
or 5 gallon plastic water bottle.
IMPORTANT:
Tank must be full of water
before connecting brewer to
electrical power.
Heating elements will be
damaged if allowed to operate
without being fully submerged in
water. Damage caused by
operating the brewer without
water in the tank is NOT
COVERED BY WARRANTY.
IMPORTANT:
This appliance is NOT designed
to be used as a pour-over
brewer. Operation without a
water bottle with an adequate
amount of water in place will
produce very little or no brewed
coffee.
IMPORTANT:
When installing water bottle, be
careful to not overflow the basin
pan. DO NOT fill the basin pan
prior to installing the water
bottle.
Fig 2. Brewer Operation Diagram
5
OPERATION (continued)
WATER HEATER
Water temperature is sensed by a
thermobulb inserted into the water tank. This
temperature signal is fed to the thermostat,
which controls line power to the heating
element.
The setpoint temperature is adjustable at the
thermostat.
The element is protected from overtemperature by a hi-limit thermostat.
WATER FLOW
AUTOMATIC OPERATION
Water is supplied to the hot water tank by a
bottle inserted in the bottle ring. Water will
flow from the bottle into the basin pan until
the water level reached the open mouth of
the bottle.
Pressing BREW button energizes the
solenoid valve, allowing heated water from
the hot water tank to flow through the spray
head into the brew chamber.
The length of time the solenoid is open is
controlled by the timer.
HOT WATER FAUCET
The hot water faucet draws heated water
from the water tank.
Fig. 3 Heat Control Diagram
Fig. 4 Water Flow Diagrams
6
BREWING COFFEE
PREPARATION
Place one (1) genuine Bloomfield paper filter in the brew chamber.
Add a pre-measured amount of fresh coffee grounds.
Gently shake the brew chamber to level the bed of grounds. Slide
the brew chamber into place under the brew head.
AUTOMATIC OPERATION
BE sure “READY TO BREW” light is lit.
Place an EMPTY decanter in place under the brew chamber.
Press the “BREW” switch. The solenoid will open for an amount of
time determined by the timer setting, admitting a measured quantity
of hot water into brew head, where it will spray over the bed of
grounds.
When the flow and all dripping stops, the coffee is ready to serve.
Discard the contents of the brew chamber and rinse it in a sink.
When the ”READY TO BREW” light comes on, the brewer is ready
for another brew cycle.
Fig. 5 Brew Chamber
CAUTION:
Burn Hazard
Exposed surfaces of the
brewer, brew chamber and
decanter may be HOT to
the touch, and can cause
serious burns.
CAUTION:
Burn Hazard
To avoid splashing or overflowing hot liquids,
ALWAYS place an empty
decanter under the brew
chamber before starting
the brew cycle. Failure to
comply can cause serious
burns.
CAUTION:
Burn Hazard
After a brew cycle, brew
chamber contents are
HOT. Remove the brew
chamber and dispose of
used grounds with care.
Failure to comply can
cause serious burns.
NOTE: Use of the hot
water faucet will not affect
the volume of water
delivered for a brew.
However, overuse of the
faucet during a brew may
lower the temperature of
the brew water.
7
CLEANING INSTRUCTIONS
CAUTION:
Burn Hazard
Brewing and serving
temperatures of coffee are
extremely hot.
Hot coffee will cause
serious skin burns.
CAUTION:
Electric Shock
Hazard
Do not submerge or immerse
brewer in water.
IMPORTANT:
DO NOT use steel wool, sharp
objects, or caustic, abrasive or
chlorinated cleansers to clean
the brewer.
Fig. 6 Cleaning
PROCEDURE: Clean Coffee Brewer
PRECAUTIONS: Disconnect brewer from electric power.
Allow brewer to cool.
FREQUENCY: Daily
TOOLS: Mild Detergent, Clean Soft Cloth or Sponge
Bristle Brush.
1. Disconnect brewer from electric power.
Allow brewer to cool before cleaning.
2. Remove and empty decanters.
3. Remove and empty brew chamber.
4. Remove the spray disk from the brew head (See figure 6):
Press up on the spray disk ears, then turn the disk to the left
to unlatch. Remove the gasket from inside the brew head.
5. Wipe inside of brew head and area around the brew head
with a soft clean cloth or sponge moistened with clean water.
6. Wash the spray disk in a sink using warm water and a mild
detergent. A bristle brush may be used to clear clogged
spray holes. Rinse the spray disk with clean water and allow
to air dry.
7. Wash the brew chamber in a sink using warm water and a
mild detergent. A bristle brush may be used to clean the
inside. Rinse with clean water and allow to air dry. For
stainless steel brew chambers, be sure the wire rack is
properly reinstalled.
8. Wipe the exterior of the brewer with a soft clean cloth or
sponge moistened with clean water.
10. Reinstall the gasket INSIDE the brew head, then reinstall the
spray disk.
11. Reinstall the brew chamber.
12. Decanters may be washed in a dishwasher or sink.
Procedure is complete
8
CLEANING INSTRUCTIONS (continued)
PROCEDURE: Clean and Sanitize Basin Pan
PRECAUTIONS: Disconnect brewer fro m electric power.
Allow brewer to cool.
FREQUENCY: Monthly
TOOLS: #2 Phillips Head Screwdriver
Mild Detergent, Food Equipment Sanitizer
Clean Soft Cloth or Sponge
1. Disconnect brewer from electric power.
Allow brewer to cool before cleaning.
2. Remove and empty decanters and brew chamber.
3. Remove water bottle. Drain water from hot water faucet until
water no longer flows.
4. Remove four screws holding the top panel in place. Remove
the top panel. DO NOT remove the bottle ring from the top
panel.
5. Remove basin seal by working it out from under the flange at
the top of the brewer body.
6. Remove the silicone outlet elbow, overflow drain and vent
tube from basin pan. Remove the basin pan from the brewer.
7. Wash the basin pan and bottle ring with a clean cloth and
mild detergent.
7. Soak the basin pan, basin seal and top panel in sanitizer per
the directions supplied with the sanitizer.
8. Rinse the basin pan, basin seal and top panel with clean
water. Dry thoroughly with a clean cloth.
9. Reinstall the basin pan in brewer, making sure the vent tube,
overflow tube and outlet elbow are properly installed.
10. Reinstall basin seal, gasket side up, under the flange in the
top of the brewer body.
11. Reinstall the top panel. Install a water bottle in the bottle ring.
Drain water from the hot water faucet to purge air from the
system.
Procedure is complete
CAUTION:
Electric Shock
Hazard
Removing the top panel will
expose uninsulated circuits.
Unplug the brewer before
removing the top panel.
This procedure to be performed
by a qualified person only.
IMPORTANT:
DO NOT use steel wool, sharp
objects, or caustic, abrasive or
chlorinated cleansers to clean
basin pan or cabinet panels.
Fig. 7 Top Panel & Basin Pan
9
TROUBLESHOOTING SUGGESTIONS
SYMPTOM
Water won’t heat
Coffee level low
Coffee level too high or low
Brew chamber overflows
Sprays water from brew head
No brew
No flow from hot water faucet
Brewer overflows from basin
Poor coffee quality
POSSIBLE CAUSE
Brewer unplugged or circuit
breaker tripped
Thermostat set too low
Hi-Limit thermostat tripped
Damaged internal component or
wiring
Water bottle empty
Too much coffee grounds
Timer out of adjustment
Too many filter papers or wrong
filter paper
Brew chamber dispense hole
plugged
Too much coffee or too fine a
grind
Spray gasket improperly
installed
Spray disk plugged
Brewer not plugged in
Water bottle empty
Bad BREW switch
Damaged internal component or
wiring
Water bottle empty
Damaged water bottle
Water not hot enough
SUGGESTED REMEDY
Check power supply cord
Check / reset circuit breaker
Set for desired temperature
Allow to cool
Reset hi-limit (8786, 8788)
Examine wiring & connectors,
thermostat and heating element
Repair/replace as needed
Replace water bottle
Adjust amount of grounds
Adjust timer
Use one (1) genuine Bloomfield
filter per brew
Thoroughly clean bre w c h amber
Adjust coffee amount and grind
Check/reinstall gasket on
INSIDE of brew head
Plug into electrical power
Clean spray disk
Replace water bottle
Replace switch
Examine wiring & connectors,
brew switch and solenoid
Repair/replace as needed
Replace water bottle
Install new water bottle
Adjust water temp 195-205ºF
Suggestions for consistently good coffee:
Keep brewer clean.
Use a quality coffee with a consistent roast.
Use proper grind and amount of coffee per brew.
10
SERVICING INSTRUCTIONS

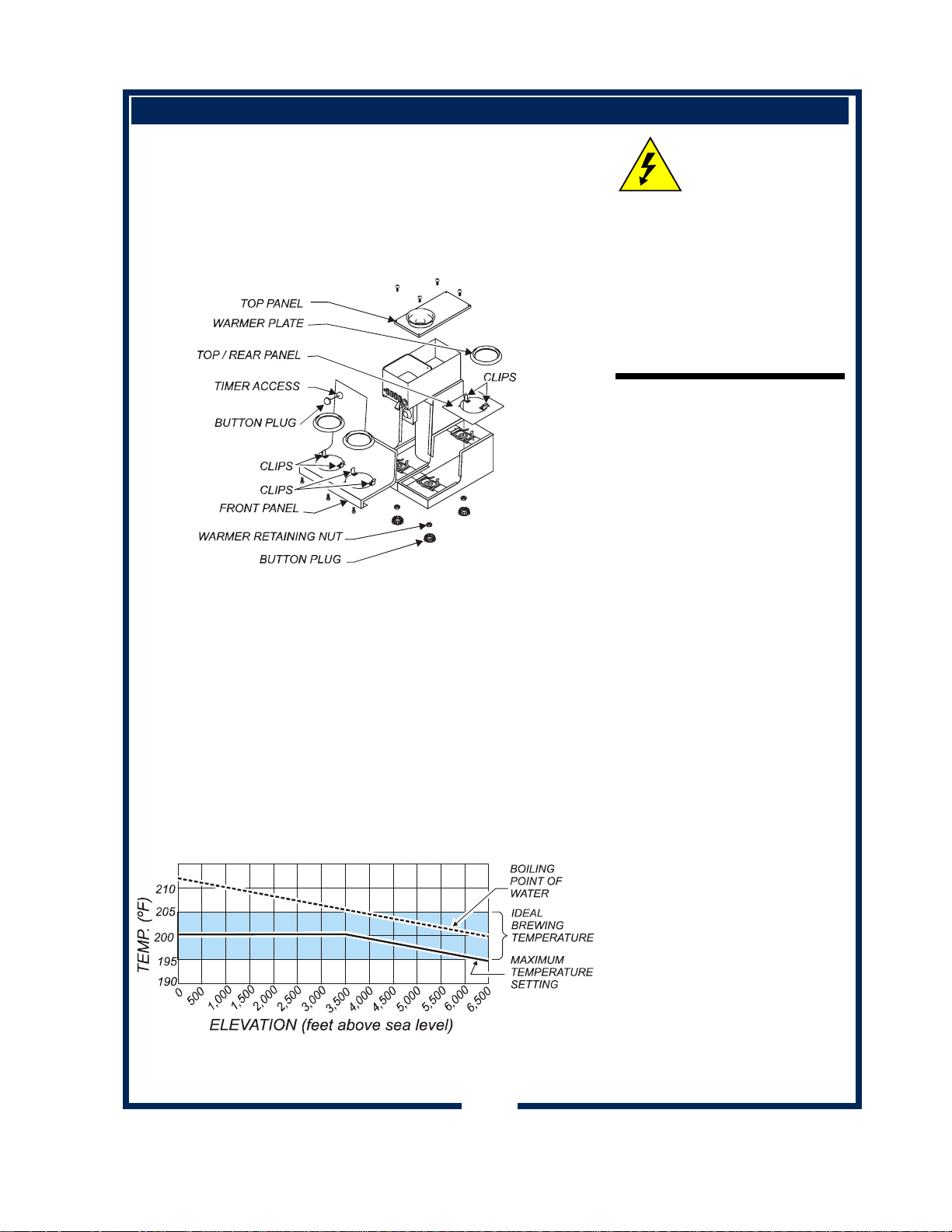

ACCESS PANELS
Top panel is held by four screws at the corners.
Front panel is held by two clips under each warmer plate, three
screws at the bottom and a retaining lip at the top.
Top rear panel is held by two clips under the warmer plate.
Fig. 8 Access Panels
TEMPERATURE ADJUSTMENT
With the “READY TO BREW” light ON, draw a cup of water from
the hot water faucet. Check the temperature of the water with a
thermometer of known accuracy.
If temperature adjustment is necessary, remove water bottle and
top panel.
Adjust thermostat by turning shaft; clockwise increases
temperature. 1/8 turn = approximately 10ºF.
Refer to Table 1 below for proper brewing temperature based on
altitude.
Upon completion, reinstall top panel.
CAUTION
Electric Shock
Hazard
Opening access panels or
removing warmer plates on this
brew may expose uninsulated
electrical components.
Disconnect brewer from
electrical power before
removing any panel or warmer
plate.
NOTE:
Each warmer plate has a center
stud which screws into a
bracket. Warmer plates on
Canadian brewers are secured
with a nut. Remove button plug
on bottom of brewer to access
nut on warmer plate. Remove
warmer plates by turning
counter-clockwise.
NOTE:
Optimum brewing temperature
range is 195ºF to 205ºF (90ºC
to 96ºC).
IMPORTANT:
A mechanical thermostat will
maintain temperature within
±5ºF. To prevent boiling water
in the brewer, thermostat should
be adjusted to a maximum
temperature equal to the local
boiling temperature minus 5ºF.
Table 1 Boiling Temperature by Altitude
11
SERVICING INSTRUCTIONS (continued)
IMPORTANT: Adjust timer with
a full water bottle installed in the
bottle ring.
IMPORTANT: Before setting
assembly into tank, make sur e
tank lid gasket is properly
seated on flange of lid.
DO NOT OVER-TIGHTEN.
IMPORTANT: When removing
tank lid assembly, be careful to
not damage or kink thermostat
capillary tube.
IMPORTANT: When mounting
thermostat, be sure a new seal
washer is placed below the
fitting on the capillary line.
Push sensing bulb thru tank lid
until fitting seats.
Tighten capillary lock nut only
enough to ensure no water
leakage. Excessive tightening
is not necessary.
TIMER ADJUSTMENT
The amount of water dispensed automatically during a brew cycle
is controlled by the timer.
Place empty decanter under brew chamber. Press BREW
button. Brewer should dispense one decanter of water. To
adjust amount:
Remove brew chamber and button plug. Adjust knob on timer;
clockwise increases time. Run several cycles to check amount of
water delivered. Replace button plug.
REMOVE TANK LID ASSEMBLY
Unplug brewer or turn circuit breaker OFF. Remove water bottle.
Run water from the hot water faucet until no more water flows
Remove top panel. Siphon water from the tank through the
faucet supply fitting until the water level in the tank is below the
tank lid.
Pull vent tube and inlet elbow out of basin pan. Remove basin
pan.
Disconnect faucet supply from tank lid.
Disconnect wires from thermostat. Remove screws holding
thermostat to bracket. Do not remove thermobulb from tank lid.
Thermostat is removed with the tank lid.
Disconnect all wiring from heating element. Slide hi-limit out of
the way.
Loosen center screw on tank hold-down bracket and loosen
acorn nuts. Remove hold-down bracket by sliding short slotted
end off of locking stud and lifting it off. Remove tank lid assembly
by lifting it straight up.
Reassemble in reverse order.
REPLACE THERMOSTAT
Unplug brewer or turn circuit breaker OFF. Remove water bottle
and drain water from hot water faucet until no more water flows.
Remove top panel.
Disconnect all wiring from thermostat only. Loosen and free jam
nut from pass-thru fitting securing temperature sensing bulb.
Remove two screws holding thermostat to bracket.
Lift out thermostat, sensing bulb and thermostat gasket.
Reassemble in reverse order.
12
SERVICING INSTRUCTIONS (continued)
REPLACE HEATING ELEMENT
Remove tank lid assembly per above.
Remove two hex nuts holding elem en t to cov er . Pul l element
from mounting holes.
Reassemble in reverse order.
REPLACE WARMER ELEMENT
Remove warmer plate by turning counter-clockwise.
Lift element from bracket. Disconnect wiring.
Reassemble in reverse order.
REPLACE SOLENOID
Symptom: brewer will not flow water; or, brewer drips
continuously from brew head.)
Unplug power cord or turn circuit breaker OFF. Turn OFF and
disconnect water supply from brewer inlet fitting.
Remove water bottle and top panel.
Cut tie straps from solenoid hose connections. Remove wiring
connections from solenoid coil. Remove solenoid
Reassemble in reverse order.
REPLACE TIMER ASSEMBLY
Unplug power cord or turn circuit breaker OFF.
Remove front panel. Remove knob and three screws holding
timer to bracket. Disconnect wiring to timer.
Reassemble in reverse order.
Adjust timer as described on page 12.
REPLACE BREW READY LIGHT, BREW SWITCH OR
WARMER SWITCH
Unplug power cord or turn circuit breaker OFF.
Remove water bottle, top panel and basin pan.
Using Switch Removal Tool (p/n 83209) or a thin screwdriver, pry
light or switch from mounting hole. Disconnect leads.
Reassemble in reverse order.
IMPORTANT: When replacing
heating element, also replace
seal gaskets.
13
SERVICING INSTRUCTIONS (continued)
CAUTION -
CHEMICAL BURN
HAZARD
Deliming chemicals are caustic.
Wear appropriate pr ote ctive
gloves and goggles during this
procedure.
Never siphon deliming
chemicals or solutions by
mouth.
This operation should only be
performed by qualified and experienced service personnel.
IMPORTANT: DO NOT spill,
splash or pour water or deliming
solution into or over any internal
component other than the inside
of the water tank.
IMPORTANT: DO NOT allow
any electrical wiring or
components to come into
contact with the deliming
solution. Take care to keep all
electrical components and
wiring dry.
NOTE: Repeat steps 4 thru 5
as required to remove all scale
and lime build-up.
PROCEDURE: Delime the Water Tank
PRECAUTIONS: Disconnect brewer from electric power.
Allow brewer to cool.
FREQUENCY: As required (Brewer slow to heat)
TOOLS: Deliming Solution
Protective Gloves, Goggles & Apron
Mild Detergent, Clean Soft Cloth or Sponge
Bristle Brush, Bottle Brush
Large Sink (or other appropriate work area)
1. Disconnect brewer from the electrical supply. Remove the
water bottle and drain the tank by running water from the hot
water faucet until no more water flows.
2. Remove the tank lid assembly as described on page 12.
3. Remove the water tank from the brewer body by lifting
straight up. Empty all water from the tank. Set the tank back
into the brewer.
4. Mix 2 quarts of deliming solution according to the
manufacturer’s directions. Carefully pour the deliming
solution into the water tank. Lower the lid assembly back
onto the tank. Allow to sit for 30 minutes, or as directed by
the manufacturer.
5. At end of so ak ing per iod , re move lid assembly from tank.
Thoroughly rinse internal components of lid assembly with
clear water. Using a stiff bristle brush, scrub the heating
element to rem ov e lim e and calcium build-up. Rinse with
clean water. Store lid assembly in a safe location .
6. Remove the tank from the brewer and empty. Using a stiff
bristle brush, scrub the interior of the water tank to remove
lime and calcium build-up. Rinse with clean water.
14
SERVICING INSTRUCTIONS (continued)
7. Set the tank back into the brewer. Reassemble the tank lid to
the water tank. Make sure the gasket is properly in place,
then reinstall the hold-down strap.
8. Reinstall wiring to heating element and thermostat. Reinstall
the hi-limit thermostat . Verify that all internal components
are dry, then reinstall the top panel.
10. Reconnect brewer to electrical supply.
11. Install the brew chamber without filter paper or grounds.
Run at least three full brew cycles and discard all water
generated.
12. Brewer is read y to use.
NOTE: Normally, silicone
hoses do not need to be
delimed. Should deliming
hoses become necessary,
Bloomfield recommends
replacing the hoses.
15
EXPLODED VIEW & PARTS LIST
8372 PLUMBING COMPONENTS
ITEM PART# DESCRIPTION QTY
8 83538 TUBE, FAUCET SUPPLY 10” SILICONE 1
13 8043-5 STRAP, TANK LID HOLD DOWN 1
25 8043-13 ELBOW, BREW NOZZLE SILICONE 1
29 8783-1 FAUCET 1
30 82681 WASHER, FLAT SS 15/32 x 1-1/8 OD 1
33 8543-42 GASKET, SPRAY DISK 1
34 84132 SPRAY DISK 1
34a 8543-45 BREW HEAD (must be drilled & riveted to install) 1
40 8810-70 RESTRICTOR, BREW NOZZLE 1
41 83384 TUBE, FAUCET SUPPLY METAL 1
42 85609 INSERT, BREW OUTLET ELBOW 1
43 82241 FITTING, BARBED BRASS 1
45 83388 SOLENOID, BREW 120V 1
46 85634 TUBE, BREW SILICONE 1
54 8043-12 GASKET, TANK LID 1
59 86771 INLET & VENT TUBE ASSY 1
60 8043-15 TUBE, VENT SILICONE 2
61 8043-11 ELBOW, OUTLET SILICONE 2
62 85587 TANK LID ASSEMBLY 1
66 8043-24 TUBE, TANK WATER INLET METAL 1
68 8043-10 TANK BODY 1
69 83385 TUBE, OVERFLOW DRAIN SILICONE 1
114 8760-3 BASIN PAN 1
200 8942-6B BREW CHAMBER BLACK PLASTIC 1
T CABLE TIE, PLASTIC 8
16
EXPLODED VIEW & PARTS LIST (continued)
ITEM PART# DESCRIPTION QTY
2 8572-18 WARMER, 120V 100W 3
30 85647 SWITCH, WARMER ON/OFF 120V 3
31 85646 SWITCH, BREW MOMENTARY 120V 1
32 8718-31 INDICATOR LIGHT, GREEN 120V 1
35 8812-61 TIMER, 8 MIN 1
36 6407-15 POWER CORD, NEMA 5-15P 1
37 35-210 STRAIN RELIEF 1
45 83388 SOLENOID, BREW 120V 1
50 86280 THERMOSTAT, 199ºF 1
56 8043-30 SEAL, HEATI NG ELEMENT 2
63 8043-83 THERMOSTAT, HI-LIMIT 120V 1
67 8043-14 HEATING ELEMENT, 120V 1500W 1
k8043-93 HEATING ELEMENT, 120V 1200W
17
EXPLODED VIEW & PARTS LIST (continued)
ITEM PART# DESCRIPTION QTY
1 8700-16 PLATE, WARMER COVER 3
33 8543-42 GASKET, SPRAY DISK 1
34 84132 SPRAY DISK 1
34a 8543-45 BREW HEAD (must be drilled & riveted to install 1
70 8706-75 BUTTON PLUG, 2” DIA 1
73 81732 LEG ADJUSTABLE 4
73a 8033-55 LEG, METAL
73b 8033-56 FOOT, RUBBER
75 8543-69 BUSHING, SHORTY HEYCO 2
78 8810-12 BUTTON PLUG 7/8” DIA 2
80 85583 BOTTLE RING (Model 8372) 1
80x 3300 BOTTLE RING, OASIS (Model 8372OR) 1
81 80629 LABEL 1
90 8706-76 BUTTON PLUG 1-1/8" 3 (8372CA)
91 18-50 NUT, WARMER PLATE RETAINING 1/4-28 3 (8372CA)
101 BASE, BODY ASSEMBLY 1
102 BASE, LOWER FRONT PANEL 1
103 BASE, UPPER FRONT PANEL 1
104 BASE, DOOR 1
105 8572-66 BASE, BOTTOM PANEL 1 (8372)
8571-19 BASE, BOTTOM PANEL w/ACCESS HOLES 1 (8372CA)
110 BASIN, BODY ASSEMBLY 1
111 BASIN, REAR PANEL 1
112 BASIN, TOP COVER(Model 8372) 1
112x BASIN, TOP COVER(Model 8372OR) 1
113 RETAINER, BOTTLE RING (Model 8372) 1
113x RETAINER, BOTTLE RING (Model 8372OR) 1
114 8760-3 BASIN PAN 1
115 8543-80 CLIP, RETAINING 6
116 BASIN PAN SEAL GASKET 1
117 BASIN PAN SEAL 1
200 8942-6B BREW CHAMBER BLACK PLASTIC 1
201 POF FILTER PAPER (case of 1000) A/R
18
WIRING DIAGRAM
19
Bloomfield Industries proudly supports CFESA
Commercial Food Equipment Service Association
Bloomfield Industri es, Inc.
Division of Carrier Commercial Refrigeration
In US and Canada
Telephone: 775-689-5700
Fax:
Fax:
888-492-2783
800-356-5142 ()
for orders only
website: www.wellsbloomfield.com
PRINTED IN UNITED STATES OF AMERICA
Loading...
