T H E R M A L S E R V E R S
For added convenience,
coffee can be brewed directly
into the extremely transportable
thermal servers that have the
special Brew-Thru Lids. Units
that have the easy to read
front mounted sight gauges
allow for close monitoring of
your coffee level.
GRAVITY FLOW
77
50
2.5 liter (84 oz.) Thermal Server
with base, black brew-thru lid,
gravity flow, satin black with
sight glass
7751
2.5 liter (84 oz.) Decaf Thermal
Server with base, orange brew-thru
lid, gravity flow, satin black with
sight glass
7752
2.5 liter (84 oz.) Thermal Server
without base, black brew-thru lid,
gravity flow, satin black with
sight glass
7753
2.5 liter (84 oz.) Decaf Thermal
Server without base, orange
brew-thru lid, gravity flow, satin
black with sight glass
7754
2.5 liter (84 oz.) Thermal Server
NSF approved, with base, black
brew-thru lid, gravity flow, black
plastic body with sight glass,
cleaning brushes for liner and sight
gauge tube included
7756
2.5 liter (84 oz.) Thermal Server
NSF approved, without base, black
brew-thru lid, gravity flow, black
plastic body with sight glass,
cleaning brushes for liner and sight
gauge tube included
Model 7750/7751
Model 7752/7753
Model
7754
T
H
E
R
M
A
L
S
E
R
V
E
R
S
Model 7756
HAND HELD
777
2
1.0 liter (34 oz.) Hand Held Pour
stainless matte body (slide lock)
7774
1.9 liter (64 oz.) Hand Held Pour
stainless matte body (slide lock)
7874
1.9 liter (64 oz.) Hand Held Pour
stainless steel body and liner
7876
1.9 liter (64 oz.) Hand Held Pour
brew-thru lid, stainless steel body
and liner
7885
1.9 liter (64 oz.) Hand Held Pour
brew-thru lid, stainless steel body
and liner
Model 7772
T H E R M A L S E R V E R S
Model 7774
Model 7874
Model 7876
Model 7885

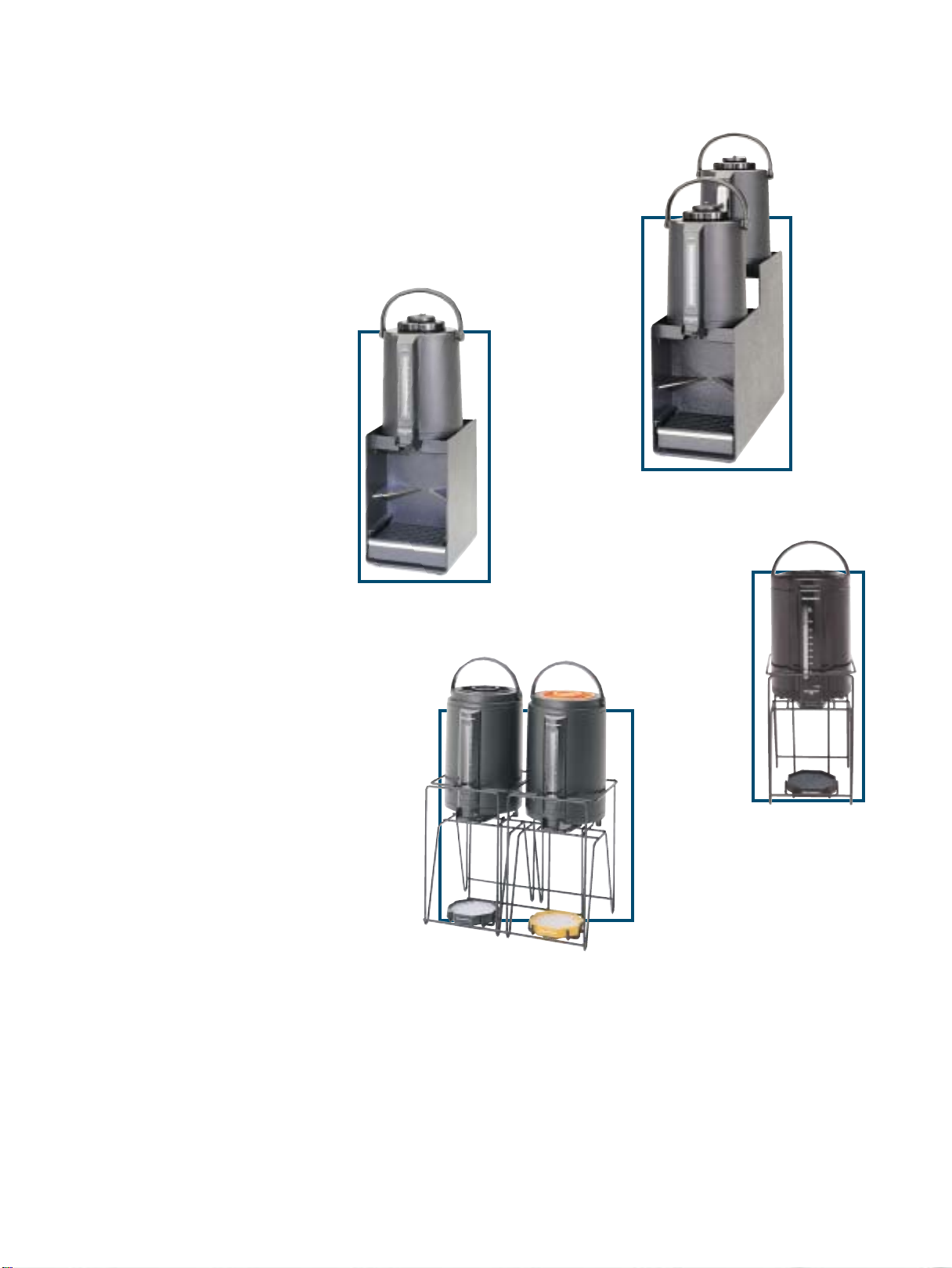

THERMAL SERVER BASES
3871
Durable Plastic Serving Base for 7746,
7752, 7753 or 7756, adjustable
trays (for cups up to 7 1/2” tall)
8 3/4” D x 7 5/8” W x 11 3/4” H
3872
Durable Plastic Serving Base for
two 7746, 7752, 7753 or 7756,
(1 serving, 1 backup) adjustable
trays (for cups up to 7 1/2” tall)
18” D x 7 5/8” W x 15 3/4” H
8857
Wire Serving Base for 7752 or
7753, black PVC coated with drip
tray (for cups up to 5 3/4”tall)
9 1/4” D x 7 1/2” W x 11 1/4”
Model 3871
shown with
optional 7756/7746
T H E R M A L S E R V E R B A S E S
Model 3
shown with
optional 7756/7746
872
8858
Double Wire Serving Base for 7752
or 7753, black PVC coated with drip
trays (for cups up to 5 3/4” tall),
9 1/4” D x 15” W x 11 1/4” H
Model 8857
shown with
optional 7752
Model 8858
shown with
optional 7752
and 7753
THERMAL SERVER COM PARATIVE CHART
BLO OMF IEL D IND UST RIE S
2 E
RIK C IRC LE, PO B OX 280 , VER DI, NV 8 943 9 U.S.A.
U.S .A.
: (77 5) 689 -57 00 • (888) 35 6-5 362 • FAX ( 800 ) 356 -51 42
Can ada : (
877 ) 507 -17 00 •(905) 5 07- 170 0 • FAX (90 5) 507-1 777
Exp ort : (
775 ) 689 -57 00 • FAX (775) 6 89- 597 5
www.
wel lsb loo mfi eld .co m
©2006 B LO
OMFIE LD INDU STRIE S • PRINT ED IN THE U .S.A.
04/06 •
THERMAL SERVERS - HAND HELD
Model Capacity Body Brew Liner Brew Total Brewers Racks
7772 1.0 L Stainless Matte No Glass 9 3/4” 11 1/4” A,D 7774 1.9 L Stainless Matte No Glass 12” 12 1/2” A,D -
7874 1.9 L Stainless Steel Yes S/S 9” 9 1/2” C,D 7885 1.9 L Stainless Steel Yes S/S 7” 7” C,D -
7876 1.9L Stainless Steel Yes S/S 7 3/8” 7 5/8” C,D -
THERMAL SERVERS - GRAVITY
Model Capacity Body Brew Liner Brew Total Handle Up Brewers Stand
Style Thru Style Height Height Height
7750 2.5 L Black Metal Yes Glass 16 5/8” 16 5/8” 19 1/8” B 7751 2.5 L Black Metal Yes Glass 16 5/8” 16 5/8” 19 1/8” B -
7752 2.5 L Black Metal Yes Glass 11 1/2” 11 1/2” 14 1/4” A,D H,I
7753 2.5 L Black Metal Yes Glass 11 1/2” 11 1/2” 14 1/4” A,D H,I
7754 2.5 L Black Plastic Yes Glass 16 3/4” 17 1/4” 19 1/4” B 7756 2.5 L Black Plastic Yes Glass 11 3/8” 12” 14” A,D I
Style Thru Style Height Height
BREWER SCHEDULE
A = 0482, 1082, 1088, 1092, 2082, 2088, 8382, 8773, 8774, 8782, 8785, 8788, 8792
B = 0482, 1080, 1086, 2080, 8778, 8780, 8786
C = 0482, 1082XL, 8782XL, 8785XL
D = 0420
CLEARANCE HEIGHT
A = 13 3/8”
B = 17 1/2” (used with part 3774 - 13 3/8”)
C = 9 1/2”
D = 12 1/2” - 13”
THERMAL SERVING STAND SCHEDULE
H = Model 3871/3872 Single or Dual Black Plastic Thermal Server Stands
I = Model 8857/8858 Single or Dual Black Wire Thermal Server Stands
