Blomberg TSM 1541P, TSM 1541 User Manual

Fridge with Freezer Compartment

TSM 1541 TSM 1541P

Operating instructions

Please read this manual first!

Recycling

Dear Customer, We hope that your product, which has been produced in a 1st-class

manufacturing facility and checked under the most meticulous quality control procedures, will provide you with years of good service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future reference.

This manual

• Will help you use your appliance quickly and safely.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of

hazardous substances.

1 Your refrigerator 4

2 Warnings 5

Electrical Requirements ..................... 6

Warning! This Appliance Must Be

Earthed .............................................6

Energy Saving Tips ............................ 7

4 Before operating 13

Final Check .....................................13

5 Using your refrigerator 14

Temperature Control And

Adjustment ...................................... 14

Defrosting ........................................15

3 Installation 8

Points to be considered when re-

transporting your refrigerator .............8

Before operating your refrigerator ...... 8

Electric connection ............................ 8

Disposing of the packaging ...............9

Disposing of your old refrigerator ....... 9

Placing and Installation ...................... 9

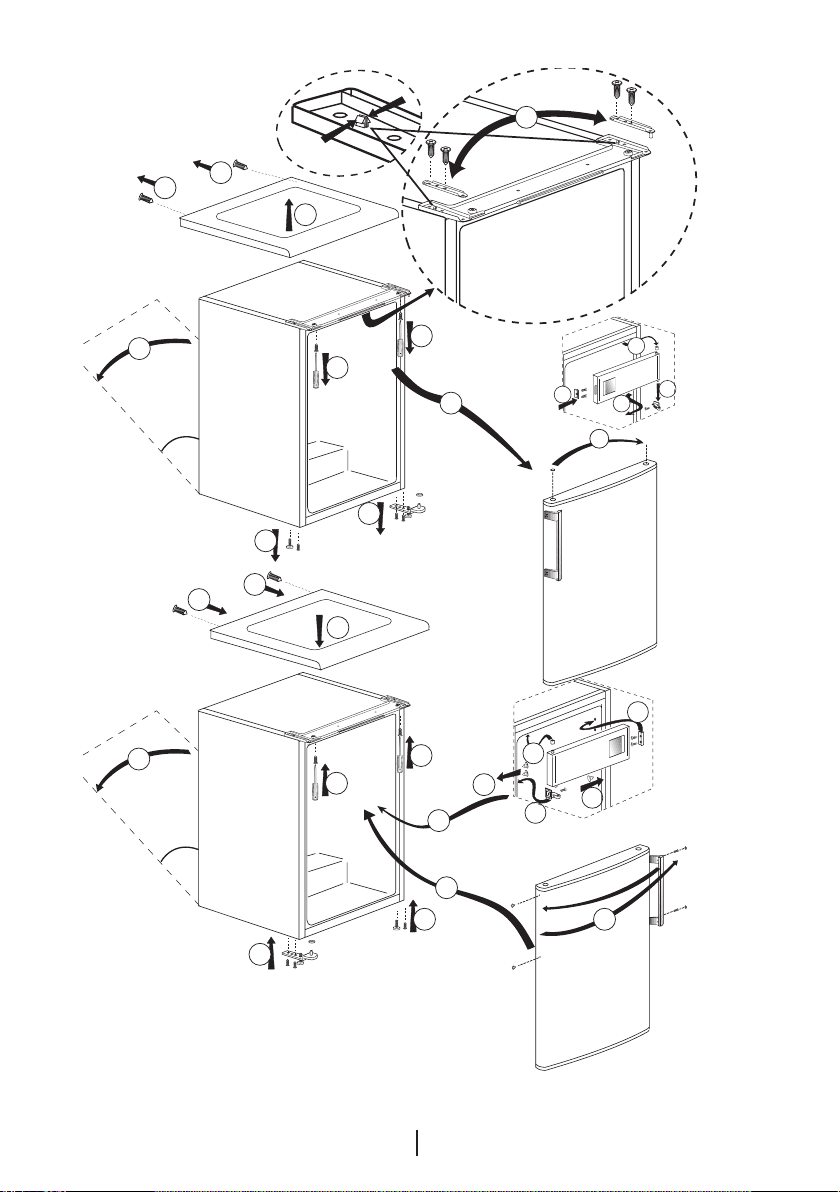

Reversing The Doors ....................... 10

6 Maintenance and cleaning 18

7 Do's and Don'ts 19

8 How To Obtain Service 20

9 Guarantee Details 21

1 Your refrigerator

Congratulations on your choice of a BLOMBERG quality Appliance which has

been designed to give you service for many years.

Freezing compartment & ice tray

Interior light -Thermostat knob

Movable shelves

Defrost water collection channel-Drain tabe

Crisper cover

Crisper

Adjustable front feet

Dairy compartment

Door shelves

10.

Eggy tray

11.

Bottle shelf

12.

Bottle gripper

13.

Top trim

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Warnings

•DO NOT connect your appliance to

the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4

hours before switching on to allow compressor oil to settle if transported horizontally.

• If you are discarding an old

refrigerator with a lock or latch fitted to the door, disable the lock/latch, ensure that it is left in a safe condition to prevent the entrapment of young children.

• This fridge/freezer must only be used

for its intended purpose i.e the storing and freezing of edible foodstuff.

• Do not dispose of the appliance on

a fire. At BLOMBERG, the care and protection of our environment is an ongoing commitment. This appliance which is among the latest range introduced is particularly environment friendly. Your appliance contains non CFC / HFC natural substances in the

cooling system (Called R600a) and in the insulation (Called cyclopentane)

which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit / pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire or potential ignition source and immediately ventilate the room where the appliance is situated.

• We suggest you contact your local

authority for disposal information and facilities available.

• See Installation Instructions on on

page 9 for information on suitable location.

• To obtain the best possible

performance and trouble free operation from your appliance it is very important to carefully read these instructions.

• On delivery, check to make sure that

the product is not damaged and that all the parts and accessories are in perfect condition.

• Ensure that the plug remains readily

accessible. Do not use multiple adapter or extension cable.

• Failure to observe these instructions

may invalidate your right to free service during the guarantee period.

• Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances

inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• We suggest you keep these

instructions in a safe place for easy reference.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to

ensure that they do not play with the appliance.

Electrical Requirements

Before you insert the plug into the wall

socket make sure that the voltage and the frequency shown on the rating plate inside the appliance corresponds to your electricity supply.

Rating label is on the left hand side of

fridge inner liner. We recommend that this appliance be

connected to the mains supply via a suitable switched and fused socket.

The appliance must be positioned so that the plug is accessible.

Should the mains lead of the appliance become damaged or should it need

replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained

from a BLOMBERG Authorised Service

Agent.

Warning! This Appliance Must Be Earthed

If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug which is cut off as a plug with bared cord could cause a shock hazard if inserted into a socket elsewhere in the house.

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse need to be replaced an

ASTABEAB approved BS 1362 fuse

of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover the plug must not be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store.

Important! Fitting A Different Plug

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: (See

diagram).

1. Connect the green-yellow or green

(Earth) wire to the terminal in the plug

marked ‘E’ or with the symbol or coloured green and yellow or green.

2. Connect the blue (Neutral) wire to the terminal in the plug marked ‘N’ or

coloured black.

3. Connect the brown (Live) wire to the terminal in the plug marked ‘L’ or

coloured red. With alternative plugs a 13 A fuse must

be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.

GREEN & YELLOW

GREEN

BLUE

BLACK

6mm.

32mm.

BROWN

RED

22mm.

6mm.

CORD GRIP

12mm.

6mm.

FUSE

FITTED WITH

CARTRIDGE FUSE

FIT BS 1362 REPLACEMENT

BS 1362 13A FUSE ALWAYS

Energy Saving Tips

1- Ensure your appliance is installed in a well ventilated area.

2- Ensure the time between buying chilled/frozen food and placing them in your appliance is kept at minimum, particularly in summer. We recommend you use a cool bag or a special carrier bag to carry frozen food.

3- Do not leave the door (s) of your

appliance open longer than necessary and ensure they are closed properly after each opening.

4- Defrost frozen food in the fridge, so that frozen food acts as an ice pack to assist cooling in fridge.
