Please read this user manual first!
Dear Customer,
We hope that you get the best results from the product which has been manufactured
in state-of-the-art plants and passed through a strict quality control procedure.
Therefore, please read the entire user manual carefully before using the product and
keep it as a reference for future use. In case of transferring the product to someone
else, give the manual as well.
The user manual will help you use your product in a fast
and safe way.
• Read the user manual before installing and starting your product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Read also the other documents supplied with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Read the instructions.
C
Important information or useful hints about usage.
A
Warning for hazardous situations with regard to life and property.
B
Warning for electric shock.
Warning for fire hazard.
Warning for hot surfaces.
Page 3
3
EN
1 Your Dryer 4
Overview .............................................4
Technical Specifications .......................5
2 Important safety instructions 6
General safety .....................................6
Intended use .......................................8
Children’s safety ..................................8
3 Installation 9
Appropriate installation location ...........9
Removing the transportation safety
assembly .............................................9
Under counter installation ..................10
Mounting over a washing machine .....10
Connection to water drain; ................10
Adjusting the feet ...............................10
First use ............................................11
Disposing of packaging material ........11
Transportation of the machine ...........11
Disposing of the old machine .............11
Warnings about sounds.....................11
4 Electrical Connection 12
Attention! ...........................................12
Electrical requirements .......................12
Fitting a different plug .......................12
Washer/dryer combination .................13
5 Preparations for drying 14
Things to be done for energy saving . . 14
Laundry suitable for drying in the
machine ............................................14
Laundry unsuitable for drying in the
machine ............................................14
Preparing laundry for drying ...............15
Correct load capacity ........................15
6 Selecting a Programme and
Operating Your Machine 17
Control panel .....................................17
Preparing the machine .......................18
Programme selection .........................18
Programme selection and consumption
table ..................................................20
Auxiliary function ................................21
Dryness level ...................................21
Anti-creasing ...................................21
Changing the contrast .......................21
Changing the delay time ....................22
Canceling the time delay ....................22
Starting the programme .....................22
Progress of programme .....................23
Changing the programme after it has
started ...............................................23
Child-proof lock .................................23
Canceling the programme .................24
End of programme ............................25
7 Maintenance and cleaning 26
Lint Filter / Loading Door Inner
Surface ..............................................26
Cleaning the sensors ........................26
Draining the water tank; .....................27
Cleaning the filter drawer ..................27
Cleaning the evaporator.....................29
8 Troubleshooting 31
9 Guarantee 32
10 Service 33
TABLE OF CONTENTS
Page 4
4
EN
1
Your Dryer
Overview
1
6
2
3
4
5
1- Control panel
2- Adjustable feet
3-Kick plate
4- Rating plate
5- Fluff filter
6- Power cord
Page 5
5
EN
Specifications of this appliance may change without notice to improve the quality of the
product. Figures in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are obtained
in laboratory in accordance with the relevant standards. Depending on operational and
environmental conditions of the appliance, values may vary.
EN 2
Height (adjustable) 84,6 cm
Width 59,5 cm
Depth 59,8 cm
Capacity (max.) 8 kg
Net weight (plastic front door usage) 52 kg
Net weight (glass front door usage) 54,5 kg
Voltage
See type labelRated power input
Model code
Type label is located behind the loading door.
Technical specifications
Page 6
6
EN
2 Important safety instructions
This section contains safety instructions
that will help protect from risk of personal
injury or property damage. Failure to
follow these instructions shall void any
warranty.
General safety
• Never place the product on a carpet-
covered floor; otherwise, lack of
airflow beneath the machine will
cause electrical parts to overheat.
This will cause problems with your
product.
• Do not operate the product if the
power cable / plug is damaged. Call
the Authorised Service Agent.
• Do not make any changes on the
plug supplied with the product. If it is
not compatible with the socket, have
a qualified electrician change the
socket with a suitable one.
• Never touch the plug with wet hands!
Never unplug by pulling on the cable,
always pull out by gripping the plug.
• Connect the product to a grounded
outlet protected by a fuse of suitable
capacity as stated in the technical
specifications table.
• Power cable of this product is
equipped with a conductor and
a grounding plug that allows for
grounding the product. This plug
must be inserted into a socket
which is installed and grounded in
accordance with the local laws and
regulations. Grounding installation
decreases the risk of electric shock
by opening a path with low resistance
for the electricity flow in case of a
malfunction or failure. Do not neglect
to have the grounding installation
made by a qualified electrician.
If you have any suspect about
the grounding installation, have it
checked by a qualified electrician.
Our company shall not be liable for
any damages that will arise when the
product is used without grounding in
accordance with the local regulations.
• The product should not be plugged
in during installation, maintenance,
cleaning and repair works.
• Always have the repair procedures
carried out by the Authorised Service
Agent. Manufacturer shall not be
held liable for damages that may
arise from procedures carried out by
unauthorised persons.
• Do not use electrical devices in the
product.
• You must provide enough ventilation
in order to prevent gases exiting from
devices operating with other types of
fuels including the naked flame from
accumulating in the room due to the
back fire effect.
• Items cleaned or washed with
gasoil/fuel oil, dry-laundry solvents
and other combustible or explosive
materials as well as the items that are
contaminated or spotted with such
materials should not be dried in the
product since they emit flammable or
explosive vapor.
• Pay attention that the air inlet
openings are unobstructed
• Do not dry the laundry cleaned with
industrial chemicals in the dryer.
• Underwear that contains metal
reinforcements should not be dried in
the dryer. Dryer can get damaged if
metal reinforcements come loose and
break off during drying.
• Never attempt to repair the product
yourself. Do not perform any
repair or replacement procedures
on the product even if you know
Page 7
7
EN
or have the ability to perform the
required procedure unless it is
clearly suggested in the operating
instructions or the published service
manual. Otherwise, you will be
putting your life and others' lives in
danger.
• For failures that you cannot remedy
by applying the procedures in safety
instructions, turn off and unplug
the product and call the Authorised
Service Agent.
• Do not reach into the machine when
the drum is spinning.
• Do not use extension cords, multi-
plugs or adaptors to connect the
dryer to power supply in order to
decrease the risk of fire and electric
shock.
• Never wash the product by spreading
or pouring water onto it! There is the
risk of electric shock!
The final step of the drying
programme, namely the cool-down
step is performed without applying
heat to ensure that the laundry items
are kept at a temperature that will
not damage them. If you open the
loading door before the cool-down
step completes, hot vapour will come
out.
A
Never stop the dryer before the
programme completes. If you must
do this, remove all laundry quickly
and lay them out to a suitable place
to dissipate the heat.
• Always clean the lint filter before or
after each loading. Never operate the
dryer without the lint filter installed.
• Clean ventilation grid of the product
regularly. Do not allow fibre, dust
and dirt accumulation around the
ventilation grid and at adjacent areas.
• Power cable plug must be within easy
reach after installation.
• Do not dry unwashed items in the
dryer.
• Items soiled with cooking oils,
acetone, alcohol, fuel oil, kerosene,
stain removers, turpentine, paraffin
and paraffin removers must be
washed in hot water with plenty of
detergent before being dried in the
dryer.
• Garments or pillows bolstered with
rubber foam (latex foam), bathing
caps, water resistant textiles,
materials with rubber reinforcement
and rubber foam pads should not be
dried in the dryer.
• Do not use fabric softeners and
anti-static products unless they are
recommended by the manufacturers
of the relevant product.
• Use softeners, anti-static products
and etc. in accordance with the
instructions of their manufacturers.
• Do not install the product behind a
door with a lock, sliding door or a
hinged door which can strike the
product.
• Do not install or leave the dryer in
places where it will be exposed to
outdoor conditions.
• Your product can be operated at
temperatures between +5°C and
+35°C. If the operating conditions fall
outside of this range, operation of the
product will be adversely affected and
it can get damaged.
• Do not tamper with the controls.
• Unplug the product when it is not in
use.
• Remove the loading door of
the drying compartment before
decommissioning or disposing of the
product.
• Check all garments before loading
and make sure that there is no any
lighters, coins, metal pieces, needles,
Page 8
8
EN
and etc. in their pockets or on them.
• Make sure that the pets do not enter
into the product. Check the drum of
the product before using it.
• Make sure that original spare parts
and accessories are used during
maintenance works.
• Do not lean on the loading door when
it is open. The product may tip over.
• Remove all objects from pockets
such as lighters and matches.
• When your machine is not in use
or when you unload the laundry
after completion of drying process,
turn the machine off with the On/
Off button. In cases where the On/
Off button is in On position (while
the machine is energized), keep the
loading door closed.
Intended use
• This product has been designed for
domestic use. It should not be used
for other purposes.
• Product must only be used for
drying of textiles that are marked
accordingly.
• Dry only those articles in your product
that are stated in this manual.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children's safety
• Electrical products are dangerous for
the children. Keep children away from
the product when it is operating. Do
not let them tamper with the product.
• Do not allow children sit/climb on or
enter in the product.
• Do not forget to close the loading
door when leaving the room where
the product is located.
• Packaging materials are dangerous
to children. Keep the packaging
materials out of reach of children
or dispose of them by classifying
according to waste directives.
Page 9
9
EN
3 Installation
To make the product ready for use,
make sure that the electricity and water
drainage system are appropriate before
installation. If they are not, call a qualified
technician and plumber to have any
necessary arrangements carried out.
C
Preparation of the product’s location
as well as the electrical and waste
water installations is the customer’s
responsibility.
C
Manufacturer shall not be held
liable for damages that may arise
from procedures carried out by
unauthorised persons.
A
Prior to installation, visually check if
the product has any defects on it. If
so, do not have it installed. Damaged
products cause risks for your safety.
A
The appliance should be transported
only in a vertical upright position.
If during the course of transport the
appliance has to be transported
horizontally, it must only be laid on
its right hand side. After bringing it
to upright position,it must not be
operated for at least 12 hours to
allow the system to settle.
Failure to comply with the above
instructions could result in damage
occurring to the appliance. The
manufacturer will not be held
responsible if these instructions are
disregarded.
Appropriate installation
location
• Install the product on a stable and
level surface.
• Dryer is heavy. Do not move it by
yourself.
• Operate your product in a well
ventilated, dust-free environment.
• Do not block the air ducts in front of
and under the product with materials
such as long pile rugs or wooden
plinths.
• Do not install the product behind a
door with a lock, sliding door or a
hinged door which can strike the
product.
• Once the product is installed, it
should stay at the same place where
its connections have been made.
When installing the product, make
sure that the rear wall of it does
not touch anywhere (tap, socket,
etc.). Also pay attention to select an
installation location which you will not
be required to change afterwards.
• Place the product at least 1.5
cm away from the edges of other
furniture.
B
Do not place the product on the
power cable.
Removing the transportation
safety assembly
A
Remove the transportation safety
assembly before using the product for
the first time.
1. Open the loading door.
2. There is a nylon bag inside the drum
that contains a piece of styrofoam.
Hold it from its section marked with
XX XX.
3. Pull the nylon towards yourself and
remove the transportation safety
assembly.
Page 10
10
EN
A
Make sure that no part of the
transportation safety assembly
remains inside the drum.
Under counter installation
• This product can be installed under a
counter if the height of the counter is
sufficient.
A
Never operate the dryer without the
top trim is in place.
Dryer Depth 60 cm 54 cm
Stock
number of
under-bench
installation
part
2979700100 2973600100
• Leave at least 3 cm of space around
the sides and the rear wall of the
product when installing it under a
counter or in a cupboard.
Mounting over a washing
machine
• A fixing device should be used
between the two machines when
installing the dryer above a washing
machine. The fixing device can
usually be obtained from a specialist
retailer.
• Total weight of the washing machine
and the dryer -with full load- when
they are placed on top of each other
reaches to approx. 180 kilograms.
Place the products on a solid floor
that has sufficient load carrying
capacity!
Connecting to the drain
In products equipped with condenser
unit, water accumulates in the water tank
during the drying cycle. You should drain
accumulated water after each drying
cycle.
You can directly drain accumulated water
through the water drain hose supplied
with the product instead of periodically
draining the water collected in the water
tank.

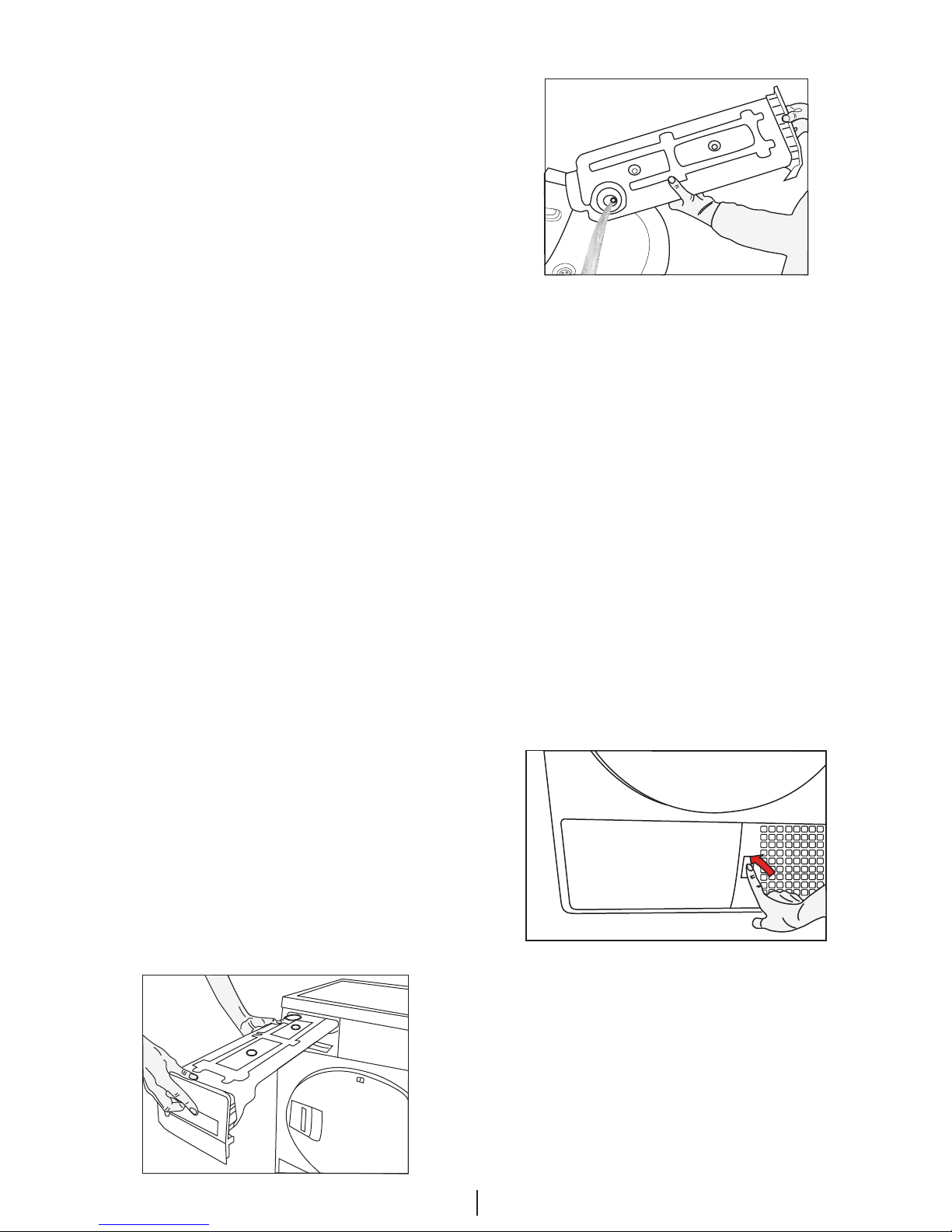

Connecting the water drain hose
1. Pull hose in the product by hand in
order to disconnect it from where it is
connected. Do not use any tools to
remove the hose.
2. Connect one end of the drain hose
supplied separately with the product
to the connection point from where
you removed the hose of the product
in previous step.
3. Connect the other end of the drain
hose directly to the wastewater drain
or to the washbasin.
A
Hose must be securely fixed to
prevent leaks. Your house will be
flooded if the hose comes loose
during water discharge.
C
Water drain hose should be attached
to a height of maximum 80 cm.
C
Make sure that the water drain hose
is not stepped on and it is not folded
between the drain and the machine.
Adjusting the feet
In order to ensure that the product
operates more silently and vibration-free,
it must stand level and balanced on its
feet. Balance the machine by adjusting
Page 11
11
EN
the feet.
Turn the feet to left or right until the
machine stands level and firmly.
C
Never remove the adjustable feet
from their housings.
First use
Before starting to use the product, make
sure that all preparations are made in
accordance with the instructions in
sections “Important safety instructions”
and “Installation”.
Disposing of packaging
material
Packaging materials are dangerous to
children. Keep packaging materials in
a safe place away from reach of the
children.
Packaging materials of the product are
manufactured from recyclable materials.
Dispose of them properly and sort
in accordance with recycled waste
instructions. Do not dispose of them with
normal domestic waste.
Transportation of the product
1. Unplug the product before
transporting it.
2. Remove the water drain (if any).
3. Drain the water in the product
completely.
A
We recommend carrying the product
in upright position. If it is not possible
to carry the machine in the upright
position, we recommend carrying
it by tilting towards the right side
when looked from the front. After the
product is moved to its new place,
you should wait for 12 hours before
starting it.
Disposing of the old product
Dispose of the old product in an
environmentally friendly manner.
Refer to your local dealer or solid waste
collection centre in your area to learn how
to dispose of your product.
For children’s safety, cut the power
cable and break the locking mechanism
of the loading door so that it will be
nonfunctional before disposing of the
product.
Warnings about sounds
C
It is normal to hear metallic noise from
the compressor sometimes during
operation.
C
Water collected during operation is
pumped to water tank. It is normal
to hear pumping noise during this
process.
Page 12
12
EN
Make sure that you have an earthed
power outlet socket rated at 13 amps
(minimum).
Attention!
If you use your dryer as built-in,
the socket must be reachable after
installation, or a separate switch (which
can disconnect the two poles) must
be used in the installation. Check for
suitability.
For a permanent connection, a master
switch with at least 3mm contact
clearance and minumum 13 A rating
must be used.
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown in the rating label
corresponds to your electricity supply.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket in a
readily accessible position.
Should the mains lead of the appliance
become damaged or need replacing at
any time, it must be replaced by a special
purpose made mains lead which can only
be obtained from a Authorised Service
Agent.
A
Warning
This appliance must be earthed
If the fitted moulded plug is not suitable
for your socket, then the plug should be
cut off and an appropriate plug fitted.
The moulded plug on this appliance
incorporates a 13A fuse. Should the fuse
need to be replaced an ASTA approved
BS1362 fuse of the same rating must
be used. Do not forget to refit the fuse
cover. In the event of losing the fuse
cover, the plug must not be used until a
replacement fuse cover has been fitted.
Colour of the replacement fuse cover
must be the same colour as that visible
on the pin face of the plug. Fuse covers
are available from any good electrical
store.
In order to avoid hazards, damaged
supply cord should be replaced by the
manufacturer, its service agent or similarly
qualified people.

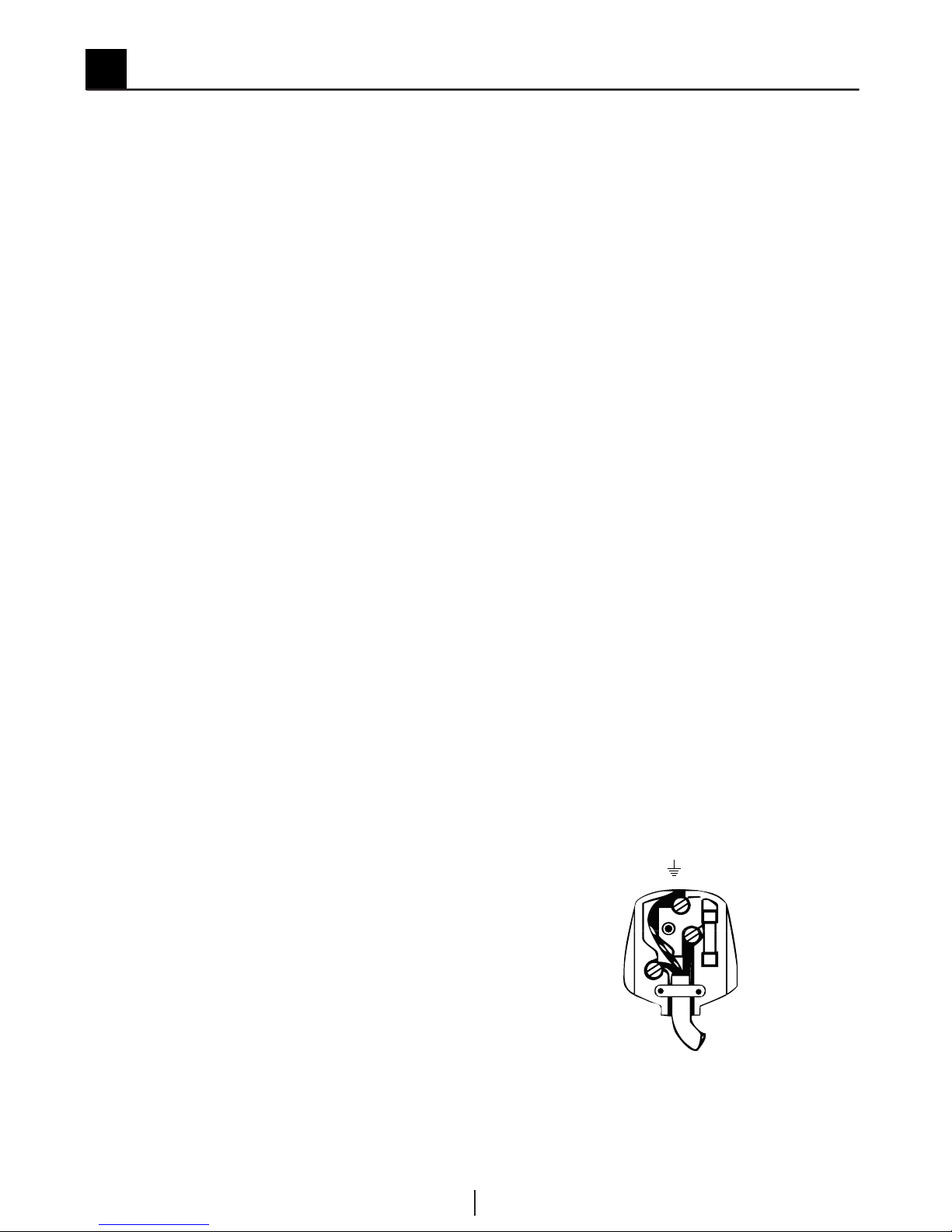

A
Important
Fitting a different plug
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying
the terminals on your plug, proceed as
follows:
1 Connect the green - yellow or green
(earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2 Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3 Connect the brown (live) wire to
the terminal in the plug marked ‘L’ or
coloured red.
With the alternative plugs a 13A fuse
must be fitted either in the plug or
adaptor or in the main fuse box. If in
doubt contact a qualified electrician.
Green and yellow
or green
N
Blue or black
L
Brown or red
4 Electrical Connection
Page 13
13
EN
Washer/dryer combination
Do not stack washing machine on top
of the tumble dryer. This would damage
both appliances and guarantees would
become void. It is also unsafe to stack
an appliance on top of another without
using a suitable and approved stacking
kit obtained from specialist retailers.
Page 14
14
EN
5 Preparations for drying
Things to be done for energy
saving
Following information will help you use
the product in an ecological and energyefficient manner.
• Operate the product at a capacity
suitable for the programme you have
selected and pay attention not to
overload.
• Spin your laundry at the highest
speed possible when washing them.
Thus, the drying time is shortened
and energy consumption is reduced.
• Dry the same type of laundry
together.
• Follow the instructions in the user
manual for programme selection.
• Leave sufficient clearance at the
front and rear side of the dryer for
air circulation. Do not block the
ventilation grills at the front side of the
product.
• Do not open the loading door of
the machine during drying unless
necessary. If you must certainly open
the loading door, do not to keep it
open for a long time.
• Do not add new (wet) laundry during
drying.
• Lint and fibres released from the
laundry to the air during the drying
cycle are collected in the Lint Filter.
Clean the lint filter before or after each
drying cycle.
• Clean the filter drawer regularly either
when the Filter Drawer Cleaning
warning symbol appears or after
every 5 drying cycles
• Ventilate the room, where the dryer is
located, during drying.
• For models with lamp, keep the door
closed if the On/Off button is pressed
(if the machine is energized) when
machine is not in use.
Laundry suitable for drying in
the machine
C
Always obey the instructions given
on the garment tags. Dry only the
laundry having a label stating that
they are suitable for drying in a dryer
and make sure that you select the
appropriate programme.
ABC
l mn
o p q
D
Laundry unsuitable for drying
in the machine
• Laundry and items stated below are
not suitable for drying in a dryer:
• Laundry items with metal
attachments such as metal buttons,
metal reinforcements or belt buckles.
• Woollen or silk garments, nylon
stockings, delicate embroidered
fabrics and sleeping bags.
• Garments made of delicate and
valuable fabrics.
• Fine net or voile curtains.
• Items made of hermetic fibres such
as pillows and quilts.
• Very wet laundry items.
• Unwashed dirty laundry items.
• Laundry items containing rubber
foam or rubber.
Page 15
15
EN
Items cleaned, washed or spotted
with gasoil/fuel oil, dry-laundry
solvents, industrial chemicals or other
combustible or explosive materials
should not be dried in the dryer.
Items soiled with cooking oils,
acetone, alcohol, fuel oil, kerosene,
stain removers, turpentine, paraffin
and paraffin removers must be
washed in hot water with plenty of
detergent before being dried in the
dryer.
Preparing laundry for drying
• Check all garments before loading
and make sure that there is no any
lighters, coins, metal pieces, needles,
and etc. in their pockets or on them.
• Laundry may be tangled after
washing. Separate the laundry items
before placing them into the dryer.
• Sort the laundry according to their
types and thicknesses. Dry the same
type of laundry together. For instance,
thin kitchen towel and table cloths get
dry earlier than the thick bath towels.
C
Laundry must be spun at the highest
spin speed that the washing machine
allows on basis of the fabric type.

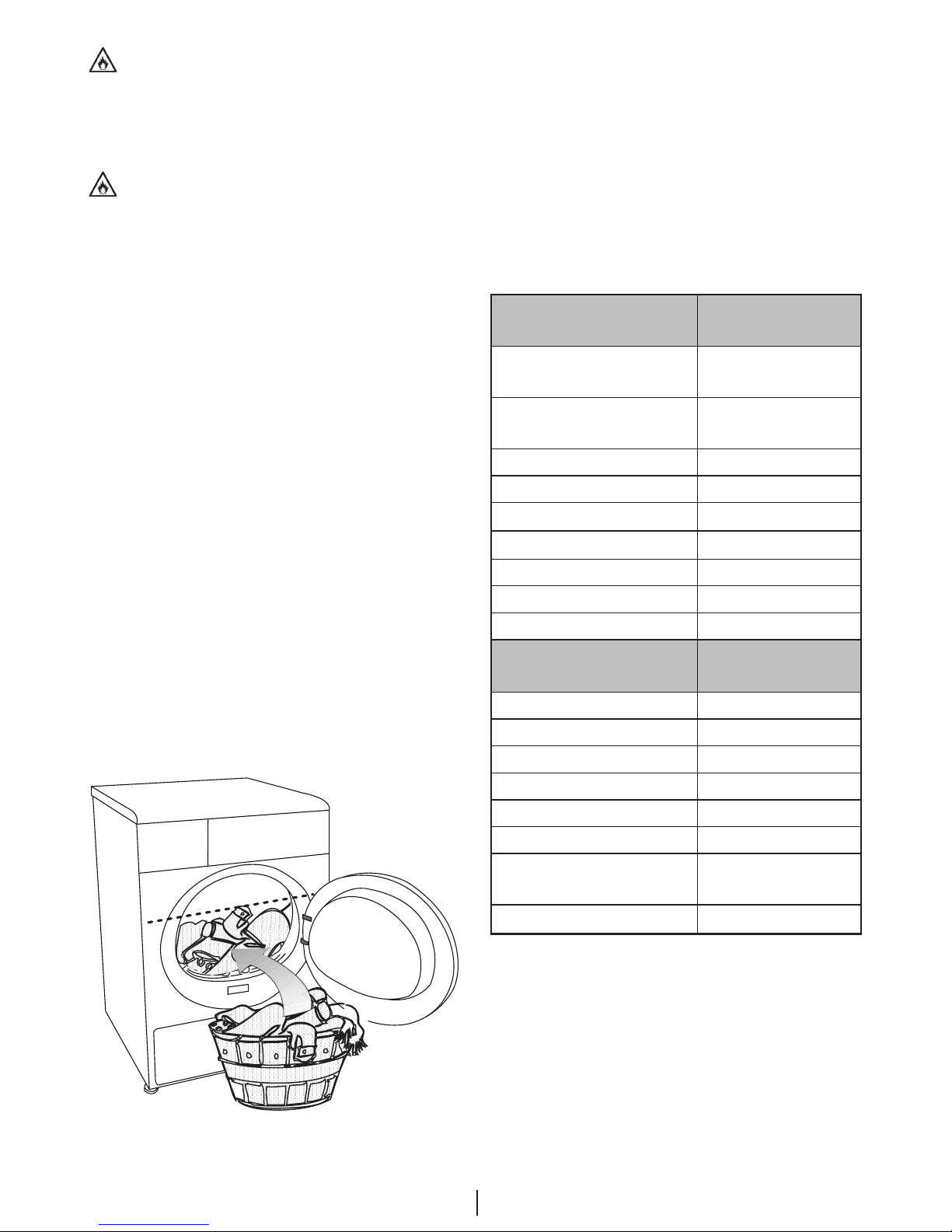

Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated
in the table.
C
It is not recommended to load the
dryer with laundry exceeding the
level indicated in the figure. Drying
performance will degrade when the
machine is overloaded. Furthermore,
dryer and the laundry can get
damaged.
Following weights are given as examples.
Home articles
Approximate
weights (g)
Cotton quit covers
(double)
1500
Cotton quit covers
(single)
1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Garments
Approximate
weights (g)
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces)
100
T-Shirts 125
Page 16
16
EN
Loading the laundry
1. Open the loading door.
2. Place the laundry in the machine
without compressing.
3. Push the loading door to close.

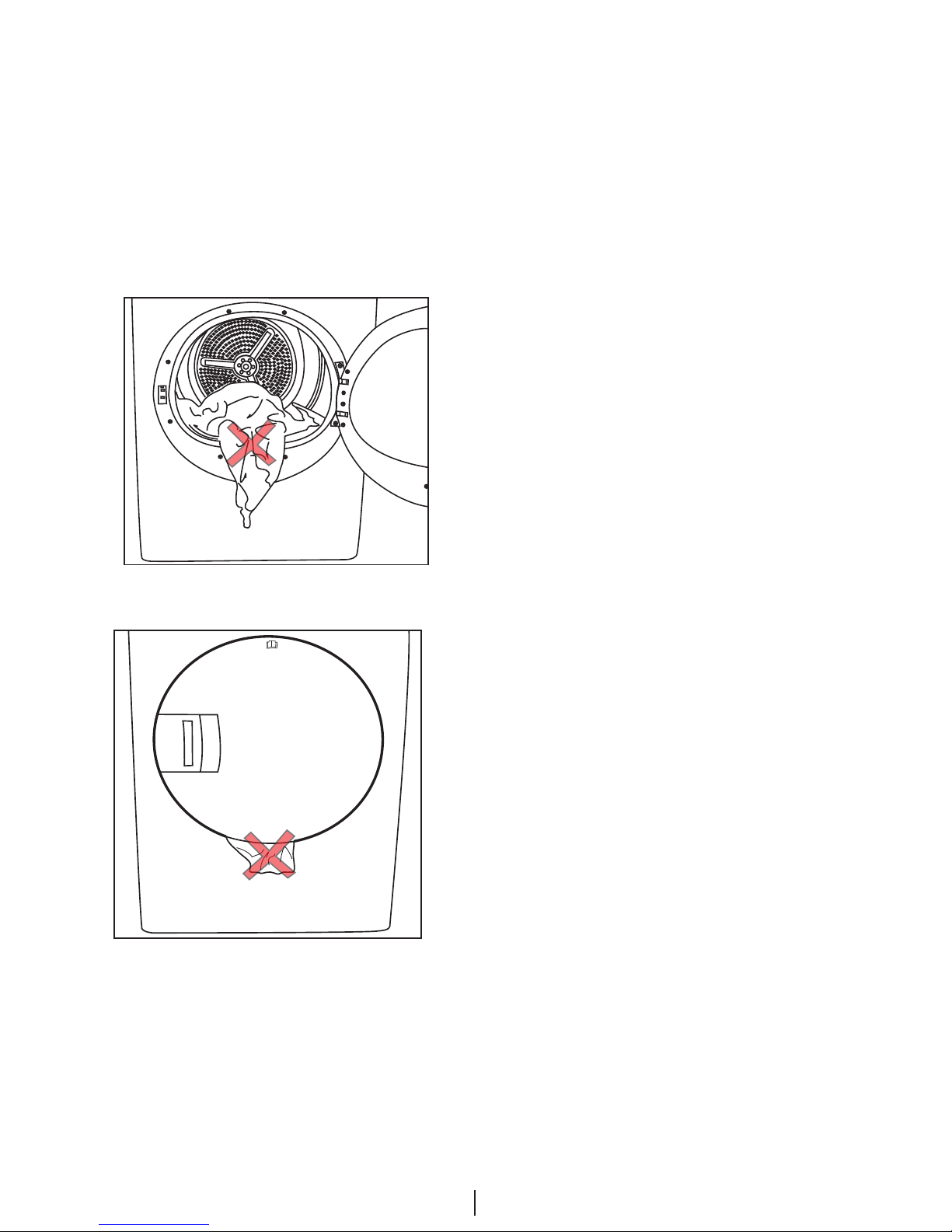

A
Ensure that no items are caught in
the door.
Page 17
17
EN
1
9 6
78
2 3
4
5

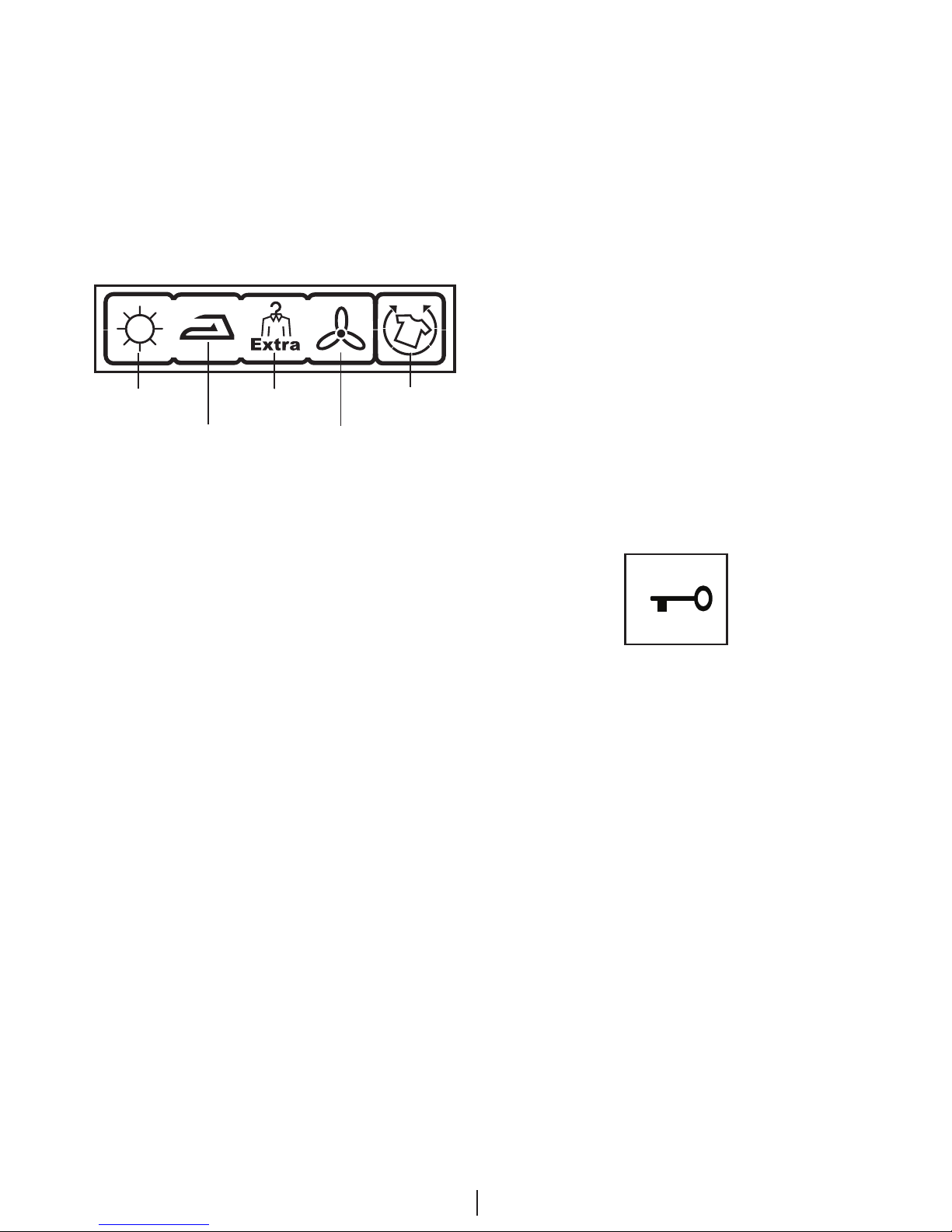

Spin speed / Timer programmes*
Operation symbol
Pause symbol
Water Tank warning symbol
Filter cleaning warning symbol
Filter Drawer Cleaning warning symbol
Remaining Time indicator**
Child-proof Lock warning symbol
Time Delay mode
Loading door open warning symbol
Anti-creasing mode

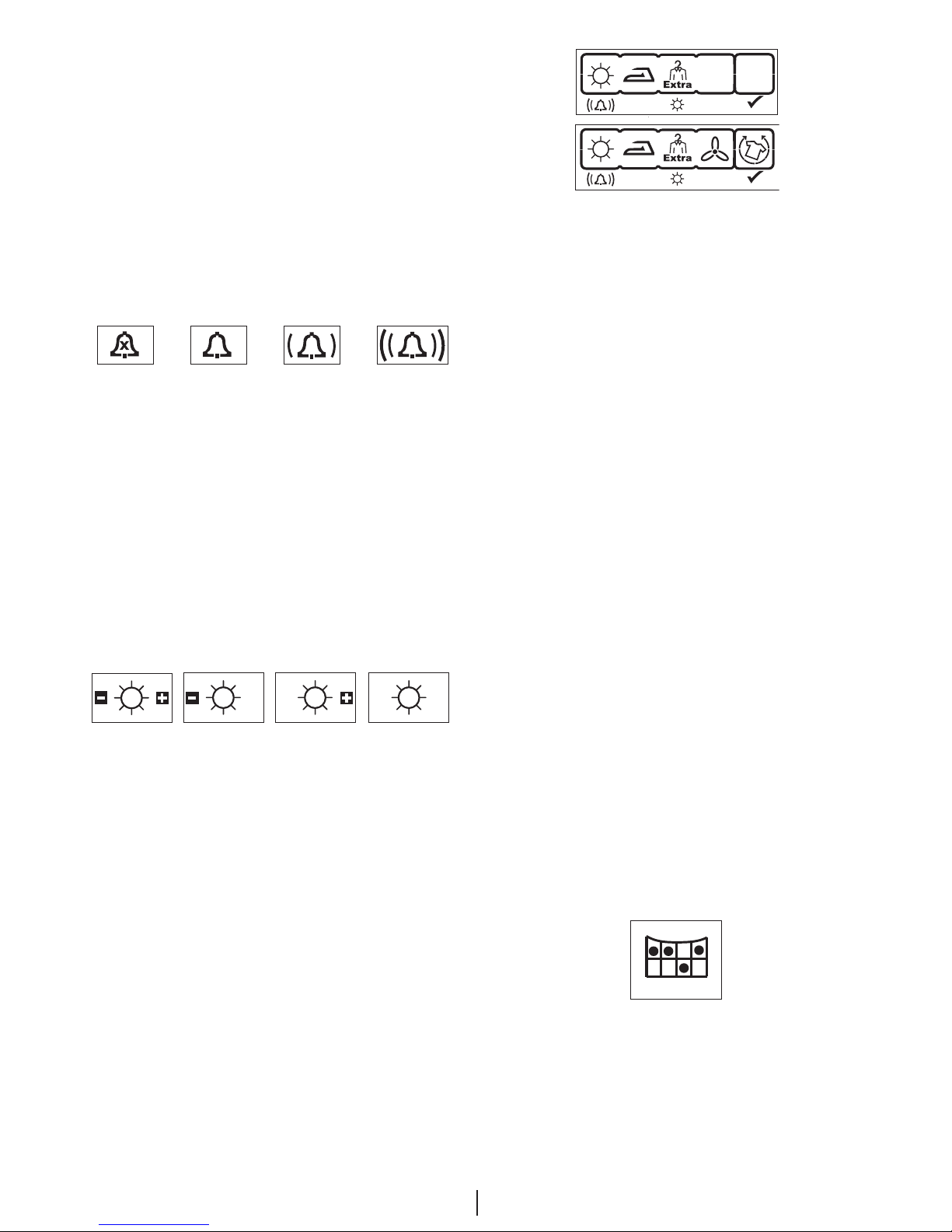

Audio Warning Level / Cancel Audio Warning
Dryness Level
Anti-creasing is activated
* Spin speed is used to show the remaining time more accurately. It does not
affect the performance of your machine.
** Time that appears on display indicates the remaining time until the end of the
programme and changes according to the dampness level of the laundry.

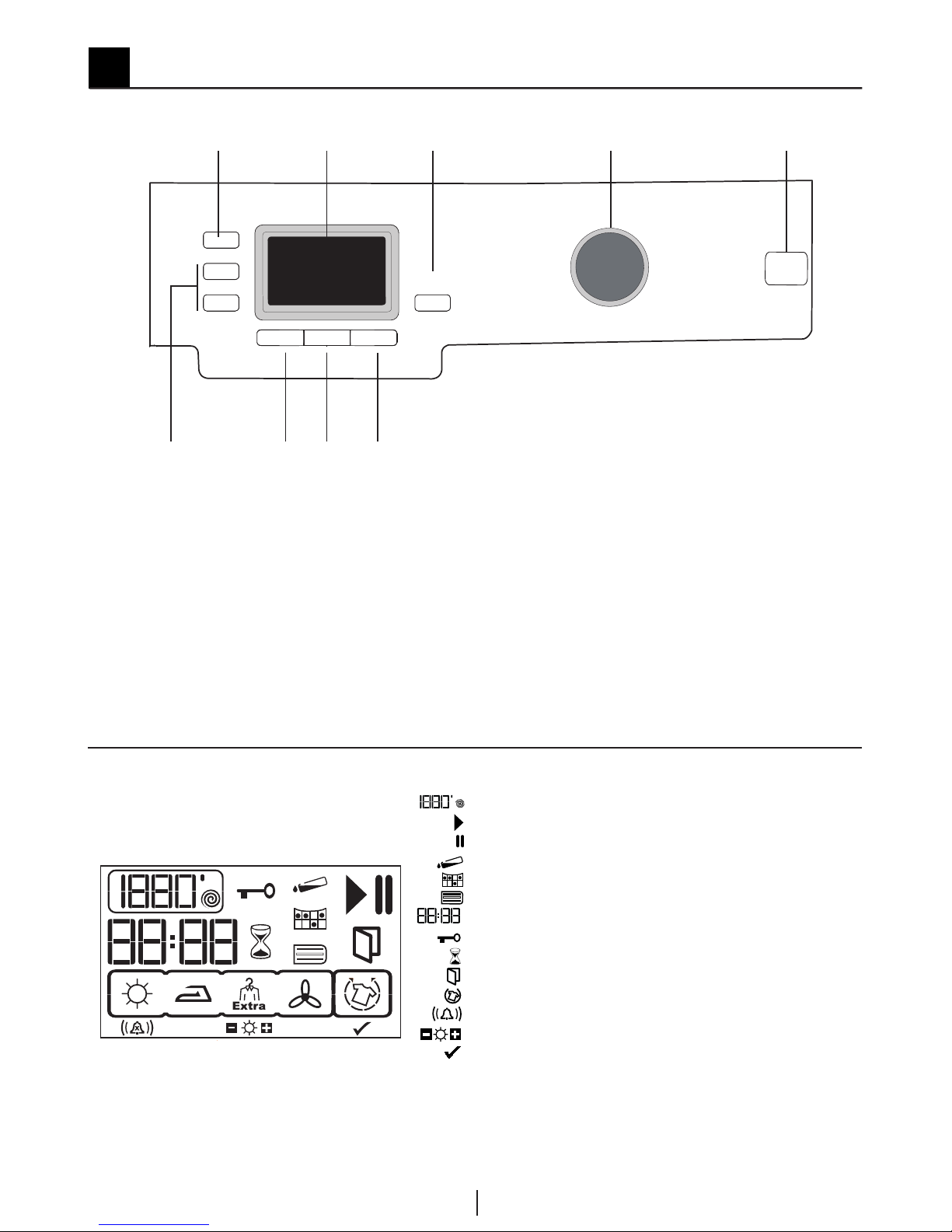

6 Selecting a Programme and Operating Your Machine
Control panel
1. Washing Machine Spin Speed / Timer
Programme Selection button
2. Display
3. Start / Pause / Cancel button
4. Programme Selection knob
5. On / Off button
6. Anti-creasing button
7. Dryness Level button
8. Cancel Audio Warning button
9. Time Delay buttons
Page 18
18
EN
Preparing the machine
1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the On / Off button.
C
Pressing the On / Off button does
not necessarily mean that the
programme has started. Press Start
/ Pause / Cancel button to start the
programme.
Programme selection
1. Decide the appropriate programme
from the table below which includes
drying levels.
2. Select the desired programme with
the Programme Selection knob.
Extra Dry
Only the cotton laundry
is dried at normal
temperature. Thick and
multi layered laundry
(towels, linens, jeans and
etc.) are dried in a way that
they do not require ironing
before being placed in the
wardrobe.
Cupboard
Dry
Normal laundry
(tablecloths, underwear
and etc.) are dried in a way
that they do not require
ironing before being placed
in the wardrobe.
Iron Dry
Normal laundry (shirts,
dresses and etc.) are dried
ready to be ironed.
C
For further programme details,
see “Programme selection and
consumption table”.
Main programmes
Depending on the fabric type, the
following main programmes are available:
• Cottons
Dry durable laundry with this programme.
Dries at normal temperature. It is
recommended to use for your cotton
items (bed sheets, quilt covers, towels,
bathrobes, etc.).
• Synthetics
Dry less durable laundry with this
programme. Recommended for
synthetics.
Additional programmes
For special cases, following additional
programmes are available in the machine.
C
Additional programmes may differ
according to the features of your
machine.
• Bedding
Dry only fibre quilts with machine-dryable
label. Make sure you are loading the quilt
in the correct way to avoid damages on
the machine and the quilt. Take out the
quilt cover before loading the quilt in the
machine. Fold the quilt in two before
loading.
- Do not load more than 1 double-size
fibre quilt (200x200 cm). Do not dry items
containing cotton such as quilts, pillows
and etc.
-Do not dry items other than quilts such
as carpets, rugs or mats. Permanent
damage may arise in your machine.
C
To obtain better results from your
dryer, your laundry must be washed
at suitable programmes and spun at
the recommended spin speeds in the
washing machine.
• Shirt
This programme dries the shirts more
sensitively and creases them less and
thus, helps to iron them more easily.
C
There may be a little moisture on the
shirts at the end of the programme.
We recommend you not to leave the
shirts in the dryer.
• Jeans
Use this programme to dry your jeans
that are spun at high speeds in the
washing machine.
• Mix
Use this programme to dry non-
Page 19
19
EN
pigmenting synthetic and cotton laundry
items together.
• Sportswear
Use this programme to dry together the
synthetic and cotton laundry items and
the laundry items made of mixed fabrics.
• Wool refresh
Use this programme to ventilate and
soften the woollen laundry that can be
washed in the washing machine. Do not
use to dry the laundry completely. Take
out and ventilate the laundry immediately
after the programme is over.
• Shirt 30’
Use this programme to make 2 shirts
ready for ironing in 30 minutes.
• Lingerie
Use this programme to dry 100%
synthetic and synthetic blended satin
underwear (nightgown, brassiere,
underpants, pyjamas) that bear the
“machine-dryable” mark on its garment
tag.
C
Level of dryness may change
depending on the blend of the
garment, type of knitting and
dampness level.
C
Garments that contain accessories
such as lace, tulle, gems, beads,
scales, wire and etc., and garments
with high silk content should not be
dried in the machine.
C
Silk garments that contain cotton or
has a satin appearance may remain
wet when they are dried with this
programme.
• Viscose
Use this programme to dry viscon and
modal mixed laundry. Viscose-polyester,
viscose-cotton blended products can be
dried.
C
Level of dryness may change
depending on the blend of the
garment, type of knitting and
dampness level.
C
It is not recommended to dry
garments and evening gowns that
contain accessories such as lace,
tulle, gems, and etc..
• Refresh
Only ventilation is performed for 10
minutes without blowing hot air. You can
air the clothes that have been kept at
closed environments for a long time and
deodourise unpleasant odours thanks to
this programme.
• Timer programmes
You can select one of the 10 min., 20
min., 30 min., 40 min., 50 min., 60 min.,
80 min., 100 min., 120 min., 140 min.
and 160 min. timer programmes to
achieve the desired final drying level at
low temperatures.
C
With this programme, the machine
dries for the time selected regardless
of the dryness level.
Page 20
20
EN
Programme selection and consumption table
* : Energy Label standard programme (EN 61121:2005)
All values given in the table have been fixed according to EN 61121:2005 Standard.
These values may deviate from the values in the table according to the laundry type,
laundry spin speed, environmental conditions and voltage fluctuations.
EN 2
Programs Capacity (kg)
Spin speed in washing
machine (rpm)
Approximate
amount of
remaining
humidity
Drying time
(minutes)
Cottons / Coloreds
A
Extra dry
8 1000 % 60 160
A
Cupboard dry
8 1000 % 60 145
A
Iron dry
8 1000 % 60 115
Shirt 30’
0.5 1200 % 60 30
Shirts
1.5 1200 % 50 40
Jeans
4 1200 % 50 100
Bedding
2.5 1000 % 40 120
Mix
4 1000 % 60 95
Sportswear
4 1000 % 60 90
Viscose
1.5 600 %100 90
Lingerie
1 800 % 40 40
Wool Refresh
1.5 600 % 50 8
Synthetics
B
Cupboard dry
4 800 % 40 60
B
Iron dry
4 800 % 40 45
Energy consumption values
Programs Capacity (kg)
Spin speed in washing
machine (rpm)
Approximate
amount of
remaining
humidity
Energy
consumption
value kWh
Cupboard dry for cottons*
8 1000 % 60 1.92
Iron dry for cottons
8 1000 % 60 1.50
Cupboard dry for synthetics
4 800 % 40 0.75
Page 21
21
EN
Auxiliary functions
Audio Warning
The machine will give an audio warning
when the programme comes to an end.
If you do not want the machine give an
audio warning, press the Volume Level
button repeatedly until “x” appears on the
display. Use the same button to adjust
the volume level.
C
You can activate this function either
before or after the programme starts.
Cancel
audio warning
Audio warning
level 1
Audio warning
level 2
Audio warning
level 3
Dryness level
Used to adjust the required dryness level.
More drying is performed compared
to the default settings when “+” sign
appears and less drying is performed
when “-” sign appears. Programme
duration can change depending on the
selection.
C
You can activate this function only
before the programme has started.
Anti-creasing
You can use Anti-creasing function to
prevent laundry from creasing if you
will not take the laundry out after the
programme has come to an end. This
programme rotates the laundry every 240
second for 2 hours to prevent creasing.
Anti-creasing is activated but the
programme is still running in the first

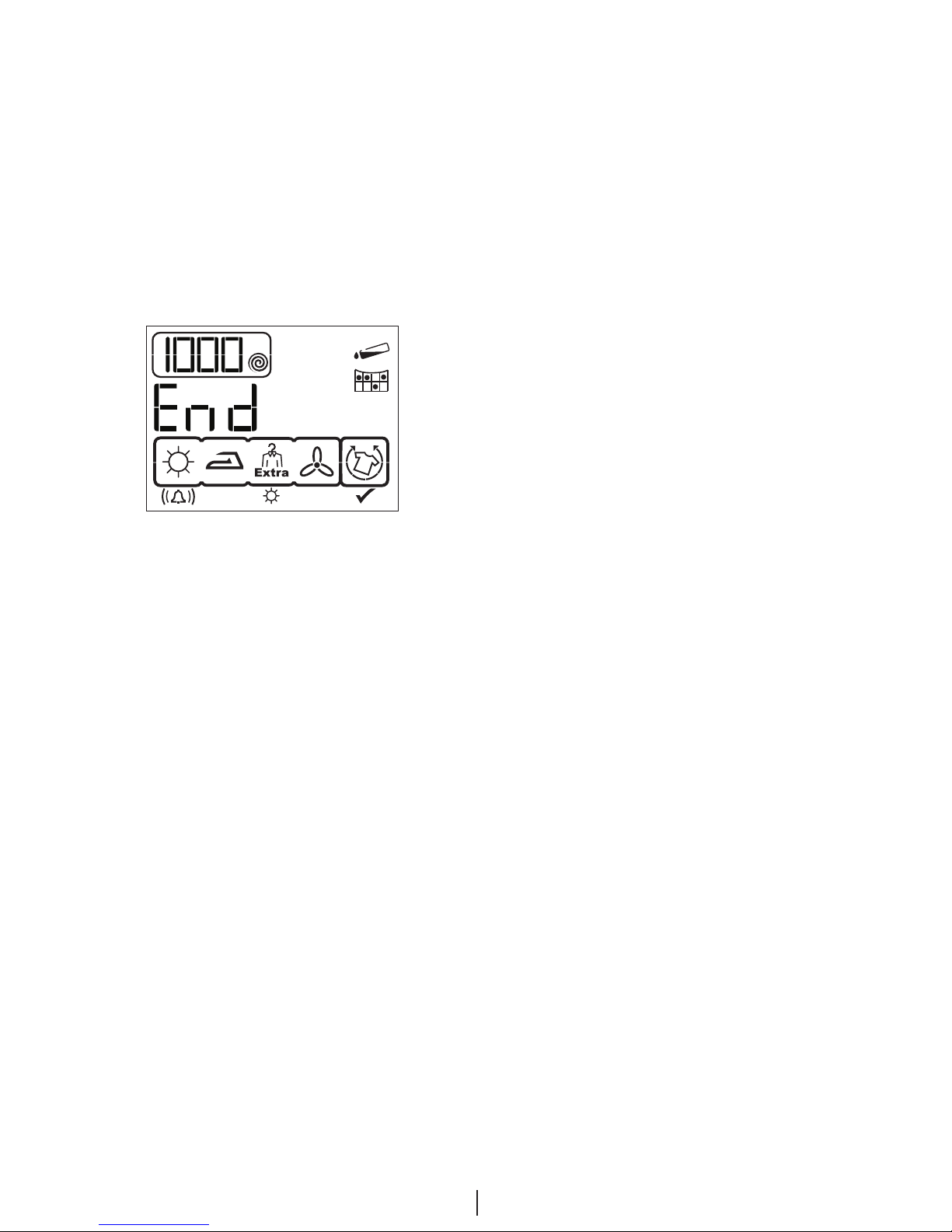

display image below. Drying cycle is
completed and the Anti-creasing step has
started in the second display image.
C
Press Anti-creasing button to activate
this function.
Changing the contrast
Adjust the display contrast in order to
make the symbols on the display appear
clearer. It may particularly be necessary to
change the contrast setting of the display
when the dryer is installed over a washing
machine.

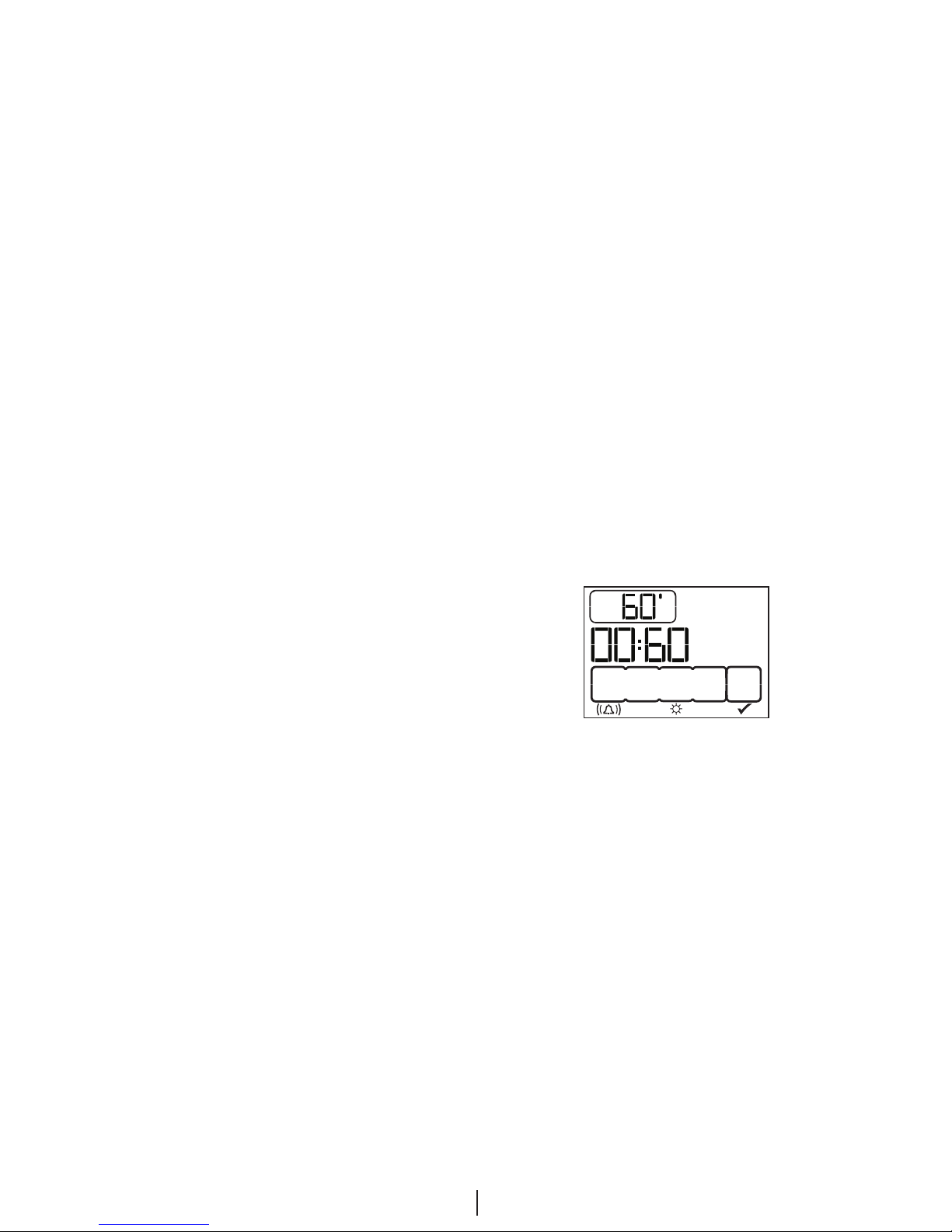

Press and hold the Spin Speed / Timer
Programme button for 3 seconds.
When the contrast is changed, all
symbols on the display will appear for
3 seconds in order to indicate that the
process is complete.
C
Perform the same procedure to revert
back to the previous contrast setting.
Warning symbols
C
Warning symbols may differ
according to the model of your
machine.

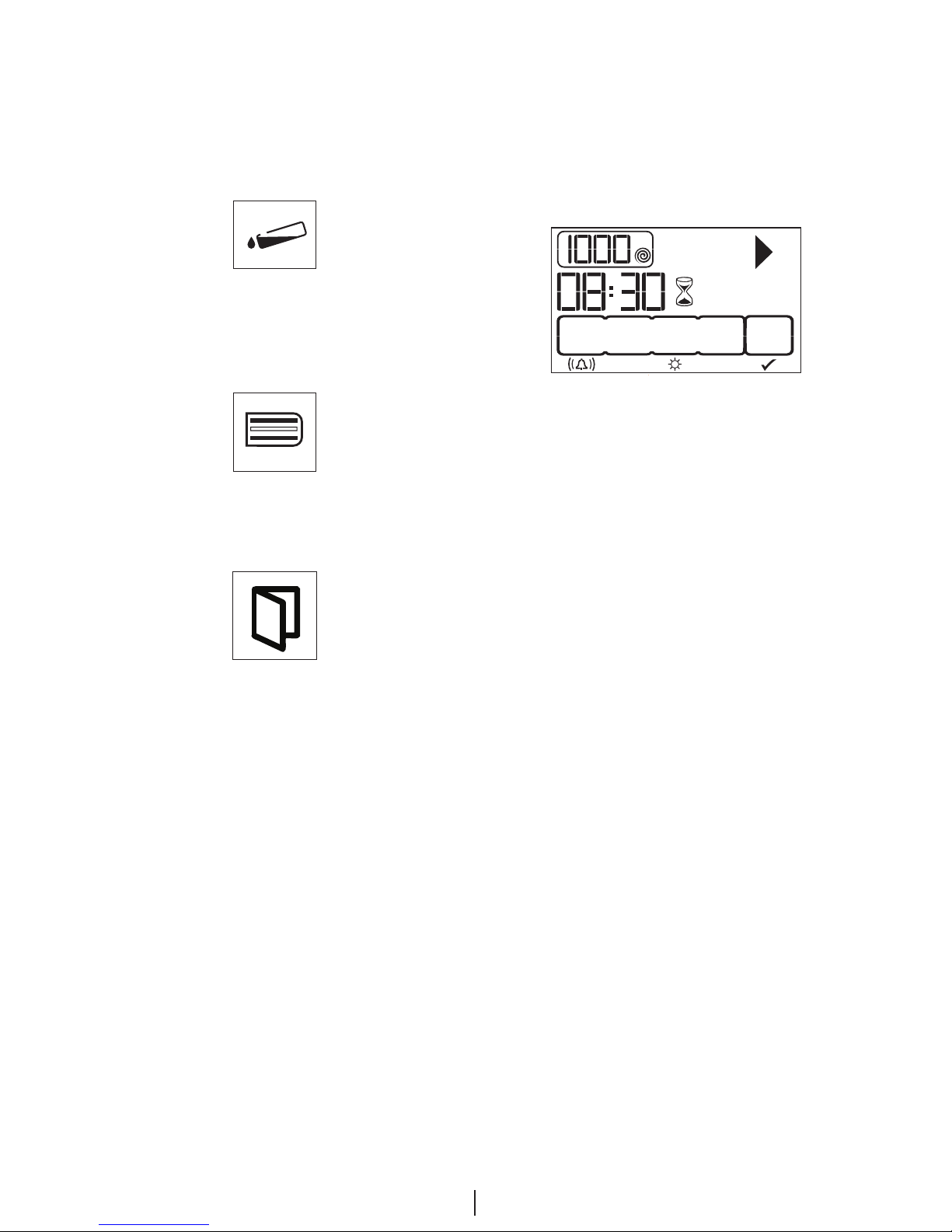

Lint filter cleaning
When the programme is completed, a
warning symbol will appear to remind that
the filter needs to be cleaned.
C
If the Filter Cleaning symbol flashes
continuously, refer to “Troubleshooting”
section.
Water tank
When the programme is completed, a
warning symbol will appear to remind that
the water tank needs to be drained.
If the water tank becomes full while
the programme is running, the warning
Page 22
22
EN
symbol will start to flash and machine will
pause. Drain the water in the water tank
and press Start / Pause / Cancel button
to resume the programme. The warning
symbol turns off and the programme
resumes operating.
Cleaning of filter drawer
Warning symbol flashes with certain
intervals to remind that the filter drawer
needs to be cleaned.
Loading door open
This warning symbol appears when the
loading door of the dryer is open.
Time Delay
Time Delay function allows you to delay
the startup of the programme up to 24
hours.
1. Open the loading door and put the
laundry in.
2. Select the drying programme, spin
speed and, if required, the auxiliary
functions.
3. Press Time Delay buttons + and - to
set the desired time delay. The Time
Delay symbol will flash.
4. Press Start / Pause / Cancel button.
The Time Delay starts to count down.
The Time Delay symbol lights up.
Start symbol appears. The “:” in the
middle of the displayed delay time will
start flashing.
C
Additional laundry may be loaded
/ taken out during the Time Delay
period. At the end of the Time Delay
countdown process, Time Delay
symbol disappears, drying process
starts and the programme duration
is displayed. The time on the display
is the total of normal drying time and
delay time.
Time Delay is activated by pressing the
Start / Pause / Cancel button in the
above display image.
Changing the delay time
If you want to change the time during
countdown:
1. Press Start / Pause / Cancel
button for 3 seconds to cancel the
programme. Repeat the Time Delay
procedure for the desired time.
2. Set the desired delay time with Time
Delay + and - buttons. The Time
Delay symbol will flash.
3. Press Start / Pause / Cancel button.
The Time Delay starts to count down.
The Time Delay symbol lights up.
Pause symbol disappears. Start
symbol appears.
4. The “:” in the middle of the displayed
delay time will start flashing.
Cancelling the Time Delay
If you want to cancel the Time Delay
countdown and start the programme
immediately:
1. Press Start / Pause / Cancel
button for 3 seconds to cancel the
programme.
2. Press Start / Pause / Cancel button
to start the programme you have
previously selected.
Page 23
23
EN
Starting the programme
Press Start / Pause / Cancel button to
start the programme.
Start / Pause symbol will light up to
indicate that the programme has started
and “:” symbol between the remaining
time will continue flashing.
Progress of programme
Drying
Iron
Wardrobe
(Extra)
Refresh
Anti-
creasing
Progress of a running programme is
indicated on the display by means of a
set of symbols.
At the beginning of each programme
step, the relevant symbol in the series of
symbols will light up and thus, at the end
of the programme, all symbols will remain
lit up. The rightmost symbol on the
display indicates the step being carried
out.
Drying
Drying symbol lights up in all programmes
apart from ventilation.
Iron Dry
Starts to illuminate when the dryness level
reach Iron Dry step.
Cupboard Dry
Starts to illuminate when the dryness level
reach Wardrobe Dry step.
Extra Dry
Starts to illuminate when the dryness level
reach Wardrobe Dry Extra step.
Refresh
Ventilation symbol illuminates when the
programme comes to an end.
C
Anti-creasing symbol will illuminate
at the end of the programme if Anti-
creasing function is activated.

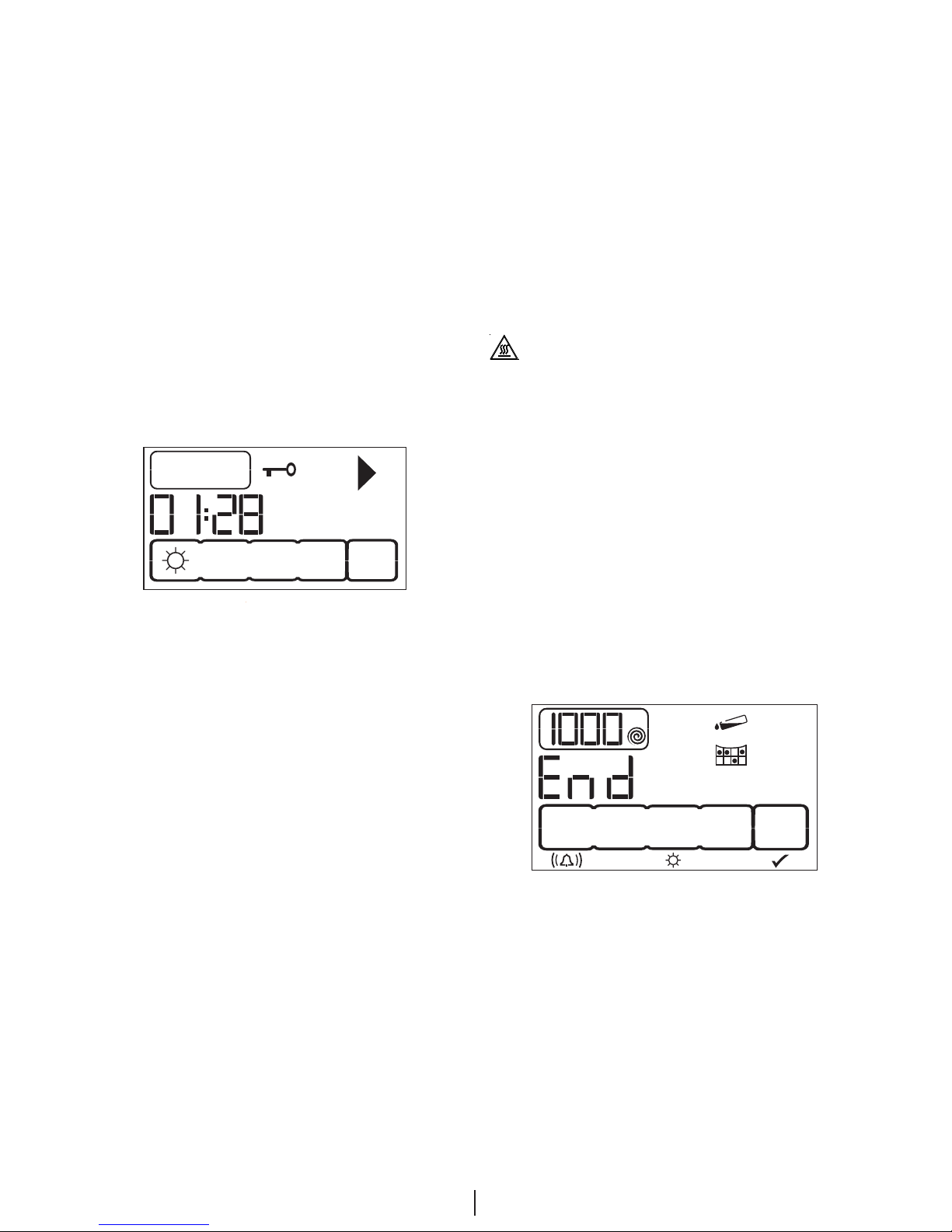

Child-proof Lock
Machine is equipped with a Childproof
Lock which prevents interfering with the
current programme flow by pressing
any button. All buttons except the On
/ Off button on the control panel are
deactivated when the Child-proof Lock is
active.
In order to activate the Childproof Lock,
press Audio Warning and Anti-Creasing
buttons simultaneously for 3 seconds.
To start a new programme after the
current programme is over or to interrupt
the current programme, the Child-proof
Lock should be deactivated. Press the
same buttons for 3 seconds again to
deactivate the Child-proof Lock.
C
Lock symbol will appear on the
display when the Child-proof Lock is
activated.
C
Child-proof Lock is deactivated when
the machine is switched off and on
with On / Off button.
When the Child-proof Lock is activated:
• Display symbols will not change
even if the position of Programme
Selection knob is changed while the
machine is running or in halt.
• If the Child-proof Lock is deactivated
after changing the position of
the Programme Selection knob
while the machine is running, the
machine stops and new programme
information is displayed.
Changing the programme after
it has started
After the machine starts, you can change
the selected programme and dry your
laundry in a different programme.
1. If you want to select Extra Dry
Page 24
24
EN
programme instead of Iron Dry
programme, press and hold the
Start / Pause / Cancel button for 3
seconds to cancel the programme.
2. Select Extra Dry programme by
turning the Programme Selection
knob.
3. Press Start / Pause / Cancel button
to start the programme.
C
You can also select a new
programme by turning the
Programme Selection knob while the
machine is operating. In this case,
current programme is aborted and
the new programme information
appears on the display.
Adding / removing laundry in Pause
mode
In order to add or take out laundry after
the drying programme has started:
1. Press Start / Pause / Cancel button
to switch the machine to Pause
mode. Drying process will stop.
2. While in Pause mode, open the
loading door, add or take out laundry
and close the loading door.
3. Press Start / Pause / Cancel button
to start the programme.
C
Any laundry added after the drying
process has started may cause the
clothes that are already dried in the
machine intermingle with wet clothes
and the result will be wet laundry after
the drying process is over.
C
You may repeat laundry adding
or removing process as many
times as you desire during drying.
However, this process will increase
the programme time and energy
consumption since the drying
process will be interrupted repeatedly.
Therefore, it is recommended to add
laundry before the drying programme
has started.
C
If you select a new programme by
turning the Programme Selection
knob while your machine is in Pause
mode, then the current programme
is aborted and new programme
information is displayed.
Do not touch the inner surface of
the drum when adding or taking
out laundry while a programme is
running. Surfaces of the drum are
hot.
Canceling the programme
If you want to stop drying and cancel
the programme for any reason after the
machine has started to run, press and
hold the Start / Pause / Cancel button
for 3 seconds. Lint Filter Cleaning and
Water Tank warning symbols light up and
“End” label appears on the display as a
reminder at the end of this period.
A
As the inside of the machine will be
excessively hot when you cancel
the programme while the machine
is running, activate the ventilation
programme to cool it down.
C
Machine will stop if you turn the
Programme Selection knob while
it is operating. In this case, current
programme is aborted and the new
programme information appears on
the display.
Page 25
25
EN
End of programme
Lint Filter Cleaning and Water Tank
warning symbols light up in the
programme follow-up indicator and
“End” label appears on the display when
the programme comes to an end. The
loading door can be opened and the
machine becomes ready for a second
cycle.
Press On / Off button to switch off the
machine.
C
If Anti-creasing function is activated
and the laundry is not taken from
the machine at the end of the
programme, 2-hours Anti-creasing
programme is activated.
C
Clean the lint filter after each drying.
(See “Lint Filter / Loading Door Inner
Surface”)
C
Drain the water tank after each drying
cycle. (See “Draining the water tank”)
Page 26

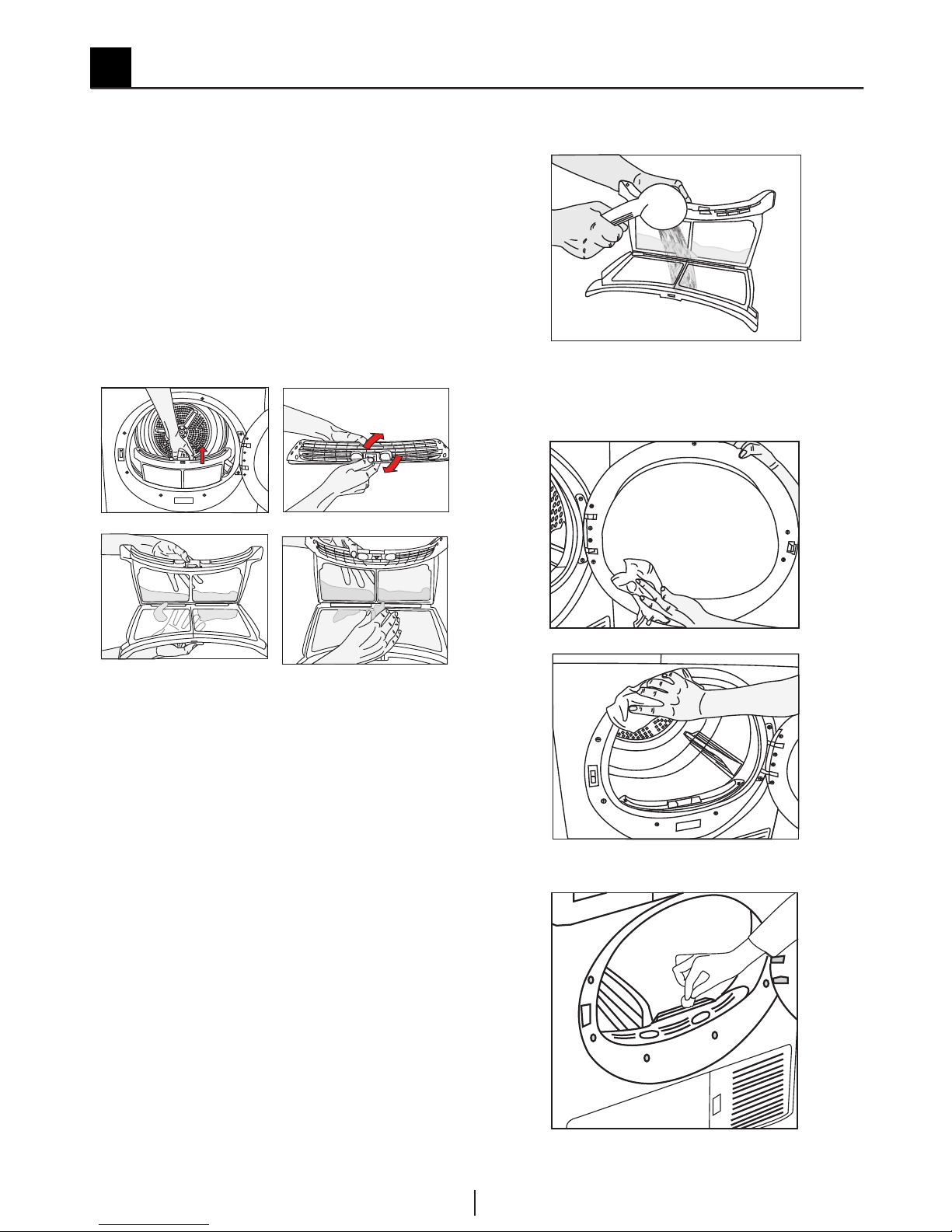

26
EN
7 Maintenance and cleaning
Service life of the product extends and
frequently faced problems decrease if
cleaned at regular intervals.
B
This product must be unplugged
during maintenance and cleaning
works (control panel, body, etc.).
Lint Filter / Loading Door Inner
Surface
Lint and fibres released from the laundry
to the air during the drying cycle are
collected in the Lint Filter.
C
*Such fibre and lint are generally
formed during wearing and washing.
A
Always clean the lint filter and the
inner surfaces of the loading door
after each drying process.
C
You can clean the lint filter housing
with a vacuum cleaner.
To clean the lint filter:
1. Open the loading door.
2. Remove the lint filter by pulling it up
and open the lint filter.
3. Clean lint, fibre, and cotton raveling
by hand or with a soft piece of cloth.
4. Close the lint filter and place it back
into its housing.
C
A layer can build up on the lint filter
pores that can cause clogging of the
lint filter after using the machine for a
while. Wash the lint filter with warm
water to remove the layer that builds
up on the lint filter surface. Dry the lint
filter completely before reinstalling it.
C
Clean the entire inner surface of
the loading door and loading door
gasket.
Cleaning the sensors
Page 27
27
EN
There are dampness sensors in the
machine that detect whether the laundry
is dry or not.
To clean the sensors:
1. Open the loading door of the
machine.
2. Allow the machine to cool down if it is
still hot due to the drying process.
3. Wipe the metal surfaces of the sensor
with a soft cloth, dampened with
vinegar and dry them.
C
Clean metal surfaces of the sensors 4
times a year.
C
Do not use metal tools when cleaning
metal surfaces of the sensors.
A
Never use solvents, cleaning agents
or similar substances for cleaning due
to the risk of fire and explosion!
Draining the water tank
Dampness of the laundry is removed and
condensed during drying process and the
water that arise accumulates in the water
tank. Drain the water tank after each
drying cycle.
A
Condensed water is not potable!
A
Never remove the water tank when
the programme is running!
If you forget to drain the water tank, the
machine will stop during the subsequent
drying cycles when the water tank is full
and the Water Tank warning symbol will
flash. If this is the case, drain the water
tank and press Start / Pause / Cancel
button to resume the drying cycle.
To drain the water tank:
1. Pull the drawer and remove the water
tank carefully.
2. Drain the water in the tank.
3. If there is lint accumulation in the
funnel of the water tank, clean it
under running water.
4. Place the water tank into its seat.
Cleaning the filter drawer
Lint and fibre that could not be captured
by the lint filter are blocked in the filter
drawer behind the kick plate. Filter
Drawer Cleaning warning light will light up
maximum at every 5 drying cycles as a
reminder.
There is a two-level filter in the filter
drawer. The first level is the filter drawer
sponge and the second level is the filter
cloth.
To clean the filter drawer:
1. Press the kick plate button to open
the kick plate.
Page 28

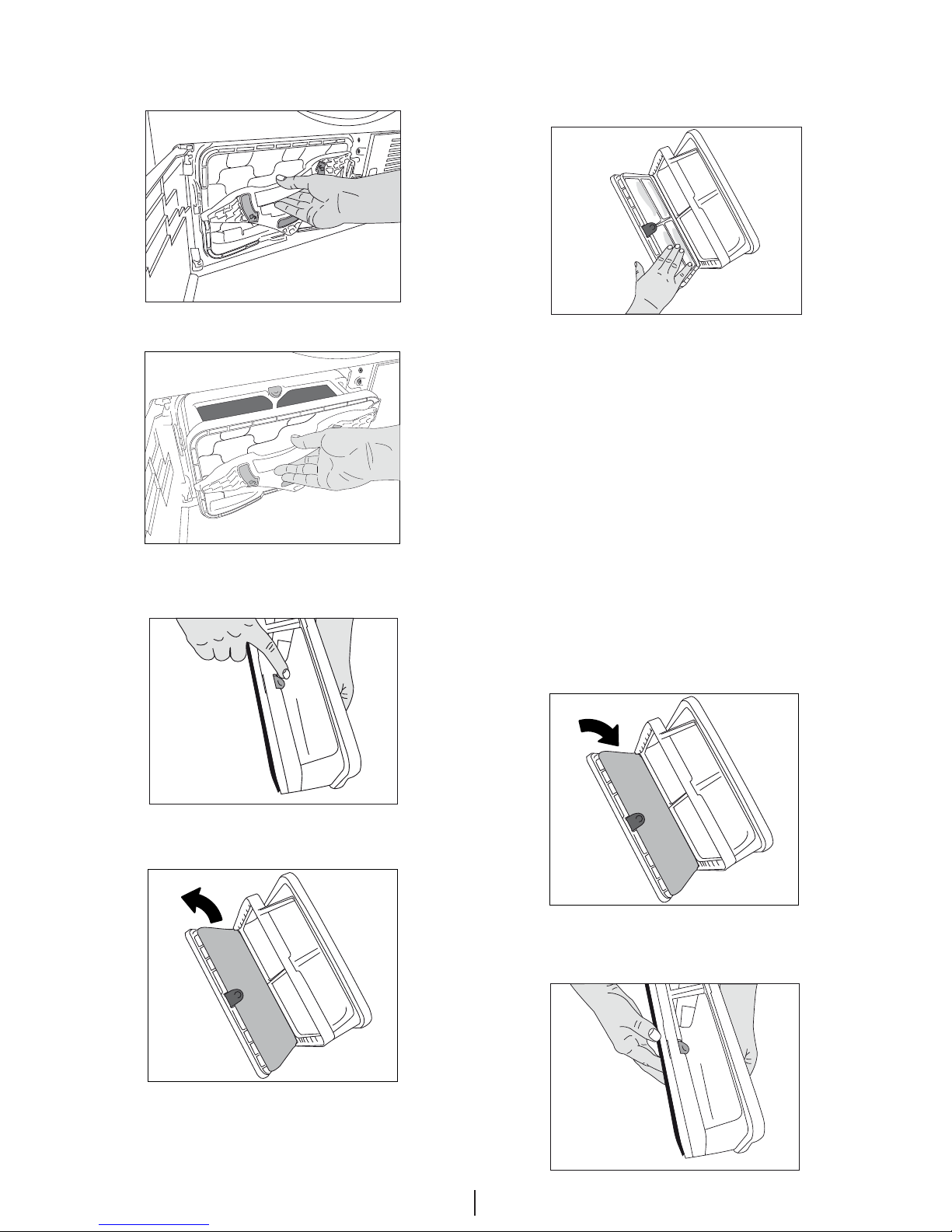

28
EN
2. Remove the filter drawer cover by
turning it in the direction of arrow.
3. Pull out the filter drawer.
4. Open the filter drawer by pressing the
red button.
5. Take out the filter drawer sponge.
6. Clean lint, fibre, and cotton from
the filter cloth by hand or with a soft
piece of cloth.
C
When you notice a layer that may
lead clogging on filter cloth, please
clean the layer by washing in
warm water. Let the filter cloth dry
thoroughly before installing back the
filter drawer.
7. Hand-wash the filter drawer’s sponge
to remove hair and lint on it. Squeeze
the sponge by hand to remove
excessive water.
C
It is not necessary to clean the
sponge if lint and fibre accumulation
on it is not significant.
8. Place the sponge back into its place.
9. Close the filter drawer as to lock the
red button.
Page 29

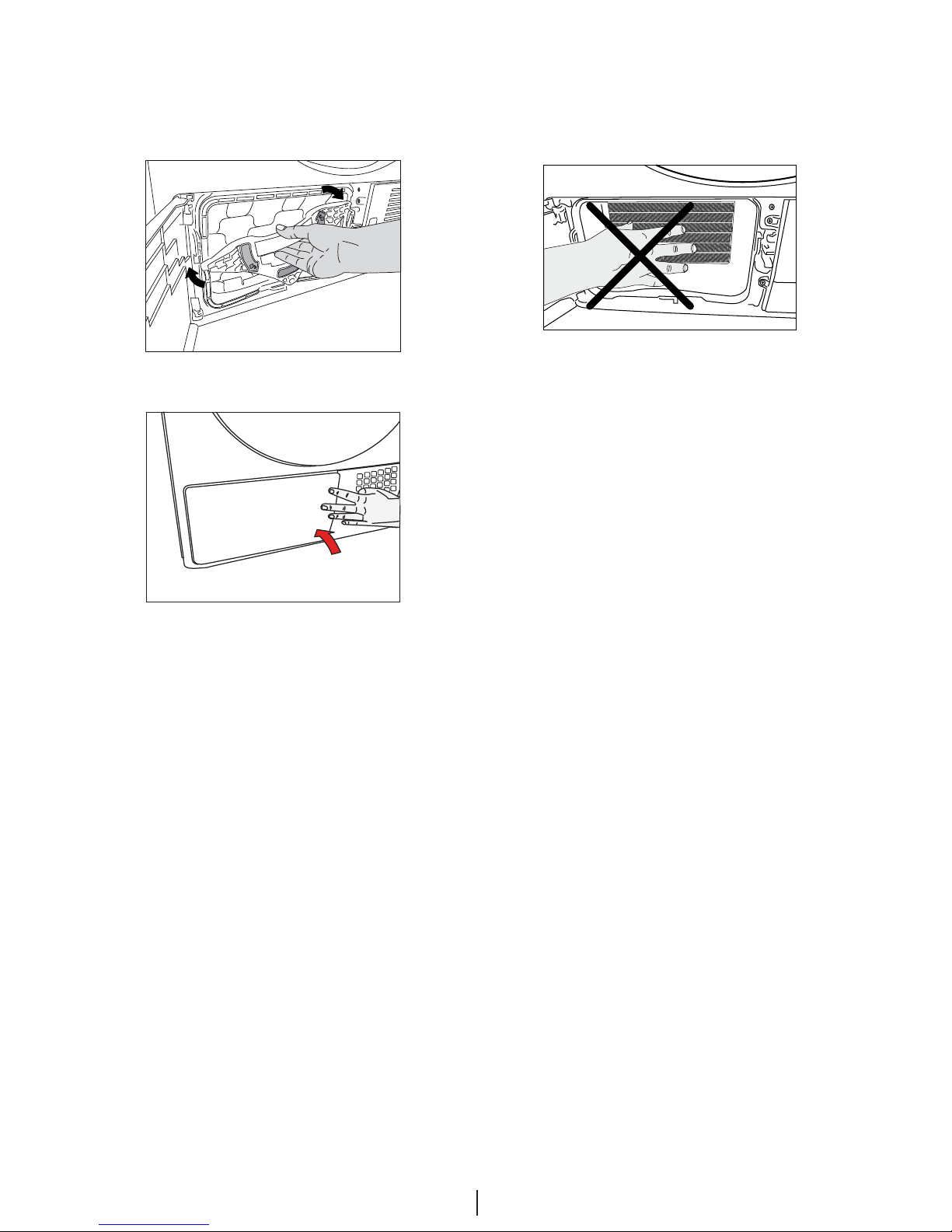

29
EN
10. Place the filter drawer back into its
place, turn the filter drawer cover
clockwise making sure that it is
closed securely.
11. Close the kick plate cover.
C
Drying without the filter drawer
sponge in place will damage the
machine!
C
A dirty lint filter and filter drawer will
cause longer drying periods and
higher energy consumption.
C
A layer can build up on the lint filter
pores that can cause clogging of the
lint filter after using your machine for
a while. Wash the lint filter with warm
water to remove the layer that builds
up on the lint filter surface. Dry the lint
filter completely before using it.
Cleaning the evaporator
Clean the lints accumulated on the fins
of the evaporator located behind the filter
drawer with a vacuum cleaner.
C
You can also clean by hand provided
that you wear protective gloves. Do
not attempt to clean with bare hands.
Page 30
30
EN
8 Troubleshooting
Drying process takes too much time.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the
objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is
very small. >>> Open the door and window of the room to avoid the room
temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness
sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your
washing machine.
Laundry comes out wet at the end of drying.
C
After drying, the hot clothes feel damper than their actual dampness level.
• It is likely that the selected programme did not suit the laundry type.>>>Checking
the care labels on clothes, select appropriate programme for the laundry type or
use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter
drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your
washing machine.
Dryer does not switch on or the programme does not start. Dryer does not start
when it is set.
• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed.
>>> Make sure that the programme is selected and the machine is not in Pause
mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.
Programme is interrupted without any cause.
• Loading door is ajar. >>> Make sure that the loading door is closed securely.
• There was a power failure. >>> Press Start / Pause / Cancel button to start the
programme.
• Water tank is full. >>> Drain the water tank.
Laundry has shrunk, become felted or deteriorated.
• A programme suitable for the laundry type is not used. >>> Check the garment
tag and select a programme suitable for the fabric type.
Page 31
31
EN
Drum lighting does not turn on. (On models with lamp)
• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is
switched on.
• Lamp is defective. >>> Call Authorizse Service Agent to have the lamp replaced.
End/Anti-creasing symbol is on.
• Anti-creasing programme is activated in order to prevent laundry that has
remained in the machine from creasing. >>> Turn off the dryer and take out the
laundry.
End symbol is on.
• Programme is over. Turn off the dryer and take out the laundry.
Lint Filter Cleaning symbol is on.
• Lint filter is not cleaned. >>> Clean the lint filter.
Lint Filter Cleaning symbol is flashing.
• Filter housing is clogged with lints. >>> Clean the lint filter housing.
• A deposit has built up on the lint filter pores that may cause clogging. >>> Wash
the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter
drawer.
Water leaks from the loading door
• Lint has accumulated on the inner surfaces of the loading door and on the
surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading
door and the surfaces of the loading door gasket.
Loading door opens spontaneously.
• Loading door is ajar. >>> Push the loading door to close until you hear a locking
sound.
Water Tank warning symbol is on/flashing.
• Water tank is full. >>> Drain the water tank.
• Water draining hose is bent. >>> If the product is connected directly to a
wastewater drain, check the water drain hose.
Filter Drawer Cleaning warning symbol is flashing.
• Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter
drawer.
A
If you cannot eliminate the problem although you follow the instructions in this
section, consult your dealer or the Authorise Service Agent. Never try to repair a
nonfunctional product yourself.
Page 32
32
EN
9 Guarantee
Your new Blomberg product is guaranteed
against the cost of breakdown repairs for 3
years from the date of the original purchase.
What is covered?
• Repairs necessary as a result of faulty
materials, defective components or
manufacturing defect.
• The cost of functional replacement
parts, but excluding consumable items.
• The labour costs of a Blomberg
approved repairer to carry out the
repair.
What is not covered?
• Transit, delivery or accidental damage
or misuse and abuse.
• Cabinet or appearance parts, including
knobs, flaps, handles or container lids.
• Accessories or consumable items
including but not limited to, ice trays,
scrapers, cutlery baskets, filters and
light bulbs.
• Repairs required as a result of
unauthorised repair or inexpert
installation that fails to meet the
requirements contained in the user
instruction book.
• Repairs to products used on
commercial or non-residential
household premises.
• Loss of frozen food in freezers or
fridge/freezers. (Food loss insurance is
often included within your household
contents insurance policy, or may be
available separately from your retailer).
Important notes.
• Your Blomberg product is designed and
built for domestic household use only.
• The guarantee will be void if the product
is installed or used in commercial or
non-residential domestic household
premises.
• The product must be correctly installed,
located and operated in accordance
with the instructions contained in the
User Instructions Booklet provided.
• Professional installation by a qualified
Electrical Domestic Appliance Installer
is recommended for all Washing
Machines, Dishwashers and Electric
Cookers
• Gas Cookers must only be installed by
a Gas Safe (or BORD GAIS) registered
Gas Installer.
• The guarantee is given only within the
boundaries of the United Kingdom and
the Republic of Ireland.
• The guarantee is applicable only to new
products and is not transferable if the
product is resold.
• Blomberg disclaims any liability for
incidental or consequential damages.
• The guarantee does not in anyway
diminish your statutory or legal rights.
Should you experience any difficulty in
obtaining service please contact the
Blomberg Customer Help-Line.
Tel: 0845 604 6859
Page 33
33
EN
10 Service
Please keep your purchase receipt or other
proof of purchase in a safe place; you will
need to have it should the product require
attention under guarantee.
You should also complete the details below;
it will help us assist you when requesting
service. (The model number is printed on
the Instruction Booklet and the serial number
is printed on the Rating Label affixed to the
appliance)
Model No:
Serial No:
Retailer:
Date of purchase:
Before requesting service please check the
trouble-shooting guide in the Operating
Instructions as a charge may be levied where
no fault is found even though your product
may still be under guarantee.
Service once the manufacturers
guarantee has expired.
If you have purchased an extended guarantee
please refer to the instructions contained
within the extended guarantee agreement
document. Otherwise please call the
appropriate number above where service can
be obtained at a charge.
Should you experience any difficulty in
obtaining service please contact the
Blomberg Customer Help-Line.
Tel: 0845 604 6859
Page 34
Page 35
Page 36
Blomberg, 36-38 Caxton Way, Watford,
Hertfordshire, WD18 8UF
Tel: 0845 6048340 Fax: 0845 6004922,
email: service@blomberguk.com www.blomberguk.com
Loading...
