Blomberg TKF 8431 A, TKF 8431 S User Manual

TKF 8431 A TKF 8431 S

Dryer Sušilica Tørrer

Read this manual prior to initial operation of the product!

Dear Customer, We hope that your product, which has been manufactured in modern facilities and passed through a strict quality control procedure, will give you very good results. We advise you to read through this manual carefully before using your product and keep it for future reference.

This User Manual will

• Help you use your machine in a fast and safe way.

• Read the User Manual before installing and starting your product.

• In particular, follow the instructions related to safety.

• Keep this User Manual within easy reach for future reference.

• Please read all additional documents supplied with your product. Remember that this User Manual is also applicable for several other models.

Explanation of symbols

Throughout this User Manual the following symbols are used:

A Important safety information. Warning for hazardous situations with regard to life and

property.

B Caution; Warning for supply voltage.

Caution; Warning for fire hazard.

Caution; Warning for hot surfaces.

Read the instructions.

C Useful information. Important information or useful hints about usage.

This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on

Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

2960310550_EN/070113.1714

1 Important safety information

This section includes safety information that will help protection from risks of personal injuries or materialistic damages. Failure to follow these instructions shall cause any warranty and reliability commitment to become void.

General safety

• Never place the machine on a carpetcovered floor, otherwise, lack of airflow beneath the machine may cause electrical parts to overheat. This will cause problems with your machine.

• If the power cable or mains plug is damaged, you must call Authorised Service Agent for repair.

• The product should not be plugged in during installation, maintenance and repair works. Such works should always be made by the technical service. Manufacturer shall not be held responsible for damages arising from processes carried out by unauthorised persons.

• Connect the product to a grounded outlet protected by a fuse of suitable capacity as stated in the technical specifications table.

• Operate your product at temperatures between +5°C and +35°C.

• Do not use electrical devices in the product.

• Do not connect the air exit of the product to the chimney holes which are used for the exhaust fumes of the devices operating with gas or other types of fuel.

• You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

• Always clean the lint filter before or after each loading.

• Never operate your dryer without the lint filter installed.

• Do not allow fibre, dust and dirt accumulation around the exhaust exit and at adjacent areas.

• Power cable plug must be within easy reach after installation.

• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power

supply in order to decrease the risk of electric shock.

• Do not make any changes on the plug supplied with the product. If it is not compatible with the socket, have a qualified electrician change the socket with a suitable one.

• Items cleaned or washed with gasoil/fuel oil, dry-laundry solvents and other combustible or explosive materials as well as the items that are contaminated or spotted with such materials should not be dried in the product since they emit flammable or explosive vapor.

• Do not dry items cleaned with industrial chemicals in the dryer.

• Do not dry unwashed items in the dryer.

• Items soiled with cooking oils, acetone, alcohol, fuel oil, kerosene, stain remover, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

• Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads should not be dried in the dryer.

• Do not use fabric softeners and anti-static products unless they are recommended by the manufacturers of the fabric softener or the product.

• This product must be grounded. Grounding installation decreases the risk of electric shock by opening a path with low resistance for the electricity flow in case of a malfunction or failure. Power cable of this product is equipped with a conductor and a grounding plug that allows for grounding the product. This plug must be installed appropriately and inserted into a socket which is grounded in accordance with the local laws and regulations.

• Do not install the product behind a door with a lock, sliding door or a door that has a hinge against the hinge of the dryer.

• Do not install or leave this product in places where it will be exposed to outdoor

conditions.

• Do not tamper with the controls.

• Do not perform any repair or part replacing procedures on the product even if you know or have the ability to perform unless it is clearly suggested in the operating instructions or the published service manual.

• Inside and exhaust duct of the product must be cleaned by the qualified service personnel periodically.

• Wrong connection of grounding conductor of the product can cause electric shock. If you have any suspect about the grounding connection, have it checked by a qualified electrician, service representative or service personnel.

• Do not reach into the machine when the drum is spinning.

• Unplug the machine when it is not in use.

• Never wash down the appliance with water! There is the risk of electric shock! Always disconnect by unplugging from the mains before cleaning.

• Never touch the plug with wet hands. Never unplug by pulling on the cable, always pull out by grabbing the plug only. Do not operate the machine if the power cable or plug is damaged!

• Never attempt to repair the machine yourself, otherwise, you will be putting your life and others’ lives in danger.

• For malfunctions that cannot be solved by following the information given in the safety instructions:

Turn off the machine, turn off and contact

an authorised service agent.

• Do not stop the dryer before the drying cycle comes to an end unless you will remove all laundry from the dryer fast in order to lay them and dissipate the heat.

• Remove the door of the drying compartment before decommissioning or disposing of the product.

• The final step of the drying cycle (cooldown cycle) occurs without applying heat to ensure that the items are left at a temperature that will not damage them.

• Fabric softeners or similar products should be used as specified by the fabric softener

instructions.

• Underwear that contains metal reinforcements should not be placed in a dryer. Damage to the dryer can result if metal reinforcements come loose during drying.

• Check all garments for forgotten lighters, coins, metal pieces, needles, etc. before loading.

• At times when your dryer is not in use or after the laundry is taken out following the completion of drying process, turn off by using the On/Off button. In cases when the On/Off button is on (while the dryer is energized), keep the door of the dryer closed.

Intended use

• This product has been designed for domestic use. It should not be used for other purposes.

• Use the product only for drying laundry that are marked accordingly.

• Dry only those articles in your product that are stated in this manual.

• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.

Children’s safety

• Electrical appliances are dangerous for the children. Keep children away from the machine when it is operating. Do not let them tamper with the machine.

• Packaging materials are dangerous to children. Keep the packaging materials out of reach of children or dispose them by classifying according to waste directives.

• Do not allow children sit/climb on or enter in the product.

• Children should be supervised to ensure that they do not play with the product.

• Close the loading door when you leave the area where the product is located.

2 Installation

Refer to the nearest Authorised Service Agent for installation of your product.

C Preparation of location and electrical

installation for the product is under customer’s responsibility.

BInstallation and electrical connections must

be carried out by a qualified personnel.

A Prior to installation, visually check if the

product has any defects on it. If so, do not have it installed. Damaged products will cause risks for your safety.

Appropriate installation location

• Install the product in an environment which has no risk of freezing and is in a stable and level position.

• Operate your product in a well ventilated, dust-free environment.

• Do not block the air ducts in front of and under the product with materials such as long pile rugs and wooden bands.

• Do not place your product on a long pile rug or on similar surfaces.

• Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.

• Once the product is installed, it should stay at the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere (tap, socket, etc.) and also pay attention to install the product at a place where it will stay permanently.

B Do not place the product on top of the

power cable.

• Keep at least 1.5 cm distance to walls of other furniture.

Removing the transportation safety assembly

ARemove the transportation safety assembly

before using the product for the first time.

1. Open the loading door.

2. There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX.

3. Pull the nylon towards yourself and remove the transportation safety assembly.

AMake sure that you have removed

the transportation safety assembly (nylon+styrofoam pieces) before using the product for the first time. Do not leave any items inside the drum.

Under counter installation

• A special part (Part no. 297 360 0100) replacing the top trim must be provided and installed by the Authorised Service Agent in order to use the machine under a counter or in a cupboard. It should never be operated without the top trim.

• Leave at least 3 cm of space between the side and rear walls of the product and the walls of the counter/cupboard when installing your product under a counter or in a cupboard.

Mounting over a washing machine

• A fitting device should be used between the two machines when installing above a washing machine. The bracket (Part no. 297 720 0100 white/297 720 0400 grey) must be installed by the Authorised Service Agent.

• Place the product on a firm floor. If it will be placed on top of a washing machine, the approximate weight of both machines may reach 180 kg when they are full. Therefore, the floor must be capable of carrying the load on it!

Connection to water drain;

In products equipped with a condenser unit the water accumulated during the drying cycle is collected in the water tank. You should drain the accumulated water after each washing cycle. You can directly send the accumulated water

out through the water drain hose supplied with the machine instead of periodically draining the water collected in the water tank. Connecting the water drain hose;

1. Remove the hose on the machine by pulling it out from its end. Do not use any tools to take out the hose.

2. Connect the special drain hose supplied with the machine to the pipe fitting.

3. The other end of the drain hose can be directly connected to the wastewater drain or to the washbasin. The fitting must always be secured in all types of connections. Your house may be flooded if the hose gets out of its housing during water discharge.

Important:

• The hose should be attached to a height of maximum 80 cm.

• You must be careful not the pinch or bend the hose.

• The end of the hose should not be bent, it should not be stepped on and it must not be folded between the drain and the machine.

Adjusting the feet

In order to ensure that your machine operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Rotate the feet to adjust until the machine stands level and firmly.

C Never unscrew the adjustable feet from

their housings.

Electrical connection

Connect the machine to a grounded outlet protected by a fuse of suitable capacity as stated in the technical specifications table. Our company shall not be liable for any damages that will arise when the machine is used on a circuit without grounding.

• Connection must comply with national regulations.

• If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.

• Power cable plug must be within easy reach after installation.

• The voltage and allowed fuse or breaker protection are specified in the “Technical Specifications” section.

• The specified voltage must be equal to your mains voltage.

• Do not make connections via extension cables or multi-plugs.

• The main fuse and switches must have a contact distance of minimum 3 mm.

B Damaged power cable must only be

replaced by a qualified electrician.

B If the product is faulty, it must not be

operated unless it is repaired! There is the risk of electric shock!

First use

• To have the product ready for operation before calling the authorised service agent, make sure that its location and power supply installations are appropriate. If they are not, call a qualified electrician to have any necessary arrangements carried out.

• Make sure that the power connections of the product are in accordance with the instructions given in relevant chapters of this manual.

Disposing of packaging material

Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children. Packaging materials of your product are manufactured from recyclable materials. Sort and dispose of them in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.

Transportation of the machine

1. Unplug the machine from the mains.

2. Remove the water drain (if any) and chimney connections.

3. Drain water remained in the machine completely before transportation.

Disposing of the old machine

Dispose of your old machine in an environmentally friendly manner. Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your machine. Before disposing of your old machine, cut off the power cable plug and make the loading door lock unusable to avoid dangerous conditions to children.

Technical specification

Height (adjustable) Width Depth Capacity (max.) Weight (net) Voltage Rated power input Model code Type label is located behind the loading door.

84,6 cm

59,5 cm

59,8 cm

8 kg

38 kg

See type label

3 Initial preparations for drying

Things to be done for energy saving:

• Make sure that you operate the product at its full capacity but pay attention to not exceeding it.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is decreased.

• Pay attention to dry same types of laundry together.

• Follow the instructions in the user manual for programme selection.

• Make sure that sufficient clearance is provided at the front and rear side of the dryer for air circulation. Do not block the grill at the front side of the product.

• Do not open the door of the machine during drying unless necessary. If you must certainly open the door, pay attention not to keep it open for a long time.

• Do not add new (wet) laundry during drying.

• Lint and fibres released from the laundry to the air during the drying cycle are collected in the “Lint Filter”. Make sure that you clean the filters before or after each drying.

• In models with condenser, make sure that you clean the condenser regularly at least once every month or after every 30 drying cycles.

• In vented models, follow the chimney connection rules in the user manual and pay attention to the chimney cleaning.

• Ventilate the room, where the dryer is located, well during drying.

• For power saving in models with lamps, at times when your dryer is not in use, keep the door closed if the On/Off button is pressed (if the dryer is energized).

Laundry suitable for drying in the machine

CAlways follow the suggestions on the laundry

labels. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

A B C

Low

l mn

o p q

Laundry unsuitable for drying in the machine

• Laundry items with metal attachments such as belt buckles and metal buttons can damage your dryer.

• Do not dry items such as woollens, silk garments and nylon stockings, delicate embroidered fabrics, laundry with metal accessories and items such as sleeping bags in the dryer.

• Laundry made of delicate and valuable fabrics as well as lace curtains can be creased. Do not dry them in the dryer!

• Do not dry items made of hermetic fibres such as pillows and quilts in the dryer.

• Laundry made of foam or rubber will be deformed.

• Do not dry laundry containing rubber in the dryer.

• Do not dry laundry exposed to petroleum, oil, combustible or explosive agents in the dryer even if they are washed beforehand.

• Overly wet laundry or laundry with dripping water must not be put into the dryer.

vapor.

• Do not dry items cleaned with industrial chemicals in the dryer.

• Do not dry your unwashed laundry in the dryer.

• Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads should not be dried in the dryer.

• Do not use fabric softeners and anti-static products unless they are recommended by the manufacturers of the fabric softener or the product.

• Do not dry the underwear reinforced with metal parts in the dryer. If these metal reinforcements loosen and break during drying, they will damage your dryer.

Preparing laundry for drying

• Check all laundry items before loading them into the product to make sure that there are no lighters, coins, metal items, needles and etc. in their pockets or on any part of them.

• Fabric softeners and similar products must be used in accordance with the instructions of the manufacturer of the relevant products.

• All laundry must be spun at the highest spin speed that your washing machine allows for the laundry type.

• Laundry may be tangled after washing. Separate your laundry before placing them into your dryer.

• Sort your laundry according to their types and thicknesses. Dry the same type of laundry together. E.g.: fine kitchen towels and table cloths dry faster than the thick bath towels.

Correct load capacity

AConsider the information in the "Programme

Selection Table". Always start the programme in accordance with the maximum load capacity.

CAdding laundry to the machine more

than the level shown in the figure is not recommended. Drying performance will degrade when the machine is overloaded. Furthermore, your dryer and your laundry can be damaged.

CPlace your laundry into the drum loosely so

that they will not get tangled.

Following weights are given as examples.

Home articles

Cotton quit covers (double) 1500 Cotton quit covers (single) 1000 Bed sheets (double) 500 Bed sheets (single) 350 Large tablecloths 700 Small tablecloths 250 Tea napkins 100 Bath towels 700 Hand towels 350

Garments

Blouses 150 Cotton shirts 300 Shirts 200 Cotton dresses 500 Dresses 350 Jeans 700 Handkerchiefs (10 pieces) 100 T-Shirts 125

Approximate weights (g)

Loading the laundry

1. Open the loading door.

2. Place the laundry in the machine without compressing.

3. Push the loading door to close.

Ensure that no items are caught in the door.

4 Selecting a Programme and Operating Your Machine

Control panel

9 6

2 3

1. Washing machine spin speed*/ Timer programme selection

Spin speed used to spin the laundry in the

washing macthine / Indicates the time for timer programs.

2. Display

Indicates the status of the machine.

3. Start/Pause/Cancel button

Used to start, pause or cancel the

programme.

4. Programme selection knob

Used to select a programme.

5. On/Off button

Used to turn on and off the machine.

6. Anti-creasing

Prevents the laundry from creasing after

the machine completes its programme.

7. Dryness level

Used to adjust the required dryness level.

8. Cancel audio warning

Used to cancel the audio warning given at

the end of the programme.

9. Time delaying buttons

Used to set the time delay.

Spin speed / Timer programmes  Operation icon Pause icon Water tank full warning icon Filter cleaning warning icon Condenser cleaning warning icon Remaining time indicator

 Spin speed is used to show the remaining time more accurately. It does not affect the performance of your machine.

Child-proof lock warning icon Time delaying mode Door open warning icon Anti-creasing mode Audio warning level / Cancel audio warning Drying degree Anti-creasing is activated

Cottons Synthetics

Shirt 15'

Jeans

Mini 35

Shirt Reset 3''

programs

Buzzer/

cancel

Ventilation

On/Off

Timer

Anti

Creasing

Start

pause

Iron Dry

Dryness

Level

Extra

Dry

Child-proof

lock

Cupboard

dry

Timer Delay

Sport Spin Mixed

Preparing the machine

1. Plug in your machine.

2. Place the laundry in the machine.

3. Press the “On/Off” button.

C Pressing the “On/Off” button does not

necessarily mean that the programme has started. Press “Start/Pause/Cancel” button of the machine to start the programme.

Programme selection

Decide the appropriate programme from the table below which includes drying temperatures in degrees. Select the desired programme with the programme selection knob.

Drying at high temperature only for cotton laundry. Thick

Extra dry

Cupboard dry

Iron dry

C For further programme details, see,

and multi layered laundry (E.g.: towels, linens, jeans) are dried in a way that they do not require ironing before placing in the wardrobe.

Normal laundry (E.g.: tablecloths, underwear) are dried in a way that they do not require ironing before placing in the wardrobe.

Normal laundry (E.g., Shirts, dresses) are dried ready to be ironed.

Wool

Refresh

Drying

Rack

Viscose Lingerie

“Programme Selection Table”

Main programmes

Depending on the type of laundry, the following main programmes are available:

•Cottons

You can dry your durable laundry with this programme. Dries at high temperature. It is recommended to use for your cotton items (such as bed sheets, quilt cover, underclothing, etc.).

•Synthetics

You can dry your less durable laundry with this programme. It dries at a lower temperature compared to the cottons programme. It is recommended for your synthetic laundry (such as shirts, blouses, synthetic/cotton blended laundry, etc.).

C Do not dry curtains and lace in your

machine.

Special programmes

For special cases, there are also extra programmes available:

C Additional programmes may differ

according to the model of your machine.

•Mini 35’

You can use this programme to dry your cotton laundry that you have spun at high speeds in your washing machine. This program dries 2 kg cotton laundry (2 Shirts / 5 T-shirts) in 35 minutes.

C To obtain better results from your

dryer, your laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine.

•Shirt

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

C There may be a little humidity on your

shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

•Jeans

You can use this programme to dry your jeans that you have spun at high speeds in your washing machine.

C Review the relevant section in the

programme table.

•Mixed

Used to dry synthetic and cotton laundry that do not release colour. Used for laundry that is suitable for drying.

•Sport

Used to dry the laundry that are made of synthetic, cotton or mixed fabrics and have a tag indicating that they are suitable for drying.

•Wool refresh

You can use this function to ventilate and soften your woolen laundry that can be washed in the washing machine. Do not use this function to dry your laundry completely. Take out your laundry and ventilate them immediately after the program is over.

•Shirt 15’

You can use this feature to make 2 shirts ready for ironing in 15 minutes.

•Lingerie

Suitable to dry the 100% synthetic or syntheticmixture satin type underwear (night gown, garments for upper body, pajamas) with the word dryable in the washing instructions.

C Products with a high accessory content

such as lace, veil, stone, beads and wires and products with a high content of silk should not be dried.The silk laundry with cotton content or satin look may remain wet

when dried with this program. The level of dryness may depend on the mixture of the cloth, type of knitting and the humidity content.

•Viscose

You can dry your Viscose laundry that marked as it can dry in tumble dryer(dresses, shirts, underwear, etc…). Viscose/polymer, viscose/ cotton mixed laundry is also suitable for this

program.

C It is not recommended to dry laundry

that has accessory of pile textile, lace, small stones etc… Drying level can be changeable according to the type and mixture of laundry.

•Ventilation

Only ventilation is performed for 10 Tminutes without blowing hot air. You can air your clothes that have been kept at closed environments for a long time and deodourise unpleasant odours thanks to this programme.

•Timer programs

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures. Programme dries at the selected time regardless of the drying temperature.

Time display

The display shows the time remaining for the programme to complete while a programme is running. Time is displayed in hours and minutes as “02:30”. The exemplary display image shows the dryer when it is running and childproof lock is active.

C Programme duration may differ from the

values in the consumption table subject to the changes in the water hardness and temperature, ambient temperature, type and amount of laundry, auxiliary functions selected, and changes in the supply voltage.

Programme selection and consumption table Programme table

EN 2

Programs Capacity (kg)

Cottons / Coloreds

Spin speed in washing

machine (rpm)

Approximate

amount of remaining

humidity

Drying time

(minutes)

Extra dry

Cupboard dry

Iron dry

Mini 35'

Shirt

Jeans

Shirt 15'

Mixed

Sport

Viscose

Lingerie

Wool Refresh

Synthetics

Cupboard dry

Energy consumption values

Programs Capacity (kg)

8 1000 % 60 138

8 1000 % 60 130

8 1000 % 60 105

2 1200 %50 35

1.5 1200 %50 40

4 1200 %50 80

0.5 1200 %60 15

4 1000 %60 83

4 1000 %60 92

1.5 600 %100 100

1 800 %40 50

1.5 600 %50 6

4 800 % 40 53

Spin speed in washing

machine (rpm)

Approximate

amount of remaining

humidity

Energy

consumption

value kWh

Cottons linen cupboard dry*

Cottons iron dry

Synthetics cupboard dry

8 1000 % 60 4.71

8 1000 % 60 3.80

4 800 % 40 1.80

* : Energy Label standard programme (EN 61121:2012) All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

Auxiliary function

Audio Warning

Cancel

audio warning

Your dryer will give an audio warning when the programme comes to an end. If you do not want to hear this buzzing or want to change the volume level, you need to press the “Volume level” button. No audio warning will be given when “x” appears on the screen.

C You can select this function either before or

after the programme starts.

Audio warning

level 1

Audio warning

level 2

Audio warning

level 3

Changing the contrast

Contrast can be adjusted in order to make the symbols on the display appear clearer. It may particularly be necessary to change the contrast setting of the display when the dryer is installed over a washing machine.press and Press and hold the Spin Speed/Time button for 3 seconds. When the contrast is changed at the end of 3 seconds, all symbols on the display will become visible for 3 seconds in order to indicate that the process is complete. Perform the same procedure to revert back to the previous contrast setting.

Drying degree

Used to adjust the required dryness level. More drying is performed compared to the default settings when “+” sign appears and less drying is performed when “-” sign appears. Programme duration can change depending on the selection.

A This function must be selected before the

programme starts.

Anti-creasing

A 2-hour anti creasing programme to prevent laundry from creasing will be activated if you do not take the laundry out after the programme is over. This programme rotates the laundry in 600-second intervals to prevent creasing. Press “Anti-creasing” button to activate. Anti-creasing is activated but the programme is running in the first exemplary figure. Drying is over and the first step of anti-creasing has started in the second figure.

Warning indicators

C Warning indicators may differ according to

the model of your machine.

Filter cleaning

A warning symbol will appear to remind filter cleaning after the programme finishes.

C If the filter cleaning symbol flashes

continuously, please refer to “Suggested solutions for problems”.

Water tank

A warning symbol will turn on at the end of the programme or when the tank is full with water. The machine stops operating if the warning symbol turns on when a programme is running. To restart the machine, please drain the water in the water tank. Press “Start/Pause/ Cancel” button to start the programme after you have emptied the water tank. The warning symbol turns off and the programme resumes operating.

Cleaning the condenser

Warning symbol turns on with certain intervals to remind that the condenser needs cleaning.

Door open

Dryer door open symbol lights up.

Time delay

With the “Time delay” function you can delay the programme start up to 24 hours.

1. Open the loading door and put the laundry

in.

2. Set the drying programme and spin speed,

and if required, select the auxiliary functions.

3. Press “Time delaying” buttons “+” and “-” to

set the desired time delay. The time delay

symbol will flash.

4. Press “Start/Pause/Cancel” button. Then the

time delay starts to count down. The Time

delay symbol lights up. Start symbol lights

up. The “:” in the middle of the displayed time delay will start flashing. More laundry may be loaded or taken out during the time delay period. At the end of the time delay countdown process, time delay symbol fades, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and delay time. Time delay is started by pressing the start/ pause/cancel button in the exemplary figure.

Changing the delay time

If you want to change the time during the countdown:

1. Press “Start/Pause/Cancel” button for 3 seconds to cancel the programme. Time delay function must be set again for the required time.

2. Press Time delay buttons “+” or “-” to set the desired time delay.

3. Press “Start/Pause/Cancel” button. The Time delay symbol lights up. Pause symbol fades. Start symbol lights up.

4. The “:” in the middle of the displayed time delay will start flashing.

Canceling the time delay

If you want to cancel the time delay countdown and start the programme immediately:

1. Press “Start/Pause/Cancel” button for 3 seconds to cancel the programme.

2. Then, press “Start/Pause/Cancel” button to start the desired programme.

Starting the programme

1. Press “Start/Pause/Cancel” button to start the programme.

2. “Start/Pause” symbol will light up to indicate that the programme has started and “:” symbol between the remaining time will continue flashing.

Progress of programme

Drying

Iron

Wardrobe

(Extra)

Ventilation

The progress of a running programme is shown through a number of symbols on the screen. At the beginning of each programme step, the relevant symbol in the series of symbols will light up and thus, all symbols will remain lit up at the end of the programme. The symbol that is lit up at the far right of the series of symbols indicates the step that is being carried out.

“Drying”:

- Lights up in all programmes apart from drying

and ventilation.

“Iron Dry”:

- Starts to illuminate when the drying degree

reaches “iron dry” step and remains illuminated until the next step.

Anti-

creasing

“Cupboard Dry”:

-Starts to illuminate when the drying degree reaches “wardrobe dry” step, and remains illuminated until the next step.

“Cupboard Dry Extra”:

Starts to illuminate when the drying degree reach to “wardrobe dry extra” step.

“Ventilation”:

- Illuminates when the programme ends.

C Anti-creasing icon will light up at the end of

the programme if anti-creasing function is active.

Changing the programme after the programme has started

You can use this feature to dry your laundry in a different program after your machine has started to run.

For example; Press and hold the “Start/Pause/Cancel” button for about 3 seconds to “Cancel” the programme in order to select “Extra Dry” programme instead of “Iron Dry” programme. Select the “Extra Dry” program by rotating the program knob. Press “Start/Pause/Cancel” button to start the program. CIf you select a new programme by turning

the programme selection knob while your machine is running, then the current program is cancelled and new programme information is displayed.

Adding/removing laundry in standby mode

In order to add or take out laundry after the start-up of the programme;

1. Press the “Start/Pause/Cancel” button to switch the machine to “Pause” mode. Drying process will stop.

2. Open the door at Pause position and close it again after adding or taking out laundry.

3. Press “Start/Pause/Cancel” button to start the program.

C Any laundry added after the drying process

was started may cause the already dried

clothes in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

CLaundry may be added or taken out as

much as desired during a drying process, but as this process will interrupt drying continuously, it will extend the program duration and increase energy consumption.

Therefore, it is recommended to add laundry

before the drying programme has started.

C If you select a new programme by turning

the programme selection knob while your machine is in standby, then the current program is cancelled and new programme information is displayed.

Child-proof lock

There is a child-proof lock to prevent any programme interruption due to the pressing of button while the programme is running. The loading door and all button except the “On/Off” button on the panel are deactivated when the child-proof lock is active. In order to activate the child-proof lock, press on the “audio warning” and “anti-creasing” buttons simultaneously for 3 seconds. To start a new programme after the programme is over or to interrupt the programme, the childproof lock should be deactivated. Press the same buttons for 3 sec. again to deactivate the child-proof lock. Lock symbol will appear on the screen when the child-proof lock is activated.

C Child-proof lock will also be deactivated

when the machine is restarted by pressing the on/off button.

When the child-proof lock is activated:

• Display icons will not change even if the position of programme selection knob is changed while the machine is running or in halt.

• If the child-proof lock is deactivated after changing the position of the programme selection knob while your machine is

running, your machine stops and new programme information is displayed

Ending the programme through canceling

A new program can be selected and started after “Program cancel” is activated in order to change the drying program. To cancel any selected programme: Press “Start/Pause/Cancel” button for about 3 seconds. “Lint filter cleaning” and “Water tank” warning symbols light up and “End” label appears on the screen as a reminder at the end of this period.

A As the inside of the machine will be

excessively hot when you cancel the program while the machine is running, activate the ventilation program to cool it down.

C If you change the position of programme

selection knob while your machine is running, then the machine stops, current programme is cancelled and new programme information is displayed.

End of programme

“Filter cleaning” and “Water tank” warning symbols light up and “End” label appears on the screen in the programme follow-up indicator when the programme ends. The door can be opened and the machine becomes ready for a second cycle. Press “On/Off” button to turn off the dryer.

C When selected, the 2-hour anti creasing

programme will be activated to prevent laundry from creasing if you do not take the laundry out after the programme has come to an end.

C Clean the filter after each drying (please see,

Filter cleaning).

C Drain the water tank after each drying

(please see, Water tank)

5 Maintenance and cleaning

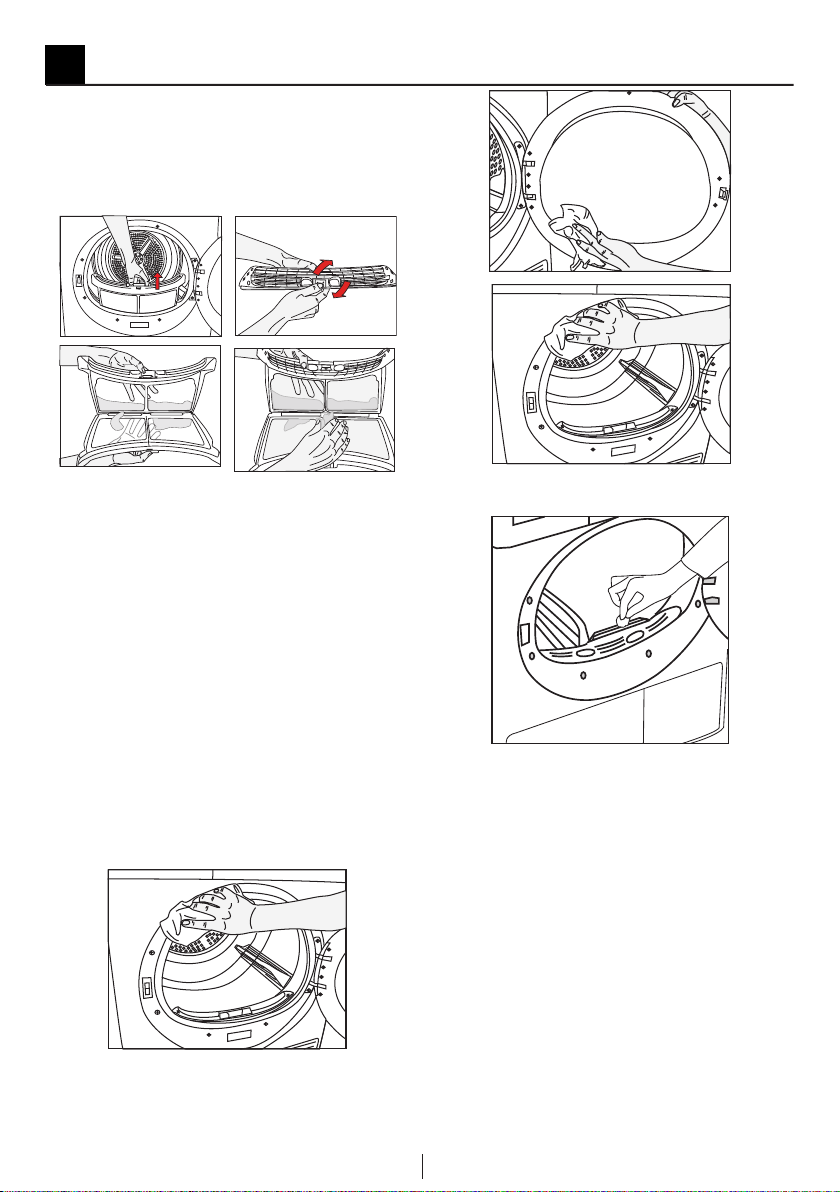

Filter Cartridge / Door Inner Surface

Lint and fibres released from the laundry to the air during the drying cycle are collected in the “Filter Cartridge”.

C Such fibre and lint are generally formed

during wearing and washing.

C Always clean the filter and the inner surfaces

of the cover after each drying process.

C You can clean the filter and filter area by

vacuum cleaner.

To clean the filter:

1. Open the loading door.

2. Remove the cover filter by pulling it up and open the filter.

3. Clean lint, fibre, and cotton raveling by hand or with a soft piece of cloth.

4. Close the filter and place it back into its

seat.

C Clogging may arise on the filter surface after

using your machine for some time; if this occurs, wash the filter with water and dry it before using again.

Sensor

There are humidity sensors in your dryer that detect whether the laundry is dry or not. To clean the sensor:

1. Open the loading door of the dryer.

2. Allow the machine to cool down if drying has been carried out.

3. Wipe the metal sensors with a soft cloth, dampened with vinegar and dry them.

C Clean metal sensors 4 times a year. A Never use solvents, cleaning agents

or similar substances when cleaning since these materials can cause fire and explosion!

C Clean the entire inner surface of the cover

and door gasket.

Water tank;

The moisture in the damp laundry is taken from the laundry and condens ed. Drain the water tank after each drying cycle or during drying when “Water tank” warning light turns on.

A Condensed water is not drinkable! A Never take out the water tank when the

programme is running! If you forget to drain the water tank, your dryer will stop during the following drying cycles when the water tank is full and the “Water tank” warning light will turn on. If this is the case, press the “Start/Pause/Cancel” button to resume the drying cycle after draining the water tank. *To drain the water tank: 1-Pull the drawer and remove the water tank

carefully.

For the condenser;

Hot and humid air in the condenser is cooled with the cold air from the room. Thus, the humid air circulating in your dryer is condensed and then pumped into the tank.

C Clean the condenser after every 30 drying

cycles or once a month.

To clean the condenser:

1. If a drying process has been carried out, open the door of the machine and wait until it cools down.

2. Unlock the 2 condenser locks after opening the kick plate.

2-Drain the water in the tank

3-If there is lint accumulation in the funnel of

the water tank, clean it under running water.

4-Place the water tank into its seat.

3. Pull out the condenser.

4. Clean the condenser by applying pressurized water with a shower armature and wait until the water drains.

5. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely.

6. Close the kick plate cover.

+ 47 hidden pages
