FNT4550
Refrigerator
User Manual
Page 2
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a 1st-class
manufacturing facility and checked under the most meticulous quality control
procedures, will provide you with years of good service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
C Important information or useful usage tips.
A Warning against dangerous conditions for life and property.
B Warning against electric voltage.
Page 3
EN
3
1 Your Freezer 4
2 Warnings 5
Electrical Requirements .....................7
Warning! This Appliance Must Be
Earthed .............................................7
Energy Saving Tips ............................8
Compliance with WEEE Directive and
Disposing of the Waste Product: .......8
Compliance with RoHS Directive: ......9
Package information ..........................9
3 Installation 10
Points to be paid attention to when the
relocation of the freezer ...................10
Electrical connection ........................10
Disposing of the packaging .............11
Disposing of your old freezer ...........11
Placing and Installation ....................11
4 Before operating 15
Starting ............................................15
5 Using your freezer 16
6 Maintenance and cleaning 17
7 Do's and Don'ts 18
Problem Solving ..............................19
8 How To Obtain Service 20
9 Guarantee Details 21
Page 4
EN
4
C
Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.
1 Your Freezer
Congratulations on your choice of a BLOMBERG quality Appliance which has
been designed to give you service for many years.
1. Thermostat
2. Flap (Fast-Freeze compartment)
3. Drawers
4. Adjustable front feet
1
4
4
2
3
*
Page 5
EN
5
2 Warnings
• DO NOT connect
your appliance to the
electricity supply until
all packing and transit
protectors have been
removed.
• Leave to stand for
at least 4 hours before
switching on to allow
compressor oil to settle if
transported horizontally.
• If you are
discarding an old
refrigerator with a lock or
latch fitted to the door,
disable the lock/latch,
ensure that it is left in a
safe condition to prevent
the entrapment of young
children.
• This appliance
must only be used for
its intended purpose
i.e the storing of edible
foodstuff.
• Do not dispose of
the appliance on a fire.
At BLOMBERG, the
care and protection of
our environment is an
ongoing commitment.
This appliance which
is among the latest
range introduced is
particularly environment
friendly. Your appliance
contains non CFC /
HFC natural substances
in the cooling system
(Called R600a) and in
the insulation (Called
cyclopentane) which are
potentially flammable
if exposed to fire.
Therefore, take care
not to damage, the
cooling circuit / pipes
of the appliance in
transportation and in
use. In case of damage
do not expose the
appliance to fire or
potential ignition source
and immediately ventilate
the room where the
appliance is situated.
• We suggest
you contact your local
authority for disposal
information and facilities
available.
• To obtain the best
possible performance
and trouble free
Page 6
EN
6
operation from your
appliance it is very
important to carefully
read these instructions.
• On delivery, check
to make sure that the
product is not damaged
and that all the parts
and accessories are in
perfect condition.
• Ensure that the
plug remains readily
accessible. Do not use
multiple adapter or
extension cable.
• Failure to observe
these instructions may
invalidate your right to
free service during the
guarantee period.
• Keep ventilation
openings, in the
appliance enclosure or
in the built-in structure,
clear of obstruction.
• Do not use
mechanical devices
or other means to
accelerate the defrosting
process, other than
those recommended by
the manufacturer.
• Do not damage
the refrigerant circuit.
• Do not use
electrical appliances
inside the food storage
compartments of the
appliance, unless
they are of the type
recommended by the
manufacturer.
• We suggest you
keep these instructions
in a safe place for easy
reference.
• This appliance
can be used by
children aged from 8
years and above and
persons with reduced
physical, sensory or
mental capabilities or
lack of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance
in a safe way and
understand the hazards
involved.
• Children should
be supervised to ensure
that they do not play with
the appliance.
Page 7
EN
7
Electrical
Requirements
Before you insert the
plug into the wall socket
make sure that the
voltage and the frequency
shown on the rating
plate inside the appliance
corresponds to your
electricity supply.
Rating label is on the left
hand side of inner liner.
We recommend that this
appliance be connected
to the mains supply via a
suitable switched
and fused socket. The
appliance must be
positioned so that the
plug is accessible.
Should the mains lead
of the appliance become
damaged or should it
need
replacing at any time, it
must be replaced by a
special purpose made
mains lead which can
only be obtained from a
BLOMBERG Authorised
Service Agent.
Warning! This
Appliance Must Be
Earthed
If the fitted moulded plug
is not suitable for your
socket, then the plug
should be cut off and an
appropriate plug fitted.
Destroy the old plug
which is cut off as a plug
with bared cord could
cause a shock hazard
if inserted into a socket
elsewhere in the house.
The moulded plug
on this appliance
incorporates a 13 A
fuse. Should the fuse
need to be replaced an
ASTABEAB approved BS
1362 fuse of the same
rating must be used. Do
not forget to refit the fuse
cover. In the event of
losing the fuse cover the
plug must not be used
until a replacement fuse
cover has been fitted.
Colour of the replacement
fuse cover must be the
same colour as that
visible on the pin face of
the plug. Fuse covers are
Page 8
EN
8
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm.
32mm.
12mm.
FUSE
CORD GRIP
available from any good
electrical store.

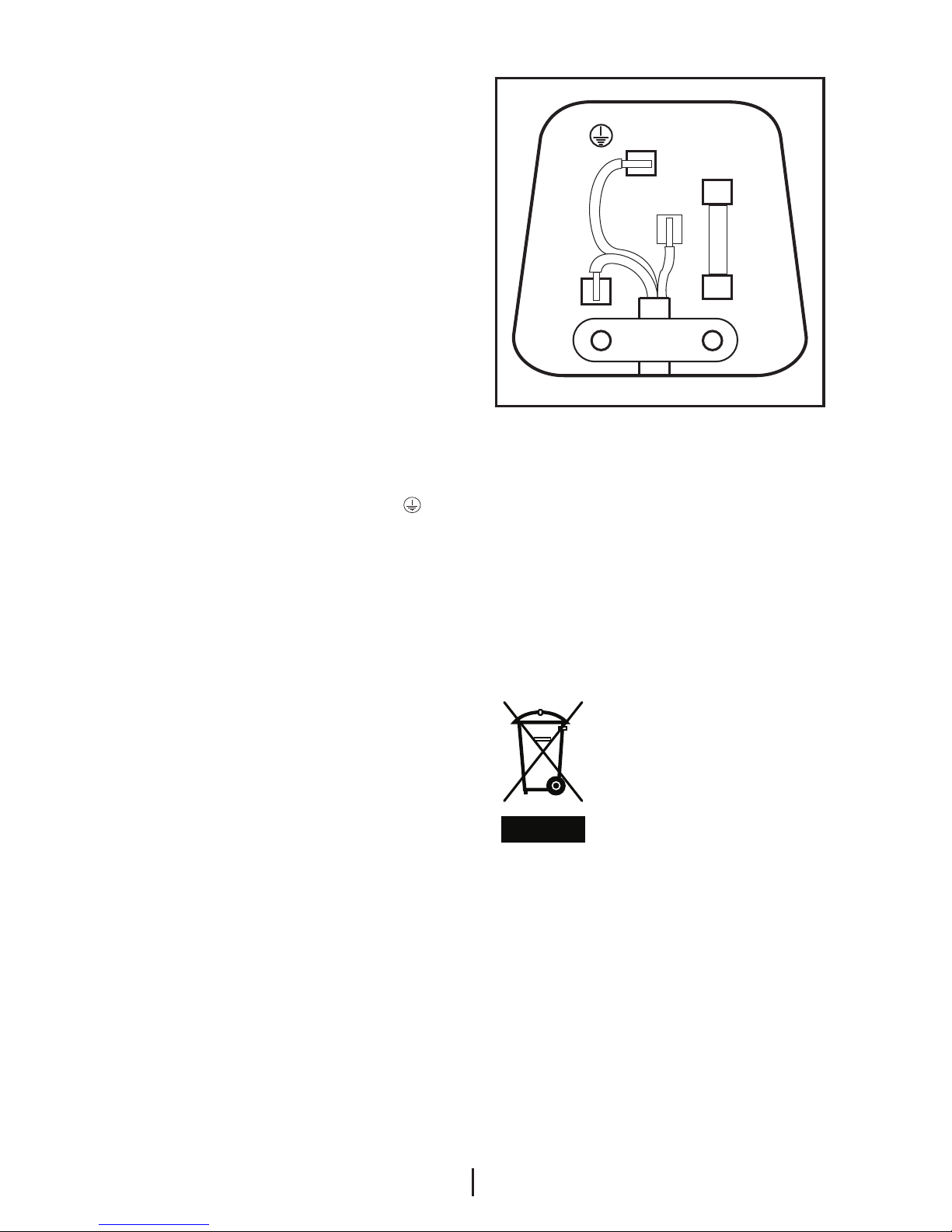

Important! Fitting A
Different Plug
As the colours of the
wires in the mains lead
of this appliance may
not correspond with
the coloured markings
identifying the terminals
in your plug proceed as
follows: (See diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
4. With alternative plugs a 13 A fuse
must be fitted either in the plug or
adaptor or in the main fuse box. If in
doubt contact a qualified electrician.
Energy Saving Tips
1. Ensure your appliance is installed in a
well ventilated area.
2. Ensure the time between buying
chilled/frozen food and placing
them in your appliance is kept at
minimum, particularly in summer. We
recommend you use a cool bag or a
special carrier bag to carry perishable
food.
3. Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are closed
properly after each opening.
4. Defrost frozen food in the fridge, so
that frozen food acts as an ice pack
to assist cooling in fridge.
Compliance with
WEEE Directive and
Disposing of the Waste
Product:
Thisproduct
complies with EU
WEEE Directive
(2012/19/EU).
This product
bears a classification
symbol for waste
electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and
materials which can be
reused and are suitable
for recycling. Do not
Page 9
EN
9
dispose of the waste
product with normal
domestic and other
wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment.
Please consult your local
authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have
purchased complies
with EU RoHS Directive
(2011/65/EU). It does
not contain harmful and
prohibited materials
specified in the Directive.
Package information
Packaging materials
of the product are
manufactured from
recyclable materials in
accordance with our
National Environment
Regulations. Do not
dispose of the packaging
materials together with
the domestic or other
wastes. Take them to
the packaging material
collection points
designated by the local
authorities.
Page 10
EN
10
3 Installation
BThe manufacturer will not be liable for
any event caused by disregarding
the information supplied in this user
manual.
Points to be paid attention
to when the relocation of
the freezer
1. Your freezer should be
unplugged.Before transportation of
your freezer, it should be emptied and
cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your freezer should be fixed
with adhesive tape and secured
against impacts. Packaging should
be adequate and the transportation
rules on the package should be
strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the freezer,
Check the following before you
start to use your freezer:

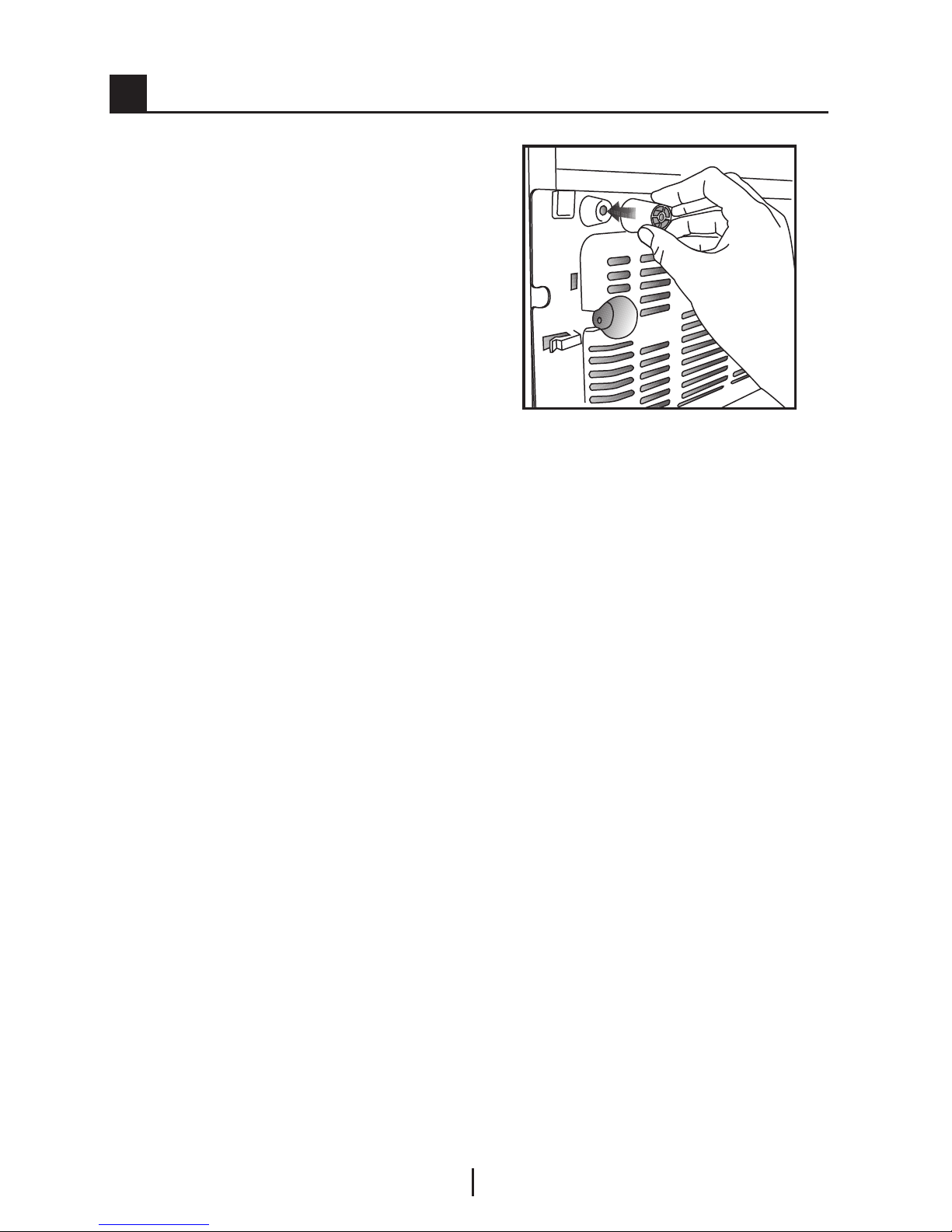

1. Attach 2 plastic wedges as
illustrated below. Plastic wedges are
intended to keep the distance which
will ensure the air circulation between
your freezer and the wall. (The picture
is drawn up as a representation
and may not be identical with your
product.)
2. Clean the interior of the
freezer as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the freezer
to the wall socket. When the freezer
door is opened,freezer internal lamp
will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
5. Front edges of the freezer may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your freezer shall
be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
Page 11
EN
11
• Extension cables and multi plugs
must not be used for connection.
B A damaged power cable must be
replaced by a qualified electrician.
B Product must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your freezer is
produced from recyclable materials.
Disposing of your old freezer
Dispose of your old freezer without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your freezer.
Before disposing of your freezer, cut
out the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
A If the entrance door of the room
where the freezer will be installed is
not wide enough for the freezer to
pass through, then carefully remove
the doors of your freezer and pass it
sideways through the door.
1. Install your freezer to a place
that allows ease of use.
2. Keep your freezer away from
heat sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your freezer in order
to achieve an efficient operation. If the
freezer is to be placed in a recess in
the wall, there must be at least 5 cm
distance with the ceiling and at least
5 cm with the wall. Do not place your
product on the materials such as rug
or carpet.
4. Place your freezer on an even
floor surface to prevent jolts.
Page 12
EN
12
1. Reversing The Door
2. We recommend that you
reverse the door before switching on
for the first time.
3. Tools required: Small and
medium size flat and cross-headed
screwdrivers, a pair of pliers. Spare
Parts supplied in the plastic bag: The
following parts, which are exclusively
for left hand side fitted hinge operation
are supplied in a plastic bag with the
appliance:
4. - Door top trim hinge covers –
there are 2 different parts, one for each
side of top trim.
5. We suggest you keep all the
parts supplied in the plastic bag and
also parts, which have been removed
when reversing the door, in a safe
place for possible future, re-use.
6.
7. Important: We suggest you ask
somebody to help you when moving
the appliance around and to hold the
door when removing / re-fitting hinges
and the door to avoid any injury and
damage to the product.
8.

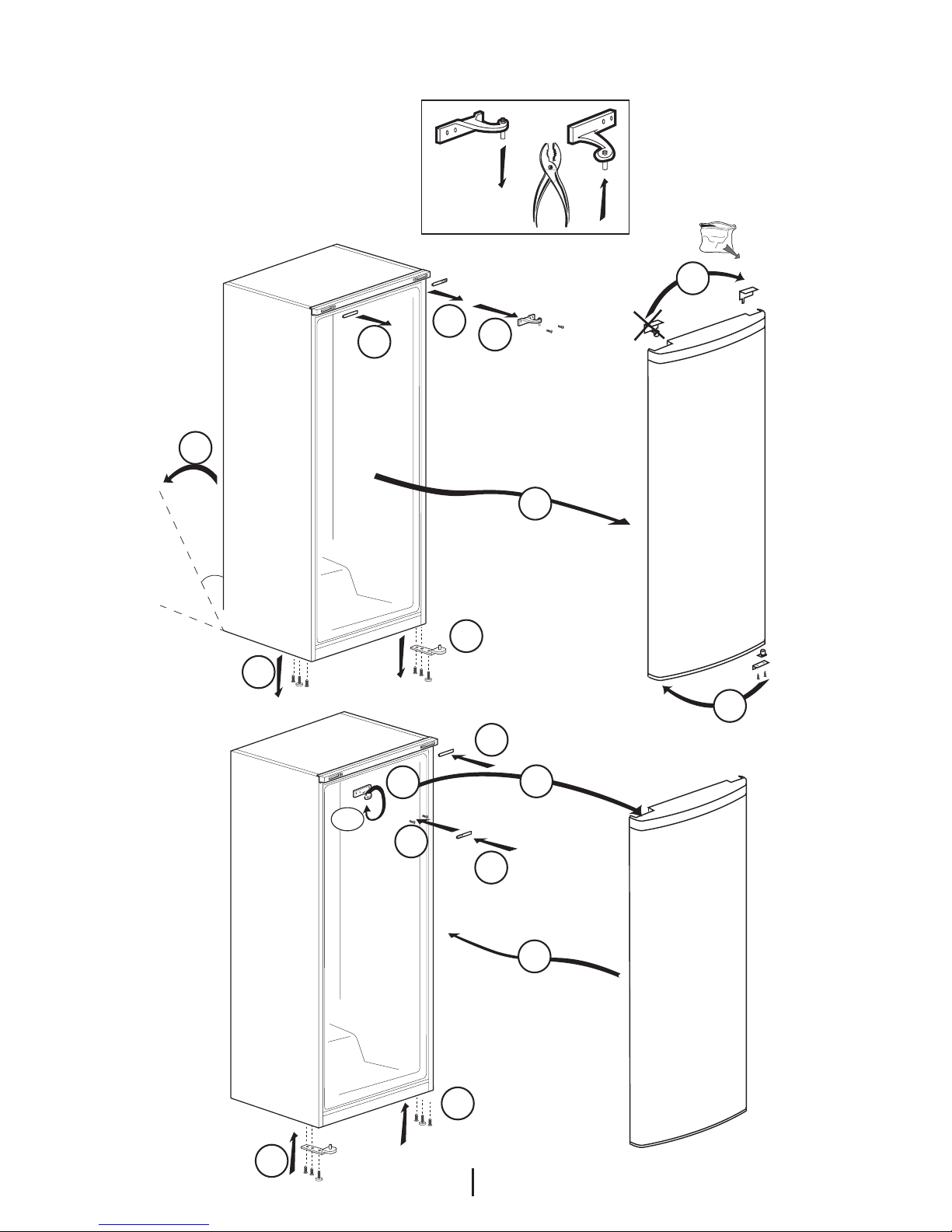

9. Please refer to diagrams
supplied. To follow numbers in
brackets below, refer to the main
diagram.
10. Switch off the appliance at the
socket outlet and pull out the mains
plug.
11. Remove all loose items and
fittings and food inside the appliance.
12. Gently prise off plastic hinge
covers on both sides of front top panel
using a small flat-headed screwdriver.
(1-2)
13. Unscrew the bolts of the top
hinge and remove top hinge. (3)
14. Remove door carefully off the
bottom hinge and stand door upright
in a safe place.(4)
15. Gently prise off plastic hinge
cover on door top trim. Fit the other
door top trim plastic off hinge cover
supplied in the plastic bag.(5)
16. Gently tilt the appliance back
against a strong wall on its rear side
sufficiently to allow the lower hinge
to be removed. Take care to protect
the appliance, your wall and floor
coverings. You can utilise the original
packaging to do this. Once you tilt the
appliance back, check to make sure
the appliance is completely stable and
safe before you carry on. (6)
17. Unscrew and remove the front
feet and 1 bolt. (7)
18. Unscrew and remove the
bottom hinge. (8)
19. Unscrew and remove the
bottom hinge door stopper and
bushing and reposition them on the
other side while rotating the bushing
180°. (9)
20. Fit the bottom hinge and tighten
the screws as shown in figure. (10)
21. Fit the other front feet as shown
in figure. (11)
22. Rotate the top hinge 180°.
Unscrew the hinge pin and re-tighten it
to the opposite side. (12)
23. Fit the top hinge on the left hand
side bushing of the door. (13)
24. Locate and re-fit door to bottom
hinge pin. (14)
25. Re-fit the upper hinge on the
opposite side by using a flat headed
screwdriver. (15)
26. Fit front top panel plastic hinge
covers on the opposite sides. (16)
27. Adjust the two front feet if
necessary.
Page 13
EN
13
28. Check that door opens and
closes easily, it is aligned correctly and
there are no gaps allowing air into the
cabinet. If there are gaps between the
door seal and the cabinet, adjust the
door seal by gently pulling away from
the door using fingers.
29. Check that all the hinge screws
are tightened. Avoid over tightening
the screws.
30. Put all items, fittings back in the
appliance.
31. Wait for at least 4 hours to allow
the system to settle before switching
on.
32. Once the correct storage
temperatures have been reached in
the appliance, put back all the food.
Page 14
EN
14
8
5
(12)
180°
45 °
3
2
1
6
4
9
7
10
11
14
12
16
16
13
15
Page 15
EN
15
4 Before operating
Starting
Final Check
Before you start using the freezer
check that:
1. The front feet have been
adjusted so the appliance is level.
2. The interior is dry and air can
circulate freely at the rear.
3. Clean the interior as
recommended under “CLEANING
AND CARE.”
4. Insert the plug into the wall
socket and switch on the electricity
supply. Avoid accidental disconnection
by taping over the switch, the
compressor will start running in about
five minutes.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running or
not which is quite normal.
6. Do not load the appliance
immediately it is switched on. Wait
until the correct storage temperature
has been reached. We recommend
that you check the temperature
with an accurate thermometer
(see;Temperature Control and
Adjustment)..
7. Front edges of the cabinet may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
8. We recommend that you set
the thermostat at MIN setting and
monitor the temperature to ensure the
appliance maintains desired storage
temperatures
9. (See Temperature Control and
Adjustment section).
Important Notes :
10. If there is a power failure do not
open the door. Frozen food should not
be affected if the failure lasts for less
than 17 hours. If the failure is longer,
then the food should be checked and
either eaten immediately or cooked
and then re-frozen.
11. If you find the freezer door
difficult to open just after you have
closed it, don’t worry. This is due to
the pressure difference which will
equalise and allow the door to open
normally after a few moments.
12. You will hear a vacuum sound
just after closing the door. This is quite
normal.
13. When you switch on, the
appliance will not start immediately,
because the appliance
incorporates a protection device in the
electronics - wait for about 5 minutes.
Page 16
EN
16
1.Freezer Set Function
This function allows you to make
the freezer compartment temperature
setting.
Press this button to set the
temperature of the freezer compartment
to - (warmest), --, ---, ----, ----- (coldest)
respectively.
2.High Temperature Error /
Warning Indicator
This light comes on during high
temperature failures and error warnings.
3- Quick Frezee Indicator
This icon lits when the Quick Freeze
function is active.
4-Quick Frezee Function
When you press Quick Freeze button,
the temperature of the compartment
will be colder than the adjusted values.
This function can be used for food
placed in the freezer compartment and
required to be cooled down rapidly.
If you want to cool large amounts of
fresh food, it is recommended to active
this feature before putting the food into
the freezer.
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
Quick Freezer indicator will remain
lit when the Quick Freezer function is
enabled. To cancel this
function press Quick Freezer button
again. Quick Freezer indicator will turn
off and return to its normal settings.
If you do not cancel it, Quick Fridge
will cancel itself automatically after 2
hours or when the freezer compartment
reaches to the required temperature.
This function is not recalled when
power restores after a power failure.
5 Using your freezer
1 2 3 4
Page 17
EN
17
6 Maintenance and cleaning
• We recommend that you switch off
the appliance at the socket outlet
and pull out the mains plug before
cleaning.
• Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
• Use luke warm water to clean the
cabinet of the appliance and wipe it
dry.
• Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
• If the freezer is not going to be used
for a long period of time switch it off,
remove all food, clean it as above and
leave the door ajar.
• To remove a drawer, pull it as far as
possible, and then tilt it upwards, and
then pull it out completely.
• Any dust that gathers on the
condenser, which is located at
the back of the freezer, should be
removed once a year with a vacuum
cleaner.
• Check door seals regularly to ensure
they are clean and free from food
particles.
ANever use cleaning agents or
water that contain chlorine (bleach) to
clean the outer surfaces and chromium
coated parts of the product. Chlorine
causes corrosion on such metal
surfaces.
Page 18
EN
18
7 Do's and Don'ts
Do-Check contents of the freezer at
regular intervals.
Do- Clean your freezer regularly.
Do- Keep food for as short a time as
possible and adhere to “Best Before”,
“Use By” dates.
Do-Store commercially frozen food in
accordance with the instructions given
on the packets that you buy.
Do-Always choose high quality fresh
food and be sure it is thoroughly clean
before you freeze it.
Do-Prepare fresh food for freezing in
small portions to ensure rapid freezing.
Do-Wrap all foods in aluminium foil or
freezer quality polythene bags and
make sure any air is excluded.
Do-Wrap frozen food when you buy it
and put it in to the freezer as soon as
possible.
Do-Separate food in the
compartments. This will enable you to
find food quickly and avoid excessive
door opening therefore save electricity.
Do-Remove ice cream from the
freezer 10-20 minutes before serving.
Don’t- Leave the door open for long
periods as this will make the freezer
more costly to run.
Don’t- Put hot food into the freezer.
Let it cool down first.
Don’t- Put liquid-filled bottles or sealed
cans containing carbonated liquids into
the freezer as they may burst.
Don’t- Store poisonous or dangerous
substances in the Freezer. Your freezer
has been designed for the storage of
edible foodstuffs only.
Don’t- Exceed the maximum freezing
capacity (10 kg in any 24 hours) when
freezing fresh food.
Don’t- Consume ice-cream and water
ices direct from the freezer. The low
temperature may cause ‘freezer
burns’ on lips.
Don’t- Freeze fizzy drinks.
Don’t- Try to keep frozen food which
has thawed, it should be eaten within
24 hours or cooked and refrozen.
Don’t- Remove items from the freezer
with wet hands.
Don’t- Close the door before placing
the fast-freeze compartment cover in
its place.
Don’t- Leave frozen food at room
temperature to thaw; the best way to
defrost food is to put it in the freezer
to thaw slowly. Make sure you avoid
defrosting food or food juices drip onto
other food.
Don’t-Remove the plastic cover on
the rear wall.
Don’t Damage the pipes on the
appliance.
Page 19
EN
19
Problem Solving
If the appliance does not operate
when switched on, check:
• The plug is inserted properly in the
socket and that the power supply is
on. (To check the power supply to the
socket, plug in another appliance)
• The fuse has blown/circuit breaker
has tripped/main distribution switch
has been turned off.
• The temperature control has been set
correctly.
• New plug is wired correctly if you
have changed the fitted moulded
plug.
If the appliance is still not operating
after the above checks, please refer to
the section on “How To Obtain Service”.
Please ensure that above checks have
been made as a charge will be made if
no fault is found.
Page 20
EN
20
8 How To Obtain Service
Please keep your purchase receipt or other proof of purchase in a safe place; you
will need to have it should the product require attention under guarantee.
You should also complete the details below; it will help us assist you when re questing service. (The model number is printed on the Instruction Booklet and the
serial number is printed on the Rating Label affixed to the appliance)
Model No: Serial No: Retailer: Date of purchase:
For service under guarantee simply telephone the appropriate number
below
UK Mainland & Northern Ireland
0845 6046859 or 0345 6046859 Fridges & Freezers
0845 6046859 or 0345 6046859 Electric Cookers
0845 6046859 or 0345 6046859 Gas & Dual Fuel Cookers
0845 6046859 or 0345 6046859 Washing Machines & Dishwashers
Republic of Ireland
All Refrigeration, All Cookers 01 862 3411 Washing Machines & Dishwashers
Before requesting service please check the trouble-shooting guide in the
Operating Instructions as a charge may be levied where no fault is found even
though your product may still be under guarantee.
Page 21
EN
21
9 Guarantee Details
Your new BLOMBERG product is guaranteed against the cost of breakdown
repairs for three years from the date of the original purchase.
What is covered?
•Repairsnecessaryasaresultoffaultymaterials,defectivecomponentsor
manufacturing defect.
•Thecostoffunctionalreplacementparts,butexcludingconsumableitems.
•ThelabourcostsofaBLOMBERGapprovedrepairertocarryouttherepair.
What is not covered?
•Transit,deliveryoraccidentaldamageormisuseandabuse.
•Cabinetorappearanceparts,includingknobs,flaps,handlesorcontainerlids.
•Accessoriesorconsumableitemsincludingbutnotlimitedto,icetrays,scrap-
ers, cutlery baskets, filters and light bulbs.
•Repairsrequiredasaresultofunauthorisedrepairorinexpertinstallationthat
fails to meet the requirements contained in the user instruction book.
•Repairstoproductsusedoncommercialornon-residentialhouseholdpremises.
•Lossoffrozenfoodinfreezersorfridge/freezers.(Foodlossinsuranceisoften
included within your household contents insurance policy, or may be available
separately from your retailer).
Important notes.
•YourBLOMBERGproductisdesignedandbuiltfordomestichouseholduse
only.
•Theguaranteewillbevoidiftheproductisinstalledorusedincommercialor
non-residential domestic household premises.
•Theproductmustbecorrectlyinstalled,locatedandoperatedinaccordance
with the instructions contained in the User Instructions Booklet provided.
•ProfessionalinstallationbyaqualifiedElectricalDomesticApplianceInstalleris
recommended for all Washing Machines, Dishwashers and Electric Cookers
•GasCookersmustonlybeinstalledbyaGasSafe(orBORDGAIS)registered
Gas Installer.
•TheguaranteeisgivenonlywithintheboundariesoftheUnitedKingdomand
the Republic of Ireland.
•Theguaranteeisapplicableonlytonewproductsandisnottransferableifthe
product is resold.
•BLOMBERGdisclaimsanyliabilityforincidentalorconsequentialdamages.
The guarantee does not in anyway diminish your statutory or legal rights.
Page 22
www.blomberginternational.com
info@blomberginternational.com
Blomberg, 1 Greenhill Crescent, Watford, Hertfordshire, WD18 8QU
Tel: 0845 6048340 Fax: 0845 6004922
email: service@blomberguk.com www.blomberg.uk.
57 7948 0000/AA
Loading...
