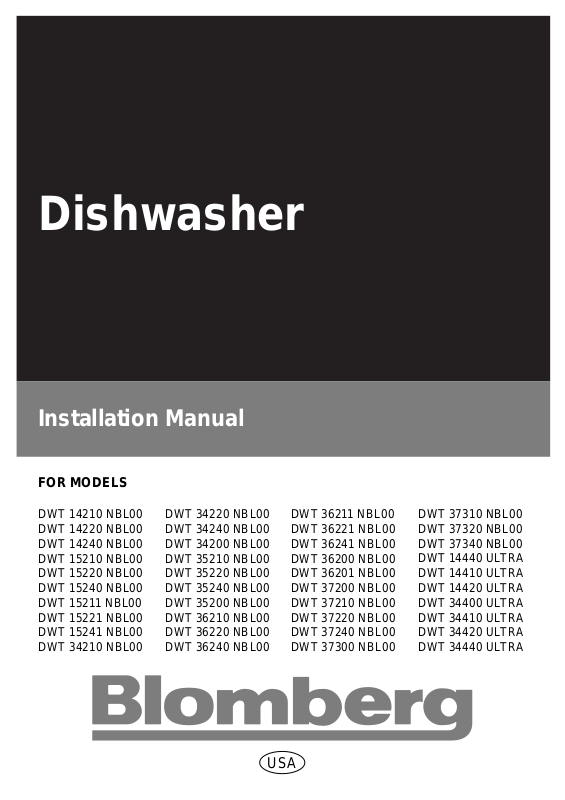

Blomberg DWT 35220 User Manual

Dishwasher
Installation Manual
FOR MODELS
DWT 14210 NBL00 DWT 14220 NBL00 DWT 14240 NBL00 DWT 15210 NBL00 DWT 15220 NBL00 DWT 15240 NBL00 DWT 15211 NBL00 DWT 15221 NBL00 DWT 15241 NBL00 DWT 34210 NBL00
DWT 34220 NBL00 DWT 34240 NBL00 DWT 34200 NBL00 DWT 35210 NBL00 DWT 35220 NBL00 DWT 35240 NBL00 DWT 35200 NBL00 DWT 36210 NBL00 DWT 36220 NBL00 DWT 36240 NBL00
DWT 36211 NBL00 DWT 36221 NBL00 DWT 36241 NBL00 DWT 36200 NBL00 DWT 36201 NBL00 DWT 37200 NBL00 DWT 37210 NBL00 DWT 37220 NBL00 DWT 37240 NBL00 DWT 37300 NBL00
USA
DWT 37310 NBL00 DWT 37320 NBL00 DWT 37340 NBL00 DWT 14440 ULTRA DWT 14410 ULTRA DWT 14420 ULTRA DWT 34400 ULTRA DWT 34410 ULTRA DWT 34420 ULTRA DWT 34440 ULTRA
Dishwasher Models
DWT 15211 NBL00 DWT 15221 NBL00 DWT 15241 NBL00
DWT 34210 NBL00 DWT 34220 NBL00 DWT 34240 NBL00 DWT 34200 NBL00 DWT 35210 NBL00 DWT 35220 NBL00 DWT 35240 NBL00
DWT 14210 NBL00 DWT 14220 NBL00 DWT 14240 NBL00
DWT 35200 NBL00 DWT 36210 NBL00 DWT 36220 NBL00 DWT 36240 NBL00 DWT 36211 NBL00 DWT 36221 NBL00 DWT 36241 NBL00
DWT 15210 NBL00 DWT 15220 NBL00 DWT 15240 NBL00
DWT 36200 NBL00 DWT 36201 NBL00 DWT 37200 NBL00 DWT 37210 NBL00 DWT 37220 NBL00 DWT 37240 NBL00 DWT 37300 NBL00
DWT 14440 ULTRA DWT 14410 ULTRA DWT 14420 ULTRA
DWT 37310 NBL00 DWT 37320 NBL00 DWT 37340 NBL00 DWT 34400 ULTRA DWT 34410 ULTRA DWT 34420 ULTRA DWT 34440 ULTRA
To prevent accidents, which could cause serious injury or death, as well as
machine damage read these instructions before installation and / or use.
Contents
1. IMPORTANT SAFETY INSTRUCTIONS 1
1.1 INSPECT THE DISHWASHER 2
1.2 HOW TO CONTACT US 2
2. TOOLS WHICH MAY BE NEEDED 3
3. MATERIALS WHICH MAY BE NEEDED 3
4. MATERIALS SUPPLIED 4
4.1 PARTS SUPPLIED 4
4.2 MANUAL BAG 4
4.3 DISHWASHER PARTS BAG 1 4
4.4 DISHWASHER PARTS BAG 2 4
4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4
5. DISHWASHER SPECIFICATIONS 5
5.1 TECHNICAL FEA TURES 5
6. ENCLOSURE PREPARATION 6
6.1 ELECTRICAL PREPARATION 6
6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 7
6.3 ADJUSTING HEIGHT 7
6.4 INSTALLING THE SIDE TRIM STRIPS 8
6.5 PREPARING THE WATER CONNECTION (A) 9
6.6 DRAIN PREPARATION 10
6.7 STEAM PROTECTION FOIL 11
7. PLACEMENT OF DISHWASHER INTO THE OPENING 12
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 12
7.2 READJUSTING FOOT LEVELS 17
7.3 ADJUSTING THE MOV ABLE T OE KICK 17
7.4 INSTALLING THE OUTER DOOR 18
8. INSTALLER CHECKLIST 24
9. FINAL INSTRUCTIONS 24
10. SELF HELP HINTS 24
INTRODUCTION
Please read this installation manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance.
Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon also will provide important references.
WARNING
Ý
Notice
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.
Notice:
Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the table-ware, the equipment or the environment.
CAUTION
1. IMPORTANT SAFETY INSTRUCTIONS
In addition to these instructions, the dishwasher shall be installed:  In accordance with all local codes or, in
absence of a local code,
 In the United States, with the National
Electric Code,
 In Canada, with the Canadian Electric
Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.
Notice :
Read these installation instructions completely before installing and follow them carefully. Save these installation instructions and pass them on to any future user.
WARNING
When installing the dishwasher, follow basic precautions, including the following:
 The dishwasher installation must be
performed in accordance with this installation manual. If you did not receive an installation manual, order it by calling 1-800-459-9848 or you may also download it from our web site at
www.blombergappliances.com
 Installation and repair should be
performed by a qualied installer. Work by unqualied persons could be dangerous and may void the warranty.
 Do not operate the appliance if damaged,
malfunctioning, partially disassembled or if it has missing or broken parts.
 Also follow the safety instructions of the
user manual.
 To reduce the risk of electric shock, re,
or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.
 Only connect the dishwasher to the
power supply when all installation and plumbing work is complete.
 If the dishwasher is installed in a location
that experiences freezing temperatures (e.g. in a vacation home, cabin, etc.), you must drain all the water from the dishwasher’s interior. Water system ruptures that occur as a result of freezing are not covered by warranty.
 Dishwasher must be secured to adjacent
cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury.
 Connect to a properly rated, protected
and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 14 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must
USA
1
be met to prevent injury and machine damage. Consult a qualied electrician if in doubt.
 Do not use any extension cord or
portable outlet device to connect the dishwasher to a power supply.
 Ensure that any plastic wrappings, bags,
small pieces etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!
 Remove the door to the washing
compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal.
 Old appliances may contain materials
that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.
Notice :
 The dishwasher drain hose must be
installed with a drain loop at least 28" (710mm) off the cabinet oor; otherwise the dishwasher may not drain properly.
 This dishwasher is intended for
residential use only, and should not be used in commercial establishments.
 New installation - If the dishwasher is a
new installation, most of the work must be done before the dishwasher is moved into place.
 Replacement - If the dishwasher is
replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.
1.1 INSPECT THE DISHWASHER
After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately.
Notice :
 Cosmetic defects must be reported within
10 days of installation.
 Do not discard any bags or items that
come with the original package until after the entire installation has been completed.
1.2 HOW TO CONTACT US :
You may either call our Toll Free Number at 1-800-459-9848 or contact us via the web site at
www.blombergappliances.com
or Contact the Blomberg Distributor for your State or Province as listed on the Distributor Contact List provided.vv
USA
2
2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Additional materials may be required to comply with local codes)
Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided dishwasher supply line.
Electrical Supply Cable - Minimum #14AWG, 2 conductors, 1 ground, insulated copper conductors.
90° elbow with 3/8” N.P.T. male threads on one leg, and sized to t your water supply line (copper tubing/compression tting, or braided hose) on the other leg.
UL listed conduit connector or strain relief.
Teflon tape or other pipe thread compound to seal plumbing connections.
Shut-off valve and ttings appropriate for hot water supply line (copper tubing/compression tting, or braided hose).
Silicone
Glue
USA
3
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
a.
b.
x1
Parts for your dishwasher will come in several plastic bags. Check your parts bags shown to make sure you have all the
x1
parts as listed to the left.
c.
x1
4.2 MANUAL BAG
The dishwasher comes with a manual bag containing:
d.
x6
 User manual,  Installation manual and
e.
f.
x1
 Quick reference guide.
x1
4.3 DISHWASHER PARTS BAG 1
This dishwasher bag comes with the following parts:
g.
x1
a. Side Trim Strips (Left) b. Side Trim Strips (Right)
h.
x1
c. Adjusting Wrench d. Screws Ø 1/8” x 5/8” (Ø 3.5 mm x 14 mm)
j.
e. Mounting Bracket Left
x1
f. Mounting Bracket Right
k.
l.
m.
g. Spring Clamp
x1
h. Screw Clamp j. Rubber Connector
x1
k. Toe Kick Bracket - Left l. Toe Kick Bracket - Right
x3
m. Wire Nuts n. Clips
n.
x4
o. Toe Kick (toe kick without slots) p. Toe Kick
o.
p.
r. Screws Ø 1/8” x 3/8” (Ø 3.9 mm x 9 mm)
x1
s. Plastic Caps t. Screws Ø 3/16” x 1/4” (Ø 4mm x 6mm)
x1
z. Steam Protection Foil
r.
x2
4.4 DISHWASHER PARTS BAG 2
In addition to the manual bag and the dishwasher parts bag 1
s.
x2
DWT 34, DWT 35, DWT 36 and DWT 37 (dishwasher models which can accept a wooden kitchen door) also come with a
t.
x2
door panel installation kit which contains: v. Screws Ø 1/8” x 5/8” (Ø 3.5mm x 14mm)
v.
y.
x4
y. Screws Ø 3/16” x 13/4” (Ø 4mm x 43mm)
4.5 PARTS ATTACHED TO THE REAR OF THE
x4
DISHWASHER
z.
a. Side Trim Strips (Left)
x1
b. Side Trim Strips (Right) o. Toe Kick (toe kick without slots) p. Toe Kick
4
USA
5. DISHWASHER SPECIFICATIONS
4
/
1
- 36
34
(864mm - 920mm)
/
7
- 35
/
7
33
8
8
mm - 911mm)
(861
23
9
/
16
(598mm)
24 max
(610mm max)
(610
(610
24
mm
24
mm
)
)
5.1 TECHNICAL FEATURES
Load capacity 12 place settings Permissible water
pressure
Electrical connection
4.35 - 145 psi (0.3 - 10 bars)
120 V (volts), 12 A (amps), 60 Hz (hertz)
Total power 1200 W (watts) Heater power 1000 W (watts)
Notice :
Because we continually strive to improve our products, we may change our specications and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.
USA
5
6. ENCLOSURE PREPARATION
Notice :
 For proper dishwasher operation and appearance ensure that the enclosure has the
minimum dimensions shown in the gure above.
6.1 ELECTRICAL PREPARATION
WARNING
To avoid electrical shock and/or a re hazard, make sure electrical work is properly installed. Only qualied electricians should perform electrical work. Before installation disconnect the power supply to the work area by unplugging the unit, “tripping” the circuit breaker or removing the fuse. The installer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amperes.
WARNING
Electrical supply cords must be a minimum #14AWG copper wire.
Position the cable extending approximately 30” (760mm)
30)
(
from the enclosure’s back (Figure A).
B
A
C
Position the cable extending at the bottom (Figure B).
Remove 2 cable’s outer casing, and then remove (9-13mm) of insulation from each wire. (Figure C)
6
15
USA
15
/
16
” - 3
/
” (75mm-100mm) of the
16
3
/
” -
8
1
/
2
