Blomberg DWT 25502 W User Manual [nl]

Dishwasher

User manual

DWT 25502 SS

DWT 25502 B

DWT 25502 W

DW 25502 SS

DW 25502 W

DW 25502 B

Dishwasher

User manual

DWT 25502 SS

DWT 25502 B

DWT 25502 W

DW 25502 SS

DW 25502 W

DW 25502 B

To prevent accidents, which could cause serious injury or death, as well as machine damage read these instructions before installation and / or use.

CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 1

2. INSTALLATION 4

3. GETTING TO KNOW YOUR DISHWASHER 5

4. LOADING THE DISHWASHER 6

4.1 UPPER RACK 8

4.2 LOWER RACK 11

4.3 PROPER AND IMPROPER LOADING OF DISHWARE 15

5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER 16

6. OPERATING THE PRODUCT 17

6.1 KEYS 18

6.2 PREPARING THE MACHINE 18

6.3 PROGRAMME SELECTION 18

6.4 AUXILIARY FUNCTIONS 20

6.5 PROGRAMMING THE WASHING TIME 22

6.7 CHILD (KEY) LOCK 23

6.8 CANCELLING THE PROGRAMME 24

6.11 END OF PROGRAMME 24

6.12 WATER CUT-OFF WARNING 25

6.13 OVERFLOWING WARNING 25

7. DETERGENT & RINSE AID DISPENSER 26

7.1 FILLING THE DETERGENT DISPENSER 26

7.2 FILLING RINSE AID DISPENSER 27

7.3 SET THE DOSE OF RINSE AID 28

8. SETTING THE WATER SOFTENER 29

WATER HARDNESS & REGENERATION SETTINGS 29

9. FILLING THE DISHWASHER SALT DISPENSER 30

10. CARE AND MAINTENANCE 31

10.1 CARING FOR YOUR DISHWASHER EXTERIOR 32

10.2 CARING FOR YOUR DISHWASHER INTERIOR 32

10.3 CLEANING THE FILTERS 33

10.4 CLEANING THE HOSE FILTER 34

10.5 CLEANING THE IMPELLERS 34

11. TROUBLESHOOTING 36

12. TECHNICAL FEATURES 41

13. WARRANTY STATEMENT FOR THE BLOMBERG DISHWASHERS 42

14. HOW TO GET SERVICE 44

INTRODUCTION

Please read this user manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance.

Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon will also provide important references.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

NOTICE: Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the tableware, the equipment or the environment.

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING:When using the

• Use the dishwasher only for its

• The manufacturer disclaims

• The information in this user

• Do not operate your dishwasher

• Do not tamper with the controls.

• Do not abuse, sit on, stand in or

• The cup racks are designed to

• To reduce the risk of injury, do not

dishwasher, follow basic precautions, including the following: Read all instructions before using the dishwasher! Save these operating instructions and pass them on to any future user.

intended purpose as described in this user manual. This appliance is intended for normal household use only.

responsibility for damage or injury caused by improper use of this appliance.

manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury or loss of life.

unless all the enclosure panels are properly in place.

on the door or dish rack of the dishwasher.

support cups, glasses and kitchen utensils. When the cup racks are in the dishwasher do not lean on or use the cup racks to support your body weight.

allow children to play in, on or near the dishwasher.

USA

• Use only detergents or rinse aids recommended for use in a household dishwasher and keep them in a dry place out of the reach of children. Check that the detergent dispenser is empty after the completion of each wash program.

• Dishwasher detergents are alkaline. They can be dangerous if inhaled or swallowed. Avoid contact with skin and eyes and keep children and infirm persons away from the dishwasher when the door is opened. Consult a doctor immediately if detergent has been swallowed or inhaled.

• Do not drink water from the dishwasher! Harmful residues could be present.

• Under certain conditions hydrogen gas may be produced in a hot water heater system that has not been used for two weeks or more. Hydrogen gas is explosive. If the hot water system has not been used for such period, before using the dishwasher turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As gas is flammable, do not smoke or use an open flame during this time.

• Do not store or use flammable liquids or vapors in the area of the dishwasher.

• When loading items to be washed, position sharp items so that they are not likely to damage the door seal and load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the

manufacturer’s recommendations.

• If a malfunction occurs, switch off the appliance and turn off the water supply to the dishwasher.

• Please do not attempt to carry the dishwasher by yourself in order to avoid potential injuries. Two or more people are needed to move a dishwasher.

• Before cleaning or carrying out maintenance, switch off the appliance, disconnect the power plug and turn off the water supply.

• Repairs and technical modifications must be carried out exclusively by a qualified technician.

• If the dishwasher is not in use for an extended period of time (i.e. vacation home), we recommend you check that the baskets are empty, leave the inside of the dishwasher clean, leave the door cracked open to allow air to circulate and turn off both the power and water supply to the dishwasher.

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• Potential hazards exist if any equipment uses electricity, water and moving parts.

• This appliance must be connected to a grounded metal, permanent wiring system, or an equipmentgrounding conductor must be

USA

run with the circuit conductors and connected to the equipmentgrounding terminal or lead on the appliance.

• This appliance produces ozone within the washing compartment during normal operation. Longterm exposure to ozone or exposure at elevated levels may result in respiratory problems, especially for the infirmed, elderly and children.

• It is the legal responsibility of parents/legal guardians to supervise or instruct concerning use of the machine when the children become old enough to operate.

• Do not leave the door open in order not to cause a tripping hazard.

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal.

• Remove the door lock or door of the washing compartment before disposing dishwasher so that children or small animals can not trapped inside.

• Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

• Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by.Replace it immediately when it is torn, cut, swollen or there is water leakage.

• Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING:If your dishwasher is equipped with

SAVE THESE INSTRUCTIONS

USA

internal illumination, lamp should only be replaced by the Authorised Service Agent in case of failures that may occur on the lamp. WARNING:Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician. WARNING:Warning: This product may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.

2. INSTALLATION

WARNING:When installing

the dishwasher, follow basic

The dishwasher installation must be performed in accordance with the installation manual. If you did not receive an installation manual order it by calling 1-800-459-9848 or you may also download it from our web site at www.blombergappliances.com

• Please check the standarts and

• Installation, maintenance and

• Do not operate the appliance if

• Before installation or service,

• Only connect the dishwasher

• Never connect the ground wire

• Do not install or store the

• Dishwasher must be secured

precautions, including the following:

local codes for placement of machine.

repair should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.

damaged, malfunctioning, partially disassembled or if it has missing or broken parts.

disconnect the power supply to the work area by unplugging the unit, “tripping” the circuit breaker or removing the fuse.

to the power supply when all installation and plumbing work is complete.

to gas lines, or hot water pipes, plumbing lines.

dishwasher where it can be exposed to below freezing temperatures or exposed to weather.

to adjacent cabinetry using the brackets provided. Failure to

do this may cause damage to property or bodily injury.

• Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must be met to prevent injury and machine damage. Consult a qualified electrician if in doubt.

• Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

WARNING:Danger of suffocation! Ensure that

USA

any plastic wrappings, bags, small pieces etc. are disposed of safely and kept out of the reach of children.



































3. GETTING TO KNOW YOUR DISHWASHER

1. Upper rack

2. Upper spray arm

3. Salt container (MODEL DEPENDING)

4. Cutlery basket

5. Detergent dispenser

6. Door

7. Control panel

8. Guiding track for the upper rack

9. Lower spray arm

10. Filters

11. Lower rack

12. Model and Serial Tag

13. Turbo fan heat drying system (MODEL DEPENDING)

14. Removable 3rd basket (MODEL DEPENDING)

15. Additional upper spray arm (MODEL DEPENDING)

USA

4. LOADING THE DISHWASHER

1. Pull the handle to open the door. If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue.

Upper rack (MODEL DEPENDING)

Top rack load pattern for 12 place

settings according to the AHAM DW-1

Standards

CAUTION:Hot steam can escape! Danger of serious

burns or other injury.

Lower rack (MODEL DEPENDING)

Bottom rack load pattern for 12 place

settings according to the AHAM DW-1

Standards

Upper rack (MODEL DEPENDING)

2. Remove coarse food leftovers from tableware.

3. Now you can load the dishwasher.

International Loading Pattern – Top

rack (14 place settings)

CAUTION:Hot steam can escape! Danger of serious

2. Remove coarse food leftovers

3. Now you can load the dishwasher.

USA

burns or other injury.

from tableware.

Lower rack (MODEL DEPENDING)

3. Now you can load the dishwasher.

Lower rack (MODEL DEPENDING)

International Loading Pattern – Bottom

rack (14 place settings)

Upper rack (MODEL DEPENDING)

Additional Loading Pattern – Top rack

(10 place settings) CAUTION:Hot steam can

escape! Danger of serious

2. Remove coarse food leftovers

burns or other injury.

from tableware.

Additional Loading Pattern – Bottom

rack (10 place settings)

CAUTION:Large knives and

other utensils with sharp tips and edges must be placed horizontally into the upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with sharp side down in the cutlery basket.

CAUTION:Use extreme caution when removing knives and other sharp utensils from the dishwasher. These items may have shifted position during the wash program, and may be wet or slippery.

USA

CAUTION:The cup racks are designed to support cups,

• Your dishwasher holds a maximum of 12 place settings.

• Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that no water can collect).

• Small and light items can go into the upper rack.

• Long and narrow items are placed in the middle of the racks.

• Place all large and very dirty items in the lower rack.

• Dishes and cutlery should not be placed above each other.

• Glasses should not touch each other.

• The movement of the spray arms must not be hindered.

• Do not overload your dishwasher and pay attention to manufacturer instructions regarding dishes which are appropriate for use in for a dishwasher. Only with suitable dishes (mentioned in section 5) will you obtain optimal washing results with a sensible use of energy.

glasses and kitchen utensils. When the cup racks are in the dishwasher do not lean on or use the cup racks to support your body weight.

NOTICE: 3rd basket should be removed out of the dishwasher during the tests according to AHAM DW-1.

4.1 UPPER RACK

Load the upper rack with dessert plates, cups, glasses etc.

ADJUSTABLE SHELVES (MODEL DEPENDING)

Depending on the size of the glasses and cups, the shelf height setting may be adjusted.

1. Fold the shelf upwards A.

2. Positioning at the desired height B.

3. Fold the shelf again downwards C.

USA

COLLAPSIBLE UPPER BASKET TINES (MODEL DEPENDING)

There are foldable tines on the upper basket of the machine that you can lay down when you need larger space for big dishes. On your upper basket there are two types of laying tines namely, fully laid system (A) and gradually laid system (B). To bring the foldable tines into horizontal position, push the tines in the direction of the arrow by holding from the middle. Place your larger dishes into the area created. To bring the tines back to vertical position, just lift them up. Foldable tines will then snap in the latch again.

COLLAPSABLE UPPER BASKET TINES (MODEL DEPENDING)

Upper basket of the machine is equipped with wires with gradual folding system (A) that you can lay down when you need a larger space for large dishes. To bring the collapsible wires into horizontal position, grab the wire from mid position and push them in the directions of arrows. Place your larger dishes into the area created. To bring the wires back to vertical position, just lift them up. Collapsible wires will click into the latch again.

NOTICE: Bringing the wires to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the wires in the middle to horizontal or vertical position by holding them from their stems and pushing in the direction of arrow.

USA

FOLDING TINES





(MODEL DEPENDING)

There are “folding tines” in the upper rack to allow you more space to accommodate glasses or cups. Simply pull in the first front folding tine, move it to left A and right B to place in another positon. When you need, take the tines down until the tines fall down.

VARIABLE HEIGHT SETTING (MODEL DEPENDING)

The upper rack is equipped with a lifting mechanism which enables you to change the height of the rack even if it is fully loaded, and without having to remove it from the dishwasher.

LIFT UPPER RACK

1. To lift the upper rack to a higher position, hold it on one side and carefully pull it upwards A.

2. To lift the opposite side of the rack, hold it and pull it upwards in the same manner.



LOWER UPPER RACK

1. To lower the upper rack, hold and press in the rack lever on one side and carefully lower the rack without releasing the lever B.



2. Repeat the procedure with the lever on the opposite side of the rack.

NOTICE: Make sure that

both levers catch in the same height position.

USA

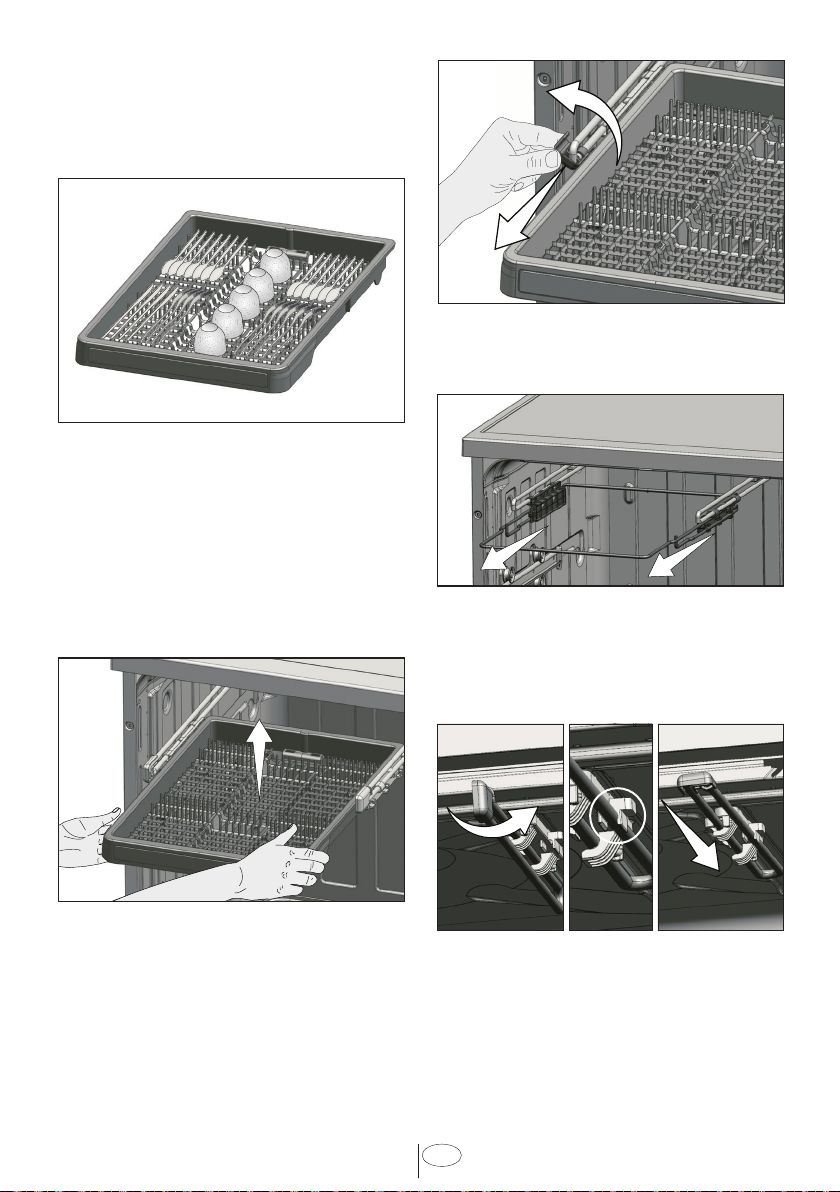

HEIGHT SETTING (MODEL DEPENDING)

In certain models, the height setting of the upper rack may be changed using the wheels which are present at two height levels.

CAUTION:Make sure that

1. Release the latches on both the

the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to the tableware.

right and left tracks of the upper rack by turning them to the outside

4. Push the latches back into the correct position.

4.2 LOWER RACK

Use the lower rack for plates, bowls, pots etc.

2. Pull out the rack completely B.

3. Place the rack into the tracks again at the desired height C.

USA

FOUR FOLDING PLATE SUPPORT TINES (MODEL DEPENDING)

There are 4 separate “folding plate support tines” in the lower rack of your dishwasher designed to allow you more space to accommodate saucepans, pots and large bowls in the lower rack. You can either fold each section (1, 2, 3, 4). individually or, all at once, to create a large empty space.

Simply press the handgrips A and fold them down. Pull tines up to fold them up again.

COLLAPSABLE LOWER BASKET WIRES 4 PIECES-(MODEL DEPENDING)

The four piece foldable wires located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. (1, 2, 3, 4). You can create larger spaces by folding each wire individually or all of them at once. Lay the foldable wires down by pressing on the latch (A).

USA
