Blomberg DWT25200SSWS Installation

Dishwasher

Installation Manual

FOR MODELS

DWT 23100 B DWT 23100 SS DWT 23100 W DWT 24100 B DWT 24100 SS DWT 24100 W DWT 24400 SS ULTRA DWT 24400 W ULTRA DWT 25100 B DWT 25100 SS DWT 25100 W

DWT 25200 BWS DWT 25200 SSWS DWT 25200 WWS DWT 25300 B DWT 25300 W DWT 25300 SS DWT 25500 B DWT 25500 W DWT 25500 SS DWT 54100 B DWT 54100 FBI

USA

DWT 54100 SS DWT 54100 W DWT 54400 SS ULTRA DWT 54400 W ULTRA DWT 55100 B DWT 55100 FBI DWT 55100 SS DWT 55100 W DWT 55200 BWS DWT 55200 FBIWS DWT 55200 SSWS

DWT 55200 WWS DWT 55300 FBI DWT 55300 B DWT 55300 W DWT 55300 SS DWT 55500 SS DWT 57500 B DWT 57500 FBI DWT 57500 SS DWT 57500 W DWT 57550 SS

Installation Manual For Dishwasher Models

Cycle Select

Half Load /

Start / Pause

Tablet

Time Delay

DWT 23100 B DWT 23100 SS DWT 23100 W DWT 24100 B DWT 24100 SS DWT 24100 W

DWT 54100 B DWT 54100 FBI DWT 54100 SS DWT 54100 W DWT 54400 SS ULTRA DWT 54400 W ULTRA DWT 55100 B DWT 55100 FBI

DWT 24400 SS ULTRA DWT 24400 W ULTRA DWT 25100 B DWT 25100 SS DWT 25100 W DWT 25200 BWS DWT 25200 SSWS

DWT 55100 SS DWT 55100 W DWT 55200 BWS DWT 55200 FBIWS DWT 55200 SSWS DWT 55200 WWS DWT 55300 FBI DWT 55300 B

DWT 25200 WWS DWT 25300 B DWT 25300 W DWT 25300 SS DWT 25500 B DWT 25500 W DWT 25500 SS

DWT 55300 W DWT 55300 SS DWT 55500 SS DWT 57500 B DWT 57500 FBI DWT 57500 SS DWT 57500 W DWT 57550 SS

To prevent accidents, which could cause serious injury or death, as well as

machine damage read these instructions before installation and / or use.

Contents

1. IMPORTANT SAFETY INSTRUCTIONS 1

1.1 INSPECT THE DISHWASHER 2

1.2 HOW TO CONTACT US 2

2. TOOLS WHICH MAY BE NEEDED 3

3. MATERIALS WHICH MAY BE NEEDED 3

4. MATERIALS SUPPLIED 4

4.1 PARTS SUPPLIED 4

4.2 MANUAL BAG 4

4.3 DISHWASHER PARTS BAG 1 4

4.4 DISHWASHER PARTS BAG 2 4

4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4

5. DISHWASHER SPECIFICATIONS 5

5.1 TECHNICAL FEATURES 5

6. ENCLOSURE PREPARATION 6

6.1 ELECTRICAL PREPARATION 6

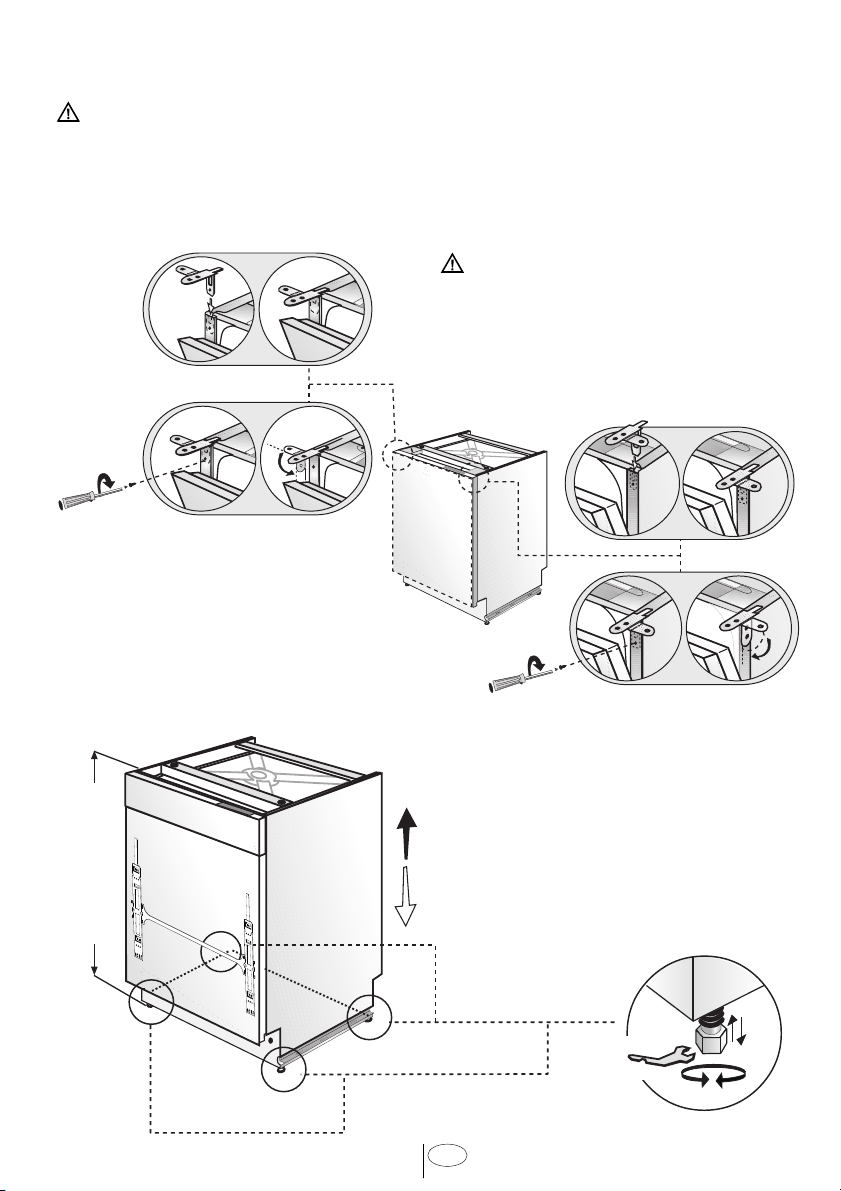

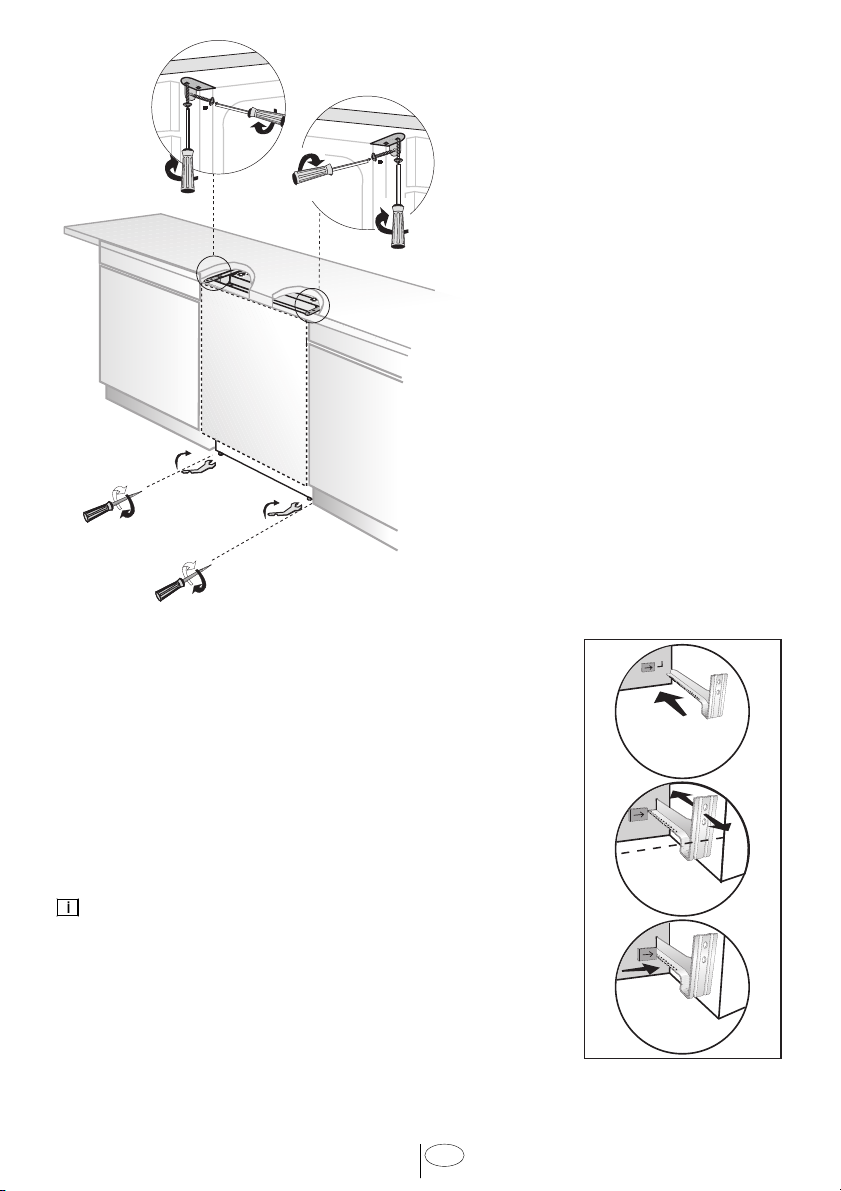

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 6

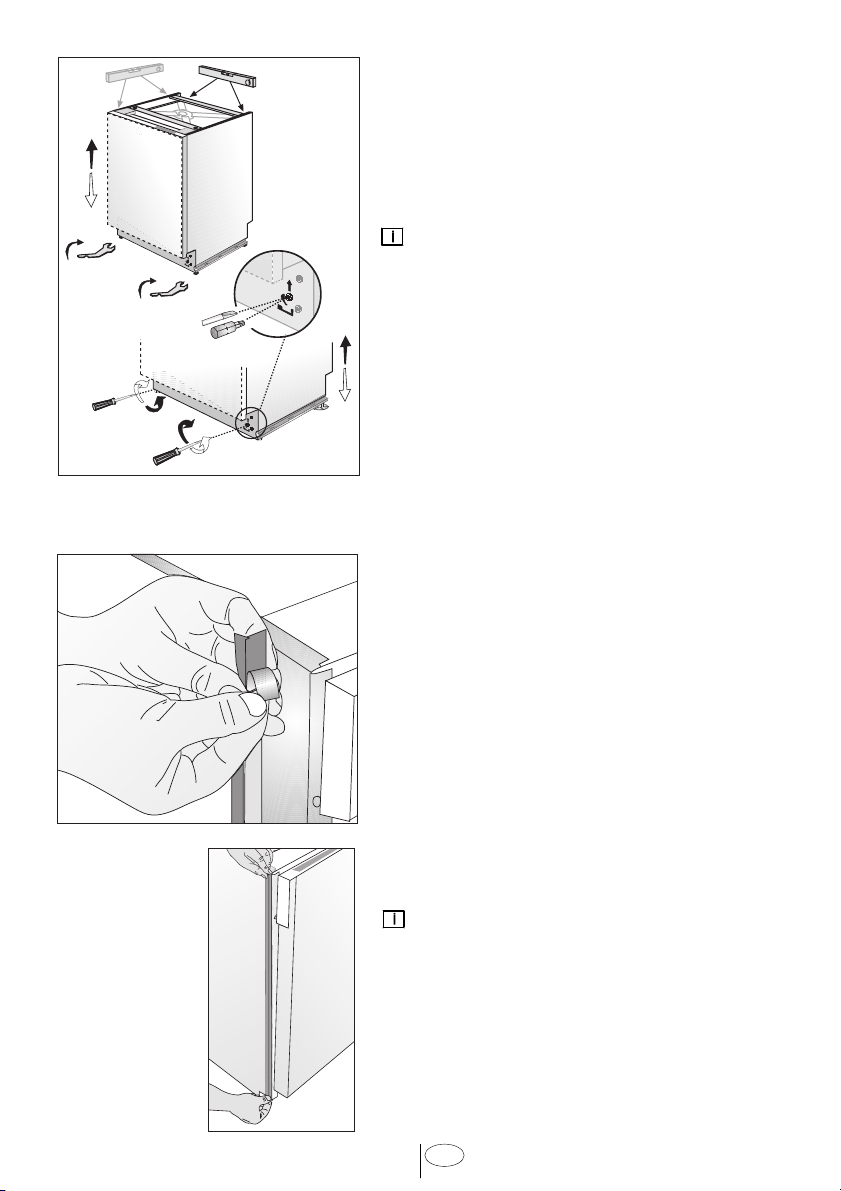

6.3 ADJUSTING HEIGHT 6

6.4 INSTALLING THE SIDE TRIM STRIPS 7

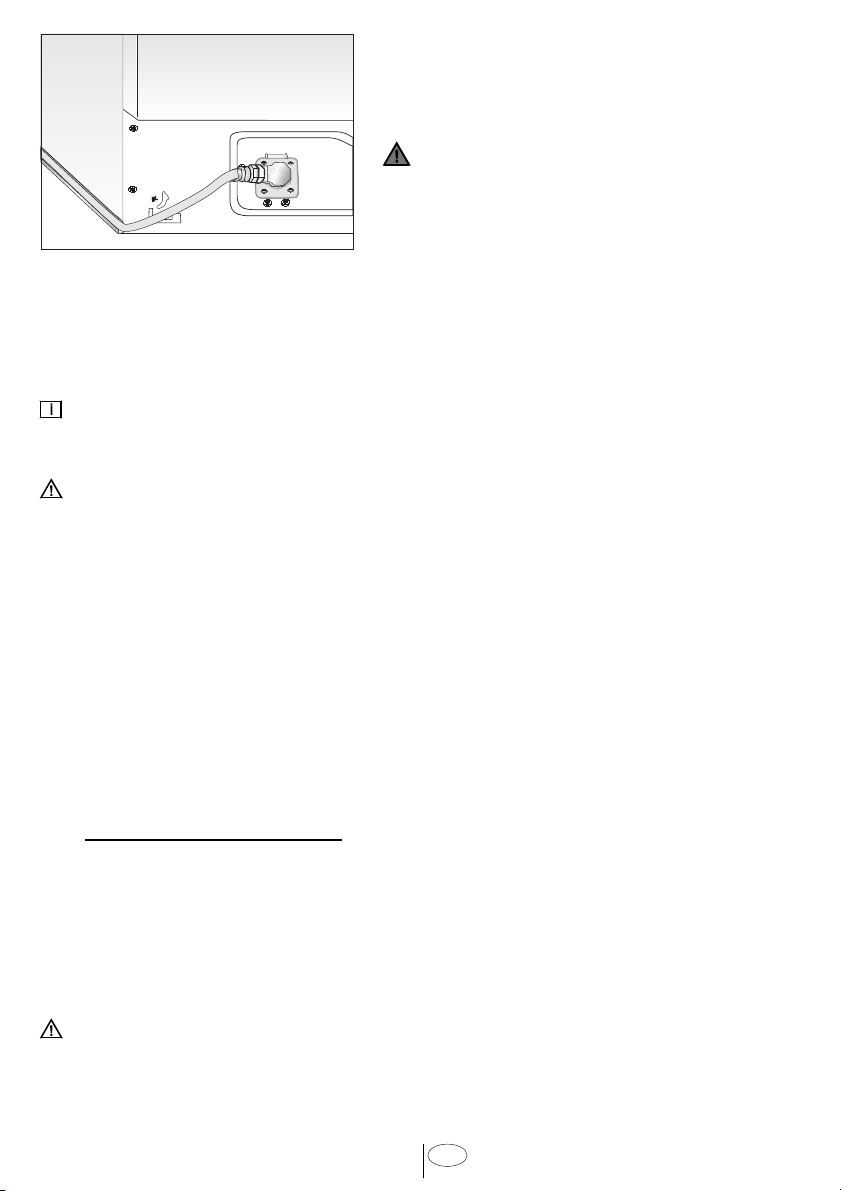

6.5 PREPARING THE WATER CONNECTION (A) 8

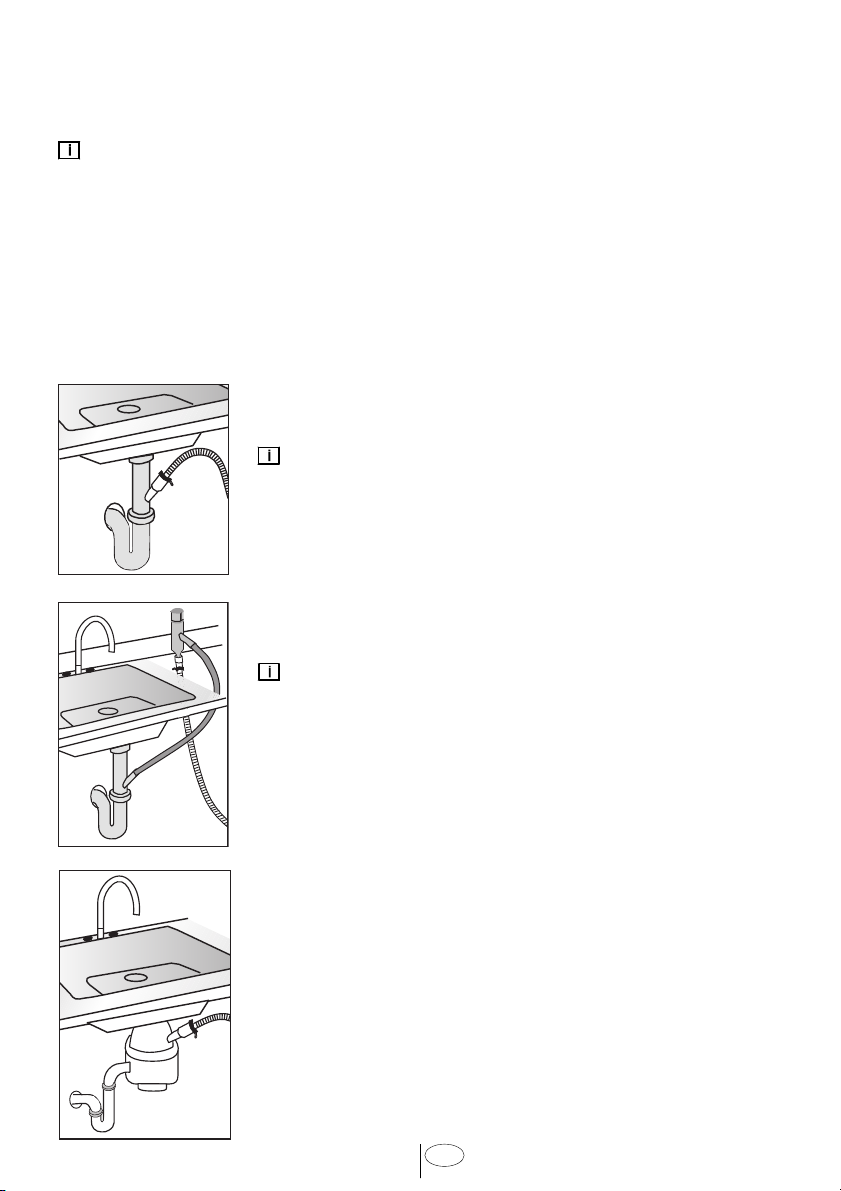

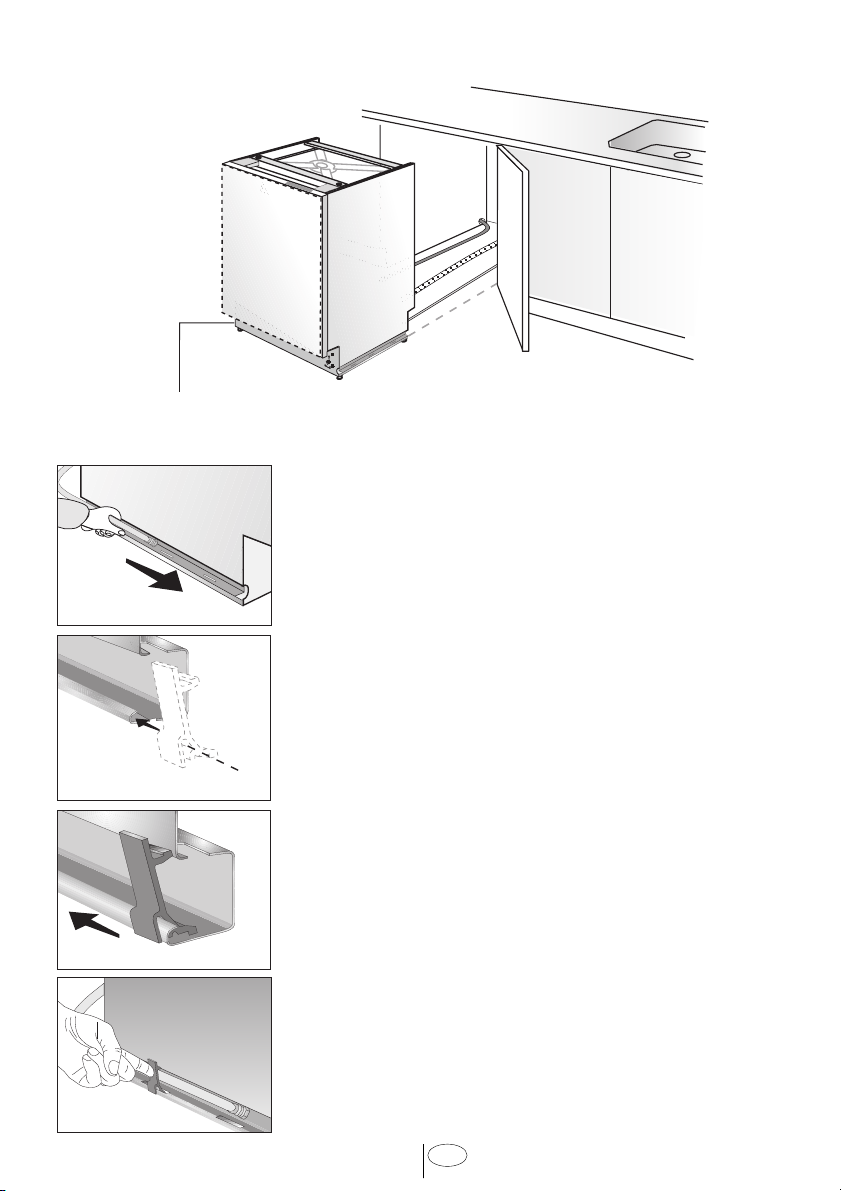

6.6 DRAIN PREPARATION 9

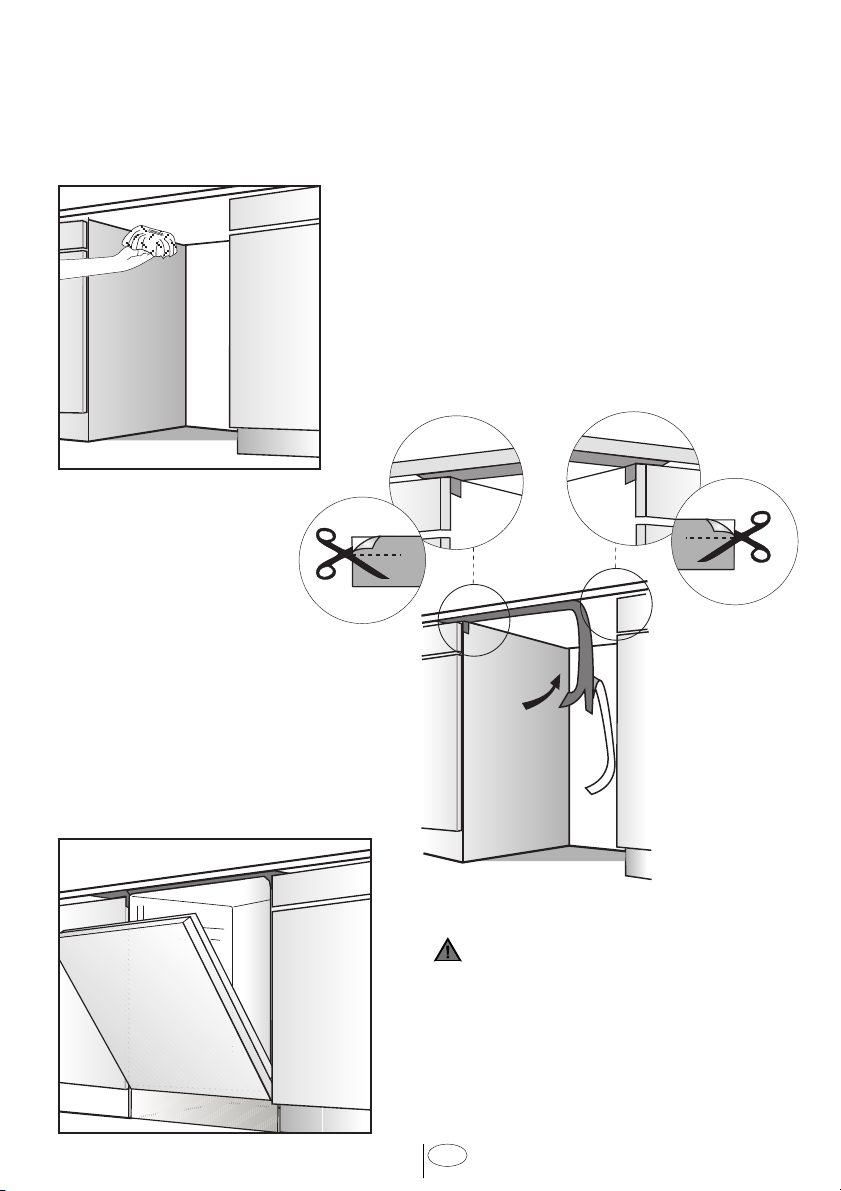

6.7 STEAM PROTECTION FOIL 10

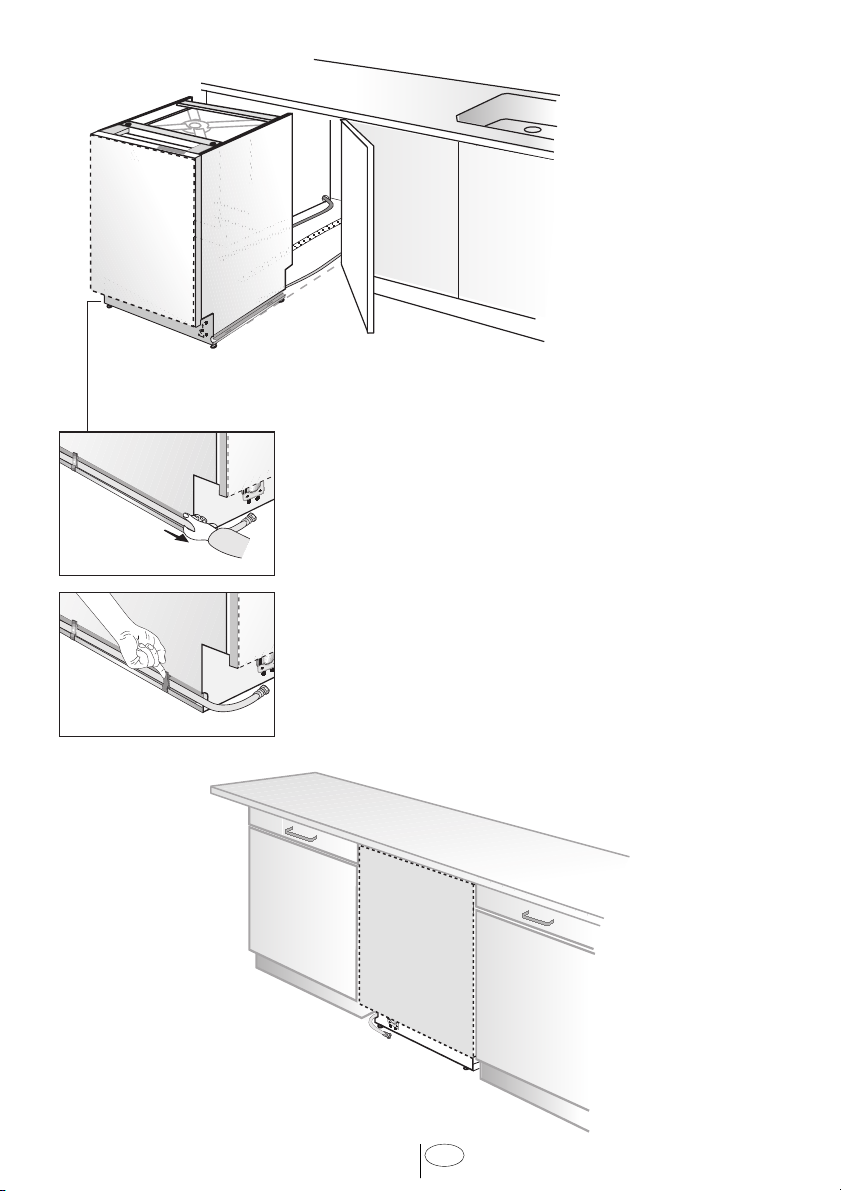

7. PLACEMENT OF DISHWASHER INTO THE OPENING 11

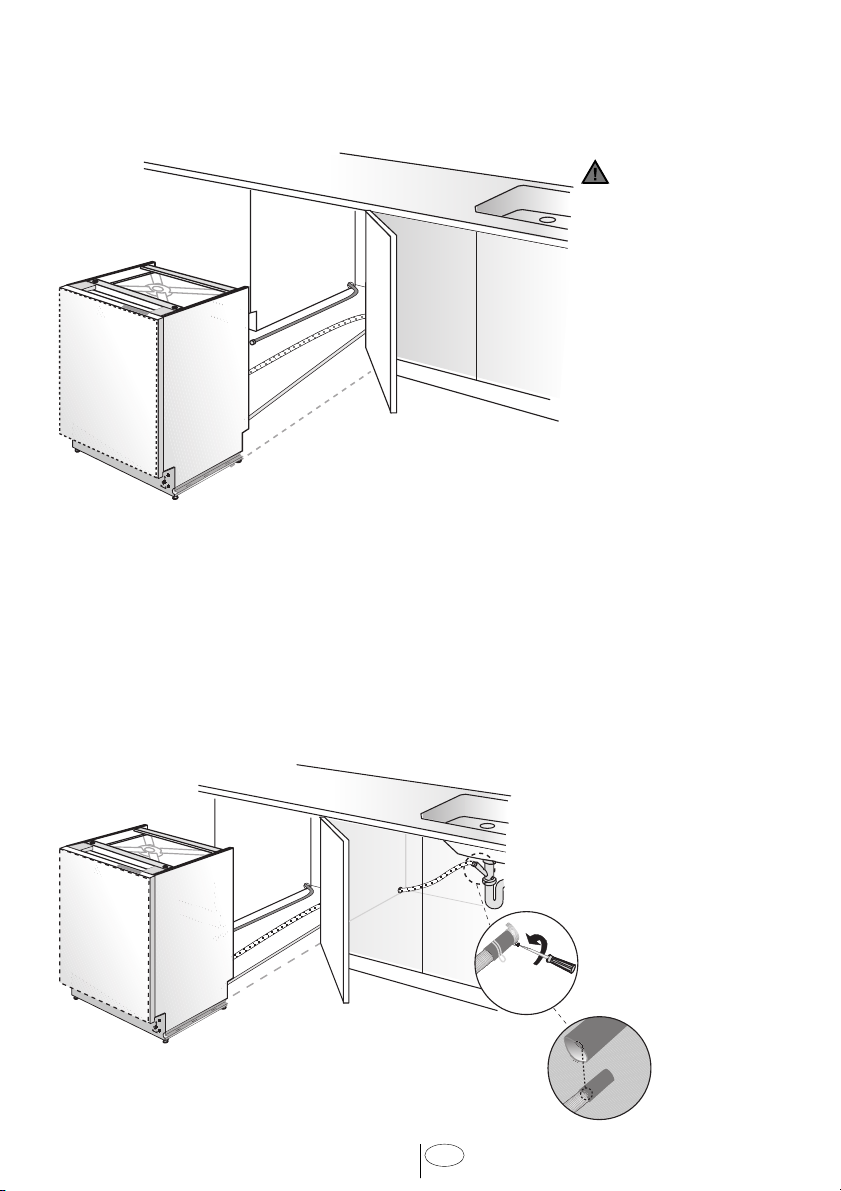

7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 11

7.2 READJUSTING FOOT LEVELS 15

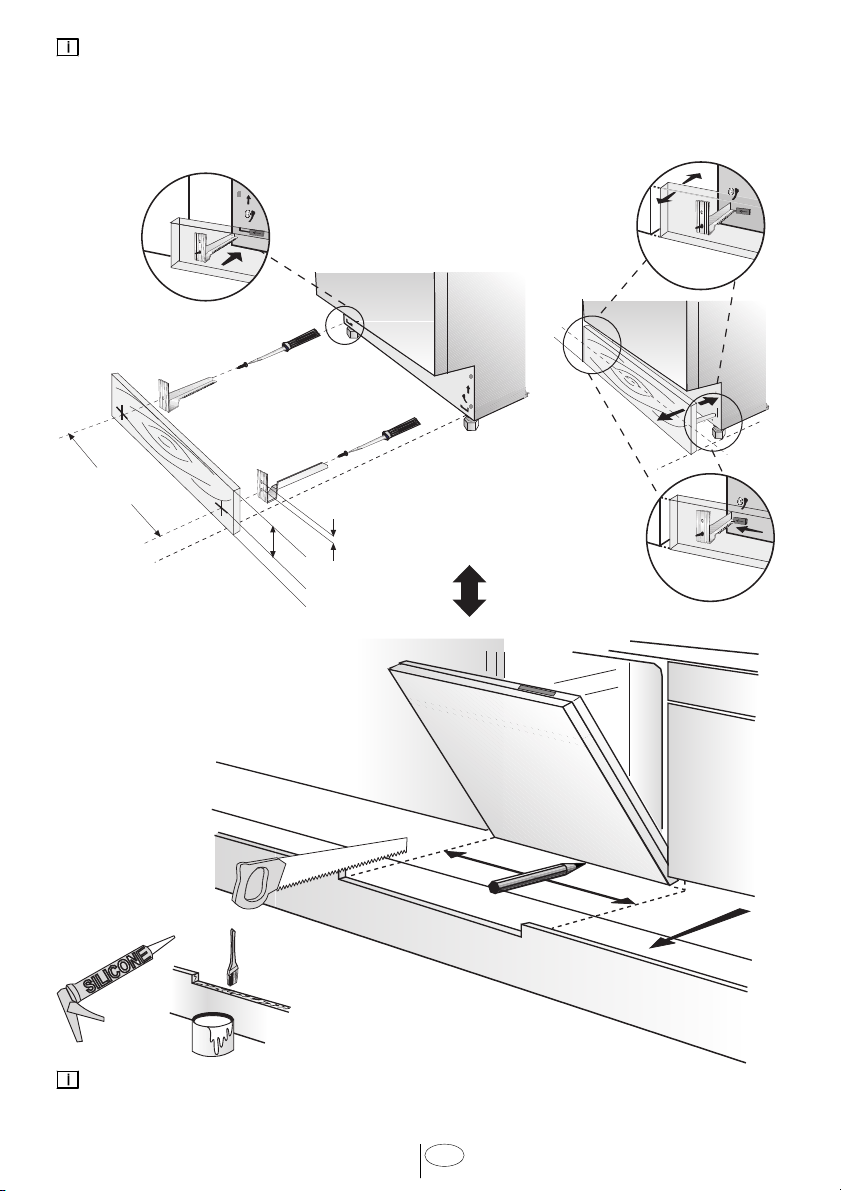

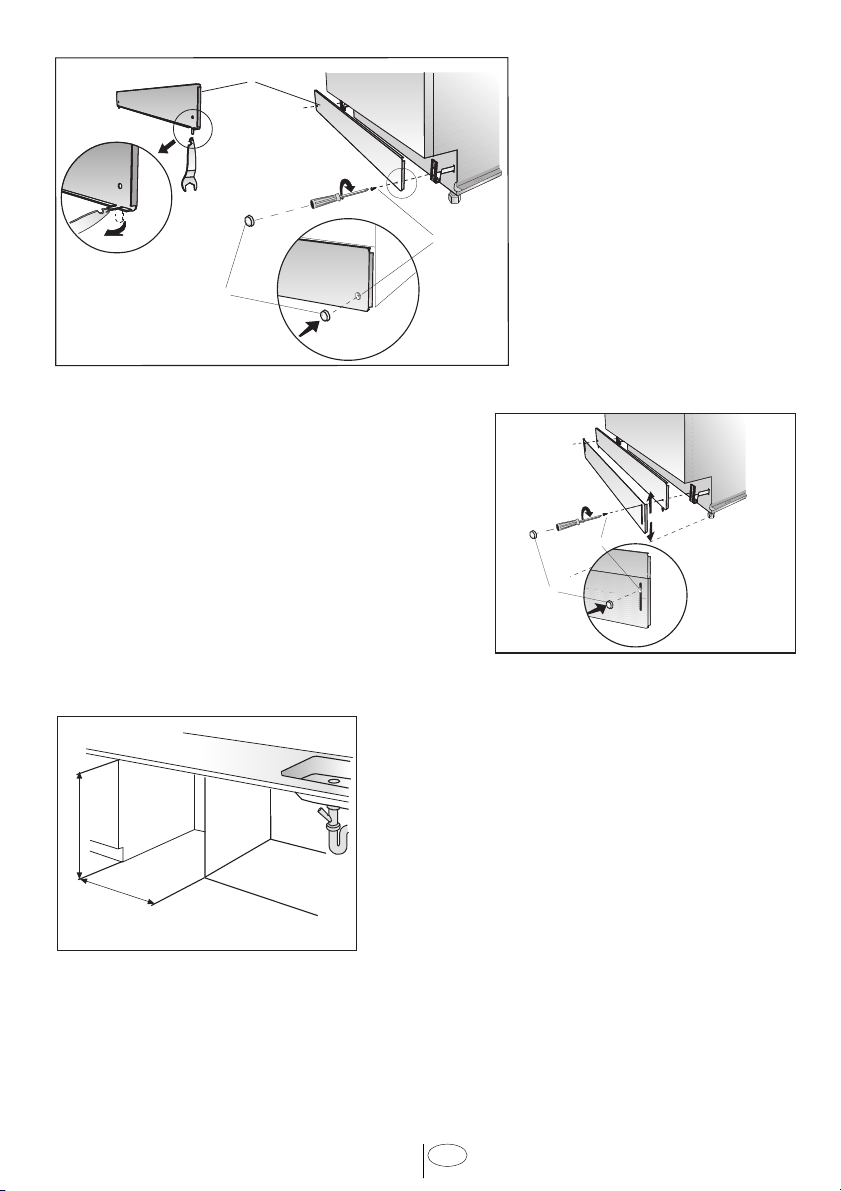

7.3 ADJUSTING THE MOVABLE TOE KICK 15

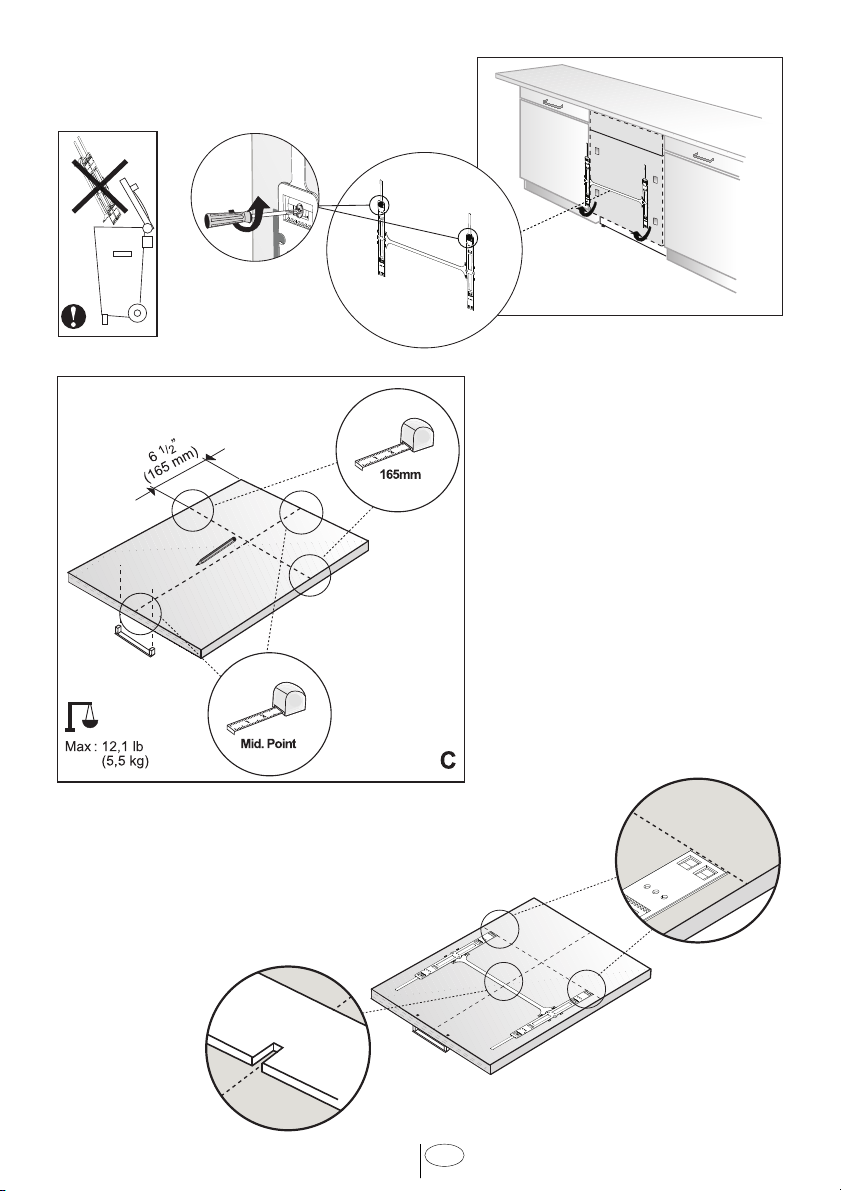

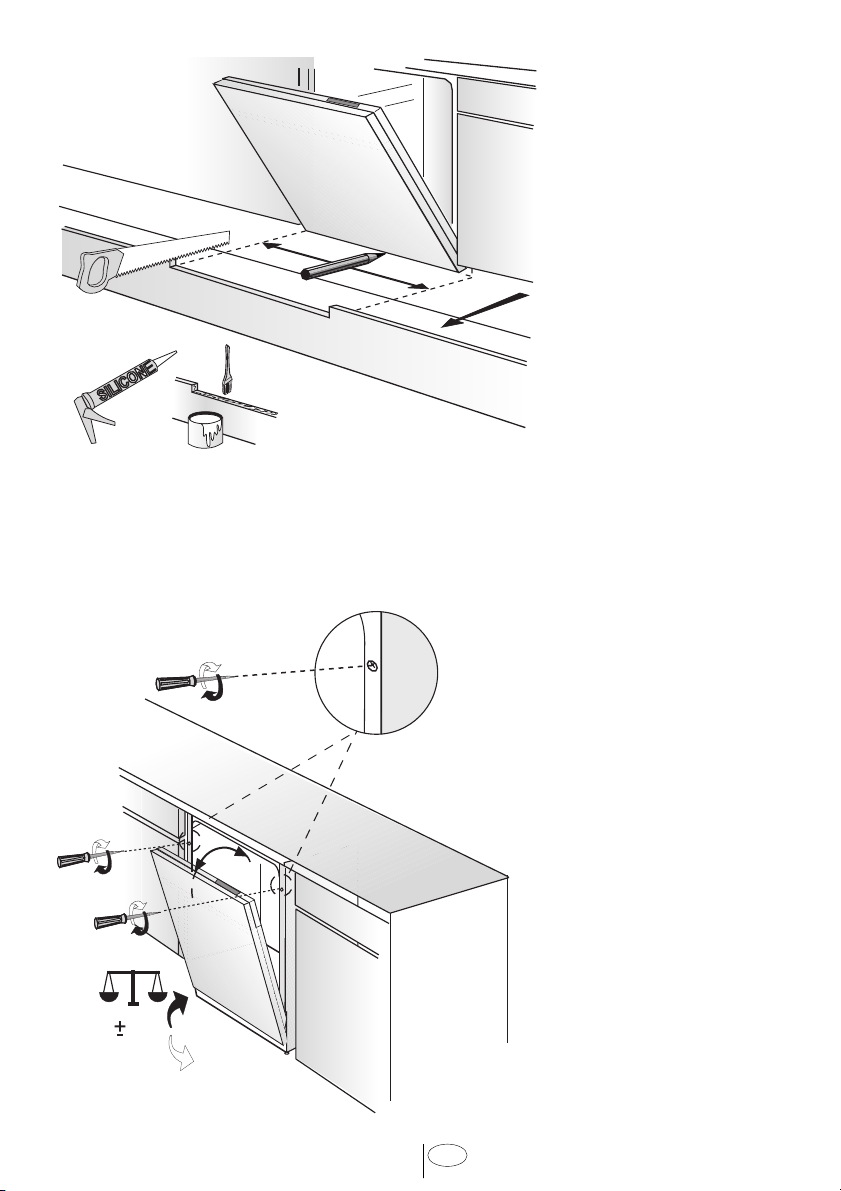

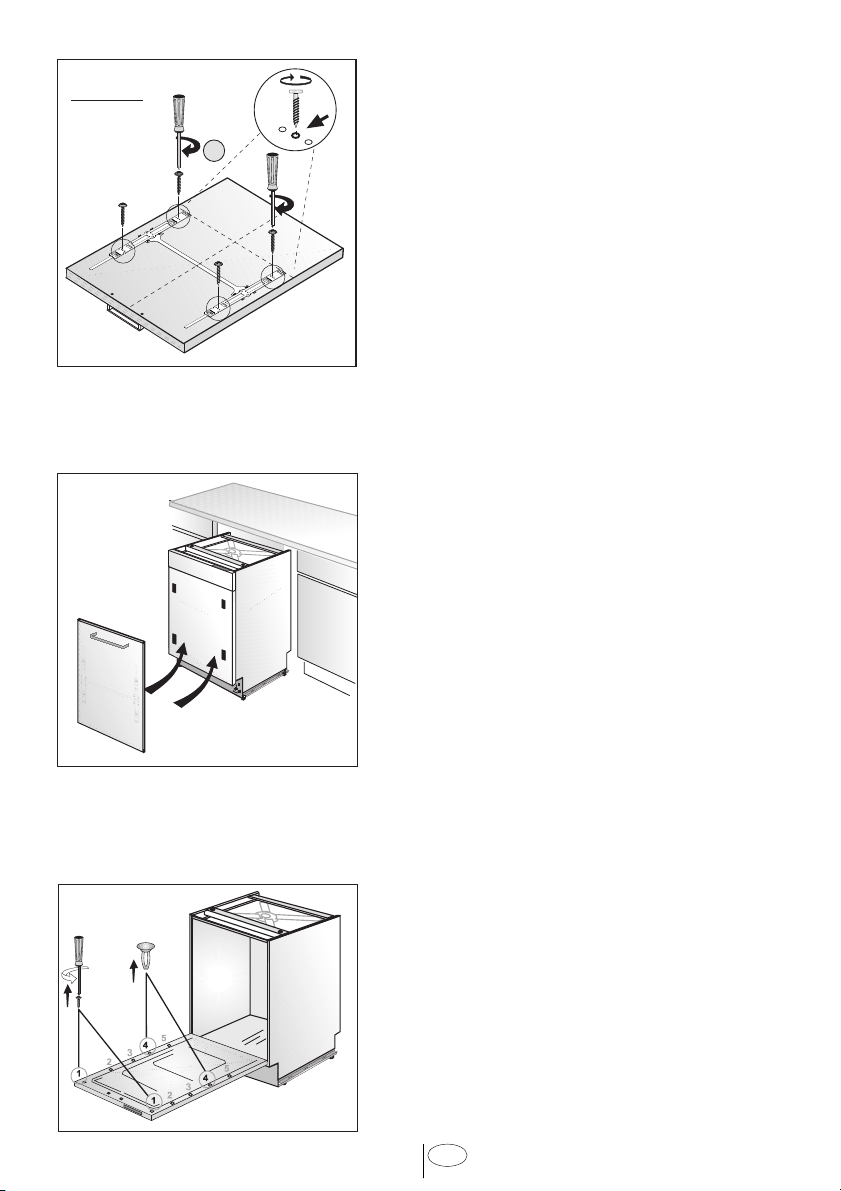

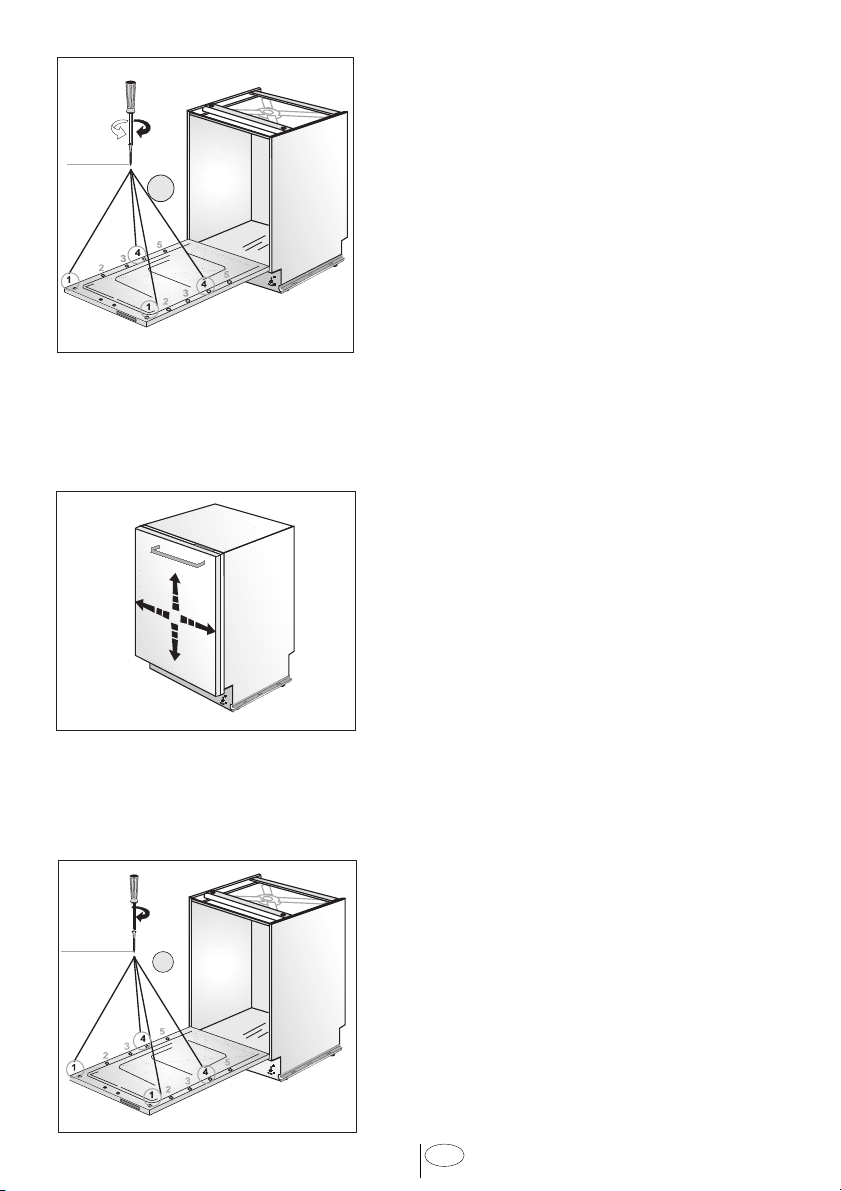

7.4 INSTALLING THE OUTER DOOR 16

8. INSTALLER CHECKLIST 22

9. FINAL INSTRUCTIONS 22

10. SELF HELP HINTS 22

INTRODUCTION

Please read this installation manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance.

Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon also will provide important references.

WARNING

Notice

WARNING:

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

Notice:

Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the table-ware, the equipment or the environment.

CAUTION

1. IMPORTANT SAFETY INSTRUCTIONS

In addition to these instructions, the dishwasher shall be installed:

In accordance with all local codes or, in  absence of a local code, In the United States, with the National  Electric Code, In Canada, with the Canadian Electric  Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.

Notice :

Read these installation instructions completely before installing and follow them carefully. Save these installation instructions and pass them on to any future user.

WARNING

When installing the dishwasher, follow basic precautions, including the following:

The dishwasher installation must be  performed in accordance with this installation manual. If you did not receive an installation manual, order it by calling 1-800-459-9848 or you may also download it from our web site at

www.blombergappliances.com

The dishwasher could only be converted  from cord-connected to permanently connected by an authorized service representative. (If needed contact your dealer to schedule an authorized service agent for conversion with an appropriate conversion kit) Installation and repair should be  performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.

Notice :

Installation should be installed by an insured licensed plumber, contractor or trained installer. Installation performed by persons other than this could result in improper installation and property damage.

Do not operate the appliance if damaged,  malfunctioning, partially disassembled or if it has missing or broken parts. Also follow the safety instructions of the  user manual. To reduce the risk of electric shock, fire,  or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation. Only connect the dishwasher to the  power supply when all installation and plumbing work is complete. If the dishwasher is installed in a location  that experiences freezing temperatures (e.g. in a vacation home, cabin, etc.), you must drain all the water from the dishwasher’s interior. Water system ruptures that occur as a result of freezing are not covered by warranty.

USA

Dishwasher must be secured to adjacent  cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury. Connect to a properly rated, protected  and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must be met to prevent injury and machine damage. Consult a qualified electrician if in doubt. Do not use any extension cord or  portable outlet device to connect the dishwasher to a power supply. Ensure that any plastic wrappings, bags,  small pieces etc. are disposed of safely and kept out of the reach of children. Danger of suffocation! Remove the door to the washing  compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal. Old appliances may contain materials  that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Replacement - If the dishwasher is  replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.

1.1 INSPECT THE DISHWASHER

After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately.

Notice :

Cosmetic defects must be reported within  10 days of installation. Do not discard any bags or items that  come with the original package until after the entire installation has been completed.

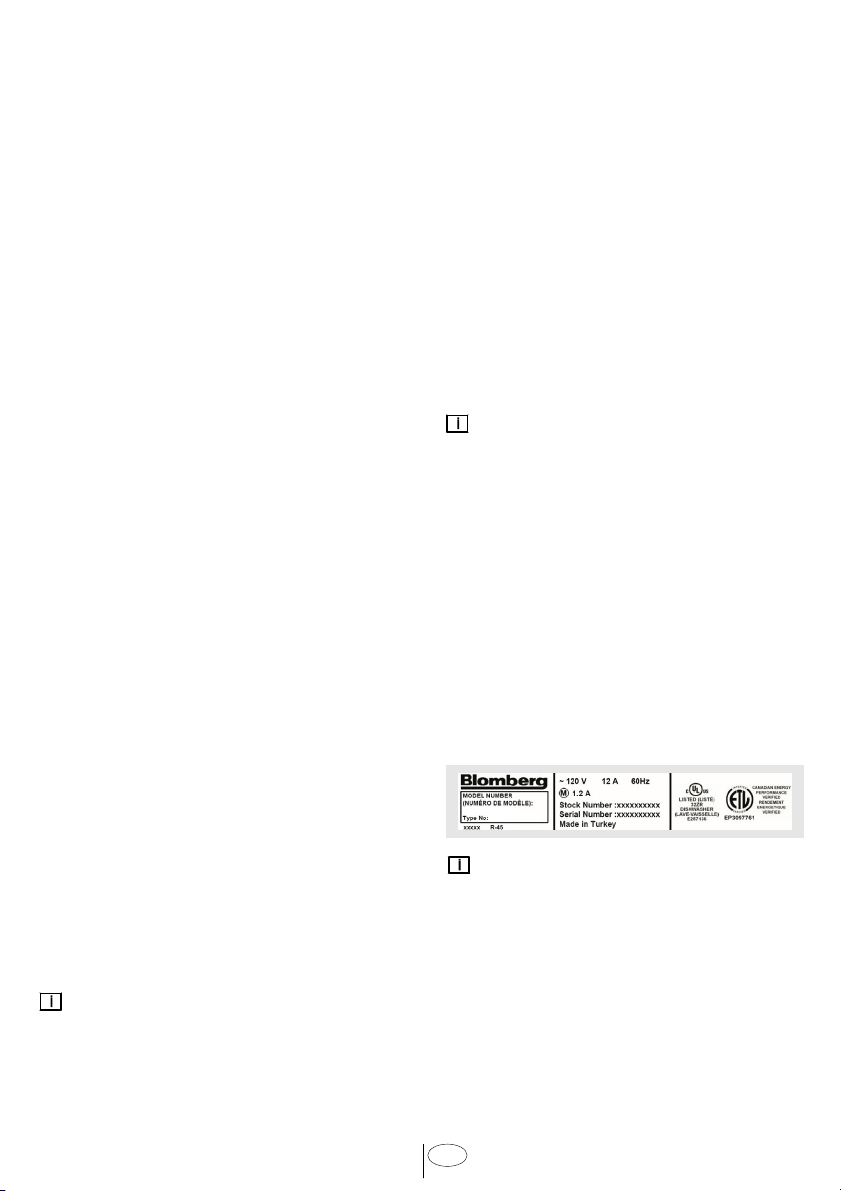

1.2 HOW TO CONTACT US :

You may either call our Toll Free Number at 1-800-459-9848 or contact us via the web site at

www.blombergappliances.com

or Contact the Blomberg Distributor for your State or Province as listed on the Distributor Contact List provided.

Notice :

The dishwasher drain hose must be  installed with a drain loop at least 28” (710mm) off the cabinet floor; otherwise the dishwasher may not drain properly. This dishwasher is intended for  residential use only, and should not be used in commercial establishments. New installation - If the dishwasher is a  new installation, most of the work must be done before the dishwasher is moved into place.

USA

2. TOOLS WHICH MAY BE NEEDED

3. MATERIALS WHICH MAY BE NEEDED

(Additional materials may be required to comply with local codes)

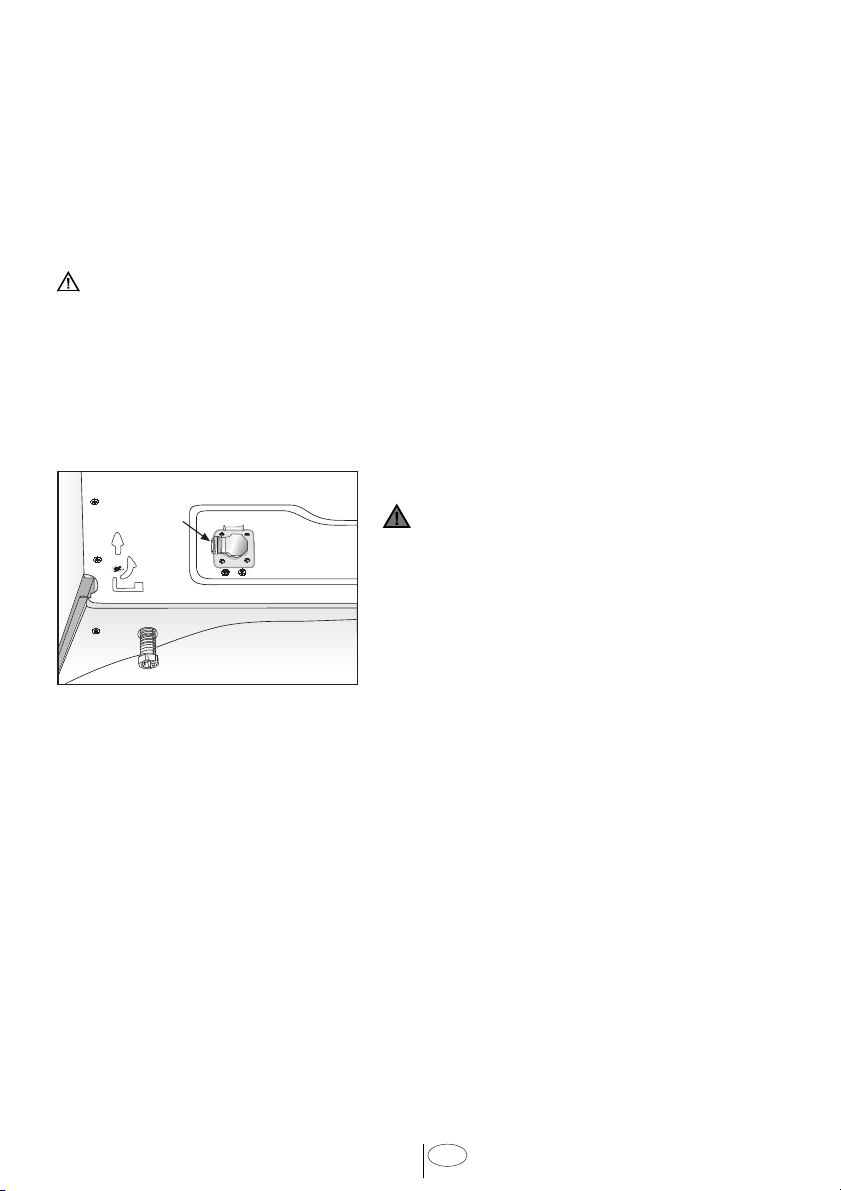

Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided dishwasher supply line.

90° elbow with 3/8” N.P.T. male threads on one leg, and sized to fit your water supply line (copper tubing/compression fitting, or braided hose) on the other leg.

UL listed conduit connector or strain relief.

Teflon tape or other pipe thread compound to seal plumbing connections.

Shut-off valve and fittings appropriate for hot water supply line (copper tubing/compression fitting, or braided hose).

Silicone

Glue

USA

4. MATERIALS SUPPLIED

4.1 PARTS SUPPLIED

Parts for your dishwasher will come in several plastic bags. Check your parts bags shown to make sure you have all the

parts as listed to the left.

4.2 MANUAL BAG

The dishwasher comes with a manual bag containing:

User manual, Installation manual and

Quick reference guide.

4.3 DISHWASHER PARTS BAG 1

This dishwasher bag comes with the following parts:

a. Side Trim Strips (Left) b. Side Trim Strips (Right)

c. Adjusting Wrench d. Screws Ø 1/8” x 5/8” (Ø 3.5 mm x 14 mm) e. Mounting Bracket Left

f. Mounting Bracket Right

g. Spring Clamp

h. Screw Clamp j. Rubber Connector

k. Toe Kick Bracket - Left l. Toe Kick Bracket – Right

m. Edge Protector n. Clips

o. Toe Kick (toe kick without slots)

p. Toe Kick r. Screws Ø 1/8” x 3/8” (Ø 3.9 mm x 9 mm)

s. Plastic Caps t. Screws Ø 3/16” x 1/4” (Ø 4mm x 6mm)

z. Steam Protection Foil

4.4 DISHWASHER PARTS BAG 2

In addition to the manual bag and the dishwasher parts bag 1 DWT 54, DWT 55, and DWT 57 (dishwasher models which can

accept a wooden kitchen door) also come with a door panel

installation kit which contains:

v. Screws Ø 1/8” x 5/8” (Ø 3.5mm x 14mm) y. Screws Ø 3/16” x 13/4” (Ø 4mm x 43mm)

4.5 PARTS ATTACHED TO THE REAR OF THE

DISHWASHER

a. Side Trim Strips (Left)

b. Side Trim Strips (Right) o. Toe Kick (toe kick without slots) p. Toe Kick

USA

5. DISHWASHER SPECIFICATIONS



- 36

34

(864mm - 920mm)



- 35

mm - 911mm)

(861

(598mm



)

(610

24

)

24 max

(610mm max)

max

500mm

5.1 TECHNICAL FEATURES

Load capacity 12 place settings

Permissible water pressure

Electrical connection

4.35 - 145 psi (0.3 - 10 bars)

120 V (volts), 12 A (amps), 60 Hz (hertz)

Total power 1400 W (watts)

Heater power 1240 W (watts)

Notice :

Because we continually strive to improve our products, we may change our specifications and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.
