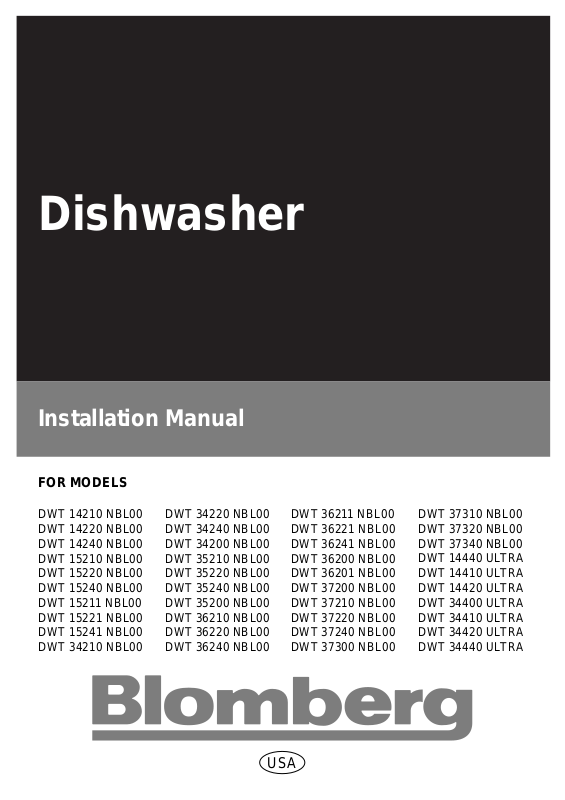

Blomberg DWT 15220 User Manual

Dishwasher

Installation Manual

FOR MODELS

DWT 14210 NBL00 DWT 14220 NBL00 DWT 14240 NBL00 DWT 15210 NBL00 DWT 15220 NBL00 DWT 15240 NBL00 DWT 15211 NBL00 DWT 15221 NBL00 DWT 15241 NBL00 DWT 34210 NBL00

DWT 34220 NBL00 DWT 34240 NBL00 DWT 34200 NBL00 DWT 35210 NBL00 DWT 35220 NBL00 DWT 35240 NBL00 DWT 35200 NBL00 DWT 36210 NBL00 DWT 36220 NBL00 DWT 36240 NBL00

DWT 36211 NBL00 DWT 36221 NBL00 DWT 36241 NBL00 DWT 36200 NBL00 DWT 36201 NBL00 DWT 37200 NBL00 DWT 37210 NBL00 DWT 37220 NBL00 DWT 37240 NBL00 DWT 37300 NBL00

USA

DWT 37310 NBL00 DWT 37320 NBL00 DWT 37340 NBL00 DWT 14440 ULTRA DWT 14410 ULTRA DWT 14420 ULTRA DWT 34400 ULTRA DWT 34410 ULTRA DWT 34420 ULTRA DWT 34440 ULTRA

Installation Manual For

Dishwasher Models

DWT 15211 NBL00 DWT 15221 NBL00 DWT 15241 NBL00

DWT 34210 NBL00 DWT 34220 NBL00 DWT 34240 NBL00 DWT 34200 NBL00 DWT 35210 NBL00 DWT 35220 NBL00 DWT 35240 NBL00

DWT 14210 NBL00 DWT 14220 NBL00 DWT 14240 NBL00

DWT 35200 NBL00 DWT 36210 NBL00 DWT 36220 NBL00 DWT 36240 NBL00 DWT 36211 NBL00 DWT 36221 NBL00 DWT 36241 NBL00

DWT 15210 NBL00 DWT 15220 NBL00 DWT 15240 NBL00

DWT 36200 NBL00 DWT 36201 NBL00 DWT 37200 NBL00 DWT 37210 NBL00 DWT 37220 NBL00 DWT 37240 NBL00 DWT 37300 NBL00

DWT 14440 ULTRA DWT 14410 ULTRA DWT 14420 ULTRA

DWT 37310 NBL00 DWT 37320 NBL00 DWT 37340 NBL00 DWT 34400 ULTRA DWT 34410 ULTRA DWT 34420 ULTRA DWT 34440 ULTRA

To prevent accidents, which could cause serious injury or death, as well as

machine damage read these instructions before installation and / or use.

Contents

1. IMPORTANT SAFETY INSTRUCTIONS 1

1.1 INSPECT THE DISHWASHER 2

1.2 HOW TO CONTACT US 2

2. TOOLS WHICH MAY BE NEEDED 3

3. MATERIALS WHICH MAY BE NEEDED 3

4. MATERIALS SUPPLIED 4

4.1 PARTS SUPPLIED 4

4.2 MANUAL BAG 4

4.3 DISHWASHER PARTS BAG 1 4

4.4 DISHWASHER PARTS BAG 2 4

4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4

5. DISHWASHER SPECIFICATIONS 5

5.1 TECHNICAL FEA TURES 5

6. ENCLOSURE PREPARATION 6

6.1 ELECTRICAL PREPARATION 6

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 7

6.3 ADJUSTING HEIGHT 7

6.4 INSTALLING THE SIDE TRIM STRIPS 8

6.5 PREPARING THE WATER CONNECTION (A) 9

6.6 DRAIN PREPARATION 10

6.7 STEAM PROTECTION FOIL 11

7. PLACEMENT OF DISHWASHER INTO THE OPENING 12

7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 12

7.2 READJUSTING FOOT LEVELS 17

7.3 ADJUSTING THE MOV ABLE T OE KICK 17

7.4 INSTALLING THE OUTER DOOR 18

8. INSTALLER CHECKLIST 24

9. FINAL INSTRUCTIONS 24

10. SELF HELP HINTS 24

INTRODUCTION

Please read this installation manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance.

Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon also will provide important references.

WARNING

Notice

WARNING:

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

Notice:

Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the table-ware, the equipment or the environment.

CAUTION

1. IMPORTANT SAFETY INSTRUCTIONS

In addition to these instructions, the dishwasher shall be installed:  In accordance with all local codes or, in

absence of a local code,

 In the United States, with the National

Electric Code,

 In Canada, with the Canadian Electric

Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.

Notice :

Read these installation instructions completely before installing and follow them carefully. Save these installation instructions and pass them on to any future user.

WARNING

When installing the dishwasher, follow basic precautions, including the following:

 The dishwasher installation must be

performed in accordance with this installation manual. If you did not receive an installation manual, order it by calling 1-800-459-9848 or you may also download it from our web site at

www.blombergappliances.com

 Installation and repair should be

performed by a qualiﬁed installer. Work by unqualiﬁed persons could be dangerous and may void the warranty.

 Do not operate the appliance if damaged,

malfunctioning, partially disassembled or if it has missing or broken parts.

 Also follow the safety instructions of the

user manual.

 To reduce the risk of electric shock, ﬁre,

or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

 Only connect the dishwasher to the

power supply when all installation and plumbing work is complete.

 If the dishwasher is installed in a location

that experiences freezing temperatures (e.g. in a vacation home, cabin, etc.), you must drain all the water from the dishwasher’s interior. Water system ruptures that occur as a result of freezing are not covered by warranty.

 Dishwasher must be secured to adjacent

cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury.

 Connect to a properly rated, protected

and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 14 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must

USA

be met to prevent injury and machine damage. Consult a qualiﬁed electrician if in doubt.

 Do not use any extension cord or

portable outlet device to connect the dishwasher to a power supply.

 Ensure that any plastic wrappings, bags,

small pieces etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

 Remove the door to the washing

compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal.

 Old appliances may contain materials

that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Notice :

 The dishwasher drain hose must be

installed with a drain loop at least 28" (710mm) off the cabinet ﬂoor; otherwise the dishwasher may not drain properly.

 This dishwasher is intended for

residential use only, and should not be used in commercial establishments.

 New installation - If the dishwasher is a

new installation, most of the work must be done before the dishwasher is moved into place.

 Replacement - If the dishwasher is

replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.

1.1 INSPECT THE DISHWASHER

After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately.

Notice :

 Cosmetic defects must be reported within

10 days of installation.

 Do not discard any bags or items that

come with the original package until after the entire installation has been completed.

1.2 HOW TO CONTACT US :

You may either call our Toll Free Number at 1-800-459-9848 or contact us via the web site at

www.blombergappliances.com

or Contact the Blomberg Distributor for your State or Province as listed on the Distributor Contact List provided.vv

USA

2. TOOLS WHICH MAY BE NEEDED

3. MATERIALS WHICH MAY BE NEEDED

(Additional materials may be required to comply with local codes)

Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided dishwasher supply line.

Electrical Supply Cable - Minimum #14AWG, 2 conductors, 1 ground, insulated copper conductors.

90° elbow with 3/8” N.P.T. male threads on one leg, and sized to ﬁt your water supply line (copper tubing/compression ﬁtting, or braided hose) on the other leg.

UL listed conduit connector or strain relief.

Teﬂon tape or other pipe thread compound to seal plumbing connections.

Shut-off valve and ﬁttings appropriate for hot water supply line (copper tubing/compression ﬁtting, or braided hose).

Silicone

Glue

USA

4. MATERIALS SUPPLIED

4.1 PARTS SUPPLIED

Parts for your dishwasher will come in several plastic bags. Check your parts bags shown to make sure you have all the

parts as listed to the left.

4.2 MANUAL BAG

The dishwasher comes with a manual bag containing:

 User manual,  Installation manual and

 Quick reference guide.

4.3 DISHWASHER PARTS BAG 1

This dishwasher bag comes with the following parts:

a. Side Trim Strips (Left) b. Side Trim Strips (Right)

c. Adjusting Wrench d. Screws Ø 1/8” x 5/8” (Ø 3.5 mm x 14 mm)

e. Mounting Bracket Left

f. Mounting Bracket Right

g. Spring Clamp

h. Screw Clamp j. Rubber Connector

k. Toe Kick Bracket - Left l. Toe Kick Bracket - Right

m. Wire Nuts n. Clips

o. Toe Kick (toe kick without slots) p. Toe Kick

r. Screws Ø 1/8” x 3/8” (Ø 3.9 mm x 9 mm)

s. Plastic Caps t. Screws Ø 3/16” x 1/4” (Ø 4mm x 6mm)

z. Steam Protection Foil

4.4 DISHWASHER PARTS BAG 2

In addition to the manual bag and the dishwasher parts bag 1

DWT 34, DWT 35, DWT 36 and DWT 37 (dishwasher models which can accept a wooden kitchen door) also come with a

door panel installation kit which contains: v. Screws Ø 1/8” x 5/8” (Ø 3.5mm x 14mm)

y. Screws Ø 3/16” x 13/4” (Ø 4mm x 43mm)

4.5 PARTS ATTACHED TO THE REAR OF THE

DISHWASHER

a. Side Trim Strips (Left)

b. Side Trim Strips (Right) o. Toe Kick (toe kick without slots) p. Toe Kick

USA

5. DISHWASHER SPECIFICATIONS



- 36

34

(864mm - 920mm)



- 35

mm - 911mm)

(861



(598mm)

24 max

(610mm max)

(610

24

)

5.1 TECHNICAL FEATURES

Load capacity 12 place settings Permissible water

pressure

Electrical connection

4.35 - 145 psi (0.3 - 10 bars)

120 V (volts), 12 A (amps), 60 Hz (hertz)

Total power 1200 W (watts) Heater power 1000 W (watts)

Notice :

Because we continually strive to improve our products, we may change our speciﬁcations and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.

USA

6. ENCLOSURE PREPARATION

Notice :

 For proper dishwasher operation and appearance ensure that the enclosure has the

minimum dimensions shown in the ﬁgure above.

6.1 ELECTRICAL PREPARATION

WARNING

To avoid electrical shock and/or a ﬁre hazard, make sure electrical work is properly installed. Only qualiﬁed electricians should perform electrical work. Before installation disconnect the power supply to the work area by unplugging the unit, “tripping” the circuit breaker or removing the fuse. The installer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amperes.

WARNING

Electrical supply cords must be a minimum #14AWG copper wire.

Position the cable extending approximately 30” (760mm)

30)

(

from the enclosure’s back (Figure A).

Position the cable extending at the bottom (Figure B).

Remove 2 cable’s outer casing, and then remove (9-13mm) of insulation from each wire. (Figure C)

USA

” - 3

” (75mm-100mm) of the

” -

”

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS

WARNING

Dishwasher must be secured to adjacent cabinetry using the mounting brackets provided. Failure to do this may cause damage to property or bodily injury.

Place the two mounting brackets into the top corners of the dishwasher.

Fix the mounting brackets (A) to the top corners of the dishwasher, with the screws supplied. Bend sides of mounting brackets (B) in order to ﬁx from sides (if necessary).

6.3 ADJUSTING HEIGHT

If the height of the enclosure is 337/8” to 357/8” (861 mm - 911mm) adjust supports as shown in the ﬁgure.



- 35

mm - 911mm)

(861

Supplied (4)



(50mm)

USA

T20

Adjust the front foot level with the adjusting wrench to balance and raise the dishwasher to the enclosure height.

Adjust the rear foot level with a screwdriver to balance and raise the dishwasher to the enclosure height.

Notice :

 Make sure the dishwasher is plumb and

notice dishwasher can be placed with a small clearance under the counter top.

 Turning the screwdriver in the direction of the

black arrows will bring the dishwasher back feet up.

 Turning the screwdriver in the direction of the

white arrows will take the dishwasher rear feet down.

6.4 INSTALLING THE SIDE TRIM STRIPS

1. Remove the adhesive tape (Figure A).

Place the trim strips on the front edge of the side walls (Figure B).

USA

6.5 PREPARING THE WATER CONNECTION (A)

Install an easily accessible shut-off valve (not supplied) in the water supply line. All solder connections must be made before the water line is connected to the dishwasher’s water inlet valve. Water can also be supplied to the dishwasher by using a ﬂexible braided hose line.

Check with your plumbing supply sources for the proper hose and 90° elbow and necessary ﬁttings for the water supply line. This material is not supplied, and must be purchased separately.

WARNING

Installation should be performed by a qualiﬁed installer. Work by unqualiﬁed persons could be dangerous and may void the warranty.

If the dishwasher is installed in a location that experiences freezing temperatures (e.g. in a vacation home, cabin etc.), you must drain all the water from the dishwasher’s interior. Water system ruptures that occur as a result of freezing are not covered by warranty.

6.5.1 INSTALLING THE 90° ELBOW FITTING

(B)

CAUTION

Do not over tighten the 90° elbow. Doing so may damage the water inlet valve and cause a water leak.

If the water supply line is to be copper tubing, make certain that the elbow has a compression ﬁtting. Apply Teﬂon tape or other pipe sealant when required. Orient the water supply connection downwards as shown in the ﬁgure so the water line can be easily pulled underneath or on the side of the dishwasher.

6.5.2 JUNCTION BOX PREPARATION (C)

Remove the junction box cover by removing the screws as shown in the ﬁgure. They will be reinstalled later.

USA

6.6 DRAIN PREPARATION

The dishwasher drain hose may be connected to the drain plumbing in one of three ways (Figure A, B, C).

Notice :

 Either one of the above methods must be used or the dishwasher will not operate

properly.

 A hose that attaches to a sink spray can burst if it is installed on the same water line as

the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

 The total length of the drain hose is 76

drainage hose of equal quality must be used.

 The maximum length must not exceed 157 ½” (4000mm). Otherwise, the cleaning

process is negatively inﬂuenced.

6.6.1 UNDER THE SINK DRAIN

Install a Y-branch tail pipe. (Figure A)

” (1950mm). If a hose extension is required, a

Notice :

 You must add a loop at least 28" (710mm) above the ﬂoor of

the cabinet and above the drain connection in the drain hose to prevent waste water from not draining properly, and causing

either poor washing results or a bad odor.

6.6.2 INSTALLING AN AIR GAP If the local ordinance requires an air gap (Figure B).

Notice :

 Check with local ordinance for type of air gap required.

6.6.3 DISPOSAL

Remove the drain connection plug before attaching the drain hose from the dishwasher.

Every disposal has a hook up for a dishwasher; consult your disposer manual for correct connection. (Figure C)

USA

6.7 STEAM PROTECTION FOIL

Steam will form inside the dishwasher during operation. At the end of the cycle, when the dishwasher door is opened, it is required to use a steam protection foil to prevent any steam from collecting on the underside of the counter top.

6.6.2 FITTING THE PROTECTION FOIL

Before applying the steam protection foil to the underside of the countertop, clean the area with a damp cloth (as shown in Figure A). Once the area dries, apply the steam protection foil.

The steam protection foil will be applied at the location where the hot steam escapes when you ﬁrst open the door (as shown in Figure B).

CAUTION

Steam protection foil must be applied where the steam escapes when door is

ﬁrst opened. Failure to install the steam protection foil during installation can lead to damage to the cabinets and countertop.

USA

7. PLACEMENT OF DISHWASHER INTO THE OPENING

Now place the dishwasher into the opening and get ready to connect all hoses and electrical connections.

CAUTION

Make sure all hoses and electrical wire are pulled through the side opening of the cabinet, no hoses are kinked and all slack is taken out as shown in the above ﬁgure.

7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS

7.1.1 DRAIN HOSE CONNECTION

Connect the drain hose to the drain plumbing.

1. Use the supplied rubber connection hose and drain hose clamps to connect the dishwasher drain hose to the plumbing drain connection.

2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain connection.

Note that the marks on the rubber connection hose should be on the drain hose side

USA

7.1.2 PREPERATION OF WATER SUPPLY & ELECTRICAL CONNECTIONS

Left side water supply

connection

Right side electrical

supply connection

Before pushing the dishwasher in to the cabinet you must place the electrical cables and water supply hoses into the channels of the dishwasher (Figure A) Place the supplied clips

into the channels (Figure B) so that you can move these clips along the channels (Figure C) and ﬁx by pressing on (Figure D) so that you can keep the electrical cable and water supply hose in the channels.

USA

After installing one clip

for each side push the dishwasher into the cabinet (Figure E).

Note that while pushing the dishwasher into the cabinet, electrical cable and water supply hose must move in the channels to the front (Figure F). Fix the second clip for both sides (Figure G).

USA

7.1.3 WATER SUPPLY CONNECTION

Water supply may be connected to the dishwasher in one of two ways:

With metal braided hose. With copper tubing.

CAUTION

Hot water supply line: Use minimum 3/8” O.D.

copper tubing or metal braided dishwasher supply line.

 Temperatures required for soldering and sweating will damage the dishwasher’s water

inlet valve so if any such operation is needed, keep the heat source min. 7 away from the dishwasher’s water inlet valve.

 There should not be any sharp bends in the water line that may restrict the water ﬂow.  Teﬂon tape or pipe tread compound must be used for sealing the connection. Before

connecting the copper water supply line to the dishwasher, ﬂush it with hot water to clear any foreign material.

” (200mm)

Notice :

After connections are made turn on the water supply to check for leaks.

7.1.4 ELECTRICAL CONNECTION

WARNING

• Make sure the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualiﬁed electrician if in doubt.

• Only connect the dishwasher to the mains when all installation and plumbing work is complete.

• Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

7.1.5 GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be installed and grounded in accordance with all local codes and ordinances.

WARNING

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualiﬁed electrician or service representative if you are in doubt whether the appliance is properly grounded.

USA

Install a strain relief (not supplied) into the opening on the kick plate. (Figure A)

Pass the electrical supply cable through the strain relief; make sure the strain relief clamps the insulated outer casing of your electrical supply cord and not the wires themselves. Leave 2 of insulated wire extending through the strain relief (Figure B). Tighten the strain relief screws. (Make sure you can not pull the electrical cord out) of the strain relief.

” “ to 3

” “ (75mm / 100mm)

Do not pre-twist the wires before connecting them with wire nuts.

Using the supplied wire nuts, connect the electrical supply wires to the dishwasher’s wires, black to black, white to white, and green or bare to green or bare. Make certain that the insulated wires show no bare wire from the bottoms of the wire nuts. Gently tug the wires to make certain they are securely connected

(Figure C).

7.1.6 FASTEN JUNCTION BOX

1. Pull the wires into the junction box. Be sure that the wire nuts do not loosen.

2. Replace the cover on the junction box.

3. Secure the cover with the screws (Figure D).

USA

7.2 READJUSTING FOOT LEVELS

(3,5mm)

Now that the dishwasher is in the cabinet you must readjust the feet to bring the dishwasher up to the required height and attach it underneath the countertop.

1. Readjust the front foot levels with adjusting wrench to balance the dishwasher and raise it up under the countertop, make sure the unit is level.

2. Readjust the rear foot levels with a screwdriver to balance the dishwasher and raise it to the required height using the brackets supplied.

3. Attach the dishwasher underneath the countertop with the four screws

supplied (Ø

” x

” - Ø 3.5mm

x 14mm). Make sure you do not go through the top of the countertop or damage granite.

7.3 ADJUSTING THE MOVABLE TOE KICK

Now that you have successfully installed the dishwasher, you need to attach the toe kick to the dishwasher. The two piece toe kick can be adjusted to the height and depth needed for your kitchen. Be sure to use the slotted toe kick in the front and the other behind it. They slide into each other.

1. Insert the movable toe kick brackets into the channel (A).

2. Make sure that the plastic tab to the left of the “L” opening on the dishwasher has not closed the channel you will push the bracket through.

Notice :

Be sure to notice there is a left and a right bracket. Adjust the toe kick brackets forward or backwards so that they will align with the kitchen toe kick (B). Lock the toe kick brackets as shown with the plastic tab in the ﬁgure C by pushing the plastic tab on the dishwasher into the teeth of the bracket (C).

3. Now attach the toe kick to the bracket with the two (Ø screws and the caps provided as follows.

USA

” x

” - Ø 4mm x 6mm)

If the enclosure height is below 33

” (840mm) use

only “o” labelled toe kick (toe kick without slots). Installation should be done following the steps illustrated in the Figures A, B and C respectively.

1. Bend tabs on toe kick (o)

inwards (A).

2. Secure toe kick to brackets with screws (t) as shown in

the supply bags (B).

3. Attach caps (s) as shown in the supply bags (C).

If the enclosure height is above 33

”

(840mm) use “o” and “p” labelled toe kicks together. Make sure the slotted toe kick “p” is on the outside so you can adjust height of the toe kick. Installation should be done following the steps illustrated in the ﬁgures A, B and C respectively.

1. Align the toe kick (o) and (p) (A).

2. Secure toe kicks to brackets with screws (t) after adjusting the height of the slotted toe kick (p) (B).

3. Attach caps (s) as shown in the supply bags (C).

7.4 INSTALLING THE OUTER DOOR (DWT 34200, DWT 34400, DWT 35200, DWT 36200, DWT 37200, DWT 37300)

Measure the height and width of the enclosure (Figure A) and the toe kick. Determine how big the wooden door can be. For example if the height is 33 (100mm) the door can not be taller than 29 (760mm).

1. Prepare the wooden door with the mounting brackets. Height : Height of the wooden door 30” (760mm) Width : 23 ¼” to 23 ½” (592mm - 595mm) Thickness : ¾ “ (19mm)

” (860mm) and if the toe kick is 3

”

USA

2. Remove the plastic mounting brackets from the dishwasher (Figure B).



mm)

221

(

221,2mm

3. Lay the schematic over the door from the bottom up and mark holes on the wooden door as shown in the drawing (Figure C).

Mid. Point

4. Place the plastic mounting brackets over the marked holes and the side tabs must be ﬂush with the edge of the wooden door (Figure D).

USA

5. Attach the two mounting brackets to the wooden

(3,5mm)

door with 4 screws (Ø (Figure A).

” x

” (Ø 3.5mm x 14mm)

6. Mount the wooden door onto the dishwasher

with the plastic mounting brackets which you have attached (Figure B).

7. Open the door and remove the two caps and

two screws inside the door at position 1 and 4 (Figure C).

USA

8. Using the four screws Ø

” x 1

” (Ø

4mm x 43mm) provided, attach the wooden door to the dishwasher at position 1 and 4 (Figure A).

Ø 3/16" (4mm)

9. Check the position of the wooden door and make sure it is aligned properly (Figure B).

Ø 3/16" (4mm)

10. Tighten the screws in position 1 and 4 completely after the ﬁnal alignment (Figure C).

USA

11. Check whether the bottom of the door hits the toe kick of the kitchen cabinet (A).

11.1. If the door hits the toe kick cut the necessary section

out of the toe kick (B).

11.2. Apply silicon or sealant to the cut edge of the kitchen cabinet toe kick or paint so it does not absorb moisture.

ADJUSTING DOOR TENSION WITH CUSTOM WOODEN DOOR (DWT 34200, DWT 34400, DWT 35200, DWT 36200, DWT 37200, DWT 37300)

Check the door tension of the dishwasher: If the door closes too quickly or if the door falls open, the spring tension needs to be adjusted.

0 kg

The adjustment screws can be found on the front of the dishwasher after you open the door (see drawing).

Adjust the spring tension by turning the screw to the right for more weight and to the left for less weight (Figure C).

USA

Notice :

If you have a European kitchen or want to install a wooden toe kick to match your kitchen, please refer to one of the two drawings given below. Follow the same instructions on the brackets as for the removable toe kick. Installation should be done following the steps illustrated in the ﬁgures A, B, C, D respectively.

(3,5mm)

(544mm)

/ 16



Blomberg DWT 15220 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
