Call Toll Free 1-888-411-2131
FOR MOULDING:
White, raisin & pan breads
Rye & whole grain breads
French bread
Subs, hoagies & hotdog rolls
Challah & pretzels
Tapered rolls & bolillos*
* with optional accessories
FOR SHEETING:
Puff pastry & Danish dough
SIMPLEX 4-24
Sheeter/Moulder
Yeast raised dough
OUTSTANDING FEATURES:
Solid, heavy duty design
Quick & easy adjustments
Produce up to 3,600 pcs/hr.
Capacity from 1 oz. to 4 lbs.
Telescoping infeed tube
Easy to remove scraper assemblies
Enclosed chain and sprocket drive
A new Bloemhof moulder can help you increase productivity and reduce labor cost,
while maintaining the quality and consistency of your finished product

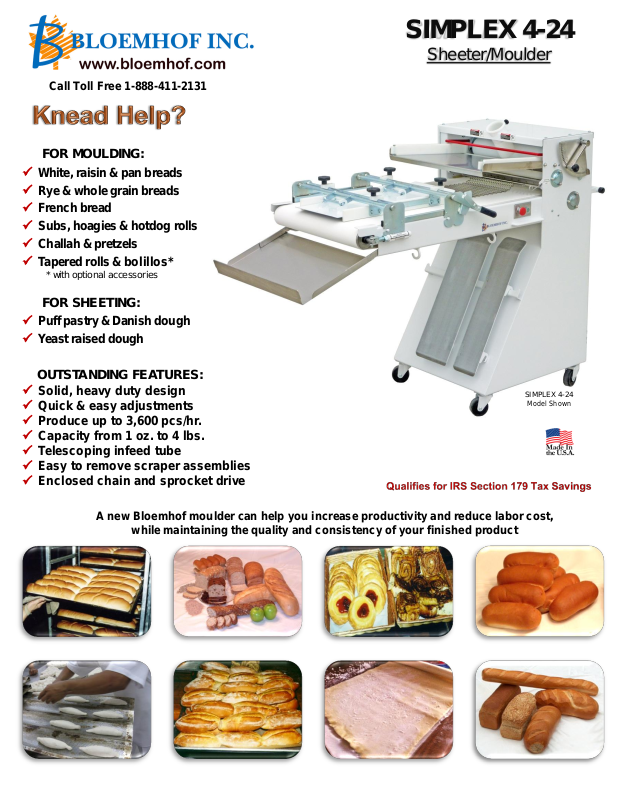

SIMPLEX 4-24
Model Shown
Page 2
Quality Bakery Equipment Since 1960
The Simplex 4-24 gives you the best of sheeting &
moulding. This combination machine is ideal for the
busy retail or in-store bakery. The heavy duty design
is simple to use and is the most reliable machine in
it’s class.
Traditional Sheeter/Moulder combinations are the
workhorse of the retail and supermarket bakery.
Sheet delicate pasty dough one minute, switch to
moulding and make hundreds of loaves
effortlessly. Several models with additional features
are available. When you need to sheet and mould in a
compact space and want a reliable machine with
legendary performance, contact Bloemhof.
MULTI-PURPOSE DESIGN
HEAVY DUTY CONSTRUCTION
REDUCE LABOUR COST & INCREASE
PRODUCTIVITY
Call Toll Free 1-888-411-2131
Simplex 4-24 Sheeter/Moulder Specifications
Rollers: 4” Diameter x 23” long synthetic rollers and scrapers, sealed heavy duty ball bearings
Motor: 3/4 HP, heavy duty motor, 1 Ph/115/230 V/ 60Hz. Heavy duty totally enclosed roller chain drive
Belt: FDA approved polyester 24” wide
Safety System: In-feed guard bar with automatic shut off
Pressure Plates 6”, 9” and 12” x 28” long flat plates standard
Shipping Weight: Approx. 765 lbs. Class 85
Machine Dimensions: 60” L x 32” W x 54” H, 72” long when catch tray is extended
OPTIONS
Variable speed AC electronic variable frequency drive
Supply Voltage: 3/4 HP, 3 Ph/208-230V/60Hz (other voltages available)
Pressure plates: Flat, 6”, 7”, 8”, 9”, 10”, 12”, 14”, 16”, 18”, 20”, 22” X 28” long. Curved Plates: 6” , 7½” wide
Other Plates are available upon request Specifications subject to change without notice
OTHER SIMPLEX MODELS
Simplex 4-24-5 5 ft. long conveyor
Simplex 4-24 TRA Top Roller Attachment for pies & pizza crusts
Simplex 4-24 BL1 Single infeed: 3,600 bolillos/hour capacity
Simplex 4-24 BL2 Double infeed: 7,200 bolillos/hour capacity
Sold By:
Manufactured by:
Bloemhof Inc. 74 MacDonald St.
Kirkland, Quebec, Canada H9J 3Z7
1-514-505-3922 [email protected]
Bloemhof USA Inc. 1215 S. Swaner Rd.
Salt Lake City, Utah, USA 84104
1-801-428-2770 [email protected]
