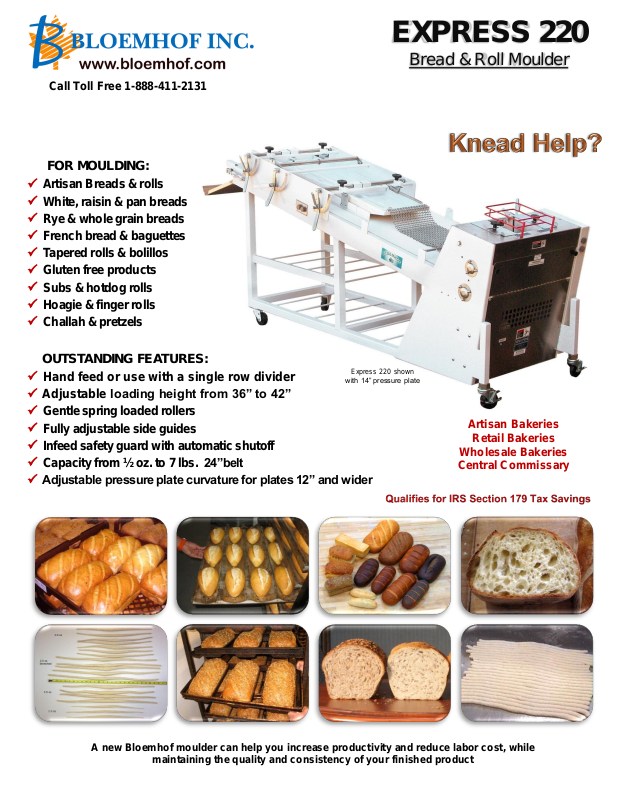

Page 1
Call Toll Free 1-888-411-2131
FOR MOULDING:
Artisan Breads & rolls
White, raisin & pan breads
Rye & whole grain breads
French bread & baguettes
Tapered rolls & bolillos
Gluten free products
Subs & hotdog rolls
Hoagie & finger rolls
Challah & pretzels
EXPRESS 220
Bread & Roll Moulder
OUTSTANDING FEATURES:
Hand feed or use with a single row divider
Adjustable loading height from 36” to 42”
Gentle spring loaded rollers
Fully adjustable side guides
Infeed safety guard with automatic shutoff
Capacity from ½ oz. to 7 lbs. 24”belt
Adjustable pressure plate curvature for plates 12” and wider
Express 220 shown
with 14” pressure plate
Artisan Bakeries
Retail Bakeries
Wholesale Bakeries
Central Commissary
A new Bloemhof moulder can help you increase productivity and reduce labor cost, while
maintaining the quality and consistency of your finished product
Page 2
Quality Bakery Equipment Since 1960
Call Toll Free 1-888-411-2131
We lowered the loading height of our popular EXPRESS 1060 moulder to reduce dough handling. The BLOEMHOF EXPRESS
220 offers you dough friendly moulders with the patented spring loaded roller system and fully adjustable side guides. The
EXPRESS 220 design uses extra long pressure plates to give the dough more time to form the correct length.
This moulder can be coupled directly to a gentle divider to eliminate the intermediate proofer. Up to 4,000 lbs./hr. capacity,
when used with a divider. Handles all your bread products from 1/2 oz to 7 lbs. with pressure plates from 3” to 22” wide
including pan breads, baguettes, challah & pretzels, tapered rolls & bolillos. These moulders handle the most difficult doughs
with up to 15% protein flour as well as traditional and long fermentation doughs for artisan breads. The resulting products have
superior oven jump and a seamless finish.
Express 220 IF2 Model with powered
infeed belt and dual pressure plates
Please see the Express 220 IF2 brochure
BLOEMHOF EXPRESS 220 Moulder Specifications
Rollers: 4” Diameter synthetic rollers and scrapers
Bearings: All sealed heavy duty ball bearings
Sprockets: Heavy duty totally enclosed roller chain drive
Motor: 1 HP, heavy duty motor, 1 Ph/115/230 V/ 60Hz
Belt: 24” wide FDA approved polyester
Safety System: In-feed guard bar with automatic shut off
Pressure Plates One per machine included (specify size)
Shipping Weight: Approx. 1200 lbs. Class 85, Net weight @900 lbs.
Dimensions: 98” L x 30” W x 46” H
OPTIONS
Master Series Control Panel for artisan breads
Electronic variable speed - 1-1/2HP upgrade
Stainless Steel Frame
Other Models: Express 220 IF1 & IF2 with powered infeed belts
Supply Voltage: 3 Ph/208-230V/60Hz (other voltages available)
Pressure plates: 3½, 4¼, 5¼, 6, 6½, 7, 8, 9, 10, 12, 14, 16, 18, 20 & 22” x 56” long.
Pressure plate curvature adjustment on plates 12” and wider. Curved pressure plates available for tapered products
Specifications subject to change without notice
Sold By:
Manufactured by:
Bloemhof Inc. 74 MacDonald St.
Kirkland, Quebec, Canada H9J 3Z7
1-514-505-3922 [email protected]
Bloemhof USA Inc. 1215 S. Swaner Rd.
Salt Lake City, Utah, USA 84104
1-801-428-2770 [email protected]
