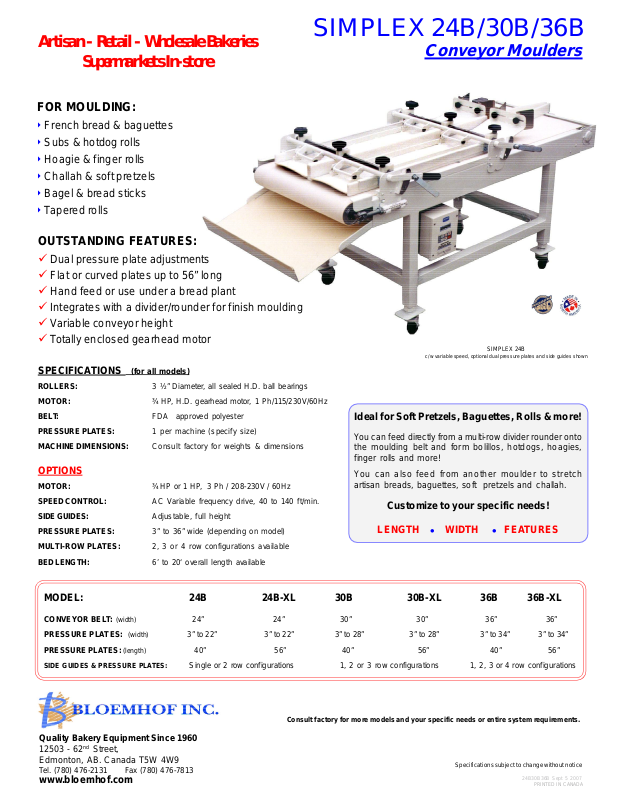

SIMPLEX 24B/30B/36B
Artisan - Retail - Wholesale Bakeries
Supermarkets In-store
FOR MOULDING:
French bread & baguettes
Subs & hotdog rolls
Hoagie & finger rolls
Challah & soft pretzels
Bagel & bread sticks
Tapered rolls
OUTSTANDING FEATURES:
Dual pressure plate adjustments
Flat or curved plates up to 56” long
Hand feed or use under a bread plant
Integrates with a divider/rounder for finish moulding
Variable conveyor height
Totally enclosed gearhead motor
SPECIFICATIONS (for all models)
ROLLERS: 3 ½” Diameter, all sealed H.D. ball bearings
MOTOR: ¾ HP, H.D. gearhead motor, 1 Ph/115/230V/60Hz
BELT: FDA approved polyester
PRESSURE PLATES: 1 per machine (specify size)
MACHINE DIMENSIONS: Consult factory for weights & dimensions
OPTIONS
MOTOR: ¾ HP or 1 HP, 3 Ph / 208-230V / 60Hz
SPEED CONTROL: AC Variable frequency drive, 40 to 140 ft/min.
SIDE GUIDES: Adjustable, full height
PRESSURE PLATES: 3” to 36” wide (depending on model)
MULTI-ROW PLATES: 2, 3 or 4 row configurations available
BED LENGTH: 6’ to 20‘ overall length available
Conveyor Moulders
c/w variable speed, optional dual pressure plates and side guides shown
Ideal for Soft Pretzels, Baguettes, Rolls & more!
You can feed directly from a multi-row divider rounder onto
the moulding belt and form bolillos, hotdogs, hoagies,
finger rolls and more!
You can also feed from another moulder to stretch
artisan breads, baguettes, soft pretzels and challah.
Customize to your specific needs!
LENGTH WIDTH FEATURES
SIMPLEX 24B
MODEL: 24B 24B-XL 30B 30B-XL 36B 36B-XL
CONVEYOR BELT: (width) 24” 24” 30” 30” 36” 36”
PRESSURE PLATES: (width) 3” to 22” 3” to 22” 3” to 28” 3” to 28” 3” to 34” 3” to 34”
PRESSURE PLATES: (length) 40” 56” 40” 56” 40” 56”
SIDE GUIDES & PRESSURE PLATES: Single or 2 row configurations 1, 2 or 3 row configurations 1, 2, 3 or 4 row configurations
Consult factory for more models and your specific needs or entire system requirements.
Quality Bakery Equipment Since 1960
12503 - 62nd Street,
Edmonton, AB. Canada T5W 4W9
Tel. (780) 476-2131 Fax (780) 476-7813
www.bloemhof.com
Specifications subject to change without notice
24B30B36B Sept 5 2007
