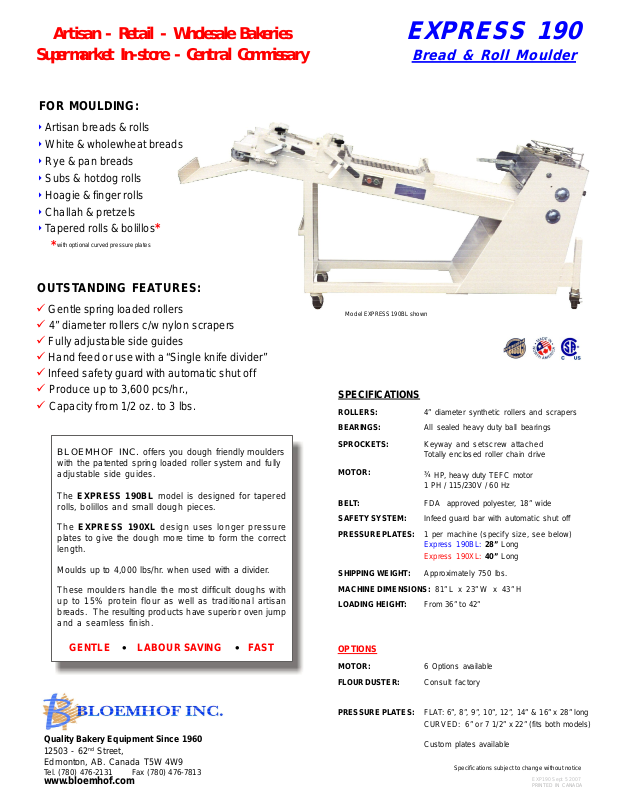

Page 1
Artisan - Retail - Wholesale Bakeries
EXPRESS 190
Supermarket In-store - Central Commissary
FOR MOULDING:
Artisan breads & rolls
White & wholewheat breads
Rye & pan breads
Subs & hotdog rolls
Hoagie & finger rolls
Challah & pretzels
Tapered rolls & bolillos*
with optional curved pressure plates
*
OUTSTANDING FEATURES:
Gentle spring loaded rollers
4” diameter rollers c/w nylon scrapers
Fully adjustable side guides
Hand feed or use with a “Single knife divider”
Infeed safety guard with automatic shut off
Produce up to 3,600 pcs/hr.,
Capacity from 1/2 oz. to 3 lbs.
Bread & Roll Moulder
Model EXPRESS 190BL shown
SPECIFICATIONS
ROLLERS: 4” diameter synthetic rollers and scrapers
BEARINGS: All sealed heavy duty ball bearings
BLOEMHOF INC. offers you dough friendly moulders
with the patented spring loaded roller system and fully
adjustable side guides.
The EXPRESS 190BL model is designed for tapered
rolls, bolillos and small dough pieces.
The EXPRESS 190XL design uses longer pressure
plates to give the dough more time to form the correct
length.
Moulds up to 4,000 lbs/hr. when used with a divider.
These moulders handle the most difficult doughs with
up to 15% protein flour as well as traditional artisan
breads. The resulting products have superior oven jump
and a seamless finish.
GENTLE LABOUR SAVING FAST
Quality Bakery Equipment Since 1960
12503 - 62nd Street,
Edmonton, AB. Canada T5W 4W9
Tel. (780) 476-2131 Fax (780) 476-7813
www.bloemhof.com
SPROCKETS: Keyway and setscrew attached
Totally enclosed roller chain drive
MOTOR:
BELT: FDA approved polyester, 18” wide
SAFETY SYSTEM: Infeed guard bar with automatic shut off
PRESSURE PLATES: 1 per machine (specify size, see below)
SHIPPING WEIGHT: Approximately 750 lbs.
MACHINE DIMENSIONS: 81” L x 23” W x 43” H
LOADING HEIGHT: From 36” to 42”
OPTIONS
MOTOR: 6 Options available
FLOUR DUSTER: Consult factory
PRESSURE PLATES: FLAT: 6”, 8”, 9”, 10”, 12”, 14” & 16” x 28” long
¾
HP, heavy duty TEFC motor
1 PH / 115/230V / 60 Hz
Express 190BL: 28” Long
Express 190XL: 40” Long
CURVED: 6” or 7 1/2” x 22” (fits both models)
Custom plates available
Specifications subject to change without notice
EXP190 Sept 5 2007
PRINTED IN CANADA
