XCEL-50EC
HALF SIZE CONVECTION OVEN
REPLACEMENT PARTS LIST
EFFECTIVE NOVEMBER 26, 2013
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 54805
SERIAL NUMBER LOCATION / KEY:
IMPORTANT: When ordering parts, please provide the model,
gas type and serial number of the oven. The identication plate
is located on the left side of the combustion compartment and,
also, above the control panel under the ledge.
SERIAL NUMBER IDENTIFICATION CODE:
DK- XCEL-50EC
SERIAL NUMBER EXAMPLES
112008DK001T (NEW STYLE)
11/20/08 = DATE
DK = LETTER CODE FOR MODEL NAME
001 = FACTORY SEQUENCE
TO OBTAIN LITERATURE:
Email: literature@blodgett.com
or visit
www.blodgett.com
NOVEMBER 26, 2013 2 XCEL-50EC
TABLE OF CONTENTS
Doors Are Not Returnable
CONTROL PANEL ASSEMBLY .................................................. PAGE 4
ELECTRICAL COMPONENTS ................................................... PAGE 5
DRAIN ACTUATOR AND DRAIN HOSE ........................................... PAGE 6
POWER DISTRIBUTION ASSEMBLY ............................................. PAGE 7
DOOR ASSEMBLY PARTS ....................................................... PAGE 8
DOOR LOCK ASSEMBLY ........................................................ PAGE 9
EXTERIOR COMPONENTS (FRONT) ........................................... PAGE 10
INTERIOR COMPONENTS ..................................................... PAGE 11
EXTERIOR COMPONENTS (REAR) ............................................. PAGE 12
BACKPANEL ASSEMBLY ....................................................... PAGE 13
OVEN STAND ................................................................. PAGE 14
NOVEMBER 26, 2013 3 XCEL-50EC
Front View
CONTROL PANEL ASSEMBLY
3
1
2
Rear View
5
Ref. Part
No. No. Description
1 51014 KFC Control
RC0001 KFC Control, Reconditioned
2 52130 Relay Board
3 52205 2 Position Rotary Switch
4 52185 Circuit Breaker
5 R4413 Rack Handle
6 38605 Terminal Block
7 52046 Panel Assembly
39995 Harness, line voltage
51995 Harness, control, 24V (includes item #6)
52179 Harness, Vertical Comm
6
7
4
NOVEMBER 26, 2013 4 XCEL-50EC
ELECTRICAL COMPONENTS
12
13
8
14
1
11
10
9
5
7
6
4
3
2
Ref. Part
No. No. Description
1 53554 Motor, 220V, 1/2HP
53899 Motor Shaft Seal Kit (Not Pictured)
2 50818 Inverter Drive, 230V
3 50089 Oven Cavity Temperature Probe with Fitting, 1K OHM
39504 Probe, Inverter (Not Pictured), 1K OHM
4 R11255 Terminal Block
5 52948 Transformer
6 50937 Thermostat, Hermetic (Hi-Limit)
7 38965 Stand Off (For Hi-Limit)
8 39378 Terminal Block, 5 Pos., 12 pin
9 52691 Water Supply Inlet Tube
53565 Inlet Tube Insulation
50891 Elbow, Water Inlet (inside oven)
10 52692 Recirculation Tube
50890 Elbow, Cleaning System (inside oven)
11 52947 Axial Fan, 5 inch, 24 VDC (qty 4)
12 52946 Power Supply Assembly, 24VDC
13 51028 Transformer, 208V
52142 Transformer, 240V
53283 Circuit breaker (24 VAC circuit)
14 53572 Circuit Breaker Kit
52153 Washer, Motor Shaft Seal (Not Pictured)
NOVEMBER 26, 2013 5 XCEL-50EC

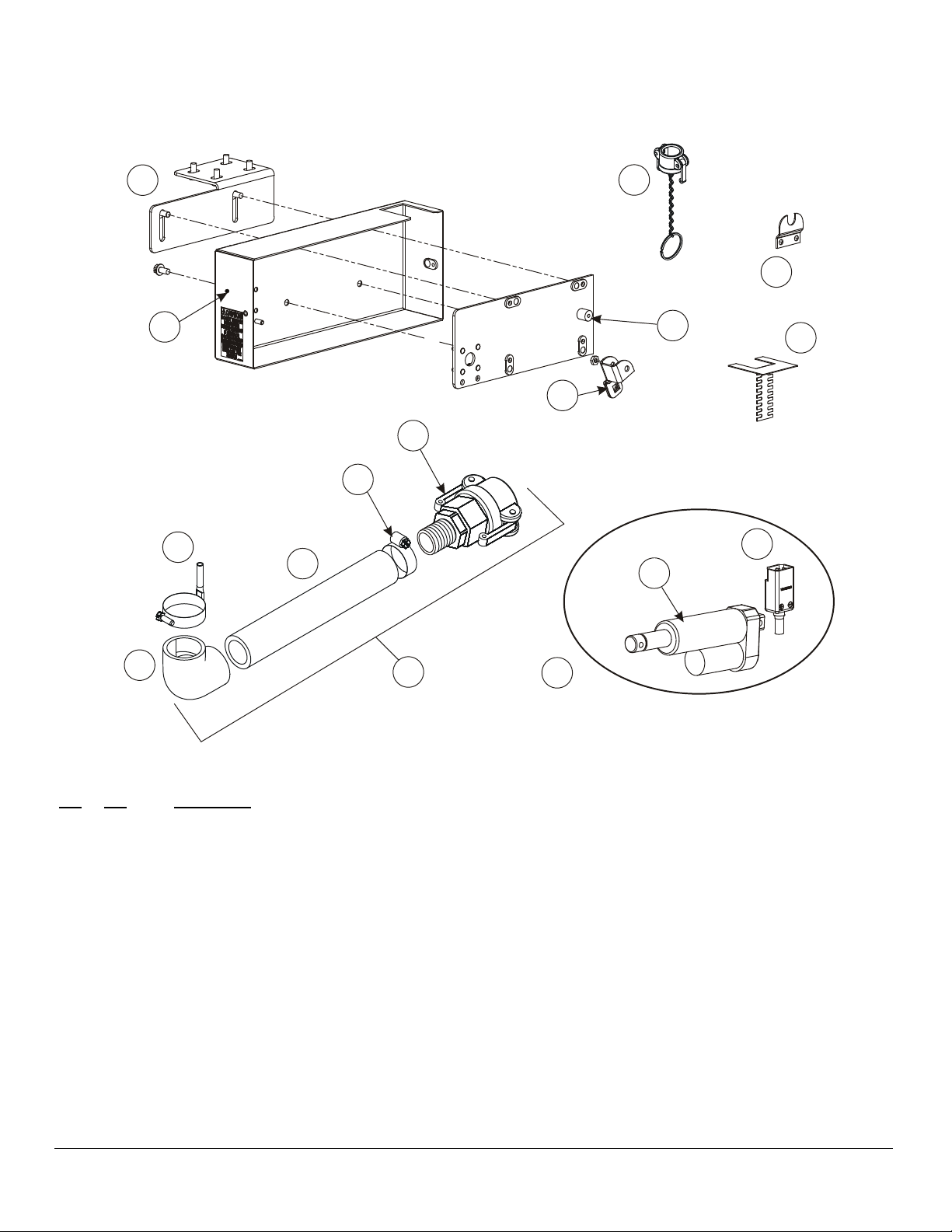

DRAIN ACTUATOR AND DRAIN HOSE
8
15
7
3
1
9
2
14
11
13
10
5
6
12
Ref. Part
No. No. Description
1 50769 Actuator plate
2 50770 Actuator arm
3 50864 Actuator housing
50865 Actuator cover (not pictured)
4 52656 Actuator & Plug assembly (Includes Items 5 & 6)
5 50617 Actuator, 24 VDC, 2" stroke
6 50951 Plug, 3 prong, rewire-able
7 50899 Actuator arm retainer
8 50866 Actuator bracket
9 51919 Bracket, drain actuator connector
10 50997 Drain hose (order by the ft)
11 R9757 Clamp, hose
12 51777 Elbow, 1" PVC
13 52007 Drain hook assembly
14 52675 Drain tting assembly
15 51207 Drain cap assembly
16 51382 20' Drain hose assembly (includes items 10 through 14)
16 52165 30' Drain hose assembly (includes items 10 through 14)
16
4
NOVEMBER 26, 2013 6 XCEL-50EC
POWER DISTRIBUTION ASSEMBLY
5
4
3
1
2
Ref. Part
No. No. Description
39228 Power Distribution Assembly (3 PH)
52176 Power Distribution Assembly (1PH)
1 39120 SS Relay & Heatsink Ass’y (Includes item 2)
2 51500 Thermostat
3 52152 Contactor, 24VDC, 60A Resistive
4 52332 Circuit Breaker, 50A, (3PH)
52333 Circuit Breaker, 32A, (1PH)
5 39733 Terminal Block Assembly (3 PH)
52169 Terminal Block Assembly (1 PH)
50159 Harness, Contactor
51293 Harness, Element (3PH)
52167 Harness, Element (Add-on for 1PH)
NOVEMBER 26, 2013 7 XCEL-50EC
DOOR ASSEMBLY PARTS
10
11
2
4
1
5
Ref. Part
No. No. Description
1 51129 Door Handle Assembly with Screws
39223 Screws, For Door handle, M5x10HWH (Qty 3)
2 50464 Top Door Hinge
R6237 Screw, 1/4-20X3/8 Hex, For Top Hinge(Qty 2)
M0417 Lock Washer, ¼”, For Top and Bottom Hinges (Qty 4)
3 50731 Bottom Door Hinge
51048 Screw, HHC, 1/4-20 X 5/8, For Bottom Hinge (Qty 2)
4 16470 Blodgett Nameplate
R2160 Retainer (qty 3)
5 38623 XCEL Nameplate
R2160 Retainer (qty 2)
6 52657 Hinge Stop Bearing and Screws
7 52005 Door Magnet
8 R7753 Magnet Cup
9 52198 Magnet Cup Spacer
10 52707 Door Latch Cover with Screws
11 52196 Complete Door Assembly (includes items 4 through 9)
53566 Door Stop (if door can open beyond 180 degrees)
7
9
6
8
3
NOVEMBER 26, 2013 8 XCEL-50EC
DOOR LOCK ASSEMBLY
Ref. Part
No. No. Description
55408 Door Lock Assembly (Includes All Items on Page)
1 18265 Indicator Light
2 52082 Door Lock Control
3 54280 Door Switch Assembly
52129 Door Lock Assembly (Includes items 4 through 12)
4 54338 Door Lock Piston Base with Bearing
5 52076 Door Lock Rod
6 52074 Door Lock Piston Barrel
52075 Bearing, Flanged, Door Piston Barrel (Not Pictured)
7 52066 Door Lock Cam
8 51856 Motor
9 52077 Door Lock Rod Pin
10 37392 Micro Mini Switch (Qty 2)
12 52127 Ball Joint
52125 Harness, Door Lock
NOVEMBER 26, 2013 9 XCEL-50EC
10
1

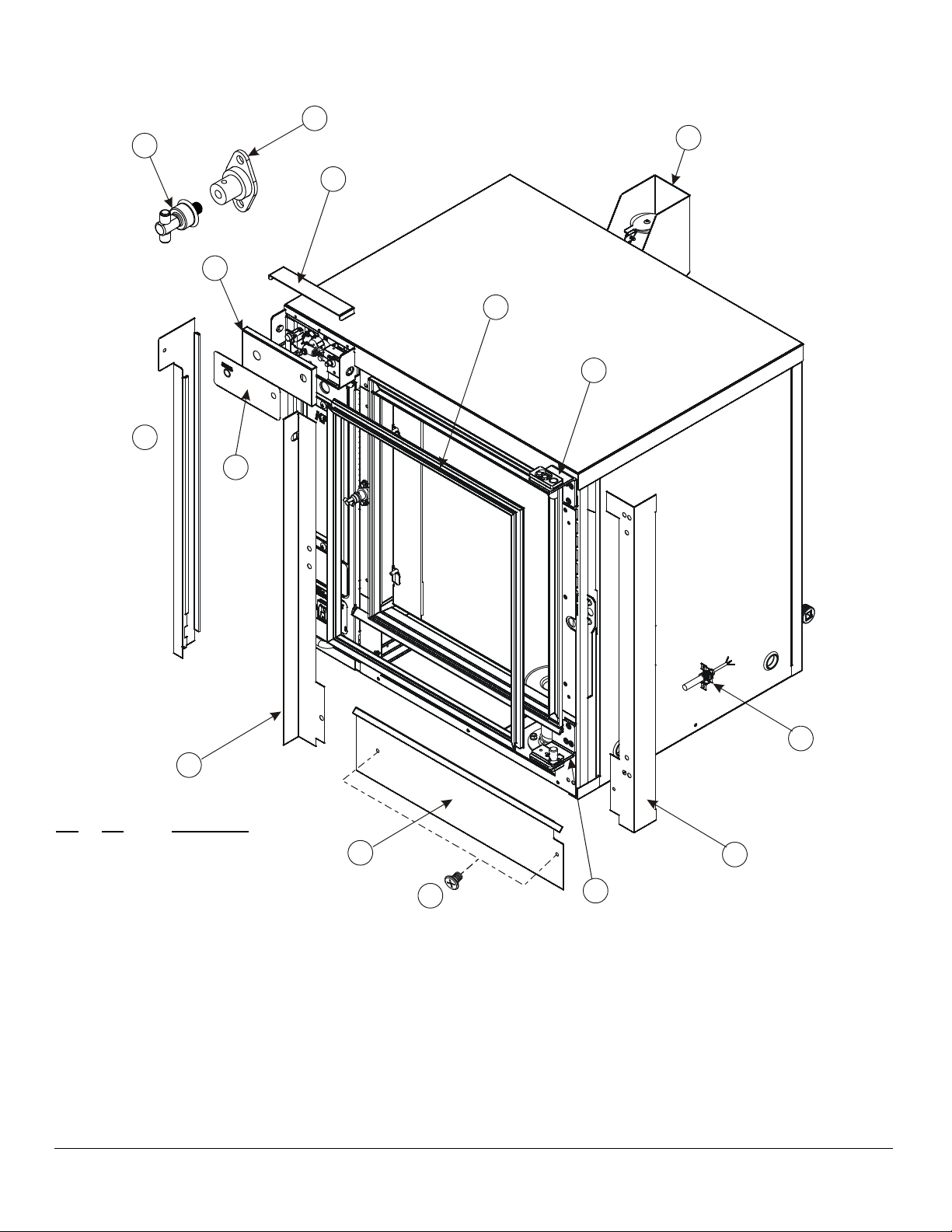

EXTERIOR COMPONENTS (FRONT)
11
15
5
6
9
13
7
8
3
Ref. Part
No. No. Description
1 52112 LH Front Cover Trim
2 52121 RH Front Cover Trim
3 52080 Center Trim
4 51787 Body Panel, Front
5 52071 Door Lock Top Cover Trim
6 52147 Door Lock Cover
7 52102 Decal, Door Lock
8 50955 Magnetic Proximity Sensor
52174 Magnetic Sensor w/Bracket Kit
9 56150 Door Gasket with Handle CAM
10 52658 “T” Latch kit W/Gauge
11 51877 Base for “T” Latch, W/Hardware
52162 Door switch Nut, Brass
12 33005 Shoulder Bolt (For 51787)
13 50494 Hinge Bracket, Upper
14 50975 Hinge Bracket, Lower
15 53418 Vent Guard w/Key Slots
NOVEMBER 26, 2013 10 XCEL-50EC
4
12
14
2
INTERIOR COMPONENTS
4
2
5
6
Ref. Part
No. No. Description
1 50598 Bafe
2 50592 Pan Support (Qty 2)
52873 Blower Wheel Assembly
4 52001 Strainer
5 56655 Element Assembly 208V (includes gasket)
56656 Element Assembly 240V (includes gasket)
6 50911 Gutter
1
NOVEMBER 26, 2013 11 XCEL-50EC

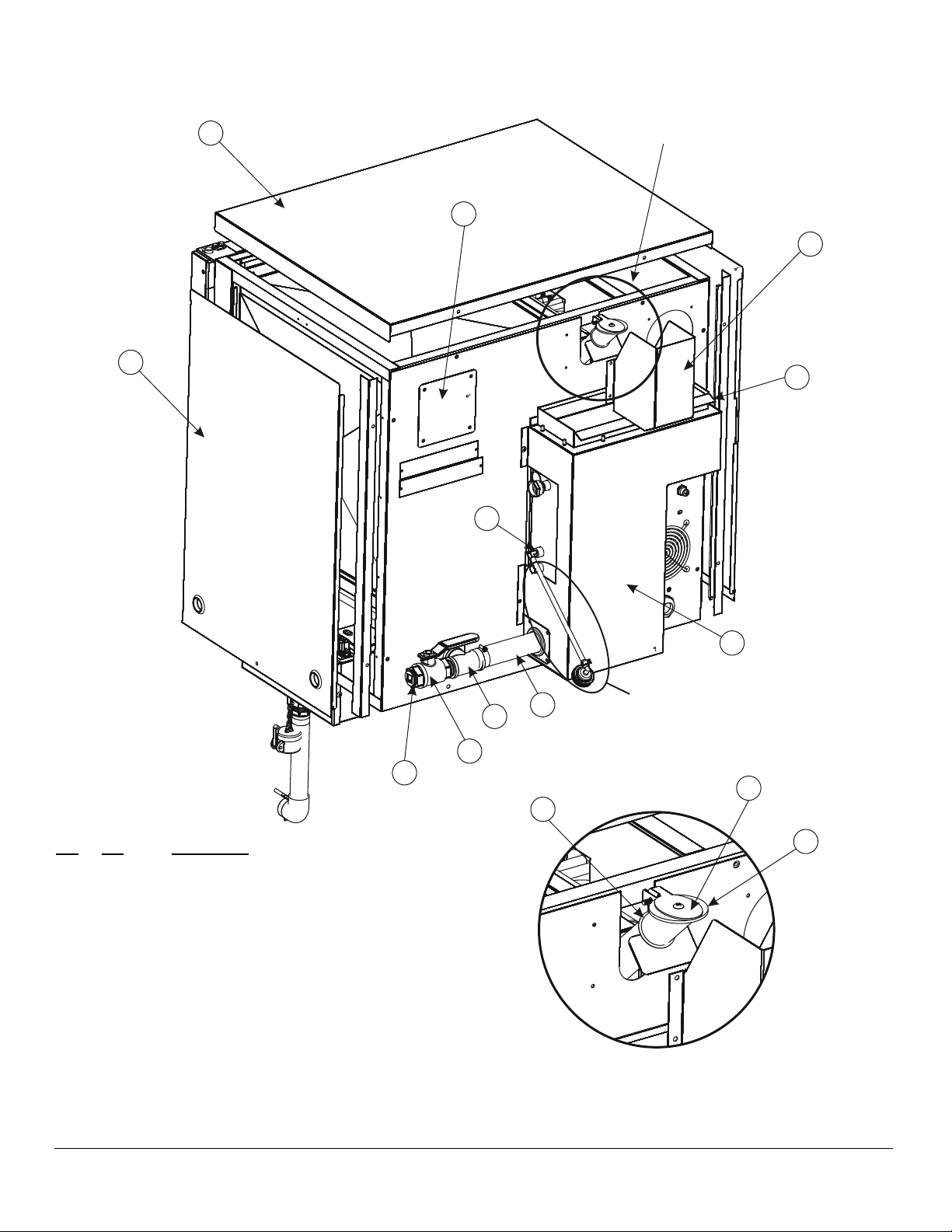

EXTERIOR COMPONENTS (REAR)
SEE
2
14
DETAIL A
3
1
Ref. Part
No. No. Description
10
5
4
7
6
Purchased separately
from Kay Chemical.
See label on oven for
8
contact info.
9
11
13
12
1 52120 Body Side (Left or Right)
2 39147 Body Top
3 53418 Vent Guard
4 50883 Backpack Cover Panel
(For Backpack components see 50971 detail)
5 53995 Barbed Fitting, ¼ x ¼ NPT, Brass
6 53755 Hose, 1-5/8” OD, Silicone (10" Section)
7 52134 Tee, 1” NPT, Brass
55342 Street Elbow, 1"
8 52135 Ball Valve, 1” NPT Brass
9 52138 Plug, 1” NPT Square Socket Brass
10 50993 Vent Drip Pan
11 50892 Vent Lid
12 39777 Vent Lid, Teon
13 51326 O-Ring
14 52132 Vent Cover
NOVEMBER 26, 2013 12 XCEL-50EC

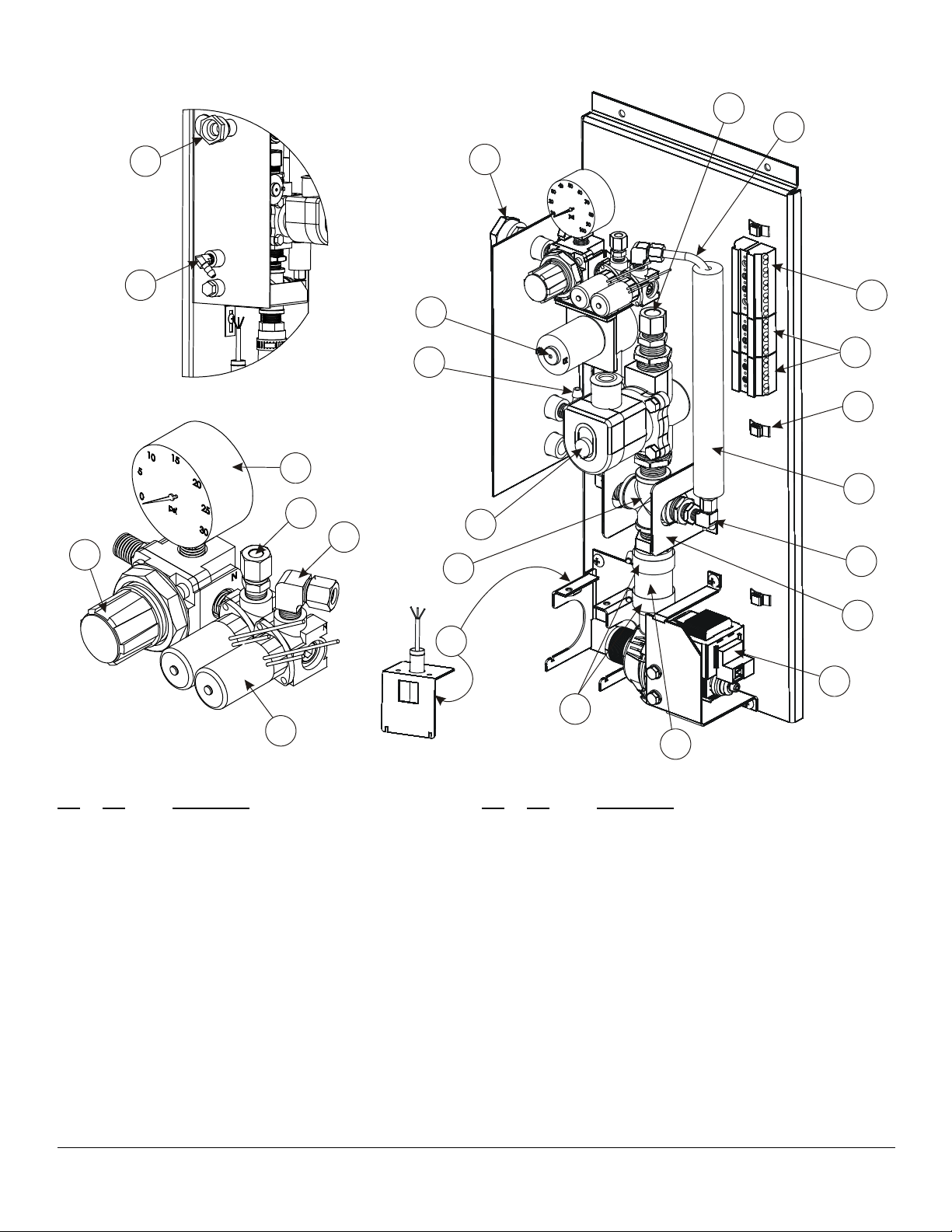

DETAIL A
BACK PACK ASSEMBLY
20
2
14
22
1
1
6
3
21
12
11
15
10
17
9
18
4
18
13
Ref. Part
No. No. Description
50971 Backpack Assembly
(Includes all of the following parts)
1 50261 Hose Filter
2 50953 Water Supply Tube
3 50321 Pump, 24VDC, Peristaltic
54035 Pump Cartridge w/Fittings
4 55108 Cross Pipe, ½” NPT, s/s
5 50881 Cross Bracket, 2 Piece Design
55335 Cross Bracket, 1 Piece Design
6 50952 Terminal Block, 5 Position, Push in
7 50954 Circulation Pump, 24VAC
8 R1088 Hose, 7/8” ID (by the foot)
9 51001 Solenoid Valve, ¾” NPT
10 51033 Insulation Tube, ¼” (by the inch)
11 50106 Push Wing Mount (Qty 3)
12 R11255 Terminal Block (Qty 2)
13 39796 Solenoid Assembly, 24V, Dual
14 50657 Water Pressure Regulator, 1-100 PSI
5
16
7
19
8
Ref. Part
No. No. Description
15 18411 Pressure Gauge
51128 Water Regulator Assembly
(includes items 14 & 15)
16 51843 Sensor, Water
52232 Spacer, For Water Sensor (Not Pictured)
17 M0959 Compression Fitting, Straight
18 21225 Compression Elbow, 1/8 NPT x ¼” Comp.
19 R0254 Hose Clamp, ¾-1-1/2” (QTY 2)
20 55348 Compression Fitting, S/S, ¾ NPT x ½” Comp.
21 53995 Fitting, Elbow 3/16 Barb x 1/4 NPT
22 56725 Fitting, Elbow 1/4 Barb x 1/4 NPT
54107 Hose Clamp, 1/4-5/16" (qty 2)
55107 Reducer 3/4" NPT to 1/2" NPT s/s
55112 Reducer 1/2" NPT to 1/4" NPT s/s
55111 Reducer 1/4" NPT to 1/8" NPT s/s
55109 Nipple, 1/2" NPT s/s
55113 Adapter, 1/2" NPT x .92 Barb
NOVEMBER 26, 2013 13 XCEL-50EC
OVEN STAND & OTHER ACCESSORIES
1
2
3
7
5
4
6
Ref. Part
No. No. Description
1 39925 XCEL-50EC Stand Assembly, 39”
52248 XCEL-50EC Stand Assembly, 24”
52237 XCEL-50EC Stand Assembly, 16”
2 52009 Bottle Holder Assembly W/Hardware
3 33528 Set x 4 Casters, Adj. Round Stem (For 39” stands built before 08-09)
52324 Set x 4 Casters, Square Mount (For 24”&16” stands or 39" stands built after 08-09)
Note: All Stand Assemblies above include Casters. The 39” stand includes Casters and 52009 Bottle Holder
4 50907 Dump Drain Assembly (For units with 39” & 24” Stands)
5 52183 Dump Drain Assembly (For units with 16” Stands)
6 54286 Air Intake Vent Assembly Kit (For units with 39” Stand)
54287 Air Intake Vent Assembly Kit (For units with 24” Stand)
R0469 Water Supply Hose, 8'
7 50909 Nipple, 1" NPT x 3" S/S
NOVEMBER 26, 2013 14 XCEL-50EC
